Reversibilidad de la puerta
Desconecte el enchufe antes de efectuar cualquier
tipo de operación.
Para cambiar la dirección de apertura de la puerta,
proceda de la manera siguiente:
1. Extraiga la rejilla de ventilación (D) encajada.
2. Desmonte el cubreagujero (G) y la bisagra
inferior (E) desenroscando los dos tornillos que
la fijan.
3. levante y saque la puerta del perno (G),
desenrosque el perno y colóquelo en el lado
opuesto;
4. Quite los dos tapones de las puertas (donde
están previstos), dejando descubiertos los
agujeros para los pernos de la bisagra y vuelva a
montarlos en el lado opuesto;
5. vuelva a montar la puerta;
6. Con una llave de 10 mm desenrosque el perno de
la bisagra (E) y vuelva a montarlo en el lado
opuesto de la bisagra.
7. Vuelva a montar la bisagra inferior (E) en el lado
opuesto utilizando los tornillos que se habían
quitado; introduzca los cubreagujeros (G) en la
bisagra inferior. Quite los cubreagujeros (F) de la
rejilla de ventilación (D) empujándolos en el
sentido de la flecha y móntelos nuevamente en el
lado opuesto.
8. Vuelva a montar la rejilla de ventilación (D)
encajándola.
9. Desenrosque la manilla. Colóquelas nuevamente
en el lado opuesto después de haber perforado
los tapones con un punzón. Cubra los agujeros
que han quedado descubiertos con los tapones
contenidos en la bolsita entregada junto con la
documentación.
Atención
Terminada la operación de reversibilidad de la
puerta, controlar que la empaquetadura magnética
esté adherida al mueble. Si la temperatura ambiente
es fría (por ejemplo en invierno), puede suceder que
la empaquetadura no adhiera perfectamente al
mueble. En este caso esperar que la
empaquetadura se recobre en forma natural o bien
acelerar dicho proceso calentando la parte
interesada con un normal secador de cabellos.
Distanciadores posteriores
En la bolsita de la documentacion hay dos
distanciadores que deberàn ser montados como se
muestra en la figura.
Aflojar los tornillos, introducir el distanciador debajo
de la cabeza del tronillo y volver a atornillar.
19
Rear spacers
In the bag with the documentation, there are two
spacers which must be fitted in the two top
corners.
Slacken the screws and insert the spacer under the
screw head, then re-tighten the screws.
D594
Changing the opening direction of
the doors
Before carrying out any operations, remove the plug
from the power socket.
To change the opening direction of the door,
proceed as follows:
1. pull off the ventilation grille (D) which is clipped
into place;
2. remove the bottom hinge (E) by unscrewing its
three fixing screws;
3. remove the door, releasing it from the upper pin
(G);
4. unscrew the upper pin (G) and refit it on the
opposite side;
5. remove the two plugs of the door (where
available), discovering the holes for the hinge
pins, assemble them on the opposite side;
6. reassemble the door;
7. using a 10 mm spanner, unscrew the hinge pin
(E) and reassemble it on the opposite side of the
hinge;
8. reassemble the lower hinge (E) on the opposite
side, using the screws previously removed; insert
the hole cover (G) on the lower hinge. Slide the
hole cover (F) out of the ventilation grille (D) by
pushing it in the direction of the arrow and
reassemble it on the opposite side;
9. refit the ventilation grille (D), clipping it into
place.
10.Dismantle the handle and reassemble it on the
opposite side. Cover the holes left open with the
plugs contained in the documentation pack.
Warning:
After having reversed the opening direction of
the doors check that all the screws are properly
tightened and that the magnetic seal adheres to
the cabinet. If the ambient temperature is cold
(i.e. in Winter), the gasket may not fit perfectly to
the cabinet. In that case, wait for the natural
fitting of the gasket or accelerate this process by
heating up the part involved with a normal
hairdrier.
G
F
F
D
F
F
E
E
D594
G
E
F
D
F
E
F
F
11
WARNINGS
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move house
and leave the appliance, always ensure that the book is supplied with the appliance in order that the
new owner can be acquainted with the functioning of the appliance and the relevant warnings.
If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock
(latch) on the door or lid, be sure to make that spring lock unusable before you discard the old
appliance. This will prevent it from becoming a death-trap for a child.
These warnings are provided in the interest of safety.You must read them carefully before installing or
using the appliance.
General Safety
• This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the product.
• It is dangerous to alter the specifications or
modify this product in any way.
• Before any cleaning or maintenance work is carried
out, be sure to switch off and unplug the appliance.
• This appliance is heavy. Care should be taken
when moving it
• Ice lollies can cause frost burns if consumed
straight from the appliance.
• Take utmost care when handling your
appliance so as not to cause any damages to
the cooling unit with consequent possible
fluid leakages.
• The appliance must not be located close to
radiators or gas cookers.
• Avoid prolonged exposure of the appliance to
direct sunlight.
• There must be adequate ventilation round the
back of the appliance and any damage to the
refrigerant circuit must be avoided.
• For freezers only (except built-in models): an
ideal location is the cellar or basement.
• Do not use other electrical appliances (such
as ice cream makers) inside of refrigerating
appliances.
Service/Repair
• Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person
• This product should be serviced by an authorized
Service Centre, and only genuine spare parts
should be used.
• Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or
more serious malfunctioning. Refer to your local
Service Centre, and always insist on genuine
spare parts.
• This appliance contains hydrocarbons in its
cooling unit; maintenance and recharging must
therefore only be carried out by authorized
technicians.
Use
• The domestic refrigerators and freezers are
designed to be used specifically for the storage
of edible foodstuffs only.
• Best performance is obtained with ambient
temperature between +18°C and +43°C (class T);
+18°C and +38°C (class ST); +16°C and +32°C
(class N); +10°C and +32°C (class SN).The
class of your appliance is shown on its rating
plate.
Warning: when the ambient temperature is not
included within the range indicated for the class
of this appliance, the following instructions must
be observed: when the ambient temperature
drops below the minimum level, the storage
temperature in the freezer compartment cannot
be guaranteed; therefore it is advisable to use the
food stored as soon as possible.
• Frozen food must not be re-frozen once it has
been thawed out.
• Manufacturers’ storage recommendations should
be strictly adhered to. Refer to relevant
instructions.
• The inner lining of the appliance consists of
channels through which the refrigerant passes. If
these should be punctured this would damage the
appliance beyond repair and cause food loss. DO
NOT USE SHARP INSTRUMENTS to scrape off
frost or ice. Frost may be removed by using the
scraper provided. Under no circumstances should
solid ice be forced off the liner. Solid ice should be
allowed to thaw when defrosting the appliance.
• Do not place carbonated or fizzy drinks in the
freezer as it creates pressure on the container,
which may cause it to explode, resulting in
damage to the appliance.
18
Electrical connection
Before plugging in, ensure that the voltage and
frequency shown on the serial number plate
correspond to your domestic power supply. Voltage
can vary by ±6% of the rated voltage.
For operation with different voltages, a suitably sized
auto-transformer must be used.
The appliance must be earthed.
The power supply cable plug is provided with a
contact for this purpose.
If the domestic power supply socket is not earthed,
connect the appliance to a separate earth in
compliance with current regulations, consulting a
specialist technician.
The Manufacturer declines all responsibility if
the above safety precautions are not observed.
This appliance complies with the following
E.E.C. Directives:
- 87/308 EEC of 2/6/87 relative to radio interference
suppression.
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and
subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
INSTALLATION
Location

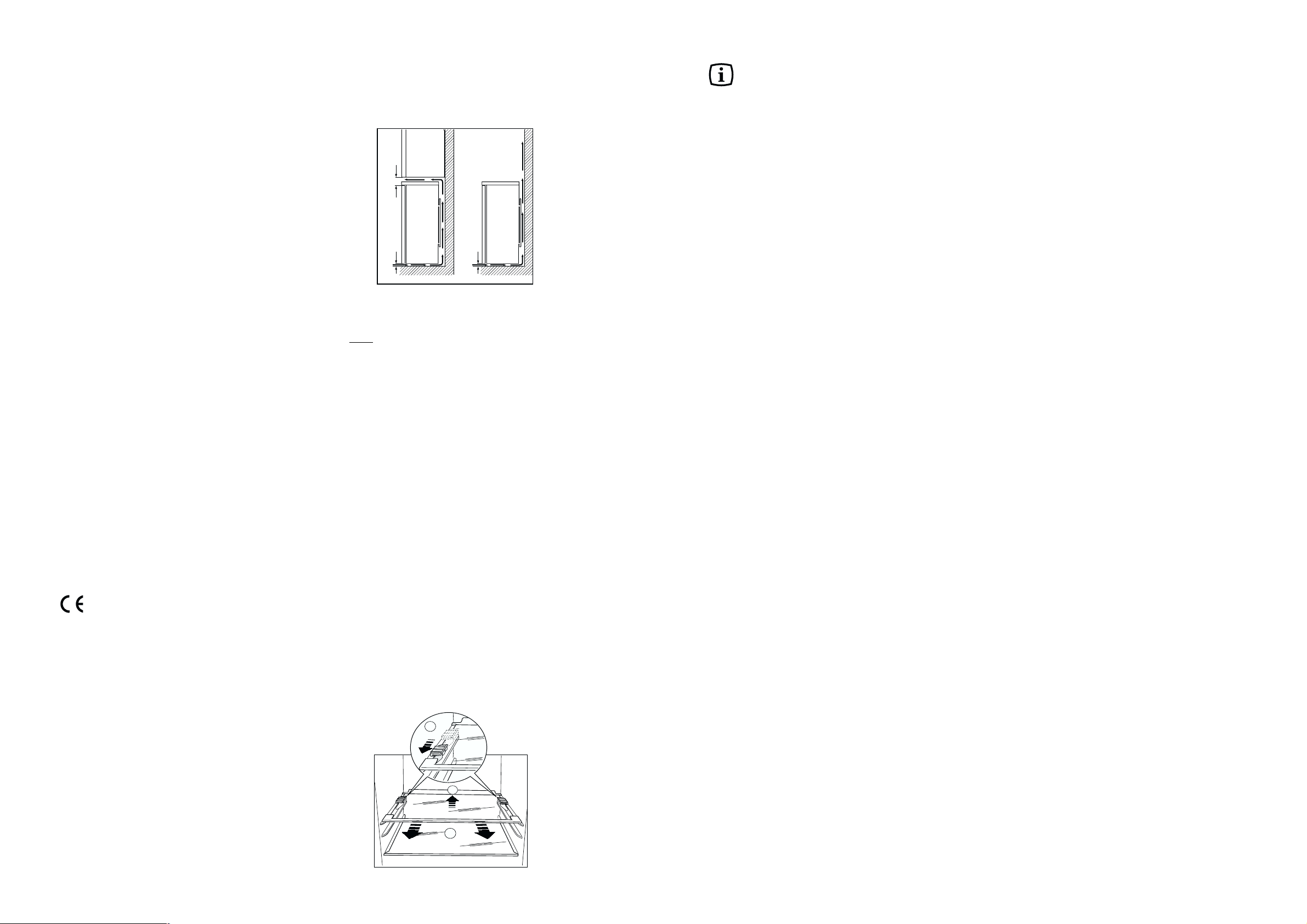

The appliance should be installed well away from
sources of heat such as radiators, boilers, direct
sunlight etc.
Ensure that air can circulate freely around the back
of the cabinet. To ensure best performance, if the
appliance is positioned below an overhanging wall
unit, the minimum distance between the top of the
cabinet and the wall unit must be at least 100 mm
(A). Ideally, however, the appliance should not be
positioned below overhanging wall units (B).
Accurate levelling is ensured by one or more
adjustable feet at the base of the cabinet.
It must be possible to disconnect the appliance from
the mains power supply; the plug must therefore be
easily accessible after installation
Shelf holders
Your appliance is equipped with shelf retainers that
make it possible to secure the shelves during
transportation.
To remove them proceed as follows:
Move the shelf holders in the direction of the arrow,
raise the shelf from the rear and push it forward until
it is freed and remove the retainers.
100 mm10 mm
A
NP006
B
10 mm
A
B
C
12
CONTENTS
Warnings 11
Use 13
Cleaning the interior 13
Control panel 13
Operation 13
Fresh food refrigeration 14
Movable shelves 14
Positioning the door shelves 14
Bottle holder 14
Air recycling 15
Hints 16
Hints for refrigeration 16
Maintenance 16
Periodic cleaning 16
Periods of no operation 16
Interior light 16
Defrosting 17
Customer service and spare parts 17
Installation 18
Location 18
Electrical connection 18
Shelf holders 18
Rear spacers 19
Changing the opening direction of the door 19
Environment Protection
This appliance does not contain gasses which
could damage the ozone layer, in either its
refrigerant circuit or insulation materials.The
appliance shall not be discarded together with
the urban refuse and rubbish. Avoid damaging
the cooling unit, especially at the rear near the
heat exchanger. Information on your local
disposal sites may be obtained from municipal
authorities.The materials used on this appliance
marked by the symbol are recyclable.
Disposal of old Appliances
The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detailed
information about recycling of this product, please
contact your local city office, your household waste
disposal service or the shop where you purchased
the product.
Installation
• During normal operation, the condenser and
compressor at the back of the appliance heat up
considerably. For safety reasons, minimum
ventilation must be as shown in the instructions.
Attention: keep ventilation openings clear of
obstruction.
• Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Important: if the supply cord is damaged, it must
be replaced by a special cord or assembly available from the manufacturer or its service agent.
• If the appliance is transported horizontally, it is
possible that the oil contained in the compressor
flows in the refrigerant circuit. It is advisable to
wait at least two hours before connecting the
appliance to allow the oil to flow back in the
compressor.
• There are working parts in this product which
heat up. Always ensure that there is adequate
ventilation as a failure to do this will result in
component failure and possible food loss. See
installation instructions.
• Parts which heat up should not be exposed.
Wherever possible the back of the product should
be against a wall.
17
CUSTOMER SERVICE AND SPARE PARTS
If the appliance is not functioning properly, check
that:
• the plug is firmly in the wall socket and the mains
power switch is on;
• there is an electricity supply (find out by plugging
in another appliance);
• the thermostat knob is in the correct position.
• If there are water drops on the bottom of the
cabinet, check that the defrost water drain
opening is not obstructed (see “Defrosting”
section).
• If your appliance is still not working properly after
making the above checks, contact the nearest
service centre.
To obtain fast service, it is essential that when you
apply for it you specify the model and serial number
of your appliance which can be found on the
guarantee certificate or on the rating plate located
inside the appliance, on the bottom left-hand side.
Defrosting
Frost is automatically eliminated from the evaporator
of the refrigerator compartment every time the motor
compressor stops, during normal use. The defrost
water drains out through a trough into a special
container at the back of the appliance, over the
motor compressor, where it evaporates.
It is important to periodically clean the defrost
water drain hole in the middle of the refrigerator
compartment channel to prevent the water
overflowing and dripping onto the food inside.
Use the special cleaner provided, which you will
find already inserted into the drain hole.
Important:
Never use sharp metal tools to scrape off frost
from the evaporator as you could damage it.
Do not use a maechanical device or any artificial
means to speed up the thawing process other
than those recommended by the manufacturer.
D037
13
Cleaning the interior
Before using the appliance for the first time, wash
the interior and all internal accessories with lukewarm water and some neutral soap so as to remove
the typical smell of a brand-new product, then dry
thoroughly.
USE
Control panel
BAFEDC
A On/OFF light
B Fridge button ON/OFF
C Temperature setting button (warmest)
D Temperature indicator
A. Button ON/OFF
ON: Press the button (A).
OFF: Keep press the button (A) until the
temperautre indicator switched off.
C - D. Temperature setting buttons
The temperature can be adjusted between +2°C and
+8°C.
By pressing the button (C or D), the current
temperature setting flashes on the indicator. It is
possible to modify the setting temperature only with
flashed indicator.To set a warmer temperature,
press button (C). To set a colder temperature, press
button (D). The indicator display the newly selected
temperature for a few seconds and then shows
again the inside compartment temperature.
The newly selected-temperature must be reached
after 24 hours.
Attention!
During the stability period by the first starting the
temperature displayed can not correspond to the
setting temperature. During this time it is possible
that the temperature displayed is lower than the
setting temperature.
B.Temperature indicator
During normal functioning the indicator shows the
temperature inside the fridge.
Attention!
Difference between the temperature displayed and
temperature setting is normal. Especially when:
- a new setting has recently been selected
- the door has been left open for a long time
- warm food has been placed in the compartment
E. Action Cool pilot light
F. Action Cool button
The maximum performance is obtained by setting
the Auto fresh function. It’s recommended when
loading large quantities of food.
Press the Action Cool button (F).The relevant pilot
light (E) switches on.
The internal temperature goes down to +2°C.
After about 6 hours the Action Cool function switches
off automatically.
E Temperature setting button (coldest)
F Action Cool light
G Action Cool button
Operation
Insert the plug in the power socket. Press the button
ON/OFF (A). The fridge is switched on.
The fridge is pre-set to run at +5°C. This
temperature will be reached in a few hours.
As soon as the appliance is switched on the
temperature indicator (B) shows the current
temperaure inside the fridge.
Do not use detergents or abrasive
powders, as these will damage the finish.
16
MAINTENANCE
Periods of non-operation
When the appliance is not in use for long periods,
take the following precautions:
remove the plug from the wall socket;
remove all food;
defrost and clean the interior and all accessories;
leave the door ajar to allow air to circulate to prevent
unpleasant smells.
HINTS
Hints for refrigeration
Useful hints:
Meat (all types): wrap in polythene bags and place
on the glass shelf above the vegetable drawer.
For safety, store in this way only one or two days
at the most.
Cooked foods, cold dishes, etc..: these should be
covered and may be placed on any shelf.
Fruit and vegetables: these should be thoroughly
cleaned and placed in the special drawer(s)
provided.
Butter and cheese: these should be placed in
special airtight containers or wrapped in aluminium
foil or polythene bags to exclude as much air as
possible.
Milk bottles: these should have a cap and should
be stored in the bottle rack on the door.
Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigerator.
Interior light

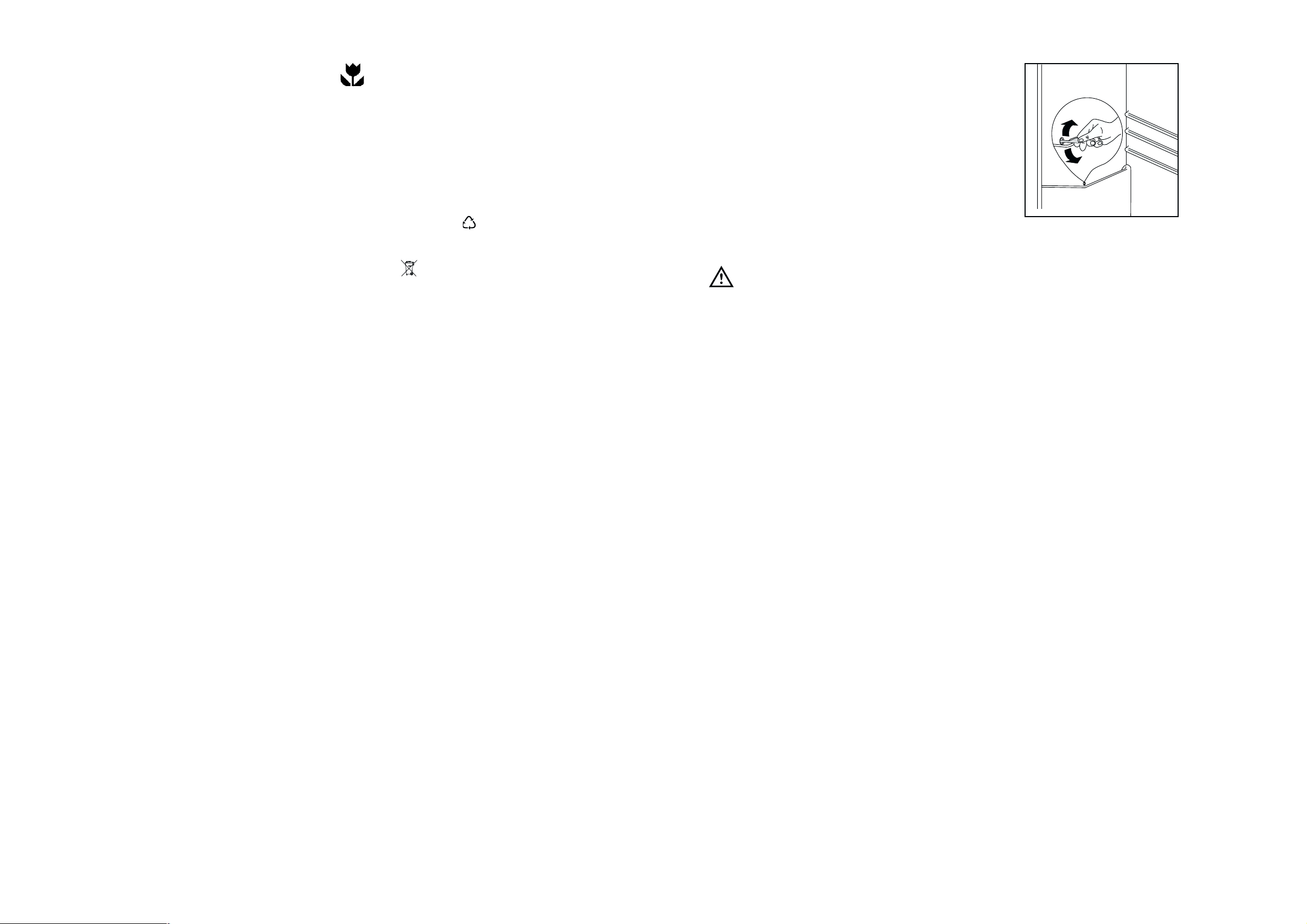

If it becomes necessary to replace the lamp, press
on the rear hook and at the same time
slide the cover in the direction indicated by the arrow.
Attention:
Replace the lamp with one of the same power (the
maximum power is shown on the light diffuser).
Unplug the appliance before carrying out
any maintenance operation.
Warning
This appliance contains hydrocarbons in its cooling
unit; maintenance and recharging must therefore
only be carried out by authorized technicians.
Periodic cleaning
Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage the
plastics used in this appliance. For this reason it
is recommended that the outer casing of this
appliance is only cleaned with warm water with a
little washing-up liquid added.
Clean the inside with warm water and bicarbonate of
soda.
Rinse and dry thoroughly.
Clean the condenser (black grill) and the
compressor at the back of the appliance with a
brush or a vacuum cleaner.This operation will
improve the performance of the appliance and save
electricity consumption.
14

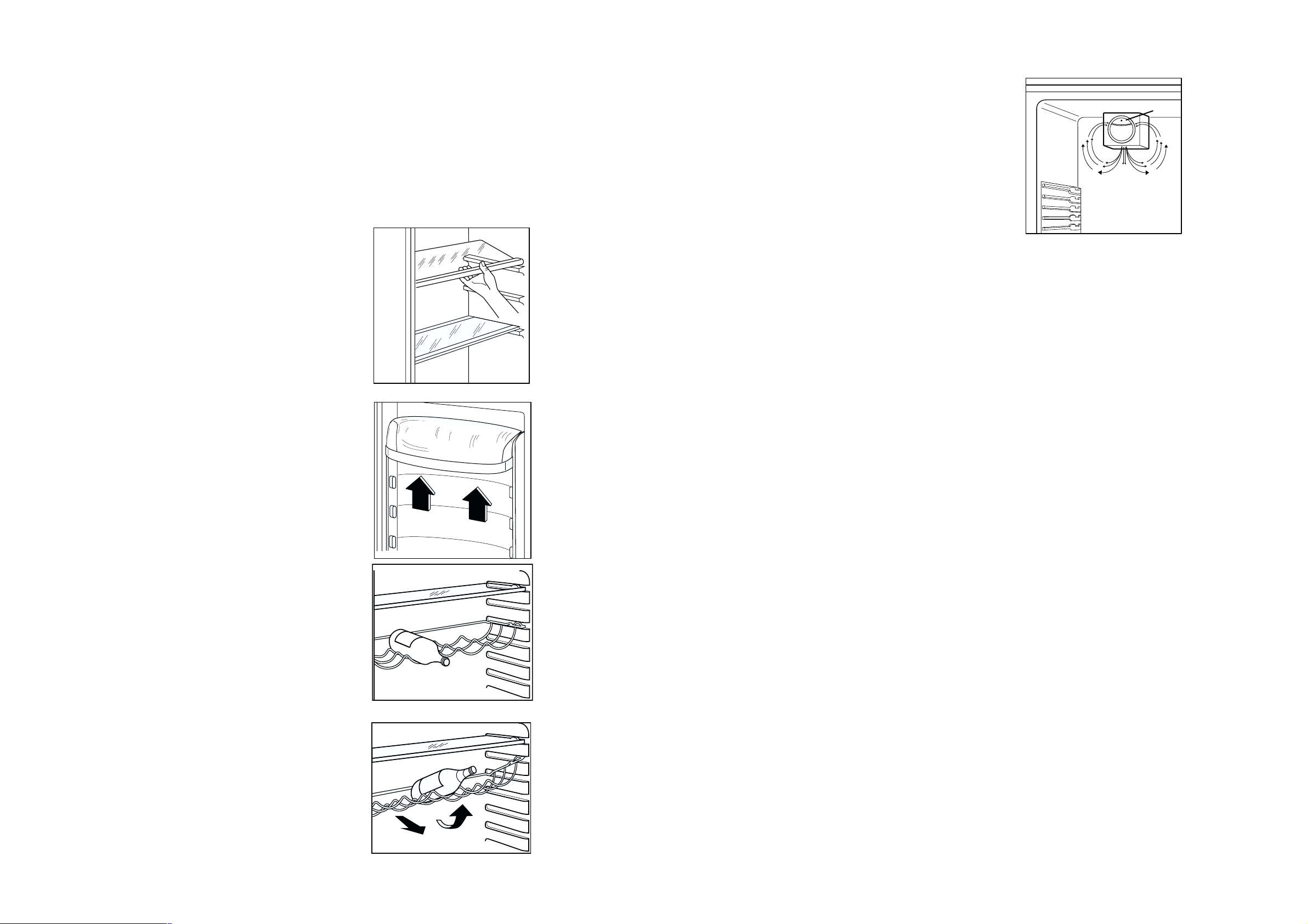

Positioning the door shelves
To permit storage of food packages of various sizes,
the door shelves can be placed at different heights.
To make these adjustments proceed as follows:
Gradually pull the shelf in the direction of the arrows
until it comes free, then reposition as required.
Movable shelves
The walls of the refrigerator are equipped with a
series of runners so that the shelves can be
positioned as desired.
Fresh food refrigeration
To obtain the best performance:
• do not store warm food or evaporating liquids in
the refrigerator;
• do cover or wrap the food, particularly if it has a
strong flavour.
• Position food so that air can circulate freely round
it.
Bottle holder
Place the bottles (with the opening facing front) in
the pre-positioned shelf.
If the shelf is positioned horizontally, place only
closed bottles.
This bottle holder shelf can be tilted in order to store
previously opened bottles.
To obtain this result, pull the shelf up so it can rotate
upwards and be placed on the next higher level.
15
Air recycling
The refrigerator compartment is equipped with a
special D.A.C.(Dynamic Air Cooling) fan which can
be turned on with the switch ( see fig. 1).The green
light, when on, means that the fan is working.
It is suggested that the fan (D.A.C.) be used when
the ambient temperature exceeds 25°C .
This device allows for rapid cooling of foods and a
more uniform temperature in the compartment.
SWITCH
Fig. 1
D338
Loading...
