AEG ERC07002W User Manual

ERC 07002W
ERC 07002W8
refrigerator
refrigerateur
Instruction book
Mode d’emploi
FR
We were thinking of you
when we made this product
Welcome to the world of Electrolux
Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable. You find some examples on the cover in this manual. Please take a few minutes to study this manual so that you can take advantage of the benefits of your new machine. We promise that it will provide a superior User Experience delivering Ease-of-Mind. Good luck!
electrolux 3
GB
4 electrolux
GB
Before installing and using the appliance read this user's instruction book carefully. It contains safety precautions, hints, information and ideas. If the refrigerator is used in compliance with the instructions written, it will operate properly and provide you with greatest satisfaction.
The symbols below help you to find things more easily:
Safety precautions
Warnings and information at this symbol serve safety for you and your appliance.
Hints, useful information
Environmental information
Symbol for ideas
At this symbol ideas can be found according to food and its storing.
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
electrolux 5
GB
Contents
Important safety information .......................................................................6
General safety precautions ........................................................................6
Precautions for child safety ........................................................................6
Safety precautions for installation................................................................6
Safety precautions for isobutane.................................................................7
Instructions for the User..............................................................................8
General information ..................................................................................8
Description of the appliance, main parts ......................................................8
Instructions for the Installer.........................................................................8
Technical data .........................................................................................8
Installing the appliance..............................................................................8
Transportation, unpacking.....................................................................8
Cleaning ............................................................................................9
Placement ..........................................................................................9
Handling the appliance............................................................................10
Putting it into use ...............................................................................10
Controlling the temperature, setting ......................................................10
Hints for storage ................................................................................10
Storage time and temperature of foods .................................................11
How to use the ice-making compartment ...............................................11
How to use the fresh food compartment ................................................11
How to make ice cubes ......................................................................11
Some useful information and advice...........................................................11
Hints and ideas..................................................................................11
How to save energy............................................................................12
The appliance and environment............................................................12
Maintenance..........................................................................................12
Defrosting.........................................................................................12
Regular cleaning................................................................................13
When the refrigerator is not in use ........................................................13
Trouble shooting.....................................................................................13

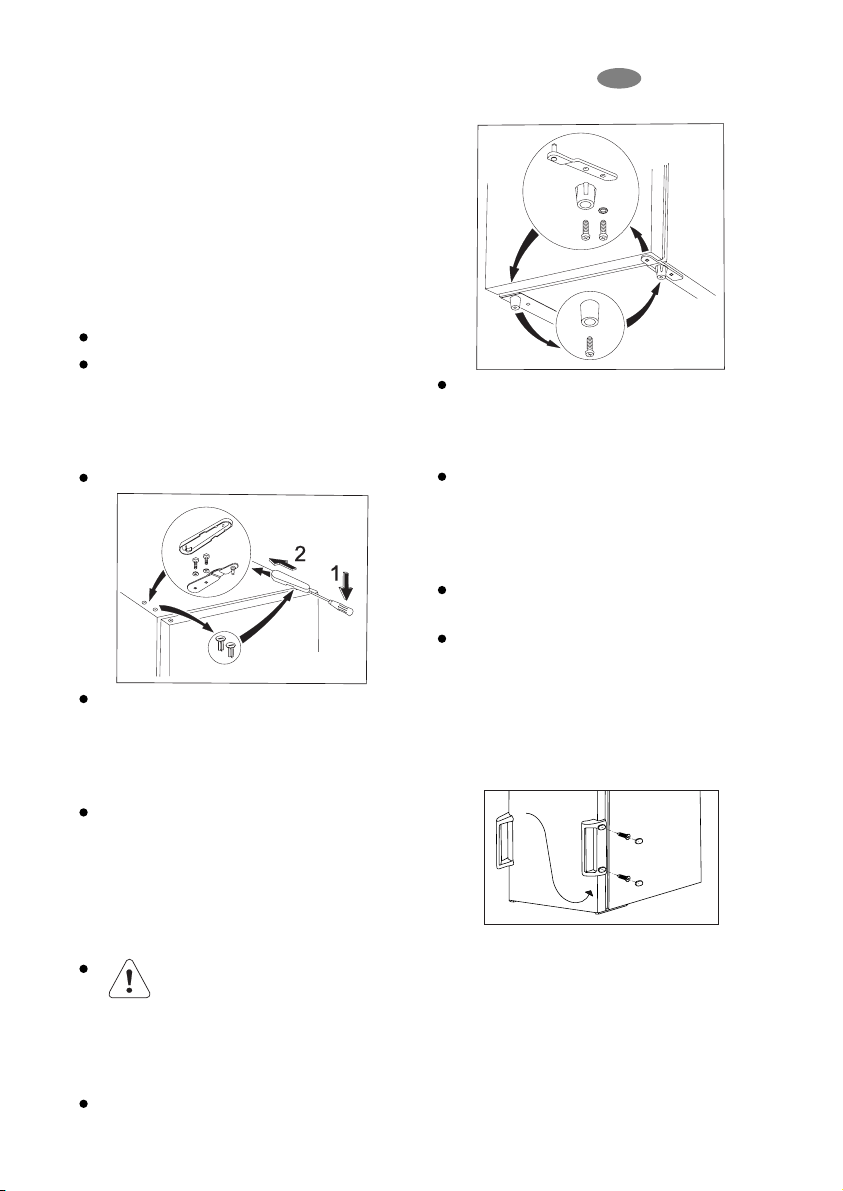

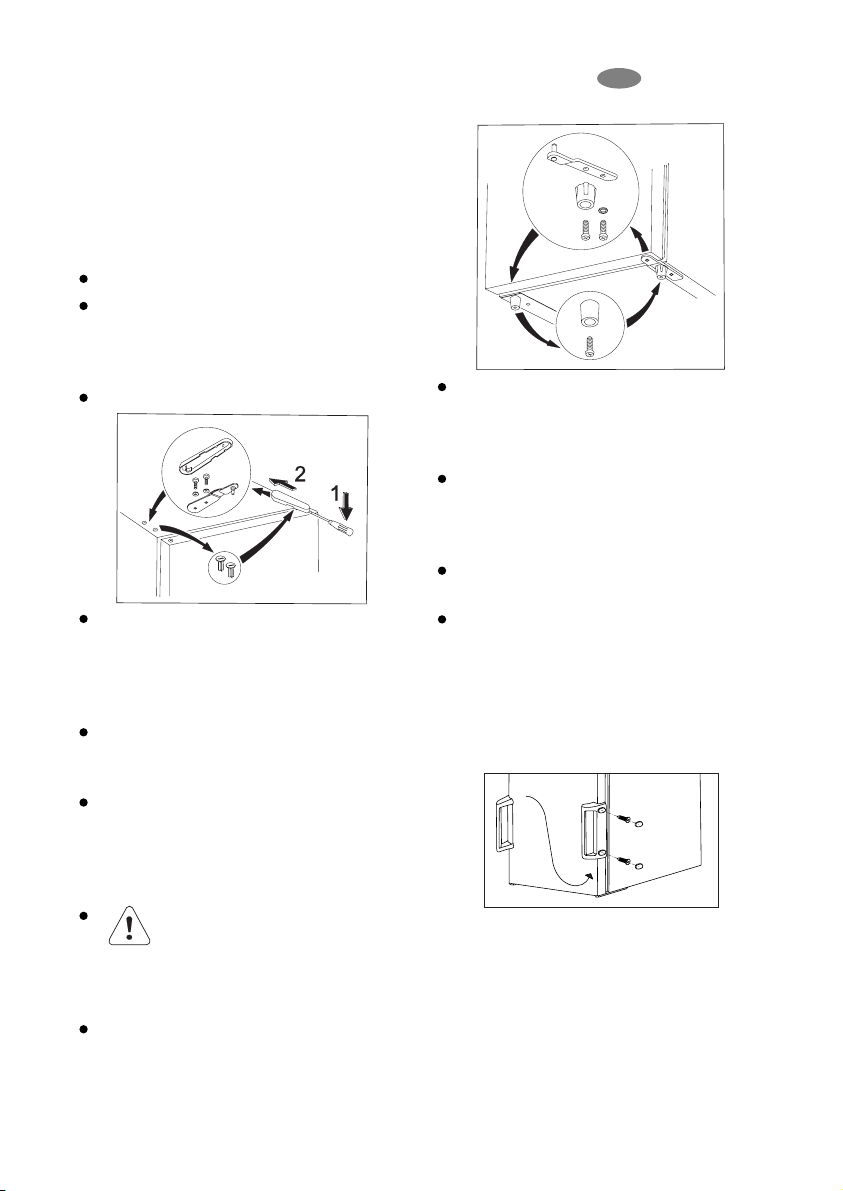

Change of door opening direction ........................................................15
Electrical connection..........................................................................16
Storage time chart ....................................................................................17
Warranty and service ................................................................................18
Guarantee conditions ..............................................................................18
Service and spare parts...........................................................................18
6 electrolux
GB
Important safety information
General safety precautions
Keep these instructions and they should remain at the appliance when moving away or changing owner.
This appliance is designed for storing food, domestic use and being used according to these instructions only.
Specialised companies that are qualified to do so by the manufacturer must carry out service and repairs including repairing and changing the power cord. Accessory parts supplied by
them should be used only for repairing. Otherwise the appliance can be damaged or can cause other damage or injury.
The appliance is out of circuit only in that case if the plug is removed from the socket. Before cleaning and maintenance always unplug it (do not get it by the cable). If the socket is difficult to reach, switch off the appliance by cutting off the current.
Power cord must not be lengthened.
When cleaning, defrosting, taking out frozen food or ice tray do not use sharp, pointed or hard devices, as they can cause damage to the appliance.
Be careful not to allow liquids to the temperature control.
Ice and ice-cream can cause hurt if they are eaten immediately after removal from the ice-making compartment.
After dissolving frozen food must not be refrozen, it must be used up as soon as possible.
Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
You must not make defrosting faster with any electric heating appliance or chemicals.
Do not put hot pot to the plastic parts of the freezer.
Do not store flammable gas and liquid in the appliance, because they may explode.
Do not store carbonated drinks, bottled drinks and bottled fruits in the freezer.
Precautions for child safety
Do not allow children to play with the packaging of the appliance. Plastic foil can cause suffocation.
Adults must handle the appliance. Do not allow children to play with it or its controlling parts.
If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Safety precautions for installation
Put the appliance to the wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
electrolux 7
GB
When moving the appliance take care of the plug not to be in the socket.
When placing the appliance take care not to stand it on the power cord.
Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
If the appliance is not placed on floor level, provide appropriate fixing (e. g. using sucking disks).
See chapter "Placement".
Safety precautions for isobutane
Warning
The refrigerant of the appliance is isobutane (R600a) that is inflammable and explosive to a greater extent.
Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
For the safety of life and
property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.
8 electrolux
GB
Instructions for the User
General information
The official designation of the appliance is home refrigerator with a ice-making compartment. According to this the appliance is suitable for storing frozen and deep-frozen food for limited time and making ice.
Instructions for the Installer
Technical data
ERC 07002W
ERC 07002W8
Ice-making comp.: 5
Fresh food comp.: 65
Ice-making comp.: 5
Fresh food comp.: 62
525
520
587
0,299
109
A+
0,6
24
Model
Gross capacity (l)
Net capacity (l)
Width (mm)
Height (mm)
Depth (mm)
Energy consumption (kWh/24h)
(kWh/year)
Energy class, according to EU standards
Rated current (A)
Weight (kg)
Installing the appliance
Transportation, unpacking
It is recommended to deliver the
appliance in original packaging, in vertical position considering the protective warning on packaging.
After each transportation the appliance must not be switched on for approx. 2 hours.
Unpack the appliance and check if there are damages on it. Report possible damages immediately to the place you bought it. In that case retain packaging.
electrolux 9
GB
Cleaning
Remove every adhesive tape, which ensure the parts not to move in the appliance.
Wash the inside of the appliance using lukewarm water and mild detergent. Use soft cloth.
After cleaning wipe out the inside of the appliance.
Placement
The ambient temperature has an effect on the energy consumption and proper operation of the appliance. When placing, take into consideration that it is practical to operate the appliance between ambient temperature limits according to the climate class that is given in the chart below and can be found in the data label.
If the ambient temperature goes below the lower data the temperature of the cooling compartment can go beyond the prescribed temperature.
If the ambient temperature goes beyond the upper data this means longer operating time of the compressor, increasing temperature in the cooling compartment or increasing energy consumption.
When placing the appliance ensure that it stands level.
Do not stand the appliance on a sunny place or close to a radiator or cooker.
If it is unavoidable because of furnishing and the appliance has to be stood near a cooker take these minimum distances into consideration:
In case of gas or electric cooker 3 cm must be left, when it is less put a 0,5 ­1 cm non-flam insulation between the two appliances.
In case of oil or coal-fired stove the distance must be 30 cms since they give off more heat.
The refrigerator is designed to operate when it is totally pushed to the wall.
When placing the refrigerator keep minimal distances
recommended in figure.
A : placing it under a wall-cupboard B : placing it freely
Class of
climate
SN
N
ST
Ambient
temperature
+10 ... +32 °C
+16 ... +32 °C
+18 ... + 38 °C
10 electrolux
GB
Handling the appliance
Putting it into use
Place the accessories into the refrigerator then plug to the mains socket. To start cooling turn the control dial from "0" clockwise according to the figure. In „0” position the appliance is out of operation.
The next paragraph will give instructions for setting.
Controlling the temperature, setting
The thermostatic controller interrupts the operation of the appliance automatically for more or less time depending on the setting then restarts it assuring the required temperature. Turning the control button towards the bigger numbers cooling becomes more and more intensive. In the ice-making compartment can be reached -2 °C or lower temperature if the knob of the thermostatic control is set according to following table:
Ambient temperature Thermostat setting
from 10 °C to 16 °C „1” from 16 °C to 25 °C „1-2” from 25 °C to 32 °C „2-3” from 32 °C to 38 °C „3-4”
In this case the temperature starting automatically in the fresh food compartment is about +5 °C or below.
The setting 5., 6. and 7. are suitable for quick chill of big quantity goods.
The temperature coming about in the refrigerator is effected by not only the position of the thermostatic control but the ambient temperature, frequency of door openings and the quantity of food put into it newly etc.
In the maximum i.e. „7” position -
in case of increased demand e.g. during heatwaves - without disconnecting continuous operation can occur. This does not cause damages to the appliance.
Hints for storage
When placing the different kinds of food take into consideration the sketch below in figure:
1. Storing frozen foods, making ice and ice-cream.
2. Confectionery, ready-cooked foods
3. Foods in dishes
4. Opened cans
5. Milk, dairy products
6. Fresh meat, cold cuts, sausages, etc.
7. Fruits, vegetables, salads
8. Cheese, butter
9. Eggs
10. Yoghurt, sour cream
11. Bottles, drinks
electrolux 11
GB
Storage time and temperature of foods
The enclosed chart at the end of the instruction books gives information about storage time in the fresh food compartment.
The storage time can not be determined exactly in advance, as it depends on the freshness and handling of the cooled food. That is why the storage time made known is only informative.
It is safe to store quick-frozen food only that way if they were not dissolved even for a short time until placing them into the ice-making compartment.
How to use the ice-making compartment
In the ice-making compartment -2 °C or below can be held depending on setting of thermostatic control.
It is suitable for quickly refrigerating and storing foods in small quantity and for making ice-cubes.
How to use the fresh food compartment
For adequate cooling developing
interior air circulation is necessary. For this reason you are asked not to cover the whole surface of the wire shelves with paper, trays, etc.
Do not put hot food into the
refrigerator. Allow it to reach room temperature naturally. In this way the unnecessary frost building up can be avoided.
Foods can take over odours
from each other. So it is essential to put foods in closed dishes or wrap them in cellophane, aluminium foil, grease-proof paper or cling film before placing them into the
How to make ice cubes
To make ice cubes fill the enclosed ice cube tray with water and put it to the ice­making compartment or on top of it. Wetting the bottom of the tray and setting thermostatic control knob to maximum stage can shorten preparing time. After finishing do not forget to reset the thermostatic control to the suitable stage.
In case of no room for ice tray ice cubes can be made and/or stored on top of ice­making compartment.
For purchasing further ice trays contact your local dealer.
Ready ice cubes can be taken out of the tray under running water then twist or hit it.
refrigerator. This way foods will keep their moisture e.g. vegetables will not dry out after some days.
Hints and ideas
In this chapter practical hints and ideas are given about how to use the appliance to reach maximum energy saving and there is environmental information about the appliance as well.
Some useful information and advice
The shelf inside the appliance has a back-folding part on the left side that makes storing large-sized bottles possible.
Top doorshelves taken out of the appliance can be used for serving foods (fruit, salads, etc.).
Two doorshelves put together can be used for storing foods in or outside the appliance (e.g. on excursions).
12 electrolux
GB
How to save energy
Avoid putting the appliance in a sunny place and near anything that gives off heat.
Be sure that the condenser and the compressor are well ventilated. Do not cover the sections where ventilation is.
Wrap products in tightly closing dishes or cling film to avoid building up unnecessary frost.
Do not leave the door open longer than necessary and open it when it is needed.
Put liquid into the appliance only in a closed dish.
Put warm foods and liquid in the appliance only when they are at room temperature.
Defrost the appliance when the ice in the ice-making compartment is more than 4 - 5 mm thick.
Keep the condenser clean.
The appliance and
environment
This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. Information on your local disposal sites may be obtained from your municipal authorities.
The materials used on this appliance marked with the sympol are recyclable.
Defrosting
Bleeding part of the moisture of cooling chamber in form of frost and ice goes with the operation of the refrigerator.
Thick frost and ice has an insulating effect, so it reduces cooling efficiency as the temperature increases, it needs more energy, at a certain thickness it does not allow the door of the ice-making compartment to open, possibly the door can be broken.
We recommend to defrost the
ice-making compartment once a week and when the frost is more than 4-5 mm.
How to defrost it:
Break the circuit of the appliance or turn thermostatic control knob into „0” position.
Empty the ice box. Wrap foods inside into newspaper and put them on a cool place or into another appliance.
Leave the door of the appliance and ice­making compartment open.
Defrosting usually takes several hours. When finished, pour defrost water gathered out of the tray and wipe the surfaces dry.
Apply voltage to the appliance or turn thermostatic control knob to middle („4”) position.
Put foods taken out back to their places.
Maintenanűce
Loading...
+ 28 hidden pages
