Page 1
1
Frozen food must not be re-frozen once it
has been thawed out.
Manufacturer’s storage recommendations
should be strictly complied with.
The lollies can cause frost burns if consumed right away from the freezer.
Do not place carbonate or fizzy drinks in the
freezer as these may explode.
Whenever there is a need for discarding an
old freezer make sure to:
Take off the doors in order to prevent
children trapped inside.
Have the gas from the cooling system
recovered before making it to scrap iron.

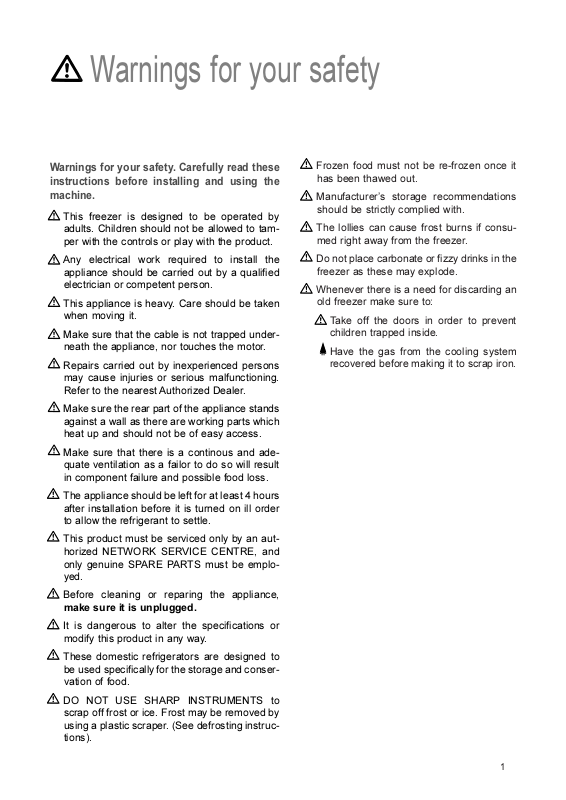

Warnings for your safety
Warnings for your safety. Carefully read these
instructions before installing and using the
machine.
This freezer is designed to be operated by
adults. Children should not be allowed to tamper with the controls or play with the product.
Any electrical work required to install the
appliance should be carried out by a qualified
electrician or competent person.
This appliance is heavy. Care should be taken
when moving it.
Make sure that the cable is not trapped underneath the appliance, nor touches the motor.
Repairs carried out by inexperienced persons
may cause injuries or serious malfunctioning.
Refer to the nearest Authorized Dealer.
Make sure the rear part of the appliance stands
against a wall as there are working parts which
heat up and should not be of easy access.
Make sure that there is a continous and adequate ventilation as a failor to do so will result
in component failure and possible food loss.
The appliance should be left for at least 4 hours
after installation before it is turned on ill order
to allow the refrigerant to settle.
This product must be serviced only by an authorized NETWORK SERVICE CENTRE, and
only genuine SPARE PARTS must be employed.
Before cleaning or reparing the appliance,
make sure it is unplugged.
It is dangerous to alter the specifications or
modify this product in any way.
These domestic refrigerators are designed to
be used specifically for the storage and conservation of food.
DO NOT USE SHARP INSTRUMENTS to
scrap off frost or ice. Frost may be removed by
using a plastic scraper. (See defrosting instructions).
Page 2
2
Index
Warnings for your safety pag. 1
Installation pag. 3
Changing the opening directions
of the doors and panelling pag. 4 - 5
Regulation and Control pag. 6
How to use your
Refrigerator-Freezer pag. 7
Maintenance of your
Refrigerator-Freezer pag. 8 - 9
Something not working pag. 10 - 11
Normal noises when
functioning pag. 12
Guarantee, Service
and Spare Parts pag. 13
Tecnical Features pag. 14
Page 3
3
Installation
PPoossiittiioonniinngg
• Place the refrigerator away from direct sunlight
and heat sources.
• Maintain recommended ventilation - see Fig. 1.
• Make sure the refrigerator is accurately levelled
turning the adjustable feet in order to avoid vibrations and noises. Fig. 2.
• This is a built in design to be aligned with other
furniture.
• The appliance musb be located in places of maximum temperature as follows:
+ 38°C for ST Class, classification on identifiying
plate.
If the temperature are higher than these both
above mentioned, the functions of appliance
could result reduced.
CClleeaanniinngg tthhee iinntteerriioorr
• Do not use alcohol or any cleanig product containing alcohol because it can damage the cabinet.
• Before using the appliance for the first time wash
the interior whith luke warm water and some neutral soap so as to remove the typical smell of a
brand-new product and then dry thoroughly.
• Do not use detergents or abrasive powders as
these will damage the finish.
• Remove security used for transportation.
EElleeccttrriiccaall ccoonnnneeccttiioonn
Before plugging the appliance into a socket make
sure that the voltage and frequency shown on the
rating plate correspond to your home supply.
It is essential that the appliance be connected to
an efficient earth tap.
For this purpose the supply cable plug incorporates a special earth contact. If the sockets of your
domestic wiring system are not grounded, have
the appliance connected to a separate ground
wire in accordance with existing safety regulations.
«THE MANUFACTURER DECLINES TO
ACCEPT ANY LIABILITY IF THIS SAFETY RULE
IS NOT OBSERVED».
SSttaarrttiinngg –– uupp
• Plug the appliance into the wall socket.
• Make sure the inner light «H» iluminates when
opening de door.
• Turn the temperature Knob «A» to intermediate
position. Fig. 6.
Fig. 2
Fig. 1
Page 4
4
Changing the opening direction
of doors and Panelling
Fig. 3
CChhaannggiinngg tthhee ooppeenniinngg ddiirreeccttiioonn ooff tthhee
ddoooorrss
If you wish to change the opening side of the doors
proceed as follows:
1... Remove the handles of the doors, if they are
side fixing by screws.
2... Take off the plinth pressed on to.
3... Remove the inferior hing taking care for the dow-
ner door not to fall off. hinges. Using a 10mm
spanner, unscrew the hinge pin and reassemble
it on the opposite side.
4... Lift the downer door off the central hinge.
5... Remove the central hinge taking care for the
upper door not to fall off and not to lose the plastic spacer.
6... Take the upper door off the upper hinge. Be
careful not to lose the plastic ring.
7... Unscrew the plastic bolts of the opposite side of
the place of the central hinge taken out and introduce them in the holes occupied before by the
hinge.
Fig. 5
C
Page 5
5
Changing the opening direction
of doors and Panelling
If you refrigerator has top panel, you can manage in
the same way from point 1 to point 6 and then:
7... Unscrew the axle of the upper hing (9 Fig. 5) and
replace it at the opposite side (10 Fig. 5).
8... Remove the lettle lid put on the opposite side of
the central hinge and use it to cover the new
holes left where the hinge was placed.
For the remaining parts proceed the other way
round.
Once finished make sure that all joints close
perfectly well all around the door and chek that
the internal light turns of when the fridge door
closes.
HHooww ttoo ppaanneell tthhee ddoooorrss
If your appliance is provided with metal strips for
panelling and you wish to do so proceed as follows:
1... Remove one of the side strips.
2... Loosen the screws of the remaining strips.
3... Start putting on the panel where you took off the
strip pushing it right up to the end.
4... Replace the strip on this side.
5... Tighten all screws
NOTE:
The panel dimensions must be 2 mm.
shorter than the doors. Maximun thickness of the
panel is 4 mm.
Fig. 5
Page 6
6
Regulation and Control
TTeemmppeerraattuurree rreegguullaattiioonn::

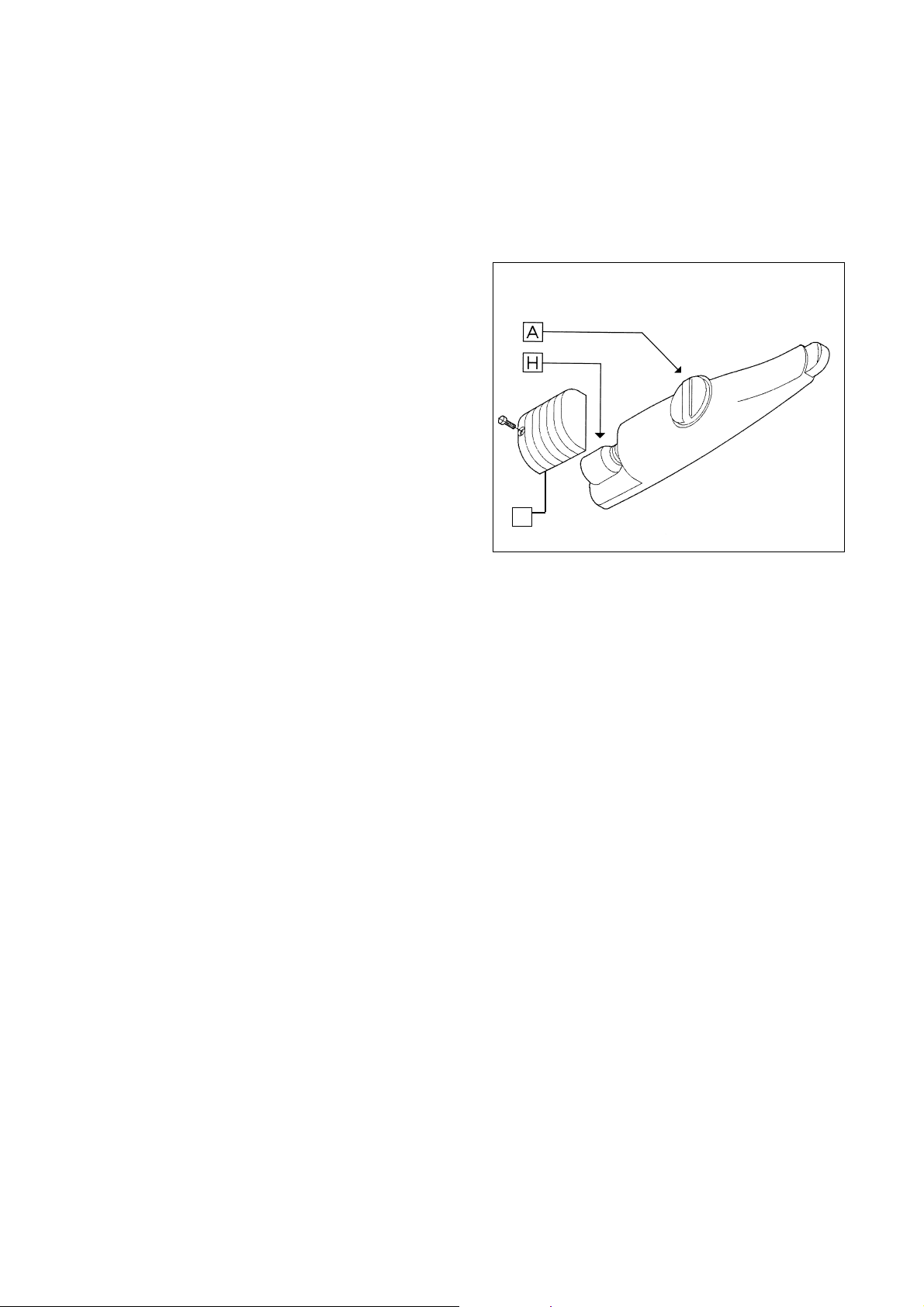

«A» Fig. 6
Allows temperature regulation according to room
temperature and usage.
• Pos. 1 = Minimum cold.
• Pos. 6 = Maximum cold.
• Pos. 0 = Disconnection of motor.
Depending on the model the temperature regulator
can be in the inside of the refrigerator or on the
upper frontal part in the exterior.
IInntteerriioorr lliigghhtt::
(H) Fig. 6
Lightens when opening the door of the refrigerator
compartment and shuts off when closing the door. It
also shuts off when you put the temperature regulator in «0» position
When changing the light bulb, first pull out the screw
«Y» and then remove the protective cover «X» (see
«IF SOMETHING DOES NOT WORK»).
Fig. 6
X
Page 7
7
How to use your
Refrigerator-Freezer
RReeffrriiggeerraattoorr CCoommppaarrttmmeenntt::
This compartment is meant for keeping
drinks and fresh food.
The inner temperature is quite equalized.
Avoid food touching inner walls, as the cold is
being produced in there and the food could partly
get frozen. On the other hand this would avoid a
perfect circulation of the cold air.
This appliance is provided with an automatic
defrosting divice. You therfore might find sometimes a fine layer of ice or water drops.
UUsseeffuull HHiinnttss
Do not introduce any new food during a freezing period.
Do not put any newly introduced food for freezing near to already frozen food.
Wrap the food up properly or place it in hermethic recipies before introducing it into the
freezer.
Do not introduce any hot food into the freezer.
Food and drinks of a strong flavour may pass
this on to others and affect their flavour. Wrap
them up adequately or put them into tight closing bags.
Follow the instructions given in the cook
books, freezing books and wrapping utensiles
for better conservation of food.
FFrreeeezzeerr CCoommppaarrttmmeenntt
This freezer, marked , is suitable for
freezing food and permits long term storage of
frozen food. The appliance must be connected
for at least 3 hours before introducing food.
FFrreeeezziinngg ooff ffoooodd
1... Place food on the upper grill.
2... Maintain food for at least 24 hours in that posi-
tion.
• The maximum quantity to be frozen within 24
hours is shown on the «Rating Plate», depending on the model.
CCoonnsseerrvvaattiioonn ooff ffrroozzeenn ffoooodd
For a safe storage of food the temperature inside
should never rise above -18°C.
An ajustable thermostat is regulating this temperature automatically.
Make sure the «Temperature Regulator» is on a
medium setting.
However, it may sometimes be necessary (due to
poor ventilation, high roon temperature, frequent
opening of the door…) to graduate the setting of the
«Temperature Regulator».
In case of an accidental stop of the appliance or a
power cut proceed as follows:
• Keep the doors closed at all events.
• Try to find out for how long the failure will continue.
Once reestablished to normality:
A) If the freezer is fully loaded and the power failure
is less than the time indicated on the «Rating
Plate» no damage has been done to the food stored.
B) If the freezer is failed loaded the «rising of the
temperature» is reduced. If thawing has not yet
started proceed as said in previous point «A».
C) If thawing has started, consume the food inme-
diately, or cook it and then freezen it again.
Page 8
8
Maintenance of your
Refrigerator-Freezer
Prior to undertaking any maintenance operation,
be sure to unplug the appliance.
DDeeffrroossttiinngg ooff tthhee ffrreeeezzeerr
The inner walls of the freezer become gradually
covered with a layer of frost keeping in mind not to
open the door frequently and keeping the food wrapped up in closed bags.
Whenever the thickness of ice reaches 5 mm. the
frost should be removed. Here to proceed as
follows:
1... Remove all food staff and place it in the coolest
possible place.
2…Never pull up the sticked ice, you must wait untill
it is melted, when the ice is soft you can remove
it by helping yourself with a plastic ice-scraper,
never use sharp objects, or heating households
because the appliance could be seriusly damaged.
3…Once removed the ice clean and dry the inside
with a soft piece of cloth.
4…You can plug it in again.
Page 9
9
Maintenance of your
Refrigerator-Freezer
DDeeffrroossttiinngg ooff tthhee rreeffrriiggeerraattoorr
Frost is automatically eliminated in the refrigerator.

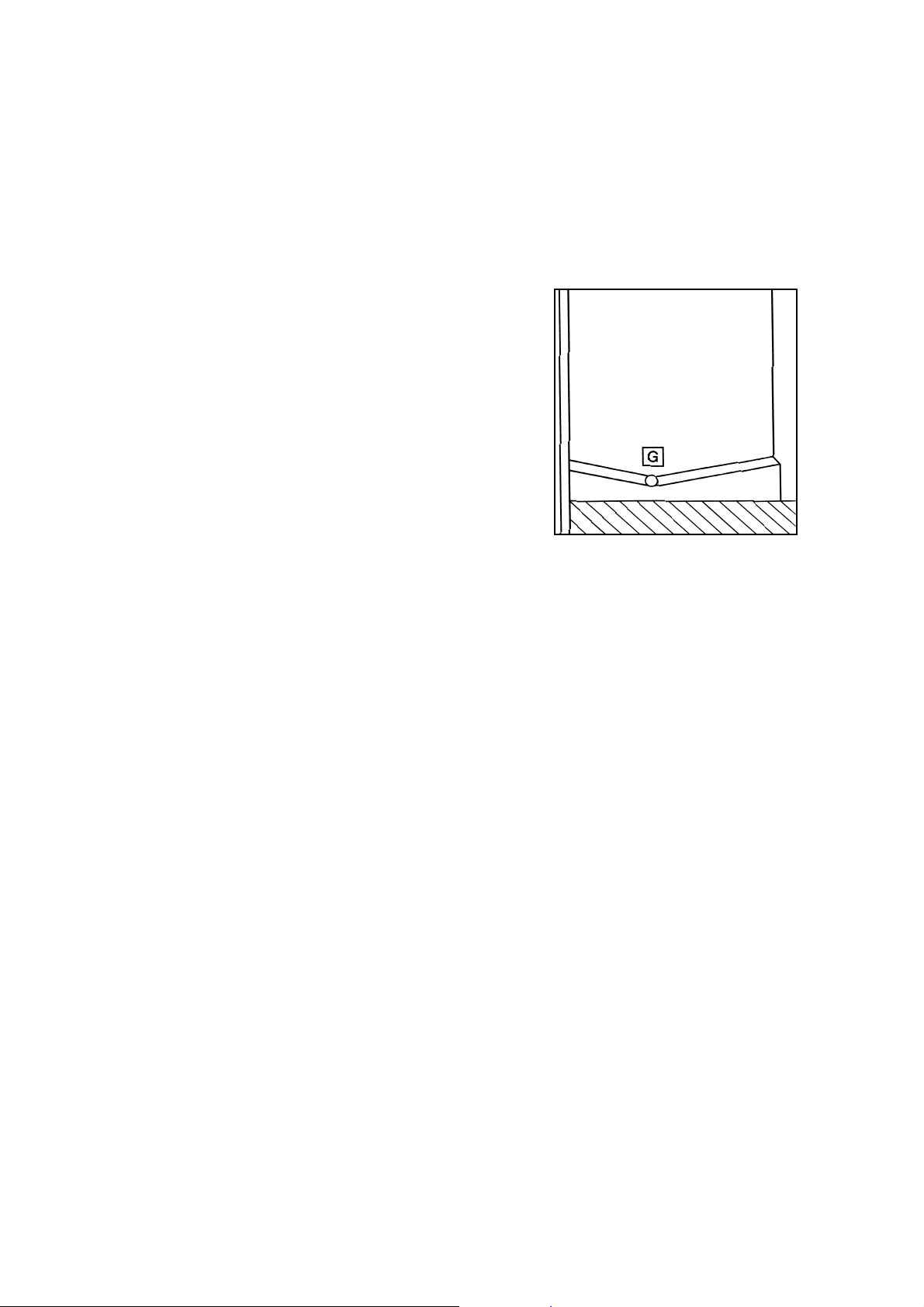

Clean regularly the water drain opening «G» (Fig. 7).
CClleeaanniinngg
• Do not use alcohol or any cleanig product contai-
ning alcohol because it can damage the cabinet.
• Use lukewarm water and neutral soap or bicarbo-
nate of soda for cleaning the interior and the exterior of the appliance. Never use detergents nor
abrasive powders.
• Clean the black grill on the read of the appliance
(condeser), motor and the upper and downer ventilation slots with a brush or vacuum cleaner. This
way the performance of the appliance will improve
and energy consumption reduced.
• Clean the water container above the motor.
• Extract the base pulling it outwards in order to per-
mit cleaning undermeath the appliance.
IIddllee ppeerriiooddss
During periods when the appliance is not in use take
the following precautions:
• Unplug the appliance.
• Remove all the food.
• Defrost and clean the interior and all accessories.
• Leave the door ajar to permit the air to circulate in
the interior and thus avoid unpleasant smells.
Fig. 7
Page 10
10
Something not working
Some functioning problems may be due to causes which can easily be solved before calling the Network
Service. Follow theses instructions:
PPrroobblleemm CCaauussee SSoolluuttiioonn
A) INTERNAL LIGHT
1. Inner light (Refrigerator • Appliance unplugged. • Plug the appliance.
compartment) does not
lighten («H» Fig. 6). • No power in the plug. • Chek the automatic
domestic control.
• Bulb not fit in properly • Fix o substitute if for another
or fused. one of same features.
• The «Temperature Regulator» • Change to another position.
is in position «0».
B) PERFORMANCE
1. The appliance • The «Temperature Regulator» • Change to another position.
does not cool. is in position «0».
2. The appliance does not • Door not properly closed. • Close the door.
cool enough.
• The door has been opened • Avoid frecuent opening.
frecuently.
• «Temperature Regulation» • Change position to a cooler one.
Inadequate pos.
• Food has been introduced • The appliance will get
recently in great quantities. to normal, wait.
3. Food gets frozen in the • «Temperature Regulator» • Change position to less cold.
refrigerator. on inadequate position.
• Food touches the • Keep more space.
back walls.
4. The motor does not stop • Temperature regulator • Change position to less cold.
running: on inadequate position.
• Door not properly closed. • Close the door correctly.
• Opened frequently. • Avoid frequent opening.
• Food has been loaded • Wait for the appliance to come
recently. back to normal.
Page 11
11
PPrroobblleemm CCaauussee SSoolluuttiioonn
C) WATER/ICE
1. Makes too much ice. • «Temperature Regulator» • Change position to less cold.
on inadequate position.
• Door not properly closed. • Close the door correctly.
• Door opened frequently. • Avoid frequent opening.
2. Water in the lower part • Drain tube blocked. • Clean tube «G» (Fig. 7).
of the Refrigerator.
3. Water in the vegetable box. • Wet vegetables have been • This is normal.
introduced.
4. The outside of the cabinet • High humidity level . • This is normal. It does not
gets humid. in the room affect the performance.
of the appliance
D) DOORS
1. Door does not close. • The appliance is not • Level properly.
properly levelled.
• Door has benn banged • Never bang the door.
too hard.
• Load is surpassing the storage • Place food properly.
limit.
E) NOISES
• Appliance not properly • Level properly.
levelled.
• One of the tubes is rubbing • Separate the rubbing tube.
against the wall or others.
• Any fixing screw may be lose. • Fix the screw.
• Something inside may be • Place it correctly.
vibrating.
• Others. • See next page.
Something not working
Page 12
12
Normal noises when functioning
11.. TTeemmppeerraattuurree RReegguullaattoorr..
May cause cracking sounds when the system connects or disconnects.
22.. RReeffrriiggeerraattiinngg ssyysstteemm..
The injected cooling gas may produce a burbling
sound while running through the tubes.
33.. CCoommpprreessssoorr..
May cause zumbing noises and/or slight bumping.
44.. IInnssuullaattiioonn..
The material used has a tendency to increase noises, but it does insulate perfectly and is of low
energy consumption.
Page 13
13
Guarantee, Service
and Spare Parts
BBeeffoorree ccaalllliinngg tthhee rreeppaaiirrmmaann
Read the user instruction and follow the advice and
directives given. In many cases, you will be able to
clarify any doubts yourself and thus avoid unnecessary service calls.
The preceding section entitled «If the appliance
does not perform correctly» includes suggestions for
what should be checked before a serviceman is
called.
If, after the above check, there is still a fault call your
nearest Service Centre «Asistencia Tecnica».
Please make sure you give the model and serial
number of the appliance. This information can be
found on the data plate inside the cabinet.
GGuuaarraanntteeee
According to the enclosed Guarantee registration
card.
SSeerrvviiccee aanndd ssppaarree ppaarrttss
Can be obtained from our service organization
«Asistencia tecnica».
Model: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Number: . . . . . . . . . . . . . . . . . . . . . . . . .
Serial Number: . . . . . . . . . . . . . . . . . . . . . . . . . .
SSaaffeettyy
Read the safety and warning texts at the begining of
the user instructions. The manufacturer is not reponsible for faults caused by the product being used
incorrectly or for purposes other than those specified
in the user instructions.
WWaarrnniinngg
Don’t use the fridge/freezer unit for storing explosive
gases or liquids, e.g. cigarette lighter gas, petrol
(gasoline), ether, acetone.
Page 14
14

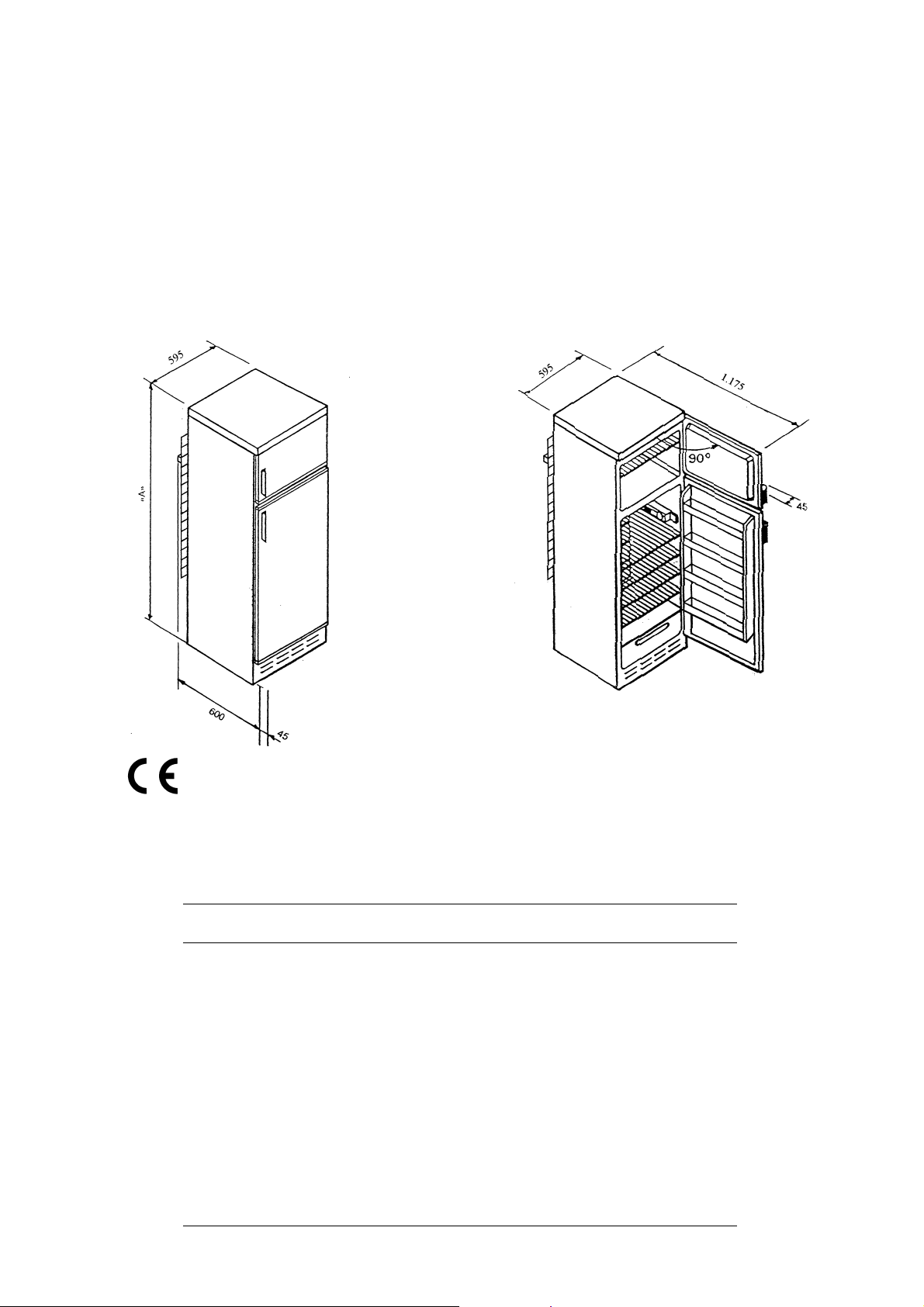

Tecnical Features
DIMENSIONS WITH
DOORS CLOSED
DIMENSIONS WITH
DOORS OPEN
This appliance complies with the following CEE Directives:
– 73/23 CEE of 19/02/73 (low voltage directive) and subsequent modifications.
– 89/336 CEE del 03/05/89 (electromagnetic compatibility directive) and subsequent
modifications.
DATA IN AGREEMENT WITH «UNE» REQUIREMENTS
MMOODDEELL 331144 LL
«A» (mm) 1.670 1.700
VOLTAGE (V) ± 6% 220…230 220…230
FREQUENCY (Hz) 50 50
FREEZING
CAPACITY (Kg/24h) 3,5 3,5
POWER CONSUMPTION (W) 130 130
TEMPERATURE
RISING TIME (H) 24 24
The refrigeration system and the insulation of this appliance does not content CFC as contribution and
defence of the environment.
Loading...
