Safety instructions
Your new fridge may have other functions compared to your previous one.
Carefully read these instructions to learn how the appliance works and how to care for it. Keep the
booklet. It will come in handy if you later sell the cabinet or give it to somebody else.
These warnings are provided in the interests of your safety. Ensure that you understand them all before
installing or using the appliance. Your safety is of paramount importance. If you are unsure about any of the
meanings or warnings contact the Customer Care Department.
For the User
· The cabinet is intended for keeping foodstuff in a
normal household as explained in this instruction
booklet.
break.
· The cabinet is heavy. The edges and projecting
parts of the cabinet may be sharp. Be careful
when moving the cabinet and always use gloves.
GB
instruction
· Do not keep explosive gases or liquids in the
refrigerator or freezer compartment. They may
explode and cause injury and material damage.
· Do not let sharp objects come i nto contact with
the refrigerating system on the back of and inside
the cabinet. If the refrigerating system is
punctured, the cabinet will be damaged and
foodstuff inside may spoil.
· Do not keep carbonised drinks or bottles in the
freezer compartment. The glass bottles may
Child Safety
· Pay attention so that small children do not gain
access to the operating controls or the inside of
the cabinet.
Scrapping old cabinets
When discarding the cabinet, hand it over to a recycling
station. For more information, call your loca l city office
or your dealer.
Contents
Safety instructions 10.................
Scrapping old cabinets 10.......................
Contents 10..........................
Control Panel 11..............................
Before use 11.........................
Using the fridge 11....................
To start the fridge and set the correct temperature 11.
Switching off 11..............................
Measuring the temperature 11...................
Cabinet interior 12............................
Hints and Tips 12.....................
Saving energy 12.............................
Food Storage 12..............................
Protect the environment 12......................
Maintenance and Cleaning 13..........
Removing the ventilation grille 13................
GB
Cleaning 13..................................
To Change the Li ght Bulb 13....................
Defrosting the fridge 14........................
When the appliance is not in use 14...............
Something Not Working 14............
Guarantee Conditions 15.......................
Service and Spare Parts 15......................
Customer Care Department 15...................
Technical specification 15.............
Installation 16........................
Mains Cable 16...............................
Unpacking 16................................
Remove the transport supports 16................
Cleaning 16..................................
Installing the cabinet 16........................
Door Reversal 17.............................
Electrical connection 17........................
10
Electrolux 818 17 32-03/ 6
Page 3
Control Panel
A. Thermostat control
Use to switch on and set the desired temperature.
Before use
Position and clean the cabinet as explained in the section
"Installation".
Check that the drain hose at the rear of the cabinet
discharges into the drip tray.
Before inserting the power plug into the
outlet and switching on the cabinet for
the first time, leave it standing upright
for about 4 hours. Otherwise the
compressor may sustain damage. This
time will allow the oil suffi cient time to
return to the compressor.
Using the fridge
To start the fridge and set the
correct temperature
Turn the thermostat control to the desired position.
MIN The lowest position of the thermostat control
results in the highest temperature inside the cabinet.
MAX The highest position of the thermostat control
results in the lowest temperature inside the cabinet.
GGGG :Switched off.
Allow the cabinet to run for a period of 24 hours
whenever the temperature setting is changed. This
will allow the temperature to stabilise inside the
cabinet.
GB
GB
Switching off
Turn the control anti-clockwise past the click
position to "GGGG".
Unplug the power supply plug from the wall socket.
Measuring the temperature
If the temperature is measured using a standard,
single thermometer, this should be put in a glass of
water centrally placed inside the cabinet. This will
reflect the temperature inside the food products. Do
not place the thermometer hanging or lying directly
on the shelf.
Electrolux 818 17 32-03/ 6
11
Page 4
Hints:
· Distribute foodstuffs to allow cold air to
circulate freely between the products.
· Do not place food products directly against the
cooling plate on the rear wall since they may
freeze in this case.
· Also never put warm products into the cabinet.
Wait until they have cooled down.
· Cover all foods properly to avoid odours and
flavours from tainting other food.
Cabinet interior

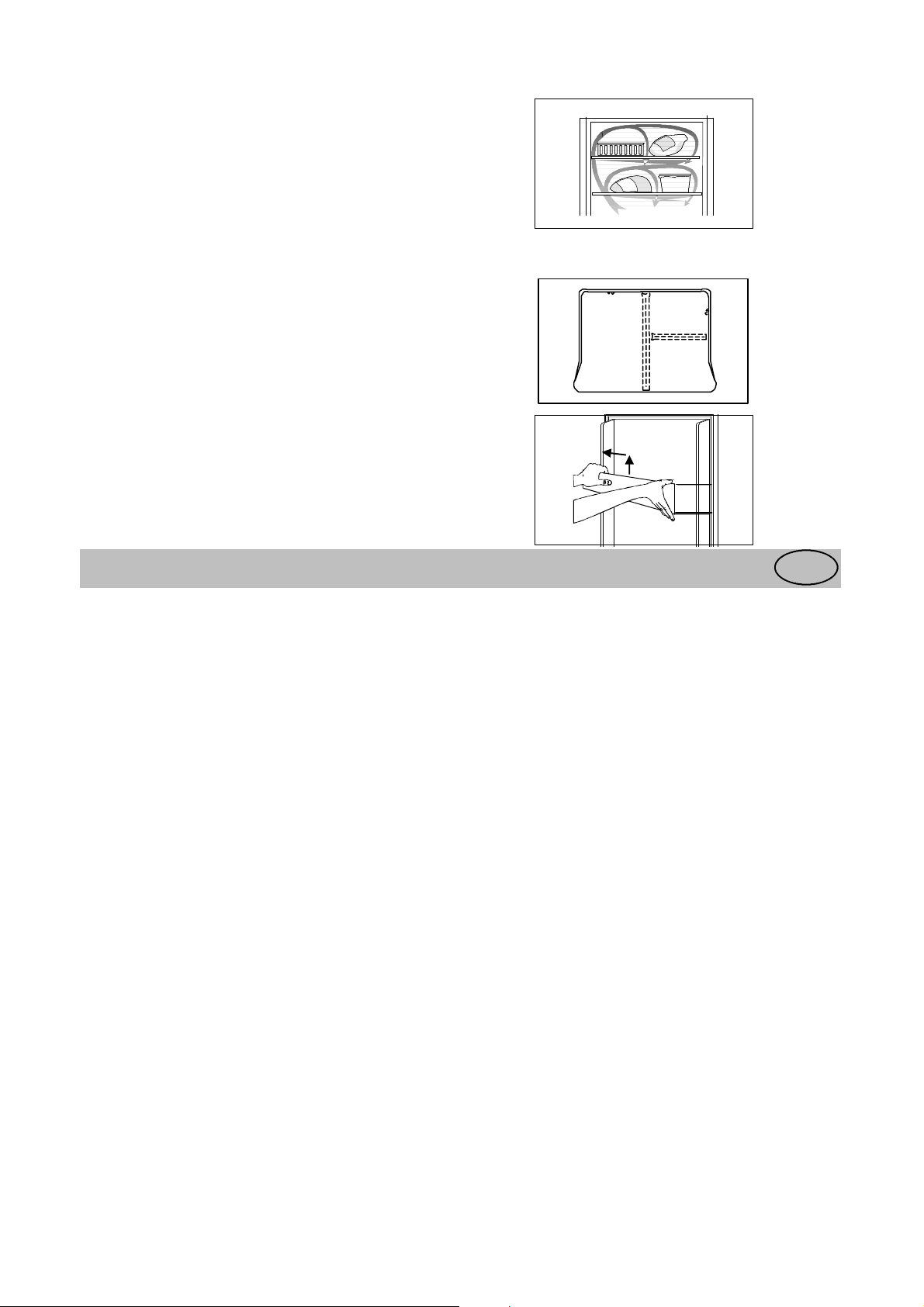

The vegetable box has two moveable partitions with
five different choices in order to separate different
vegetables.
The shelves and door compartments are removable
and can easily be re-arranged.
The lower door compartment and the glass shelf
above the vegetable drawer must not be moved.
They are required for proper air circulation inside the
cabinet.
Hints and Tips
Saving energy
· Pay careful attention to where the cabinet is
placed. See the section "Installation". When
installed correctly, the cabinet will consume less
energy.
· Try to avoid keeping the door open for long
periods, or opening the door too frequently as
warm air will enter the cabinet, and cause the
compressor to switch on unnecessarily often.
· Ensure there are no obstructions preventing the
door from closing properly.
· Thaw frozen food in the fridge. This will ensure
safer defrosting of foods and reduce the work of
the refrigeration unit
· It is advisable to periodically clean the
refrigeration system at the back of the appliance
with a duster or vacuum cleaner.
· Always leave warm food to cool down to room
temperature before placing in the fridge.
· Make sure the door gasket is complete and
always clean.
Food Storage
· To obtain the best results from your appliance,
neither hot foods nor liquids which may
evaporate, should be placed in the larder
compartment.
· Avoid buying frozen food if you can not store it
straight away. The use of an insulated container is
advisable. When you arrive home place the
frozen food in the freezer immediately.
GB
· Ensure that food placed in the freezer is dated and
labelled and used in date order to ensure that food
is consumed at its best.
Remove suspect food from you refrigerator and
clean, refer to cleaning and maintenance.
Protect the environment
· Hand over the cabinet packaging and discarded
fridges and freezers to a recycling station.
Contact your local council or Environmental
Health office for more information.
· Keep foodstuff in re-usable containers. Cut down
on disposable material as much as possible.
· When cleaning the cabinet, use a mild
washing-up detergent.
· Follow the advice in the section "Saving energy"
· The door gasket and coolant used in this
cabinet will not harm the ozone layer.
· All parts in the packaging can be recycled.
· The cabinet has been designed for easy
dismantling and subsequent recycling.
Electrolux 818 17 32-03/ 6
12
Page 5
Maintenance and Cleaning

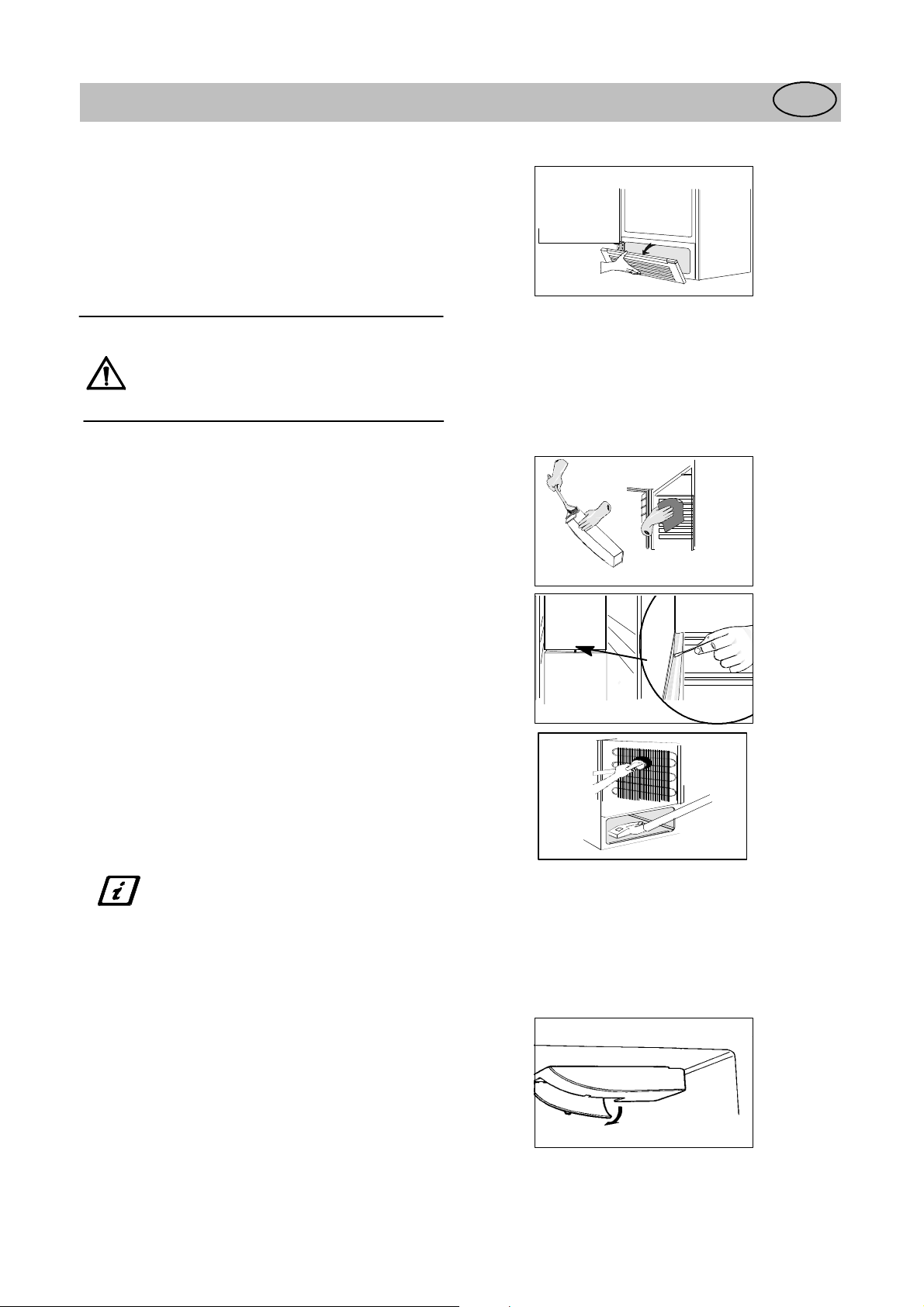

Removing the ventilation grille
The ventilation grille can be removed, e.g. to wash
the grille.
Unsnap the ventilation grille by pulling it toward
you.
Cleaning
Clean the cabinet at regular intervals.
Don't use detergents, abrasive powders,
high perfumed cleaning products, wax
polishes or cleaning products
containing bleach or alcohol when
cleaning the product
Clean out the drip channel inside the fridge at
regular intervals and ensure that the drip channel is
clear at all times. If blocked carefully clear using a
piece of flexible curtain wire inserted into the drain
outlet to remove the blockage.
Disconnect the appliance from electricity supply.
Internal Cleaning
Clean the inside and accessories with warm water
and bicarbonate of soda (5ml to 0,5 litre water)
Rinse and dry thoroughly.
Regularly check the door seals and wipe clean to
ensure they are clean and free from debris.
External Cleaning
Wash the outer cabinet with warm soapy water.
Remove the ventilation grille (see the section
"Removing the ventilation grille") and vacuum-clean
under the cabinet. Once or twice a year dust the
condenser (black grille) and the compressor at the
back of the appliance, with a brush or vacuum
cleaner, as an accumulation of dust will affect the
performance of the appliance and cause excessive
electricity consumption.
When moving the cabinet, lift it by
the front edge to avoid scratching the
floor.
GB
To Change the Light Bulb
The light is switched on automatically when the
door is opened. B efore replacing the light bulb,
disconnect the power plug from the outlet.
Fold the grille backward by unsnapping the front
edge.
Use a bulb of the same type, E14 socket, maximum
ratingof25W.
When replacing the light bulb, use a bulb of the
same type as the original one. The glass must
measure at least 18 mm in diameter at the socket.
This will ensure close fitting of the bulb against the
rubber s eal in the socket.
Electrolux 818 17 32-03/ 6
13
Page 6
Defrosting the fridge
The fridge is defrosted automatically every time the
compressor stops. Frost formation can be prevented
by:
· not putting warm foodstuff inside the cabinet.
· avoiding frequently opening the door or keeping
it open too long.
· do not place foodstuffs directly against the cold
cooling plate.
When the appliance is not in use
Disconnect the appliance from electricity supply.
Empty all foods and clean the appliance, leaving the
doors ajar to prevent unpleasant smells.
If the cabinet will be kept on, ask somebody to
check it once in a while to prevent the food inside
from spoiling in case of a power failure.
Something Not Working
Before contacting your local Service Force Centre check the following point:
Problem Possible cause / Remedy
It is too warm inside the refrigerator. Set a lower temperature.
Put food products in the right place inside the refrigerator. See
the chapter "Temperature inside the refrigerator".
Distribute the food products to allow cold air to circulate
around them.
Make sure that the door is completely closed and that the
insulating strip is complete and clean.
The temperature where the cabinet is placed is above normal
room temperature.
It is too cold inside the refrigerator. Set a warmer temperature.
There is water on the cooling plate inside
the refrigerator.
Water is running inside the refrigerator. Clean the water drain and drain hole inside t he refrigerator
This is normal. During automatic defrosting, frost thaws on the
cooling plate.
using e.g. cotton swabs or a bottle cleaner brush.
Some food products could have been placed near the rear of the
appliance prevetung the water from running into the drain.
GB
Water comes out on the floor. Place the drain hose at the back of the cabinet above the drain
bowl. See the chapter "Before using the cabinet the first time".
The compressor operates continuously. Set a warmer temperature.
Make sure that the door is completely closed and that the
insulating strip is complete and clean.
The temperature where the cabinet is placed is above normal
room temperature.
The cabinet does not operate at all.
Cooling or interior light does not
operate. No indicator lamps light.
The cabinet is not switched on.
Power does not reach the cabinet. (Try connecting another
electrical device to the power outlet.)
The fuse has blown.
The power plug is not properly connected.
14
Electrolux 818 17 32-03/ 6
Page 7
Sound level in cabinet is too h igh. The refrigerating system will always produce some sounds. A
pulsing sound is heard when coolant is pumped inside the
cooling pipes. A ticking sound from the thermostat can be
heard when the compressor switches on and off. The sound
level varies depending on the operation of the cabinet.
If you feel the sound level is incorrect:
Make sure the pipes at the back of the cabinet not touch each
other. Carefully bend them if they do.
If the cushion spacers (between the cabinet wall and pipes)
come loose, put them back in place again.
Carefully follow the instructions in the chapter "Installing the
cabinet".
Guarantee Conditions
See Guarantee Conditions on the Registration Card.
ServiceandSpareParts
In the event of your appliance requiring service, or
if you wish to purchase spare parts please contact
your local Electrolux Service Force Centre by
telephoning:
XXXXXXXXXXX
Your call be routed the Service Force Centre
covering your post code area. The address of your
local Service Force Centre ids detailed in the
accompanying Customer Care Book.
Before calling out an engineer, please ensure you
have read the details under the heading "Something
Not Working"
When you contact the Service Centre you will need
to give the following details.They will be found
inside your appliance.
MOD (modell):.....................................................
PROD.NO (model number):..................................
SER:NO (serial number):.......................................
Purchase date............................................................
Customer Care Department
For general enquiries concerning your Electrolux
appliance or futher information on Electrolux
products, you are invited to contact our Customer
Care Department by letter or phone as follows:
Customer Care Department
Electrolux
55-77 High Street
Slough
Berkshire
SL1 1DZ
Phone: 08705 950950 *
* calls to this number may be recorded for training
purposes
Technical specification
Model ER8209C
Vol um e 360 l
Width 595 mm
Height 1750 mm
Depth 600 mm
Energy consumption 179 kWh/year
Energy class A
Rated power 110W
15
GB
Electrolux 818 17 32-03/ 6
Page 8
Installation
Mains Cable
In the event of damage to the appliance's main cable,
to avoid risks only an authorised service company
recommended by the supplier or a qualified person
may adjust it.
Unpacking
Unpack the cabinet and check that it is in good
condition and free of any transport damage. Notify
the dealer immediately of any damage. Hand the
packaging over for recycling. For more information,
contact your local city office or the dealer.
Do not allow children to play with the
packaging. The plastic film can cause
suffocation.
Remove the transport supports
Remove the transport supports placed
along the door sides
inside the hinges
Cleaning
Wash the inside of the cabinet using lukewarm
water, a mild washing-up detergent and a soft cloth.
a)
b)
GB
50mm

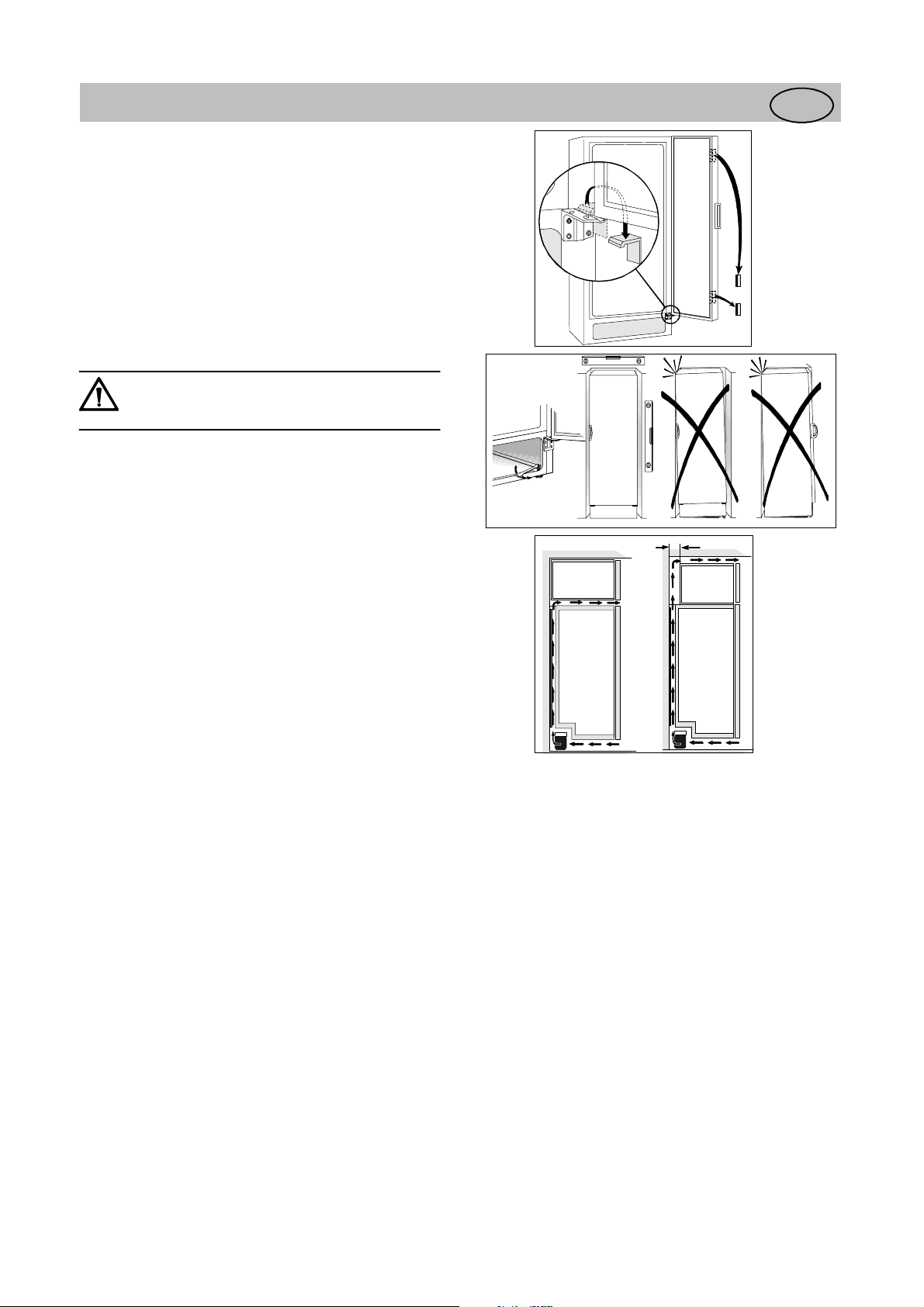

Installing the cabinet
To obtain the best performance from the cabinet,
ensure :
· the cabinet is placed in a dry, cool place and
is not exposed to direct sunlight.
· the cabinet is not placed close to a source of
heat, e.g. a cooker or dishwasher.
· the cabinet is level. The cabinet should not lean
against any wall. If necessary adjust the
feet using the adjustment spanner supplied.
· there is good air circulation around the cabinet
and that the air channels below and behind
the cabinet are not blocked. The ventilation
space above the cabinet must be at least 4 cm.
The ventilation space can either be
a) directly above the cabinet, or
b) behind and above the top cupboard. In this case,
the space behind the cupboard must be at least
50 mm deep.
Cabinet is placed at a location whose ambient
temperature corresponds to the climate
classification*, for which the appliance is designed.
* See on the rating plate on the inside of the
appliance.
The following table shows which ambient
temperature is correct for each climate classification.
16
Electrolux 818 17 32-03/ 6
Page 9
Climate
classification
SN
N
ST
T
for an ambient temperature of
+10°C to +32°C
+16°C to +32°C
+18°C to +38°C
+18°C to +43°C
Check that the drain hose at the rear of the cabinet
discharges into the drip tray.
If the cabinet is placed in a corner and the side with
the hinges facing the wall, the distance between the
wall and the cabinet must be at least 10 mm to allow
the door to open enough so that the shelves can be
removed.
The power plug must be accessible after installation
of the cabinet.

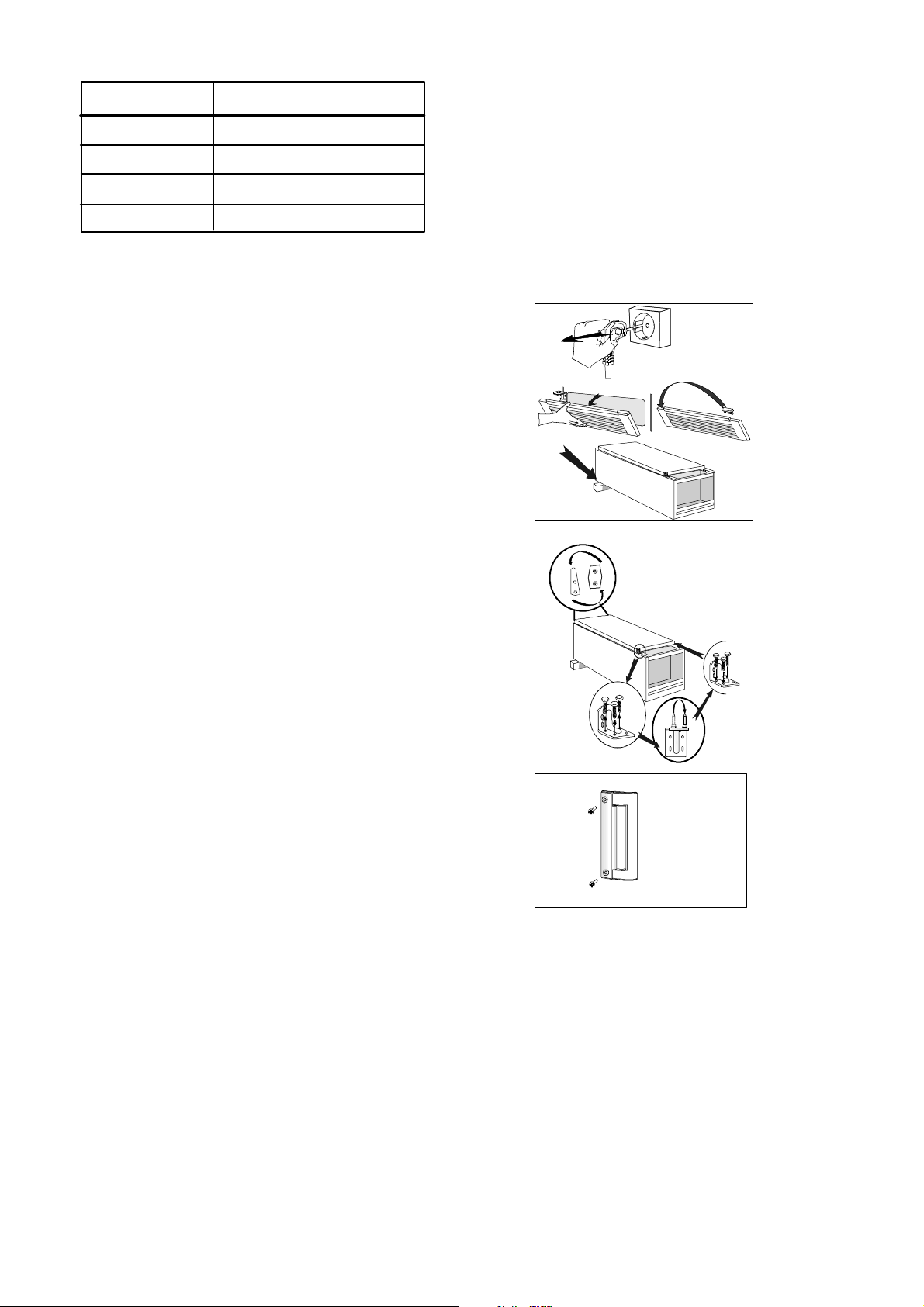

Door Reversal
1. Close the cabinet and remove the plug from the
electrical socket.
2. Remove the ventilation grille. There is a part on
the grille that can be removed. Reposition i t and put
it on the other side.
3. Put the cabinet on a wooden board when it is laid
down. Later, when raising the cabinet, it will be
easier to grip under the cabinet thanks to the board.
4. On the upper part of the cabinet. Move the hinge
pin and cover washer.
On the lower part of the cabinet. Unscrew the hinge.
Move the hinge pin and plastic cover. Secure the
hinge on the other side.
5. Raise the cabinet and replace the ventilation grille.
6. Unscrew the handle. Carefully press in the plastic
plugs on the opposite side using a drift. Secure the
handle in the plug holes. Then press the supplied
plastic plugs into the holes to which the handle was
previously fitted.
1
2
3
4
7. Put the cabinet in position. Check that it stands
straight. See the section "Positioning the cabinet".
Electrical connection
Connect the cabinet to a grounded electrical outlet.
Voltage: 230 V.
Fuse: 10 A.
Refer to the rating plate on the l eft inside the
cabinet.
6
17
Electrolux 818 17 32-03/ 6
Page 10
bдЙЕнкздмсJвзеЕЙкеЙе=®к=о®кдЗЙел=лн∏клн~=нбддоЙкв~кЙ=~о=ЬмлЬ™ддлг~лвбеЙк=зЕЬ=мнкмлнебеЦ=С∏ê=â∏âI=êÉåÖ∏кбеЦ=л~гн=лвзЦлJ
зЕЬ=нк®ЗЦ™кЗллв∏нлЙдK=jЙк=®е=RR=гбдазеЙк=йкзЗмвнЙк=Ск™е=bдЙЕнкздмсJвзеЕЙкеЙе=Eлзг=вудлв™йI=лйбл~кI=но®н нг~лвбеЙкI
З~гглмЦ~кЙI=гзнзкл™Ц~к=зЕЬ=Цк®лвдбйй~кЙF=л®дал=о~каЙ=™к=нбдд=Йнн=о®кЗЙ=~о=NOM=гбда~кЗЙк=вкзезк=б=∏оЙк=NRM=д®еЗЙк=кмен=ЬЙд~
о®кдЗЙеK
qЬЙ=bдЙЕнкздмс=dкзмй=бл=нЬЙ=пзкдЗDл=д~кЦЙлн=йкзЗмЕЙк=зС=йзпЙкЙЗ=~ййдб~еЕЙл=Сзк=вбнЕЬЙеI=ЕдЙ~ебеЦ=~еЗ=змнЗззк=млЙK
jзкЙ=нЬ~е=RR=гбддбзе=bдЙЕнкздмс=dкзмй=йкзЗмЕнл=EлмЕЬ=~л=кЙСкбЦЙк~нзклI=ЕззвЙклI=п~лЬбеЦ=г~ЕЬбеЙлI=о~Еммг=ЕдЙ~еЙклI
ЕЬ~бе=л~пл=~еЗ=д~пе=гзпЙклF=~кЙ=лздЗ=Й~ЕЬ=уЙ~к=нз=~=о~дмЙ=зС=~ййкзсK=rpa=NQ=Дбддбзе=бе=гзкЙ=нЬ~е=NRM=ЕзменкбЙл
~кзмеЗ=нЬЙ=пзкдЗK
iЙ=dкзмйЙ=bдЙЕнкздмс=Йлн=дЙ=йкЙгбЙк=С~ДкбЕ~ен=гзеЗб~д=ЗD~йй~кЙбдл=ЗзгЙлнбимЙлI=ЗDЙенкЙнбЙе=Йн=йзмк=дDЙсн¨кбЙмкK
mдмл=ЗЙ=RR=гбддбзел=ЗЙ=йкзЗмбнл=Зм=dкзмйЙ=bдЙЕнкздмс=EнЙдл=имЙ=к¨СкбЦ¨к~нЙмклI=Емблбеб≠кЙлI=д~оЙJдбеЦЙI=~лйбк~нЙмклI
нкзе´зееЙмлЙлI=нзеЗЙмлЙл=¶=Ц~тзеF=лзен=оЙеЗмл=ЕЬ~имЙ=~ее¨Й=йзмк=ме=гзен~ен=ЗDЙеобкзе=NQ=гбддб~кЗл=ЗDbмкзл
З~ел=йдмл=ЗЙ=NRM=й~ул=¶=нк~оЙкл=дЙ=гзеЗЙK
aбЙ=bдЙЕнкздмсJdкмййЙ=блн=ЗЙк=пЙднпЙбн=Цк∏≈нЙ=eЙклнЙддЙк=озе=Ц~лJ=меЗ=лнкзгÄЙнкбЙÄÉåÉå=dÉê®íÉå=ÑΩê=ÇáÉ=hΩЕЬЙI=тмг
oЙбебЦЙе=меЗ=СΩк=cзклн=меЗ=d~кнЙеK=gЙЗЙл=g~Ьк=оЙкв~мСн=ЗбЙ=bдЙЕнкздмсJdкмййЙ=бе=ΩÄЙк=NRM=i®еЗЙке=ЗЙк=bкЗЙ=ΩÄЙк=RR
jбддбзеЙе=mкзЗмвнЙ=EhΩЬдлЕЬк®евЙI=eЙкЗЙI=t~лЕЬг~лЕЬбеЙеI=pн~мÄл~мЦЙкI=jзнзкл®ЦЙе=меЗ=o~лЙег®ЬЙкF=гбн=ЙбеЙг
tЙкн=озе=кмеЗ=NQ=jкЗK=rpaK
fд=dкмййз=bдЙЕнкздмс==ЙD=бд=йбмD=Цк~еЗЙ=йкзЗмннзкЙ=гзеЗб~дЙ=Зб=~йй~кЙЕЕЬб~нмкЙ=йЙк=д~=ЕмЕбе~I=йЙк=д~=ймдбтб~=Й=Зб
~ннкЙтт~нмкЙ==йЙк=бд=Цб~кЗбе~ЦЦбз=Й=йЙк= млз=СзкЙлн~дЙK=lднкЙ=RR=гбдбзеб=Зб=йкзЗзннб=ЗЙд=dкмййз=bдЙЕнкздмс==E=им~дб=СкбЦзкбСЙкбI
ЕмЕбеЙI=д~о~Дб~еЕЬЙкб~I=д~о~лнзобЦдбЙI=~лйбк~йздоЙкЙI=гзнзлЙЦЬЙ=Й=к~л~ЙкД~=F=оЙеЦзез=оЙеЗмнЙ=зЦеб=~еез=бе=йбмD=Зб=NRM
m~Йлб=ЗЙд=гзеЗз=йЙк=ме=о~дзкЙ=Зб=ЕбкЕ~=NQ=гбдб~кЗб=Зб=Зздд~кбK
bд=dкмйз=bдЙЕнкздмс=Йл=Йд=г~узк=С~ДкбЕ~енЙ=ЗЙд=гмеЗз=ЗЙ=~й~к~нзл=й~к~=д~=ЕзЕбе~I=дбгйбЙт~=у=млз=ЙснЙкбзкK=j•л=ЗЙ=RR
гбддзеЙл=ЗЙ=йкзЗмЕнзл=ЗЙд=dкмйз=bдЙЕнкздмс=EСкбЦзкбСбЕзлI=ЕзеЦЙд~ЗзкЙлI=ЕзЕбе~лI=д~о~Ззк~лI=~лйбк~ЗзкЙлI=гзнзлбЙкк~л=у
Езкн~Е¨лйЙЗЙлF=лЙ=оЙеЗЙе=Е~З~=~¥з=йзк=ме=о~дзк=~йкзсбг~Зз=ЗЙ=NQ=ДбддзеЙл=ЗЙ=rpA=Йе=г•л=ЗЙ=NRM=й~блЙл=ЗЙд=гмеЗзK
MARIESTAD DT--AV
Loading...
