WARNINGS

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can be acquainted with the functioning of the appliance and the relevant warnings. These warnings are provided in the interest of safety. You must read them carefully before installing or using the appliance.

■

This appliance should be serviced by an

General Safety

authorized Service Centre, and only genuine spare parts should be used.

■

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.

■

It is dangerous to alter the specifications or modify this product in any way.

■

Care must be taken to ensure that the appliance does not stand on the electrical supply cable.

■

Before any cleaning or maintenance work is carried out, be sure to switch off and unplug

■

Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or more serious malfunctioning. Refer to your local Service Centre, and always insist on genuine spare parts.

■

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

Use

the appliance.

■

This appliance is heavy. Care should be taken when moving it.

■

Ice lollies can cause frost burns if consumed

straight from the appliance.

■

Take utmost care when handling your appliance so as not to cause any damages to the cooling unit with consequent possible fluid leakages.

■

The appliance must not be located close to radiators or gas cookers.

■

Avoid prolonged exposure of the appliance to direct sunlight.

■

There must be adequate ventilation round the back of the appliance and any damage to the refrigerant circuit must be avoided.

■

For freezers only (except built-in models): an ideal location is the cellar or basement.

■

Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.

Service / Repair

The domestic refrigerators and freezers are designed to be used specifically for the storage of edible foodstuffs only.

■

Frozen food must not be re-frozen once it has been thawed out.

■

Manufacturers’ storage recommendations should be strictly adhered to. Refer to relevant instructions.

■

The inner lining of the appliance consists of channels through which the refrigerant passes. If these should be punctured this would damage the appliance beyond repair and cause food loss. DO NOT USE SHARP INSTRUMENTS to scrape off frost or ice. Frost may be removed by using the scraper provided. Under no circumstances should solid ice be forced off the liner. Solid ice should be allowed to thaw when defrosting the appliance. See defrost instructions.

■

Do not place carbonated or fizzy drinks in the freezer as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the

■

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

manufacturer. Never use metal objects for cleaning your appliance as it may get damaged.

Page 3

Installation

■

During normal operation, the condenser and compressor at the back of the appliance heat up considerably. For safety reasons, minimum ventilation must be as shown in the relevant Figure.

Attention: keep ventilation openings clear of obstruction.

■

If the appliance is transported horizontally, it is possible that the oil contained in the compressor flows in the refrigerant circuit. It is advisable to wait at least two hours before connecting the appliance to allow the oil to flow back in the compressor.

■

There are working parts in this product which heat up. Always ensure that there is adequate ventilation as a failure to do this will result in component failure and possible food loss. See installation instructions.

■

Parts which heat up should not be exposed. Wherever possible the back of the product should be against a wall.

■

If the appliance has been transported horizontally, it is possible that the oil contained in the compressor ílows in the refrigerant circuit. It is advisable to wait at least two hours before connecting the appliance to allow tlıe oil to flow back in the compressor.

Environment Protection

■

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. Information on your local disposal sites may be obtained from your municipal authorities. The materials used on this appliance marked with the symbol

are recyclable.

Installation

■

Positioning

■

Cleaning the interior

■

Instructions for totally built-in appliances

■

Electrical connection

Technical specification

Use

■

Operation

■

Temperature regulation

■

Fresh food refrigeration

■

Movable shelves

■

Positioning the door shelves

CONTENTS

■

36 36

36 37

40 40 40 40 41

Defrosting

Maintenance

■

Periodic cleaning

■

Extended periods of non-operation

■

Interior light

Defective operation

42 42 42

Page 4

INSTALLATION

If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death-trap for a child.

Positioning

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Best performance is obtained with ambient temperature between +18°C and +43°C (class T); +18°C and +38°C (class ST); +16°C and +32°C (class N); +10°C and +32°C (class SN). The class of your

appliance is shown on its rating plate.

For building into kitchen units follow the special “ Building-in” instructions given.

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brandnew product, then dry thoroughly. Do not use detergents or abrasive powders, as these will damage the finish.

Important

It is essential that the appliance be connected to an efficient earth tap. For this purpose the supply cable plug incorporates a special earth contact. If the sockets of your domestic wiring system are not earthed, have the appliance connected to a separate earth wire by a qualified electrician in accordance with existing safety regulations.

The Manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with EEC directive number 87/308 of 2/6/87 relative to radio interference suppression.

This appliance complies with the following E.E.C. Directives:

- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent mod)fications;

- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Page 5

Instructions for totally built-in appliances

Dimensions of the recess

Model ER 7335 I Model ER 6930 I

Height 1225 mm 1030 mm Depth 550 mm 550 mm Width 560 mm 560 mm

The appliance’s door has been locked in position for transport by means of pins on both sides. According to the door opening direction, remove relevant pins at the top and at the bottom.

For safety reasons, minimum ventilation must be as shown in Fig. 1.

Attention: keep ventilation openings clear of obstruction.

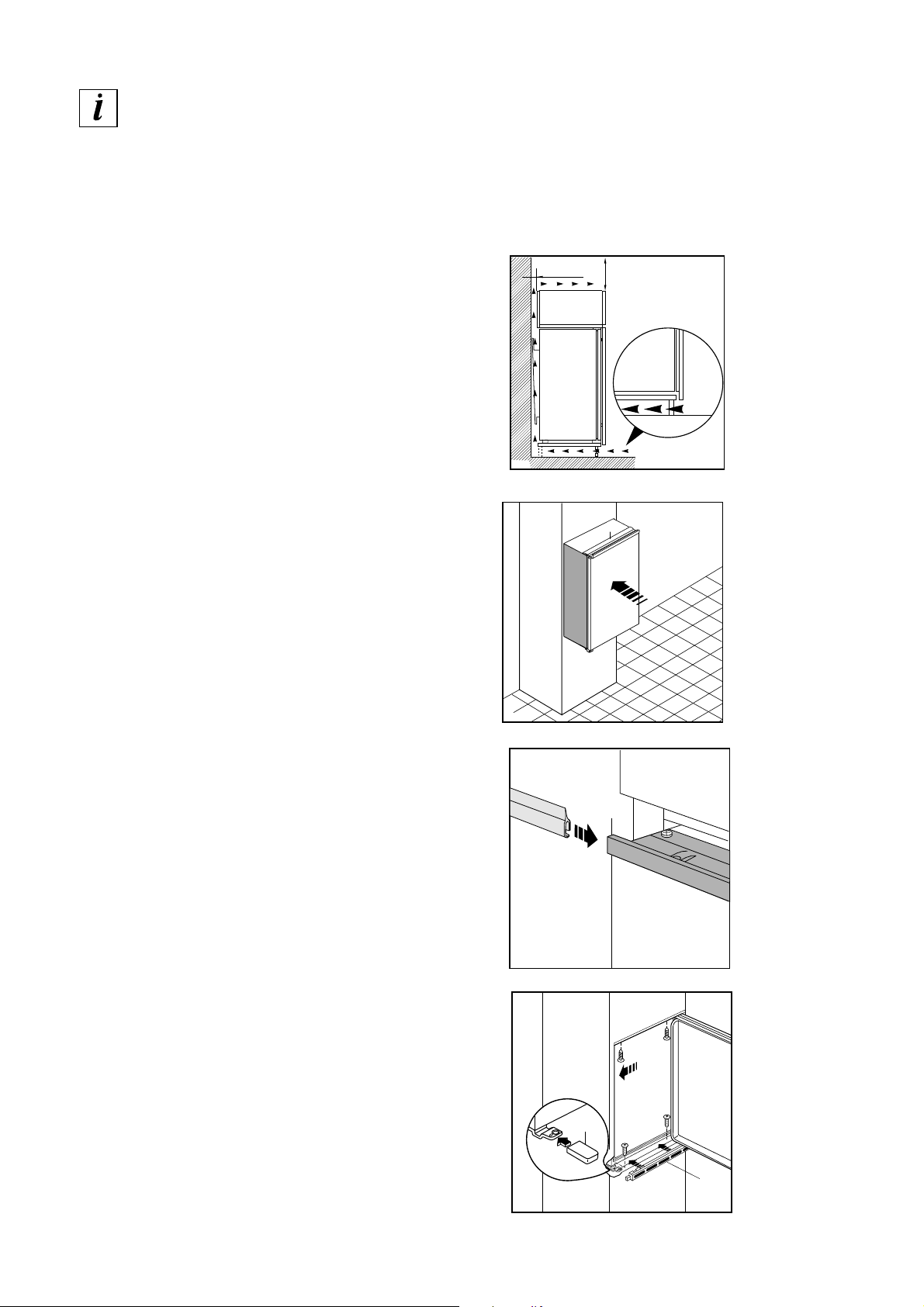

Push appliance into the housing until stop strip (A) touches the kitchen unit.

D567

50 mm

min.

200 cm

min.

Fig. 1

200

Fig. 2

If after having carried out the previously described operation there is still some space left between the appliance and the kitchen unit, fit the trimming provided together with the appliance on the stop strip (A).

Open the door and push the appliance against the side of the kitchen unit opposite to that of appliance hinges. Fasten the appliance with 4 screws provided in the kit included with the appliance. Snap vent grille (C) and hinge cover (D) into position.

D022

Fig. 3

D265

Fig. 4

D727

Page 6

Press in the joint covers between the appliance and the kitchen unit.

Fig. 5

D724

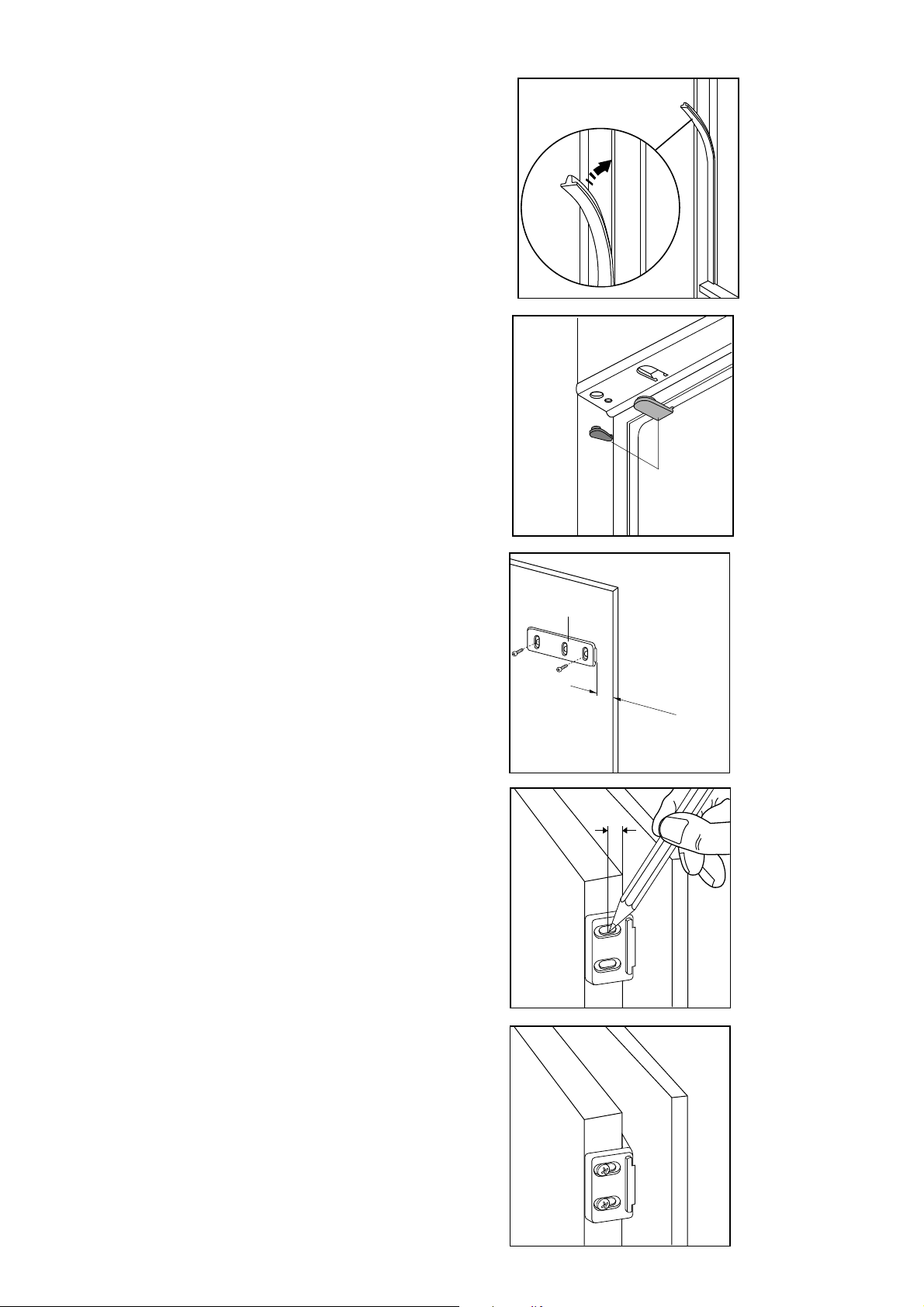

Apply covers (B) on joint cover lugs and into hinge holes.

Position the runners (H) at the top and bottom of the inside of the kitchen unit as shown in Fig. 7 and mark the position of the external holes. After preparing the holes, screw the runners to the kitchen unit door using 3.5x16 mm screws.

Fig. 6

D726

Fig. 7

20mm

PR33

Open both the appliance door and that of the kitchen unit to approx. 90°. Place the little plates over the runners. Hold the doors of the appliance and the unit together and mark the holes.

Remove the little plates and make the holes with a diam. of 2 mm. Replace the little platee over the runners and screw in the screws provided (3.5x16 mm). For the alignment of the kitchen unit door, if necessary, use the clearance size of the slotted holes. At the end of the procedure, check that the doors of the appliance and the kitchen unit open properly.

Fig. 8

8mm

PR34

Fig. 9

PR35

Page 7

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the serial number plate correspond to your domestic power supply. Voltage can vary by ±6% of the rated voltage. For operation with different voltages, a suitably sized auto-transformer must be used.

TECHNICAL SPECIFICATIONS

The technical data is indicated in the rating plate on the left side inside the appliance.

Page 8

USE

Operation

Insert the plug into the wall socket. Open the refrigerator door and turn the thermostat knob, clockwise, beyond the «O» (STOP) position. The appliance will start to operate.

Temperature regulation

The temperature is automatically regulated and can be increased to achieve a higher temperature (warmer) by rotating the thermostat knob toward lower settings or reduced (colder) rotating the knob towards higher settings.

However, the exact setting should be chosen keeping in mind that the temperature inside the refrigerator depends on:

room temperature; how often the door is opened; the quantity of food stored; location of appliance.

A medium setting is generally the most suitable.

To stop operation, simply turn the thermostat knob to position «O».

drawer(s).

For safety, store in this way only one or two days at the most.

Cooked foods, cold dishes, etc: these should

be covered and may be placed on any shelf. Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided. Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible. Milk bottles: these should trave a cap and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired. For better use of space, the front half-shelves can lie over the rear ones.

Important

If the ambient temperature is high or the appliance is fully loaded, and the appliance is set to the lowest temperatures, it may run continuously causing frost to form on the rear wall. In this case the dial must be set to a higher temperature to allow automatic defrosting and therefore reduced energy consumption.

Fresh food refrigeration

To obtain the best performance: do not store warm food or evaporating liquide in the refrigerator

do cover or wrap the food, particularly if it has a strong flavour.

Position food so that air can circuiate freely round it. Useful hints: Meat (all types): wrap in polythene bags and place on the glass shelf above the vegetable

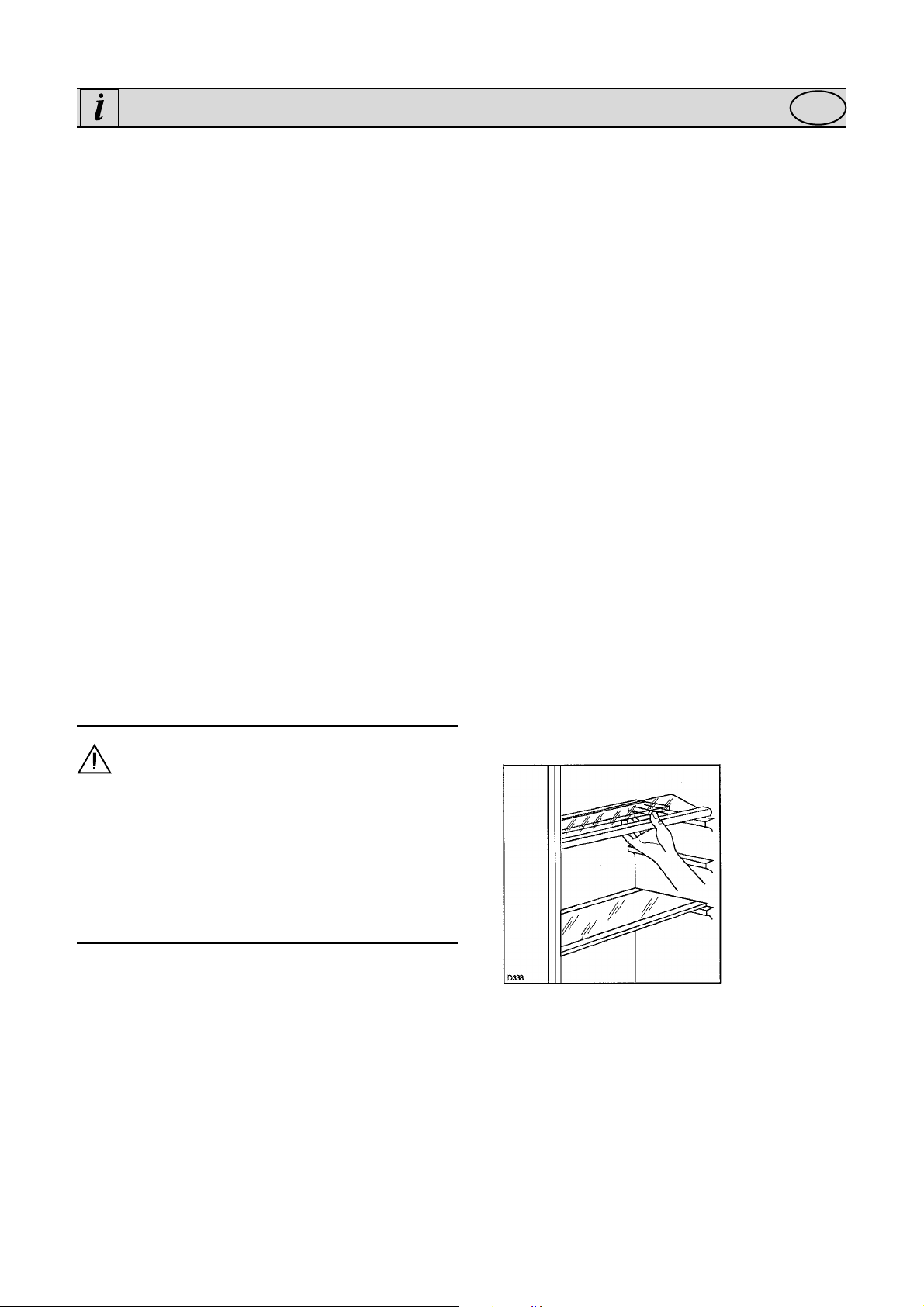

Fig. 10

Page 9

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be adjusted in height.

To make these adjustments proceed as follows: Gradually pull the shelf in the direction of the

arrows until it comes off, then reposition as required.

Fig. 11

Fig. 12

Defrosting

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use.

The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside.

Use the special cleaner provided, which you will find already inserted into the drain hole.

Fig. 13

D037

Page 10

MAINTENANCE

Unplug the appliance before carrying out any maintenance operation.

Warning

This appliance contains hydrocarbons in its cooling unit maintenance and recharging must therefore only be carried out by authorized technicians.

Internal clearing

Never use metal objects for clearing your appliance as it may get damaged.

When performing a complete defrosting, wash the internal surfaces of the freezer with lukewarm water and bicarbonate; rinse and then accurately dry.

External clearing

Wash the outer body with lukewarm water and soap. Periodically use a clearing polish to keep the outer body shining. Dust the condenser located behind the freezer with a soft brush or a vacuum cleaner. An excessive accumulation of dust might compromise the freezer’s efficiency.

Interior light

The light bulb inside the refrigerator compartment can be reached as follows:

■

unscrew the light cover securing screws;

■

unhook the moving part by pressing it as shown in the figure.

If the door is open and the light does not come on, check that the bulb is properly screwed in; if it still does not work, replace the bulb with one of the same power.

The maximum rating is shown on the light cover.

Fig 14

Extended periods of non-operation

Whenever the freezer is not to be used for an extended period of time, disconnect it from the wall socket and empty and clean the freezer. Remember to leave the door open for the entire period of time in which the freezer is not to be used.

DEFECTIVE OPERATION

Before calling your local dealer for servicing assistance, check the following points to see if you may not resolve the problem yourself:

Make sure that the freezer is plugged into the wall socket correctly, and that electrical current arrives to the freezer without interruption.

Control the thermostat setting. In the event that the freezer makes excessive

noise or vibration, make sure that it is not in direct contact with the wall or adjacent furniture.

D411

If defective operation continues after these controls, call your local Service Network and provide all the data listed on the rating plate: model, serial number, etc.
