WARNINGS
It is most important that this instruction book should be retained with the appliance for future reference.
Should the appliance be sold or transferred to another owner, or should you move house and leave the
appliance, always ensure that the book is supplied with the appliance in order that the new owner can be
acquainted with the functioning of the appliance and the relevant warnings.
These warnings are provided in the interest of safety. You must read them carefully before installing or
using the appliance.
GB
General Safety
ª This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the product.
ª It is dangerous to alter the specifications or modify
this product in any way.
ª Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
ª Before any cleaning or maintenance work is
carried out, be sure to switch off and unplug the
appliance.
ª This appliance is heavy. Care should be taken
when moving it.
ª Ice lollies can cause frost burns if consumed
straight from the appliance.
ª Take utmost care when handling your
appliance so as not to cause any damages to the
cooling unit with consequent possible fluid
leakages.
ª The appliance must not be located close to
radiators or gas cookers.
ª Avoid prolonged exposure of the appliance to
direct sunlight.
ª There must be adequate ventilation round the
back of the appliance and any damage to the
refrigerant circuit must be avoided.
ª For freezers only (except built-in models): an
ideal location is the cellar or basement.
ª Do not use other electrical appliances (such as
ice cream makers) inside of refrigerating
appliances, unless they are approved for this
purpose by the manufacturer.
Service / Repair
ª Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
ª This appliance should be serviced by an
authorized Service Centre, and only genuine spare
parts should be used.
ª Under no circumstances should you attempt to
repair the appliance yourself.
Repairs carried out by inexperienced persons may
cause injury or more serious malfunctioning. Refer
to your local Service Centre, and always insist on
genuine spare parts.
ª This appliance contains hydrocarbons in its
cooling unit; maintenance and recharging must
therefore only be carried out by authorized
technicians.
Use
ª The domestic refrigerators and freezers are
designed to be used specifically for the storage of
edible foodstuffs only.
ª Frozen food must not be re-frozen once it has been
thawed out.
ª Manufacturers’ storage recommendations should
be strictly adhered to. Refer to relevant
instructions.
ª The inner lining of the appliance consists of
channels through which the refrigerant passes. If
these should be punctured this would damage the
appliance beyond repair and cause food loss.
DO NOT USE SHARP INSTR UMENTS to scrape
off frost or ice. Frost may be removed by using the
scraper provided. Under no circumstances should
solid ice be forced off the liner . Solid ice should be
allowed to thaw when defrosting the appliance.
See defrost instructions.
ª Do not place carbonated or fizzy drinks in the
freezer as it creates pressure on the container,
which may cause it to explode, resulting in
damage to the appliance.
ª Do not use a mechanical device or any artificial
means to speed up the thawing process other than
those recommended by the manufacturer.
ª Never use metal objects for cleaning your
appliance as it may get damaged.
42
Printed on recycled paper
Page 3
Installation
ª During normal operation, the condenser and
compressor at the back of the appliance heat up
considerably. For safety reasons, minimum
ventilation must be as shown in the relevant
Figure.
Attention: keep ventilation openings clear of
obstruction.
ª If the appliance is transported horizontally, it is
possible that the oil contained in the compressor
flows in the refrigerant circuit. It is advisable to
wait at least two hours before connecting the
appliance to allow the oil to flow back in the
compressor.
ª There are working parts in this product which heat
up. Always ensure that there is adequate
ventilation as a failure to do this will result in
component failure and possible food loss. See
installation instructions.
ª Parts which heat up should not be exposed.
Wherever possible the back of the product should
be against a wall.
ª If the appliance has been transported horizontally,
it is possible that the oil contained in the
compressor flows in the refrigerant circuit. It is
advisable to wait at least two hours before
connecting the appliance to allow the oil to flow
back in the compressor.
Environment Protection
ª This appliance does not contain gasses which
could damage the ozone layer, in either its
refrigerant circuit or insulation materials. The
appliance shall not be discarded together with
the urban refuse and rubbish. Avoid damaging
the cooling unit, especially at the rear near the
heat exchanger. Information on your local
disposal sites may be obtained from your
municipal authorities.
The materials used on this appliance marked
with the symbol are recyclable.
43
Page 4
CONTENTS
Installation 45
ª Location 45
ª Rear spacers 45
ª Cleaning the interior 46
ª Door reversal 47
ª Electrical connection 47
Technical specification 47
Using your freezer 48
ª The control panel 48
ª Operation 48
GB
ª Temperature regulation 48
ª Fast freezing 48
ª Warning light 48
ª Freezing food 49
ª Rules to observe when freezing foods 49
ª Cold accumulator 50
ª Frozen food storage 51
ª Helpful hints 51
ª Thawing-out frozen foods 51
ª Ice-cube production 51
ª Defrosting 52
Maintenance 53
ª Periodical cleaning 53
ª Idle periods 53
Something not working 53
44
Page 5
INSTALLATION
If this appliance featuring magnetic door seals is to
replace an older appliance having a spring lock
(latch) on the door or lid, be sure to make that
spring lock unusable before you discard the old
appliance. This will prevent it from becoming a
death-trap for a child.
Location
The appliance should be installed well away from
sources of heat such as radiators, boilers, direct
sunlight etc.
Best performance is obtained with ambient
temperature between +18°C and +43°C (class T);
+18°C and +38°C (class ST); +16°C and +32°C (class
N); +10°C and +32°C (class SN).
The class of your appliance is shown on its rating
plate.
100 mm 10 mm
A
GB
Fig. 1
B

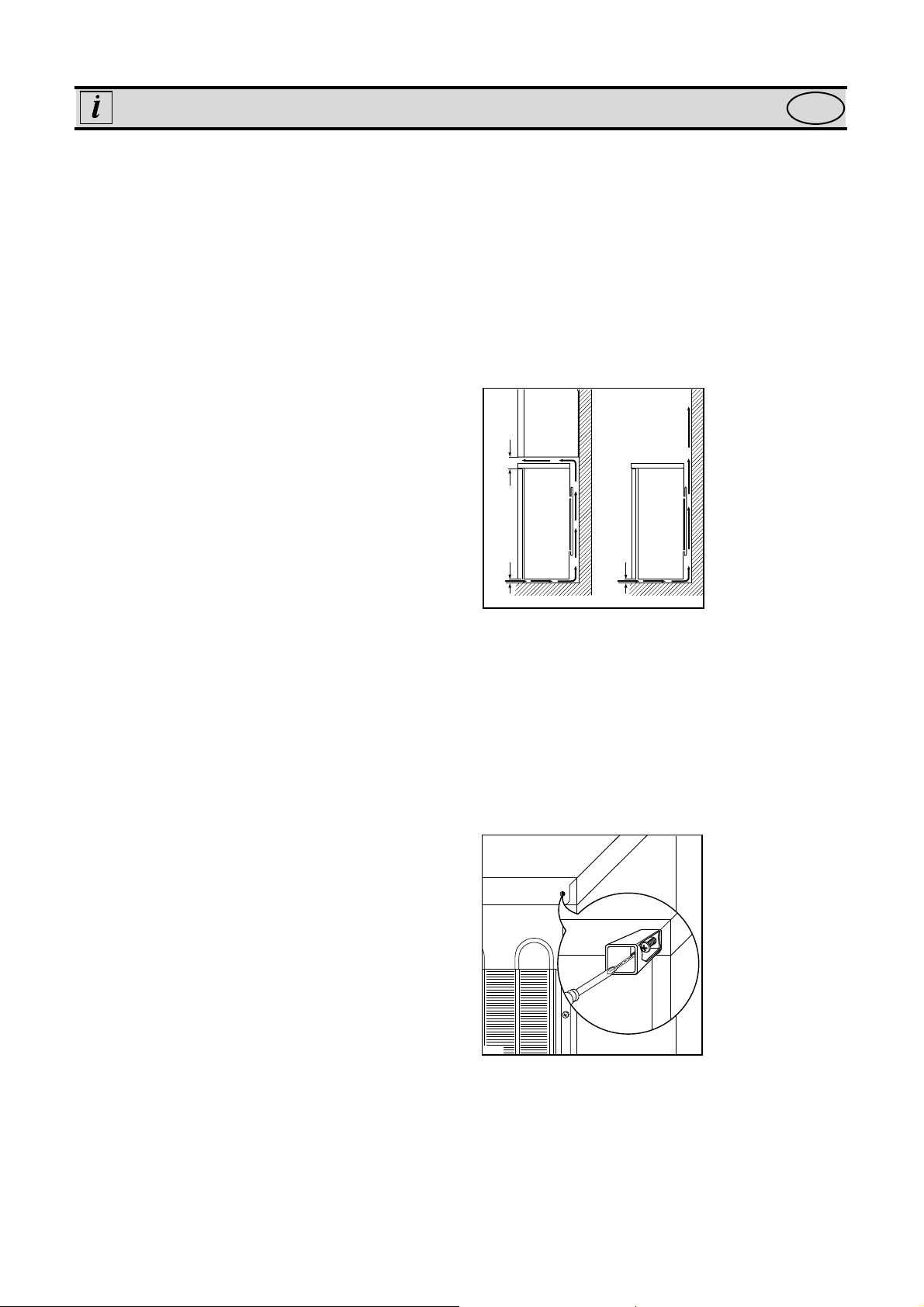

For safety reasons, minimum ventilation must be as
shown in Fig. 1:
Appliance positioned under overhanging kitchen wall
units (see Fig. 1-A).
Appliance positioned without overhanging kitchen
units (see Fig. 1-B).
Attention: keep ventilation openings clear of
obstruction.
Two adjustable feet at the cabinet base allow accurate
levelling of the appliance.
Rear spacers
In the bag with the documentation, there are two
spacers which must be fitted in the two top
corners.
Slacken the screws and insert the spacer under the
screw head, then re-tighten the screws.
NP006
10 mm
Fig. 2
D594
45
Page 6
Important
It is essential that the appliance be connected to an
efficient earth tap. For this purpose the supply cable
plug incorporates a special earth contact. If the
sockets of your domestic wiring system are not
earthed, have the appliance connected to a separate
earth wire by a qualified electrician in accordance
with existing safety regulations.
The Manufacturer declines all responsibility if the
above safety precautions are not observed.
This appliance complies with EEC directive
number 87/308 of 2/6/87 relative to radio
interference suppression.
This appliance complies with the following
E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and
subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
Cleaning the interior
Before using the appliance for the first time, wash the
interior and all internal accessories with lukewarm
water and some neutral soap so as to remove the
typical smell of a brand-new product, then dry
thoroughly.
Do not use detergents or abrasive powders, as these
will damage the finish.
46
Page 7
Door reversal

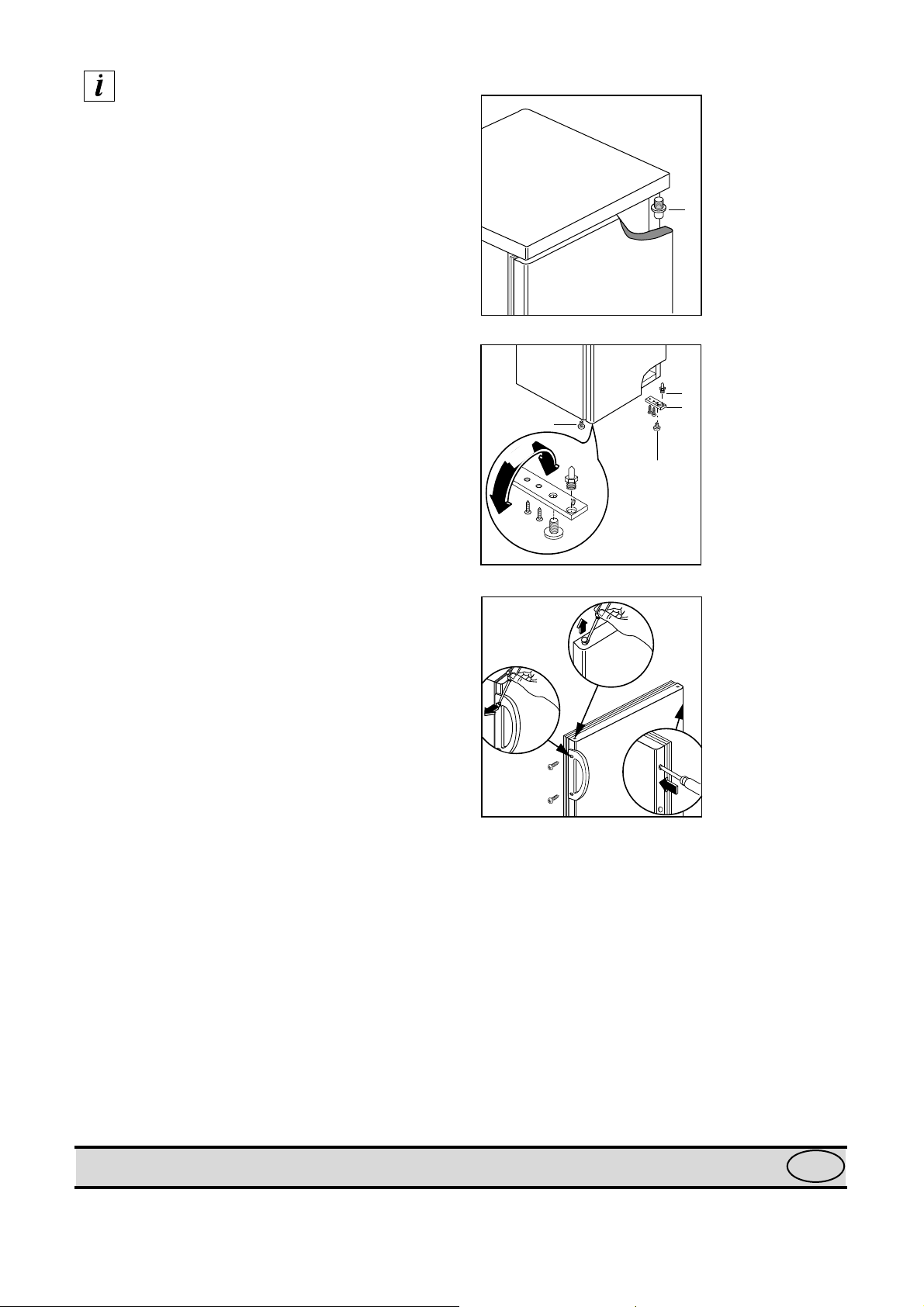

Before starting work, unplug the appliance. T o re verse
the opening direction of the door proceed as follows:
remove the lower hinge (3), pin (1) and foot (2);
Fig. 3
unscrew the front left foot and screw it back in on the
opposite side;
remove the two screws which mask the holes for
fixing the hinge from the front left hand side;
slide out the door from pin (5), unscrew the latter and
then screw it down into the hinge provided on the
opposite side;
remove the two plugs, to re veal the holes for the hinge
pivots, and remount them on the other side;
reassemble the door;
refit the lower hinge (turning it through 180°), the pin
and the foot on the opposite side, as shown in the
figure.
Unscrew the handle. Refit it on the opposite side after
having pierced the plugs with a punch. Cover the
holes left open with the plugs contained in the
documentation pack.
Attention
After having reversed the opening direction of the
door check that all the screws are properly
tightened and that the magnetic seal adheres to the
cabinet. If the ambient temperature is cold (i.e. in
Winter), the gasket may not fit perfectly to the
cabinet. In that case, wait for the natural fitting of the
gasket or accelerate this process by heating up the
part involved with a normal hairdrier.
D548
D299
PR228
180°
5
Fig. 4
1
3
2
2
Fig. 5
Electrical connection
Before plugging in, ensure that the voltage and
frequency shown on the serial number plate
correspond to your domestic power supply.
Voltage can vary by ±6% of the rated voltage.
For operation with different voltages, a suitably sized
auto-transformer must be used.
TECHNICAL SPECIFICATION
The technical data is indicated in the rating plate on the left side inside the appliance.
GB
47
Page 8
USING YOUR FREEZER
This freezer has been marked with the symbol, which means that it is suited to the freezing of
fresh foods, the conservation of frozen foods and the production of ice-cubes.
GB

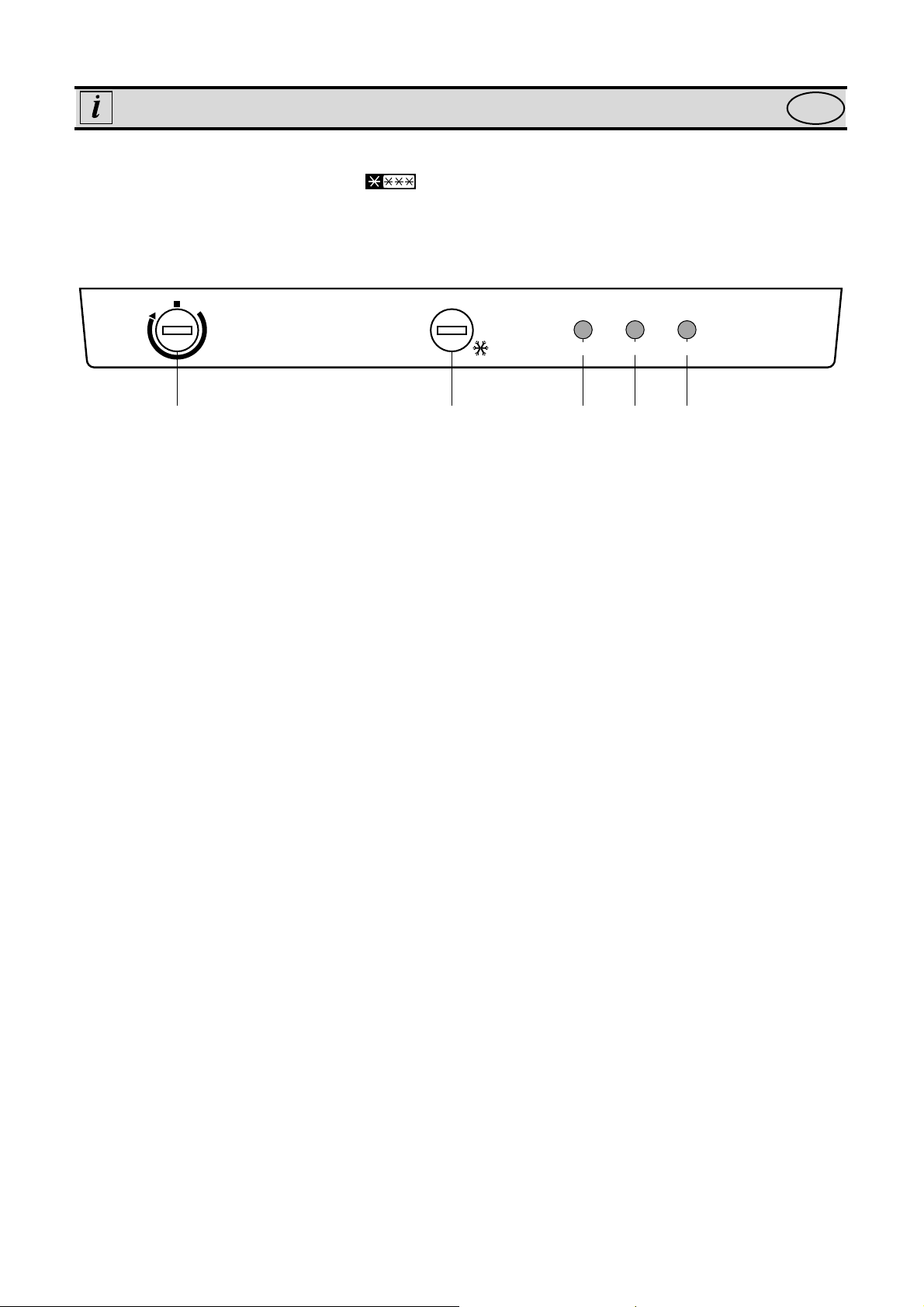

The control panel
minmax
ABCDE
Fig. 6
A. Thermostat knob
B. N/S knob
C. Function indicator light
D. Quick-freezing indicator light
E. Temperature alarm light
Operation
Insert the plug into the wall socket. The pilot light
will light up, indicating that the appliance is powered.
Turn the thermostat knob, clockwise, beyond the «
(STOP) position.
The appliance will start to operate.
To stop the appliance, turn the thermostat knob to
position «
ª».
ª»
N
S
ON SUPER ALARM
To stop operation, simply turn the thermostat knob to
position «
ª».
Fast freezing
T o start fast-freezing food, turn the knob to wards «S».
Pilot light (D) will come on.
Warning light
Temperature regulation
The temperature is automatically regulated and can be
increased to achieve a higher temperature (warmer)
by rotating the thermostat knob towards minimum or
reduced (colder) by rotating the knob towards
maximum.
However, the exact setting should be chosen keeping
in mind that the temperature inside the refrigerator
depends on:
room temperature;
how often the door is opened;
the quantity of food stored;
location of appliance.
A medium setting is generally the most suitable.
48
Warning light (E) lights up when the temperature
inside the freezer compartment has increased to a
value which jeopardizes the long-term storage of food
in the compartment.
When the appliance is switched on for the first time or
when food is placed in the compartment for freezing,
it is normal for this light to remain on until the
temperature has reached the level required for correct
storage.
Page 9
Freezing food
Set the freezer to quick-freezing operational status.
Wait at least 3 hours before introducing fresh foods
into the freezer if it has only recently been turned on.
If the freezer has already been working for some time,
turn the respective knob to the «S» position at least 24
hours before introducing the food into the freezer in
order to ensure better freezing results. This period of
time may be shortened according to the quantity of
food.
When quick-freezing is being performed, the
compressor works continuously, employing all of its
refrigerating power to the maximum.
Keep the knob as it is for another 24 hours after the
introduction of the food into the freezer and then
return the knob to the «N» position.
Bear in mind the freezing capacity of your freezer;
that is, the maximum quantity of food that may be
frozen in 24 hours.
This freezing capacity is 20 kg.

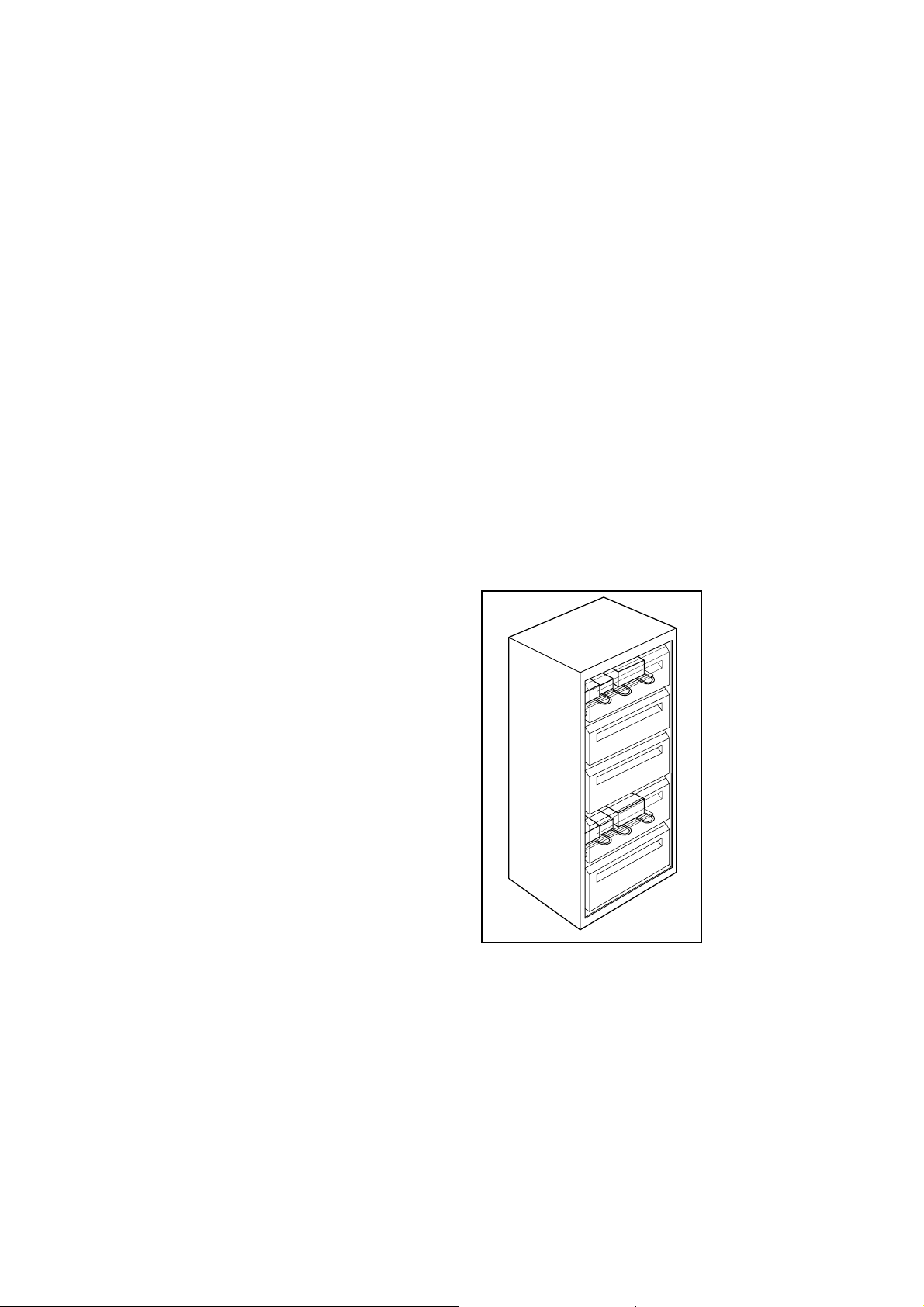

Distribute the packages as shown in Figure 7.
Arrange the foods to be frozen in the upper
compartment, so that these do not come into contact
with already-frozen products because the higher
surface temperature of the food to be frozen might
cause an increase in the surface temperature of the
already frozen products.
When the necessary freezing time has elapsed,
distribute the newly-frozen foods into the drawers to
free the compartment for new foods to be frozen.
Fig. 7
11 Kg
9 Kg
PR161
Rules to observe when freezing
foods
All products to be frozen must be fresh and of
excellent quality.
Each freezing package must be adjusted to the
family’ s consumption quantity in order to be used just
once.
Small-sized freezing packages allow a more rapid and
uniform freezing.
Do not forget that once frozen foods have tha wed out,
they spoil rapidly.
49
Page 10
Low-fat content foods are better conserved in the
freezer than those with higher fat content. Salt
(whenever present) reduces the duration of
satisfactory conservation.
Foods to be frozen must be enclosed in air-tight sacks
or containers especially indicated for this purpose.
Close these sacks or containers tightly to eliminate all
air.
Never place bottles or cans of carbonated be verages in
the freezer. These might explode.
Never introduce hot foods or liquids.
Never fill the freezing sacks or containers with cov ers
to the brim.
Do not consume certain products (popsicles, etc.)
immediately after removing them from the freezer,
because their extremely low temperature might cause
burns.
Indicate the freezing date on every sack or container
as a means of controlling conservation times.
Never open the freezer door or introduce ne w foods to
be frozen whenever a Quick-freezing phase is already
in progress.
A special card is located in the holder on the inner
door of the freezer compartment. On the upper part it
shows pictures of different types of food followed by
a figure. These figures indicate the maximum storage
time, in months, for each type of food.
Details of food being stored, can also be written in
pencil on the lower part of the card.
Important
When electrical current happens to be cut off, the
freezer door must not be opened. If the power failure
is short (up to 6-8 hours) and the freezer is full, there
is no risk that the food will spoil.
If the power failure lasts longer, the food must be
consumed as rapidly as possible, or otherwise cooked
and re-frozen again.
Cold accumulator

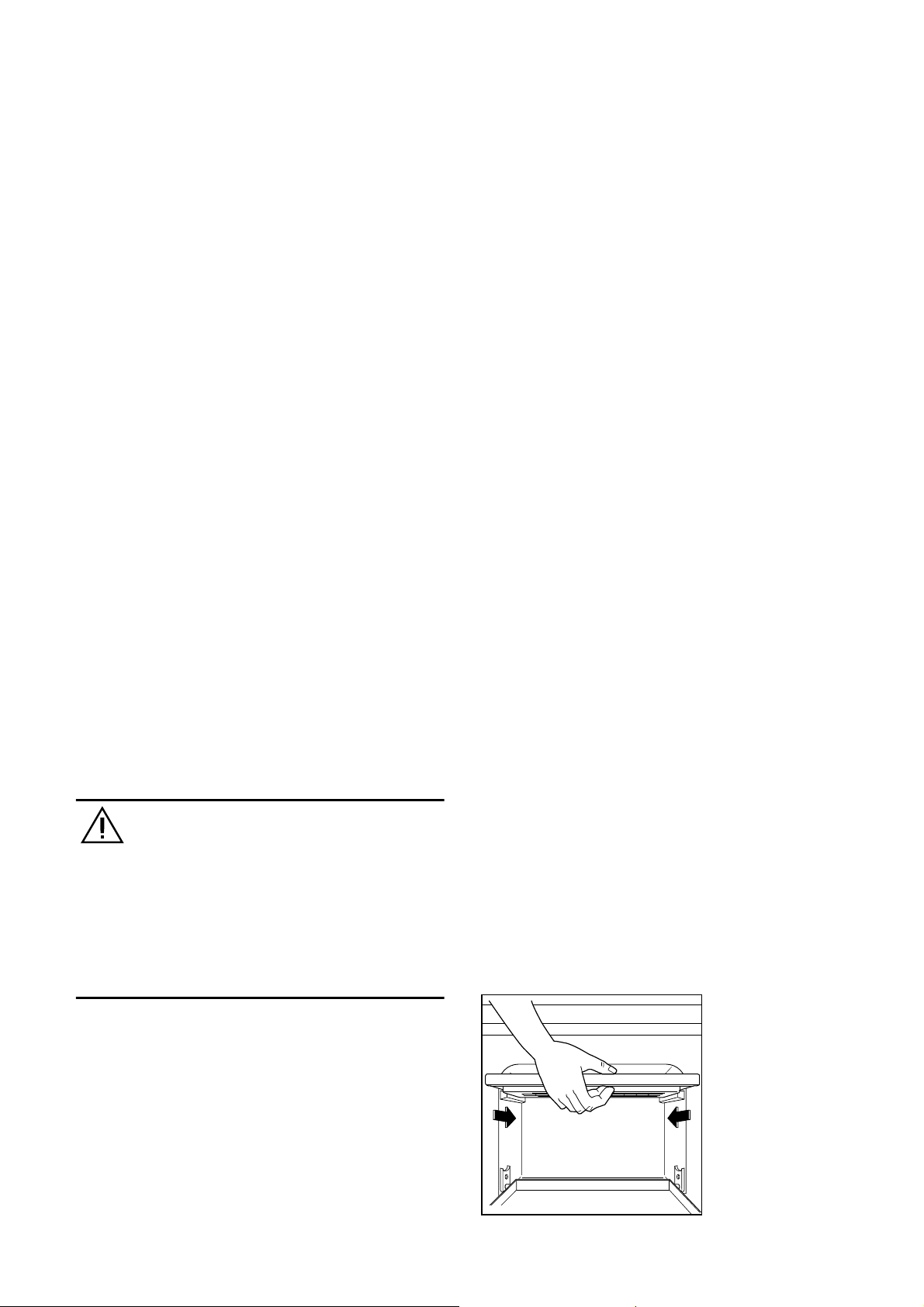

Fig. 8
A cold accumulator is supplied in the freezer; this
increases the length of time for which food will keep
in the event of a power failure or breakdown. It must
be placed in the top drawer.
50
PR152
Page 11
Frozen food storage
Ice-cube production
When the freezer is being turned on for the first time,
or after a prolonged period of disuse, turn the N/S
knob to the Quick-freezing position and then wait at
least two hours before introducing the food to be
conserved.
You may then return the knob to the «N» position.
This two-hour waiting period may be avoided if the
freezer has already been in operation.
Helpful hints
Always check the preparation date indicated on the
frozen foods you buy and respect the expiration time
provided by the producer.
Do not open the freezer door too often and leave it
open only for the minimum time necessary.
Unnecessary increases in temperature will notably
reduce the duration of the frozen food conservation.
Make sure that all frozen food packages are intact;
otherwise the food may have spoiled.
If such packages present signs of swelling or
humidity marks, this means that the food has not been
conserved correctly , implying that the product has lost
some of its original quality.
This appliance is equipped with trays for the
production of ice-cubes.
Fill these trays with water to 3/4 of their height, then
put them in the freezer.
The ice-cubes may be shaken out from the trays by
simply twisting; do not use metallic instruments to
remove the trays from the freezer.
When buying frozen foods, carry them in a thermally
insulated shopping bag whenever possible. In any
case, always purchase frozen foods at the end of your
shopping. Wrap the frozen foods in newspaper and
then put them into the freezer as soon as you arrive
home.
Always check the frozen foods you buy carefully at
the moment of purchase, because even partiallythawed foods must not be re-frozen but must be
consumed within 24 hours of purchase.
Thawing-out frozen foods
Frozen foods must be allowed to thaw out before use
either in the refrigerator (meat, poultry , fish, etc.) or at
room temperature (all other foods) according to the
available time.
Frozen products which come in small-sized or
separate packages may be cooked directly without
thawing; obviously, in this case, the cooking time will
last a little longer.
51
Page 12
Defrosting
Frost should be removed with the special plastic
scraper provided, whenever the thickness exceeds 4
mm. During this operation it is not necessary to cutoff the power or to remove the food from the freezer.
Do not use a mechanical device or any artificial
means to speed up the thawing process other than
those recommended by the manufacturer.
If a thick layer of ice is formed it will be necessary to
carry out complete defrosting as following:
set the knob to «
from the mains socket;
wrap frozen food in several layers of newspaper and
place the food packages in a cool place;

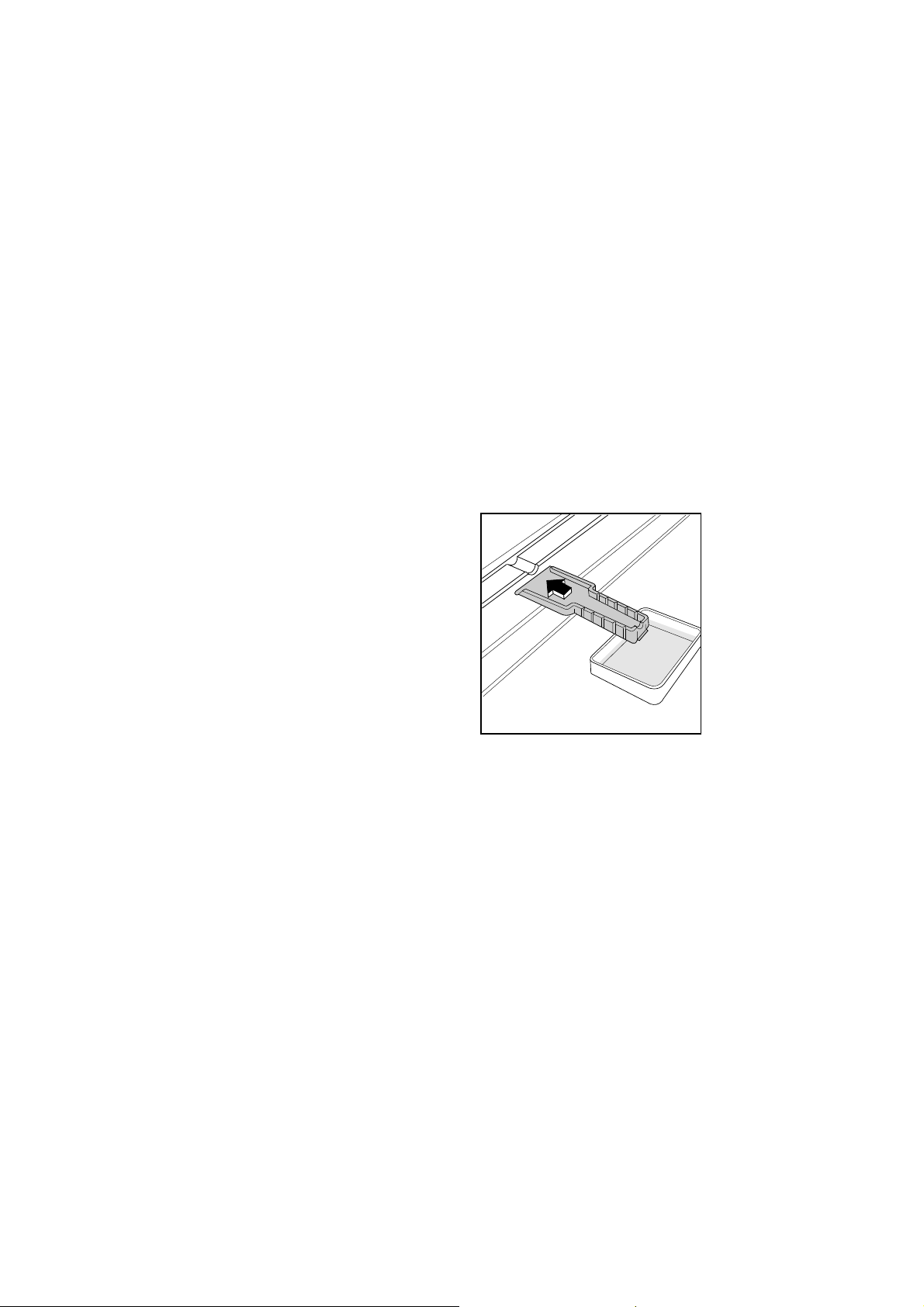

leave the door open. Introduce the plastic scraper in
the appropriate seating at the bottom center, as sho wn
in Fig. 9, place underneath a basin to collect the
defrost water.
When defrosting is completed dry the interior
thoroughly.
Keep the scraper for future use.
Turn the thermostat knob to the desired position or
replace the plug in the socket. After letting the
appliance to run for two or three hours on the quickfreeze setting, it is ready again for storing frozen
food.
ª» position or unplug the appliance
Fig. 9
D068
52
Page 13
MAINTENANCE
GB
Unplug the appliance before carrying out any
maintenance operation.
Warning
This appliance contains hydrocarbons in its cooling
unit; maintenance and recharging must therefore only
be carried out by authorized technicians.
Periodical cleaning
Never use metal objects for cleaning your appliance
as it may get damaged.
Wash the interior of the appliance with lukewarm
water and sodium bicarbonate.
Clean cabinet outer surfaces with a silicone-wax
spray.
The condenser and compressor should be cleaned
using a brush or a vacuum cleaner. This latter
operation will maintain the appliance’s excellent
standards of performance and save energy.
Idle periods
During periods when the appliance is not used, you
should take the following precautions:
remove the plug from the wall socket;
remove all food from the appliance;
defrost and clean the interior and all accessories;
leave the door slightly open, thus letting air circulate
and preventing the formation of mould and unpleasant
smells.
SOMETHING NOT WORKING
If the appliance is not functioning properly check
that:
the plug is firmly in the wall socket and the mains
power switch is on;
there is no power failure; the control knob is in the
right position.
GB
Furthermore:
if the appliance seems too noisy check that the sides
are not touching furniture that can transmit or amplify
a noise or a vibration. Also, check that the piping of
the refrigerant system does not vibrate.
If your appliance is still not working properly after
making the above checks, contact your local dealer or
the nearest service center.
To obtain fast service, it is essential that when you
apply for it you specify the model and serial
number of your appliance which can be found
inside the appliance at the bottom on the left hand
side.
53
Loading...
