Page 1
RUS
GB
S
FIN
DK
ER 6529 T
INSTRUCTIONS FOR USE
BRUKSANVISNING
KÄYTTÖOHJE
BRUKSANVISNING
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
2222 651-53
refrigerator / kylskåp / jääkaappi / køleskab /
хoлoдильник
Page 2
2 Printed on paper manufactured with environmentally sound proceses
Safety Instructions
t
Please read these operating instructions
carefully before installing the appliance. These
warnings are provided in the interests of your
safety. Ensure you fully understand them before
installing or using the appliance. If you are
unsure about the meaning of these warnings
contact the Customer Care Department.
Domestic Use
¥ The domestic refrigerators and freezers are
designed to be used specifically for the storage of
edible foodstuffs only.
¥ Check the appliance for transport damage. Under
no circumstances should a damaged appliance be
installed. In the event of damage please contact
your retailer.
¥ This appliance is heavy. The edges and projecting
parts of the cabinet may be sharp. Be careful when
moving the cabinet and always use gloves.
¥ Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
¥ Ensure that the appliance does not stand on the
electrical supply cable.
¥ Do not use electrical appliances inside the
appliance
¥ Do not keep carbonated drinks or bottles in the freezer
compartment. The glass bottles may break.
¥ Ice lollies can cause Ôfrost/freezer burnsÕ if
consumed straight from the freezer.
¥ It is dangerous to try and alter the specifications or
modify this product in any way.
¥ Under no circumstances should you attempt to
repair the appliance yourself. Refer to your local
Service Centre, and always insist on genuine spare
parts.
Child Safety
¥ This appliance is designed to be operated by
adults only. There is a risk of suffocation! Keep
packaging material away from children!
¥ In case of disposal of the appliance, cut off the
supply cable as close as possible and make
thelock unusable, to prevent children from closing
themselves inside the appliances.
Environment Protection
¥ This appliance does not contain gasses which
could damage the ozone layer, in either its
refrigerant circuit or insulation materials. The
appliance shall not be discarded together with the
urban refuse and rubbish. Avoid damaging the
cooling unit, especially at the rear near the heat
exchanger. Information on your local disposal sites
may be obtained from your municipal authorities.
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Use and Control
Before Use / Refrigerator compartment - Starting the appliance / Temperatur control . . . . .3
Internal parts / Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Freezer compartment - Temperatur control / Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Maintenance Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Cleaning / Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Something not Working . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Customer Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

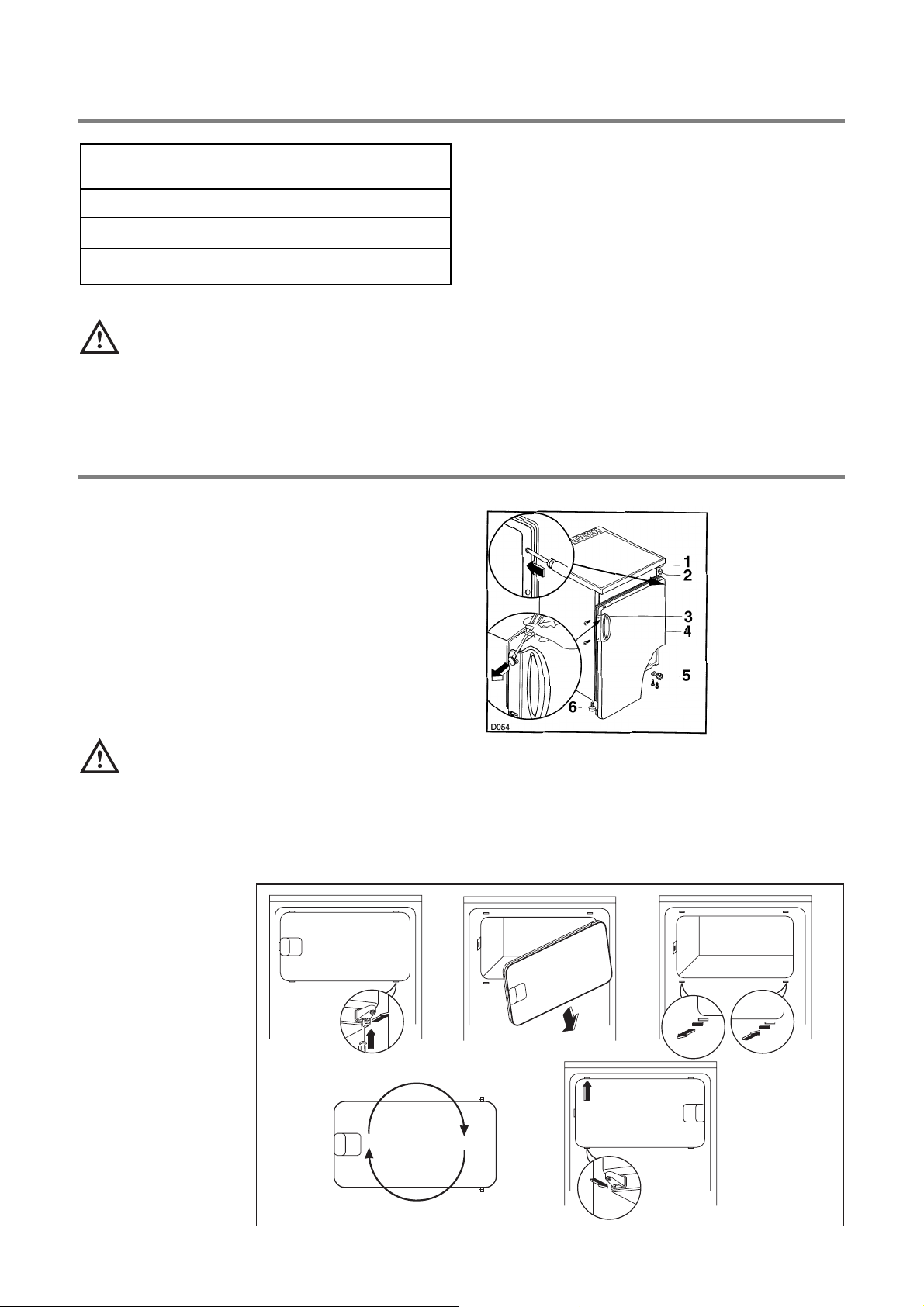

Door reversal
Inner door reversal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

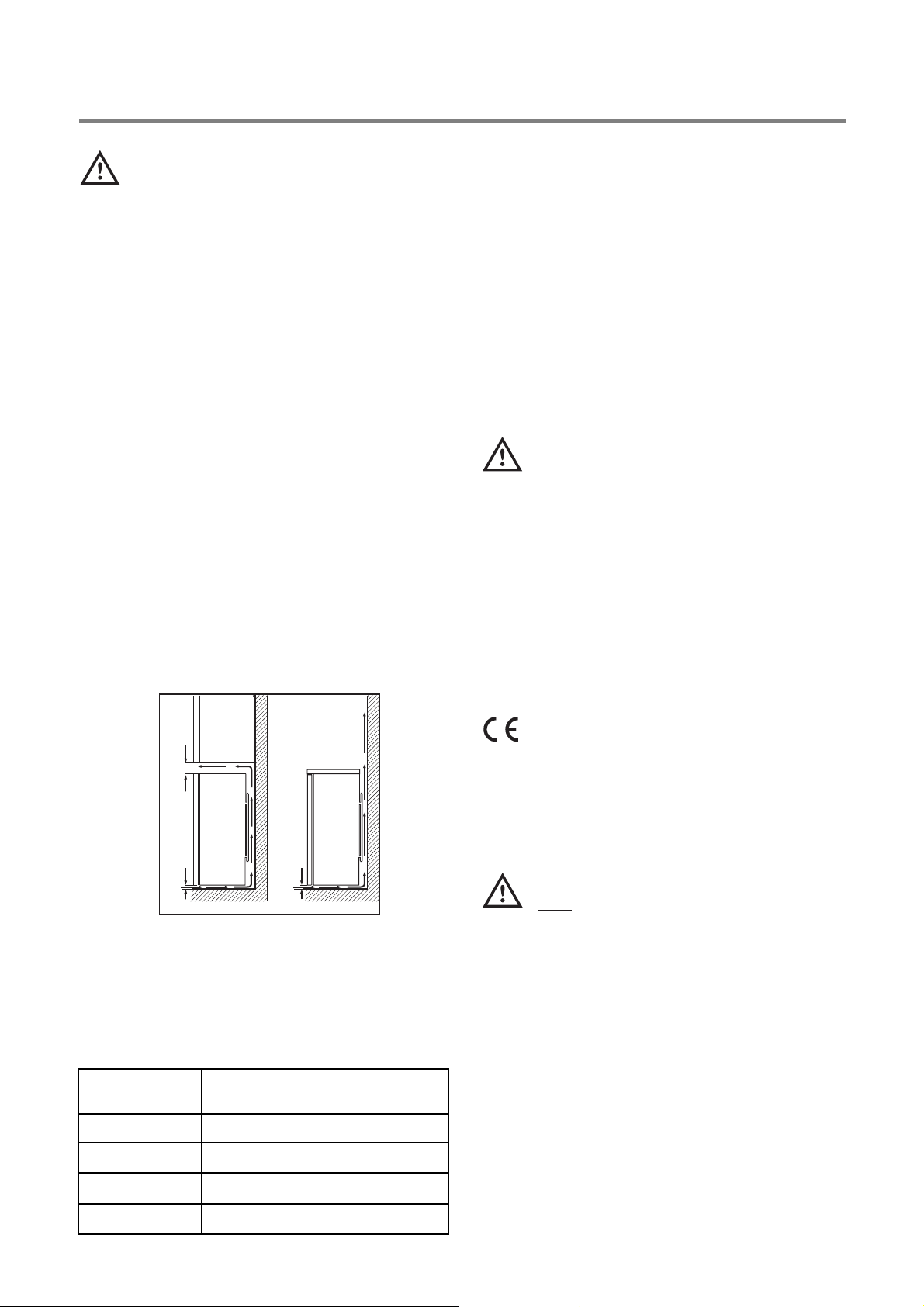

Installation Positioning / Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

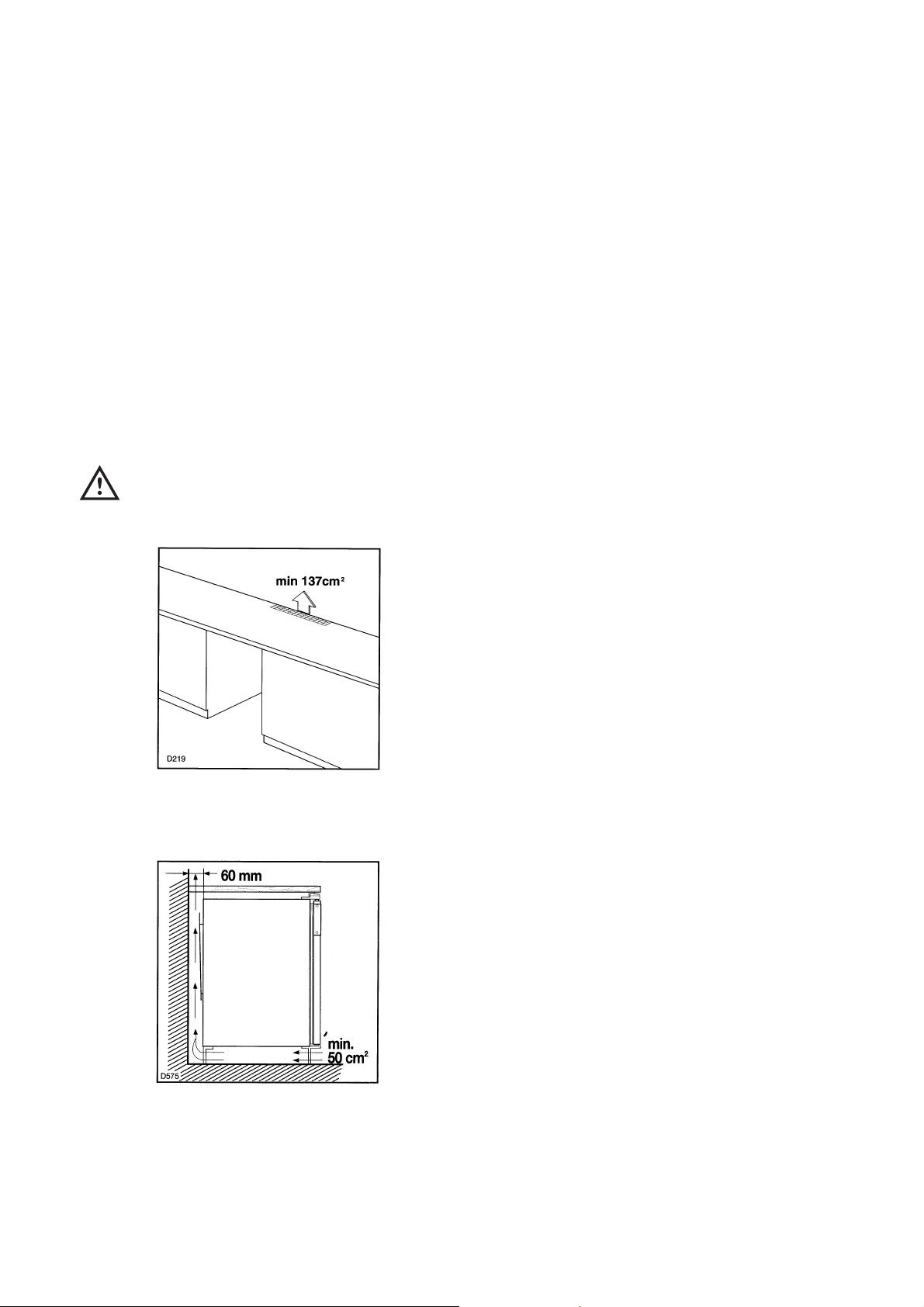

Building the appliance in under a worktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Contents
Page 3
How reading these instructions for use
This symbol guides you in the reading of this operating instructions:
Notes which are important for your safety or for the proper functioning of the appliance
Supplementary information regarding operation and practical applications of the appliance.
Tips and notes concerning economical and environmentally sound use of the appliance.
Disposal
Appliance Packaging
¥ The materials used on this appliance marked with the symbol are recyclable.
>PE<=polyethylene
>PS<=polystyrene foam
>PP<=polypropylene
All materials are environmentally sound! Information concerning collection schedules or locations can be
obtained from your local Council or Environmental Health Office.
Use and Control
Before Use
Wait two hours before connecting the
appliance to allow the oil to flow back in the
compressor.
¥ Before using the appliance for the first time, wash
the interior and all internal accessories with
lukewarm water and some neutral soap so as to
remove the typical smell of a brand-new product,
then dry thoroughly.
Do not use detergents or abrasive
powders, as these will damage the finish.
¥ Remove safety elements used for transportation.
Refrigerator compartment
Starting the appliance

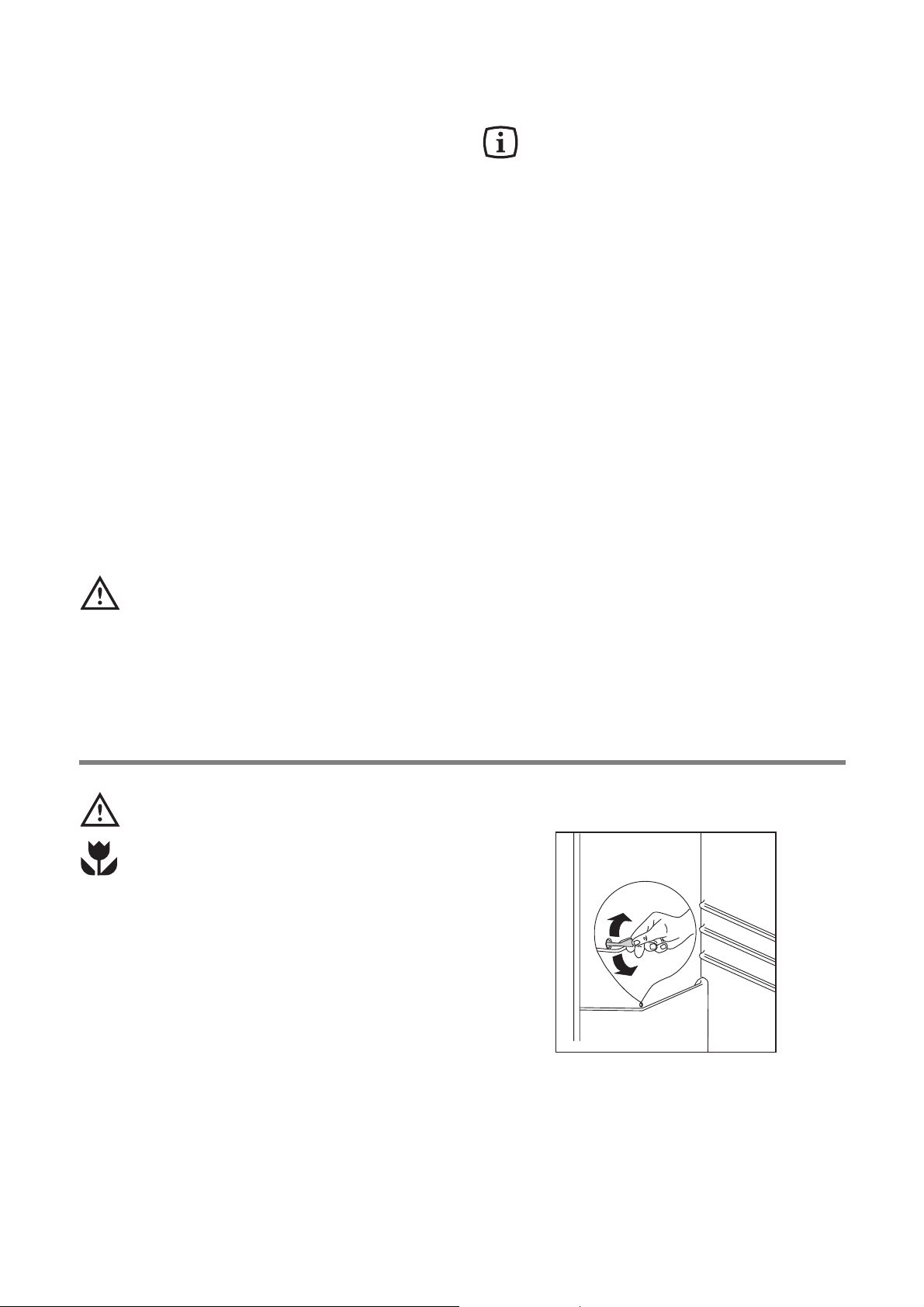

¥ Insert the plug into the wall socket and turn the
thermostat knob clockwise beyond position ÇOÈ
(OFF).
¥ Turn the thermostat control to the required setting.
3
Temperature Control
¥ The thermostat control situated inside the fridge
compartment regulates the temperature of the
appliance.
¥ It allows you to adjust the temperature inside the
refrigerator according to use and external
conditions.
¥
Setting ã1Ò = hightest temperature, warmest
setting
¥
Setting ã6Ò = lowest temperature, coldest
setting.
¥ Setting ã0Ò = Off
A medium setting is generally the most suitable.
Page 4
4
Hints
Saving Energy
¥ Pay careful attention to where the cabinet is
placed. See the section ÒInstallationÓ. When
installed correctly the cabinet will consume less
energy.
¥ Try to avoid keeping the doors open for long
periods or opening the doors too frequently as
warm air will enter the cabinet and cause the
compressor to switch on unnecessarily often.
¥ If the ambient temperature is high, the thermostat
knob is on the coldest setting (higher numbers) and
the appliance is fully loaded, the compressor may
run continuously, causing frost or ice to form on the
evaporator. If this happens, turn the knob to a
warmer setting (lower numbers) to allow automatic
defrosting and so a saving in electricity
consumption.
¥ Do not place warm foods inside the appliance.
Allow warm foods to cool first.
¥ Do not set temperature any colder than necessary.
¥ Put frozen food in the fridge to defrost. The cold in
the frozen food will then be used to cool the fridge.
¥ Keep the heat emitting condenser, the metall grille
on the rear wall of your appliance, always clean.
Hints for refrigeration
¥ Do not store warm food or evaporating liquids in
the refrigerator and do cover or wrap up the food,
particularly if it has a strong smell.
To help you use your refrigerator correctly, here are
some useful hints:
¥ Raw meat (beef, pork, lamb & poultry): wrap in
polythene bags and place on top of the salad
compartment, this being the coldest spot in the
refrigerator.
Meat can only be stored safely in this way for
one or two days at the most.
¥ Cooked food, cold cuts, jelly, etc.: these should
be well covered and can be stored on any of the
glass shelves.
¥
Fruit & vegetables: these should be thoroughly
cleaned and placed in the bottom drawer.
¥ Butter & cheese: these should be placed in
special airtight containers or wrapped in aluminium
foil or polythene bags to keep out as much air as
possible.
¥
Milk bottles: these should have a top and should
be stored in the bottle rack on the door.
Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigerator.
Internal Parts
Storage shelves
¥ The shelves can be removed for cleaning.
¥ To permit storage of food packages of various
sizes, the shelves can be placed at different
heights.
¥ To remove the internal shelf pull forward until it can
be tipped up or down and removed.
¥ Please do the same in reverse to insert the shelf at
a different height.
The glass shelf above the vegetable drawers
and the bottle shelf should always remain in
position, to ensure correct air circulation.
¥ To permit storage of food packages of various
sizes, the central door shelf can be adjusted in
height.
¥ Gradually pull the shelf in the direction of the
arrows until it comes free, then reposition as
required.
¥ For more thorough cleaning, the top and bottom
door sheves can be removed by pulling them in the
direction of the arrows, then refitting them in
position.
D338
Page 5
5
Freezer compartment
Temperature Control
¥ To freeze fresh foods it is not necessary to change
the setting of the thermostat knob.
¥ For a quicker freezing operation, turn the
thermostat knob to the coldest setting; but
remember that, in this condition, the refrigerator
compartment temperature might drop below 0¡C. If
this occurs reset thermostat knob to a warmer
setting.
¥ At the first starting-up or after a period out of use,
before putting the products in the compartment, let
the appliance run for at least two hours on the
coldest setting, then turn the thermostat knob to
the normal operating position.
Interior Accessories
Ice-cube production
This appliance is equipped with one or more trays for
the production of ice-cubes.
Fill these trays with water, then put them in the
freezer compartment.
Do not use metallic instruments to remove
the trays from the freezer.
Hints
Freezing of fresh food and storage of
frozen food
¥ Prepare food in small portions to enable it to be
rapidly and completely frozen and to make it
possible subsequently to thaw only the quantity
required.
¥ Wrap up the food in aluminium foil or polythene
and make sure that the packages are airtight.
¥ Do not allow fresh, unfrozen food to touch food
which is already frozen, thus avoiding a rise in
temperature of the latter.
¥ Do not touch frozen food with wet hands. Your
hands could stick to the food and cause skin
abrasions.
¥ It is advisable to show the freezing-in date on each
individual pack to enable you to keep tab of the
storage time.
¥ Be sure that frozen foodstuffs are transferred from
the foodstore to the freezer in the shortest possible
time.
¥
Do not put carbonated liquids (fizzy drinks,
etc.) in the freezing compartment as they may
burst.
¥ Once defrosted, food deteriorates rapidly and
cannot be refrozen.
Maintenance
Unplug the appliance before carrying out
any maintenance operation.
Warning
This appliance contains hydrocarbons in its
cooling unit maintenance and recharging must
therefore only be carried out by authorised
technicians.
Defrosting
Refrigerator compartment
¥ Defrosting the refrigerator compartment is
automatic. The defrost water drains out through a
trough into a container at the back of the appliance,
above the motor compressor, where it evaporates.

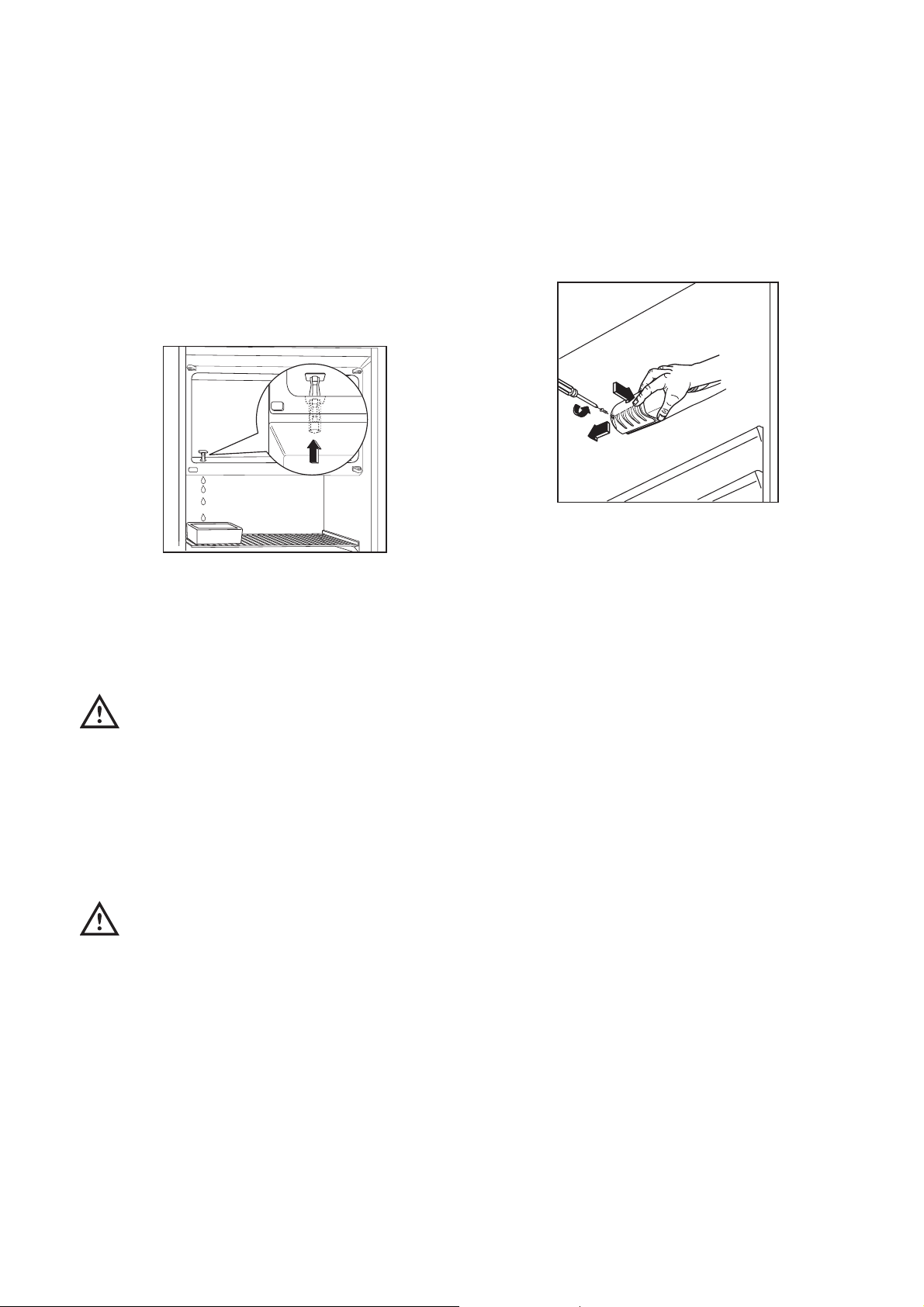

¥ It is important to periodically clean the defrost
water drain hole.
D037
Page 6
6
Freezer compartment
¥ Remove the frost with a plastic scraper.
¥ Whenever the thickness of the frost exceeds 5 mm
complete defrosting should be carried out.
Prooceed as follows:
¥ Remove any stored food, wrap it in several layers
of newspaper and put it in a cool place.
¥ Pull out the plug from the wall socket or turn the
thermostat knob to the ÇOÈ setting.
¥ Leave the door open, place a basin on the top shelf
of the refrigerator compartment, under the drain
hole, remove the plug as shown in the figure.
¥ When defrosting is completed, dry the interior
thoroughly and refit the plug.
¥ Turn the thermostat knob back to the required
setting or replace the plug in the power socket.
¥ Reload the previously removed food into the
compartment.
Never use sharp metal tools to scrape off
frost from the evaporator as you could
damage it.
Do not use a mechanical device or any
artificial means to speed up the thawing
process other than those recommended by
the manufacturer.
Cleaning
Never use metal objects for cleaning your
appliance as it may get damaged.
NEVER use detergents, abrasive powders,
highly perfumed cleaning products or wax
polishes to clean the interior as these will
damage the surface and leave a strong
odour.
Clean the inside with warm water and bicarbonate of
soda. Rinse and dry thoroughly.
When the appliance is not in use
Disconnect the appliance from the electricity supply.
Empty all foods and clean the appliance, leaving the
doors ajar to prevent unpleasant smells.
Changing the light bulb
¥ Should the interior light fail to work, first switch off
the appliance and disconnect from the electricity
supply, then replace the bulb as follows:
1. unscrew the light cover securing screws.
2. unhook the moving part by pressing it as shown
in the figure.
3. Replace the bulb by other with another with the
same charcteristics.
D411
PR151
Page 7
Something not Working
7
Problems may be due to causes which can easily be solved before calling the Technical Service. Please
follow these instructions:
Level properly the appliances if it is not well levelled.
Weight surpasses the storage limit of the door shelf so spread weight more evenly or
take some products out.
Readjust the doors if they are not properly aligned.
Set a lower temperature.
Distribute the food products to allow cold air to circulate around them.
Make sure that the door is completely closed and that the insulating strip is complete
and clean.
The temperature where the cabinet is placed is above normal room temperature.
Set a warmer temperature.
Turn the thermostat knob to a lower number
The temperature where the cabinet is placed is above normal room temperature.
Check that the ventilation is sufficient and that the ventilation openings are unobstructed.
The cause could be the introduction of large quantities of food and/or frequent
opening/closing of the door.
Sometimes is normal. During automatic defrosting frost thaws on the cooling plate.
Place the drain hose at the back of the cabinet above the drain bowl.
Sometimes this is normal. Temperature control may cause clicking sounds when the
system is connected or disconnected.
The injected cooling gas may produce a gurgling sound while passing through the tubes.
The motor may cause a humming noise and/or slight bumping.
The insulation material used has a tendency to slighly increase noise levels, how ever it
allows for much better insulation and a lower energy consumption,
You may occasionally hear the fans working. This is nothing to worry about. The fans
are simply helping the air to circulate more effectively.
Doors do not close
It is too warm inside the refrigerator
It is too cold inside the refrigerator.
The compressor works continuously.
There is water inside/outside the refrigerator.
Water comes out on the floor.
Noises
SYMPTOM SOLUTION
Customer service and spare parts
For this reason always provide the following
appliance information:
¥ Model Name
¥ Model Number (PNC)
¥ Serial Number (S-No.)
This information can be found on the rating plate
inside the cabenit on the left hand wall. We
recommend that you enter this information here, so
that it is handy if needed.
If you cannot find the remedy for a malfunction in
these operating instructions, please contact your
dealer or our customer service department and
consult the Guarantee card. Selective ordering of
replacement parts can save unnecessary travel and
costs.
Page 8
8
Technical specifications
The technical data is indicated in the rating plate on the left side inside the appliance.
If there is a power failure when food is in the freezer, do not open the door of the freezer
compartment. The frozen food will not be affected if the power cut is of short duration (up to 10
hours) and the freezer compartment is full, otherwise, it is recommended that the food should be
used within a short time (a temperature increase of the frozen food shortens its safe storage
period).
Dimensions
Height 850 mm
545 mm
600 mm
Width
Depth
Door reversal
1. Remove bottom hinge (5).
2. Remove door (4).
3. Unscrew pin (2) from the top hinge (1) and reÞt it
on the opposite side.
4. Unscrew part (6) and reÞt it on the opposite side.
5. ReÞt the door and the bottom hinge on the
opposite side.
6. Unscrew the handle (3). Refit it on the opposite
side after having pierced the plugs with a punch.
Cover the holes left open with the plugs contained
in the documentation pack.
Warning!
If the ambient temperature is cold (i.e. in
Winter), the gasket may not fit perfectly to the
cabinet. In that case, wait for the natural fitting
of the gasket or accelerate this process by
heating up the part involved with a normal
hairdrier.
Inner door
reversal
180°
Page 9
Installation
Positioning
¥ Unpack the cabinet and check that it is in good
condition and free of any transport damage.
¥ Place the refrigerator away from direct sunlight and
heat sources.
¥
Maintain recommended ventilation.
¥ For safety reasons, minimum ventilation must be
as shown in Fig.:
Appliance positioned under overhanging kitchen
wall units (see Fig.-A).
Appliance positioned without overhanging kitchen
units (see Fig.-B).
¥ Two adjustable feet at the cabinet base allow
accurate levelling of the appliance.
The climate classification can be found on the rating
plate, which is located inside the cabinet on the left
hand wall.
The following table shows which ambient
temperature is correct for each climate classification:
9
Take utmost care when handling your
appliance so as not to cause any damages to
the cooling unit with consequent possible fluid
leakages.
¥ During normal operation, the condenser and
compressor at the back of the appliance heat up
considerably. Always ensure that there is adequate
ventilation as a failure to do this will result in
component failure and possible food loss. See
installation instructions.
¥
Important: if the supply cord is damaged, it must
be replaced by a special cord or assembly available from the manufacturer or its service agent.
Climate
classification
SN +10 to +32¡C
+16 to +32¡C
+18 to +38¡C
+18 to +43¡C
N
ST
T
for an ambient temperature of
When the ambient temperature is not included
within the range indicated for the class of this
appliance, the storage temperature in the
appliance cannot be guaranteed; therefore it is
advisable to use the food stored as soon as
possible.
Electrical connection
Before plugging in, ensure that the voltage and
frequency shown on the serial number plate
correspond to your domestic power supply.
Voltage can vary by ±6% of the rated voltage.
For operation with different voltages, a suitably sized
auto-transformer must be used.
Important
The appliance must be earthed.
The power supply cable plug is provided with a
contact for this purpose.
If the domestic power supply socket is not
earthed. connect the appliance to a separate
earth in compliance with current regulations,
consulting a specialist technician.
The Manufacturer declines all
responsibility if the above safety
precautions are not observed.
This appliance complies with the following E.E.C.
Directives:
- 87/308 EEC of 2/6/87 relative to radio
interference suppression.
- 73/23 EEC of 19.2.73 (Low Voltage
Directive) and subsequent modifications.
- 89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
Attention!
It must be possible to disconnect the appliance
from the mains power supply; the plug must
therefore be easily accessible after installation.
100 mm10 mm
A
B
NP008
10 mm
Page 10
10
Building the appliance in under a
worktop
This appliance can also be built in under the worktop
of your kitchen unite. To do this, proceed as follows:
1. remove screws which secure the top to the front
hinges;
2. move the top slightly to release it from the
retainers and remove it
3. unscrew the screws securing the rear feet to the
cabinet;
4. remove the 3 mm shim from the feet and refit
them; screw in the front feet to obtain the required
height.
Note
Hole provided in the top hinges enable the appliance
to be secured to the kitchen worktop by means of
two screws.
Important
For the appliance to function properly, an
opening of at least 137 cm2must be cut in the
kitchen worktop (see fig.).
A minimum clearance must also be provided
between the,condenser and the wall, as
shown in the figure.
Page 11
Electrolux HemProdukter AB
S-105 45 Stockholm
www.electrolux.se
ELECTROLUX HOME PRODUCTS OPERATIONS EUROPE
923 622 008
Loading...
