MONTAJ VE KULLANIM EL KITABI
INSTRUCTION BOOKLET
MODE D’EMPLOI
INSTRUCCIONES DE EMPLEO
ER 6424T
BUZDOLABI
REFRIGERAT OR
REFRIGERATEUR
REFRIGERADOR
•
Page 2
8
Important Safety Instructions 9
Instructions for the User
Description of the Appliance 10
Use 10
Cleaning the interior 10
Operation 10
Temperature regulation 10
Storing chilled foods 11
Movable shelves 11
Ice cube production 11
Defrosting 12
Maintenance 12
Periodic cleaning 12
Periods of non-use 12
The light bulb 12
Something not working 13
Instructions for the Installer
Technical specifications 13
Installation 14
Positioning 14
Electrical connection 14
Door reversibility 14
CONTENTS
Page 3
IMPORTANT SAFETY
INSTRUCTIONS
t
9
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is supplied with the appliance in order that the new
owner can be acquainted with the functioning of the appliance and the relevant warnings.
These warnings are provided in the interest of safety. You must read them carefully before installing or
using the appliance.
General Safety
■
This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the product.
■
It is dangerous to alter the specifications or modify
this product in any way.
■
Before any cleaning or maintenance work is
carried out, be sure to switch off and unplug the
appliance.
■
This appliance is heavy. Care should be taken
when moving it.
■
Ice lollies can cause frost burns if consumed
straight from the appliance.
Service / Repair
■
Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
■
This appliance should be serviced by an
authorised Service Centre, and only genuine
spare parts should be used.
■
Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or
more serious malfunctioning. Refer to your local
Service Centre, and always insist on genuine
spare parts.
Use
■
The domestic refrigerators and freezers are
designed to be used specifically for the storage of
edible foodstuffs only.
■
Frozen food must not be re-frozen once it has
been thawed out.
■
Manufacturers’ storage recommendations should
be strictly adhered to. Refer to relevant
instructions.
■
The inner lining of the appliance consists of
channels through which the refrigerant passes.
If these should be punctured this would damage
the appliance beyond repair and cause food loss.
DO NOT USE SHARP INSTRUMENTS to scrape
off frost or ice. Frost may be removed by using the
scraper provided. Under no circumstances should
solid ice be forced off the liner. Solid ice should be
allowed to thaw when defrosting the appliance.
See defrost instructions.
■
Do not place carbonated or fizzy drinks in the
freezer as it creates pressure on the container,
which may cause it to explode, resulting in damage
to the appliance. Do not use a mechanical device
or any artificial means to speed up the thawing
process other than those recommended by the
manufacturer. Never use metal objects for cleaning
your appliance as it may get damaged.
Installation
■
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
■
There are working parts in this product which heat
up. Always ensure that there is adequate
ventilation as a failure to do this will result in
component failure and possible food loss. See
installation instructions.
■
Parts which heat up should not be exposed.
Wherever possible the back of the product should
be against a wall.
■
If the appliance has been transported horizontally,
it is possible that the oil contained in the
compressor flows in the refrigerant circuit. It is
advisable to wait at least two hours before
connecting the appliance to allow the oil to flow
back in the compressor.
Environment Protection
■
This appliance does not contain gasses which
could damage the ozone layer, in either its
refrigerant circuit or insulation materials. The
appliance shall not be discarded together with
the urban refuse and rubbish. Avoid damaging
the cooling unit, especially at the rear near the
heat exchanger. Information on your local
disposal sites may be obtained from your
municipal authorities.
■
The materials used on this appliance marked
with the symbol are recyclable.
Page 4
10
DESCRIPTION OF THE APPLIANCE
USE
Cleaning the interior
Before using the appliance for the first time, wash the
interior and all internal accessories with lukewarm
water and some neutral soap so as to remove the
typical smell of a brand-new product, then dry
thoroughly.
Do not use detergents or abrasive powders, as these
will damage the finish.
Operation
Insert the plug into the wall socket. Open the
refrigerator door and turn the thermostat knob,
clockwise, beyond the «O» (STOP) position.
The appliance will start to operate.
Temperature regulation
The temperature is automatically regulated and can
be increased to achieve a higher temperature
(warmer) by rotating the thermostat knob toward
lower settings or reduced (colder) rotating the knob
towards higher settings.
However, the exact setting should be chosen keeping
in mind that the temperature inside the refrigerator
depends on:
room temperature;
how often the door is opened;
the quantity of food stored;
location of appliance.
A medium setting is generally the most suitable.
To stop operation, simply turn the thermostat knob to
position «O».

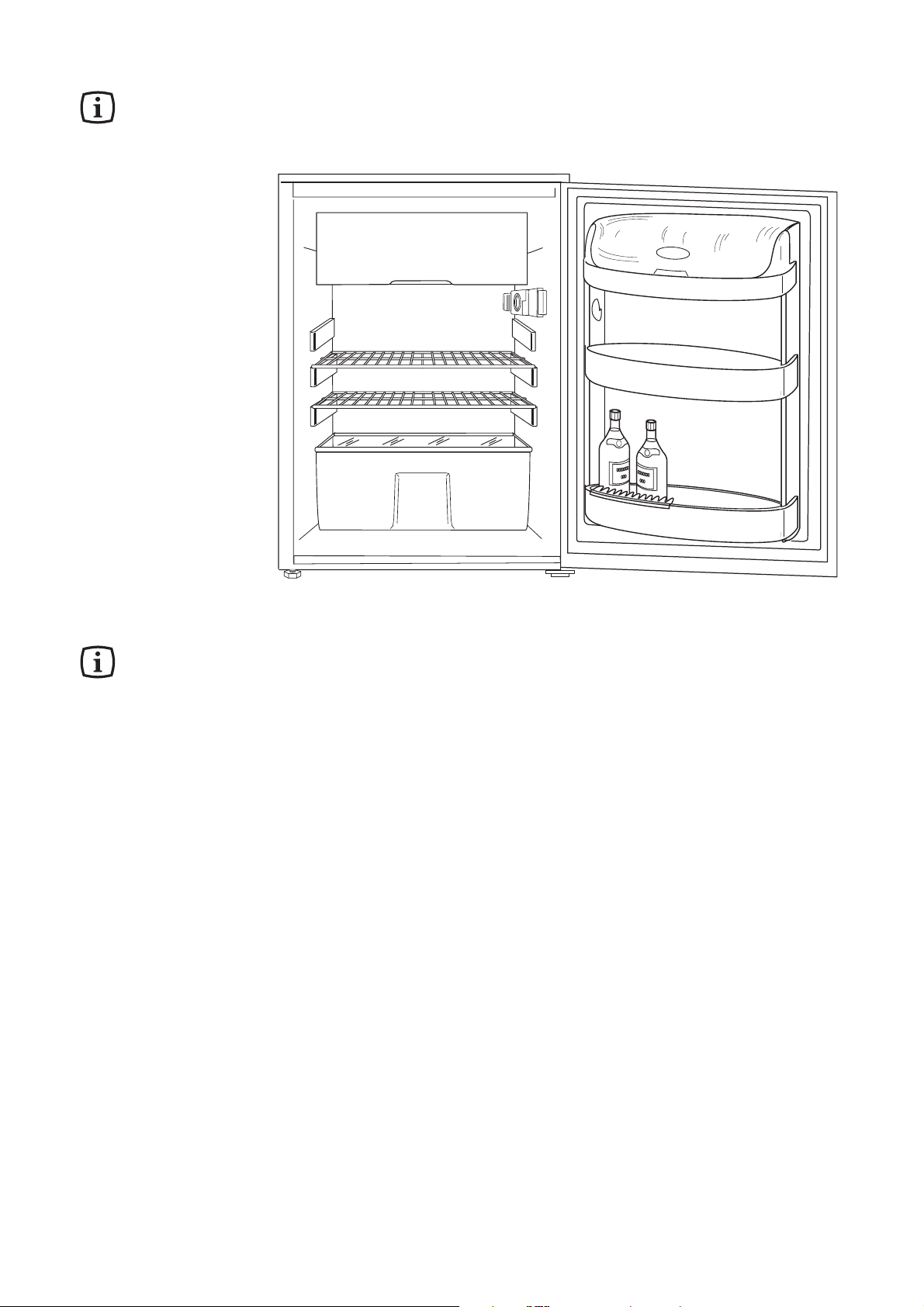

➀
Butter shelf
➁
Shelf
➂
Bottle shelf
➃
Vegetable drawer
➄
Shelves
➅
Thermostat
➆
Defrosting water tray
➇
Ice-cube production
compartment
➀
➁
➂
➃
➄
➅
➆
➇
Page 5
11
t
Storing chilled foods
The refrigerator compartment is suitable for chilling
food and drinks.
For best results, it is important to follow the rules
below:
do not put hot food or evaporating liquids in the
refrigerator; cover or wrap all foods (especially spicy
or strong-smelling foods); do not cover the shelves
with paper, card or protective plastic sheeting which
would prevent air from circulating through the grilles.
We also recommend the following:
cooked foods, cold dishes, jelly, etc.: should be well
covered and may be placed on any shelf in the
refrigerator;
fruit and vegetables: should be washed and then
placed in the salad box at the bottom of the
refrigerator;
butter and cheese: should be placed in suitable
containers or wrapped in aluminium foil or plastic film
to avoid drying out;
milk in bottles: should be well capped and placed in
the door compartment;
raw meat (all types): should be wrapped in plastic
bags and placed in the special meat box or on the top
shelf immediately below the evaporator.
Bananas, potatoes, onions and garlic should not
be placed in the refrigerator unless pre-packed.
Movable shelves
The walls of the refrigerator are equipped with a series
of runners so that the shelves can be positioned as
desired.

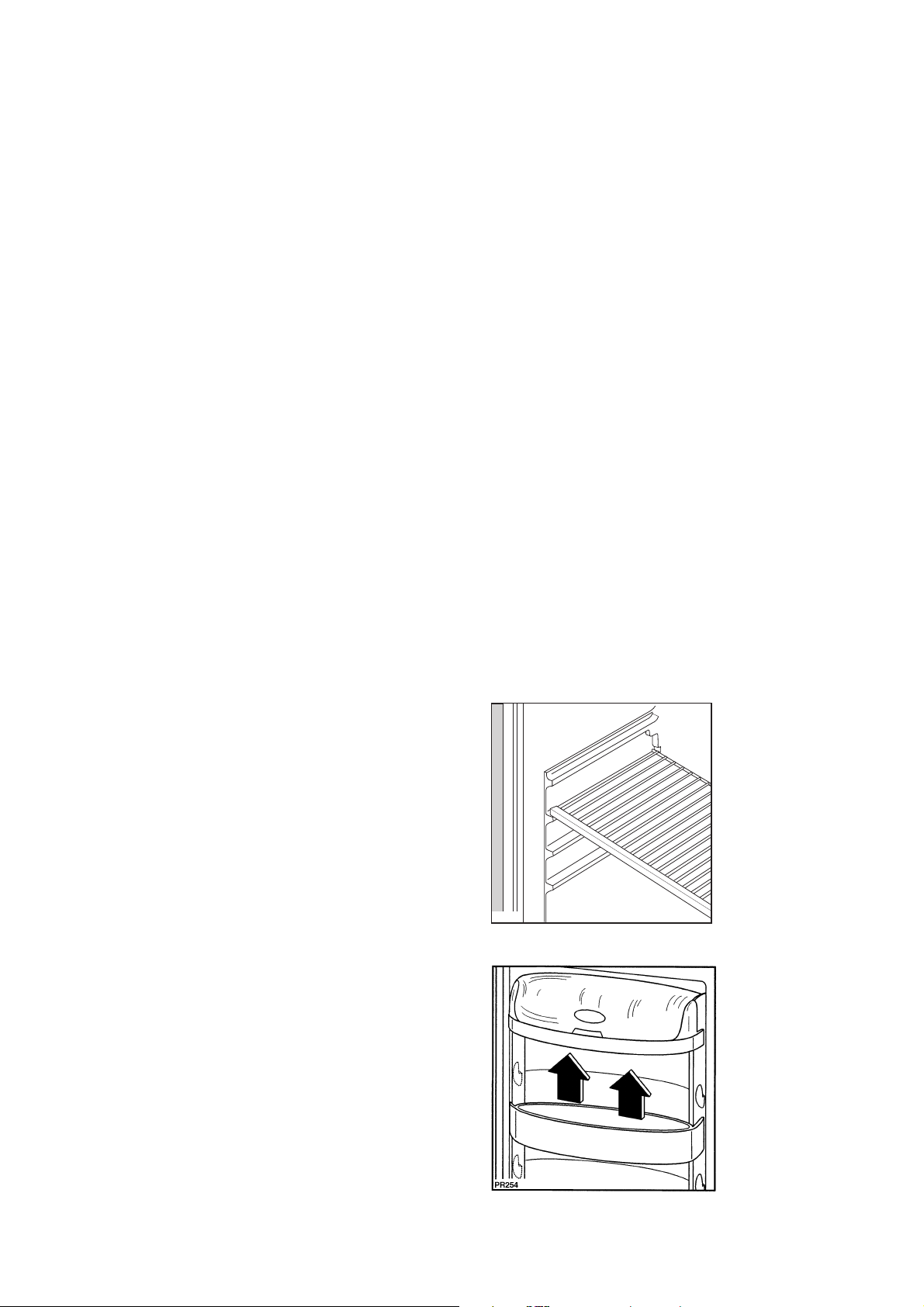

Positioning the door shelf
To permit storage of food packages of various sizes,
central the door shelf can be adjusted in height.
To make these adjustments proceed as follows:
Gradually pull the shelf in the direction of the arrows
until it comes off, then reposition as required.
Ice cube production
The refrigerator is equipped with one or more ice
cube trays, which should be filled with drinking
water and placed in the special compartment.
Do not use metal implements to detach the trays.
D040
Page 6
12
Defrosting
During normal operation, the evaporator in the
refrigerator compartment will gradually become
covered with frost.
This frost is a thermal insulator which inhibits cooling
and must therefore be removed, otherwise there will
be a significant reduction in cooling efficiency and an
increase in electricity consumption.
To defrost, proceed as follows:
1. Turn the thermostat knob on position “O”, making
sure that the stopper of the water collector tray is
firmly inserted in the water drain hole;
2. Once defrosted, turn the thermostat knob on a
medium position to restart the appliance.The water
which has collected in the tray placed under the
evaporator must be removed.
3. Place a container on the first shelf in the refrigerator
directly under the water drain hole of the defrost
tray and remove the stopper as shown in the
figure.
4. Dry thoroughly the ice-compartment and replace the
stopper.
Unplug the appliance before carrying out any
maintenance operation.
Periodical cleaning
Wash the interior of the appliance with lukewarm
water and sodium bicarbonate. Clean cabinet outer
surfaces with a silicone-wax spray.
The condenser and compressor should be cleaned
using a brush or a vacuum cleaner. This latter
operation will maintain the appliance’s excellent
standards of performance and save energy.
Periods of non-use
If you are not using the appliance for any length of
time, the following precautions should be taken:
unplug the appliance;
take all food out;
defrost and clean the inside and all the accessories;
leave the door ajar so that air can circulate inside in
order to prevent unpleasant smells forming.

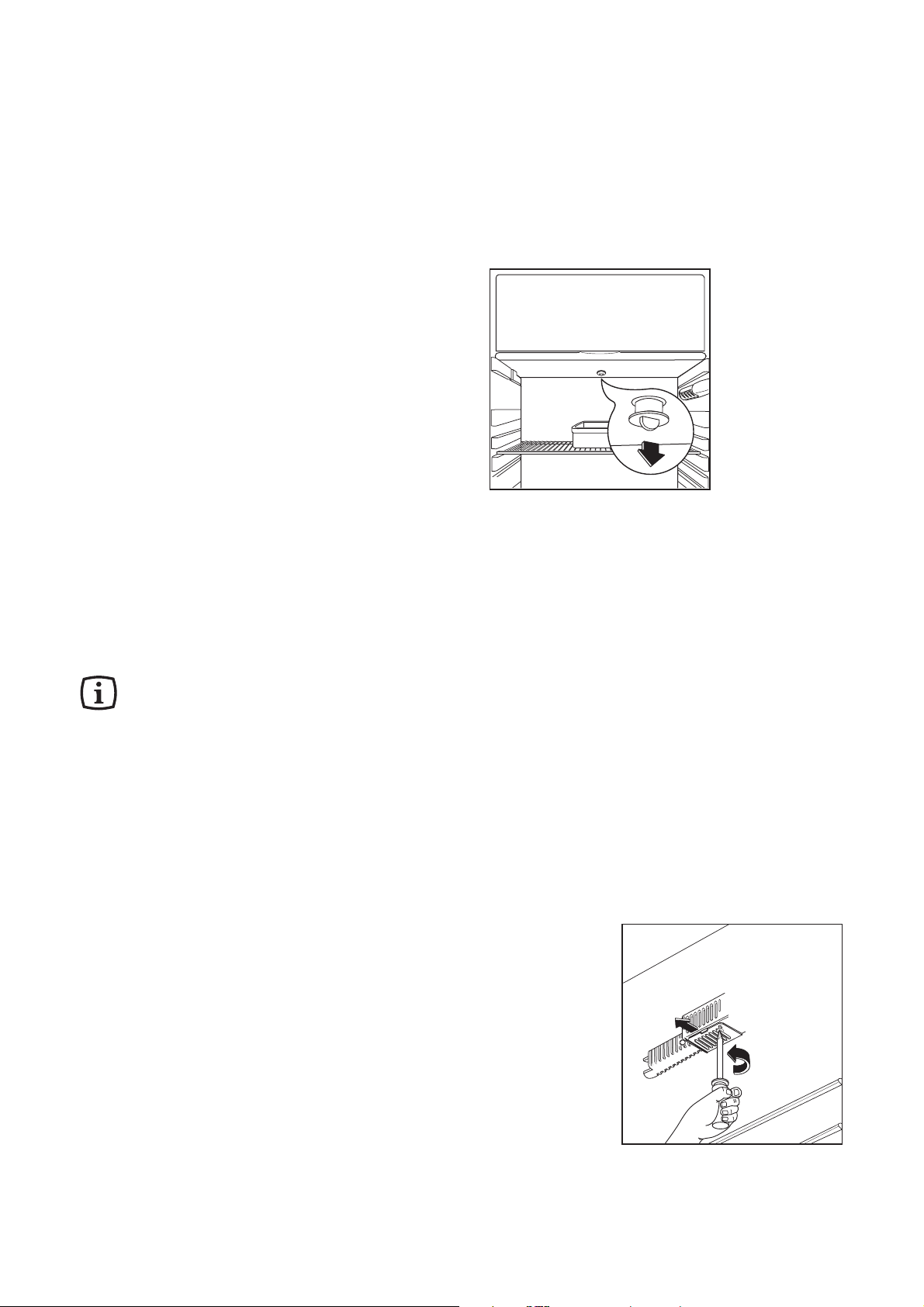

The light bulb
The opening on the diffuser gives access to the light
bulb.
If the light does not come on when the door is
opened, check that the bulb is screwed in properly;
replace the bulb if the fault persists.
The rating is shown on the light bulb cover.
MAINTENANCE
D188
D731
Page 7
SOMETHING NOT WORKING
13
t
If the appliance is not functioning properly, check
that:
the plug is firmly in the wall socket and the mains
power switch is on;
there is an electricity supply (find out by plugging in
another appliance);
the thermostat knob is in the correct position.
Also check the following:
If the appliance is very noisy, check that the sides are
not vibrating against adjacent kitchen units and that
the refrigeration unit pipes are not vibrating.
If your appliance is still not working properly after
making the above checks, contact the nearest
service centre.
To obtain fast service, it is essential that when
you apply for it you specify the model and serial
number of your appliance which can be found on
the guarantee certificate or on the rating plate
located inside the appliance, on the bottom lefthand side.
TECHNICAL SPECIFICATIONS
The technical data is indicated in the rating plate on the left side inside the appliance.
Height 850 mm
Width 495 mm
Depth 600 mm
Page 8
14
INSTALLATION
lf this appliance featuring magnetic door seals is
to replace an older appliance having a spring
lock (latch) on the door or lid, be sure to make
that spring lock unusable before you discard the
old appliance. This will prevent it from becoming
a death-trap for a child.

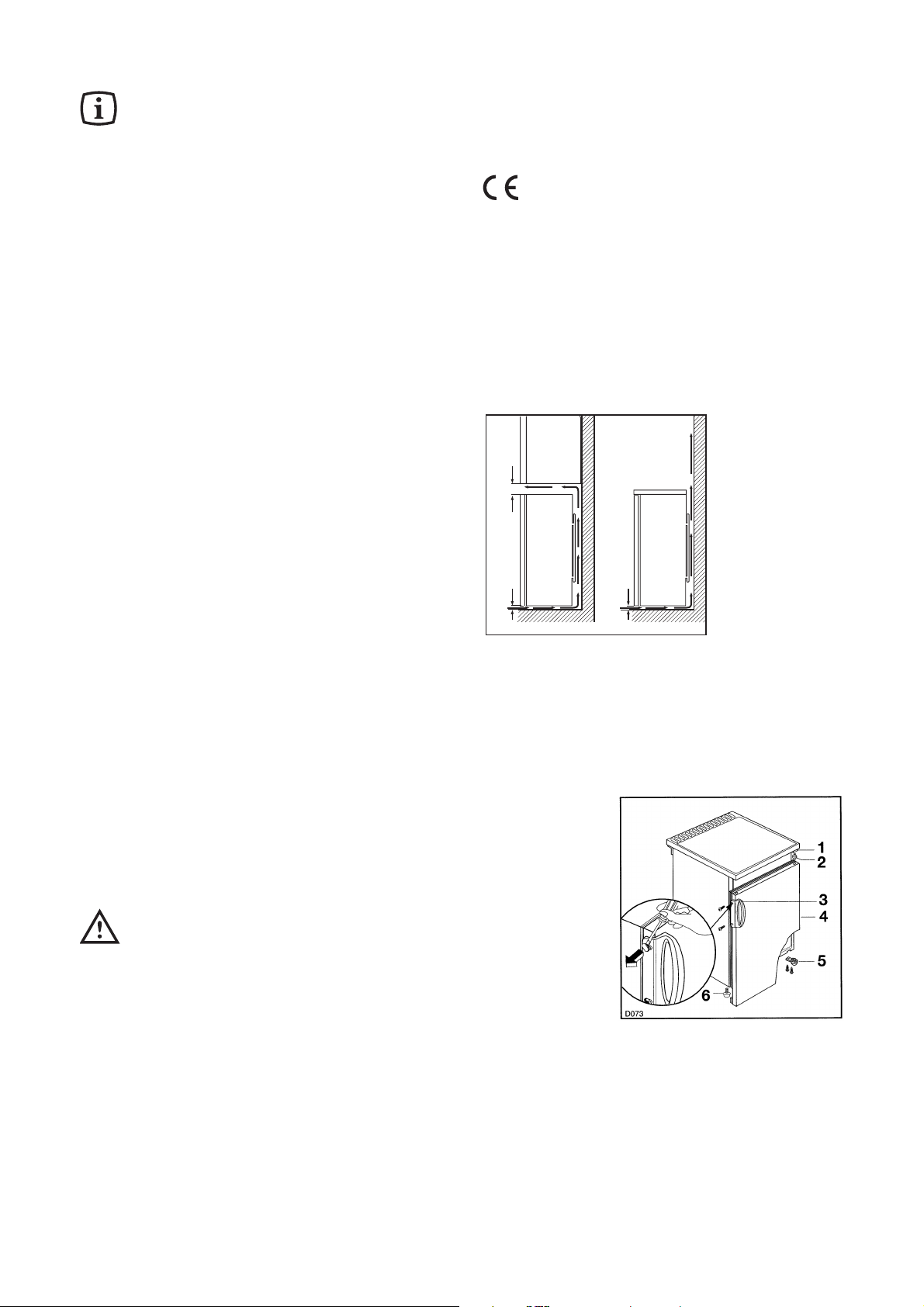

Positioning
The appliance should be installed well away from
sources of heat such as radiators, boilers, direct
sunlight etc.
Best performance is obtained with ambient
temperature between +18°C and +43°C (class T);
+18°C and +38°C (class ST); +16°C and +32°C
(class N); +10°C and +32°C (class SN). The class of
your appliance is shown on its rating plate.
For safety reasons, minimum ventilation must be as
shown in Fig.:
Appliance positioned under overhanging kitchen wall
units (see Fig.-A).
Appliance positioned without overhanging kitchen
units (see Fig.-B).
Attention: keep ventilation openings clear of
obstruction.
Two adjustable feet at the cabinet base allow
accurate levelling of the appliance.
Electrical connection
Before plugging in, ensure that the voltage and
frequency shown on the serial number plate
correspond to your domestic power supply. Voltage
can vary by +6% of the rated voltage. For operation
with different voltages, a suitably sized autotransformer must be used.
The appliance must be earthed.
The power supply cable plug is provided with a
contact for this purpose.
If the domestic power supply socket is not
earthed, connect the appliance to a separate
earth in compliance with current regulations,
consulting a specialist technician.
The Manufacturer declines all responsibility if the
above safety precautions are not observed.
This appliance complies with EEC directive
number 87/ 308 of 2/6/87 relative to radio
interference suppression.
This appliance complies with the following
E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and
subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
Door reversibility
Before carrying out the operations described below,
pull out the mains plug from the wall socket.
Proceed as follows:
1. Remove bottom hinge (5).
2. Remove door (4).
3. Unscrew pin (2) from the top hinge (1) and refit it
on the opposite side.
4. Unscrew part (6) and refit it on the opposite side.
5. Refit the door and the bottom hinge on the
opposite side.
6. Remove handle (3) and refit it on the opposite side.
The holes that are not used are to be masked with
the plastic plugs removed.
100 mm10 mm
A
NP008
B
10 mm
Loading...
