Page 1

INFO

2222 081-86

INSTRUCTION BOOKLET

REFRIGERA TOR- FREEZER ER 2529 B

Page 2

CONTENTS

Warnings .................................page 3

Conservation ...............................page 4

Installation ................................page 5

Positioning ................................page 5

Rear spacers................................page 5

Before using ................................page 5

The electrical connections ...........................page 6

Door reversal Instructions ..........................page 7

Your appliance ...............................page 8

Operation ................................page 9

Setting the temperature ............................page 9

The freezer compartment ...........................page 9

Freezing fresh food .............................page 9

Thawing .................................page 9

Making ice cubes ..............................page 9

Health and safety guidelines ..........................page 10

Fresh food refrigeration ............................page 11

Positioning the door shelves ..........................page 11

Defrosting.................................page 12

Maintenance and cleaning ..........................page 13

Internal cleaning ..............................page 13

External cleaning ..............................page 13

When the appliance is not in use .........................page 13

Changing the light bulb ............................page 13

What happens if something goes wrong? .....................page 14

Guarantee conditions ............................page 15

Electrolux Service Centres ..........................page 16

TECHNICAL SPECIFICATIONS

DIMENSIONS Height

Width Depth

POWER SUPPLY VOLTAGE AND FREQUENCY TOTAL POWER ABSORBED AVERAGE DAILY UNITS ELECTRICITY

GROSS CAPACITY Fridge

NET CAPACITY Fridge

STAR RATING

This ﬁgure is based on standard test results in accordance with European Standard EN 153.

Actual consumption will depend on how the appliance is used and where it is located.

Freezer

150 cm

54.5 cm 60 cm

220-240 V / 50 Hz 130 W

1.35 kWh 174 l

76 l

170 l

60 l

Page 3

WARNINGS

IT IS MOST IMPORTANT THA T THIS INSTRUCTION BOOK SHOULD BE RETAINED WITH THE APPLIANCE FOR FUTURE REFERENCE. SHOULD THE APPLIANCE BE SOLD OR TRANSFERRED TO ANOTHER OWNER, OR SHOULD YOU MOVE HOUSE AND LEAVE THE APPLIANCE, ALWAYS ENSURE THAT THE BOOK IS SUPPLIED WITH THE APPLIANCE IN ORDER THAT THE NEW OWNER CAN GET TO KNOW THE FUNCTIONING OF THE APPLIANCE AND THE RELEVANT WARNINGS.

THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY. YOU MUST READ THEM CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE.

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.

Any electrical work required to install this appliance should be carried out by a qualiﬁed electrician or competent person.

This product should be serviced by an authorised Electrolux Service Centre, and only genuine spare parts should be used.

It is dangerous to alter the speciﬁcations or modify this product in any way.

Care must be taken to ensure that the appliance does not stand on the electrical supply cable.

Electrolux domestic refrigerators, freezers and fridge/freezers are designed to be used speciﬁcally for the storage of edible foodstuffs only.

The cooling plate or refrigerated freezer shelves in this appliance contain channels through which the refrigerant passes. If these are punctured this would cause substantial damage to the appliance and result in food loss. DO NOT USE SHARP INSTRUMENTS to scrape off frost or ice. Under NO circumstances should solid ice be forced off the lining or shelves. Solid ice should be allowed to thaw, when defrosting the appliance. See Defrost instructions.

The appliance should be left for 2 hours after installation before it is turned on in order to allow the refrigerant to settle.

This appliance is heavy . Car e should be taken when moving it.

Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or “frost/freezer burns”.

Ice lollies can cause “frost/freezer burns” if consumed straight from the freezer.

Manufacturers’ storage recommendations should be strictly adhered to. Refer to relevant instructions.

Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Refer to your local Electrolux Service Centre and always insist on genuine spare parts.

There are working parts in this product which heat up. Always ensure that there is adequate ventilation as a failure to do this will result in possible food loss. See installation instructions.

Parts which heat up should not be exposed. Wherever possible, the back of the appliance should be close to a wall but leaving the required distance for ventilation as stated in the installation instructions.

Before defrosting, cleaning or maintenance work is carried out, be sure to switch off the appliance and unplug it.

Frozen food must NOT be re-frozen once it has thawed out.

Do not place carbonated or ﬁzzy drinks in the freezer as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.

09/96

2222 081-86

Page 4

CONSERVATION

In the interests of the Environment:

When disposing of your old fridge, freezer or fridge/freezer.

Help to keep your country tidy – use authorised disposal sites for your old appliances.

For maximum efﬁciency:

Make sure that the appliance is cleaned properly. Make sure that the door is closed properly. Do not position the appliance near to sources of heat. Do not over-ﬁll your appliance, air MUST be allowed

to circulate.

Page 5

INSTALLATION

Warning

IF YOU ARE DISCARDING AN OLD APPLIANCE THAT HAS A LOCK OR CATCH ON THE DOOR, YOU MUST ENSURE THAT IT IS MADE UNUSABLE TO PREVENT YOUNG CHILDREN BEING TRAPPED INSIDE.

Depending upon the position which you choose for your appliance, you may wish to reverse the way in which the door opens. To do this, refer to instructions on “Door reversal directions” paragraph.

Positioning

This appliance is designed to operate in ambient temperatures between 10 ° C (50 ° F) and 32 ° C (90 ° F). It should be located in a dry atmosphere, out of direct sunlight and away from extreme temperature e.g. not next to a cooker or other sources of direct heat, or in a very cold room e.g. an outhouse, where the temperatures may fall below 10 ° C (50 ° F). If these temperatures are exceeded i.e. colder or warmer, then the appliance may not operate correctly.

You should also ensure that air can circulate freely around the back and the top of the cabinet. There must also be at least 100 mm (4”) distance between the top of the cabinet and any overhanging kitchen furniture (Fig. 1-A). Ideally, the appliance should not be positioned beneath overhanging furniture (Fig. 1-B).

Fig. 1

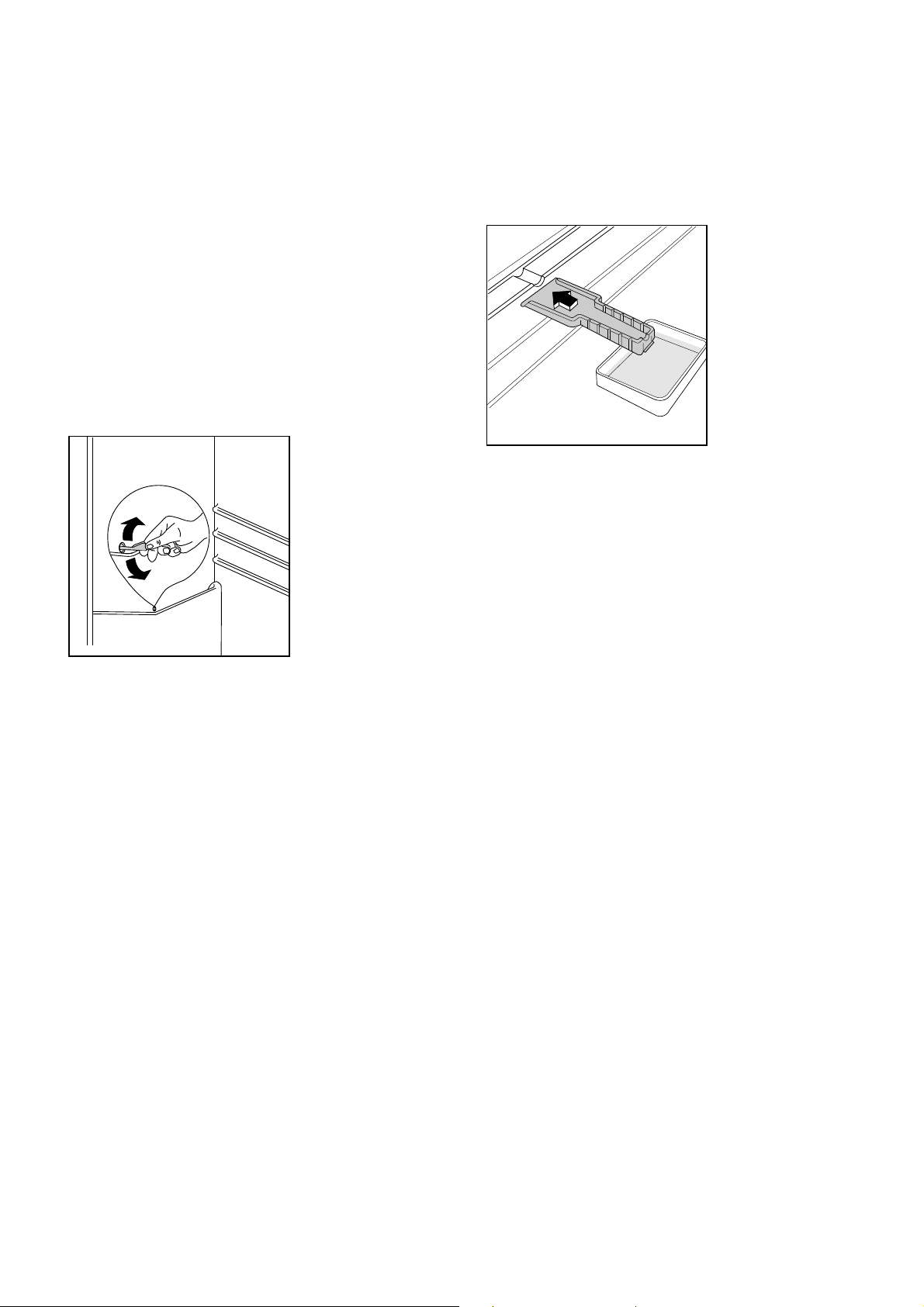

Adjust the level of the appliance by screwing out the adjustable foot, or feet, at the bottom of the cabinet using your ﬁngers or a spanner (see Fig. 2).

Fig. 2

D200

Rear spacers

(Fig. 3)

In the bag with the documentation, there are two spacers which must be ﬁtted in the two top corners.

Slacken the screws and insert the spacer under the screw head, then re-tighten the screws.

Fig. 3

100 mm 10 mm

NP002

10 mm

There should also be a gap of 25 mm either side of the appliance. Do not obstruct the space underneath. The back of the cabinet may be placed close to the wall but must not touch it. DO NOT install in places with restricted ventilation.

D594

Before using

Remove all securing tapes. Wash inside the appliance with lukewarm water and bicarbonate of soda (5 ml to

0.5 litre of water). Do not use soap or detergent as the smell might linger. Dry thoroughly.

Page 6

The electrical connections

WARNING: THIS APPLIANCE MUST BE EARTHED. The manufacturer declines any liability should this

safety measure not be observed.

If the plug that is ﬁtted to your appliance is not suitable for your socket outlet, it must be cut off and the appropriate plug ﬁtted.

Remove the fuse from the cut off plug. The cut off plug should then be disposed of to prevent the hazard of shocks in case it should be plugged into a 13amp socket in another part of your home.

Important

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow - Earth Blue - Neutral Brown - Live

If you ﬁt your own plug, the colours of the wires in the mains lead of your appliance may not correspond with the markings identifying the terminals in your plug, proceed as follows:

Fig. 4

GREEN & YELLOW

13 AMP. FUSE

This appliance complies with the E.E.C. Directive No. 87/308 of 2.6.87 relative to radio interference suppression.

This appliance complies with the following E.E.C. Directives:

- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modiﬁcations;

- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modiﬁcations.

Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown.

13 AMP

BROWN

BLUE

D207

CORD CLAMP

Connect the Green and Yellow (earth) wire to the terminal in the plug which is marked with the letter «E» or the earth symbol , or coloured green and yellow.

Connect the blue (neutral) wire to the terminal in the plug which is marked with the letter «N» or coloured black.

Connect the brown (live) wire to the terminal in the plug which is marked with the letter «L» or coloured red.

The plug moulded onto the lead incorporates a fuse. For replacement, use a 13amp BS1362 fuse. Only ASTA or BSI approved fuses should be used.

The plug must not be used if the fuse cover/carrier is lost. The cover/carrier is indicated by the coloured insert at the base of the plug.

A replacement cover/carrier must be obtained from your local Electrolux Service Centre whose address is listed in the Customer Care Booklet which accompanies your instruction manual.

Page 7

DOOR REVERSAL INSTRUCTIONS

Before carrying out the operations described below, pull out the mains plug from the wall socket.

To carry out door reversal operate as follows: Remove the plastic cover (6) (which has a clip-in ﬁt-

ting) masking the bottom hinge; Remove bottom hinge (1); Slide out the lower door from middle hinge (2) and re-

move the latter; Slide out the upper door from pin (3), unscrew the lat-

ter and then screw it down into the hinge provided on the opposite side, after having removed the small plugs which should then be ﬁtted on the opposite side;

Reﬁt the upper door and the middle hinge on the opposite side;

Reﬁt the lower door and bottom hinge (1) on the opposite side, after having removed the plugs (7) and screws; these must then be reﬁtted in the holes on the opposite side;

Reﬁt the plastic cover (6) on the bottom hinge. Take off the handle cover (Fig. 6), remove the handles

(4 & 5-Fig. 5) and reﬁt in their new position.

D483

Fig. 5

Fig. 6

B0646

Page 8

YOUR APPLIANCE

- Thermostat control for fridge and freezer compartments

- Dairy compartment

- Can storage shelfs with egg trays

- Bottle storage shelf

- Freezer calender (recommended storage times for frozen foods) and produce storage cards (write on / wipe off cards for recording what has been stored in the freezer and when)

- Storing frozen food

- Freezing fresh foods

- Salad drawer

- Glass shelf (for storing fresh meat)

- Storage shelves

Page 9

OPERATION

Setting the temperature

The temperature inside the refrigerator and freezer is regulated by a single thermostat with 6 temperature positions and one «OFF» ( O ) position.

Position 1 = minimum cold Position 6 = maximum cold

Turn the thermostat dial to the required position; the

intermediate position is usually the most suitable .

The thermostat setting can vary as the temperature inside the refrigeration compartment depends on the following factors:

– room temperature – how often the door is opened – how much food is stored – position of the appliance

Important

If the refrigerator is not defrosting correctly, it is possible that because a very low temperature has been selected and the motor is working continuously, which prevents the defrost cycle from operating.

To ensure correct defrosting, a lower number should be selected on the thermostat and you should notice that the motor cuts out from time to time, which is cor rect.

If you wish to return to a lower temperature, turn the thermostat to a higher number, however you should turn the setting lower occasionally to allow automatic defrosting.

Freezing fresh food

It is not necessary to adjust the thermostat setting when freezing fresh food.

In any 24 hours you can freeze up to 3 kg. Place food to be frozen in the bottom drawer of the

freezer as this is the coldest part.

Caution

In the event of a power cut the food in the freezer will not be affected if the power cut is short and if the freezer is full. Do not open the door. Should the food begin to thaw, it must be consumed quickly and must not be re-frozen.

Thawing

Food can be thawed in a number of ways, depending on the type of food and the size of the packs. Meat, ﬁsh and fruit should be thawed in the refrigerator compartment and small pieces of meat or poultry can even be cooked while still frozen, but you must ensure that it is thoroughly cooked through. Vegetables should be directly immersed in boiling water; ready-cooked dishes can be placed directly in the oven in their aluminium wrapping. A microwave oven is particularly suitable for thawing any type of frozen or deep-frozen food: follow the oven instructions, particularly regarding the placement of aluminium wrapping in the oven.

Making ice cubes

The freezer compartment

The four-star freezer compartment is suitable for storage of commercially frozen food and for freezing fresh foods.

The appliance is provided with two plastic ice cube trays.

Fill the trays 3/4 full to allow the ice to expand and place them in one of the freezer drawers.

To turn out the ice cubes simply give the tray a slight twist to release the cubes.

Page 10

HEALTH AND SAFETY GUIDELINES

Because of consumer demand, preservatives have been removed from many pre-pr epar ed foods. This together with the changes in shopping habits to a once-a-week shop, mean that safe handling and storage of food is even more important than ever.

The following tips should help you to ensure that the food in your home is in as perfect condition as possible.

Keep the time between buying chilled food and placing it in your fridge as short as possible. Tests showed that the temperature of 1 litre of orange juice rose to 22 ° C in an hour between the supermarket and home. It then took 11 hours to get down to 7 ° C in the refrigerator.

Keep the refrigerator door closed as much as possible. Remember that warm air is ﬂowing in as you are deciding what to have for tea!

Do not push food together too much, try to allow air circulate around each item.

Cool cooked food as quickly as possible but do NOT place in the refrigerator or freezer until cool. (Leave food in a place as cool as possible in order that it can then be placed in the refrigerator or freezer as soon as possible).

Do NOT mix raw and cooked meat, they must be in separate containers. Take care not to let the meat juices drip onto other food. If the meat does drip, remove everything and clean thoroughly.

Do not store food uncovered.

The best way to defrost food is to put it in the refrigerator to thaw slowly.

Remove suspect food from your refrigerator and clean the interior with a solution of bicarbonate of soda in warm water (5ml to 0.5 litre of water).

Always wash your hands with soapy water and dry them with a clean towel before handling food.

Keep work surfaces clean and avoid cross contamination by not using the same work surface or knife, without washing them thoroughly in between.

Use kitchen roll wherever possible for cleaning up food. If you use a dishcloth, be sure to boil it frequently.

The fresh foods to be frozen must be fresh and of the best quality.

The size of each pack should be small enough to ensure that it is used in one go. Small packs freeze more quickly and uniformly and give better results.

ª Frozen food, once thawed, must not be refrozen.

Lean food keeps better and longer than fatty food, salt reduces the storage time.

ª Wrap the food in polythene or aluminium freezing

bags or foil so that they adhere to the food and provide an airtight seal.

ª Packaging which is swollen or has traces of refro-

zen water droplets on the pack could indicate that the product has not been kept at a suitable temperature and that it may have lost its original quality. Partially thawed food must not be refrozen, it must be consumed within 24 hours. Never exceed the storage times indicated.

ª Never place hot food, bottles or cans of ﬁzzy drink

in the freezer as they may explode. Containers with a lid must not be ﬁlled to the brim.

ª Do not open the door or place extra fresh food in

the freezer next to food which is already frozen as this could cause the temperature of the frozen food to rise and its quality and storage life to reduce.

Never allow spillages to dry and harden.

Ensure that food placed in the freezer is dated and labelled and used in date order to ensure that food is consumed at its best.

It is important that food is used before its “best before” date.

Store eggs in the egg rack provided in the refrigerator door. Discard any broken or chipped eggs.

Regularly check the refrigerator door seal to ensure that it is clean and free from bits and pieces.

Page 11

Fresh food refrigeration

Positioning the door shelves

To obtain the best performance, do not store warm food or evaporating liquids in the refrigerator; do cover or wrap the food, particularly if it has a strong ﬂavour. Do not cover the shelves with any protective material, such as paper, cardboard or plastic, which may obstruct the air circulation through them.

To help you use your refrigerator correctly, here are some more useful hints:

Raw meat (beef, pork, lamb & wild fowl): wrap in polythene bags and place on top of the salad crisper.

Meat can only be stored safely in this way for one or two days at the most.

Fruit & vegetables: these should be thoroughly cleaned and placed in the bottom salad crisper.

Butter & cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

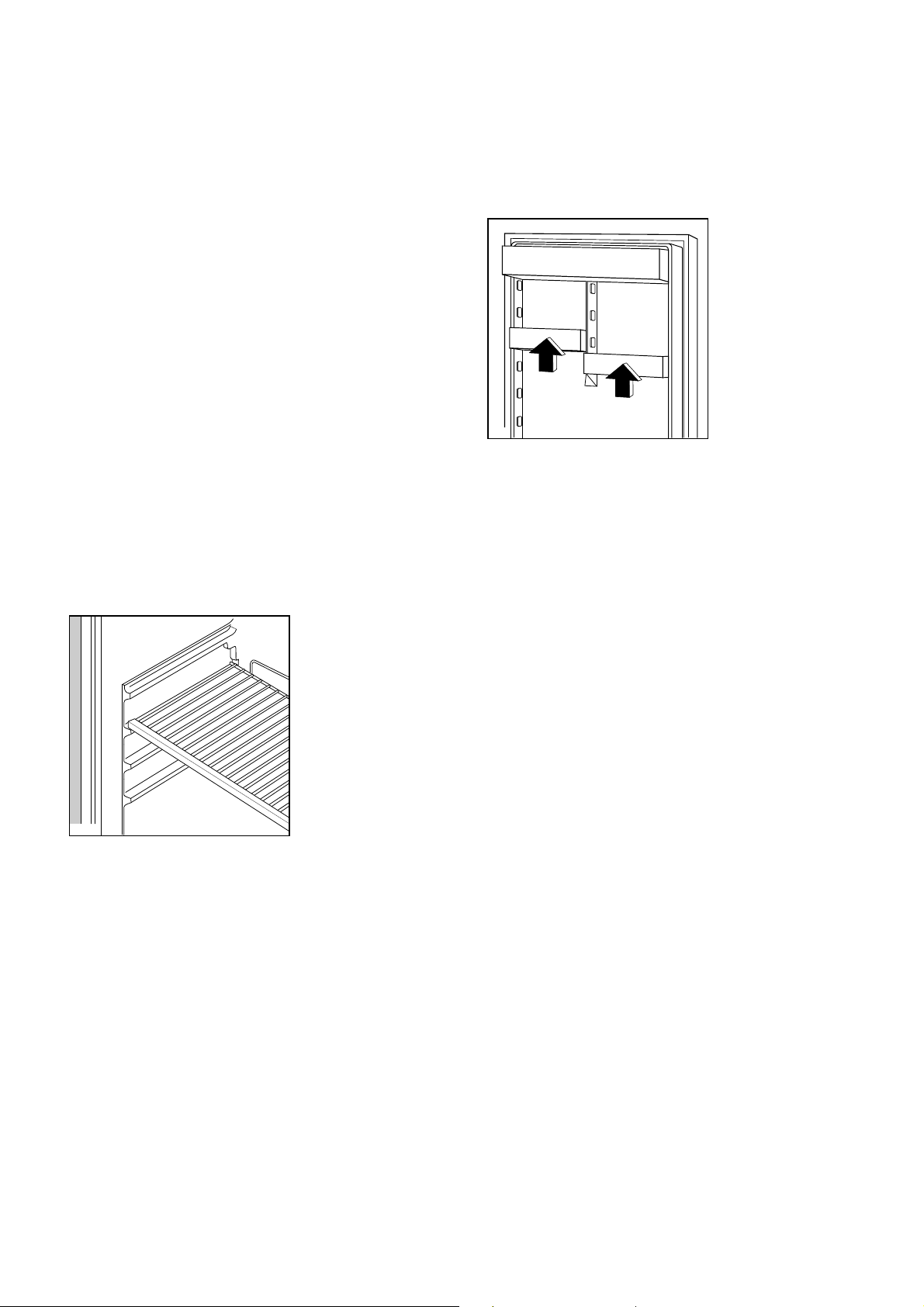

The walls of the refrigerator are equipped with runners so that shelves can be positioned as desired.

Fig. 7

To permit storage of food packages of various sizes, the door shelves can be adjusted in height. To do this proceed as per Fig. 8.

Fig. 8

D450

D040

Page 12

Defrosting

Refrigerator

The refrigerator automatically defrosts every time the compressor stops. The water is discharged, via the pipe, into a tray located at the back of the appliance above the compressor, where it evaporates.

Important

To avoid defrost water overﬂowing into the fridge, periodically clean the water discharge hole in the centre of the V shaped drip collector at the back of the refrigerator compartment behind the fruit and vegetable drawer. Use the special cleaner provided which you will ﬁnd already inserted into the discharge hole (Fig. 9).

Fig. 9

– Reconnect the appliance to the mains or reset the

thermostat. After letting the appliance run for at least half an hour, replace the previously removed food into the compartment.

Fig. 10

D068

Important

When defrosting the freezer, the fridge is also controlled by the thermostat and will not be operational during this period.

A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

D037

Remember to wash the defrost cleaner in hot soapy water at regular intervals. Dry thoroughly before replacing.

Freezer

When the frost has reached a thickness of up to 4mm it can be removed using the ice scraper provided with the appliance. During this operation it is not necessary to disconnect the appliance from the mains and remove the food. Never use metal tools for this operation.

For complete defrosting (once or twice a year) proceed as follows:

– turn the thermostat dial to the «OFF» position (O) or

disconnect the appliance from the mains.

– Remove any food from inside the fr eezer and fridge,

wrap it in several sheets of newspaper and store in a cool, dry place.

– Leave the door open and insert the ice scraper un-

der the channel in the centre of the lower part of the appliance, place a low-sided container beneath the scraper to collect the water (Fig. 10).

Attention! In the event of a power failure causing the temper-

ature within your freezer to rise, do not re-freeze the food without checking its condition. The following guidelines should assist you.

Ice-cream: once thawed should be discarded. Fruits & Vegetables: if soft should be cooked and

used up.

Breads & Cakes: can be re-frozen without danger. Shellﬁsh: should be refrigerated and used up quickly. Cooked Dishes: i.e. casseroles should be refrigerated

and used up. Large Pieces of Meat: can be re-frozen providing there are still ice crystals remaining within them. Small Joints: should be cooked and can then be re-frozen as cooked dishes. Chicken: should also be cooked and re-frozen as a cooked dish.

– Clean and dry thoroughly. – Replace the scraper in one of the drawers.

Page 13

MAINTENANCE AND CLEANING

Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply.

Internal cleaning

Clean the inside and accessories with warm water and bicarbonate of soda (5ml to 0.5 litre of water). Rinse and dry thoroughly.

NEVER USE DETERGENTS, ABRASIVE POWDERS, HIGHLY PERFUMED CLEANING PRODUCTS OR WAX POLISHES, TO CLEAN THE INTERIOR AS THESE WILL DAMAGE THE SURFACE AND LEAVE A STRONG SMELL.

Clean the drain hole of the water trough at regular intervals and make sure that the drain hole is never obstructed, so that the defrost water may ﬂow freely.

External cleaning

Wash the outer cabinet with warm soapy water. Do NOT use abrasive products.

Once or twice a year dust the condenser (black grill) and the compressor at the back of the appliance, with a brush or vacuum cleaner, see Fig. 11.

Fig. 11

When the appliance is not in use

When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the doors ajar to prevent unpleasant smells.

Changing the light bulb

Should the interior light fail to work, ﬁrst switch off the appliance and disconnect from the electricity supply, then replace the bulb as follows, see Fig. 12.

Fig. 12

B0662

Unscrew the light cover and then pull it outward toward the middle of the cabinet. Unscrew the bulb and replace it with a new 15 watt bulb (available from your nearest Electrolux Service Centre).

Replace the light cover by sliding it into its original position and replacing the screw.

CONDENSER

DEFROST TRAY

COMPRESSOR

D273

You MUST ensure that the appliance is switched OFF. An accumulation of dust will affect the performance of the appliance and cause excessive electricity consumption.

Page 14

WHAT HAPPENS IF SOMETHING GOES WRONG?

Before contacting your local Electrolux Service Centre, check the following points:

The appliance does not work...

Check that:

ª There is power at the socket. ª Ensure that there is not a power cut by checking

the household lights.

ª The fuse has not blown. ª The air circulation passages are not covered. ª The thermostat dial is in the correct position.

Vibration or abnormal noises...

ª You may hear faint gurgling or bubbling sounds

when the refrigerant is pumped through the coils of tubing at the rear, to the cooling plate/evaporator. When the compressor is on, the refrigerant is being pumped round, and you will hear a whirring or pulsating noise from the compressor. A thermostat controls the compressor, and you will hear a faint “click” when the thermostat cuts in and out.

If, after the above checks, there is still a fault, call your local Electrolux Service Centre. Please make sure you give the model and serial number of the appliance. This information can be found on the rating plate inside the fridge compartment on the left side behind the vegetable drawer, or on the guarantee certiﬁcate.

Original spare parts can be purchased from Electrolux Service Centres.

In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Please note that proof of purchase is required for any in-guarantee service calls.

Before contacting your local Electrolux Service Centre, make a note of the model and serial number. This information can be found on the rating plate situated inside the cabinet behind the bottom fridge/freezer drawer.

Traces of water on the bottom of the fridge compartment...

Check that: ª The defrosting water dischar ge hole is not obstruct-

ed.

The light does not come on...

Check that:

ª The bulb is ﬁtted correctly. ª Replace the bulb if it has blown.

Fridge does not defrost...

Check that: ª The thermostat setting is not too high (see page 9).

Other points to check...

Check that: ª Have you turned the thermostat to the correct set-

ting?

ª Have doors been left open causing the temperature

to rise?

ª Sometimes the freezer door will be difﬁcult to open

shortly after you have closed it. Don’t worry this is due to pressure difference which will quickly equalise and allow the door to open normally.

Page 15

PEACE OF MIND FOR TWELVE MONTHS

Guarantee conditions

We, Electr olux, undertake that if, within twelve months of the date of the purchase, this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option, repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that:

ª The appliance has been correctly installed and

used only on the electricity supply stated on the rating plate.

ª The appliance has been used for normal domestic

purposes only, and in accordance with the manufacturer’s operating and maintenance instructions.

ª The appliance has not been serviced, maintained,

repaired, taken apart or tampered with by any person not authorised by us.

All service work under this guarantee must be undertaken by a Electrolux service representative or authorised agent.

Any appliance or defective part replaced shall become the property of Electrolux.

This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a charge will be made.

Exclusions

This guarantee does not cover: ª Damage or calls resulting from transportation, im-

proper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic, or vacuum cleaner drive belts, brushes or dust bags.

ª Costs incurred for calls to put right an appliance

which is improperly installed or calls to appliances outside the United Kingdom.

ª Appliances found to be in use within a commercial

environment, plus those which are the subject of rental agreements.

ª Products of Electrolux manufacture which are NOT

marketed by Electrolux.

ª EU Countries - The standard guarantee is applica-

ble but is subject to the owner’s responsibility and cost to ensure the appliance meets the standards set by the country to which the product is taken. Proof of purchase may be required. Electrolux Aftersales Service in the country concerned, will be pleased to advise further.

Page 16

Electrolux Sales Service

Service Centres Addresses

CENTRE POSTAL DISTRICTS SERVICE APPTS. ADDRESS ABERDEEN AB 01224-696569 Electrolux After Sales Service

ARGYLL PA24-26, 28-61 01369-703161 Electrolux After Sales Service

BARNSTAPLE EX18-23, 31-39 01271-328826 Electrolux After Sales Service

BORDERS TD 01573-224411 Electrolux After Sales Service

BRISTOL BA BS TA SP 0117-9211876 Electrolux After Sales Service

CANVEY E EC EN N NW W WC

CARDIFF CF NP 1-4, 6, 9-44 SA1-18

CUMBRIA CA 01228-594747 Electrolux After Sales Service

DUMFRIES & GALLOWAY

DUNDEE (Gas only)

DUNDEE DD

GLASGOW EH FK G KA1-26, 28-30 KY ML

GUERNSEY Guernsey 01481-46931 Guernsey Electricity

HAVERFORDWEST SA33-39

HEREFORD HR LD SY7,18

HULL YO4, 11-18, 25

INVERNESS IV1-39, 52-56

INVERNESS PH30-41 IV40-51 01855-821315 Electrolux After Sales Service

ISLE OF ARRAN KA27 01773-302909 Electrolux After Sales Service

ISLE OF BARRA HS9 Isle of Barra 01871-890206 Electrolux After Sales Service

ISLE OF LEWIS PA83-87 01851-705555 Electrolux After Sales Service

ISLE OF MAN IM 01624-687794 Electrolux After Sales Service

ISLE OF MULL PA62-75 01688-302262 Electrolux After Sales Service

ISLE OF WIGHT PO30-41 01983-872552 Electrolux After Sales Service

JERSEY Jersey 01534-505050 Jersey Electricity Company

AL CB HA HP LU MK SG UB WD CM CO IG RM SS IP NR PE14-19, 30-38

SA 21-32 SA19, 20, 40, SA45-48 SY23-25

DG 01387-265166 Electrolux After Sales Service

Dundee Gas Only 01382-642828 Electrolux After Sales Service

PH8-18

PA1-19, 21-23 PH1-7

SA41-44 SA61-73

NP5,7,8

HU DN14

PH19-26, 42-44 KW1-14

0181-443-3464 0181-965-9699 0181-965-9699 01268-694144 01603-667017

01222-460131 01222-461972

01250-876285 Electrolux After Sales Service

0141-647-4381 Electrolux After Sales Service

01437-710914 Electrolux After Sales Service

01432-340334 Electrolux After Sales Service

01482-585678 Electrolux After Sales Service

01463-792952 Electrolux After Sales Service

Northeast Appliance Service, 8 Cornhill Arcade, Cornhill Drive, Aberdeen, AB2 5UT

T.D.C. Refrigeration, Briar Hill, 7 Hill Street, Dunoon, Argyll, PA23 7AL

Mc Bain Refrigeration, P.O. Box 12, Barnstaple, North Devon, EX31 2YB

James Stewart & Son, 2-8 Wood Market, Kelso, Borders, TD5 7AX

Unit BE46, P.O. Box 372, Bristol, BS99 1UD Electrolux After Sales Service

2-4 Sandhurst, Kings Road, Canvey Island, SS8 0QY

Electrolux After Sales Service Guardian Industrial Estate, Clydesmuir Road, Tremorfa, Cardiff, CF2 2QS

ETB Services, Carlisle Enterprise Centre, James Street, Carlisle, CA2 5AP

Allan Crossan (service), 93 Irish Street, Dumfries, Scotland, DG1 2PQ

Tayside Refrigeration, 3-7 Blackness Street, Dundee, DD1 5LR

I Brogan Domestics, 41 Lesley Street, Blairgowrie, Perthshire, PH10 6AT

20 Cunningham Road, Clyde Estate, Rutherglen, Glasgow, G73 1PP

PO Box 4, Vale, Guernsey, Channel Islands

C Butherway, 1 Church Road, Roch, Haverfordwest, Dyfed, Wales, SA62 6AG

Domestic Repair Centre, Unit 3 Bank Buildings, Cattle Market, Hereford, HR4 9HX

John Sizer, Unit 1 Boulevard Unit, Factory Estate, Hull, HU3 4AY

Highland Appliances, Unit 3B3 Smithton Industrial Estate, Smithton, Inverness, IV1 2PD

George Ross Electrical, Forrestry Workshop, Inchree, Onich, Inverness-shire, PH33 6SE

Arran Domestics, Unit 4 The Douglas Centre, Brodick, Isle of Arran, KA27 8AJ

John Zerfahs, 244 Bruernish, Isle of Barra, Western Islands, HS9 5QY

N.D. Macleod, Churchhouse, 16 James Street, Stornoway, Isle of Lewis, PA87 2QW

Manx Electricity, Service Workshop, North Quay, Douglas, Isle of Man

Brian Hogg, Braeside, Raeric Road, Tobermory, Isle of Mull, PA75 6PU

Wyatts Electrical Service, 4 Forelands Road, Bembridge, I O W, PO35 5XW

PO Box 45 Queens Road, St Helier, Jersey, Channel Islands, JE4 8NY

05/96

Page 17

Electrolux Sales Service

Service Centres Addresses

CENTRE POSTAL DISTRICTS SERVICE APPTS. ADDRESS LANCASTER LA 01772-316175 Electrolux After Sales Service

LEEDS BD DN1-7, 10-12 HD HG HX

LINCOLN DN21 sub codes 1,2 & 5 only

LIVERPOOL FY PR L WN CH CW

MANCHESTER BB BL OL M SK

NEWTON ABBOTT EX1-17 TQ

NORTH WALES LL 01745-591616 Electrolux After Sales Service

NORTHERN DL TS DH YO21,22

NORTHERN IRELAND EAST

NORTHERN IRELAND WEST

NUNEATON B1-48 62-79, 90-94, DY ST

ORKNEY KW15-17 01856-875457 Electrolux After Sales Service

REDDITCH GL OX WR (Not WR15) SN

REDRUTH TR1-20,26,27

ROTHESAY PA20 01700-504777 Electrolux After Sales Service

SHETLAND Own Sales 01595-692915 Electrolux After Sales Service

SHETLAND Own Sales 01595-692225 Electrolux After Sales Service

SHETLAND Own Sales 01595-692855 Electrolux After Sales Service

SHETLAND Own Sales 01806-566546 Electrolux After Sales Service

SHREWSBURY SY1-6 SY8-17 SY19-22 TF 01743-450279 Electrolux After Sales Service

SOUTH COAST BH, DT, P01-22, SO

SOUTH HUMBERSIDEDN8,9 DN15-20

TONBRIDGE SL GU1-35 RG

LS S WF YO1-3, 5-8 DE NG-1-22 & 25

LN 1,2,4-6 LN3 sub codes 4,5 only LN8-10 NG23,24 31-34 PE1-13, 20-25

WA (Not 14,15)

WA14 & 15 only

PL1-9,16,19-21

DH NE SR

BT1-30, 36-57, 63-67 01232-746591 Electrolux After Sales Service

BT31-35, 60-62, 68-82, 92-94 01861-510400 Electrolux After Sales Service

WS WV CV, LE, NN, WR15

B49, 50, 60, 61, 80, 95-98.,

PL10-15,17,18, 22-35

TR21-25

DN21 Sub codes 3,4 only DN31-40 LN3 (Sub codes 6), LN 7,11-13

CT DA ME TN BN1-18 20-27 RH TW BR CR SE SW SM KT

0113-2608511 Electrolux After Sales Service

01522-514603 Electrolux After Sales Service

0151-254-1724 Electrolux After Sales Service

0161-477-7758 Electrolux After Sales Service

01626-65909 Electrolux After Sales Service

01325-301400 0191-493-2025

0121-358-7076 0121-358-5051 01203-354424

01527-512919 01993-704411

01209-314407 Electrolux After Sales Service

01705-667411 0117-9211876

01472-267978 Electrolux After Sales Service

01252-24505 01732-357722 01273-694341 0181-658-9069

NL Services, Unit 333 Ranglet Road, Walton Summit, Bamber Bridge, Preston, Lancashire, PR5 8AR

64-66 Cross Gates Road, Leeds, LS15 7NN

Brian Hudson, Unit 8 Stoneﬁeld Park, Clifton Street, Lincoln, LN5 8AA

Honeys Green Precinct, Honeys Green Lane, West Derby, Liverpool, L12 9JH

Unit 30, Oakhill Trading Estate, Devonshire Road, Worsley, Manchester, M28 3PT

South West Domestic Service, Unit 2 Zealley Industrial Estate, Kingsteignton, Newton Abbott, South Devon, TQ12 3SJ

GMS (Cymru), Unit 2 Coed - Parc, Abergele Road, Rhuddlan, Clwyd, Wales, LL18 5UG

Electrolux After Sales Service PO Box 40, Preston Road, Aycliffe Industrial Estate, Newton Aycliffe, Co. Durham, DL5 6XA

Unit C3, Edenderry Industrial Estate, 326, Crumlin Road, Belfast, BT14 7EE

G & O (Armagh) Service, Owenmore House, Kilwee Business Park, Upper Dunmurray Lane, Belfast, BT17 OHD

Electrolux After Sales Service Unit 23-24 Alliance Business Park, Townsend Drive, Nuneaton, Warwickshire, CV11 6RX

Refrigeration Sales and Services, Hatson Ind. Estate, Kirkwall, Orkney, KW15 1RE

Electrolux After Sales Service Heming Road, Washford, Redditch, Worcestershire, B98 0DH

Cornwall Domestic Service, Unit 7D Pool Industrial Estate, Wilson Way, Redruth, Cornwall, TR15 3QW

D McGlashan, Walker Enginering, Glenmhor, Upper Serpentine, Rothesay, Strathclyde, PA20

George Robertson, 3/4 Carlton Place, Lerwick, Shetland, ZE1 0ED

Tait Electronic Systems Ltd, Holmsgarth Road, Lerwick, Shetland, ZE1 0PW

Bolts Shetland Ltd, 26 North Road, Lerwick, Shetland, ZE1 0PE

Leask Electrical, Harsdale, Symbister, Whalsay, Shetland, ZE2 9AA

BLI Service, 6 Harlescott Barn, Harlescott Lane, Shrewsbury, Shrops, SY1 3SY

Electrolux After Sales Service Limberline Road, Hilsea, Portsmouth, Hampshire, PO3 5JJ

John Robinson (Electrical), 81 Pasture Street, Grimsby, DN32 9EP

Electrolux After Sales Service Unit 30, Deacon Trading Estate, Morley Road, Tonbridge, Kent, TN9 1RA

05/96

Printed on recycled paper
