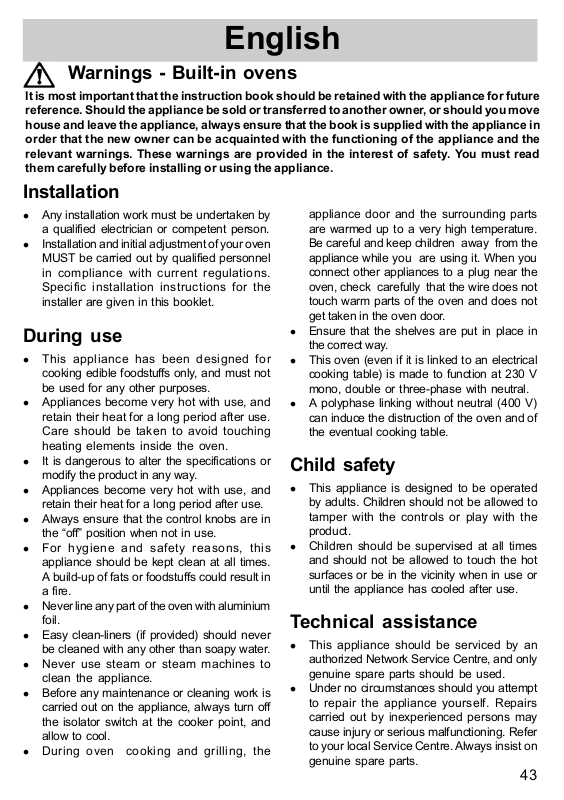

Warnings - Built-in ovens
It is most important that the instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move
house and leave the appliance, always ensure that the book is supplied with the appliance in
order that the new owner can be acquainted with the functioning of the appliance and the
relevant warnings. These warnings are provided in the interest of safety. You must read
them carefully before installing or using the appliance.
Installation
z Any installation work must be undertaken by
a qualified electrician or competent person.
z Installation and initial adjustment of your oven
MUST be carried out by qualified personnel
in compliance with current regulations.
Specific installation instructions for the
installer are given in this booklet.
During use
z This appliance has been designed for
cooking edible foodstuffs only, and must not
be used for any other purposes.
z Appliances become very hot with use, and
retain their heat for a long period after use.
Care should be taken to avoid touching
heating elements inside the oven.
z It is dangerous to alter the specifications or
modify the product in any way.
z Appliances become very hot with use, and
retain their heat for a long period after use.
z Always ensure that the control knobs are in
the “off” position when not in use.
z For hygiene and safety reasons, this
appliance should be kept clean at all times.
A build-up of fats or foodstuffs could result in
a fire.
z Never line any part of the oven with aluminium
foil.
z Easy clean-liners (if provided) should never
be cleaned with any other than soapy water.
z Never use steam or steam machines to
clean the appliance.
z Before any maintenance or cleaning work is
carried out on the appliance, always turn off
the isolator switch at the cooker point, and
allow to cool.
z During oven cooking and grilling, the
appliance door and the surrounding parts
are warmed up to a very high temperature.
Be careful and keep children away from the
appliance while you are using it. When you
connect other appliances to a plug near the
oven, check carefully that the wire does not
touch warm parts of the oven and does not
get taken in the oven door.
z Ensure that the shelves are put in place in
the correct way.
z This oven (even if it is linked to an electrical
cooking table) is made to function at 230 V
mono, double or three-phase with neutral.
z A polyphase linking without neutral (400 V)
can induce the distruction of the oven and of
the eventual cooking table.
Child safety
z This appliance is designed to be operated
by adults. Children should not be allowed to
tamper with the controls or play with the
product.
z Children should be supervised at all times
and should not be allowed to touch the hot
surfaces or be in the vicinity when in use or
until the appliance has cooled after use.
Technical assistance
z This appliance should be serviced by an
authorized Network Service Centre, and only
genuine spare parts should be used.
z Under no circumstances should you attempt
to repair the appliance yourself. Repairs
carried out by inexperienced persons may
cause injury or serious malfunctioning. Refer
to your local Service Centre. Always insist on
genuine spare parts.
43
Page 2
Guide to Use the
instructions
Safety Instructions
Step by step instructions for an
operation
)
Hints and Tips
MANUFACTURER:
ELECTROLUX HOME PRODUCTS ITALY S.p.A.
Viale Bologna, 298
47100 FORLÌ (Italy)
When the oven is first installed
Once the oven has been installed:
)
a) set the thermostat knob to MAX;
b) allow the oven to run empty for
approximately 45 minutes;
c) open a window for ventilation.
During this time, an unpleasant odour may
be emitted. This is absolutely normal, and
is caused by residues of manufacturing.
Repeat this operation for the grill and fan
cooking function.
Once this operation is carried out, let the
oven cool down, then clean the oven cavity
with a soft cloth soaked in warm soapy
water.
Before cooking for the first time,
carefully wash the oven
accessories.
Fig. 1
To open the oven door, always
catch the handle in its central part
(Fig. 1).
44
Page 3
Description of the appliance
8
723456
1
10
9
1. Control panel
2. Control knob for front right cooking plate
3. Control knob for rear right cooking plate
4. Control knob for rear left cooking plate
5. Control knob for front left cooking plate
6. Oven Function control knob
7. Overall control light
8. Oven thermostat control light
9. Oven lamp
10.Rating plate
45
Page 4
Electric oven
Oven function control knob
(Fig. 2)
It enables to select the most appropriate
type of heating for the different cooking
requirements by appropriately connecting
the heating elements and adjusting
temperature to the required level.
Meaning of the symbols:
Oven lamp
50-MAX Range of temperature regulation
for conventional cooking
Bottom heating element
Top heating element
To select the temperature turn the switch in
a clockwise direction and place sign in front
of the symbol corresponding to the
temperature required, included between 50
and MAX.The temperature will be maintained
constant by the thermostat.
If a different type of heating is required, for
example more heat on the bottom or the top,
you should turn the switch to the symbols
(heat from below) or (heat from
above). In these conditions the temperature
will never exceed 230°C.
Hotplate control knobs
The Control Knobs for the hotplates (Fig. 3)
can be found on the oven control panel. The
energy regulator of the hotplates can be set
by means of a 7-position control knob:
0 =Off
1 = Minimum
3 = Maximum
The intermediate positions give an increasing
heating power.
Carefully supervise cookings with oil
or fats, since these types of food can
result in a fire, when over-heated.
Fig. 2
Fig. 3
Control lights
Oven thermostat control light: This light
goes off when the oven heats up to the
temperature set and comes on again every
time the thermostat cuts in to stabilize
temperature.
Operating control light: It indicates that
one or more of the heating elements are
turned on.
Be careful when you insert and extract
the grid and the dripping pan from the
oven in order not to damage the
enamelled surfaces of the oven cavity.
46
Page 5
Hints and tips for using the oven
Always cook with the oven door
closed.
Conventional cooking
Heat comes from the top and from the bottom,
therefore it is preferable to use the central
runners. If cooking requires more heat from
the top or from the bottom use the top or the
bottom runners.
Some hints
For baking cakes
Cakes require a moderate temperature
(normally between 150 and 200°C). In addition,
the oven must be heated up beforehand - for
about 10 minutes.
The oven door should not be opened before at
least 3/4 of the set cooking time is up.
Normal short pastry dough should be cooked
in a mould or tin for 2/3 of total cooking time
required and then garnished as desired before
being cooked completely.
Clearly, the remaining cooking time depends
on the type of garnish used (jam, fruit, etc.).
Care should be taken to ensure that any dough
and cake mixes are of the right consistency
since an unduly moist mix lengthens cooking
time unnecessarily. The raw dough or mix
should therefore be fairly difficult to detach from
the spoon or beater.
For cooking meat and fish
Meat cooked in the oven should weigh at least
1 kg to prevent it from becoming too dry during cooking. Very tender red meat to be cooked
rare, i.e. well cooked on the outside but
extremely juicy inside, requires
high-temperature cooking (200-220°C).
White meat, poultry and fish instead require
low-temperature cooking (150-175°C).
The ingredients for the accompanying sauce
or gravy should be put in the baking pan at the
very beginning only when cooking times are
short.Otherwise they should be added during
the last half hour. A simple way of checking
whether meat is done or not is to press it with
a spoon; if the meat does not yield under this
pressure it means that it is done to a turn. In
the case of roast beef and fillet steaks, the
inside of which should remain fairly pink in
color, cooking times must be short. The meat
can be cooked in a baking pan or else directly
on the shelf - in this case a dripping pan must
obviously be placed underneath the shelf to
collect the juice. Once the meat is cooked, it
is advisable to let it rest for at least 15 minutes
before carving so that the juice does not seep
out. To prevent the formation of too much
smoke in the oven during roasting, it is a good
idea to pour a little water into the dripping pan
and—to prevent steam—to add a little bit more
during cooking if the original amount dries up
too much.
Before serving, the various courses can be
kept hot in the oven which should be turned
down to the minimum temperature.
Attention! the bottom of the oven and do not cover
it with aluminium foil while cooking, as
this could cause a heat build-up which
would affect the baking results and
damage the oven enamel. Always place
pans, heat-resisting pans and
aluminium foils on the grid which has
been inserted in the oven shelves.
Do not place objects on
Cooking times
Cooking times vary according to the type of
food to be cooked, its consistency, and
volume.We suggest that you take particular
note of your first cooking experiments with the
oven, since operating in the same conditions
for the same dishes you will of course obtain
similar results.
Only experience will enable you to make the
appropriate changes to values given on charts.
47
Page 6
Roasting and baking table
Shelf
Type of dish
position °C in minutes
Weight (gr.)
CAKES
Whipped up kneading
Shortbread dough
Butter-milk cheese cake
Apple cake 1 180 40 ~ 60
Strudel 2 175 60 ~ 80
Jam-tart 2 175 30 ~ 40
Fruit cake 1 175 45 ~ 60
Sponge cake 1 175 30 ~ 40
Christmas cake 1 170 40 ~ 60
Plum cake 1 170 50 ~ 60
Small cakes 2 175 25 ~ 35
Biscuits 2 160 20 ~ 30
Meringues 2 100 90 ~ 120
Buns 2 190 12 ~ 20
Pastry: Choux 2 200 15 ~ 25
BREAD AND PIZZA
1000 White bread 1 190 40 ~ 60
500 Rye bread 1 190 30 ~ 45
500 Bread rolls 2 200 20 ~ 35
250 Pizza 1 210 15 ~ 30
FLANS
Pasta flan 2 200 40 ~ 50
Vegetable flan 2 200 45 ~ 60
Quiches 1 200 35 ~ 45
Lasagne 2 180 45 ~ 60
Cannelloni 2 200 40 ~ 55
MEAT
1000 Beef 2 190 50 ~ 70
1200 Pork 2 180 100 ~ 130
1000 Veal 2 190 90 ~ 120
1500
English roast beef
1500 underdone 2 210 50 ~ 60
1500 done 2 210 60 ~ 70
1500 well done 2 210 70 ~ 80
2000 Shoulder of pork (with rind) 2 180 120 ~ 150
1200 Shin of pork 2 180 100 ~ 120
1200 Lamb 2 190 110 ~ 130
1000 Chicken 2 190 60 ~ 80
4000 Turkey 2 180 210 ~ 240
1500 Duck 2 175 120 ~ 150
3000 Goose 2 175 150 ~ 200
1200 Rabbit 2 190 60 ~ 80
1500 Hare 2 190 150 ~ 200
800 Pheasant 2 190 90 ~ 120
Meat loaf 2 180 40 ~ 60
FISH
1200 Trout/Sea bream 2 190 30 ~ 40
1500 Tuna fish/Salmon 2 190 25 ~ 35
The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures
to suit individual preferences and requirements. Cooking times in the tables do not include pre-heating. We recommend,
especially when cooking cakes, pizza and bread, to pre-heat the oven for about 10 minutes before cooking.
2 170 45 ~ 60
2 170 20 ~ 30
1 160 60 ~ 80
4
3
2
1
Temperature
Cooking time
48
Page 7
Cleaning and Maintenance
Before any cleaning switch the
oven off and let it cool down. This
appliance cannot be cleaned with
steam or with a steam cleaning
machine.
Important! Before carrying out
maintenance and cleaning
operations, make sure that your
oven is disconnected from the
mains power supply.
Cleaning must be carried out after the oven
has cooled down. Wash the enamelled parts
with lukewarm water and detergent. Do not
use abrasive products, such as steel wool
pads, acids etc. since these could damage
the various surfaces. Rinse stainless steel
parts with water after use, and dry them with
a soft cloth or chamois leather.
In the case of persistent stains, you can
use normal non-abrasive detergents or
products specific for stainless steel readily
available on the market. Another alternative
is a drop of hot vinegar.
When cleaning the oven door with the glass
top cover use just hot water, taking care to
avoid using coarse cloths or abrasive
products.
The hot acids of fruit (e.g. Iemons, stewed
prunes, etc.) leave difficult-to-remove stains
on the enamelled surfaces; this inconvenient
may remove enamel gloss, but, it does not
impair oven operation.
Clean the oven thoroughly after use; in this
way it will be possible to remove cooking
residuals more easily, thus avoiding these
from burning the next time the oven is used.
Clean the oven control panel following the
same precautions.

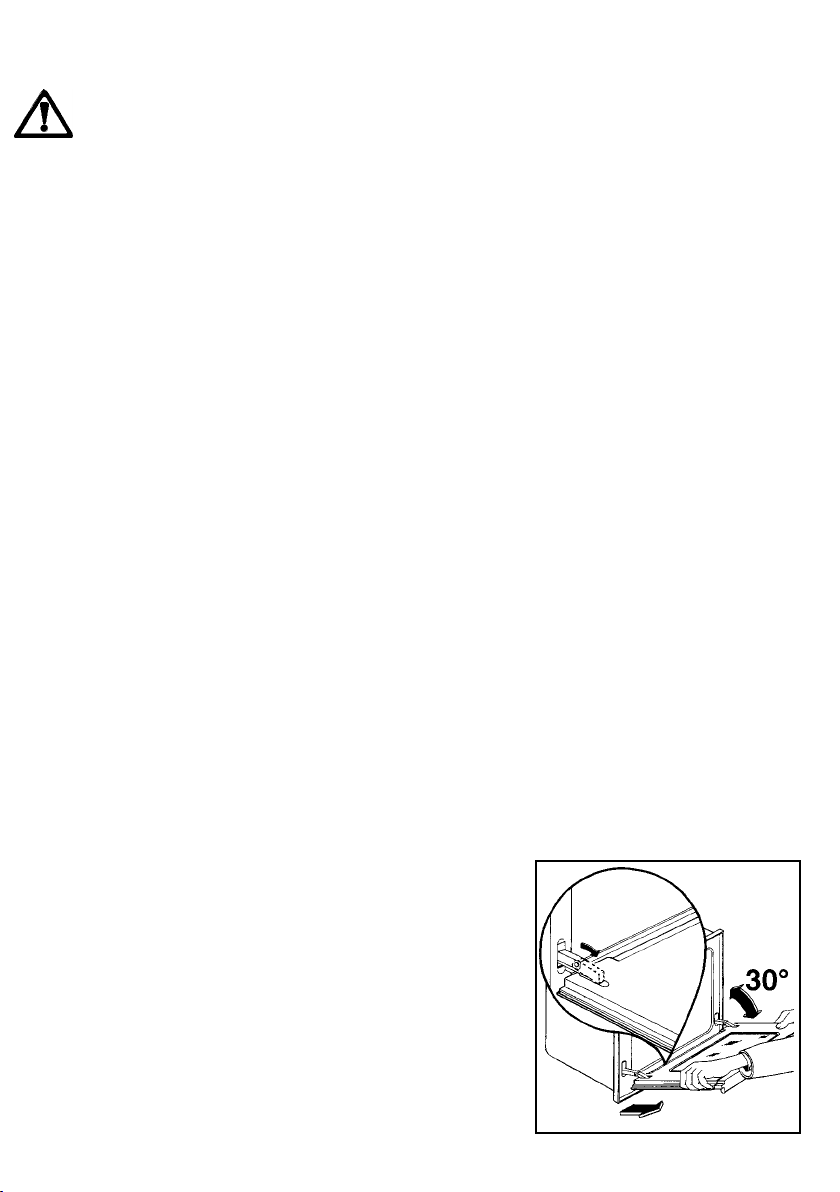

Oven door cleaning
For a better cleansing of the oven door, you
are suggested to remove it from the appliance
with the following procedure: open tho door
completely; lift the small levers placed on
the two hinges and turn the levers towarde
the inside (Fig. 4). Slowly close the oven
door, until it touches the two levers, then
push it towards the oven and remove it by
pulling it towards the outside. Place the door
on a horizontal level. After cleaning,
assemble the door again by carrying out the
procedure described above backwards.
When the two small levers are placed again
on the hinges, the door will have been
accurately fit.
Models in stainless steel or aluminium:
We recommend to clean the oven door using
only a wet sponge and dry it up after cleaning
with a soft cloth.
Never use steel wool, acids or abrasive
products as they can damage the oven
surface.
Fig. 4
FO 0452
49
Page 8
Technical Data
Dimension of the oven
recess
Height 593 mm
Width 560 mm
Depth 550 mm
Dimensions of the oven
cavity
Height 335 mm
Width 405 mm
Depth 400 mm
Capacity 56 l
Oven thermostat regulation: from 50°C up
to 230°C
Heating elements
Oven lamp 25 W
Top Heating Element 800 W
Bottom Heating Element 1000 W
Top + Bottom Heating Elements 1800 W
Maximum Power absorbed: 1825 W
Operating Voltage (50Hz) 230 V - 400 V
This appliance can be connected to
variuos cast iron or ceramic hobs
zz
z Traditional hobs
zz
Type: EHE 642
Maximum powerabsorbed 5,5 kW
Power supply voltage (50Hz) 230 V
zz
z Ceramic hobs
zz
Type: EHC 641
Maximum powerabsorbed 5,8 kW
Power supply voltage (50 Hz) 230 V
Type: EHC 650
Maximum powerabsorbed 6,2 kW
Power supply voltage (50 Hz) 230 V
Type: EHC 660
Maximum powerabsorbed 7,2 kW
Power supply voltage (50 Hz) 230 V
Nominal heating power
zz
z Oven with traditional hob 7,325 kW
zz
zz
z Oven with ceramic hob
zz
7,625 - 8,025 - 9,025 kW
This appliance complies with the
following E.E.C. Directives:
- 73/23 - 90/683 (Low Voltage Directive);
- 89/336 (Electromagnetical Compatibility
Directive);
- 93/68 (General Directives)
and subsequent modifications.

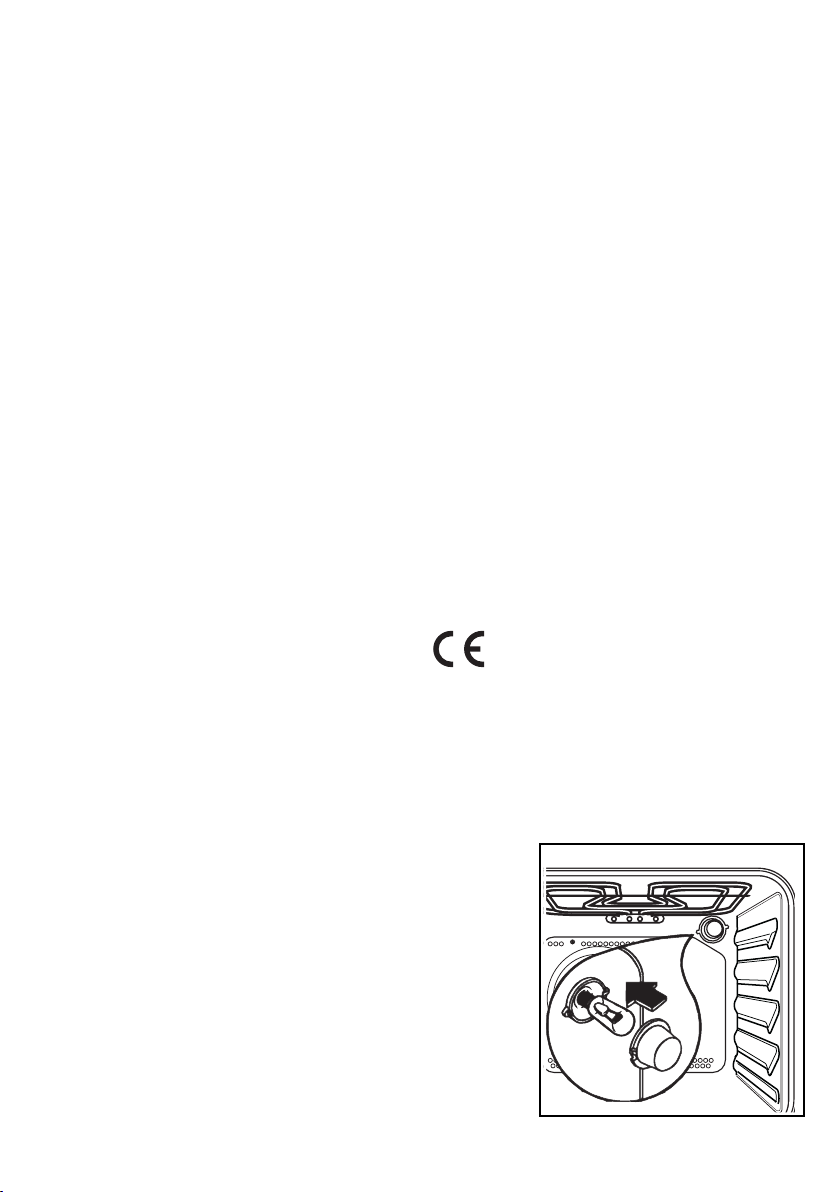

Replacing the oven light
Disconnect the appliance from its power
supply point. Push in and unscrew the glass
cap (Fig. 5). Unscrew the light bulb and
replace it with a new heat-proof bulb (300°C)
having the following features: - Operative
tension: 230 V (50 Hz); - Power: 25 W; Fitting: E 14. Reconnect the appliance.
50
Fig. 5
Page 9
Instructions for the installer
The instructions given below are
designed specifically for a qualified
installer and should aid him or her to
perform all installation, adjustment,
and maintenance operations with
absolute precision and in compliance
with all current legislation and
regulations. We strongly recommend
that all operations for the installation
of your cooker be carryed out by
Qualified Personnel in accordance
with existing rules and regulations.
Electrical connection
Prior to making the electrical connection,
make sure that:
— the protection fuse and the domestic
wiring system are suitable to carry the
total electric load of the oven (see rating
plate);
— your domestic wiring system has an
efficient earth connection in compliance
with rules and laws in force;
— the wall socket or the omnipole switch
used for the electrical connection can
easily be reached after the oven is built
in.
3 cm. longer than the other cables. The
supply cable must in all cases be laid out in
such a way as to ensure that it does not
reach at any given point a temperature 50°C
higher than the ambient temperature.
Suitable power supply cables are the
following types, considering the respective
necessary section of cable: H07 RN-F, H05
RN-F, H05 RR-F, H05 VV-F, H05 V2V2-F
(T90), H05 BB-F.

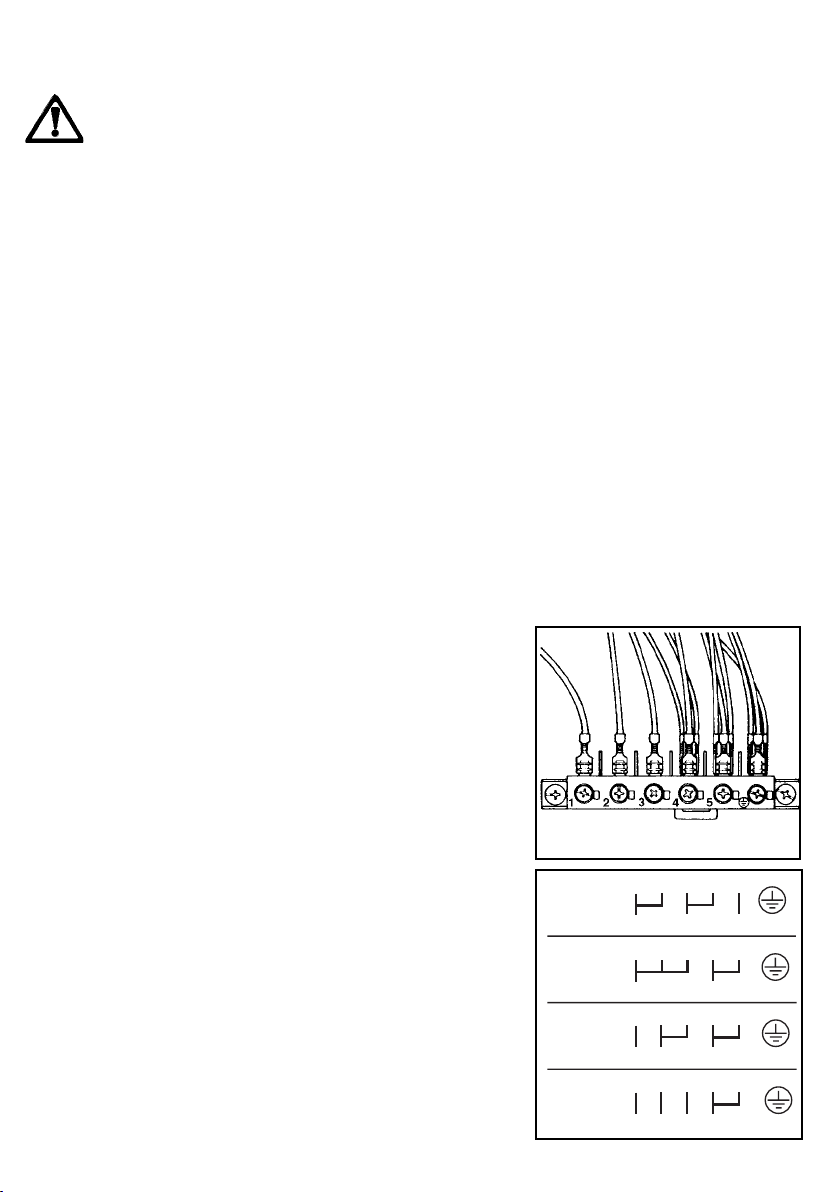

Connecting the terminal
board
The appliance incorporates an easily
accessible 6-pole terminal board whose
jumpers (bridges) are already pre-set for
operation on 400V tri-phase with neutral wire
(Fig. 6). In case a different mains voltage is
present, the jumpers on the terminal board
must be rearranged as shown in the diagram
This appliance is delivered without an
electric supply cable, therefore, you will have
to fit to it a supply cable with standard plug,
suitable for the total electric load shown on
the rating plate. The plug is to be inserted
into a suitable wall socket. If you require a
direct connection to the electric network
(mains), it will be necessary to fit between
the appliance and the mains an omnipole
switch, with a minimum gap between
contacts of 3 mm, suitable for the required
load and in compliance with rules in force.
The green & yellow ground wire must not be
interrupted by the switch and it should be 2-
Fig. 6
Fig. 7
FO 0330
230V 3~
230V 1~
400V 2N~
400V 3N~
FO 0584
1 2 3 4 5
L1 L2 L3 PE
1 2 3 4 5
L1 N PE
1 2 3 4 5
L1 L2 N PE
1 2 3 4 5
L1 L2 L3 N PE
51
Page 10
(Fig.7). The ground cable must be connected
to terminal . After connecting the supply
cable to the terminal board, secure it with a
junction clamp.
Electrical connection with
the hob
This oven can be connected to hobs
indicated in the paragraph "Technical data".
The socket for connecting the hob is located
at the top of the oven cabinet. The hobs come
complete with connecting leads for the hot
plates/heat areas and ground cable; these
leads feature plug-in connectors. Connection
of the hob to the oven is carried out by
plugging-in these connectors to the corresponding oven socket.
The plug-to-socket connection design is
such as to prevent possible wrong
plugging-ins.
The Manufacturer disclaims any liability
in case these accident-preventing rules
are not observed.
52
Page 11
Building-in
To ensure correct operation of the built-in
assembly, the kitchen cabinet and the
recess for the built-in appliance must have
suitable dimensions.
When the appliance is fitted-in, there must
be no open spaces left and it must be closed
on all sides by the kitchen furniture to
prevent the possibility of inadvertently
touching “live” (current carrying) parts of the
oven.
All parts ensuring such a protection,
including any covering panel (for instance,
if the appliance is installed at the end or at
the beginning of a kitchen counter) must be
fastened in such a way as to prevent removal
of the same without the aid of some tool.
This appliance can be placed with its back
and with one side close to appliances or
walls of higher height. The other side,
instead, must be placed close to furniture
or appliances, having the same height.
Fig. 8
FO 0206
540
550 MIN
560 - 570
3
9
5
80÷100
Overall oven dimensions
(Fig. 8)

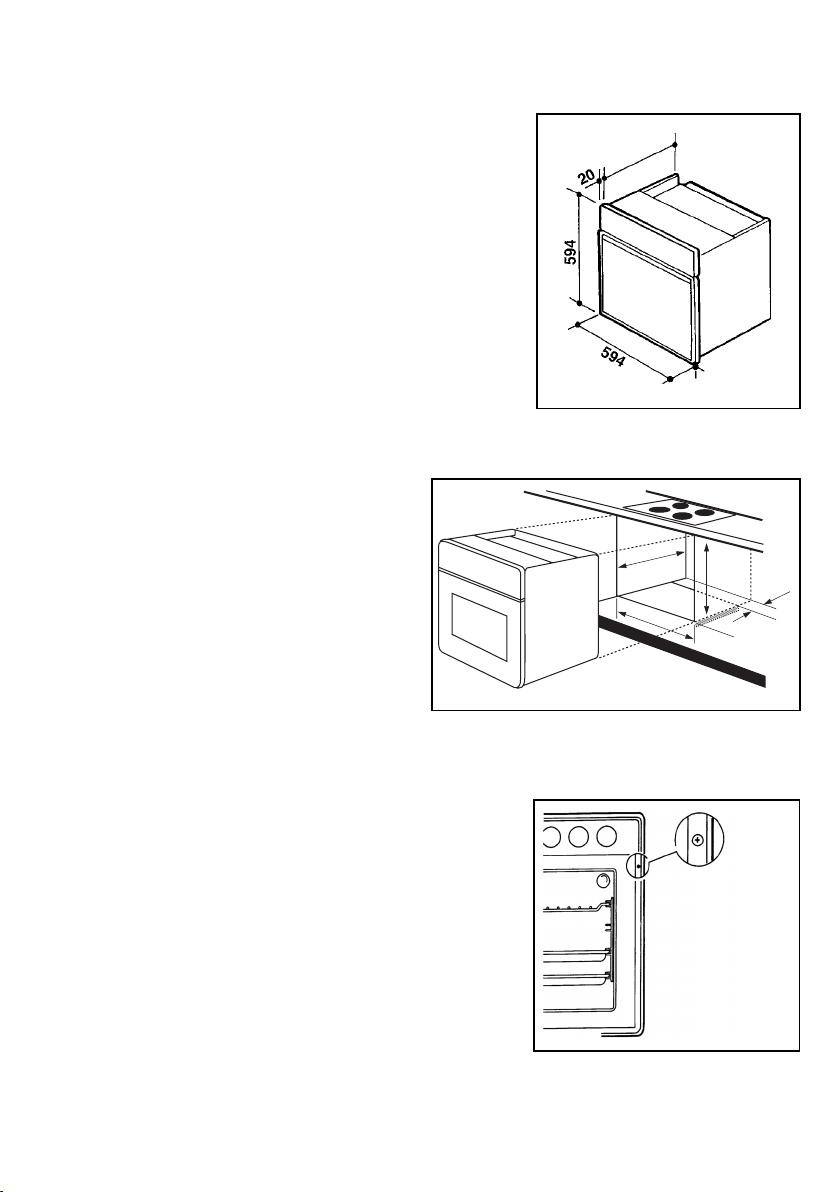

Building-in under a kitchen
counter
The recess must have the dimensions
shown in Fig. 9.
Before carrying out the building-in of the
oven, connect it to the hob (see
corresponding chapter); then recess
completely the oven under the counter; open
the oven door and secure the oven to the
kitchen cabinet with two wood screws which
are to fit exactly into the holes provided for
the purpose on the oven frame (Fig.10).
FO 2562
Fig. 10
Fig. 9
FO 0040
53
Page 12
GUARANTEE - SPARE PARTS (only for BENELUX)
When calling for repairs during the period of guarantee ofthe appliance, the original
invoice or receipt must be shown or sent together with the appliance to be repaired.
DECLARATION OF GUARANTEE TERMS
Our appliances are produced with the greatest of care. However, a defect may stili
occur. Our consumer services department will repair this upon request, either during
or after the guarantee period. The service life of the appliance will not, however, be
reduced as a result.
This declaration of guarantee terms is based on European Union Directive 99/44/EC
and the provisions of the Civil Code. The statutory rights that the consumer has
under this legislation are not affected by this declaration of guarantee terms.
This declaration does not affect the vendor’s statutory warranty to the end user. The
appliance is guaranteed within the context of and in adherence with the following
terms:
1. In accordance with provisions laid down in paragraphs 2 to 15, we will remedy
free of charge any defect that occurs within 24 months from the date the
appliance is delivered to the first end user. These guarantee terms do not apply
in the event of use for professional or equivalent purposes.
2. Performing the guarantee means that the appliance is returned to the condition it
was in before the defect occurred. Defective parts are replaced or repaired. Parts
replaced free of charge become our property.
3. So as to avoid more severe damage, the defect must be brought to our attention
immediately.
4. Applying the guarantee is subject to the consumer providing proof of purchase
showing the purchase and/or delivery date.
5. The guarantee will not apply if damage caused to delicate parts, such as glass
(vitreous ceramic), synthetic materials and rubber, is the result of inappropriate
use.
6. The guarantee cannot be called on for minor faults that do not affect the value or
the overall reliability of the appliance.
7. The statutory warranty does not apply when defects are caused by:
• a chemical or electrochemical reaction caused by water,
• abnormal environmental conditions in generai,
• unsuitable operating conditions,
• contact with harsh substances.
8. The guarantee does not apply todefects due to transport which have occurred
outside of our responsibility. Nor will the guarantee cover those caused by
inadequate installation or assembly, lack of maintenance or failure to respect the
assembly instructions or directions for use.
54
Page 13
9. Defects that result from repairs or measures carried out by people who are not
qualified or expert or defects that result from the addition of non-original
accessories or spare parts are not covered by the guarantee.
10.Appliances that are easy to transport may be delivered or sent to the consumer
services department. Home repairs are only anticipated for bulky appliances or
built-in appliances.
11.If the appliances are built-in, built-under, fixed or suspended in such a way that
removing and replacing them in the piace where they are fitted takes more than
half an hour, the costs that result therefrom will be charged for. Connected
damage caused by these removal and replacement operations will be the
responsibility of the user.
12.If, during the guarantee period, repairing the same defect repeatedly is not
conclusive, or if the repair costs are considered disproportionate, in agreement
with the consumer, the defective appliance may be replaced with another appliance
of the same value. In this event, we reserve the right to ask for a financial
contribution calculated according to the length of time it has been used.
13.A repair under guarantee does not mean that the normal guarantee period will be
extended nor that a new guarantee period begins.
14.We give a twelve month guarantee for repairs, limited to the same defect.
15.Except in the event where liability is legally imposed, this declaration of guarantee
terms excludes any compensation for damage outside the appliance for which
the consumer wishes to assert his rights. In the event of legally admitted
liability, compensation will not exceed the purchase price paid for the appliance.
These guarantee terms are only valid for appliances purchased and used in Belgium.
For exported appliances, the user must first make sure that they satisfy the
technical conditions (e.g. : voltage, frequency, installation instructions, type of gas,
etc.) for the country concerned and that they can withstand the local climatic and
environmental conditions. For appliances purchased abroad, the user must first
ensure that they meet the qualifications required in Belgium. Non-essential or
requested adjustments are not covered by the guarantee and are not possible in alI
cases.
Our consumer services department is always at your disposal, even after the
guarantee period has expired. Address for our consumer services department:
ELECTROLUX HOME PRODUCTS BELGIUM
Bergensesteenweg, 719 -1502 LEMBEEK
Tel. 02.3630444
55
Page 14

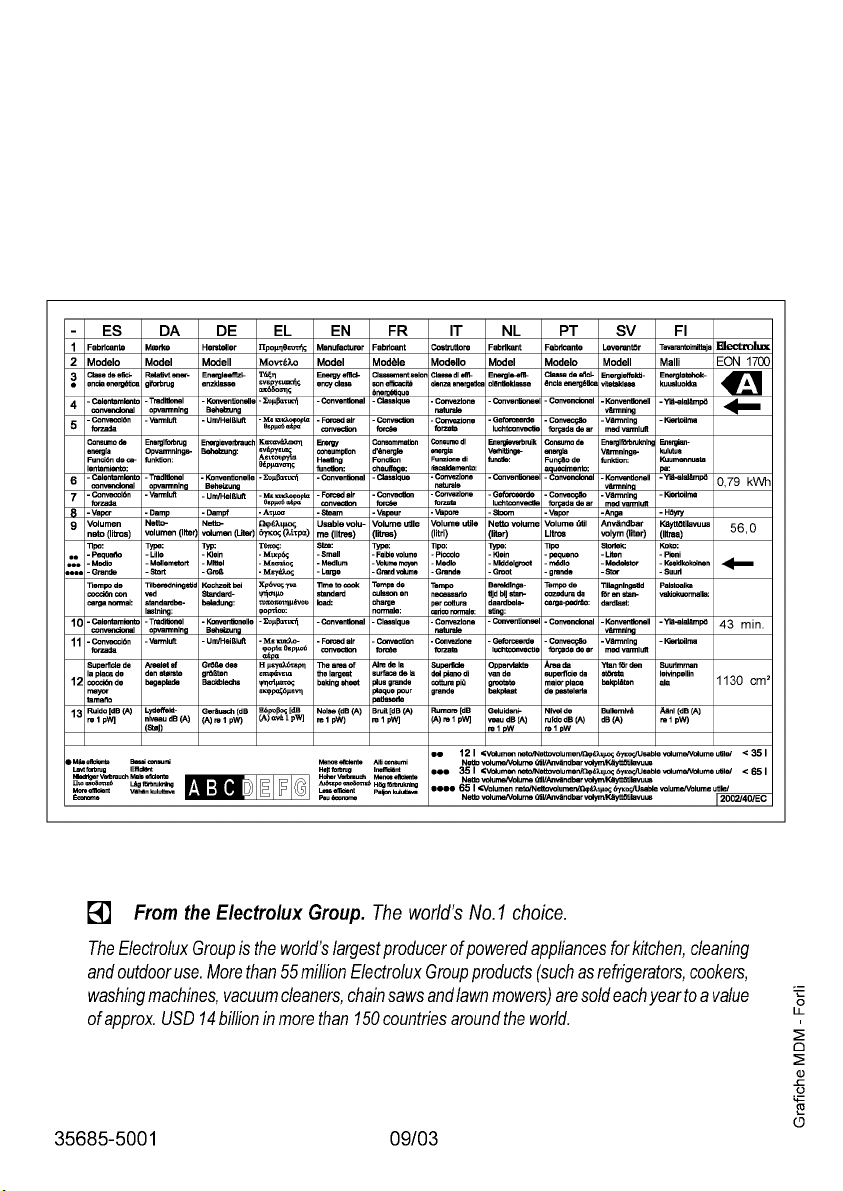

Loading...
