Page 1
user manual
Built-In Electric Oven
EOB33300
Page 2
We were thinking of you
when we made this product
Page 3
Welcome to the world of Electrolux
Thank you for choosing a first class
product from Electrolux, which hopefully
will provide you with lots of pleasure in
the future. The Electrolux ambition is to
offer a wide variety of quality products
that make your life more comfortable.
You will find some examples on the cover in this manual. Please take a few minutes to study this manual so that you
can take advantage of the benefits of
your new machine. We promise that it
will provide a superior User Experience
delivering Ease-of-Mind. Good luck!
electrolux 3
Page 4
4 electrolux contents
T
1
Contents
Safety instructions 5
Description of the Appliance 7
Before Using for the first time 10
Using the Oven 12
Uses, Tables and Tips 21
Cleaning and Care 34
What to do if … 45
Installation Instructions 47
Disposal 50
Guarantee/Customer Service 51
Service 54
he following symbols are used in this user manual:
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3 General information and tips
2 Environmental information
Page 5
Safety instructions
5
This appliance conforms with the
following EU Directives:
– 73/23/EEC dated 19.02.1973 Low
Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC
Directive inclusive of Amending Directive 92/31/EEC
– 93/68/EEC dated 22.07.1993 CE
Marking Directive
Electrical safety
• This appliance must be only con-
nected by a registered electrician.
• In the event of a fault or damage to
the appliance: Take the fuses out or
switch off.
• Repairs to the appliance must only
be carried out by qualified service
engineers. Considerable danger
may result from improper repairs. If
repairs become necessary, please
contact our Customer Services or
your dealer.
Child Safety
• Never leave children unsupervised
when the appliance is in use.
Safety whilst Using
• This appliance is intended to be
used for cooking, roasting and baking food in the home.
• Take care when connecting electric
appliances to sockets nearby. Do
not allow connecting leads to come
into contact with or to catch beneath
the hot oven door.
safety instructions electrolux 5
• Warning: Risk of burns! The interi-
or of the oven becomes hot during
use.
• Using ingredients containing alcohol
in the oven may create an alcohol-air
mixture that is easily ignited. In this
case, open the door carefully. Do not
have embers, sparks or naked
flames in the vicinity when opening
the door.
Information on acrylamides
According to the latest scientific
knowledge, intensive browning of
food, especially in products containing starch, can constitute a
health risk due to acrylamides.
Therefore we recommend cooking
at the lowest possible temperatures
and not browning foods too much.
Page 6
6 electrolux safety instructions
How to avoid damage to the
appliance
• Do not line the oven with aluminium
foil and do not place baking trays,
pots, etc. on the oven floor, as the
heat that builds up will damage the
oven enamel.
• Fruit juices dripping from the baking
tray will leave stains, which you will
not be able to remove. For very moist
cakes, use a deep tray.
• Do not put any strain on the oven
door when open.
• Never pour water directly into the
oven when it is hot. This could cause
damage to or discoloration of the
enamel.
• Rough handling, especially around
the edges of the front panel, can
cause the glass to break.
• Do not store any flammable materials inside the oven. These could ignite when the oven is switched on.
• Do not store any moist foods inside
the oven. This could damage the
oven enamel.
• After switching off the cooling fan, do
not keep uncovered dishes in the oven. Moisture may condense in the
oven interior or on the glass doors
and may get into the units.
Note on enamel coating
Changes in the colour of the oven’s
enamel coating as a result of use do not
affect the appliance’s suitability for normal and correct use. They therefore do
not constitute a defect in the sense of
the warranty law.
Page 7
Description of the Appliance
General Overview
Control panel
description of the appliance electrolux 7
Door
handle
Full glass door
Page 8
8 electrolux description of the appliance
Control Panel
Oven Power Indicator Temperature Pilot Light
Clock function buttons
Oven Functions
Oven Features
Time display
Temperature selector
Shelf positions
Top heat and heating elements
Oven lighting
Fan
Bottom Heat
Oven shelf runners,
removable
Page 9
Oven accessories
Oven shelf
For cookware, cake tins, roasts and
grilled foods.
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan for
collecting fat.
description of the appliance electrolux 9
Page 10
10 electrolux before using for the first time
Before Using for the first time
Setting and changing the time
The oven only operates when the
time has been set.
When the appliance has been connected to the electrical supply or
when there has been a power cut,
the function indicator Time flashes automatically.
1. To change a time that has already
been set, press the Selection button repeatedly until the function indicator Time flashes.
2. Using the or button, set the cur-
rent time.
After approx. 5 seconds, the flashing
stops and the clock displays the time
set.
The appliance is now ready to use.
The time can only be changed if no
automatic function (Cook time or
End time ) has been set.
Initial Cleaning
Before using the oven for the first time
you should clean it thoroughly.
Page 11
Caution: Do not use any caustic,
abrasive cleaners! The surface
could be damaged.
To clean metal fronts use commercially available cleaning agents.
1. Turn the oven function switch to
oven lighting .
2. Remove all accessories and the shelf
support rails and wash them with
warm water and washing up liquid.
3. Then wash out the oven with warm
water and washing-up liquid, and
dry.
4. Wipe the front of the appliance with
a damp cloth.
before using for the first time electrolux 11
Page 12
12 electrolux using the oven
Using the Oven
The oven is equipped with retractable
buttons for “Oven functions” and “Tem-
perature selection”. To use, press the
relevant button. The button then sticks
out.
Switching the Oven On and Off
Oven Power Indicator Temperature Pilot Light
Time display
Clock function buttons
Oven function selection
1. Turn the oven functions dial to the
desired function.
2. Turn the temperature selector to the
desired temperature.
The power indicator is lit as long as the
oven is in operation.
The temperature pilot light is lit as long
as the oven is heating up.
3. To turn the oven off, turn the oven
functions dial and the temperature
selector to the Off position.
Temperature selector
Cooling fan
The fan switches on automatically
in order to keep the appliance’s surfaces cool. When the oven is
switched off, the fan continues to
run to cool the appliance down, then
switches itself off automatically.
Page 13
Oven Functions
The oven has the following functions:
using the oven electrolux 13
Oven function Application
Light
Using this function you can
Convection
Conventional
Bottom heat
Defrost
Grill
Dual grill
Convection grilling
For
the oven interior, e.g. for cleaning.
For
baking
els.
Set the oven temperatures 20-40 °C
lower than when using Conventional.
For
oven level
For
crusty bases
For
teaux, butter, bread, fruit or other
zen foods
For
the
toasting
quantities
For
poultry on one level.
The function is also suitable for
nating
on up to
baking
and
.
baking
cakes with
defrosting
.
grilling
flat foodstuffs placed in
middle of the grill
.
grilling
flat foodstuffs in
and for
roasting
and
browning
two oven lev-
roasting
crispy or
.
e. g. flans and ga-
toasting
larger joints of meat or
.
light up
on
one
and for
large
.
fro-
grati-
Heating element/
fan
---
Top heat, bottomheat,
fan
Top heat, bottomheat
Bottom heat
Fan
Grill
Grill, top heat
Grill, top heat, fan
Page 14
14 electrolux using the oven
Inserting the Combination Shelf, Baking Tray and Roasting Pan
Inserting the baking tray or roasting
pan
Insert baking tray or or roasting pan on
the telescopic runners of the selected
oven level so that the two holes engage
on the front retaining pins on the telescopic runners.
Inserting the oven shelf:
Insert the oven shelf so that the feet
point downwards.
Insert the oven shelf on the telescopic
runners of the selected oven level.
The high rim around the oven shelf is an
additional device to prevent cookware
from slipping.
Inserting the oven shelf and roasting pan together:
Lay the oven shelf on the roasting pan.
Insert the oven shelf and the roasting
pan on the telescopic runners of the selected oven level so that the two holes of
the roasting pan engage on the front retaining pins on the telescopic runners.
To make it easier to insert the insertable component when runners are
extended to different extents, lay
the insertable component onto the
runners at the back, push it in as far
as the stop and then lower it onto
the retaining pins at the front.
Page 15
Clock Functions
using the oven electrolux 15
Time display Function IndicatorsFunction Indicators
Button
Selector Button
Countdown
To set a countdown. A signal sounds after the time has elapsed.
This function does not affect the functioning of the oven.
Cook time
To set how long the oven is to be in use.
End time
To set when the oven is to switch off
again.
Time
To set, change or check the time
(See also section “Before Using for the
First Time”).
Button
Page 16
16 electrolux using the oven
How to use the clock functions
• After a function has been selected,
the corresponding function indicator
flashes for about 5 seconds. During
this period, the desired times can be
set using the or button.
• When the desired time has been set,
the function indicator continues to
flash for approx. 5 seconds. After
that the function indicator is then lit.
The set time begins to run.
• Press any of the buttons to stop the
audible signal.
• The desired oven function and temperature can be selected before or
after the clock functions Cook
time and End time are set.
• When the cooking process is completed, turn the oven function dial
and the temperature selector back
to the OFF position.
Switching Off the Time Display
By switching off the time display you can
save energy.
Switching off the time display
Press and hold down any two buttons
until the display becomes dark.
Switching on the time display
Hold down any button until the time reappears in the display.
The display can only be switched off
if none of the clock functions Cook
time , End time or
Countdown is in use.
Page 17
Countdown
1. Press the Selection button re-
peatedly until the function indicator
Countdown flashes.
2. Using the or button set the de-
sired Countdown (max. 2 hours
30 minutes).
using the oven electrolux 17
After approx. 5 seconds the display
shows the time remaining.
The function indicator Countdown
lights up.
When the time has elapsed, the function
indicator flashes and an audible signal
sounds for 2 minutes.
The signal can be stopped by pressing
any button.
Page 18
18 electrolux using the oven
Cook time
1. Press the Selection button re-
peatedly until the function indicator
Cook time flashes.
2. Using the or button set the de-
sired cooking time.
After approx. 5 seconds the display returns to showing the current time. The
function indicator Cook time lights
up.
When the time has elapsed, the function
indicator flashes, an audible signal
sounds for 2 minutes and the oven
switches itself off.
3. The signal and the programme can
be stopped by pressing any button.
Page 19
End time
1. Press the Selection button re-
peatedly until the function indicator
End time flashes.
2. Using the or button set the de-
sired switch-off time.
using the oven electrolux 19
After approx. 5 seconds the display returns to showing the current time.
The function indicator End time lights
up.
When the time has elapsed, the function
indicator flashes, an audible signal
sounds for 2 minutes and the oven
switches itself off.
3. The signal and the programme can
be stopped by pressing any button.
Page 20
20 electrolux using the oven
Cook time and End time combined
Cook time and End time can
be used simultaneously, if the oven
is to be switched on and off automatically at a later time.
1. Using the Cook time function, set
the time required for cooking the
dish.
In this example, 1 hour.
2. Using the End time function, set
the time at which the dish should be
ready.
In this case 14:05:00.
The function indicators Cook time
and End time light up and the current
time is shown in the display.
In this case 12:05.
The oven switches on automatically at
the time calculated.
In this case, at 13:05:00.
And switches itself off again when the
cooking time entered has elapsed.
In this case, at 14:05.
Page 21
Uses, Tables and Tips
Baking
Oven function: Convection or
Conventional
Baking tins
• For Conventional , dark metal and
non-stick tins are suitable.
• For Convection bright metal tins
are also suitable.
Oven levels
• Baking with Conventional is only
possible on one level.
• With Convection you can bake
dry cakes and biscuits on 2 baking
trays at the same time.
1 baking tray:
e.g. oven level 3
uses, tables and tips electrolux 21
1 cake tin:
e.g. oven level 1
2 baking trays:
e. g. oven levels 1 and 3
Page 22
22 electrolux uses, tables and tips
General Instructions
• Insert the tray with the bevel at the
front.
• With Conventional or
Convection you can also bake
with two tins next to one another on
the oven shelf at the same time. This
does not significantly increase baking time.
When frozen foods are used the
trays inserted may distort during
cooking. This is due to the large difference in temperature between the
freezing temperature and the temperature in the oven. Once the trays
have cooled the distortion will disappear again.
How to use the Baking Tables
The tables give the required temperature settings, baking times and oven
shelf levels for a selection of typical dishes.
• Temperatures and baking times are
for guidance only, as these will depend on the consistency of pastry or
mixture, the number and the type of
cake tin.
• We recommend using the lower
temperature the first time and then if
necessary, for example, if a deeper
browning is required, or baking time
is too long, selecting a higher temperature.
• If you cannot find the settings for a
particular recipe, look for the one
that is most similar.
• If baking cakes on baking trays or in
tins on more than one level, baking
time can be extended by 10-15 minutes.
• Moist recipes (for example, pizzas,
fruit flans, etc.) are baked on one level.
• Cakes and pastries at different
heights may brown at an uneven rate
at first. If this occurs, please do not
change the temperature setting.
Different rates of browning even out
as baking progresses.
• Your new oven may bake or roast differently to your previous appliance.
So adapt your normal settings (temperature, cooking times) and oven
shelf levels to the recommendations
in the following tables.
With longer baking times, you can
switch the oven off about 10 minutes before the end of the baking
time, in order to utilise the residual
heat.
Unless otherwise stated, the values
given in the tables assume that
cooking is started with the oven
cold.
Page 23
Baking table
uses, tables and tips electrolux 23
Type of
baking
Baking in tins
Ovenfunction
Shelf
position
Te mp e ra -
ture °C
Time
Hours
mins.
Ring cake or brioche Convection 1 150-160 0:50-1:10
Madeira cake/Fruitcakes Convection 1 140-160 1:10-1:30
Sponge cake Convection 1 140 0:25-0:40
Sponge cake Conventional 1 160 0:25-0:40
Flan base - short pastry Conventional 3 180-200 0:10-0:25
Flan base - sponge mixture Convection 3 150-170 0:20-0:25
Apple pie Conventional 1 170-190 0:50-1:00
Apple pie (2tins Ø20 cm,
Convection 1 160 1:10-1:30
diagonally off set)
Apple pie (2tins Ø20 cm,
Conventional 1 180 1:10-1:30
diagonally off set)
Savoury flan (e. g. quiche lor-
Conventional 1 180-200 0:30-1:10
raine)
Cheesecake Conventional 1 170-190 1:00-1:30
Cakes/pastries/breads on baking trays
Plaited bread/bread crown Conventional 3 170-190 0:30-0:40
1)
250
160-180
1)
1)
1)
0:40-1:00
0:20
0:30-1:00
0:15-0:30
0:10-0:20
Christmas stollen Conventional 3 160-180
Bread (rye bread)
Conventional 1
-first of all
-then
Cream puffs/Eclairs Convection 3 160-170
Swiss roll Conventional 3 180-200
Cake with crumble topping(dry) Convection 3 150-160 0:20-0:40
Buttered almond cake/sugar
Conventional 3 190-210
1)
0:15-0:30
cakes
Fruit flans (made with yeast
dough/sponge mixture)
2)
Fruit flans (made with yeast
Convection 3 150 0:35-0:50
Conventional 3 170 0:35-0:50
dough/sponge mixture)
Fruit flans made with short pas-
Conventional 3 170-190 0:40-1:20
try
Page 24
24 electrolux uses, tables and tips
Type of
baking
Yeast cakes with delicate top-
Ovenfunction
Shelf
position
Te mp e ra -
ture °C
Conventional 3 160-180 0:40-1:20
Time
Hours
mins.
pings (e. g. quark, cream,
vanilla cream)
Pizza (with a lot of topping)
2
Conventional 1 190-210
Pizza (thin crust) Conventional 1 230-250
1)
1)
0:30-1:00
0:10-0:25
Unleavened bread Conventional 1 250-270 0:08-0:15
Tarts (CH) Conventional 1 200-220 0:35-0:50
Biscuits
Short pastry biscuits Convection 3 150-160 0:06-0:20
Short pastry biscuits Convection 1 / 3 150-160 0:06-0:20
Viennese whirls Convection 3 140 0:20-0:30
Viennese whirls Convection 1 / 3 140 0:25-0:40
Viennese whirls Conventional 3 160
Biscuits made with sponge
Convection 3 150-160 0:15-0:20
1)
0:20-0:30
mixture
Biscuits made with sponge
Convection 1 / 3 150-160 0:15-0:20
mixture
Pastries made with egg white,
Convection 3 80-100 2:00-2:30
meringues
Macaroons Convection 3 100-120 0:30-0:60
Biscuits made with yeast
Convection 3 150-160 0:20-0:40
dough
Puff pastries Convection 3 170-180
Rolls Convection 3 160
Rolls Conventional 3 180
Small cakes (20per tray) Convection 3 140
Small cakes (20per tray) Convection 1 / 4 140
Small cakes (20per tray) Conventional 3 170
1) Pre-heat the oven
2) Use the drip tray or roasting tray
1)
0:20-0:30
1)
0:20-0:35
1)
0:20-0:35
1)
0:20-0:30
1)
0:25-0:40
1)
0:20-0:30
Page 25
uses, tables and tips electrolux 25
Tips on baking
Baking results Possible cause Remedy
The cake is not browned
Wrong oven level Place cake lower in the oven
enough at the bottom
The cake sinks (becomes soggy, lumpy,
streaky)
Oven temperature too high Use a slightly lower setting
Baking time too short Set a longer baking time
Baking times cannot be reduced by setting higher
temperatures
Too much liquid in the mixture Use less liquid
Pay attention to mixing times,
especially if using mixing machines
Cake is too dry Oven temperature too low Set oven temperature higher
Baking time too long Set a shorter baking time
Cake browns unevenly Oven temperature too high and
baking time too short
Set a lower oven temperature
and a longer baking time
Mixture is unevenly distributed Spread the mixture evenly on the
baking tray
Cake is not done within
Temperature too low Use a slightly higher oven setting
the baking time given
Table for Bakes and Gratins
Tem pe ra -
ture
°C
Time
Hr: Mins.
Dish Oven function
Shelf
position
Pasta bake Conventional 1 180-200 0:45-1:00
Lasagne Conventional 1 180-200 0:25-0:40
Vegetables au gratin
Baguettes topped with
melted cheese
1)
1)
Convection 1 160-170 0:15-0:30
Convection 1 160-170 0:15-0:30
Sweet bakes Conventional 1 180-200 0:40-0:60
Fish bakes Conventional 1 180-200 0:30-1:00
Stuffed vegetables Convection 1 160-170 0:30-1:00
1) Pre-heat the oven
Page 26
26 electrolux uses, tables and tips
Frozen Ready Meals Table
Food to be
cooked
Frozen pizza Conventional 3
1)
Chips
(500 g)
Baguettes Conventional 3
Fruit flans Conventional 3
1) Comments: Turn chips 2 or 3 times during cooking
Oven function
Convection 3 200-220
Shelf
position
Temperature
°C
as per manufac-
turer’s instruc-
tions
as per manufac-
turer’s instruc-
tions
as per manufac-
turer’s instruc-
tions
Time
as per manufac-
turer’s instruc-
tions
as per manufac-
turer’s instruc-
tions
as per manufac-
turer’s instruc-
tions
as per manufac-
turer’s instruc-
tions
Page 27
Roasting
Oven function: Conventional or
Convection grilling
Roasting dishes
• Any heat-resistant ovenware is suitable to use for roasting (please read
the manufacturer's instructions).
• Large roasting joints can be roasted
directly in the roasting tray or on
the oven shelf with the roasting
tray placed below it.
• For all lean meats, we recommend
roasting these in a roasting tin
with a lid. This will keep the meat
more succulent.
• All types of meat, that can be
browned or have crackling, can be
roasted in the roasting tin without
the lid.
uses, tables and tips electrolux 27
Tips on using the roasting chart
The information given in the follow-
ing table is for guidance only.
• We recommend cooking meat and
fish weighing 1 kg and above in
the oven.
• To prevent escaping meat juices or
fat from burning on to the pan, we
recommend placing some liquid in
the roasting pan.
• If required, turn the roast (after 1/2 -
2/3 of the cooking time).
• Baste large roasts and poultry with
their juices several times during
roasting. This will give better roasting
results.
• You can switch the oven off
about 10 minutes before the end of
the roasting time, in order to utilise
the residual heat.
Page 28
28 electrolux uses, tables and tips
Roasting table
Type of meat Quantity Ovenfunction
Beef
Pot roast 1-1.5 kg
Roast beef or fillet
- rare
- medium
- well done
Pork
Shoulder, neck, ham
joint
Chop, spare rib 1-1.5 kg
Meat loaf 750 g-1 kg
Porkknuckle (precooked)
Veal
Roast veal 1 kg
Knuckle of veal 1.5-2 kg
Lamb
Leg of lamb, roast
lamb
Saddle of lamb 1-1.5 kg
per cm.
of thickness
per cm.
of thickness
per cm.
of thickness
1-1.5 kg
750 g-1 kg
1-1.5 kg
Convention-
Convection
grilling
Convection
grilling
Convection
grilling
Convection
grilling
Convection
grilling
Convection
grilling
Convection
grilling
Convection
grilling
Convection
grilling
Convection
grilling
Convection
grilling
Tem -
Shelf
position
pera-
ture
°C
al
1 200-250 2:00-2:30
1
1 180-190 0:06-0:08
1 170-180 0:08-0:10
1 160-180 1:30-2:00
1 170-180 1:00-1:30
1 160-170 0:45-1:00
1 150-170 1:30-2:00
1 160-180 1:30-2:00
1 160-180 2:00-2:30
1 150-170 1:15-2:00
1 160-180 1:00-1:30
190-
200
1)
Time
Hours
mins.
per cm. of
thickness
0:05-0:06
Page 29
uses, tables and tips electrolux 29
Type of meat Quantity Ovenfunction
Game
Saddle of hare, leg of
hare
up to 1 kg
Saddle of venison 1.5-2 kg
Haunch of venison 1.5-2 kg
Poultry
Poultry portions
Half chicken
200-250g
each
400-500g
each
Chicken, poulard 1-1.5 kg
Duck 1.5-2 kg
Goose 3.5-5 kg
2.5-3.5 kg
Turkey
4-6 kg
Fish (steamed)
Whole fish 1-1.5 kg
1) Pre-heat the oven
Convention-
Convention-
Convention-
Convection
Convection
Convection
Convection
Convection
Convection
Convection
Convention-
al
al
al
grilling
grilling
grilling
grilling
grilling
grilling
grilling
al
Tem -
Shelf
position
pera-
ture
°C
3
1 210-220 1:15-1:45
1 200-210 1:30-2:15
1 200-220 0:35-0:50
1 190-210 0:35-0:50
1 190-210 0:45-1:15
1 180-200 1:15-1:45
1 160-180 2:30-3:30
1 160-180 1:45-2:30
1 140-160 2:30-4:00
1 210-220 0:45-1:15
220-
250
1)
Time
Hours
mins.
0:25-0:40
Page 30
30 electrolux uses, tables and tips
Grill Sizes
Oven function: Grill or Dual grill
with maximum temperature setting
Important: Always grill with the oven
door closed.
Grilling table
The empty oven should always be
pre-heated with the grill functions
for 5 minutes.
• For grilling, place the shelf in the
recommended shelf position.
• Always insert the tray for collecting
the fat into the first shelf position
from the bottom.
• The grilling times are guidelines.
• Grilling is particularly suitable for flat
pieces of meat or fish.
Food to be grilled Oven level
Grilling time
1st side 2nd side
Burgers 4 8-10 mins. 6-8 mins.
Pork fillet 4 10-12 mins. 6-10 mins.
Sausages 4 8-10 mins. 6-8 mins.
Fillet steaks, veal steaks 4 6-7 mins. 5-6 mins.
Fillet of beef, roast beef
(approx. 1 kg)
1)
Toast
Toast with topping 3 6-8 mins. ---
1) Do not pre-heat
3 10-12 mins. 10-12 mins.
3 4-6 mins. 3-5 mins.
Page 31
Defrosting
Oven function: Defrost (no temperature setting)
• Unwrap the food and place it on a
plate on the oven shelf.
• Do not cover with a plate or bowl, as
these can substantially lengthen the
defrosting time.
• For defrosting, place the shelf in the
1st oven level from the bottom.
Defrosting table
uses, tables and tips electrolux 31
Defrost-
Dish
ing time
mins.
Chicken, 1000 g 100-140 20-30
Meat, 1000 g 100-140 20-30 Turn halfway through
Meat, 500 g 90-120 20-30 Turn halfway through
Trout, 150g 25-35 10-15 ---
Strawberries, 300 g 30-40 10-20 ---
Butter, 250 g 30-40 10-15 ---
Cream, 2 x 200g 80-100 10-15
Gateau, 1400 g 60 60 ---
Further
defrosting
time (mins.)
Comments
Place the chicken on an upturned saucer
placed on a large plate
Turn halfway through
Cream can also be whipped when still
slightly frozen in places
Page 32
32 electrolux uses, tables and tips
Drying
Oven function: Convection
• Use oven shelves covered with
greaseproof paper or baking parchment.
• You get a better result if you switch
the oven off halfway through the drying time, open the door and leave the
oven to cool down overnight.
• After this finish drying the food to be
dried.
Food to be dried
Vegetables
Beans 60-70 3 1 / 4 6-8
Peppers (strips) 60-70 3 1 / 4 5-6
Vegetables for soup 60-70 3 1 / 4 5-6
Mushrooms 50-60 3 1 / 4 6-8
Herbs 40-50 3 1 / 4 2-3
Fruit
Plums 60-70 3 1 / 4 8-10
Apricots 60-70 3 1 / 4 8-10
Apple slices 60-70 3 1 / 4 6-8
Pears 60-70 3 1 / 4 6-9
Temperature
in °C
Oven level
1 level 2 levels
Time in hours
(Guideline)
Page 33
Making Preserves
uses, tables and tips electrolux 33
Oven function: Bottom heat
• For preserving, use only commercially available preserve jars of the same
size.
• Jars with twist-off or bayonet
type lids and metal tins are not
suitable.
• When making preserves, the first
shelf position from the bottom is
the one most used.
• Use the shelf for making preserves.
There is enough room on this for up
to six 1-litre preserving jars.
• The jars should all be filled to the
same level and clamped shut.
• Place the jars on the baking tray in
such a way that they are not touching each other.
• Pour approx. 1/2 litre of water into
the baking tray so that sufficient
moisture is produced in the oven.
• As soon as the liquid starts to pearl
in the first jars (after about 3560 minutes with 1 litre jars), switch
the oven off or reduce the temperature to 100°C (see table).
Preserves table
The times and temperatures for making
preserves are for guidance only.
Preserve
Soft fruit
Strawberries, blueberries, raspberries, ripe gooseberries
Unripe gooseberries 160-170 35-45 10-15
Stone fruit
Pears, quinces, plums 160-170 35-45 10-15
Vegetables
Carrots
Mushrooms
Cucumbers 160-170 50-60 ---
Mixed pickles 160-170 50-60 15
Kohlrabi, peas, asparagus 160-170 50-60 15-20
Beans 160-170 50-60 ---
1) Leave standing in oven when switched off
1)
1)
Temperature
in°C
160-170 35-45 ---
160-170 50-60 5-10
160-170 40-60 10-15
Cooking time
until simmering
in mins.
Continue to
cook at 100°C
in mins.
Page 34
34 electrolux cleaning and care
Cleaning and Care
Warning: For cleaning, the appliance must be switched off and
cooled down.
Warning: For safety reasons, do not
clean the appliance with steam jet
or high-pressure cleaning equipment.
Attention: Do not use any scouring
agents, sharp cleaning tools or
scourers.
Outside of the appliance
• Wipe the front of the appliance with
a soft cloth and warm water and
washing up liquid.
• For metal fronts, use normal commercially available cleaning agents.
Oven interior
Clean the appliance after each use. In
this way, dirt is easier to clean off and is
not allowed to burn on.
1. For cleaning, turn the oven light on.
2. After every use, wipe the oven with a
solution of washing-up liquid and allow to dry.
Important: If using an oven spray,
please follow the manufacturer's instructions exactly.
Accessories
Wash all slide-in units (shelf unit, baking
tray, shelf support rails etc.) after each
use and dry well. Soak briefly to make
them easier to clean.
Clean stubborn dirt with a special
oven cleaner.
Page 35
Oven Shelf Runner
The shelf support rails on the left and
right hand sides of the oven can be removed for cleaning the side walls.
Removing the shelf support rails
First pull the front of the rail away from
the oven wall and then unhitch at the
back.
Fitting the shelf support rails
cleaning and care electrolux 35
When inserting the rails, make sure
that the retaining pins on the telescopic runners are pointing to the
front.
To install, first reattach the rails at the
back, then put them into position at the
front and press them into place.
Page 36
36 electrolux cleaning and care
Cleaning the Oven Shelf Runner
Clean oven shelf runners with hot water
and washing up liquid.
Important: The oven shelf runners
cannot be cleaned in the dishwasher.
Important: On no account grease
telescopic runners.
Oven Lighting
Warning: Risk of electric shock! Prior to changing the oven light bulb:
– Switch off the oven!
– Disconnect from the electricity sup-
ply.
Place a cloth on the oven floor to
protect the oven light and glass cover.
Changing the oven light bulb/cleaning the glass cover
1. Remove the glass cover by turning it
anti-clockwise and then clean it.
2. If necessary: replace with
25 watt, 230 V, 300 °C heat-resistant oven lighting.
3. Refit the glass cover.
Page 37
Oven Ceiling
The upper heating element can be folded down to make it easier to clean the
oven ceiling.
Folding down the heating element
Warning: Only fold down the heating
element when the oven is switched
off and there is no risk of being
burnt!
1. Remove the side shelf support rails.
2. Grip the heating element at the front
and pull it forwards and out over the
support lug on the inner wall of the
oven.
3. The heating element will now fold
down.
cleaning and care electrolux 37
Caution: Do not use force to press
the heating element down! The
heating element might break.
Cleaning the oven ceiling
Page 38
38 electrolux cleaning and care
Repositioning the heating element
1. Move the heating element back up
towards the oven ceiling.
2. Pull the heating element forwards
against the spring pressure and
guide it over the oven support lug.
3. Settle it onto the support.
4. Insert shelf support rail.
Important: The heating element
must be positioned correctly and
securely on both sides above the
support lug on the inner wall of the
oven.
Oven door
For easier cleaning of the oven interior
the oven door of your appliance can be
taken off its hinges.

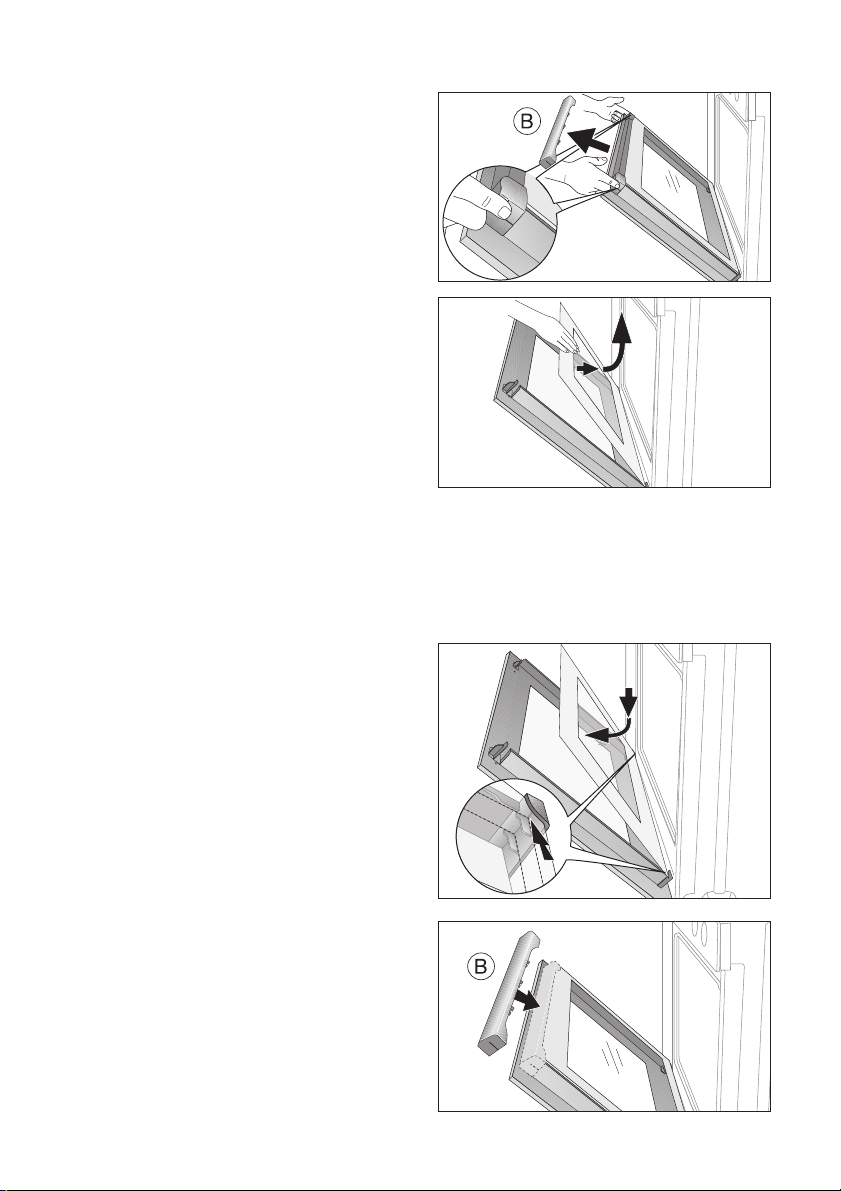

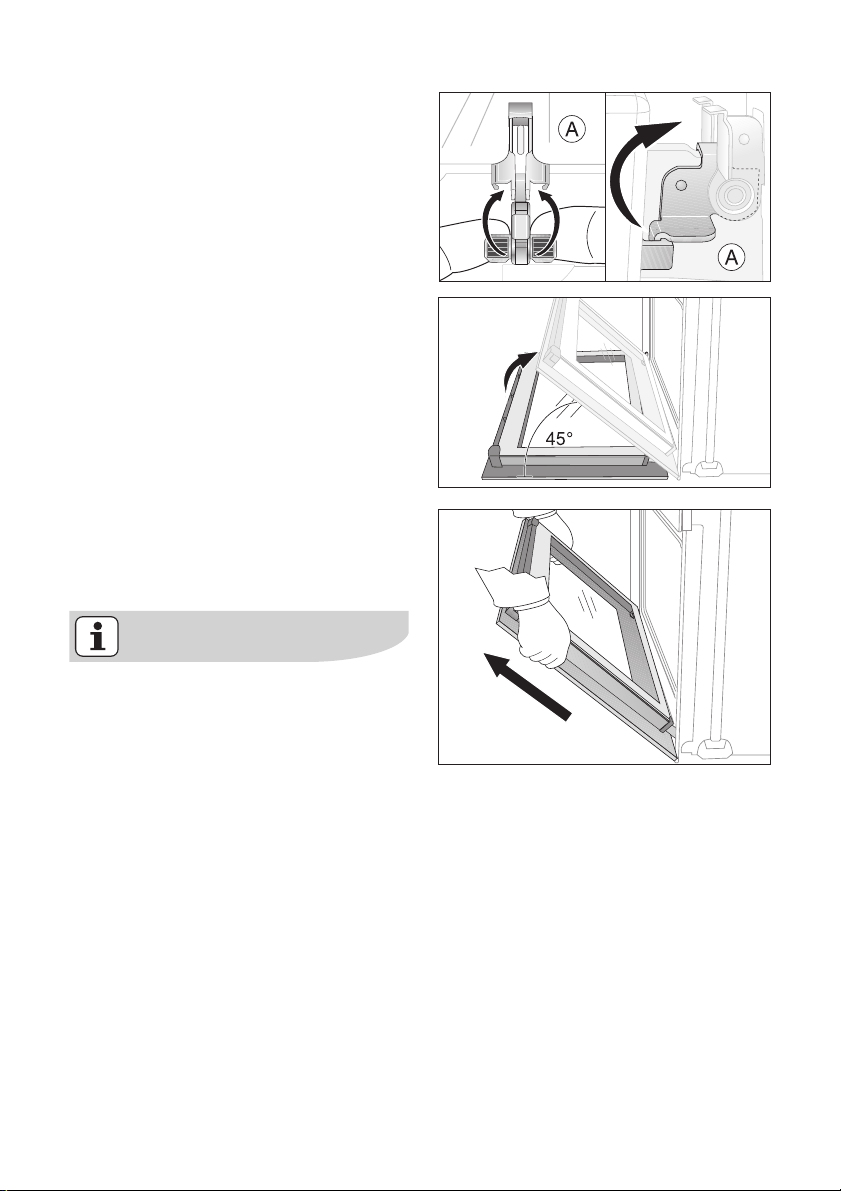

Removing the oven door from its
hinges
1. Open the oven door as far as it will
go.
Page 39
2. Undo the clamping levers (A) on
both door hinges fully.
3. Close the oven door as far as the first
position (approx. 45°).
4. Take hold of the oven door with a
hand on each side and pull it away
from the oven at an upwards angle
(Take care: It is heavy).
cleaning and care electrolux 39
Lay the oven door with the outer
side facing downwards on something soft and level, for example, a
blanket in order to prevent scratches.
Page 40
40 electrolux cleaning and care

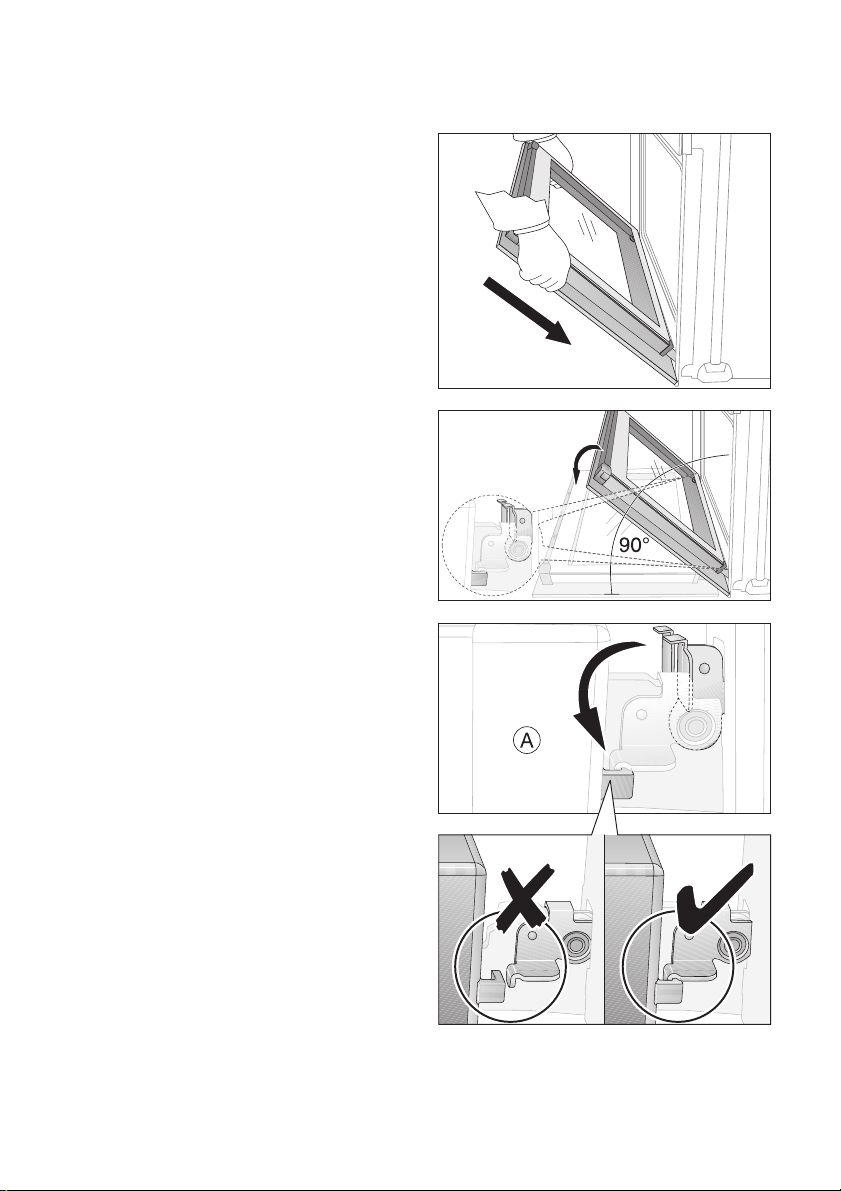

Hanging the oven door back on its
hinges
1. From the handle side take hold of the
oven door with a hand on each side
and hold at an angle of approx. 45°.
Position the recesses on the bottom
of the oven door on the hinges on
the oven.
Let the door slide down as far as it
will go.
2. Open the oven door as far as it will
go.
3. Fold up the clamping levers (A) on
both door hinges back into their original positions.
4. Close the oven door.
Page 41
Oven door glass
The oven door is fitted with two panels
of glass mounted one behind the other.
The inner panel can be removed for
cleaning.
Important Rough handling, especially around the edges of the front
panel, can cause the glass to break.
Removing the door glass
1. Open the oven door as far as it will
go.
2. Undo the clamping levers (A) on
both door hinges fully.
cleaning and care electrolux 41
3. Close the oven door as far as the first
position (approx. 45°).
Page 42
42 electrolux cleaning and care
4. Take hold of the door trim (B) on the
upper edge of the door at both sides
and press inwards to release the clip
seal. Then remove the door trim by
pulling upwards.
5. Take hold of the door glass on its upper edge and take it out of the guide
by pulling it upwards.
Cleaning the door glass
Clean the door glass thoroughly with a
solution of water and washing up liquid.
Then dry it carefully.
Putting the door glass back
1. From above insert the door glass at
an angle into the door profile at the
bottom edge of the door and lower
it.
2. Take hold of the door trim (B) at each
side, position it on the inside edge of
the door and plug the door trim(B)
into the upper edge of the door.
Page 43
On the open side of the door trim (B)
there is a guide bar (C). This must be
pushed between the outer door
panel and the guide corner (D).
The clip seal (E) must be snapped in.
cleaning and care electrolux 43
3. Open the oven door as far as it will
go.
Page 44
44 electrolux cleaning and care

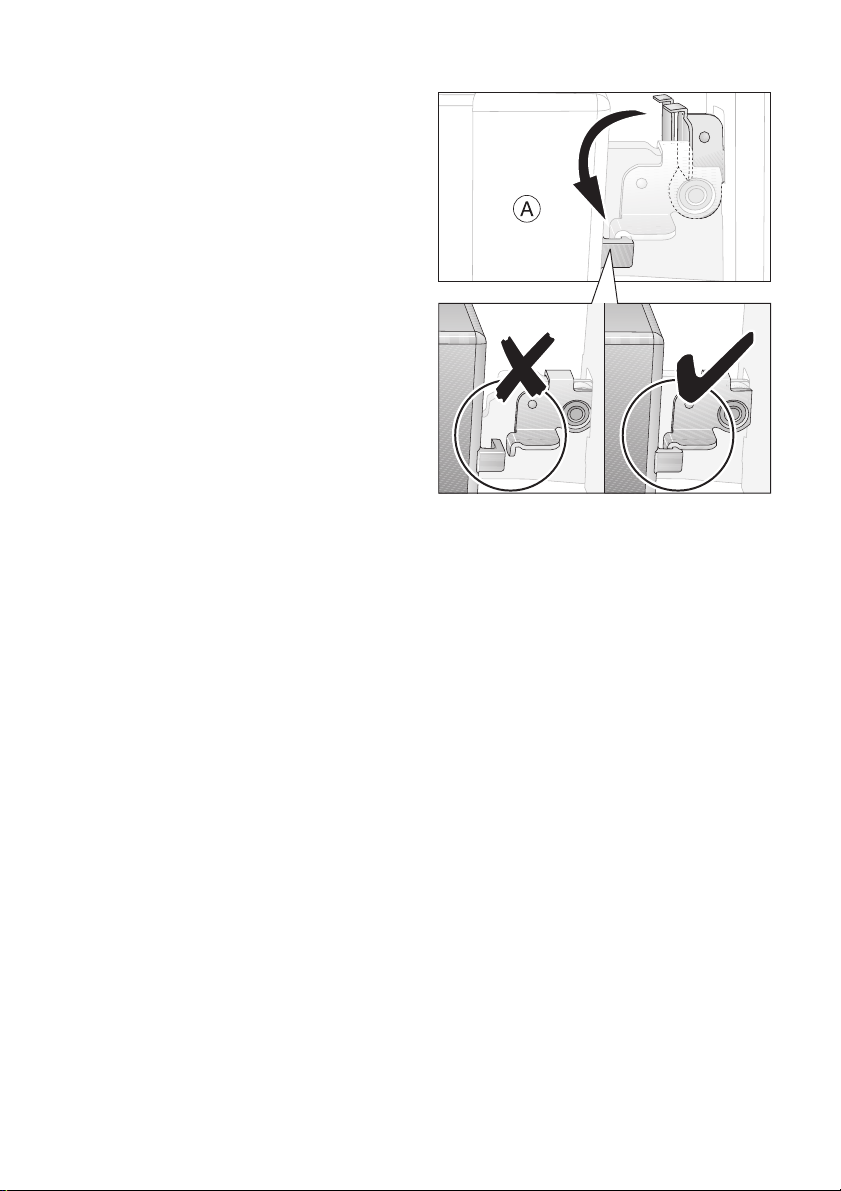

4. Fold up the clamping levers (A) on
both door hinges back into their original positions.
5. Close the oven door.
Page 45
What to do if …
what to do if … electrolux 45
Problem
The oven does not heat up The oven is not switched on Switch the oven on
The oven lighting is not operating
If you are unable to remedy the
Possible cause Remedy
The clock is not set Set the current time on the
The required settings have not
been set
The house wiring fuse (in the
fuse box) has tripped
The oven light bulb is faulty Replace the oven bulb
clock
Check the settings
Check the fuse
If the fuses trip several times,
please call a qualified electrician
problem by following the above
suggestions, please contact your
dealer or the Customer Care Department.
Page 46
46 electrolux what to do if …
Warning! Repairs to the appliance
are only to be carried out by qualified service engineers. Considerable danger to the user may result
from improper repairs.
If the appliance has been wrongly
operated, the visit from the customer service technician or dealer may
not take place free of charge, even
during the warranty period.
Advice on cookers with metal
fronts:
Because of the cold surface at the
front of the cooker, opening the
oven door during (or just after) baking or roasting may cause the glass
to steam up.
Page 47

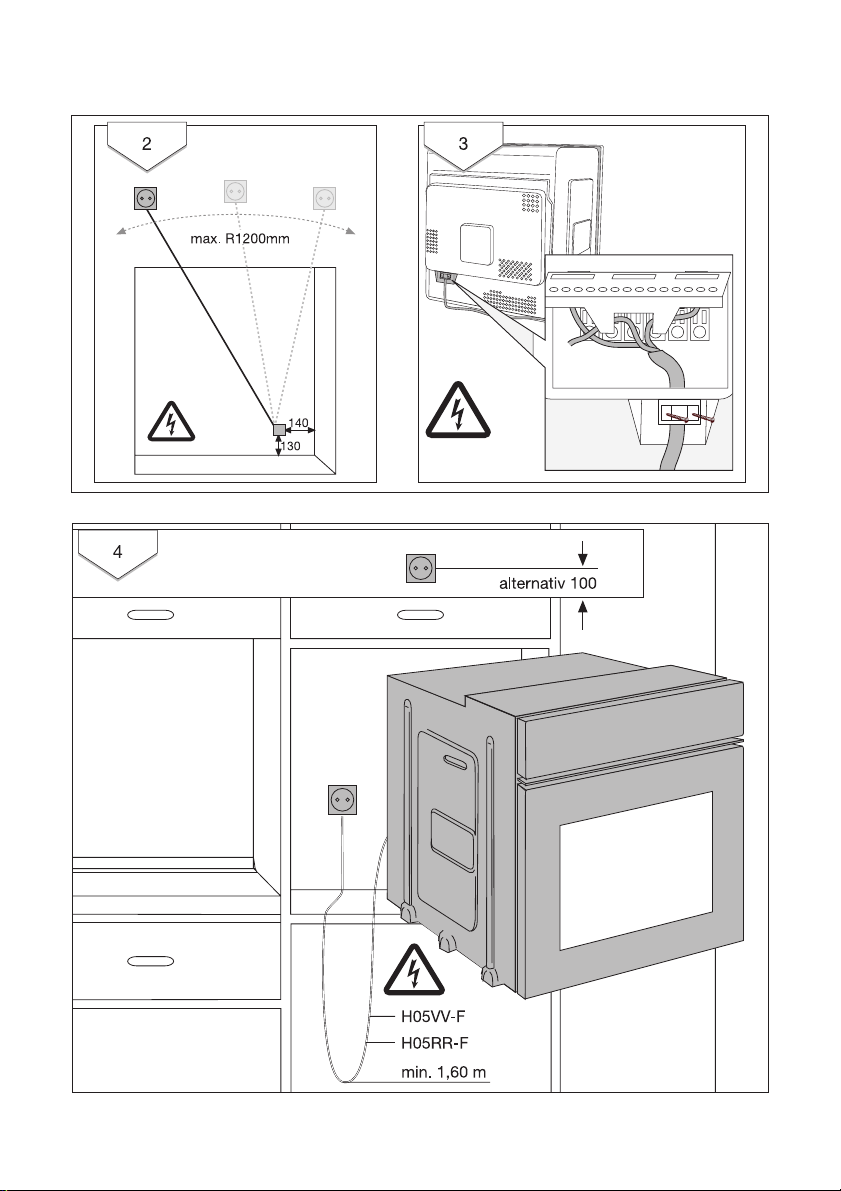

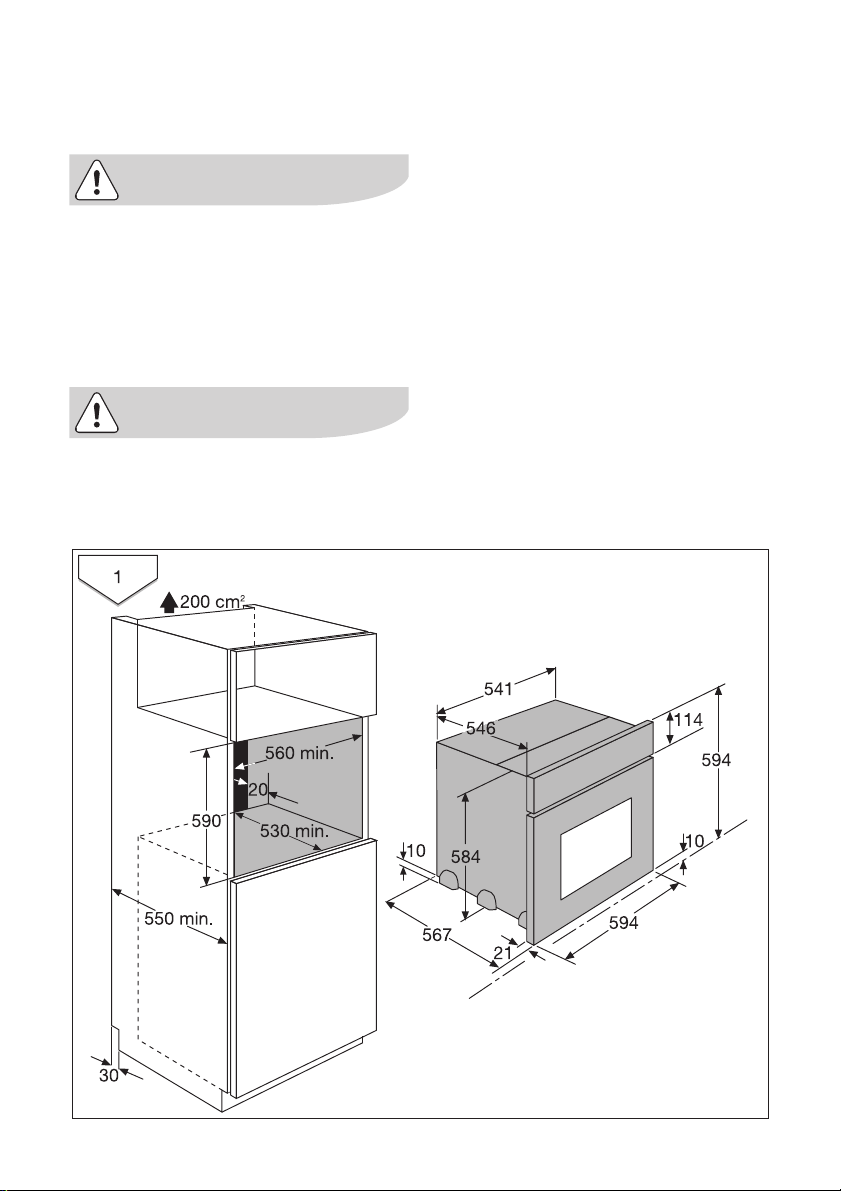

Installation Instructions
Attention: The new appliance may
only be installed and connected by a
registered expert.
Please comply with this. If you do
not, any damage resulting is not
covered by the warranty.
Safety information for the installer
• The electrical installation is to be set
up so that the appliance can be iso-
installation instructions electrolux 47
lated from the mains with a minimum
3mm all-pole contact separation.
Suitable separation devices include
e.g. cut-outs, fuses (screw fuses are
to be taken out of the holder), RCD’s
and contactors.
• Anti-shock protection must be provided by the installation.
• The built-in unit must meet the stability requirements of DIN 68930.
• Built-in ovens and built-in cooking
surfaces are fitted with special connection systems. For safety reasons,
they must only be combined with appliances from the same manufacturer.
Page 48
48 electrolux installation instructions
Page 49
installation instructions electrolux 49
Page 50
50 electrolux disposal
Disposal
Packaging material
The packaging materials are envi-
ronmentally friendly and can be recycled. The plastic components are
identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the
packaging materials in the appropriate container at the community
waste disposal facilities.
Old appliance
The symbol
its packaging indicates that this
product may not be treated as
household waste. Instead it shall be
handed over to the applicable collection point for the recycling of
electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment
and human health, which could otherwise be caused by inappropriate
waste handling of this product. For
more detailed information about recycling of this product, please contact your local city office, your
household waste disposal service
or the shop where you purchased
the product.
W on the product or on
make it unusable before disposing
of it.
To do this, disconnect the appliance
from the mains supply and remove
the mains cable from the appliance.
Warning: So that the old appliance
can no longer cause any danger,
Page 51
Guarantee/Customer Service
European Guarantee
This appliance is guaranteed by Electrolux in
each of the countries listed at the back of this
user manual, for the period specified in the appliance guarantee or otherwise by law. If you move
from one of these countries to another of the
countries listed below the appliance guarantee
will move with you subject to the following qualifications:
• The appliance guarantee starts from the date
• The appliance guarantee is for the same pe-
• The appliance guarantee is personal to the
• The appliance is installed and used in ac-
• The appliance is installed in accordance with
The provisions of this European Guarantee do
not affect any of the rights granted to you by law.
you first purchased the appliance which will
be evidenced by production of a valid purchase document issued by the seller of the
appliance.
riod and to the same extent for labour and
parts as exists in your new country of residence for this particular model or range of
appliances.
original purchaser of the appliance and cannot be transferred to another user.
cordance with instructions issued by Electrolux and is only used within the home, i.e. is
not used for commercial purposes.
all relevant regulations in force within your
new country of residence.
guarantee/customer service electrolux 51
Page 52
52 electrolux guarantee/customer service
www.electrolux.com
p t b
Albania +35 5 4 261 450 Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/
Belgien
Èeská republika
Danmark +45 70 11 74 00 Sjællandsgade 2, 7000 Fredericia
Deutschland +49 180 32 26 622 Muggenhofer Str. 135, 90429 Nürnberg
Eesti +37 2 66 50 030 Mustamäe tee 24, 10621 Tallinn
España +34 902 11 63 88
France www.electrolux.fr
Great Britain +44 8705 929 929
Hellas +30 23 10 56 19 70 4 Limnou Str., 54627 Thessaloniki
Hrvatska +385 1 63 23 338 Slavonska avenija 3, 10000 Zagreb
Ireland +353 1 40 90 753 Long Mile Road Dublin 12
Italia +39 (0) 434 558500 C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Latvija +37 17 84 59 34 Kr. Barona iela 130/2, LV-1012, Riga
Lietuva
Luxembourg +35 2 42 43 13 01 Rue de Bitbourg, 7, L-1273 Hamm
Magyarország +36 1 252 1773
Nederland +31 17 24 68 300
Norge +47 81 5 30 222 Risløkkvn. 2 , 0508 Oslo
Österreich +43 18 66 400 Herziggasse 9, 1230 Wien
Polska +48 22 43 47 300 ul. Kolejowa 5/7, Warsaw
Portugal +35 12 14 40 39 39
Romania +40 21 451 20 30 Str. Garii Progresului 2, S4, 040671 RO
Schweiz/Suisse/
Svizzera
Slovenija +38 61 24 25 731
+32 2 363 04 44 Bergensesteenweg 719, 1502 Lembeek
+420 2 61 12 61 12
+370 5 2780609
+41 62 88 99 111 Industriestrasse 10, CH-5506 Mägenwil
Budìjovická 3, Praha 4, 140 21
Carretera M-300, Km. 29,900
Alcalá de Henares Madrid
Addington Way, Luton, Bedfordshire
LU4 9QQ
Verkių 29, LT09108 Vilnius
H-1142 Budapest XIV,
Erzsébet királyné útja 87
Vennootsweg 1, 2404 CG Alphen aan den Rijn
Quinta da Fonte - Edificio Gonçalves Zarco Q 35
2774 - 518 Paço de Arcos
Electrolux Ljubljana d.o.o.
Gerbiceva 98, 1000 Ljubljana
Page 53
p t b
Electrolux Slovakia s.r.o., Electrolux Domáce
Slovensko
Suomi www.electrolux.fi
Sverige +46 (0)771 76 76 76
Türkiye
Россия
+421 2 43 33 43 22
+90 21 22 93 10 25
+7 095 937 7837
spotrebièe SK, Seberíniho 1, 821 03 Bratislava
Electrolux Service, S:t Göransgatan 143,
S-105 45 Stockholm
Tarlabaþý caddesi no : 35 Taksim
Istanbul
129090 Москва, Олимпийский проспект, 16,
БЦ „Олимпик“
guarantee/customer service electrolux 53
Page 54
54 electrolux service
Service
In the event of technical faults, please
first check whether you can remedy the
problem yourself with the help of the operating instructions (section “What to do
if…”).
If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our
service partners.
In order to be able to assist you quickly,
we require the following information:
– Model description
– Product number (PNC)
– Serial number (S No.)

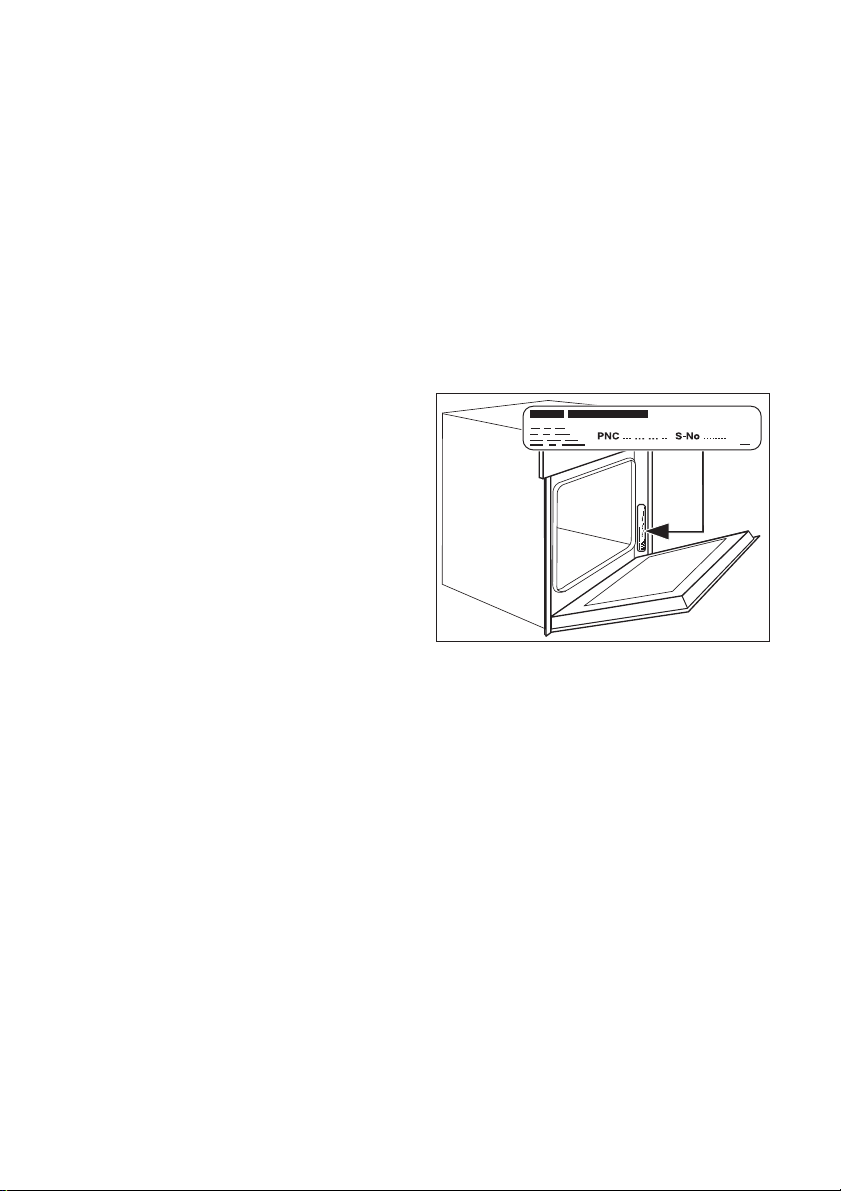

(for numbers see rating plate)
– Type of fault
– Any error messages displayed by the
appliance
So that you have the necessary reference numbers from your appliance at
hand, we recommend that you write
them in here:
Model description: ..........................
...........
PNC: ..........................
...........
S No: ..........................
...........
Page 55
Page 56
www.electrolux.com
822 928 347-A-241006-01
Loading...
