electrolux 1

user information

ZA

Built-in oven

EOB 21000

electrolux 3

Welcome to the world of Electrolux

Thank you for choosing a first class product from Electrolux, which hopefully will

provide you with lots of pleasure in the future.

The Electrolux ambition is to offer a wide variety of quality products that make

your life more comfortable.

You find some examples on the cover in this manual.
Please take a few minutes to study this manual so that you can take advantage

of the benefits of your new machine.

We promise that it will provide a superior User Experience delivering Ease-of-

Mind.

Good luck!

4 electrolux

Contents

Warnings and Important Safety Information ........................................................ 5

Description of the appliance............................................................................... 7

Controls............................................................................................................. 8

Before using the oven for the first time ............................................................... 9

Using the Oven ............................................................................................... 10

Baking and Roasting Tables ............................................................................ 14

Cleaning and Maintenance .............................................................................. 16

If something is wrong ....................................................................................... 20

Technical Data ................................................................................................ 21

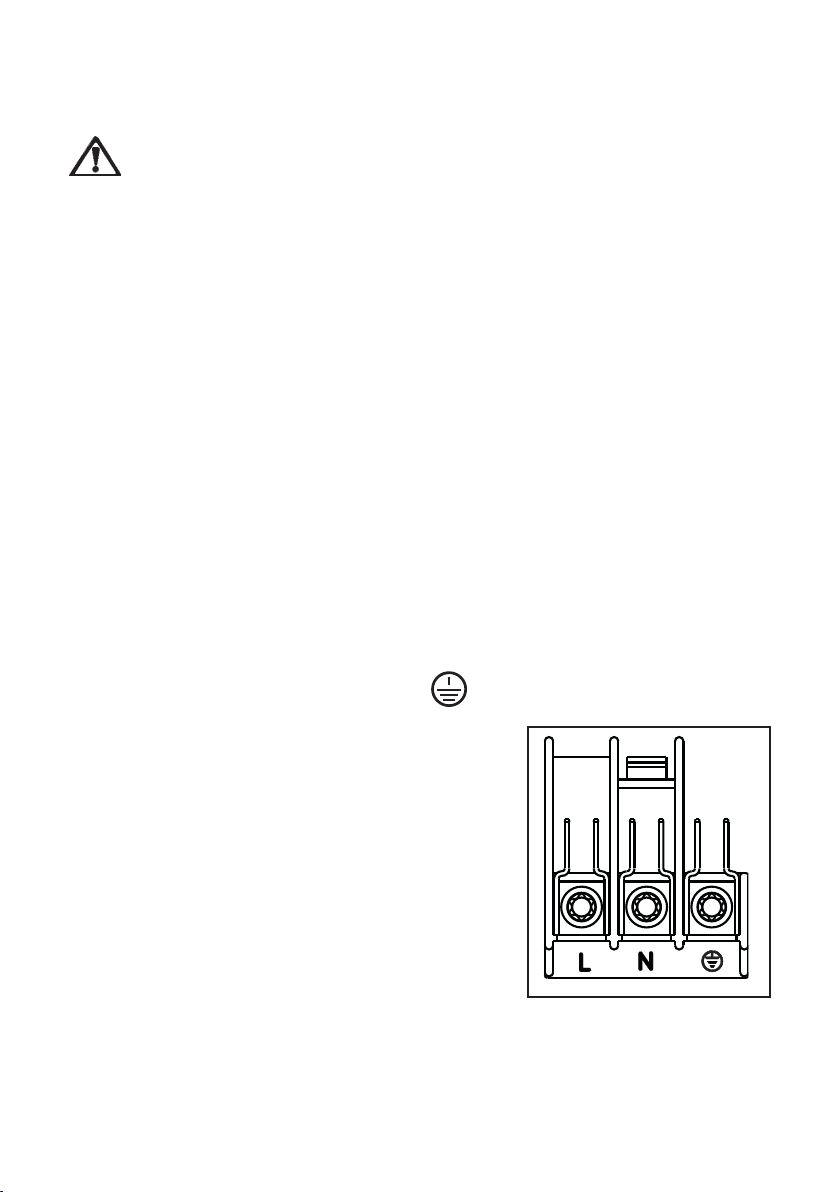

Instructions for the Installer .............................................................................. 22

Instructions fo Building In ................................................................................. 23

Service and spare parts ................................................................................... 25

Guide to using the user instructions

Safety instructions

Step by step instructions

)

Hints and Tips

This appliance conforms with the following ECC Directives:

- 2006/95 (Low Voltage Directive);

- 89/336 (EMC Directive);

- 93/68 (General Directive);

and subsequent modifications.

electrolux 5

Warnings and Important Safety Information

Always keep these user instructions with the appliance. Should the
appliance be passed on to third persons or sold, or if you leave this
appliance behind when you move house, it is very important that the new
user has access to these user instructions and the accompanying
information.
These warnings are provided for the safety of the users and those living
with them. So read them carefully before connecting and/or using the
appliance.

Installation

• The installation must be performed

by a qualified person in accordance
with the rules and regulations in
force. The individual operations for
installing the appliance are
described under the instructions for
the installer.

• Have the appliance installed and

connected by a qualified person
with specialist knowledge, who will
carry it out in accordance with the
directives.

• If any modifications to the power

supply are required because of the
installation, these should also be
carried out by a qualified electrician.

Operation

• This oven is designed for cooking

foodstuffs; never use it for other
purposes.

• When opening the oven door during
or at the end of cooking be careful
of the stream of hot air, which
comes out of the oven.

Be very careful when using the

•

cooker. The extreme heat of the
heating elements makes the
shelves and other parts very hot.

• If you should for whatever reason use

aluminium foil to cook food in the
oven, never allow it to come into
direct contact with the floor of the
oven.

• When cleaning the oven, proceed

with care: never spray anything onto
the grease filter (if fitted), the heating
elements and the thermostat sensor.

• If is dangerous to make

modifications of any kind to this
appliance or to its specifications.

• During the baking, roasting and

grilling process, the oven window
and the other parts of the appliance
get hot, so children should be kept
away from the appliance. Take care,
if connecting electrical appliances
to sockets near the oven, that
cables do not come into contact with
hot rings or get caught in the oven
door.

• Always use oven gloves to take hot

ovenproof dishes or pots out of the
oven.

• Regular cleaning prevents the

surface material from deteriorating.

• Before cleaning the oven, either turn

the power off or pull the mains plug
out.

6 electrolux

• Make sure that the oven is in the

“OFF” position, when the oven is no
longer being used.

• This oven was made as a single ap-

pliance or as a combination
appliance with electrical hotplate,
depending on the model, for single­phase connection to 230 V.

• The appliance must not be cleaned

with a superheated steam cleaner
or a steam jet cleaner.

• Do not use abrasive cleaners or sharp

metal scrapers. These can scratch the
glass in the oven door, which may
result in the shattering of the glass.

Child Safety

• This appliance is intended for use by

adults. It is dangerous to allow children
to use it or play with it.

• Children should be kept away while

the oven is working. Also, after you
have switched the oven off, it remains
hot for a long time.

• This appliance is not intended for use

by children or other persons whose
physical, sensory or mental capabili­ties or lack of experience and knowl­edge prevents them from using the
appliance safely without supervision
or instruction by a responsible per­son to ensure that they can use the
appliance safely.

Customer Service

• Have checks and/or repairs carried

out by the manufacturer’s service
department or by a service
department authorised by the manu­facturer and use only original spare
parts.

• Do not attempt to repair the

appliance yourself in the event of
malfunctions or damage. Repairs
carried out by untrained persons may
cause damage or injury.

The symbol on the product or its

packaging indicates that this product is
not to be treated as normal household
waste. Instead it must be handed over to
a collection point for the recycling of
electrical and electronic equipment. The
correct disposal of this product will help
to protect the environment and human
health. Environment and health are
endangered by incorrect disposal. For
more detailed information about recycling
of this product, please contact your local
town hall, your household waste disposal
service or the shop where you purchased
the product.

Description of the appliance

electrolux 7

1

10

1. Control Panel

2. Oven Function Control Knob

3. Minute minder

4. Thermostat Control Knob

5. Mains On Indicator

6

524

3

7

8
9

6. Thermostat Control Indicator

7. Air Vents for Cooling Fan

8. Grill

9. Oven light

10.Rating plate

Oven accessories

Cake tray

Shelf

8 electrolux

0

Controls

Oven Function Control Knob

0

The oven is off

Conventional cooking - The heat
comes from both the top and
bottom element, ensuring even
heating inside the oven

Bottom heating element - The heat
comes from the bottom of the oven
only

Top heating element - The heat
comes from the top element only
(outer section)

Inner grill element only - Can be
used for grilling small quantities

Full Grill - The full grill element will
be on

Mains on Indicator

The mains on light will come on when the
oven function control knob is set.

Thermostat Control Knob

Turn the thermostat control knob anti­clockwise to select temperatures
between 50°C and 250° C.

Minute minMinute min

Minute minder

Minute minMinute min

The minute minder will mark the end of
a timed period with an acoustic alarm.
The maximum timing is 60 minutes.
Turn the minute minder knob to the
maximum time position, then turn it
back to the required time.
The minute minder will not affect in any
way the oven operation, if it is in use.

electrolux 9

0

Thermostat Control Indicator

The thermostat control indicator will come
on when the thermostat control knob is
turned. The indicator will remain on until
the correct temperature is reached. It will
then cycle on and off to show the tempe­rature is being maintained.

Safety Thermostat

To prevent dangerous overheating
(through incorrect use of the appliance or
defective components), the oven is fitted
with a safety thermostat, which interrupts
the power supply. The oven switches
back on again automatically, when the
temperature drops.

Should the safety thermostat trigger due

to incorrect use of the appliance, it is
enough to remedy the error after the oven
has cooled down; if on the other hand, the
thermostat triggers because of a defective
component, please contact Customer
Service.

The cooling fan

The oven is provided with a cooling fan,
meant to keep the front panel, the knobs
and the oven door handle cool.The fan
switches on automatically when the oven
is activated. Warm air is blown out
through the aperture near the oven door
handle. The fan switches off when, after
cooking, the oven function control knob

is set to OFF position

Before using the oven for the first time

Remove all packaging, both
inside and outside the oven, before
using the oven.

Before using for the first time, the oven
should be heated up without food.

During this time, an unpleasant odour
may be emitted. This is absolutely
normal. It is caused by manufacturing
residues.

Ensure the room is well ventilated.

1. Switch the oven function con-

)

trol knob to conventional cook-

Then let the oven cool down. Then
dampen a soft cloth with warm
water and a little mild washing­up liquid and use this to clean the
oven cavity.

Before using for the first time,
carefully wash the oven
accessories as well.

.

0

ing .

2. Set the thermostat control
knob to 250° C.

4. Open a window for ventilation.

5. Allow the oven to run empty
for approximately 45 minutes.

This procedure should be repeated with

the full grill function for approximately
5-10 minutes.

To open the oven door, always
hold the handle in the centre.

10 electrolux

Using the oven

The oven is supplied with an exclusive
system which produces a natural
circulation of air and the constant
recycling of steam.

This system makes it possible to cook in
a steamy environment and keep the
dishes soft inside and crusty outside.
Moreover, the cooking time and energy
consumption are reduced to a minimum.
During cooking steam may be produced
which can be released when opening the
oven door. This is absolutely normal.

However, always stand back from
the oven when opening the oven
door during cooking or at the end
of it to allow any build up of steam
or heat to release.

Attention! - Do not place objects
on the oven base and do not cover
any part of the oven with aluminium
foil while cooking, as this could
cause a heat build-up which
would affect the baking results and
damage the oven enamel. Always
place pans, heat-resisting pans
and aluminium trays on the shelf
which has been inserted in the
shelf runners.When food is heated,
steam is created, like in a kettle.
When the steam comes into
contact with the glass in the oven
door, it condenses and creates
water droplets.

To reduce condensation, always
preheat the empty oven for 10
minutes.

We recommend you wipe the water
droplets away after every cooking
process.

4
3
2
1

Always cook with the oven
door closed. Stand clear when

opening the drop down oven door.
Do not allow it to fall open ­support the door using the door
handle, until it is fully open.

The oven has four shelf levels, and
is supplied with one shelf. The
shelf positions are counted from
the bottom of the oven as shown
in the diagram.
It is important that these shelves
are correctly positioned as shown
in the diagram.
Do not place cookware directly on
the oven base.

Conventional Cooking

- The middle shelf position allows for
the best heat distribution. To increase
base browning simply lower the shelf
position. To increase top browning,
raise the shelf position.

- The material and finish of the baking
trays and dishes used will affect base
browning. Enamelware, dark, heavy
or non-stick utensils increase base
browning, while oven glassware,
shiny aluminium or polished steel trays

electrolux 11

reflect the heat away and give less
base browning.

- Always place dishes centrally on the
shelf to ensure even browning.

- Stand dishes on suitably sized baking
trays to prevent spillage onto the base
of the oven and make cleaning easier.
Do notDo not

-

Do not place dishes, tins or baking

Do notDo not
trays directly on the oven base as it
becomes very hot and damage will
occur.When using this setting, heat
comes from both the top and bottom
elements. This allows you to cook on
a single level and is particularly
suitable for dishes which require ex­tra base browning such as quiches
and flans.

Gratins, lasagnes and hotpots which
require extra top browning also cook well
in the conventional oven.
How to use the conventional oven

1. Turn the oven function control knob

to the required cooking function .

2. Turn the thermostat control knob to
the required temperature.

Top oven element only

This function is suitable for finishing
cooked dishes, e.g. lasagne, shepherds
pie, cauliflower cheese etc.

Bottom oven element only

This function is particularly useful when
blind-baking pastry. It may also be used
to finish off quiches or flans to ensure the
base pastry is cooked through.

The thermostat control light will
remain on until the correct
temperature is reached. It will then
cycle on and off to show the
temperature is being maintained.

Grilling -

- Most foods should be placed on the
grid in the grill pan to allow maximum
circulation of air and to lift the food
out of the fats and juices. Food such
as fish, liver and kidneys may be
placed directly on the grill pan, if
preferred.

- Food should be thoroughly dried
before grilling to minimise splashing.
Brush lean meats and fish lightly with
a little oil or melted butter to keep
them moist during cooking.

- Accompaniments such as tomatoes
and mushrooms may be placed
underneath the grid when grilling
meats

- When toasting bread, we suggest that
the top runner position is used.

- The food should be turned over during
cooking, as required.

Full Grill Element

1. Turn the oven control function knob

on .

2. Turn the thermostat control knob on
the required temperature.

3. Adjust the grid and grill pan runner
position to allow for different
thicknesses of food. Position the food
close to the element for faster cooking
and further away for more gentle
cooking.

Preheat the grill on a full setting for a
few minutes before sealing steaks or
toasting. Adjust the heat setting and the
shelf as necessary, during cooking.
During cooking, the cooling fan and the
thermostat control light will operate in
the same way as described for the fan
oven function.

12 electrolux

Inner Grill Element

The inner grill provides quick direct heat
to the central area of the grill pan. By
using the inner grill element for cooking
small quantities, it can help to save
energy.

1. Turn the oven control function knob

on .

2. Turn the thermostat control knob on
the required temperature.

3. Adjust the grid and grill pan runner
position to allow for different
thicknesses of food and follow the
instructions for grilling.

The grill element is controlled by the

thermostat. During cooking, the grill
cycles on and off to prevent overheating.

Hints and Tips

- The middle shelf position allows for
the best heat distribution. To increase
base browning simply lower the shelf
position. To increase top browning,
raise the shelf position.

- The material and finish of the baking
trays and dishes used will affect base
browning. Enamelware, dark, heavy
or non-stick utensils increase base
browning, while oven glassware,
shiny aluminium or polished steel trays
reflect the heat away and give less
base browning.

- Always place dishes centrally on the
shelf to ensure even browning.

- Stand dishes on suitably sized baking
trays to prevent spillage onto the base
of the oven and make cleaning easier.
Do notDo not

-

Do not place dishes, tins or baking

Do notDo not
trays directly on the oven base as it
becomes very hot and damage will
occur.

On baking:

Cakes and pastries usually require a
medium temperature (150°C-200°C) and
therefore it is necessary to preheat the
oven for about 10 minutes.
Do not open the oven door before 3/4 of
the baking time has elapsed.
Shortcrust pastry is baked in a
springform tin or on a tray for up to 2/3
of the baking time and then garnished
before being fully baked. This further
baking time depends on the type and
amount of topping or filling. Sponge
mixtures must separate with difficulty
from the spoon. The baking time would
be unnecessarily extended by too much
liquid.
If two baking trays with pastries or
biscuits are inserted into the oven at the
same time, a shelf level must be left free
between the trays.
If two baking trays with pastries or
biscuits are inserted into the oven at the
same time, the trays must be swapped
and turned around after about 2/3 of the
baking time.

On Roasting:

Do not roast joints smaller than 1 kg.
Smaller pieces could dry out when
roasting. Dark meat, which is to be well
done on the outside but remain medium
or rare inside, must be roasted at a higher
temperature (200°C-250°C).
White meat, poultry and fish, on the other
hand, require a lower temperature
(150°C-175°C). The ingredients for a
sauce or gravy should only be added to
the roasting pan right at the beginning if
the cooking time is short. Otherwise add
them in the last half hour.
You can use a spoon to test whether the
meat is cooked: if it cannot be

depressed, it is cooked through. Roast
beef and fillet, which is to remain pink
inside, must be roasted at a higher
temperature in a shorter time.
If cooking meat directly on the oven shelf,
insert the roasting pan in the shelf level
below to catch the juices.
Leave the joint to stand for at least 15
minutes, so that the meat juices do not
run out.
To reduce the build up of smoke in the
oven, it is recommended to pour a little
water in the roasting pan. To prevent
condensation forming, add water several
times. The plates can be kept warm in
the oven at minimum temperature until
serving.

Caution!
Do not line the oven with alu­minium foil and do not place a
roasting pan or baking tray on
the floor, as otherwise the oven
enamel will be damaged by the
heat build-up.

Cooking times

Cooking times can vary according to the
different composition, ingredients and
amounts of liquid in the individual dishes.
Note the settings of your first cooking or
roasting experiments to gain experience
for later preparation of the same dishes.

Based upon your own experiences you
will be able to alter the values given in
the tables.

electrolux 13

14 electrolux

Baking and Roasting Table

Conventional Cooking

Timings do not include pre-heating.
The empty oven should always be pre-heated for 10 minutes.

TYPE OF DISH

CAKES

Whisked recipies 2 170 45-60 In cake mould
Shortbread dough 2 170 20-30 In cake mould
Butter-milk cheese cake 1 175 60-80 In cake mould
Apple cake (Apple pie) 1 170 90-120 In cake mould
Strudel 2 180 60-80 In baking tray
Jam- tart 2 190 40-45 In cake mould
Fruit cake 2 170 60-70 In cake mould
Sponge cake 1 170 30-40 In cake mould
Christmas cake 1 150 120-150 In cake mould
Plum cake 1 175 50-60 In bread tin
Small cake 3 170 20-35 In baking tray
Biscuits 2 160 20-30 In baking tray
Meringues 2 135 60-90 In baking tray
Buns 2 200 12~20 In baking tray
Pastry: Choux 2or 3 210 25-35 In braki ng tray
Plate tarts 2 180 45-70 In cake mould
Rich fruit cake 1 160 110-120 In cake mould
Victoria sandwich 1or2 180 40-55 In cake mould

BREAD AND PIZZA

White bread 1 195 60-70
Rye bread 1 190 30-45 In bread tin
Bread rolls 2 200 25-40 In baking tray
Pizza 2 200 20-30 In baking tray
Scones 3 200 10~20 In baking tray
FLANS
Pasta flan 2 200 40-50 In m ould
Vegetable flan 2 200 45-60 In m ould
Quiches 1 210 30-40 In moul d
Lasagne 2 200 25-35 In m ould
Cannelloni 2 200 25-35 I n moul d
Yorkshire pudding 2 220 20-25 6 pudding mould

MEAT

Beef 2 190 50-70 On grid
Pork 2 180 100-130 On grid
Veal 2 190 90-120 On grid
English roast beef
rare 2 210 50-60 On grid
medium 2 210 60-70 O n grid
well done 2 210 70-80 O n grid
Shoulder of pork 2 180 120-150 With rind
Shin of pork 2 180 100-120 2 pieces
Lamb 2 190 110-130 Leg
Chicken 2 190 70-85 Whole
Turkey 2 180 210-240 Whole
Duck 2 175 120-150 Whole
Goose 2 175 150-200 Whole
Rabbit 2 190 60-80 Cut in pieces
Hare 2 190 150-200 Cut in pieces
Pheasant 2 190 90-120 Whole
Meat loaf 2 180 150 in bread pan

FISH

Trout/Sea bream 1 190 40-55 3-4 fishes
Tuna fish/Salmon 2 190 35-60 4-6 fillets

4
3
2
1

temp °C

Conventional Cooking

Cooking time in

minutes

NOTES

electrolux 15

Grilling -

Timings do not include pre-heating.
The empty oven should always be pre-heated for 10 minutes.

Quantity

Grilling

TYPE OF DISH

4
3

temp.°CPieces g.

2
1

Fillet steaks 4 800 3 250 12~15 12~14
Beef-steaks 4 600 3 250 10~12 6~8
Sausages 8 / 3 250 12~15 10~12
Pork chops 4 600 3 250 12~16 12~14
Chicken (cut in two) 2 1000 3 250 30~35 25~30
Kebabs 4 / 3 250 10~15 10~12
Chicken (breast) 4 400 3 250 12~15 12~14
Hamburger* 6 600 2 250 20-30
*

Preheat 5’00'’

Fish (fillets) 4 400 3 250 12~14 10~12
Sandwiches 4~6 / 3 250 5~7 /
Toast 4~6 / 3 250 2~4 2~3

The temperatures quoted are guidelines. The temperatures may have to be
adapted to personal requirements.

Cooking time in

minutes

1st side

2nd side

16 electrolux

Cleaning and Maintenance

Before cleaning switch the
oven off and let it cool down.

The appliance must not be
cleaned with a superheated
steam cleaner or a steam jet
cleaner.

Important:

cleaning operation, the appliance must
be disconnected from the power supply.
To ensure a long life for your appliance,
it is necessary to perform the following
cleaning operations regularly:

- Only perform when the oven has
cooled down.

- Clean the enamelled parts with
soapy water.

- Do not use abrasive cleaners.

- Dry the stainless steel parts and glass
with a soft cloth.

- If there are stubborn stains, use
commercially available for stainless
steel or warm vinegar.

The oven’s enamel is extremely durable
and highly impermeable. The action of
hot fruit acids (from lemons, plums or
similar) can however leave permanent,
dull, rough marks on the surface of the
enamel. However such marks in the
brightly polished surface of the enamel
does not affect the operation of the oven.
Clean the oven thoroughly after every
use. This is the easiest way to clean dirt
off. It prevents dirt being burnt on.

Before carrying out any

Cleaning materials

Before using any cleaning materials on
your oven, check that they are suitable
and that their use is recommended by
the manufacturer.

Cleaners that contain bleach should NOT
be used as they may dull the surface
finishes. Harsh abrasives should also be
avoided.

External cleaning

Regularly wipe over the control panel,
oven door and door seal using a soft cloth
well wrung out in warm water to which a
little liquid detergent has been added.

To prevent damaging or weakening the
door glass panels avoid the use of the
following:

• Household detergent and bleaches

• Impregnated pads unsuitable for non-

• Brillo/Ajax pads or steel wool pads

• Chemical oven pads or aerosols

• Rust removers

• Bath/Sink stain removers

Clean the outer and inner door glass using
warm soapy water. Should the inner door
glass become heavily soiled it is
recommended that a cleaning product
such as Hob Brite is used. Do not use
paint scrapers to remove soilage.

Oven Cavity

The enamelled base of the oven cavity is
best cleaned whilst the oven is still warm.

Wipe the oven over with a soft cloth
soaked in warm soapy water after each
use. From time to time it will be
necessary to do a more thorough
cleaning, using a proprietary oven
cleaner.

stick saucepans

electrolux 17

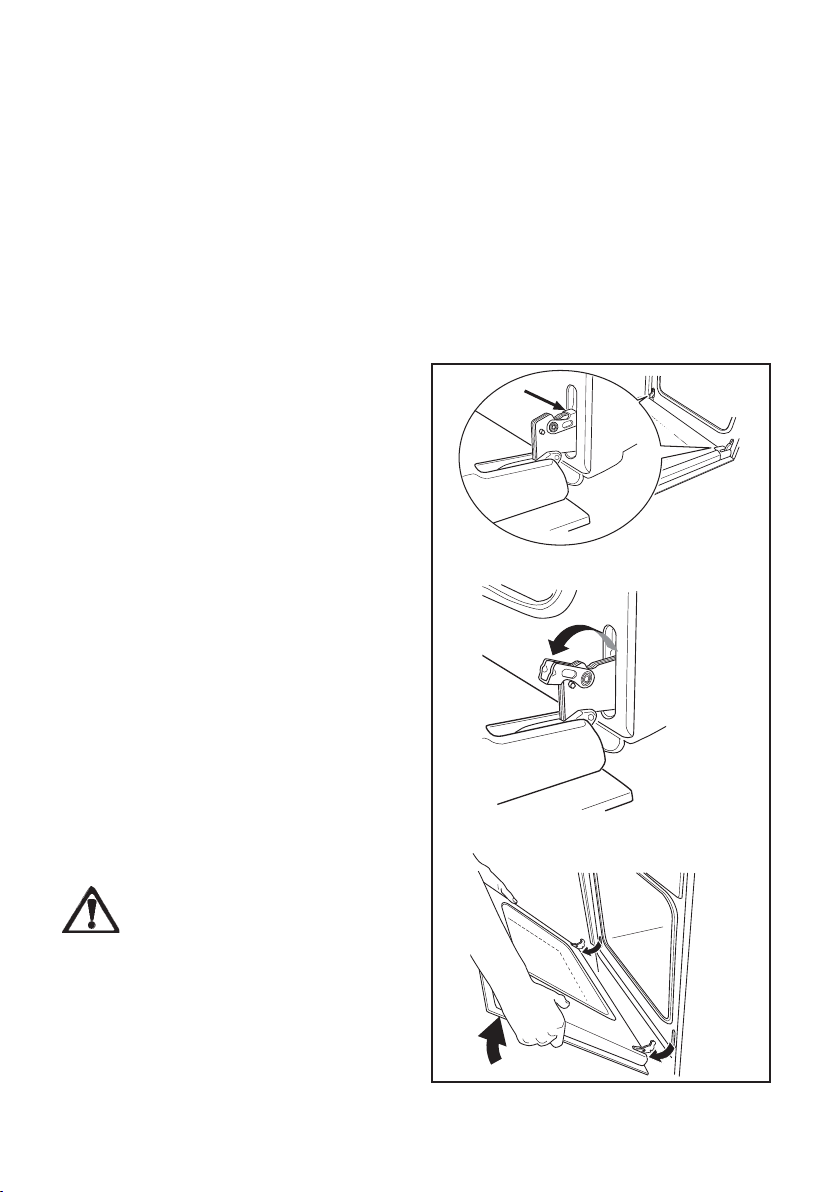

Cleaning the Oven Door

Before cleaning the oven door, we
recommend you to remove it from the
oven.

Proceed as follows:

1. open the oven door completely;

2. find the hinges linking the door to the
oven (Fig. A);

3. unlock and turn the small levers
located on the two hinges (Fig. B);

4. handle the door by its left- and right­hand sides, then slowly turn it towards
the oven until it is half-closed (Fig. C);

5. gently pull the oven door off its site
(Fig. C);

6. place it on a steady plan;

Clean the oven door glass with warm
soapy water and a softh cloth only. Never
use harsh abrasives. Once the cleaning
is carried out, refit the oven door,
following the procedure in reverse.

Stainless steel or aluminium
appliances:

We recommend that the oven door is
only cleaned using a wet sponge and
dried after cleaning with a soft cloth.

Never use steel wool, acids or abrasive
products as they can damage the oven
surface. Clean the oven control panel
following the same precautions.

DO NOT clean the oven door
while the glass panels are
warm. If this precaution is not
observed the glass panel may
shatter.

If the door glass panel becomes chipped
or has deep scratches, the glass will be
weakened and must be replaced to
prevent the possibility of the panel
shattering. Contact your local Service
Centre who will be pleased to advise
further.

Fig. A

Fig. B

Fig. C

18 electrolux

Oven Shelves and Shelf
Supports

To clean the oven shelves, soak in warm
soapy water and remove stubborn marks
with a well wetted soap impregnated pad.
Rinse well and dry with a soft cloth.

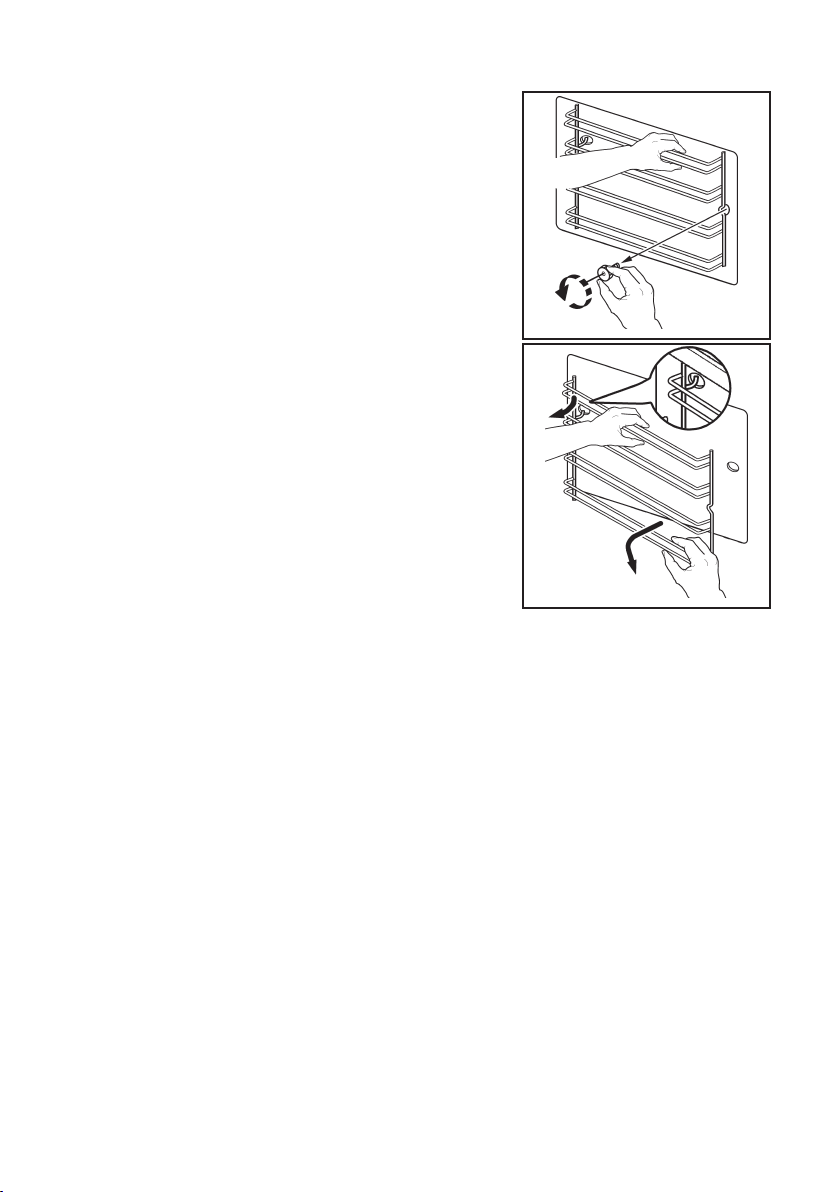

The shelf supports can be removed for
easy cleaning.
Proceed as follows:

1. remove the front screw while keeping
the shelf support in position with the
other hand;

2. disengage the rear hook and take off
the shelf support;

3. once the cleaning is carried out, refit
the shelf supports following the pro­cedure in reverse.

Please, ensure the retaining nuts are secure
when refitting the shelf support.

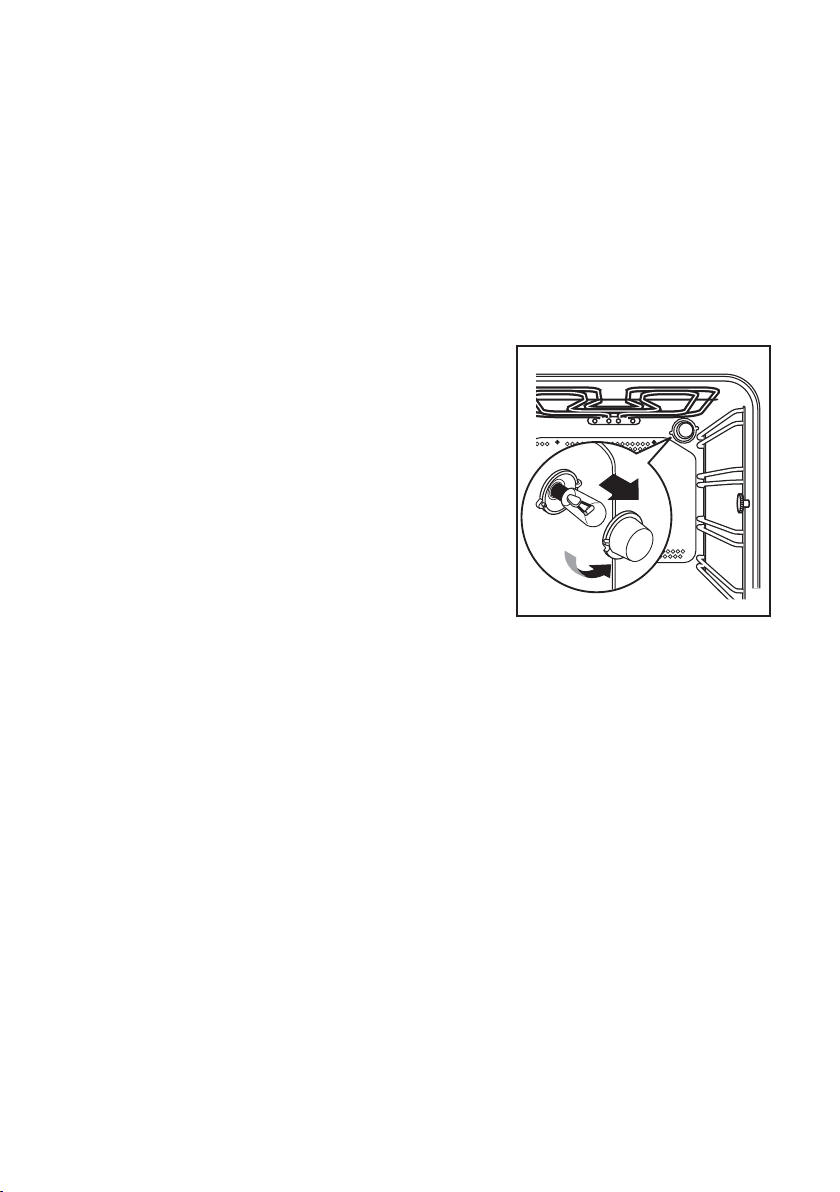

Replacing The Oven Light

Disconnect the appliance

If the oven bulb needs replacing, it must
comply with the following specifications:

- Electric power: 15 W/25 W,

- Electric rate: 230 V (50 Hz),

- Resistant to temperatures of 300°C,

- Connection type: E14.

These bulbs are available from your local
Service Force Centre.

To replace the faulty bulb:

1. Ensure the oven is isolated from the
electrical supply.

2. Push in and turn the glass cover
anticlockwise.

3. Remove the faulty bulb and replace
with the new one.

4. Refit the glass cover and restore the
electrical supply.

electrolux 19

20 electrolux

If something is wrong

If the appliance is not working correctly, please check the following before contacting
the Electrolux Service Centre:

PROBLEM



The oven is not switching on.



The oven temperature light
does not come on.



The oven light does not come
on.

SOLUTION



Check that both a cooking function and
temperature have been selected

or



Check whether the appliance is correctly
connected and the socket switch or the
mains supply to the oven is ON.



Select a temperature with the thermostat
control knob

or



Select a function with the oven func­tion control knob.



Select a function with the function control
knob

or

 Check the light bulb, and replace it

if necessary (see "Cleaning the Oven")



It takes too long to cook the
dishes or they cook too
quickly.



Steam and condensation
settle on the food and in the
oven cavity.



The temperature may need adjusting

or



Following the advice contained in these
instructions, especially the section “Using
the oven“.



When the cooking process is completed,
do not leave the dishes standing in the
oven for longer than 15-20 minutes.

Technical Data

Heating element ratings

Bottom oven element 1000 W

Top heating element 800 W

Full oven (Top+Bottom) 1800 W

Grill 1650 W

Full grill 2450 W

Oven light 25 W

Cooling Fan 25 W

Total rating 2500 W

electrolux 21

Operating voltage (50 Hz)

230 V

Dimensions of the recess

Height under top mm 593

in column mm 580

Width mm 560

Depth mm 550

Oven

Height mm 335

Width mm 395

Depth mm 400

Oven capacity 56 l

22 electrolux

Instructions for the Installer

Installation and connection
must be done in compliance
with the regulations in force.
Any interventions must be
carried out when the appliance
is switched off. Only accredited
engineers may work on the
appliance.

The manufacturer disclaims any
liability if the safety measures are
not observed.

Connecting to the electrical supply

Before connecting to the electrical

supply, please make sure:

- The fuse and the domestic electrical
installation must be designed for the
max. load of the appliance (see
rating plate).

- The domestic electrical installation
must be equipped with a proper
earth connection in accordance with
the regulations in force.

- The socket or the multi-pole off
switch must be easy to access after
the appliance has been installed.
This appliance is delivered with an

electric supply cable.

A proper plug, according to the

electric load specified on the rating
plate, must be fitted to the cable. The
plug is to be inserted into a suitable wall
socket. If you require a direct connection
to the electric network (mains), it will be
necessary to fit between the appliance
and the mains an omnipole switch, with
a minimum gap between contacts of 3
mm, suitable for the required load and in
compliance with rules in force. The
green & yellow ground wire must not be
interrupted by the switch and it should
be 2-3 cm. longer than the other cables.

The mains cable and plug as

supplied are to be connected to a
shockproof socket (230 V~, 50 Hz). The

shockproof socket must be installed in
accordance with the regulations.

The following types of mains cable
are suitable, taking the necessary rated
cross section into account: H07 RN-F,
H05 RN-F, H05 RR-F, H05 VV-F, H05
V2V2-F (T90), H05 BB-F.

The connection cable must in any
case be laid out so that at no point does
it reach 50°C (over room temperature).

After the connection has been
carried out, the heating elements must
be tested by being operated for about 3
minutes.

Terminal block

The oven is fitted with an easily
accessible terminal block which is
designed to operate with a single-phase
power supply of 230 V.

Letter L - Live terminal
Letter N - Neutral
terminal

or E - Earth terminal

Instructions for Building In

For problem-free functioning of the built­in appliance, the kitchen unit or the
recess into which the appliance is built
must have suitable dimensions.
In accordance with the regulations in
force, all parts which ensure the shock
protection of live and insulated parts must
be fastened in such a way that they
cannot be undone without tools.
These also include the fixing of any end
walls at the beginning or end of a line of
built-in units.
The shock protection must in any case
be ensured by the building in of the
appliance.
The appliance can be placed with its
back or a side wall against higher kitchen
units, appliances or walls. However, only
other appliances or units of the same
height as the appliance can be placed
against the other side wall.

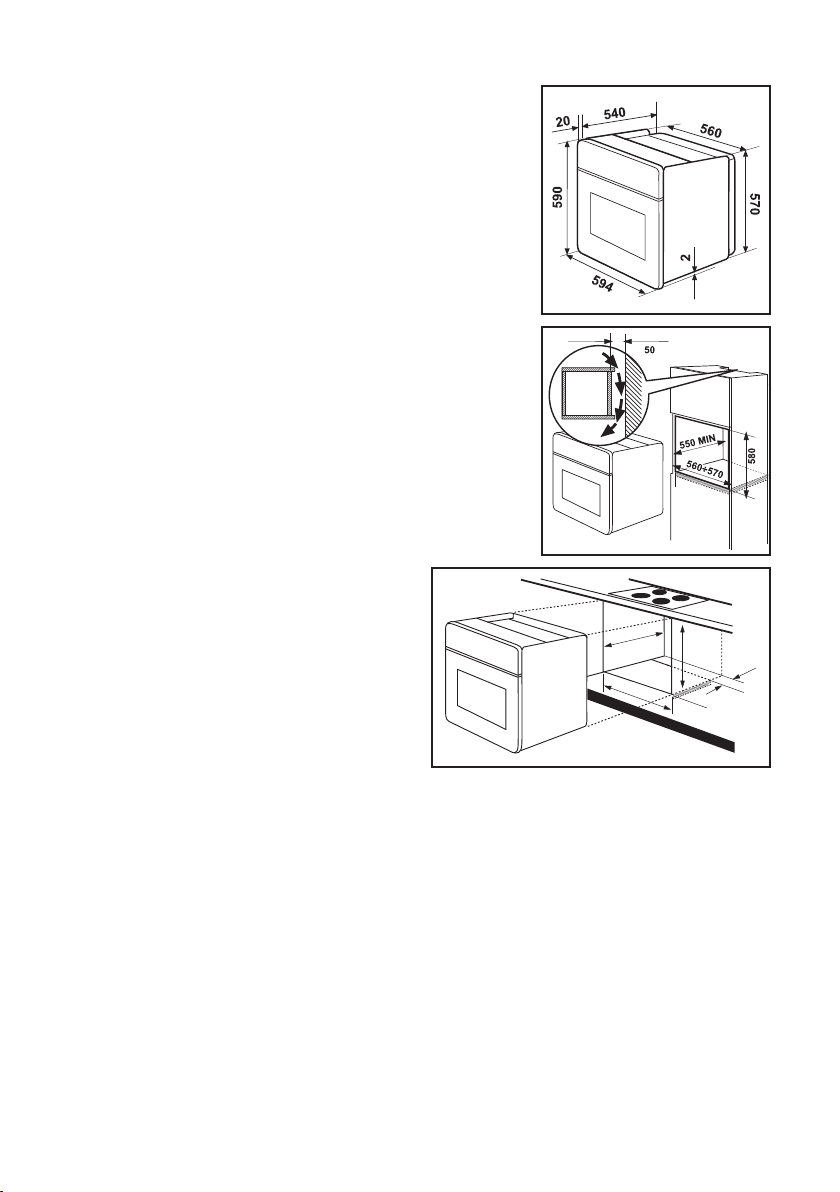

Oven dimensions (Fig. A)

Fig. A

Fig. B

electrolux 23

IN

550 M

560 - 570

593

80÷100

Instructions for Building In

For problem-free functioning of the built­in appliance, the kitchen unit or the
recess into which the appliance is built
must have suitable dimensions (Fig. B­C).

Fig. C

24 electrolux

Securing the Appliance to the
Cabinet

- Open the oven door;

- fasten the oven to the cabinet placing
the four distance holders provided with
the appliance (Fig.D - A) which fit
exactly into the holes in the frame and
then fit four wood screws (Fig. D - B).
When installing a hob over the oven,
the hob electrical connection and the
oven one have to be carried out
separately for security reasons and to
let the oven be taken off the cabinet
easier, if necessary. Any extensions
must be made with cables suitable
for the required power.

Fig. D

Service and spare parts

If after the checks listed in the chapter
"If something is wrong", the appliance
still does not work correctly, contact your
local Service Centre, specifying the type
of malfunctioning, the appliance model
(Mod.), the product number (Prod. No.)
and the serial number (Ser. No.) marked

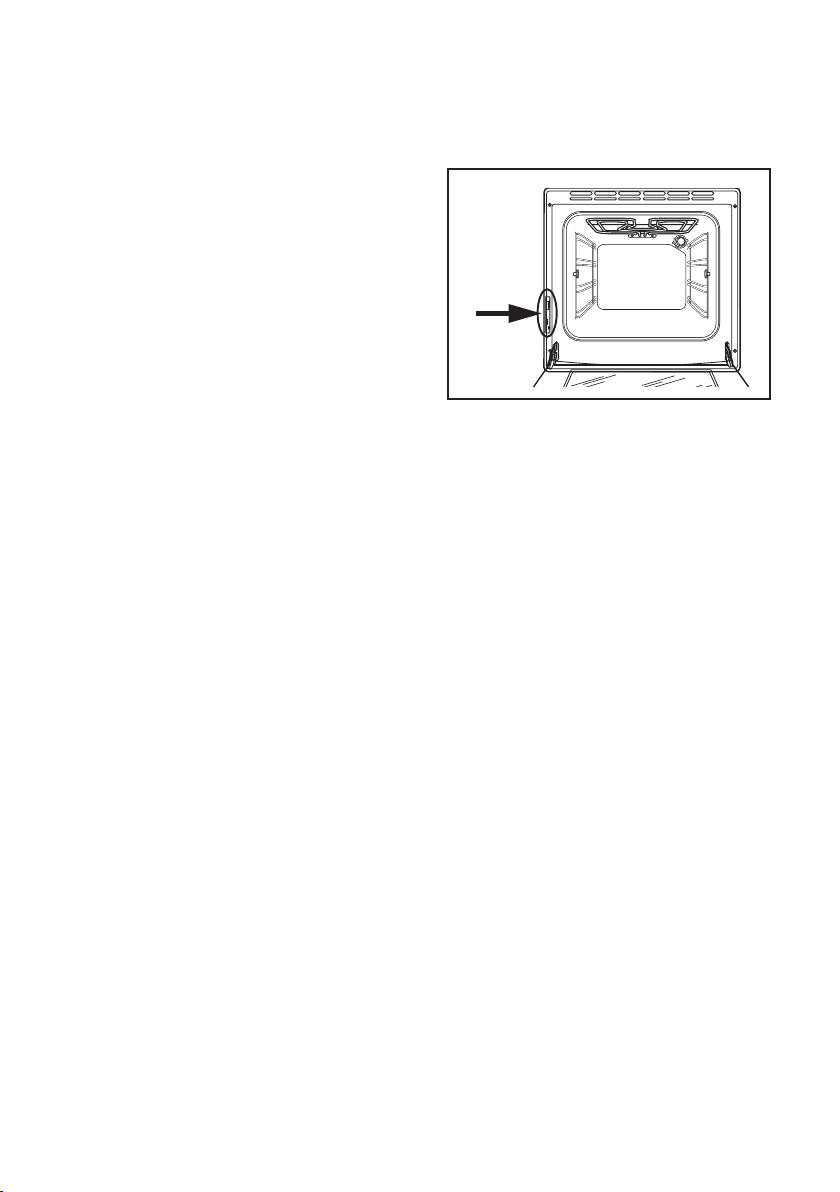

on the identification plate. This plate is
placed on the front external edge of the
oven cavity.

Original spare parts, certified by the
product manufacturer and carrying this
symbol, are only available at our Service
Centre and authorized spare parts
shops.

electrolux 25

26 electrolux

electrolux 27

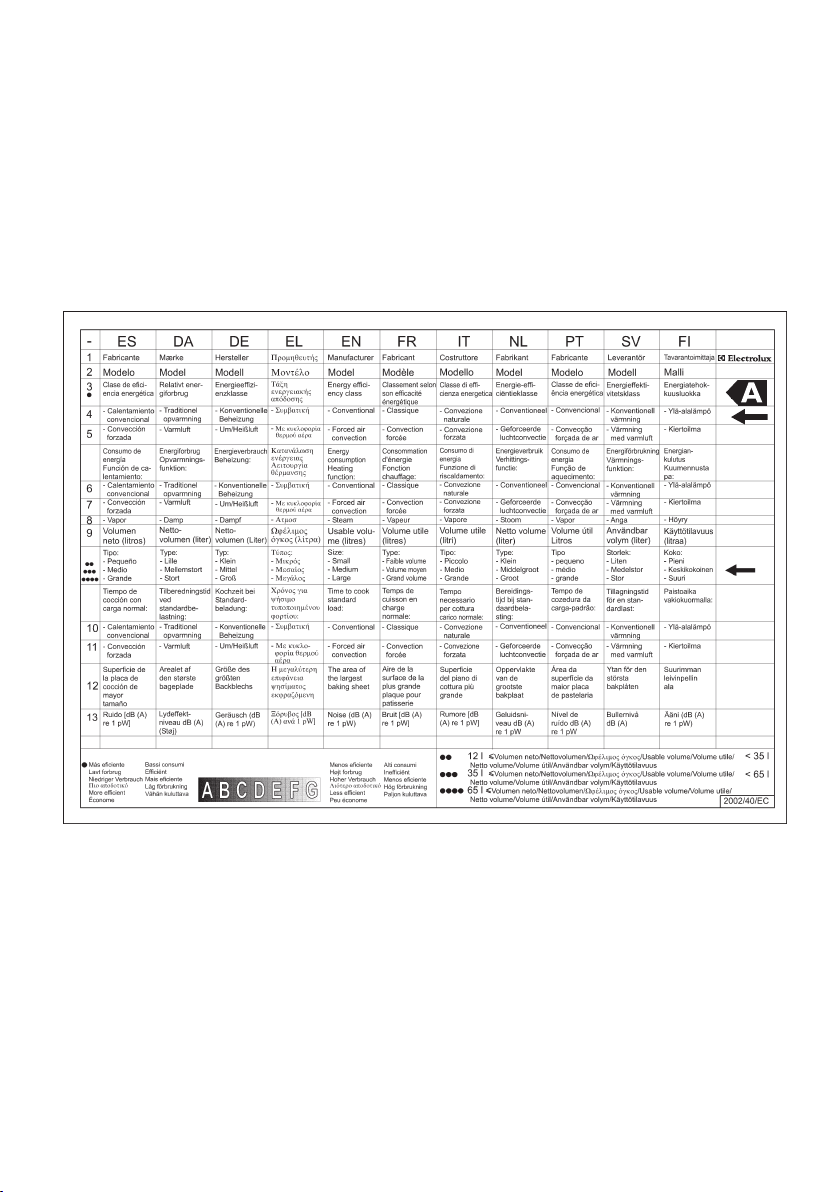

EOB21000

0.79 kWh

56

43 min.

1130 cm²

28 electrolux

electrolux 29

30 electrolux

electrolux 31

32 electrolux

35698-0901 07/07 R.0
