Page 1
USER MANUAL
8221913 - 39 - 01
Model EMS2321
English
Page 2
Page 3
EMS2321 t English
Contents
Before using your microwave oven 4
Safety instructions 4
– Utensil safety 4
– Testing suitability of cookware 5
– Food safety 5
– Oven utensils and accessories guide 6
Technical data 6
Getting Started 7
– Unpacking 7
Installation 7
– Connecting to the mains 7
How to operate your microwave oven 8

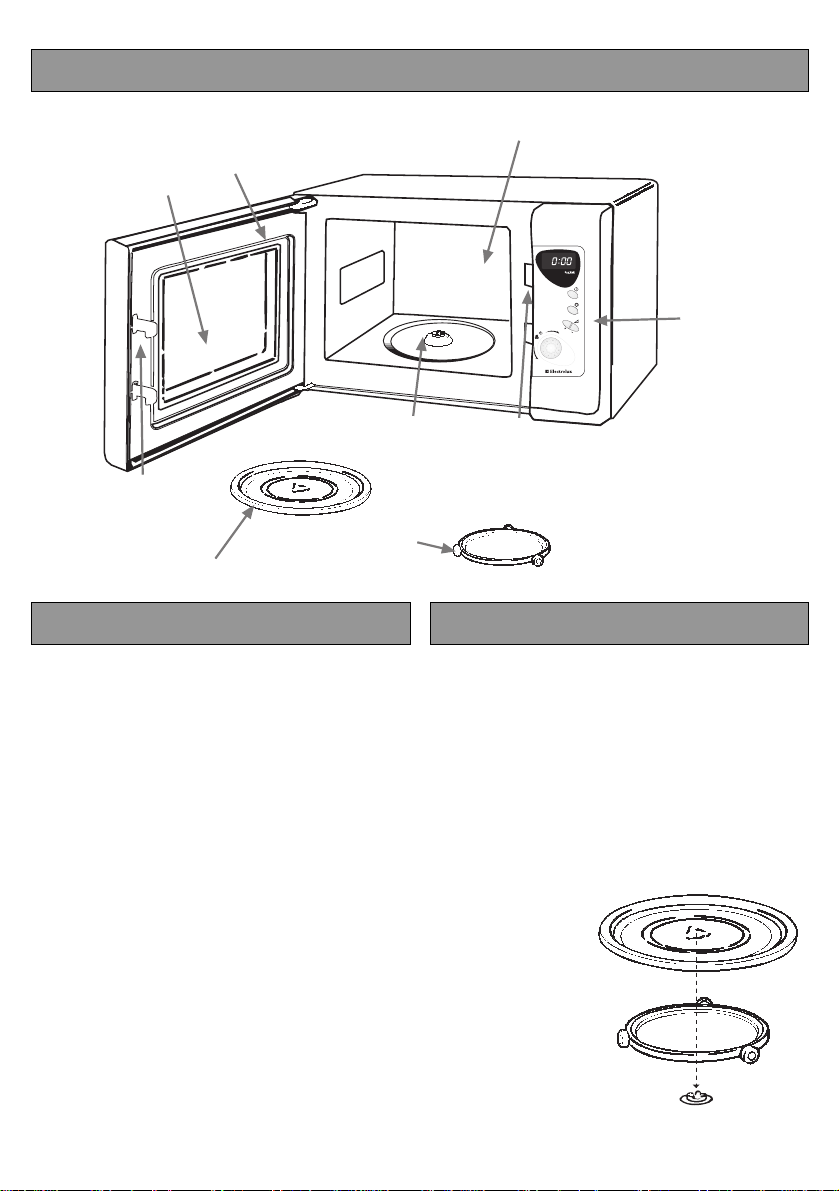

– Name and function of parts 8
– Turntable Installation 8

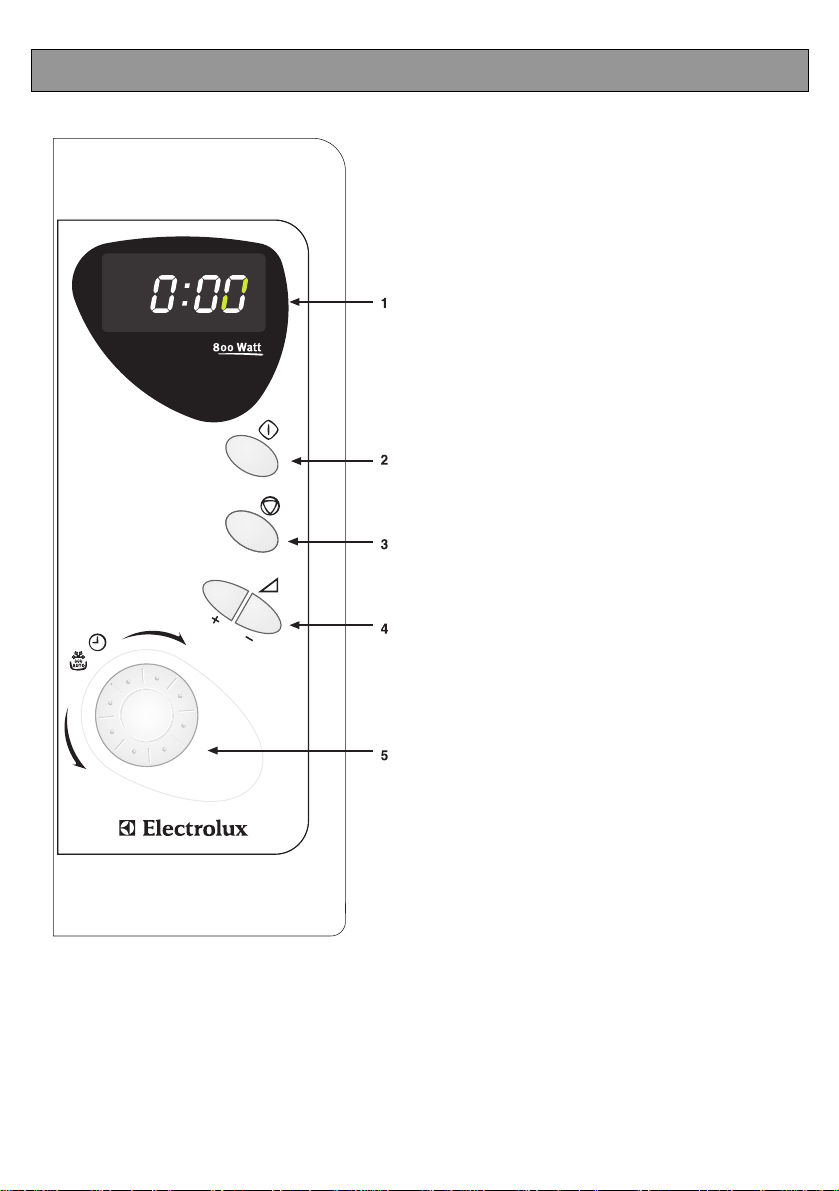

– Control panel 9
– Microwave cooking 10
– Microwave Power setting Guide 10
– Defrosting instructions using 80W 11
– Auto Defrost 12
– Defrosting Tips 12
– Microwave Hints 13
– Care and cleaning 14
– Cleaning the accessories (turntable an d support) 14
– Cleaning the interior 14
– Cleaning the exterior 14
Guarantee Conditions 15
3
Page 4
EMS2321 t English
'SRKVEXYPEXMSRWSRXLITYVGLEWISJ]SYVRI[1MGVS[EZI3ZIR
Thank you for having chosen a Electrolux product. We are convinced that you will find your new microwave
oven very useful and that it will be of great help t o you. As with all new kitchen appliances, it will take some
time to learn all the new functions and features, but with time, this oven will becom e indispensable to you.
Before using your Microwave Oven
Read through the instruction manual caref ully. In order that you can get the best from your new Electr olux
Microwave Oven, the following instruct ions have been prepared. Please make sure you read t hem carefully.
It is important that this instruction book is ret ained with the appliance for future reference. Should the appliance
be sold or transferred to another owner, or if you move house and leave the appliance, always ensure that the
book is supplied with the appliance or t hat the new owner can be acquainted with the functioning of the
appliance and the relevant warnings.
Please ensure you have read the whole instruct ion book before using the appliance a nd t hat you follow the
recommendations given.
Safety Instructions
• The built-in safety interlock switches prevent the
microwave oven from operating when the door is
open.
• Do not tamper with them, or attempt to operat e
the oven with the door open as open door
operation can result in exposure to microwave
energy.
• Do not allow food spills or cleaner residue to
accumulate on door sealing surfaces. See the
Cleaning and Care section for cleaning
instructions.
• Do not operate the oven if it is damaged until it
has been repaired by qualified service p ersonnel.
• It is particularly important that the oven door
closes properly and that there is no damage to
the: (1) door (warped), (2) hinges and latches
(broken or insecure), (3) door seals and sealing
surface.
• Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Contact your local Service
Force Centre.
• Do not remove the outer case, door or control
panel at any time. Doing so may cause exposure
to extremely high voltage.
• Install or locate this oven only in accordance with
“INSTALLATION INSTRUCTIONS” found in this
manual.
• Use the appliance for its intended use as
described in this manual. Do not use corrosive
chemicals in this appliance. This type of oven is
specifically designed to heat, cook, or defrost
food. It is not designed for industrial or laboratory
use neither for commercial use as this will
invalidate the guarantee.
• Do not operate the oven empty. If food or water is
not present to absorb the microwave energy, the
magnetron tube can be damaged.
• Close supervision is necessary when the oven is
used by children.
• Do not store this appliance outdoors. Do not use
this product near water.
• Do not attempt to dry clothing or newspap ers in
the microwave oven. These items can ignite.
• Do not use the cavity for storage purposes. Do
not leave paper products, cooking utensils, or
food in the cavity when not in use.
Utensil safety
Most glass, glass ceramic and heat-resistant
glassware utensils are excellent for use in the
microwave oven. Although microwave energy will not
heat most glass and ceramic items, these utensils
can become hot as heat transfers from the food t o
the container. The use of oven gloves to remove
dishes is recommended.
4
Page 5
EMS2321 t English
Testing suitability of cookware Food safety
• Place the cookware in the microwave along wit h a
glass half full of water. Heat on 800 W (100%) f or
one minute. If the cookware feels hot, you shou ld
not use it. If it is just slightly warm, you can use it
for reheating but not for cooking. If t he dish is
room temperature, it is suitable for microwave
cooking.
• Paper napkins, wax paper, paper towels, plat es,
cups, cartons, freezer wrap and cardboard are
great convenience utensils. Always be sure
containers are filled with food to absorb energy
and thus avoid the possibility of overheat ing.
• Many plastic dishes, cups, freezer containers an d
plastic wraps may be used in the microwave
oven. Follow manufacturer’s instructions wh en
using plastics in the oven. Avoid using plastic
utensils with foods that have high fat or sugar
content since these foods reach high
temperatures and could melt some plastics.
Do not leave oven unattended, and look at it from
•
time to time when heating or cooking food i n
plastic, paper or other combustible containers. If
smoke is observed, keep door closed, switch the
oven off or disconnect oven until smoke stops.
Metal utensils and utensils wit h metallic trim
•
should not be used in the microwave oven, unl ess
specifically recommended for microwave use.
Containers with restricted openings, such as
•
bottles, should not be used for microwave
cooking.
Use caution when removing a lid or cover from a
•
dish to avoid steam burns.
Do not heat food in a can in the microwave oven.
•
Always remove the food to a suitable contain er.
Deep fat frying should not be done in the
•
microwave oven, because the fat temperature
cannot be controlled, hazardous situations can
result.
Popcorn may be prepared in the microwave oven,
•
but only in special packages or utensils designed
specifically for this purpose. This cooking
operation should never be unattended.
Pierce foods with non-porous skins or
•
membranes to prevent steam build-up and
bursting. Apples, potatoes, chicken livers, and
egg yolks are examples of items that should be
pierced.
WARNING: When heating liquids, e.g. soups, sauces
and beverages in your microwave oven, overheat ing
the liquid beyond boiling point can occu r without
evidence of bubbling. This could result in a sudden
boil over of the hot liquid. To prevent t his possibility
the following steps should be taken:
1. Avoid using straight-sided containers with narrow
necks.
2. Do not overheat.
3. Stir the liquid before placing the cont ainer in the
oven and again halfway through the he at ing time.
4. After heating, allow to stand in the oven f or a
short time, stirring again before carefully removing
the container.
Some products such as whole eggs and sealed
•
containers – for example, closed glass jars – may
explode and should not be heated in this oven.
Occasionally, poached eggs may explode during
cooking. Always pierce the yolk, then cover and
allow the standing time of one minute b efore
removing cover.
NOTE:
Do not force the turntable to rotate by han d. This
•
may cause malfunctioning.
Arcing in the oven during microwave operation
•
usually occurs from use of metallic ut ensils.
Continuous arcing, however, can damag e the
unit. Stop the programme and check the utens il.
Care should be taken not to obstruct any air vents
•
located on the top, rear, side and bottom of the
oven.
Do not use this oven for commercial purposes.
This oven is made for domestic u se on l y.
Keep these instructions
5
Page 6
EMS2321 t English
Oven utensils and accessories guide
A variety of Utensils and Materials may be used for cooki ng in your microwave oven. For your safety and to
prevent damaging utensils and your oven choose appropriate utensils and materials for each cooking method.
The list below is a general guide.
Material Uten sils Microwave Cooking
Ceramic & Glass
China
Pottery YES
Plastic
Metal
Paper
Waxed Paper YES
Wood NO
Accessories
YES: Utensils and accessories to use NO : Utensils and accessories to avoid
*NOTE: Use aluminium foil on ly for shielding purposes, overuse may cau se arcing.
Corning ware
Heat resistant glass ware
Glass ware with metal decoration
Lead crystal glass
Without metal decoration
Microwave oven heat-proof wear
Plastic wrap
Metal baking pan
Aluminium foil*
Cups, plates, towels
Turntable
Turntable support
YES
YES
NO
NO
YES
YES
YES
NO
YES
YES
YES
YES
Technical data
3ZIVEPPHMQIRWMSR ;IMKLX
;MHXLQQ
(ITXLQQ
,IMKLXQQ
'EZMX]HMQIRWMSR *YWI
;MHXLQQ
(ITXLQQ
,IMKLXQQ
:SPYQI
4S[IVWSYVGI
%
4S[IVGSRWYQTXMSR
4S[IVSYXTYX
6
OK
0MXVI
:,^
;
;
Page 7
EMS2321 t English
GETTING STARTED
Unpacking
N.B. When you unpack the oven, check that the
product is free from damage. Damage or any missing
parts must be reported immediately to the ret ailer.
The oven, parts of the oven or the accessories may
be wrapped by a protection foil. If so, you must
remove this foil before using the oven. Do not leave
packing material so that small children can play wit h
it. This can be hazardous.
Installation
1. Remove any promotion lab el from the door.
2. Install the oven on a flat, level surface. The
surface must be strong enough to safely bear the
weight (17.5 kg) of the oven, and the content s. To
avoid the possibility of causing vibration or noise
the oven must be in a stable position.
3. Keep the oven away from heat and w at er.
Exposure to heat and water can lower oven
efficiency and lead to malfunctioning, so be sure
to install the oven away from heat and water
sources.
4. Do not block air vents on the top and t he sides of
the cabinet and also do not place any articles on
the top of the oven. If air vents are blocked durin g
operation, the oven may overheat, and this may
lead to malfunctioning. Hot air escapes from the
vents, so be sure not to obstruct it or let curtains
come between the oven and the rear wall.
5. Place the oven as far away from radios an d T V ’s
as possible. This oven does conform to EEC
requirements* of radio interference suppression,
but some interference may occur if it is placed too
close to a radio or TV, so keep them as far apart
as possible.
6. If positioned in a corner, leave a gap of at least
5,0 cm from the walls to meet ventilation
demands.
Important! The oven can be placed alm ost anywhere
in the kitchen. Make sure the oven is placed on a flat,
level surface and that vents as well as the surfac e
underneath the oven are not blocked (for sufficient
ventilation).
Connecting to the mains
The oven is delivered with the power cord an d a plug
for 230V, 50Hz, earthed socket outlet. Earth
protection minimises the risks should a short-circuit
occur. Check to ensure the voltage of the oven
matches the supply.
N.B. If the oven is connected to the socket via an
extension cord, make sure the cord is earthed.
WARNING! This appliance must not be us ed on a
non-earth protected power supply.
Contact an electrician if you are uncert ain regarding
electrical connection of the oven or prov ision of earth
protection of the supply.
This appliance must be earthed. If t his appliance is
fitted with a non-rewireable plug for which your socket
is unsuitable, the plug should be cut of f and the
appropriate plug fitted. If it is necessary to change the
fuse in a non-rewireable plug, the fuse cover must be
refitted. If the fuse cover is lost or damaged, the plug
must not be used until a replacement is obtai ned.
Electrical connections
WARNING! THIS APPLIANCE MUS T BE
EARTHED.
The manufacturer declin es any liability should
this safety measure not be observed.
If the plug that is fitted to your appliance is not
•
suitable for your socket outlet, it must be cut off
and the appropriate plug fitted.
Remove the fuse from the cut off plug. The cut off
•
plug should then be disposed of to prevent t he
hazard of shocks in case it should be plugged into
a 13 Amp socket in another part of your home.
* This appliance conforms to the requirement s of
EEC Radio Interference Directive 87/30 8/ EEC.
7
Page 8
EMS2321 t English
How to operate your microwave oven
1
3
2
5
6
4
4
8
7
Name and function of parts Turntable Installation
1. Cooking compartment. W ipe the compartment
clean after using the oven.
2. Viewing window. Food can be checked while the
microwave oven is in operation.
3. Oven door. The door must always be f irmly
closed while cooking.
4. Latch hook & Safety interlock system.
5. Control panel.
6. Drive shaft for turntable.
7. Turntable. Made of special heat-resistant glass.
Food in a suitable container is placed on this tray
for cooking. Do not use the oven without the
turntable.
8. Turntable support. Place t he support on the floor
of the cooking chamber to support the turntable.
1. Place the turntable support on the cavity Bot t om.
2. Place the turntable on top of the t urntable support
as shown in the diagram. Make sure that turntable
hub is securely locked in the turntable shaft. Never
place the turntable upside dow n.
• Both turntable and turntable support must always be
used during cooking.
• All food and containers of food are always placed on
this turntable for cooking.
• This turntable rotates clockwise and anticlockwise;
this is normal.
Turntable
Roller rest
Turntable Shaft
8
Page 9
EMS2321 t English
CONTROL PANEL
1. Display Window
To view either Cook time or Power level
2. Start Button
To start your microwave
3. Stop/Clear
To stop or pause your Microwave
4. Power setting button
To set the desired power level
Power + increases from 10% - 100%
Power - decreases from 100% - 10%
5. Setting control knob
To set the desired time or to set auto defrost
9
Page 10
EMS2321 t English
MICROWAVE COOKING
1. Open the door, place t he food on the turntable.
Close the door.
2. Press the Power setting button until the desired
power level is reached.(See table below. )
3. Set the desired time by turning the setting control
knob clockwise.
4. Press Start (The oven begins cooking.)
Example: To cook at 50% (400W) for 15 minutes
1. Touch the Power + button thre e times (50% should now be showing in the display wi ndow) .
2. Turn the setting control kno b until 15:00 is shown in the display window.
3. Press start. The Oven will now start cooking.
To turn off the oven during cooking, simply touch the
Stop/Clear button.
Note: After use, be sure to press the Stop/ Clear
button Twice as this will ensure th at you h ave
reset the microwave.
Note:
1 The Micro+ button will increase microwave
power from 10% to 100%
2 The Micro- button will decrease micro wave
power from 100% to 10%
Manual Defrosting
For manual defrosting (without operating the Auto Defrost Feature), Use 80W.
To speed up the defrosting of dense foods ov er 450g (1lb), the oven may be started on 800W (100%) pow er
for 1 - 3 minutes, then reduced to 800W until defrost ing is complete.
Example: To defrost at 10% (80W) for 6 minu t es
4. Touch the Power + button once (10% should now be showing in the display window) .
5. Turn the setting control kno b until 6:00 is shown in the display window.
6. Press start. T he Oven will now start defrosting.
Microwave Power setting Guide
Power Setting Suggested use
80W
240W 30% Simmer; Completing the cooking cycle of some pot roasts.
400W 50% Medium; Faster defrosting and reheating for casseroles and
560W 70% Reheat; Reheating pre-cooked foods.
800W 100% Max Power; Boiling or reheating liquids .
Defrost; Thawing frozen foods.
Casseroles and stews.
Baked custards or cheesecakes.
stews.
Baking cakes and sponge puddings
Roasting joints of meat and poultry.
Cooking vegetables.
Preheating a browning dish.
10
Page 11
EMS2321 t English
Defrosting instructions using 80W
Some foods such as bread and fruit, can successfully be thawed manually by using this power setting.
FOOD PREPARATION (80W)
Bread
Small loaf
Sliced large loaf
2 slices Place on kitchen paper. 55–60 sec. 5 min.
1 bread roll Place on kitchen paper. 55–60 sec. 5 min.
2 bread rolls Place on kitchen paper. 2–21/2 min. 5 min.
Cakes and Pastry
Gateau 450g/1 lb Remove from packaging, place on plate. 19–21 min. 15–30 min.
Cheesecake
450g/1 lb
Pie (cooked)
450g/1 lb
Pastry 450g/1 lb Remove from packaging, place on plate. 17– 19 min. 15–30 min.
Butter
250g/8.8 oz
(1 packet)
Fruit
225g/8 oz
Soft berry fruits
450g/1 lb
Soft berry fruits
Plated meal
400g/14 oz
Vegetables
Place on microwave-proof rack or kitchen paper.
Turn over halfway through defrosting time.
Place on microwave-proof rack or kitchen paper.
Turn over halfway through defrosting time.
Remove from packaging, place on plate. 19–21 min. 15–30 min.
Remove from packaging, place on plate. 17– 19 min. 15–30 min.
If foil wrapped, remove from wrapper and place on a
plate
Place in a single layer in a shallow dis h. 15– 16 min. 5–10 min.
Place in a single layer in a shallow dis h.
Cover with a plate or non P.V.C. cling film.
To reheat, microwave at 100% (800W)for 3–4 minutes.
It is not necessary to defrost vegetables befor e cooking.
All vegetables can be thawed and cooked at 100%
(800W)
18–20 min. 10–15 min.
20–23 min. 10 min
13– 14 min. 5–10 min.
17– 18 min. 5–10 min.
17– 18 min 5–10 min.
STANDING
TIME
11
Page 12
EMS2321 t English
Automatic Defrost
1. Open the door, place t he food on the turntable.
Close the door.
2. Set the desired weight by turning the setting
control knob anti - clockwise.
The oven will now be in defrost mode.
3. Press Start (The oven begins defrosting.)
NOTE : During Auto Defrost the oven wi ll au tomati cally select the required microw ave power and
defrost time.
NOTE : The maximum weight setting for Auto Defrost is 2kg (2000g)
If you wish to defrost any item of food which is larger than this, then it is recommended
that the item be split into two or more pieces of eq ual size.
If the item cannot be split then you should not defrost it in this microwave.
Example: To automatically defro st 700g o f foo d.
1. Turn the setting control kno b, anti - clockwise until 0.7kg is shown in the display wind ow.
2. Press start. T he Oven will now start defrosting.
To turn off the oven during cooking, simply touch the
Stop/Clear button.
NOTE : After use, be sure to press the Stop/ Clear
button Twice as this will ensure th at you h ave
reset the microwave.
Defrosting Tips
1. It is better to underestimat e defrosting time if you are unsure. Food will continue to defrost during the
standing time.
2. Separate food as soon as possible.
3. Turn large items, e.g. joints , halfway through the defrosting time.
4. Remove any thawed food as soon as poss ible.
5. Remove or open any packaging before defrosting.
6. Place food in a larger container t han t hat which it was frozen in, this will allow for easy stirring.
7. Begin thawing poultry, breast side down and turn over halfway through defrosting time or at pause.
Delicate areas such as wing tips can be shielded with small pieces of smooth foil.
8. Standing time is very important, particularly for large, dense foods which cannot be stirred to ensure that
the centre is completely defrosted befor e cooking.
12
Page 13
EMS2321 t English
Microwave Tips
Microwave Hints
Always keep the oven clean – avoid spillovers
•
and do not forget to clean under the glass tray
and the inside of the door.
Preferably use round or oval casseroles with a lid
•
when cooking in your microwave oven.
Do not use metal or metal decorated casseroles.
•
Certain plastic materials can melt and be warped
by hot food.
Cover the food when cooking. Use a glass lid, a
•
plate or grease proof paper.
Pastry, bread and the like can be defrosted
•
directly in a bread basket or on a paper towel.
If frozen food is heated in its packaging, t he
•
packaging should be opened. Packaging
containing metal or metal decoration must not be
used unless specifically recommended for use in
the microwave. Remove metal clips and wire ties.
Smaller pieces of aluminium foil can be used t o
•
cover parts that easily over cook such as chicken
legs.
Food with peel or skin should be pierced with a
•
fork – e.g. potatoes and sausages. Do not boil
eggs in the microwave oven as they can explode.
Put large, thick pieces close to the edge of the
•
casserole and try to cut the food in to even sized
pieces. Always place the food in the centre of t he
oven.
The food will be evenly cooked if you stir or turn it
•
a few times.
Always set a shorter cooking time than indicated
•
in your recipe to avoid over cooking. The larger
the amount of food the longer it takes.
Use little or no water for vegetables.
•
Use less salt and spices than for ‘normal’ cooking.
•
Season afterwards.
•
Allow a few minutes ‘standing’ time after the oven
•
has switched off to ensure complete and even
cooking results.
Always ensure food is piping hot through out
•
before serving.
Use pot holders or gloves when taking dishes and
•
food from the oven.
Softening Honey
•
If you have a jar of honey which has
crystallised, remove lid and pl ac e the jar in the
oven, microwave on medium power for 2
minutes.
Melting Chocolate
•
Break 100g of chocolate into squares, place in
A bowl and heat on high power for 1-2
minutes and stir well.
Softening or Melting Butter
•
Melting takes a few seconds on high power.
Softening is best done more gently on low
power.
Freshen or Warm Bread
•
Use medium power for few seconds.
Peeling Garlic easily
•
Heat 3 or 4 cloves of garlic on high power for
15 seconds. Squeeze at one end until the
clove pops out.
Fruit Juice
•
Citrus fruits will yield more juic e if they are
heated on high power for 15 seconds before
squeezing.
Cooking Porridge
•
Porridge is easily cooked in the serving dish
with no sticky pan to wash. Follow food
manufacturers’ recommendations.
13
Page 14
EMS2321 t English
g
Care and cleanin
The oven must always be clean. Residue of food from spillovers or spatters will attract microwave energy
causing it to burn on. This could reduce the eff iciency of the oven and may cause bad odours. Do not attempt
to tamper with or make any adjustments or repairs to any part of the oven. Repairs should only be done by a
qualified service technician.
Be sure the oven is disconnected from the electricity supply before cleaning.
Cleaning the accessories (turntable and support)
Clean them with mild detergent after removing them from the cavity. The turntable supp ort should be carefully
handled.
CAUTION: The inside of the oven and t urnt able get very hot, so do not touch them immediately af t er use.
Cleaning the interior
Always keep the inside of the oven clean. Wipe up spillovers and food spatters immediately. Deposits that are
allowed to remain on the oven walls, door seal and door surface will absorb microwave energy, reduce the
efficiency of the oven, and possibly damag e the oven interior. Use mild, liquid deterg ent, warm water and a
soft, clean cloth to remove deposits.
NEVER USE ABRASIVE CLEANERS, COMMERCIAL OVEN CLEANERS OR STEEL WOOL PADS ON
ANY PART OF THE MICROWAVE OVE N.
To loosen difficult deposits, boil a cup of water in the microwave oven for 2 or 3 minutes.
NEVER USE A KNIFE OR ANY UTENSIL TO REMOVE DEPOSITS FROM OVEN SURFACES.
To remove odours from the oven interior, boil a cup of water plus 2 tablespoons of lemon juice f or 5 minutes.
Cleaning the exterior
Open the oven door when cleaning the control panel. This will prevent the oven f r om being turned on
accidentally. You should clean outside surfaces of the oven with mild liquid deterg ent and water followed by a
wiping with clear water to remove any excess detergent. Dry with a soft cloth.
Spray-on window cleaners or all purpose spray-on kitchen cleaners can also be used. Never use abrasive
cleaners, scouring pads or harsh chemicals on outside surf aces of your oven. To prevent damage to the
working parts, do not allow water to seep int o ventilation openings.
14
Page 15
EMS2321 t English
GUARANTEE CONDITIONS
Electrolux offer the following guarantee to the first purchaser of this appliance:
1. The guarantee is valid for 24 months commencing when the appliance is handed over to the first retail
purchaser, which must be verified by purchase invoice or similar documentation. The guarantee does not
cover commercial use.
2. The guarantee covers all parts or components which fail due to faulty workm anship or faulty material. The
guarantee does not cover appliances where d ef ect s or poor performance are due to misuse, accidental
damage, neglect, faulty install at ion, unauthorised modification or attempted repair, commercial use or
failure to observe requirements and recomme ndat ions set out in the instruction book. This guarantee does
not cover such parts as light bulbs, removable glassw are, or plastic.
3. Should guarantee repairs be necessary the purchaser must inform the nearest customer service of fice
(ELECTROLUX’s service or authori sed agent). ELECTROLUX reserves the right to stipulate the place of
repair (i.e. the customer’s home, place of installation or ELECTROLUX workshop).
4. The guarantee or free replacement includes both labour and mat erials.
5. Repairs carried out under guarant ee do not extend the guarantee period for the appliance. Parts removed
during guarantee repairs become the prope rty of ELECTROLUX.
6. The Purchaser’ s statutory rights are not affected by this guarante e.
European Guarantee
If you should move to another country within Europe t hen your guarantee moves with you to your new home
subject to the following qualifications:
• The guarantee starts from the date you f irst purchased your product
• The guarantee is for the same period and to the same ext ent for labour and parts as exists in the new
country of use for this brand or range of products
• This guarantee relates to you and cannot be transferred to another user
• Your new home is within the European Community (EC) or European Free Trade Area
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household
• The product is installed taking into account regulations in your new country
Before you move please contact your nearest Customer Care cent re, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliances.
France Senlis +33 (0) 3 44 62 20 13
Germany
Italy Pordenone +39 (0) 800117511
Sweden Stockholm +46 (0) 20 78 77 50
UK Slough +44 (0) 1753 219898
Nürnberg +49 (0) 800 234 7378
15
Page 16
EMS2321 t English
Notes
16
Page 17
EMS2321 t English
Notes
17
Page 18
EMS2321 t English
Notes
18
Page 19
Page 20
Loading...
