AEG EKC6701, EKC6701X User Manual

Ceramic Free-Standing Electric Cooker - ЗлекфсйкЮ КпхжЯнб ме КесбмйкЭт ЕуфЯет - Fogão eléctrico

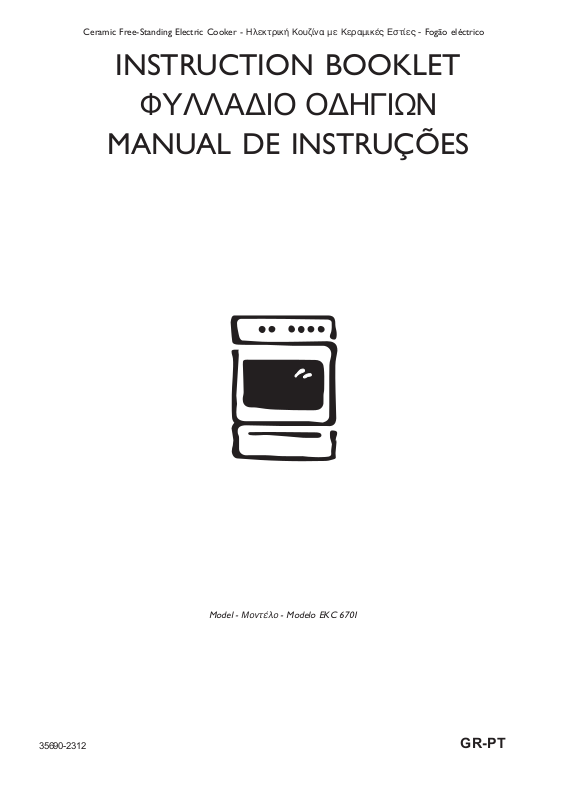

INSTRUCTION BOOKLET

ЦХЛЛБДЙП ПДЗГЙЩН

MANUAL DE INSTRUÇÕES

35690-2312

Model - МпнфЭлп - Modelo EKC 6701

GR-PT

ENGLISH

Important Safety Information

You MUST read these warnings carefully before installing or using the hob. If you need assistance,
contact our Customer Care Department.

Installation

• The work of installation must be carried out by
competent and qualified installers according to the
regulations in force.

• Any modifications to the domestic electrical mains
which may be necessary for the installation of the
appliance should be carried out only by competent
personnel.

• Check your appliance for any transport damage.
Never connect a damaged appliance. If your appliance
is damaged, contact your supplier.

• It is dangerous to modify, or attempt to modify, the
characteristics of this appliance.

• Avoid installation of the appliance near inflammable
material (e.g. curtains, tea towels, etc.).

• This appliance is heavy. Take care when moving it.

• This appliance cannot be positioned on a base.

• Remove all packaging before using the appliance.

•

Some parts have a shock-resistant plastic film
protection. Be sure to remove this plastic film before
you start operating the appliance and clean the parts
involved using a soft cloth wrung out in warm water
to which a little washing up liquid has been added.

• Ensure that the electrical supply complies with the
type stated on the rating plate.

Child Safety

• This appliance is designed to be operated by adults.
Do not allow children to play near or with the
appliance.

• The appliance gets hot when it is in use. Children
should be kept away until it has cooled.

• Children can also injure themselves by pulling pans
or pots off the appliance.

During Use

• This appliance is intended for domestic cooking only.
It is not designed for commercial or industrial
purposes.

• Do not use this appliance if it is in contact with water.

• Do not operate the appliance with wet hands.

• Ensure the control knobs are in the ‘OFF’ position
when not in use.

• During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside
the oven.

• Always stand back from the oven when opening the
oven door, to allow any build-up of steam or heat to
release.

• When using other electrical appliances, ensure the
cable does not come into contact with the hot
surfaces of the appliance.

• Never use the ceramic hob as a working space. Do
not store things on the ceramic hob.

• Never use plastic or aluminium foil dishes on the
ceramic hob.

• Never use plastic dishes in the oven.
part of the oven with aluminium foil.

• Unstable or misshapen pans should not be used on
the cooking zones as unstable pans can cause an
accident by tipping or spillage.

• The ceramic hob is shockproof, but not unbreakable!
Hard or pointed objects falling from a height can
damage the hob. If scratches or cracks are noticed,
disconnect the cooker from the electrical supply and
call you nearest Service Force Centre.

• Never leave the appliance unattended when cooking
with oil and fats.

• This appliance should be kept clean at all times. A
build-up of fats or foodstuffs could result in a fire.

• Always ensure that the oven vent which is located at
the centre back of the hob is left unobstructed to
ensure ventilation of the oven cavity.

• Perishable food, plastic items and areosols may be
affected by heat and should not be stored above the
appliance.

•

Only heat-resistant plates may be placed in the
drawer situated under the oven. Do not p ut

combustible materials there.

• Never use steam or high pressure steam cleaners to
clean the appliance.

Never line any

Service

• This appliance should only be repaired or serviced by
an authorised Service Engineer and only genuine
approved spare parts should be used.

Keep this instruction book for future

reference and ensure it is passed on to

any new owner.

These instruction are only valid in the

countries whose symbols appear on this

booklet’s cover.

2

Contents

For the User

Important Safety Information 2

Control Panel 4

Operation 5

Using the ceramic glass hob 6

Electric Oven 7

Before the First Use of the appliance 8

Electric Programmer 9

Using the Oven 11

Hints and tips for using the oven 12

Defrosting 12

Cooking Chart - Conventional and fan cooking 13

Cooking Chart - Grilling 14

Cooking Chart - Pizza 14

Cleaning the Ceramic Hob 15

Cleaning the Oven 16

Something not working 18

For the Installer

Instructions for the Installer 20

Technical data 20

Electrical connections 21

Service and Spare Parts 19

Environmental Information

• After installation, please dispose of the packaging
with due regard to safety and the environment.

• When disposing of an old appliance, make it unusable,
by cutting off the cable.

• The symbol on the product or on its packaging

indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where
you purchased the product.

Guide to Use the instructions

The following symbols will be found in the text to guide
you throughout the Instructions:

Safety Instructions

Step by step instructions for an operation

!

Hints and Tips

Environmental Information

This appliance is manufactured according to
the following EEC directives:
73/23 EEC - 90/683 EEC - 93/68 EEC ­89/336 EEC current edition.

3

Control Panel

654321 98

7

1. Front left cooking zone control knob

2. Back left cooking zone control knob

3. Back right cooking zone control knob

4. Front right cooking zone control knob

5. Electronic Programmer

6. Oven function control knob

7. Mains on Light

8. Oven Thermostat Pilot Light

9. Oven thermostat control knob

The Oven Cavity

Grill element

Oven Light

Storage Drawer

The storage drawer is located underneath the oven cavity.

During cooking the storage drawer may become
hot if the oven is on high for a long period of time,
therefore flammable materials such as oven gloves,
tea towels, plastic aprons etc. should not be
stored in the drawer.

Oven accessories such as baking sheets, will also
become hot, therefore care should be taken when
removing these items from the drawer whilst the
oven is in use or still hot.

Accessories

Dripping Pan

(x1)

Oven fan

Oven Shelf

(x2)

4

Operation

Push-Pull control knobs

Some models are provided with push-pull control knobs
(see picture). These knobs can be completely sunken
inside the control panel when the oven is not working.

Ceramic hob cooking zones

To switch on a cooking zone, turn the relevant control
knob clockwise to the required heat setting.
The control knob is numbered 0 - 9.

0 - OFF

9 - Maximum.

The hob has two types of cooking zones:

3 normal cooking zones (back left, back right
and front right)

We recommend the plates are switched to maximum (9)
for a short while to boost the cooking zone, and then
adjusted to the required setting.

1 double circuit cooking zone (front left)

The front left cooking zone has two heating elements.

- To switch on the smaller circular cooking zone, turn
the relevant control knob clockwise to the required
heat setting.

- To switch on both heating elements, turn the control
knob clockwise to maximum heat setting (9) then
turn the knob further to nearly reach the "0" symbol.
You will hear a "click" and the wider cooking zone
will switch on. Then turn back the knob to position 9

and adjust it to the required heat setting.
Please be aware that the two heating elements will now
operate together, giving a higher power output than a
normal cooking zone.

Control knob for normal cooking zone

Control knob for double circuit cooking zone

Residual heat indicators

The hob is fitted with four residual heat indicators
corresponding to each cooking zone. The corresponding
indicator will remain on until the temperature falls below
30°C, even after the cooking zone is switched off.

When a cooking zone is switched on, a short
buzzing may be heard. This is quite normal and
does not affect the hob operation in any way.

Mains on Light

The mains on light will come on when the oven function
control knob and/or the cooking zone control knobs are
set.

5

Using the ceramic glass hob

Ceramic glass surface

The glass is hard, and has been tempered to withstand
heat, cold and temperature shocks. But like all glass it
is sensitive to impact. Do not stand on the ceramic glass
surface.

If scratches or cracks are noticed, disconnect
the cooker from the electrical supply to avoid
the possibility of electric shock and call you
nearest Service Force Centre.

Keep all objects and materials which can melt
away from the cooking surface, e.g. plastics,
aluminium foil.

Care should be taken when preparing food or drinks
containing sugar. If anything of this nature
accidentally comes into contact with the ceramic
surface it must be scraped off immediately while
still hot and wiped away to avoid damage to the
surface.

Energy consumption

To save energy, you should:

- use only cooking and frying utensils with smooth, flat
bases.

- place pots and pans in position before switching on
the cooking zone.

- wherever possible, cover pots and pans with a lid.

- switch off the cooking zone a few minutes before the
end of the cooking time, in order to make use of the
residual heat.

- use the residual heat of the cooking zones for keeping
food warm or for melting.

- position pots and pans centrally on the cooking zones.

Saucepans and frying pans

Saucepans and frying pans should not be smaller than
the cooking zone, and preferably not more than 10-15
mm larger than the diameter of the cooking zone.

Always use cooking and frying utensils with smooth, flat
bases.

The bases should always be clean and dry. Cook with a
lid in place.

Check that the bases of utensils are smooth and
undamaged; bases with burrs and sharp edges will
scratch the ceramic glass surface.

To avoid scratching or damaging the ceramic cooking
surface, pots and pans should be moved on the plate by
lifting them, and not by sliding.

Utensils with aluminium and copper bases can leave
behind metallic discolourations which can only be
removed with difficulty or sometimes not at all.

Take care when frying food in hot oil or fat,
as the overheated splashes could easily
ignite.

6

Electric Oven

Oven Function and Thermostat
control knobs

They enable to select the most appropriate type of
heating for the different cooking requirements by
appropriately connecting the heating elements and
adjusting temperature to the required level.

Oven Light - The oven light will be on without any

cooking function

Conventional cooking - The heat comes from

both the top and bottom element, ensuring even
heating inside the oven.

Bottom heating element - The heat comes from

the bottom of the oven only.

Inner grill element only - can be used for grilling

small quantities.

Full Grill - The full grill element will be on.

Pizza - The bottom element provides direct heat to

the base of pizzas, quiches or pies, while the fan
ensures air is circulated tocook the pizza toppings
or pie fillings.

Fan cooking - This allows you to roast or roast and

bake simoultaneously using any shelf, without
flavour transference.

Defrost Setting - This setting is intended to assist

in thawing of frozen food.

Thermostat Control Knob

Turn the thermostat control knob clockwise to select
temperatures between 50°C and 230°C (MAX).

Thermostat Control Light

The thermostat control light will come on when the
thermostat control knob is turned. The light will remain on
until the correct temperature is reached. It will then cycle
on and off to show the temperature is being maintained.

Mains on Light

The mains on light will come on when the oven function
control knob and/or the cooking zone control knobs are
set.

7

The Safety Thermostat

This oven is provided with a safety thermostat. In case of
malfunctioning of the main thermostat, and consequential
over-heating, the safety device will stop the power supply
to the appliance. If this happens, call your local Service
Force Centre. Under no circumstances should you
attempt to repair the appliance yourself.

Before the First Use of the appliance

Remove all packaging, both inside and outside
the oven, before using the oven.

Before cooking for the first time, carefully wash
the oven accessories.

Before first use, the oven should be heated without food.
During this time, an unpleasant odour may be emitted.
This is quite normal.

The oven will work only if the time of day has

!!

!

!!

been set.

1. Set the time of day with the electronic programmer
(see chapter "Electronic Programmer").

2. Switch the oven function control knob to

conventional cooking .

3. Set the thermostat control knob to MAX.

4. Open a window for ventilation.

5. Allow the oven to run empty for approximately 45
minutes.

This procedure should be repeated with the full grill

function for approximately 5-10 minutes.

Once this operation is carried out, let the oven
cool down, then clean the oven cavity with a
soft cloth soaked in warm water to which a little
mild washing-up liquid has been added.

Using the ceramic hob for the
first time

The cooking surface should be cleaned before use to
remove any traces of the production process.

Wipe the ceramic surface and frame with a damp

!

cloth using warm water to which a little washing
up liquid has been added, and wipe dry.

Heating up for the first time

To check the cooking zones, briefly switch each

!

one on.

8

Electronic Programmer

4

1. Push button for selecting a function

5
6

7

8

123

The oven will only work if the time of day has been set.

However, the oven can also be operated without any programme.

2. Decreasing control button

3. Increasing control button

4. Display

5. “Cooking Duration” pilot lamp

6. “End of cooking” pilot lamp

7. “Minute minder” pilot lamp

8. “Time of day” pilot lamp

Setting the time of day

When the power supply is switched on, or after a power failure, the “Time of
day” pilot lamp will flash on the display.

To set the correct time of day:

1. Press button or .

2. After the setting is carried out, wait for 5 seconds: the “Time of day”

pilot lamp will go out and the display will show the set time. The
appliance is ready for use.

To reset the correct time of day:

1. Press button repeatedly to select the “Time of day” function. The

relevant pilot lamp will start flashing. Then proceed as described above.
The time of day can only be reset if no automatic function (cook duration

or end of cooking ) has been set.

“Cooking Duration” function

This function allows the oven to automatically switch off at the end of a
programmed cooking duration time. Place food in the oven, select a cooking
function and adjust the cooking temperature. Press button repeatedly to
select the “Cooking Duration” function. The relevant pilot lamp will start
flashing. Then, proceed as follows:

To set the duration time:

1. Press button or .

2. After the setting is carried out, wait for 5 seconds: the "Cooking Duration"

pilot lamp will come on and the display will revert to the time of day.

3. When cooking time is over, the oven will be switched off automatically
and an acoustic alarm will be heard, while the pilot lamp will start flashing.
Turn the oven function and the thermostat control knob to zero.
To switch off the acoustic alarm, press any button.
NOTE: turning the acoustic alarm off will reset the oven to manual, and
if the oven function and the thermostat knobs are not set to zero the
oven will start to heat again.

To cancel the duration time:

1. Press button repeatedly to select the “Cooking Duration” function.

The relevant pilot lamp will flash and the display will show the
remaining cooking time.

2. Press button until the display shows “0:00”. After 5 seconds the
pilot lamp will go out and the display will revert to the time of day.

9

“End of cooking” function

With this function, you can set the oven to switch off automatically when a
programmed end of cooking time is over. Place food in the oven, select a cooking
function and adjust the cooking temperature. Press button repeatedly to select
the “End of cooking” function. The relevant pilot lamp will start flashing. Then,
proceed as follows:

To set the End of cooking time:

1. Press button or .

2. After the setting is carried out, wait for 5 seconds: the “End of cooking” pilot

lamp will come on and the display will revert to the time of day.

3. When cooking time is over, the oven will be switched off automatically and an
acoustic alarm will be heard, and the pilot lamp will start flashing. Turn the
oven function and the thermostat control knob to zero.
To switch off the acoustic alarm, press any button. NOTE: turning the acoustic
alarm off will reset the oven to manual, and if the oven function and the
thermostat knobs are not set to zero the oven will start to heat again.

To cancel the End of cooking time:

1. Press button repeatedly to select the “End of cooking” function. The

relevant pilot lamp will flash and the display will show the programmed
End of cooking time.

2. Press button until the display shows the current time of day. The
programmer will beep and the pilot lamp will go out.

“Cooking duration” and “End of cooking
time” combined

The functions “Cooking duration” and “End of cooking time” can be used

simultaneously to set the oven to switch on and off automatically at a later time.

1. With the “Cooking duration” function (carry out the cooking duration setting
as described in the relevant chapter) set the duration time. Then, press button

: the display will show the programmed setting.

2. With the “End of cooking time” function (carry out the End of cooking
setting as described in the relevant chapter) set the end of cooking time.
The relevant pilot lamps will come on and the display will show the time of
day. The oven will switch on and off according to the set programmes.

“Minute minder” function

The minute minder alarm will sound at the end of a timed period, but THE OVEN
WILL REMAIN ON, if it is in use.

To set the minute minder:

1. Press button repeatedly to select the “Minute minder” function. The relevant

pilot lamp will start flashing.

2. Then, press button or (maximum: 2 hours, 30 minutes).

3. After the setting is carried out, wait for 5 seconds: the “Minute minder” pilot

lamp will come on.

4. At the end of the timed period, the pilot lamp will start flashing and an acoustic
alarm will be heard. To switch off the acoustic alarm, press any button.

To cancel the minute minder:

1. Press button repeatedly to select the “Minute minder” function. The relevant

pilot lamp will flash and the display will show the remaining time.

2. Press button until the display shows “0:00”. After 5 seconds the pilot
lamp will go out and the display will revert to the time of day.

How to switch off the display

1. Press two or three programmer push buttons simoultaneously and keep them

pressed for about 5 seconds. The display will switch off.

2. To switch on the display, press any button.

The display can be switched off only if no other functions have been
set.

10

Using the Oven

Always cook with the oven door closed.

Stand clear when opening the drop down oven
door. Do not allow it to fall open - support the
door using the door handle, until it is fully open.

The oven has four shelf levels, and is supplied
with two shelves. The shelf positions are counted
from the bottom of the oven as shown in the
diagram.

It is important that these shelves are correctly
positioned as shown in the diagram.

Do not place cookware directly on the oven
base.

Attention! - Do not place objects on the oven base

and do not cover any part of the oven with
aluminium foil while cooking, as this could cause
a heat build-up which would affect the baking
results and damage the oven enamel. Always
place pans, heat-resisting pans and aluminium
trays on the shelf which has been inserted in the
shelf runners.

4

3

2

1

Carefully supervise cooking with fat or oil, since
these types of foodstuff can result in a fire, if over­heated. For the same reason, be careful when
placing or removing food in the oven, not to let any
fat or oil fall on the oven base. If this happens,
carefully clean the oven to avoid unpleasant smells
or smoke.

Condensation and Steam

The oven is supplied with an exclusive system which
produces a natural circulation of air and the constant
recycling of steam. This system makes it possible
to cook in a steamy environment and keep the
dishes soft inside and crusty outside. Moreover,
the cooking time and energy consumption are
reduced to a minimum. During cooking steam may
be produced which can be released when opening
the oven door. This is absolutely normal.

However, always stand back from the oven
when opening the oven door during
cooking or at the end of it to allow any
build up of steam or heat to release.

When food is heated, it produces steam in the
same way as a boiling kettle does. When
steam comes in contact of the oven door
glass, it will condense and produce water
droplets.

To reduce condensation, ensure the oven is
well heated before placing food in the oven
cavity. A short oven pre-heating (about 10
minutes) will then be necessary before any
cooking.

We recommend you to wipe away
condensation after each use of the appliance.

Cookware

• Use any oven proof cookware which will withstand
temperatures of 230 °C.

• Baking trays, oven dishes, etc. should not be placed
directly against the grid covering the fan at the back of
the oven, or placed on the oven base.

• Do not use baking trays larger than 30 cm x 35 cm (12
in x 14 in) as they will restrict the circulation of heat
and may affect performance.

The effects of dishes
on cooking results

Dishes and tins vary in their thickness, conductivity,
colour, etc. which affects the way they transmit heat to
the food inside them.
A Aluminium, earthenware, oven glassware and bright

shiny utensils reduce cooking and base browning.

B Enamelled cast iron, anodized aluminium, aluminium

with non-stick interior and coloured exterior and dark,
heavy utensils increase cooking and base browning.

11

Hints and tips for using the oven

Hints and Tips on Cooking
Fish and Meat

You can place meat in oven proof dishes, or directly on the
oven shelf. In this case, remember to place the drip tray
in the first position from the bottom with some water in it.
The dripping pan will avoid the falling of melted fat on the
oven base.
White meat, poultry and fish in general, need to be
cooked at a medium temperature (between 150 and 175
°C). If you need to cook red meat (slightly browned on the
outside and more gently cooked in the inside), a higher
temperature (between 200 and 230 °C) for a short time is
recommended.

Hints and Tips on baking

Cakes usually need to be cooked at a medium tempera­ture (between 150 and 200 °C).
A short oven pre-heating (about 10 minutes) is
recommeded when cooking cakes or baking. Once the
cooking has been started, keep the oven door closed
during all the cooking time, and check the cooking results
through the oven door glass.

Hints and Tips on grilling

If you need to grill meat or fish, place them directly on the
shelf after spreading a little oil on them.
In the grill function, heat comes only from the top element.
Therefore, you need to adjust the cooking level depending
on meat or fish's thickness.
Always remember to place the dripping pan in the lower
position with some water in it.

Defrosting

.

The oven fan operates without heat and circulates the
air, at room temperature, inside the oven. This increases
the speed of defrosting. However, please note that the
temperature of the kitchen will influence the speed of
defrosting.
This function is particularly suitable for delicate food which
could be damaged by heat, e.g. cream filled gateaux,
iced cakes, pastries, bread and other yeast products.

!

How to Use Defrosting

Hints and Tips

• Cover food with a lid, aluminium foil or plastic film to
prevent drying out during defrosting.

• ALWAYS COOK THOROUGHLY IMMEDIATELY
AFTER THAWING.

• Frozen food should be placed in a single layer when
ever possible and turned over half way through the
defrosting process.

• Only joints of meat and poultry up to 2 kg. (4 lb.) are
suitable for defrosting in this way.

Turn the oven function control knob to ans set the
thermostat control knob to OFFposition # .

12

Refer to the following table for approximate defrosting
times.

Cooking Chart

Cooking times do not include pre-heating time.
A short oven pre-heating (about 10 minutes) is necessary before any cooking.

Conventional and fan cooking

Traditional Cooking

Fan Oven

Cooking

time

TYPE OF DISH

Level

Weight (gr.)

CAKES

Whisked recipes
Shortbread dough
Butter-milk cheese cake
Apple cake 1 180 2 (1 and 3)* 170 40 ~ 60 In cake mould on the shelf
Strudel 2 175 2 150 60 ~ 80 In cake tin on the shelf
Jam-tart 2 175 2 (1 and 3)* 160 30 ~ 40 In cake mould on the shelf
Fruit cake 1 175 1 160 45 ~ 60 In cake mould
Sponge cake 1 175 2 160 30 ~ 40 In cake mould on the shelf
Christmas cake 1 170 1 160 40 ~ 60 In cake mould on the shelf
Plum cake 1 170 1 160 50 ~ 60 In cake mould on the shelf

PASTRIES

Small cakes 2 170 2 (1 and 3)* 160 25 ~ 35 In baking tray
Biscuits 3 190 3 170 15 ~ 25 In baking tray
Meringues 2 100 2 100 90 ~ 120 In baking tray
Buns 2 190 2 180 12 ~ 20 In baking tray
Pastry: Choux 2 200 2 (1 and 3)* 190 15 ~ 25 In baking tray

BREAD AND PIZZA

1000 White bread 1 190 2 180 40 ~ 60 2 pieces in baking tray

500 Rye bread 1 190 1 180 30 ~ 45 In bread pan on the grid
500 Bread rolls 2 200 2 175 20 ~ 35 6-8 rolls in baking tray
250 Pizza 1 200 2 (1 and 3)* 190 15 ~ 30 On baking trayon the grid

FLANS

Pasta flan 2 200 2 (1 and 3)* 175 40 ~ 50 In mould on the shelf
Vegetable flan 2 200 2 (1 and 3)* 175 45 ~ 60 In mould on the shelf
Quiches 1 200 2 (1 and 3)* 180 35 ~ 45 In mould on the shelf
Lasagne 2 180 2 160 45 ~ 65 In mould on the shelf
Cannelloni 2 200 2 175 40 ~ 55 In mould on the shelf

MEAT

1000 Beef 2 190 2 175 50 ~ 70 On shelf and dripping pan
1200 Pork 2 180 2 175 100 ~ 130 On shelf and dripping pan
1000 Veal 2 190 2 175 90 ~ 120 On shelf and dripping pan
1500
1500 rare 2 210 2 200 50 ~ 60 On grid and dripping pan
1500 medium 2 210 2 200 60 ~ 70 On grid and dripping pan
1500 well done 2 210 2 200 70 ~ 80 On grid and dripping pan
2000 Shoulder of pork 2 180 2 170 120 ~ 150 With rind-in dripping pan
1200 Shin of pork 2 180 2 160 100 ~ 120 2 pieces-in dripping pan
1200 Lamb 2 190 2 175 110 ~ 130 Leg-in dripping pan
1000 Chicken 2 190 2 175 60 ~ 80 Whole-in dripping pan
4000 Turkey 2 180 2 160 210 ~ 240 Whole-in dripping pan
1500 Duck 2 175 2 160 120 ~ 150 Whole-in dripping pan
3000 Goose 2 175 2 160 150 ~ 200 Whole-in dripping pan
1200 Rabbit 2 190 2 175 60 ~ 80 Cut in pieces
1500 Hare 2 190 2 175 150 ~ 200 Cut in pieces

800 Pheasant 2 190 2 175 90 ~ 120 Whole

1200 Trout/Sea bream 2 190 2 (1 and 3)* 175 30 ~ 40 3-4 fishes
1500 Tuna fish/Salmon 2 190 2 (1 and 3)* 175 25 ~ 35 4-6 fillets

English roast beef

FISH

2 170 2 160 45 ~ 60 In cake mould on the shelf
2 170 2 (1 and 3)* 160 20 ~ 30 In cake mould on the shelf
1 160 2 150 60 ~ 80 In cake mould on the shelf

4
3
2
1

temp.

°C

Level

temp.

4
3

°C

2
1

minutes

NOTES

(*) If you need to cook more than one dish at the same time, we recommend you to place them on the levels quoted
between brackets.
If you wish to cook more than one dish at the same time, we suggest that you change the cooking levels of your dishes
during the last 5-10 minutes in order to obtain a more uniform colour of your dishes.

13

Cooking times do not include pre-heating time.
A short oven pre-heating (about 10 minutes) is necessary before any cooking.

Grilling -

Cooking time

(minutes)

Upper

side

Lower

side

TYPE OF DISH

Fillet steaks

Quantity

Pieces Weight

Level

4
3
2
1

Temperature

°C

4 800 3 max 12 ~ 15 12 ~ 14
Beef-steaks 4 600 3 max 10 ~ 12 6 ~ 8
Sausages 8 — 3 max 12 ~ 15 10 ~ 12
Pork chops 4 600 3 max 12 ~ 16 12 ~ 14
Chicken (cut in two) 2 1000 3 max 30 ~ 35 25 ~ 30
Kebabs 4 — 3 max 10 ~ 15 10 ~ 12
Chicken (breast) 4 400 3 max 12 ~ 15 12 ~ 14
Hamburger 6 600 3 max 10 ~ 15 8 ~ 10
Fish (fillets) 4 400 3 max 12 ~ 14 10 ~ 12
Sandwiches 4-6 — 3 max 3 ~ 7 —
Toast 4-6 — 3 max 2 ~ 4 2 ~ 3

Pizza

Cooking

time

minutes

NOTES

TYPE OF DISH

Weight (gr.)

Level

4
3
2
1

Temperature

°C

700 Pizza, large 1 200 15 ~ 25 in baking tray
500 Pizza, small 1 200 10 ~ 20 in mould on the shelf
500 Flat cake 1 200 15 ~ 25 in baking tray

The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the
temperatures to suit individual preferences and requirements.

14

Cleaning the Ceramic Hob

Before any maintenance or cleaning can be carried
out, you must DISCONNECT the cooker from the
electricity supply.

Never use steam or high pressure steam cleaners
to clean the appliance.

Before cleaning, make sure the hob is cool.
Never use aggressive or abrasive agents, such as oven
sprays, stain or rust removers, scouring powders, or
sponges with an abrasive effect.
Special cleaning agents such as Hob Brite and ceramic
hob scrapers are available from your local Service Force
Centre.

Cleaning after each use

Slight, non-burnt soilage can be wiped off with a damp
cloth. Burnt soilage has to be removed with a scraper.
Afterwards wipe off the ceramic hob with a damp cloth,
and Hob Brite.

Special problems

Stain removal

Light metallic stains (aluminium residues) can be removed
from the cooking zone with a ceramic hob cleaning agent
such as Hob Brite when cool.
Sugar solutions, food stuffs with a high sugar content
must be removed immediately with a scraper. If this type
of soilage is not removed immediately it can cause
irreparable damage to the ceramic surface. When the
surface has cooled wipe over with a damp cloth and Hob
Brite.
Before using any detergent or cleaning agent on the
ceramic top, ensure they are recommended by the
manufacturer for use on ceramic hobs.
Do not apply any cleaning agents to hot cooking zones.
Ensure any residues are wiped off before the cooking
zones are used again.

If a chemical cleaner proves inadequate Check whether the use of a scraper is more effective.

• when darks stains occur If the use of a scraper and a ceramic hob cleaner proves

unsuccessful, your hob surface may have been damaged by
using unsuitable cleaning agents, or by pan bases with a
scouring effect. This will not impair the efficiency of your
ceramic hob.

• when metallic discolourations appear on Pots and pans with unsuitable bottoms, or unsuitable cleaning

the cooking zone agents have been used. The discolourations can only be

removed with considerable effort, using a ceramic glass
cleaner.

• when the surface shows scratches These may be caused by scraping or melted on objects and

cannot be removed. This will not impair the efficiency of your
ceramic hob

15

Cleaning the Oven

The oven should be kept clean at all times. A
build-up of fats or other foodstuffs could result in
a fire, especially in the grill pan.

Cleaning materials

Before using any cleaning materials on your oven, check
that they are suitable and that their use is recommended
by the manufacturer.
Cleaners that contain bleach should NOT be used as
they may dull the surface finishes. Harsh abrasives should
also be avoided.

• Never use steam or steam machines to clean the
appliance.

External cleaning

Regularly wipe over the control panel, oven door and door
seal using a soft cloth well wrung out in warm water to
which a little washing up liquid has been added.

To prevent damaging or weakening the door glass
panels avoid the use of the following:

• Household detergent and bleaches

• Impregnated pads unsuitable for non-stick
saucepans

• Brillo/Ajax pads or steel wool pads

• Chemical oven pads or aerosols

• Rust removers

• Bath/Sink stain removers

Clean the outer and inner door glass using warm soapy
water. Should the inner door glass become heavily soiled
it is recommended that a cleaning product such as Hob
Brite, or Bar Keepers Friend is used.

Oven lamp replacement

Disconnect the appliance from the electricity
supply.

If the oven bulb needs replacing, it must comply with
the following specifications: electric power, 15 W/25 W;
electric rate, 230 V (50 Hz); resistant to temperatures
of 300°C; connection type: E14. These bulbs are
available from your local Service Force Centre.

To replace the faulty bulb:

!

1. Ensure the oven is disconnected from the electrical
supply.

2. Turn the glass cover anticlockwise.

3. Remove the faulty bulb and replace it with the new
one.

4. Refit the glass cover.

5. Reconnect to the electrical supply.

16

Oven Cavity

The enamelled oven cavity is best cleaned whilst the
oven is still warm.
Wipe the oven over with a soft cloth soaked in warm
soapy water after each use. From time to time it will be
necessary to do a more thorough cleaning, using a
proprietary oven cleaner.

Oven Shelves

To clean the oven shelves, soak in warm soapy water
and remove stubborn marks with a well wetted soap
impregnated pad. Rinse well and dry with a soft cloth.

The Oven Door and its gasket

Before cleaning the oven door, we recommend you to
remove it from the oven.

Proceed as follows:

1. open the oven door completely;

2. find the hinges linking the door to the oven (see

picture 1);

3. unlock and turn the small levers located on the two
hinges (see picture 2);

4. handle the door by its left- and right-hand sides,
then slowly turn it towards the oven until it is half­closed (see picture 3);

5. gently pull the oven door off its site (see picture 3);

6. place it on a steady plan;

1

Clean the oven door glass with warm soapy water and a
softh cloth only. Never use harsh abrasives.
Once the cleaning is carried out, refit the oven door,
following the procedure in reverse.

DO NOT clean the oven door while the glass
panels are warm. If this precaution is not observed
the glass panel may shatter.
If the door glass panel becomes chipped or has
deep scratches, the glass will be weakened and
must be replaced to prevent the possibility of the
panel shattering. Contact your local Service Centre
who will be pleased to advise further.

Models in stainless steel or aluminium:

We recommend to clean the oven door using only a wet
sponge and dry it up after cleaning with a soft cloth.
Never use steel wool, acids or abrasive products as they
can damage the oven surface.
Clean the oven control panel following the same
precautions.

The correct operation of the oven is ensured by a gasket
placed round the edge of the oven cavity.

2

3

• Periodically check the condition of this gasket. If
necessary, clean it without using abrasive cleaning
products.

•

If the gasket shows to be damaged, call you local
Service Centre. Do not use the oven until it has been
repaired.

17

Something not working

If the appliance is not working correctly, please carry out the following checks, before contacting your local Service
Force Centre.
IMPORTANT:
a charge will be made even if the appliance is under guarantee.

If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation,

SYMPTOM

!!

The cooker does not operate.

!

!!

!!

! The ceramic hob is not giving satisfactory results.

!!

!!

! The oven does not come on.

!!

!!

! The oven light does not come on.

!!

!!

! It takes too long to finish the dishes, or they are

!!

cooked too fast.

SOLUTION

""

Check that the unit is plugged in and the electrical

"

""

supply is switched on.

""

" Check the mains fuse has not blown.

""
""

" Check the correct control knob has been turned.

""

""

" Check the cooking pan is the correct size for the

""

cooking zone.

""

" Check the cooking pan has a flat base.

""
""

" Check the setting is correct for the type of cooking.

""

""

" Check that a cooking function has been selected.

""
""

" Check that the time of day has ben set (see

""

chapter "Setting the time of day").

""

" Check that the socket switch or the switch from the

""

mains supply to the cooker are ON.

""

" Select a function with the oven function control

""

knob.

""

" Check the light bulb, and replace it if necessary

""

(see "Oven Lamp replacement").

""

" The temperature may need adjusting.

""

!!

! Steam and condensation settle on the food and the

!!

oven cavity.

!!

! The oven fan is noisy.

!!

!!

! The display shows "12.00".

!!

If after all these checks, the cooker still does not work, contact your local Service Force Centre.

""

" Refer to the contents of this booklet, especially to

""

the chapter “Using the Oven”.

""

" Leave dishes inside the oven no longer than 15-20

""

minutes after the cooking is completed.

""

" Check that shelves and bakeware are not vibrating

""

in contact with the oven back panel.

""

" Set the time of day (see chapter "Setting the time of

""

day").

18

Service and Spare Parts

If after the checks listed in the previous chapter, the
appliance still does not work correctly, contact your
locals Service Centre, specifying the type of
malfunctioning, the appliance model (Mod.), the product
number (Prod. No.) and the serial number (Ser. No.)
marked on the identification plate.
This plate is placed on the front external edge of the oven
cavity.

Original spareparts, certified by the
product manufacturer and carrying
this symbol are only available at our
Service Centre and authorized
spareparts shops.

19

Instructions for the Installer

Technical Data

Appliance Class 2 sub class 1 and Class 1

Dimensions

Height 850 mm

Depth 600 mm

Width 600 mm

Oven Capacity 53 l

Ceramic Hob

Front left cooking zone 1,700 W / Ø180 mm-110 mm

Back left cooking zone 1,200 W / Ø145 mm

Back right cooking zone 1,700 W / Ø180 mm

Front right cooking zone 1,200 W / Ø145 mm

Total rating 5,800 W

Oven

Bottom heating element 1,000 W

Oven elements 1,800 W

Inner Grill Element 1,650 W

Full Grill Element 2,450 W

Convection heating element 2,000 W

Pizza 2,675 W

Convection fan 25 W

Oven light 25 W

Total rating 2,700 W

Supply voltage (50 Hz) 230 V

Total cooker rating (hob + oven) 8,500 W

Supply voltage (50 Hz) 230 V/400 V 3N~

The following instructions are meant for a qualified
installer, in order that the operations of installation,
regulation, and service are executed according to the
existing regulations.
Whenever changes are mode involving the disconnection
of the machine it is necessary to proceed with maximum
caution.

THE MANUFACTURING COMPANY DECLINES
ANY RESPONSABILITY FOR POSSIBLE
DAMAGES
RESULTING FROM AN INSTALLATION WHICH
DOESN'T COMPLY WITH THE RULES IN FORCE

Installation environnement

Installation and maintenance must be carried out by a
qualified technician, in compliance with rules in force.
The electric coonection must be carried out in
compliance rules in force.

Our responsability will not be involved in case of
accidents caused by a defective or non existent
earth connection.

Levelling

The appliance is provided with adjustable small feet
placed in the back and front corners od the base.
By adjusting the small feet it is possible to change the
height of the appliance so as to ensure a better levelling
with other surfaces and a uniform distribution of the
liquids contained in pans or pots.

Positioning

The appliance has been designed to be placed between
two furniture units whose height does not exceed the
cooker's plate height.

20

Electrical connection

Prior to making the electric al connection, make sure
that:

- The protection fuse and the domestic wire system
are suitable to carry the total electric load of the oven
(see rating plate).

- Your domestic wiring system has an efficient earth
connection in compliance with the rules and laws in
force.

- The wall socket or the omnipole switch used for the
electrical connection can easily be reached after the
oven is built in.

The appliance is delivered without an electric supply cable,
therefore, you will have to fit to it a supply cable with
standard plug, suitable for the total electric load shown
on the rating plate.
The plug is to be inserted into a suitable wall socket.
If you require a direct connection to the electric network
(mains), it will be necessary to fit between the appliance
and the mains an omnipole switch, aith a minimum gap
between contacts of 3 mm. suitable for the required load
and in compliance with rules in force. The green 1 yellow
ground wire must not be interrupted by the switch.
The supply cable must in all cases be laid out in such a
way as to ensure that it does not reach at any given
point a temperature 50°C higher than the ambient tem­perature.
The manufacturer disclaims any liability in case these
accident-preventing rules are not observed.
Suitable power supply cables are the following types,
considering the respective necessary section of cable.

Connecting the terminal board

The appliance incorporates an easily accessible 6-pole
terminal board whose jumpers (bridges) are already pre­set for operation on 400 V three-phase with neutral wire.
In case where different mains voltage is present, the
jumpers on the terminal board must be arranged as shown
in the diagram.

The ground cable must be connected to terminal .
After connecting the supply cable to the terminal board,
secure it with a junction clamp.

1 2 3 4 5

230V 3~

L1 L2 L3 PE

Section
of cable

(min.)

4 x 1.5 mm

2

• H07 RN-F

• H05 RN-F

• H05 RR-F

• H05 VV-F

• H05 V2V2-F (T90)

230V 1~

400V 2N~

400V 3N~

1 2 3 4 5

L1 N PE

1 2 3 4 5

L1 L2 N PE

1 2 3 4 5

L1 L2 L3 N PE

Section
of cable

(min.)

3 x 2.5 mm

Section
of cable

(min.)

4 x 2.5 mm

Section
of cable

(min.)

5 x 1.5 mm

2

2

2

21
