INSTRUCTION BOOKLET

Electric cooker with ceramic hob

Important Safety Information

You MUST read these warnings carefully before installing or using the cooker.

Installation

● This cooker must be installed by qualified

personnel, according to the manufacturer’s instructions and to the rules in force.

• This cooker is heavy. Take care when moving it.

● Remove all packaging before using the cooker.

● Ensure that the electrical supply complies with the

type stated on the rating plate.

● Do not attempt to modify the cooker in any way.

Child Safety

● This cooker is designed to be operated by adults.

Do not allow children to play near or with the cooker.

● The cooker gets hot when it is in use. Children

should be kept away until it has cooled.

● Children can also injure themselves by pulling

pans or pots off the cooker.

● Never leave the cooker unattended when cooking

with oil and fats.

● The ceramic hob is shockproof, but not

unbreakable! Hard or pointed objects falling from a height can damage the hob. If scratches or cracks are noticed, disconnect the cooker from the electrical supply and call you nearest Service Force Centre.

● This cooker should be kept clean at all times. A

build-up of fats or foodstuffs could result in a fire.

● Never use plastic dishes in the oven.

Never line

any part of the oven with aluminium foil.

● Always ensure that the oven vent which is located

at the centre back of the hob is left unobstructed to ensure ventilation of the oven cavity.

● Perishable food, plastic items and areosols may be

affected by heat and should not be stored above the cooker.

During Use

● This cooker is intended for domestic cooking only.

It is not designed for commercial or industrial purposes.

● Do not use this cooker if it is in contact with

water. Do not operate the cooker with wet hands.

● Ensure the control knobs are in the ‘OFF’ position

when not in use.

● When using other electrical appliances, ensure the

cable does not come into contact with the hot surfaces of the cooker.

● Never use the ceramic hob as a working space. Do

not store things on the ceramic hob.

● Never use plastic or aluminium foil dishes on the

ceramic hob.

● Unstable or misshapen pans should not be used on

the ceramic hob as unstable pans can cause an accident by tipping or spillage.

Service

● This cooker should only be repaired or serviced by

an authorised Service Engineer and only genuine approved spare parts should be used.

Environmental Information

● After installation, please dispose of the packaging

with due regard to safety and the environment.

● When disposing of an old appliance, make it

unusable, by cutting off the cable.

Keep this instruction book for future

reference and ensure it is passed on

to any new owner.

Contents

For the User

Important Safety Information .............. 2

Control Panel ...................................... 4

The Oven Cavity..................................... 4

Operation ............................................ 5

24 Hour Clock and Timer .................... 7

Before the First Use of the Cooker ....... 9

Using the Oven .................................... 9

Cooking Chart ...................................... 11

Using the Conventional Oven ............ 11

Using the Fan Oven ........................... 12

Roasting Chart ..................................... 13

Cooking Chart ...................................... 13

Defrosting ......................................... 15

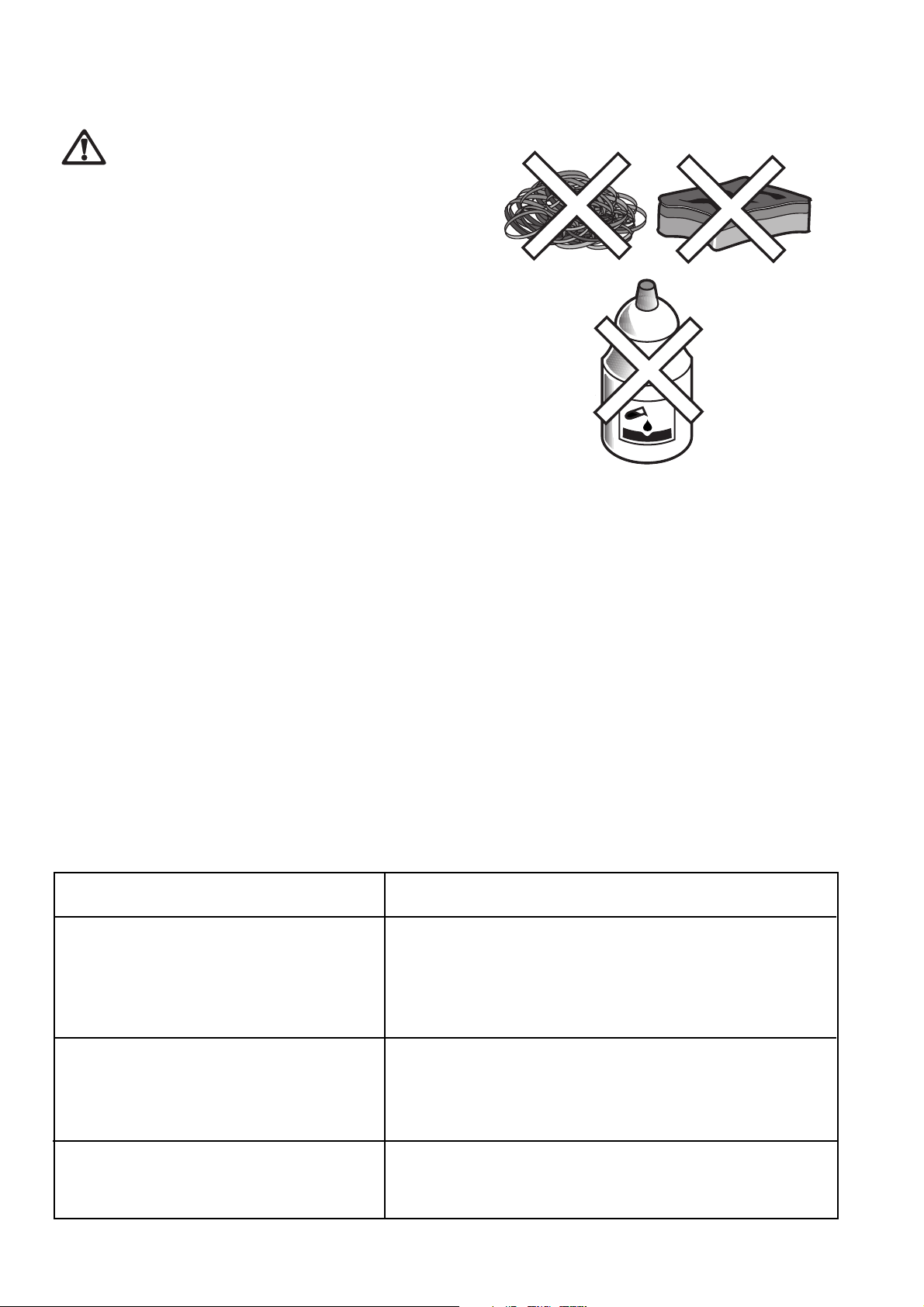

Cleaning the Ceramic Hob ................. 17

For the Installer

Important Safety Requirements......... 22

Instructions for the Installer ............. 22

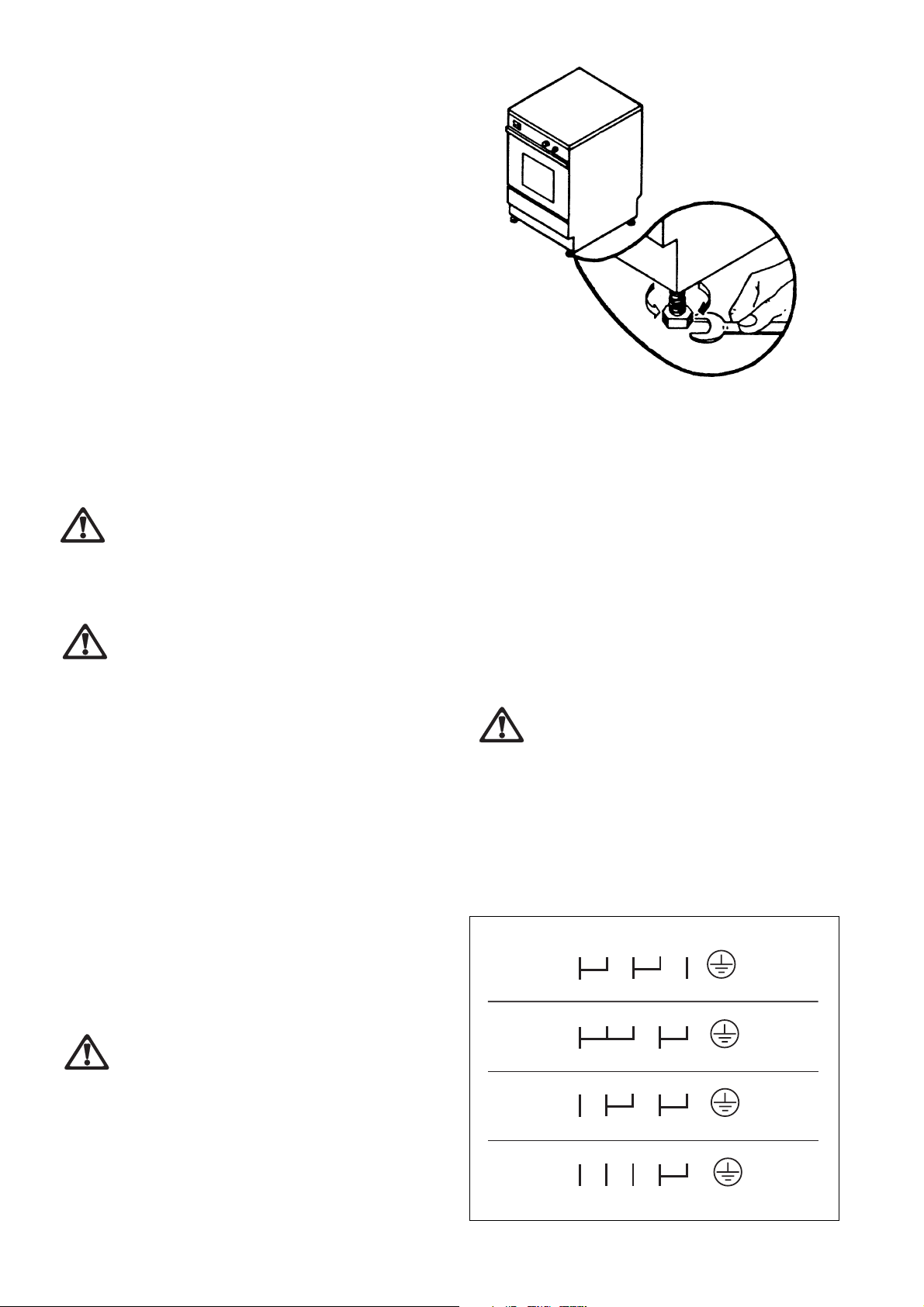

Electrical connections ....................... 23

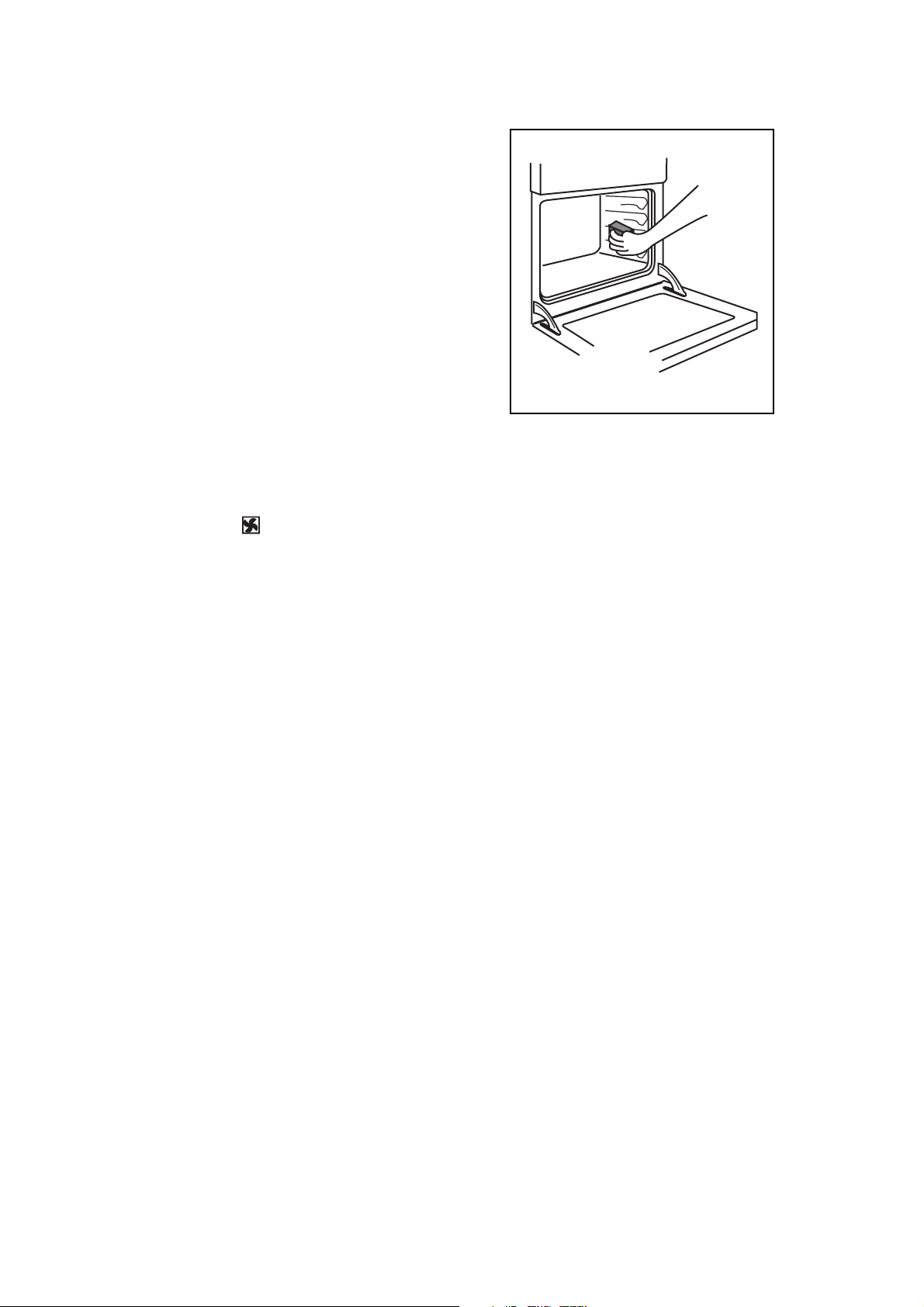

Cleaning the Oven ............................. 18

If something goes wrong .................... 21

Guide to Use the instructions

The following symbols will be found in the text to guide you throughout the Instructions:

Safety Instructions

☞

Step by step instructions for an operation

Hints and Tips

This appliance is manufactured according to the following EEC directives: 73/23 EEC - 90/683 EEC - 93/68 EEC 89/336 EEC current edition.

Oven Door Protection Device

All our appliances comply with the European safety standards. Nevertheless, in order to ensure the highest safety level, and avoid little children to be exposed to the heat when the appliance is operated, it is possible to fit a special ptotection device to the oven door. This device can be purchased in our Service Force Centres, specifying the relevant code (35791) and the Product No. shown on the rating plate.

Control Panel

1. Oven Thermostat Pilot Light

2. Cooker Operation Pilot Light

3. Front left cooking zone control knob

4. Back left cooking zone control knob

5. Back right cooking zone control knob

6. Front right cooking zone control knob

7. Oven function control knob

8. Oven thermostat control knob

9. 24 hour clock and Programmer

010

510

87654

The Oven Cavity

Grill element

Oven fan

Oven Light

Operation

Ceramic hob cooking zones

To switch on a cooking zone, turn the relevant control knob clockwise to the required heat setting.

The control knob is numbered 0 - 3 0 - OFF 3 - Maximum. The hob has two types of cooking zones:

3 normal cooking zones

We recommend the plates are switched to maximum (3) for a short while to boost the cooking zone, and then adjusted to the required setting.

1 double circuit cooking zone (back right)

The back right cooking zone has two heating elements.

To switch on the smaller circular cooking zone, turn the relevant control knob clockwise to the required heat setting.

To switch on both heating elements, turn the control knob clockwise to maximum heat setting (3) then turn the knob further to nearly reach the "0" symbol. You will hear a "click" and the wider cooking zone will switch on. Then turn back the knob to position 3 and adjust it to the required heat setting. Please consider that the two heating elements will now operate together, giving a higher power output than a normal cooking zone.

If scratches or cracks are noticed, disconnect the cooker from the electrical supply and call you nearest Service Force Centre.

Keep all objects and materials which can melt away from the cooking surface, e.g. plastics, aluminium foil.

Care should be taken when preparing food or drinks containing sugar. If anything of this nature accidentally comes into contact with the ceramic surface it must be scraped off immediately while stlll hot and wiped away to avoid damage to the surface.

Suggestions for the correct setting of the cooking zones are given in the following table.

OFF 0

Very Gentle • Simmering vegetables

Fish in its own juice

Gentle 1 Simmering potatoes or soups

Slow • Boiling large quantities

of food, stews and soups

Medium 2 Slow frying, making a roux

High • Fast frying of meat or fish

Fast 3 Rapid heating up of fat or water

Residual heat indicators

The hob is fitted with four residual heat indicators corresponding to each cooking zone.

The corresponding indicator will remain on until the temperature falls below 30° C, even after the cooking zone is switched off.

When switch on a cooking zone, a short

buzzing may be heard. This is quite normal and does not affect the hob operation in any way.

Energy consumption

To save energy, you should . .

- use only cooking and frying utensils with smooth, flat bottoms.

- place pots and pans in position before switching on the cooking zone.

- wherever possible, cover pots and pans with a lid.

- switch off the cooklng zone a few minutes before the end of the cooking time, in order to make use of the residual heat.

- use the residual heat of the cooking zones for keeping food warm or for melting.

- position pots and pans centrally on the cooking zones.

Saucepans and frying pans

Saucepans and frying pans should not be smaller than the cooking zone, and preferably not more than 10-15 mm larger than the diameter of the cooking zone. Always use cooking and frying utensils with smooth, flat bottoms. The bottoms should always be clean and dry. Cook with a lid in place. Check that the bases of utensils are smooth and undamaged; bases with burrs and sharp edges will scratch the ceramic glass surface. To avoid scratching or damaging the ceramic cooking surface, pots and pans should be moved on the plate by lifting them, and not by sliding. Utensils with aluminium and copper bases can leave behind metallic discolorations which can only be removed with difficulty or sometimes not at all.

Electric Oven

Oven Function Control Knob

Conventional cooking - The heat comes from both the top and bottom element, ensuring even heating inside the oven. Grill - The heat comes only from the top element. Bottom heating element - The heat comes from the bottom of the oven only. Fan cooking - This allows you to roast or roast and bake simoultaneously using any shelf, without flavour transference. Defrost Setting - This setting is intended to assist in thawing of frozen food.

Thermostat Control Knob

Turn the thermostat control knob clockwise to select temperatures between 50°C and 250°C (MAX).

010

510

24 Hour Clock and Timer

1. ( - ) DECREASE CONTROL & TIMER SETTING BUTTON

2. ( + ) INCREASE CONTROL

( ) COOKPOT SYMBOL

1. SET THE TIME OF DAY

When the electricity supply is first switched ON, the display will flash 0.00. See Fig. 1.

Press buttons (1) and (2) together. The display will momentarili read 88.88. See Fig. 2. Release buttons,

0.00 will appear in the display as Fig. 3. Within 5

seconds press button (2), 12.00 will show in the

display as Fig. 4.

Within 5 seconds, press and hold either button (1) to decrease or button (2) to increase the time until the correct time of day on the 24 hour clock is reached, e.g. 14.30. See Fig. 5.

NOTE The increase and decrease control buttons operate slowly at first and then more rapidly. They should be pressed separately.

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

2. THE TIMER

IMPORTANT

The timer can be used to time a set cooking period. At the end of the cook time the timer will automatically switch off the oven if in use.

The timer gives an audible reminder at the end of any period of cooking up to 23 hours and 59 minutes.

T o set, press button (1) and the display will read

, see Fig. 6.

0 . 00

Release button (1) and press and hold button (2). The display will count up in one minute intervals until the interval to be timed is reached, e.g. 30 minutes, see Fig. 7. If necessary, press and hold button (1) to achieve the correct time interval.

The timer will begin to count down once set. At the end of the timed period, the timer will click, switching the oven OFF if in use.

An audible signal will sound for up to 2 minutes. The cookpot symbol will flash and the time of day

will show in the display. See Fig. 8. To stop the sound press button (1). The display will

stop flashing and show the time of day, e.g. 15.00. The cookpot symbol ( using the oven it will come on again once button (1) has been depressed. When cooking is complete remove food and turn OFF oven temperature control.

) will go out. See Fig. 9. If

Fig. 6

Fig. 7

Fig. 8

3. TO CANCEL THE TIMER

Press and release button (1). Then press and hold button (1) and the display will count down in one

minute intervals to button (1).

After a few seconds the cookpot symbol will flash and the time of day will show in the display. See Fig. 11

If the oven is in use this will switch OFF after a few seconds.

T o reset, press button (1) and (2) together. See Fig. 12.

4. THINGS TO NOTE

1. The time of day must be set before the oven will

operate. There will be a few seconds dealy before the oven switches on.

2. The timer function controls the main oven only

and will switch the oven OFF at the end of a timed period. This function is useful if you want to begin cooking now and have the oven switch OFF automatically.

3. If you have used the timer to time food cooking in

the oven you will need to reset the timer before the oven can operate again.

. See Fig. 10. Release

0 . 00

Fig. 9

Fig. 10

Fig. 11

Fig. 12
