CONTENTS
Instructions for the user Instructions for the installer
Warnings
Technical Features
Description of the appliance
Use of the appliance
Advice for use
Maintenance and clening
What to do if the appliance does not
work
Guarantee conditions
After sales service
Advice for safety
2
Installation
4
Specification nozzles
5
6
10
11
13
14
14
15
16
19
How to read the instruction book ?
The symbols bellow will guide you when reading
the instruction book
Safety instructions
Description of operations step by step
Advice and recommendation
Information environment protection
1
WARNINGS
It is very important that this instruction book
should be kept safety for future consultation.
If it should be sold or given to another
person, please ensure that the booklet goes
together with it, so that the new owner can
know the functions of the machine and also
be aware of the warnings.
This warnings has been given for your and
others safety.
• This appliance has been designed for
use by adults. Take care therefore, that
children do not attempt to play with it.
• When receiving the appliance, unpack it
on the spot. Check the general aspect of
the appliance.
• Your appliance is intended only for
normal household use. Never use it for
other purposes, as commercial or
industrial.
• It is dangerous to modify, or attempt to
modify, the characteristics of this
appliance.
• On first use, heat the oven empty in
order to eliminate the unpleasant smells
of the thermal insulation of the oven and
residual grease used in manufacturing.
- Lift the cover.
- Remove the accessories in the oven.
- Remove all type of stickers and plastic
protection.
- Heat the oven for about 45 min, knob on
maximum position. During this operation the
appliance with smoke, air the kitchen for
eliminating the swells and the smoke. The
accessories too, should be washed before
the first use.
The use of a gas cooking appliance
produces, heat and humidity in the room in
which it is installed. Ensure good ventilation
of the room keeping natural ventilation
openings clear or installing a mechanic
ventilating device.
An intensive and prolonged use of the
cooker could necessitate a supplementary
airing by opening the window, or a more
effective ventilation by increasing the
mechanical device power, if there is.
• In case you use electric appliances near
the cooker (for instance an electric mixer)
the cables should not come into touch
with the hot parts of the cooker or
fastened by the oven door of the cooker.
• Supervise when frying in oil or greys
(chips…), hot greys ran cause fires
easily.
• Unstable or deformed pans should not be
placed on the burners in order to avoid
accidents caused by upsetting or boiling
over.
• Never pule the appliance by the oven
handle. Beside the accessories in the
oven you can use only heat-proof pans
(see instructions of the manufacturers).
• Do not put products for cleaning or
inflammable material in the drawer (if
your cooker has one) or near the cooker.
• On the open oven door never put :
- heavy things,
- ensure that children do not climb up or
sit on it.
• Always use gloves to remove dishes from
oven or when you come close to the hot
elements of the cooker.
• Do not cover the bottom of the appliance
with aluminium foil, over heating causes
damaging of the enamel,
• Never use the dripping pan as roasting
tray,
• In order to avoid damage of knobs do not
have opened the oven door when it works
or it is still hot.
The flame of the burner has to be smooth.
Avoid draught. If the flame is not regular
clean the burner and if the anomaly persists
call your after sales service.
• After use of your gas cooker ensure that a
the knobs are on “Off” position.
2
• Do not leave anything (cloths, aluminium
foil, etc.) on the hob when using the
burners,
• Always clean the cover before closing,
• When the oven is in use the cover has to
be opened,
• Leave the oven and the hob cool before
closing otherwise the cover could
deteriorate,
• Never use propane bottle (cylinder) in
your kitchen or in a closed room,
• Do not allow children near the cooker
when it is in use, for avoiding touch of
hot surfaces, overturning of pots,
• Ensure that children do not handle the
knobs of the appliance,
• Before cleaning disconnect the
appliance and allow to cool,
• For reasons of good culinary results,
hygiene and safety this appliance must
always be kept clean, the fat sprinklers
could give off unpleasant smells,
• Clean your cooker after each use for
guaranteeing a right functioning,
• Never use steam or high pressure
appliances for cleaning the oven.

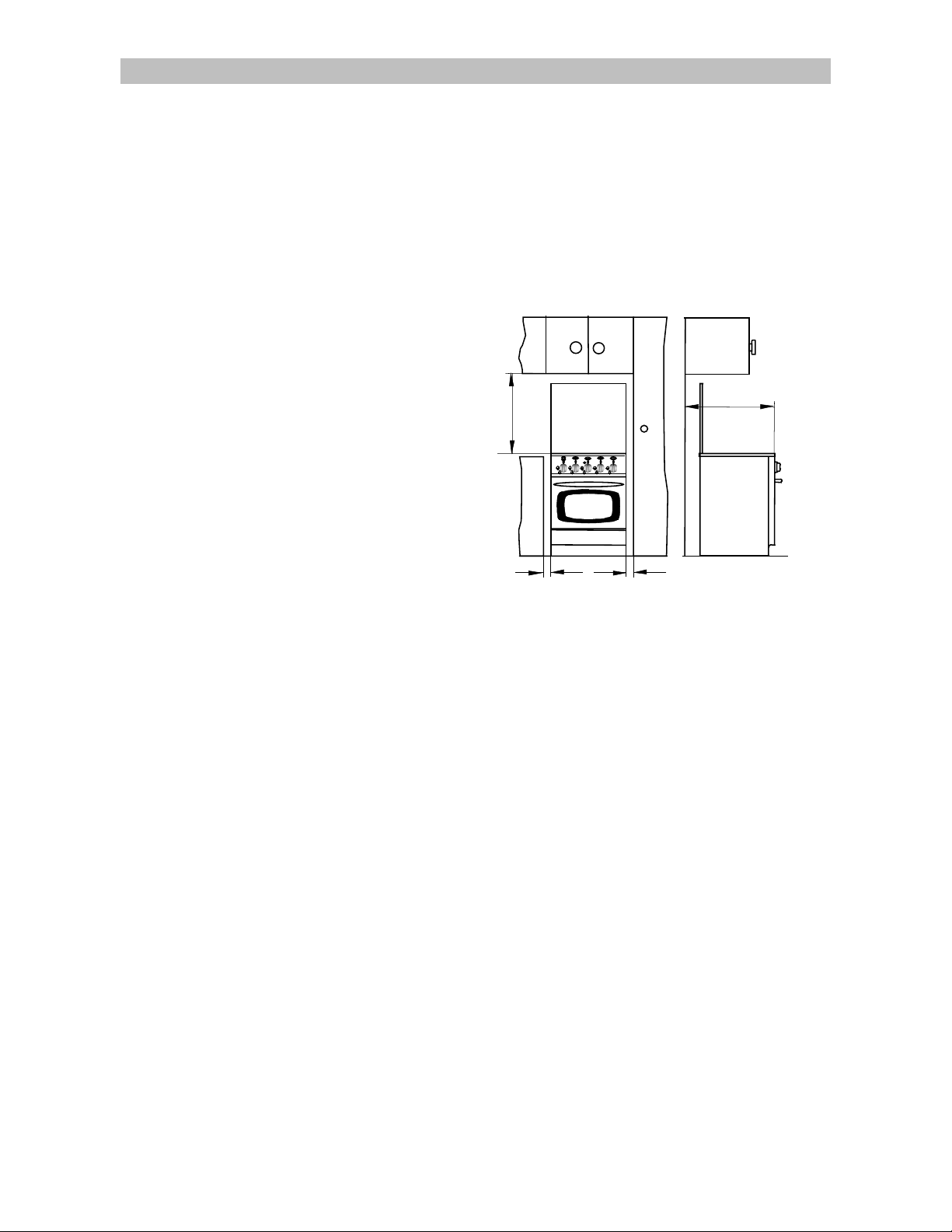

Installation
• The work of installation must be carried
out by a qualified installer.
• During installation or any intervention,
disconnect the appliance.
• The repairs have to be done only by after
sales qualified services.
• Non conforming repair could cause
serious damage.
• Before using and installing this
appliance, it is important to read carefully
all the instructions.
• Thank you for your attention.
We decline our responsibility for
possible damages resulting from bad
use and non-observing of safety rules in
force. Do observe strictly the cleaning
and maintenance instructions.
Environment protection
All materials marked by the symbol
recycling. Store them in places especially
foreseen for this purpose (inform yourself at
the services of your area) for recovery and
recycling.
In case of functioning anomalies it is the
after sales service of your dealer the first to
intervene. In case of moving to another
place, closing of the shop, contact the
nearest Consumers Service (Authorised
Services Center) who will give you the
address of an after sales service.
In case of intervention on your appliance
ask your after sales service only the
spare parts certified by the Manufacturer.
are
3
TECHNICAL FEATURES
Free standing Classe 1
Hob Cover
Pan support
Front right
Back right
Front left
Back left
Oven
Accessories
Dimensions Height
This appliance complies with the
following EEC Directives :
90/683 ; 73/23 (Low Voltage
Directive) and subsequent
modifications,
90/396 (Gas Appliance Directive)
93/68 (General Directives) and
subsequent modifications.
Oven
Over burner power

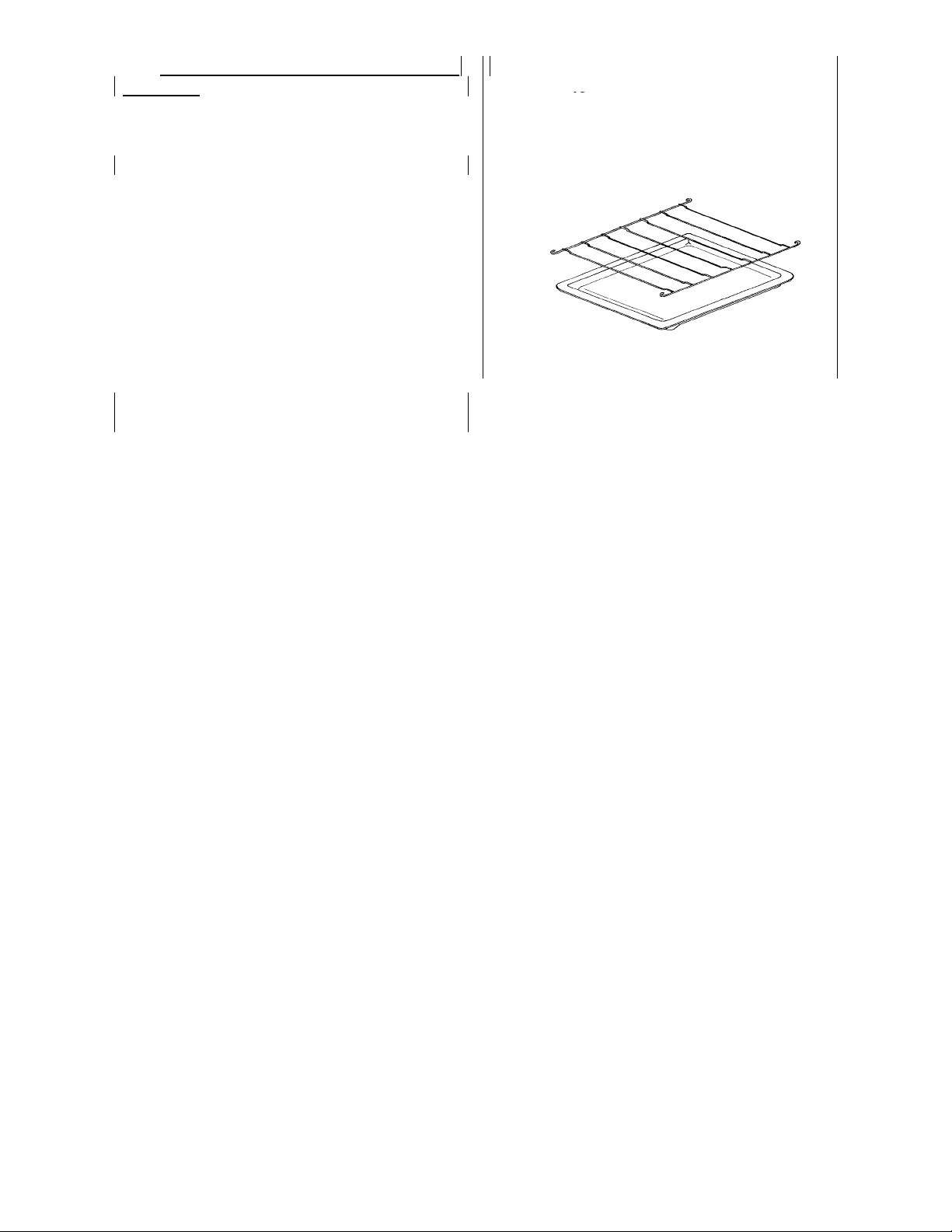

Oven grate - nickled steel
Roasting tray - enamelled steel
Breadth
Depth
Enamelled
Enamelled
Rapid
Auxiliary
Semirapid
Semirapid
2,6kW
1,0kW
2,0kW
2,0kW
gas
3,2 kW
840 mm
500 mm
500 mm
4
Control panel
DESCRIPTION OF THE APPLIANCE
Model : EK 5000
Hob
OVEN
BURNER
CONTROL
KNOB
OVEN
FRONT LEFT
CONTROL
BURNER
KNOB
2
BACK LEFT
BURNER
CONTROL
KNOB
2000W
GASGAS
1000W
BACK RIGHT
BURNER
CONTROL
KNOB
3
GAS GAS
FRONT RIGHT
BURNER
CONTROL
KNOB
EK 5000
1
2000W
1. Front left burner (semi-rapid)
2. Back left burner (semi-rapid)
4
2600W
3. Back right burner (auxiliary)
4. Front right burner (rapid)
5
