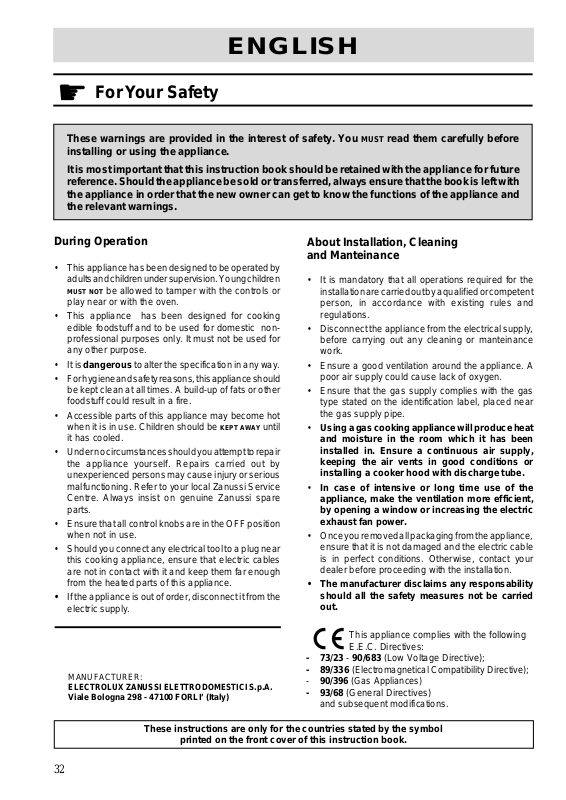

ENGLISH
For Your Safety
☛
These warnings are provided in the interest of safety. You MUST read them carefully before
installing or using the appliance.
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred, always ensure that the book is left with
the appliance in order that the new owner can get to know the functions of the appliance and
the relevant warnings.
During Operation
• This appliance has been designed to be operated by
adults and children under supervision. Young children
MUST NOT be allowed to tamper with the controls or
play near or with the oven.
• This appliance has been designed for cooking
edible foodstuff and to be used for domestic nonprofessional purposes only. It must not be used for
any other purpose.
• It is dangerous to alter the specification in any way.
• For hygiene and safety reasons, this appliance should
be kept clean at all times. A build-up of fats or other
foodstuff could result in a fire.
• Accessible parts of this appliance may become hot
when it is in use. Children should be KEPT AWAY until
it has cooled.
• Under no circumstances should you attempt to repair
the appliance yourself. Repairs carried out by
unexperienced persons may cause injury or serious
malfunctioning. Refer to your local Zanussi Service
Centre. Always insist on genuine Zanussi spare
parts.
• Ensure that all control knobs are in the OFF position
when not in use.
• Should you connect any electrical tool to a plug near
this cooking appliance, ensure that electric cables
are not in contact with it and keep them far enough
from the heated parts of this appliance.
• If the appliance is out of order, disconnect it from the
electric supply.
About Installation, Cleaning
and Manteinance
• It is mandatory that all operations required for the
installation are carried out by a qualified or competent
person, in accordance with existing rules and
regulations.
• Disconnect the appliance from the electrical supply,
before carrying out any cleaning or manteinance
work.
• Ensure a good ventilation around the appliance. A
poor air supply could cause lack of oxygen.
• Ensure that the gas supply complies with the gas
type stated on the identification label, placed near
the gas supply pipe.
• Using a gas cooking appliance will produce heat
and moisture in the room which it has been
installed in. Ensure a continuous air supply,
keeping the air vents in good conditions or
installing a cooker hood with discharge tube.
• In case of intensive or long time use of the
appliance, make the ventilation more efficient,
by opening a window or increasing the electric
exhaust fan power.
• Once you removed all packaging from the appliance,
ensure that it is not damaged and the electric cable
is in perfect conditions. Otherwise, contact your
dealer before proceeding with the installation.
• The manufacturer disclaims any responsability
should all the safety measures not be carried
out.
MANUFACTURER:
ELECTROLUX ZANUSSI ELETTRODOMESTICI S.p.A.
Viale Bologna 298 - 47100 FORLI’ (Italy)
These instructions are only for the countries stated by the symbol
printed on the front cover of this instruction book.
32
This appliance complies with the following
E.E.C. Directives:
- 73/23 - 90/683 (Low Voltage Directive);
- 89/336
- 90/396 (Gas Appliances)
- 93/68 (General Directives)
and subsequent modifications.
(Electromagnetical Compatibility Directive);
Page 2
Contents
1. Instruction for the User.............Pag. 33
2. Cleaning and Maintenance ....... Pag. 34
3. Technical Data ........................... Pag. 34
4. Instruction for the Installer....... Pag. 35
1. Instruction for the User
HOB BURNERS CONTROL KNOBS
The hob burners control knobs are situated on the hob
front panel. The symbols on the knobs mean that :
● there is no gas supply
there is maximum gas supply
there is minimum gas supply
LIGHTING THE BURNERS
• For easier lighting, proceed before putting a pan
on the pan support.
5. Electrical Connection................Pag. 36
6. Adaptation to different
types of gas................................ Pag. 37
7. Building In .................................. Pag. 38
Guarantee...................................Pag. 41
Carefully supervise cookings with fats or oil,
since these types of foodstuff can result in a fire,
if over-heated.
The Hob Lid
Special lids are available on request which can give an
aesthetic alignment with the kitchen units.
• It is recommended that the lid should never be
closed when the burners are still hot.
Approach the burner with a flame. (In models provided
with electric ignition, depress the relevant switch marked
with a small spark). Then, push the relevant knob down
and turn it anti-clockwise until it reaches the "maximum"
position.
After lighting the flame, keep the knob pushed down for
about 5 seconds. This will allow the "thermocouple"
(Fig. 1 lett. D) to be heated and the safety device to be
switched off, otherwise the gas supply would be
interrupted.
Check the flame is regular and adjust it as required.
If you cannot light the flame even after several attempts,
check the "cap" (Fig. 1 lett. A) and the "crown" (Fig. 1 lett.
B) are in the correct position.
To put the flame out, turn the knob to the symbol ●.
• Always turn the flame down or put it out before
taking the pans off the burner.
USING THE HOB CORRECTLY
To ensure maximum burner efficiency, it is strongly
recommended that you use only pots and pans with a
bottom fitting the size of the burner used, so that flame
will not spread beyond the bottom of the vessel (see the
table beside).
It is also advisable, as soon as a liquid starts boiling, to
turn down the flame so that it will barely keep the liquid
simmering.
• Use only pans or pots with flat bottom.
Fig. 1
Table of minimum and maximum diameters of
pots which can be placed on the burners
Burner minimum maximum
Big (rapid) 160 mm. 240 mm.
Medium (semirapid) 120 mm. 220 mm.
Small (Auxiliary) 80 mm. 160 mm.
FO 0204
diameter diameter
33
Page 3
2. Cleaning and Maintenance
• Disconnect the appliance from the electrical
supply, before carrying out any cleaning or
manteinance work.
Wash the enamelled components with warm soapy
water. Never use abrasive cleaners
Frequently wash the "caps" and the "crowns" with hot
soapy water, carefully taking away any built-up of food.
Carefully wash the stainless steel components with
water, then wipe them dry with a soft cloth.
The pan supports are dishwasher proof.
If the marks are particularly difficult to remove, use
common non-abrasive cleaners or specific products.
Never use steel wool pads or acids.
In models provided with electric ignition, this feature is
obtained through a ceramic "candle" and a metal
electrode (fig. 1 lett. C). Keep these components well
clean, to avoid difficult lighting, and check that the
burner crown holes (lett. B) are not obstructed.
PERIODIC MAINTENANCE
Periodically ask your local Service Centre to check the
conditions of the gas supply pipe and the pressure
adjuster, if fitted.
To ensure the good operation of the hob and its safety
features, it is necessary that the taps are periodically
lubricated.
● The periodic lubrication of the taps must be
carried out by qualified personnel, which you
must refer to also in case of malfunctioning.
3. Technical Data
Gas Burners Rating
Rapid Burner (big) 3 kW (G20-G25)) - 2,8 kW (G30-31)
Auxiliary Burner (small) 1 kW
Semirapid Burner (medium) 2 kW
Category II 2E+3+
Setting Natural Gas 20 mbar / G25 25 mbar
Gas connection G 1/2"
FO 2110
Fig. 2
Electric Supply 230 V 50 Hz
CLASS 3 APPLIANCE

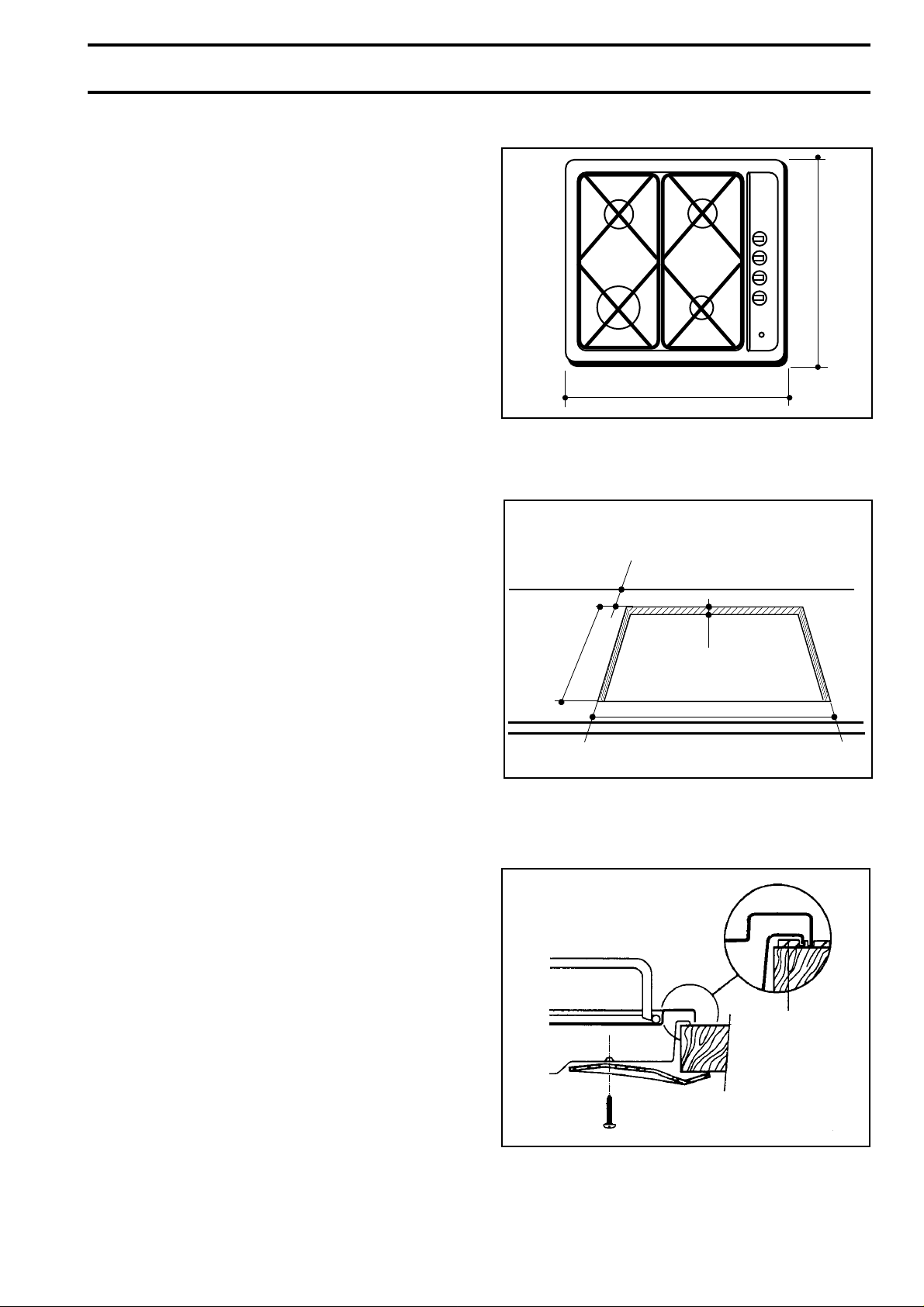

Recess Dimensions
Length 550 mm.
Width 470 mm.
34
Page 4
4. Instruction for the Installer
● The side walls of the unit in which the hob is
going to be installed, must not exceed the height
of the working top.
● Avoid installing the appliance in the proximity of
inflammable materials (e.g. curtains, tea towels
etc.).
● The following instructions about installation and
maintenance must be carried out by qualified
personnel in compliance with the regulation in
force. The regulation to be applied for this type of
installation is NBN D 5I.003 : "Installations
functioning with combustible gas lighter than
air".
● The appliance must be electrically disconnected
before all interventions. If any electric supply to
the appliance is required to carry out the work,
ensure all the necessary precautions are
followed.
GAS CONNECTION
It is indispensible that the connection to the gas mains
are carried out by means of an AGB tap. Choose fixed
connections or use a flexible pipe in AGB (stainless
steel).
If using flexible metallic pipes, be careful they do not
come in contact with mobile parts or they are not
squeezed. Use the same attention when the hob is
combinated with an oven.
This hob can be operated by Slochteren gas (G25) with
a nominal pressure of 25 mbar or by natural gas with
nominal pressure of 20 mbar. No regulation is required
for use by these two types of gas.
Before fitting the appliance ensure that the installation
has the correct voltage for the appliance. At full capacity,
the drop in pressure must not exceed 5%. Such a drop
in pressure is caused by the following parameters:
- maximum capacity of meter;
- diameter and lenght of the tube in front and behind
the meter;
FO 0264
A) Ramp with ending nut
B) Seal
C) Adjustable connection
Fig. 3
- section of transit of variuos tubes positioned on the
circuit;
- diameter of eventual connections.
IMPORTANT - To ensure a correct operation, a saving
of energy and the long-life of the appliance, the voltage
pressure of the appliance must correspond to the
recommended values.
The adjustable connection is fixed to the comprehensive
ramp by means of a threaded nut GJ 1/2". Interpose the
sealing between the components as shown in fig. 3.
Screw the parts without forcing, adjust the connection in
the required direction and tighten everything.
The adjustable connection allows the feeding pipe to be
situated in the site purposefully allocated on the side of
the protection box of the hob itself (Fig. 4). This connection
allows the overall dimensions of the hob plus the fedding
pipe to be contained into a depth of 30 mm.
IMPORTANT - When the final connection has been
made, it is essential that a thorough leak test is carried
out on the hob and installation. Use some soapy water,
never a flame.
FO 0265
A) Ramp ending with nut
B) Adjustable connection
C) Rigid or flexible metallic gas pipe
Fig. 4
35
Page 5
5. Electrical Connection
The appliance is designed to be connected to 230 V
monophase electricity supply.
The connection must be carried out in compliance with
the laws and regulations in force.
Before the appliance is connected:
1) check that the main fuse and the domestic installation
can support the load (see the rating label);
2) check that the power supply is properly earthed in
compliance with the current rules;
3) check the socket or the double pole switch used for
the electrical connection can be easily reached with
the appliance built in the forniture unit.

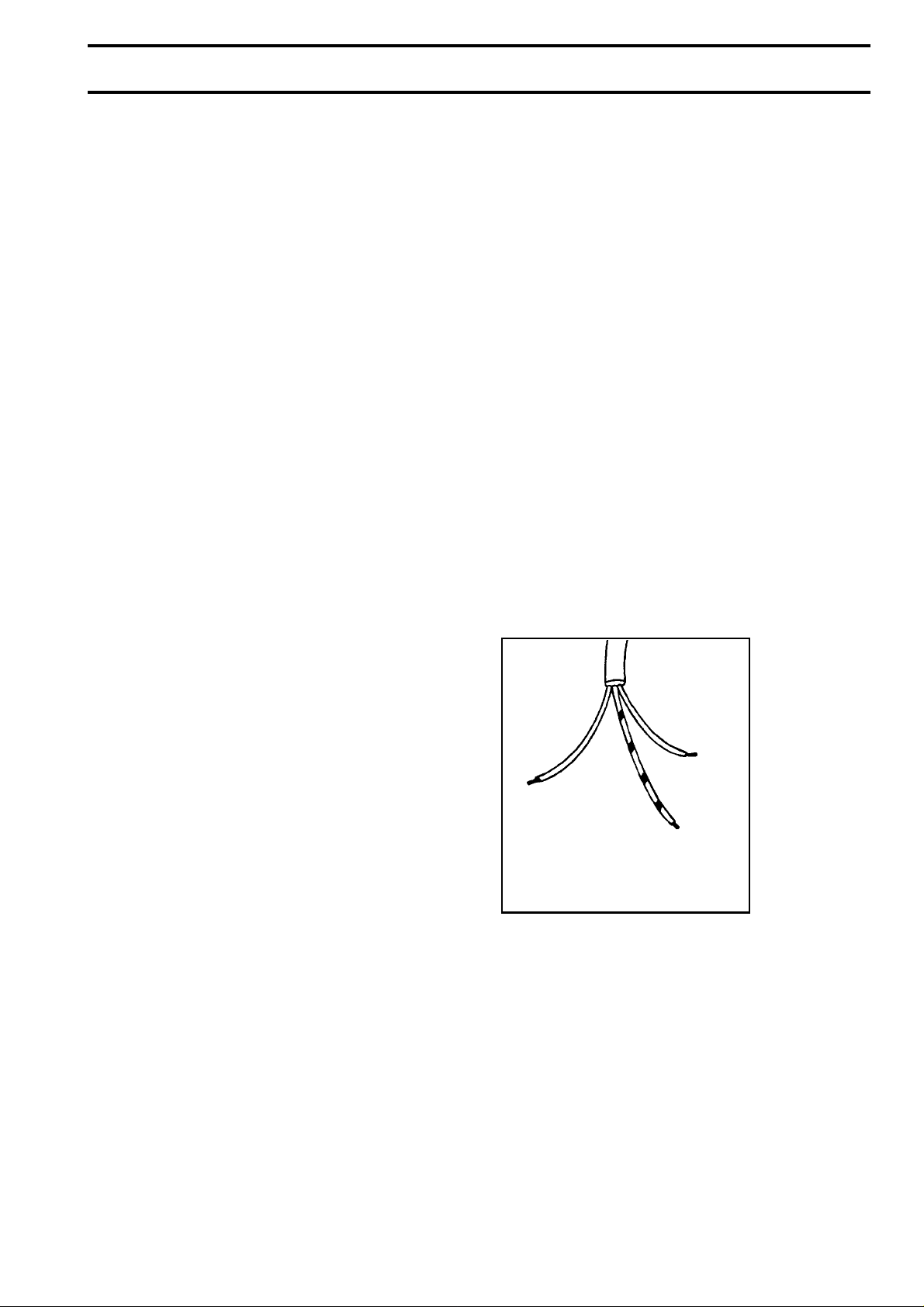

The appliance is supplied with a connection cable. This
has to be provided with a proper plug, able to support the
load marked on the identification plate. To connect the
plug to the cable, follow the recommendation given in
Fig. 5. The plug has to be fitted in a proper socket.
If connecting the appliance directly to the electric system,
it is necessary that you install a double pole switch
between the appliance and the electricity supply, with a
minimum gap of 3 mm. between the switch contacts and
of a type suitable for the required load in compliance
with the current rules.
The connection cable has to be placed in order that, in
each part, it cannot reach a temperature 50 °C higher
than the room temperature.
The brown coloured phase cable (fitted in the terminal
block contact marked with "L") must always be connected
to the network phase.
REPLACEMENT OF THE VOLTAGE CABLE
In case the connection cable needs to be replaced,
only cable type H05RR-F must be used. The cable
section must be suitable to the voltage and the working
temperature.
The yellow/green earth wire must be approximately 2
cm. longer than the phase wires (Fig. 5).
FO 0073
Neutral
Earth (yellow/green)
Fig. 5
36
Page 6

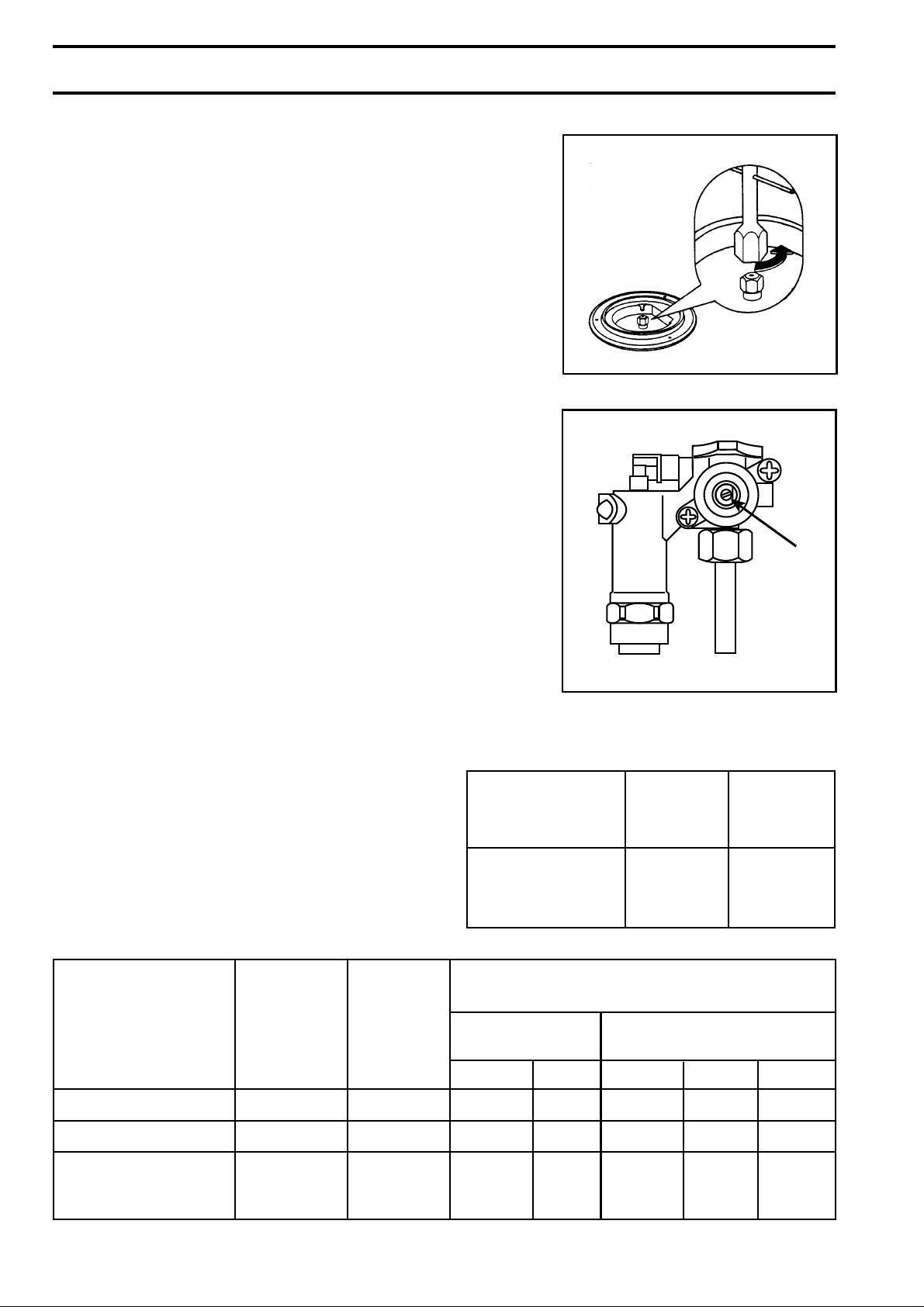

6. Adaptation to different types of gas
INJECTORS REPLACEMENT
• Remove the pan supports.
• Remove the burner's caps and crowns.
• With a socket spanner 7 unscrew and remove the
injectors (Fig. 6), and replace them with the ones
required for the type of gas in use (see table 2).
• Reassemble the parts, following the same procedure backwards.
• Replace the rating label (placed near the gas supply
pipe) with the relevant one for the new type of gas
supply. You can find this label in the package of the
injectors supplied with the appliance.
Should the feeding gas pressure be different or
variable compared with the required pressure, an
appropriate pressure adjuster must be fitted on the gas
supply pipe, in compliance with the rules in force.
Fig. 6
FO 0392
ADJUSTMENT OF MINIMUM LEVEL
To adjust the minimum level of the burners, proceed as
follows:
• Light the burner.
• Turn the knob on the minimum position.
• Remove the knob.
Fig. 7
FO 1045
• With a thin screwdriver, adjust the by-pass screw
(see Fig.7 - "a"). If changing from natural gas to LPG,
completely tighten clockwise the screw, until a small
regular flame is obtained.
• Finally check the flame does not go out when quickly
turning the knob from the maximum position to the
minimum position.
This procedure can easily be carried out, anyhow the
hob has been positioned or built in the working top.
Table 2 : injectors - (*) suitable for G25 too.
BURNER NORMAL REDUCED NORMAL
POWER POWER POWER
Table 1 : BY-pass diameters
Burner Ø By-pass Tap
Auxiliary 28 Green/Brown
Semi-rapid 32 Green/Green
Rapid 40 Green/Violet
a
in 1/100 colour
of mm.
kW kW NATURAL GAS LPG
G20 - 20 mbar 28-30/37 mbar
inj. 1/100 m3/h inj. 1/100 g/h - G30 g/h - G31
Auxiliary (small) 1 0,33 70* 0,095 50 72 71
Semi-rapid (medium) 2 0,45 96* 0,190 71 145 143
Natural gas :
Rapid (big) 3 0,65 119* 0,286 86 203 200
LPG : 2,8
37
Page 7
7. Building In
A = Auxiliary burner SR = Semirapid burner
R = Rapid Burner
These hobs can be inserted in a built-in kitchen unit
whose depth is between 550 and 600 mm. The hobs
dimensions are shown in Fig.8.
INSTALLATION AND ASSEMBLY
These hobs can be installed in a kitchen unit with an
opening for insertion whose dimensions are shown in
Fig. 9.
Carry out the building in of the hob as follows:
• put the relevant sealings, supplied with the hob, on
the edges of the cut out, taking care that the sealings
meet without overlapping;
FO 0815
470
SR
R
580
Rear Wall
Rückwand
55 min.
SR
500
A
Fig. 8
30
550
• place the hob in the cut out, taking care of its
centring;
• fix the hob with the relevant screws (Fig. 10). The
traction of the screws is able to trace the sealing, any
excess of which can then be easily removed.
The edge of the hob forms a double labyrinth seal
which provides a total guarantee against infiltration of
liquids.
FO 0926
FO 0199
a) sealing
Fig. 9
a
Fig. 10
38
Page 8

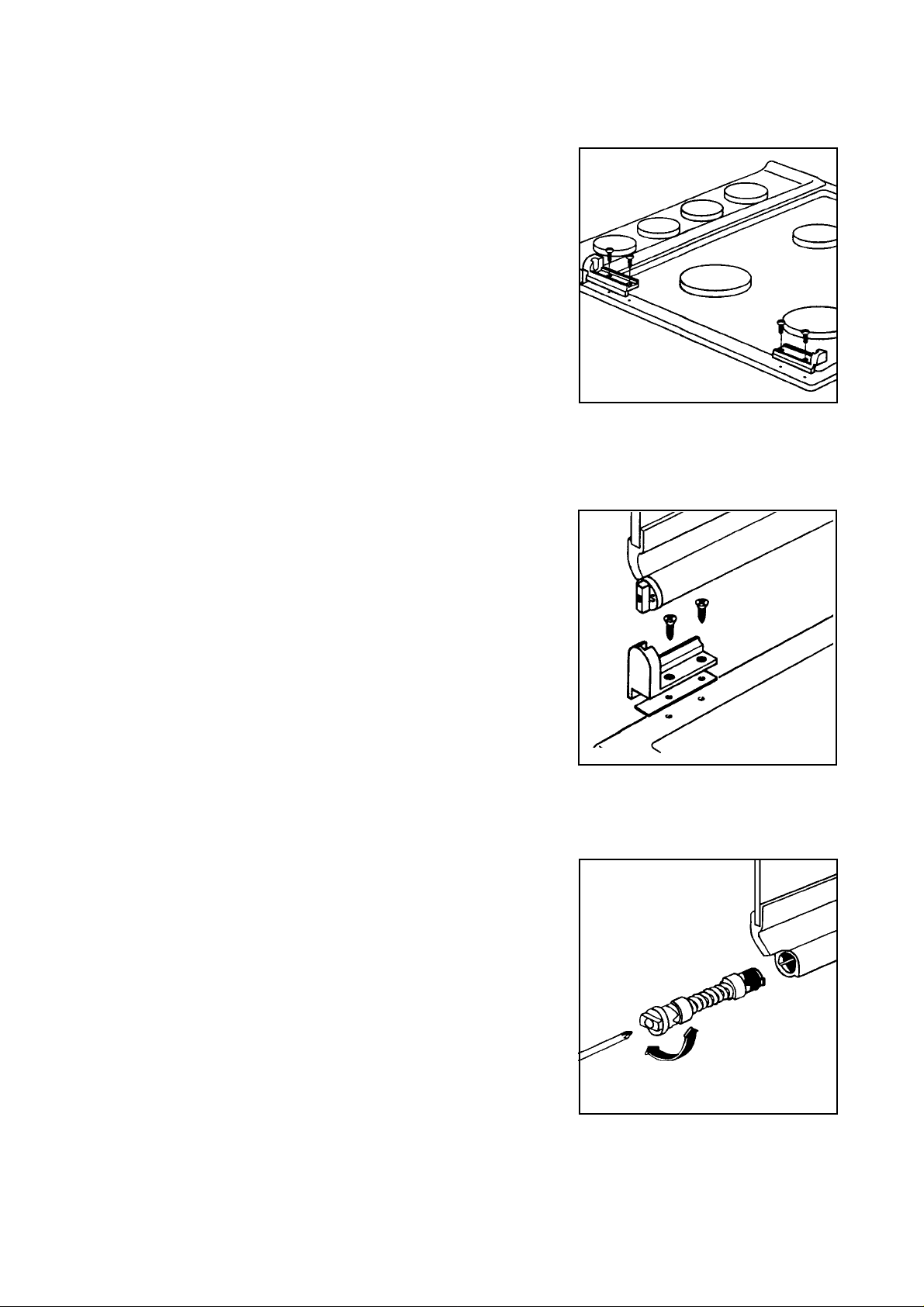

FITTING THE LID
To fit the lid onto the hob, act as follows.
a. Remove the screws or plastic plugs from the four
holes at the back of the hob.
b. Fit the lid supports and the relevant shims, clamping
them with the provided screws (Fig. 11 and 12)
c. Insert the left hinge of the lid (marked "S") into the
specially shaped hole (Fig. 13).
d. Insert the right hinge of the lid (marked "D") into the
relevant hole.
e. Fit the lid into the left and right lid supports (Fig. 12).
Fig. 11
Fig. 12
FO 0249
FO 0250
ADJUSTING THE LID BALANCE
The lid balance can be adjusted by turning the central
screw of the right and left hinges (Fig. 13) clockwise or
anticlockwise with a screwdriver.
Fig. 13
FO 0251
39
Page 9

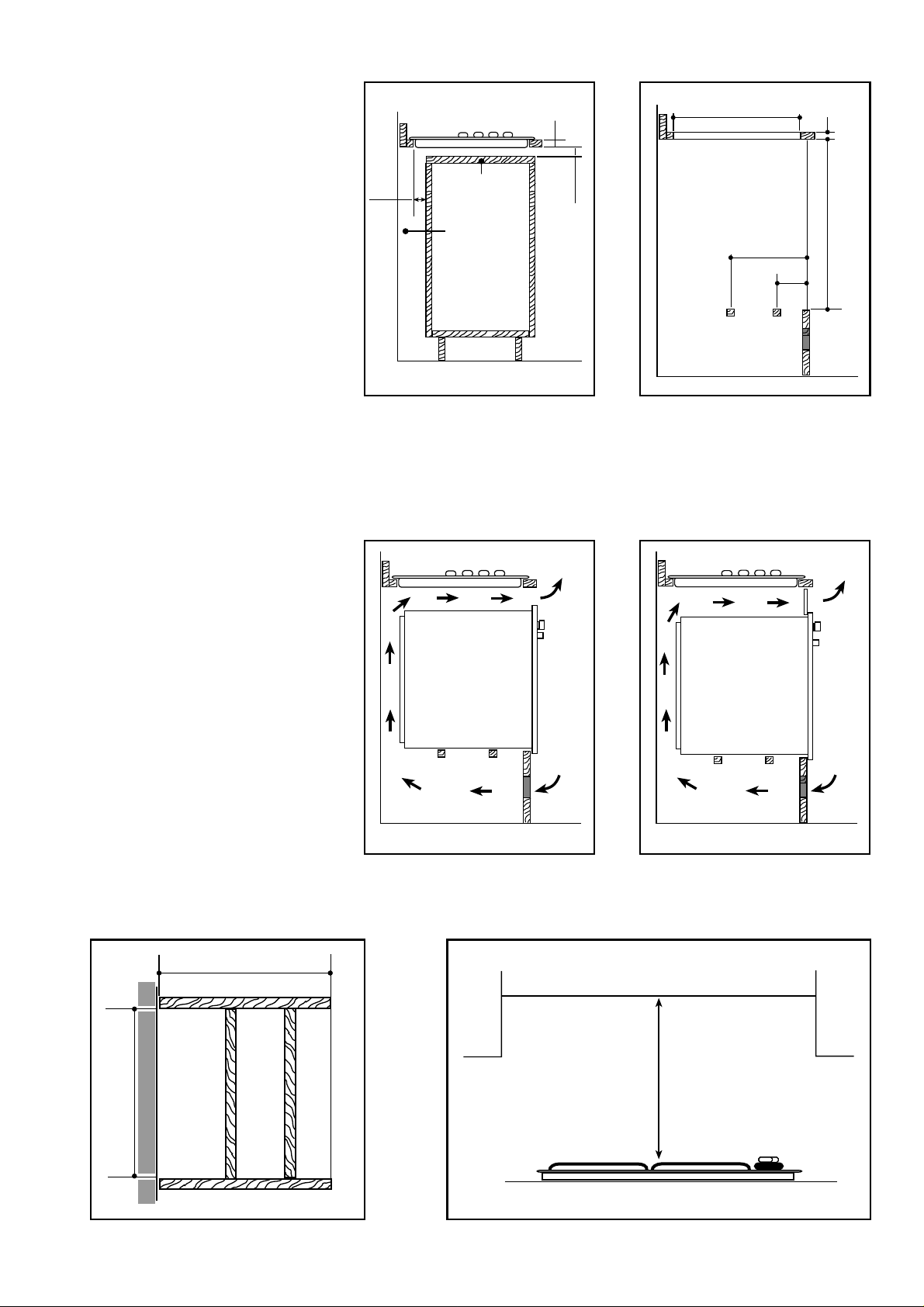

POSSIBILITIES FOR
INSERTION
Fig. 14
Fig. 15
Kitchen unit with door
Proper arrangements must be
taken in designing the forniture
unit, in order to avoid any contact
with the bottom of the hob which
can be heated when it is operated.
The recommended solution is
shown in Fig. 14.
The panel fitted under the hob
should be easily removable to
allow an easy access if a technical
assistance intervention is needed.
Kitchen unit with oven
The hob recess dimensions must
comply the indication given in
Figs. 15 and 18 and must be
provided with brackets to allow a
continuous supply of air.
To avoid overhating, the building
in should be carried out as shown
in Figs. 16 and 17.
The hob's electric connection and
the oven's one must be carried out
separately, both for safety reasons
and to allow the oven to be easily
taken off the unit.
Hanging forniture units or hoods
must be placed at 650 mm.
minimum from the hob (Fig. 19).
30
60
a
20 min
b
FO 1013 FO 0947
a) Removable panel
b) Space possibly useful for
connections
Fig. 16
50 cm
2
Fig. 17
470
380
140
30
591
120 cm
2
Fig. 18
FO 0198
560 min.
550 min.
2
360 cm
FO 0938 FO 0939
Fig. 19
650 mm
FO 2099
180 cm
2
40
Page 10
GUARANTEE - SPARE PARTS
When calling for repairs during the period of guarantee ofthe
appliance, the original invoice or receipt must be shown or
sent together with the appliance to be repaired.
General conditions of guarantee
1 The manufacturer guarantees the appliance indicated on
the relative invoice for a period of one year from the date
of purchase. In case of a fault during this period if caused
bya defect in materials and/or construction, the client is
entitled to repair free of charge.
1a Concerning vacuum cleaners for domestic use, the total
periodof guarantee is two years. Accessories are subject
to a direct usage, consequently these articles are excluded
from the guarantee.
2 The manufacturer guarantees technical assistance and
repairsfor one year. Spare parts fitted during repair are
also covered by a one year guarantee from the date of
repair. In case of fault during this period, as a direct result
of the repair work carried out or caused by the new parts
fitted on such occasion, the client is entitled to repair free
of charge. The execution of repairs does not prolong the
total period of guarantee covering the appliance.
3 Technical Assistance at domicile will be provided only for
large apparatus which are difficult to transport such as:
washing machines, spin-driers, dishwashers,refrigerators,
freezers (vertical or horizontal), ovens, cookers and built-in
appliances.
3a The above-mentioned conditions are also valid for
refrigerators for caravens on condition that they are situated
within the national boundaries and are accessible by roads
open to traffic. Furthermore, at the time of the intervention
the appliance and its owner, or the person so authorized,
must be present at the place agreed upon for the
intervention.
4 If, in the opinion of the manufacturer, the appliance as
described in point 3 must be transported to a Technical
Assistance laboratory, the transportation will be carried
out as established by the manufacturer, at his expense
and under his responsibility.
5 All appliances not mentioned under points 3 and 3a,
includingappliances having the same functional
characteristics but whose transport is easy, must be sent
to the Technical Assistance or taken to them. Throughout
the period of guarantee the cost of return transportation
will be taken care by the manufacturer.
6 If during the period of guarantee a disfunction occurs due
to a defect which cannot be repaired, the appliance will be
replaced free of charge.
Extension of the guarantee
7 For motorcompressors of refrigerators/ freezers (excluding
the starting device and thermal interrupter) a decreasing
guarantee of 20% per year for a period of five years from
the date of purchase of the appliance indicated on the
relative invoice with repairs free of charge throughout the
entire period under guarantee. On completion of the total
period of guarantee the cost of travel, workmanship and
eventual spare parts will be at the expense of the client.
Exclusion from guarantee
8 The free execution of work for the repair and/ or substitution
as set out above will not apply if:
- The purchase invoice or receipt indicating the date of
purchase and the identification of the appliance cannot be
presented or was not sent with the appliance to be repaired;
- The appliance is used for purposes other than those of the
domestic nature for which it was made;
- The appliance was not installed, handled or used in
conformity with the indications in the instruction manual or
in the modalities for use;
- The appliance has been repaired or modified incorrectly
by unqualified personnel.
8a If the appliance has been built-in, underinserted,
suspendedor installed in such a way that the time required
to move it and put it back in position exceeds thirty minutes
in total, the extra expenditures occurred will be billed to the
owner of the appliance.
8b ln case of deterioration due to an irregular installation
carried out in agreement with the owner of the appliance,
the manufacturer and the technical assistance decline all
responsibility.
8c Damage such as scratches, knocks or breakage of movable
or dismountable units which were not notified to the
manufacturer at the time of delivery are not covered by the
guarantee.
Important notice
This appliance has been made to be safe. Inadequate repairs
can nonetheless compromise this safety. To avoid such
problems and to prevent any eventual damage we advise you
to have repairs carried out exclusively by qualified
personnel.We advise you to have repairs or maintenance
carried out by the retailer or the Elgroep Service and to request
only original spare parts.
Belgium
Electric Household Appliances
Bergensesteenweg 719
B - 1520 Halle (Lembeek)
Repairing to customer's house:
Tel.: 02-3630444
Fax.: 02-3630400
Spare parts:
Tel.: 02-3630555
Fax.: 02-3630500
Telex: 22915 eluxbe
41
Page 11
42
ELECTROLUX BELGIUM
Bergensesteenweg, 719
1502 LEMBEEK, BELGIUM
Tel.: 02-363 03 11
Fax.: 02-363 03 00
Loading...
