AEG EHT6433K User Manual

28 electrolux

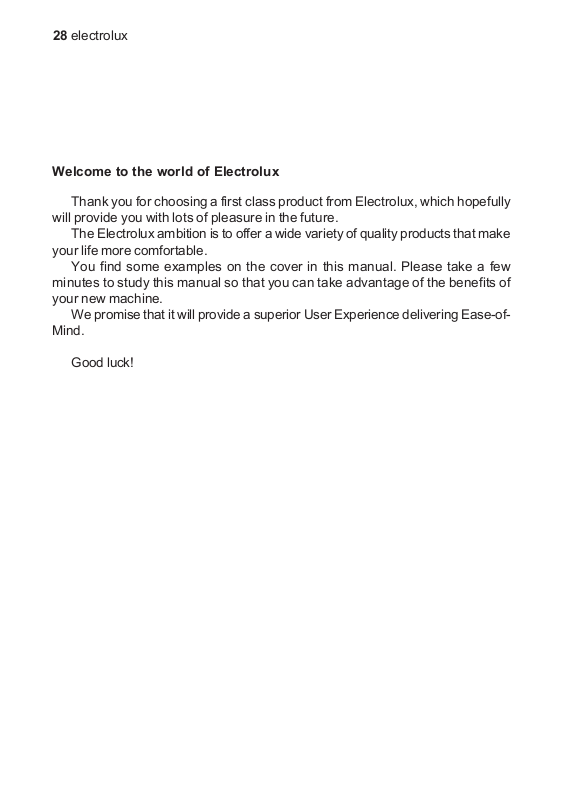

Welcome to the world of Electrolux

Thank you for choosing a first class product from Electrolux, which hopefully

will provide you with lots of pleasure in the future.

The Electrolux ambition is to offer a wide variety of quality products that make

your life more comfortable.

You find some examples on the cover in this manual. Please take a few
minutes to study this manual so that you can take advantage of the benefits of
your new machine.

We promise that it will provide a superior User Experience delivering Ease-of­Mind.

Good luck!

electrolux 29

ENGLISH BE

Important Safety Information

These warnings are provided in the interest of safety. You MUST
read them carefully before installing or using the appliance.

During Operation

• This appliance has been designed for non professional purpose in private houses

only. It is meant to cook edible foodstuff only and MUST NOT be used for any other
purposes.

• It is dangerous to alter the specification in any way.

• For hygiene and safety reasons, this appliance should be kept clean at all times.

A build-up of fats or other foodstuff could result in a fire.

• Under no circumstances should you attempt to repair the appliance yourself.

Repairs carried out by unexperienced persons may cause injury or serious
malfunctioning. Refer to your local Service Centre. Always insist on genuine spare
parts.

• Ensure that all control knobs are in the OFF position when not in use.

• Should you connect any electrical tool to a plug near this cooking appliance,

ensure that electric cables are not in contact with it and keep them far enough from
the heated parts of this appliance.

• If the appliance is out of order, disconnect it from the electric supply.

Child Safety

• This appliance has been designed to be operated by adults and children under

supervision. Young children MUST NOT be allowed to tamper with the controls or play
near or with the oven.

• This appliance is not intended for use by children or other persons whose

physical, sensory or mental capabilities or lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction
by a responsible person to ensure that they can use the appliance safely.

• Accessible parts of this appliance may become hot when it is in use. Children

should be KEPT AWAY until it has cooled.

About Installation, Cleaning and Manteinance

• It is mandatory that all operations required for the installation are carried out by a

qualified or competent person, in accordance with existing rules and regulations.

• Disconnect the appliance from the electrical supply, before carrying out any

cleaning or manteinance work.

• Ensure a good ventilation around the appliance. A poor air supply could cause lack

of oxygen.

30 electrolux

• Ensure that the gas supply complies with the gas type stated on the identification

label, placed near the gas supply pipe.

• This appliance is not connected to a combustion products evacuation device.

It must be installed and connected in accordance with current installation

regulations. Particular attention shall be given to the relevant requirements

regarding ventilation.

• The use of a gas cooking appliance results in the production of heat and

moisture in the room in which it is installed. Ensure that the kitchen is well

ventilated: keep natural ventilation holes open or install a mechanical ventilation

device (mechanical extractor hood).

• Prolonged intensive use of the appliance may call for additional ventilation, for

example opening of a window, or more effective ventilation, for example

increasing the level of mechanical ventilation where present.

• Once you removed all packaging from the appliance, ensure that it is not damaged

and the electric cable is in perfect conditions. Otherwise, contact your dealer

before proceeding with the installation.

• The manufacturer disclaims any responsability should all the safety

measures not be carried out.

Service

• Under no circumstances should you attempt to repair the appliance yourself.

Repairs carried out by unexperienced persons may cause injury or serious

malfunctioning. Refer to your local Service Centre. Always insist on genuine spare

parts.

Environmental Information

!

• After installation, please dispose of the packaging with due regard to safety and

the environment.

• When disposing of an old appliance, make it unusable, by cutting off the cable.

• The symbol on the product or on its packaging indicates that this product

may not be treated as household waste. Instead it shall be handed over to the

applicable collection point for the recycling of electrical and electronic

equipment. By ensuring this product is disposed of correctly, you will help

prevent potential negative consequences for the environment and human

health, which could otherwise be caused by inappropriate waste handling of

this product. For more detailed information about recycling of this product,

please contact your local city office, your household waste disposal service or

the shop where you purchased the product.

Keep this instruction book for future reference and ensure it is passed on to
any new owner.

electrolux 31

Contents

Important Safety Information ............................................................. 29

Guide to Use the instructions ............................................................ 31

Description of the Hob ....................................................................... 32

Operation .......................................................................................... 33

Maintenance and Cleaning ................................................................ 35

Something Not Working? .................................................................. 37

Instructions for the Installer ............................................................... 38

Engineer technical data ........................................................... 38

Gas connection ................................................................................. 40

Adaptation to different types of gas ................................................... 41

Electrical connections ....................................................................... 42

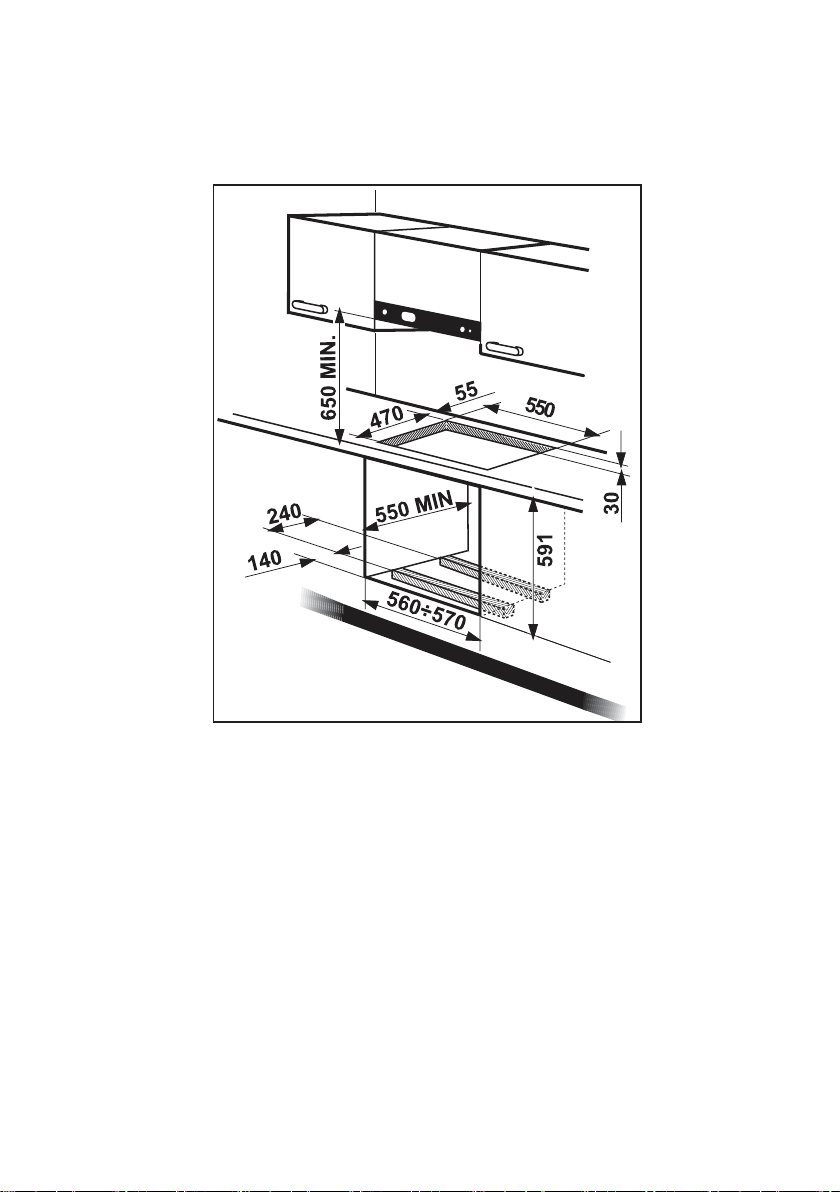

Cut Out Size...................................................................................... 43

Building In .......................................................................................... 43

Fitting the hob to the worktop ................................................... 44

Possibilities for insertion.................................................................... 45

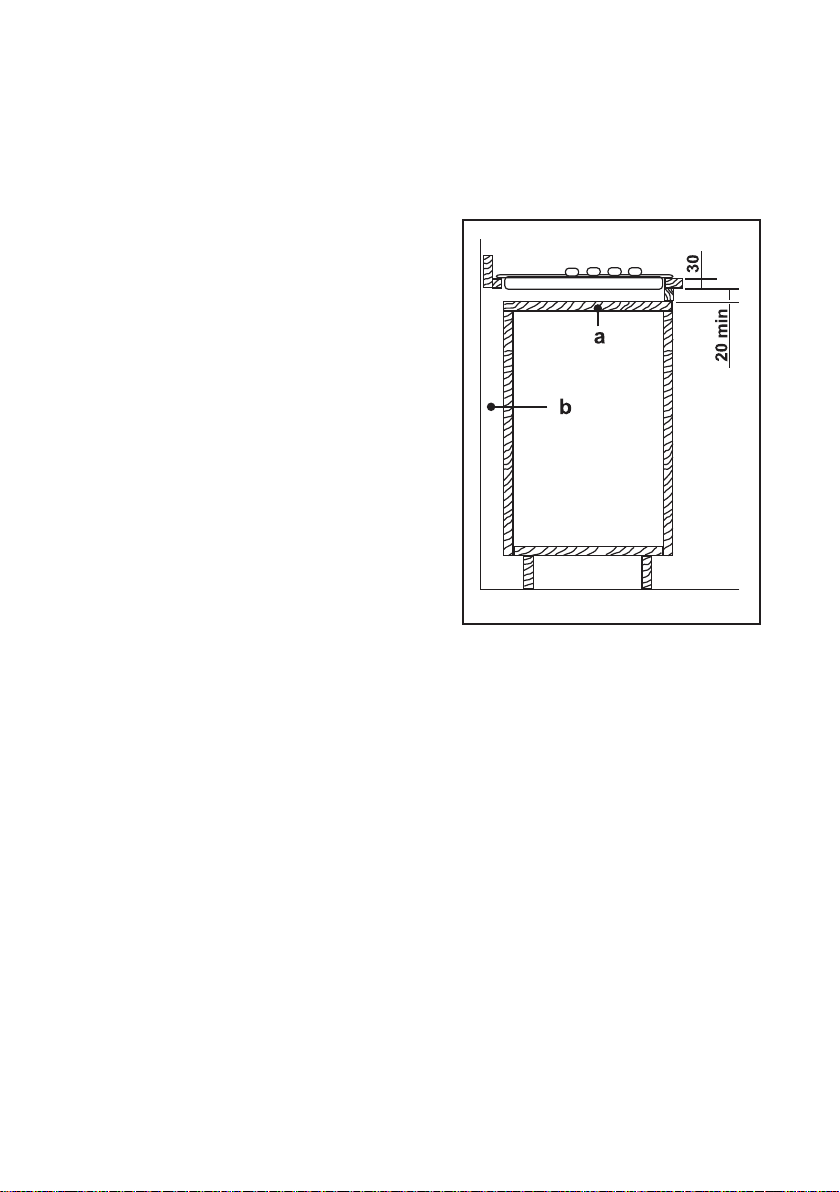

Kitchen unit with door ............................................................... 45

Kitchen unit with oven .............................................................. 45

Declaration of guarantee terms ......................................................... 47

European guarantee .......................................................................... 49

Guide to Use the instructions

The following symbols will be found in the text to guide you throughout the
Instructions:

Safety Instructions

Step by step instructions for an operation

""

"

""

Hints and Tips

!!

!

!!

Environmental information

32 electrolux

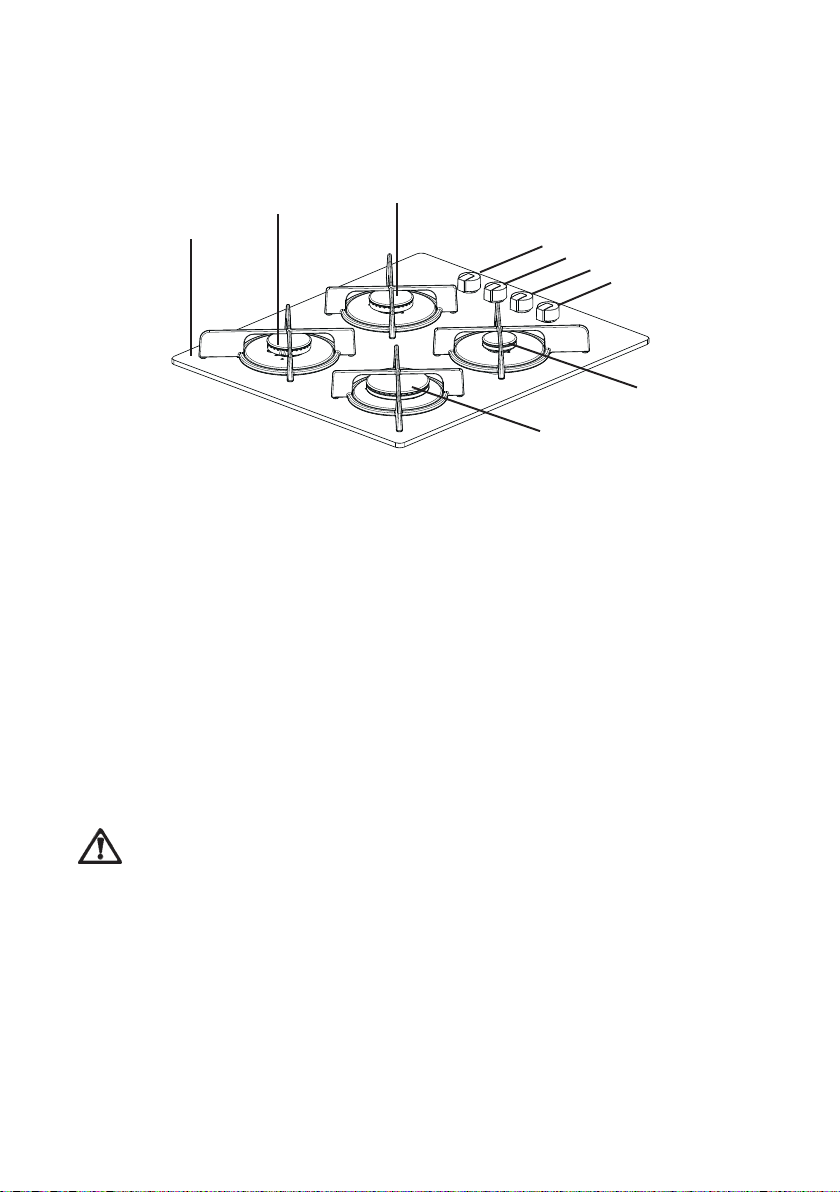

Description of the Hob

3

3

1

1. Hob top

2. Rapid burner

3. Semi-rapid burner

4. Auxiliary burner

5. Control knob for back right burner (semi-rapid)

6. Control knob for back left burner (semi-rapid)

7. Control knob for front left burner (rapid)

8. Control knob for front right burner (auxiliary)

5

6

7

8

4

2

INSTALLATION

Any gas installation must be carried out by a qualified installer,
and in accordance with existing rules and regulations.

The relevant instructions are to be found in the second section of
this manual.

Please, ensure that, once the hob is installed, it is easily accessible
for the engineer in the event of a breakdown.

WHEN THE HOB IS FIRST INSTALLED

Once the hob has been installed, it is important to remove any
protective materials, which were put on in the factory.

Operation

Hob burners control knobs

The symbols on the knobs mean that :

there is no gas supply

there is maximum gas supply

there is minimum gas supply

Lighting the burners

For easier lighting, proceed before putting a pan on the pan
support.

To light a burner, turn the relevant knob anticlockwise to maximum

electrolux 33

position (
After lighting the flame, keep the knob pushed

down for about 5 seconds. This will allow
the "thermocouple" to be heated and the
safety device to be switched off, otherwise
the gas supply would be interrupted. Then,
check the flame is regular and adjust it as
required. If you cannot light the flame even
after several attempts, check the "cap" is in
the correct position.
If you cannot light the flame even after
several attempts, check the "cap" (lett. A)
and the "crown" (lett. B) are in the correct
position.

To put the flame out, turn the knob to the
symbol

In the absence of electricity, ignition can
occur without the electrical device; in this case approach the
burner with a flame, push the relevant knob down and turn it anti­clockwise until it reaches the "maximum" position.

)and push down the knob to ignite.

.

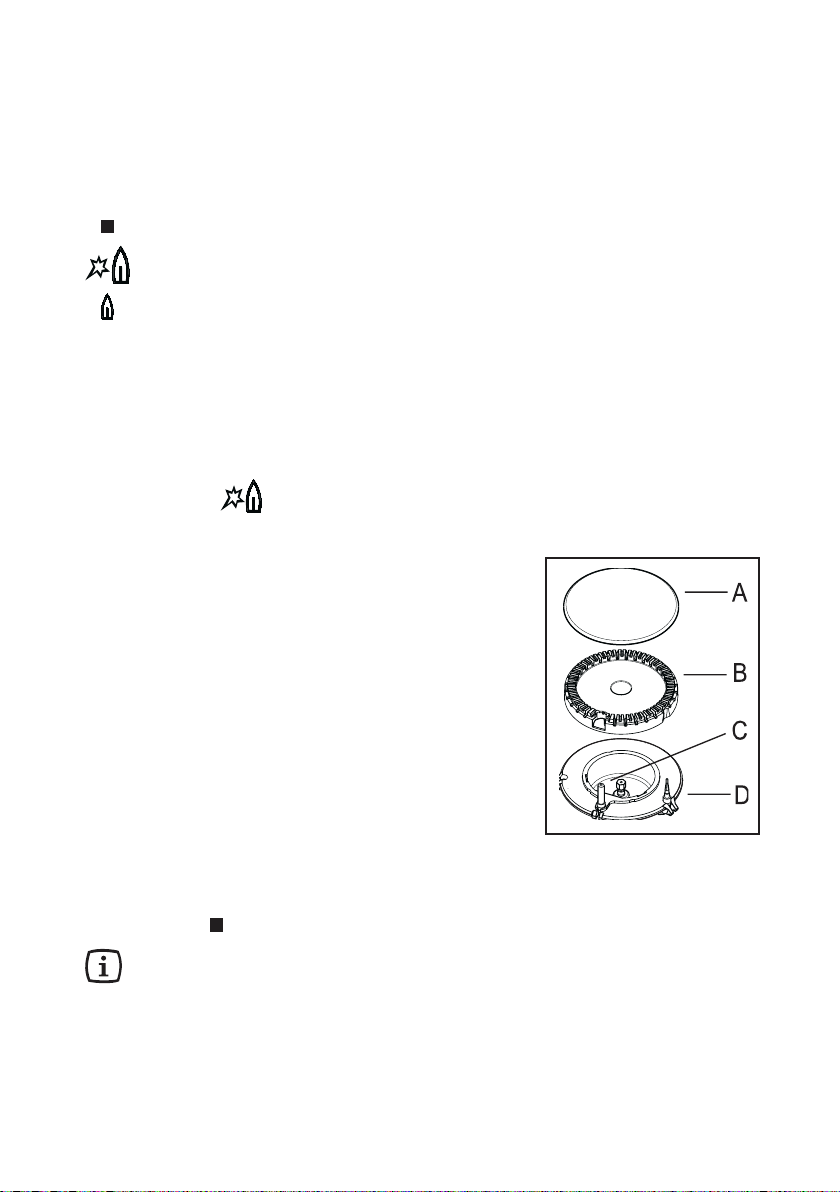

A - Burner cap

B - Burner crown
C - Ignition electrode
D - Thermocouple

34 electrolux

To ensure maximum burner efficiency, you should only use pots and pans
with a flat bottom fitting the size of the burner used (see table).

Burner minimum maximum

diameter diameter

Large (rapid) 160 mm. 240 mm.
Medium (semi-rapid) 120 mm. 220 mm.
Small (Auxiliary) 80 mm. 160 mm.

As soon as a liquid starts boiling, turn down the flame so that it will
barely keep the liquid simmering.

If you use a saucepan which is smaller than the recommended size,
the flame will spread beyond the bottom of the vessel, causing the
handle to overheat.

Take care when frying food in hot oil or fat, as the overheated
splashes could easily ignite.

If the control knobs become difficult to turn, please contact your local
Service Force Centre.

electrolux 35

Maintenance and Cleaning

Before any maintenance or cleaning can be carried out, you must
DISCONNECT the hob from the electricity supply.

The hob is best cleaned whilst it is still warm, as spillage can be
removed more easily than if it is left to cool.

The hob top

Clean the hob while it is still warm.

Never use aggressive or abrasive agents, such as oven sprays, stain or
rust removers, scouring powders, or sponges with an abrasive effect.

Special cleaning agents and ceramic hob scrapers are available from
department stores.

Slight, non-burnt soilage can be wiped off with a damp cloth. Burnt
soilage has to be removed with a scraper. Afterwards wipe off the
ceramic hob with a damp cloth.

Light metallic stains (aluminium residues) can be removed from the
cooking zone with a ceramic hob cleaning agent such as Vitroclen when
cool.

Sugar solutions, food stuffs with a high sugar content must be removed
immediately with a scraper. If this type of soilage is not removed
immediately it can cause irreparable damage to the ceramic surface.
When the surface has cooled wipe over with a damp cloth and Vitroclen.

Before using any detergent or cleaning agent on the ceramic top, ensure
they are recommended by the manufacturer for use on ceramic hobs.

Do not apply any cleaning agents to hot cooking zones. Ensure any
residues are wiped off before the cooking zones are used again.

If scratches or cracks are noticed, disconnect the appliance
from the electrical supply to avoid the risk of electric shock
and call your nearest Service Force Centre.

Keep all objects and materials which can melt away from the cooking
surface, e.g. plastics, aluminium foil.

Care should be taken when preparing food or drinks containing sugar. If
anything of this nature accidentally comes into contact with the ceramic
surface it must be scraped off immediately while stlll hot and wiped
away to avoid damage to the surface.

36 electrolux

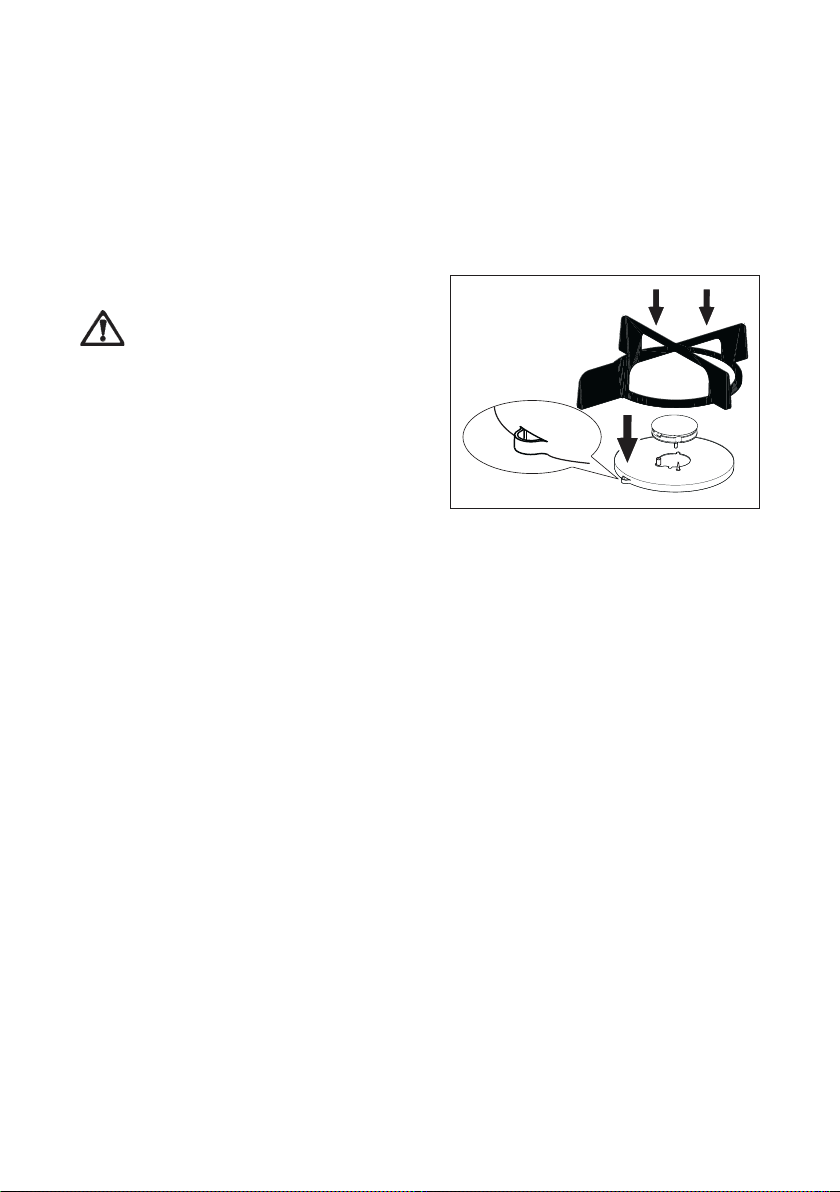

The pan supports

The pan supports can be removed to easily clean the hob. After cleaning
the hob, make sure the pan supports are correctly positioned.In order to
properly place the pan supports, make sure that the longest arm of the
pan support is positioned in correspondance with the hole placed at the
base of the burner as shown in the picture.

This way, the pan support will be
stable and fixed (see picture).

Pay attention when replacing
the pan supports in order to
avoid scratching the glass
hob top.

If washing the pan supports by hand,
take care when drying them as the
enamelling process occasionally
leaves rough edges. If necessary,
remove stubborn stains using a pa­ste cleaner.

The burners

The burner caps and crowns can be removed for cleaning.
Wash the burners taps and crowns using hot soapy water, and remove
marks with a mild paste cleaner. A well moistened soap impregnated
steel wool pad can be used with caution, if the marks are particularly
difficult to remove.
After cleaning, be sure to wipe dry with a soft cloth.

Ignition electrode

The electric ignition is obtained through a ceramic "electrode" and a
metal electrode . Keep these components well clean, to avoid difficult
lighting, and check that the burner crown holes are not obstructed.

Periodic maintenance

Periodically ask your local Service Centre to check the conditions of the
gas supply pipe and the pressure adjuster, if fitted.

electrolux 37

Something Not Working?

If the hob is not working correctly, please carry out the following
checks before contacting your local Service Force Centre.

SYMPTOM

# There is no spark when

lighting the gas.

SOLUTION

$ Check that the unit is plugged in

and the electrical supply is
switched on

$ Check that the RCCB has not

tripped (if fitted)

$ Check the mains fuse has not

blown

$ Check the burner cap and crown

have been replaced correctly,
e.g. after cleaning.

# The gas ring burns unevenly.

$ Check the main jet is not blocked

and the burner crown is clear of
food particles.

$ Check the burner cap and crown

have been replaced correctly,
e.g. after cleaning.

If after all these checks, your hob still does not operate correctly, contact
your local Service Force Centre.

38 electrolux

Instructions for the Installer

Engineer technical data

OVERALL DIMENSIONS Width: 580 mm.

Depth: 510 mm.

CUT OUT DIMENSIONS Width: 550 mm.

Depth: 470 mm.

APPLIANCE CLASS 3

HEAT INPUT
Rapid burner 2,900 W Natural Gas - 2,700 W Liquid gas

Semi-rapid burner 1,900 W

Auxiliary burner 1,000 W

Total heat input 7,700 W

APPLIANCE CATEGORY II2E+3+

GAS SUPPLY Natural gas G20 / G25 - 20/25 mbar

ELECTRIC SUPPLY 230 V ~ 50 Hz

This appliance is manufactured according to the following
EEC directives:
2006/95 EEC - 93/68 EEC ­89/336 EEC - 90/396 EEC,
current edition.

electrolux 39

BURNER

Auxiliary 1,0 0,33 70 0,095 0,111 50 73 71

Semi-rapid 1,9 0,45 96 0,181 0,210 71 138 136

Rapid Natural gas:

NOMINAL REDUCED

THERMAL THERMAL

POWER POWER

kW kW Inj. m3/h Inj. g/h

2,9 0,75 119 0,276 0,321 86 196 193

But/Prop:2,7

NATURAL GAS LIQUID GAS

1/100

NORMAL POWER

mm

G20 G25

20mbar 25mbar

28-30/37 mbar

1/100

G30 G31

By-pass diameters

Burner Ø By-pass

in 1/100

of mm.
Auxiliary 28
Semi-rapid 32
Rapid 42

40 electrolux

Instruction for the Installer

• The following instructions about installation and maintenance must be

carried out by qualified personnel in compliance with the regulation in
force. The regulation to be applied for this type of installation is NBN D
5I.003 : "Installations functioning with combustible gas lighter than air".

• The side walls of the unit in which the hob is going to be installed, must

not exceed the height of the working top.

• Avoid installing the appliance in the proximity of inflammable materials

(e.g. curtains, tea towels etc.).

• The appliance must be electrically disconnected before all interventions.

If any electric supply to the appliance is required to carry out the work,
ensure all the necessary precautions are followed.

Gas connection

It is indispensible that the connection to the gas mains are carried out by means of
an AGB tap. Choose fixed connections or use a flexible pipe in AGB (stainless steel).
If using flexible metallic pipes, be careful they do not come in contact with mobile parts
or they are not squeezed. Use the same attention when the hob is combinated with
an oven.
This hob can be operated by Slochteren gas (G25) with a nominal pressure of 25 mbar
or by natural gas with nominal pressure of 20 mbar. No regulation is required for use
by these two types of gas. Before fitting the appliance ensure that the installation has
the correct voltage for the appliance. At full capacity, the drop in pressure
must not exceed 5%. Such a drop in pressure
is caused by the following parameters:

- maximum capacity of meter;

- diameter and lenght of the tube in front and
behind the meter;

- section of transit of variuos tubes positioned
on the circuit;

- diameter of eventual connections.

IMPORTANT - To ensure a correct operation,
a saving of energy and the long-life of the
appliance, the voltage pressure of the appliance
must correspond to the recommended values.
The adjustable connection is fixed to the
comprehensive ramp by means of a threaded
nut G 1/2".
All the components shown in the diagram
have already been assembled in the factory.
The appliance, before leaving the factory, has been tested in order to give you the
best results.

FO 2365

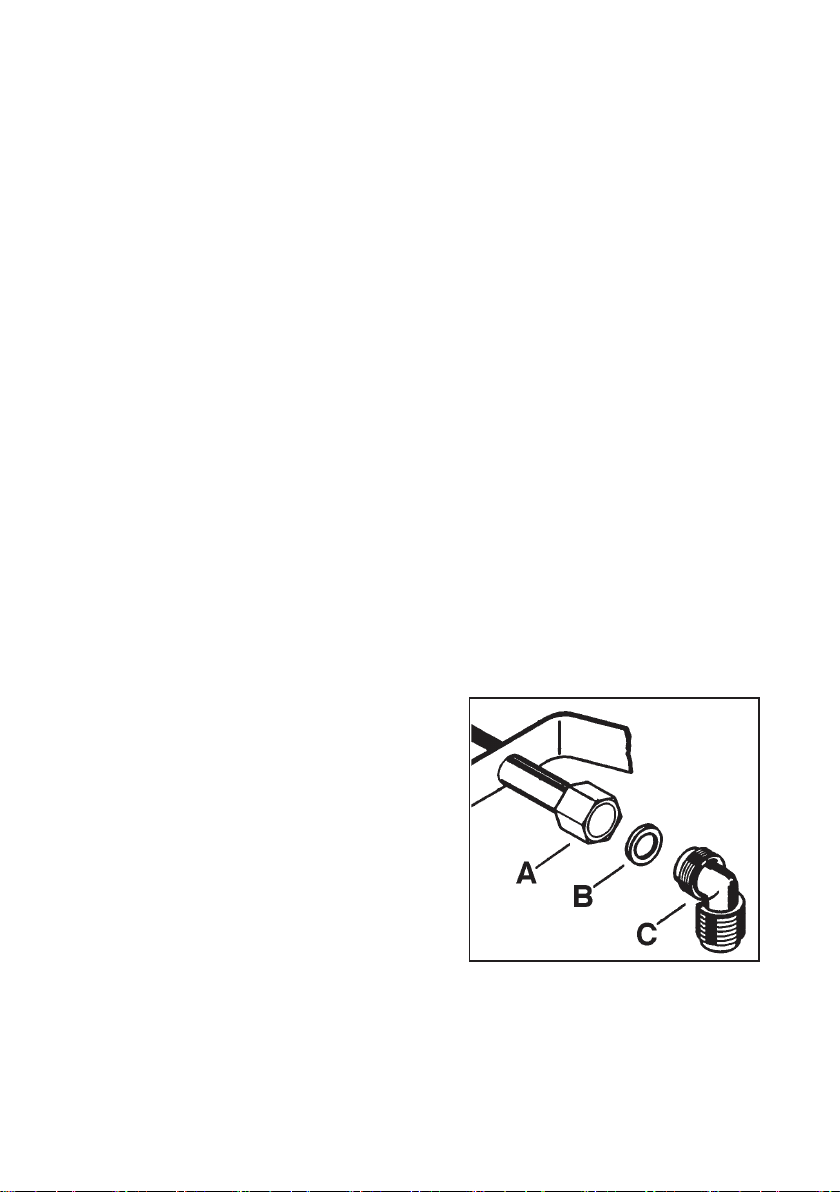

A) Ramp with ending nut
B) Seal
C) Adjustable connection

IMPORTANT - When the final connection has been made, it is

essential that a thorough leak test is carried out on the hob and
installation. Use some soapy water, never a flame.

Adaptation to different types of gas

Injectors replacement

• Remove the pan supports.

• Remove the burner's caps and
crowns.

• With a socket spanner 7 unscrew
and remove the injectors, and replace
them with the ones required for the
type of gas in use.

• Reassemble the parts, following the
same procedure backwards.

• Replace the rating label (placed near
the gas supply pipe) with the relevant
one for the new type of gas supply.
You can find this label in the package
of the injectors supplied with the
appliance.

Should the feeding gas pressure be
different or variable compared with the
required pressure, an appropriate
pressure adjuster must be fitted on the
gas supply pipe, in compliance with the
rules in force.

FO 0392

electrolux 41

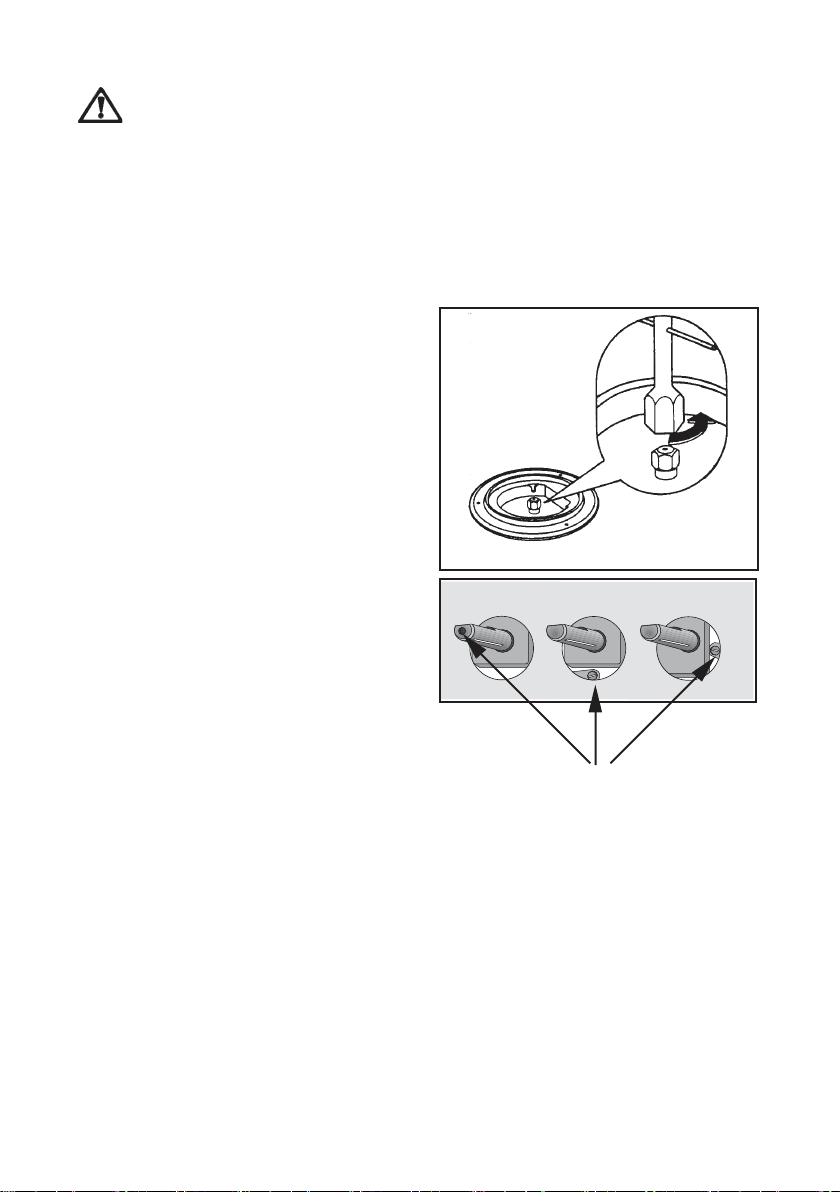

Adjustment of minimum level

To adjust the minimum level of the
burners, proceed as follows:

• Light the burner.

• Turn the knob on the minimum position.

• Remove the knob.

• With a thin screwdriver, adjust the by-pass screw. If changing from natural
gas to liquid gas, completely tighten clockwise the screw, until a small regular
flame is obtained. If changing from liquid gas to natural gas unscrew about
1/4 turn the by-pass screw, until a small regular flame is obtained.

• Finally check the flame does not go out when quickly turning the knob from
the maximum position to the minimum position.

This procedure can easily be carried out, anyhow the hob has been positioned
or built in the working top.

By-pass screw

42 electrolux

Electrical connections

The appliance is designed to be connected to 230 V monophase
electricity supply.
The connection must be carried out in compliance with the laws and
regulations in force.
Before the appliance is connected:

1) check that the main fuse and the domestic installation can support the

load (see the rating label);

2) check that the power supply is properly earthed in compliance with the

current rules;

3) check the socket or the double pole switch used for the electrical

connection can be easily reached with the appliance built in the forniture
unit.
The appliance is supplied with a connection cable. This has to be provided
with a proper plug, able to support the load marked on the identification
plate. The plug has to be fitted in a proper socket.
If connecting the appliance directly to the electric system, it is necessary
that you install a double pole switch between the appliance and the
electricity supply, with a minimum gap of 3 mm. between the switch
contacts and of a type suitable for the required load in compliance with the
current rules.
The connection cable has to be placed in order that, in each part, it cannot
reach a temperature higher than 90°C.
The brown coloured phase cable (fitted in the terminal block contact
marked with "L") must always be connected to the network phase
.

Replacement of the voltage cable

The replacement of electric cable
must be carried out exclusively by
the service force centre or by
personnel with similar
competencies, according to the
current regulations in force.

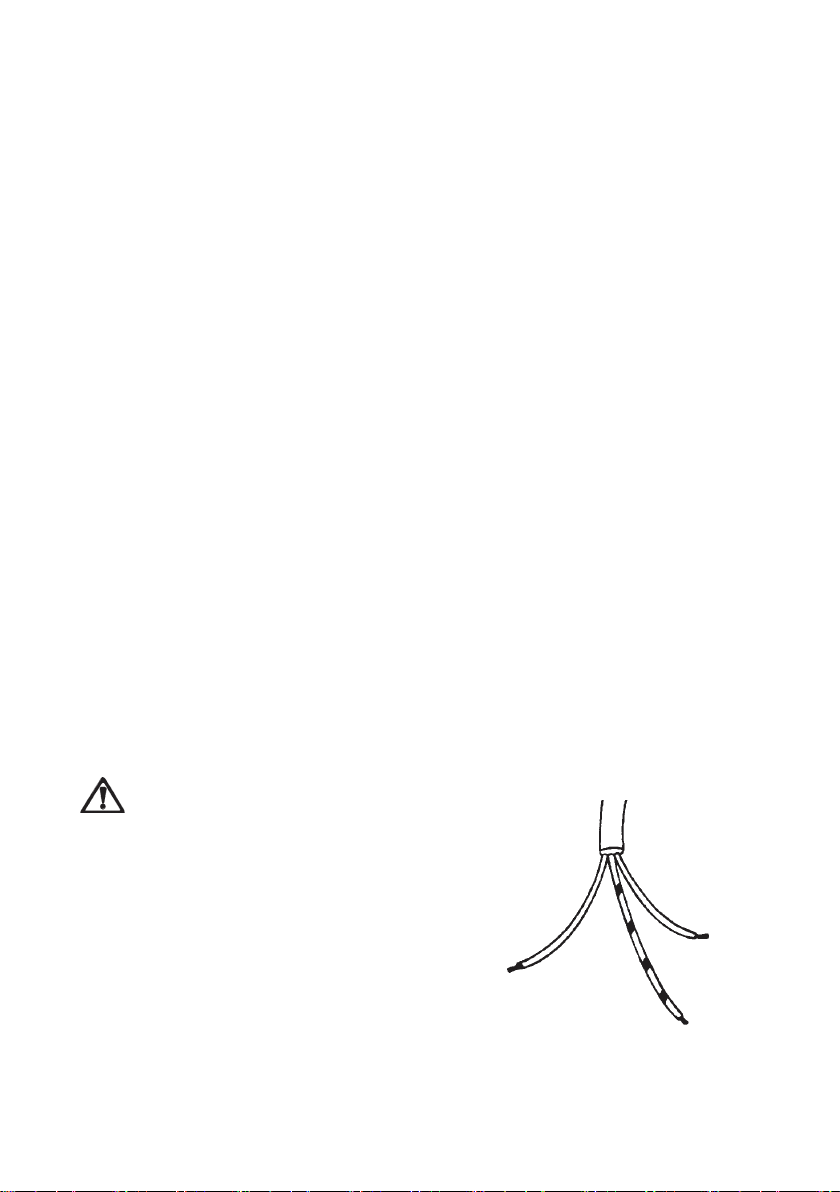

The connection of the voltage cable to the
appliance's terminal block is of type "Y". This
means that its replacement requires the
specific equipment of a technician. In this case,
only cable type H05V2V2-F T90 must be
used. The cable section must be suitable to
the voltage and the working temperature. The
yellow/green earth wire must be
approximately 2 cm. longer than the phase wires.

Neutral

Earth (yellow/green)

Cut Out Size

The dimensions of the cut-out are given in the picture below.

electrolux 43

Fig. 1

Building In

These hobs can be inserted in a built-in kitchen unit whose depth is
between 550 and 600 mm. The hobs dimensions are shown in the
diagramm.
The edge of the cut out must have a minimum distance from the rear
wall of 55 mm.
If there are side walls, or sides of the furniture unit near the hob, the cut
out edges must have a minimum distance of 100 mm.

Hanging forniture units or hoods must be placed at 650 mm. minimum
from the hob.

44 electrolux

Fitting the hob to the
worktop

Before fitting the hob into the

"

cut out, an adhesive seal
must be fitted to the
underside outside edge of
the hob. It is essential that
no gaps are left in this seal
in order to prevent spillage
near the hob seeping into
the cabinet below.

1) Remove the pan
supports, the burners caps
and crowns and turn the hob
upside down, taking care
the ignition candles are not
damaged in this operation.

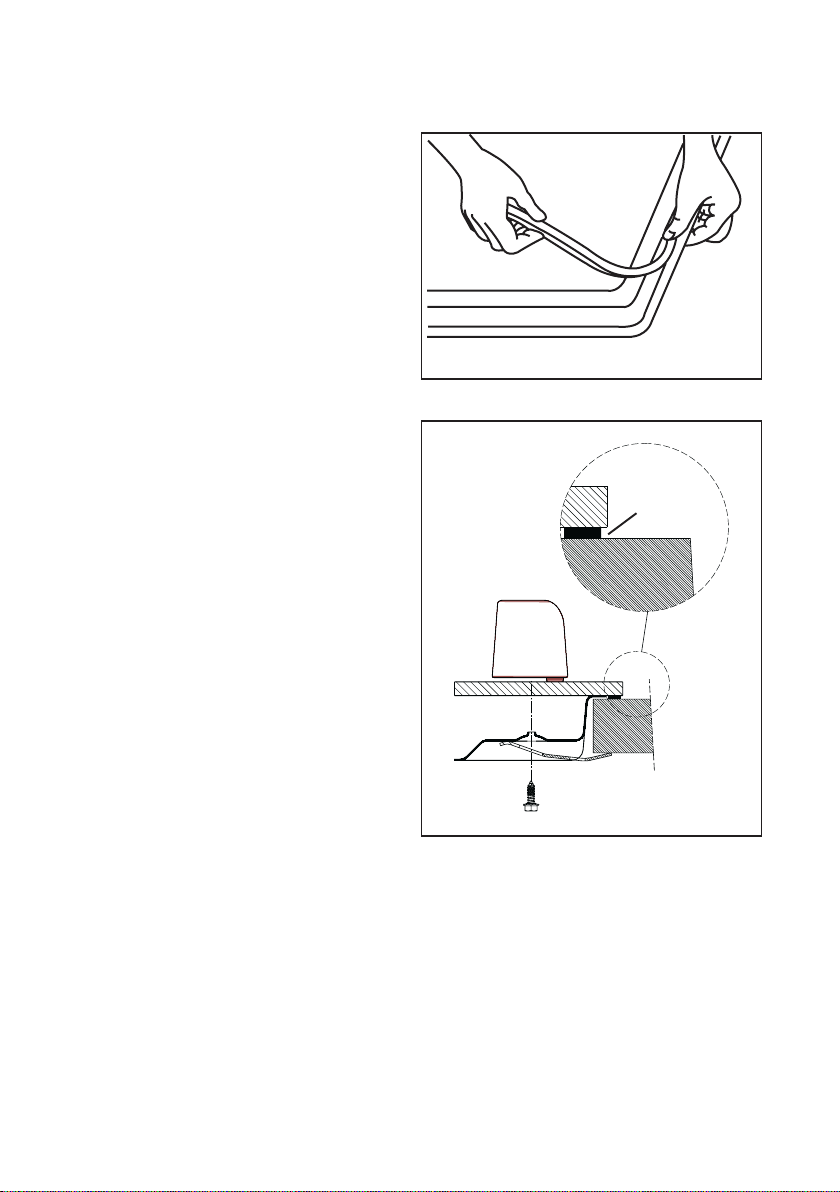

2) Place the relevant
sealing all around the glass
top edge, taking care that the
sealings meet without
overlapping (Fig. 2).

Fig. 2

a

3) Place the hob in the
cut out, taking care of its
centring.

4) Fix the hob with the
relevant screws supplied
with the injectors kit (see
Fig. 3).

A) Sealing gasket

Fig. 3

Possibilities for insertion

Kitchen unit with door

Proper arrangements must be taken
in designing the forniture unit, in order
to avoid any contact with the bottom
of the hob which can be heated when
it is operated. The recommended
solution is shown in figure 4. The panel
fitted under the hob should be easily
removable to allow an easy access if
a technical assistance intervention is
needed.

electrolux 45

FO 0200

a) Removable panel
b) Space possibly useful for

connections

Fig. 4

Kitchen unit with oven

The hob recess dimensions must comply the indication given in figure 1
and must be provided with brackets to allow a continuous supply of air.

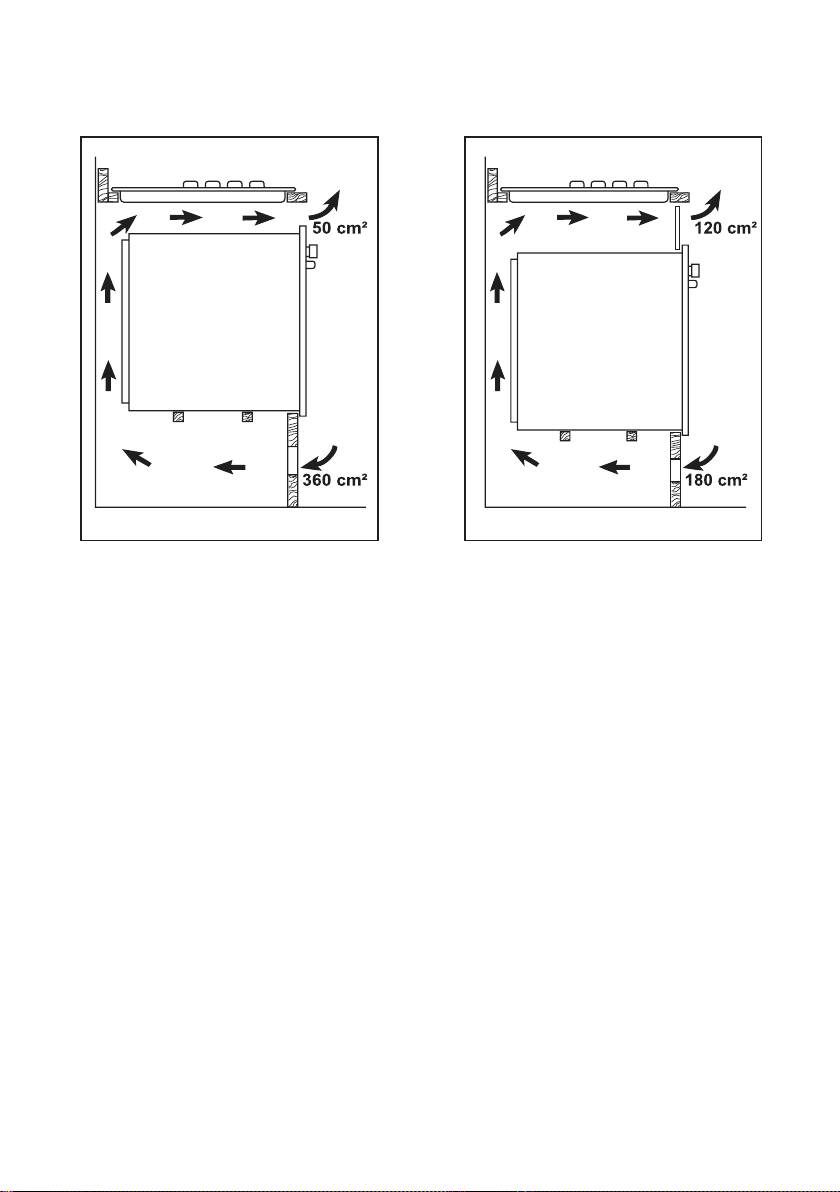

To avoid overhating, the building in should be carried out as shown in
figures 5 and 6. The hob's electric connection and the oven's one must
be carried out separately, both for safety reasons and to allow the oven
to be easily taken off the unit.

46 electrolux

Fig. 5 Fig. 6

electrolux 47

Declaration of guarantee terms

Belgium

Our appliances are produced with the greatest of care. However, a defect may still
occur. Our consumer services department will repair this upon request, either during
or after the guarantee period. The service life of the appliance will not, however, be
reduced as a result.

This declaration of guarantee terms is based on European Union Direc­tive 99/44/EC and the provisions of the Civil Code. The statutory rights that
the consumer has under this legislation are not affected by this declaration
of guarantee terms.

This declaration does not affect the vendor’s statutory warranty to the end user. The
appliance is guaranteed within the context of and in adherence with the following
terms:

1. In accordance with provisions laid down in paragraphs 2 to 15, we will remedy

free of charge any defect that occurs within 24 months from the date the
appliance is delivered to the first end user.
These guarantee terms do not apply in the event of use for professional or
equivalent purposes.

2. Performing the guarantee means that the appliance is returned to the condi-

tion it was in before the defect occurred. Defective parts are replaced or
repaired. Parts replaced free of charge become our property.

3. So as to avoid more severe damage, the defect must be brought to our at-

tention immediately.

4. Applying the guarantee is subject to the consumer providing proof of

purchase showing the purchase and/or delivery date.

5. The guarantee will not apply if damage caused to delicate parts, such as

glass (vitreous ceramic), synthetic materials and rubber, is the result of
inappropriate use.

6. The guarantee cannot be called on for minor faults that do not affect the va-

lue or the overall reliability of the appliance.

7. The statutory warranty does not apply when defects are caused by:

- a chemical or electrochemical reaction caused by water,

- abnormal environmental conditions in general,

- unsuitable operating conditions,

- contact with harsh substances.

8. The guarantee does not apply to defects due to transport which have occurred

outside of our responsibility. Nor will the guarantee cover those caused by
inadequate installation or assembly, lack of maintenance or failure to res­pect the assembly instructions or directions for use.

9. Defects that result from repairs or measures carried out by people who are

not qualified or expert or defects that result from the addition of non-original
accessories or spare parts are not covered by the guarantee.

10. Appliances that are easy to transport may be delivered or sent to the consu-

mer services department. Home repairs are only anticipated for bulky
appliances or built-in appliances.

11. If the appliances are built-in, built-under, fixed or suspended in such a way

that removing and replacing them in the place where they are fitted takes

48 electrolux

more than half an hour, the costs that result therefrom will be charged for.
Connected damage caused by these removal and replacement operations
will be the responsibility of the user.

12. If, during the guarantee period, repairing the same defect repeatedly is not

conclusive, or if the repair costs are considered disproportionate, in agree­ment with the consumer, the defective appliance may be replaced with
another appliance of the same value.
In this event, we reserve the right to ask for a financial contribution calculated
according to the length of time it has been used.

13. A repair under guarantee does not mean that the normal guarantee period

will be extended nor that a new guarantee period begins.

14. We give a twelve month guarantee for repairs, limited to the same defect.

15. Except in the event where liability is legally imposed, this declaration of

guarantee terms excludes any compensation for damage outside the
appliance for which the consumer wishes to assert his rights. In the event of
legally admitted liability, compensation will not exceed the purchase price
paid for the appliance.

These guarantee terms are only valid for appliances purchased and used in Belgium.
For exported appliances, the user must first make sure that they satisfy the
technical conditions (e.g.: voltage, frequency, installation instructions, etc.) for the
country concerned and that they can withstand the local climatic and environmental
conditions. For appliances purchased abroad, the user must first ensure that they
meet the qualifications required in Belgium. Non-essential or requested adjustments
are not covered by the guarantee and are not possible in all cases.

Our consumer services department is always at your disposal, even after the
guarantee period has expired.

Address for our consumer services department:

BELGIUM Tel: Fax:

Electrolux Home Products Belgium

Consumer services 02/363.04.44 02/363.04.00
ELECTROLUX SERVICE 02/363.04.60
Bergensesteenweg 719
1502 Lembeek
E-mail: [email protected]

GRAND-DUCHÉ DE LUXEMBOURG

ELECTROLUX HOME PRODUCTS
Consumer services 00 35242431-1 0035242 431-360
Rue de Bitbourg. 7
L-1273 Luxembourg-Hamm
E-mail: [email protected]

electrolux 49

European guarantee

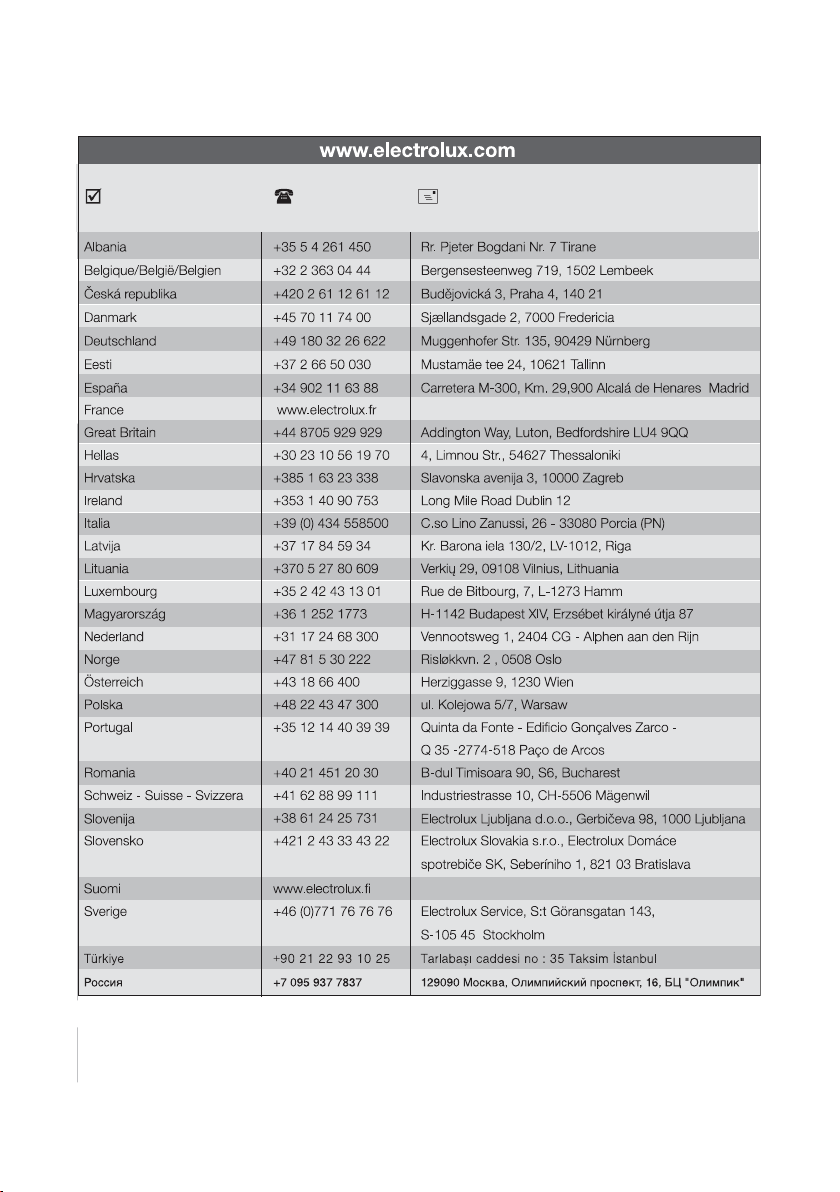

This appliance is guaranteed by Electrolux in each of the countries listed at the back
of this user manual, for the period specified in the appliance guarantee or otherwise
by law. If you move from one of these countries to another of the countries listed
below the appliance guarantee will move with you subject to the following qualifica­tions:

• The appliance guarantee starts from the date you first purchased the appliance

which will be evidenced by production of a valid purchase document issued by
the seller of the appliance.

• The appliance guarantee is for the same period and to the same extent for labour

and parts as exists in your new country of residence for this particular model or
range of appliances.

• The appliance guarantee is personal to the original purchaser of the appliance and

cannot be transferred to another user.

• The appliance is installed and used in accordance with instructions issued by

Electrolux and is only used within the home, i.e. is not used for commercial
purposes.

• The appliance is installed in accordance with all relevant regulations in force

within your new country of residence.

The provisions of this European Guarantee do not affect any of the rights granted to
you by law.

50 electrolux

www.electrolux.be

35692-9102 01/07 R.0
