Aeg-electrolux EHS60040P 12Q User Manual

user manual

notice d’utilisation

gebruiksaanwijzing

Ceramic glass hob

Table de cuisson vitro-

céramique

Glaskeramische kook-

plaat

EHS 60040 P

We were thinking of you
when we made this product

electrolux 3

Welcome to the world of Electrolux

Thank you for choosing a first class
product from Electrolux, which hopefully
will provide you with lots of pleasure in
the future. The Electrolux ambition is to
offer a wide variety of quality products
that make your life more comfortable.
You will find some examples on the cov­er in this manual. Please take a few min­utes to study this manual so that you
can take advantage of the benefits of
your new machine. We promise that it
will provide a superior User Experience
delivering Ease-of-Mind. Good luck!

T

1

4 electrolux

Contents

Safety instructions 5
Description of the Appliance 7
Operating the appliance 9
Tips on Cooking and Frying 13
Cleaning and Care 16
What to do if … 18

Disposal 20
Installation Instructions 21
Guarantee/Customer Service 22
Service 24

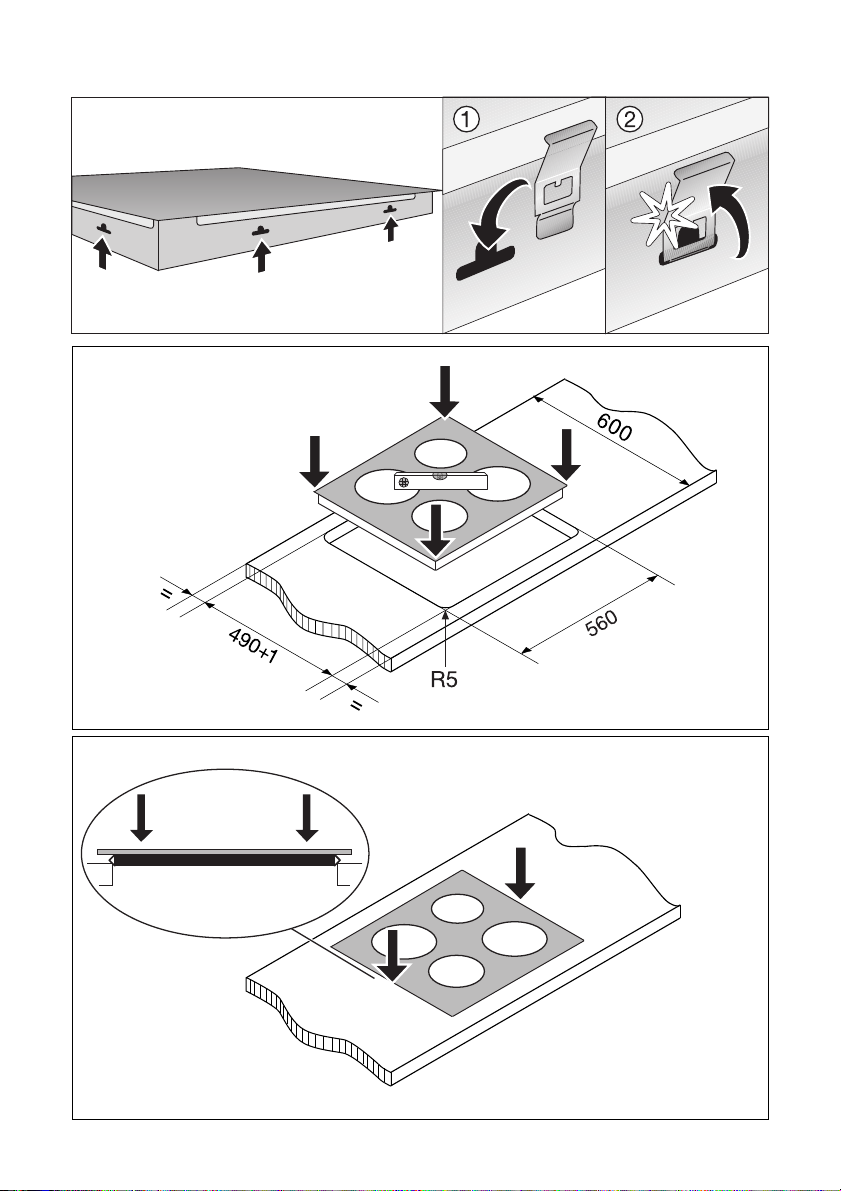

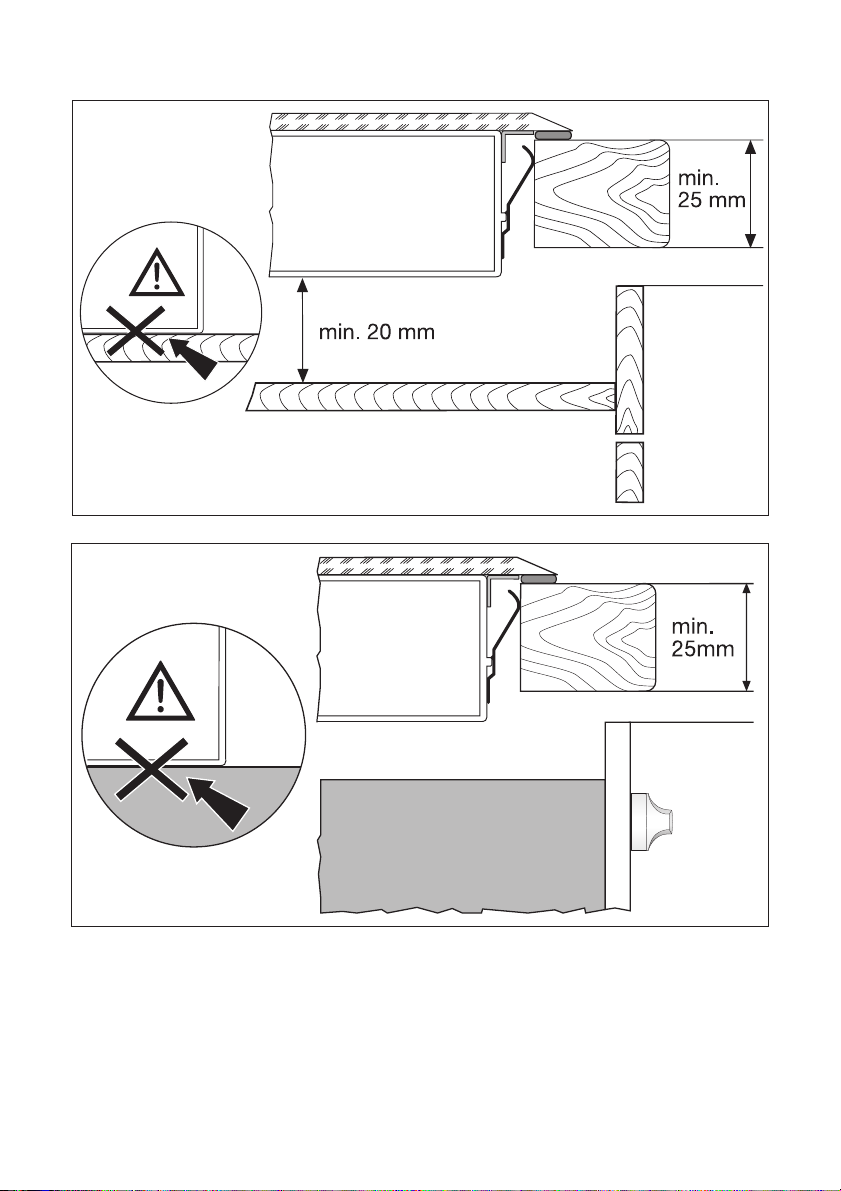

Assembly 73

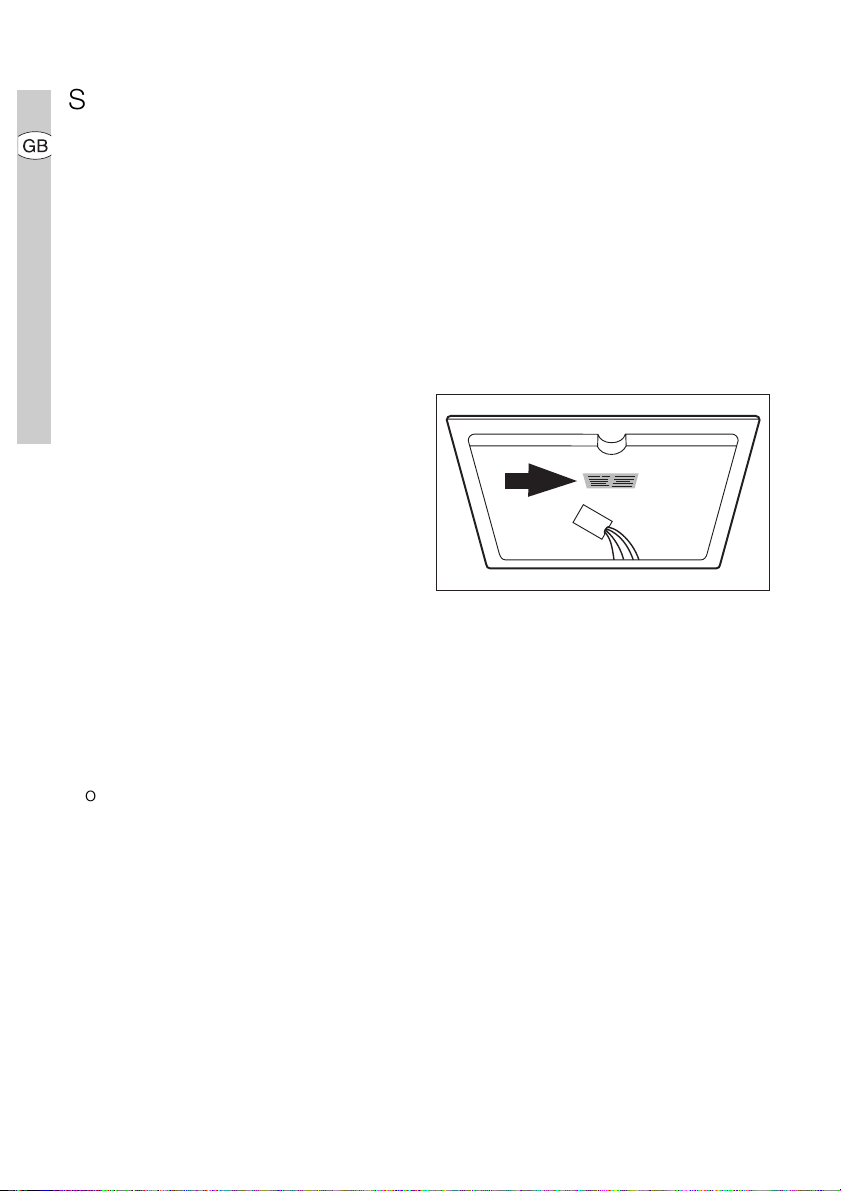

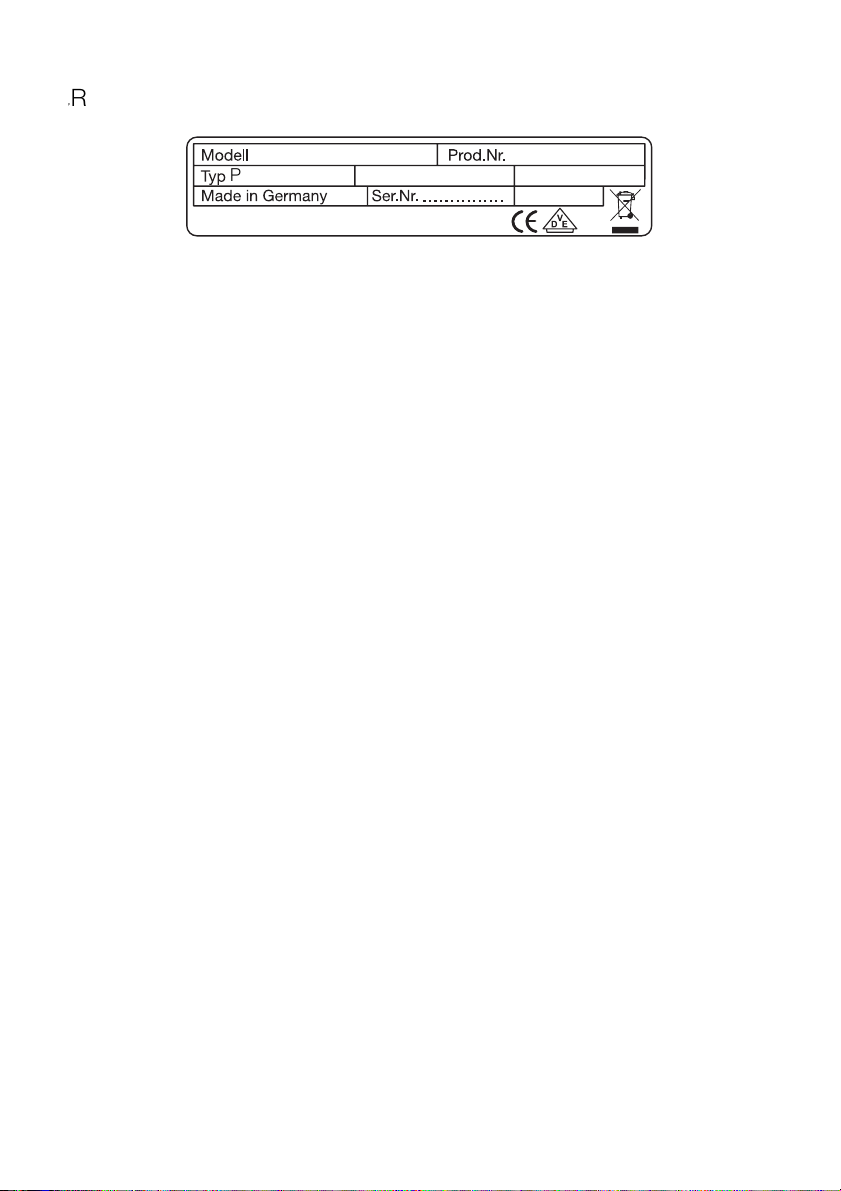

Rating Plate 76

he following symbols are used in this user manual:

Important information concerning your personal safety and information on
how to avoid damaging the appliance.

3 General information and tips

2 Environmental information

safety instructions electrolux 5

Safety instructions

Please comply with these instruc­tions. If you do not, any damage re­sulting is not covered by the
warranty.

5

This appliance conforms with the
following EU Directives:

– 73/23/EEC dated 19.02.1973 Low

Voltage Directive

– 89/336/EEC dated 03.05.1989 EMC

Directive inclusive of Amending Di­rective 92/31/EEC

– 93/68/EEC dated 22.07.1993 CE

Marking Directive

Correct use

• This appliance should be used only
for normal domestic cooking and fry­ing of food.

• The appliance must not be used as a
work surface or as a storage surface.

• Additions or modifications to the ap­pliance are not permitted.

• Do not place or store flammable liq­uids, highly inflammable materials or
fusible objects (e.g. plastic film, plas­tic, aluminium) on or near the appli­ance.

Children’s safety

• Small children must be kept away
from the appliance.

• Only let bigger children work on the
appliance under supervision.

General safety

• The appliance may only be installed
and connected by trained, registered
service engineers.

• Built-in appliances may only be used
after they have built in to suitable
built-in units and work surfaces that
meet standards.

• In the event of faults with the appli­ance or damage to the glass ceramic
(cracks, scratches or splits), the ap­pliance must be switched off and
disconnected from the electrical
supply, to prevent the possibility of
an electric shock.

• Repairs to the appliance must only
be carried out by trained registered
service engineers.

Safety during use

• Remove stickers and film from the
glass ceramic.

• There is the risk of burns from the
appliance if used carelessly.

• Cables from electrical appliances
must not touch the hot surface of the
appliance or hot cookware.

• Overheated fats and oils can ignite
very quickly. When cooking with fat
or oil (e.g. chips) do not leave the ap­pliance unattended.

• Switch the cooking zones off after
each use.

Safety when cleaning

• For cleaning, the appliance must be
switched off and cooled down.

• For safety reasons, the cleaning of
the appliance with steam jet or high­pressure cleaning equipment is not
permitted.

6 electrolux safety instructions

How to avoid damage to the appli­ance

• The glass ceramic can be damaged
by objects falling onto it.

• The edge of the glass ceramic can
be damaged by being knocked by
the cookware.

• Cookware made of cast iron, cast
aluminium or with damaged bottoms
can scratch the glass ceramic if
pushed across the surface.

• Objects that melt and things that boil
over can burn onto the glass ceramic
and should be removed straighta­way.

• To avoid damaging cookware and
glass ceramics, do not allow sauce­pans or frying pans to boil dry.

• Do not use the cooking zones with
empty cookware or without cook­ware.

description of the appliance electrolux 7

Description of the Appliance

Cooking surface layout

Single cooking zone

1200W

Double ring cooking zone

750/2200W

Control panel

Single cooking zone

1800W

Single cooking zone

1200W

Control panel layout

Pilot light

Double ring

Outside ring

Cooking zone and heat setting selection

Display

On/Off

On/Off

8 electrolux description of the appliance

Touch Control sensor fields

The appliance is operated using the
Touch Control sensor fields. Functions
are controlled by touching sensor fields
and confirmed by displays.
Touch the sensor fields from above,
without covering other sensor fields.

Sensor field Function

On / Off To switch the appliance on and off

Increase settings To select the cooking zone

To increase heat settings

Reduce settings To reduce heat settings

Double ring switch Switches outside ring

on and off

Displays

Display Description

Cooking zone is switched off

- Heat settings Heat setting is set

ER Fault Malfunction has occurred

Residual heat Cooking zone is still hot

Child safety device Lock/child safety device is engaged

Residual heat indicator

Warning! Risk of burns from residu­al heat. After being switched off, the
cooking zones need some time to
cool down. Look at the residual heat
indicator

.

Residual heat can be used for melt­ing and keeping food warm.

operating the appliance electrolux 9

Operating the appliance

Switching the appliance on and off

Control panel Display

Switch on Touch for 2 seconds / decimal point flashes
Switch off Touch for 1 second / none

Selecting the cooking zone

Control panel Display

Select Touch Decimal point lights up

The decimal point is displayed by
the selected cooking zone. Then a
heat setting must be set for this
cooking zone within 6 seconds, oth­erwise it must be re-selected.

Setting the heat setting

After selecting the cooking zone,
briefly release the sensor field .

Control field Display

Increase Touch to

Decrease Touch to

Switch off Touch and at the same time

After 6 seconds with no input the
selection is cancelled and the deci­mal point goes out. To set a new set­ting, select the required cooking
zone again.

10 electrolux operating the appliance

Switching the double ring cooking zone on and off

With the double ring cooking zone the
heating surface can be matched to the
size of the cookware.

When a heat setting is set, both
rings are switched on and the pilot
light lights up.

Control panel Pilot light

Switch off Touch for 1 second goes out

Switch on Touch for 1 second lights up

Using the child safety device

The child safety device prevents unin­tentional use of the appliance.

The child safety device can only be
activated immediately after the ap­pliance has been switched on.

Switching on the child safety device

Step Control panel Display

1.

2.

Switch on appliance.

(Do not set a heat setting.)

Tou ch for 5 seconds is displayed.

/ (if hot)

Appliance switches off.

To override or switch the child safe­ty device off sucessfully, the steps
must be performed immediately one
after the other. No other sensor
fields must be touched between the
steps described.

operating the appliance electrolux 11

Overriding the child safety device

The child safety device can be switched
off in this way for a single cooking ses­sion; it remains activated afterwards.

Step Control panel Display

1.

2.

Switch appliance on / (if hot)

Touch the two of the front cook­ing zones at the same time

or

Decimal points flash

Until the appliance is next switched off, it can used as normal.

Switching off the child safety device

Step Control panel Display

1.

2.

Switch appliance on / (if hot)

Tou ch for 5 seconds or

Decimal points flash

Appliance switches off.

12 electrolux operating the appliance

Safety cut-out

Cooking surface

• If after switching on the appliance a
heat setting is not set for a cooking
zone within approx. 10 seconds, the
appliance automatically switches it­self off.

• If one or more sensor fields are
touched for longer than approx. 10
seconds, the cooking surface is au­tomatically switched off. ER03 flash-
es on the display or changes to if
there is still residual heat.

• If all cooking zones are switched off,
the cooking surface automatically
switches itself off after approx. 10
seconds.

Control panel

Moisture (e.g. a wet cloth) or liquid
boiling over onto the control panel
switches all cooking zones off.

Cooking zones

• If one of the cooking zones is not
switched off after a certain time, or if
the heat setting is not modified, the
relevant cooking zone switches off
automatically. is displayed.

Heat setting Switches off after

1 - 2 6 hours
3 - 4 5 hours
5 4 hours
6 - 9 1.5 hours

tips on cooking and frying electrolux 13

Tips on Cooking and Frying

Information on acrylamides
According to the latest scientific

knowledge, intensive browning of
food, especially in products con­taining starch, can constitute a
health risk due to acrylamides.
Therefore we recommend cooking
at the lowest possible temperatures
and not browning foods too much.

Cookware

• You can recognise good cookware
from the bottoms of the pans. The
bottom should be as thick and flat as
possible.

• Cookware made of enamelled steel
or with aluminium or copper bottoms
can leave discolorations on the glass
ceramic surface which are difficult or
impossible to remove.

14 electrolux tips on cooking and frying

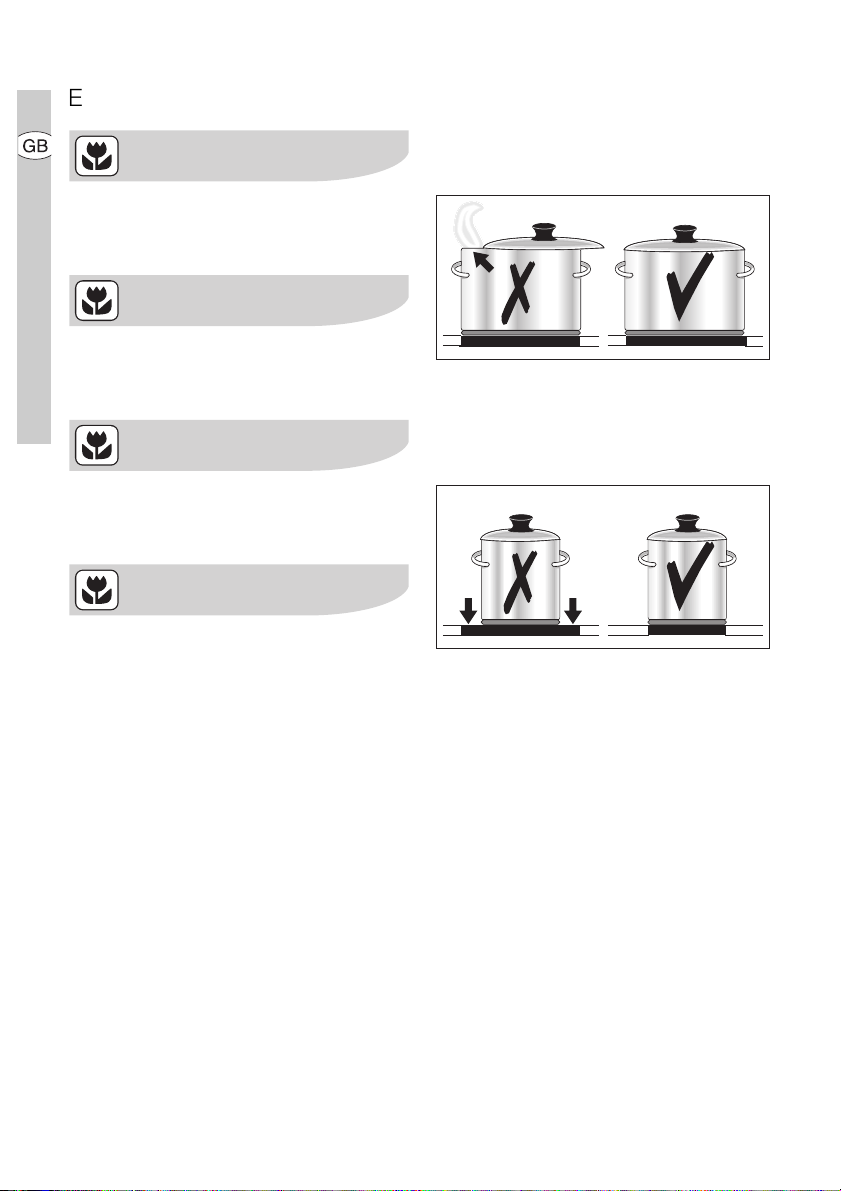

Energy saving

Always place cookware on the
cooking zone before it is switched
on.

If possible, always place lids on the
pans.

Switch cooking zones off before the
end of the cooking time, to take ad­vantage of residual heat.

Bottom of pans and cooking zones
should be the same size.

tips on cooking and frying electrolux 15

Examples of cooking applications

The information given in the following table is for guidance only.

Heat

Cooking-

set­ting

process

0 Residual heat, Off position

Keeping

1

1-2

2-3

3-4

4-5

6-7

7-8

9

food

warm

Melting

Solidi-

fying

Simmer-

ing on low

heat

Steaming

Braising

Boiling

Gentle
Frying

Heavy
Frying

Boiling

Searing

Deep

frying

suitable for

Keeping cooked foods warm as required Cover

Hollandaise sauce,

melting butter, chocolate,

gelatine

Fluffy omelettes, baked eggs 10-40 mins. Cook with lid on

Simmering rice and milk-

based dishes

Heating up ready-cooked

meals

Steaming vegetables, fish

braising meat

Steaming potatoes 20-60 mins.

Cooking larger quantities of

food, stews and soups

Frying escalopes, veal cor-

don bleu, cutlets, rissoles,

sausages, liver, roux, eggs,

pancakes, doughnuts

Hash browns, loin steaks,

steaks, Flädle (pancakes for

garnishing soup)

Boiling large quantities of water, cooking pasta, searing meat (goulash,

pot roast), deep frying chips

Cooking

time

5-25 mins. Stir occasionally

25-50 mins.

20-45 mins.

60-150 mins.

Steady frying

5-15 mins.

per pan

much liquid as rice, stir

With vegetables add only

a little liquid (a few table-

Use only a little liquid, e.

g.: max.

Up to 3 l liquid plus ingre-

Tips/Hints

Add at least twice as

milk dishes part way

through cooking

spoons)

¼

750 g potatoes

Turn halfway through

Turn halfway through

l water for

dients

cooking

cooking

16 electrolux cleaning and care

Cleaning and Care

Take care! Risk of burns from resid­ual heat.

Warning! Sharp objects and abra­sive cleaning materials will damage
the appliance. Clean with water and
washing up liquid.

Warning! Residues from cleaning
agents will damage the appliance.
Remove residues with water and
washing up liquid.

Cleaning the appliance after each use

1. Wipe the appliance with a damp
cloth and a little washing up liquid.

2. Rub the appliance dry using a clean
cloth.

cleaning and care electrolux 17

Removing deposits

1. Place a scraper on the glass ceramic
surface at an angle.

2. Remove residues by sliding the
blade over the surface.

3. Wipe the appliance with a damp
cloth and a little washing up liquid.

4. Rub the appliance dry using a clean
cloth.

im-

Type of dirt

medi-

ately

sugar, food containing sugar yes --­plastics, tin foil yes --­limescale and water rings --- yes
fat splashes --- yes
shiny metallic discolouration --- yes

*Scrapers and cleaners for glass ceramic and

stainless steel can be purchased in specialist
shops

when the appliance

has cooled down

Remove

using

a scraper*

cleaner for glass ce-

ramic or stainless

steel*

Remove stubborn residues with a
cleaner for glass ceramic or stain­less steel.

Scratches or dark stains on the
glass ceramic that cannot be re­moved do not however affect the
functioning of the appliance.

18 electrolux what to do if …

What to do if …

Problem Possible cause Remedy

The cooking zones are not
functioning.

The cooking zones cannot be
selected / Appliance does not
react to the control panel input

The residual heat indicator is
not displaying anything

Er03

Er21

Er25

(only for 10 seconds)

Er40

is displayed

is displayed

is displayed

is displayed The overvoltage protector has

No cooking zone selected Select cooking zone within 10

More than 10 seconds have
passed since the appliance
was switched on

The child safety device is acti­vated

The sensor fields are partly
covered by a damp cloth or
with liquid

Safety cut-out has been trig­gered

The cooking zone was only on
for a short time and is therefore
not hot

Several sensor fields were
touched at the same time

Safety cut-out due to over­heating

Appliance is incorrectly con­nected

been activated (for an incor­rect connection see above

Er25

or for overheating of the

electronic components see

Er21

)

seconds of switching on (Dec­imal point lights up)

Switch on the appliance again.
Select cooking zone within 10
seconds of switching on

Deactivate the child safety de­vice (See section “Child safety
device”)

Remove the cloth or the liquid

Switch on the appliance again

If the cooking zone is sup­posed to be hot, call the Cus­tomer Service Department.

Only touch one sensor field

Let the appliance cool down.
Remove cookware.

Disconnect the appliance from
the electrical supply and have
it connected properly

Separate the appliance from
the mains for a few minutes
(remove the mains fuse).
Let the appliance cool down.

In the event of any other fault codes
that arise, disconnect the appliance
from the electrical supply for a few
seconds. (Take out the fuse from the
house’s wiring system.) If the fault is
displayed again, please call the
Customer Care Department and
inform them of the fault code.
If you are unable to remedy the
problem by following the above
suggestions, please contact your
dealer or the Customer Care De­partment.

Warning! Repairs to the appliance
are only to be carried out by quali­fied service engineers. Considera­ble danger to the user may result
from improper repairs.

what to do if … electrolux 19

If the appliance has been wrongly
operated, the visit from the custom­er service technician or dealer may
not take place free of charge, even
during the warranty period.

20 electrolux disposal

Disposal

Packaging material
The packaging materials are envi-

ronmentally friendly and can be re­cycled. The plastic components are
identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the
packaging materials in the appro­priate container at the community
waste disposal facilities.

Old appliance

The symbol
its packaging indicates that this
product may not be treated as
household waste. Instead it shall be
handed over to the applicable col­lection point for the recycling of
electrical and electronic equipment.
By ensuring this product is dis­posed of correctly, you will help pre­vent potential negative
consequences for the environment
and human health, which could oth­erwise be caused by inappropriate
waste handling of this product. For
more detailed information about re­cycling of this product, please con­tact your local city office, your
household waste disposal service
or the shop where you purchased
the product.

W on the product or on

installation instructions electrolux 21

Installation Instructions

Safety instructions

The laws, ordinances, directives and
standards in force in the country of use
are to be followed (safety regulations,
proper recycling in accordance with the
regulations, etc.)
Installation may only be carried out by a
qualified electrician.
The minimum distances to other appli­ances and units are to be observed.
Anti-shock protection must be provided
by the installation, for example drawers
may only be installed with a protective
floor directly underneath the appliance.
The cut surfaces of the worktop are to
be protected against moisture using a
suitable sealant.
The sealant seals the appliance to the
work top with no gap.
Avoid installing the appliance next to
doors and under windows. Otherwise
hot cookware may be knocked off the
rings when doors and windows are
opened.

WARNING!
Risk of injury from electrical cur­rent.

• The electrical mains terminal is live.

• Make electrical mains terminal free of

voltage.

• Observe connection schematic.

• Observe electrical safety rules.

• Ensure anti-shock protection

through correct installation by a
qualified electrician.

• The appliance must be connected to
the electrical supply by a qualified
electrician.

IMPORTANT!
Risk of injury from electrical cur­rent.

Loose and inappropriate plug and sock­et connections can make the terminal
overheat.

• Have the clamping joints correctly in­stalled by a qualified electrician.

• Use strain relief clamp on cable.

• In the event of single-phase or two-

phase connection, the appropriate
mains cable of type H05BB-F Tmax
90°C(or higher) must be used.

• If this appliance’s mains cable is
damaged, it must be replaced by a
special cable (type H05BB-F Tmax
90°C; or higher). The latter is availa­ble from the Customer Care Depart­ment.

A device must be provided in the electri­cal installation which allows the appli­ance to be disconnected from the mains
at all poles with a contact opening width
of at least 3 mm.
Suitable isolation devices include line
protecting cut-outs, fuses (screw type
fuses are to be removed from the hold­er), earth leakage trips and contactors.

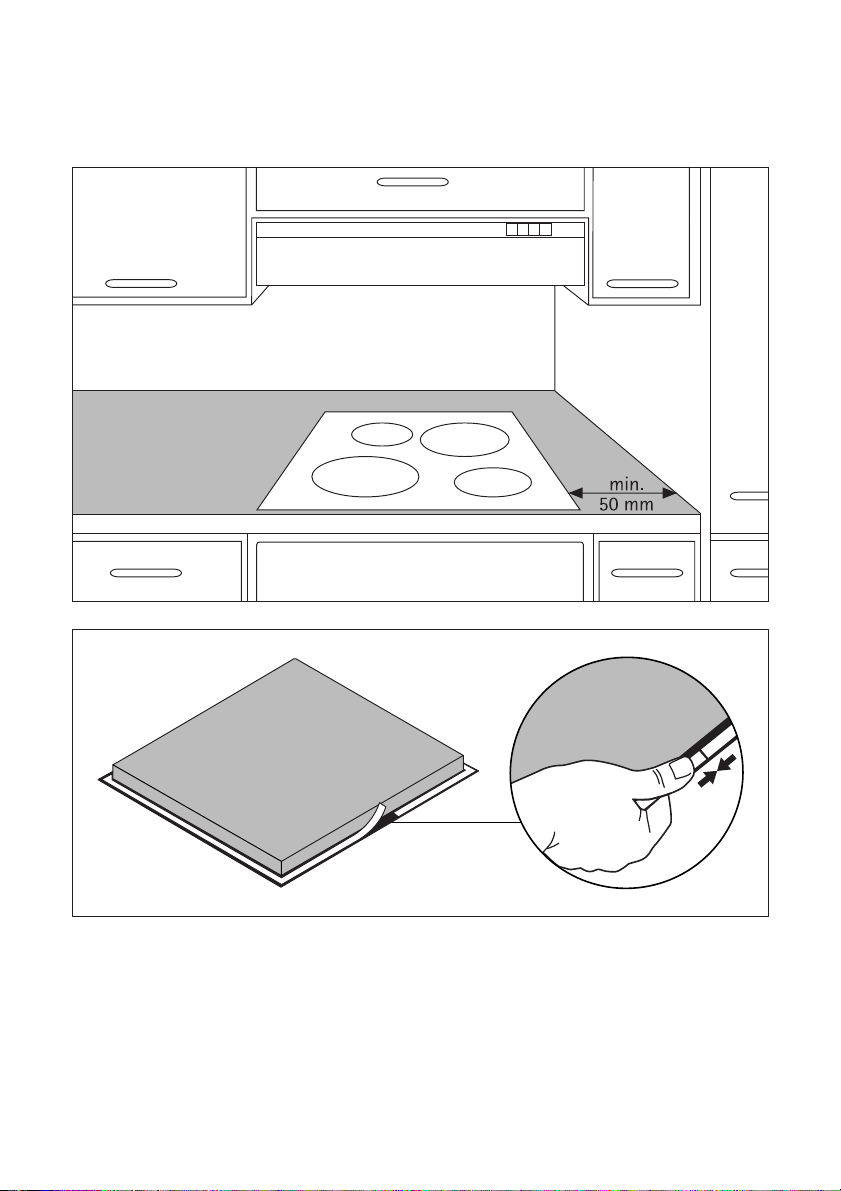

Sticking on the seal

• Clean the worktop around the cut­out area.

• Stick the single-sided adhesive seal­ing tape provided on the underside
of the hob around the outside edge
ensuring that it is not stretched. The
two ends of the tape should join in
the middle of one side. After trim­ming the tape (allow it to overlap by
2-3 mm), press the two ends togeth­er.

22 electrolux guarantee/customer service

Guarantee/Customer Service

European Guarantee

This appliance is guaranteed by Electrolux in
each of the countries listed at the back of this
user manual, for the period specified in the appli­ance guarantee or otherwise by law. If you move
from one of these countries to another of the
countries listed below the appliance guarantee
will move with you subject to the following qual­ifications:

• The appliance guarantee starts from the date

• The appliance guarantee is for the same pe-

• The appliance guarantee is personal to the

• The appliance is installed and used in ac-

• The appliance is installed in accordance with

The provisions of this European Guarantee do
not affect any of the rights granted to you by law.

you first purchased the appliance which will
be evidenced by production of a valid pur­chase document issued by the seller of the
appliance.

riod and to the same extent for labour and
parts as exists in your new country of resi­dence for this particular model or range of
appliances.

original purchaser of the appliance and can­not be transferred to another user.

cordance with instructions issued by Elec­trolux and is only used within the home, i.e. is
not used for commercial purposes.

all relevant regulations in force within your
new country of residence.

guarantee/customer service electrolux 23

24 electrolux service

Service

In the event of technical faults, please
first check whether you can remedy the
problem yourself with the help of the op­erating instructions (section “What to do
if…”).

If you were not able to remedy the prob­lem yourself, please contact the Cus­tomer Care Department or one of our
service partners.

In order to be able to assist you quickly,
we require the following information:

– Model description
– Product number (PNC)
– Serial number (S No.)

(for numbers see rating plate)

– Type of fault
– Any error messages displayed by the

appliance

– three digit letter-number combina-

tion for glass ceramic

So that you have the necessary refer­ence numbers from your appliance at
hand, we recommend that you write
them in here:

Model description: .....................................

PNC: .....................................

S No: .....................................

Assembly / Montage

assembly / montage electrolux 73

74 electrolux assembly / montage

assembly / montage electrolux 75

76 electrolux

P

Rating Plate / Plaque signalétique / Typeplaatje

EHS60040P

PEE2019

230 V 50 Hz

949 592 644

6,4 kW

ELECTROLUX

electrolux 77

www.electrolux.com

p t b

Albania [phone] Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/

Belgien

Èeská republika

Danmark [phone] Sjællandsgade 2, 7000 Fredericia
Deutschland [phone] Muggenhofer Str. 135, 90429 Nürnberg
Eesti [phone] Mustamäe tee 24, 10621 Tallinn

España [phone]

France www.electrolux.fr

Great Britain [phone]

Hellas [phone] Limnou Str., 54627 Thessaloniki
Hrvatska [phone] Slavonska avenija 3, 10000 Zagreb
Ireland [phone] Long Mile Road Dublin 12
Italia [phone] C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Latvija [phone] Kr. Barona iela 130/2, LV-1012, Riga

Lietuva

Luxembourg [phone] Rue de Bitbourg, 7, L-1273 Hamm

Magyarország [phone]

Nederland [phone]

Norge [phone] Risløkkvn. 2 , 0508 Oslo
Österreich [phone] Herziggasse 9, 1230 Wien
Polska [phone] ul. Kolejowa 5/7, Warsaw

Portugal [phone]

Romania [phone] Str. Garii Progresului 2, S4, 040671 RO
Schweiz/Suisse/

Svizzera

Slovenija [phone]

[phone] Bergensesteenweg 719, 1502 Lembeek

[phone]

[phone]

[phone] Industriestrasse 10, CH-5506 Mägenwil

Budìjovická 3, Praha 4, 140 21

Carretera M-300, Km. 29,900
Alcalá de Henares Madrid

Addington Way, Luton, Bedfordshire
LU4 9QQ

Verkių 29, LT09108 Vilnius

H-1142 Budapest XIV,
Erzsébet királyné útja 87

Vennootsweg 1, 2404 CG ­Alphen aan den Rijn

Quinta da Fonte - Edificio Gonçalves Zarco ­Q 35
2774 - 518 Paço de Arcos

Electrolux Ljubljana d.o.o.
Gerbiceva 98, 1000 Ljubljana

78 electrolux

p t b

Slovensko

Suomi www.electrolux.fi

Sverige [phone]

Türkiye

Россия

[phone]

[phone]

[phone]

Electrolux Slovakia s.r.o., Electrolux Domáce
spotrebièe SK, Seberíniho 1, 821 03 Bratisla­va

Electrolux Service, S:t Göransgatan 143,
S-105 45 Stockholm

Tarlabaþý caddesi no : 35 Taksim
Istanbul

129090 Москва, Олимпийский проспект, 16,
БЦ „Олимпик“

www.electrolux.com

www.electrolux.be

822 930 704-A-061106-01
