Page 1
user manual
Gas hob
TW
EHG30830
Page 2
2 electrolux
Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
CONTENTS
Safety information 2
Installation 4
Product description 7
Operation 7
Helpful hints and tips 8
SAFETY INFORMATION
Warning! These instructions are only
valid in the countries whose symbols
appear on this booklet's cover.
For your safety and correct operation
of the appliance, read this manual
carefully before installation and use. Always keep these instructions with the
appliance even if you move or sell it.
Users must fully know the operation
and safety features of the appliance.
General safety
Warning! Persons (including children)
with reduced physical sensory, mental
capabilities or lack of experience and
knowledge must not use the appliance.
They must have supervision or
instruction for the operation of the
appliance by a person responsible for
their safety.
Child safety
• Only adults can use this appliance. Children must get supervision to make sure
that they do not play with the appliance.
• Keep all packaging away from children.
There is a risk of suffocation and physical
injury.
• Keep children away from the appliance
during and after the operation, until the
appliance is cold.
Use
• Remove all packaging, stickers and the
protective layer of the stainless steel hob
panel (if present) from the appliance before first use. Do not remove the rating
plate. It can invalidate the guarantee.
Care and cleaning 8
What to do if… 9
Technical data 10
Environment concerns 11
Service and Guarantee in Taiwan 11
Subject to change without notice
• Set the cooking zones to the "off" position after each use.
• Burners and accessible part become hot
during and after use. Do not put cutlery
or saucepan lids on the cooking surface.
Cookware and its contents can tip over.
There is the risk of burns.
• Too hot fats and oils can ignite very
quickly. There is the risk of fire.
• Do not leave the appliance unattended
during operation.
• Always monitor the appliance during operation.
• Do not let the liquids overflow into the
holes of the top of the hob
• Do not use the hob without cookware.
• The appliance is only for domestic use.
Do not use the appliance for commercial
and industrial use.
• Only use the appliance for domestic
cooking tasks. This is to prevent physical
injury to persons or prevent damage to
property.
• Use only cookware with diameter applicable to the dimensions of burners. There
is a risk of overheating and rupture of the
glass plate (if applicable).
• Do not use a pan with diameter smaller
than burner dimension - flames will heat
up the pan handle.
• Pots must not enter the control zone.
• Do not use not stable cookware to prevent from tilt and accident.
• Do not put flammable products or items
that are wet with flammable products,
and/or fusible objects (made of plastic or
aluminium) and/or fabrics in, near or on
the appliance. There is the risk of explosion or fire.
Page 3
electrolux 3
• Use only the accessories supplied with
appliance.
• Be careful when you connect the appliance to the near sockets. Do not let electricity bonds touch the appliance or hot
cookware. Do not let electricity bonds
tangle.
Installation
• You must read these instructions.
The manufacturer is not responsible
for any injury to persons and pets or
damage to property caused by failure
to obey these requirements.
• To prevent the risks of structural
damage or physical injury, installation, connection of the appliance to
the power supply and gas system,
setting up and maintenance must only be done by qualified personnel in
compliance with standards and local
regulation force.
• Make sure that the appliance is not damaged because of transport. Do not connect a damaged appliance. If it is necessary, speak to the supplier.
• Only use built-in appliances after you assemble the appliance into correct built-in
units and work surfaces that obey the
standards.
• Do not install the hob over a domestic
appliances if the installation instructions
do not allow it.
• Install the appliance only on a worktop
with flat surface.
• Do not change the specifications or modify this product. There is the risk of injury
and damage to the appliance.
• Fully obey the laws, ordinances, directives and standards in force in the country where you use the appliance (safety
regulations, recycling regulations, electrical safety rules etc.)
• Keep the minimum distances to other appliances and units.
• Install anti-shock protection, for example
install the drawers only with a protective
panel directly below the appliance.
• Prevent damage of the cut surfaces of
the worktop against moisture with a correct sealant.
• Seal the appliance to the worktop with no
space left with a correct sealant.
• Prevent damage to the bottom of the appliance from steam and moisture, e.g.
from a dishwasher or oven.
• Do not install the appliance adjacent to
doors and below windows. Hot cookware can be hit off the hob when you
open the doors or windows.
• Before installation, make sure that the local supply conditions (gas type and pressure) agree with the adjustment of appliance. The adjustment conditions for the
appliance are on the rating plate, which
you can find near the gas supply pipe.
• This appliance is not connected to a
combustion products evacuation device.
It must be installed and connected in accordance with current installation regulations. Particular attention must be given
to the relevant requirements regarding
ventilation.
• The use of a gas cooking appliance
cause heat and moisture in the room
in which it is installed. Make sure
that the ventilation in the kitchen is
good: keep natural ventilation holes
open or install a mechanical ventilation device (mechanical extractor
hood).
More ventilation (for example open-
•
ing of a window or increasing the level of mechanical ventilation where
present) is necessary when you operate the appliance with intensity for a
long time.
• Carefully obey the instructions for electrical connections. There is the risk of injury
from electrical current.
• Disconnect the appliance from the
electrical supply, before you do the
maintenance work or you clean it.
• The electrical mains terminal is live.
• Make electrical mains terminal free of
voltage.
• Install correctly to give anti-shock protection.
• A loose and incorrect mains plug and
socket connections can make the terminal become too hot.
• A qualified electrician must install the
clamping connections correctly.
• Use a strain relief clamp on cable.
• Use the correct mains connection cable
and replace the damaged mains cable
Page 4
4 electrolux
with applicable cable. Speak to your local
Service Force Centre.
• The appliance must have the electrical installation which lets you disconnect the
appliance from the mains at all poles with
a contact opening width of minimum 3
mm.
• If the fixing bracket is near to the terminal
block, always make sure the connection
cable does not come in contact with the
edge of the bracket.
• You must have correct isolation devices:
line protecting cut-outs, fuses (screw
type fuses removed from the holder),
ground leakage trips and contactors.
INSTALLATION
Warning! The following instructions
about installation, connection and
maintenance must be carried out by
qualified personnel in compliance with
standards and local regulations in
force.
Gas Connection
Choose fixed connections or use a flexible
pipe in stainless steel in compliance with
the regulation in force. If you use flexible
metallic pipes, be careful they do not come
in touch with mobile parts or they are not
squeezed. Also be careful when the hob is
put together with an oven.
Important! Make sure that the gas supply
pressure of the appliance obeys the
recommended values. The adjustable
connection is fixed to the comprehensive
ramp by means of a threaded nut G 1/2".
Screw the parts without force, adjust the
connection in the necessary direction and
tighten everything.
Disposal of the appliance
• To prevent the risk of physical injury or
damage
– Disconnect the appliance from the
power supply.
– Cut off the mains cable where it con-
nects with the appliance and discard it.
– Flat the external gas pipes if there are
fitted.
– Speak to your local authorised facilities
for disposal of your appliance.
1
2
3
2
4
1 End of shaft with nut
2 Washer (additional washer is only for
Slovenia and Turkey)
3 Elbow
4 Rubber pipe holder for liquid gas (only
for Slovenia and Turkey)
Rigid connection:
Carry out connection by using metal rigid
pipes (copper with mechanical end).
Injectors replacement
1. Remove the pan supports.
2. Remove the caps and crowns of the
burner.
Page 5
electrolux 5
3. With a socket spanner 7 remove the injectors and replace them with the ones
which are necessary for the type of gas
you use (see table in Technical Data
section).
4. Assemble the parts, follow the same
procedure backwards.
5. Replace the rating plate (it is near the
gas supply pipe) with the one for the
new type of gas supply. You can find
this plate in the package supplied with
the appliance.
If the supply gas pressure is changeable or
different from the necessary pressure, you
must fit an applicable pressure adjuster on
the gas supply pipe.
Adjustment of minimum level
To adjust the minimum level of the burners:
1. Light the burner.
2. Turn the knob on the minimum position.
3. Remove the knob.
4. With a thin screwdriver, adjust the bypass screw position.
1
1 The by-pass screw
– If you change from natural gas to liq-
uid gas, fully tighten the by-pass
screw in.
– If you change from liquid gas to natu-
ral gas, undo the by-pass screw approximately 1/2 of a turn.
Warning! Make sure the flame does
not go out when you quickly turn the
knob from the maximum position to the
minimum position.
Electrical connection
• Ground the appliance according to safety
precautions.
• Make sure that the rated voltage and
type of power on the rating plate agree
with the voltage and the power of the local power supply.
• This appliance is supplied with a mains
cable. It has to be supplied with a correct
plug, able to support the load marked on
the rating plate. The plug has to be fitted
in a correct socket.
• Any electrical component must be installed or replaced by the Service Force
Centre technician or qualified service personnel.
• Always use a correctly installed shockproof socket.
• Make sure that there is an access to the
mains plug after installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• The appliance must not be connected
with an extension cable, an adapter or a
multiple connection (risk of fire). Check
that the ground connection is in conformity with the standard and regulations
force.
• The power cable must be placed in such
a way that it does not touch any hot part.
• Connect the appliance to the mains with
a device that lets to disconnect the appliance from the mains at all poles with a
contact opening width of minimum 3
mm, eg. automatic line protecting cutout, earth leakage trips or fuse.
• None of a parts of the connection cable
can not get a temperature 90 °C. The
blue neutral cable must be connected to
the terminal block label with "N". The
brown (or black) phase cable (fitted in the
terminal block contact marked with "L")
must always be connected to the live
phase.
Replacement of the connection cable
To replace the connection cable use only
H05V2V2-F T90 or equivalent type. Make
sure that the cable section is applicable to
the voltage and the working temperature.
The yellow/green earth wire must be approximately 2 cm longer than the brown (or
black) phase wire.
Page 6
6 electrolux

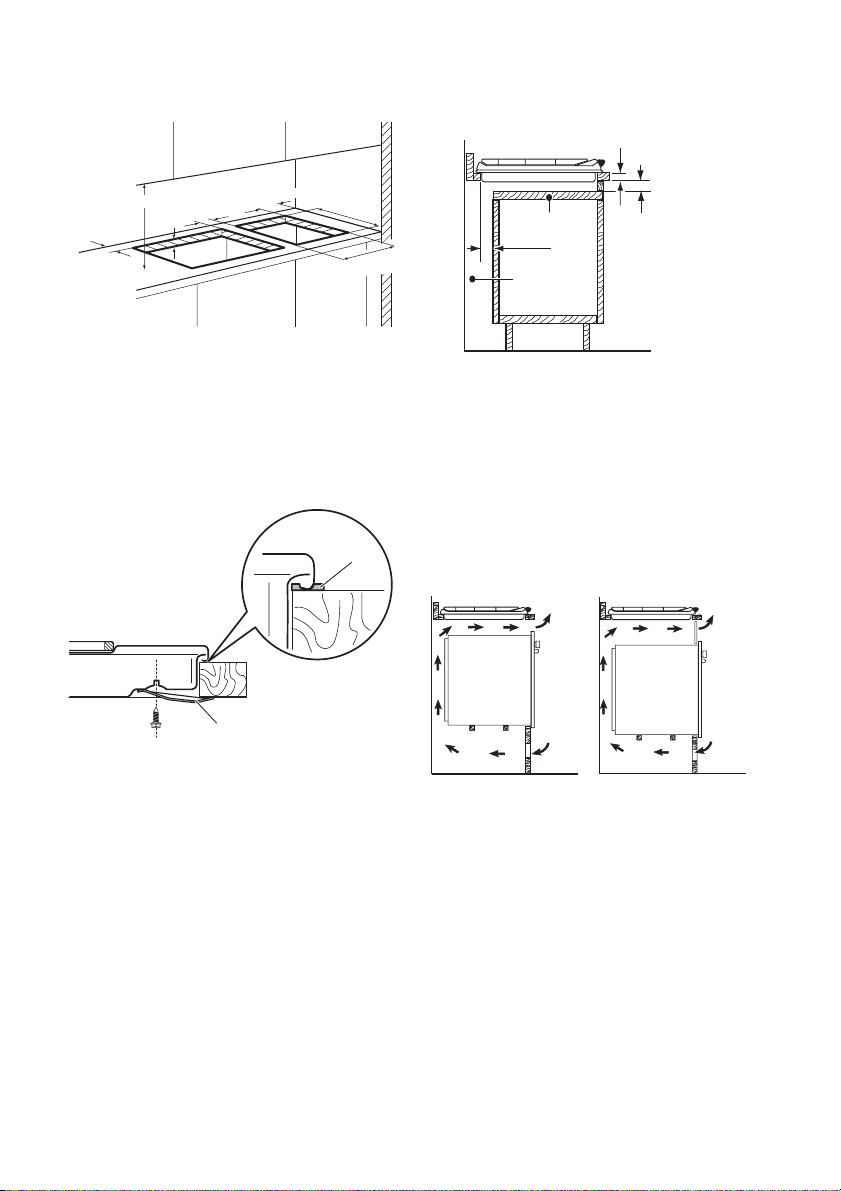

Assembly
min. 650 mm
55 mm
40-50 mm
30 mm
min. 100 mm
490 mm
270 mm
If several 30 cm hobs are to be installed
side by side into the same cut out, an assembly kit including a support side bracket
and supplementary seals is available at our
Service Centres. The relevant installation instructions are supplied within the kit package.
A
case a technical assistance intervention is
necessary.
30 mm
a
60 mm
b
min 20 mm
(max 150 mm)
a) Removable panel
b) Space for connections
Kitchen unit with oven
The hob recess dimensions must obey the
indication and the kitchen unit must be
equipped with vents to let a continuous
supply of air. The electrical connection of
the hob and the oven must be installed
separately for safety reasons and to let easy
remove oven from the unit.
2
50 cm
120 cm
2
B
A — supplied seal
B — supplied brackets
Possibilities for insertion
Kitchen unit with door
The panel installed below the hob must be
easy to remove and let an easy access in
2
360 cm
MANUFACTURER:
ELECTROLUX ITALIA S.p.A.
C.so Lino Zanussi, 30
33080 PORCIA (PN) - ITALIA
180 cm
2
Page 7

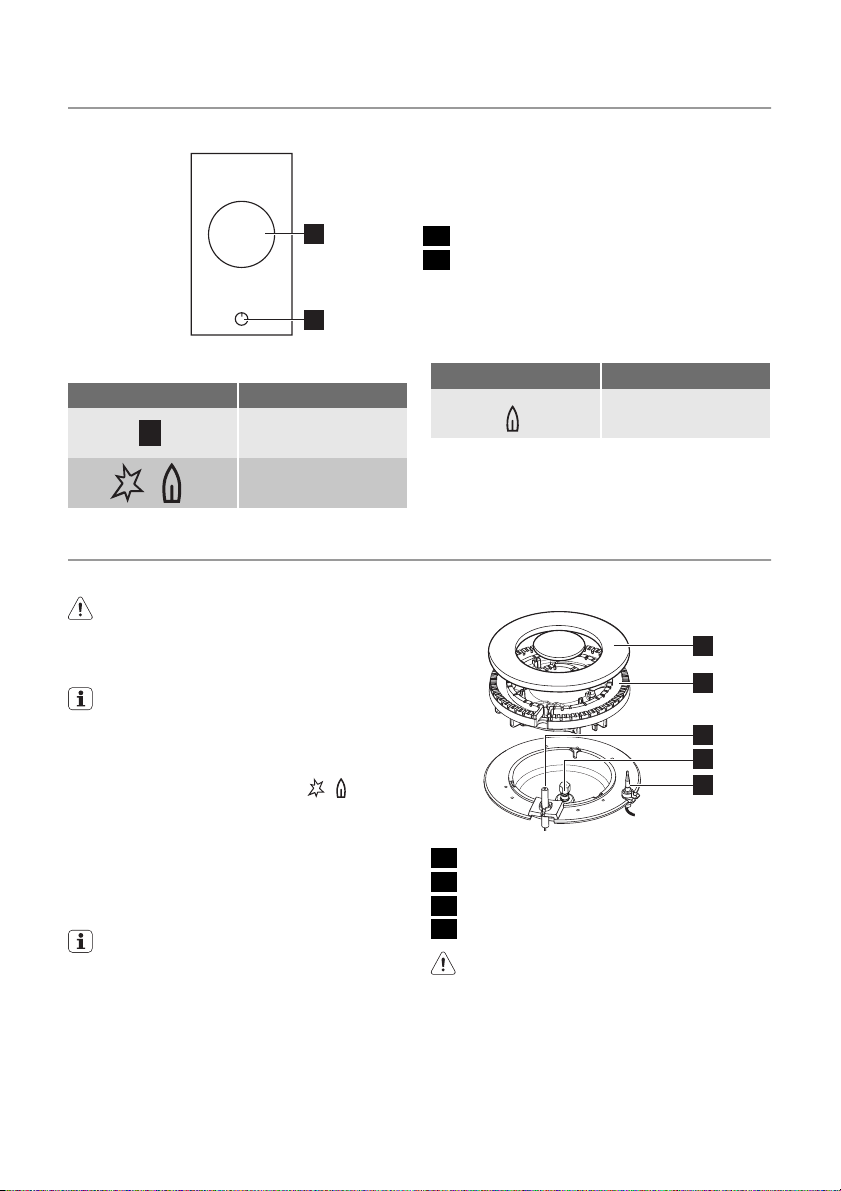

PRODUCT DESCRIPTION
Cooking surface layout
electrolux 7
1
2
Control knobs
Symbol Description
no gas supply / off
position
ignition position /
maximum gas supply
OPERATION
Ignition of the burner
Warning! Be very careful when you
use open fire in kitchen environment.
Manufacturer decline any responsibility
in case misuse of the flame
Always light the burner before you put
cookware.
To light the burner:
1. Turn the control knob counterclockwise
to the maximum position (
push it down.
2. Keep the control knob pushed for approximately 5 seconds; this will let thermocouple to warm up. If not, the gas
supply will be interrupted.
3. Adjust the flame after it is regular.
If after some tries the burner does not
light, check if the crown and its cap are
in correct positions.
) and
1 Triple Crown Burner
2 Control knob
Symbol Description
minimum gas supply
1
2
3
4
5
1 Burner cap
2 Burner crown
3 Ignition candle
4 Thermocouple
Warning! Do not keep the control
knob pushed for more than 15
seconds.
If the burner does not light after 15
seconds, release the control knob, turn
it into off position and try to light the
burner again after minimum 1 minute.
Page 8
8 electrolux
Important! In the absence of electricity you
can ignite the burner without electrical
device; in this case approach the burner
with a flame, push the relevant knob down
and turn it counter-clockwise to maximum
gas release position.
If the burner accidentally goes out, turn
the control knob to the off position and
try to light the burner again after minimum 1 minute.
The spark generator can start automatically when you switch on the mains,
HELPFUL HINTS AND TIPS
Energy savings
• If possible, always put the lids on the
pans.
• When the liquid starts to boil, turn down
the flame to barely simmer the liquid.
Warning! Use pots and pans with
diameter applicable to the dimension of
burner.
Do not use cooking vessels on the hotplate that overlap its edges.
Burner Diameters of cookware
Triple Crown 160 - 240 mm
Do not simmer for a long time with cast
iron pans and potstones.
Warning! Do not put the aluminium foil
on the hob top to keep the surface
clean during the cooking
Warning! Pots must not enter the
control zone.
after installation or a power cut. It is
normal.
Turning the burner off
To put the flame out, turn the knob to the
symbol
Do not place unstable or deformed pots on
the rings to prevent from spill and injury.
Information on acrylamides
Important! According to the newest
scientific knowledge, if you brown food
(specially the one which contains starch),
acrylamides can pose a health risk. Thus,
we recommend that you cook at the lowest
temperatures and do not brown food too
much.
.
Warning! Always turn the flame down
or switch it off before you remove the
pans of the burner.
Warning! Make sure pot handles do
not protrude over the front edge of the
cooktop and that pots are centrally
positioned on the rings in order to
achieve maximum stability and to
obtain lower gas consumption.
Warning! Flame diffuser are not
recommended.
CARE AND CLEANING
Warning! Switch the appliance off and
let it cool down before you clean it.
Disconnect the appliance from the
electrical supply, before carrying out
any cleaning or maintenance work.
Warning! For safety reasons, do not
clean the appliance with steam
cleaners or high-pressure cleaners.
Warning! Do not use abrasive
cleaners, steel wool pads or acids, they
can cause damage to the appliance.
Scratches or dark stains on the surface
have no effect on how the appliance
operates.
• You can remove the pan supports to
easily clean the hob.
• To clean the enamelled parts, cap and
crown, wash it with warm soapy water
and dry it carefully before you put them
back.
• Stainless steel parts wash with water,
and then dry with a soft cloth.
• The pan supports are not dishwasher
proof; they must be washed by hand.
Page 9
electrolux 9
• When you wash the pan supports by
hand, take care when you dry them as
the enamelling process occasionally
leaves rough edges. If necessary, remove
stubborn stains using a paste cleaner.
• Make sure you position the pan supports
correctly after cleaning.
• To make burners work correctly, make
sure that the arms of the pan supports
are in the centre of the burner.
• Be very careful when you replace the
pan supports to prevent the hob top
from damage.
After cleaning, dry the appliance with a soft
cloth.
The stainless steel can become tarnished if
it is too much heated. Refer to this you
must not cook with potstones, earthenware
pans or cast iron plates. Do not use aluminium foil to prevent damage the top during
operation.
Removing the dirt:
1. – Remove immediately: melting plas-
tic, plastic foil, and food containing
sugar.
Stop the appliance and let it cool
–
down before you clean: limescale
rings, water rings, fat stains, shiny
metallic discolorations. Use a special
cleaner applicable for surface of hob.
2. Clean the appliance with a damp cloth
and some detergent.
3. At the end rub the appliance dry
with a clean cloth.
Cleaning of the spark plug
This feature is obtained through a ceramic
ignition candle with a metal electrode. Keep
these components well clean to prevent difficult lighting and check that the burner
crown holes are not obstructed.
Periodic maintenance
Periodically speak your local Service Force
Centre to check the conditions of the gas
supply pipe and the pressure adjuster, if fitted.
WHAT TO DO IF…
Problem Possible cause Remedy
There is no spark when lighting
the gas
• Burner cap and crown are
The flame is blow out immediately after ignition
The gas ring burns unevenly • Burner crown is blocked with
If there is a fault, first try to find a solution to
the problem yourself. If you cannot find a
• There is no electrical supply • Make sure that the unit is
placed uneven
• Thermocouple is not heated
sufficient
food residues
solution to the problem yourself, speak your
dealer or the local Service Force Centre.
connected and the electrical
supply is switched on.
• Control the fuse. If the fuse is
released more than one time,
refer to a qualified electrician.
• Make sure that the burner
cap and crown are in correct
positions.
• After lightning the flame,
keep the knob pushed for
approximately 5 seconds.
• Make sure that the injector is
not blocked and the burner
crown is clear of food particles.
Page 10
10 electrolux
If you operated the appliance incorrectly, or the installation was not carried
out by a registered engineer, the visit
from the customer service technician or
dealer may not take place free of
charge, even during the warranty period.
1 2 3
MOD.
PROD.NO.
SER.NO
DATA
MOD.
PROD.NO.
SER.NO
DATA
MODELMODEL
03 IT
MADE IN ITALY
1 Stick it on Guarantee Card and send
this part
2 Stick it on Guarantee Card and keep
this part
3 Stick it on instruction booklet
These data are necessary to help you
quickly and correctly. These data are
available on the supplied rating plate.
• Model description .................

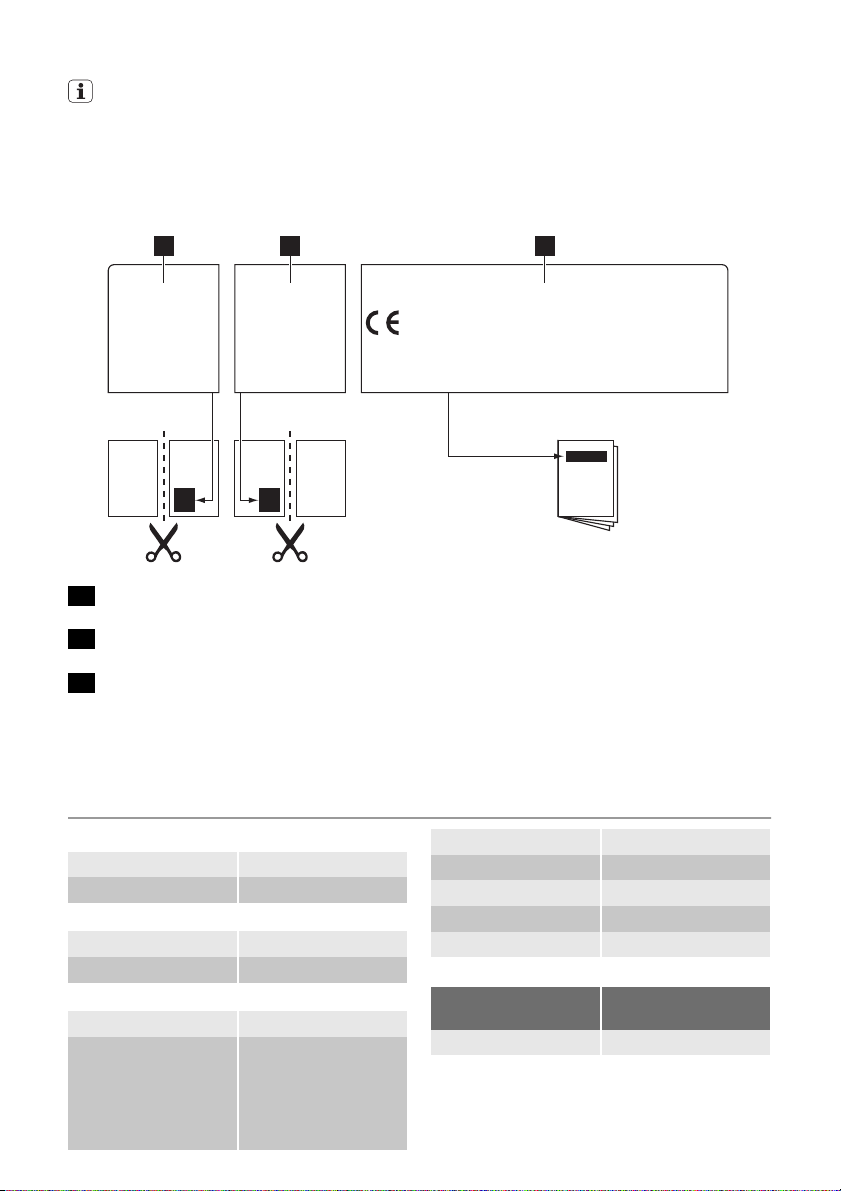

Labels supplied with the accessories
bag
Stick the adhesive labels as indicated below:
0049
MOD.
PROD.NO.
SER.NO.
TYPE
230V-50Hz
IP20
• Product number (PNC) .................
• Serial Number (S.N.) .................
Use the original spare parts only. They are
available at Service Force Centre and approved spare parts shops.
TECHNICAL DATA
Hob dimensions
Width: 290 mm
Length: 510 mm
Hob recess dimensions
Width: 270 mm
Length: 490 mm
Heat input
Triple Crown burner: 4.0 kW
TOTAL POWER: G20 (2H) 20 mbar =
4.0 kW
G30 (3+) 28–30 mbar
= 291 g/h
G31 (3+) 37 mbar =
286 g/h
Electric supply: 230 V ~ 50 Hz
Gas connection: G 1/2"
Category: II2H3+
Gas supply: G20 (2H) 20 mbar
Appliance class: 3
By-pass diameters
Burner Ø By-pass in 1/100
mm.
Triple Crown 56
Page 11
electrolux 11
Gas burners
BURNER NORMAL
POWER
kW kW inj. 1/100mmm³/h inj.
Triple Crown 4.0 1.4 146 0.381 98 291 286
RE-
DUCED
POWER
NORMAL POWER
NATURAL GAS
G20 (2H) 20 mbar
LPG
(Butane/Propane)
G30/G31 (3B/P) 28–30/37
1/100
mm
mbar
G30
28–30
mbar
g/h g/h
G31
mbar
ENVIRONMENT CONCERNS
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local council, your household
waste disposal service or the shop where
you purchased the product.
Packaging material
The packaging materials are friendly to
the environment and can be recycled.
The plastic components are identified
by marking: >PE<,>PS<, etc. Discard
the packaging materials as household
waste at the waste disposal facilities in
your municipality.
37
SERVICE AND GUARANTEE IN TAIWAN
This appliance is guaranteed by Taiwan Sakura, the authorized agent of Electrolux major kitchen appliance in Taiwan. Taiwan Sakura guarantees to the end user 1-year free
warranty services, subject to the terms and
conditions listed below:
1. Service and warranty are only applied
to Electrolux major kitchen appliances
sold by Taiwan Sakura in Taiwan.
2. The warranty card is offered with every
Electrolux appliance sold by Taiwan
Sakura in Taiwan.
3. Taiwan Sakura provides free maintenance service for 1 year commencing
from the date of appliance installation
or the date out of warehouse shown on
the warranty card. The free service including free repairing and parts replacement should only provide to the
product under normal use. Any defective parts which have been replaced
shall become the company’s property.
Page 12
12 electrolux
4. This warranty is invalid in the following
cases:
– The product has been modified, al-
tered and/or repaired by persons
other than qualified installers.
– The product has been damaged
through misuse, negligence, accident
or natural calamities.
– The product has been malfunction as
caused by power interruption or abnormal voltage input.
– The product is not a fixed installation
on land.
– The product is used for industrial or
commercial purposes.
– Fail to follow the installation instruc-
tions provided.
– The serial number has been altered,
effaced and/or removed.
5. The service will only be provided under
safe condition and circumstances.
6. This warranty does not cover any case
cover, cosmetic items and accessories.
7. The company will not be liable for any
losses directly or indirectly caused from
the breakdown of the appliance.
8. Service shall be rendered within regular
working hours of the customary working week.
9. Please keep and present the warranty
card to the technician for inspection
during each service.
10. In case of any disputes, the company
reserves the right for the final decision.
11. When requiring service to the appliance, you can dial the Toll Free service
number (only in Taiwan area):
0800-021-818. Before calling out an
engineer, please ensure you have read
the details under the heading “What to
do if...” When contacting the service
center, you will be asked to offer the
product information on the warranty
card and customer name, telephone,
address, etc.
Page 13
electrolux 13
Page 14
14 electrolux
Page 15
electrolux 15
Page 16
www.electrolux.com/shop
356943302-A-082011
Loading...
