user manua

Ceramic glass hob

EHC326BA

EHC724BAEHC724BA

2 electrolux

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

Contents

Safety instructions 2 Product description 4 Operating instructions 6 Helpful hints and tips 10 Cleaning and care 11

Safety instructions

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

CHILDREN AND VULNERABLE PEOPLE SAFETY

Warning! Risk of suocation, injury or

permanent disability.

t Do not let persons, children included,

with reduced physical sensory, reduced mental functions or lack of experience and knowledge use the appliance. They must have supervision or instruction for the operation of the appliance by a person who is responsible for their safety.

t Do not let children play with the appli-

ance.

t Keep all packaging away from children. t If the appliance has a child safety device,

we recommend that you activate it.

INSTALLATION

Warning! Only a qualied person must

install this appliance.

t Remove all the packaging. t Do not install or use a damaged appli-

ance.

t Obey the installation instruction supplied

with the appliance.

t Keep the minimum distance from the

other appliances and units.

Environment concerns 1 Installation Instructions 1 Warranty

t Always be careful when you move the

appliance because it is heavy. Always wear safety gloves.

t Seal the cut surfaces with a sealant to

prevent moisture to cause swelling.

t Protect the bottom of the appliance from

steam and moisture.

t Do not install the appliance adjacent to a

door or under a window. This prevents hot cookware to fall from the appliance when the door or the window is opened.

t If the appliance is installed above drawers

make sure that the space, between the bottom of the appliance and the upper drawer, is sucient for air circulation.

t The bottom of the appliance can get hot.

We recommend to in stall a non-combustile separation panel under the appliance to prevent access to the bottom.

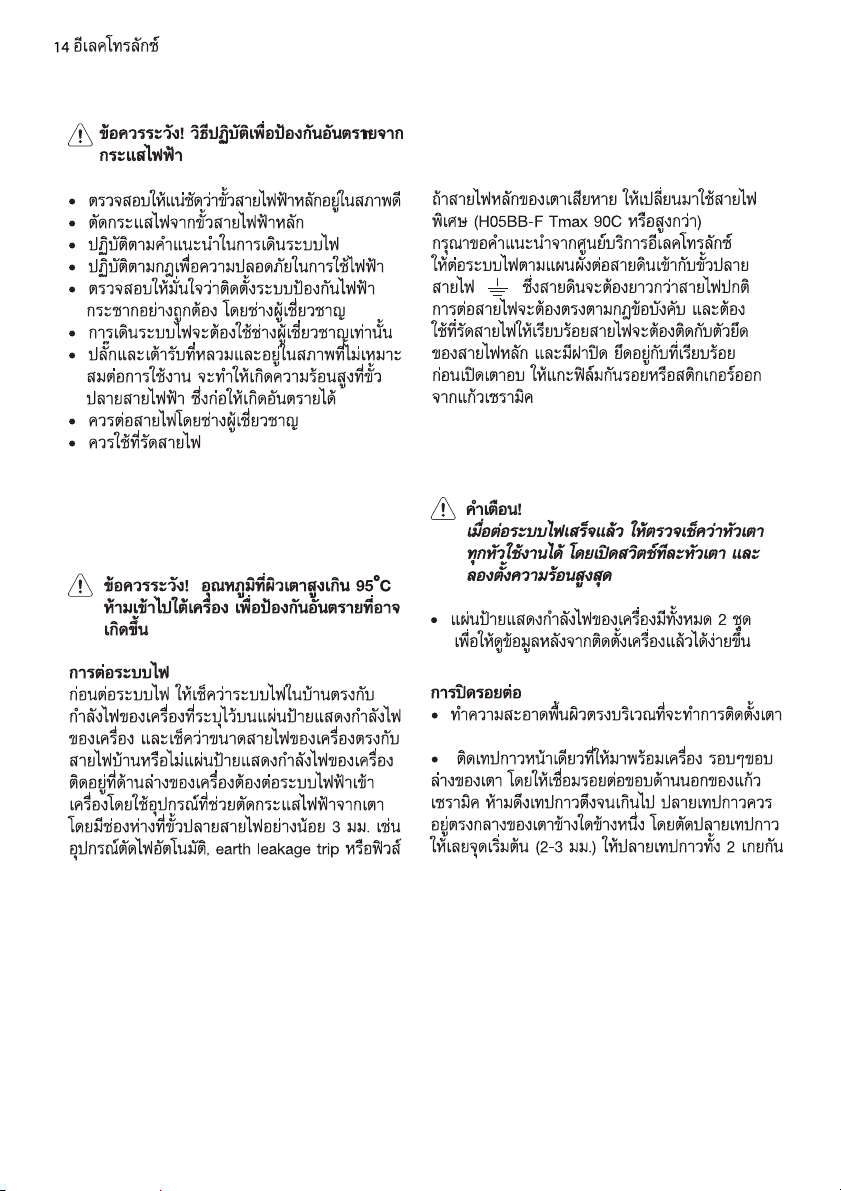

Electrical connection

Warning! Risk of re and electrical

shock.

t All electrical connections must be made

by a qualied electrician.

t Before every wiring make sure the main

terminal of the appliance is not live.

t Make sure the appliance is installed cor-

rectly. Loose and incorrect plug and socket can make the terminal become too hot.

atad lacinhceT

... fi od ot tahW

11 12

3 3 6

eciton tuohtiw egnahc ot tcejbuS

electrolux 3

Make sure that a shock protection is in-

stalled.

Do not let the electricity bounds touch

the appliance or hot cookware, when you connect the appliance to the near sock-

ets. Do not let the electricity bounds tangle. Use a strain relief clamp on cable. Use the correct mains cable. Make sure not to cause damage to the

mains plug and to the mains cable. Con-

tact the Service or an electrician to

change a damaged mains cable. The electrical installation must have an

isolation device which lets you discon-

nect the appliance from the mains at all

poles. The isolation device must have a

contact opening width of minimum 3

mm. Use only correct isolation devices: line

protecting cut-outs, fuses (screw type

fuses removed from the holder), earth

leakage trips and contractors.

USE

Warning! Risk of injury, burns or

electric shock.

Use this appliance in a household envi-

ronment. Do not change the speci cation of this

appliance. Do not use an external timer or a sepa-

rate remote-control system to operate

the appliance. Do not let the appliance stay unattended

during operation. Do not operate the appliance with wet

hands or when it has contact with water. Do not put cutlery or saucepan lids on

the cooking zones. They can become

hot. Set the cooking zone to “o ” after each

use. Do not rely on the pan detector. Do not use the appliance as a work sur-

face or as a storage surface. If there is a crack on the surface, discon-

nect power supply to prevent the electri-

cal shock.

Warning! Risk of re or explosion.

Fats and oil when heated can release

ammable vapours. Keep ames or heated objects away from fats and oils when you cook with them.

The vapours that very hot oil releases can

cause spontaneous combustion.

Used oil, that can contain food remnants,

can cause re at a lower temperature than oil used for the rst time.

Do not put ammable products or items

that are wet with ammable products in, near or on the appliance.

Warning! Risk of damage to the appliance.

Do not keep hot cookware on the control

panel.

Do not let cookware to boil dry. Be careful not let objects or cookware fall

on the appliance. The surface can be damaged.

Do not activate the cooking zones with

empty cookware or without cookware.

Do not put aluminium foil on the appli-

ance.

Cookware made of cast iron, aluminium

or with a damaged bottom can cause scratches on the glass ceramic. Always lift these objects up when you have to move them on the cooking surface.

CARE AND CLEANING

Warning! Risk of damage to the

appliance.

Clean regularly the appliance to prevent

the deterioration of the surface material.

Do not use water spray and steam to

clean the appliance.

Clean the appliance with a moist soft

cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

4 electrolux

Product description

Cooking surface layout

EHC326BA

Cooking zone 18 00 W

Cooking zone 1200 W

Control panel layout

3 Glass bar

4 Control panel

EHC724BA

Cooking zone 18 00 W

Cooking zone 1200 W

3 Glass bar

4 Control panel

6 74

101113 912

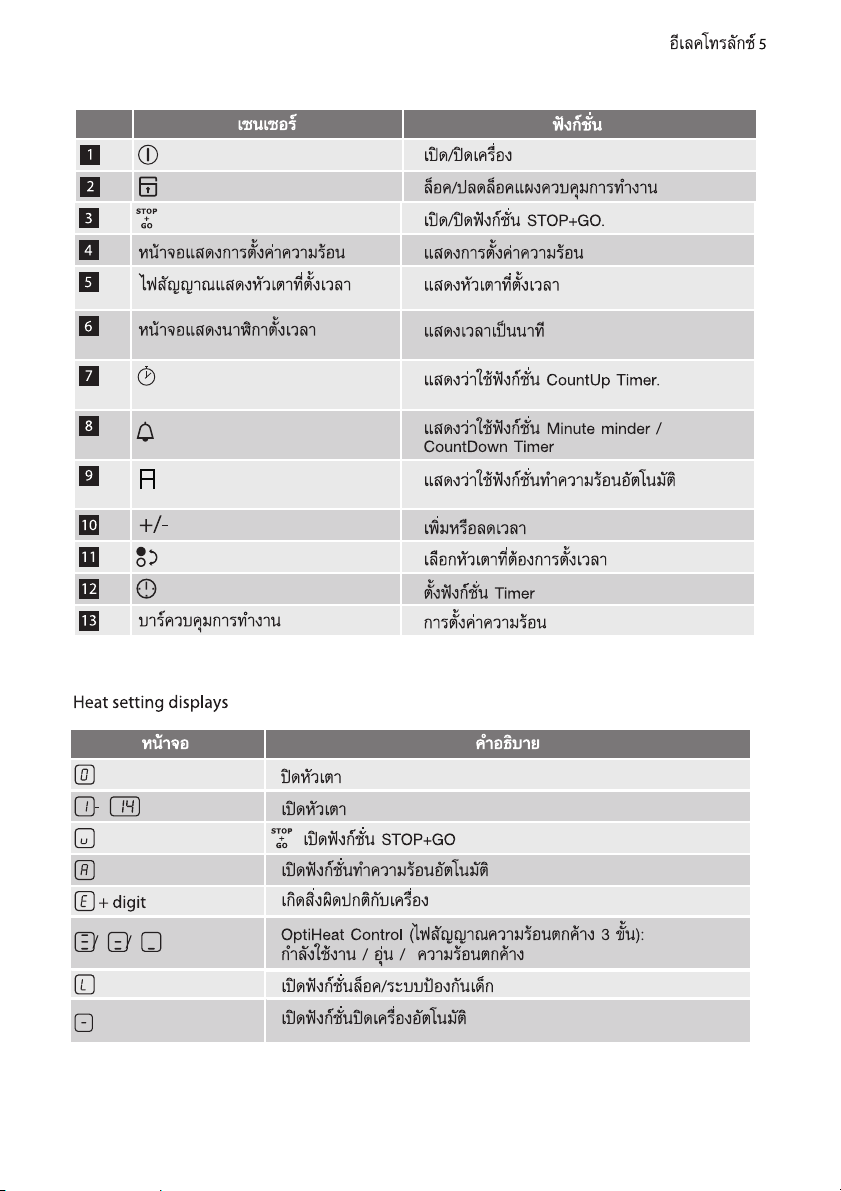

sensor eld function

A heat setting display.

Cooking zones' indicators of timer.

The timer display.

It activates and deactivates the appliance.

It locks/unlocks the control panel.

It activates and deactivates STOP+GO function.

It shows the heat setting.

It shows for which of the cooking zones you

the time.

set

It shows the time in minutes.

electrolux 5

+/-

A control bar.

Heat setting displays

Display Description

digit

/ /

It shows that the CountUp Timer function

ate

oper

It shows that the Minute minder /

the CountDown

It activates

Timer function operates.

automatic heat-up function

the

It increases or decreases the time.

It sets the cooking zone for the timer.

It sets the Timer function.

To set the heat setting.

The cooking zone is o

The cooking zone operates

function is on

The automatic heat-up function is on

There is a malfunction

OptiHeat Control (3 step Residual heat indicator): still cooking /

warm / residual heat

keep

Lock/Child safety function is on

The automatic switch

6 electrolux

OptiHeat Control (3 step Residual heat indicator)

WARNING!

\ \ Risk of burns from residual heat!

OptiHeat Control indicates the level of the residual heat.

Operating instructions

On and O

Touch for 1 second to start or stop the appliance.

Automatic Switch O

The function stops the hob automatically if:

all cooking zones are o . you do not set the heat setting after you start the hob. you cover a sensor eld with an object (a pan, a cloth, etc.) for longer than 10 seconds.

The sound operates until you remove the object.

the hob gets too hot (e.g. when a saucepan boils dry). Before you use the hob again, the

cooking zone must be cool.

you do not stop a cooking zone or change the heat setting. After some time

on and the hob stops. See the table.

Automatic Switch O

Heat setting

Stops after 6 hours 5 hours 4 hours 1.5 hours

times

comes

The heat setting

Touch the control bar at the heat setting.

Change to the left or the right, if it is necessary.

Do not release before you have a correct heat setting. The display shows the heat setting.

electrolux 7

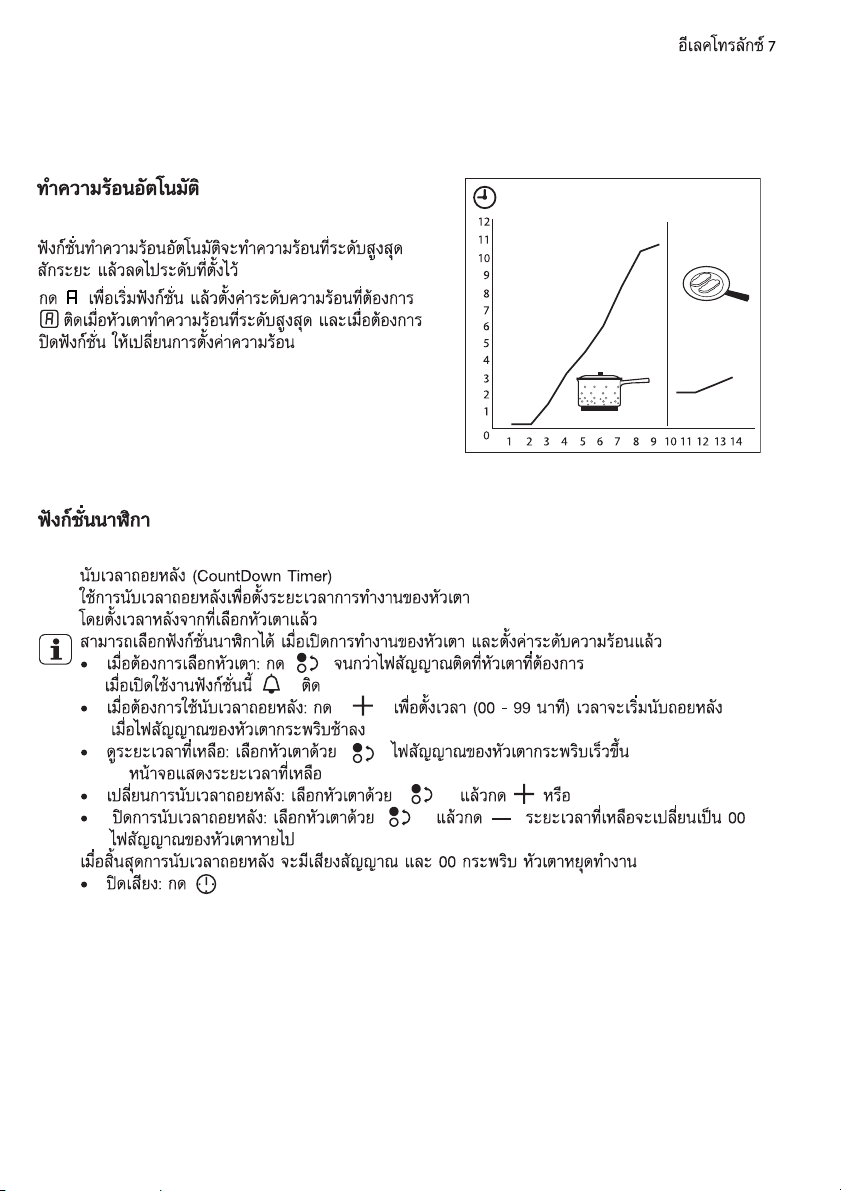

The automatic heat up

Automatic heat up function sets the high est heat setting

for

some time, and then decreases to the necessary level. To start function touch the symbol and then set necessary heat setting.

comes on when the cooking zone operates on highest heat setting. To stop the function change heat setting.

The Timer

The Count Down Timer.

Use the Count Down Timer to set how long the cooking zone operates Set the Count Down Timer after the selection of the cooking zone.

The selection of Timer function is possible for cooking zones that are active and the heat setting is set.

t To set the cooking zone: touch

necessary cooking zone comes on. When this function is activated,

t To activate the Count Down Timer: touch

99 minutes). When the indicator of the cooking zone starts to ash slow, the time counts down.

t To see the remaining time: set the cooking zone with

the cooking zone starts to ash quickly. The display shows the remaining time.

t To change the Count Down Timer:set the cooking zone with t To deactivate the Count Down Time: set the cooking zone with

remaining time counts back to 00. The indicator of the cooking zone goes out.

When the timer countdown comes to an end, the sound operates and 00 ashes. The cooking zone deactivates.

t To deactivate the sound: touch

8 7 6 5 4

3 2 1

1 2 3 4 5 6 7 8 9 10 11 12 13 14

again and again until the indicator of a

comes on.

of the timer to set the time ( 00 -

. The indicator of

touch or .

. Touch .The

8 electrolux

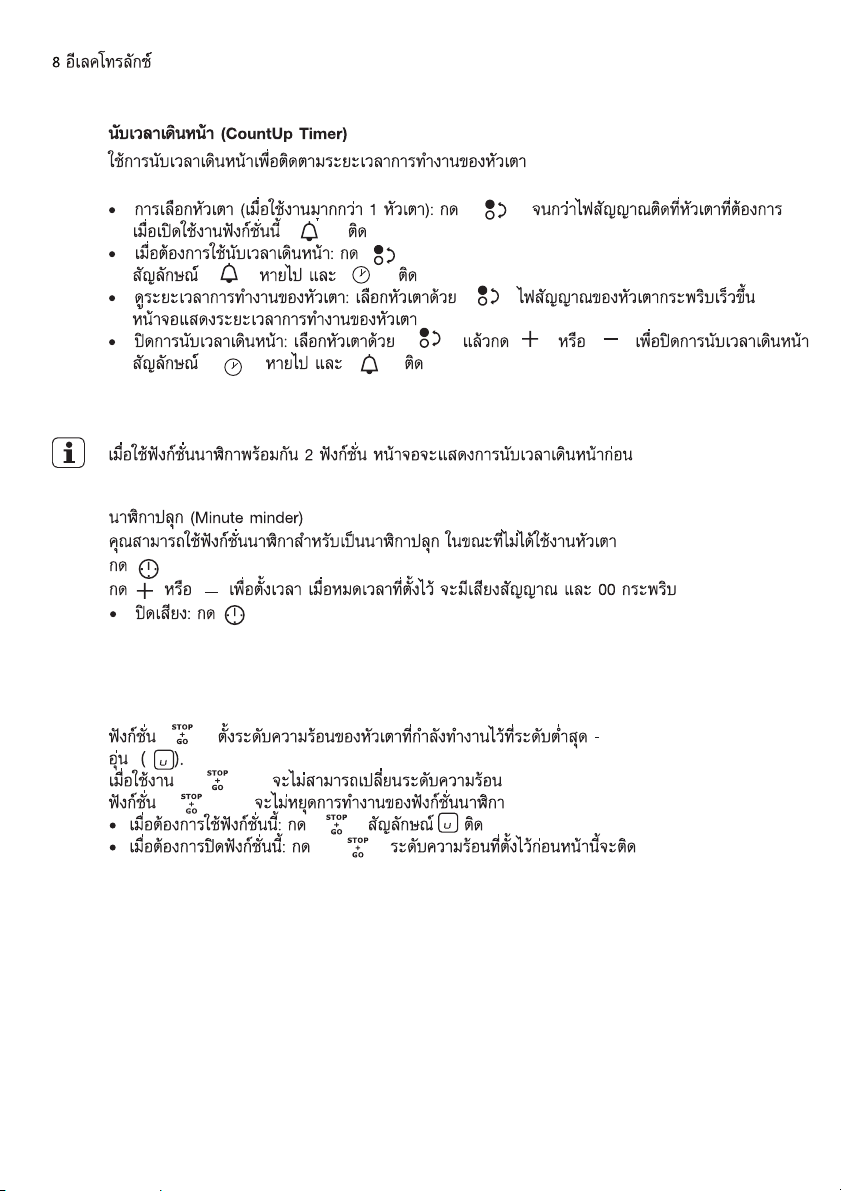

The Count up timer

Use the Count up timer to monitor how long the cooking zone operates. t The selection of the cooking zone (if more than 1 cooking zone operates): touch

again and again until the indicator of a necessary cooking zone comes on.

When this function is activated,

t To activate the Count up timer:

Touch The symbol goes out and

t To see how long the cooking zone operates: set the cooking zone with . The

indicator of the cooking zone starts to ash quickly. The display shows the time that the operates for longer period of time.

zone operate

t To deactivate the Count up timer: set the cooking zone with

to deactivate the timer. the symbol goes out and

When the two Timer functions operate at the same time, the display shows the Count Up Timer rst.

The Minute minder.

s. The display shows the time of the cooking zone that

comes on.

and touch

comes on.

You can use the timer as a minute minder while the cooking zones do not operate.

Touch

or of the timer to set the time. When the time comes to an end, the

sound operates and 00 ashes t To stop the sound: touch

STOP+GO

The function sets all cooking zones that operate to the lowest heat setting - Keep

Warm

(

When The

t To activate this function touch t To deactivate this function touch

operates, you cannot change the heat setting.

function does not stop the timer function.

. The symbol comes on.

. The heat setting that you set before comes on.

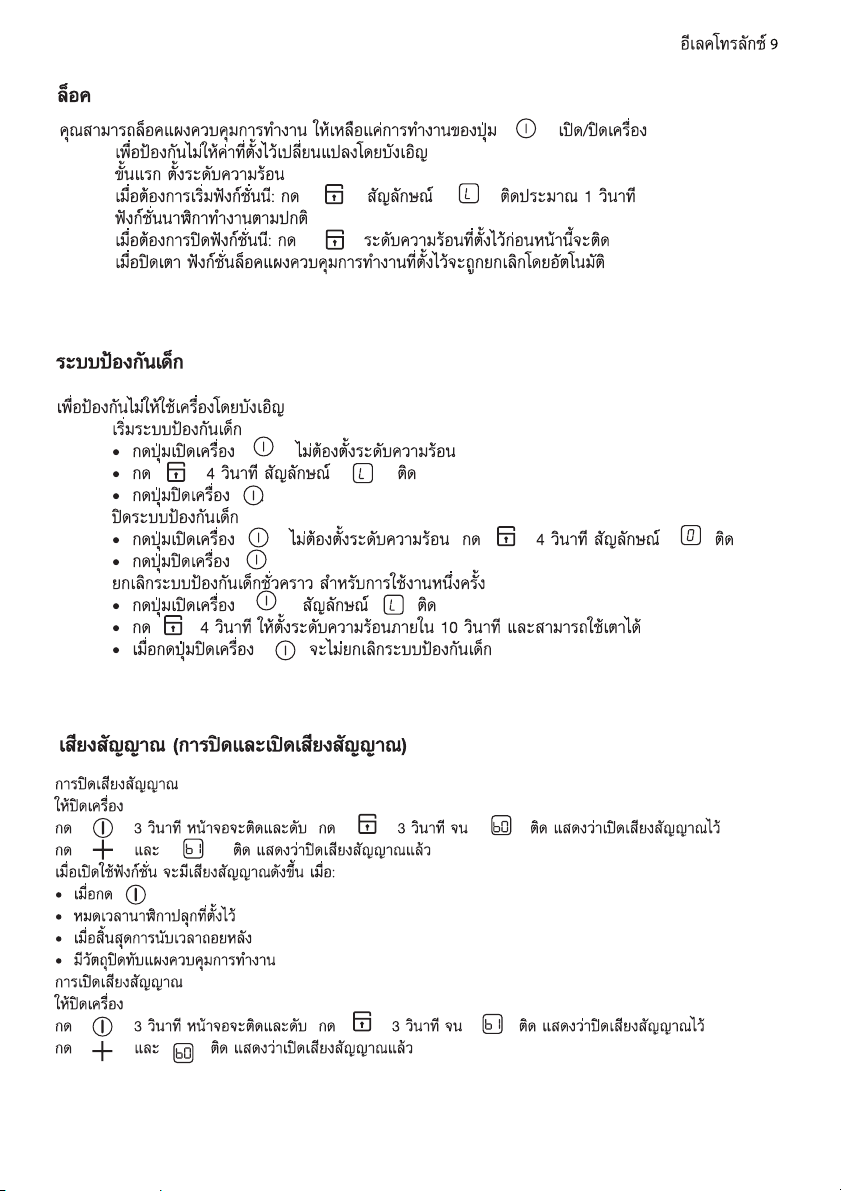

Lock

You can lock the control panel, but not . It prevents an accidental change of the heat setting. First set the heat setting. To start this function touch The Timer stays on. To stop this function touch When you stop the appliance, you also stop this function.

. The symbol come

. The heat setting that you set before comes on.

s on for 1 seconds.

The child safety device

This function prevents an accidental operation of the hob.

Starting the child safety device

t Start the hob with . Do not set the heat settings. t Touch t Stop the hob with .

Switching o the child safety device t Start the hob with . Do not set the heat settings. Touch

The symbol

t Stop the hob with .

Overriding the child safety device for one cooking session

t Start the hob with . The symbol t Touch

can operate the hob.

t When you stop the hob with , the child safety device operates again.

for 4 seconds. The

comes on.

for 4 seconds. Set the heat setting in less than 10 seconds. You

symbol comes on.

comes on.

electrolux 9

r 4 sec

fo onds.

O Sound Control (Deactivation and activation of the sounds)

Deactivation of the sounds

Deactivate the appliance. Touch

When this function operates, you can hear the sounds only when:

t you touch t the Minute Minder reaches zero. t the Count Down Timer reaches zero. tyou put something on the control panel.

Activation of the sounds

Deactivate the appliance. Touch

for 3 seconds. The displays come on and go out. Touch

comes on, the sound is on. Touch

for 3 seconds. The displays come on and go out. Touch

comes on, because the sound is o. Touch

comes on, the sound is o.

comes on. The sound is on.

for 3 seconds.

10 electrolux

Helpful hints and tips

Cookware

•Cookware made of enamelled steel and with aluminium or copper bottoms can cause discoloration on glass ceramic surface.

Energy saving

setting

1 Keep cooked foods warm as re-

1-3 Hollandaise sauce, melt: butter, choco

1-3 Solidify: uy omelettes, baked eggs 10-40

3-5 Simmer rice and milk based dishes,

5-7 Steam vegetables, sh, meat 20-45

7-9 Steam potatoes 20-60

7-9 Cook larger quantities of food, stews

9-12 Gentle fry: escalope, veal cordon bleu,

12-13 Heavy fry, hash browns, loin steaks,

Information on acrylamides

Important! According to the newest scientific knowledge, if you brown food (specially the one which

•The bottom of the cookware must be as thick and flat as possible.

•If possible, always put the lids on the cookware.

•Put cookware on a cooking zone before you start it.

Heat

late, gelatine

heating up ready-cooked meals

and soups

cutlets, rissoles, sausages, liver, roux, eggs, pancakes, doughnuts

steaks

Boil large quantities of water, cook pasta, sear meat (goulash, pot roast), deep fry chips

Use to: Time Hints

•Stop the cooking zones before the end of the cooking

•The bottom of pans and cooking zones must have

time to use residual heat.

the same dimension.

Examples of cooking applications

The data in the table is for guidance only.

quired

5-25 min

min

25-50 min

min

60-150 min

as re quired

5-15 min

contains starch), acrylamides can pose a health risk. Thus, we recommend that you cook at the lowest temperatures and do not brown food too much.

Cover

Mix occasionally

Cook with a lid on

Add at least twice as much liquid as rice, stir milk dishes part way through

Add a few tablespoons of liquid

Use max. ¼ l water for 750 g of potatoes

Up to 3 l liquid plus ingredients

Turn halfway through

Cleaning and care

electrolux 11

Clean the appliance after each use. Always use cookware with clean bottom.

Scratches or dark stains on the glassceramic cause no eect on how the appliance operates.

To remove the dirt:

1. Remove immediately: melted plastic, plastic foil, and food with sugar. If not, the dirt can cause damage to

appliance. Use a special for the glass . Put the

the

scraper( option to buy)

scraper

the

glass surface at an acute angle and move the blade on the surface .

Remove after the appliance is

–

suciently cool: limescale rings ,

water rings, fat stains, shiny metallic discolorations. Use a special cleaning agent for glass ceramic or stainless steel.

2. Clean the appliance with a moist cloth dishwashing liquid

and

3. At the end rub the appliance dry

with a clean cloth.

detergent.

What to do if ...

Problem Possible cause and remedy

You cannot activate the appliance or operate it.

A Sound operates and the appliance deactivates. A sound operates when the appliance is deactivated.

The appliance deactivates.

The residual heat indicator does not comes on.

The Automatic Heat Up function does not operate.

The sensor elds become hot. The cookware is too large or you out it too near to the controls.

comes on

and number comes on.

t Activate the appliance again and set the heat setting in 10 sec-

onds.

t You touched 2 or more sensor elds at the same time. Only

touch one sensor eld.

t The Child Safety Device or the Lock or Stop+Go operates. See

the chapter Operating instruction.

t There is water or fat stains on the control panel. Clean the con-

trol panel.

You put something on one or more sensor elds. Remove the object from the sensor elds.

You put something on the . remove object from the sensor eld.

The cooking zone is not hot because it operated only for a short time. If the cooking zone should be hot, speak to the service centre.

t There is still residual heat on the cooking zone. Let the cooking

zone become suciently cool.

t The highest heat setting is set. The highest heat setting has the

same power as the Automatic Heat Up function.

Put large cookware on the rear cooking zones if it is necessary.

The Automatic Switch O operates. Deactivate the appliance and activate it again.

There is an error in the appliance. Disconnect the appliance from the electrical supply for some time. Disconnect the fuse from the electrical system of the house.

Connect again. If tre.

comes on again, speak to the service cen-

If you tried the above solutions and cannot repair the problem, speak to your dealer or the Customer Care Department. Give the data from the rating plate, three-digit-

letter code for the glass ceramic (it is in the corner of the cooking surface) and an error message that comes on.

If you operated the appliance incorrectly, the servicing by a customer service technician or dealer will not be free of charge, even during the warranty period. The instructions about the customer service and conditions of guarantee are in the guarantee booklet.

12 electrolux

Technical data

Model

PNC

Product dimensions (w x d) mm

Cut-out dimensions (w x d) mm

Voltage (volts)

Cycles (Hz)

Service Cord Fitted

Elements

Total

EHC326BA

949163196

320 X 520

300 X 490

220 - 240

50 - 60

no. zones

Front

Rear

Wiring Diagram

REL1

r33

EHC724BA

949163145

700 X 420

670 X 390

1200

watts

1800

no. zones

Right

Left

220 - 240

50 - 60

Fitted

3000

user

BR5

BR4

REL2

REL3

REL4

BR1 BR2 BR3 BR6 BR13 BR14 BR15 BR16

r34

interface

XC01

BB01

230V Short HOC

REL9

Everest

3pol

watts

1200

1800

3000

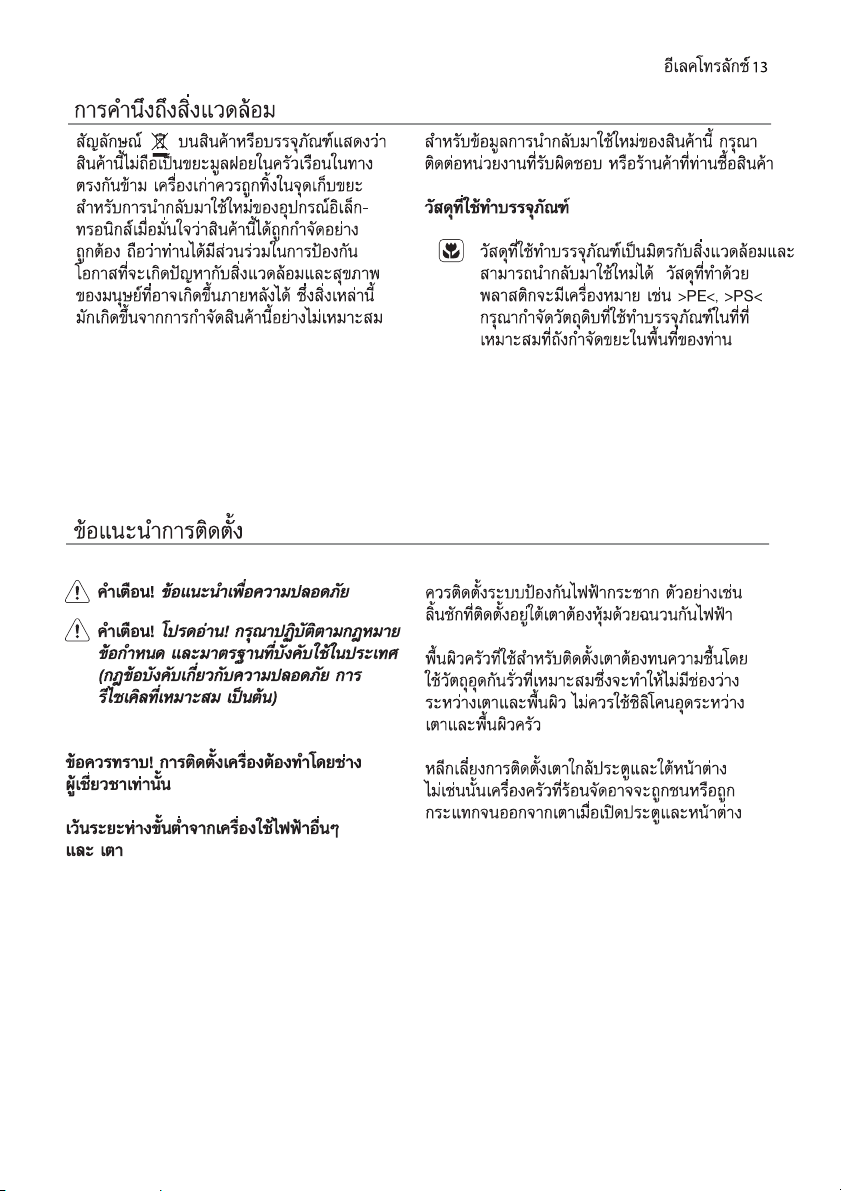

Enviorment concerns

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please

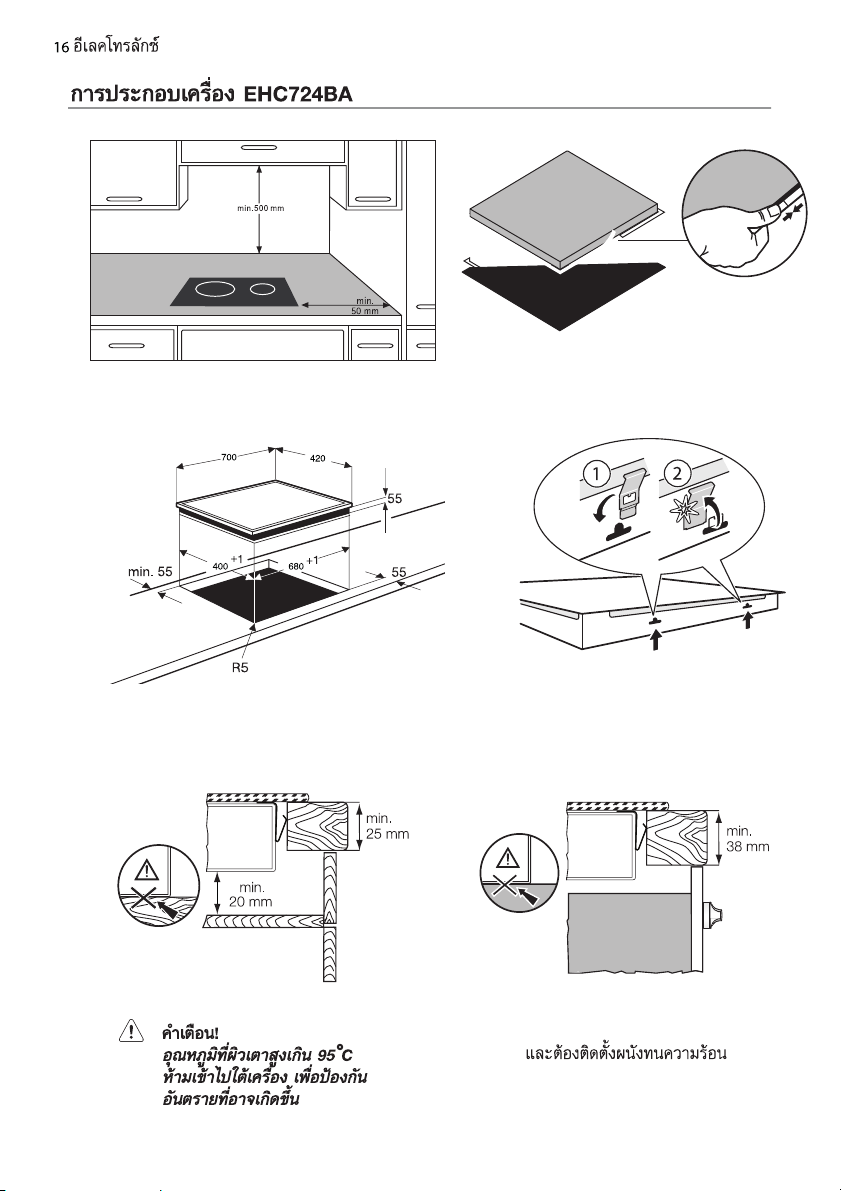

Installation Instructions

Important! Installation may only be carried out by a qualied electrician.

The minimum distances to other appliances and units are to be observed.

Warning! Safety instructions

Warning! This must be read! The laws,

ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.)

electrolux 13

contact your local council, your household waste disposal service or the shop where you purchased the product.

PACKAGING MATERIAL

The packaging materials are friendly to the environment and can be recycled. The plastic components are identied by marking: >PE<,>PS<, etc. Discard the packaging materials as household waste at the waste disposal facilities in your municipality.

Anti-shock protection must be provided by the installation,for exampledrawers may only be installed with a protective oor directly underneath the appliance.

The cut surfaces of the worktop are to be protected against moisture using a suitable sealant. The sealant seals the appliance to the work top with no gap. Do not use silicon sealant between the appliance and the work top.

Avoid installing the appliance next to doors and under windows. Otherwise hot cook-

14 electrolux

ware may be knocked o the rings when doors and windows are opened.

Caution! Warning! Risk of injury from electrical current.

t The electrical mains terminal is live. t Make electrical mains terminal free of volt-

age.

t Follow connection schematic. t Observe electrical safety rules. t Ensure anti-shock protection by installing

correctly.

t The appliance must be connected to the

electrical supply by a qualied electrician.

t Loose and inappropriate plug and socket

connections can make the terminal overheat.

t Have the clamping connections correctly

installed by a qualied electrician.

t Use strain relief clamp on cable.

Caution! The surface temperature exceeds 95°C. To avoid a hazard, underbench accessmust berestricted

Electrical Connection

Before connecting, check that the nominal voltage of the appliance, that is the voltage stated on theratingplate,corresponds to the available supply voltage. Also check the power rating ofthe applianceand ensurethat the wire is suitably sized in accordance with local wiring rules to suit the appliance power rating. The ratingplate is located onthe lower casing of the hob. must be accord is to be that

incorporated in the xed wiring in

ance

connected to the mains using a device

allows the appliance to be disconnected

Means for disconnection

with local wiring rules.The

hob

from the mains at all poles with a contact

opening width of at least 3 mm, eg. automatic line protecting c

ut-out, earth leakage trips or fuse. If this appliance’s mains cable is damaged, it must bereplaced by a special cable (type H05BB-F Tm ax 90°C; or higher). The latter is available from the Customer Care Department. The connection must be carried out as shown in the diagram.

The earth lead is connected to terminal

. The earth lead must be longer than

leads carrying electric current. The cable

connections must be made in accordance with regulations and the terminal screws tightened securely. Finally, the

connecting cable is to be secured with the mains cable cleatand thecovering closedby pressing rmly (lock into place). Before switching on for the rst time, any protective foil or stickers must be removed from the glass ceramic surface.

Warning! Once connected to the mains supply check that all cooking zones are ready for use by briey switching each on in turn at the maximum setting.

t A duplicate rating label is supplied

with thisunit. For easy identication of this unit after installation, stick it to a readily available surface adjacent to the cooktop.

Sticking on the seal

t Clean theworktop around thecutout area. t Stick the single-sided adhesive sealing

tape provided on the underside of the hob around the outsideedge ensuring that it is not stretched. The two ends of the tape should join in the middle of one side. After trimmingthe tape (allowit tooverlapby 2-3 mm), press the two ends together.
