EN HOB USER MANUAL
Page 2
www.electrolux.com
2
CONTENTS
1. SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4. HELPFUL HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
6. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
8.
TECHNICAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
9. ENVIRONMENT CONCERNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
Page 3
ENGLISH 3
1.
SAFETY INFORMATION
This appliance is suitable for the following markets: GB
Before the installation and use of the ap­pliance, carefully read the supplied in­structions. The manufacturer is not re­sponsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or per­manent disability.
• This appliance can be used by children aged from 8 years and above and per­sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction for the opera­tion of the appliance by a person who is responsible for their safety.
• Do not let children play with the appli­ance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety de­vice, we recommend that you activate it.
• Cleaning and user maintenance shall not be made by children without super­vision.
1.2 Installation
WARNING!
Only a qualified person must in­stall this appliance.
• Remove all the packaging.
• Do not install or use a damaged appli­ance.
• Obey the installation instruction sup­plied with the appliance.
• Keep the minimum distance from the other appliances and units.
• Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Seal the cut surfaces with a sealant to prevent moisture to cause swelling.
• Protect the bottom of the appliance from steam and moisture.
• Do not install the appliance adjacent to a door or under a window. This pre­vents hot cookware to fall from the ap­pliance when the door or the window is opened.
• If the appliance is installed above draw­ers make sure that the space, between the bottom of the appliance and the up­per drawer, is sufficient for air circula­tion.
• The bottom of the appliance can get hot. We recommend to install a non­combustile separation panel under the appliance to prevent access to the bot­tom.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• All electrical connections must be made by a qualified electrician.
• Before every wiring make sure the main terminal of the appliance is not live.
• Make sure the appliance is installed correctly. Loose and incorrect plug and socket can make the terminal become too hot.
• Make sure that a shock protection is in­stalled.
• Do not let the electricity bonds touch the appliance or hot cookware, when you connect the appliance to the near sockets.
• Do not let the electricity bonds tangle.
• Use a strain relief clamp on cable.
• Use the correct mains cable.
• Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an electrician to change a damaged mains cable.
• The electrical installation must have an isolation device which lets you discon-
Page 4
www.electrolux.com
4
• Use only correct isolation devices: line
Gas connection
• All gas connections should be made by
• Make sure that there is air circulation
• The information about the gas supply is
• This appliance is not connected to a
1.3 Use
• Use this appliance in a household envi-
• Do not change the specification of this
• Do not use an external timer or a sepa-
• Do not let the appliance stay unatten-
• Do not operate the appliance with wet
• Do not put cutlery or saucepan lids on
• Set the cooking zone to “off” after use.
• Do not use the appliance as a work
• If the surface of the appliance is
nect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contractors.
a qualified person.
around the appliance.
on the rating plate.
device, which evacuates the products of combustion. Make sure to connect the appliance according to current in­stallation regulations. Pay attention to requirements regarding adequate venti­lation.
WARNING!
Risk of injury, burns or electric shock.
ronment.
appliance.
rate remote-control system to operate the appliance.
ded during operation.
hands or when it has contact with wa­ter.
the cooking zones. They become hot.
surface or as a storage surface.
cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock.
WARNING!
Risk of fire or explosion.
• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
• The vapours that very hot oil releases can cause spontaneous combustion.
• Used oil, that can contain food rem­nants, can cause fire at a lower temper­ature than oil used for the first time.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not try to extinguish a fire with wa­ter. Disconnect the appliance and cover the flame with a lid or a fire blanket.
WARNING!
Risk of damage to the appliance.
• Do not keep hot cookware on the con­trol panel.
• Do not let cookware to boil dry.
• Be careful not to let objects or cook­ware fall on the appliance. The surface can be damaged.
• Do not activate the cooking zones with empty cookware or without cookware.
• Do not put aluminium foil on the appli­ance.
• Cookware made of cast iron, aluminium or with a damaged bottom can cause scratches on the glass ceramic. Always lift these objects up when you have to move them on the cooking surface.
• Provide good ventilation in the room where the appliance is installed.
• Make sure that the ventilation openings are not blocked.
• Use only stable cookware with the cor­rect shape and diameter larger than the dimensions of the burners. There is a risk of overheating and rupture of the glass plate (if applicable).
• Make sure the flame does not go out when you quickly turn the knob from the maximum to the minimum position.
• Make sure pots are centrally positioned on the rings and do not stick out over edges of the cooking surface.
• Use only the accessories supplied with the appliance.
• Do not install a flame diffuser on the burner.
Page 5
ENGLISH 5
1.4 Care and Cleaning
WARNING!
Risk of damage to the appliance.
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal ob­jects.

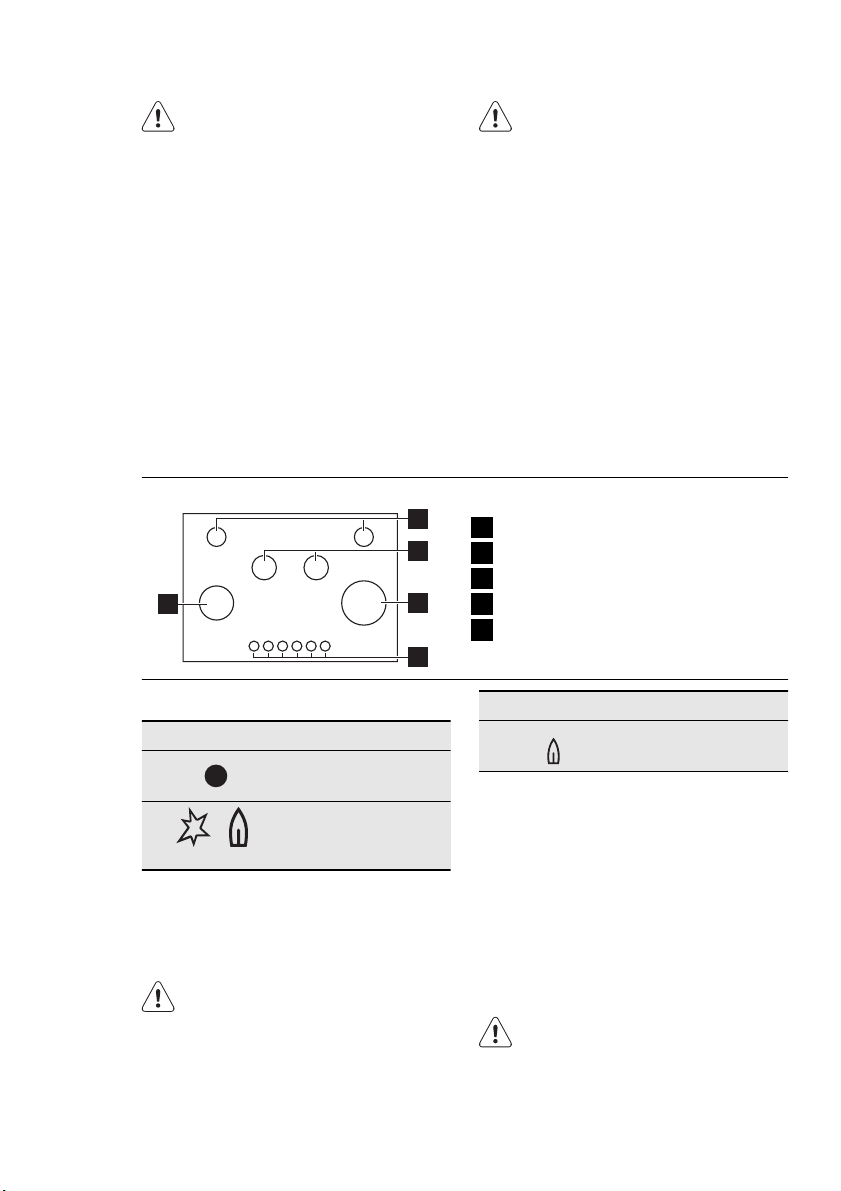

2. PRODUCT DESCRIPTION
2.1 Cooking surface layout
5
1.5 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for in­formation on how to discard the appli­ance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Flat the external gas pipes.
1
2
3
4
Auxiliary burner
1
Semi-rapid burner
2
Triple Crown burner
3
Control knobs
4
Rapid burner
5
2.2 Control knobs
Symbol Description
3. DAILY USE
WARNING!
Refer to "Safety information" chapter.
Symbol Description
minimum gas
no gas supply /
supply
off position
ignition position / maximum gas supply

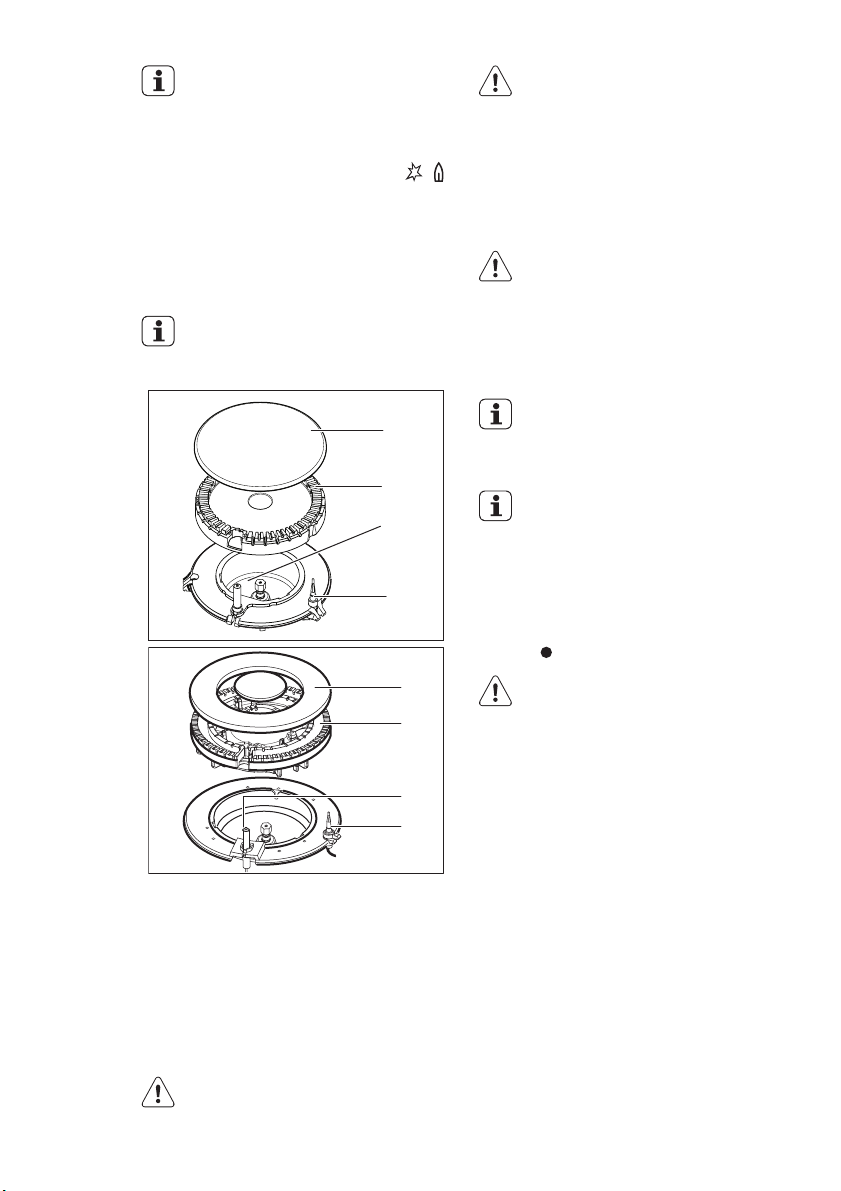

3.1 Ignition of the burner
WARNING!
Be very careful when you use open fire in kitchen environment. Manufacturer decline any respon­sibility in case misuse of the flame
Page 6
www.electrolux.com
6
To light the burner:
1.
2.
3.
Always light the burner before you put cookware.
Turn the control knob counterclock­wise to the maximum position (
) and push it down. Keep the control knob pushed for ap-
proximately 5 seconds; this will let thermocouple to warm up. If not, the gas supply will be interrupted.
Adjust the flame after it is regular.
If after some tries the burner does not light, check if the crown and its cap are in correct positions.
A
B
C
WARNING!
Do not keep the control knob pushed for more than 15 sec­onds. If the burner does not light after 15 seconds, release the control knob, turn it into off position and try to light the burner again after minimum 1 minute.
In the absence of electricity you can ignite the burner without elec­trical device; in this case approach the burner with a flame, push the relevant knob down and turn it counter-clockwise to maximum gas release position.
If the burner accidentally goes out, turn the control knob to the off position and try to light the burner again after minimum 1 minute.
The spark generator can start au­tomatically when you switch on the mains, after installation or a power cut. It is normal.
D
A
B
C
D
A)
Burner cap
B)
Burner crown
C)
Ignition candle
D)
Thermocouple
4. HELPFUL HINTS AND TIPS
WARNING!
Refer to "Safety information" chapter.
3.2 Turning the burner off
To put the flame out, turn the knob to the symbol
.
WARNING!
Always turn the flame down or switch it off before you remove the pans from the burner.
4.1 Energy savings
• If possible, always put the lids on the pans.

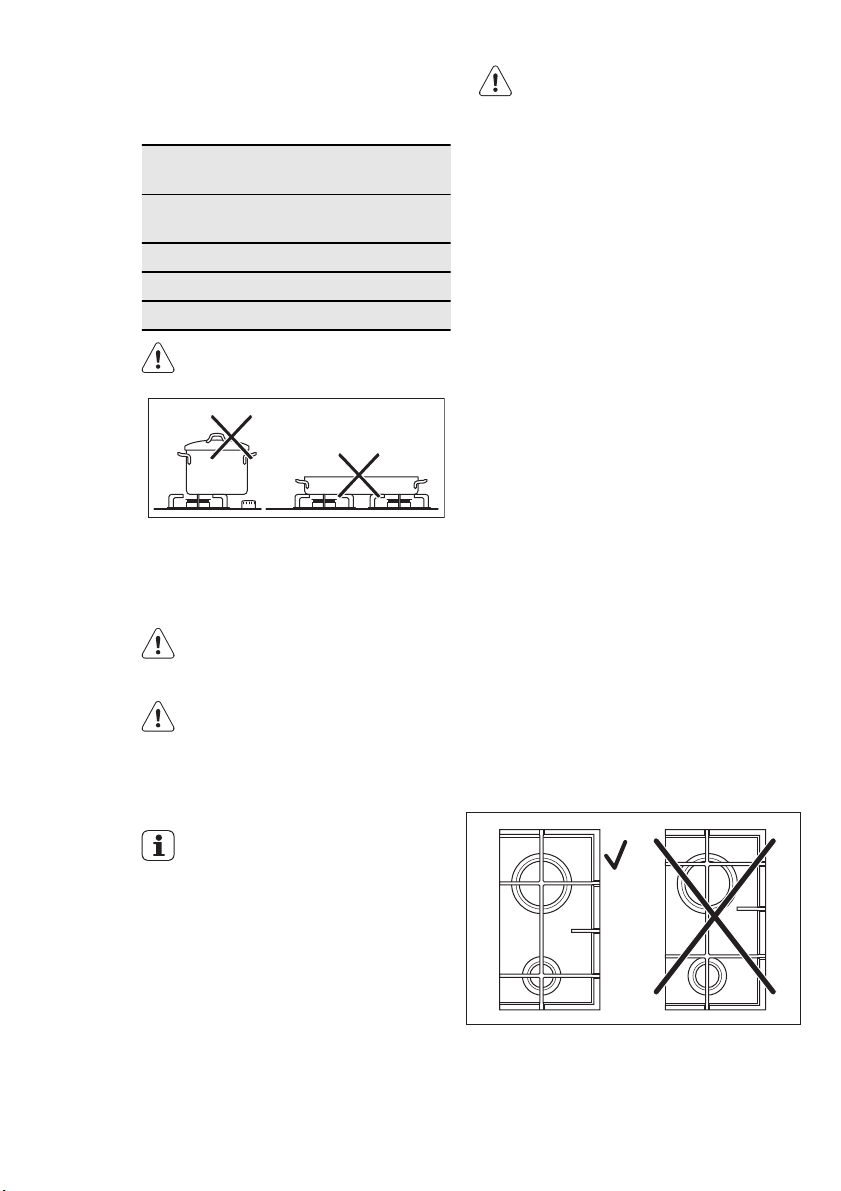

Page 7
• When the liquid starts to boil, turn down the flame to barely simmer the liquid.
Use cookware with diameters applicable to the size of burners.
Burner Diameters of cook-
ware
Triple
180 - 260 mm
Crown
Rapid 160 - 260 mm
Semi-rapid 120 - 220 mm
Auxiliary 80 - 180 mm
WARNING!
Do not put the same pan on two burners.
5. CARE AND CLEANING
ENGLISH 7
WARNING!
Make sure pot handles do not protrude over the front edge of the cooktop and that pots are centrally positioned on the rings in order to achieve maximum stabili­ty and to obtain lower gas con­sumption.
Do not place unstable or deformed pots on the rings to prevent from spill and in­jury.
Information on acrylamides
Important! According to the newest
scientific knowledge, if you brown food (specially the one which contains starch), acrylamides can pose a health risk. Thus, we recommend that you cook at the lowest temperatures and do not brown food too much.
WARNING!
Refer to "Safety information" chapter.
WARNING!
Deactivate the appliance and let it cool down before you clean it. Disconnect the appliance from the electrical supply before you do cleaning or maintenance work.
Scratches or dark stains on the surface have no effect on how the appliance operates.
• You can remove the pan supports to easily clean the hob.
• To clean the enamelled parts, cap and crown, wash them with warm soapy water and dry them carefully before you put them back.
• Wash stainless steel parts with water, and then dry them with a soft cloth.
• The pan supports are not dishwasher proof. They must be washed by hand.
• When you wash the pan supports by hand, take care when you dry them as
the enamelling process occasionally leaves rough edges. If necessary, re­move stubborn stains using a paste cleaner.
• Make sure you position the pan sup­ports correctly after cleaning.
• To make the burners work correctly, make sure that the arms of the pan supports are in the centre of the burner.
Be very careful when you replace
•
the pan supports to prevent the hob top from damage.
After cleaning, dry the appliance with a soft cloth.
Page 8
www.electrolux.com
8
The stainless steel can become tarnished if it is too much heated. Refer to this you must not cook with potstones, earthen­ware pans or cast iron plates. Do not use aluminium foil to prevent damage the top during operation.
Removing the dirt:
1.
– Remove immediately: melting
plastic, plastic foil, and food con­taining sugar.
– Stop the appliance and let it
cool down before you clean: lime­scale rings, water rings, fat stains, shiny metallic discolorations. Use a special cleaner applicable for sur­face of hob.
2.
Clean the appliance with a damp cloth and some detergent.
6. TROUBLESHOOTING
Problem Possible cause Remedy
There is no spark when lighting the gas
• Burner cap and crown
The flame is blow out im­mediately after ignition
The gas ring burns un­evenly
If there is a fault, first try to find a solution to the problem yourself. If you cannot find a solution to the problem yourself, speak your dealer or the local Service Force Centre.
3.
At the end rub the appliance dry with a clean cloth.

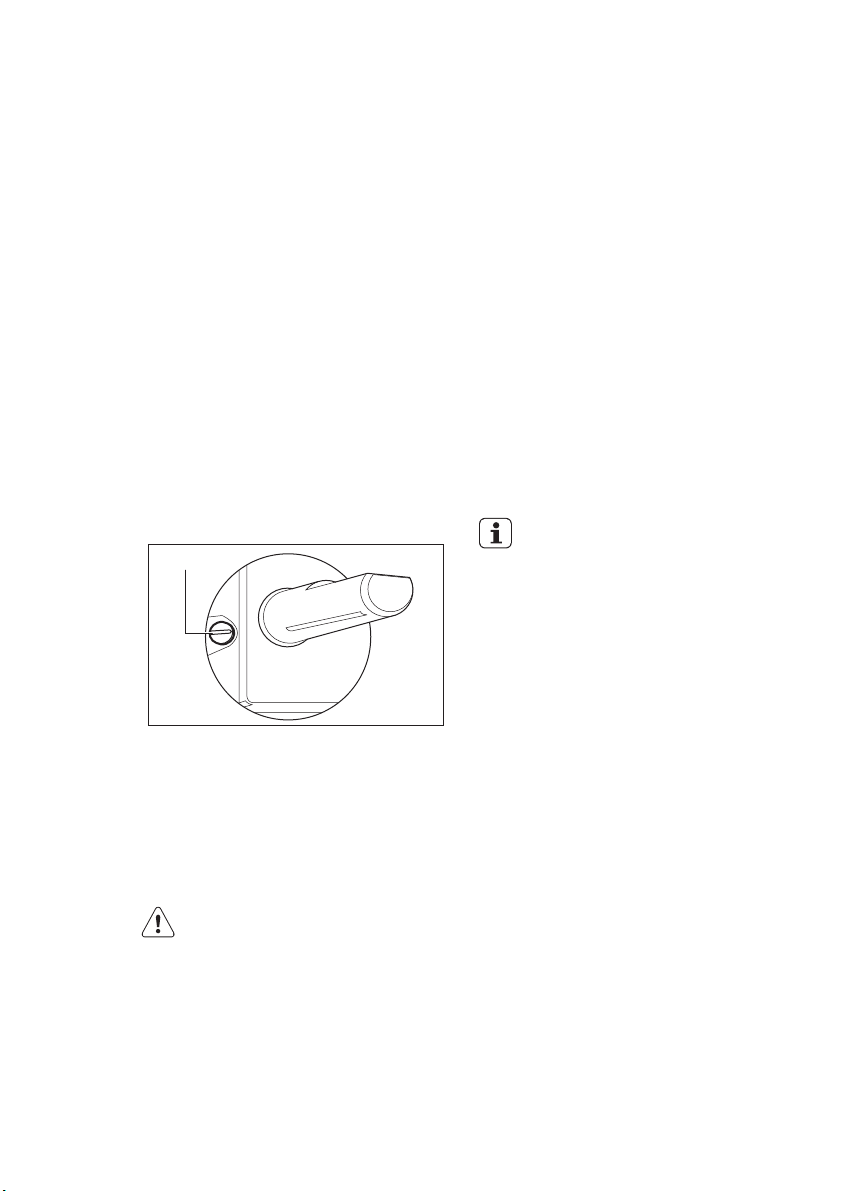

5.1 Cleaning of the spark plug
This feature is obtained through a ceramic ignition candle with a metal electrode. Keep these components well clean to prevent difficult lighting and check that the burner crown holes are not obstructed.
5.2 Periodic maintenance
Periodically speak your local Service Force Centre to check the conditions of the gas supply pipe and the pressure ad­juster, if fitted.
• There is no electrical supply
are placed uneven
• Thermocouple is not heated sufficient
• Burner crown is blocked with food resi­dues
• Make sure that the unit is connected and the electrical supply is switched on.
• Control the fuse. If the fuse is released more than one time, refer to a qualified electrician.
• Make sure that the burner cap and crown are in correct positions.
• After lightning the flame, keep the knob pushed for approxi­mately 5 seconds.
• Make sure that the in­jector is not blocked and the burner crown is clear of food parti­cles.
If you operated the appliance in­correctly, or the installation was not carried out by a registered en­gineer, the visit from the customer service technician or dealer may not take place free of charge, even during the warranty period.
Page 9

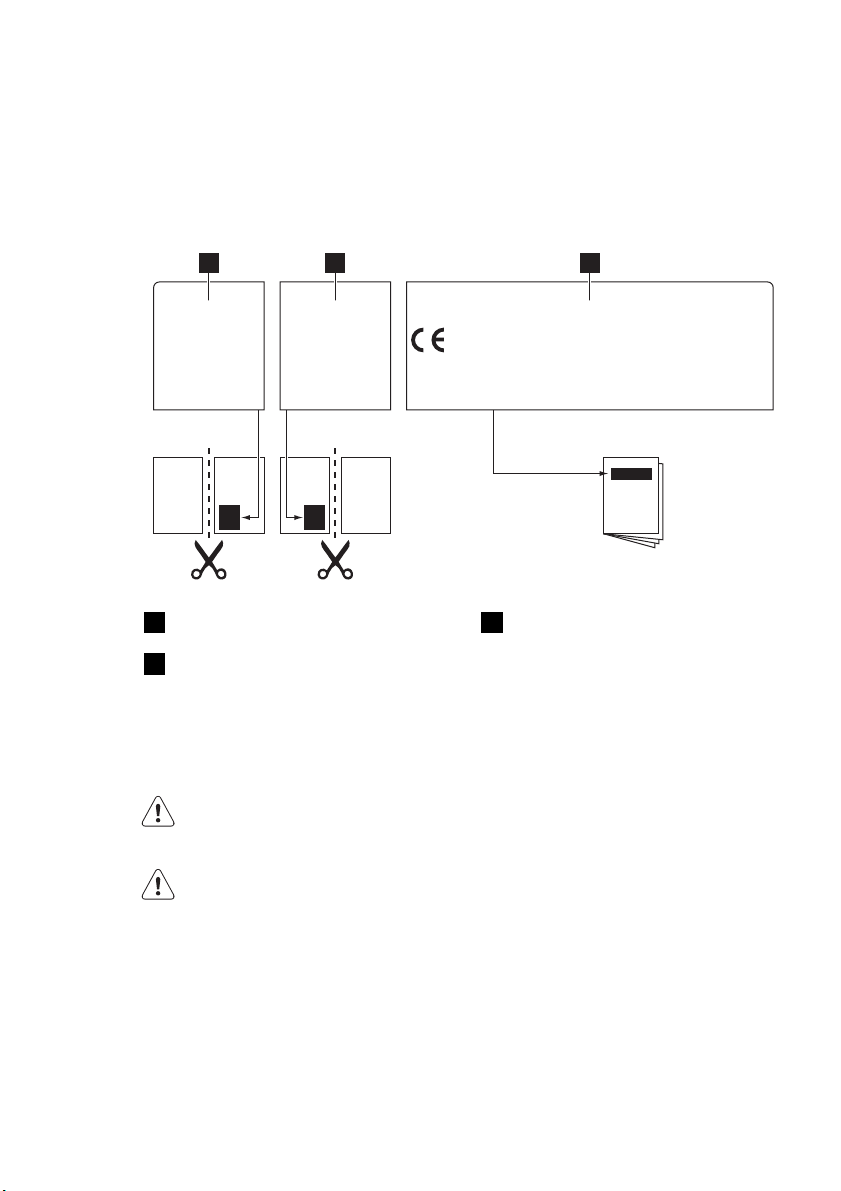

These data are necessary to help you quickly and correctly. These data are available on the supplied rating plate.
• Model description .................
• Product number (PNC) .................
• Serial Number (S.N.) .................
Use the original spare parts only. They are available at Service Force Centre and ap­proved spare parts shops.
1 2 3
ENGLISH 9
6.1 Labels supplied with the
accessories bag
Stick the adhesive labels as indicated be­low:
MOD.
PROD.NO.
SER.NO
DATA
Stick it on Guarantee Card and send
1
this part Stick it on Guarantee Card and keep
2
this part
7. INSTALLATION
WARNING!
Refer to "Safety information" chapter.
WARNING!
The following instructions about installation, connection and main­tenance must be carried out by qualified personnel in compliance with standards and local regula­tions in force.
7.1 Important safety requirements
This hob must be installed in accordance with the Gas Safety (Installation and Use)
MOD.
PROD.NO.
SER.NO
DATA
MODELMODEL
0049
03 IT
MADE IN ITALY
MOD. PROD.NO. SER.NO.
Stick it on instruction booklet
3
TYPE 230V-50Hz IP20
Regulations (Current Edition) and the IEE Wiring Regulations (Current Edition). For appliances installed in the Republic of Ireland please refer to NSAI- Domestic Gas Installation I.S. 813 Current Editions and the ETCI Rules for Electrical Installa­tions.
Provision for ventilation
Detailed recommendations are contained in the following British Standards Codes Of Practice: B.S. 6172/ B.S. 5440, Par. 2 and B.S. 6891 Current Editions. The hob should not be installed in a bed sitting room with a volume of less than 20 m³. If it is installed in a room of volume less than 5 m³ an air vent of effective area
Page 10
www.electrolux.com
10
of 100 cm² is required. If it is installed in a room of volume between 5 m³ and 10 m³ an air vent of effective area of 50 cm² is required, while if the volume exceeds 11 m³ no air vent is required. However, if the room has a door which opens directly to the outside no air vent is required even if the volume is between 5 m³ and 11 m³. If there are other fuel burning appliances in the same room, B.S. 5440 Part 2 Cur­rent Edition, should be consulted to deter­mine the requisite air vent requirements. For appliances installed in the Republic of Ireland please refer to the NSAI- Domestic Gas Installation I.S. 813 Current Editions Table Four.
Location
The hob may be located in a kitchen, a kitchen/diner or bed sitting room (with a volume greater than 20 m³), but not in a bathroom or shower room. The minimum distance combustible mate­rial can be fitted above the hob in line with the edges of the hob is 400 mm. If it is fit­ted below 400 mm a space of 50 mm must be allowed from the edges of the hob. For appliances installed in the Republic of Ireland please refer to NSAI- Domestic Gas Installation I.S 813 Current Edition Section 7- Permitted Locations of Appli­ance.
7.2 Gas Connection

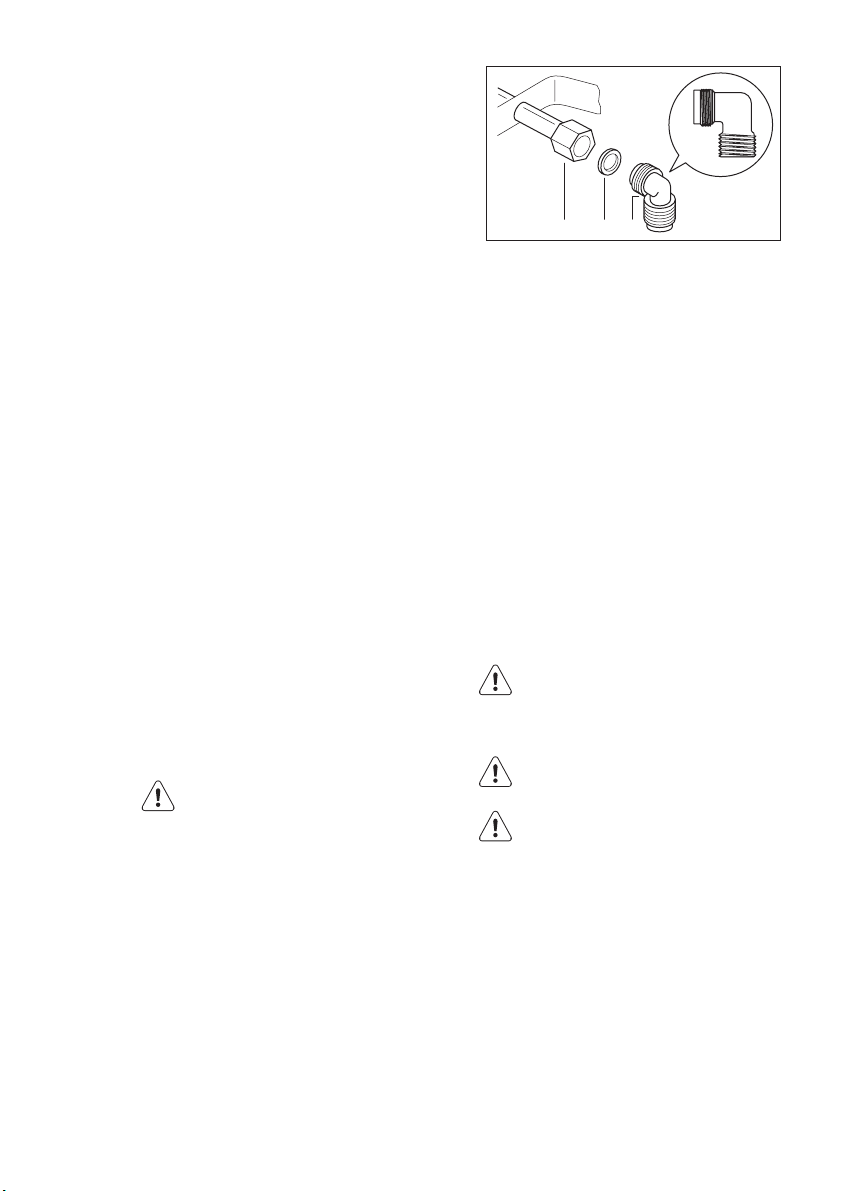

Make sure that, once the hob is installed, it is easily accessible for the engineer in the event of a breakdown. The manufacturer will not accept liability, should the above instructions or any of the other safety instructions incorporated in this instruction booklet be ignored. On the end of the shaft, which includes the G 1/2" threaded elbow, adjustment is fixed so that the washer is fitted between the components as shown in the diagram. Screw the parts together without using excessive force.
WARNING!
Any gas installation must be car­ried out by a GAS SAFE REGIS­TER installer.
ABC
A)
End of shaft with nut
B)
Washer
C)
Elbow Connection to the gas supply should be with either rigid or semi-rigid pipe, i.e. steel or copper. The connection should be suitable for connecting to R 1/2 (1/2 BSP male thread). When the final connection has been made, it is essential that a thorough leak test is carried out on the hob and installa­tion. Make sure that the main connection pipe does not exert any strain on the hob. If you use flexible metal pipes make sure that they agree to ISO 10380 and ISO 10807 standards. Be careful they do not come in touch with mobile parts or they are not squeezed. Also be careful when the hob is put together with an oven.
It is important to install the elbow correctly, with the shoulder on the end of the thread, fitted to the hob connecting pipe.
Failure to ensure the correct as­sembly will cause leakage of gas.
Make sure that the gas supply pressure of the appliance obeys the recommended values.
Rigid connection:
Carry out connection by using metal rigid pipes (copper with mechanical end).
7.3 Injectors replacement
1.
Remove the pan supports.
2.
Remove the caps and crowns of the burner.
3.
With a socket spanner 7 remove the injectors and replace them with the ones which are necessary for the type
Page 11
of gas you use (see table in "Techni­cal Information" chapter).
4.
Assemble the parts, follow the same procedure backwards.
5.
Replace the rating plate (it is near the gas supply pipe) with the one for the new type of gas supply. You can find this plate in the package supplied
with the appliance. If the supply gas pressure is changeable or different from the necessary pressure, you must fit an applicable pressure ad­juster on the gas supply pipe.
7.4 Adjustment of minimum level
To adjust the minimum level of the burn­ers:
1.
Light the burner.
2.
Turn the knob on the minimum posi-
tion.
3.
Remove the knob.
4.
With a thin screwdriver, adjust the by-
pass screw position.
A
A)
The by-pass screw
• If you change from natural gas G20 20
mbar to liquid gas, fully tighten the by­pass screw in.
• If you change from liquid gas to natural
gas G20 20 mbar, undo the by-pass screw approximately 1/4 of a turn (1/2 of a turn for Triple Crown burner).
WARNING!
Make sure the flame does not go out when you quickly turn the knob from the maximum position to the minimum position.
ENGLISH 11
• Do not pull the mains cable to discon­nect the appliance. Always pull the mains plug.
• Do not connect the appliance with an extension cable, an adapter or a multi­ple socket. There is a risk of fire. Make sure that the ground connection com­plies with the standards and regulations force.
• Do not let the connection cable parts to heat to a temperature above 90°C.
Electrical Requirements
Permanent electrical installation must comply with the latest I.E.E. Regulations and local Electricity Board regulations. For your own safety the installation must be done by a qualified electrician (e.g. your local Electricity Board, or a contractor who is on the roll of the National Inspec­tion Council for Electrical Installation Con­tracting [NICEIC]).
The manufacturer declines any lia­bility if these safety measures are not observed.
The appliance must be connected to a 230 V 50 Hz AC electrical supply. Before activating the appliance, make sure the electrical supply voltage is the same as that indicated on the rating plate. The rating plate is located on the bottom of the appliance. The appliance is supplied with a 3 core flexible supply cord with a 3 amp plug. If it is necessary to change the fuse, use a 3 amp ASTA-approved (BS 1362) fuse.
7.5 Electrical connection
• Make sure that there is access to the mains plug after the installation.
Page 12
www.electrolux.com
12

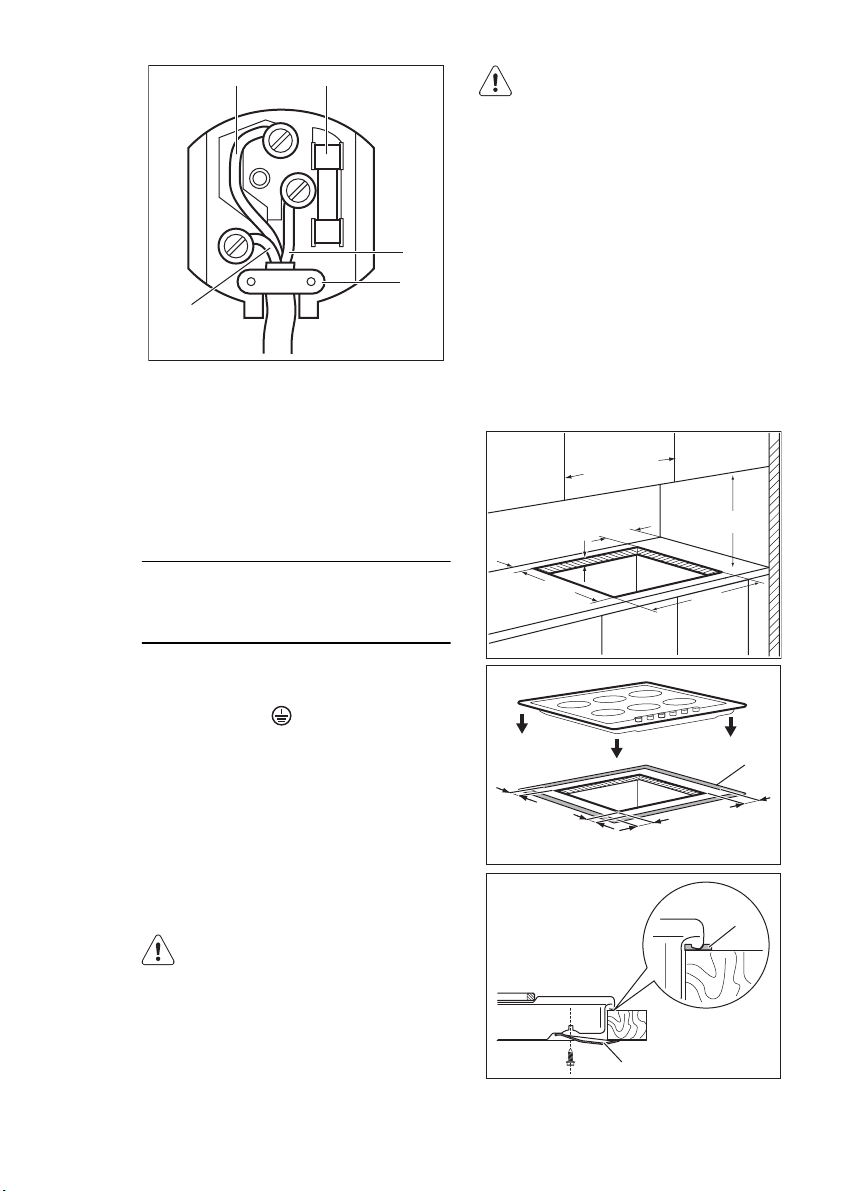

A) B) C) D) E)
Should you need to replace the plug for any reason, the wires in the mains lead are coloured in accordance with the fol­lowing code:
Green and yellow - Earth
Blue - Neutral
Brown - Live
1.
2.
3.
There must be no cut or stray strands of wire present. The cord clamp must be correctly attached on the outer sheath.
AB
C
D
E
Green and Yellow 3 amp fuse Brown Cord clamp Blue
Connect the green and yellow (earth) wire to the terminal in the plug which is marked with the letter 'E' or the
earth symbol
, or coloured green
and yellow. Connect the blue (neutral) wire to the
terminal in the plug which is marked with the letter 'N' or coloured black.
Connect the brown (live) wire to the terminal in the plug which is marked with the letter 'L' or coloured red.
WARNING!
Make sure that the cut off plug is disposed of safely. A cut off plug put into a 13 amp socket is a safety hazard. There is a risk of electrical shock.
The current regulations let only a qualified electrician or a compe­tent person to replace the mains cable. Do not try to replace it if you are not qualified to do that.
7.6 Replacement of the connection cable
To replace the connection cable use only H05V2V2-F T90 or equivalent type. Make sure that the cable section is applicable to the voltage and the working temperature. The yellow/green earth wire must be ap­proximately 2 cm longer than the brown (or black) phase wire.
7.7 Building In
min. 600 mm
min. 45 mm
480 mm
10 mm
min. 450 mm
30 mm
3 mm
min. 650 mm
830 mm
A
27 mm
27 mm
A
B
A)
supplied seal
B)
supplied brackets
Page 13
ENGLISH 13
7.8 Possibilities for insertion

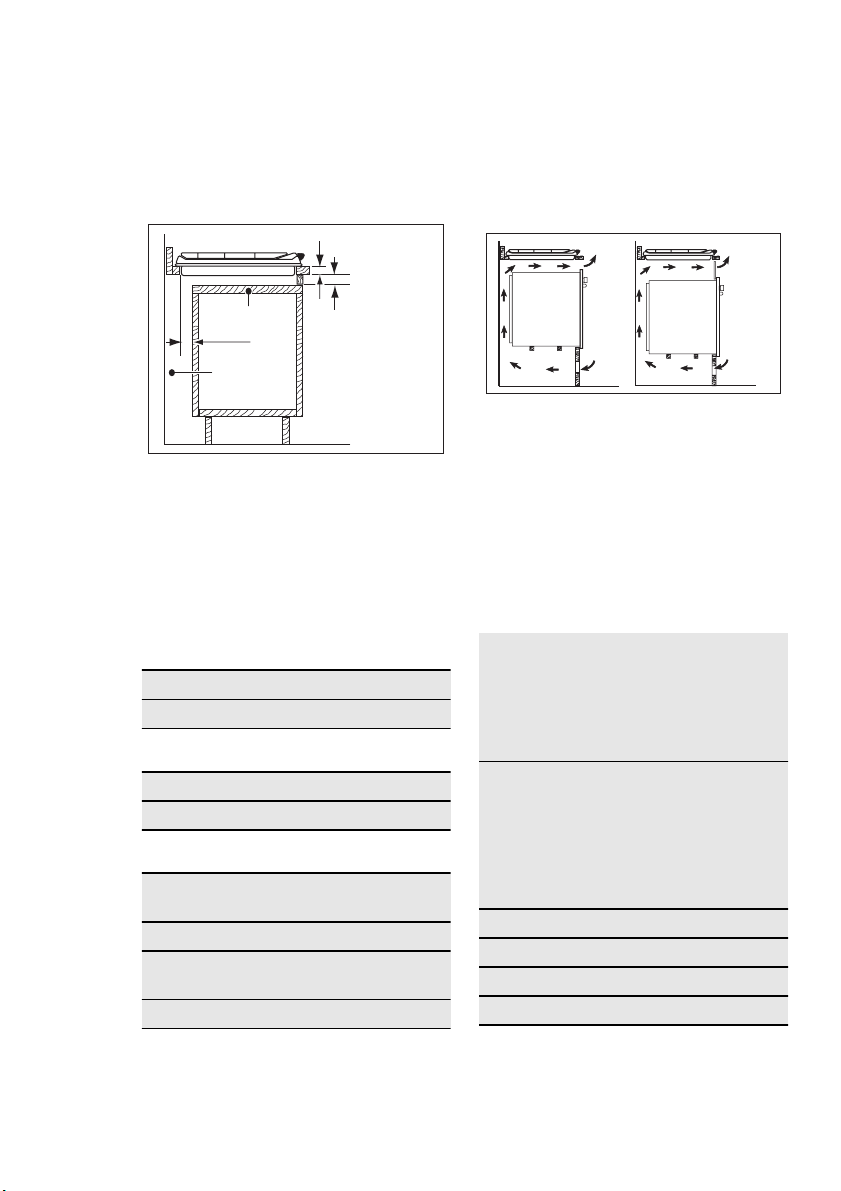

Kitchen unit with door
The panel installed below the hob must be easy to remove and let an easy access in case a technical assistance intervention is necessary.
30 mm
A
60 mm
min 20 mm (max 150 mm)
B
A)
Removable panel
B)
Space for connections
8. TECHNICAL INFORMATION
Hob dimensions
Width: 894 mm
Length: 510 mm
Hob recess dimensions
Width: 830 mm
Length: 480 mm
Heat input
Triple Crown burner:
Rapid burner: 2.8 kW
Semi-rapid burn­er:
Auxiliary burner: 1.0 kW
4.0 kW
2.0 kW
Kitchen unit with oven
The hob recess dimensions must obey the indication and the kitchen unit must be equipped with vents to let a continu­ous supply of air. The electrical connec­tion of the hob and the oven must be in­stalled separately for safety reasons and to let easy remove oven from the unit.
50 cm2
360 cm2
TOTAL POWER: G20 (2H) 20 mbar
G30 (3+) 28-30 mbar = 931 g/h
G31 (3+) 37 mbar
Electric supply: 230 V ~ 50 Hz
supply, 3 core
flexible cable with
non rewireable
plug fitted with a
3 amp cartridge
Category: II2H3+
Gas connection: G 1/2"
Gas supply: G20 (2H) 20 mbar
Appliance class: 3
120 cm2
180 cm2
= 12.8 kW
= 914 g/h
fuse
Page 14
www.electrolux.com
14
By-pass diameters
Burner Ø By-pass in
1/100 mm
Auxiliary 28
Burner Ø By-pass in
1/100 mm
Rapid 42
Triple Crown 56
Semi-rapid 32
Gas burners
NORMAL POWER
LPG (Butane/Propane) G30/G31 (3+) 28-30/37
inj.
m³/h
1/100
mm
mbar
G30 28–30 mbar
mbar
g/h g/h
G31
37
BURN-
ER
NOR-
MAL
POWER
kW kW
RE-
DUCED
POW-
ER
NATURAL GAS
G20 (2H) 20
mbar
inj.
1/100
mm
Auxiliary 1.0 0.33 70 0.095 50 73 71
Semi­rapid
2.0 0.45 96 0.190 71 145 143
Rapid 2.8 0.75 115 0.267 86 204 200
Triple Crown
4.0 1.4 146 0.381 98 291 286
9. ENVIRONMENT CONCERNS
Recycle the materials with the symbol
. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical
and electronic appliances. Do not dispose appliances marked with the symbol
with the household waste. Return the product to your local recycling facility or contact your municipal office.
Page 15
ENGLISH 15
Page 16
www.electrolux.com/shop
356993602-A-172012
Loading...
