Page 1
EGC3313
.................................................. ...............................................
EN HOB USER MANUAL
Page 2
www.electrolux.com
2
CONTENTS
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
HELPFUL HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
TECHNICAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
ENVIRONMENT CONCERNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed with
you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results
every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
Page 3
SAFETY INFORMATION
ENGLISH 3
This appliance is suitable for the following
markets: IT
Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes
injuries and damages. Always keep the instructions with the appliance for future reference.
CHILDREN AND VULNERABLE
PEOPLE SAFETY
WARNING!
Risk of suffocation, injury or permanent disability.
• Do not let persons, children included,
with reduced physical sensory, reduced
mental functions or lack of experience
and knowledge use the appliance. They
must have supervision or instruction for
the operation of the appliance by a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the
appliance when it operates or when it
cools down. Accessible parts are hot.
• If the appliance has a child safety device,
we recommend that you activate it.
INSTALLATION
WARNING!
Only a qualified person must install
this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied
with the appliance.
• Keep the minimum distance from the
other appliances and units.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Seal the cut surfaces with a sealant to
prevent moisture to cause swelling.
• Protect the bottom of the appliance from
steam and moisture.
• Do not install the appliance adjacent to a
door or under a window. This prevents
hot cookware to fall from the appliance
when the door or the window is opened.
• If the appliance is installed above drawers make sure that the space, between
the bottom of the appliance and the upper drawer, is sufficient for air circulation.
• The bottom of the appliance can get hot.
We recommend to install a non-combustile separation panel under the appliance
to prevent access to the bottom.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• All electrical connections must be made
by a qualified electrician.
• Before every wiring make sure the main
terminal of the appliance is not live.
• Make sure the appliance is installed correctly. Loose and incorrect plug and
socket can make the terminal become
too hot.
• Make sure that a shock protection is installed.
• Do not let the electricity bonds touch the
appliance or hot cookware, when you
connect the appliance to the near sockets.
• Do not let the electricity bonds tangle.
• Use a strain relief clamp on cable.
• Use the correct mains cable.
• Make sure not to cause damage to the
mains plug and to the mains cable. Contact the Service or an electrician to
change a damaged mains cable.
• The electrical installation must have an
isolation device which lets you disconnect the appliance from the mains at all
poles. The isolation device must have a
contact opening width of minimum 3
mm.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contractors.
Page 4
www.electrolux.com
4
Gas connection
• All gas connections should be made by
• Make sure that there is air circulation
• The information about the gas supply is
• This appliance is not connected to a de-
USE
• Use this appliance in a household envi-
• Do not change the specification of this
• Do not use an external timer or a sepa-
• Do not let the appliance stay unattended
• Do not operate the appliance with wet
• Do not put cutlery or saucepan lids on
• Set the cooking zone to “off” after use.
• Do not use the appliance as a work or as
a qualified person.
around the appliance.
on the rating plate.
vice, which evacuates the products of
combustion. Make sure to connect the
appliance according to current installation regulations. Pay attention to requirements regarding adequate ventilation.
WARNING!
Risk of injury, burns or electric
shock.
ronment.
appliance.
rate remote-control system to operate
the appliance.
during operation.
hands or when it has contact with water.
the solid hotplate. They become hot.
a storage surface.
WARNING!
Risk of fire or explosion.
• Do not try to extinguish a fire with water.
Disconnect the appliance and cover the
flame with a lid or a fire blanket.
WARNING!
Risk of damage to the appliance.
• Do not keep hot cookware on the control panel.
• Do not let cookware to boil dry.
• Do not let cookware cool down on the
hotplate.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Do not let acid liquids, for example vinegar, lemon juice or limescale remover
touch the hob. This can cause matt
patches.
• Provide good ventilation in the room
where the appliance is installed.
• Make sure that the ventilation openings
are not blocked.
• Use only stable cookware with the correct shape and diameter larger than the
dimensions of the burners. There is a risk
of overheating and rupture of the glass
plate (if applicable).
• Make sure the flame does not go out
when you quickly turn the knob from the
maximum to the minimum position.
• Make sure pots are centrally positioned
on the rings and do not stick out over
edges of the cooking surface.
• Use only the accessories supplied with
the appliance.
• Do not install a flame diffuser on the
burner.
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and oils
when you cook with them.
• The vapours that very hot oil releases
can cause spontaneous combustion.
• Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
CARE AND CLEANING
WARNING!
Risk of damage to the appliance.
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
Page 5
DISPOSAL
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Flat the external gas pipes.
ENGLISH 5
Page 6
www.electrolux.com
6

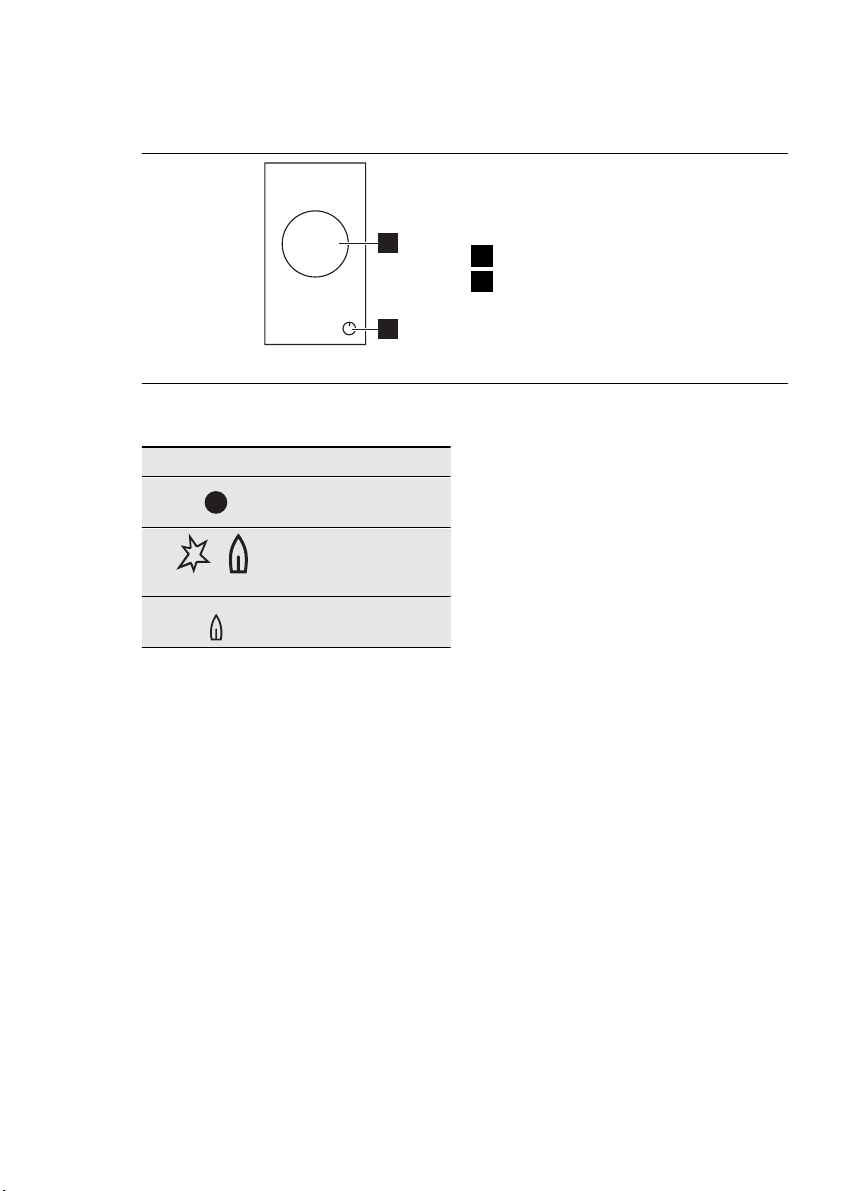

PRODUCT DESCRIPTION
COOKING SURFACE LAYOUT
CONTROL KNOBS
Symbol Description
no gas supply / off
position
ignition position /
maximum gas
supply
minimum gas supply
1
2
Triple Crown Burner
1
Control knob
2
Page 7

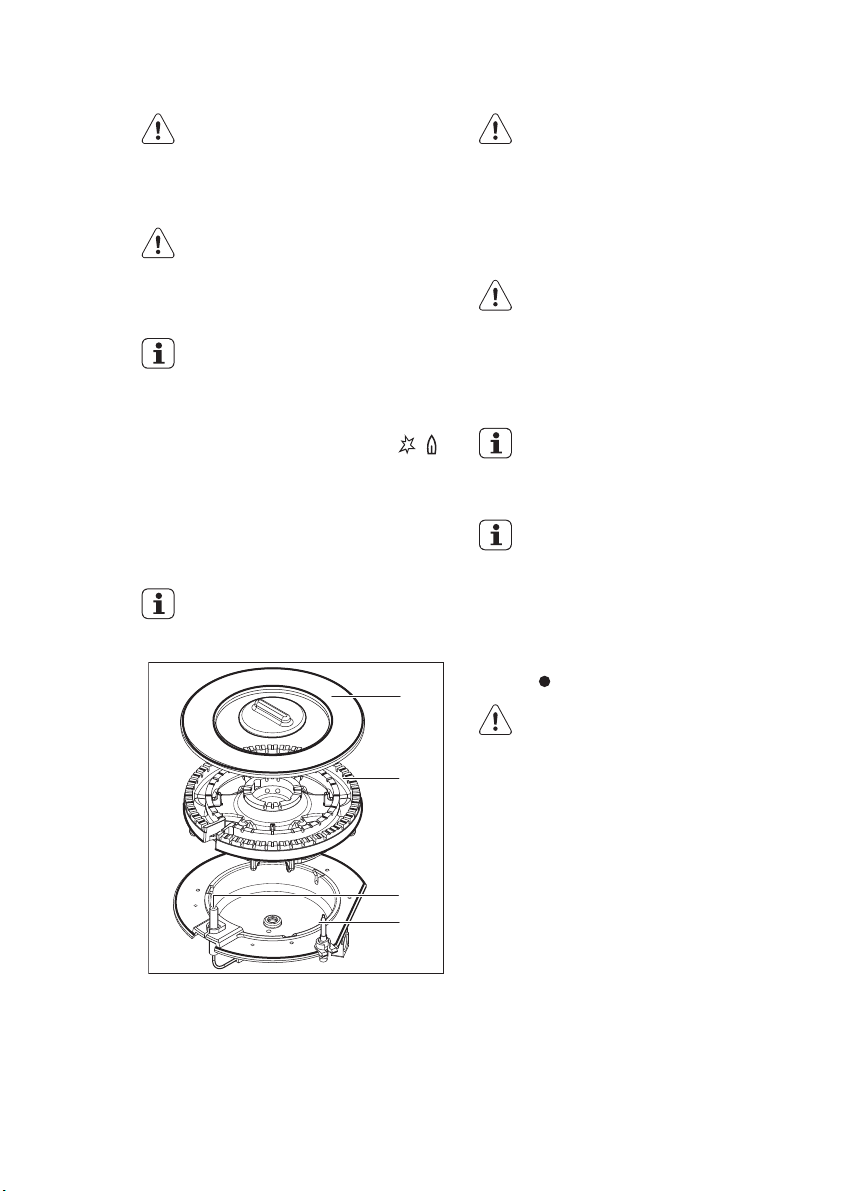

DAILY USE
ENGLISH 7
WARNING!
Refer to "Safety information" chapter.
IGNITION OF THE BURNER
WARNING!
Be very careful when you use open
fire in kitchen environment. Manufacturer decline any responsibility in
case misuse of the flame
Always light the burner before you
put cookware.
To light the burner:
1.
Turn the control knob counterclockwise to the maximum position (
and push it down.
2.
Keep the control knob pushed for approximately 5 seconds; this will let
thermocouple to warm up. If not, the
gas supply will be interrupted.
3.
Adjust the flame after it is regular.
If after some tries the burner does
not light, check if the crown and its
cap are in correct positions.
A
B
)
WARNING!
Do not keep the control knob
pushed for more than 15 seconds.
If the burner does not light after 15
seconds, release the control knob,
turn it into off position and try to
light the burner again after minimum 1 minute.
In the absence of electricity you
can ignite the burner without electrical device; in this case approach
the burner with a flame, push the
relevant knob down and turn it
counter-clockwise to maximum
gas release position.
If the burner accidentally goes out,
turn the control knob to the off position and try to light the burner
again after minimum 1 minute.
The spark generator can start automatically when you switch on the
mains, after installation or a power
cut. It is normal.
TURNING THE BURNER OFF
To put the flame out, turn the knob to the
symbol
.
WARNING!
Always turn the flame down or
switch it off before you remove the
pans from the burner.
A)
Burner cap
B)
Burner crown
C)
Ignition candle
D)
Thermocouple
C
D
Page 8
www.electrolux.com
8

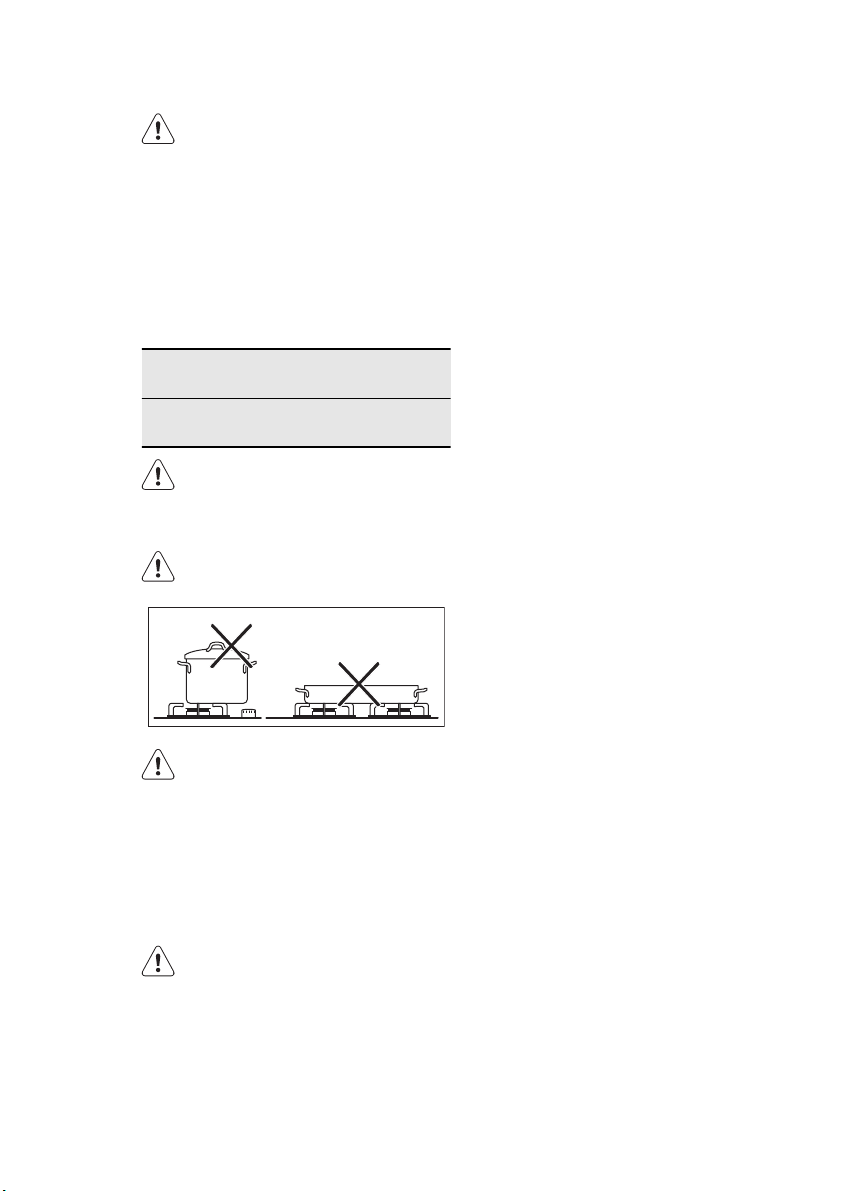

HELPFUL HINTS AND TIPS
WARNING!
Refer to "Safety information" chapter.
ENERGY SAVINGS
• If possible, always put the lids on the
pans.
• When the liquid starts to boil, turn down
the flame to barely simmer the liquid.
Use cookware with diameters applicable to
the size of burners.
Burner Diameters of cook-
Triple
Crown
WARNING!
Do not use cast iron pans, potstones, grill or toaster plates on
gas burners.
WARNING!
Do not put the same pan on two
burners.
ware
160 - 240 mm
we recommend that you cook at the lowest
temperatures and do not brown food too
much.
WARNING!
Make sure pot handles do not protrude over the front edge of the
cooktop and that pots are centrally
positioned on the rings in order to
achieve maximum stability and to
obtain lower gas consumption.
Do not place unstable or deformed pots on
the rings to prevent from spill and injury.
WARNING!
Liquids spilt during cooking can
cause the glass to break
Information on acrylamides
Important! According to the newest
scientific knowledge, if you brown food
(specially the one which contains starch),
acrylamides can pose a health risk. Thus,
Page 9
CARE AND CLEANING
ENGLISH 9
WARNING!
Refer to "Safety information" chapter.
WARNING!
Deactivate the appliance and let it
cool down before you clean it. Disconnect the appliance from the
electrical supply before you do
cleaning or maintenance work.
Scratches or dark stains on the
surface have no effect on how the
appliance operates.
•You can remove the pan supports to
easily clean the hob.
• To clean the enamelled parts, cap and
crown, wash them with warm soapy water and dry them carefully before you put
them back.
• Wash stainless steel parts with water,
and then dry them with a soft cloth.
• The pan supports are not dishwasher
proof. They must be washed by hand.
• When you wash the pan supports by
hand, take care when you dry them as
the enamelling process occasionally
leaves rough edges. If necessary, remove stubborn stains using a paste
cleaner.
• Make sure you position the pan supports
correctly after cleaning.
• To make the burners work correctly,
make sure that the arms of the pan supports are in the centre of the burner.
2.
Clean the appliance with a damp cloth
and some detergent.
3.
At the end rub the appliance dry
with a clean cloth.
WARNING!
Do not use knives, scrapers or similar instruments to clean the surface
of the glass or between the rims of
the burners and the frame (if applicable).
WARNING!
Do not slide cookware over the
glass because it could scratch the
surface. Also, do not let hard or
sharp objects fall onto the glass or
hit the edge of the hob.
CLEANING OF THE SPARK
PLUG
This feature is obtained through a ceramic
ignition candle with a metal electrode. Keep
these components well clean to prevent
difficult lighting and check that the burner
crown holes are not obstructed.
PERIODIC MAINTENANCE
Periodically speak your local Service Force
Centre to check the conditions of the gas
supply pipe and the pressure adjuster, if fitted.
• Be very careful when you replace the
pan supports to prevent the hob top
from damage.
After cleaning, dry the appliance with a soft
cloth.
Removing the dirt:
1.
– Remove immediately: melting
plastic, plastic foil, and food containing sugar.
Stop the appliance and let it cool
–
down before you clean: limescale
rings, water rings, fat stains, shiny
metallic discolorations. Use a special
cleaner applicable for surface of
hob.
Page 10
www.electrolux.com
10
TROUBLESHOOTING
Problem Possible cause Remedy
There is no spark when
lighting the gas
• Burner cap and crown
The flame is blow out immediately after ignition
The gas ring burns unevenly
If there is a fault, first try to find a solution to
the problem yourself. If you cannot find a
solution to the problem yourself, speak
your dealer or the local Service Force Centre.
If you operated the appliance incorrectly, or the installation was not
carried out by a registered engineer, the visit from the customer
service technician or dealer may
not take place free of charge, even
during the warranty period.
• There is no electrical
supply
are placed uneven
• Thermocouple is not
heated sufficient
• Burner crown is blocked
with food residues
• Product number (PNC) .................
• Serial Number (S.N.) .................
Use the original spare parts only. They are
available at Service Force Centre and approved spare parts shops.

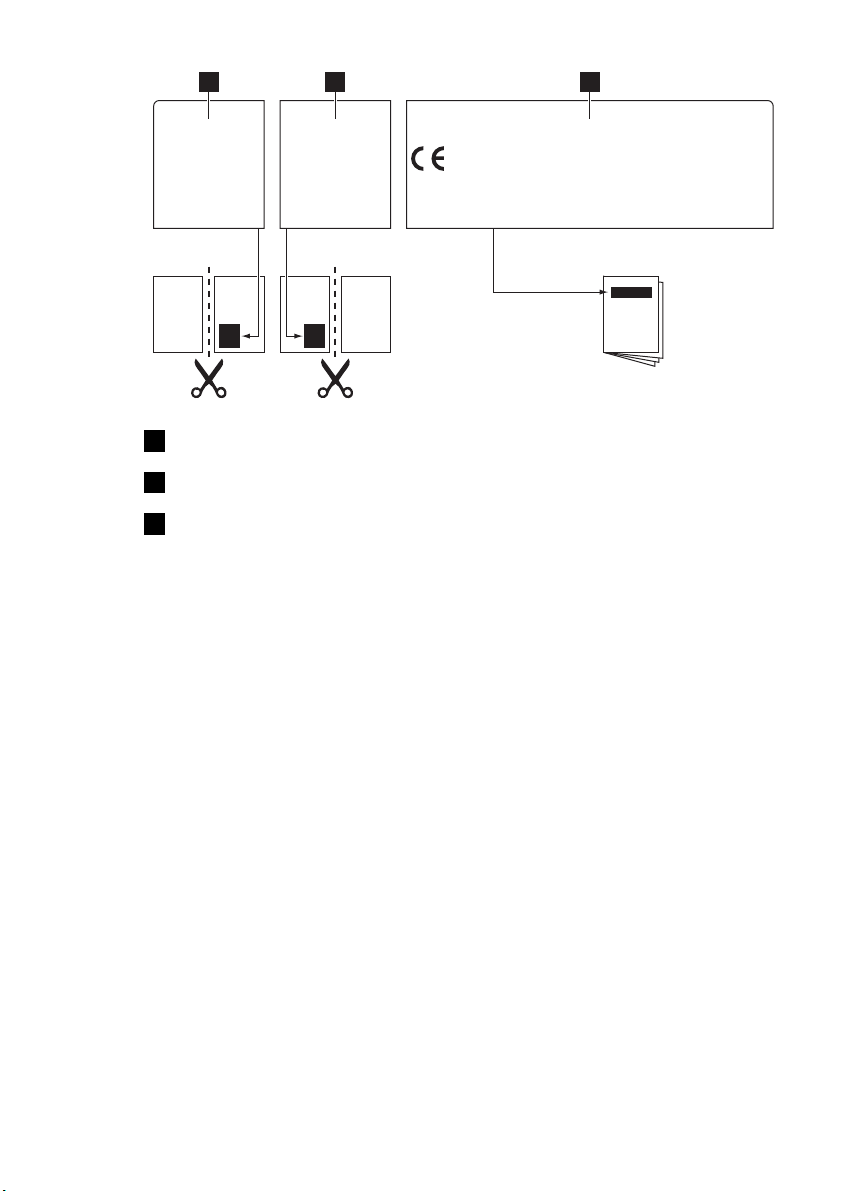

LABELS SUPPLIED WITH THE
ACCESSORIES BAG
Stick the adhesive labels as indicated below:
• Make sure that the unit
is connected and the
electrical supply is
switched on.
• Control the fuse. If the
fuse is released more
than one time, refer to a
qualified electrician.
• Make sure that the
burner cap and crown
are in correct positions.
• After lightning the flame,
keep the knob pushed
for approximately 5 seconds.
• Make sure that the injector is not blocked
and the burner crown is
clear of food particles.
These data are necessary to help you
quickly and correctly. These data are
available on the supplied rating plate.
• Model description .................
Page 11
1 2 3
ENGLISH 11
MOD.
PROD.NO.
SER.NO
DATA
Stick it on Guarantee Card and send
1
this part
Stick it on Guarantee Card and keep
2
this part
Stick it on instruction booklet
3
MOD.
PROD.NO.
SER.NO
DATA
MODELMODEL
0049
03 IT
MADE IN ITALY
MOD.
PROD.NO.
SER.NO.
TYPE
230V-50Hz
IP20
Page 12
www.electrolux.com
12
INSTALLATION
WARNING!
Refer to "Safety information" chapter.
WARNING!
The following instructions about installation, maintenance and ventilation must be carried out by qualified personnel in compliance with
the regulation in force (UNI-CIG
7129 - 7131). Make sure that the
kitchen is well ventilated: keep natural ventilation holes open (at least
100 cm²) or install a mechanical extractor hood.

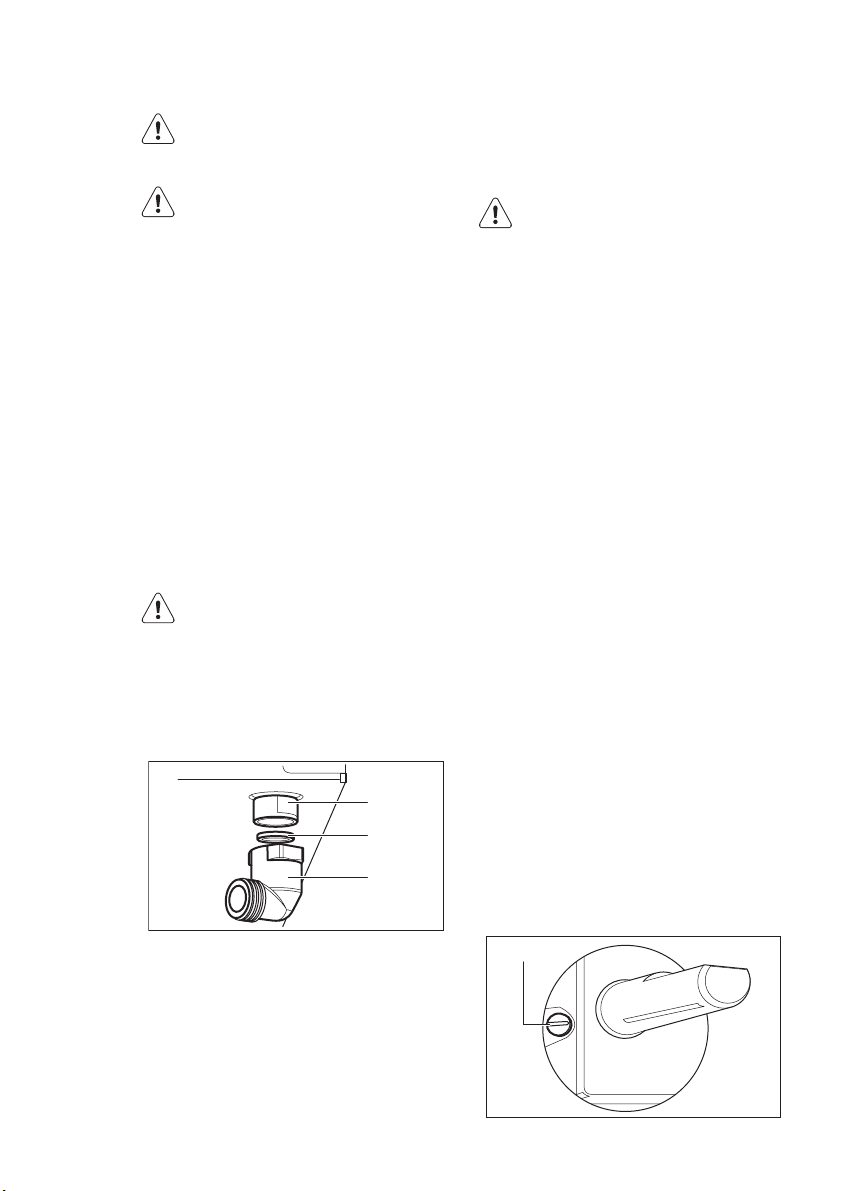

GAS CONNECTION
Choose fixed connections or use a flexible
pipe in stainless steel in compliance with
the regulation in force. If you use flexible
metallic pipes, be careful they do not come
in touch with mobile parts or they are not
squeezed. Also be careful when the hob is
put together with an oven.
Make sure that the gas supply
pressure of the appliance obeys
the recommended values. The adjustable connection is fixed to the
comprehensive ramp with a threaded nut G 1/2". Screw the parts
and tighten everything with teflon
tape, if necessary, to get the right
direction.
A
B
C
A)
End of shaft with nut
B)
Washer
C)
Elbow (if needed)
Flexible connection:
Use a flexible pipe in stainless steel (UNICIG 9891) with a maximum length 2 m.
When installation is complete,
make sure that the seal of each
pipe fitting is correct. Use a soapy
solution, not a flame!
INJECTORS REPLACEMENT
1.
Remove the pan supports.
2.
Remove the caps and crowns of the
burner.
3.
With a socket spanner 7 remove the
injectors and replace them with the
ones which are necessary for the type
of gas you use (see table in "Technical
Information" chapter).
4.
Assemble the parts, follow the same
procedure backwards.
5.
Replace the rating plate (it is near the
gas supply pipe) with the one for the
new type of gas supply. You can find
this plate in the package supplied with
the appliance.
If the supply gas pressure is changeable or
different from the necessary pressure, you
must fit an applicable pressure adjuster on
the gas supply pipe.
ADJUSTMENT OF MINIMUM
LEVEL
To adjust the minimum level of the burners:
1.
Light the burner.
2.
Turn the knob on the minimum posi-
tion.
3.
Remove the knob.
4.
With a thin screwdriver, adjust the by-
pass screw position.
A
Rigid connection:
Carry out connection by using metal rigid
pipes (copper with mechanical end) (UNICIG 7129).
A)
The by-pass screw
Page 13
• If you change from natural gas G20 20
mbar to liquid gas, fully tighten the bypass screw in.
• If you change from liquid gas to natural
gas G20 20 mbar, undo the by-pass
screw approximately 1/4 of a turn (1/2 of
a turn for Triple Crown burner).
WARNING!
Make sure the flame does not go
out when you quickly turn the knob
from the maximum position to the
minimum position.
ENGLISH 13

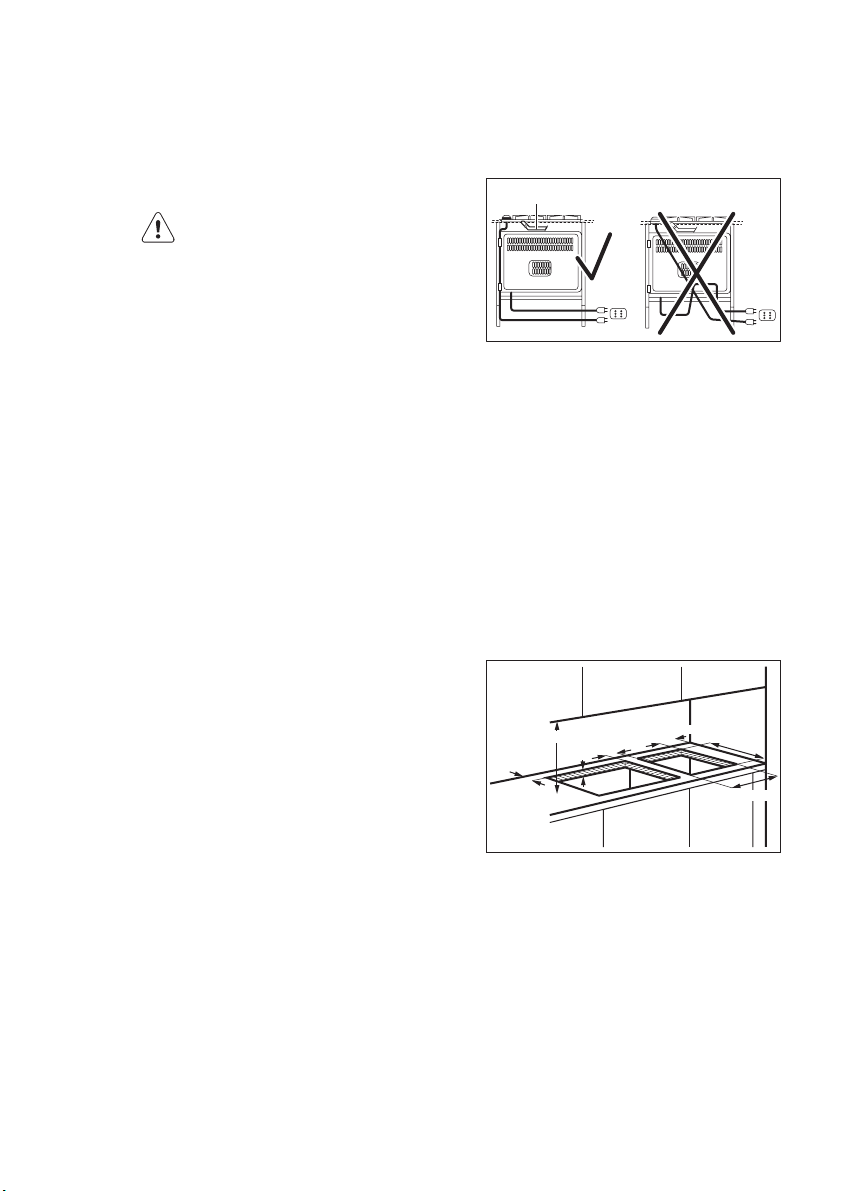

No part of the power cable must heat to a
temperature of more than 90° C.
Use clamps installed on the side of the
cabinet to prevent contact with the equipment below the cooktop. See an example
of an optimal path in Figure.
A
ELECTRICAL CONNECTION
• Ground the appliance according to safety precautions.
• Make sure that the rated voltage and
type of power on the rating plate agree
with the voltage and the power of the local power supply.
• This appliance is supplied with a mains
cable. It has to be supply with a correct
plug, able to support the load marked on
the rating plate. The plug has to be fitted
in a correct socket.
• Any electrical component must be installed or replaced by the Service Force
Centre technician or qualified service
personnel.
• Always use a correctly installed shockproof socket.
• Make sure that there is an access to the
mains plug after installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the
mains plug.
• The appliance must not be connected
with an extension cable, an adapter or a
multiple connection (risk of fire). Check
that the ground connection is in conformity with the standard and regulations
force.
• The power cable must be placed in such
a way that it does not touch any hot
part.
• Connect the appliance to the mains with
a device that lets to disconnect the appliance from the mains at all poles with a
contact opening width of minimum 3
mm, eg. automatic line protecting cutout, earth leakage trips or fuse.
A)
Rigid copper pipe or flexible pipe in
stainless steel
REPLACEMENT OF THE
CONNECTION CABLE
To replace the connection cable use only
H05V2V2-F T90 or equivalent type. Make
sure that the cable section is applicable to
the voltage and the working temperature.
The yellow/green earth wire must be approximately 2 cm longer than the brown (or
black) phase wire.

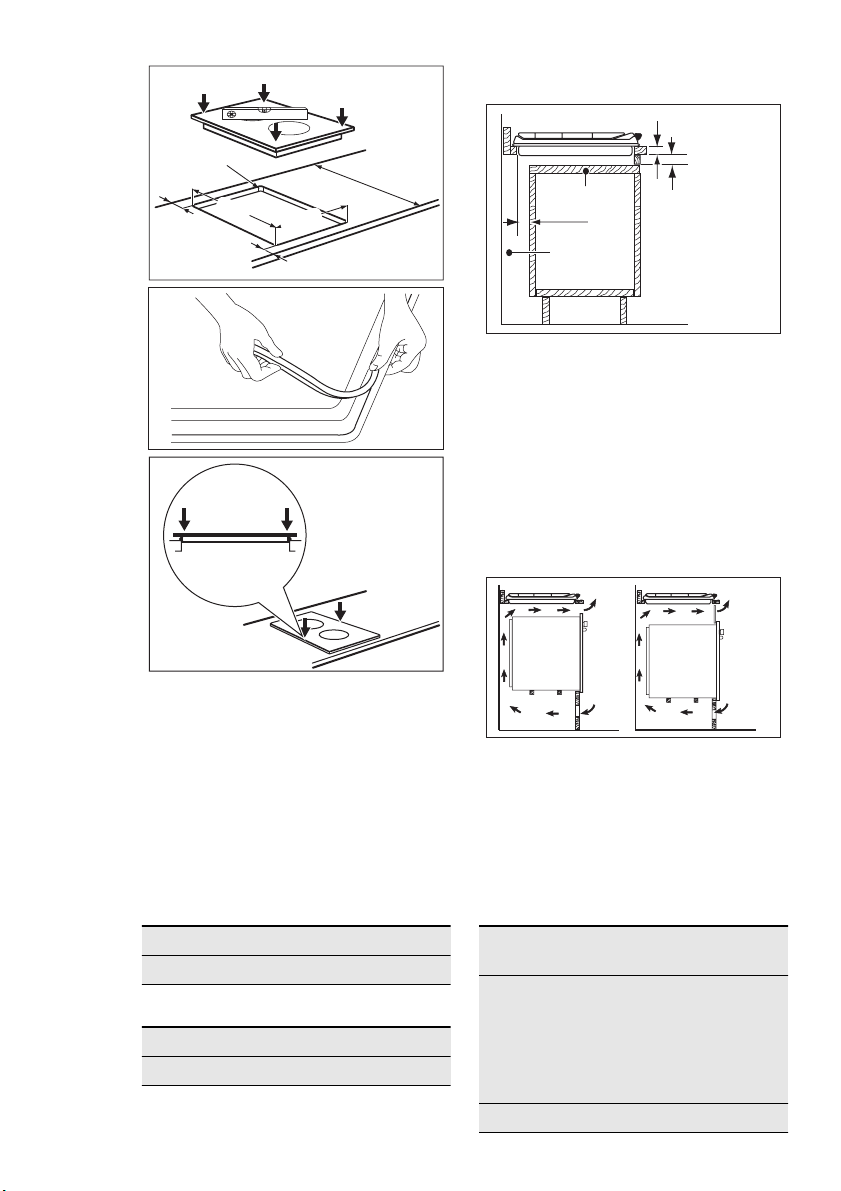

BUILDING IN
min. 650 mm
55 mm
If several 30 cm hobs are to be installed
side by side into the same cut out, an assembly kit including a support side bracket
and supplementary seals is available at our
Service Centres. The relevant installation instructions are supplied within the kit package.
40-50 mm
30 mm
min. 450 mm
490 mm
270 mm
Page 14
www.electrolux.com
14
case a technical assistance intervention is
necessary.
30 mm
R 5mm
490
+1
mm
270
=
=
600mm
A
+1
mm
60 mm
min 20 mm
(max 150 mm)
B
A)
Removable panel
B)
Space for connections
Kitchen unit with oven
The hob recess dimensions must obey the
indication and the kitchen unit must be
equipped with vents to let a continuous
supply of air. The electrical connection of
the hob and the oven must be installed
separately for safety reasons and to let
easy remove oven from the unit.
POSSIBILITIES FOR INSERTION
Kitchen unit with door
The panel installed below the hob must be
easy to remove and let an easy access in
TECHNICAL INFORMATION
Hob dimensions
Width: 290 mm
Length: 520 mm
Hob recess dimensions
Width: 270 (0/+1) mm
Length: 490 (0/+1) mm
50 cm2
360 cm2
120 cm2
180 cm2
Heat input
Triple Crown
3.8 kW
burner:
TOTAL POWER: G20 (2H) 20 mbar
= 3.8 kW
G30 (3+) 28–30
mbar = 276 g/h
G31 (3+) 37 mbar
= 271 g/h
Electric supply: 230 V ~ 50 Hz
Page 15
ENGLISH 15
Gas connection: G 1/2"
Category: II2H3+
Gas supply: G20 (2H) 20 mbar
Appliance class: 3
Gas burners
BURNER NOR-
MAL
POWER
RE-
DUCED
POW-
ER
kW kW inj. 1/100mmm³/h inj.
Triple Crown 3.8 1.4 146 0.362 98 276 271
ENVIRONMENT CONCERNS
Recycle the materials with the symbol
Put the packaging in applicable containers
to recycle it.
Help protect the environment and human
health and to recycle waste of electrical
By-pass diameters
Burner Ø By-pass in
1/100 mm.
Triple Crown 56
NORMAL POWER
NATURAL GAS
G20 (2H) 20 mbar
(Butane/Propane)
G30/G31 (3+) 28–
30/37 mbar
1/100
mm
and electronic appliances. Do not dispose
.
appliances marked with the symbol
the household waste. Return the product
to your local recycling facility or contact
your municipal office.
LPG
G30
28–
mbar
30
g/h
G31
37
mba
r
with
Page 16
www.electrolux.com/shop 892943974-A-072012
Loading...
