AEG EFT635X/GB, EFT630W/GB, EFT630B/GB, EFT535W User Manual

Montage- und Gebrauchsanweisung , Installatie- en gebruiksaanwijzing

EFT 630 - EFT 635 EFT 530 - EFT 535

Notice d’utilisation et d’installation, Operating and Installation Instructions

Contents

Safety warnings..................................................................... 32

For the installer ....................................................................... 32

For the user ............................................................................. 32

Description of the Appliance ............................................... 33

Extractor version .................................................................... 33

Recirculation Version ............................................................. 33

Control Panel ........................................................................ 34

Correct ventilation .................................................................. 34

Maintenance and Care ......................................................... 35

Cleaning the hood ................................................................... 35

Metal grease filter ................................................................... 35

Paper grease filter ................................................................... 36

Charcoal filter ......................................................................... 36

Changing the light bulb .......................................................... 36

Something Not Working ...................................................... 37

Special accessories ................................................................ 37

Service and Spare Parts ....................................................... 38

Guarantee Conditions .......................................................... 39

Technical Specifications ....................................................... 40

Installation ............................................................................ 40

Unpacking............................................................................... 40

Fitting ..................................................................................... 40

Electrical connection .............................................................. 40

Mounting accessories included .............................................. 41

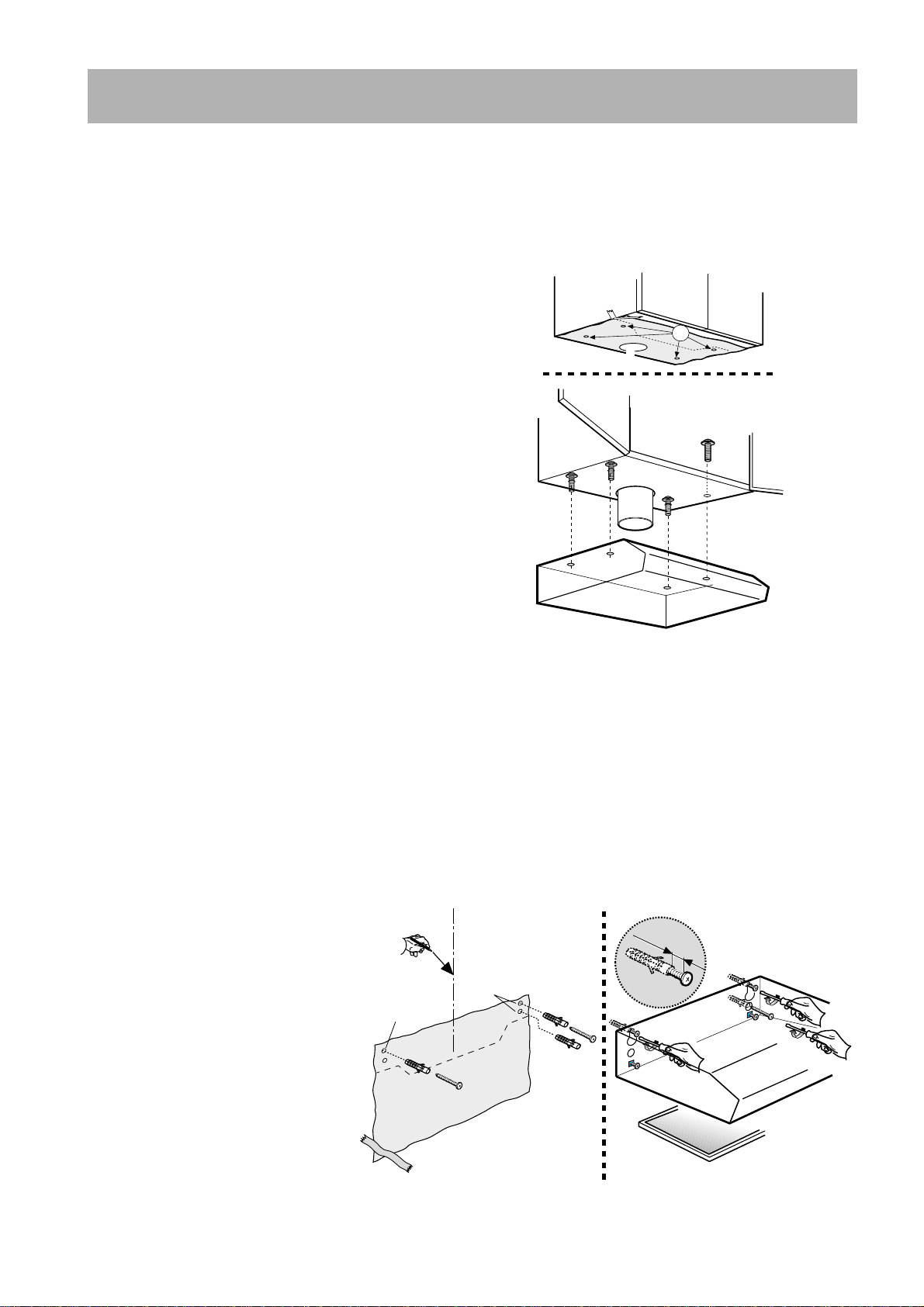

Wall unit mounting ................................................................. 41

Wall mounting ........................................................................ 41

Before installing or using this appliance please read this instruction book carefully paying particular attention to the safety warnings on the following page. If you have any queries regarding this appliance please contact Customer Care for advice. Please keep this instruction book for future reference and pass it on to any future owner of the appliance.

Safety warnings

For the installer

• When used as an extractor unit, the hood must be fitted with a 125mm diameter hose.

Attention: The hose is not supplied and must be purchased separately.

• When installing the hood, make sure you respect the following minimum distance from the top edge of the cooking hob/ring surfaces: electric cookers 600 mm gas cookers 650 mm coal and oil cookers 800 mm min.

• The national Standard on fuel-burning systems specifies a maximum depression of 0.04 mbar in such rooms.

• The air outlet must not be connected to chimney flues or combustion gas ducts. The air outlet must under no circumstances be connected to ventilation ducts for rooms in which fuel-burning appliances are installed.

• The air outlet installation must comply with the regulations laid down by the relevant authorities.

• When the unit is used in its extractor version, a sufficiently large ventilation hole must be provided, with dimensions that are approximately the same as the outlet hole.

• National and regional building regulations impose a number of restrictions on using hoods and fuel-burning appliances connected to a chimney, such as coal or oil room-heaters and gas fires, in the same room.

• Hoods can only be used safely with appliances connected to a chimney if the room and/or flat (air/environment combination) is ventilated from outside using a suitable ventilation hole approximately 500-600 cm2 large to avoid the possibility of a depression being created during operation of the hood.

• If you have any doubts, contact the relevant controlling authority or building inspector’s office.

• Since the rule for rooms with fuel burning appliances is “outlet hole of the same size as the ventilation hole”, a hole of 500-600 cm2, which is to say a larger hole, could reduce the performance of the extractor hood.

• If the hood is used in its filtering function, it will operate simply and safely in the above conditions without the need for any of the aforementioned measures.

• When the hood is used in its extractor function,

the following rules must be followed to obtain optimal operation:

— short and straight outlet hose — keep bends in outlet hose to a minimum — never install the hoses with an acute angle,

they must always follow a gentle curve.

— keep the hose as large as possible

(preferably the same diameter as the outlet hole).

• Failure to observe these basic instructions will drastically reduce the performance and increase the noise levels of the extractor hood.

For the user

• The cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam.

• Always cover lighted elements, to prevent excess heat from damaging the appliance. In the case of oil, gas and coal fired cookers it is essential to avoid open flames.

• Also, when frying, keep the deep frying pan on the cooker top/cooker under careful control.

• The hot oil in the frying pan might ignite due to overheating.

• The risk of self-ignition increases when the oil being used is dirty.

• It is extremely important to note that overheating can cause a fire.

• Never carry out any flambé cooking under the hood.

• Always disconnect the unit from the power supply before carrying out any work on the hood, including replacing the light bulb (take

the cartridge fuse out of the fuse holder or switch off the automatic circuit breaker).

• It is very important to clean the hood and replace the filter at the recommended intervals. Failure to do so could cause grease deposits to build up, resulting in a fire hazard.

• The appliance is not intended for use by young children or infirm persons without supervision.

• Young children should be supervised to ensure that they do not play with the appliance.

• WARNING - Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

Description of the Appliance

• The hood is supplied as an extractor unit and can also be used with a filtering function by fitting one charcoal filter.

• You will need an original Electrolux charcoal filter for this function (Available from your local Electrolux Service Force Centre).

ONLY for: EFT 630 W/GB / 942 120 776

EFT 630 B/GB / 942 120 777 EFT 635 X/GB / 942 120 779

• The cooker hood is supplied ready for use as a recirculation hood and may be used for extraction by removing the charcoal filter which has been fitted inside the cooker hood.

Extractor version

• In this version fumes are extracted to the

outside via a hose connected to the coupling

ring. Attention: The hose is not supplied and must be purchased separately.

• In order to obtain the best performance the hose should have a diameter equal to the outlet hole.

To the outside

Coupling ring (Bayonet and screw fitting)

Fig. 1 - Extractor version

Hose

Recirculation Version

• The air is filtered through a charcoal filter and returned to the kitchen through the front grid.

• Move the lever to position F.

• You will need an original Electrolux charcoal

filter for this function (Available from your local Electrolux Service Force Centre).

Charcoal Filter

Front grid

Lever

Fig. 2 - Recirculation version

Control Panel

• Best results are obtained by using a low speed for normal conditions and a high speed when odours are more concentrated. Turn the hood on a few minutes before you start cooking, you will then get an under pressure in the kitchen. The hood should be left on after cooking for about 15 minutes or until all the odours have disappeared. The control switches are located on the unit’s front panel:

• the light switch switches the hood lamp on and off

• the motor switch switches the motor on and off, enabling you to select one of the three different speeds.

Light switch

Motor switch

Correct ventilation

If the cooker hood is to work correctly there must be an under pressure in the kitchen. It is important to keep the kitchen windows closed and have a window in an adjacent room open.

Fig. 3 - Control panel
