EBGL6X
.................................................. ...............................................
EN OVEN USER MANUAL
Page 2
www.electrolux.com
2
CONTENTS
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
BEFORE FIRST USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
CLOCK FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
AUTOMATIC PROGRAMMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
USING THE ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
ADDITIONAL FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
WHAT TO DO IF… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
GARANTIE, GARANZIA, GUARANTEE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
ENVIRONMENT CONCERNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed with
you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results
every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
Page 3
SAFETY INFORMATION
ENGLISH 3
Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes
injuries and damages. Always keep the instructions with the appliance for future reference.
CHILDREN AND VULNERABLE
PEOPLE SAFETY
WARNING!
Risk of suffocation, injury or permanent disability.
• Do not let persons, children included,
with reduced physical sensory, reduced
mental functions or lack of experience
and knowledge use the appliance. They
must have supervision or instruction for
the operation of the appliance by a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the
appliance when it operates or when it
cools down. Accessible parts are hot.
• If the appliance has a child safety device,
we recommend that you activate it.
INSTALLATION
WARNING!
Only a qualified person must install
this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied
with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is installed
below and adjacent safe structures.
• The sides of the appliance must stay adjacent to appliances or to units with the
same height.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the power
supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable. Contact the Service or an electrician to
change a damaged mains cable.
• Do not let mains cables to come in touch
with the appliance door, specially when
the door is hot.
• The shock protection of live and insulated parts must be fastened in such a
way that it cannot be removed without
tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the
mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect the appliance from the mains at all
poles. The isolation device must have a
contact opening width of minimum 3
mm.
Page 4
www.electrolux.com
4
USE
• Use this appliance in a household envi-
• Do not change the specification of this
• Make sure that the ventilation openings
• Do not let the appliance stay unattended
• Deactivate the appliance after each use.
• Internally the appliance becomes hot
• Be careful, when you open the appliance
• Do not operate the appliance with wet
• Do not apply pressure on the open door.
• Do not use the appliance as a work sur-
• Always keep the appliance door closed
• Open the appliance door carefully. The
• Do not let sparks or open flames to
• Do not put flammable products or items
• To prevent damage or discoloration to
WARNING!
Risk of injury, burns or electric
shock or explosion.
ronment.
appliance.
are not blocked.
during operation.
when in operation. Do not touch the
heating elements that are in the appliance. Always use oven gloves to remove
or put in accessories or ovenware.
door while the appliance is in operation.
Hot air can release.
hands or when it has contact with water.
face or as a storage surface.
when the appliance is in operation.
use of ingredients with alcohol can cause
a mixture of alcohol and air.
come in contact with the appliance when
you open the door.
that are wet with flammable products in,
near or on the appliance.
WARNING!
Risk of damage to the appliance.
the enamel:
– Do not put ovenware or other objects
in the appliance directly on the bottom.
– Do not put aluminium foil directly on
the bottom of the appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you finish the cooking.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel has no effect
on the performance of the appliance. It is
not a defect in the sense of the warranty
law.
• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.
Heated drawer
WARNING!
Risk of fire and burns.
• The heated drawer becomes hot, when
you activate it.
• Do not keep flammable materials in the
appliance or in the heated drawer.
CARE AND CLEANING
WARNING!
Risk of injury, fire or damage to the
appliance.
• Before maintenance, deactivate the appliance and disconnect the mains plug
from the mains socket.
• Make sure the appliance is cold. There is
the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the
Service.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Remaining fat or food in the appliance
can cause fire.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
• If you use an oven spray, obey the safety
instructions on the packaging.
• Do not clean the catalytic enamel (if applicable) with any kind of detergent.
INTERNAL LIGHT
• The type of light bulb or halogen lamp
used for this appliance, is only for household appliances. Do not use it for house
lighting.
Page 5
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same specifications.
DISPOSAL
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance.
ENGLISH 5
Page 6
www.electrolux.com
6
PRODUCT DESCRIPTION
1
5
4
3
12
2
1
ACCESSORIES
2 3
11
Control panel
1
Electronic programmer
2
Heated drawer indicator (for selected
3
4
5
6
7
8
9
10
models only)
Socket for the core temperature sen-
4
sor
Heating element
5
Lamp
6
Fan
7
Rear wall heating element
8
Bottom heat
9
Drawer
10
Shelf support, removable
11
Shelf positions
12
Wire shelf
For cookware, cake tins, roasts.
Baking tray
For cakes and biscuits.
Grill- / Roasting pan
To bake and roast or as a pan to collect
fat.
Page 7
ENGLISH 7
Core temperature sensor
To measure how far the food is cooked.
Heated drawer
Below the oven cavity is the heated drawer.
You can pre-heat cookware in the drawer.
Page 8
www.electrolux.com
8
BEFORE FIRST USE
WARNING!
Refer to "Safety information" chapter.
INITIAL CLEANING AND
PREHEATING
• Remove all parts from the appliance.
• Clean the appliance before first use.
• Heat up the empty appliance at 150°C
for 30 minutes with
Refer to chapter "Care and Cleaning".
FIRST CONNECTION TO THE
MAINS
After first connection to the mains all symbols in the display are on for some seconds. For the subsequent few seconds the
display shows software version.
FIRST SETTING THE TIME OF
DAY
After the software version goes off, the display shows "h" and "12:00".
Setting the time of day:
1.
Touch or to set hours.
2.
Touch .
3.
Touch or to set minutes.
4.
Touch or .
The Temperature / Time display shows
new time.
or function
Changing the time of day
You can change the time of day only if the
appliance is off.
Touch
new time of day use the above procedure.
. flashes in the display. To set
Page 9
CONTROL PANEL
ELECTRONIC PROGRAMMER
2 3 4 5 6 7 8 9 10
Use the sensor fields to operate the appliance.
Sensor
Field
1
2
3
4
5
6
7
- DISPLAY Shows the current settings of the appli-
ENGLISH 9
1
Function Description
ance.
ON / OFF To activate and deactivate the appliance.
Use it to access the heating functions.
OPTIONS To set an automatic programme, cleaning
function or a heating function.
MY FAVOURITE
PROGRAMME
To store your favourite programme. Use it
to access your favourite programme directly or when the appliance is deactivated.
TEMPERATURE /
FAST HEAT UP
To set and show the cavity temperature or
the core temperature sensor temperature.
If you press and hold it for three seconds,
it turns the Fast heat up function ON or
OFF.
UP, DOWN To choose a heating function or a clock
function and to set the minute minder,
temperature or time of day.
OK To confirm the selection or setting.
8
LIGHT To activate or deactivate the lamp in the
appliance.
9
10
CLOCK To set the clock function.
MINUTE MINDER To set the minute minder.
Page 10
www.electrolux.com
10
DISPLAY
OTHER INDICATORS OF DISPLAY
Symbols Name Description
ABC
F
Options
Automatic pro-
E DG
You can choose a heating function.
You can choose an oven programme.
gramme
My favourite pro-
The favourite programme operates.
gramme
kgr / gr An oven programme with weight input oper-
/
ates.
/
h / min A clock function operates.
Odour filter The odour filter operates (selected models on-
ly).
Temperature / fast
The function operates.
heat up
Temperature
Core temperature
sensor
Oven light
You can examine or change the temperature.
The core temperature sensor is in the core
temperature sensor socket.
The oven light is off.
Minute minder The minute minder function operates.
A)
Heating function symbol
B)
Temperature / time display
C)
Clock / residual heat display (also Minute Minder and Time of Day)
D)
Residual heat indicator
E)
Indicators for the clock functions (refer
to the table "Clock functions" )
F)
Heat-up indicator
G)
Number of a heating function / programme
HEAT-UP INDICATOR
If you activate a heating function, the bars
in the display
bars show that the temperature in the appliance increases or decreases.
When the appliance is at the set temperature, the Heat-up indicator goes off the display.
come on one by one. The
Page 11
DAILY USE
ENGLISH 11
WARNING!
Refer to "Safety information" chapter.
To operate the appliance you can use:
• manual mode - to set a heating func-
tion, the temperature and the cooking
time manually.
Heating function Application
1 True Fan Cook-
ing
To bake on maximum on three shelf positions at
the same time. When you use this function, decrease the oven temperature by 20 - 40 °C from
the standard temperatures you use for Conventional Cooking. Also to dry food.
2
Pizza Setting To bake food on one oven level for a more intensive
browning and a crispy bottom. When you use this
function, decrease the oven temperature by 20 - 40
°C from the standard temperatures you use for
Conventional Cooking.
3
Conventional
To bake and roast food on one shelf position.
Cooking
4
5
Slow Cook To prepare very lean and tender roasted food.
Bottom heat To bake cakes with a crispy bottom and to pre-
serve food.
6
Defrost To defrost frozen food.
• Automatic programmes - to prepare a
dish when you do not have knowledge
or experience in cooking.
7
8
9
10
Keep Warm To keep food warm.
Grilling To grill flat food in the middle of the grill and to toast
Fast Grilling To grill flat food in large quantities and to toast
Turbo Grilling To roast larger meat joints or poultry with bones on
SETTING THE HEATING
FUNCTION
1.
Touch . The display shows a symbol, the number of the heating function
and the preset temperature.
2.
Touch or to set a heating function.
3.
Touch or the appliance starts automatically after five seconds.
bread.
bread.
one shelf position. Also to gratinate and to brown.
If you activate the appliance with
and do not set a heating function or programme, the appliance
deactivates automatically after 20
seconds.
CHANGING THE
TEMPERATURE
Touch or to change the temperature in steps of 5 °C.
Page 12
www.electrolux.com
12
When the appliance is at the set temperature, an acoustic signal sounds three times.
The heat-up indicator goes off the display.
CHECKING THE TEMPERATURE
You can see the temperature in the appliance when the function or programme operates.
1.
2.
FAST HEAT UP FUNCTION
The Fast Heat Up function decreases the
heat-up time.
Activating the Fast Heat Up function:
Touch and hold
onds.
If you activate the Fast Heat Up function,
the bars on the display
to show that the function operates.
Touch .
The Temperature / Time display shows
the temperature in the appliance.
If you want to change the temperature, touch
use
Touch to go back to the set temperature. If not, the display shows it
automatically after five seconds.
Useful information
one more time and
or .
for more than three sec-
flash one by one
or you must use the clock functions
(Duration, End, Time delay).
– When the appliance is off, you can use
the heat to keep food warm. The
Clock / Residual heat display shows
the remaining temperature, and the
bars show the temperature as it decreases.
•
Cooking with the lamp off - Touch
to deactivate the lamp during cooking.
• Deactivating the display - If necessary, you can fully deactivate the appliance.
Touch
the display goes out. This step also activates the appliance.
and at the same time until
• Do not put food into the appliance when
the Fast Heat Up function operates.
• The Fast Heat Up function is not available with every heating function. An
acoustic signal sounds if the Fast Heat
Up function is not available for the set
function.
ENERGY SAVING
The appliance contains features
which help you save energy
during everyday cooking:
• Residual heat:
– When the heating function or pro-
gramme operates, the heating elements are deactivated 10% earlier (the
lamp and fan continue to operate). For
this feature to operate, the cooking
time must be longer than 30 minutes
Page 13
CLOCK FUNCTIONS
ENGLISH 13
SYM-
FUNCTION DESCRIPTION
BOL
TIME OF DAY To show the time of day. To change the time of day, re-
fer to 'Setting the time of day'.
DURATION To set how long the appliance operates.
END To set when the appliance deactivates. You can use Du-
ration and End at the same time (Time delay) if you want
the appliance to activate and deactivate automatically
later.
COUNT UP TIMER
Use the Count Up Timer to monitor how
long the appliance operates. It starts to
count when the appliance starts to heat.
Reset the Count Up Timer: Touch
and at the same time until the display
shows "00:00" and the Count Up Timer
starts to count up again.
You cannot use Count Up Timer
when Duration or End is set.
SETTING THE DURATION
1.
Activate the appliance and set a heating function and temperature.
2.
Touch again and again until the display shows
flashes in the display.
3.
Touch or to set the minutes for
DURATION.
4.
Touch to confirm.
5.
Touch or to set the hours for
DURATION.
If you touch while you set the
hours for DURATION, the appliance goes to the END function setting.
6.
When the set time ends, an acoustic
signal sounds for two minutes.
and the time setting flash in the dis-
play. The appliance deactivates.
Touch a sensor field to stop the acous-
tic signal.
7.
Deactivate the appliance.
.
SETTING THE END
1.
Activate the appliance and set a heating function and temperature.
2.
Touch again and again until the display shows
flashes in the display.
3.
Touch or to set END (first you
set the minutes and then the hours)
and
4.
When the set time ends, an acoustic
signal sounds for two minutes.
and the time setting flash in the dis-
play. The appliance deactivates.
5.
Touch a sensor field to stop the acoustic signal.
6.
Deactivate the appliance.
.
to confirm.
SETTING THE MINUTE MINDER
Use the MINUTE MINDER to set a countdown (maximum h min). This function has
no effect on the operation of the appliance.
You can set the MINUTE MINDER at any
time and also when the appliance is off.
1.
Touch .
and "00" flash in the display.
2.
Use or to set the MINUTE
MINDER. First you set the seconds
and then minutes and hours.
3.
Touch and at the same time to
reset the set time.
4.
Touch or the MINUTE MINDER
starts automatically after five seconds.
5.
When set time ends, an acoustic signal
sounds for two minutes. "00:00" and
flash in the display.
Page 14
www.electrolux.com
14
6.
SETTING THE TIME DELAY
FUNCTION
DURATION and END can be used
at the same time, if the appliance is to be
switched on and off automatically later. In
case first set the DURATION
END
RATION" and "Setting the END" ).
Touch a sensor field to stop the acoustic signal.
and then
function (refer to "Setting the DU-
Page 15
AUTOMATIC PROGRAMMES
ENGLISH 15
WARNING!
Refer to "Safety information" chapter.
There are 9 automatic programmes
and recipes. Use an automatic programme or recipe when you do not
have a knowledge or experience
how to prepare a dish. You can
find the recipes for the automatic
programmes in the "Recipe book".
There are three types of automatic
programmes:
• Automatic recipes
• Automatic programmes with weight input
• Automatic programmes with core temperature sensor (for selected models only).
AUTOMATIC RECIPES
Setting an automatic recipe:
1.
Activate the appliance.
2.
Touch . The display shows symbol
and number of the automatic programme.
3.
Touch or to choose the automatic recipes.
4.
Touch or the automatic recipe activates automatically after five seconds.
5.
When set time ends, an acoustic signal
operates for two minutes. Symbol
flashes.
The appliance deactivates.
6.
Touch any sensor field to stop an
acoustic signal.
AUTOMATIC PROGRAMMES
WITH WEIGHT INPUT
If you set the weight of the meat, the appliance calculates the roasting time.
1.
Activate the appliance.
2.
Touch .
3.
Touch or to set the weight
programme (refer to "Recipe book" ).
The display shows: cooking time, duration symbol
unit of measurement (kg, g).
, a default weight, a
4.
Touch or the settings save automatically after five seconds.
5.
The appliance starts. The display
shows a symbol of the weight. During
this time you can change the default
weight value with
.
6.
When set time ends, an acoustic signal
operates for two minutes.
The appliance deactivates.
7.
Touch any sensor field to stop an
acoustic signal.
or . Touch
flashes.
AUTOMATIC PROGRAMMES
WITH CORE TEMPERATURE
SENSOR
The core temperature of the food is default
and fixed in programmes with core temperature sensor. The programme ends when
the appliance is at the set core temperature.
1.
Activate the appliance.
2.
Touch .
3.
Install the core temperature sensor (refer to "The core temperature sensor").
4.
Touch or to set the core temperature sensor programme.
When a core temperature sensor programme is set, the display shows the
cooking time,
5.
Touch or the settings save automatically after five seconds.
6.
When set time ends, an acoustic signal
operates for two minutes.
The appliance deactivates.
7.
Touch any sensor field to stop an
acoustic signal.
and .
flashes.
Page 16
www.electrolux.com
16
USING THE ACCESSORIES
WARNING!
Refer to "Safety information" chapter.
CORE TEMPERATURE SENSOR
The core temperature sensor measures the
core temperature of the meat. When the
meat is at the set temperature, the appliance deactivates.
There are two temperatures to set:
• The oven temperature: refer to the table
for roasting in the recipe book.

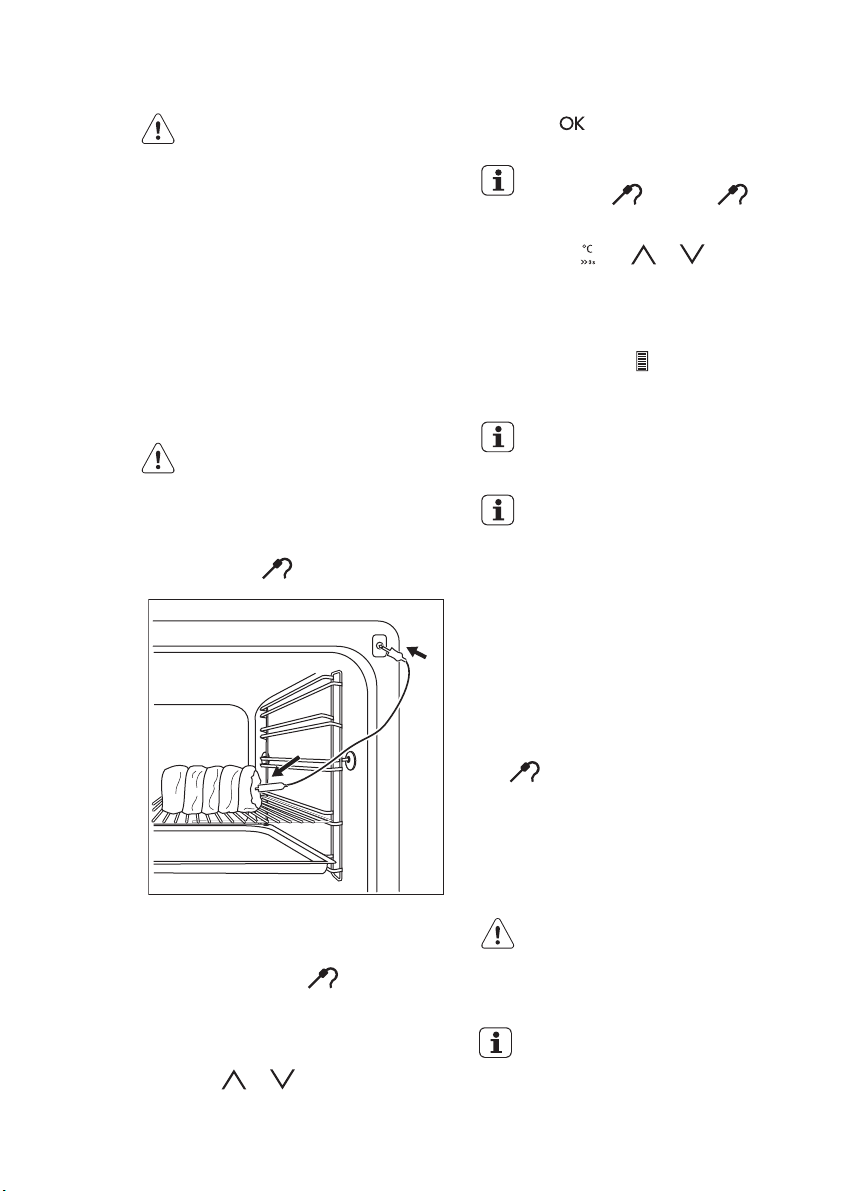

• The core temperature: refer to the table
for the core temperature sensor in the
recipe book.
Only use the core temperature sensor supplied or the correct replacement parts.
1.
Activate the appliance.
2.
Put the point of the core temperature
sensor (with
the centre of the meat.
3.
Put the plug of the core temperature
sensor into the socket at the front of
the appliance.
The display shows
the default set core temperature. The
temperature is 60 °C for the first operation, and the last set value for each
subsequent operation.
4.
Touch or to set the core temperature.
on the handle) into
flashing and
5.
Touch or the settings save automatically after 5 seconds.
You can set the core temperature
only when
the display but does not flash before you set the core temperature,
touch
new value.
6.
Set the heating function and, if necessary, the oven temperature.
The display shows the current core
temperature and
relation between the set oven temperature and the current oven temperature.
The core temperature sensor must
stay in the meat and in the socket
during the cooking.
While the appliance calculates the
approximate duration time, the value of the Count Up Timer function
shows in the Timer / Residual heat
display. When the first calculation
ends, the Timer / Residual heat display shows - and then the approximate duration of the cooking.
The appliance continues to calculate the duration during the cooking. The display updates at intervals with the new duration value.
7.
When the meat is at the set core temperature, the core temperature and
flash. An acoustic signal sounds
for two minutes.
Touch a sensor field to deactivate the
acoustic signal.
8.
Remove the core temperature sensor
from the socket and remove the meat
from the appliance.
WARNING!
Be careful when you remove the
core temperature sensor. It is hot.
There is a risk of burns.
9.
Deactivate the appliance.
When you put the core temperature sensor into the socket, you
cancel the settings for the clock
functions.
flashes. If is in
and or to set a
, which shows the
Page 17
When you cook with the core temperature sensor, you can change
the temperature shown in the Temperature / Time display. After you
put the core temperature sensor in
the socket and set a heating function and temperature, the display
shows the current core temperature.
ENGLISH 17
• The current oven temperature
• The current core temperature
The set core temperature changes into the
current core temperature and the current
oven temperature changes into the set
oven temperature.
Touch
other temperatures:
• The set core temperature
again and again to see three

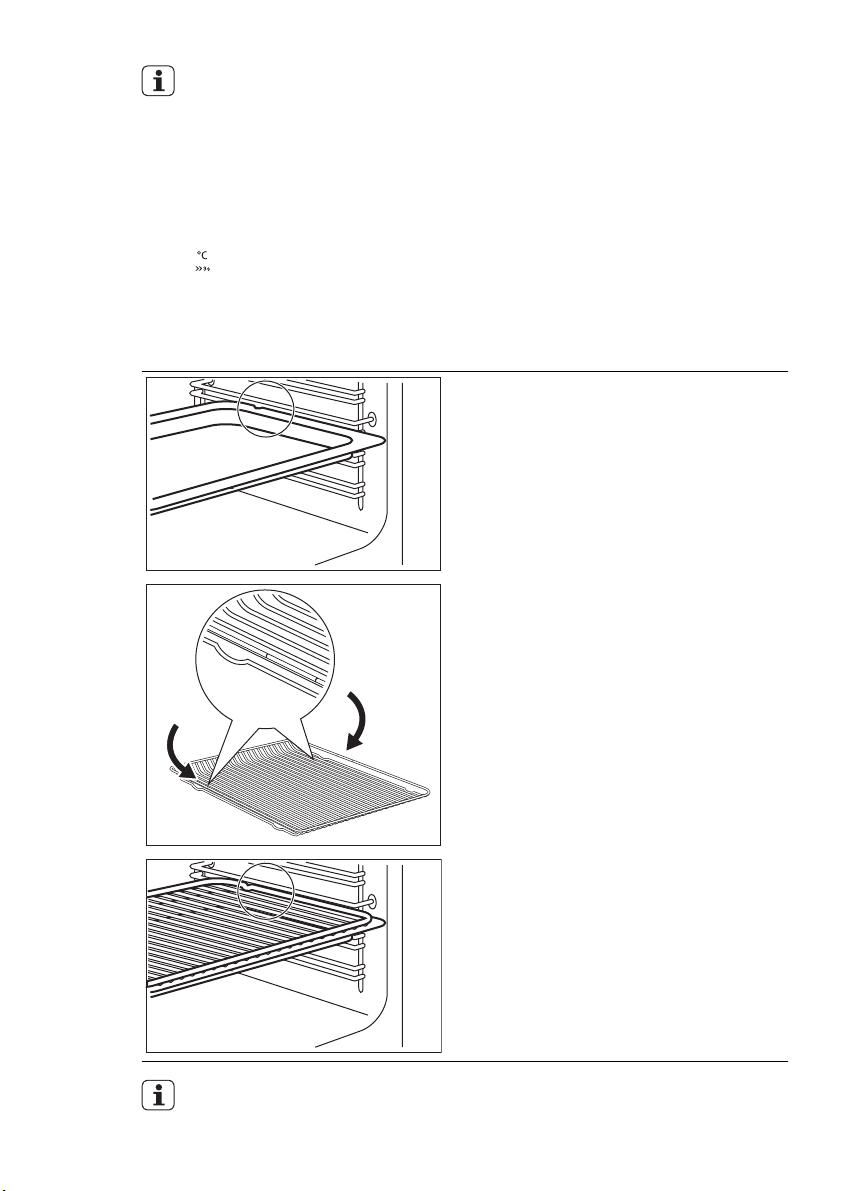

INSERTING THE ACCESSORIES
Baking tray:
Push the baking tray between the guide
bars of the shelf support.
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
Useful information:
Wire shelf and baking tray together:
Put the wire shelf on the baking tray.
Push the baking tray between the guide
bars of the shelf support.
• All accessories have a small indentation
at the bottom on the right and left edge
to increase the safety. Always make sure
that this indentation is at the rear of the
Page 18
www.electrolux.com
18
• The high rim around the shelf is a device
HEATED DRAWER
You can pre-heat a cookware in the drawer.
To activate or deactivate the heated drawer, use the switch that is on the left side of
the drawer housing.
Put the cookware equally in the drawer.
Re-arrange the cookware after half of the
warming time (swap top and bottom).
The temperature is automatic.
If the heated drawer is activated, the heated drawer indicator in the control panel
comes on.
appliance. This indentation is also an anti-tip device.
which prevents cookware from slipping
off.
WARNING!
The cookware becomes hot!
Page 19
ADDITIONAL FUNCTIONS
MY FAVOURITE PROGRAMME
FUNCTION
Use this function to save your favourite settings of temperature and time for a heating
function or programme.
1.
Set the temperature and time for a
heating function or programme.
2.
Touch and hold for more than three
seconds. An acoustic signal sounds.
3.
Deactivate the appliance.
Using My Favourite Programme
function:
•
To activate the function touch
The appliance activates your favourite
programme.
•
To deactivate the function touch
The appliance deactivates your favourite
programme.
When the function operates, you
can change the time and temperature.
ENGLISH 19
2.
Touch and hold and at the
same time for 2 seconds. An acoustic
signal sounds.
SAFE comes on or goes out in the display.
CONTROL LOCK
You can activate the function only when
the appliance operates. The Control Lock
prevents an accidental change of the heating function.
Activating / deactivating the control
lock function:
1.
.
.
Activate the appliance.
2.
Activate a heating function or setting.
3.
Touch and hold and at the
same time for 2 seconds. An acoustic
signal sounds.
Loc comes on / goes out in the display.
You can deactivate the appliance
when the control lock is on. When
you deactivate the appliance, the
control lock deactivates.
CHILD LOCK
The Child Lock prevents an accidental operation of the appliance.
Activating and deactivating the Child
Lock function:
1.
Deactivate the appliance with . Do
not set a heating function.
SETTINGS MENU
The settings menu lets you to add or remove functions from the main menu (for
example: you can set on or off the Residual
heat indicator). Settings menu has six settings (from SET1 to SET6).
Settings menu
Indicator of the setting
Description Value to set
menu
SET1 RESIDUAL HEAT INDICA-
ON / OFF
TOR
SET2 KEY TONE CLIC / BEEP / OFF
SET3 FAULTY TONE ON / OFF
SET4 ODOUR FILTER ON / OFF
SET5 SERVICE MENU --SET6 RESTORE SETTINGS YES / NO
You can set the settings menu only
when the appliance is off.
Activate the Settings menu:
1.
If necessary, deactivate the appliance
.
2.
Touch and hold for three seconds.
Page 20
www.electrolux.com
20
3.
4.
5.
6.
After an automatic switch-off, touch a sensor field to operate the appliance again.
BRIGHTNESS OF THE DISPLAY
There are two modes of the display's
brightness:
• Night brightness:
• Day brightness:
The display shows "SET1" and "1"
flashes.
Touch / to set the setting.
Touch .
Touch / to change the value of
the setting.
Touch .
AUTOMATIC SWITCH-OFF
For safety reasons the appliance deactivates automatically after some time:
• if a heating function operates.
• if you do not change the oven temperature.
Oven temperature Switch-off time
30 °C - 120 °C 12.5 h.
120 °C - 200 °C 8.5 h.
200 °C - 250 °C 5.5 h.
250 °C - maximum °C 3.0 h.
The Automatic switch-off works
with all oven functions, apart from
Slow Cook, Core temperature sensor, Duration, End, Time delay.
– When the appliance is deactivated, the
brightness of the display is lower between 22:00 and 06:00.
– When the appliance is activated.
– If you touch a sensor field (apart from
ON / OFF) during the night brightness
mode, the display goes back to the
day brightness mode for the next 10
seconds.
– When the appliance is deactivated and
you set the Minute Minder. When the
Minute Minder function ends, the display goes back to the night brightness
mode.
COOLING FAN
When the appliance operates, the cooling
fan activates automatically to keep the surfaces of the appliance cool. If you deactivate the appliance, the cooling fan can
continue to operate until the appliance
cools down.
Page 21
CARE AND CLEANING
ENGLISH 21
WARNING!
Refer to "Safety information" chapter.
Notes on cleaning:
• Clean the front of the appliance with a
soft cloth with warm water and a cleaning agent.
• To clean metal surfaces, use a usual
cleaning agent.
• Clean the oven interior after each use.
Then you can remove dirt more easily
and it does not burn on.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all oven accessories after each
use and let them dry. Use a soft cloth
with warm water and a cleaning agent.
• If you have nonstick accessories, do not
clean them using aggressive agents,
sharp-edged objects or a dishwasher. It
can cause a damage to the nonstick
coating.
CATALYTIC CLEANING
The walls with a catalytic coating are selfcleaning. They absorb fat which collects on
walls while the appliance operates.
To support this self-cleaning process
heat the appliance without any food
regularly:
1.
Remove accessories from the appliance.
2.
Touch again and again until the display shows "Cata" and duration of the
cleaning process (1 hour). You cannot
set the Duration, but you can use the
End function to delay start of cleaning
process.
3.
An acoustic signal operates after the
time ends. The appliance deactivates.
4.
Touch any sensor field to stop the signal.
5.
Wipe bottom of the appliance with a
soft and damp sponge.
Discolouration of the catalytic surface has no effect on catalytic
properties.
During catalytic cleaning the oven
light is on.
ODOUR FILTER
The odour filter is on:
• With all heating functions.
• If the temperature in the appliance is
more than 120°C.
When the odour filter is on, the display
shows the odour filter symbol
At the end of a heating function, the heated
odour filter continues to operate for the
next 10 minutes. The odour filter stops if
you deactivate the appliance or open the
oven door.
For pyrolytic cleaning the odour filter works
automatically for the first 15 minutes if the
oven temperature is lower than 400°C.
.
Page 22
www.electrolux.com
22

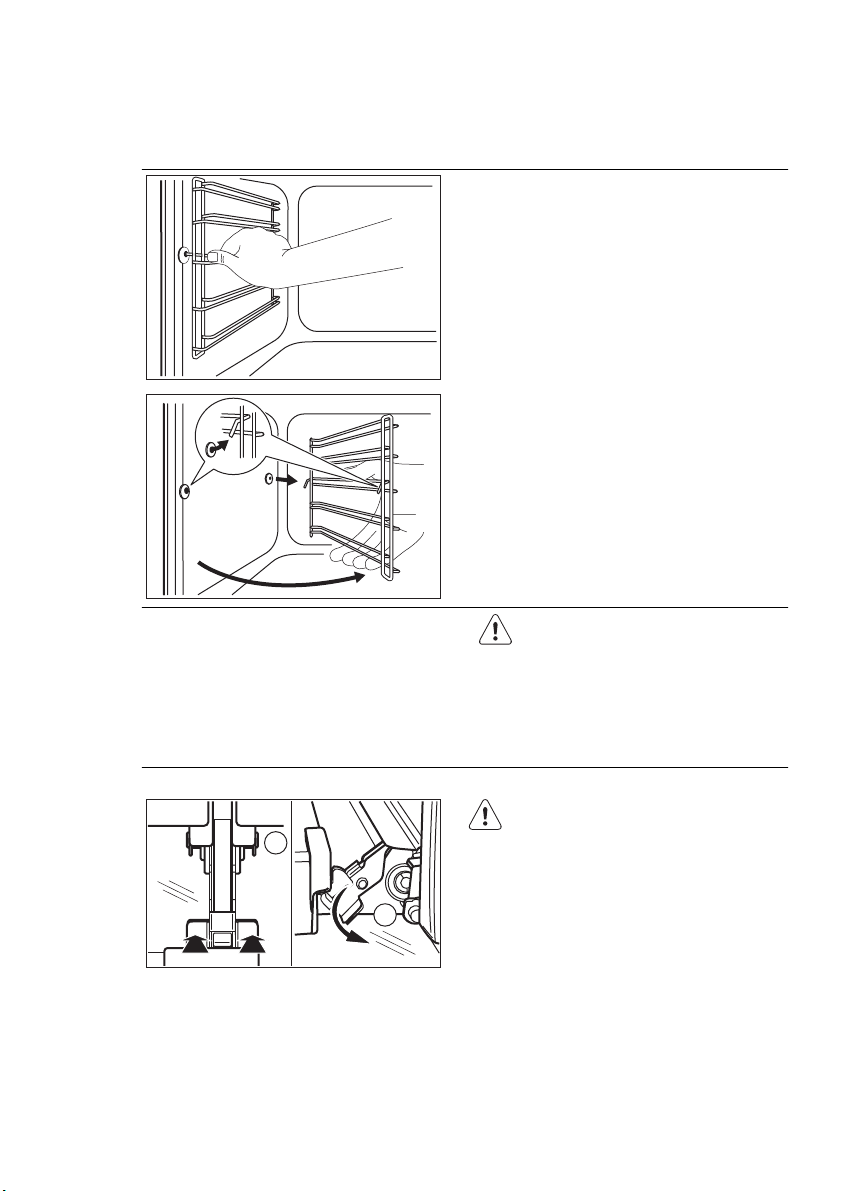

SHELF SUPPORTS
Removing the shelf supports
You can remove the shelf supports to clean
the side walls.
1.
Pull the front of the shelf support away
from the side wall.
2.
Pull the rear end of the shelf support
away from the side wall and remove it.
2
1
Valid for telescopic runners:
Installing the shelf supports
Install the shelf supports in the opposite sequence.
The retaining pins on the telescopic
runners must point to the front.
CLEANING THE DOOR
To clean the door remove it.
CAUTION!
A
A
Be careful when you remove the
door from the appliance. The door
is heavy. There is a risk of injury or
damage to the appliance.

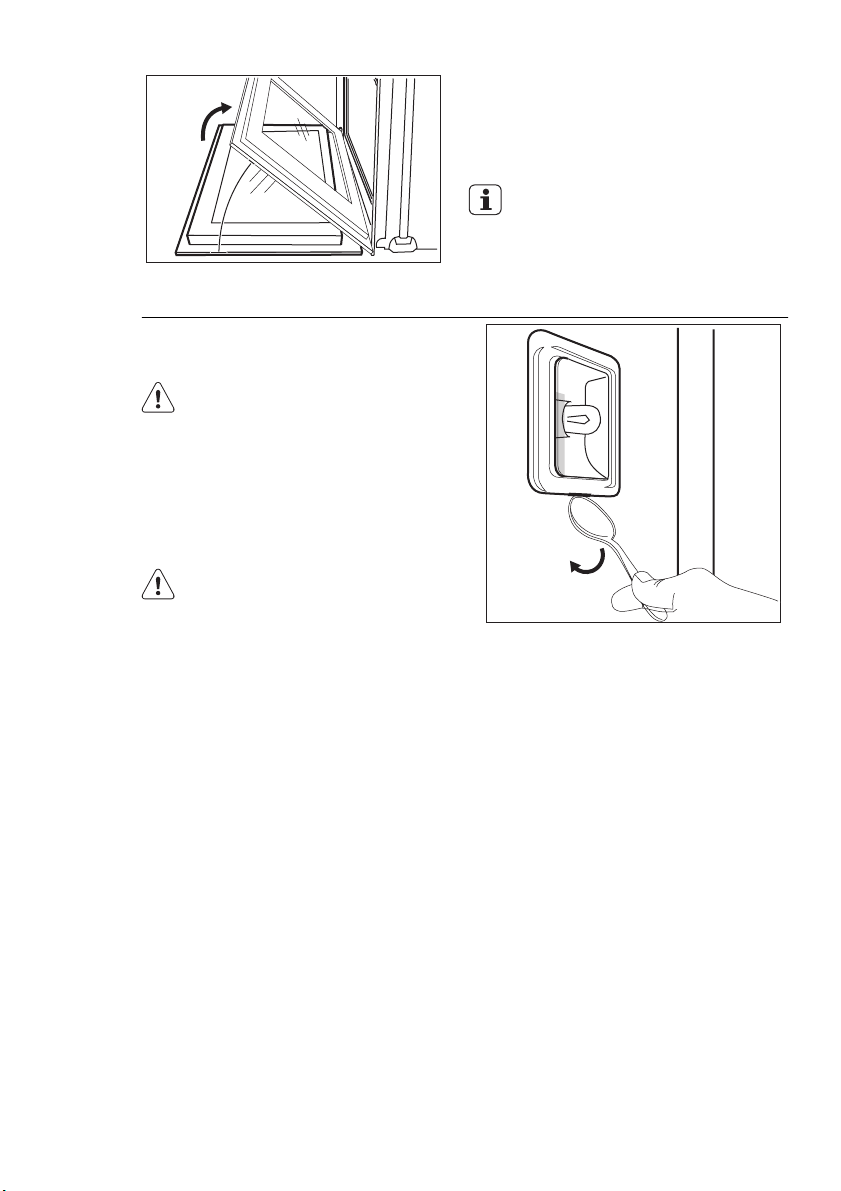

Removing the door
1.
Open the door as far as it goes.
2.
Fully press the clamping levers (A) on
the two door hinges.
Page 23
45°
LAMP
WARNING!
There is a risk of electrical shock.
The lamp and the lamp glass cover
can be hot.
Before you change the lamp:
• Deactivate the appliance.
• Remove the fuses from the fuse box or
deactivate the circuit breaker.
CAUTION!
Put a cloth on the bottom of the interior of the appliance. It prevents
damage to the lamp glass cover
and the cavity.
Always use the same lamp type.
Replacing the top lamp:
1.
You can find the lamp glass cover at
the cavity ceiling.
Turn the lamp glass cover clockwise to
remove it.
2.
Clean the glass cover.
3.
If necessary, replace the oven lamp
with applicable 300 °C heat-resistant
oven lamp.
4.
Install the glass cover.
Replacing the side lamp
1.
Remove the left shelf support to get
access to the lamp.
2.
Use a narrow, blunt object (e.g. a teaspoon) to remove the glass cover.
Clean the glass cover.
ENGLISH 23
3.
Close the door until it is at an angle of
approximately 45°.
4.
Hold the door with one hand on each
side and pull it away from the appliance at an upwards angle.
Put the door with the outer side
down on a soft and level surface to
prevent scratches.
Installing the door
To install the door do the above steps in
the opposite sequence.
3.
If necessary, replace the lamp with an
applicable 300 °C heat-resistant lamp.
4.
Install the glass cover.
5.
Install the shelf support.
Page 24
www.electrolux.com
24
WHAT TO DO IF…
WARNING!
Refer to "Safety information" chapter.
Problem Possible cause Solution
The appliance does not
heat up.
The appliance does not
heat up.
The appliance does not
heat up.
The appliance does not
heat up.
The appliance does not
heat up.
The lamp does not operate.
The display shows an error code that is not in this
list.
The appliance is activated
and does not heat up. The
fan does not operate. The
display shows “Demo”.
If you cannot find a solution to the problem
yourself, contact your dealer or the service
centre.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
The appliance is deactiva-
Activate the appliance.
ted.
The time of day is not set. Set the clock. Refer to
"First setting the time of
day".
The necessary settings are
not set.
The automatic switch-off
is activated.
Make sure that the settings are correct.
Refer to „Automatic
switch-off“.
The fuse is released. Make sure that the fuse is
the cause for the malfunction. If the fuse releases
again and again, refer to
an authorized electrician.
The lamp is defective. Replace the lamp.
There is an electronic fault. • Deactivate the appli-
ance with the house
fuse or the safety switch
in the fuse box and activate it again.
• If the display shows the
error code again, refer
to the Service Center.
The test mode is activated.
1.
Deactivate the appliance.
2.
Touch and hold
until the appliance activates and deactivates.
3.
Touch and hold
and at the same
time until an acoustic
signal sounds and
“Demo” goes out.
The necessary data for the service centre is
on the rating plate. The rating plate is on
the front frame of the appliance cavity.
Page 25
ENGLISH 25
Serial number (S.N.) .........................................
Page 26
www.electrolux.com
26
INSTALLATION
WARNING!
Refer to "Safety information" chapter.

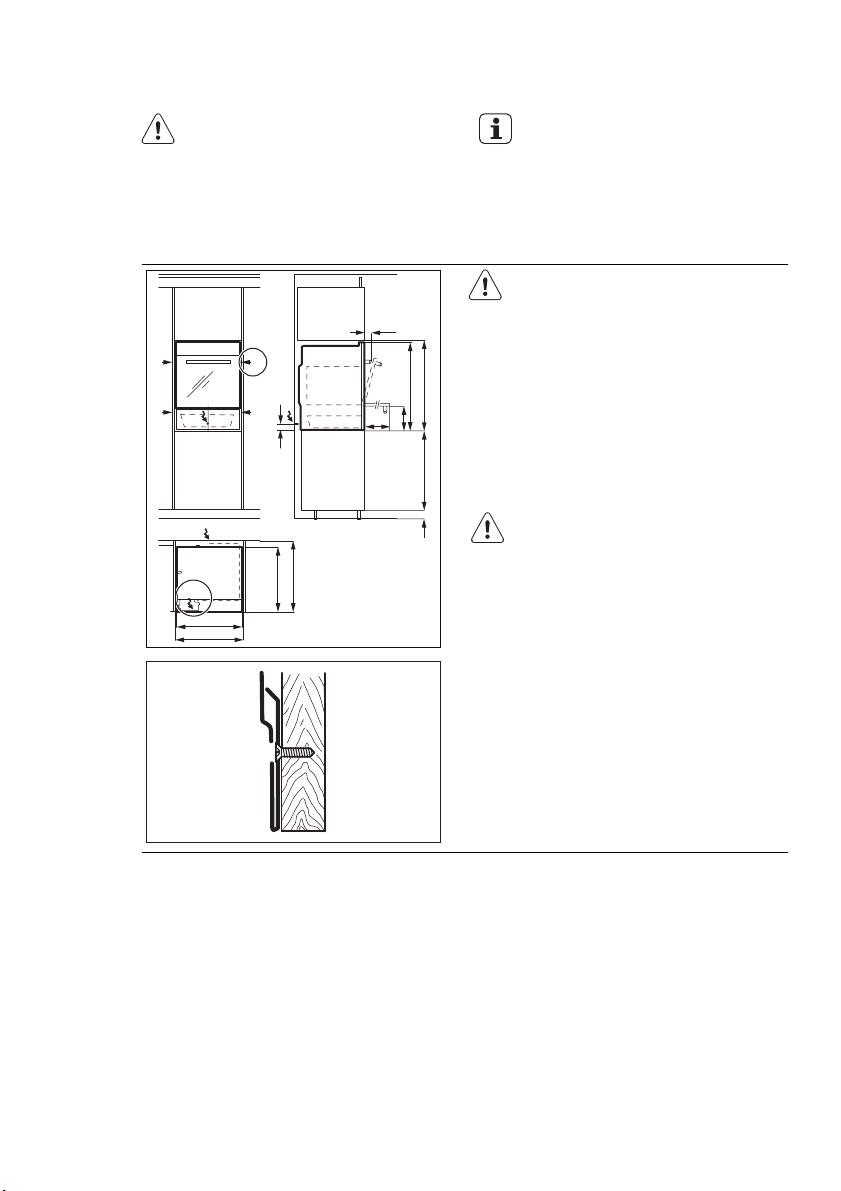

INSTALLING THE OVEN
A
A
D
A 548
N 550
A
A
60
A 567
A
A
N 605
435
ca.50
A 757
170
5 / 6 = 635
105
N 762
6 / 6 = 762
The handle can be replaced to
match the décor of your kitchen.
The change must be done by an
authorized person. Use only genuine replacement parts.
WARNING!
Installation into flammable material
must agree with NIN SEV 1000
(Swiss Association of the Cantonal
Fire Insurance Companies) fire protection guidelines and regulations.
A = appliance
N = recess
1.
Pull the appliance drawer out as far as
it goes and remove it.
2.
Slide the oven flush into the recess.
CAUTION!
Make sure the cable is free when
you move the appliance.
3.
Use a minimum of 2 screws to attach
the oven on the 2 sides (Detail A).
Page 27

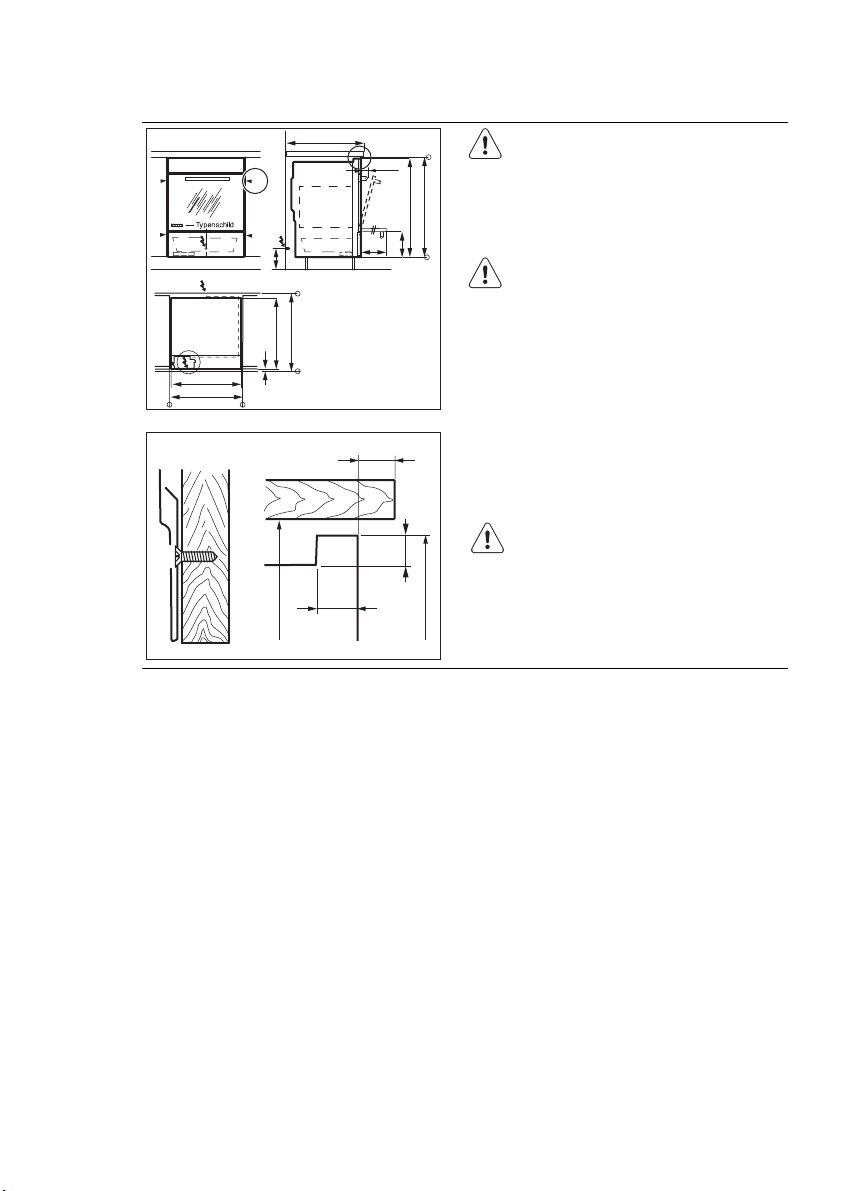

INSTALLING THE OVEN UNDER A WORK SURFACE
ENGLISH 27
600
B
20
A
min. 20
435
ca.50
15
170
A 757
A
N 762 + 3
A
A
D
AA
A
160
N 780
A 767
A 548
N 550
20
AB
ELECTRICAL CONNECTION
Use a power cable of H05VV-F or higher.
Connect the appliance to a socket supply
line. If there is no socket supply line, the
electrical installation must have an isolation
device which lets you disconnect the appliance from the power supply. The isolation
WARNING!
Installation into flammable material
must agree with NIN SEV 1000
(Swiss Association of the Cantonal
Fire Insurance Companies) fire protection guidelines and regulations.
WARNING!
When installing next to a wood-fuelled boiler, a heatproof and heatinsulating plate must be mounted
at the height of the appliance and
at least 30 cm deep.
A = appliance
N = recess
1.
Pull the appliance drawer out as far as
it goes and remove it.
2.
Use the side handles to hold the oven
and slide it flush into the recess.
CAUTION!
Make sure the cable is free when
you move the appliance.
3.
Use a minimum of 2 screws to attach
the oven on the 2 sides (Detail A).
device must have a contact opening width
of minimum 3 mm (in reference to NIN SEV
1000). The customer must have a socket
for the electrical connection that is accessible and outside the coordination room. The
length of the connection cable must be approximately 120 cm with lines connected
directly to the power supply.
Page 28
www.electrolux.com
28
D
E
F

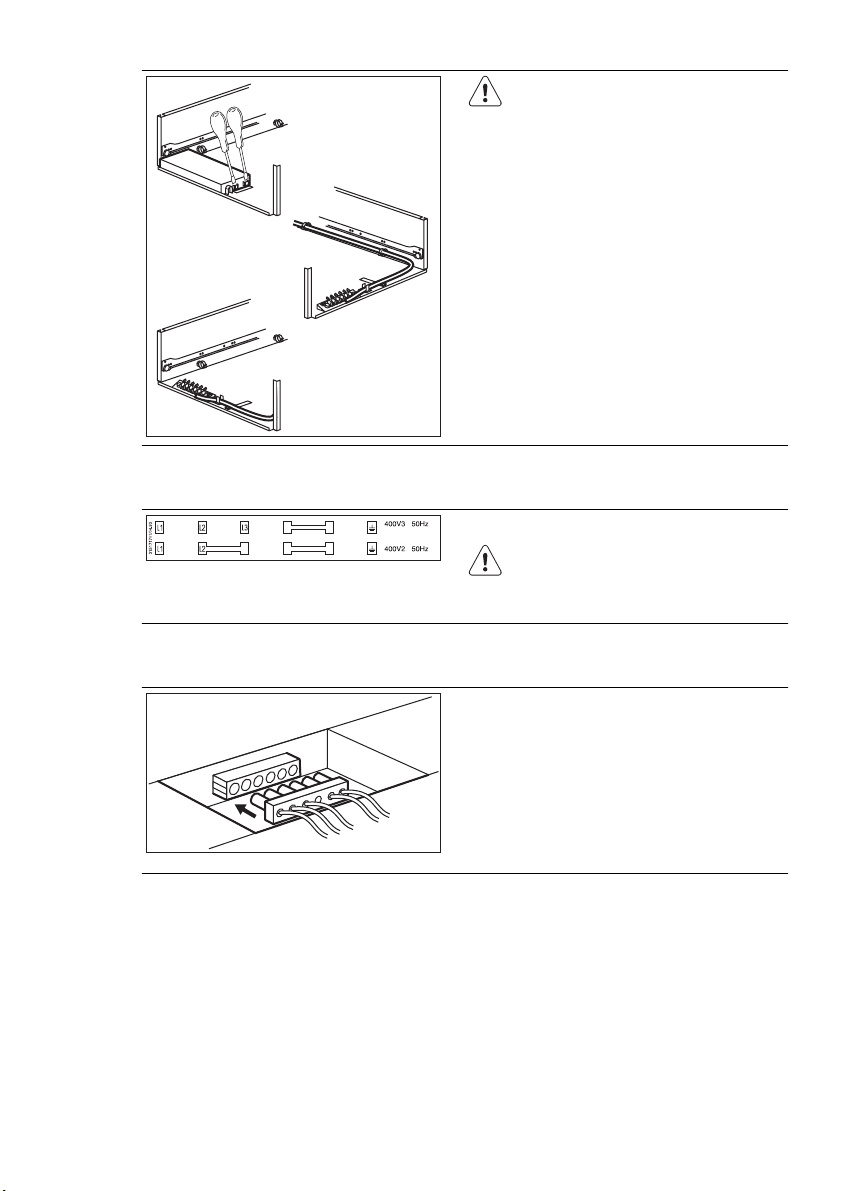

CONNECTION DIAGRAM 400 V
Only a qualified person can connect the appliance to the electricity
supply.
1.
Open the mains terminal cover (D).
2.
Put the connection cable into the supplied rings (E). This is to prevent the
cable from rubbing against the drawer.
The connection cable is on the housing
side.
3.
Install the cable grip (F).
4.
Connect the terminal as in the illustration.
5.
Put the cable into the strain relief
clamp.
6.
Close the mains terminal cover.
Phase definitions: L1, L2, L3 (or R, S,T)
WARNING!
If service is required always disconnect the appliance from the power
supply.
ELECTRICAL CONNECTION WITH THE HOB
You can connect the oven to an independent hob from the current range of Electrolux and AEG hobs. You can purchase the
necessary connection cable separately:
• AK - EB/GKTC (S) 1 m for ceramic hobs.
• AK - EB/GKTCi (S) 1 m for induction
hobs.
The hob connection socket is at the top of
the oven cabinet.
Page 29
GARANTIE, GARANZIA, GUARANTEE
CH
KUNDENDIENST, SERVICE-CLIENTÈLE, SERVIZIO CLIENTI,
CUSTOMER SERVICE CENTRES
ENGLISH 29
Servicestellen Points de Service Servizio dopo
vendita
5506 Mägenwil/Zürich Industriestrasse 10
3018 Bern Morgenstrasse 131
1028 Préverenges Le Trési 6
9000 St. Gallen Zürcherstrasse 204e
4052 Basel St. JakobTurm Birsstrasse 320B
6020 Emmenbrücke Seetalstrasse 11
7000 Chur Comercialstrasse 19
Ersatzteilverkauf/Points de vente de
rechange/Vendita pezzi di ricambio/
spare parts service:
5506 Mägenwil, Industriestrasse 10, Tel.
0848 848 111
Fachberatung/Verkauf/Demonstration/
Vente/Consulente (cucina)/Vendita
8048 Zürich, Badenerstrasse 587, Tel. 044
405 81 11
Garantie Für jedes Produkt gewähren wir
ab Verkauf bzw. Lieferdatum an den Endverbraucher eine Garantie von 2 Jahren.
(Ausweis durch Garantieschein, Faktura
oder Verkaufsbeleg). Die Garantieleistung
umfasst die Kosten für Material, Arbeitsund Reisezeit. Die Garantieleistung entfällt
bei Nichtbeachtung der Gebrauchsanweisung und Betriebs-vorschriften, unsachgerechter Installation, sowie bei Beschädigung
durch äussere Einflüsse, höhere Gewalt,
Eingriffe Dritter und Verwendung von NichtOriginal Teilen.
Garantie Nous octroyons sur chaque produit 2 ans de garantie à partir de la date de
livraison ou de la mise en service au consommateur (documenté au moyen d’une
facture, d’un bon de garantie ou d’un justificatif d’achat). Notre garantie couvre les
frais de mains d’œuvres et de déplacement, ainsi que les pièces de rechange.
Les conditions de garantie ne sont pas valables en cas d’intervention d’un tiers non
autorisé, de l’emploi de pièces de rechange non originales, d’erreurs de maniement ou d’installation dues à l’inobser-vation du mode d’emploi, et pour des dommages causés par des influences extérieures ou de force majeure.
Garanzia Per ogni prodotto concediamo
una garanzia di 2 anni a partire dalla data di
consegna o dalla sua messa in funzione. (fa
stato la data della fattura, del certificato di
garanzia o dello scontrino d’acquisto) Nella
garanzia sono comprese le spese di manodopera, di viaggio e del materiale. Dalla copertura sono esclusi il logoramento ed i
danni causati da agenti esterni, intervento
di terzi, utilizzo di ricambi non originali o
dalla inosservanza delle prescrizioni d’istallazione ed istruzioni per l’uso.
Warranty For each product we provide a
two-year guarantee from the date of purchase or delivery to the consumer (with a
guarantee certificate, invoice or sales receipt serving as proof). The guarantee covers the costs of materials, labour and travel. The guarantee will lapse if the operating
instructions and conditions of use are not
adhered to, if the product is incorrectly installed, or in the event of damage caused
by external influences, force majeure, intervention by third parties or the use of nongenuine components.
Point of
Service
6916 Grancia
Zona Industriale E
Page 30
www.electrolux.com
30
ENVIRONMENT CONCERNS
Recycle the materials with the symbol
Put the packaging in applicable containers
to recycle it.
Help protect the environment and human
health and to recycle waste of electrical
and electronic appliances. Do not dispose
.
appliances marked with the symbol
the household waste. Return the product
to your local recycling facility or contact
your municipal office.
with
Page 31
ENGLISH 31
Page 32
www.electrolux.com/shop 892934927-C-062012
Loading...
