Page 1
EN

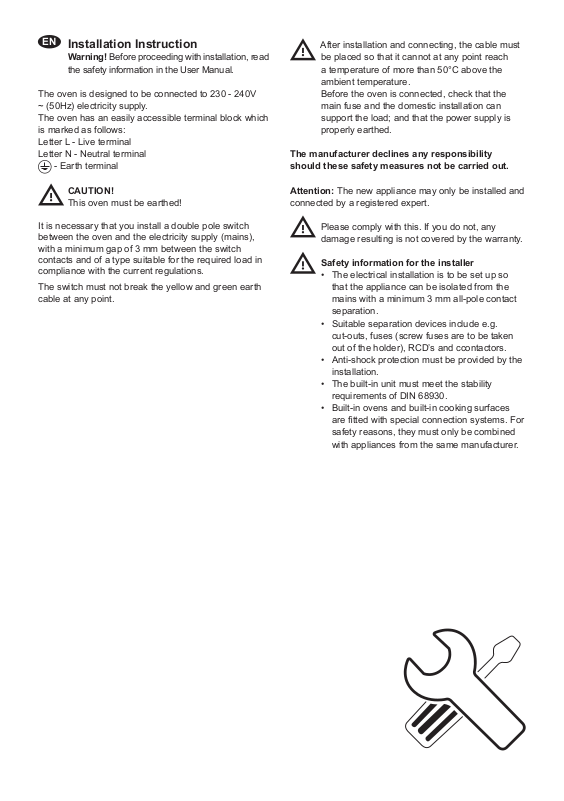

Installation Instruction
Warning! Before proceeding with installation, read
the safety information in the User Manual.
The oven is designed to be connected to 230 - 240V
~ (50Hz) electricity supply.
The oven has an easily accessible terminal block which
is marked as follows:
Letter L - Live terminal
Letter N - Neutral terminal
- Earth terminal
After installation and connecting, the cable must
be placed so that it cannot at any point reach
a temperature of more than 50°C above the
ambient temperature.
Before the oven is connected, check that the
main fuse and the domestic installation can
support the load; and that the power supply is
properly earthed.
The manufacturer declines any responsibility
should these safety measures not be carried out.
CAUTION!
This oven must be earthed!
It is necessary that you install a double pole switch
between the oven and the electricity supply (mains),
with a minimum gap of 3 mm between the switch
contacts and of a type suitable for the required load in
compliance with the current regulations.
The switch must not break the yellow and green earth
cable at any point.
Attention: The new appliance may only be installed and
connected by a registered expert.
Please comply with this. If you do not, any
damage resulting is not covered by the warranty.
Safety information for the installer
• The electrical installation is to be set up so
that the appliance can be isolated from the
mains with a minimum 3 mm all-pole contact
separation.
• Suitable separation devices include e.g.
cut-outs, fuses (screw fuses are to be taken
out of the holder), RCD’s and ccontactors.
• Anti-shock protection must be provided by the
installation.
• The built-in unit must meet the stability
requirements of DIN 68930.
• Built-in ovens and built-in cooking surfaces
arettedwithspecialconnectionsystems.For
safety reasons, they must only be combined
with appliances from the same manufacturer.
Page 2
875
550
20
560-570
872
547
538
16
21
114
880
888
8
594
90°
2x3,5x25
2
867300114-C-132016
