AEG BP3003021M, BP3003021B User Manual
BP3003021
User manual |
Oven |
2 Contents
Thank you for choosing one of our high-quality products.
To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
CONTENTS
SAFETY INFORMATION |
2 |
Children and vulnerable people safety |
3 |
|
|
General safety |
3 |
Installation |
3 |
Electrical connection |
4 |
Use |
4 |
Care and cleaning |
4 |
Risk of fire |
5 |
Pyrolytic cleaning |
5 |
Oven lamp |
5 |
Service centre |
5 |
Disposal of the appliance |
5 |
PRODUCT DESCRIPTION |
6 |
General overview |
6 |
Oven accessories |
7 |
BEFORE FIRST USE |
7 |
Initial Cleaning |
7 |
First connection to the mains |
7 |
Setting the time of day |
8 |
DAILY USE |
8 |
Activating and deactivating the appliance |
|
|
8 |
Oven Functions |
8 |
Display |
9 |
Buttons |
9 |
CLOCK FUNCTIONS |
9 |
Setting the DURATION or END |
10 |
Setting the MINUTE MINDER |
10 |
Counter |
11 |
USING THE ACCESSORIES |
11 |
Installing the Oven Accessories |
11 |
Combi Tray |
12 |
ADDITIONAL FUNCTIONS |
12 |
Cooling fan |
13 |
Automatic switch-off |
13 |
HELPFUL HINTS AND TIPS |
13 |
Inner side of door |
13 |
Baking on one oven level: |
13 |
Multileveled Baking |
16 |
Tips on baking |
16 |
Roasting with Turbo Grill |
17 |
Preserving |
21 |
Drying |
21 |
CARE AND CLEANING |
22 |
Pyrolytic cleaning |
22 |
Shelf rails |
23 |
Oven lamp |
23 |
Oven door and glass panels |
24 |
WHAT TO DO IF… |
25 |
INSTALLATION |
26 |
DISPOSAL |
28 |
GREAT BRITAIN & IRELAND - GUARANTEE/ |
|
CUSTOMER SERVICE |
29 |
WWW.ELECTROLUX.COM |
30 |
Subject to change without notice
SAFETY INFORMATION
Before the installation and use, read this manual carefully:
• For your personal safety and the safety of your property
Safety information |
3 |
|
|
•For the respect of the environment
•For the correct operation of the appliance.
Always keep these instructions with the appliance also if you move or sell it.
The manufacturer is not responsible if incorrect installation or use results in damage.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in safe way and understand the hazards involved. Children shall not play with the appliance.
•Keep all packaging away from children. There is the risk of suffocation or physical injury.
•Keep children and animals away from the appliance when the door is open or the appliance is in operation. There is the risk of injury or other permanent disability.
•If the appliance has Child lock or Key lock function, use it. It prevents children and animals from accidental operation of the appliance.
General safety
•Do not change the specifications of this appliance. There is the risk of injury and damage to the appliance.
•Do not let the appliance stay unattended during operation.
•Switch off the appliance after each use.
Installation
•Only an approved electrician can install and connect the appliance. Contact an approved service centre. This is to prevent the risks of structural damage or physical injury.
•Make sure that the appliance is not damaged because of transport. Do not connect a damaged appliance. If necessary, contact the supplier.
•Remove all packaging, stickers and layers from the appliance before first use. Do not remove the rating plate. It can invalidate the guarantee.
•Make sure that the appliance is disconnected from the power supply during the installation.
•Be careful when you move the appliance. The appliance is heavy. Always use safety gloves. Do not lift the appliance by the handle.
•The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
•You must have correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
•Before the installation, make sure that the kitchen cabinet has the recess dimensions applicable.
•Make sure that the appliance is installed below and adjacent safe structures.
•Keep the minimum distances to the other appliances and units.
•The appliance cannot be positioned on a base.
•Built in ovens and built in cooking surfaces are attached with special connection system. To prevent damage to the appliance, only use an appliance with the appliances from the same manufacturer.
4 Safety information
Electrical connection
•The appliance must be earthed.
•Make sure that the electrical data on the rating plate agree with your domestic power supply.
•Information on the voltage is on the rating plate.
•Always use a correctly installed shockproof socket.
•Do not use multi-way plugs, connectors and extension cables. There is the risk of fire.
•Do not replace or change the mains cable. Contact the service centre.
•Make sure not to squash or cause damage to the mains plug (if applicable) and cable behind the appliance.
•Do not pull the mains cable to disconnect the appliance. Always pull the mains plug – if applicable.
Use
•The appliance is only for domestic use. Do not use the appliance for commercial and industrial use.
•Only use the appliance for domestic cooking tasks. This is to prevent physical injury to persons or prevent damage to property.
•Do not use the appliance as a work surface or storage surface.
•The interior of the appliance and the accessories become hot during use. There is the risk of burns. Use safety gloves when you insert or remove the accessories or pots.
•Be careful when you remove or install the accessories to prevent damage to the oven enamel.
•Always stay away from the appliance when you open the door while the appliance is in operation. Hot steam can release. There is the risk of skin burns.
•To prevent damage or discoloration to the enamel:
–do not put any objects directly on the appliance floor and do not cover it with aluminium foil;
–do not put hot water directly into the appliance;
–do not keep moist dishes and food in the appliance after you finish the cooking.
•Discoloration of the enamel has no effect on the performance of the appliance
•Do not apply pressure on the open door.
•Always close the appliance door when you cook, even while grilling.
Care and cleaning
•Before maintenance, switch off the appliance and disconnect the appliance from the power supply.
•Before maintenance, make sure that the appliance is cold. There is the risk of burns. There is the risk that the glass panels can break.
•Keep the appliance clean at all times. A build-up of fats or other foodstuff can result in a fire.
•Regular cleaning prevents the surface material from deteriorating
•Use a deep baking tray for very moist cakes to prevent that fruit juices cause stains that can be permanent.
•For your personal safety and the safety of your property, only clean the appliance with water and a soap. Do not use flammable products or products that can cause corrosion.
Safety information |
5 |
|
|
•Do not clean the appliance with steam cleaners, high-pressure cleaners, sharp objects, abrasive cleaning agents, abrasive sponges and stain removers
•If you use an oven spray, follow the instructions from the manufacturer.
•Do not clean the glass door with abrasive cleaning agents or metal scraper. Heat resistant surface of the inner glass can break and shatter.
•When the door glass panels are damaged they become weak and can break. You must replace them. Contact the service centre.
•Be careful when you remove the door from the appliance. The door is heavy!
•Do not clean catalytic enamel (if applicable).
Risk of fire
•Open the door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air. There is the risk of fire.
•Do not let sparks or open flames come near the appliance when you open the door.
•Do not put flammable products or items that are wet with flammable products, and/or fusible objects (made of plastic or aluminium) in, near or on the appliance.
Pyrolytic cleaning
•Do not leave the appliance unattended during Pyrolytic cleaning.
•Do not try to open the door and do not cut the power supply during Pyrolytic cleaning.
•Keep children away during pyrolytic cleaning. The appliance becomes very hot. There is the risk of burns.
•During pyrolytic cleaning, stubborn dirt can cause discoloration to the enamel. Discoloration to the enamel has no effect on the performance of the appliance
Oven lamp
•Disconnect the appliance from the power supply before the replacement of the oven lamp. There is the risk of electrical shock!
Service centre
•Only an approved engineer can repair or work on the appliance. Contact an approved service centre.
•Use only original spare parts.
Disposal of the appliance
•To prevent the risk of physical injury or damage
–Disconnect the appliance from the power supply.
–Cut off the mains cable and discard it.
–Discard the door catch. This prevents children or small animals from being closed inside of the appliance. There is the risk of suffocation.
6 Product description
PRODUCT DESCRIPTION
General overview
2 |
|
3 |
|
4 |
|
5 |
|
|
1
5
4
13 |
3 |
2
1
1Control panel
2Control knob for oven functions
3Power indicator
4Electronic programmer
5Control knob for temperature
6Temperature indicator
7Heating element
8Lamp
9Fan
10Rear wall heating element
11Bottom heat
12Shelf rails, removable
13Shelf positions
7
8
9
10
11
Before first use |
7 |
|
|

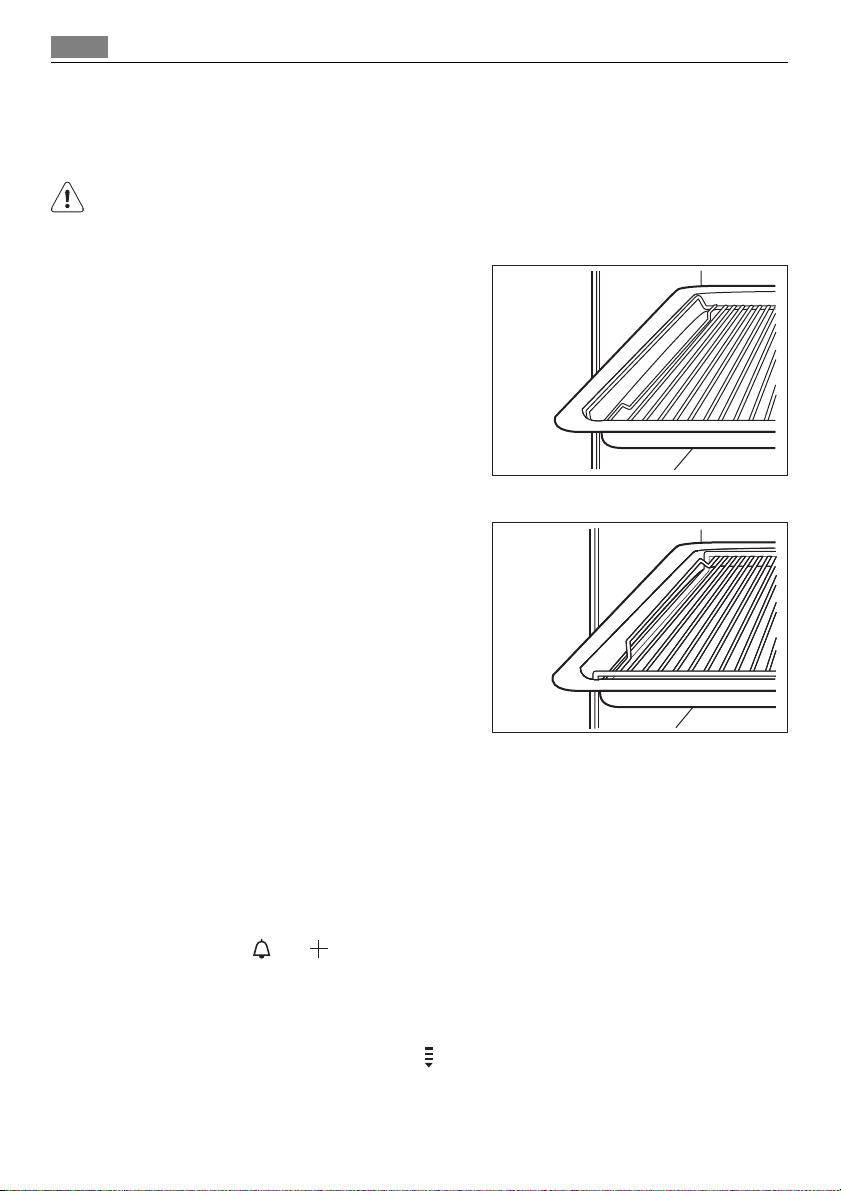

Oven accessories
•Nonstick oven shelf
For cookware, cake tins, roasts.
•Combi tray
Set of Combi tray has the roasting pan and the inlay grid.
Use the inlay grid only with the roasting pan.
BEFORE FIRST USE
WARNING!
Refer to "Safety information" chapter.
Initial Cleaning
•Remove all parts from the appliance.
•Clean the appliance before first use.
Refer to chapter "Care and Cleaning".
First connection to the mains
After first connection to the mains all symbols in the display are on for some seconds. For the subsequent few seconds the display shows software version.
8 Daily use
Setting the time of day
After the software version goes off, the display shows |
and " 12:00 ". " 12 " flashes. |
|||||
1. Press |
|
|
or |
|
to set current hour. |
|
|
|
|
||||
|
|
|
|
|||
2.Press
to confirm (necessary only for first the setting, later new time will be saved automatically after 5 seconds).
The display shows |
and set hour. " 00 " flashes. |
|||||
3. Press |
|
|
or |
|
to set current minutes. |
|
|
|
|
||||
4.Press
to confirm (necessary only for first the setting, later new time will be saved automatically after 5 seconds) .
The Temperature/Time display shows new time.
Changing the time of day
You can change the time of day only if the oven is off.
Press
. The set time and symbol
flash in the display. To set new time use the procedure "Setting the time of day".
DAILY USE
WARNING!
Refer to "Safety information" chapter.
To use the appliance, press the control knob. The control knob comes out.
Activating and deactivating the appliance
1. |
Turn the oven functions control knob to select an oven function. |
|||||
2. |
Turn the temperature control knob |
|
|
/ |
|
to set a temperature. |
|
|
|
||||
3.To deactivate the appliance turn the oven functions control knob to off position
("0") .
Oven Functions
|
|
|
|
|
|
Oven function |
|
Application |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Light |
|
Use this function to light up the oven interior. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
True Fan Cooking |
|
To bake maximum on three oven levels at the same time. |
|
|
|
|
|
|
|
|
Decrease the oven temperatures (20-40 °C) compared |
|
|
|
|
|
|
|
|
with Conventional. And to dry food. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Pizza Setting |
|
To bake on one oven level food with a more intensive |
|
|
|
|
|
|
|
|
browning and a crispy base. Decrease the oven temper- |
|
|
|
|
|
|
|
|
atures (20-40 °C) compared with Conventional |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Conventional Cooking |
|
To bake and roast on one oven level. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Bottom Heat |
|
To bake cakes with crispy or crusty bases and to preserve |
|
|
|
|
|
|
|
|
food |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Clock Functions |
9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Oven function |
|
Application |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Defrost |
|
To defrost frozen food. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Grilling |
|
To grill flat food in the middle of the grill and to toast. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fast Grilling |
|
To grill flat food in large quantities and to toast. |
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Turbo Grilling |
|
To roast larger joints of meat or poultry on one level. |
|
|
|
|
|
|
|
|
|
|
Also to gratinate and brown. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Pyro Cleaning |
|
For automatic pyrolytic cleaning of the oven. It burns off |
|
|
|
|
|
|
|
|
|
|
residual dirt in the oven. The oven heats up to approxi- |
|
|
|
|
|
|
|
|
|
|
mately 500°C. |
|
|
|
|
|
|
|
|
|
|
|
|
Display
1Timer
2Heating Up / Residual heat indicator
3Door lock
4Food Sensor
5hr / min
6Clock functions
|
|
6 |
|
|
|
|
|
1 |
|
|
|
|
2 |
|
3 |
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6 |
|
5 |
|
3 |
|
4 |
Buttons
|
Button |
|
Function |
|
Description |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CLOCK |
|
To set the clock function. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
, |
|
|
|
|
MINUS, PLUS |
|
To set a value for temperature or time |
|
|
|
|
|
|||||
Heat-up / Residual heat indicator
If you activate an oven function, the bars in the display
come on one by one. The bars show that the oven temperature increases or decrease
CLOCK FUNCTIONS
SYMBOL |
FUNCTION |
|
DESCRIPTION |
||
|
|
|
|
|
|
|
|
|
MINUTE MINDER |
|
Use to set a countdown time. This function has no effect on |
|
|
|
|
|
the operation of the oven. |
|
|
|
|
|
|
|
|
|
TIME OF DAY |
|
To set, change or control the time of day. Refer to 'Setting the |
|
|
|
|
|
time of day'. |
|
|
|
|
|
|
|
|
|
DURATION |
|
Use only when the oven function is set to set how long the |
|
|
|
|
|
oven operates. |
10 |
Clock Functions |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SYMBOL |
FUNCTION |
|
DESCRIPTION |
|
|
|
|
|
|
|
END |
|
Use only when the oven function is set to set when the oven |
|
|
|
|
stops. You can use Duration and End at the same time (Time |
|
|
|
|
delay), if the appliance is to be activate and deactivate auto- |
|
|
|
|
matically later. |
|
|
|
|
|
Press
again and again to switch between the clock functions.
To confirm settings of the clock functions use
or wait 5 seconds for an automatic confirmation.
Setting the DURATION or END
1. Press
again and again until the display shows
or
.
or
2.Press
3.Press
4.Press
flashes in the display.
or |
|
to set minutes. |
|
||
to confirm. |
||
or |
|
to set the necessary hour. |
|
||
5.Press
to confirm.
A sound operates after the time ends for 2 minutes.
or
symbol and time setting flash in the display. The oven stops.
6.Press any button or open the oven door to stop the sound.
If you press
button during setting hours for DURATION
, the appliance goes to setting of the END
function.
When END function is activated the Timer/Residual heat indicator shows relation between Time of day and END time set.
Setting the MINUTE MINDER
Use to set a countdown (maximum 23:59 minutes) This function has no effect on the operation of the oven
Set the function when the appliance is off:
1. |
Press |
|
|
again and again until the display shows and " 00 " flash. |
||
2. |
Press |
|
|
or |
|
to set the seconds. |
|
|
|
||||
3.Use the same procedure to set minutes and hours.
When you set hours, minutes replaced seconds on the display and hours replaced minutes. Symbol
comes on the display.
4.MINUTE MINDER starts to operate automatically after 5 seconds.
After 90% of set cooking time an acoustic signal sounds.
5.When set time ends, an acoustic signal sounds for 2 minutes and " 00:00 " and
flash in the display.
You can set the MINUTE MINDER any time, even if the oven is off.
Loading...
