Thank you for choosing one of our high-quality products.
To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently.
To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
Contents
Operating Instructions |
3 |
|
|
Safety instructions |
3 |
|
|
Description of the Appliance |
4 |
General Overview |
4 |
Control Panel |
5 |
Oven Features |
5 |
Oven accessories |
6 |
Before Using for the first time |
7 |
|
|
Setting and changing the time |
7 |
Cleaning for the first time |
8 |
Using the Oven |
9 |
|
|
Switching the Oven On and Off |
9 |
Rapid heat up |
11 |
Oven Functions |
12 |
Inserting accessories |
12 |
Grilling set |
13 |
Inserting/Removing the Fat Filter |
14 |
Clock Functions |
15 |
Other Functions |
20 |
Uses, Tables and Tips |
21 |
|
|
Baking |
21 |
Roasting |
28 |
Grill sizes |
29 |
Defrosting |
30 |
Drying |
31 |
Making preserves |
31 |
Cleaning and Care |
32 |
|
|
Outside of the appliance |
32 |
Oven interior |
33 |
Accessories |
33 |
Fat Filter |
33 |
Pyrolytic cleaning |
33 |

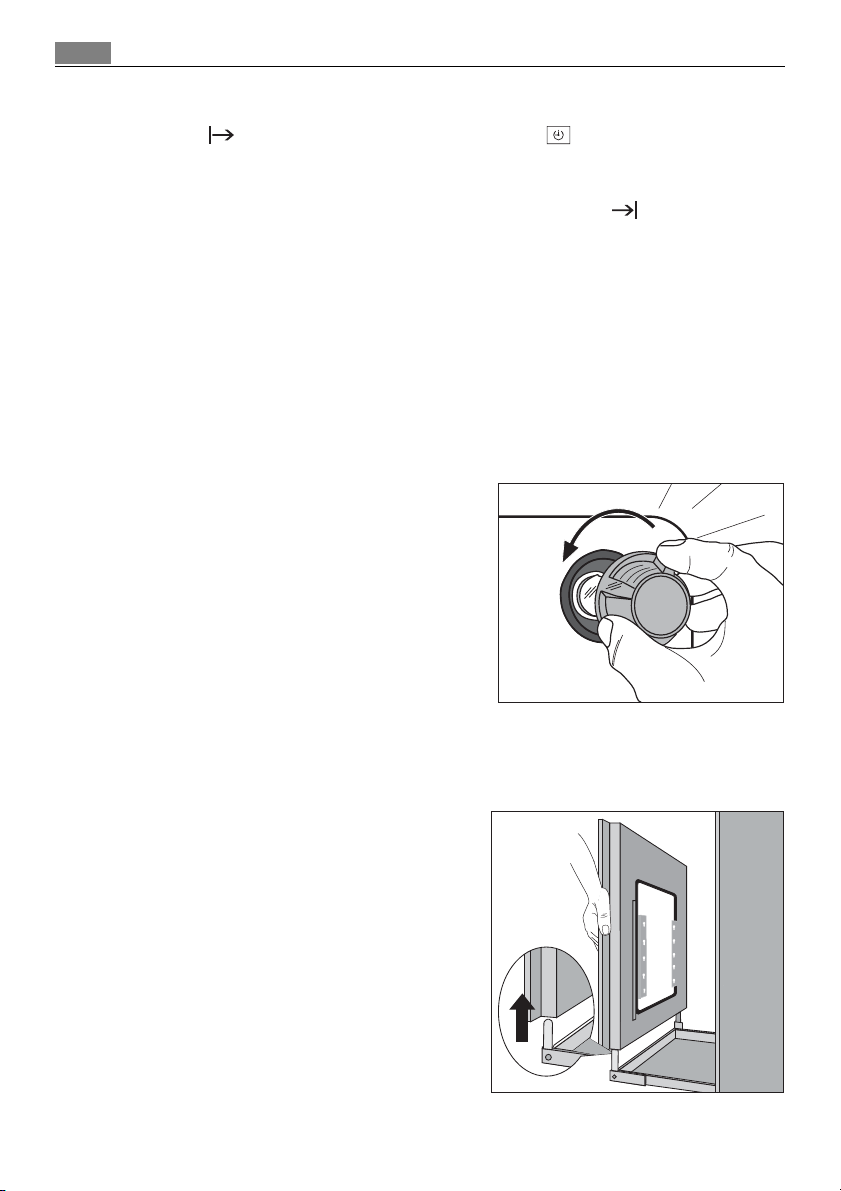

Oven lighting |
34 |
Oven carriage door |
34 |

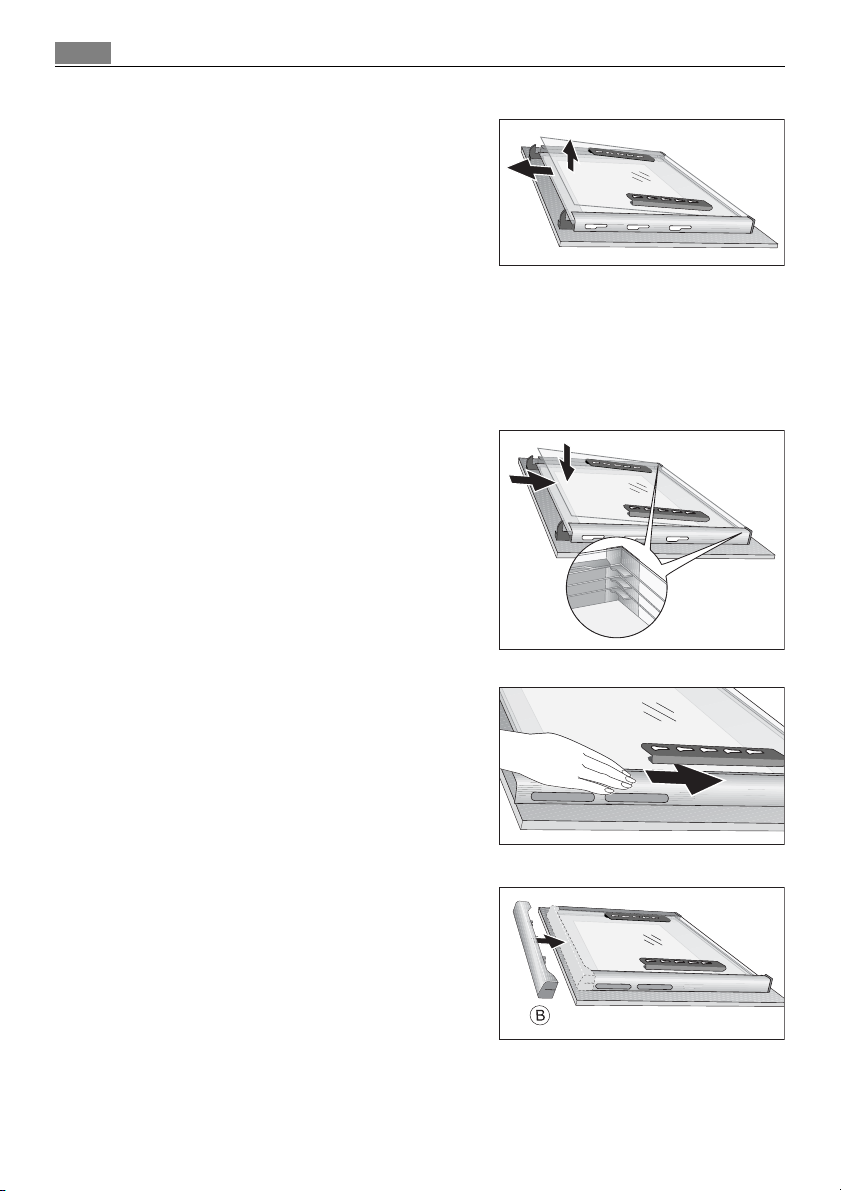

Oven carriage door glass |
35 |
What to do if … |
37 |
|
|
Disposal |
38 |
|
|
Service |
39 |
The following symbols are used in this user manual:
1Important information concerning your personal safety and information on how to avoid damaging the appliance.
3General information and tips
2Environmental information
Operating Instructions |
|
3 |
|
|
|
Operating Instructions
1Safety instructions
Electrical safety
•This appliance must be only connected by a registered electrician.
•In the event of a fault or damage to the appliance: Take the fuses out or switch off.
•Repairs to the appliance must only be carried out by qualified service engineers. Considerable danger may result from improper repairs. If repairs become necessary, please contact our Customer Services or your dealer.
Child Safety
• Never leave children unsupervised when the appliance is in use.
Safety during use
•This appliance is not intended for use by children or other persons whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the appliance safely.
•This appliance should be used only for normal domestic cooking, roasting and baking of food.
•Be careful if connecting electrical appliances to sockets near to this appliance. Electrical leads must not be caught under the hot oven door.
•Warning: Risk of burns! The oven interior becomes hot during use.
•If you use ingredients containing alcohol in the oven, a slightly flammable mixture of alcohol and air may ensue. In this case, be careful when opening the door. Do not handle any sources of heat, sparks or naked flames when doing so.
3Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, especially in products containing starch, can constitute a health risk due to acrylamides. Therefore we recommend cooking at the lowest possible temperatures and not browning foods too much.
How to avoid damage to the appliance
•Do not place aluminium foil over the floor of the oven and do not place baking trays, pans etc. on the floor as the resulting build-up of heat can damage the oven enamel.
•Fruit juices which drip from baking trays leave stains which cannot be removed. Use a deep tray for very moist cakes.
•Do not place loads on the open oven carriage door.
•Never pour water directly into the oven when it is hot. This could cause damage and discoloration to the enamel.
•Rough handling, especially around the edges of the front panel, can cause the glass to break.
•Do not store any flammable materials inside the oven. These could ignite when the oven is switched on.
4Description of the Appliance
•Do not store any moist foods inside the oven. This could cause damage to the enamel.
•After switching off the cooling fan, do not keep uncovered dishes in the oven. Moisture may condense in the oven interior or on the glass doors and may get into the units.
3Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do not affect the appliance’s suitability for normal and correct use. They therefore do not constitute a defect in the sense of the warranty law.
Description of the Appliance
General Overview
Control panel
Door handle
Oven carriage door
Description of the Appliance |
|
5 |
|
|
|

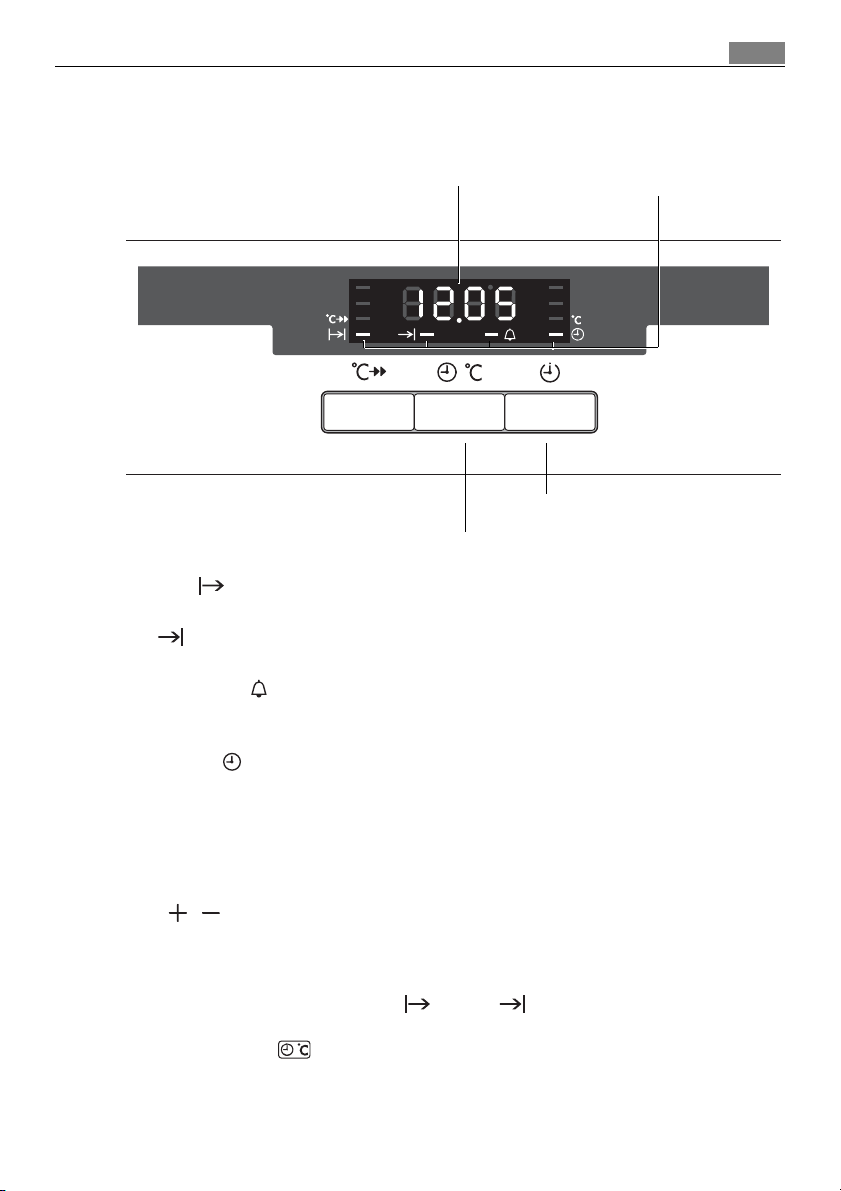

Control Panel
Oven Power Indicator |
Oven Power Indicator |
Temperature / Time Display
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Oven Functions |
|
|
|
Temperature / Time Selection |
|||
|
|
|
|
|
|
|
|
Function buttons
Oven Features
Top heat and heating elements
Oven lighting |
Fat Filter |
Fan heating element |
Fan |
Bottom Heat |
6Description of the Appliance
Oven levels
On the oven carriage door there are two racks with five holes to insert accessories.
Inside of door
On the inside of the oven carriage door you will find the numbers of the different oven shelf levels
You will also find some brief information about the ovens functions, recommended shelves and temperatures for cooking the most popular dishes.
Oven accessories
Rack
For cookware, cake tins, roasts and food to be grilled.
Rack frame
For resting the baking tray and drip tray on.
Baking tray
For cakes and biscuits.
Before Using for the first time |
|
7 |
|
|
|
Roasting Pan
For baking and roasting or as a pan for collecting fat.
Support shelf
Shelf for the drip pan for baking and grilling.
Before Using for the first time
Setting and changing the time
3The oven only operates when the time has been set.
When the appliance has been connected to the electrical supply or when there has been a power cut, the function indicator Time of
day flashes automatically.

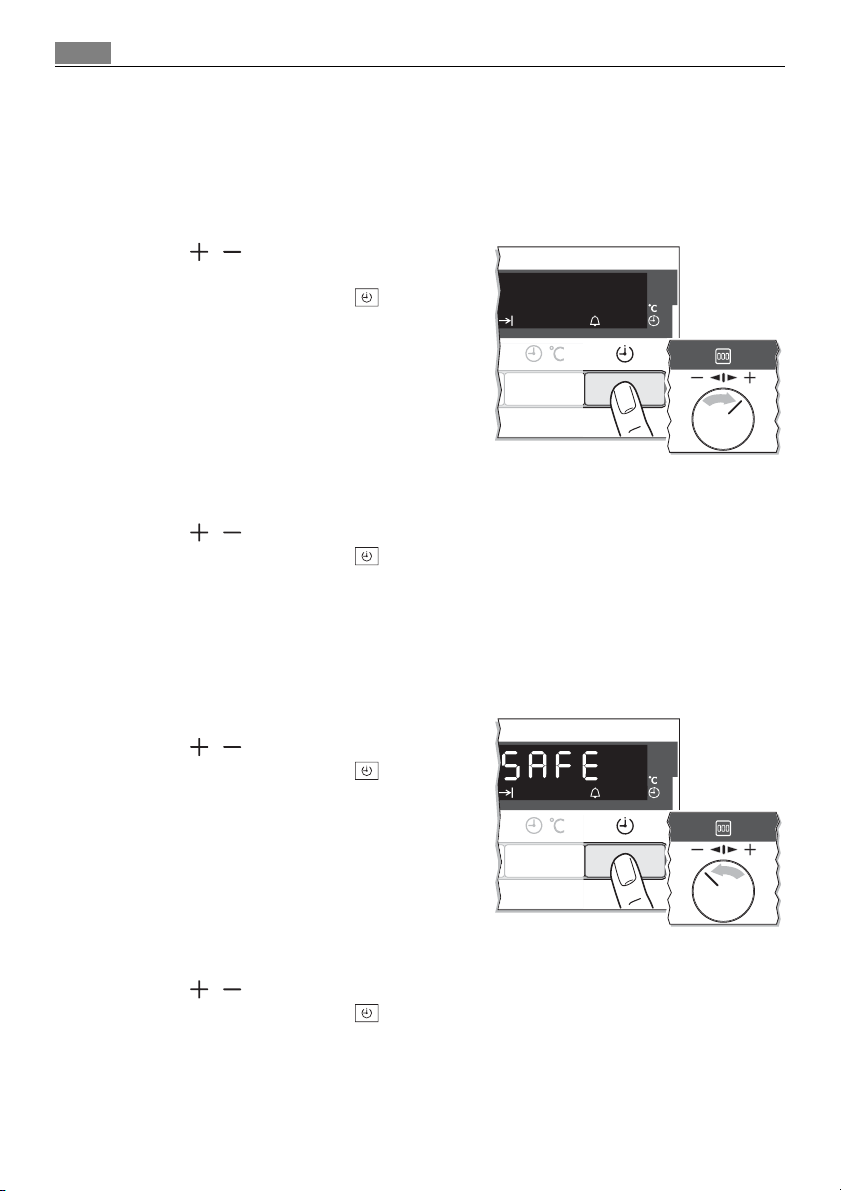

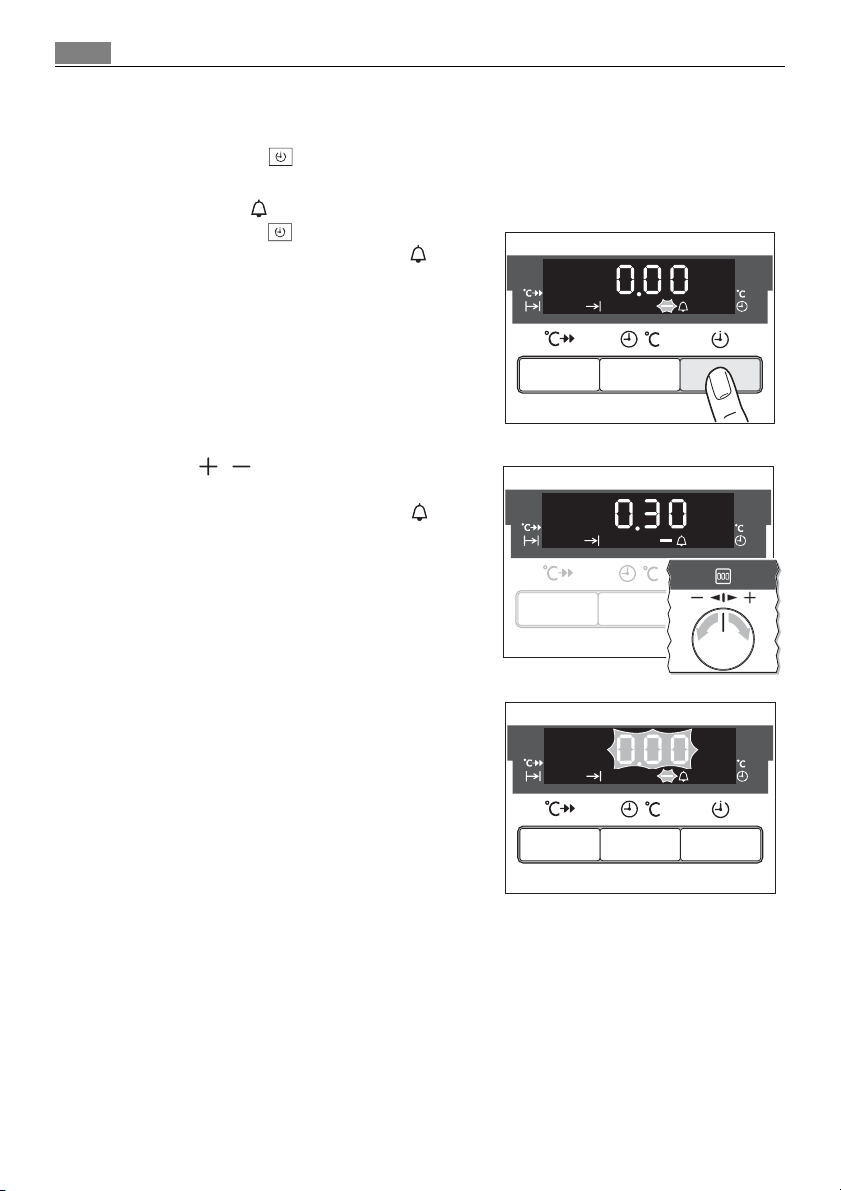

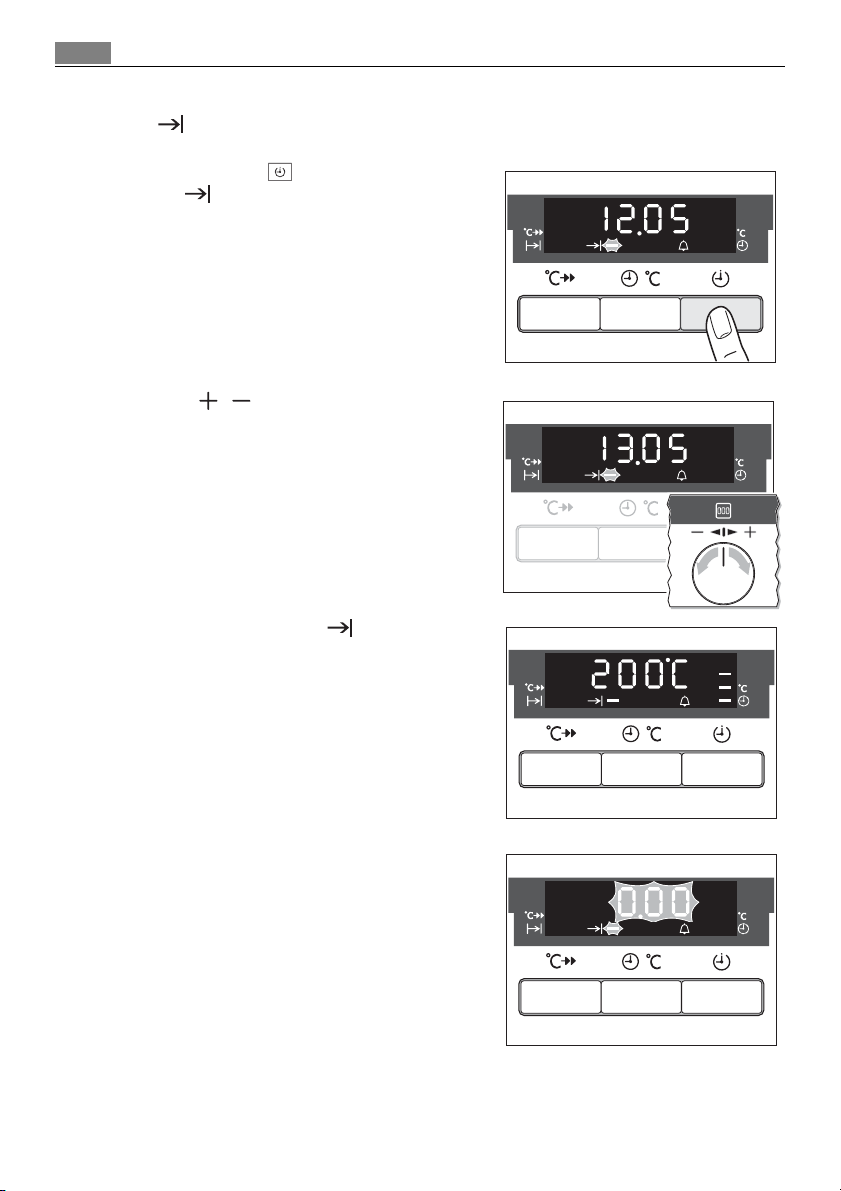

1. To change a time that has already been set, press the Selection button repeatedly until the function indicator Time of day flashes.
2.Using the / control knob, set the current time.
8 Before Using for the first time
After approx. 5 seconds, the flashing stops and the clock displays the time of day set.
The appliance is now ready to use.
3 The time can only be modified, if the child safety device is deactivated, none of the Minute Minder , Duration or End clock functions and no oven function is set.
Cleaning for the first time
Before you use the appliance for the first time, you should clean it thoroughly.
1Important: Do not use sharp or abrasive cleaning materials. These could damage the surface.
3For metal fronts, use normal commercially available cleaning agents.
1.Open the oven carriage door. The oven light comes on.
2.Remove all accessories and clean with a warm solution of water and washing-up liquid.
3.Also wipe the oven out with a warm solution of water and washing-up liquid and then dry it.
4.Wipe the front of the appliance with a damp cloth.
Using the Oven |
|
9 |
|
|
|
Using the Oven
3The oven is equipped with retractable buttons for “Oven functions” and “Temperature selection”. To use, press the relevant button. The button then sticks out.
Switching the Oven On and Off
Oven Power Indicator |
|
|
|
Temperature / Time |
Oven Power Indicator |
|||||||||||
|
|
|
|
Display |
||||||||||||
|
|
|
|
|
|
|
|
|||||||||
|
|
Speedcook |
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
Heat indicator |
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Button Speedcook Selector Button |
|
Oven Functions |
Change display |
Temperature / Time Selection |
Switching the oven on
Turn the oven functions selector to the desired function. The power indicator light lights up. The temperature display shows the suggested temperature for the oven function selected. The oven starts to heat up.
When the temperature set is reached, an audible signal sounds.
10 Using the Oven
Changing the oven temperature
Turn the / knob to raise or lower the temperature.
The setting changes in 5 °C steps.
Checking the temperature
Press Rapid heat up and Selection buttons at the same time.
The current oven temperature appears in the temperature display.
Switching the oven off
To turn the oven off, turn the oven functions selector to the OFF position.
3Cooling fan
The fan switches on automatically in order to keep the appliance’s surfaces cool. When the oven is switched off, the fan continues to run to cool the appliance down, then switches itself off automatically.
Using the Oven |
|
11 |
|
|
|
3Heat indicator
Indicates warming up
When the oven function has been switched on the bars that slowly light up one after the other indicate how far the oven has heated up.
Fast heat indicator
When the fast heat function has been switched on the bars that flash one after the other indicate that fast heat is operating. In addition the bars next to the symbol light up.
Residual heat indicator
When the oven has been switched off, the bars that are still lit indicate the remaining residual heat in the oven.
Rapid heat up
After an oven function is selected, using the additional function Rapid heat up the empty oven can be pre-heated in a relatively short time.
1Important: Do not put the food to be cooked into the oven, until Rapid heat up is completed and the oven is operating using the desired function.
1.Set the desired oven function (e. g., Conventional ). If necessary, change the suggested temperature.
2.Press the Rapid heat up button. The bars next to the symbol light up. When the bars flash one after another it shows that Rapid heat up is operating.
When the temperature set is reached, the bars of the heat indicator light up and the bars next to the symbol go out. An audible signal sounds.
12Using the Oven
The oven now continues heating according to the pre-set oven function and temperature. You can now place the food in the oven.
3The Rapid heat up function can be switched on with the oven functions True fan , Fan baking , Conventional and Rotitherm .
Oven Functions
The oven has the following functions:
Oven function |
Application |
|
|
True fan |
For baking on up to three oven levels at the same time. |
|
Set the oven temperatures 20-40 °C lower than when using Conven- |
|
tional. |
Fan baking |
For baking on one oven level dishes that require more intensive |
|
browning and a crispy base. |
|
Set the oven temperatures 20-40 °C lower than when using Conven- |
|
tional. |
Conventional |
For baking and roasting on one oven level. |
Rotitherm |
For roasting larger joints of meat or poultry on one level. |
|
The function is also suitable for gratinating and browning. |
Dual grill |
For grilling flat food items in large quantities and for toasting. |
Single grill |
For grilling flat food items placed in the middle of the grill and for |
|
toasting. |
Defrost |
For defrosting e. g. flans and gateaux, butter, bread, fruit or other |
|
frozen foods. |
Base heat |
For baking cakes with crispy or crusty bases. |
Pyroluxe menue |
For automatic pyrolytic cleaning of the oven. It burns off residues in |
|
the oven, which can then be removed with a cloth when the oven |
|
has cooled down. The oven is heated to approximately 500° C. |
|
|

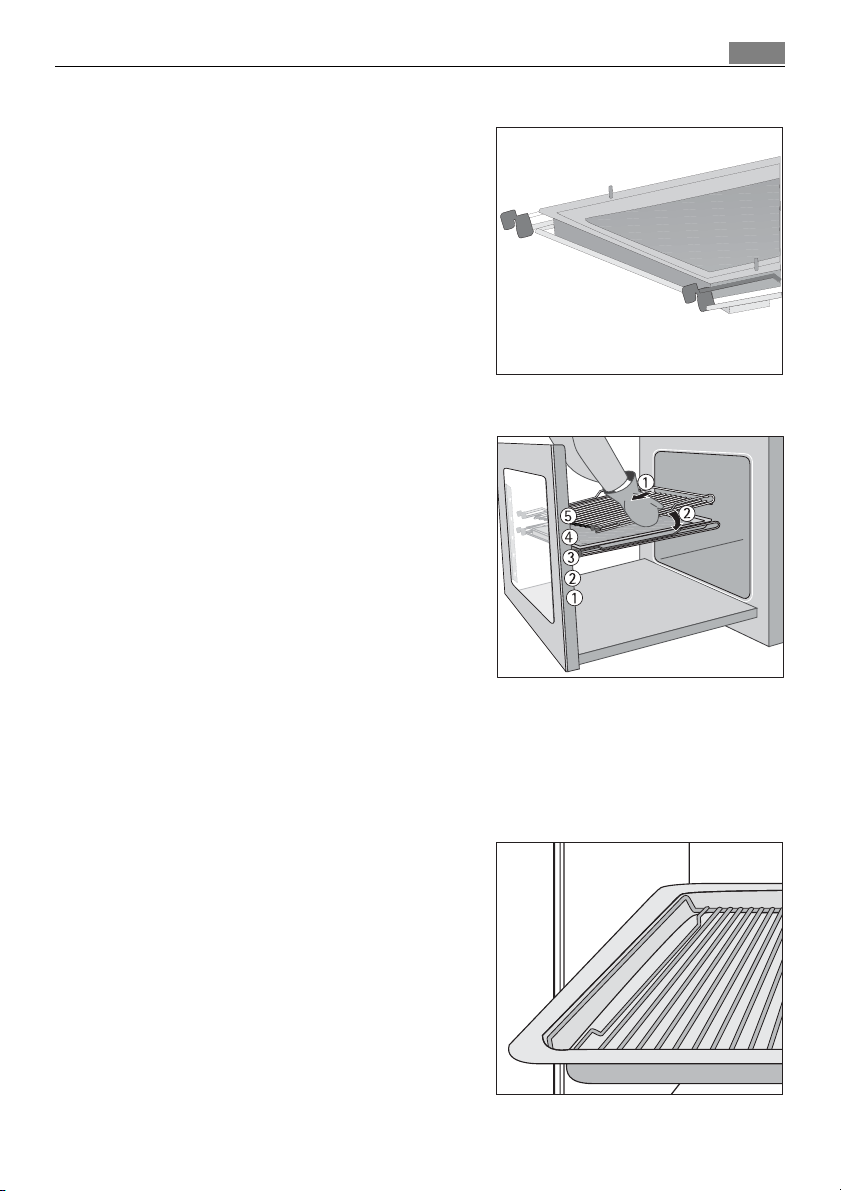

Inserting accessories

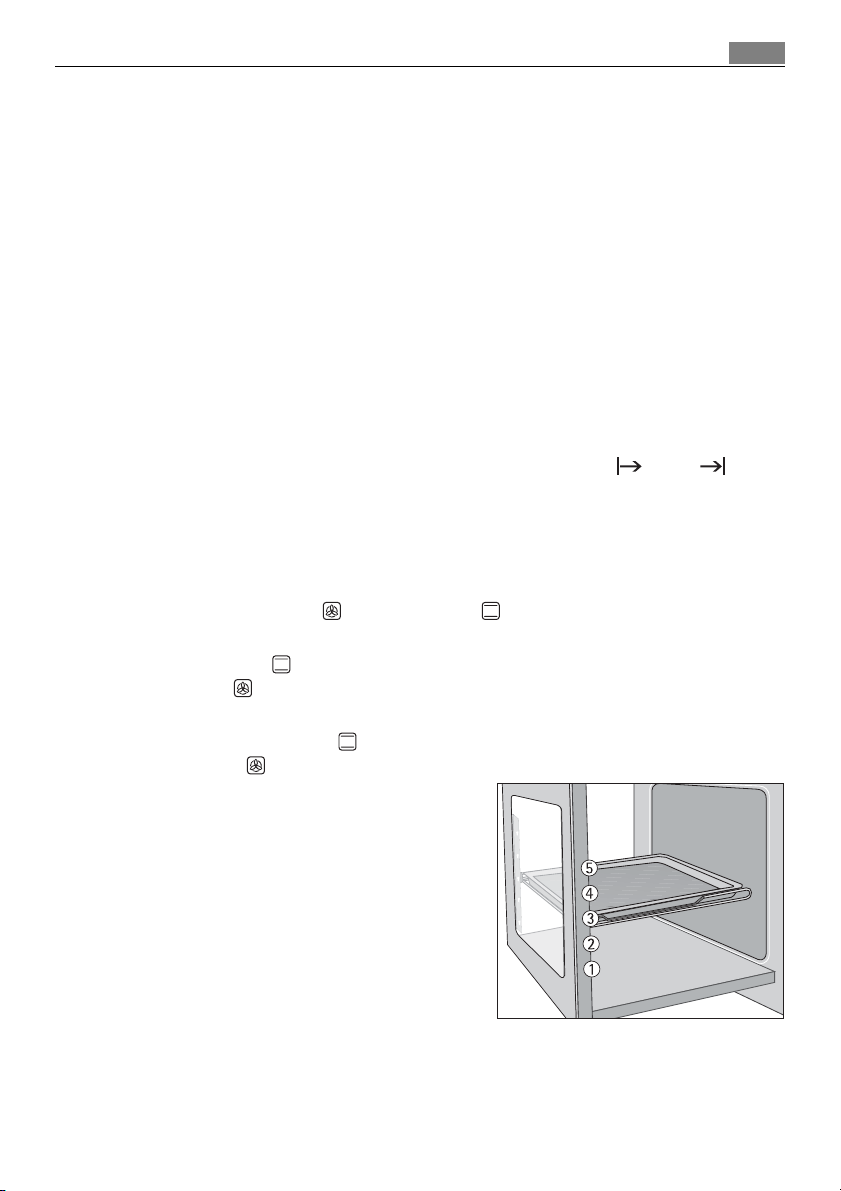

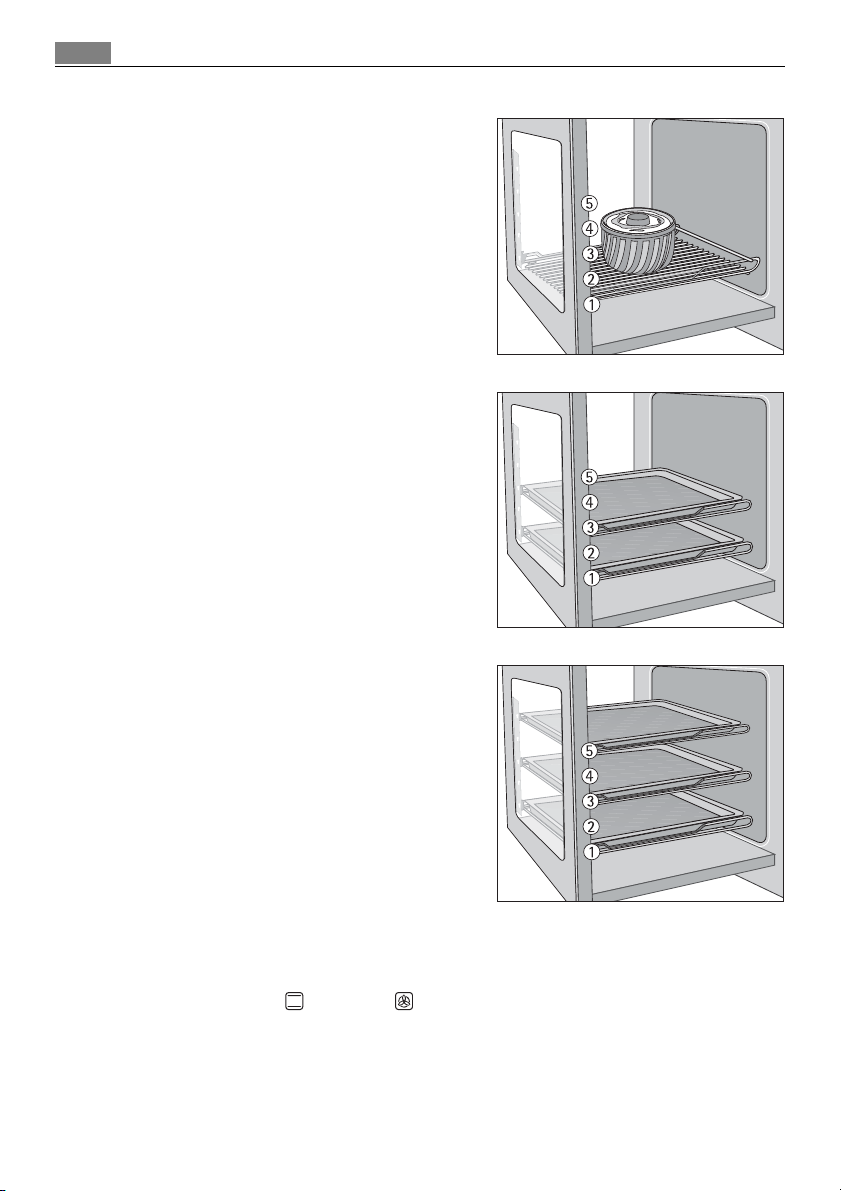

Inside the oven carriage door there are five levels to insert accessories.
Inserting the side rails
Take the rack (1) and slide it into the oven level
you want. Push the rack down (2) until it clicks into place.
3 Oven levels are counted from the bottom to the top.
