AEG B4403-5-M, B4403-5-A User Manual
B4403-5
User manual Built-In Electric Oven
Contents2
1
To ensure optimal and regular performance of your appliance please read this instruc-
Thank you for choosing one of our high-quality products.
tion manual carefully. It will enable you to navigate all processes perfectly and most ef-
To refer to this manual any time you need to, we recommend you to keep it in a safe
place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
Contents
Operating Instructions 3
Safety instructions 3
Description of the Appliance 4
General Overview 4
Control Panel 5
Oven Features 5
Oven accessories 6
Before Using for the first time 7
Setting and changing the time 7
Initial Cleaning 7
Using the Oven 8
Switching the Oven On and Off 8
Oven Functions 9
Inserting the Oven Shelf, Baking Tray
and Roasting Pan 9
Inserting/Removing the Fat Filter 10
Additional functions 11
Mechanical Door Lock 14
Uses, Tables and Tips 15
ficiently.
Baking 15
Roasting 21
Grill sizes 24
Defrosting 24
Drying 25
Making preserves 26
Cleaning and Care 27
Outside of the appliance 27
Oven interior 27
Accessories 27
Fat Filter 27
Shelf Support Rails 28
Oven lighting 29
Oven Ceiling 29
Oven door 30
Oven door glass 32
What to do if … 36
Disposal 37
Service 38
The following symbols are used in this user manual:
Important information concerning your personal safety and information on how to
avoid damaging the appliance.
3 General information and tips
2 Environmental information
Operating Instructions
1 Safety instructions
Electrical safety
• This appliance must be only connected by a registered electrician.
• In the event of a fault or damage to the appliance: Take the fuses out or switch off.
• Repairs to the appliance must only be carried out by qualified service engineers.
Considerable danger may result from improper repairs. If repairs become necessary,
please contact our Customer Services or your dealer.
Child Safety
• Never leave children unsupervised when the appliance is in use.
Safety whilst using
• People (including children) who, because of their physical, sensory or mental capabilities or their inexperience or ignorance are not able to use the device safely, should not
use this device without supervision or instruction by a responsible person.
• This appliance is intended to be used for cooking, roasting and baking food in the
home.
• Take care when connecting electric appliances to sockets nearby. Do not allow con-
necting leads to come into contact with or to catch beneath the hot oven door.
• Warning: Risk of burns! The interior of the oven becomes hot during use.
• Using ingredients containing alcohol in the oven may create an alcohol-air mixture
that is easily ignited. In this case, open the door carefully. Do not have embers, sparks
or naked flames in the vicinity when opening the door.
3Operating Instructions
3 Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, especially in
products containing starch, can constitute a health risk due to acrylamides. Therefore we
recommend cooking at the lowest possible temperatures and not browning foods too
much.
How to avoid damage to the appliance
• Do not line the oven with aluminium foil and do not place baking trays, pots, etc. on
the oven floor, as the heat that builds up will damage the oven enamel.
• Fruit juices dripping from the baking tray will leave stains, which you will not be able
to remove. For very moist cakes, use a deep tray.
• Do not put any strain on the oven door when open.
• Never pour water directly into the oven when it is hot. This could cause damage to or
discolouration of the enamel.
• Rough handling, especially around the edges of the front panel, can cause the glass to
break.
• Do not store any flammable materials inside the oven. These could ignite when the
oven is switched on.
Description of the Appliance4
• Do not store any moist foods inside the oven. This could damage the oven enamel.
• After switching off the cooling fan, do not keep uncovered dishes in the oven. Mois-
ture may condense in the oven interior or on the glass doors and may get into the
units.
3 Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do not affect the
appliance’s suitability for normal and correct use. They therefore do not constitute a defect in the sense of the warranty law.
Description of the Appliance
General Overview
Control panel
Door
handle
Full glass door
Control Panel
5Description of the Appliance
Oven Power Indicator Temperature Pilot Light
Time display
Clock function buttons
Oven Features
Shelf positions
Oven Functions
Top heat and heating elements
Temperature selector
Oven lighting
Meat probe socket
Fat Filter
Fan heating element
Fan
Bottom Heat
Oven shelf runners,
removable
Description of the Appliance6
Inside of door
On the inside of the oven door you will find the
numbers of the different oven shelves.
You will also find some brief information about
the oven's functions, recommended shelves and
temperatures for cooking the most popular
dishes.
Oven accessories
Oven shelf
For cookware, cake tins, roasts and grilled foods.
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan for collecting fat.
Meat probe
For determining exactly how far joints of meat
are cooked.
Before Using for the first time
Setting and changing the time
After the appliance has been connected to the
electrical supply or when there has been a power cut, the function indicator Time of day
flashes automatically.
1. To change a time that has already been set,
press the button and the button at the
same time, until the function light Time of
day flashes.
2. Using the or button, set the current time.
3 Always press the desired button in the middle.
7Before Using for the first time
After about 5 seconds, the flashing stops and
the clock displays the time of day set.
The appliance is now ready to use.
3 The Time of day can only be changed, if no
Minute Minder is set.
Initial Cleaning
Before using the oven for the first time you should clean it thoroughly.
1 Caution: Do not use any caustic, abrasive cleaners! The surface could be damaged.
3 To clean metal fronts use commercially available cleaning agents.
1. Turn the oven function switch to oven lighting .
2. Remove all accessories and the shelf support rails and wash them with warm water and
washing up liquid.
3. Then wash out the oven with warm water and washing-up liquid, and dry.
4. Wipe the front of the appliance with a damp cloth.
Using the Oven8
/
Using the Oven
3 The oven is equipped with retractable buttons for “Oven functions” and “Temperature
selection”. To use, press the relevant button. The button then sticks out.
Switching the Oven On and Off
Oven Power Indicator
Meat probe indicator
Temperature
Time Display
Temperature Pilot Light
ButtonButton
Oven function selection Temperature selector
1. Turn the oven functions dial to the desired function.
2. Turn the temperature selector to the desired temperature.
The power indicator is lit as long as the oven is in operation.
The temperature pilot light is lit as long as the oven is heating up.
3. To turn the oven off, turn the oven functions dial and the temperature selector to the
Off position.
3 Cooling fan
The fan switches on automatically in order to keep the appliance’s surfaces cool. When
the oven is switched off, the fan continues to run to cool the appliance down, then
switches itself off automatically.
Oven Functions
The oven has the following functions:
Oven function Application
9Using the Oven
Light Using this function you can light up the oven interior, e.g. for
cleaning.
True fan For baking on up to three oven levels at the same time.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
Fan baking For baking on one oven level dishes that require more inten-
sive browning and a crispy base.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
Conventional For baking and roasting on one oven level.
Base heat For baking cakes with crispy or crusty bases.
Defrost For defrosting e. g. flans and gateaux, butter, bread, fruit or
other frozen foods.
Single grill For grilling flat food items placed in the middle of the grill
and for toasting.
Dual grill For grilling flat food items in large quantities and for toast-
ing.
Rotitherm For roasting larger joints of meat or poultry on one level.
The function is also suitable for gratinating and browning.
Inserting the Oven Shelf, Baking Tray and Roasting Pan
3 Shelf runner safety and anti-tip device
As a shelf runner safety device, all insertable components have a small curved indentation at the bottom on the right and left-hand edge.
Always insert insertable components so that this indentation is at the back of the oven
interior. This indentation is also important for preventing the insertable components
from tipping.
Inserting the baking tray or roasting pan
Push the baking tray or roasting pan between
the guide bars of the selected oven level.
Using the Oven10
Inserting the oven shelf:
Insert the oven shelf so that the feet point
downwards.
Push the oven shelf between the guide bars of
the selected oven level.
3 The high rim around the oven shelf is an addi-
tional device to prevent cookware from slipping.
Inserting the oven shelf and roasting pan
together
Lay the oven shelf on the roasting pan.
Push the roasting pan between the guide bars
of the selected oven level.
Inserting/Removing the Fat Filter
Only use the fat filter when roasting to protect the rear heating elements from fat splashes.
Inserting the fat filter
Hold the fat filter by the grip and insert
the two mounts downwards into the
opening on the rear wall of the oven
(fan opening).
Taking out the fat filter
Hold the fat filter by the grip and unhook it.
11Using the Oven
Additional functions
Either Minute Minder or Meatprobe can be
set.
Minute Minder
To set a countdown.

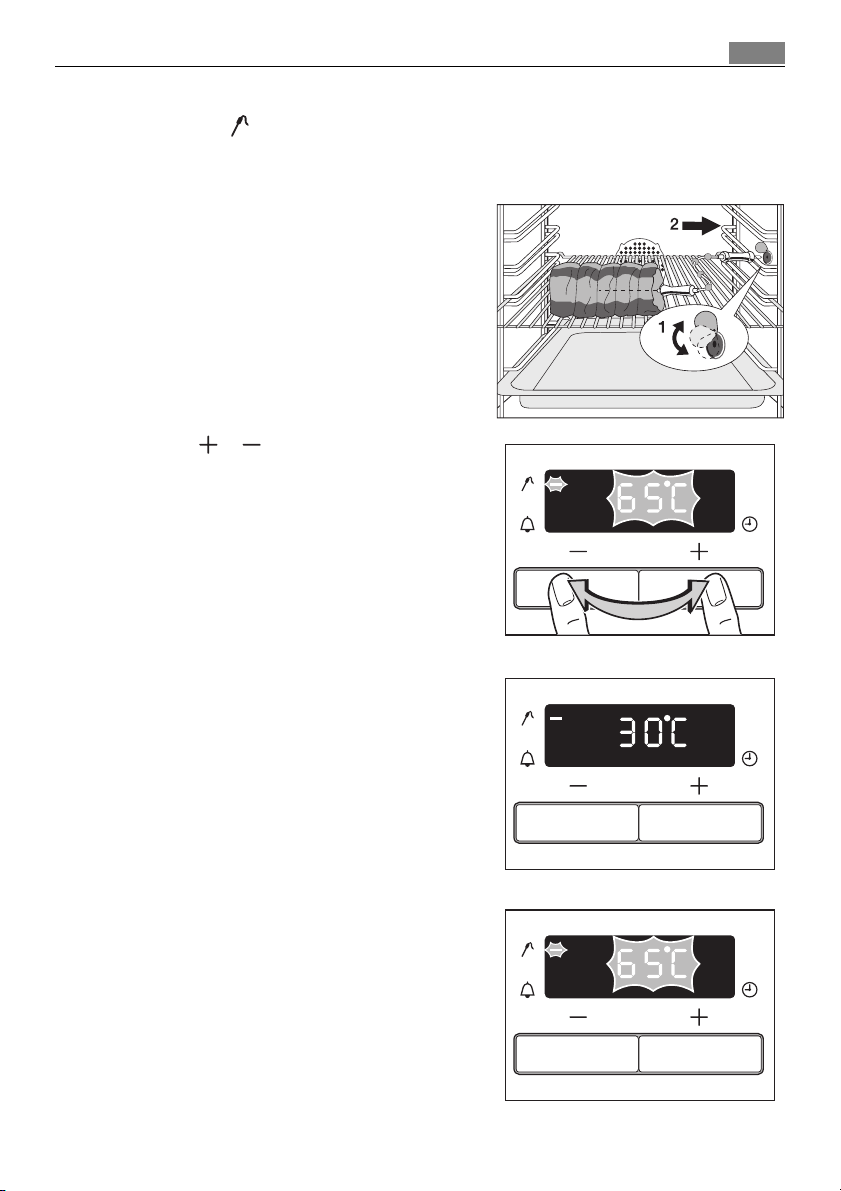

Meatprobe
To set a core temperature.
Time or temperature display
Selector buttons
2 Switching off the time display
You can save energy by switching off the time display.
To switch off the time display
Press the button and the button at the same time until the display goes out.
To switch on the time display
Press any button until the time appears in the display again.
3 The display can only be switched off if no clock function or core temperature is en-
tered.
3 General Hints
• After a function has been selected, the display flashes for about 5 seconds. While it
flashes, the desired time can be set using the or buttons.
• When the desired time has been set, the display flashes for another 5 seconds. The set
time begins to run.
• Press any of the buttons to stop the signal.
• The desired oven function and temperature can be selected before or after setting the
clock functions.
• When cooking is finished, turn the oven and temperature selectors back to zero.
Using the Oven12
Minute Minder
3 This function has no effect on the operation of the oven.
1. Press any button.
“0.00” flashes in the display.
2. Within 5 seconds set the desired countdown
using the or buttons (max. 2 hours 30
minutes).
After 5 seconds the display shows the time remaining.
When the time has elapsed, “0.00” is displayed
and an audible signal sounds for 2 minutes.
3. The signal can be stopped by pressing any button.
