AEG B4301-5-M User Manual

B4301-5

User manual Built-In Electric Oven

Contents2

1

To ensure optimal and regular performance of your appliance please read this instruc-

Thank you for choosing one of our high-quality products.

tion manual carefully. It will enable you to navigate all processes perfectly and most ef-

To refer to this manual any time you need to, we recommend you to keep it in a safe

place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

Contents

Operating Instructions 3

Safety instructions 3

Description of the Appliance 4

General Overview 4
Control Panel 5
Oven Features 5
Oven accessories 6
Oven Shelf Runner 7

Before Using for the first time 7

Setting and changing the time 7
Initial Cleaning 8

Using the Oven 9

Switching the Oven On and Off 9
Oven Functions 10
Inserting the oven accessories 10
Synchronised oven shelf runners 11
Inserting/Removing the Fat Filter 12
Clock Functions 13
Mechanical Door Lock 18

Uses, Tables and Tips 19

Baking 19
Roasting 25
Grill sizes 27

ficiently.

Defrosting 28
Drying 29
Making preserves 29

Cleaning and Care 31

Outside of the appliance 31
Oven interior 31
Accessories 31
Fat Filter 31
Shelf Support Rails 32
Oven shelf runner 33
Cleaning the oven shelf runner 34

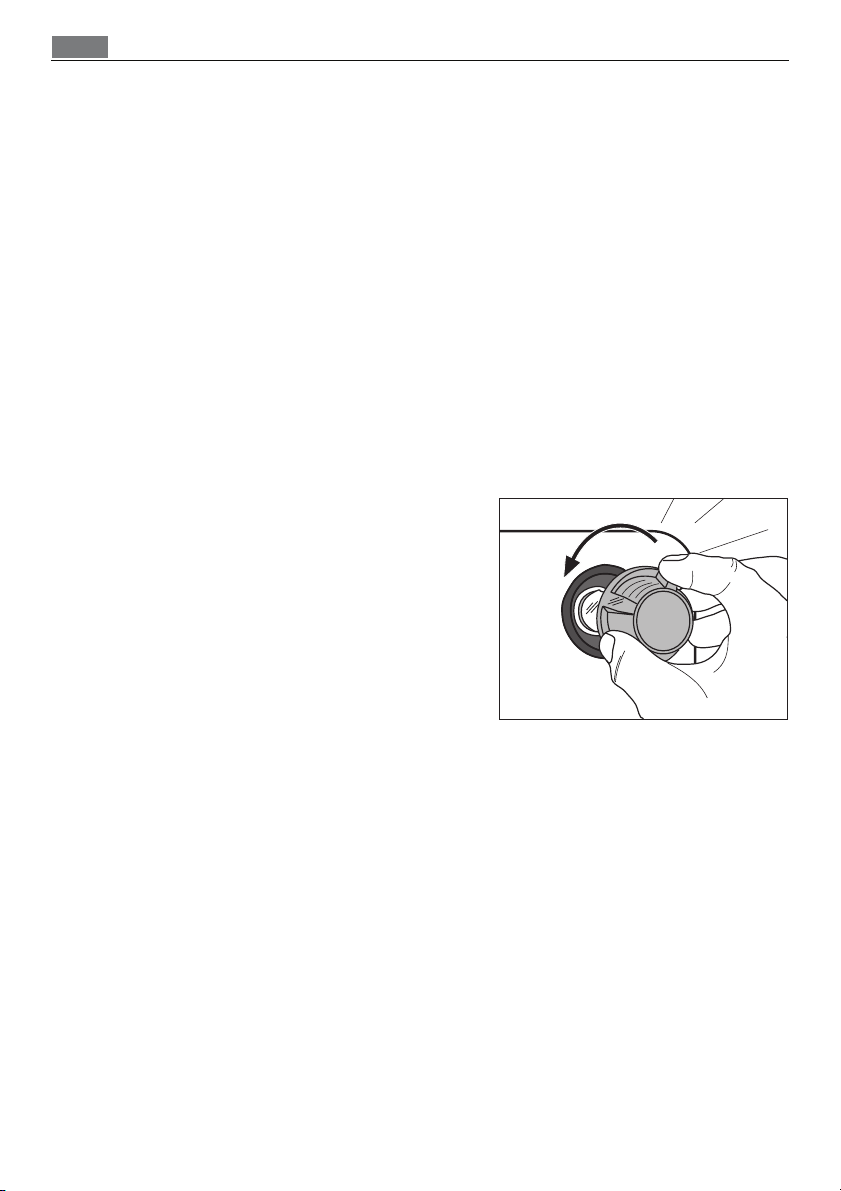

Oven lighting 34
Oven Ceiling 35
Oven door 36
Oven door glass 38

What to do if … 41

Disposal 41

Installation Instructions 42

Safety information for the installer 42

Guarantee/Customer Service 45

Service 47

The following symbols are used in this user manual:

Important information concerning your personal safety and information on how to
avoid damaging the appliance.

3 General information and tips

2 Environmental information

Operating Instructions

1 Safety instructions

Electrical safety

• This appliance must be only connected by a registered electrician.

• In the event of a fault or damage to the appliance: Take the fuses out or switch off.

• Repairs to the appliance must only be carried out by qualified service engineers.

Considerable danger may result from improper repairs. If repairs become necessary,
please contact our Customer Services or your dealer.

Child Safety

• Never leave children unsupervised when the appliance is in use.

Safety whilst using

• People (including children) who, because of their physical, sensory or mental capabili­ties or their inexperience or ignorance are not able to use the device safely, should not
use this device without supervision or instruction by a responsible person.

• This appliance is intended to be used for cooking, roasting and baking food in the
home.

• Take care when connecting electric appliances to sockets nearby. Do not allow con-
necting leads to come into contact with or to catch beneath the hot oven door.

• Warning: Risk of burns! The interior of the oven becomes hot during use.

• Using ingredients containing alcohol in the oven may create an alcohol-air mixture

that is easily ignited. In this case, open the door carefully. Do not have embers, sparks
or naked flames in the vicinity when opening the door.

3Operating Instructions

3 Information on acrylamides

According to the latest scientific knowledge, intensive browning of food, especially in
products containing starch, can constitute a health risk due to acrylamides. Therefore
we recommend cooking at the lowest possible temperatures and not browning foods
too much.

How to avoid damage to the appliance

• Do not line the oven with aluminium foil and do not place baking trays, pots, etc. on
the oven floor, as the heat that builds up will damage the oven enamel.

• Fruit juices dripping from the baking tray will leave stains, which you will not be able
to remove. For very moist cakes, use a deep tray.

• Do not put any strain on the oven door when open.

• Never pour water directly into the oven when it is hot. This could cause damage to or

discolouration of the enamel.

• Rough handling, especially around the edges of the front panel, can cause the glass to
break.

• Do not store any flammable materials inside the oven. These could ignite when the
oven is switched on.

Description of the Appliance4

• Do not store any moist foods inside the oven. This could damage the oven enamel.

• After switching off the cooling fan, do not keep uncovered dishes in the oven. Mois-

ture may condense in the oven interior or on the glass doors and may get into the
units.

3 Note on enamel coating

Changes in the colour of the oven’s enamel coating as a result of use do not affect the
appliance’s suitability for normal and correct use. They therefore do not constitute a de­fect in the sense of the warranty law.

Description of the Appliance

General Overview

Control panel

Door
handle

Full glass door

Control Panel

5Description of the Appliance

Oven Power Indicator Temperature Pilot Light

Time display

Clock function buttons

Oven Features

Shelf positions

Oven Functions

Temperature selector

Top heat and heating elements

Oven lighting

Fat Filter

Fan heating element
Fan

Bottom Heat

Oven shelf runners,

removable

Description of the Appliance6

Inside of door

On the inside of the oven door you will find the
numbers of the different oven shelves.

You will also find some brief information about
the oven's functions, recommended shelves and
temperatures for cooking the most popular
dishes.

Oven accessories

Oven shelf

For cookware, cake tins, roasts and grilled
foods.

Baking tray

For cakes and biscuits.

Roasting Pan

For baking and roasting or as a pan for collect­ing fat.

Oven Shelf Runner

Non-stick triple oven shelf runner

2 side rails with 3 telescopic runners.

Synchronised oven shelf runners

Retaining clips with connecting clamp.

Before Using for the first time

7Before Using for the first time

Setting and changing the time

3 The oven only operates when the time has been set.

When the appliance has been connected to the
electrical supply or when there has been a pow­er cut, the function indicator Time of day
flashes automatically.

1. To change a time that has already been set,
press the Selection button repeatedly until
the function indicator Time of day flashes.

Before Using for the first time8

2. Using the or button, set the current time.

After approx. 5 seconds, the flashing stops and
the clock displays the time set.

The appliance is now ready to use.

3 The time can only be changed if no automatic

function (Duration or End ) has been set.

Initial Cleaning

Before using the oven for the first time you should clean it thoroughly.

1 Caution: Do not use any caustic or abrasive cleaners. The surface could be damaged.
3 To clean metal fronts use commercially available cleaning agents.

1. Set the oven functions dial to Light .

2. Remove all accessories and the shelf support rails and wash them with warm water and

washing up liquid.

3. Then wash out the oven with warm water and washing-up liquid, and dry.

4. Wipe the front of the appliance with a damp cloth.

5. Insert the oven shelf runners supplied, as described in the chapter ”Cleaning and Care”.

9Using the Oven

Using the Oven

3 The oven is equipped with retractable buttons for “Oven functions” and “Temperature

selection”. To use, press the relevant button. The button then sticks out.

Switching the Oven On and Off

Oven Power Indicator

Oven Functions Temperature selector

1. Turn the oven functions dial to the desired function.

2. Turn the temperature selector to the desired temperature.

The power indicator is lit as long as the oven is in operation.
The temperature pilot light is lit as long as the oven is heating up.

3. To turn the oven off, turn the oven functions dial and the temperature selector to the
Off position.

Temperature Pilot Light

3 Cooling fan

The fan switches on automatically in order to keep the appliance’s surfaces cool. When
the oven is switched off, the fan continues to run to cool the appliance down, then
switches itself off automatically.

Using the Oven10

Oven Functions

The oven has the following functions:

Oven function Application

Light Using this function you can light up the oven interior, e.g. for

cleaning.

True fan To bake on three oven levels maximum at the same time.

Decrease the oven temperatures 20-40 °C compared with Con­ventional.

Fan baking For baking on one level dishes that require more intensive

browning and a crispy base.

Set the oven temperatures 20-40 °C lower than when using
Conventional.

Conventional For baking and roasting on one oven level.

Base heat For baking cakes with crispy or crusty bases.

Defrost For defrosting e. g. flans and gateaux, butter, bread, fruit or

other frozen foods.

Single grill For grilling flat food items placed in the middle of the grill and

for toasting.

Dual grill For grilling flat food items in large quantities and for toasting.

Rotitherm For roasting larger joints of meat or poultry on one level.

The function is also suitable for gratinating and browning

Inserting the oven accessories

Inserting the baking tray or roasting pan

Insert baking tray or or roasting pan on the tel­escopic runners of the selected oven level so
that the two holes engage on the front retain­ing pins on the telescopic runners.

Inserting the oven shelf:

Insert the oven shelf so that the feet point
downwards.
Insert the oven shelf on the telescopic runners
of the selected oven level.

3 The high rim around the oven shelf is an addi-

tional device to prevent cookware from slip­ping.

11Using the Oven

Inserting the oven shelf and roasting pan
together:

Lay the oven shelf on the roasting pan.
Insert the oven shelf and the roasting pan on
the telescopic runners of the selected oven lev­el so that the two holes of the roasting pan en-

gage on the front retaining pins on the
telescopic runners.

3 To make it easier to insert the insertable component when runners are extended to dif-

ferent extents, lay the insertable component onto the runners at the back, push it in as
far as the stop and then lower it onto the retaining pins at the front.

Synchronised oven shelf runners

3 To make it easier to pull out the oven shelf runners, the individual telescopic bars can be

connected using a clamp.

Fitting the synchronised oven shelf runners

1 When fitting the retaining clips, ensure that the

support brackets for the connecting clamp
point towards the rear!
To fit the left-hand and right-hand retaining
clips, affix to the appropriate telescopic bars to
ensure that the upper groove fits securely into
the rear retaining pins.
Push in retaining clips firmly until they engage.

Insert the connecting clamp into the rear sup­port brackets of the retaining clips on the left­and right-hand telescopic bars (1.).

Press the connecting clamp into the locks of
the two retaining clips by turning upwards si­multaneously(2.).

Using the Oven12

The telescopic bars can now be pulled out si­multaneously.

Removing the synchronised oven shelf runners

To remove, follow the above steps in reverse.

Inserting/Removing the Fat Filter

Only use the fat filter when roasting to pro­tect the rear heating elements from fat splash­es.

Inserting the fat filter

Hold the fat filter by the grip and insert
the two mounts downwards into the
opening on the rear wall of the oven
(fan opening).

Taking out the fat filter

Hold the fat filter by the grip and un­hook it.

Clock Functions

13Using the Oven

Time display Function IndicatorsFunction Indicators

Button

Minute minder

To set a countdown. A signal sounds after the time has elapsed.
This function does not affect the functioning of the oven.

Duration

To set how long the oven is to be in use.

End

To set the switch-off time for an oven function.

Time of day

To set, change or check the time
(See also section “Before Using for the First Time”).

3 How to use the clock functions

• After a function has been selected, the corresponding function indicator flashes for

about 5 seconds. During this period, the desired times can be set using the or
button.

• When the desired time has been set, the function indicator continues to flash for

approx. 5 seconds. After that the function indicator is then lit. The set time begins to
run.

• Press any of the buttons to stop the audible signal.

• The desired oven function and temperature can be selected before or after the clock

functions Duration and End are set.

• When the cooking process is completed, turn the oven function dial and the tempera-

ture selector back to the OFF position.

Selection Button

Button

Using the Oven14

Minute minder

1. Press the Selection button repeatedly until

the function indicator Minute minder flash­es.

2. Using the or button set the desired
Countdown (max. 2 hours 30 minutes).

After approx. 5 seconds the display shows the
time remaining.
The function indicator Minute minder lights
up.

When the time has elapsed, the function indi­cator flashes and an audible signal sounds for
2 minutes.
The signal can be stopped by pressing any but­ton.

Duration

1. Press the Selection button repeatedly until

the function indicator Duration flashes.

2. Using the or button set the desired cook-
ing time.

After approx. 5 seconds the display returns to
showing the current time. The function indica­tor Duration lights up.

15Using the Oven

When the time has elapsed, the function indi­cator flashes, an audible signal sounds for
2 minutes and the oven switches itself off.

3. The signal and the programme can be stopped
by pressing any button.

Using the Oven16

End

1. Press the Selection button repeatedly until

the function indicator End flashes.

2. Using the or button set the desired
switch-off time.

After approx. 5 seconds the display returns to
showing the current time.
The function indicator End lights up.

When the time has elapsed, the function indi­cator flashes, an audible signal sounds for
2 minutes and the oven switches itself off.

3. The signal and the programme can be stopped
by pressing any button.

17Using the Oven

Duration and End combined

3 Duration and End can be used simultaneously, if the oven is to be switched on and

off automatically at a later time.

1. Using the Duration function, set the time re-

quired for cooking the dish.
In this example, 1 hour.

2. Using the End function, set the time at
which the dish should be ready.
In this case 14:05:00.

The function indicators Duration and End
light up and the current time is shown in the
display.
In this case 12:05.

The oven switches on automatically at the time
calculated.
In this case, at 13:05:00.

And switches itself off again when the cooking
time entered has elapsed.
In this case, at 14:05.

Using the Oven18

Mechanical Door Lock

When the appliance is delivered, the door lock is deactivated.

Activate the door lock

Pull the safety catch forwards until it locks in
place.

Open the oven door:

1. Shut the door.

2. Press the safety catch and keep it pressed.

3. Open the doors.

Close the oven door

Close the door without pressing the safety catch.

Deactivating the door lock

Press the safety catch back into the panel.

3 Switching off the appliance does not cancel the mechanical door lock.

Uses, Tables and Tips

Baking

Oven function: True fan or Conventional
Baking tins

• For Conventional dark metal and non-stick tins are suitable.

• For True fan bright metal tins are also suitable.

Oven levels

• Baking with Conventional is possible on one oven level.

• With True fan you can bake on up to 3 baking trays at the same time:

1 baking tray:
e.g. oven level 3

1 cake tin:
e.g. oven level 1

19Uses, Tables and Tips

2 baking trays:
z. g., oven levels 1 and 3

3 baking trays:
oven levels 1, 3 and 5

Uses, Tables and Tips20

General instructions

• Insert the tray with the bevel at the front.

• With Conventional or True fan you can also bake with two tins next to one an-

other on the oven shelf at the same time. This does not significantly increase baking
time.

3 When frozen foods are used the trays inserted may distort during cooking. This is due to

the large difference in temperature between the freezing temperature and the tempera­ture in the oven. Once the trays have cooled the distortion will disappear again.

How to use the baking tables

The tables give the required temperature settings, baking times and oven shelf levels for
a selection of typical dishes.

• Temperatures and baking times are for guidance only, as these will depend on the

consistency of pastry, dough or mixture, the amount and the type of baking tin.

• We recommend using the lower temperature the first time and then if necessary, for

example, if a deeper browning is required, or baking time is too long, selecting a high­er temperature.

• If you cannot find the settings for a particular recipe, look for the one that is most

similar.

• If baking cakes on baking trays or in tins on more than one level, baking time may be

extended by 10-15 minutes.

• Moist recipes (for example, pizzas, fruit flans, etc.) are baked on one level.

• Cakes and pastries at different heights may brown at an uneven rate at first. If this

occurs, please do not change the temperature setting. Different rates of browning
even out as baking progresses.

• Your new oven may bake or roast differently to your previous appliance. So adapt

your normal settings (temperature, cooking times) and oven shelf levels to the recom­mendations in the following tables.

2 With longer baking times, the oven can be switched off about 10 minutes before the

end of baking time, to make use of the residual heat.
Unless otherwise stated, the values given in the tables assume that cooking is started
with the oven cold.

Baking table

Baking on one oven level

Type of

baking

Baking in tins

Ring cake or brioche True fan 1 150-160 0:50-1:10

Madeira cake/fruit cakes True fan 1 140-160 1:10-1:30

Sponge cake True fan 1 140 0:25-0:40

Sponge cake Conventional 1 160 0:25-0:40

Flan base - short pastry True fan 3 170-180

Oven function

Oven

level

Temperature

°C

1)

Time

Hr: Mins.

0:10-0:25

21Uses, Tables and Tips

Type of

baking

Oven function

Oven

level

Temperature

°C

Time

Hr: Mins.

Flan base - sponge mixture True fan 3 150-170 0:20-0:25

Apple pie Conventional 1 170-190 0:50-1:00

Apple pie (2tins Ø20cm,

True fan 1 160 1:10-1:30

diagonally off set)

Apple pie (2tins Ø20cm,

Conventional 1 180 1:10-1:30

diagonally off set)

Savoury flan (e. g, quiche

True fan 1 160-180 0:30-1:10

lorraine)

Cheesecake Conventional 1 170-190 1:00-1:30

Cakes/pastries/breads on baking trays

Plaited bread/bread crown Conventional 3 170-190 0:30-0:40

1)

230

160-180

1)

1)

1)

0:40-1:00

0:25

0:30-1:00

0:15-0:30

0:10-0:20

Christmas stollen Conventional 3 160-180

Bread (rye bread)

Conventional 1

-first of all

-then

Cream puffs/eclairs Conventional 3 160-170

Swiss roll Conventional 3 180-200

Cake with crumble topping

True fan 3 150-160 0:20-0:40

(dry)

Buttered almond cake/sugar

Conventional 3 190-210

1)

0:15-0:30

cakes

Fruit flans
(made with yeast dough/
sponge mixture)

2)

Fruit flans
(made with yeast dough/
sponge mixture)

2)

Fruit flans made with short

True fan 3 150 0:35-0:50

Conventional 3 170 0:35-0:50

True fan 3 160-170 0:40-1:20

pastry

Yeast cakes with delicate

Conventional 3 160-180

1)

0:40-1:20
toppings (e. g, quark, cream,
custard)

Pizza (with a lot of top-

2)

ping)

True fan 1 180-200

Pizza (thin crust) True fan 1 200-220

1)

1)

0:30-1:00

0:10-0:25

Unleavened bread True fan 1 200-220 0:08-0:15

Tarts (CH) True fan 1 180-200 0:35-0:50

Biscuits

Short pastry biscuits True fan 3 150-160 0:06-0:20

Uses, Tables and Tips22

Type of

baking

Oven function

Oven

level

Temperature

°C

Time

Hr: Mins.

Viennese whirls True fan 3 140 0:20-0:30

Viennese whirls Conventional 3 160

Biscuits made with sponge

True fan 3 150-160 0:15-0:20

1)

0:20-0:30

mixture

Pastries made with egg

True fan 3 80-100 2:00-2:30

white, meringues

Macaroons True fan 3 100-120 0:30-0:60

Biscuits made with yeast

True fan 3 150-160 0:20-0:40

dough

Puff pastries True fan 3 170-180

Rolls True fan 3 160

Rolls Conventional 3 180

Small cakes (20 per tray) True fan 3 140

Small cakes (20 per tray) Conventional 3 170

1)

0:20-0:30

1)

1)

1)

1)

0:20-0:35

0:20-0:35

0:20-0:30

0:20-0:30

1) Pre-heat the oven

2) Use the drip tray or roasting tray

Baking on more than one oven level

True fan True fan

Type of baking

Shelf positions from bottom

Temperature

in °C

2 levels 3 levels

Cakes/pastries/breads on baking trays

Cream puffs/Eclairs 1/4 --- 160-180

1))

Dry streusel cake 1/3 --- 140-160 0:30-0:60

Biscuits/small cakes/pastries/rolls

Short pastry biscuits 1/3 1/3/5 150-160 0:15-0:35

Viennese whirls 1/3 1/3/5 140 0:20-0:60

Biscuits made with sponge
mixture

Biscuits made with egg
white, meringues

1/3 --- 160-170 0:25-0:40

1/3 --- 80-100 2:10-2:50

Macaroons 1/3 --- 100-120 0:40-1:20

Biscuits made with yeast
dough

Puff pastries 1/3 --- 170-180

1/3 --- 160-170 0:30-0:60

1)

Time

Hours:

Mins.

0:35-0:60

0:30-0:50

23Uses, Tables and Tips

Type of baking

True fan True fan

Shelf positions from bottom

Temperature

in °C

Time

Hours:

Mins.

2 levels 3 levels

Rolls 1/4 --- 160 0:30-0:55

Small cakes (20 per tray) 1/4 --- 140

1)

0:25-0:40

1) Pre-heat the oven

Tips on Baking

Baking results Possible cause Remedy

The cake is not browned
enough underneath

The cake sinks (becomes
soggy, lumpy, streaky)

Cake is too dry Oven temperature too low Set oven temperature higher.

Cake browns unevenly Oven temperature too high and

Cake does not cook in the
baking time given

Wrong oven level Place cake lower

Oven temperature too high Use a slightly lower setting

Baking time too short Set a longer baking time

Baking times cannot be re­duced by setting higher tem­peratures

Too much liquid in the mixture Use less liquid.

Pay attention to mixing times,
especially if using mixing ma­chines

Baking time too long Set a shorter baking time

Set a lower oven temperature

baking time too short

and a longer baking time

Mixture is unevenly distributed Spread the mixture evenly on

the baking tray

Grease filter is inserted Take out the grease filter

Temperature too low Use a slightly higher oven set-

ting

Grease filter is inserted Take out the grease filter

Fan baking table

Type of baking Shelf position

Pizza (thin crust) 1 180 - 200

Temperature

°C

1)

Pizza (with a lot of topping) 1 180 - 200 20 - 30

Tarts 1 180 - 200 45 - 60

Time

Hr: Mins.

20 - 30

Uses, Tables and Tips24

Type of baking Shelf position

Temperature

°C

Time

Hr: Mins.

Spinach flan 1 160 -180 45 - 60

Quiche Lorraine 1 170 - 190 40 - 50

Quark flan, round 1 140 - 160 60 - 90

Quark flan on tray 1 140 - 160 50 - 60

Apple cake, covered 1 150 - 170 50 - 70

Vegetable pie 1 160 - 180 50 - 60

Unleavened bread 1 250 - 270

Puff pastry flan 1 160 - 180

Flammekuchen (Pizza-like dish
from Alsace)

Piroggen (Russian version of cal­zone)

1 250 - 270

1 180 - 200

1)

1)

1)

1)

10 - 20

40 - 50

12 - 20

15 - 25

1) Pre-heat the oven

Table for Bakes and Gratins

Dish Oven function

Shelf

position

Pasta bake Conventional 1 180-200 0:45-1:00

Lasagne Conventional 1 180-200 0:25-0:40

Vegetables au gratin

Baguettes topped with
melted cheese

1)

1)

True fan 1 160-170 0:15-0:30

True fan 1 160-170 0:15-0:30

Sweet bakes Conventional 1 180-200 0:40-0:60

Fish bakes Conventional 1 180-200 0:30-1:00

Stuffed vegetables True fan 1 160-170 0:30-1:00

1) Pre-heat the oven

Temperature

°C

Time

Hr: Mins.

Frozen Ready Meals Table

25Uses, Tables and Tips

Roasting

Food to be

cooked

Frozen pizza Conventional 3

1)

Chips
(500 g)

Baguettes Conventional 3

Fruit flans Conventional 3

1) Comments: Turn chips 2 or 3 times during cooking

Oven function

True fan 3 200-220

Shelf

position

Temperature

°C

as per manufac-

turer’s instruc-

tions

as per manufac-

turer’s instruc-

tions

as per manufac-

turer’s instruc-

tions

Time

as per manufac-

turer’s instruc-

tions

as per manufac-

turer’s instruc-

tions

as per manufac-

turer’s instruc-

tions

as per manufac-

turer’s instruc-

tions

Oven function: Conventional or Rotitherm
Roasting dishes

• Any heat-resistant ovenware is suitable to use for roasting (please read the manufac­turer's instructions).

• Large roasting joints can be roasted directly in the roasting tray or on the oven
shelf with the roasting tray placed below it.

• For all lean meats, we recommend roasting these in a roasting tin with a lid. This
will keep the meat more succulent.

• All types of meat, that can be browned or have crackling, can be roasted in the roast-
ing tin without the lid.

3 Tips on using the roasting chart

The information given in the following table is for guidance only.

• We recommend cooking meat and fish weighing 1 kg and above in the oven.

• To prevent escaping meat juices or fat from burning on to the pan, we recommend

placing some liquid in the roasting pan.

• If required, turn the roast (after 1/2 - 2/3 of the cooking time).

• Baste large roasts and poultry with their juices several times during roasting. This will

give better roasting results.

• You can switch the oven off about 10 minutes before the end of the roasting time, in
order to utilise the residual heat.

Uses, Tables and Tips26

Roasting table

Type of meat Quantity Ovenfunction

Beef

Pot roast 1-1.5 kg Conventional 1 200-250 2:00-2:30

Roast beef or fillet

- rare

- medium

- well done

Pork

Shoulder, neck, ham
joint

Chop, spare rib 1-1.5 kg Rotitherm 1 170-180 1:00-1:30

Meat loaf 750 g-1 kg Rotitherm 1 160-170 0:45-1:00

Porkknuckle (pre­cooked)

Veal

Roast veal 1 kg Rotitherm 1 160-180 1:30-2:00

Knuckle of veal 1.5-2 kg Rotitherm 1 160-180 2:00-2:30

Lamb

Leg of lamb, roast
lamb

Saddle of lamb 1-1.5 kg Rotitherm 1 160-180 1:00-1:30

Game

Saddle of hare, leg of
hare

Saddle of venison 1.5-2 kg Conventional 1 210-220 1:15-1:45

Haunch of venison 1.5-2 kg Conventional 1 200-210 1:30-2:15

Poultry

Poultry portions

Half chicken

Chicken, poulard 1-1.5 kg Rotitherm 1 190-210 0:45-1:15

per cm.

of thickness

per cm.

of thickness

per cm.

of thickness

1-1.5 kg Rotitherm 1 160-180 1:30-2:00

750 g-1 kg Rotitherm 1 150-170 1:30-2:00

1-1.5 kg Rotitherm 1 150-170 1:15-2:00

up to 1 kg Conventional 3 220-2501)0:25-0:40

200-250g

each

400-500g

each

Rotitherm 1 190-2001)0:05-0:06

Rotitherm 1 180-190 0:06-0:08

Rotitherm 1 170-180 0:08-0:10

Rotitherm 1 200-220 0:35-0:50

Rotitherm 1 190-210 0:35-0:50

Shelf

position

Tempera-

ture

°C

Time

Hours mins.

per cm. of

thickness

27Uses, Tables and Tips

Type of meat Quantity Ovenfunction

Duck 1.5-2 kg Rotitherm 1 180-200 1:15-1:45

Goose 3.5-5 kg Rotitherm 1 160-180 2:30-3:30

Turkey 2.5-3.5 kg Rotitherm 1 160-180 1:45-2:30

Turkey 4-6 kg Rotitherm 1 140-160 2:30-4:00

Fish (steamed)

Whole fish 1-1.5 kg Conventional 1 210-220 0:45-1:15

1) Pre-heat the oven

Shelf

position

Tempera-

ture

°C

Time

Hours mins.

Grill sizes

Oven function: Single grill or Dual grill with maximum temperature setting

1 Important: Always grill with the oven door closed.

3 The empty oven should always be pre-heated with the grill functions for 5 min-

utes.

• For grilling, place the shelf in the recommended shelf position.

• Always insert the tray for collecting the fat into the first shelf position from the

bottom.

• The grilling times are guidelines.

• Grilling is particularly suitable for flat pieces of meat or fish.

Grilling table

Food to be grilled Oven level

Burgers 4 8-10 mins. 6-8 mins.

Pork fillet 4 10-12 mins. 6-10 mins.

Sausages 4 8-10 mins. 6-8 mins.

Fillet steaks, veal steaks 4 6-7 mins. 5-6 mins.

Fillet of beef, roast beef
(approx. 1 kg)

1)

Toast

Toast with topping 3 6-8 mins. ---

1) Do not pre-heat

3 10-12 mins. 10-12 mins.

3 4-6 mins. 3-5 mins.

Grilling time

1st side 2nd side

Uses, Tables and Tips28

Defrosting

Oven function: Defrost (no temperature setting)

• Unwrap the food and place it on a plate on the oven shelf.

• Do not cover with a plate or bowl, as these can substantially lengthen the defrosting

• For defrosting, place the shelf in the 1st oven level from the bottom.

Defrosting table

time.

Dish

Chicken, 1000 g 100-140 20-30

Meat, 1000 g 100-140 20-30 Turn halfway through

Meat, 500 g 90-120 20-30 Turn halfway through

Trout, 150g 25-35 10-15 ---

Strawberries, 300g 30-40 10-20 ---

Butter, 250g 30-40 10-15 ---

Cream, 2 x 200g 80-100 10-15

Gateau, 1400g 60 60 ---

Defrosting

time

mins.

Further

defrosting

time (mins.)

Comments

Place the chicken on an upturned saucer
placed on a large plate
Turn halfway through

Cream can also be whipped when still
slightly frozen in places

Drying

29Uses, Tables and Tips

Oven function: True fan

• Use oven shelves covered with greaseproof paper or baking parchment.

• You get a better result if you switch the oven off halfway through the drying time,

open the door and leave the oven to cool down overnight.

• After this, finish drying the food to be dried.

Food to be dried

Vegetables

Beans 60-70 3 1 / 4 6-8

Peppers (strips) 60-70 3 1 / 4 5-6

Vegetables for soup 60-70 3 1 / 4 5-6

Mushrooms 50-60 3 1 / 4 6-8

Herbs 40-50 3 1 / 4 2-3

Fruit

Plums 60-70 3 1 / 4 8-10

Apricots 60-70 3 1 / 4 8-10

Apple slices 60-70 3 1 / 4 6-8

Pears 60-70 3 1 / 4 6-9

Making preserves

Oven function: Base heat

• For preserving, use only commercially available preserve jars of the same size.

• Jars with twist-off or bayonet type lids and metal tins are not suitable.

• When making preserves, the first shelf position from the bottom is the one most

used.

• Use the shelf for making preserves. There is enough room on this for up to six 1-litre
preserving jars.

• The jars should all be filled to the same level and clamped shut.

• Place the jars on the baking tray in such a way that they are not touching each other.

• Pour approx. 1/2 litre of water into the baking tray so that sufficient moisture is pro-

duced in the oven.

• As soon as the liquid starts to pearl in the first jars (after about 35-60 minutes with
1 litre jars), switch the oven off or reduce the temperature to 100°C (see table).

Temperature in

°C

Oven level

1 level 2 levels

Time in hours

(Guideline)

Uses, Tables and Tips30

Preserves table

The times and temperatures for making preserves are for guidance only.

Preserve

Temperature

in°C

Cooking time until

simmering

in mins.

Continue to cook

at 100°C

in mins.

Soft fruit

Strawberries, blueberries, rasp­berries, ripe gooseberries

160-170 35-45 ---

Unripe gooseberries 160-170 35-45 10-15

Stone fruit

Pears, quinces, plums 160-170 35-45 10-15

Vegetables

1)

Carrots

160-170 50-60 5-10

Cucumbers 160-170 50-60 ---

Mixed pickles 160-170 50-60 15

Kohlrabi, peas, asparagus 160-170 50-60 15-20

1) Leave standing in oven when switched off

Cleaning and Care

1 Warning: First switch off the appliance and let it cool down before carrying out any

cleaning.

Warning: For safety reasons, do not clean the appliance with steam blasters or high­pressure cleaners.

Attention: Do not use any corrosive cleaning fluids, sharp objects or stain remov­ers.

Do not clean the glass oven door with abrasive fluids or metal scrapers, which could
scratch the surface. The glass could crack and shatter.

Outside of the appliance

• Wipe the front of the appliance with a soft cloth and a solution of hot water and
washing up liquid.

• For metal fronts, use normal commercially available cleaning agents.

• Please do not use scouring agents and abrasive sponges.

Oven interior

Clean the appliance after each use. In this way, dirt is easier to clean off and is not al­lowed to burn on.

1. For cleaning, turn the oven light on.

2. After every use, wipe the oven with a solution of washing-up liquid and allow to dry.

31Cleaning and Care

3 Clean stubborn dirt with a special oven cleaner.
1 Important: If using an oven spray, please follow the manufacturer's instructions exact-

ly.

Accessories

Wash all slide-in units (shelf unit, baking tray, shelf support rails etc.) after each use and
dry well. Soak briefly to make them easier to clean.

Fat Filter

1. Clean the fat filter in hot water and washing up liquid or in the dishwasher.

2. Badly burned on soiling can be removed by boiling the filter in a little water to which 2-

3 tablespoonsful of dishwasher cleaner has been added.

Cleaning and Care32

Shelf Support Rails

The shelf support rails on the left and right hand sides of the oven can be removed for
cleaning the side walls.

Removing the shelf support rails

First pull the front of the rail away from the
oven wall (1) and then unhitch at the back (2).

Fitting the shelf support rails

3 Important! The rounded ends of the guide rails

must be pointing forwards!

To re-insert, first hook the rail into place at the
back (1) and then insert the front and press into
place (2).

Oven shelf runner

The shelf support rails on the left and right hand sides of the oven can be removed for
cleaning the side walls.

Removing the shelf support rails

First pull the front of the rail away from the
oven wall and then unhitch at the back.

33Cleaning and Care

Fitting the shelf support rails

1 When inserting the rails, make sure that the re-

taining pins on the telescopic runners are
pointing to the front.

To install, first reattach the rails at the back,
then put them into position at the front and
press them into place.

Cleaning and Care34

Cleaning the oven shelf runner

Clean oven shelf runners with hot water and washing up liquid.

1 Important: The oven shelf runners cannot be cleaned in the dishwasher.
1 Important: Do not use any aggressive or scouring cleaning agents, spray oven

cleaners, steel soap pads or hard objects such as knives or sharp-edged scrapers.
These destroy the coating.

1 Important: On no account grease telescopic runners.

Oven lighting

1 Warning: There is a danger of electric shock! Prior to changing the oven light bulb:

– Switch off the oven!
– Remove the fuses in the fuse box or switch off the circuit breaker.

3 Place a cloth on the oven floor to protect the oven light and glass cover.

Replacing the oven light bulb/cleaning the
glass cover

1. Remove the glass cover by turning it anti-

clockwise and then clean it.

2. If necessary:

Replace bulb with a 40 watt, 230 V, 300 °C
heat-resistant oven light bulb.

3. Refit the glass cover.

Oven Ceiling

The upper heating element can be folded down to make it easier to clean the oven ceil­ing.

Folding down the heating element

1 Warning: Only fold down the heating element

when the oven is switched off and there is no
risk of being burnt!

1. Remove the side shelf support rails.

2. Grip the heating element at the front and pull

it forwards and out over the support lug on the
inner wall of the oven.

3. The heating element will now fold down.

1 Caution: Do not use force to press the heating

element down! The heating element might
break.

Cleaning the oven ceiling

35Cleaning and Care

Repositioning the heating element

1. Move the heating element back up towards the

oven ceiling.

2. Pull the heating element forwards against the
spring pressure and guide it over the oven sup­port lug.

3. Settle it onto the support.

4. Insert shelf support rail.

1 Important: The heating element must be posi-

tioned correctly and securely on both sides
above the support lug on the inner wall of the
oven.

Cleaning and Care36

Oven door

For easier cleaning of the oven interior the oven door of your appliance can be taken off
its hinges.

Removing the oven door from its hinges

1. Open the oven door as far as it will go.

2. Undo the clamping levers (A) on both door
hinges fully.

3. Close the oven door as far as the first position

(approx. 45°).

4. Take hold of the oven door with a hand on each
side and pull it away from the oven at an up­wards angle (Take care: It is heavy)

3 Lay the oven door with the outer side facing

downwards on something soft and level, for ex­ample, a blanket in order to prevent scratches.

Hanging the oven door back on its hinges

1. From the handle side take hold of the oven

door with a hand on each side and hold at an
angle of approx. 45°.
Position the recesses on the bottom of the oven
door on the hinges on the oven.
Let the door slide down as far as it will go.

2. Open the oven door as far as it will go.

3. Fold up the clamping levers (A) on both door

hinges back into their original positions.

37Cleaning and Care

4. Close the oven door.

Cleaning and Care38

Oven door glass

The oven door is fitted with three panels of glass mounted one behind the other.The in­ner panels can be removed for cleaning.

1 Important! Rough handling, especially around the edges of the front panel, can cause

the glass to break.

Removing the door glass panels

1. Open the oven door as far as it will go.

2. Undo the clamping levers (A) on both door
hinges fully

3. Close the oven door as far as the first position

(approx. 45°).

4. Take hold of the door trim(B) on the upper
edge of the door at both sides and press in­wards to release the clip seal. Then remove the
door trim by pulling it upwards.

5. Take hold of the door glass panels on their up­per edge one after the other and take them out
of the guide by pulling them upwards..

Cleaning the door glass panels

Clean the door glass panels thoroughly with a solution of water and washing up liquid.
Then dry them carefully

Putting the door glass panels back.

1. From above insert the door glass panels at an

angle into the door profile at the bottom edge
of the door one after the other and lower them.

3 Insert the smaller panel first, then the larger

panel.

39Cleaning and Care

2. Take hold of the door trim (B) at each side, po­sition it on the inside edge of the door and plug
the door trim (B) into the upper edge of the
door

Cleaning and Care40

3 On the open side of the door trim (B) there is a

guide bar (C). This must be pushed between the
outer door panel and the guide corner (D).
The clip seal (E) must be snapped in.

3. Open the oven door as far as it will go.

4. Fold up the clamping levers (A) on both door

hinges back into their original positions

5. Close the oven door.

41What to do if …

What to do if …

Problem Possible cause Remedy

The oven does not heat up The oven is not switched on Switch the oven on

The clock is not set Set the current time on the clock

The required settings have
not been set

The house wiring fuse (in
the fuse box) has tripped

The oven lighting is not oper­ating

If you are unable to remedy the problem by following the above suggestions,
please contact your local Service Force Centre.

The oven light bulb is faulty Replace the oven bulb

Check the settings

Check the fuse
If the fuses trip several times,
please call a qualified electrician

1 Warning! Repairs to the appliance are only to be carried out by qualified service engi-

neers. Considerable danger to the user may result from improper repairs.

3 If the appliance has been operated incorrectly, the engineer's visit will be chargeable,

even during the warranty period.

3 Advice on cookers with metal fronts:

Because of the cold surface at the front of the cooker, opening the oven door during (or
just after) baking or roasting may cause the glass to steam up.

Disposal

2 Packaging material

The packaging materials are environmentally friendly and can be recycled. The plastic
components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the pack­aging materials in the appropriate container at the community waste disposal facilities.

2 Old appliance

The symbol
be treated as household waste. Instead it shall be handed over to the applicable collec­tion point for the recycling of electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent potential negative consequences
for the environment and human health, which could otherwise be caused by inappropri­ate waste handling of this product. For more detailed information about recycling of
this product, please contact your local city office, your household waste disposal service
or the shop where you purchased the product.

W on the product or on its packaging indicates that this product may not

1 Warning: So that the old appliance can no longer cause any danger, make it unusable

before disposing of it.

To do this, disconnect the appliance from the mains supply and remove the
mains cable from the appliance.

Installation Instructions42

Installation Instructions

1 Attention: The new appliance may only be installed and connected by a registered ex-

pert.
Please comply with this. If you do not, any damage resulting is not covered by the war­ranty.

1 Safety information for the installer

• The electrical installation is to be set up so that the appliance can be isolated from the

mains with a minimum 3mm all-pole contact separation.
Suitable separation devices include e.g. cut-outs, fuses (screw fuses are to be taken
out of the holder), RCD’s and contactors.

• Anti-shock protection must be provided by the installation.

• The built-in unit must meet the stability requirements of DIN 68930.

• Built-in ovens and built-in cooking surfaces are fitted with special connection sys-

tems. For safety reasons, they must only be combined with appliances from the same
manufacturer.

43Installation Instructions

Installation Instructions44

Guarantee/Customer Service

European Guarantee

This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user manual, for
the period specified in the appliance guarantee or otherwise by law. If you move from one of these coun­tries to another of the countries listed below the appliance guarantee will move with you subject to the fol­lowing qualifications:

The appliance guarantee starts from the date you first purchased the appliance which will be evidenced

•

by production of a valid purchase document issued by the seller of the appliance.
The appliance guarantee is for the same period and to the same extent for labour and parts as exists in

•

your new country of residence for this particular model or range of appliances.
The appliance guarantee is personal to the original purchaser of the appliance and cannot be transferred

•

to another user.
The appliance is installed and used in accordance with instructions issued by Electrolux and is only used

•

within the home, i.e. is not used for commercial purposes.
The appliance is installed in accordance with all relevant regulations in force within your new country of

•

residence.

The provisions of this European Guarantee do not affect any of the rights granted to you by law.

www.electrolux.com

p t b

Albania [phone] Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/

Belgien
Èeská republika [phone] Budìjovická 3, Praha 4, 140 21
Danmark [phone] Sjællandsgade 2, 7000 Fredericia
Deutschland [phone] Fürther Straße 246, 90429 Nürnberg
Eesti [phone] Mustamäe tee 24, 10621 Tallinn

España [phone]

France www.electrolux.fr

Great Britain [phone]

Hellas [phone] Limnou Str., 54627 Thessaloniki
Hrvatska [phone] Slavonska avenija 3, 10000 Zagreb
Ireland [phone] Long Mile Road Dublin 12
Italia [phone] C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Latvija [phone] Kr. Barona iela 130/2, LV-1012, Riga
Lithuania [phone] Žirmūnų 67, LT-09001 Vilnius
Luxembourg [phone] Rue de Bitbourg, 7, L-1273 Hamm

Magyarország [phone]

Nederland [phone]

[phone] Bergensesteenweg 719, 1502 Lembeek

Carretera M-300, Km. 29,900
Alcalá de Henares Madrid

Addington Way, Luton, Bedfordshire
LU4 9QQ

H-1142 Budapest XIV,
Erzsébet királyné útja 87

Vennootsweg 1, 2404 CG ­Alphen aan den Rijn

45Guarantee/Customer Service

Guarantee/Customer Service46

p t b

Norge [phone] Risløkkvn. 2 , 0508 Oslo
Österreich [phone] Herziggasse 9, 1230 Wien
Polska [phone] ul. Kolejowa 5/7, Warszawa

Portugal [phone]

Romania [phone] Str. Garii Progresului 2, S4, 040671 RO
Schweiz/Suisse/

Svizzera

Slovenija [phone]

Slovensko [phone]

Suomi www.electrolux.fi

Sverige [phone]

T¸rkiye [phone]

Россия [phone]

Óêðà¿íà [phone]

[phone] Industriestrasse 10, CH-5506 Mägenwil

Quinta da Fonte - Edificio Gonçalves Zarco

- Q 35
2774 - 518 Paço de Arcos

Electrolux Ljubljana d.o.o.
Gerbièeva 98, 1000 Ljubljana

Electrolux Slovakia s.r.o., Electrolux
Domáce spotrebièe SK, Seberíniho 1, 821
03 Bratislava

Electrolux Service, S:t Göransgatan 143,
S-105 45 Stockholm

Tarlaba″ caddesi no : 35 Taksim
Istanbul

129090 Москва, Олимпийский проспект, 16,
БЦ „Олимпик“

04074 Ки¿в, вул.Автозаводська,
2a, БЦ „Алкон“

Service

In the event of technical faults, please first check whether you can remedy the problem
yourself with the help of the operating instructions (section “What to do if…”).

If you were not able to remedy the problem yourself, please contact the Customer Care
Department or one of our service partners.

In order to be able to assist you quickly, we re­quire the following information:

– Model description
– Product number (PNC)
– Serial number (S No.)

– Type of fault
– Any error messages displayed by the appliance

So that you have the necessary reference num­bers from your appliance at hand, we recom­mend that you write them in here:

Model description: ...........................

PNC: ...........................

S No: ...........................

(for numbers see rating plate)

www.electrolux.com

387 997 234-A-180509-01 Subject to change without notice
