Dear customer,
Before placing your new refrigerator/freezer into operation please read these operating instructions carefully. They contain important information for
safe use, for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass them on
to possible new owners of the appliance.
Notes which are important for your safety or for the proper functioning of
the appliance are stressed with a warning triangle and/or with signal words
(Warning!, Caution!, Attention!). Please observe the following carefully.
Supplementary information regarding operation and practical applications
of the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound use of
the appliance are marked with the cloverleaf.
The operating instructions contain instructions for the correction of possible malfunctions by the user in the section "What to do if ...". If these
instructions should not be sufficient, our customer service department is
always available to you.
40
Segurança
A segurança dos nossos aparelhos frigoríficos corresponde aos regulamentos técnicos vigentes e à lei sobre a segurança de aparelhos. Contudo, sentimonos na obrigação de lhe dar a conhecer as seguintes indicações de
segurança:
Utilização conforme às disposições
• O aparelho frigorífico destina-se ao uso doméstico. Ele serve para refrigerar e congelar alimentos e para guardar produtos congelados, bem como
para preparar gelo. Se o aparelho for utilizado para outros fins ou operado incorrectamente, o fabricante não assume qualquer responsabilidade
pelos danos eventuais.
• Não é permitido efectuar remodelações ou alterações no aparelho frigorífico, por razões de segurança.
• Se utilizar o aparelho frigorífico para fins comerciais ou para outros fins
além da refrigeração e congelação de alimentos e do armazenamento de
produtos congelados, é favor observar as prescrições legais vigentes na
sua zona.
Antes da primeira colocação em funcionamento
• Verifique se o aparelho frigorífico apresenta danos de transporte. Não
colocar, de modo algum, aparelhos danificados em funcionamento! Em
caso de danos, é favor dirigir-se aos fornecedores.
Agente de refrigeração
O aparelho contém, no circuito de refrigeração, o agente de refrigeração
isobutano (R600a), um gás natural altamente compatível com o meio
ambiente, mas que é, contudo, inflamável.
• Ao transportar e instalar o aparelho, preste atenção para que nenhuma
das peças do circuito de refrigeração seja danificada.
• Se o circuito de refrigeração for danificado:
– É indispensável evitar fogo aberto e fontes de inflamação;
– Arejar bem o compartimento em que se encontra o aparelho.
Segurança das crianças
• Os elementos de embalagem (p. ex. folhas, esferovite) podem ser peri-
gosos para as crianças. Perigo de asfixia! Manter os materiais de embalagem fora do alcance das crianças!
• Antes da remoção de aparelhos usados sem conserto, é favor inutilizá los.
22
Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Appliance Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Disposal of old Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Remove transport safeguard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Your appliance needs air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Rear spacers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Rehingeing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Prior to Initial Start–Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Operating and indicator panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Starting up and temperature regulation . . . . . . . . . . . . . . . . . . . . .30
Freezing and storing frozen food . . . . . . . . . . . . . . . . . . . . . . . . . .32
Preparation of Ice Cubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Ice Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Switching off the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
What to do if . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Correcting Malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Regulation, Standard and Guidesline . . . . . . . . . . . . . . . . . . . . . . . .37
39
Indice
Segurança . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Remoção de materiais . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Informações sobre a embalagem do aparelho . . . . . . . . . . . . . . . . . . . 42
Remoção de aparelhos usados . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Remoção da proteção de transporte . . . . . . . . . . . . . . . . . . . . . . . . 43
Instalação . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Local de instalção . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Colocaçao . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Espaçadores posteriores . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Reversibilidade das portas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Ligação elétrica . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Antes de colocar o aparelho em funcionamento . . . . . . . . . . . . . .46
Painel de comando . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Colocação do congelador em funcionamento . . . . . . . . . . . . . . . . .47
Congelar e armazenamento de produtos congelados . . . . . . . . . . .50
Massa eutéctica . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Calendàrio de congelamento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Preparação de cubos de gelo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Descongelar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Descrição do aparelho . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Limpeza e conservação . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Conselhos pràticos para poupar energia . . . . . . . . . . . . . . . . . . . . .53
O que fazer, se... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Soluções para a eliminaça o de falhas . . . . . . . . . . . . . . . . . . . . . . . . . .53
Serviço de assistência técnica . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Prescrições, normas, directivas . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
23
Safety
The safety aspects of our refrigerators/freezers comply with accepted technical standards and the German Appliance Safety Law. Nevertheless, we
consider it our obligation to make you aware of the following safety information:
Intended use
• The refrigerator is intended for use in the home. It is suitable for the free-
zing and storing of frozen food, as well as for making ice. If the appliance is used for purposes other than those intended or used incorrectly, no
liability can be accepted by the manufacturer for any damage that may
be caused.
• Alterations or changes to the freezer are not permitted for reasons of
safety.
• If you use theappliance in a commercial application or forpurposes other
than the freezing or frozen storage of foods,please observe all valid legal
regulations for your application.
Prior to initial start–up
• Check the appliance for transport damage. Under no circumstance should
a damaged appliance be plugged in! In the event of damage, please contact
the vendor.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant circuit
of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that
none of the components of the refrigerant circuit become damaged.
• If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition;
– thoroughly ventilate the room in which the appliance is situated.
Safety of children
• Packaging (e.g. wraps, polystyrene) can be dangerous for children. There is
a risk of suffocation! Keep packaging material away from children!
• Please make old appliances unusable prior to disposal. Pull out the mains
plug, cut off the mains cable, break or remove spring or boltcatches, if fitted. By doing this you ensure that children cannot lock themselves in the
38
Cara cliente, caro cliente
Antes de colocar o seu novo aparelho frigorífico em funcionamento, leia,
por favor, atentamente estas instruções de utilização. Elas incluem informações importantes sobre a utilização segura, a instalação e a conservação
do aparelho.
Guarde, por favor, as instruções de utilização para uma consulta posterior.
Entregue-as aos eventuais proprietários posteriores do aparelho.
O triângulo de sinalização e/ou as palavras de advertência (Aviso!, Cuidado!,
Atenção!) destacam as indicações importantes para a sua segurança ou
para o funcionamento do aparelho. Observar impreterivelmente.
Este símbolo significa que, em seguida, irá obter informações suplementares sobre a operação e utilização prática do aparelho.
A folha de trevo assinala conselhos e indicações para que o aparelho possa
ser utilizado de forma económica e não prejudicial ao meio ambiente.
As instruções de utilização fornecem-lhe indicações para a eliminação de
falhas eventuais, ver capítulo "O que fazer, se...". Se estas indicações não
forem suficientes, o nosso serviço de assistência técnica está sempre ao seu
dispor.
24
fridge when playing (there is risk of suffocation!)or get themselves into
other dangerous situations.
• Often children cannot recognise the hazards present in household
appliances. It is therefore important that you ensure adequate supervision
and never let children play with the appliance!
Daily Operation
• Containers with flammable gases or liquids can leak at low temperatures.
There is a risk of an explosion! Do not store any containers with flammable materials such as, for example, spray cans, fire extinguisher refill cartridges etc in the refrigerator/freezer.
• Bottles and cans must not be placed in the freezer compartment. They can
burst when the contents freeze, high carbonate content drinks can even
explode! Never store lemonade, juices, beer, wine, sparkling wine etc. in
the freezer compartment. Exception: high alcohol content spirits can be
stored in the freezer compartment.
• Do not put ice creams or ice cubes in the mouth immediately after removal from the freezer compartment. Very cold ice can freeze to the lips or
tongue and cause injury.
• Do not touch frozen food with wet hands. Your hands could freeze to the
food.
• Do not operate any electrical appliances in the refrigerator/freezer (e.g.
electric ice cream makers, mixers etc.).
• Before cleaning the appliance, always switch off the appliance and unplug
it, or pull the house fuse or switch off the circuit breaker.
• When unplugging always pull the plug from the mains socket, do not pull
on the cable.
In case of malfunction
• If the a malfunction occurs on the appliance, please look first in the "What
to do if ..." section of these instructions. If the information given there
does not help, please do not perform any further repairs yourself.
• Refrigerators/freezers may only be repaired by qualified service engineers.
Improper repairs can give rise to significant hazards. If your appliance
needs repairing, please contact your specialist dealer or our Customer Service.
37
Malfunction Possible Cause Remedy
Heavy build up of frost, possibly also on the door seal.
Door seal is not air tight (possibly after changing over the
hinges).
Carefully warm the leaking
sections of the door seal with
a hair dryer (not hotter than
approx. 50 °C). At the same
time shape the warmed door
seal by hand such that it sits
correctly.
Unusual noises.
The appliance is touching the
wall or other objects.
Appliance is not level.
A component, e.g. a pipe, on
the rear of the appliance is
touching another part of the
appliance or the wall.
The compressor starts after a
period of time.
This is normal, no error has
occurred.
The compressor does not start
immediately after changing
the temperature setting.
If necessary, carefully bend
the component out of the
way.
Move the appliance slightly.
Readjust the feet.
Regulations, Standards, Guidelines
This appliance was designed for household use and was manufactured in
accordance with the appropriate standards. The necessary measures in
accordance with appliance safety legislation regulations (GSG), accident
prevention regulations for refrigeration appliances (VBG 20) and the regulations of the German Society of Electrical Engineers (VDE) were observed in
the manufacture of this appliance.
The refrigerant circuit has been checked for leaks.
This appliance is in accordance with the following EU guidelines:
– 73/23/EWG dated 19 February 1973 - low voltage guidelines.
– 89/336/EWG dated 3 May 1989
(including guideline change notice 92/31/EWG) - EMV guideline
25
Disposal
Appliance Packaging Information
All materials are environmentally sound! They can be dumped or burned at
an incinerating plant without danger!
About the materials: The plastics can be recycled and are identified as follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the interior.
>PS< for polystyrene foam, e.g. the pads, which are all free of chlorofluo-
rocarbon.
The carton parts are made from recycled paper and should be disposed of
at a waste-paper recycling collection location.
Disposal of old Appliances
For environmental reasons, refrigeration appliances must be disposed of
properly. This applies to your old appliance, and - at the end of its service
life - for your new appliance as well.
Warning! Before disposing of old appliances make them inoperable. Remove plug from mains, sever the power cable, remove or destroy any snap or
latch closures. This eliminates the danger that playing children lock themselves into the appliance (danger of suffocation!) or place themselves into
other life-endangering situations.
Disposal:
• The appliance may not be disposed of with domestic waste or bulky refuse.
• The refrigerant circuit, especially the heat exchanger at the back of the
appliance, may not be damaged.
• The symbol on the product or on its packaging indicates that
this product may not be treated as household waste. Instead it shall
be handed over to the applicable collection point for the recycling
of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal
service or the shop where you purchased the product.
36
What to do if ...
Correcting Malfunctions
A malfunction may be caused by only a minor fault that you can rectify
yourself using the following instructions. Do not perform any other work on
the appliance if the following information does not provide assistance in
your specific case.
Warning! Repairs to refrigerators/freezers may only be performed by qualified service engineers. Improper repairs can give rise to significant hazards
for the user. If your appliance needs repairing, please contact your specialist dealer or our Customer Service.
Malfunction Possible Cause Remedy
Appliance does not work, no
pilot light is illuminated.
Appliance is not switched on Switch on the appliance.
Mains plug is not plugged in
or is loose.
Insert mains plug.
Fuse has blown or is defective.
Check fuse, replace if necessary.
Socket is defective.
Mains malfunctions are to be
corrected by an electrician.
The freezer temperature is not
sufficient, red light lights up,
temperature signal sounds
The appliance is near a heat
source.
Temperature is not properly
adjusted.
Please look in the "Initial Start
Up" section.
Press the FROSTMATICbutton
Door was open for an extended period.
Please look in the "Installation
location" section.
Disturbance on the appliance
Switch on the FROSTMATIC
button, keep the freezer closed, inform your customer service
A large quantity of warm food
was placed in the appliance
within the last 24 hours.
Open the door only as long as
necessary. Press the FROSTMATIC button
Green light does not light up,
yellow light lights up when
fast freeze fuction is activated, appliance is on.
Green light faulty.
Please inform your customer
service
Appliance cools too much. Temperature is set too cold.
Turn the temperature regulator to a warmer setting temporarily.
Yellow light does not light up,
when fast freeze fuction is
activated, appliance is on.
Yellow light faulty.
Please inform your customer
service
26
If installation next to a source of heat is unavoidable, the following minimum clearances must be maintained at the sides of the appliance:
– for electric cookers 3 cm;
– for oil and coal fired ranges 30 cm.
If these clearances cannot be maintained a heat insulating pad is required
between the cooker and the refrigeration appliance.
If the refrigeration appliance is installed next to another refrigerator or free-
zer a clearance of 5 cm at the sides is required, in order to prevent the formation of condensation on the outside of the appliance.
Installation
Installation Location
The appliance should be set up in a well ventilated, dry room.
Energy use is affected by the ambient temperature. The appliance should
therefore
– not be exposed to direct sunlight;
– not be installed next to radiators, cookers or other sources of heat;
– only be installed at a location whose ambient temperature corresponds to
the climate classification, for which the appliance is designed.
The climate classification can be found on the serial plate, which is located
at the left on the inside of the appliance.
The following table shows which ambient temperature is correct for each
climate classification: each climate classification:
Climate classification for an ambient temperature of
SN +10 bis +32 °C
N +16 bis +32 °C
ST +18 bis +38 °C
T +18 bis +43 °C
Remove transport safeguard
The appliance and the interior fittings are protected for transport.
• Pull off the adhesive tape on the left and right side of the door.
• Remove all adhesive tape and packing pieces from the interior of the
appliance.
35
Switching off the appliance
If the appliance is not going to be used for an extended period:
1. Remove all deep-frozen packages as well as ice trays.
2. Switch off the appliance by holding down the ON/OFF button.
3. Remove the mains plug or switch off or turn out the circuit breaker or fuse.
4. Clean thoroughly (see section: “Cleaning and Care”).
5. Leave the door open to avoid the build up of odours.
Energy Saving Tips
• Do not install the appliance near cookers, radiators or other sources of
warmth. High ambient temperatures cause longer, more frequent operation of the compressor.
• Ensure sufficient air circulation and exhaust at the appliance base and at
the back wall of the appliance. Never cover air vent openings.
• Do not place warm foods into the appliance. Allow warm foods to cool first.
• Only leave door open as long as necessary.
• Do not set temperature any colder than necessary.
• Put frozen food in the fridge to defrost. The cold in the frozen food will
then be used to cool the fridge.
• Keep the heat emitting condenser, the metall grille on the rear wall of
your appliance, always clean.
27
Your appliance needs air
For safety reasons, minimum ventilationmust be as shown Fig.
Attention: keep ventilation openings clear of obstruction;
100 mm10 mm
10 mm
A
B
NP007

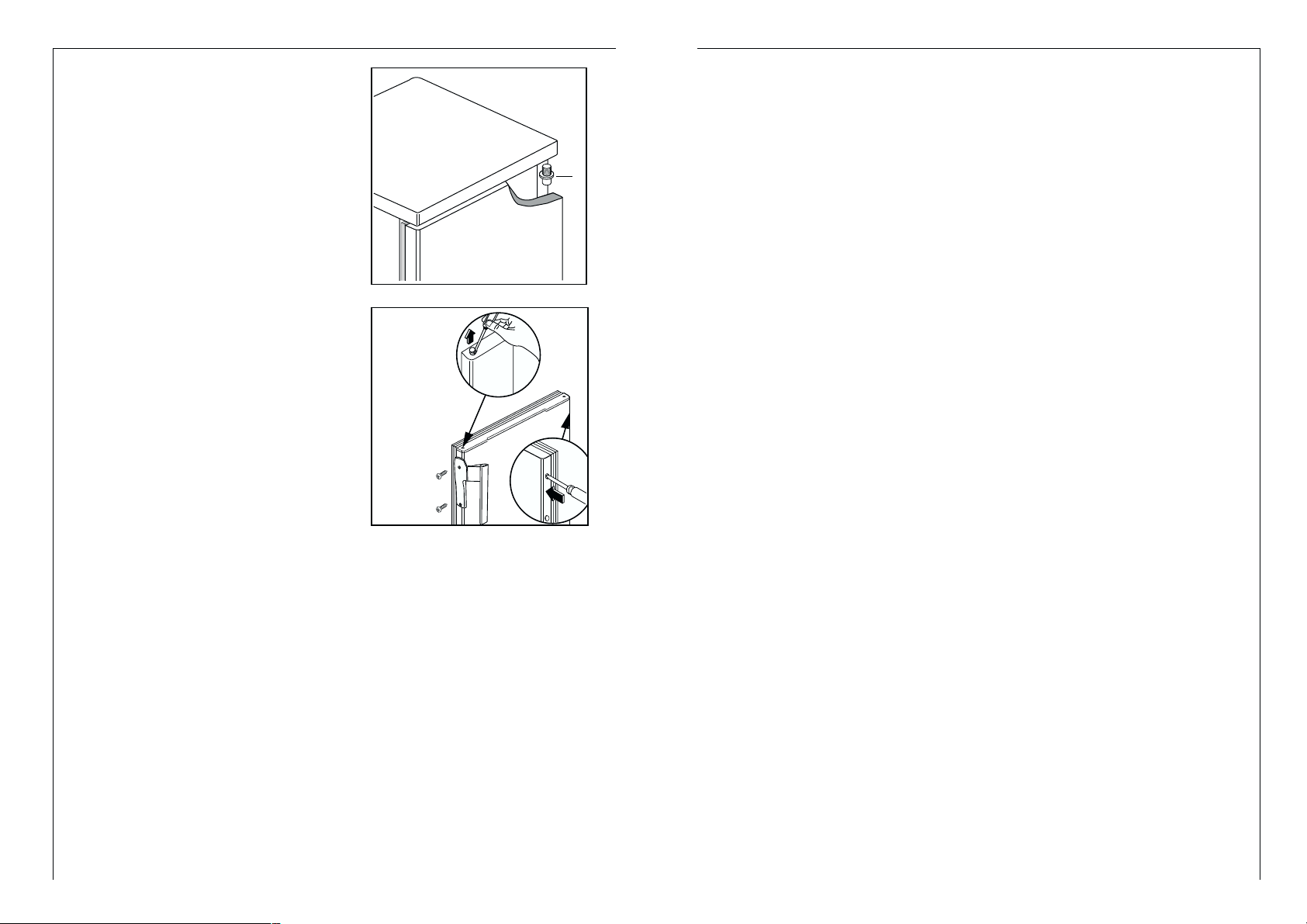

Rehingeing the door
The side at which the door opens can be changed from the right side (factory adjustment) to the left side, if the installation site requires.
Warning! When changing the side at which the door opens, the appliance
may not be connected to the mains. Remove plug from the mains beforehand.
Procced as follow:
1. Remove the clip-in ventilation
grille (D).
2. Remove the bottom hinge (E) by
unscrewing the two fixing
screws.
3. Slide the door off pin (G);
unscrew pin (G) and refit it on
the opposite side.
4. Remove the two plugs, to reveal
the holes for the hinge pivots,
Rear spacers
In the bag with the documentation,
there are two spacers which must be
fitted.
Slacken the screws and insert the
spacer under the screw head, then
re-tighten the screws.
PR153
F
D
PR18
F
F
F
E
E
34
Cleaning and Care
For hygienic reasons the appliance interior, including interior accessories,
should be cleaned regularly.
Warning!
• The appliance may not be connected to the mains during cleaning. Danger
of electrical shock! Before cleaning switch the appliance offand rem ve the
plug from the mains, or switch off or turn out the circuit breaker or fuse.
• Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapours can
lead to the damage of plastic parts.
• The appliance must be dry before it is placed back into service.
Attention!
• Ethereal oils and organic solvents can attack plastic parts, e.g.
– lemon juice or the juice from orange peals;
– butyric acid;
– cleansers which contain acetic acid.
Do not allow such substances to come into contact with appliance parts.
• Do not use any abrasive cleansers.
1. Remove frozen food and the food from the refrigerator. Wrap frozen food
in several layers of newspaper. Store it in a cool place, well covered.
2. Switch the appliance off and remove the plug from the mains, or switch off
or turn out the circuit breaker or fuse.
3. Clean the appliance and the interior accessories with a cloth and lukewarm
water. Commercially available dish washing detergents may also be used.
5. After cleaning wipe with fresh water and rub dry.
Accumulation of dust at the condenser increases energy consumption. For
this reason carefully clean the condenser at the back of the appliance once
a year with a soft brush or a vacuum cleaner.
Do not pull, move or damage any pipes and/or cables inside the cabinet.
28
and remount them on the other
side.
5. Refit the door.
6. Refit bottom hinge (E) on the
opposite side, using the two
screws previously removed.
7. Remove blanking cover (F) from
ventilation grille (D) by pushing it
in the direction of the arrow and
refit it on the opposite side.
8. Refit ventilation grille (D), clipping it into place.
9. Unscrew the handle. Refit it on
opposite side after having pierced
the plugs with a punch. Cover the
holes left open with the plugs
contained in the documentation
pack.
Attention:
After having reversed the opening direction of the doors check
that all the screws are
properly tightened and that the magnetic seal adheres to the cabinet. If the
ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. in that case, wait for the natural fitting of the gasket or
accelerate this process by heating up the part involved with a normal hairdrier.
Electrical connection
Before initial start-up, refer to the appliance rating plate to ascertain if supply voltage and current values correspond with those of the mains at the
installation location.
e.g.: AC 220 ... 240 V 50 Hz or
220 ... 240 V~ 50 Hz
(i.e. 220 to 240 volts alternating current, 50 Hertz)
The rating plate is inside the appliance on the left.
A correctly installed, earthed socket is required for the electrical supply. The
supply must have a fuse rating of at least 10 Amps.
G
33
2. Press the fast freeze button 24 hours before introducing fresh food for freezing of fresh food. The yellow light comes on.
3. Place frozen foods in the drawers sorted by type, as far as possible.
Preparation of Ice Cubes
1. Fill the ice cube tray 3/4 full with cold water, place it in the freezer compartment and leave to freeze.
2. To loosen the frozen cubes, either bend the ice cube tray or hold it under
running water for a few seconds.
Important! Never try to free an ice tray that is frozen to the freezer compartment using pointed or sharp edged objects. Use the ice scraper supplied.
Ice pack
There are two ice packs in one drawer of the freezer.
In the event of a power failure or malfunction, the ice packs will lengthen
the amount of time it takes for the frozen food to become too warm by
several hours. The ice packs can only fulfil this task optimally if it is placed
in the uppermost drawer, at the front, above the frozen food. You can use
the ice packs for cooling cold bags.
Defrosting
Freezer
The inner walls of the freezer are automatically defrosted.
29
If the socket is not accessible once the appliance is built in, the electrical
installation must include suitable means of isolating the appliance from the
mains (e.g. fuse, cut-out, current trip or similar with a minimum contact
separation of 3 mm).
Attention: The mains connection cable may only be replaced by a skilled
electrician. Please contact your dealer or our customer service department
for repairs.
Prior to Initial Start–Up
• Please clean the appliance interior and all accessories prior to initial startup (see section: “Cleaning and Care”).
Operating and indicator panel
A. Mains pilot indicator (green)
B. Freezer button ON/OFF
C. Temperature setting button (+)
D. Temperature display
E. Temperature setting button (-)
F. FROSTMATIC function "on" indicator (yellow)
G. FROSTMATIC button
H. Alarm reset light
I. ALARM OFF button
B
C
E
G
I
A
F
H
D
32
Freezing and storing frozen food
You can use your freezer for freezing fresh food yourself.
Important!
• The temperature in the freezer compartment must be –18 °C or colder
before freezing food.
• Please observe the freezing capacity given on the rating plate. The
freezing capacity is the maximum quantity of fresh food that can be
frozen within a period of 24 hours. If you wish to freeze food several
days in a row, please observe a maximum capacity of only 2/3 to 3/4
of that on the rating plate. The quality of the food is best preserved
when it is frozen right through to the core as quickly as possible.
• Allow warm food to cool down before freezing. The warmth will cause
increased ice formation and increase the power consumption.
• Please note the maximum storage times specified by the manufacturer.
• Thawed foods which have not been processed further (cooked into meals)
may not under any circumstances be frozen a second time.
• Containers with flammable gases or liquids can leak at low temperatures.
There is a risk of an explosion! Do not store any containers with flammable materials such as, for example, spray cans, fire extinguisher refill cartridges etc in the refrigerator/freezer.
• Bottles and cans must not be placed in the freezer. They can burst when
the contents freeze, high carbonate content drinks can even explode!
Never store lemonade, juices, beer, wine, sparkling wine etc. in the freezer. Exception: high alcohol content spirits can be stored in the freezer.
• All foods must be packed air tight
prior to freezing, so that they do
not dry out or lose their flavour,
and so that no flavour contamination of other frozen goods occurs.
Caution! Do not touch frozen food
with wet hands. Your hands could
freeze to the food.
1. Place the packed food in the drawers.
Place food to be frozen As shown in
figure. Unfrozen food must not touch items already frozen, otherwise
the frozen food could begin to
defrost.
10 kg
10 kg
30
Temperature setting buttons
The temperature is adjusted using the „C“ and „E“ buttons. These buttons are
connected to the temperature display.
• The temperature display is switched over from the display of the ACTUAL
temperature (Temperature display is illuminated) to the display of the DESIRED temperature (Temperature display flashes) by pressing one of the two
buttons, „C“ or „E“.
• Each time one of the two buttons is pressed again the DESIRED temperature is adjusted by 1 °C. The DESIRED temperature must be reached within 24
hours.
If neither button is pressed, the temperature display automatically switches
back after a short period (approx. 5 sec.) to the display of the ACTUAL temperature.
DESIRED temperature means:
The temperature that has been selected for inside the freezer. The DESIRED
temperature is indicated by flashing numbers.
ACTUAL temperature means:
The temperature display indicates the current temperature inside the freezer.
The ACTUAL temperature is indicated with illuminated numbers.
Temperature display
The temperature display can indicate several pieces of information.
• During normal operation, the temperature currently present in the freezer
(ACTUAL temperature) is displayed.
• When the temperature is being adjusted a flashing display indicates the
freezer temperature currently set (DESIRED temperature).
Starting Up - Setting the Temperature
1. Plug the mains plug into the mains socket.
2. If the display is OFF, press ON/OFF button. The green mains pilot indicator
illuminates. The alarm light flashes and the buzzer sounds.
3. Press the “I” button to stop the buzzer, the light still flashes since the temperatur is reached.
4. Press either the „C“ or „E“ button. The temperature display switches over and
the DESIRED temperature currently set flashes on the temperature display.
5. Set the required temperature by pressing the „C“ or „E“ buttons (see section
"Temperature setting buttons"). The temperature display will immediately
show the changed setting. Each time the button is pressed the temperature is adjusted by 1 °C.
31
From a food safety point of view -18 °C should be considered sufficiently
cold for storing food in the freezer.
FROSTMATIC
The FROSTMATIC function accelerates the freezing of fresh food and, at
the same time, protects foodstuffs already stored from undesirable warming.
1. The FROSTMATIC function is switched on by pressing the FROSTMATIC
button. The yellow light illuminates.
If the FROSTMATIC function is not ended manually, the appliance electronics switch off the FROSTMATIC function after 52 hours. The yellow light
goes out.
2. The FROSTMATIC function can be ended manually at any time by pressing
the FROSTMATIC button again. The yellow light goes out.
Alarm OFF button
In the event of an abnormal temperature rise inside the freezer (e.g. power
cut) warning light (H) will start to flash and a buzzer will sound.
After the temperature has returned to normal, the warning light (H) will
continue to flash, although the buzzer has stopped.
When the alarm button is pressed, the warmest temperature reached in
the compartment flashes on the indicator.(max. 5 seconds).
To stop the buzzer push the button “I”.
Switching the Appliance off
To switch off, hold down the ON/OFF button for approx. 3 seconds. This
will result in a countdown from "3" to "1" taking place in the temperature display. On reaching "1" the fridge will switch off. The temperature
display will go off.
Note: The appliance cannot be switched on or off if unplugged, or if there is no power being supplied to it. Following connection to the mains
power supply, the appliance returns to the same operating state as before
the interruption of main power.
If the appliance is not going to be used for an extended period:
1. Switch off the appliance, holding down the ON/OFF button until the
display goes off (see above).
2. Remove the mains plug or switch off or turn out the circuit breaker or
fuse.
3. Defrost the freezer compartment and clean the appliance thoroughly (see
section: “Cleaning and Maintenance”).
4. Finally, leave the doors open so as to avoid a build up of odours.
Loading...
