825 D - 8259 D
Dunstabzugshaube
Cooker Hood
Hotte
Afzuigkap
Cappa aspirante
Aporrofhthjra"
Montageund Gebrauchsanweisung Operating and Installation Instructions Notice d’utilisation et d’installation Installatieen gebruiksaanwijzing Istruzioni di montaggio e uso
Odhgije" sujndesh" kai crhjsh"
Gedruckt auf umweltschonend hergestelltem Papier
wer ökologisch denkt, handelt auch so...
2
C o n t ents
Introduction |
20 |
Extractor version |
20 |
Filter version |
21 |
Electrical connections |
22 |
Safety warnings for electrician |
22 |
Technic Details |
23 |
Installation |
24 |
Safety warnings for kitchen unit installer |
24 |
Installation |
26 |

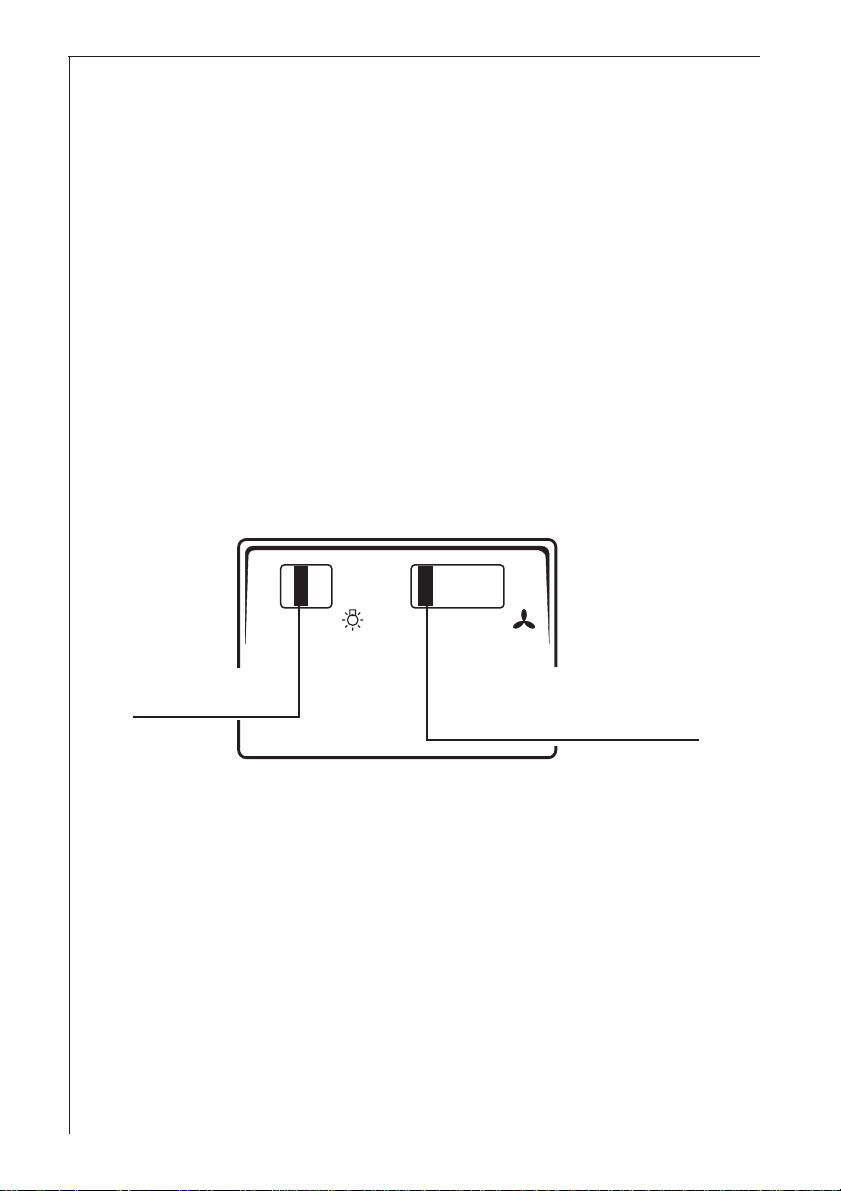

Hood Operation |
28 |
Safety warnings for user |
29 |
Maintenance and care |
30 |
Metal grease filter |
30 |

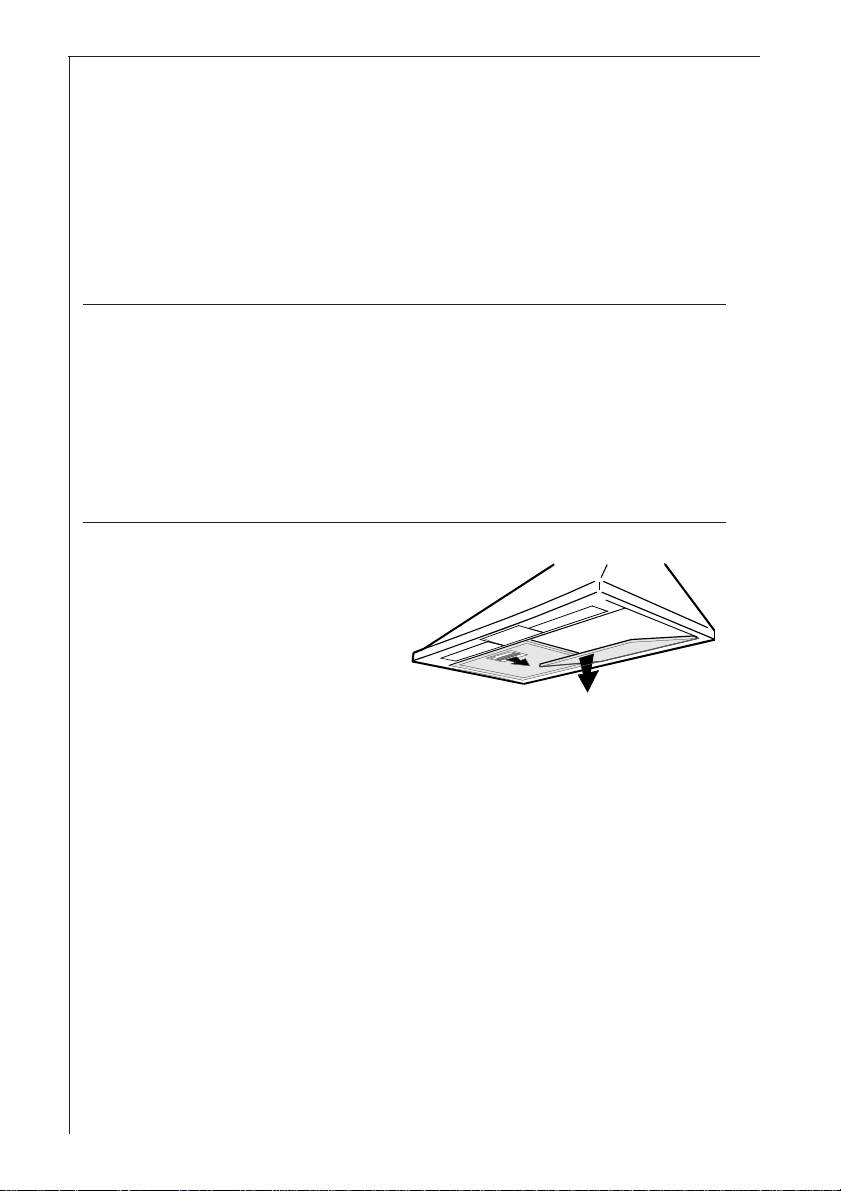

Open the metal grease filter |
30 |

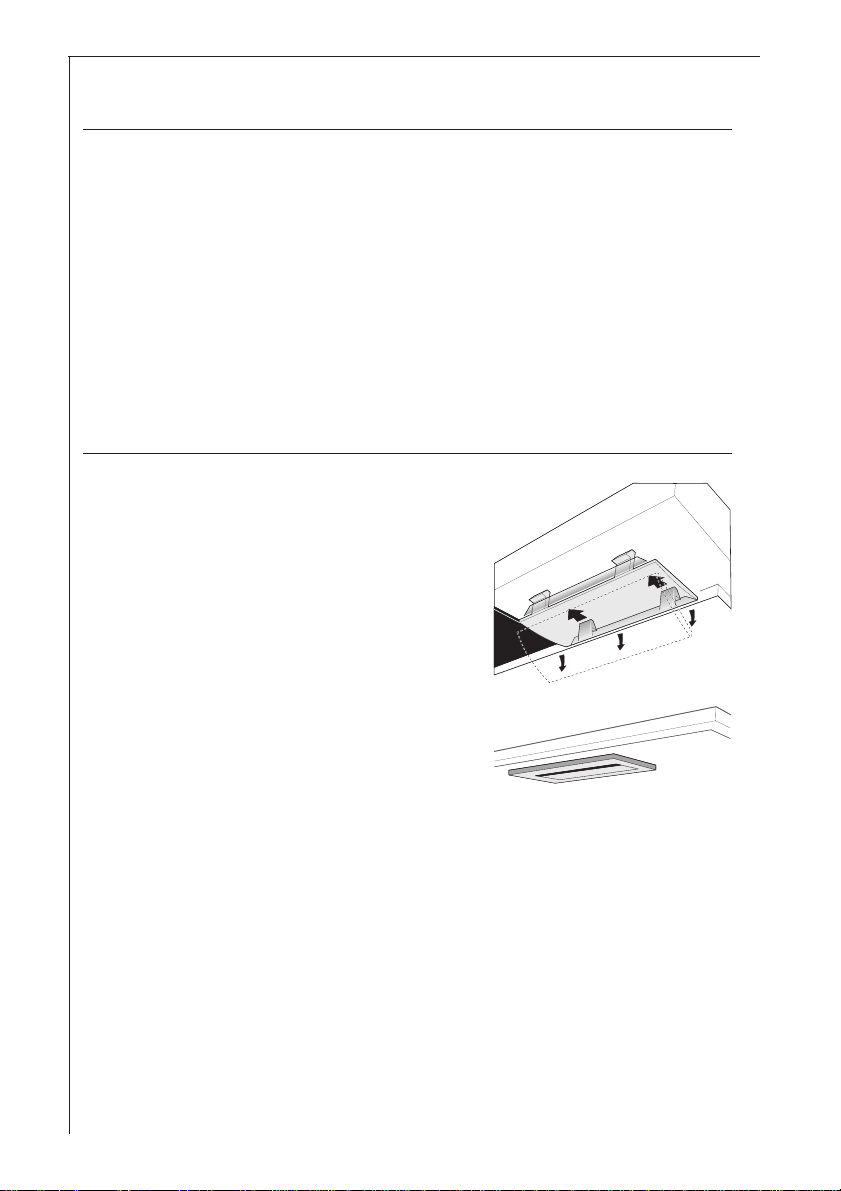

Carbon filter |
31 |
Changing the light bulb |
32 |
Cleaning |
33 |
Special accessories |
33 |
Technical assistance service |
33 |
Printed on recycled paper.
AEG – putting words into action.
18
I n t r o d u c t i o n
Extractor version
●The hood is supplied as an extractor unit and can also be used with a filtering function by fitting activated carbon filters (special accessory).
●You will need original AEG activated carbon filters for this function (see Special Accessories).
●The air is forced out through a hose fitted to the top of the hood
A. Fig. 1.
●The outlet hose must have a diameter of 120 mm (special accessory) for the filtering version.

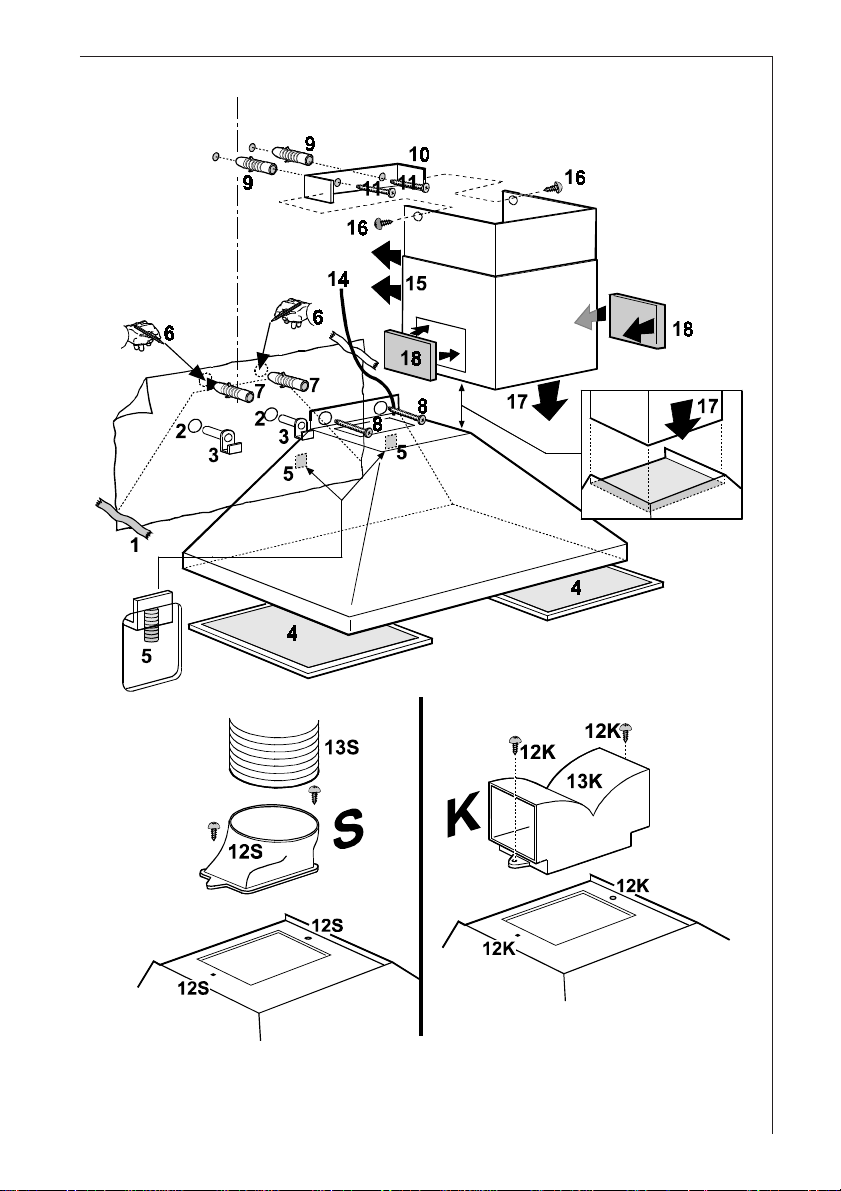

●Fit the connection ring above the hood with two screws then fir an exhausting pipe long enough to reach the outside. Fig. 1.
A
Fig. 1
●If the cooking vapour is passed through an outside wall, you will need an MKZ telescopic wall pipe (with intake and ventilation) E- Nr.: 610 899 004 (120 mm Ø) from our range of special accessories.
19
Filter version
●The air is filtered through an activated carbon filter and passed back into the kitchen through the top outlet duct grids.
●You will need an original AEG activated carbon filter for the filtering function. (See Special Accessories).
●Fix the deflector with two screws Ø3,5x6,5. Fig. 2.

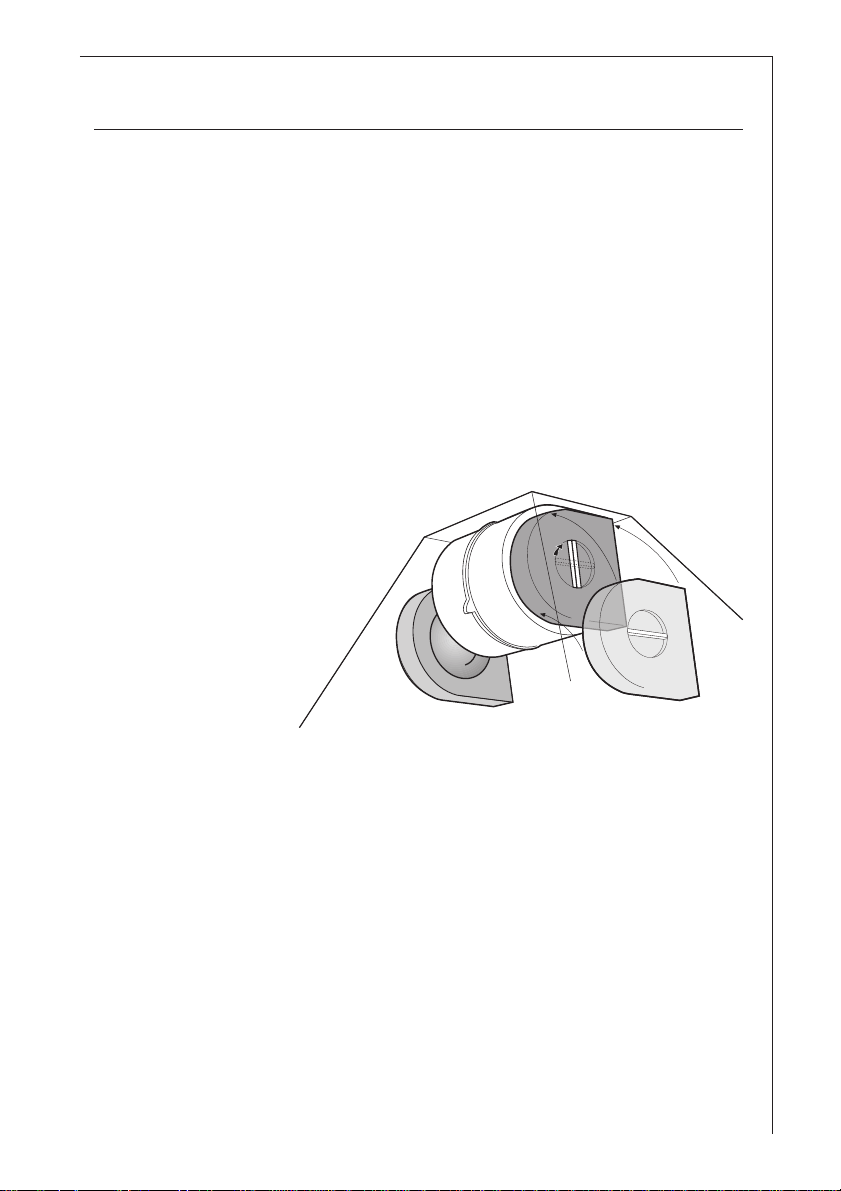

Fig. 2
20
Electrical connections
Safety |
warnings for electrician |
|
|
It must be ensured that the voltage and current indicated on the rating plate agree with the voltage of the user to electricity supply.
Iftheappliancehasbeenequippedwithamainsleadwithamoulded-ontypeplug, the following regulations must be comply with:
The plug moulded on to the lead incorporates a fuse. For replacement, use a 5 amp BS1362 fuse. Only ASTA approved or certified fuses should be used. If the fuse cover/carrier is lost, a replacement cover/carrie must be obtained from an electrical goods retailer. If the socket outlets are not suitable for the plug fitted to the appliance, then the plug must be cut off and destroyed for safety reasons, and an appropriate plug be fitted.
When wiring the plug ensure that all strands of wire are securely retained in each terminal. Do not forget to tighten the mains lead clamp on the plug.
Electrical connections
230 V - using fixed power supply line with plug.
240 V - using fixed power supply line (Great Britain).
Fuse rating 13amps
(The unit should only be connected up by an authorized electrician).
See rating plate for further information.
It is recommended that the socket for the plug is sited above the cooker hood or above the overhead cabinet.
This has 2 advantages:
1)The socket is not visible.
2)The appliance can easily be unplugged when necessary.

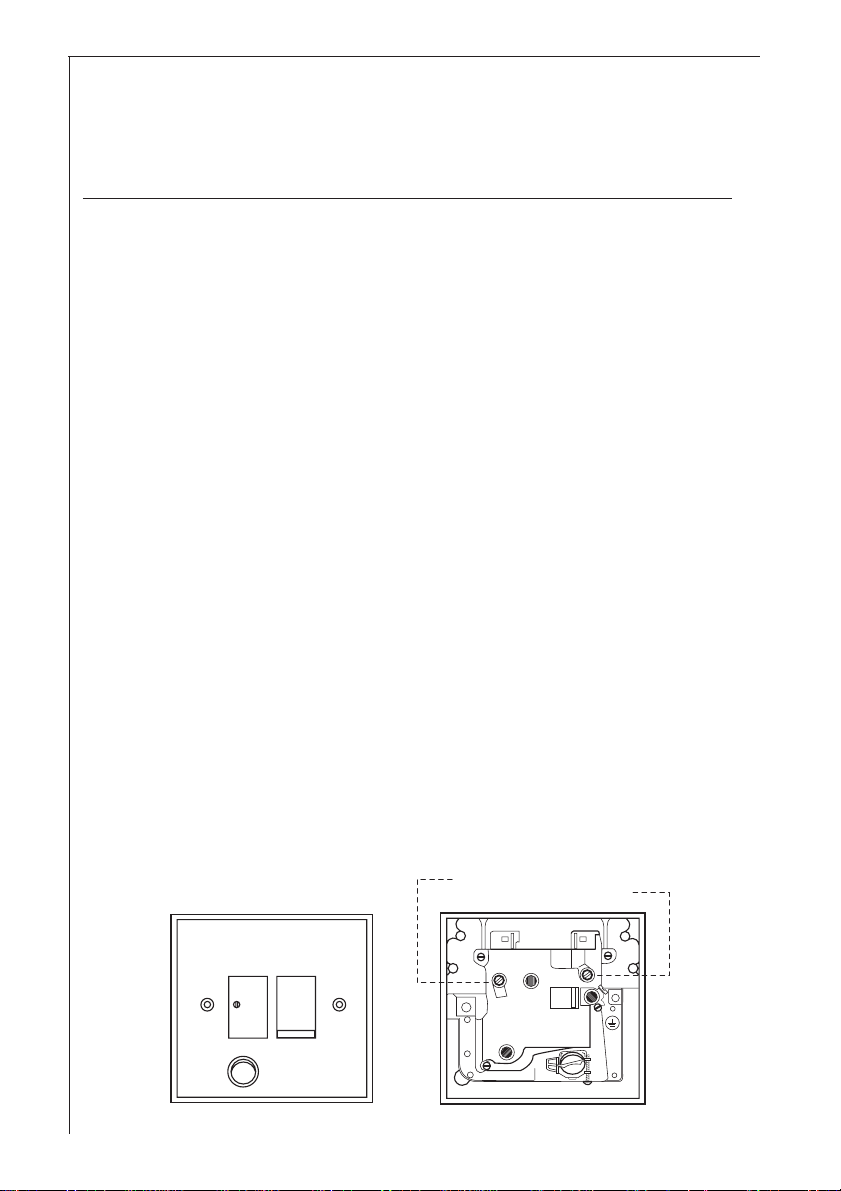

If a fixed connection is required the cooker hood should be connected by an electrical installer registered with a competent electricity company. An isolating device is to be provided on the fixed wiring side. Switches with a contact opening of more than 3mm apply as isolating devices.
These include-automatic cut-out switches, fuses and contactors (VDE 0730, s. 7, Part1).
21
