AEG 8160D-AL-S User Manual

8360 D/8390 D
8391 D
8160 D

Köksfläkt
Ventilator
Liesituuletin
Emhætte
Cooker Hood

Instruktionsbok
Bruksanvisning
Käyttöohje
Brugsvejledning
Operating and Installation Instructions

S Innehållsförteckning .............................................................2

N Innholdsfortegnelse ............................................................16

FIN Sisällysluettelo ..................................................................29

DK Indholdsfortegnelse ............................................................ 42

UK Contents ............................................................................56

Contents

Safety warnings ................................................................................ 55

Description of the cooker hood .......................................................... 5 7

Introduction ....................................................................................... 58

Using the cooker hood - 8160 D ........................................................ 59

Using the cooker hood - 8360 D - 8390 D - 8391 D............................ 60

Maintenance and cleaning................................................................. 61

If the cooker hood will not operate ..................................................... 64

T echnical specifications .................................................................... 65

Installation ........................................................................................ 66

Safety warnings

This appliance is to be used solely as a household appliance. It has
been manufactured according to the international safety and quality
standards. Note that the safety devices alone are not capable of
eliminating all accident risks.
It is therefore very important to carefully read all the operating
instructions, recommendations and warnings prior to installation and
use of the appliance. Note in particular the text paragraphs with the
danger triangle design, to avoid damages to persons or objects.
Keep this instruction booklet in a safe place: this booklet should
always accompany the appliance at such time as it is sold or given to
other persons for use.

Installation and service

• Any electrical installation of the cooker hood must be carried out by
a qualified electrician and the hood itself must be installed by
someone with experience. Installation made by an unqualified
person can lead to loss of function of the cooker hood and possible
damage to person and and/or property .

• The cooker hood must be at least 50 cm above electric hobs or
electric ranges, or at least 65 cm above gas burners or gas ranges.

• Ensure that the power cable is not damaged during installation.

• The cooker hood is only in stand by mode unless the plug or the

fuse is disconnected.

• The cooker hood cannot be connected to flues of other appliances
that run on energy sources other than electricity . Please, keep to the
provisions of official directives regarding fume discharge.

56

Use of cooker hood

• This appliance is for domestic use only in a normal household.

• Never leave any deep-frying, melting fat, paraffin or any other

inflammable liquid unattended on the hob. In the event of fire:
Immediately switch off the cooker hood and the cooker . Note! Cover

the fire. Never use water.

• Never do any flambé cooking underneath the cooker hood. It can
cause a fire. Remember that overheated fat may spontaneously
ignite. Never leave the frying pan unattended.

• It is essential that the grease filter is regularly cleaned to help avoid
fat dripping on to the hot zone and causing a fire. Read the section
on “Maintenance and Cleaning” in the instruction book.

Disposal

• Prevent accidents when disposing of your cooker hood. Disconnect
the power plug from the wall socket and cut the power cord at the
hood inlet.Contact your local authority for information on where to
dispose the cooker hood.

Description of the cooker hood

Functions

There are two possible systems:

• Extraction of air to the outside using an optional venting kit and
evacuation duct.

• Recirculation using an optional charcoal filter.

The air outlet must not be connected to chimney flues or
combustion gas ducts. The air outlet must under no circumstances
be connected to ventilation ducts for rooms in which fuel-burning
appliances are installed.

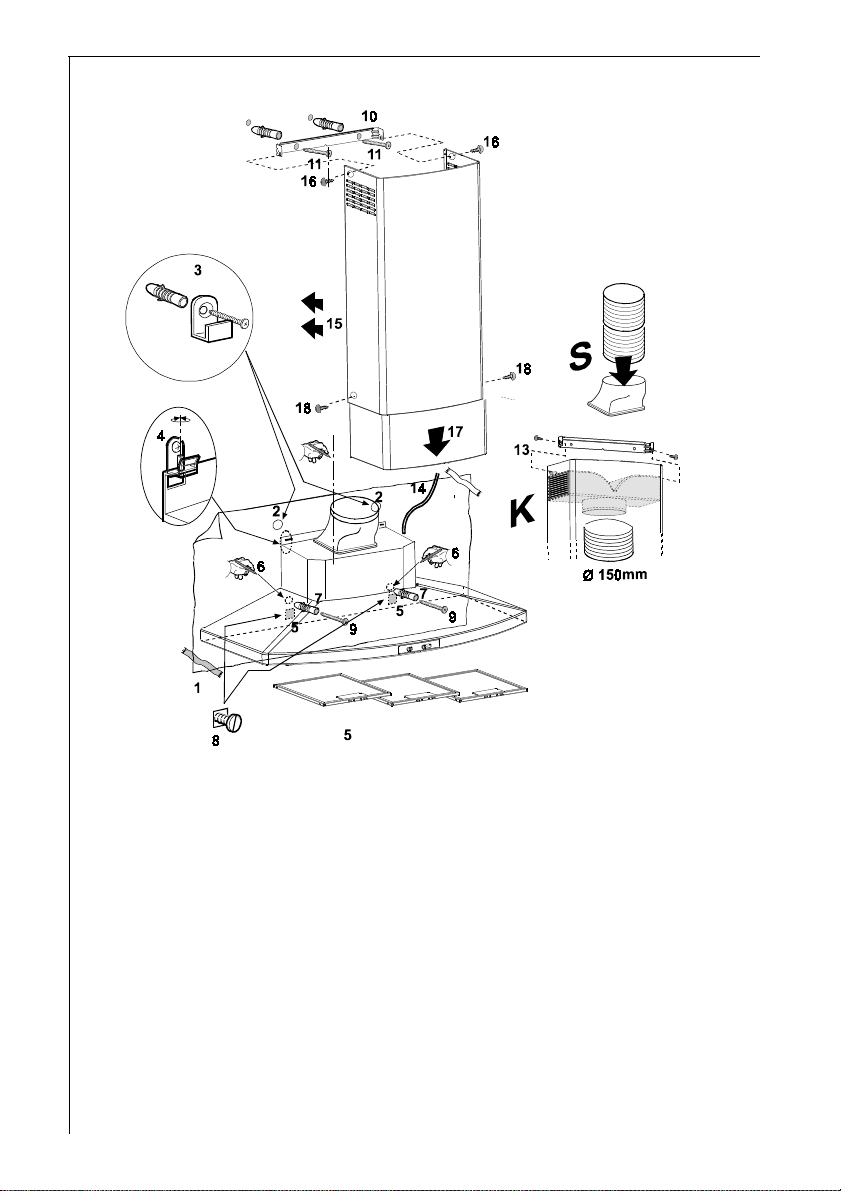

Accessories

The following are included with the cooker hood:

• 2 Tube clamps

• 1 hood canopy complete with controls, lighting and fan motor.

• 1 telescopic chimney stack formed by: U-shaped upper section and

U-shaped lower section.

• 1 recirculation spigot.

• 1 plastic bag containing: 2 wall hooks to fix the canopy hood, 1 wall

bracket to fix the chimney , rawl plugs, screws, and documentation.

The following can be ordered from your retailer:

• Charcoal filter, KF8 (typ 150).
The carbon filter is to be used when the hood is connected to the
recirculation mode.

57

Introduction

Extractor version

• The hood is supplied as an extractor unit and can also be used with
a filtering function by fitting one charcoal filter (special accessory).

• Y ou will need original AEG charcoal filter for this function (see
Special Accessories).

• The air is discharged to the outside through a pipe, which must be
fitted to connection flange A. Fig. 1.

• In order to obtain the best performance the hose should have a
diameter equal to the outlet hole.

Fig. 1

Filter Version

• The air is filtered through an charcoal filter and returned to the
kitchen through the top grill of the outlet pipe.

• Y ou will need an original AEG KF8 charcoal filter for the filtering
function. (See Special Accessories).

• Fix the deflector using 2 screw Ø 2,9x13 mm. Fig. 2.

• Optionally , the position of the chimney elements can be changed.

When using the hood in the filter version the chimney must be fixed
at the top, with the air outlet grill at the side.

58

Fig. 2

Using the cooker hood

The control panel - 8160 D

• The hood is fitted with one motor having several speed. Best results
are obtained by using a low speed for normal conditions and high
speed when odours are more concentrated. Turn the hood on a few
minutes before you start cooking then you will get an underpressure
in the kitchen. It should be left on after cooking for about 15 minutes
or until all odours have disappeared.

The control switches are located on the unit’s front panel:

• the light switch switches the hood lamp on and off.

• the motor switch switches the cooking smoke and vapour extractor

motor on and off, enabling you to select the speed.

Correct ventilation

If the cooker hood is to work correctly there must be an underpressure
in the kitchen. It is important to keep the kitchen windows closed and
have a window in an adjacent room open.

Important to know

Not applicable for recirculation. Great care must be taken if the hood is
used at the same time as a burner or fireplace (e.g. gas, diesel, coal or
wood heaters, water heaters, etc.), as the hood will expel air which is
required by these other appliances. Attend to it by opening a window.
The negative pressure in the room must not exceed 0,04 mbar to
prevent fumes being drawn back into the room by the cooker hood.

59

Control Panel
8360 D - 8390 D - 8391 D

• Best results are obtained by using a low speed for normal conditions
and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking, you will
then get an under pressure in the kitchen. The hood should be left on
after cooking for about 15 minutes or until all the odours have
disappeared. The control switches are located on the unit’s front
panel:

A - Main switch, hood off.

B - Start and choice of motor speed 1-2-3-1-2.........

C - Indicates speed 1 (LED).
D - Indicates speed 2 (LED)
E - Indicates speed 3 (LED)
F - Indicates Intensive speed (LED).
G - Intensive speed on/off. The Intensive speed runs for 5 minutes:

If the hood is on when the Intensive speed is activated, the hood
reverts to previous speed after 5 minutes.
If the hood is off when the Intensive speed is activated, the hood
will be turned off after 5 minutes.
T o interrupt the Intensive speed, press button A or B.

H - Light ON/OFF

Should the hood or the controls fail to operate: disconnect the power
supply for at least 5 seconds, then turn the hood back on again.

60

Maintenance and cleaning

Disconnect the cooker hood from the power supply prior to
cleaning the appliance, either by removing the plug from the mains
or removing the fuse.

Clean the filter regularly . The grease deposits in the filter and
discharge tube are fire hazards where a hotplate (or another heat
source) is left on by error.

Cleaning the hood

Clean the outside of the hood using a damp cloth and a mild detergent.
Never use corrosive, abrasive or flammable cleaning products.

Cleaning the grease filters

Clean the filter every month or every other
month according to how much the hood is
used. The cleaner the filters, the more
grease they collect. T o remove the
filters, Fig. 3:

• First of all, push the stop
on the metal grease filter
back, and then extract the
filter by pulling downward.

The filter is made of
aluminium wires on which the
grease collects. Clean the filter in
hot water using a detergent, or in a dishwasher. Let the filter dry before
putting it back. Note that a dishwasher may discolour the filter.

Fig. 3

Changing and cleaning the charcoal filter

The charcoal filter should only be used if you want to use the hood in
its filtering function. The charcoal filters absorb smells and odours.
Unlike other charcoal filters, the LONGLIFE charcoal filter can be
cleaned and reactivated. At normal use the filter should be cleaned
every second month. The best way to clean the filter is in the
dishwasher. Use normal detergent and choose the highest temperature
(65º C). Wash the filter separately so that no food parts gets stuck on
the filter and later causes bad odours. T o reactivate the charcoal, the
filter should be dried in an oven for 10 minutes with a temperature of
maximum 100º C.

61

After approximately three years of use, the charcoal filter should be
replaced with a new, as the odour reduction capacity will be reduced.

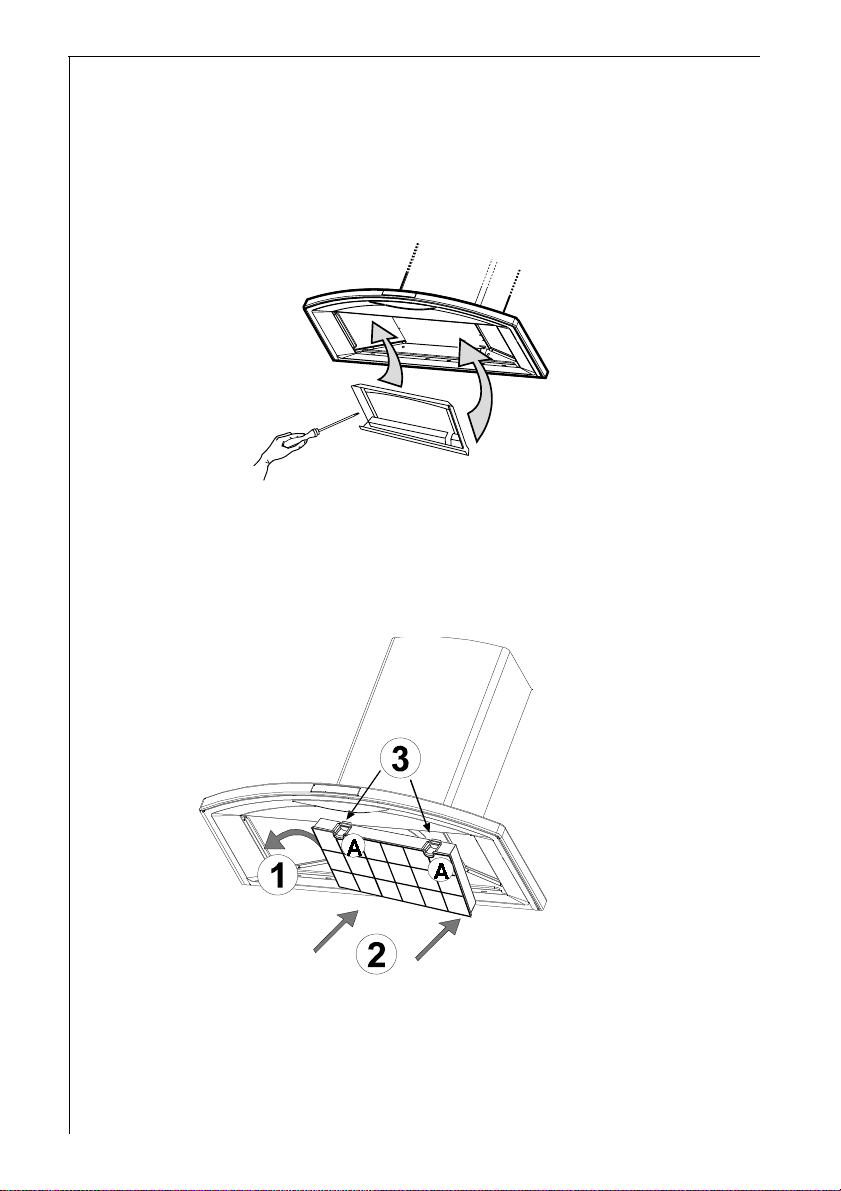

• Mounting

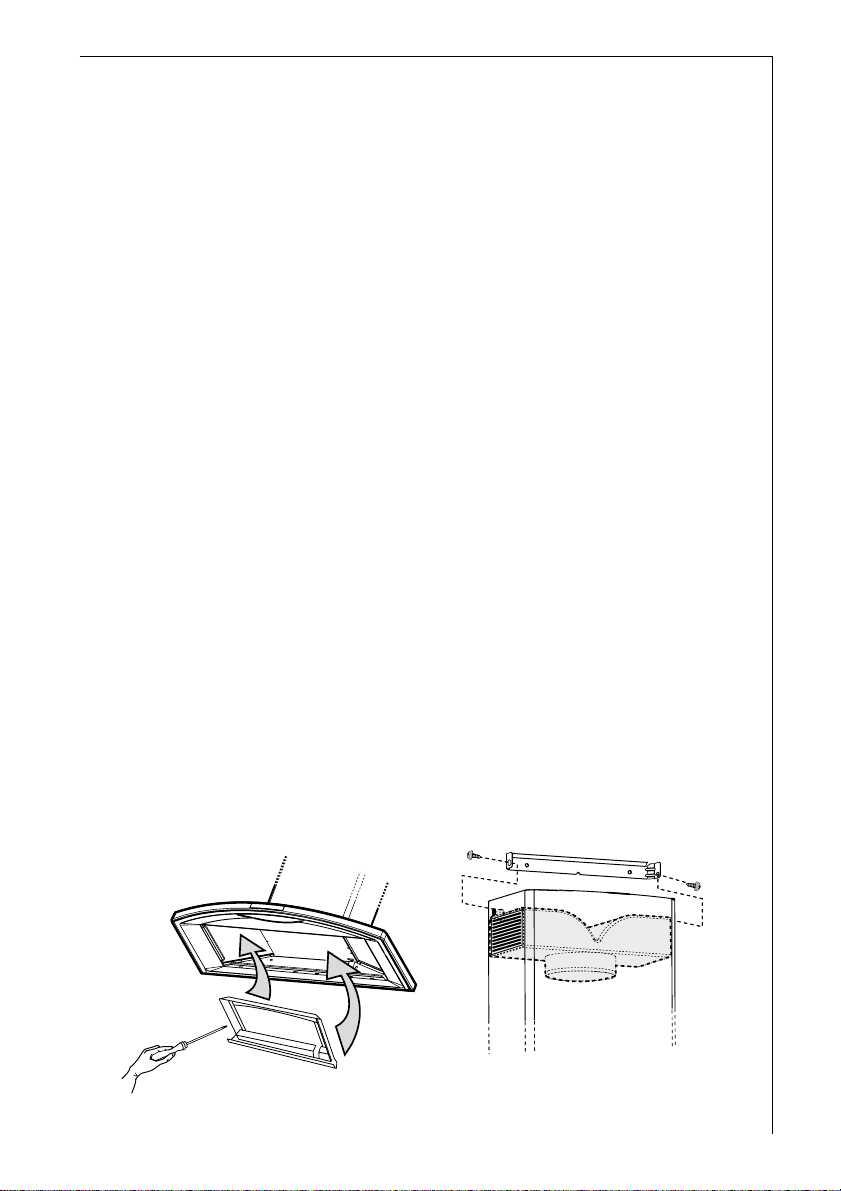

Put the charcoal filter frame in place and fix it with 5 screws. Fig. 4.

Fig. 4

Fit the charcoal filter first from the rear side and fix it frontwards
using the two red keys A. Fig. 5.

Fig. 5

• T o dismount proceed in reverse order.

62

Changing the light bulb - Fig. 6a - 8160 D

3

1

2

1

2

• Disconnect the unit from the mains power supply .

• Remove the the glass diffuser.

• Replace the old bulb with a new one of the same type.

• If the light does not come on, make sure the bulb has been inserted

in correctly before contacting the technical assistance service.

• Refit the glass diffuser .

Changing the light bulb - Fig. 6b

Fig. 6a

8360 D - 8390 D - 8391 D

• Press (1) the lamp cover (2) and open it. Fig. 6.

• Replace the old bulb with a new one of the same type (3).

• Close the lamp cover.

• If the light does not come on, make sure the bulb has been inserted

in correctly before contacting the technical assistance service.

Fig. 6b

63

If the cooker hood will not operate

Check the following prior to calling after sales
service:

• Has a fuse burnt? Check both fuses and replace if necessary .

• Is the power supply plug inserted properly in the power outlet?

• Has the flexible tube been mounted correctly?

• Is the anti-grease filter clean?

• Are the light bulbs intact and soundly fitted?

If the problem persists, contact the sales center , the after sales service
center or an authorized technician. Only use original spare parts.
Under no circumstances carry out modifications to the cooker hood
which may cause harm to persons and/or damage objects.

After sales service and spare parts

It is important to always indicate the appliance product number and
model type when requesting after sales service or ordering spare parts.
This information is indicated on the motor casing label.

Guarantee conditions

Guarantee Conditions

AEG offer the following guarantee to the first purchaser of this appliance.

1. The guarantee is valid for 12 months commencing when the appliance
is handed over to the first retail purchaser, which must be verified by
purchase invoice or similar documentation.The guarantee does not
cover commercial use.

2. The guarantee covers all parts or components which fail due to faulty
workmanship or faulty materials. The guarantee does not cover
appliances where defects or poor performance are due to misuse,
accidental damage, neglect, faulty installation, unauthorised
modification or attempted repair, commercial use or failure to observe
requirements and recommendations set out in the instruction book.This
guarantee does not cover such parts as light bulbs, removable glass­ware or plastic.

3. Should guarantee repairs be necessary the purchaser must inform the
nearest customer service office (manufacturer`s service or authorised
agent). AEG reserves the right to stipulate the place of the repair
(i.e.the customer`s home, place of installation or AEG workshop).

4. The guarantee or free replacement includes both labour and materials.

5. Repairs carried out under guarantee do not extend the guarantee
period for the appliance. Parts removed during guarantee repairs
become the property of AEG.

6. The purchaser`s statutory rights are not affected by this guarantee.

64

European Guarantee

If you should move to another country within Europe then your guarantee
moves with you to your new home subject to the following qualifications:

- The guarantee starts from the date you first purchased your product.

- The guarantee is for the same period and to the same extent for labour
and parts as exist in the new country of use for this brand or range of
products.

- This guarantee relates to you an cannot be transferred to another user.

- Y our new home is within the European Community (EC) or European
Free Trade Area.

- The product is installed and used in accordance with our instructions
and is only used domestically , i.e. a normal household.

- The product is installed taking into account regulations in your new
country .

Before you move please contact your nearest Customer Care Centre, listed
below, to give them details of your new home. They will then ensure that the
local Service Organisation is aware of your move and able to look after you and
your appliances.

France Senlis [phone]
Germany Nürnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]

Technical specifications

Models 8160 D 8360 D 8390 D

8391 D

Size Height 80-135 cm 80-135 cm 80-137 cm

Width 59,8 cm 59,8 cm 89,8 cm

Depth 47 cm 47 cm 48 cm
Light Max 1x11 W Max 2x20W Max 2x20W
Grease filter 2 pcs. 2 pcs. 3 pcs.
Voltage 220-240 V 230 V 230 V
T otal power 170 W 175 W 175 W

65

Special accessories

Charcoal KF8 (typ 150) E-Nr. 942 120 399

Installation

Unpacking

Check that the cooker hood is not damaged. Transportation damages
should immediately be reported to the transport company . Damages,
faults and missing parts should immediately be reported to the retailer.
Dispose carefully of the packaging material so that it is out of the way
of small children.

Position

The cooker hood should be mounted freely hanging on the wall. The
cooker hood must be at least 50 cm above electric hobs or electric
ranges, or at least 65 cm above gas burners or gas ranges.

The cooker hood cannot be connected to flues of other
appliances that run on energy sources other than electricity .
Please, keep to the provisions of official directives regarding fume
discharge.

Electrical connection

The hood has a power cable with earth connection and the rated voltage
is 220/240V (8160 D), 230 V (8360 D - 8390 D - 8391 D).

66

Mounting the cooker hood - Fig. 7-8-9

• Position the template on the wall and mark the position, and drill the

holes (2 x Ø 8 mm).

• Mount the two rawl plugs with the hooks (3).

• Hang the hood on the hooks and level it with the adjustment screws

(4).

• Remove the grease filters (5) and mark for the two screws (6).

Remove the hood and drill the holes (2 x Ø 8 mm).

• Insert the rawl plugs (7) and hang the hood on the wall again. Adjust

it horizontally with the screws (8) and secure it with the screws (9).

• Mount the chimney holder (10) with the rawl plugs (12) and the

screws (1 1).
Warning! Be careful that it is centered over the hood and horizontally
aligned.

Fitting for ducting (S)

Connect a tube between the hood air outlet and the wall or roof exhaust
channel. Fix it with the tube clamps supplied.

Fitting for recirculation (K)

Put the charcoal filter frame in place and fix it with 5 screws. Fig. 7.
Mount the recirculation spigot with the two screws supplied.

Mounting the chimney

• Place the chimney (15) and fix it to the top chimney holder with the

two screws (16) supplied.

• Lower the bottom part of the chimney (17) and fasten it to the top of

the hood with two screws, supplied.
Note that the top part of the chimney can be mounted with the side
grids up or down. For use as a recirculation hood it must be mounted
with the grids upwards. Fig. 8.

Fig. 8Fig. 7

67

12

12

68

Fig. 9

Electric hob 500 mm

240

22

599-899

370

270

350

Gas hob 650 mm

Exhaust tube

Power outlet

chimney
holder

8390 D

8160 D

8391 D

8360 D

Electric hob 500 mm
Gas hob 650 mm

69

AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg

http://www.aeg.hausgeraete.de

© Copyright by AEG

LI1WKD ed. 02/03
