Precautions
When using the MD10 video camera, adhere to the following
precautions:
1. Do not drop, knock or shake the video camera.
2. Do not put the video camera close to an object that
generates strong magnetic field, such as a magnet or a
motor. Do not put the video camera close to an object
that emits powerful radio waves, for example, an antenna.
Strong magnetic eld may cause faults on the video camera
or damage the image / voice data.
3. Do not expose the video camera to high temperature or
direct sunshine.
4. Do not put the memory card close to an object that
generates strong magnetic eld, such as a television set,
a speaker, or a magnet. Do not put the memory card in a
place where static electricity is easily generated.
5. Disconnect the power supply to stop recharging the battery
immediately when over heat, smoke, or peculiar smell
occurs during recharging.
6. Keep the video camera out of reach of children during
recharging, because the power cable may cause asphyxia
or electrical shock on children.
7. Store the video camera in a cool, dry, and dust-free place.
1
aee.com
Preface
Thank you for purchasing AEE MD10 series compact high-
denition (HD) digital video camera, which has the following
characteristics:
● Ultra small size and compact structure
● User-friendly interfaces
● Easy operations
● Hand-free shooting to facilitate shooting of real scenarios at
any time and place
● Superior recording performance thanks to dynamic HD
shooting technologies, providing you with exciting video
shooting experience
This manual describes how to install and use the MD10 video
camera. It also provides information about use, operations,
installation precautions, and technical specifications of the
MD10 video camera. Before using the MD10 video camera,
read and understand this manual carefully and keep it properly
for future use. Designed to meet the professional requirements,
AEE MD10 video camera will serve you in a long term.
2
aee.com
Warranty
This product has been certified by certification bodies for
compliance with related safety regulations and specications
issued by the federal communications commission (FCC) and
council of Europe (CE).
Overview
As a small UHD digital video recorder with advanced Wi-Fi
function, AEE MD10 provides such industry-leading functions
as HD digital photography, voice storage, real-time display,
video recording, photo shooting, time display, wireless remote
control (optional), Wi-Fi wireless transmission, high-speed mini
USB data transmission and mini USB charging. Equipped with
professional accessories, MD10 allows you to record whatever
you like anytime anywhere. MD10 carries several patents for
invention and technology.
Dispose of properly. Recycle it for a greener earth!
3
aee.com
Main functions and features
● Provides a special-purpose HD lens, which supports 1080P
and 720P HD video recording.
● Takes 8M pixels pictures in 3200x2400 resolution.
● Long time voice recording;
● Performs 4X digital zooming.
● LCD screen;
● Wi-Fi function and more App application.
● Voice-activated video recording function, to record videos
for security purposes; long standby time;
● The multifunctional back clip, dual-pin back clip, sport
back clip, multidirectional bracket and other professional
accessories are available for your selection;
● Performs shooting in multiple modes, such as Single
shot,Fast shot,Timed shooting.
● Provides unique fast-shot feature, up to 8 photos per
second.
● Provides better video effects in multiple video output modes
(NTSC system):
1920×1080P 30 frames / second
1280×720P 60 frames / second
WVGA 120 frames / second
● Point-and-shoot operation, red and green work indicator;
● Detection of the battery power and free space;
● High-speed dynamic recording, quickly responding to light
and shade;
4
aee.com
● Provide high color delity to present more clear and natural
video pictures.
● Small size, suitable for various applications;
● Provides HDMI for easy connecting to HD monitor or TV set
to view record les.
● Records video programs in MP4 format to facilitate
playback on a PC and uploading to video-sharing websites.
● Provides the 180° photo rollover function.
● RTC function, adding the date and time to photos and
videos;
● Supports external T-ash (TF) cards for storage, up to 64
GB capacity.
● Provides automatic standby for power saving, and supports
automatic saving of audio and video data.
5
aee.com
List of accessories
MD10 main unit Water-proof housing * Remote Control *
Camera Body Tray * Back Shell for Back
Camera Body Clip
Mount
Clip *
Power Adapter * Shoulder Clip *
6
Waterproof Back
Shell with Strap *
aee.com
Flat sticker * Convex sticker * Quick Release
Buckle *
Extended adjusting
bolt unit *
Cloth bag * TF card * USB data cable
User manual CD-ROM
Moisture-proof foam * Hand strap *
The accessories you've received may be slightly different from
above. The package is subject to change without further notice.
You can order the optional accessories marked with "*".
7
aee.com
1
2
3
4
5
6
7
8
9
10
11
12
13
Component guideline
1. Recording status indicator 8. LCD screen
2. Record key 9. TF card slot
3. Shoot key 10. Strap hole
4. Wi-Fi key 11. Power indicator
5. Power key 12. USB port
6. Lens 13. Mini HDMI port
7. Power/work state indicator
8
aee.com

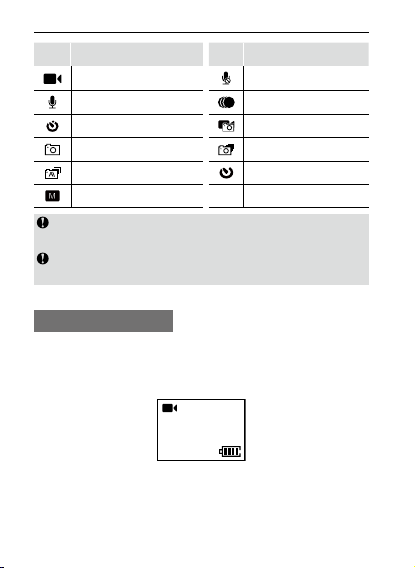

Description of indicators
Indicator
Function
Powering on
Video
recording
Discontinuous
recording
Recording
stopped
Photo shooting Remain on Blink once Remain on in red
Continuous
shooting
Shooting
stopped
Voice
recording
Low power Blink quickly /
Being charged Blink slowly / Blink slowly in red
Charging
nished
Charging
nished
(powered off)
Power
Indicator
Red Green Red and Green
Blink once and
remain on
Remain on / Remain on in red
Remain on
Remain on / Remain on in red
Remain on / Remain on in red
Remain on / Remain on in red
You can long press the Shoot key to switch to Power/Work
State Indicator.
Recording
status
Indicator
/ Blink once in red
/ Blink slowly
/ Blink slowly
Blink
continuously
/ Blink slowly
9
Power/Work
State Indicator
Blink slowly in
green
Blink slowly in
green
Remain on in red
Blink slowly in
green
Blink quickly in
red
aee.com
1
56
2
3
4
7
LCD segment display
Explanations for Icons on LCD Screen:
1080P- 25
100-0088
2H30
Icon Functions
Recording mode
1
Shooting mode
1080P-25 Recording resolution
2
8M 5M 3M Shooting resolution
3
4
5 W M N S View angle
6
7
100-088 Number of recorded files
00:00:01 Recording timer
2H30 Remaining recordable time
1888 Remaining shots
Wi-Fi
Battery level
10
aee.com
Preparations before use
Charging
Use the supplied power adapter or USB port of a PC to charge
MD10:
USB Port
Power Adapter
When MD10 is charged in power-off state, the red indicator will
ash slowly. After the battery is fully charged, the red indicator
will stay on.
PC USB interface
Insert and remove the memory card
MD10 supports external TF card up to 64G. Though all SD
cards above Class 6 can be used on MD10, high-speed card
is recommended to perform high-definition shooting. When
shooting during dynamic motion, brand SDHC cards are
recommended for use in order to ensure smooth shooting.
11
aee.com
• Insert the memory card
Ensure that MD10 is switched off, Insert SD card into the
memory card slot in the arrow direction flatly to the end.
A "click" can be heard to indicate the card has been well
inserted.
• Remove the memory card
Press the center of exposed part of SD card andSD card
will pop up slightly. Then pull it out atly.
Before connecting the host to Wi-Fi or the remote control,
please rst insert the SD card.
Startup
Slide the Power key to "PWR".
• The power indicator will be lit;
• MD10 will enter the recording standby state and display the
following interface:
1080P- 25
100-0088
2H30
12
aee.com
Voice-activated Power-on
Slide the Power key to "VOX", and MD10 will enter the voice-
activated mode. When the ambient decibel reaches 75db,
MD10 will auto start recording. It may auto stop recording
3min later if the ambient decibel becomes lower than 75db. In
the recording process, you can press the Record key to stop
recording without inuencing any other function.
Language
Select the required language.
1. Long press the Record key for 3s to enter the full screen
mode;
2. Press the Shoot key or Wi-Fi key to adjust the menu mode
to " " and then press the Record key;
3. Press the Wi-Fi key to move the cursor to " " and then
press the Record key;
4. Press the Wi-Fi key to select " " and then press the
Record key;
5. Press the Wi-Fi key to select the required language and
then press the Record key to conrm your selection;
6. Press the Shoot key to exit.
13
aee.com
Date & Time
1. Long press the Record key for 3s to enter the full screen
mode;
2. Press the Shoot key or Wi-Fi key to adjust the menu mode
to " " and then press the Record key;
3. Press the Wi-Fi key to move the cursor to " " and then
press the Record key;
4. Press the Wi-Fi key to select " " and then press the
Record key;
5. Press the Wi-Fi key to select the required date format and
then press the Record key to enter the following interface:
6. Press the Shoot key or Wi-Fi key to adjust each value and
then press the Record key to conrm the adjustment. MD10
will auto exit from the above interface when all adjustments
have been nished.
7. Press the Shoot key to exit.
14
aee.com
Video Mode Selection and Application
Video Mode Selection
When the menu is displayed in the full screen mode, the main
keys can respectively perform the following functions:
Record key: enter the menu item or conrm
Shoot key: move to the previous option
Wi-Fi key: move to the next option
Note: you can press the Shoot key to exit from
the functional parameter setting interface.
1. Long press the Record key for 3s to enter the full screen
mode:
2. Press the Shoot key or Wi-Fi key to select a menu mode;
3. If no operation is performed within 3s, MD10 will auto enter
the selected menu mode (you can also enter such mode
directly by pressing the Record key). See the following
explanations for menu icons:
15
aee.com
Icon Functions Icon Functions
Video recording Video-only
Voice recording Time Lapse
Timed recording mode Shoot-in-recording
Single shot Fast shot
Continuous shooting Timed shooting
Other basic setting
In the shooting mode, you can press the Record key to
switch to the last used recording mode.
In the recording mode, you can press the Shoot key to
switch to the last used shooting mode.
Video Recording
> Video Recording
1. Press the Record key to start the video recording and enter
the following interface:
1080P- 25
00:00:01
2. Press the Record key again to stop the video recording.
2H30
> Video-only
In this mode, you can record a video without voice.
16
aee.com
2H30
2H30
1. Press the Record key to start the video recording and enter
the following interface:
1080P- 25
00:00:01
2. Press the Record key again to stop the video recording.
> Voice Recording
1. Press the Record key to start the voice recording and enter
the following interface:
00:00:01
2. Press the Record key again to stop the voice recording.
> Time Lapse
This function allows you to record a photo as one frame of
the moving image, so that you can make a leaping video of
continuous evolution and motion process easily without the
post-editing help of software.
1. Press the Record key to start the video recording and enter
the following interface:
5sec
1080P- 25
00:00:01
2. Press the Record key again to stop the video recording.
2H30
17
aee.com
> Timed Recording
You can set a time interval for timed recording. Then when you
press the Record key, MD10 will start to count down and will
auto start the video recording when the preset time is up.
1. Press the Record key, and MD10 will auto start the video
recording and enter the following interface when the preset
time is up:
1080P- 25
00:00:01
2. Press the Record key again to stop the video recording.
> Shoot-in-recording
In this mode, you can shoot photos in the video recording
process.
1. Press the Record key to start the video recording and enter
the following interface:
2. Press the Shoot key to shoot a photo (in manual mode).
3. Press the Record key again to stop the video recording.
In auto mode, when you press the Record key, MD10
will start the video recording and auto shoot photos
continuously as per the preset time interval until you press
the Record key again to stop the video recording.
2H30
1080P- 25
00:00:01
2H30
18
5s
aee.com
1888
Photo Shooting
> Single Shot
1. Press the Shoot key to shoot one photo and enter the
following interface:
8M
100-0081
> Fast Shot
In this mode, you can shoot several photos in one second;
1. Press the Shoot key to shoot a group of photos and enter
the following interface:
5M 3
100-0081
1888
> Continuous Shooting
In this mode, you can shoot photos continuously as per the
preset time interval until you press the Record key.
1. Press the Shoot key to shoot photos continuously as per
the preset time interval and enter the following interface:
8M 0.5sec
100-0081
2. Press the Record key to stop the photo shooting.
1888
19
aee.com
> Timed Shooting
You can set a time interval for timed shooting. Then when you
press the Shoot key, MD10 will start to count down and will
automatically take photos when the preset time is up.
1. Press the Shoot key and the system will shoot one photo
when the preset time is up, enter the following interface:
8M 3sec
100-0081
1888
20
aee.com
Parameter settings
Recording Parameters
Please follow the steps below to set the recording parameters:
1. Long press the Record key for 3s to enter the full screen
mode;
2. Press the Shoot key or Wi-Fi key to adjust the menu mode
to " " and then press the Record key;
3. Press the Wi-Fi key to move the cursor to " " and then
press the Record key to display the following functional
icons:
Recording Mode
Video content
loop
Resolution
setting
180° Image
Rollover
View Angle Bit Rate
Image Time
You can enter "Recording Mode" to set such parameters
as Time Lapse, Timed recording and Shoot-in-recording.
4. Press the Wi-Fi key to select the required functional icon
and then press the Record key;
5. Press the Wi-Fi key to select the required functional
parameter and then press the Record key to conrm your
selection.
21
aee.com
6. Press the Shoot key to exit.
> Time Lapse
1sec: Record a picture as a frame of the video every 1s;
2sec: Record a picture as a frame of the video every 2s;
5sec: Record a picture as a frame of the video every 5s;
10sec: Record a picture as a frame of the video every 10s;
30sec: Record a picture as a frame of the video every 30s;
> Timed Recording
5sec: start the video recording 5s after you press the
Record key;
10sec: start the video recording 10s after you press the
Record key;
20sec: start the video recording 20s after you press the
Record key;
> Shoot-in-recording
HM: shoot a photo when you press the Shoot key in the
recording process;
5sec: shoot a photo at 5s intervals in the recording process;
10sec: shoot a photo at 10s intervals in the recording
process;
30sec: shoot a photo at 30s intervals in the recording
process;
60sec: shoot a photo at 60s intervals in the recording
process;
22
aee.com
> Resolution setting
You can select from the following recording resolutions:
PAL System NTSC System
1920×1080P 25f 16:9
1280×720P 50f 16:9
WVGA 100f 16:9
> View Angle
You can set the view angle to Wide, Medium, Narrow and
Small:
Wide Medium
Narrow Small
> Bit Rate
You can set the bit rate to Fine or Normal ("Fine" means
clearer image and larger le size).
1920×1080P 30f 16:9
1280×720P 60f 16:9
WVGA 120f 16:9
23
aee.com
> Video content loop
You can activate or deactivate loop recording function. If ON,
video le will be automatically stored in segment of 10 minutes;
If OFF, video le will be stored in segment of 15 minutes.
> 180° Image Rollover
When this function is activated, upright video file can be
obtained when using MD10 to shoot video upside down.
This function is not available in WVGA mode.
> Display Time
You can choose to display or not display the video recording
time at the bottom right corner of the photo.
This function is not available in WVGA mode.
Shooting Parameters
Please follow the steps below to set the shooting parameters:
1. Long press the Record key for 3s to enter the full screen
mode;
2. Press the Shoot key or Wi-Fi key to adjust the menu mode
to " " and then press the Record key;
3. Press the Wi-Fi key to move the cursor to " " and then
press the Record key to display the following functional
icons:
24
aee.com
Shooting Mode Shooting Resolution Display Time
You can enter "Shooting Mode" to set such parameters as
Fast shot, Continuous shooting and Timed shooting.
4. Press the Wi-Fi key to select the required functional icon
and then press the Record key;
5. Press the Wi-Fi key to select the required functional
parameter and then press the Record key to conrm your
selection;
6. Press the Shoot key to exit.
> Fast Shot
3/1s: shoot 3 photos in one second;
6/1s: shoot 6 photos in one second;
8/1s: shoot 8 photos in one second;
> Continuous Shooting
0.5sec: shoot a photo at 0.5s intervals after you press the
Shoot key;
1sec: shoot a photo at 1s intervals after you press the
Shoot key;
2sec: shoot a photo at 2s intervals after you press the
Shoot key;
3sec: shoot a photo at 3s intervals after you press the
Shoot key;
5sec: shoot a photo at 5s intervals after you press the
25
aee.com
Shoot key;
10sec: shoot a photo at 10s intervals after you press the
Shoot key;
20sec: shoot a photo at 20s intervals after you press the
Shoot key;
> Timed Shooting
3sec: shoot a photo 3s after you press the Shoot key;
5sec: shoot a photo 5s after you press the Shoot key;
10sec: shoot a photo 10s after you press the Shoot key;
> Shooting Resolution
You can select from the following shooting resolutions:
8mp: 8.0M (3200x2400, 4:3);
5mp: 5.0M (2592x1944, 4:3);
3mp: 3.0M (2048x1536, 4:3);
> Display Time
You can choose to display or not display the photo shooting
time at the bottom right corner of the photo.
26
aee.com

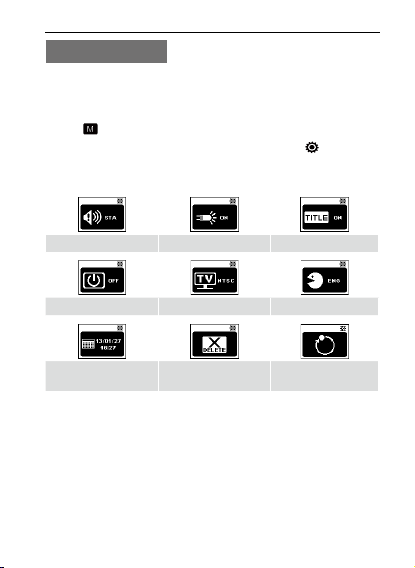

Basic Settings
1. Long press the Record key for 3s to enter the full screen
mode;
2. Press the Shoot key or Wi-Fi key to adjust the menu mode
to " " and then press the Record key;
3. Press the Wi-Fi key to move the cursor to " " and then
press the Record key to display the following functional
icons:
Warning tone Status indicator On screen display
Auto to standby TV output format Language
Date & Time Format
4. Press the Wi-Fi key to select the required functional icon
and then press the Record key;
5. Press the Wi-Fi key to select the required functional
parameter and then press the Record key to conrm your
selection;
6. Press the Shoot key to exit.
27
Recover factory
setting
aee.com
> Warning tone
You can set the prompt tone to Standard or Off.
> Status indicator
You can set the work indicator to On or Off.
> On screen display
This function allows you to show (On) or hide (Off) the
recording icon and video/photo details when you watch videos/
photos on a TV or monitor.
> Auto to standby
You can set the time interval for auto standby to Off, 2min,
5min or 10min. The timer starts to work when there is no
shooting, recording or key operation. When the preset time is
up, MD10 will auto enter the standby mode. If any operation
is performed in the timing process, the timer will be reset. You
can press the Record key or shoot key to awaken MD10 from
the standby mode.
> TV output format
This function controls the video recording frame rate and the
TV system for video playing.
Please select NTSC in North America.
Please select PAL in non-North America areas.
> Format
This function will clear all les from the storage card.
> Recover factory setting
This function will restore MD10 to factory default setting.
28
aee.com
Playback
Upload audio/video/photo les to PC
1. Use USB data cable to connect the camera to a PC;
2. Switch on MD10;
3. Click the "My Computer" icon on the desktop and nd the
"Removable Disc". If the camera is not detected, close
"My Computer" window and reopen it after a while. The
"removable disc" will be displayed;
4. Double click the "removable disc" icon;
5. Enter the "removable disc" and copy/move the file to the
PC’s hard disk.
View video / Photo on HDTV
The recorded les can also be played on TV or display with
HDMI interface.
Ensure that your camera is properly congured to NTSC (North
America) or PAL (Non-North America) video format; otherwise,
the video and images on MD10 cannot be properly displayed
on TV. Use HDMI cable to connect MD10 to the TV set:
This function is not available when opening Wi-Fi.
29
aee.com
Wi-Fi
With integrated Wi-Fi module, MD10 can be connected with
Wi-Fi remote control, smartphone or tablet PC to achieve
remote control function. First please install appropriate APP
software provided by AEE to your device.
> Download a Wi-Fi APP
By now, the Wi-Fi APP is already upload to iphone APP store
and google play store, customers can freely download it.
1. Android user: Entering the google play store, search "AEE
APP" (quotation marks is needed), download and install it,
following the user manual to connect the Wi-Fi and operate.
2. Iphone user: Entering the iphone APP store, search AEE
, download and install it, following the user manual to
connect the Wi-Fi and operate.
APP icon:
> Wi-Fi Starting and Connection
1. Press the Wi-Fi key as shown in the gure below.
30
aee.com
If the Wi-Fi function is enabled, the Wi-Fi icon " " will appear
on the top of the screen.
Do not perform any key operation when waiting the Wi-Fi
function to be enabled or disabled.
2. Turn on your camera,wait until the blue Wi-Fi indicator
flashes slowly. Search for Wi-Fi hot spot on a mobile
receiving device,select "AEE Magicam" network and
connect it (default password: AEE12345). Then the camera
and the mobile device are connected.
3. Click the App icon "
the icon " " shown in Fig. 1. Enter the interface shown
in Fig. 2 to remotely view your camera’s screen and set up
parameters.
In case of Wi-Fi connection failure, the icon "
" will appear. Select "Yes" to try to connect again. If you
select "No", click the icon "
settings interface or click the icon "
to enter the main interface to view local files only(Only
Android version), no other operation is supported).
" on the mobile device to display
" to enter the WLAN
"
31
1
2
3
4
5
6
7
8
10
12
13
14
aee.com
Fig. 1 Wi-Fi Connection Interface
Fig. 2 Wi-Fi Control Interface
32
9
11
aee.com
Playback mode
33
8.
Maximize preview
9.
Current state icon /
10.
Start / Stop button
Parameter settings
11.
Zoom out
12.
Zoom in
13.
Fast shot mode
14.
Total number of les
1.
Wi-Fi status
2.
Battery status
3.
Remaining recording
4.
time or number of shots
Recording Duration
5.
Video recording mode
6.
Single shot mode
7.
You can remotely control your camera by clicking the
icons at the main interface.
: Display the remaining recording time in video
recording mode;
Display the remaining number of shots in photo
shooting mode.
The mobile device must be used within a distance of
max. 100 meters from the MD10 in an obstacle-free and
horizontal angle.
The real-time preview is unavailable for video recording
720P and WVGA mode.
aee.com
e
Resolution
and frame rate
recording time
Operating Instructions for Wi-Fi Control Interface
1. Video Recording
Click the Video recording mode icon "
icon will dispaly as "
Click the icon "
Current state
Angle
Remaining
", click it to start / stop video recording.
" to maximize the preview (See Fig. 3).
Fig. 3 Video Recording Mode
You can set up your desired recording resolution in the
parameter setting interface.
". The current state
Return to
main interfac
Recording
Duration
34
2. Single shot
Return to the
Photo No.
Click the Single shot mode icon "
The current state icon will dispaly as "
picture.
Click the icon "
" to maximize the preview (See Fig. 4).
aee.com
" ,it will turn blue " ".
", click it to take one
Pixel
Current state
main interface
Fig. 4 Single Shot Mode
You can set up the pixel in the parameter setting interface.
35
aee.com
Photo No.
3. Fast Shot
Click the Fast shot mode icon " " ,it will turn blue " ".
The current state icon will dispaly as "
pictures within one second.
Click the icon "
" to maximize the preview (See Fig. 5).
", click it to take
Burst number
Current state
Return to the
main interface
Fig. 5 Fast Shot Mode
You can set how fast the camera takes pictures in the camera
setting interface.
36
aee.com
12
4. Playback
Click the icon "
remotely play videos and photos.
Slide the icon "
you can replay the files stored on the camera. If you select
"Mobile Device Storage", you can replay the les downloaded
from the camera to the mobile device.
1.Camera Storage
2.Mobile Device Storage
Fig. 6 Playback Interface
" to enter the interface shown in Fig. 6 to
". If you select "Camera Storage",
Click the icon "
App settings interface.
Click the icon " " to return to
the WiFi control interface.
Click the icon "
File selecting.
Click the icon "
download media files from the
camera to your mobile device.
37
" to enter the
" to enter
" to
aee.com
Click on the thumbnail to view it in large preview. You could
slide left and right to select the desired le.
Photo preview Video Preview
Click the icon "
interface.
Click the icon "
mobile device.
Click the icon "
Click the icon "
" to return to the thumbnail preview
" to download the current file to your
" to delete the current le.
" to display video.
38
aee.com
Download all the files from your
remote camera to the mobile device.
Download Files to Mobile Device
Return to the thumbnail preview interface and click the icon "
" to enter the Download interface. Click the desired les to
download them to your mobile device.
Files downloaded
Files in waiting
Files in downloading
Cancel all downloads
In the thumbnail preview mode, slide the icon " "
to view local les. Click the icon "
shown in the gure below, and then click the desired les to
share them to social networking websites.
" to enter the interface
39
aee.com
Click on the thumbnail to view it in large preview. You could
slide left and right to select the desired le.
Photo preview Video Preview
Click the icon "
Click the icon "
" iOS version)
("
Click the icon "
networking website.
" to view the current le information.
" to enter the video trimming interface.
" to share the current file to a social
40
aee.com
start frame
Narrow the frame
Expand the frame
Trim Videos
When viewing the downloaded les on the mobile device, you
can click the icon "
the video trimming interface shown in the gure below:
" at the bottom of the screen to enter
Current frame
Start frame
Menu
Storyboard
End frame
Set the current
frame as the
end frame
Set the current
frame as the
Play icon
Click the icon " " to save and share the edited video le.
This function allows you to take a clip out of the video to
generate another video by changing the starting frame and
ending frame.
The following two methods:
One method: chang the starting frame and ending frame by
directly dragging the time frame panel (click the Play key for
previewing until the best location is reached).
Another method: click “ ” to set the current frame as the
starting frame, drag the time frame panel to change the current
41
aee.com
frame, and then click “ ” again to set the current frame as
the ending frame.
Change Wi-Fi Connection Name and Password
1. Change the Wi-Fi connection name:
Connect your camera (with TF card installed) to the
computer and turn on your camera. On the computer,
double click "My Computer" to nd and enter the removable
disk, and then open the "
"MISC". Find "AP_SSID=AEE Magicam". Change the
content following the equal sign "=" to your desired name
and save it.
2. Change the Wi-Fi connection password:
Connect your camera (with TF card installed) to the
computer and turn on your camera. On the computer,
double click the icon "My Computer" to nd and enter the
removable disk, and then open the "
in the folder "MISC". Find "AP_PASSWD=AEE12345".
Change the content following the equal sign "=" to your
desired password (containing at least 8 digits and above)
and save it. (It supports 8-digit password only.)
In case of synchronous operation of the camera and the
Wi-Fi based remote control, MD10 will give priority to the
operation command from the camera.
Above images for reference only, subject to our available
App.
" WiFi.conf le in the folder
" WiFi.conf file
42
Wi-Fi Based Remote
1
6
9
Guide for Components
2
3
4
5
7
aee.com
8
10
11
12
1. Power Indicator
2. Screen
3. Wide view Button
4. Medium view Button
5. Narrow view Button
6. Small view Button
7. USB Port
8. Wi-Fi Indicator
9. Power/Record Button
10. Shutter Button
11. Stop Button
12. Strap hole
43
aee.com
Buttons Functions
Long press it for about 5s to turn on/off the Wi-Fi based
remote control.
Under the photographing mode, press it once to switch
the current mode to the video recording mode.
Under the video recording mode, press it once to start
video recording.
After entering the mode selection state, press it to select
the option upwards.
Under the video recording mode, press it once to switch
the current mode to the photographing mode.
Under photographing mode, press it once to take a
photo.
Long press it for about 2s to enter the mode selection
state.
Select your desired mode, and press it to enter.
During video recording, press it to stop video recording.
After entering the mode selection state, press it to select
the option downwards.
Press it once to switch the viewing angle of the camera
to wide angle.
Press it once to switch the viewing angle of the camera
to medium angle.
Press it once to switch the viewing angle of the camera
to narrow angle.
Press it once to switch the viewing angle of the camera
to small angle.
44
aee.com
Viewing angle switching buttons in the remote control can
only be used in the 1080p mode.
When DRC10 accidentally crashes in use, can not be
normal shutdown, you can press "Wide view" and "Small
view" key to forced shutdown.
Startup
Long hold the "Power / Record" button for about 5s to start up
the Wi-Fi based remote control.
After startup, the screen will display the battery icon "
if the battery icon is empty, it indicates that the battery level is
low and charging is needed; please connect the USB power
supply to the USB port of the remote control for charging.
";
Pairing
Before using the Wi-Fi remote control, code pairing should be
done between it and MD10:
1. Turn on MD10 and enable its Wi-Fi function;
2. Press and hold the stop key and then long press the power/
record key for 5s to turn on the remote control. The red
indicator will be lit and the battery icon "
on the screen of the remote control;
45
" will appear
aee.com
2H30
3. Press and hold the power/record key and stop key on the
remote control again until you see "WAIT HOST PBC" as
shown below:
WAIT HOST PBC
4. Long press the Wi-Fi key on MD10 for 10s until the remote
control enters the following interface:
PRESS CONNECT
5. Press the stop key on the remote control to start the
connection as shown below:
info SYNC
CONNECT
6. When the remote control enters the recording standby
state and the following interface, code pairing is completed
successfully.
1080P- 25
100-0088
46
Specications
Description Specication
Charging Time via USB 2h (max.)
Service time of fully charged battery 5h (max.)
Battery capacity 500mAh
Power consumption 0.30W-0.35W
IP rating IP66
Remote control distance 120M
Specication of USB USB 2.0
Overall dimension 77×46×19mm
Weight 59g
Working temperature -10°C~+50°C
Storage temperature -20°C~+60°C
47
aee.com
aee.com
Precautions
1. This remote control is a sophisticated product; dropping or
physical impact on this product is not allowed.
2. The remote control should not get close to objects with
high-intensity magnetic field such as magnet and electric
motor, or to objects that send out strong radio waves such
as antenna. Strong magnetic eld may result in failure of
the remote control.
3. Please do not put the remote control in a place with high
temperature or direct sunshine.
4. Please put the remote control in a cool, dry and dustless
place.
5. This product is not designed with the function of auto
standby; if it is idle for a long time after startup, please turn
off the power of the remote control.
6. The remote control is able to connect to one host only each
time. It can’t connect to multiple hosts simultaneously.
7. If the remote control disconnects abnormally and can’t be
used normally, please simply reboot it to put it back to use.
8. Please don’t operate the remote control while it’s being
charged, in case it will cause malfunction.
9. If you activate video recording function in the host with
remote control, simply press Stop button on the remote
control to stop recording. Please don’t press the Stop
button on the host to stop recording, in case it will cause
malfunction.
48
aee.com
Moistureproof cotton
Accessory application
MD10 is suitable for handhold use or hand-free use at most
places by using appropriate accessories. MD10 fitted with
water-proof housing can be used to record videos underwater.
Water-proof housing and Moisture-proof foam
MD10 water-proof housing up to IP68 can protect the camera
20 meters underwater. In order to avoid and reduce the dewing
on the glass of the water-proof house, we suggest inputting
the moistureproof cotton inside the water-proof case in big
temperature range environment.
After installing MD10 into the waterproof case, you can long
press the Shoot key and Wi-Fi key simultaneously for 5s to
turn it on. Similarly, you can long press the Shoot key and Wi-
Fi key simultaneously for 5s again to turn off MD10.
Follow these steps to load MD10 into water-proof housing:
Follow these steps to assemble the waterproof housing rear
case:
49
aee.com
The plug bracket can x MD10 water-proof housing rmly onto
the sticky seat, as below:
Installation of Back Clip
The back clip should be installed as shown in the gure below:
50
aee.com
Use convex sticker and at sticker
MD10 comes with sticker tting and at sticker for installation
on different surfaces.
You can easily attach the camera onto helmet, vehicles or the
surface of other devices.
M08 convex sticker M15 at sticker
Precautions for the use of 3M double-sided foam tape:
1. Before xing 3M double-sided foam tape, please select an
appropriate curved or flat surface where the tape can fit
with the surface.
2. Before using 3M foam tape, please clean the surface to be
adhered to.
3. Before applying 3M foam tape, it is suggested to heat its
surface properly (electric blower may be used), especially
when the temperature is below -20°C.
51
aee.com
Specications
Description Specications
Visual angle 136°
Aperture f/2.6
Pixel 8 million
Video recording format MP4
Audio recording format WAV
Photo format JPG (JPEG)
Wi-Fi transmission distance About 100 meter (MAX)
Standard battery capacity 1000mAh
Power consumption 550mA
Recharging duration
Maximum video recording time About 3.0 hours (Max.)
Maximum audio recording time About 4.0 hours (Max.)
Operating platform
requirements
Storage temperature -20°C ~ 60°C
Operating temperature -10°C ~ 50°C
Dimension L34 × W28 × H52mm
Unit weight 54g
As our products undergo continuous development, the
specications are subject to change without prior notice.
USB Cable: About 2.0 hours
Power Adapter: About 2.0 hours
Operating system: Windows XP
SP2 / Vista or above / Mac OS;
52
aee.com
Power Supply
The MD10 video camera uses a power unit certified by the
following authorities.
UL mark
U.S. Power
Certicatation
CCC mark
China Power
Certication
C-TICK mark
Australia Power
Certication
PSE mark
Japan Power
Certication
CE mark
E.U. Power
Certication
BS mark
U.K. Power
Certication
GS mark
Germany Power
Certication
The surface temperature of a power unit in use may
increase, and this situation is normal.
53
aee.com
Precautions for the Waterproof housing
The waterproof housing is a precision component. When using
the waterproof housing, adhere to the following precautions:
1. Do not randomly remove or change the O-ring, key,
and lens cover. Otherwise, the waterproof performance
deteriorates.
2. Do not put the waterproof housing in a place where
corrosive gases are easily generated due to strong acid or
alkali. Do not make the waterproof housing in contact with
chemical or corrosive objects, such as strong acid or alkali.
3. Do not put the waterproof housing in a place where
temperature is high (50°C) or low (-10°C) for a long time to
avoid deformation.
4. Do not expose the MD10 video camera to sunshine
for a long time to avoid deterioration of the waterproof
performance.
5. Before use, ensure that the O-ring is intact, the seal is litter-
free, the housing is fully sealed, and the buckle is tight.
6. After using the housing in sea water, wash it using fresh
water, clean it, and dry it in a cool place.
54
aee.com
Tips
1. When the unit is in used for long period, it is natural that its
surface temperature will rise.
2. If you will not use the unit for long period, it is suggested
that you charge it once every 6th month to maintain the
performance of battery.
3. Use of digital zooming function during shooting will have
slight impact on the image quality.
4. The visual angles under different modes will be slightly
different.
5. To smoothly play a high-denition video le, it is suggested
to use a PC or other professional device.
6. If you enable cyclic recording function for long period or
frequently shoot/delete photos, the memory card may have
data fragments so that you may not be able to store or
shoot photos. Please back up the data to external storage
medium and perform formatting operation to the memory
card.
7. When the camera works in a high-temperature environment,
the lattice screen may become black, which is a normal
phenomenon and will not affect its function.
8. When the camera is used for a long time, the temperature
of the metal parts near the lens may rise, which is a normal
phenomenon; please do not touch the heated metal parts.
9. Hot plugging is not supported; in case of white screen,
please restart the camera to return to normal.
55
aee.com
FCC Notices
1. The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to
this equipment. Such modifications could void the user's
authority to operate the equipment.
2. This device complies with Part 15 of the FCC Rules. (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause.
56
aee.com
Harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician
for help.
57
