Page 1
A&E Bath and Shower
6400A St . Jacques West
Montrea, QC, Canada
H4B 1T6
www.aebath.com
[1700mm] 66 15/16”
[1670mm] 65 3/4”
[1160mm] 45 5/8”
[240mm]
9 1/2”
[370mm]
14 1/2”
[480mm]
19”
[750mm]
[440mm]
17 3/8”
[580mm]
29 1/2”
22 13/16”

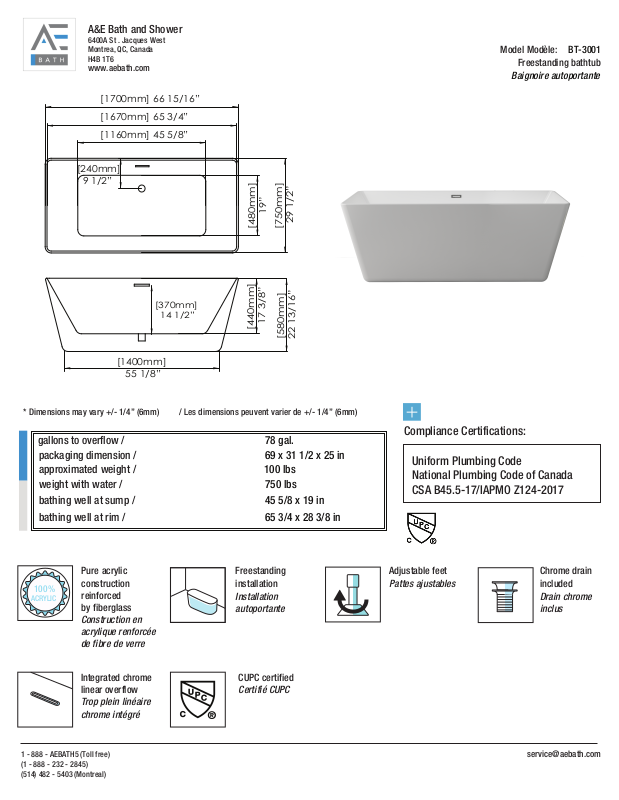

Model Modèle:
BT-3001
Freestanding bathtub
Baignoire autoportante
[1400mm]
55 1/8”
* Dimensions may vary +/- 1/4” (6mm) / Les dimensions peuvent varier de +/- 1/4” (6mm)
gallons to overflow / 78 gal.
packaging dimension /
approximated weight /
weight with water /
bathing well at sump /
bathing well at rim /
Pure acrylic
100%
ACRYLIC
construction
reinforced
by fiberglass
Construction en
acrylique renforcée
de fibre de verre
69 x 31 1/2 x 25 in
100 lbs
750 lbs
45 5/8 x 19 in
65 3/4 x 28 3/8 in
Freestanding
installation
Installation
autoportante
Compliance Certifications:
Uniform Plumbing Code
National Plumbing Code of Canada
CSA B45.5-17/IAPMO Z124-2017
Adjustable feet Chrome drain
Pattes ajustables
included
Drain chrome
inclus
Integrated chrome
linear overflow
Trop plein linéaire
chrome intégré
1 - 888 - AEBATH5 (Toll free)
(1 - 888 - 232 - 2845)
(514) 482 - 5403 (Montreal)
CUPC certified
Certifié CUPC
