AE TC7 Assembly Manual

2

:: Introduction

Thank you for purchasing this Team Associated product. This assembly manual contains instructions and tips for building and maintaining your new RC10TC7.
Please take a moment to read through this manual to help familiarize yourself with these steps.

We are continually changing and improving our designs; therefore, actual parts may appear slightly different than in the illustrations. New parts will be noted on
supplementary sheets located in the appropriate parts bags. Check each bag for these sheets before you start to build.

:: KIT Features

Team Associated is proud to release its next generation of 1:10th scale 4WD electric touring car kits, the RC10TC7-FT, evolving forward for the most refined
package to date.

The touring car racing class has matured to a competition level higher than ever before, and the Engineers behind the doors of Area-51 have been hard at work to
make sure the TC7 can keep pace. The RC10TC7-FT car kit comes packed full of Factory Team options and a refined suspension package with precise adjustment
resulting in a level of consistency to be unequalled.

With over four year’s development on the TC6 chassis, the RC10TC7-FT car kit rolls forward including all the Factory Team test parts Area-51 has had in the works
for the last several years. The focus was on a more precise feel with updates in suspension component composites and ultra-smooth FOX with Genuine Kashima
Coated shock bodies. The floating servo controls an updated dual bellcrank steering system with a low center of gravity and refined Ackermann range allowing
the most direct steering feeling for any track condition. Updated motor mount is centrally located to produce the most consistent chassis flex and accurate gear
alignment to help keep cornering as efficient as possible. The RC10TC7-FT gives you all the key features and options necessary to keep you at the top of the racing
circuit. All without sacrificing low part count or affordability. With its prototype sweeping the modified podium at 2015 ROAR Paved Nationals, it’s easy to see that
the RC10TC7-FT kit is… another “Champion by Design” from Team Associated!

:: Key Features

• Updated suspension geometry

o Carbon composite material used for the best combination of
strength at minimized mass
o Optimized suspension arm length and shock mounting positions
o Pivot ball on inner hinge pin allows free pin movement at any toe
or kickup angle
o Insert system for precise adjustment of toe and inner pin width
o Independent arm mount design to allow maximum flex through
entire chassis length, resulting in better grip on all track conditions

• FOX with Genuine Kashima Coated shock bodies

o Ultra-smooth Kashima Hard Coating for minimal friction and
extended wear
o Hard coated shock shafts with polished finish
o Machined piston and bushing sets for the most precise build
o Updated bladder profile for consistent performance

• New one-piece motor mount

o Central mounting to allow free chassis flex in either direction
o One-piece design ensures proper spur/pinion gear alignment
o Floating spur helps to center flex point of top plate giving better
overall traction

• Updated drive belts

o Optimized length for better on power steering
o Softer material for a more efficient drive-train

• Updated dual bellcrank steering system

o Low profile mounting for an overall lower center of mass
o Optimized Ackermann and steering rates
o Horizontal ballstuds for fine Ackermann adjustments
o 8 precision bearings for accurate swing motion

• Floating servo mount

o Servo mounts to chassis center to allow equal chassis flex in both
directions and a tweak free assembly
o Mount ties to steering bellcrank posts for stable servo positioning
o Slotted servo mount design allows fit for almost any servo size

• Narrow chassis with optimized flex characteristics

o 2.25mm graphite laminate for optimized flex characteristics
o A narrow 88mm wide to minimize chassis dragging at maximum
chassis roll angles
o Chassis ballast mass mounting locations to fine tune mass balance

• Vertical ball stud bearing caps

o Optimized position for inner ball stud

o Vertical ballstud orientation allows for fine adjustments of roll

center height
o 3 link position options give precise control of camber gain

• Rear gear diff for maximum performance and minimal maintenance

o Lightweight design
o Durable composite construction
o Optimized for a wide “tuning window” to maximize useable
adjustability
o Hard anodized aluminum outdrives for low wear and long life

• Front spool with replaceable composite outdrives
o Outdrives allow the use of existing CVA bone blades to minimize

binding at the bearing surface
o Composite outdrives are replaceable at low cost in the event of a

CVA bone blade failure

• Titanium turnbuckles with turnbuckle eyelets for easy access to ball stud for

adjustment

• 22 precision ball bearings

:: Items Needed

Your new FT TC7 comes unassembled and requires the following items for completion. (refer to catalog section for suggestions):

• 1:10th scale electric motor and electronic speed control • 1:10th scale 190mm polycarbonate touring car body

• 3.7V-7.4V LiPo, 6.6V LiFe, or 4.8V-7.2V NiMh/NiCd battery • Polycarbonate specific paint for body

• Battery charger (suited for, and particular to, one of the batteries mentioned) • Strapping tape for battery

• 2 channel surface transmitter, 2 channel receiver, and steering servo • 1:10th scale rubber (or foam) touring car tires, wheels and inserts

:: Other Helpful Items

• Silicone Shock Fluid (Refer to catalog for complete listings) • Silicone Diff Fluid (Refer to catalog for complete listings) • Thread Lock (AE Part #1596)

• Body Scissors (AE Part # 1737) • Reamer / Hole Punch • FT Hex Wrenches (AE Part # 1541) • FT Nut Drivers (AE Part# 1561)

• Needle Nose Pliers • Wire Cutters/ Hobby Knife • Soldering Iron • Calipers or a Precision Ruler

Associated Electrics, Inc.

26021 Commercentre Dr.

Lake Forest, CA 92630

http://www.TeamAssociated.com · http://www.RC10.com · http://twitter.com/Team_Associated · http://bit.ly/AEonFacebook

Customer Service

Tel: [phone]

Fax: [phone]

3

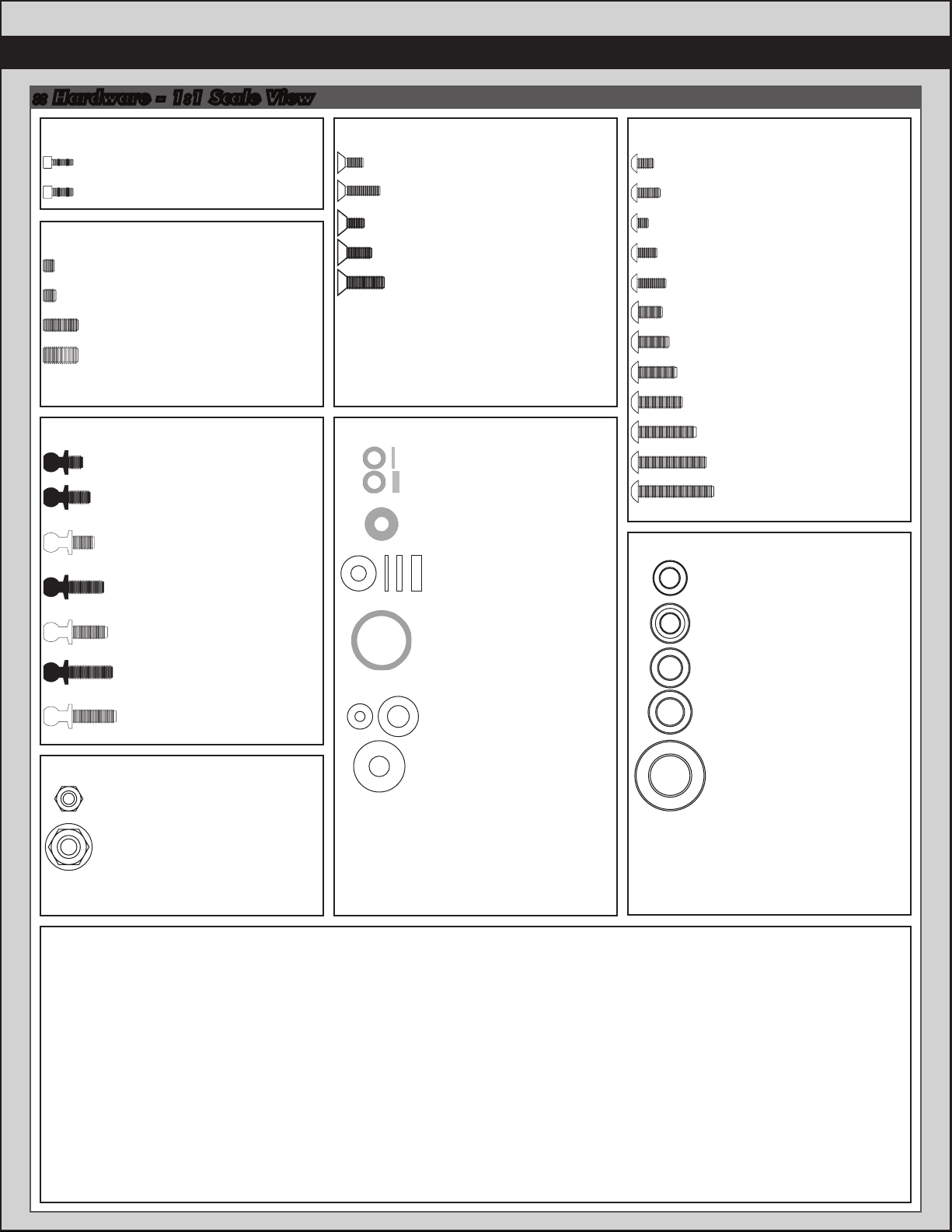

:: Hardware - 1:1 Scale View

Cap Head (shcs)

Setscrew

Ballstuds

Ti Nitride 3.25mm short (31374)

Black 5mm short (31280)

Ti Nitride 5mm short (31288)

Silver 5mm long (31283)

Ti Nitride 5mm long (31291)

Black 8mm short (31281)

Ti Nitride 8mm short (31289)

Silver 8mm long (31284)

Ti Nitride 8mm long (31292)

Black 10mm short (31285)

Ti Nitride 10mm short (31290)

Silver 10mm long (31285)

Ti Nitride 10mm long (31293)

Nuts (lock/plain)

1.6x5mm (91611)

2x5mm (31511)

3x2.5mm (31500)

3x3mm (25225)

3x8mm (4670)

4x8mm (25227)

Flat Head (fhcs)

Shims and Washers

Bulkhead Shim (4617)

Axle & Diff shim (31162)

Gear Diff Shims (31348)

2.5x6mm (4675)

2.5x10mm (31350)

3x6mm (31541)

3x8mm (25201)

3x10mm (25202)

1mm and 2mm

blue shims (31286)

Washer (7337)

0.5mm, 1mm, 2mm

Button Head (bhcs)

2x4mm (31510)

2x5mm (31511)

2.5x4mm (4673)

2.5x6mm (31520)

2.5x8mm (31521)

3x5mm (31530)

3x6mm (31531)

3x8mm (31532)

3x10mm (25211)

3x12mm (89202)

3x14mm (25187)

3x16mm (89203)

Ball Bearings

4x7mm (31403)

4x8x3mm flanged (31331)

5x8mm (31400)

5x10x4mm (91560)

10x15x4mm (91563)

Notes:

M3 locknut (31550)

M4 locknut (91148)

B

4

:: Table of Contents

1....................Cover

2....................Introduction

3....................1:1 Hardware “Fold Out”

4...................Table of Contents

5-6...............Shock Build

(Bags 1, 2)

6-9...............Spool and Differential Build

(Bags 3, 4, 5)

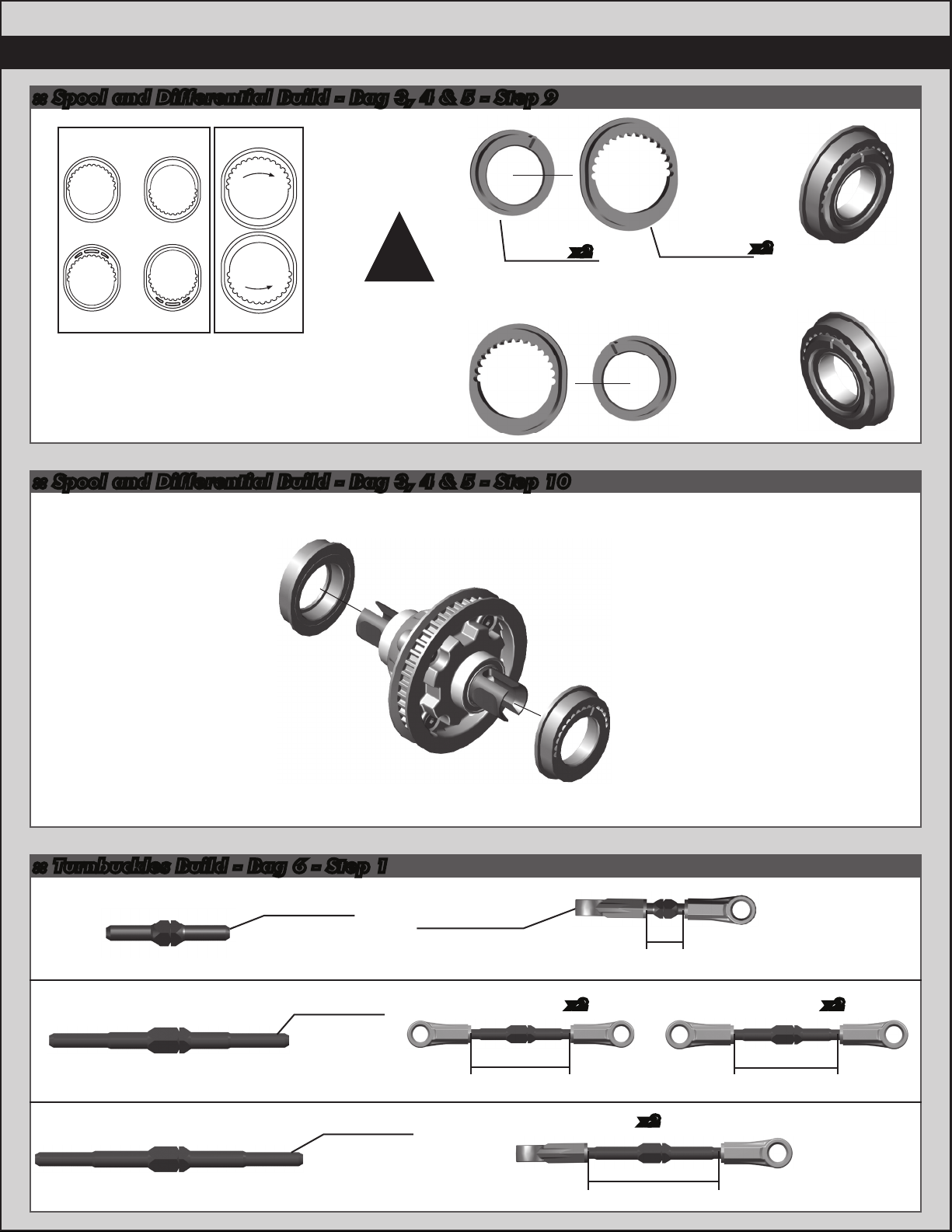

9....................Turnbuckle Build

(Bag 6)

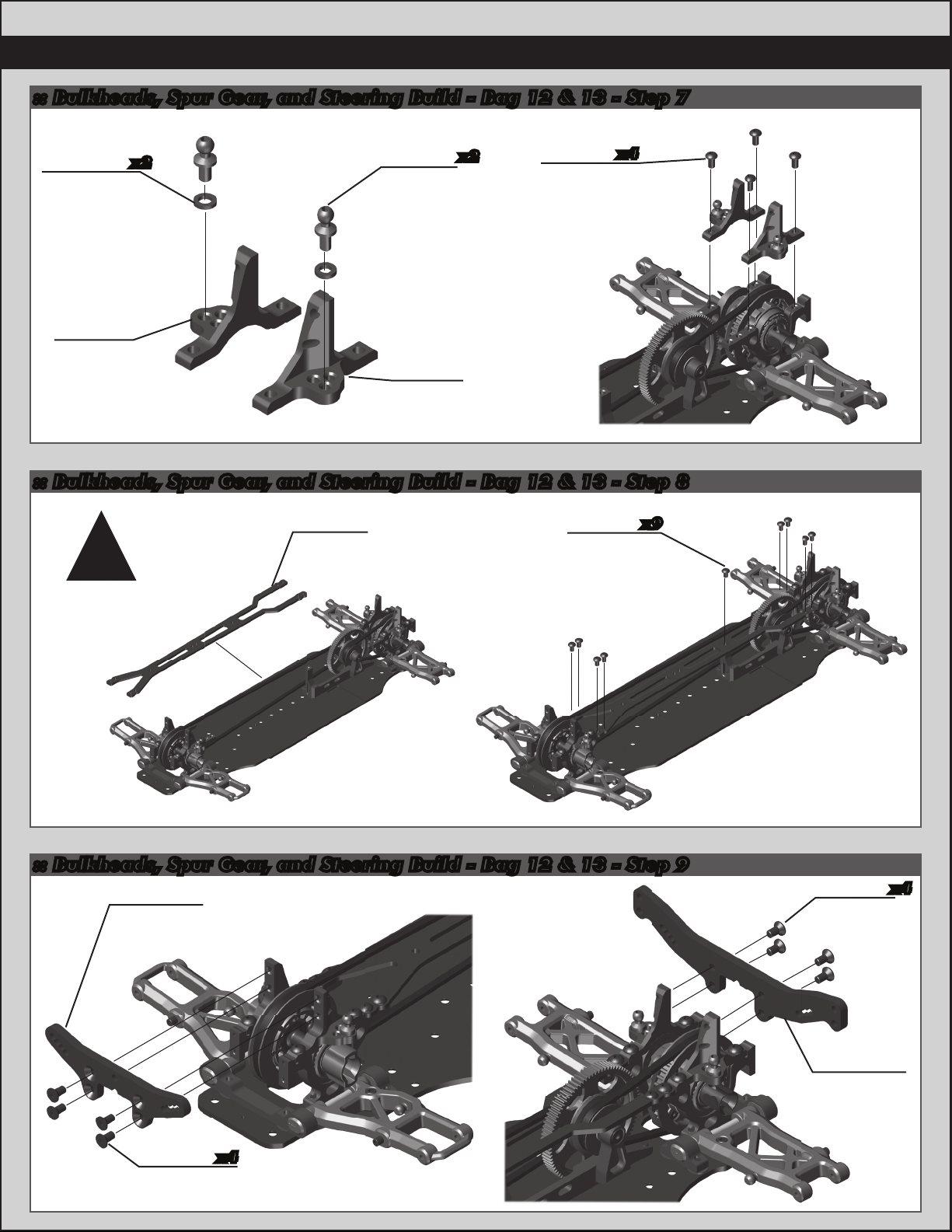

13-16.........Bulkheads, Spur Gear, and

Steering Rack Build

(Bags 12, 13)

16-19.........Caster Blocks /Rear Hubs Build

(Bags 14, 15, 16)

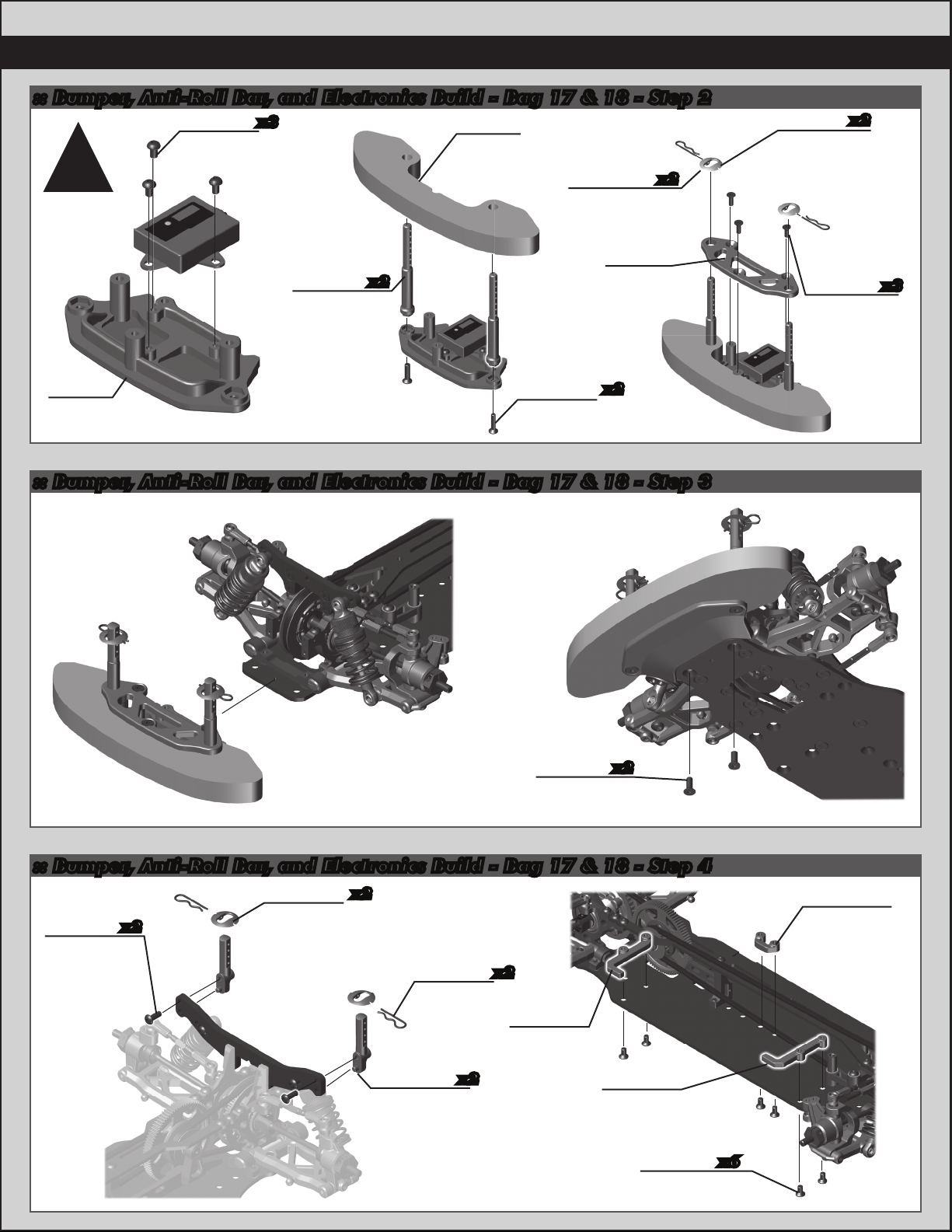

19-23.........Bumper, Anti Roll Bar, and

Electronics Build
(Bags 17, 18)

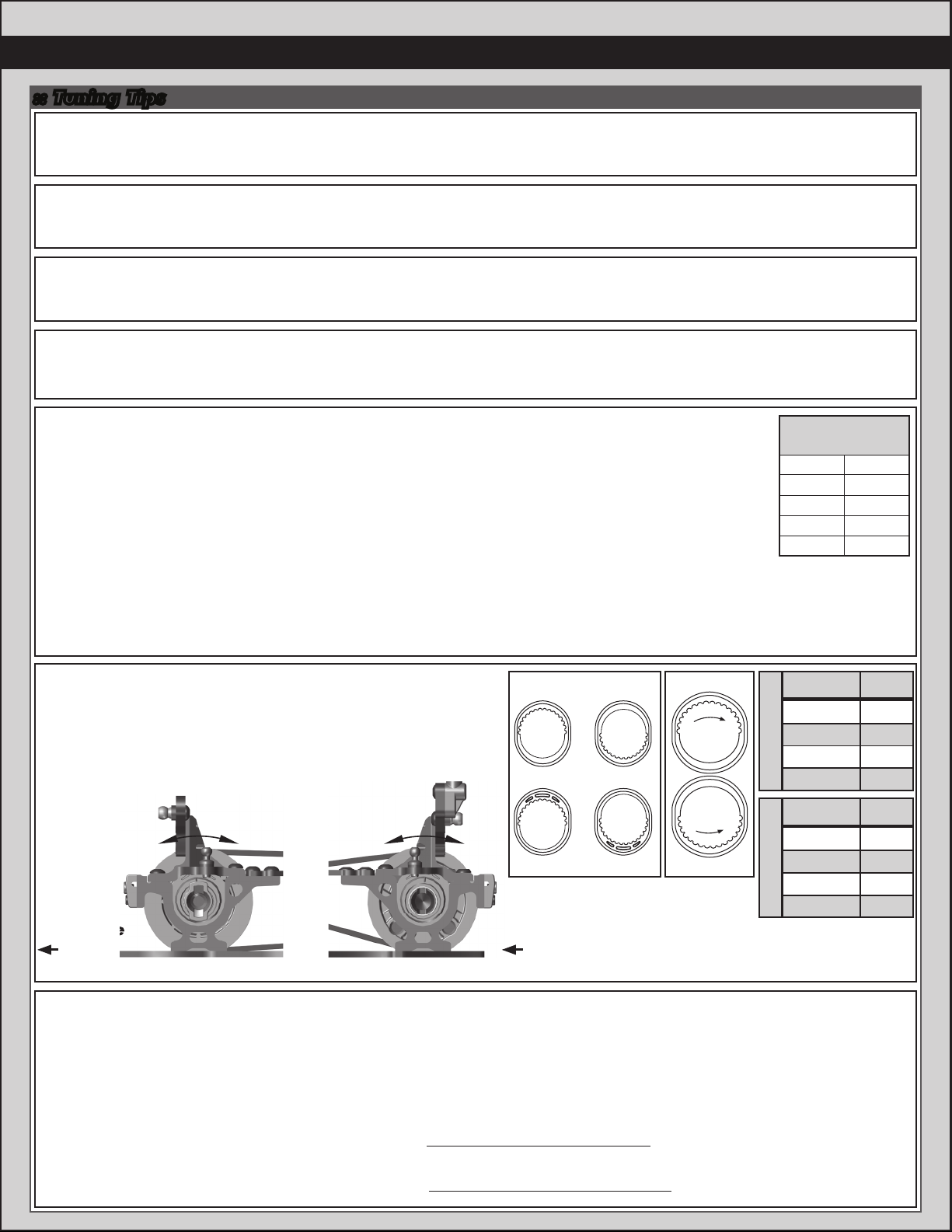

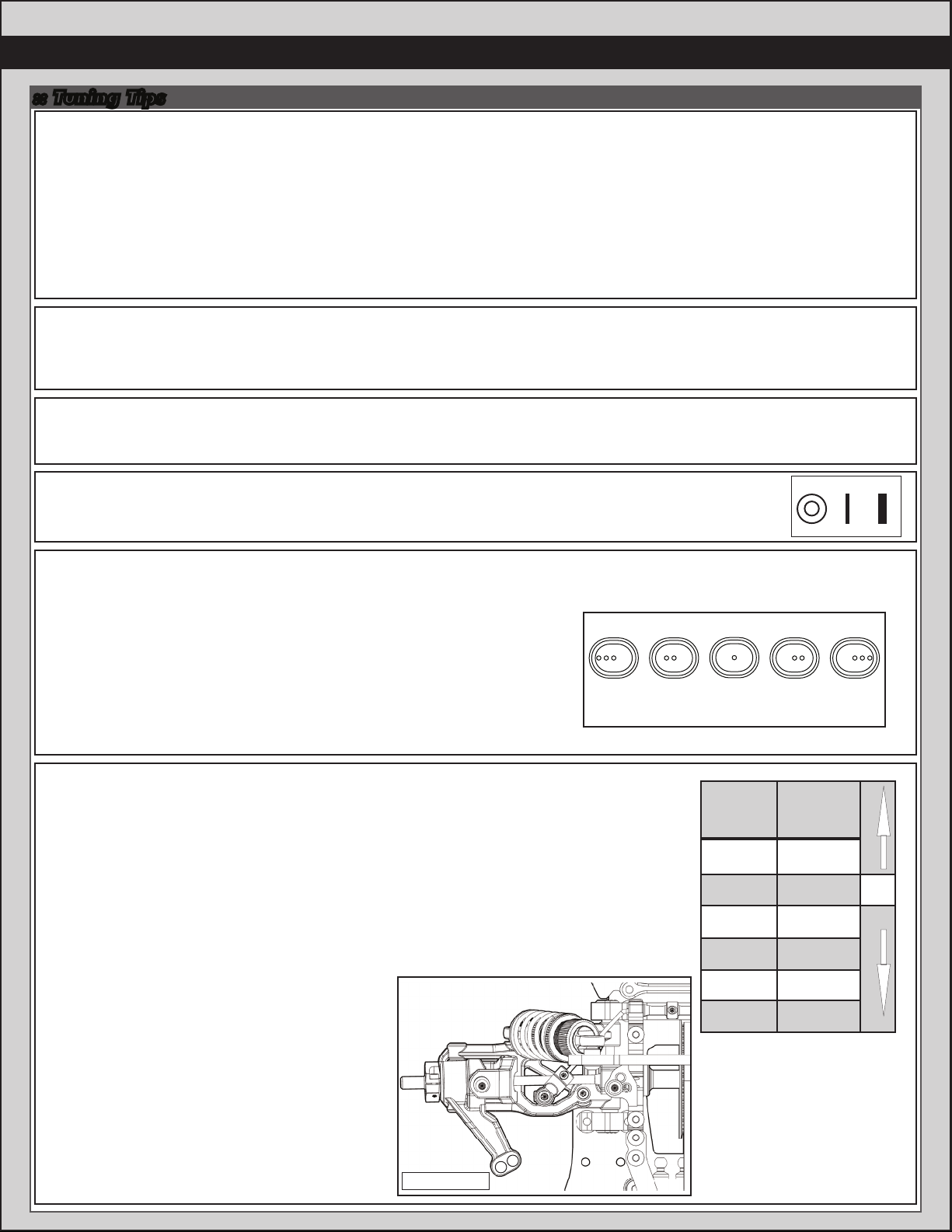

24-26.........Tuning Tips

27.................Gear Chart

28-35.........Catalog

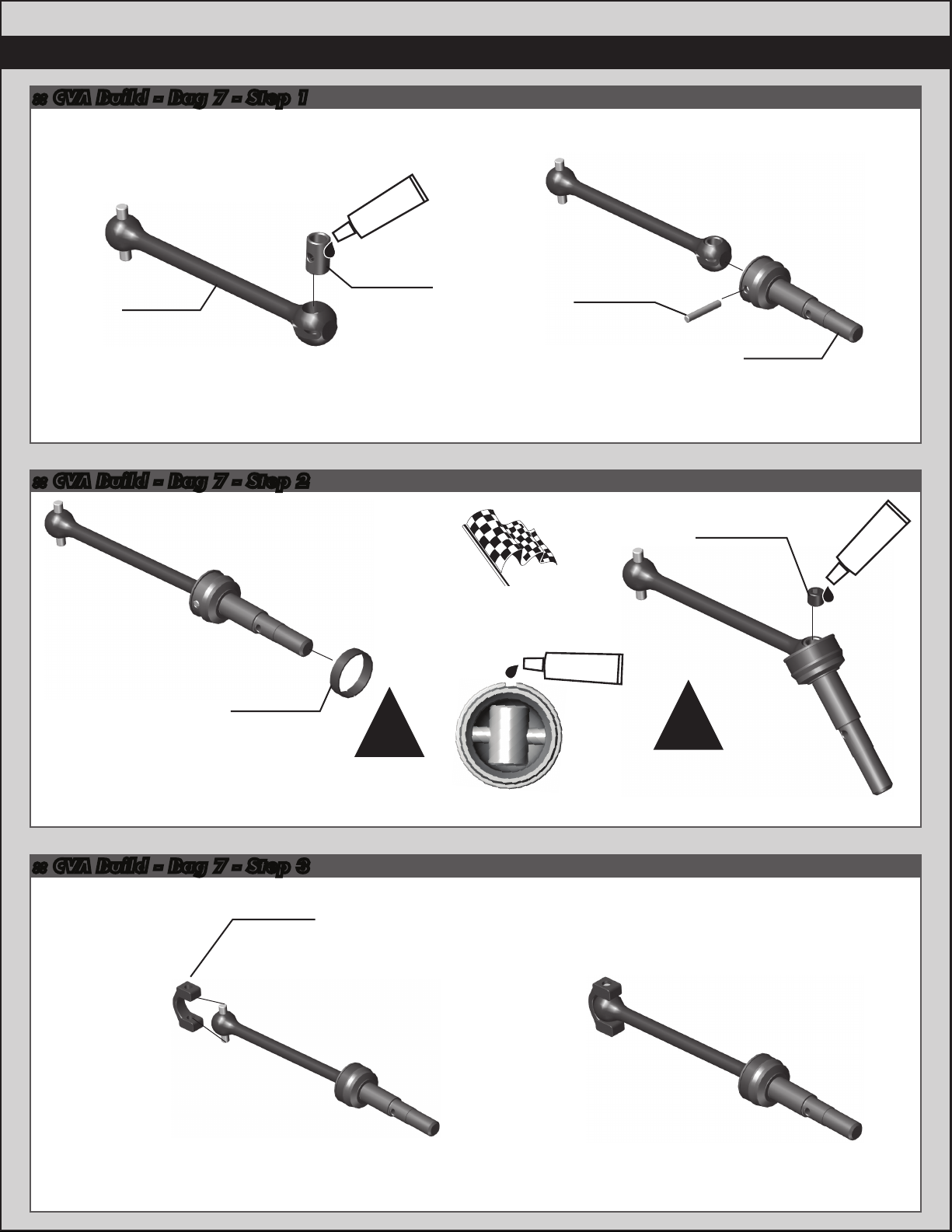

9....................CVA Build

(Bag 7)

11-12..........Suspension Arms Build

(Bags 8, 9, 10, 11)

:: Notes

This symbol indicates a special
note or instruction in the manual.

!

This symbol indicates a Racers Tip.

Scanning this QR code will take
you to Team Associated’s Tech Tips
videos. These videos will help you
with your build and setup!

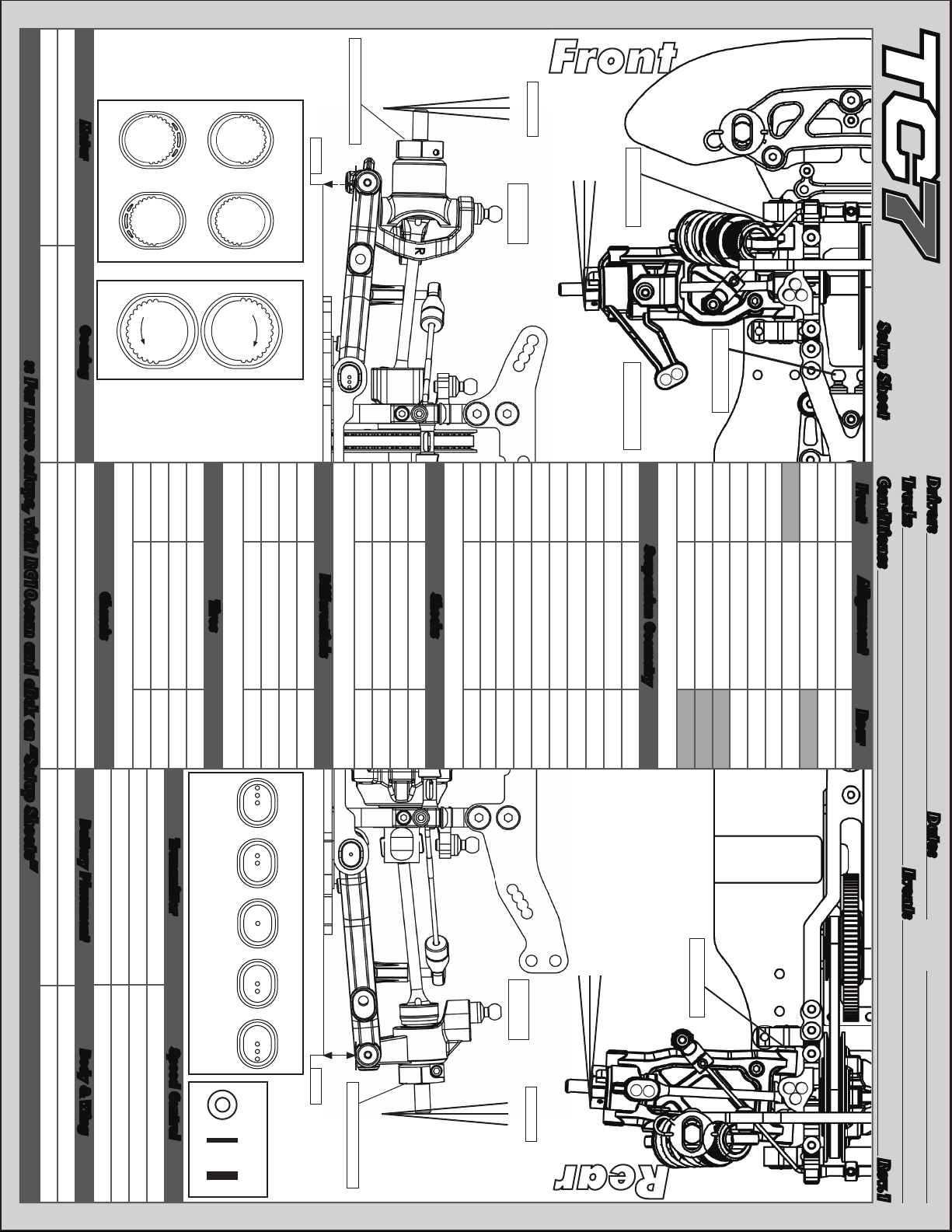

36................Setup Sheet “Kit Setup”

37.................Setup Sheet “Blank”

38................Back Cover

There is a 1:1 hardware foldout page in the
front of the manual. To check the size of a part,
line up your hardware with the correct drawing
until you find the exact size. Each part in the
foldout has a number assigned to it for ordering
replacement parts.

Associated Electrics, Inc.

26021 Commercentre Dr.

Lake Forest, CA 92630

http://www.TeamAssociated.com · http://www.RC10.com · http://twitter.com/Team_Associated · http://bit.ly/AEonFacebook

Customer Service

Tel: [phone]

Fax: [phone]

3/16

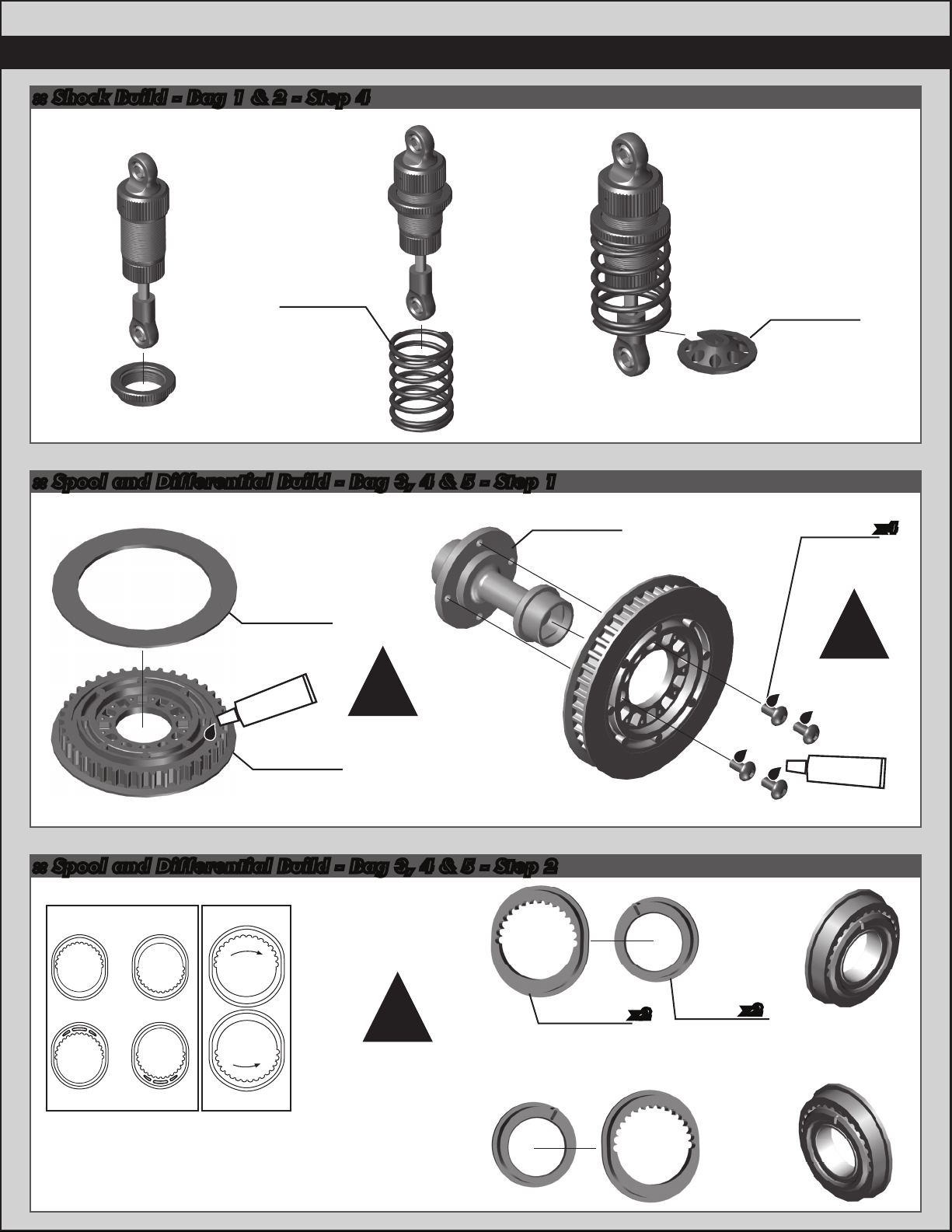

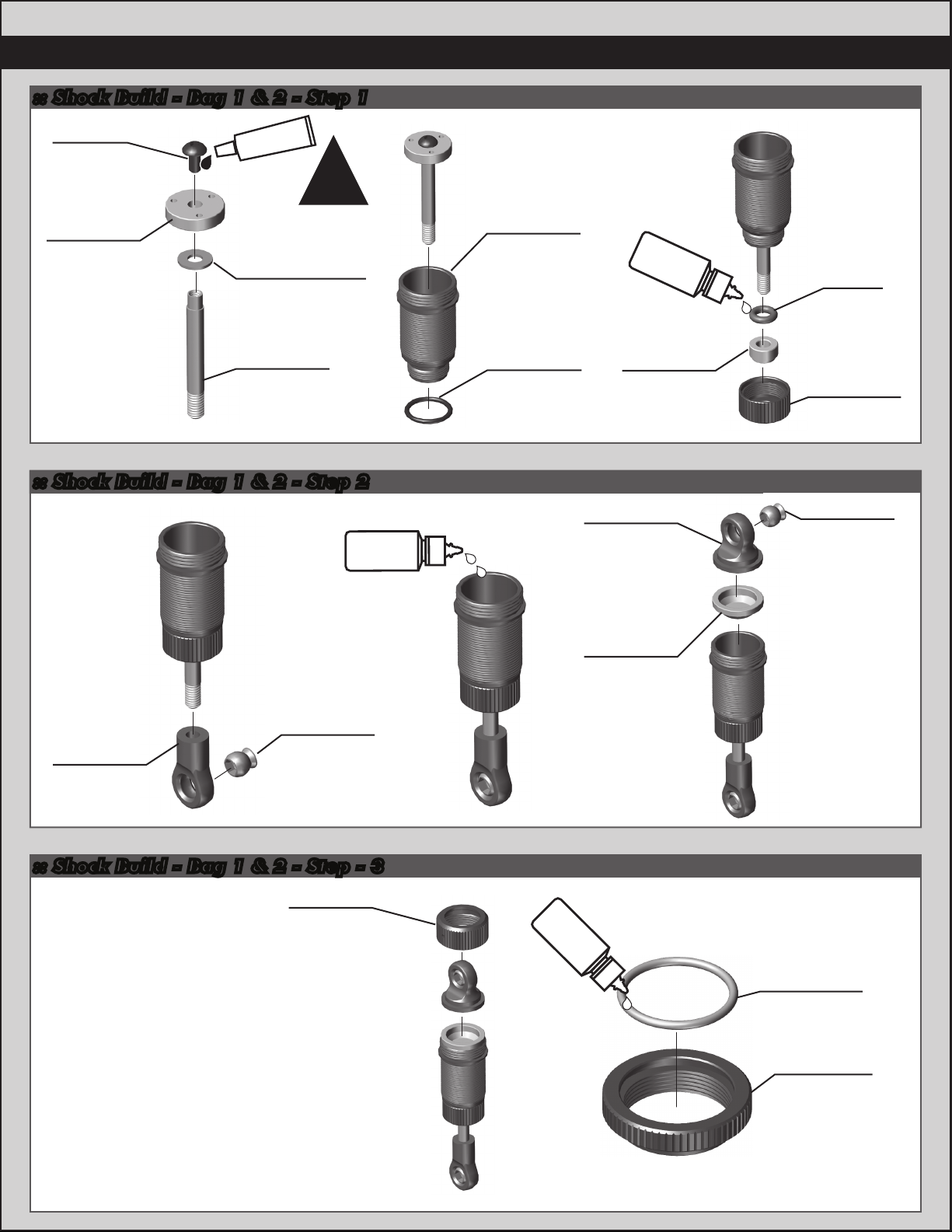

:: Shock Build - Bag 1 & 2 - Step 1

5

31510

M2x4mm

#1596

thread lock

bhcs

!

Thread lock

31689

TC7 shock

piston

(3x1.1)

(2.6x6x0.5mm)

TC7 shock

Build four

shock shafts

:: Shock Build - Bag 1 & 2 - Step 2

not included!

21139

Steel washer

31688

shaft

Shock fluid

(37.5wt)

#5433

31687
TC7 FT

shock body

(Fox

Kashima

Coat)

31327
VCS3 shock
bottom cap

o-ring

Shock fluid

#5433

(37.5wt)

31693

TC7 shock

shaft

bushing

31700

TC7 shock

cap

5407

Red

o-rings

31327
VCS3 shock
bottom cap

4637

FT pivot

balls

4637

31700

TC7 shock

FT pivot

balls

eyelet

:: Shock Build - Bag 1 & 2 - Step - 3

31696

TC7

shock cap

retainer

Bladder Installation

With the shaft extended 25%, place bladder on
the top of the shock body, displacing the extra oil.
While maintaining pressure on the bladder against
the shock body, carefully lift one side of the bladder
to allow any extra oil to escape. Place stock cap on
top of bladder, and secure it by threading the
aluminum cap retainer onto the shock body.

Shock oil

#5423

(40wt)

31693

TC7

bladder

Build four

shocks

Build four

shock collars

31326

VCS3 shock

collar o-ring

31326

VCS3

shock collar

Build four

shocks

6

:: Shock Build - Bag 1 & 2 - Step 4

31717

TC Spring,

Blue

(15.9lbs)

:: Spool and Differential Build - Bag 3, 4 & 5 - Step 1

Spool hub

31175

Diff pulley

flange

#1597

ca glue

31175

Diff pulley

(40T)

!

CA glue

not included!

31342

31698

TC7 shock

spring cup

Build four

shocks

31510

M2x4mm

bhcs

!

Thread lock

not included!

#1596

thread lock

x4

:: Spool and Differential Build - Bag 3, 4 & 5 - Step 2

Belt Tension

Cam Position

Number

Left Side

161

Mid-Low

Mid-High

!

Use belt tension

position 8 for

standard setup

on the front.

Right Side

Low

Note!
Always use the same
cam position on both
sides of the car.

High

17 32

View from left

side of car

31615

Cam

holder

(mid-low)

x2

31615

Diff

bearing

cam

x2

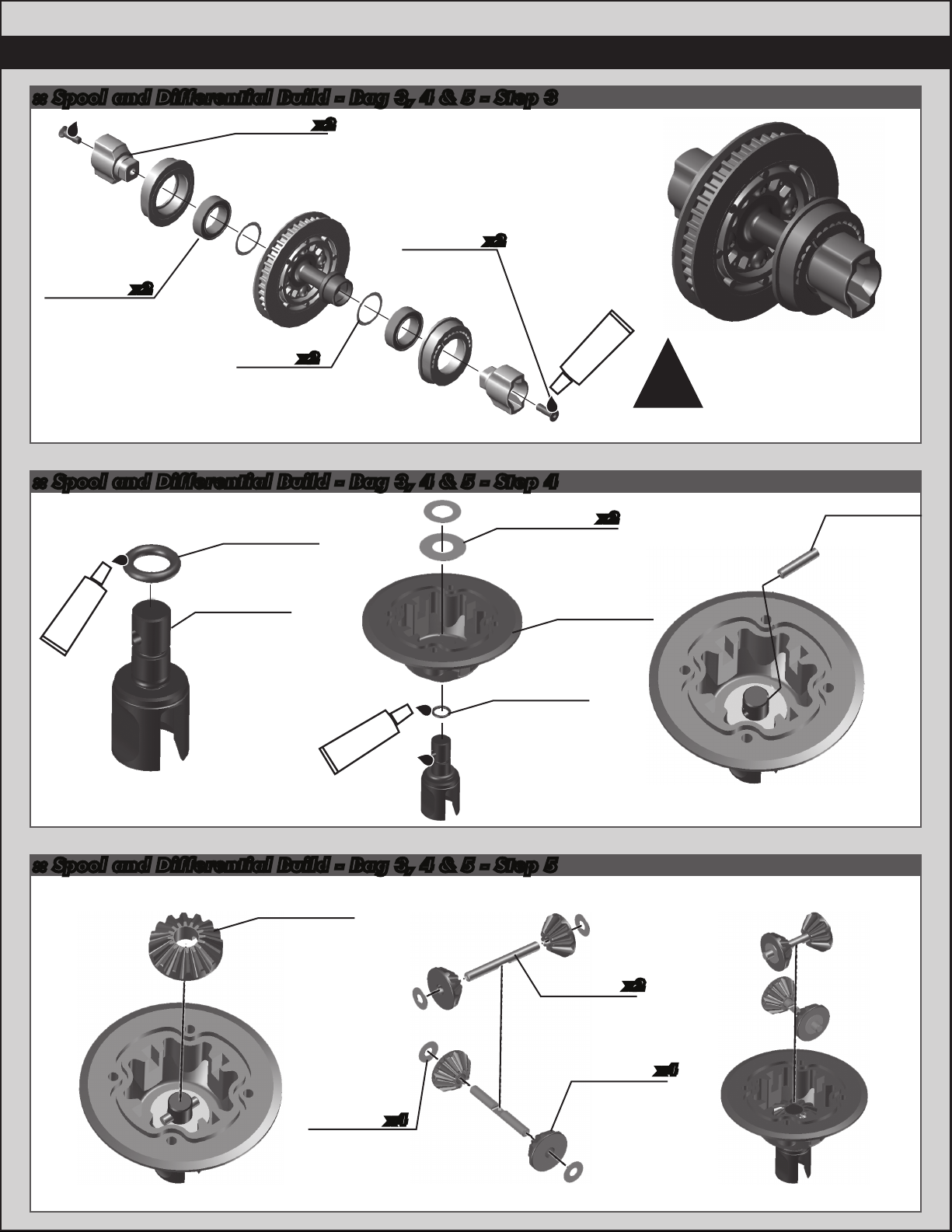

:: Spool and Differential Build - Bag 3, 4 & 5 - Step 3

31341

TC6 spool

outdrive

x2

7

x2

91563

FT bearing

10x15x4mm

x2

31162

Shim

31350

M2.5x10mm

fhcs

x2

:: Spool and Differential Build - Bag 3, 4 & 5 - Step 4

31348
TC6 gear
diff shim

(1 small, 1 big)

#6588

black grease

31349

TC6 gear

diff seals

31346

TC6 gear

diff outdrive

#1596

thread lock

Thread lock

not included!

x2

31347

TC6 gear

diff case

!

31348

TC6 gear

diff pin

31349

TC6 gear

#6588

black grease

diff seals

Build two

outdrives

:: Spool and Differential Build - Bag 3, 4 & 5 - Step 5

31345

TC6 gear

diff sun

gear

31348
TC6 gear
diff shim

x4

31348

TC6 gear

diff pin

31345

TC6 gear

diff planet

gear

x2

x4

8

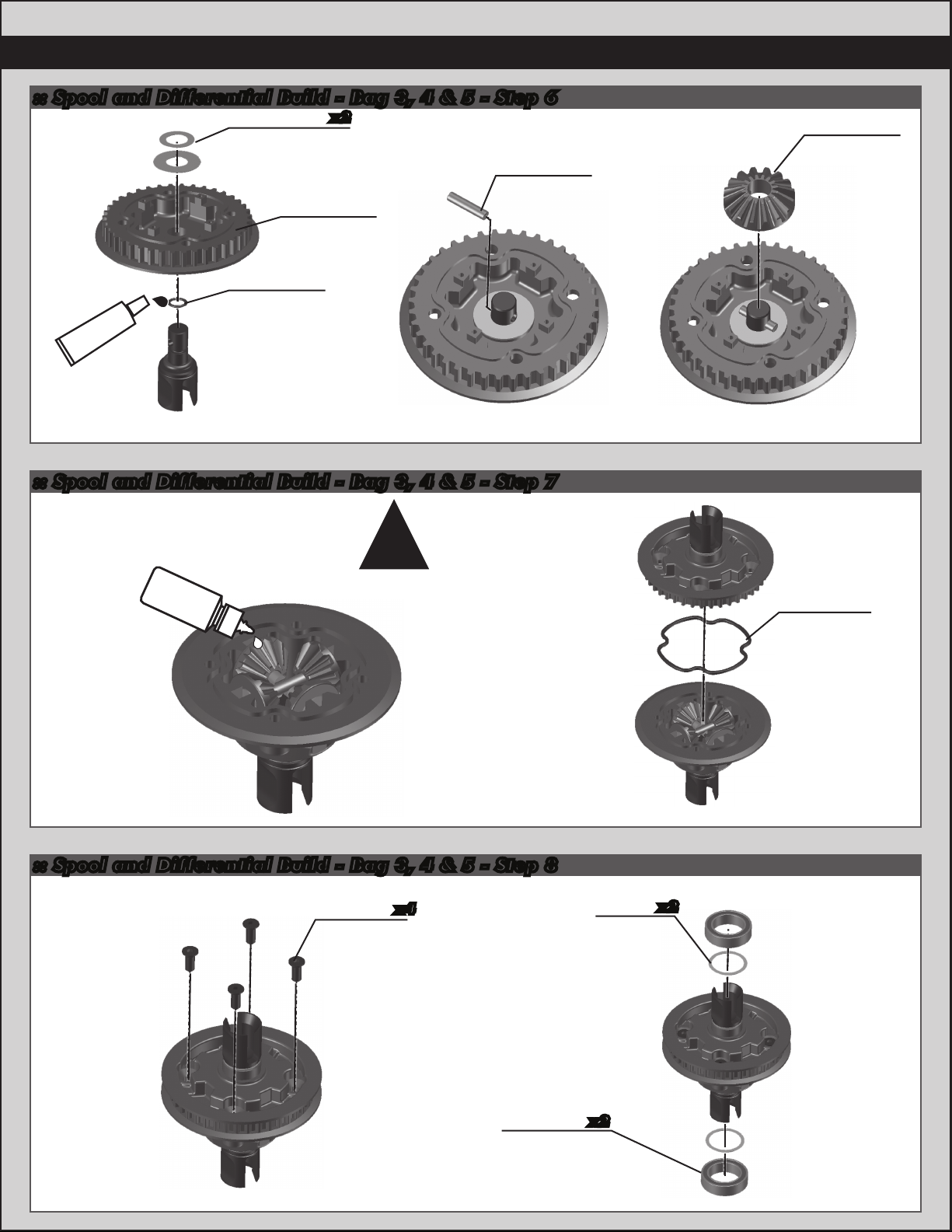

:: Spool and Differential Build - Bag 3, 4 & 5 - Step 6

31348
TC6 gear
diff shim

(1 small, 1 big)

31349

TC6 gear

diff seals

#6588

black grease

:: Spool and Differential Build - Bag 3, 4 & 5 - Step 7

x2

31347

TC6 gear

diff pulley

31348

TC6 gear

diff pin

31345

TC6 gear

diff sun

gear

!

Diff Fluid

#5452

(3,000cst)

:: Spool and Differential Build - Bag 3, 4 & 5 - Step 8

Fill to top of

cross pins

4675

M2.5x6mm

fhcs

x4

31162

Shim

31347

TC6 gear

diff gasket

x2

x291563

FT bearing

10x15x4mm

:: Spool and Differential Build - Bag 3, 4 & 5 - Step 9

Belt Tension

Cam Position

Number

9

Left Side

Mid-Low

161

Mid-High

31615

Low

Note!
Always use the same
cam position on both
sides of the car.

High

17 32

View from left

side of car

!

Use belt tension

position 7 for

standard setup

on the rear.

Right Side

Diff

bearing

cam

:: Spool and Differential Build - Bag 3, 4 & 5 - Step 10

x2

31615

Cam

holder

(mid-low)

x2

:: Turnbuckles Build - Bag 6 - Step 1

Servo Turnbuckle

1418

0.825”

turnbuckle

Camber Turnbuckle

Steering Turnbuckle

1402

1.375”

turnbuckle

1405

1.875”

turnbuckle

31305

Turnbuckle

eyelet

Front Rear

20.50mm

10.15mm

x2 x2

19.00mm

x2

30.15mm

10

:: CVA Build - Bag 7 - Step 1

#6588

black grease

31368

TC6.1 CVA

bones

:: CVA Build - Bag 7 - Step 2

31237

retaining

clip

31367

TC6.1 CVA

coupler

place a drop of CA glue

on the pin retainer gap.

!

Note!

Align the gap in the

pin retainer to be

opposite of the CVA pin.

RACERS TIP!

31367

cross pin

#1597

CA glue

CVA

31500

M3x2.5mm

setscrew

!

Thread lock

and CA glue

not included!

31369

TC6.1 CVA

axle

#1596

thread lock

:: CVA Build - Bag 7 - Step 3

31238

CVA blade

Build four

CVA’s

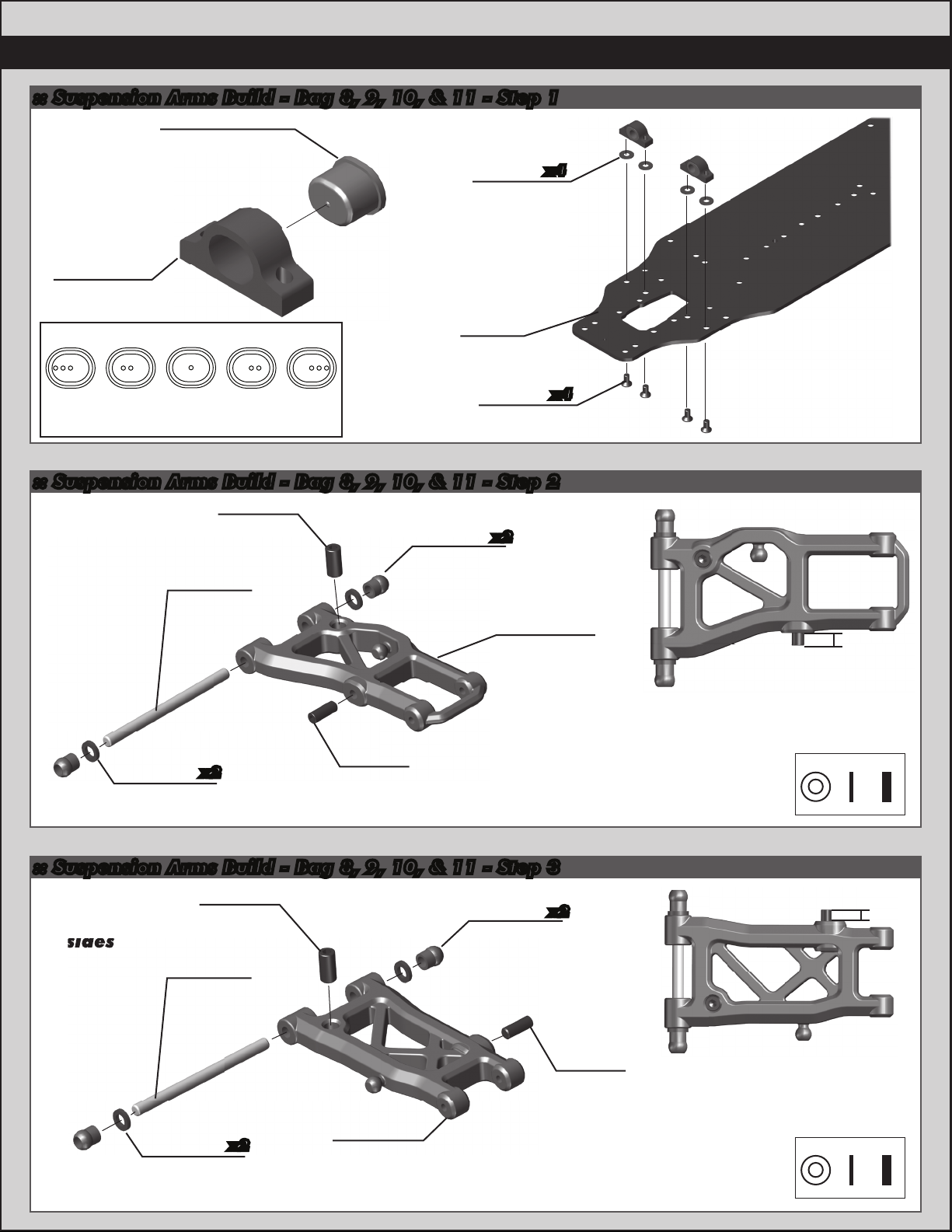

:: Suspension Arms Build - Bag 8, 9, 10, & 11 - Step 1

Build four
inner arm

mounts

31619

TC6.2 Inner

arm mount

-3 DOT

-1 °

-2 DOT

-1/2 °

Negative to the inside of vehicle.

Positive to the outside of vehicle.

(Front: -3 dot, -1°)

Arm Mount Inserts

31620

TC6.2 arm

mount insert

(Rear: 1 dot, 0°)

1 DOT

0 °

+2 DOT

+1/2 °

+3 DOT

+1 °

4617

Bulkhead

shim

(0.5mm)

31650

TC7

chassis

31541

M3x6mm

fhcs

x4

:: Suspension Arms Build - Bag 8, 9, 10, & 11 - Step 2

Build left
and right

sides

TC7 Inner
hinge pin

M4x8mm

setscrew

31677

25227

31621

x2

Inner hinge

pin ball

31673

TC7 Front

suspension

arm

x4

11

Install

front and

rear

3mm

31286

Wheelbase

x2

M3x8mm

set screw

shim (1mm)

:: Suspension Arms Build - Bag 8, 9, 10, & 11 - Step 3

4670

Build left
and right

sides

31286

Wheelbase

shim (1mm)

25227

M4x8mm

set screw

31677
TC7 Inner
hinge pin

x2

31621

Inner hinge

pin ball

31674

TC7 Rear

suspension

arm

x2

4670

M3x8mm

set screw

Wheel Base Shims

1mm

2mm

3mm

Wheel Base Shims

1mm

2mm

12

+2

DOT

+3

DOT

(Rear: 1 dot, 0°)

31618

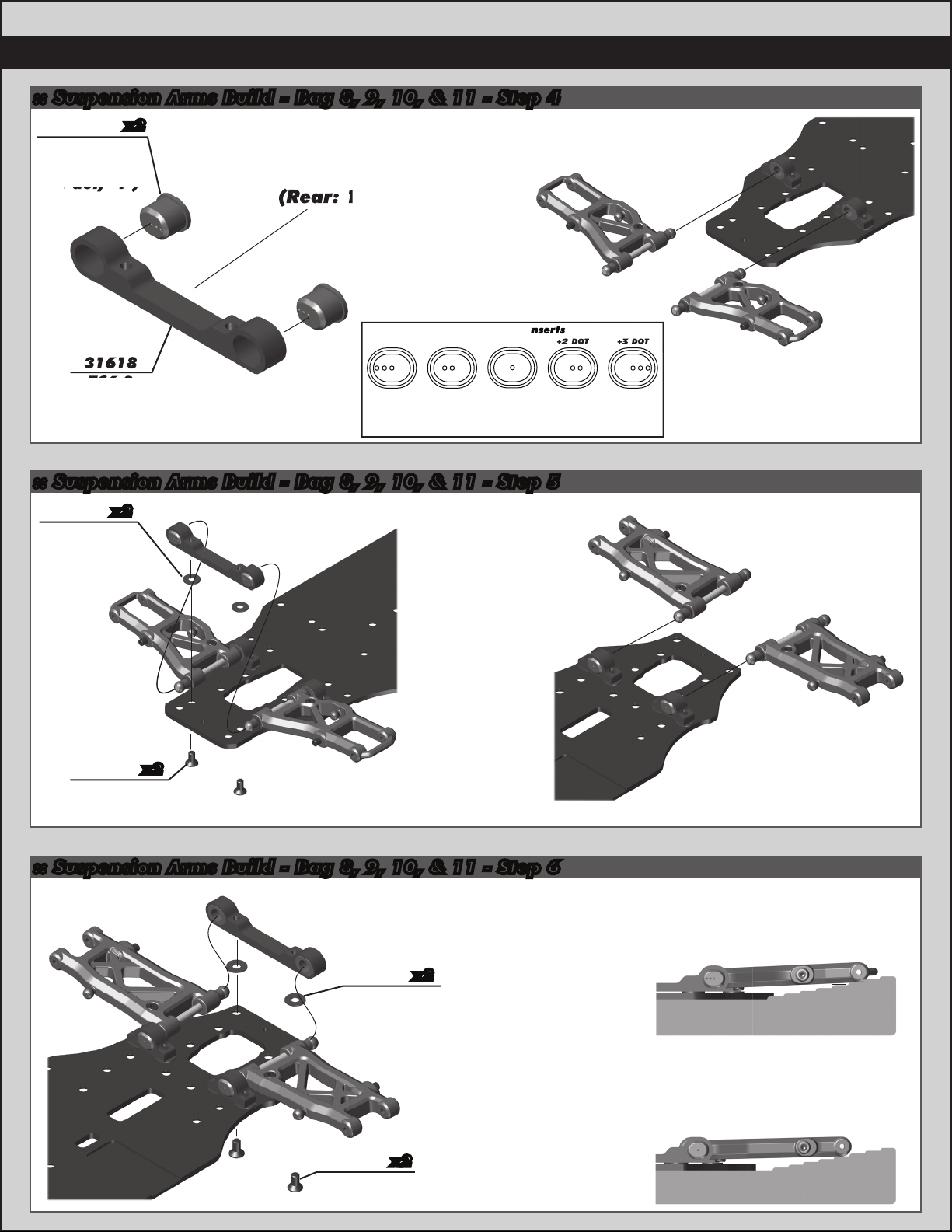

:: Suspension Arms Build - Bag 8, 9, 10, & 11 - Step 4

31620

TC6.2 arm

mount insert

(-3 dot, -1°)

x2

Build two, one for

front, one for rear.

(Front: -3 dot, -1°)

(Rear: 1 dot, 0°)

Arm Mount Inserts

-3 DOT

-2 DOT

1 DOT

31618

TC6.2

Outer Arm

Mount

-1 °

-1/2 °

Negative to the inside of vehicle.

Positive to the outside of vehicle.

0 °

:: Suspension Arms Build - Bag 8, 9, 10, & 11 - Step 5

4617

Bulkhead

shim

(0.5mm)

x2

+2 DOT

+1/2 °

+3 DOT

+1 °

31541

x2

M3x6mm

fhcs

:: Suspension Arms Build - Bag 8, 9, 10, & 11 - Step 6

Droop:

The standard settings of
6mm front and 5mm rear
will work best in most cases.
Droop is measured just

x2

x2

underneath the outer hinge
pin as shown in the photos
to the right.

On bumpy or low grip
surfaces, increase the droop
(going to a lower number on
the droop gauge), this will
help increase traction and
consistency.

Droop adjustments of

0.5mm to 1mm can be
very effective on the track!

4617

Bulkhead

shim

(0.5mm)

31541

M3x6mm

fhcs

Front Droop

Setting: 6mm

4

3

2

1

0

Rear Droop

Setting: 5mm

4

3

2

1

0

8

7

6

5

8

7

6

5

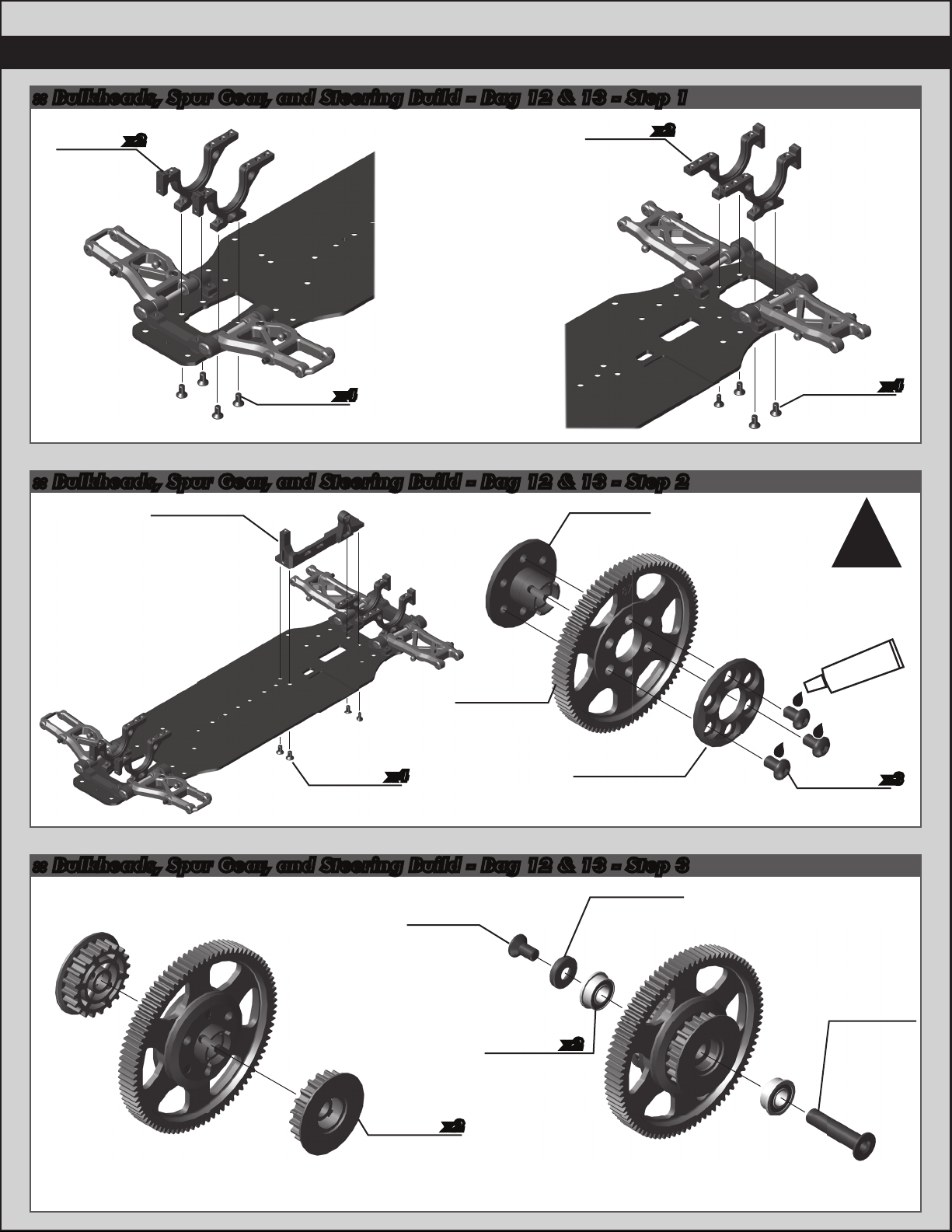

:: Bulkheads, Spur Gear, and Steering Build - Bag 12 & 13 - Step 1

13

31660

TC7

Bulkhead

x2

31541

M3x6mm

fhcs

31660

TC7

Bulkhead

x4

x2

:: Bulkheads, Spur Gear, and Steering Build - Bag 12 & 13 - Step 2

31663

TC7

motor

mount

31314

TC6 spur

gear hub

31541

M3x6mm

fhcs

!

Thread lock

not included!

x4

31333

TC6

spur gear

(87T / 48P)

31541

M3x6mm

fhcs

x4

31319
TC6 spur gear
clamping ring

:: Bulkheads, Spur Gear, and Steering Build - Bag 12 & 13 - Step 3

89229

31541

M3x6mm

fhcs

31320

TC6 spur

pulley

(20T)

x231731

FT bearing

4x8x3mm

flanged

x2

Blue

countersunk

washer

#1596

thread lock

31530

M3x5mm

bhcs

31664

TC7 spur

gear shaft

x3

14

Front Belt

!

Slide belt over

gear diff pulley!

!

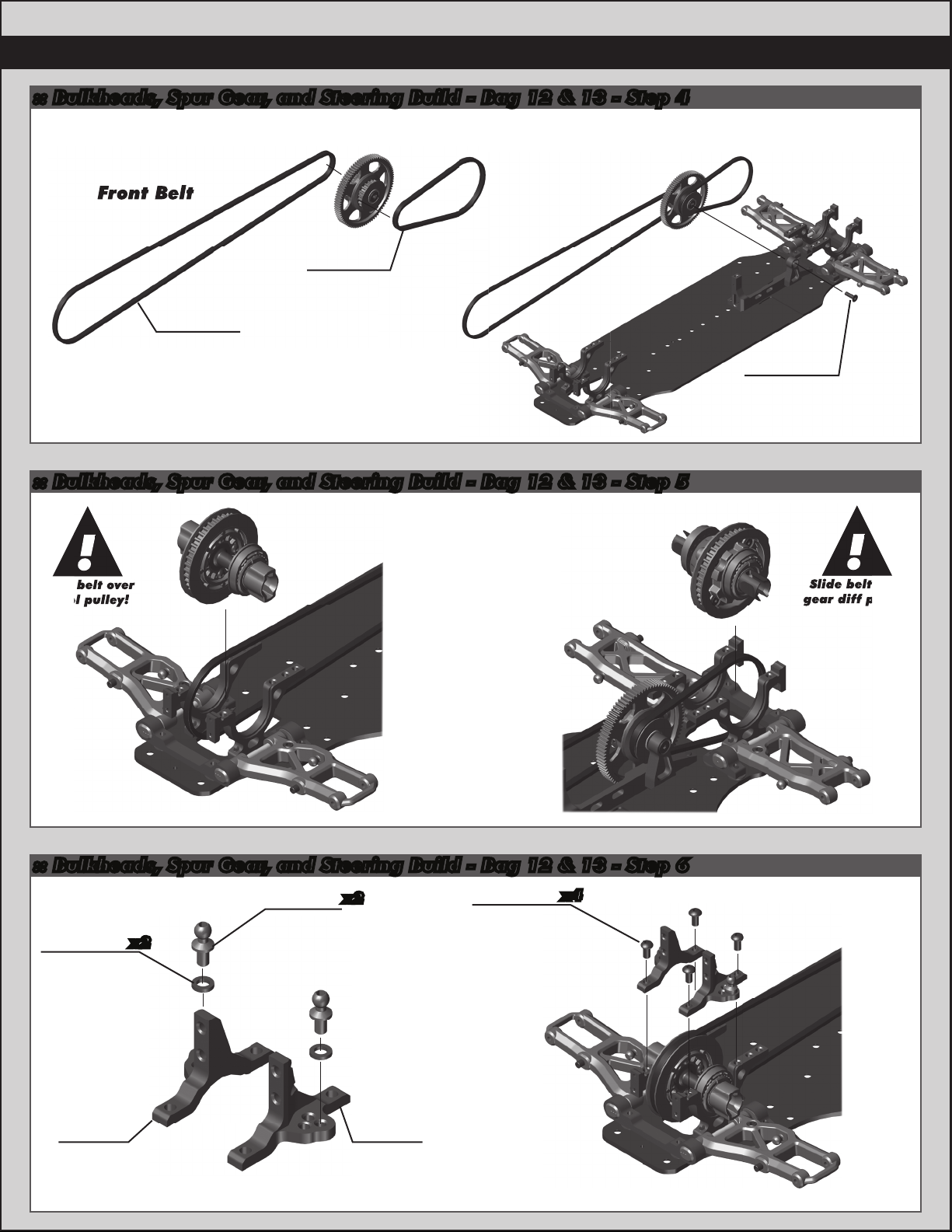

:: Bulkheads, Spur Gear, and Steering Build - Bag 12 & 13 - Step 4

Rear Belt

Front Belt

31659

TC7 Rear

belt

31658

TC7 Front

belt

:: Bulkheads, Spur Gear, and Steering Build - Bag 12 & 13 - Step 5

25202

M3x10mm

fhcs

!

Slide belt over

spool pulley!

:: Bulkheads, Spur Gear, and Steering Build - Bag 12 & 13 - Step 6

x4

31286

FT ballstud

washer,

aluminum

(1mm)

x2

31283

Ballstud,

long,
5mm

x2

31531

M3x6mm

bhcs

!

Slide belt over

gear diff pulley!

31613

TC6.2

bearing

cap (A)

31614

TC6.2

bearing

cap (B)

:: Bulkheads, Spur Gear, and Steering Build - Bag 12 & 13 - Step 7

15

31286

FT ballstud

washer,

aluminum

(1mm)

31614

TC6.2

bearing

cap (B)

x2

31283

Ballstud,

long,
5mm

31613

TC6.2

bearing

cap (A)

x2

31531

M3x6mm

bhcs

x4

:: Bulkheads, Spur Gear, and Steering Build - Bag 12 & 13 - Step 8

!

Note!

Place top
plate between
the front belt.

31653

TC7 top

plate

M3x5mm

bhcs

x931530

:: Bulkheads, Spur Gear, and Steering Build - Bag 12 & 13 - Step 9

31655

TC7 front

shock tower

31541

M3x6mm

fhcs

x4

31541

M3x6mm

fhcs

31656

TC7 rear

shock tower

x4

16

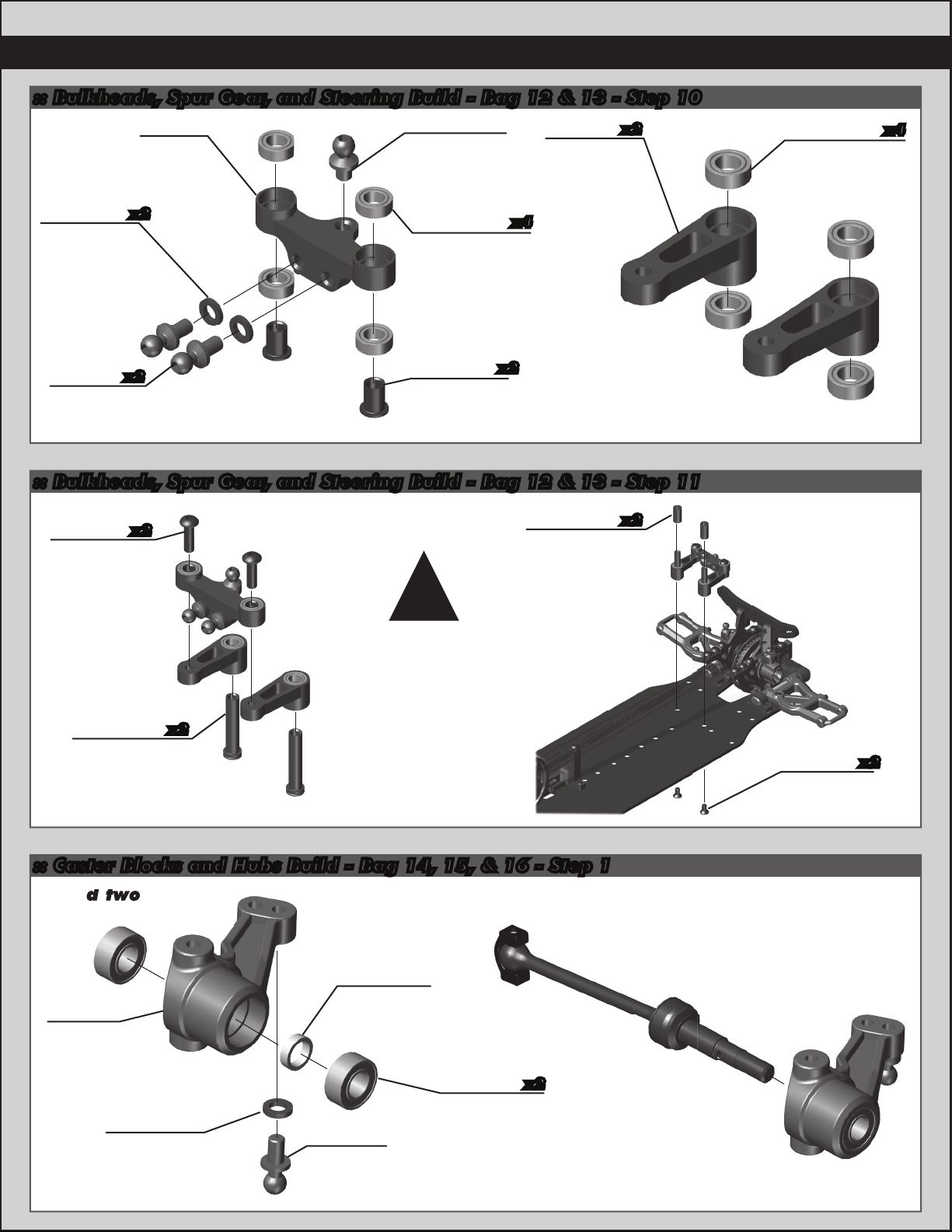

:: Bulkheads, Spur Gear, and Steering Build - Bag 12 & 13 - Step 10

31665

TC7

steering

rack

31374

TiN 3.25mm

ballstud,

short neck

31666

TC7

steering

bellcrank

x2

31732

FT Bearing,

4 x 7 x 2.5mm

x4

31286

FT ballstud

washer,

aluminum

(1mm)

31283

Ballstud,

long,

5mm

x2

x2

31732

FT Bearing,

4 x 7 x 2.5mm

31665

TC7 steering

rack hat
bushing

x4

x2

:: Bulkheads, Spur Gear, and Steering Build - Bag 12 & 13 - Step 11

25211

M3x10mm

bhcs

x2

31667

TC7 steering

bellcrank post

spacer

x2

!

Top Plate and

Belts hidden for

view clarity!

31667

TC7 steering

rack post

x2

31541

M3x6mm

fhcs

x2

:: Caster Blocks and Hubs Build - Bag 14, 15, & 16 - Step 1

Build two Build two

31370

TC6.1

31679

TC7

steering

blocks

31286

FT ballstud

washer,

aluminum

(1mm)

axle crush

tube

x291560

FT bearing

5x10x4mm

31283

5mm

ballstud

(long)

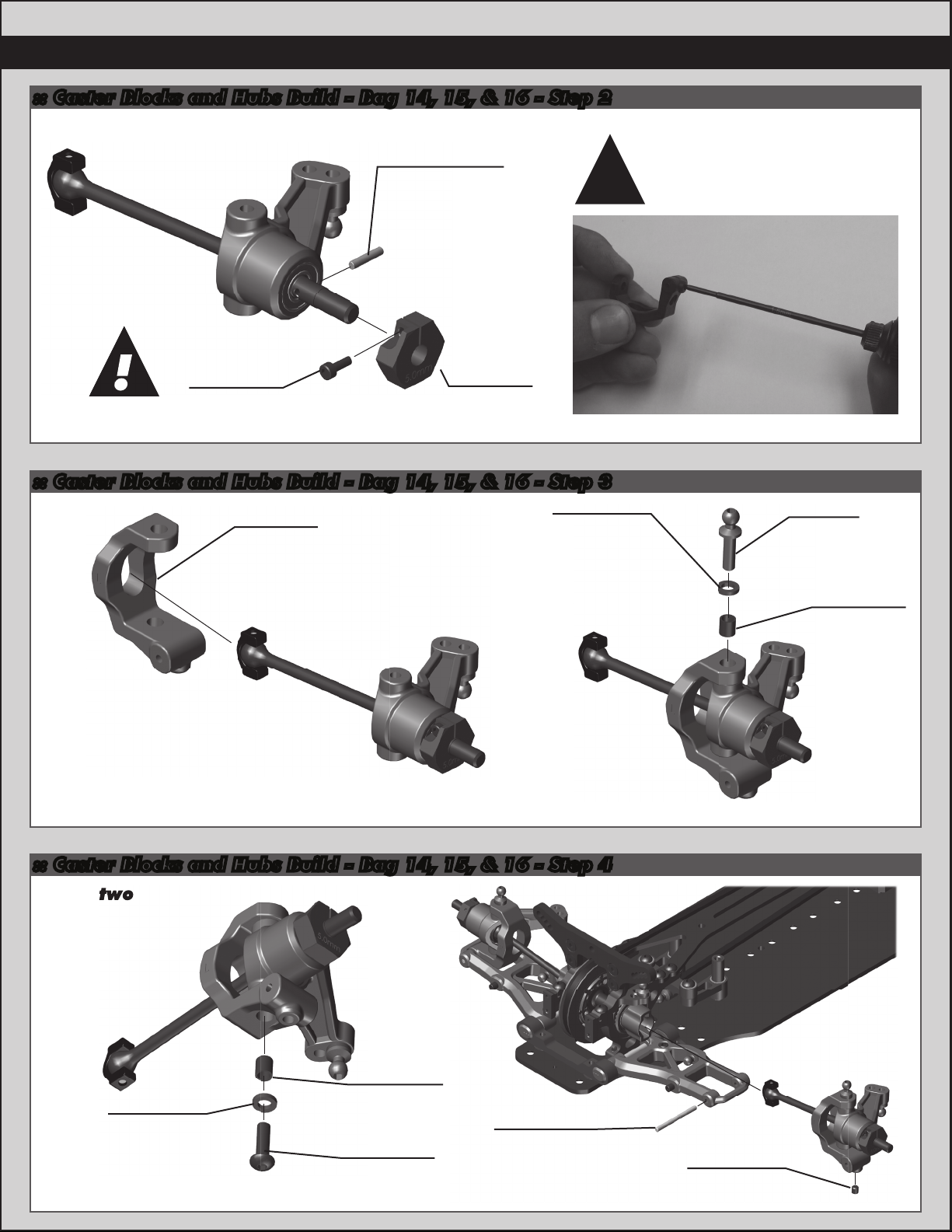

:: Caster Blocks and Hubs Build - Bag 14, 15, & 16 - Step 2

!

Build two

31112

1/16” x 5/16”

dowel pins

!

17

Use a 1.5mm hex tool tip to poke

through any left over flashing (extra

thin piece of plastic) in the hinge pin

set screw hole on the caster blocks.

!

Do not

overtighten!

91611

M1.6x5mm

shcs

31670

Clamping

wheel hex

(5mm)

:: Caster Blocks and Hubs Build - Bag 14, 15, & 16 - Step 3

Build two

31678

TC7 caster

block,

(4 degree)

31286

FT ballstud

washer,

aluminum

(1mm)

31285
10mm

ballstud

(long)

31680

TC7 king

pin bushing

:: Caster Blocks and Hubs Build - Bag 14, 15, & 16 - Step 4

Build two

31680

31286

FT ballstud

washer,

aluminum

(1mm)

TC7 king

pin bushing

25211

M3x10mm

bhcs

31677
TC7 hinge
pin, outer

25225

M3x3

set screw

18

Orient the notch

to the left throughout

the car. The notch

indicates which end has

the left hand threads!

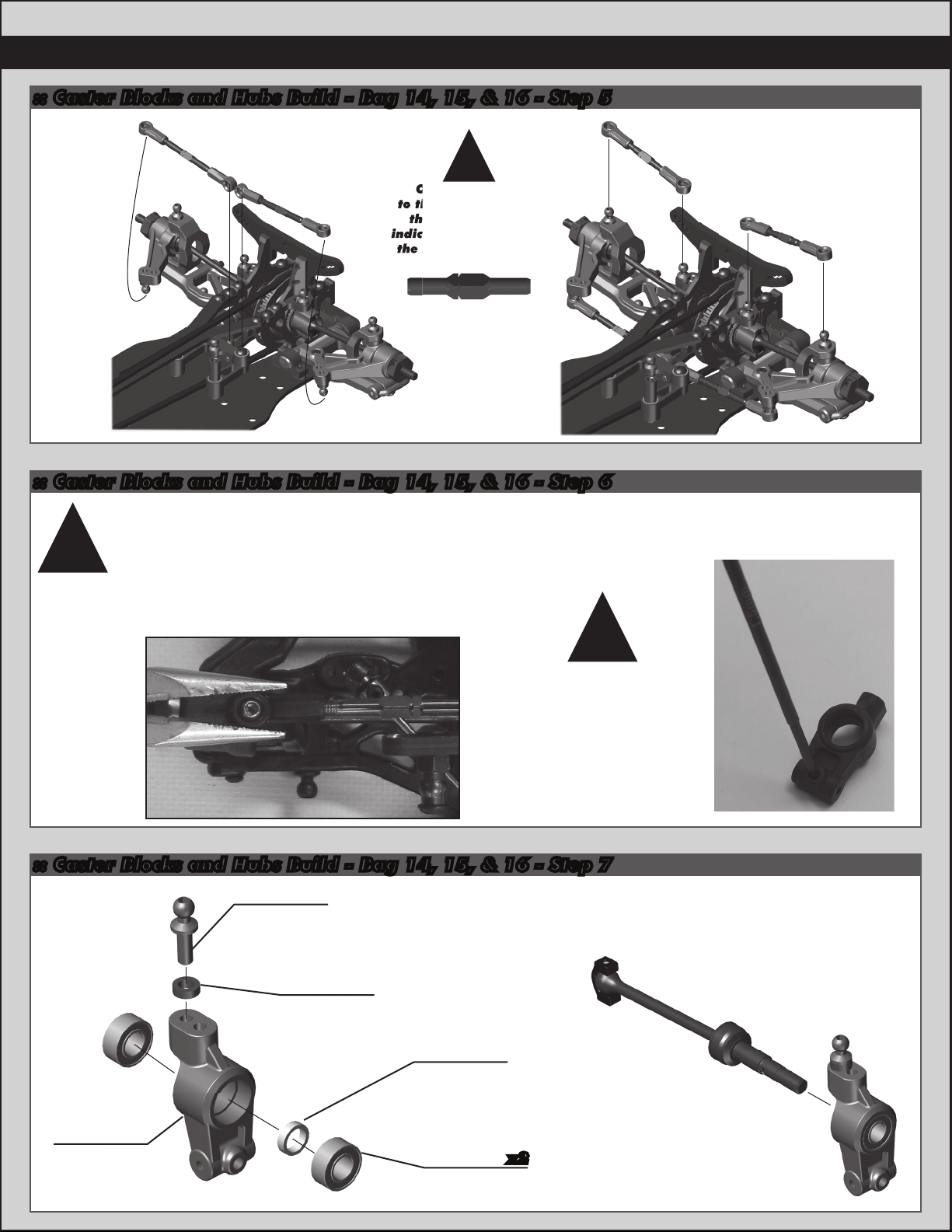

:: Caster Blocks and Hubs Build - Bag 14, 15, & 16 - Step 5

!

Orient the notch

to the left throughout

the car. The notch

indicates which end has

the left hand threads!

:: Caster Blocks and Hubs Build - Bag 14, 15, & 16 - Step 6

It is important that the turnbuckle eyelets move freely
once snapped on to the ballstud. If the fit is too tight,

the car handling will be inconsistent. To check, grab

!

turnbuckle eyelet with fingers and rotate the cup. If

there is resistance, lightly squeeze ball cup with needle

nose pliers as shown and test again. It is important

that the ball cup be snapped onto the ballstud before

squeezing with needle nose pliers. Be sure to check

and adjust the fit for each ball cup that is installed.

!

Use a 1.5mm hex tool tip to

poke through any left over

flashing (extra thin piece of

plastic) in the hinge pin set

screw hole on the rear hubs.

:: Caster Blocks and Hubs Build - Bag 14, 15, & 16 - Step 7

Build left
and right

sides

31681

TC7 rear

hub

carrier

31284

8mm

ballstud

(long)

31286

Aluminum

ballstud

washer

(2mm)

31370

TC6.1

axle crush

tube

x291560

FT bearing

5x10x4mm

Build left
and right

sides

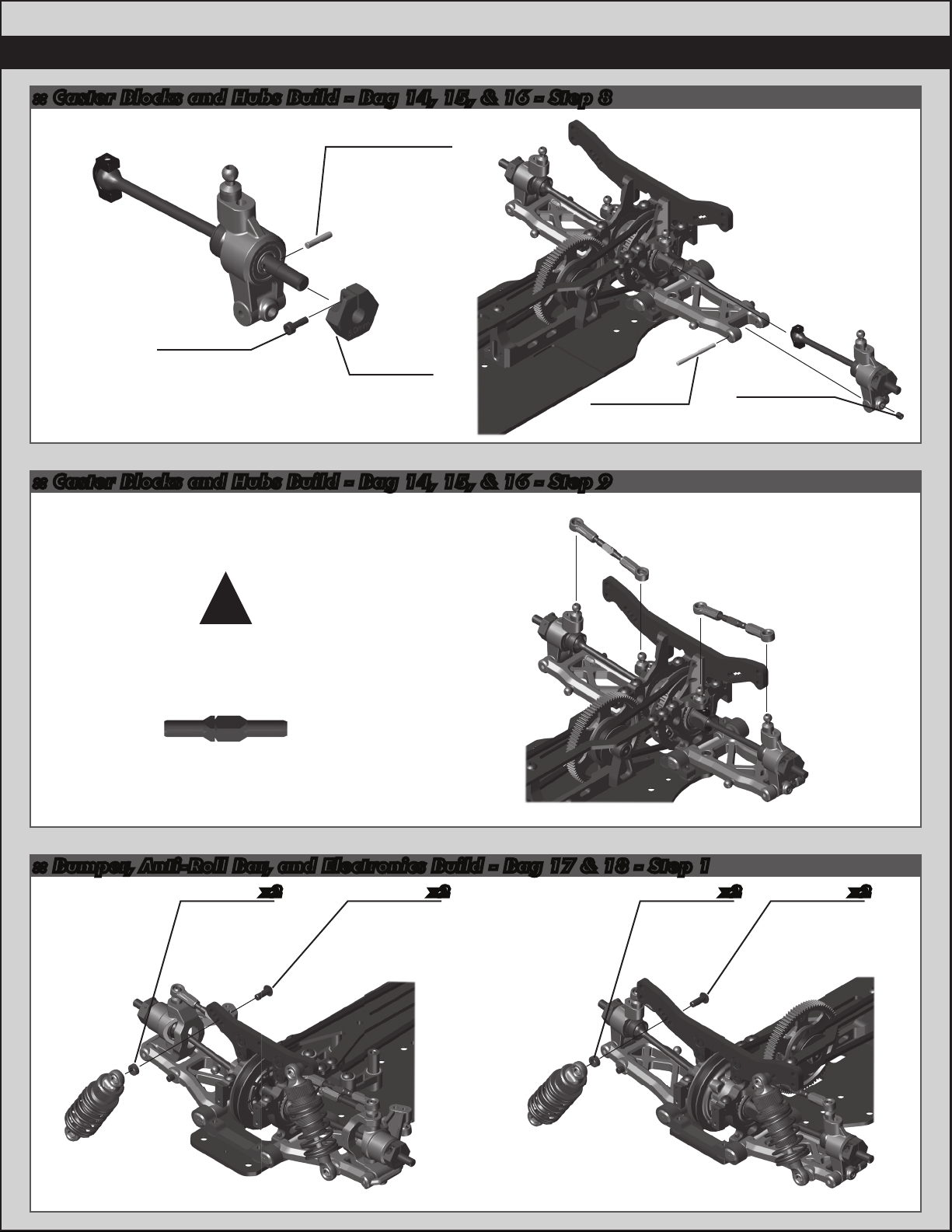

:: Caster Blocks and Hubs Build - Bag 14, 15, & 16 - Step 8

31112

1/16” x 5/16”

dowel pins

91611

Build left
and right

sides

M1.6x5mm

shcs

31670

Clamping

wheel hex

(5mm)

TC7 hinge
pin, outer

:: Caster Blocks and Hubs Build - Bag 14, 15, & 16 - Step 9

31677

19

Build left
and right

sides

25225

M3x3

set screw

!

Orient the notch

to the left throughout

the car. The notch

indicates which end has

the left hand threads!

:: Bumper, Anti-Roll Bar, and Electronics Build - Bag 17 & 18 - Step 1

31286

Aluminum

ballstud

washer

(2mm)

x2 x2 x2 x2

31532

M3x8mm

bhcs

31286

Aluminum

ballstud

washer

(2mm)

31532

M3x8mm

bhcs

20

:: Bumper, Anti-Roll Bar, and Electronics Build - Bag 17 & 18 - Step 2

4673

M2.5x4mm

bhcs

!

Transponder

not included!

x3

31625

TC6.2 front

body posts

x2

31624

TC6.2

foam

bumper

3897

Pivoting

body mounts

31623

bumper

x2

TC6.2

brace

1736

FT body

clips, blue

(short)

25201

M3x8mm

fhcs

x2

x3

31623

TC6.2

bumper

25202

M3x10mm

fhcs

x2

:: Bumper, Anti-Roll Bar, and Electronics Build - Bag 17 & 18 - Step 3

25201

M3x8mm

fhcs

x2

:: Bumper, Anti-Roll Bar, and Electronics Build - Bag 17 & 18 - Step 4

31532

M3x8mm

bhcs

x2

3897

Pivoting

body mounts

x2

31625

TC6.2 rear

body posts

1736

FT body

clips, blue

(short)

x2

x2

31626

TC6.2 lipo

brace

(offset)

31626

TC6.2 lipo

brace

31541

M3x6mm

fhcs

31626

Inner lipo

brace

x6

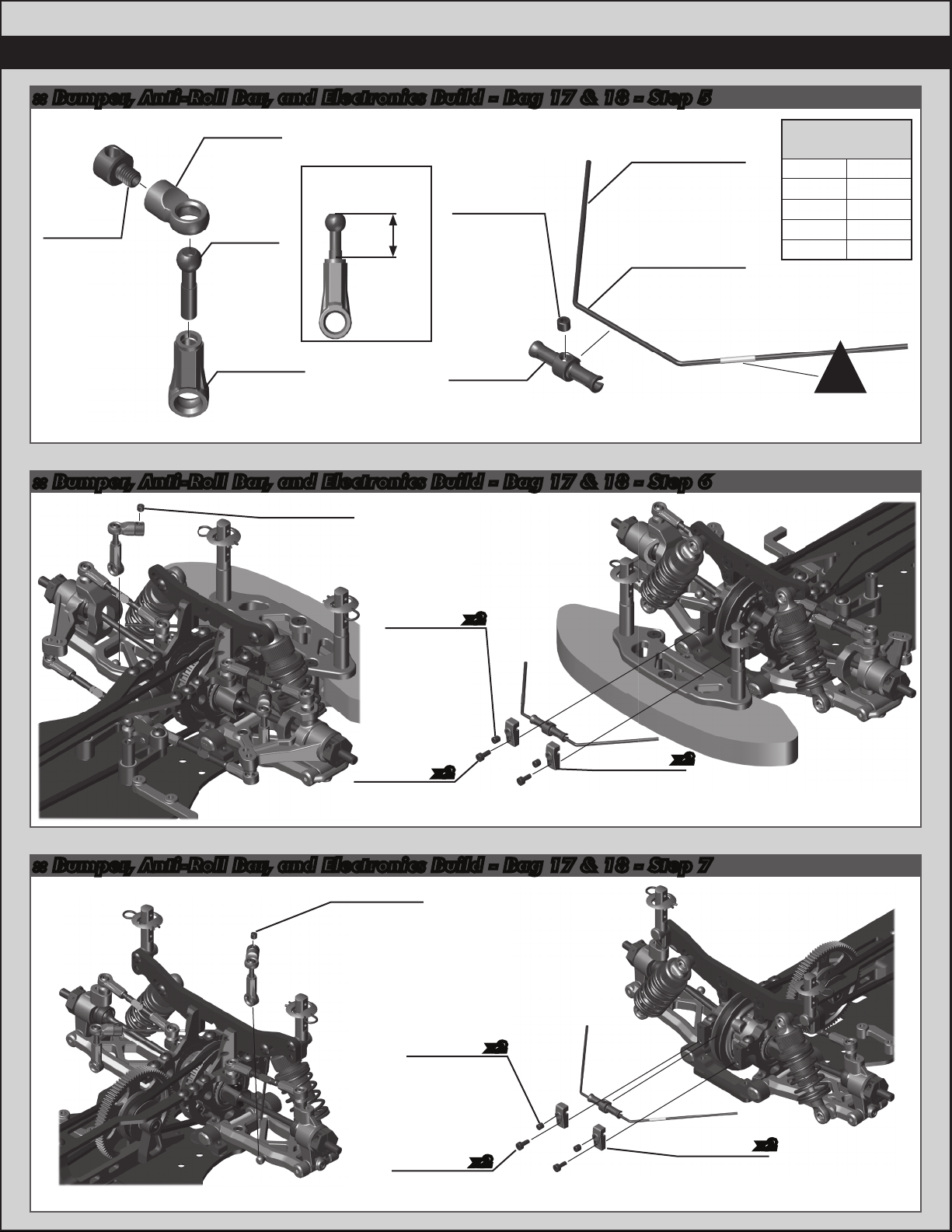

:: Bumper, Anti-Roll Bar, and Electronics Build - Bag 17 & 18 - Step 5

21

31701

31701

TC7 anti-

roll bar
coupler

Build four

anti-roll

bar mounts

TC7 anti-

roll bar

eyelet

31058

Anti roll

bar

ballstud

31305

Turnbuckle

eyelet

Anti Roll Bar

Link Adjust

9.5mm

ment

31500

M3x2.5mm

set screw

31701

TC7 anti-

roll bar

retainer

31703

TC7 Front

anti-roll bar,

1.4mm (blue)

31707

TC7 Rear

anti-roll bar,

1.2mm (white)

:: Bumper, Anti-Roll Bar, and Electronics Build - Bag 17 & 18 - Step 6

31500

M3x2.5mm

set screw

Anti Roll Bar

Color/Size Chart

Green
White

Gray
Blue

Yellow

1.1mm

1.2mm

1.3mm

1.4mm

1.5mm

!

Shrink the colored

heat shrink tubing to

the anti roll bar!

x2

x2

31701

TC7 anti-

roll bar

mount

x2

25225

M3x3mm

set screw

31511

M2x5mm

shcs

:: Bumper, Anti-Roll Bar, and Electronics Build - Bag 17 & 18 - Step 7

31500

M3x2.5mm

set screw

25225

M3x3mm

set screw

x2

31511

M2x5mm

shcs

x2

31701

TC7 anti-

roll bar

mount

x2

22

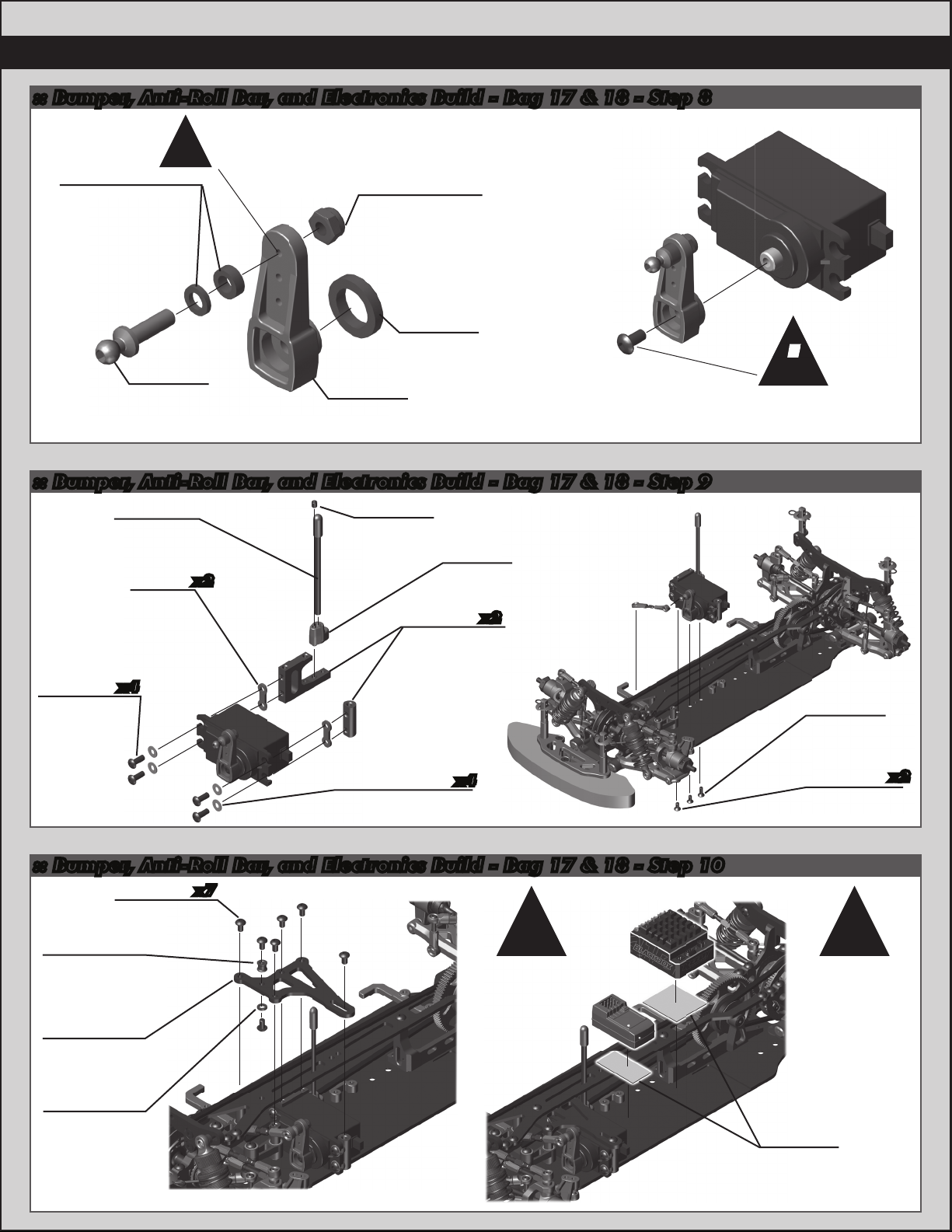

:: Bumper, Anti-Roll Bar, and Electronics Build - Bag 17 & 18 - Step 8

Drill/ream top hole to

2.5mm, then install

ballstud and locknut

!

31286

Aluminum

ballstud washer

(1mm, 2mm)

31285
10mm

ballstud

(long)

89007

Servo

:: Bumper, Anti-Roll Bar, and Electronics Build - Bag 17 & 18 - Step 9

6338

Antenna

tube & cap

31532

M3x8mm

bhcs

7336

Servo

spacer

x4

x2

31550

FT M3 Locknut,

blue aluminum

89007

Servo

horn ring

horn

25225

M3x3mm

set screw

31626

Antenna

mount

31669

TC7

servo

mounts

x2

!

Use screw that was

included with your servo.

Servo not included!

25202

M3x10mm

fhcs

7337

.250x.125x.015

washer

x4

:: Bumper, Anti-Roll Bar, and Electronics Build - Bag 17 & 18 - Step 10

31530

M3x5mm

bhcs

31667

TC7 steering

bellcrank

post

31657

TC7 servo

mount brace

31286

Aluminum

ballstud

washer

(1mm)

x7

! !

included!

31541

M3x6mm

fhcs

ESC not included!Receiver not

6727

Servo tape

x2

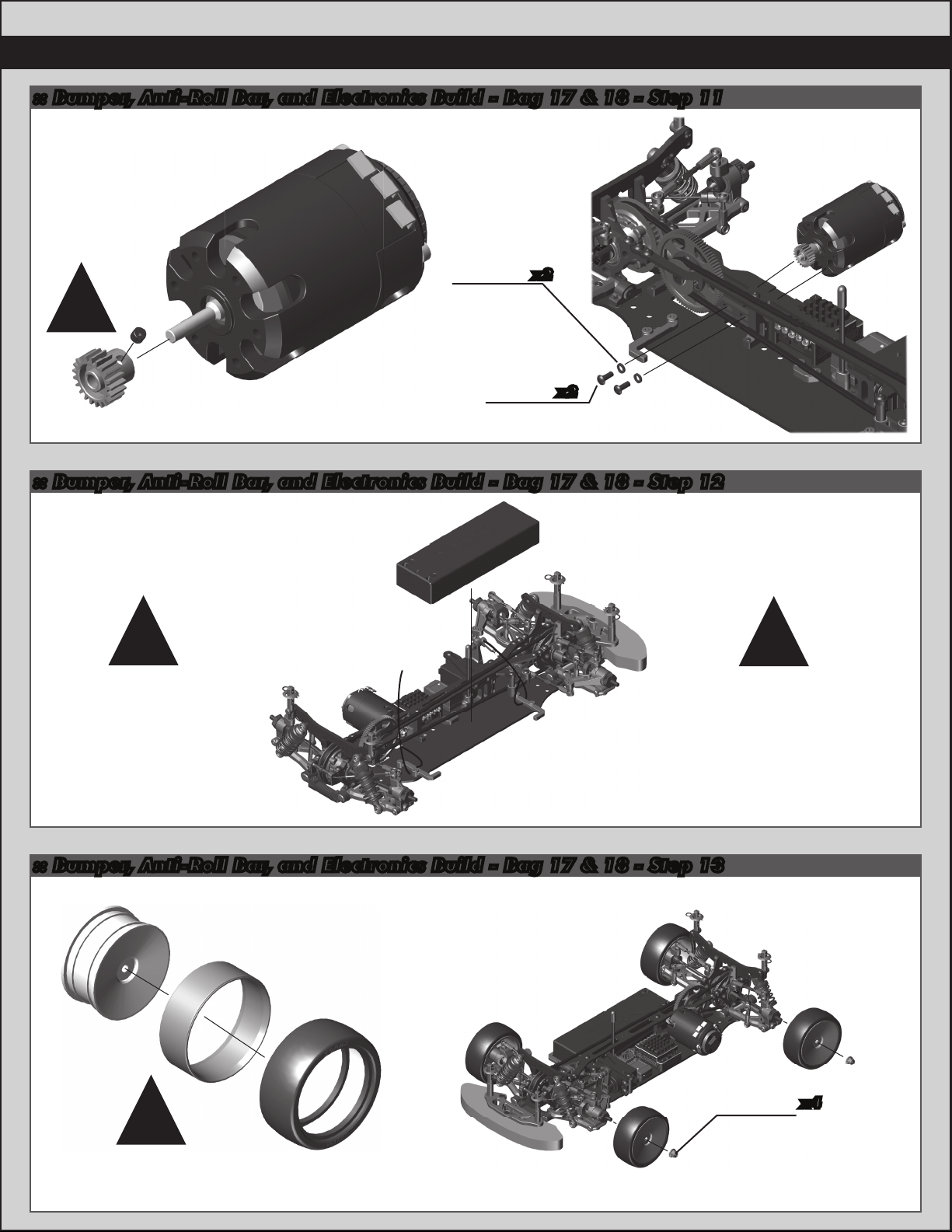

:: Bumper, Anti-Roll Bar, and Electronics Build - Bag 17 & 18 - Step 11

Gearing will depend on the

motor and track size.

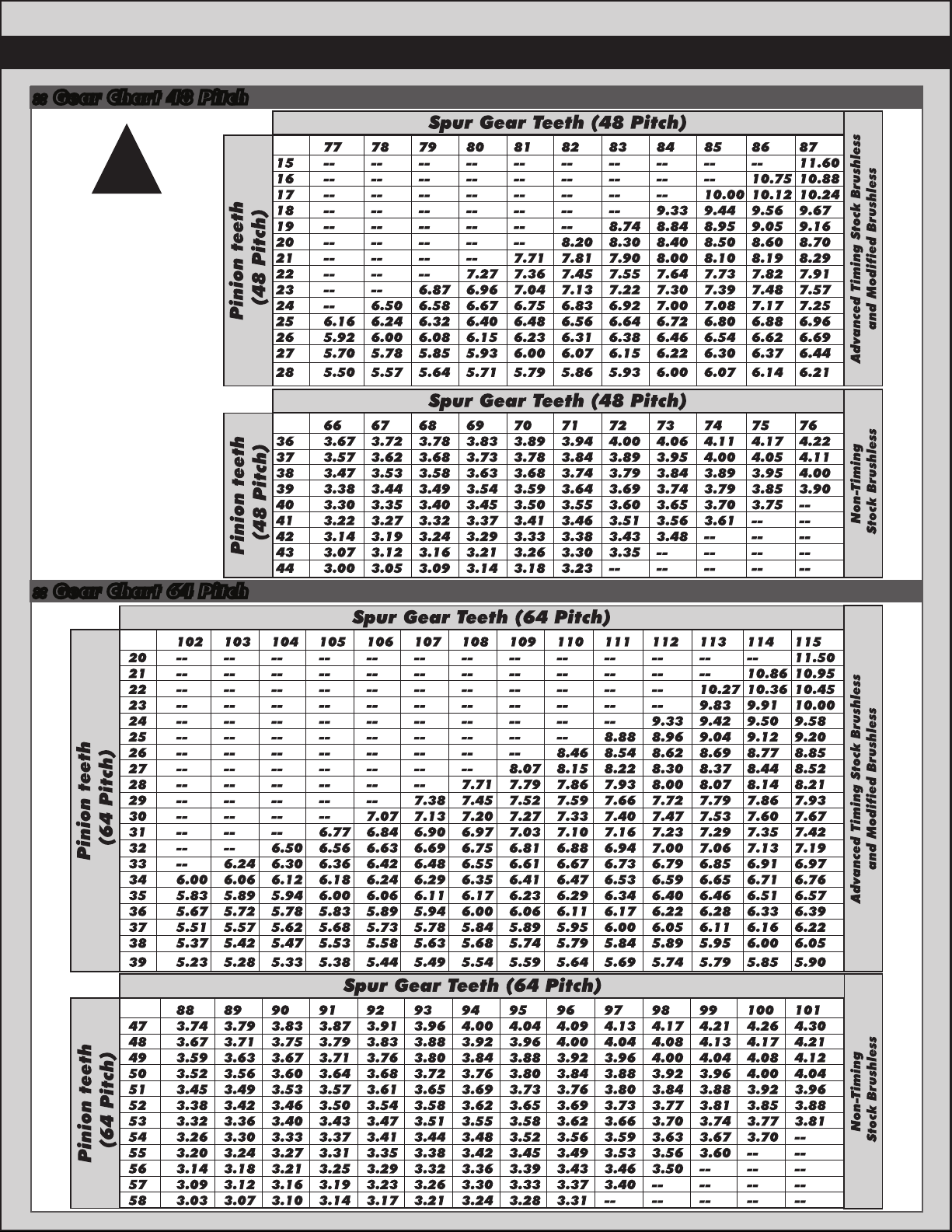

Gear chart on page 27.

Motor, pinion gear, and set

screw are not included!

23

!

31286

Aluminum

ballstud

washer

(1mm)

x2

31532

M3x8mm

bhcs

x2

:: Bumper, Anti-Roll Bar, and Electronics Build - Bag 17 & 18 - Step 12

!

Use strapping tape to

secure battery into chassis.

Wrap the tape around the

#31626 LiPo brace an back

onto itself. Strapping tape

not included!

Battery and strapping

!

tape not included!

:: Bumper, Anti-Roll Bar, and Electronics Build - Bag 17 & 18 - Step 13

!

Wheels, tires, and inserts

not included!

91148

M4

locknut

x4

24

:: Tuning Tips

Tips for Beginners:

Before making any changes to the standard setup, make sure you can get around the track without crashing. Changes to your car
will not be beneficial if you can’t stay on the track. Your goal is consistent laps.

Once you can get around the track consistently, start tuning your car. Make only ONE adjustment at a time, testing it before making
another change. If the result of your adjustment is a faster lap, mark the change on the included setup sheet (make additional
copies of the sheet before writing on it). If your adjustment results in a slower lap, revert back to the previous setup and try another
change.

When you are satisfied with your car, fill in the setup sheet thoroughly and file it away. Use this as a guide for future track days or
conditions.

Ride Height:

The standard starting point for ride height is 5.0mm (keep in mind that your local track may have minimum ride height
requirements). You can slightly raise the rear relative to the front to give the car more steering. Raise the car slightly for tracks
with large bumps.

Battery Placement:

For most cases, run the battery in the standard forward position. Typically this will be the most stable and easiest to drive. Try
moving the battery back if you encounter a low traction surface by switching LiPo braces front to back.

Wheelbase:

Wheel Base Shims

Lengthening the front will reduce steering, shortening the front will increase steering. Shortening the rear will

1mm

increase rear grip, lengthening the rear will decrease rear traction.

2mm

Rear Toe-In:

The TC7 allows rear toe adjustments in two positions: inner hinge pin, and outer hinge pin at the rear hub. In general, decreasing
rear toe-in will decrease rear traction and increase corner speed.

-3 DOT

Arm Mount Inserts

-2 DOT

1 DOT

+2 DOT

+3 DOT

Rear toe-in can be adjusted by 0.5° increments at the inner hinge pin with
supplied arm mount inserts (see chart to right). Standard toe-in angle for
inner hinge pin when using same insert front and rear is 3°.
Standard insert used is 1 dot.

-1 °

-1/2 °

Negative to the inside of vehicle.

Positive to the outside of vehicle.

0 °

+1/2 °

+1 °

Ackermann & Steering Rate:

Ackermann refers to the relative angle difference between the front wheels as they are
turned to steer the car. The outside wheel will turn less than the inside wheel in most
conditions. Settings with more Ackermann will have a bigger difference in wheel angle,
causing the outside wheel to turn less. Likewise, settings with less Ackermann will cause
the outside wheel to turn more.

Increasing the Ackermann will smooth out the steering and is used most often on high
traction surfaces such as carpet. This is a result of the reduced outside wheel angle.
Settings with reduced Ackermann will help to increase corner entry steering, and are
typically used when running a spool in the front.

The chart to the right lists the different
Ackermann options.

Steering

Block

Position

B

B

B

A

A

A

Steering

Rack

Shims

2mm

1mm

0mm

2mm

1mm

0mm

Less Ackermann

STD

More Ackermann

Steering Block

A

B

25

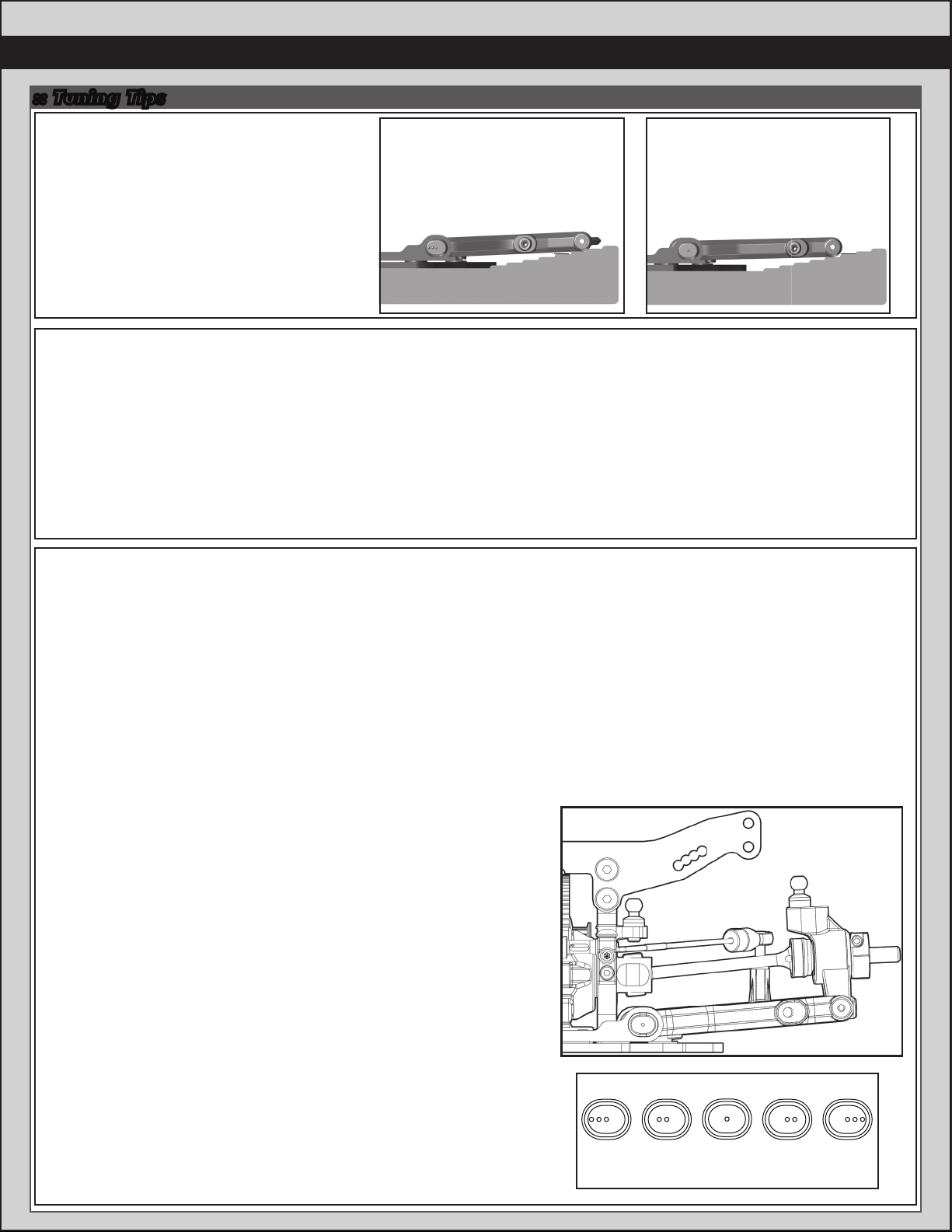

:: Tuning Tips

Droop:

The standard settings of 6mm front and 5mm
rear will work best in most cases. Droop is
measured just underneath the outer hinge pin
as shown in the photos to the right.

On bumpy or low grip surfaces, increase the
droop (going to a lower number on the droop
gauge), this will help increase traction and
consistency.

Droop adjustments of 0.5mm to 1mm can be
very effective on the track!

Front Droop

Setting: 6mm

4

3

2

1

0

8

7

6

5

Camber Link Position:

The camber link is used to set static camber at ride height, but it is also an effective setting to adjust roll center height and camber
gain. The TC7 has three optimized length positions at the front, and six at the rear, for a wide range of camber gain adjustments.
All camber link mounting positions use vertical ballstuds that can be shimmed for precise roll center height adjustments.

Longer links will produce less camber gain, stiffening that particular end of the car in roll. These are particularly effective on large
tracks with big sweeping corners. Shorter links will give more camber gain, softening that end of the car in roll. This will make the
car more aggressive, and is a good setting for smaller indoor tracks with high grip levels.

The angle of the camber link will make fine adjustments to the roll center height. Typically the camber link will be no more than
parallel to the suspension arm with the inboard side of the link lower than the outboard side. As the inboard side of the camber link
is moved down, the roll center goes up, stiffening that end of the car. Camber link angle is a good adjustment to help fine tune the
balance of the car to the track by setting the front and rear at slightly different angles.

Rear Droop

Setting: 5mm

5

4

3

2

1

0

8

7

6

Arm Mount Position:

The TC7’s arm mount system allows for maximum adjustability for all track and racing conditions. Independent inner and outer arm
mounts with interchangeable inserts provide multiple pin configurations... flat, or with angle, to give a host of kickup/tow and pin
width options.

Use the TC7’s included arm mount inserts to adjust pin width and angle. The arm
mount inserts are indicated one, two, and three with the corresponding amount of dots
on their exposed face. Each insert will index the hinge pin by 1/2 degree (or 0.43mm).
Standard pin angle is achieved when using the same insert in both the inner and outer
mounts. Rear hinge pin angle is 3° when using the same insert in both inner and outer
mounts.

The chart to the right shows the pin angle change for the right rear pin when
using a 1 dot insert in the inner arm mount.

Pin width can also be adjusted by changing the inserts in the inner and
outer mounts by an equal amount. The standard pin width for the TC7 uses

-3 dot inserts for the front and 1 dot inserts for the rear.
This is best suited for rubber tire racing.

The TC7’s independent inner and outer arm mount system also allows for
roll center height adjustements as well as options for anti-dive/kick-up and
anti-squat/pro-squat hinge pin angles. Precise adjustments can be made by
changing the shim thickness between the arm mounts and chassis.

The standard roll center height uses 0.5mm shims on all mounts.
This produces a relatively low roll center with more chassis roll on the
corners... typically good for lower grip conditions such as rubber tires on
asphalt. If the grip level is high, try raising the roll center by using thicker
shims between the mounts and chassis.

Anti-dive/kick-up and anti-squat/pro-squat angles can be adjusted by
varying the amount of shims under the inner and outer mounts. A 0.5mm
difference will produce an angle of about 1/2 degree. The following
sections briefly describe front and rear pin angles and their effect on the track.

-3 DOT

-2 DOT

4

3

2

1

Arm Mount Inserts

1 DOT

A B C

+2 DOT

+3 DOT

-1 °

-1/2 °

Negative to the inside of vehicle.

Positive to the outside of vehicle.

0 °

+1/2 °

+1 °

26

:: Tuning Tips

Anti-Dive (front):

Anti-dive is a front arm angle where the rear mount is higher than the front mount. Adding anti-dive reduces weight transfer to the
front on deceleration entering corners. It also reduces caster at the wheel.

Kick-Up (front):

Kick-up describes the angle of the front suspension arm, where the front mount is higher than the rear mount. Increasing kick-up will
give more entry steering, as well as increasing caster at the wheel.

Anti-Squat (rear):

Anti-Squat describes a rear arm angle where the front mount is higher than the rear mount. Increasing anti-squat will make the rear
suspension stiffer. It tends to give the car more entry steering and reduce rearward weight transfer on power.

Pro-Squat (rear):

Pro-squat is a rear arm angle where the rear mount is higher than the front mount. Running Pro-Squat will increase rearward
weight transfer on power.

Anti-Roll Bar:

Anti-roll bars are only effective during roll (when the chassis leans from side to side when cornering).
Because of this they isolate a change in the suspensions spring rate in the corners only, and can be a very useful
tuning option.

Anti-roll bars stiffen the spring rate of the suspension during roll movements when cornering. The larger the
roll bar wire, the stiffer the spring rate will be in roll. The chart on the right shows the available anti-roll bar
sizes (as well as their corresponding colors) from the softest on the top, to the stiffest on the bottom.

The standard setup with a blue front anti-roll bar (1.4mm) and a white rear anti-roll bar (1.2mm), is a balanced starting point.
Changing the size of the front or rear anti-roll bars can help to make the chassis more consistent through the corner. Decreasing the
size of the front anti-roll bars will help to increase mid-corner steering, but will tend to be less stable in sweepers. This is a
typical setup for smaller tracks with tighter turns. Increasing the size of the front anti-roll bars will give more stability in the
sweepers, and is better for larger tracks with high speed corners. Increasing the size of the rear ant-roll bars will help add stability
into and through the corner in high traction conditions, but can make the car inconsistent in low traction, or bumpy, surfaces.

Belt Tension:

When altering the differential height, you will need
to adjust the tension of the belt. The following chart
shows suggested starting positions.

TighterLooser

Left Side

Front

Note! Charts show left side cam positions from the left side of the car. Match right side cam position to left side cam position.

Tighter Looser

Cam Position

Mid-Low

Low

Left Side

Front

Mid-High

High

Belt Tension

Number

161

17 32

View from left

side of car

Anti Roll Bar

Color/Size Chart

Green
White

Gray

Blue

Yellow

Height

High

Mid-High

Front

Height

High

Mid-High

Rear

1.1mm

1.2mm

1.3mm

1.4mm

1.5mm

Pos.

31

28

Mid

Low

Pos.

18

20

Mid

Low

8

5

7

9

Motor Gearing:

The gear charts on the following page show final drive ratio numbers for the TC7. Refer to motor manufacturer’s suggested gear
ratio for starting point. You may need to adjust the gearing according to your track size.

The following formula’s can also be helpful in determining final drive ratios and pinion size.

TC7 Internal Ratio = 2.0

# of Teeth on Pinion

Final Drive Ratio

Final Drive Ratio = (# of Teeth Spur) x (Internal Ratio)

# of Teeth on Pinion = (# of Teeth on Spur) x (Internal Ratio)

:: Gear Chart 48 Pitch

!

Blank spaces in the gear
charts designates a gear

ratio that will not fit in the

vehicle. Gear fitment will

also depend on the motor

brand.

27

:: Gear Chart 64 Pitch

28

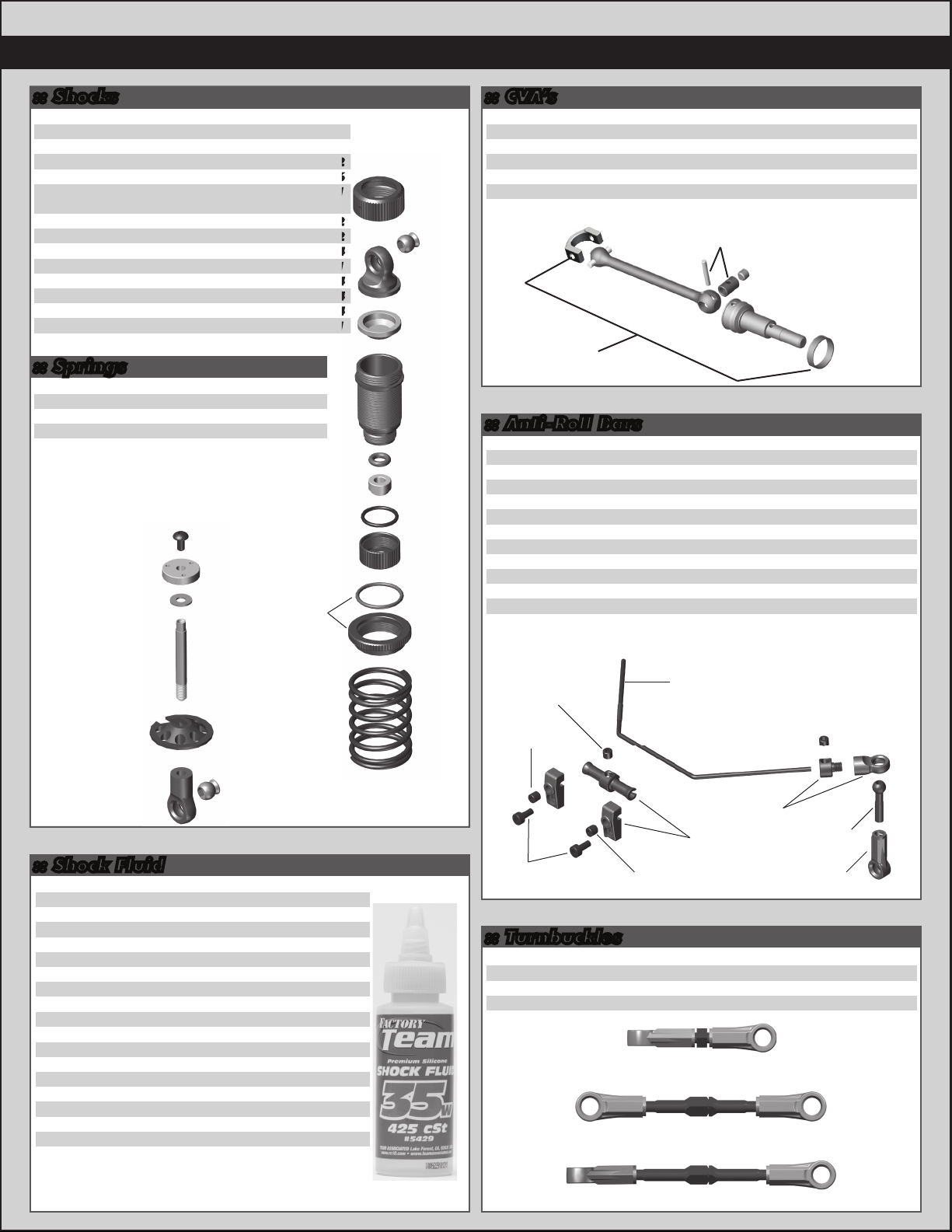

:: Shocks

4637

5407
21139
31327
31510
31684

31687
31688
31689
31693
31696
31697
31698
31700

FT Pivot Balls
Red O-Rings
Washers, M2.6 x 6
VCS3 Shock Bottom Caps
M2 x 4mm BHCS
TC7 Shock Kit
(Fox Kashima Coat), builds 2
TC7 Shock Body (Fox Kashima Coat)
TC7 Shock Shaft
TC7 Shock Piston (3x1.1)
TC7 Shock Rebuild Kit
TC7 Shock Cap Retainer
TC7 Shock Collar & O-Ring
TC7 Shock Spring Cup
TC7 Shock Eyelet Set

:: Springs

31715
31716
31717
31718

TC Spring (White), 13.8lbs
TC Spring, (Gray), 15.0lbs
TC Spring, (Blue), 15.9lbs - Kit
TC Spring, (Yellow), 16.8lbs

31510

31689

21139

31688

31698

Pr.
Pr.
Pr.
Pr.

31697

31717

20

:: CVA’s

8
8

2
6
1

2
2
4
1
4
4
4
1

31696

4637

31700

31693

31687

31237
31238
31366
31367
31368
31369
31500

CVA Pin Retaining Clip
CVA Bone Blade
TC6.1 CVA Kit
TC6.1 CVA Rebuild Kit
TC6.1 CVA Bone
TC6.1 Stub Axle
M3 x 2.5mm Set Screw

31238

31368

31366

2
8
1

1
Pr.
Pr.

6

31367

31500

31369

31237

:: Anti-Roll Bars

5407

31693

31327

31327

25225
31058
31305
31500
31511
31701
31703
31704
31705
31707
31708
31709

25225

M3 x 3mm Set Screw
Roll Bar Ballstuds, blue
Turnbuckle Eyelets
M3 x 2.5mm Set Screw
M2 x 5mm SHCS
TC7 Anti-Roll Bar Mount Set
TC7 Front Anti-Roll Bar, 1.3mm (gray)
TC7 Front Anti-Roll Bar, 1.4mm (blue)
TC7 Front Anti-Roll Bar, 1.5mm (yellow)
TC7 Rear Anti-Roll Bar, 1.1mm (green)
TC7 Rear Anti-Roll Bar, 1.2mm (white)
TC7 Rear Anti-Roll Bar, 1.3mm (gray)

31703
31704
31705

31500

31707
31708
31709

31500

20

2
14

6

6

1

1

1

1

1

1

1

31700

:: Shock Fluid

5420
5421
5422
5423
5424
5425
5426
5427
5428
5429
5430
5431
5432
5433
5434
5435
5436
5437
5438

10 Weight Silicone Shock Fluid
20 Weight Silicone Shock Fluid
30 Weight Silicone Shock Fluid
40 Weight Silicone Shock Fluid

22.5 Weight Silicone Shock Fluid
80 Weight Silicone Shock Fluid

27.5 Weight Silicone Shock Fluid
15 Weight Silicone Shock Fluid
25 Weight Silicone Shock Fluid
35 Weight Silicone Shock Fluid
45 Weight Silicone Shock Fluid
55 Weight Silicone Shock Fluid

32.5 Weight Silicone Shock Fluid

37.5 Weight Silicone Shock Fluid

42.5 Weight Silicone Shock Fluid
50 Weight Silicone Shock Fluid
60 Weight Silicone Shock Fluid
70 Weight Silicone Shock Fluid

47.5 Weight Silicone Shock Fluid

4637

2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.

31701

31058

31305

31511

31701

25225

:: Turnbuckles

1402
1405
1418

31305

FT Blue Titanium Turnbuckles 1.375”
FT Blue Titanium Turnbuckle 1.875”
FT Blue Titanium Turnbuckle 0.825”
Turnbuckle Eyelet

31305 31305

1418

31305 31305

1402

31305 31305

1405

Pr.
Pr.
Pr.
14

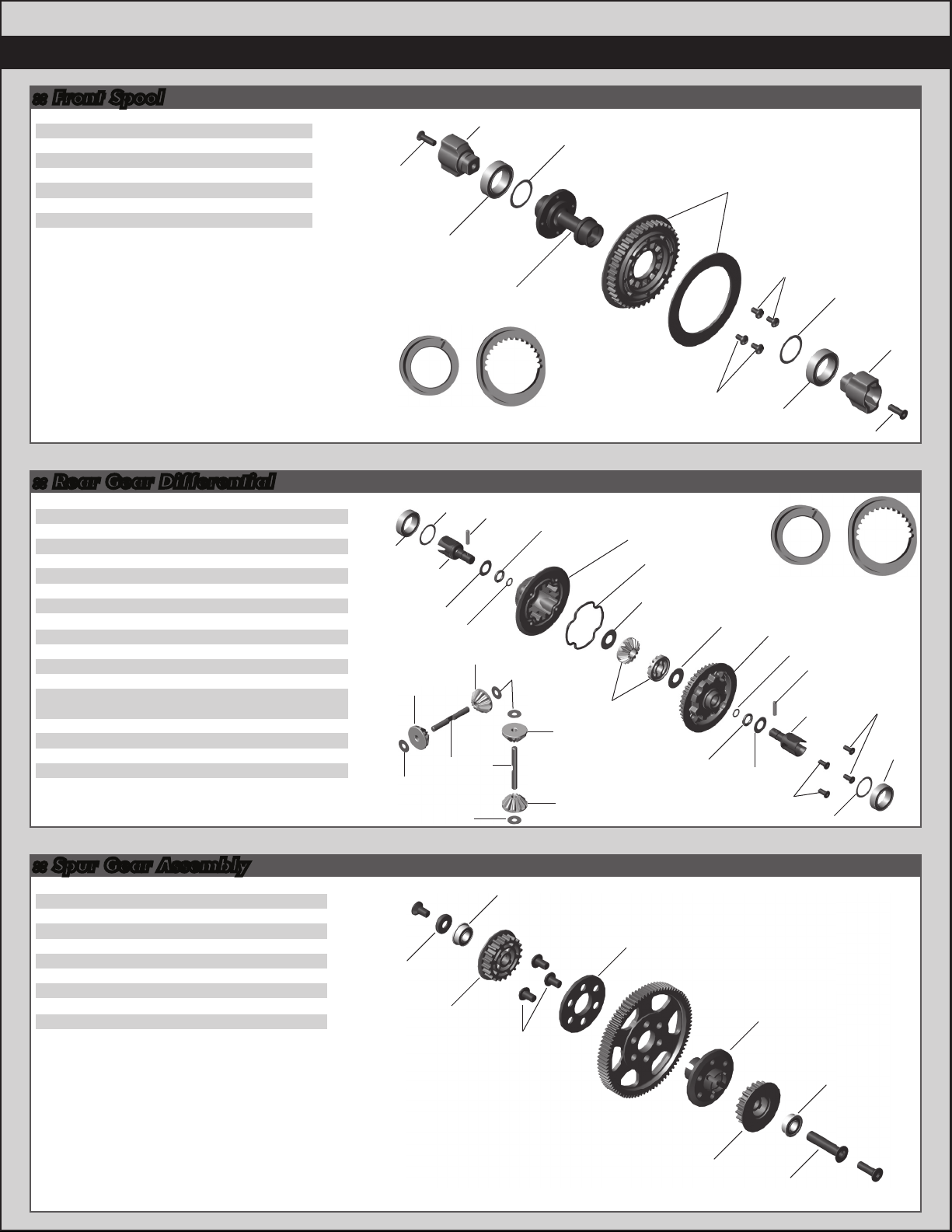

:: Front Spool

31162
31175
31339
31341
31342
31350
31510
31615
91563

Axle Shim Kit
Oneway/Spool Pulley
TC6 Spool Kit
TC6 Spool Outdrives
TC6 Spool Hub
M2.5 x 10mm FHCS
M2x4mm BHCS
TC6.2 Diff Bearing Cam Set
FT Bearing 10 x 15 x 4mm

29

1
1
1
4
1
6
6
1
4

31350

91563

31341

31342

31162

31175

31510

31162

31341

:: Rear Gear Differential

4675
5450
5451
5452
5444
5453
5446
5454

5465
31162
31344
31345
31346
31347

31348
31349
31615
91563

M2.5 x 6mm FHCS
Silicone Diff Fluid 1,000CST
Silicone Diff Fluid 2,000CST
Silicone Diff Fluid 3,000CST - Kit
Silicone Diff Fluid 4,000CST
Silicone Diff Fluid 5,000CST
Silicone Diff Fluid 6,000CST
Silicone Diff Fluid 7,000CST
Silicone Diff Fluid 1,000,000CST
Axle Shim Kit
TC6 Gear Diff
TC6 Gear Diff Rebuild
TC6 Gear Diff Outdrives
TC6 Gear Diff Case,
O-Ring, Pulley
TC6 Gear Diff Pins & Shims
TC6 Gear Diff Seals
TC6.2 Diff Bearing Cam Set
FT Bearing 10 x 15 x 4mm

6
1
1
1

91563

1
1
1
1
1
1
1
1
2
1

1
1
1
4

31615

31346

31348

31349

31345

31348

31162

31345

31348

31348

31615

31348

31348

31349

31345

31345

31345

31347

31349

31348

31349

31510

31348

91563

31347

31348

4675

31615

31349

31348

31346

31162

31350

31615

4675

91563

:: Spur Gear Assembly

25202
31314
31319
31320
31333
31530
31541
31664
31731
89229

M3 x 10mm FHCS
Spur Gear Hub
Spur Clamping Ring
Spur Pulley, 20T
Spur Gear (87T/48P)
M3 x 5mm BHCS
M3 x 6mm FHCS
TC7 Spur Gear Shaft
FT 4x8x3mm Flanged Bearing
Blue Countersunk Washers

20

10

1
1
2
1
6
6
1
4

31541

89229

31320

31731

31319

31314

31530

31731

31333

31320

31664

25202

30

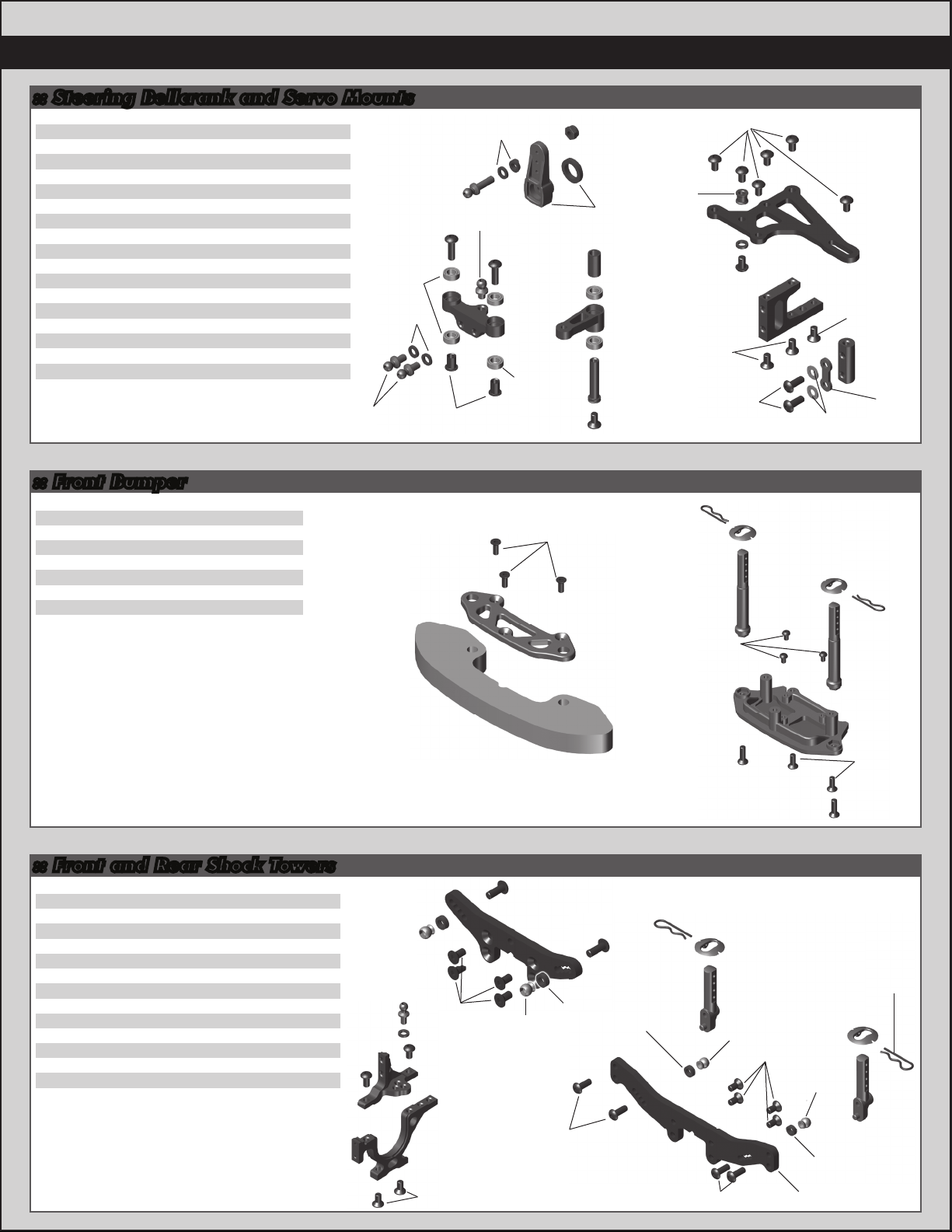

:: Steering Bellcrank and Servo Mounts

7336

7337
25202
25211
31283
31285
31286
31374
31530
31532
31541
31550
31657
31665
31666
31667
31669
31732
89007

Steering Servo Mount Kit
.250” x.125” x.015” Washer
M3 x 10mm FHCS
M3 x 10mm BHCS
5mm Ballstud, long
Ballstuds, long, 10mm
Aluminum Ballstud Washers, Set
FT TiN 3.25mm Ballstud, short
M3 x 5mm BHCS
M3 x 8mm BHCS
M3 x 6mm FHCS
FT M3 Locknut, blue aluminum
TC7 Servo Mount Brace
TC7 Steering Rack Set
TC7 Steering Bellcrank
TC7 Steering Bellcrank Post Set
TC7 Servo Mount Set
FT 4x7x2.5mm Bearing
Steering Servo Horn & Ring

:: Front Bumper

1736

3897

4673
25201
25202
31623
31624
31625

FT Body Clips, short
Pivoting Body Mounts, Set
M2.5 x 4mm BHCS
M3 x 8mm FHCS
M3 x 10mm FHCS
TC6.2 Bumper Set
TC6.2 Foam Bumper
TC6.2 Body Post Set

20
20

1

4
20
20

6

6

1

2

6

6

6

6

1

1

2

1

1

4

1

25211

31732

31286

31283

6
1
6

1
1
1

31285

31665

31623

31286

31374

31665

25211

31732

31732

31550

89007

25201

31667

31667

31732
31666

31732

31667

31541

31286

31541

1736

31530

31530

31669

31532

3897

31625

4673

31657

25202

31669

7336

7337

3897

1736

31625

:: Front and Rear Shock Towers

1736
3897

4637
31283
31286
31531
31532
31541
31613
31614
31625
31655
31656
31660

FT Body Clips, short
Pivoting Body Mounts, Set
FT Pivot Balls
Ballstuds, long, 5mm
Aluminum Ballstud Washers, Set
M3 x 6mm BHCS
M3 x 8mm BHCS
M3 x 6mm FHCS
TC6.2 Bearing Cap (A)
TC6.2 Bearing Cap (B)
TC6.2 Body Post Set
TC7 Front Tower
TC7 Rear Tower
TC7 Bulkhead

6
1
8
6
1
6
6
6
2
2
1
1
1
1

31286

4637

31283

31541

31286

31531

31614

31660

31624

31532

31655

4637

31532

31286

31532

31625

31286

31623

25202

1736

25201

25202

3897

1736

3897

4637

31541

4637

31625

31541

31532

31286

31656

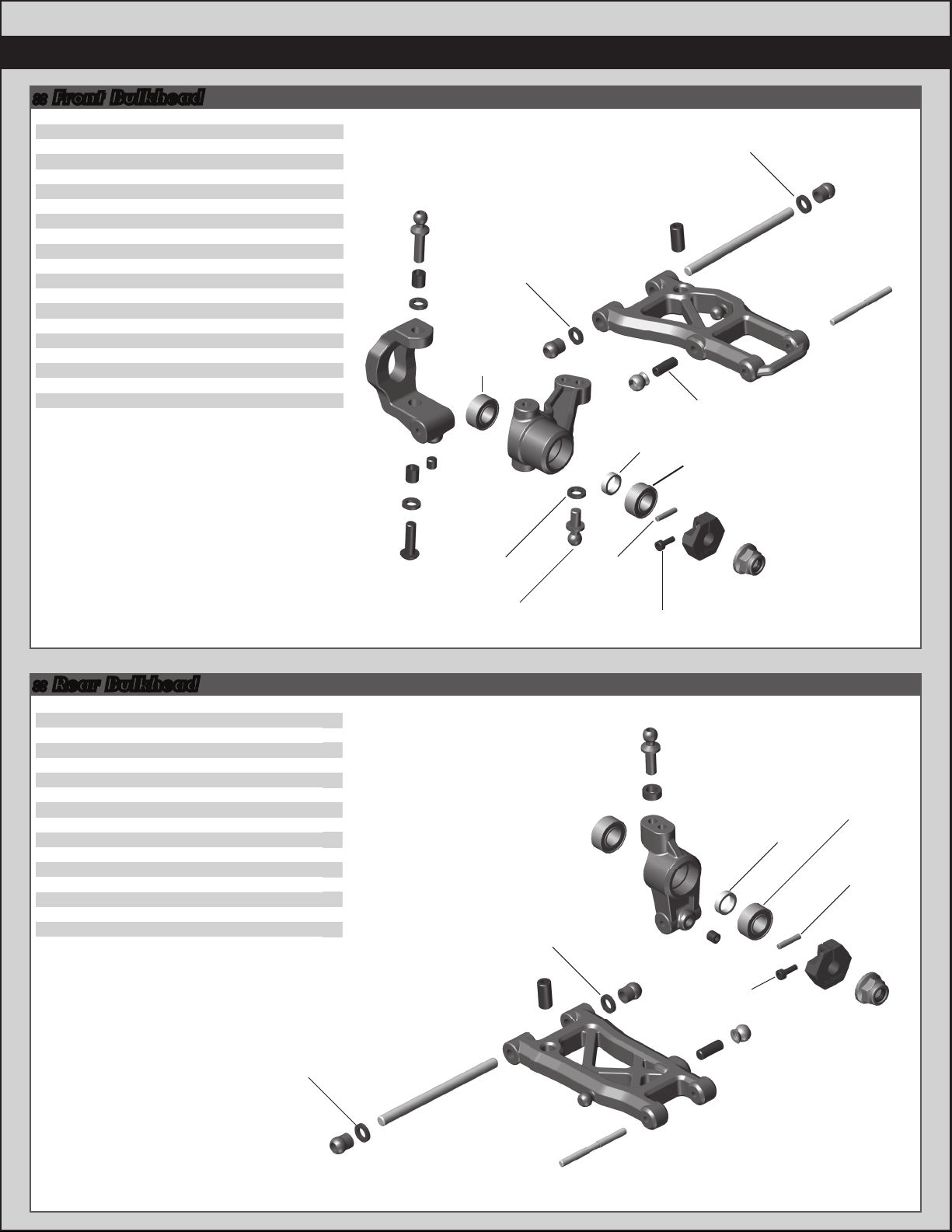

:: Front Bulkhead

4637

4670
25211
25225
25227
31112
31283
31285
31286
31370
31621
31670
31673
31677
31678
31679
31680
91148
91560
91611

FT Pivot Balls
M3 x 8mm Set Screw
M3 x 10mm BHCS
M3 x 3mm Set Screw
M4 x 8mm Setscrew
1/16” x 5/16” Dowel Pins
Ballstuds, long, 5mm
Ballstuds, long, 10mm
Aluminum Ballstud Washers, Set
TC6.1 Axle Crush Tubes
TC6.2 Inner Hinge Pin Ball Set
TC7 Wheel Hex, 5mm
TC7 Front Suspension Arm
TC7 Hinge Pin Set
TC7 Caster Block, 4 deg
TC7 Steering Block
TC7 King Pin Bushing
M4 Locknut, w/flange and knurl
FT Bearing 5 x 10 x 4mm
M1.6 x 5mm SHCS

8

6
20
20
20

8

6

6

1

4

1

2
Pr.

1
Pr.
Pr.

2

8

4

4

31680

31285

31286

(1mm)

91560

31286
(1mm)

31621

25227

4637

31

31286
(1mm)

31621

31677

31677

31673

4670

:: Rear Bulkhead

4637

4670
25225
25227
31112
31284
31286
31370
31621
31670
31674
31677
31681
91148
91560
91611

FT Pivot Balls
M3 x 8mm Set Screw
M3 x 3mm Set Screw
M4 x 8mm Setscrew
1/16” x 5/16” Dowel Pins
8mm Ballstud, long
Aluminum Ballstud Washers, Set
TC6.1 Axle Crush Tubes
TC6.2 Inner Hinge Pin Ball Set
TC7 Wheel Hex, 5mm
TC7 Rear Suspension Arm
TC7 Hinge Pin Set
TC7 Hub, 0 deg.
M4 Locknut, w/flange and knurl
FT Bearing 5 x 10 x 4mm
M1.6 x 5mm SHCS

31286

(1mm)

8

6
20
20

8

6

1

4

1

2
Pr.

1
Pr.

8

4

4

31678

31680

25211

25225

31286
(1mm)

31679

31286

31283

31286
(1mm)

25227

91560

31370

31112

31681

31621

91611

31284

31286

(2mm)

91560

31670

91148

91560

31370

31112

31670

25225

91611

91148

4637

4670

31621

31677

31674

31677

32

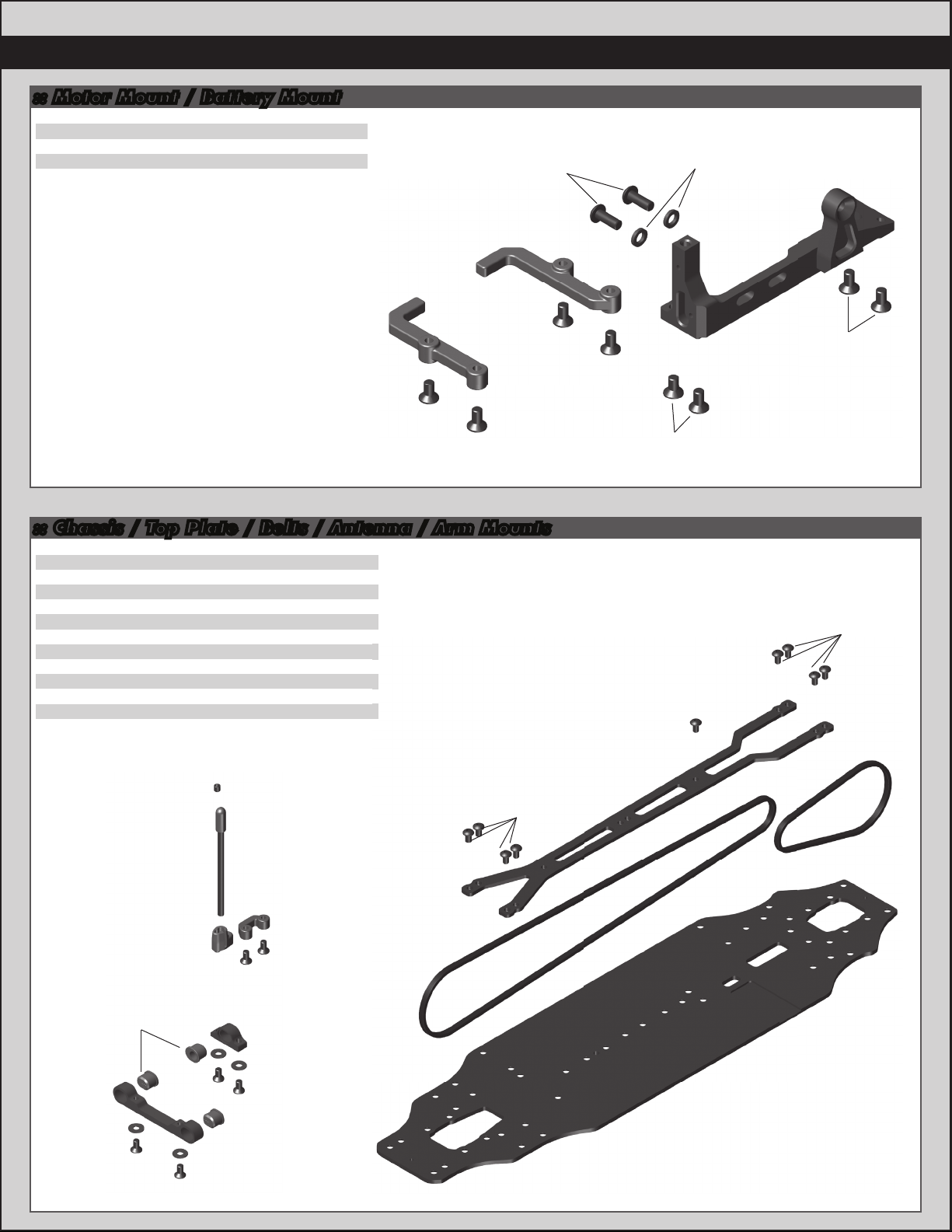

:: Motor Mount / Battery Mount

31286
31532
31541
31626
31663

Aluminum Ballstud Washers, Set
M3x8mm BHCS
M3x6mm FHCS
TC6.2 LiPo Brace Set
TC7 Motor Mount

1
6
8
1
1

31532

31286

31663

31626

31626

31541

31541

31541

:: Chassis / Top Plate / Belts / Antenna / Arm Mounts

4617

6338
25225
31530
31541
31618
31619
31620
31626
31650
31653
31658
31659

Front Bulkhead Shim Set
Antenna Tube 12”, black
M3 x 3mm Set Screw
M3 x 5mm BHCS
M3 x 6mm FHCS
TC6.2 Outer Arm Mount
TC6.2 Inner Arm Mount
TC6.2 Arm Mount Insert Set
TC6.2 LiPo Brace /Antenna Mount Set
TC7 Chassis
TC7 Top Plate
TC7 Front Belt
TC7 Rear Belt

1
1

20

6
6
1
1
1
1
1
1
1
1

31541

31541

31541

31530

31530

31620

31618

4617

31541

31626

31541

25225

31541

4617

6338

31619

4617

31541

31620

31653

31530

31659

31626

31541

31658

31650

33

:: Lubes & Adhesives / Misc.

1105
1596
1597
5450
5451
5452
5444
5453
5446
5447
5454
5455
5456
5457
5458
5448
5459
5461
5463
5465
6588
6591
6636
6727
9787

FT Green Slime Shock Lube
FT Locking Adhesive
FT Tire Adhesive, Medium
Silicone Diff Fluid 1,000CST
Silicone Diff Fluid 2,000CST
Silicone Diff Fluid 3,000CST
Silicone Diff Fluid 4,000CST
Silicone Diff Fluid 5,000CST
Silicone Diff Fluid 6,000CST
Silicone Diff Fluid 15,000CST
Silicone Diff Fluid 7,000CST
Silicone Diff Fluid 10,000CST
Silicone Diff Fluid 20,000CST
Silicone Diff Fluid 30,000CST
Silicone Diff Fluid 60,000CST
Silicone Diff Fluid 80,000CST
Silicone Diff Fluid 100,000CST
Silicone Diff Fluid 200,000CST
Silicone Diff Fluid 500,000CST
Silicone Diff Fluid 1,000,000CST
Black Grease - 4cc
S.Diff Lube - 4cc
Silicone Grease - 4cc
Servo Tape
Chassis Protective Sheet

:: Decals

716
3816
3820
3834

31740

Reedy 2009 Sticker Set
American Bumper Sticker
AE Logo Decal Sheet
AE Blue Embossed Logo Sticker
TC7 Decal Sheet

:: Factory Team and Option Parts

1401
1404
1734
1735
1736
3927
3928

4617
25391
31280
31281
31282
31283
31284
31285
31286
31288
31289
31290
31291
31292
31293
31296
31339
31344
31441
31442
31443
31466
31550
31551
31629
31630
31632

31633
31634
31635

FT Blue Titanium Turnbuckle 1.300”
FT Blue Titanium Turnbuckle 1.775”
FT Blue Body Clip, 4 long, 6 short
FT Blue Body Clip, long
FT Blue Body Clip, short
Radial Heatsink, narrow
Radial Heatsink, wide
12R5 Front Bulkhead Shims (0.5, 1.0, 2.0)mm 4 ea
FT 4mm Locknuts, blue
5mm Ballstud, short
8mm Ballstud, short
10mm Ballstud, short
5mm Ballstud, long
8mm Ballstud, long
10mm Ballstud, long
Aluminum Ballstud Washer, Set
Ti Nitride Ballstuds 5mm, short
Ti Nitride Ballstuds 8mm, short
Ti Nitride Ballstuds 10mm, short
Ti Nitride Ballstuds 5mm, long
Ti Nitride Ballstuds 8mm, long
Ti Nitride Ballstuds 10mm, long
TC6 Ballast Weight
TC6 Spool Kit
TC6 Gear Differential Kit
10-Spoke Wheel, black
5-Spoke Wheel, black
5-Spoke Wheel, white
5-Spoke Wheel, orange
M3 Aluminum Lock Nut, blue
M4 Aluminum Flange Lock Nut, blue
TC6.2 Arm Mount Shims (outer)
TC6.2 Arm Mount Shims (inner)
TC6.2 DCV Kit, builds 2 DCV’s
(requires #91156 Bearings, 5 x 10 x 3)
TC6.2 DCV Rebuild Kit
TC6.2 DCV Stub Axle
TC6.2 DCV Bone

:: Factory Team and Option Parts Cont.

1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

1596

1
1
1
1
2
1

1
1
1
2
1

10

12
10

4ea.
2ea.

31636
31637
31638
31639
31640
31641
31652
31668
31671
31672
31690
31730
91156
91493

:: Pinions / Spur Gears

8253
8254
8255
8256
8257
8258
8259
8260
8261
8263
8264
8265
8266

2
2

4
6
1
1

6
6
6
6
6
6
1
2
2
2
2
2
2
1
1
1
2
2
2
2
6
6

1

1
1
1

8267
8268

:: Reedy Motors

252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283

TC6.2 DCV Coupler Tube
TC6.2 Gear Diff Outdrive, Steel
TC6.2 Spool Outdrive, Steel
TC6.2 Belt Tensioner Kit
TC6.2 Fan Mount Set
TC6.2 30mm Cooling Fan
TC7 Chassis, Aluminum
TC7 Floating Steering Bellcrank Post
TC7 Wheel Hex, 4mm
TC7 Wheel Hex Spacer Set
TC7 Shock Piston, (3x1.1G)
TC7 Bearing Kit
Bearing, 5 x 10 x 3, metal (used with #31632)
FT Low Friction X-Rings

8269

16T 48P Pinion Gear
17T 48P Pinion Gear
18T 48P Pinion Gear
19T 48P Pinion Gear
20T 48P Pinion Gear
21T 48P Pinion Gear
22T 48P Pinion Gear
23T 48P Pinion Gear
24T 48P Pinion Gear
26T 48P Pinion Gear
27T 48P Pinion Gear
28T 48P Pinion Gear
29T 48P Pinion Gear
30T 48P Pinion Gear
31T 48P Pinion Gear

Sonic 540-M3 25.5
Sonic 540-M3 21.5
Sonic 540-M3 17.5
Sonic 540-M3 13.5
Sonic 540-M3 10.5
Sonic 540-M3 9.5
Sonic 540-M3 8.5
Sonic 540-M3 8.0
Sonic 540-M3 7.5
Sonic 540-M3 7.0
Sonic 540-M3 6.5
Sonic 540-M3 6.0
Sonic 540-M3 5.5
Sonic 540-M3 5.0
Sonic 540-M3 4.5
Sonic 540-M3 4.0
Sonic 540-M3 3.5
Sonic 540-M3 SS 17.5 1S
Sonic 540-M3 SS 13.5 1S
Sonic 540-M3 Spec Rotor 12.0
Sonic 540-M3 Spec Rotor 12.2
Sonic 540-M3 Spec Rotor 12.5
Sonic 540-M3 Mod Rotor 12.3
Sonic 540-M3 Mod Rotor 12.5
Sonic 540-M3 Mod Rotor 13.0
Sonic 540-M3 Stainless Steel Bearing Set
Sonic 540-M3 Ceramic Bearing Set
Sonic 540-M3 Sensor Assembly
Sonic 540-M3 Rotor Spacer Set
Sonic 540-M3 Case Screws
Sonic 540-M3 Motor Insulator Set
Sonic 540-M3 Motor Mounting Plate

1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

8270
8271
8272
3921
3922
3923
3924
3994
4462

4615
31332
31333
31334
31335

32T 48P Pinion Gear
33T 48P Pinion Gear
34T 48P Pinion Gear
35T 48P Pinion Gear
69T 48P Spur Gear
72T 48P Spur Gear
75T 48P Spur Gear
66T 48P Spur Gear
73T 48P Spur Gear
100T 64P Spur Gear
96T 64P Spur Gear
80T 48P Spur Gear
87T 48P Spur Gear
106T 64P Spur Gear
115T 64P Spur Gear

1
1
1
1
1
1
1
1
2
1
4
1
2
8

1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

34

:: Reedy Batteries and Chargers

302
304
305
309
313
315
316
321
607
611
637
638
639
640
739
996
997
999

27200

AA Alkaline 1.5V (4)
LiPo Pro TX/RX Battery 1600mAh 7.4V Flat
LiFe Pro TX/RX Battery 1300mAh 6.6V Flat
LiPo 65C 7000mAh 7.4V
LiPo 65C 7000mAh 7.4V 5mm
LiPo Pro TX/RX Battery 2100mAh 7.4V Flat
LiPo 65C 5000mAh 7.4V
LiPo 70C 6000mAh 7.4V
Charge Harness 2S Standard Pack 4mm
Charge Harness 2S Standard Pack 5mm
LiPo TX Battery - M11X 2500mAh 7.4V
LiFe RX Battery 1700mAh 6.6V
LiPo RX Battery 1200mAh 7.4V
LiPo RX Battery 2300mAh 7.4V
Wolfpack LiPo 5500mAh 7.4V 60C

5.0mm 1S-2S Balance Charge lead w/SP Clip

4.0mm 1S-2S Balance Charge lead w/SP Clip
Saddle Pack Balance Charge Clip
1216-C2 Dual AC/DC Comp. Battery Charger

:: Reedy Electronics

27000
27001
27020
27021
27022
27023
27024
27025
27100
27101
27102
27103
27104
27105

Blackbox 410R 1S-2S Competition ESC
Blackbox 410R 1S-2S Comp. ESC w/Programmer
Blackbox ESC PROgrammer
Blackbox 410R Fan w/Screws
Blackbox 410R Heavy-Duty Capacitor Unit
Blackbox 410R XL Capacitor Unit
Blackbox 410R Pro Capacitor Unit
Blackbox ESC PROgrammer Wire Extension
RS1206 Digital HV Hi-Speed Competition Servo
RT1508 Digital HV Hi-Torque Competition Servo
RS1206 Servo Case Set w/screws
RS1206 Servo Gear Set
RT1508 Servo Case Set w/screws
RT1508 Servo Gear Set

:: Reedy Accessories

643
644
645
646
647
648
649
650
654
655
656
657
658
659
669
747
748
749
790
791
792
793
794
795
978
979
980
981
982
994
995

Low Profile Bullet Plug 4mm x 14mm (2)
Low Profile Bullet Plug 4mm x 14mm (10)
Low Profile Bullet Plug 5mm x 14mm (2)
Low Profile Bullet Plug 5mm x 14mm (10)
Silicone Wire 12AWG-Black (1m)
Silicone Wire 14AWG-Black (1m)
Silicone Wire 16AWG-Black (1m)
Shrink Tubing - 15pcs 4.5mm x 20mm

4.0mm Bullet Plugs (2M, 2F)

4.0mm Bullet Plugs (2M, 10F)

4.0mm Bullet Plugs (10F)

4.0mm Bullet Plugs (100F)

4.0mm Bullet Plugs (10M)

4.0mm Bullet Plugs (30M)

5.0mm Bullet Plugs (2M)
Silicone Wire 12AWG-Black (30m)
Silicone Wire 14AWG-Black (30m)
Silicone Wire 16AWG-Black (30m)
Silicone Wire 13AWG-Black (1m)
Silicone Wire 13AWG-Black (30m)
Low Profile Caged Bullet Plug 4mm x 14mm (2)
Low Profile Caged Bullet Plug 4mm x 14mm (10)
Low Profile Caged Bullet Plug 5mm x 14mm (2)
Low Profile Caged Bullet Plug 5mm x 14mm (10)
Flat Sensor Wire 70mm
Flat Sensor Wire 110mm
Flat Sensor Wire 150mm
Flat Sensor Wire 200mm
Flat Sensor Wire 270mm
Flat Sensor Wire 125mm
Flat Sensor Wire 175mm

:: XP Electronics

1

29138

1

29139

1

29141

1

29142

1

29143

1

29144

1

29166

1

29167

1

29168

1

29209

1

29210

1

29211

1

29212

1

29214

1

29215

1

29216

1

29254
1
1

XP SC500 Brushless ESC
XP SC900-BL ESC
XP SC450-BL Brushless ESC
XP ESC Fan Option
XP SC700-BL Brushless ESC
XP SC1200 Brushless ESC
XP DS1313 Digital Servo
XP DS1015 Digital Servo
XP DS1510MG Servo
Gear Set, DS1313
Gear Set, DS1015
Servo Case , DS1313/DS1015
Accessory Pack, DS1313/DS1015
TRS 403-SSi Receiver
XP2G Radio System
XP3G Radio System
Receiver Antenna

:: Qualifier Series Vehicles

7062

1
1
1
1
1
1
1
1
1
1
1
1
1
1

1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

7070
20111
20119
20510

30112
30113

30113D

30114

30114D

:: 1/18 Kits and RTR’s

20103
20121

:: 1/12, 1/10 Kits and RTR’s

4020
7030
7038
7039
7046
7049
9042
9050
9063

30101
30120
70001
70006
90000
90001
90003

:: 1/8 Kits and RTR’s

20502
20504

80907
80908
80909
80912
80914
80916

Pro SC 4x4 RTR, 1/10 Scale (ready-to-run)
Pro Rally 4wd RTR, 1/10 Scale (ready-to-run)
Rival Mini Monster Truck 1/18 Scale (ready-to-run)
APEX Mini Touring 1/18 Scale (ready-to-run)
RIVAL Electric Monster Truck RTR, 1/8 Scale
(ready-to-run)
APEX Touring V-Type, 1/10 Scale (ready-to-run)
APEX Scion Racing FR-S 1/10 Scale (ready-to-run)
APEX Scion Racing FR-S Drift 1/10 Scale
(ready-to-run)
APEX Scion Racing tC 1/10 Scale (ready-to-run)
APEX Scion Racing tC Drift 1/10 Scale
(ready-to-run)

RC18B2 - RC18T2 Team Kit
SC18 RTR Brushless (ready-to-run)

FT 12R5.2 Kit
SC10 KMC Wheels Race Truck RTR (ready-to-run)
FT SC10.2 Kit
RC10T4.2 RS RTR 2.4GHz Brushless (ready-to-run)
SC10 RS RTR, Lucas Oil (ready-to-run)
SC10 RS RTR, Rockstar/Makita (ready-to-run)
RC10B4.2 RS RTR 2.4GHz Brushless (ready-to-run)
SC10B RS RTR (ready-to-run)
FT B44.3 4WD Buggy Kit
TC4 Club Racer 4WD Touring Car Race Roller
FT TC7 Kit
RC10T5M Team Kit
RC10SC5M Team Kit
RC10B5M FT Lite
RC10B5 Team Kit
RC10B5M Team Kit

MGT 8.0 Nitro RTR (ready-to-run)
Limited Edition MGT 8.0 Nitro RTR, w/flag body
(ready-to-run)
RC8.2e Electric Buggy FT Kit
RC8.2e Electric Buggy RTR (ready-to-run)
RC8.2RS Nitro Buggy RTR (ready-to-run)
RC8T Championship Edition
RC8B3 Team Kit - Nitro
RC8B3e Team Kit - Electric

1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

1
1
1
1
1

1
1
1

1
1

1
1

1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

1
1

1
1
1
1
1
1

35

:: RePlay Cameras

RP004
RP005
RP021
RP022
RP023
RP029
RP030
RP032
RP034
RP036
RP042
RP043
RP044
RP045
RP046
RP047
RP048
RP049
RP050
RP054
RP055
RP056
RP057
RP058
RP059
RP060

Replay XD1080 Mini Complete Camera System
Replay XD PrimeX Camera System
Replay XD1080 Lens Bezel Kit
Replay XD1080 Clear Lens Cover
Replay XD1080 Lens Bezel & Rear Cap O-Ring
Replay XD1080 HDMI to Mini-HDMI
Replay XD1080 Mini 8-pin USB Charge Data Cable
USB DC Car Charger 1A Stubby
Micro SDHC USB Reader
3M VHB 4991 Mount Adhesive for SnapTray
Replay XD Suction Cup Short Arm Base
Replay XD Skateboard Mount
Replay XD VHB SnapTray, Convex
Replay XD VHB SnapTray, Flat
Au Plug for Universal DC Wall Charger
Eu Plug for Universal DC Wall Charger
Uk Plug for Universal DC Wall Charger
Universal USB DC Wall Charger 1A
Au Plug for Uni DC Wall Charger
Replay ReView Field Monitor
Replay PrimeX Lens 5 pack
Replay PrimeX HDMI Cable
Replay PrimeX Deep Dive Waterproof Case
Replay PrimeX Heim Lock Mount
Replay PrimeX Low Boy Mount
Replay PrimeX Tilt Mount

:: Apparel

SP17**
SP18**
SP19**

SP20
SP22**
SP23**
SP24**
SP29**
SP31**
SP32**

SP38

SP39
SP84**
SP87**
SP90**
SP91**
SP92**
SP93**
SP96**
SP110*
SP111*

SP420**

:: Notes

SP421S

SP421L

SP422S

SP422L

SP423S

SP423L

SP424S

SP424L

SP425

715
110684
110685

AE INT’L T-Shirt - Black (S, M, L, XL-5XL)
AE INT’L T-Shirt - White (S, M, L, XL-5XL)
AE INT’L Hoodie - Black (S, M, L, XL-3XL)
AE Patch Trucker Hat
Reedy Vintage ‘81 T-Shirt - Blue (S, M, L, XL-3XL)
AE Splash T-shirt - Black (S, M, L, XL-5XL)
AE Splash T-shirt - Blue (S, M, L, XL-5XL)
Team Associated Countertop / Setup Mat
Reedy Countertop / Setup Mat
AE Kids T-shirt - Blue (S, M, L)
Reedy Trucker Hat
Reedy Patch
Reedy 3D T-Shirt, Black (S, M, L, XL-3XL)
AE 2013 Zip Hoodie (S, M, L, XL-3XL)
AE Retro T-shirt, Blue (S, M, L, XL-5XL)
AE Retro T-shirt, Black (S, M, L, XL-5XL)
AE Retro T-shirt, White (S, M, L, XL-5XL)
AE 2013 Worlds T-shirt - Blue (S, M, L, XL-5XL)
AE Womens Retro - Pink (S, M, L, XL)
Reedy R-Powered T-Shirt - Black (S, M, L, XL-3XL)
Reedy W15 Sweatshirt - Black (S, M, L, XL-3XL)
AE Pit Gloves (XL)
AE 2012 Hat, Black, Flat Bill, S/M
AE 2012 Hat, Black, Flat Bill, L/XL
AE 2012 Hat, Black, Curved Bill, S/M
AE 2012 Hat, Black, Curved Bill, L/XL
AE 2012 Hat, White, Flat Bill, S/M
AE 2012 Hat, White, Flat Bill, L/XL
AE 2012 Hat, White, Curved Bill, S/M
AE 2012 Hat, White, Curved Bill, L/XL
FT Fluid Carrier
Reedy 2009 Track Banner
Team Associated Track Banner
Team Associated Cloth Banner

** Use part number plus the desired size when ordering!

:: Kicker

29269
29270

KICKER KPw Wireless Speaker System, black
KICKER KPw Wireless Speaker System, white

1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

Pr.

1
1
1
1
1
1
1
1
1
1
1
1

1
1

:: Tools

1111
1112
1450
1541
1542
1543
1544
1545
1546
1547
1548
1554
1564
1567
1568
1569
1570
1590
1592
1655
1656
1657
1658
1659
1660
1661
1662
1663
1664
1665
1666
1667
1668
1669
1670
1671
1672
1673
1674

1675
1679
1719
1737
3718
3719
3720
3987
6429
6956
7709

FT Turnbuckle Wrench
FT 4mm Turnbuckle Wrench
On Road Ride Height Gauge
FT Hex Driver Set, (7 pcs)
FT .050” Silver Hex Driver
FT 1/16” Black Hex Driver
FT 1.5mm Purple Hex Driver
FT 5/64” Blue Hex Driver
FT 3/32” Gold Hex Driver
FT 2.5mm Green Hex Driver
FT 3mm Red Hex Driver
FT Silver Spring Hook Tool
FT 5.5mm Red Nut Driver
FT 8mm Gold Nut Driver
FT 5.5mm Short Nut Driver
FT 7mm Nut Driver, T-Handle
FT 5.5mm Short Nut Driver
FT 3/32” Gold Ball Hex Driver
FT Ball Hex Driver Set, (3 pcs)
FT 8-Piece 1/4” Hex Drive Set
FT 1/4” Hex Drive Handle, without tips
FT 1/4” Hex Drive .050” Tip
FT 1/4” Hex Drive 1/16” Tip
FT 1/4” Hex Drive 5/64” - 2.0mm Tip
FT 1/4” Hex Drive 3/32” Tip
FT 1/4” Hex Drive 1.5mm Tip
FT 1/4” Hex Drive 2.5mm Tip
FT 1/4” Hex Drive 3/16” Nut Driver Tip
FT 1/4” Hex Drive 1/4” Nut Driver Tip
FT 1/4” Hex Drive 11/32” Nut Driver Tip
FT 1/4” Hex Drive 5.5mm Nut Driver Tip
FT 1/4” Hex Drive 7.0mm Nut Driver Tip
FT 1/4” Hex Drive 8.0mm Nut Driver Tip
FT 1/4” Hex Drive 5/64” - 2.0mm Ball End Tip
FT 1/4” Hex Drive 3/32” Ball End Tip
FT 1/4” Hex Drive Standard Screwdriver Tip
FT 1/4” Hex Drive Phillips Screwdriver Tip
FT 1/4” Hex Drive 2.5mm Ball End Tip
FT 1/4” 5 Piece Power Tool Tips Set (5/64-2.0mm,

1.5mm, 2.5mm, 5/64”- 2.0mm ball, 2.5mm ball)
FT Shock Shaft Pliers
FT T-Handle Ratchet Driver
FT Camber + Track Width Tool
FT Body Scissors
12 Inch Nylon Wire Ties
6 Inch Nylon Wire Ties
8 Inch Nylon Wire Ties
FT Droop Gauge
Shock Building Tool
Molded Tools, Set
4 Inch Nylon Wire Ties

Associated Electrics, Inc.

26021 Commercentre Drive

Lake Forest, CA 92630-8853 USA

http://www.TeamAssociated.com

http://www.RC10.com

http://twitter/Team Associated

http://bit.ly/AEonFacebook

call: [phone]

fax: [phone]

Check out the following web sites for all

of our electric kits, current products, new

releases, setup help, tips, and racing info!

www.TeamAssociated.com. - www.RC10.com

1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

1
1
1

1
12
12
12

1

1

1
12

Notes: Notes: Notes: Notes:

Motor

Low

Mid-Low

Mid-High

Cam Position

Hex Width & Shims

Droop

+

0

-

Outer Ball

& Shims

High

View from left

side of car

17 32

Belt Tension

Number

Gearing

/

:: For more setups, visit RC10.com and click on “Setup Sheets”

161

2

1

Front

Camber

Toe

+

0

-

4

3

Wheelbase

Steering Block

A

B

Steering Rack

2

3

1

Setup Sheet

Notes:

Chassis:

Top Plate:

Chassis

Throttle Expo:

Battery Placement

Notes:

Notes:

Additive & Amount

Insert & Wheel

Turning Circle: E.S.C. Type:

Steering Expo: E.S.C. Settings:

Brake E.P. :

Software Version:

Notes:

Mid-Low

Cam Position

Setting

3,000 cst

Mid-Low

-3 DOT

-2 DOT

Spool

Type

Blue

9

Belt Tension Number

Tire Diameter

Tires

Type

8

-1 °

Positive to the outside of vehicle.

Negative to the inside of vehicle.

Transmitter Speed Control

-1/2 °

Arm Mount Inserts

0 °

+1/2 °

1 DOT

+2 DOT

Notes:

Blue

25% 25%

Differentials

Rebound

Spring

Blue

37.5 wt 37.5 wt

1.1 x 3 1.1 x 3

Piston

Oil

Notes:

Shocks

1.4 (Blue)

0.5mm

6

Inner Mount Shims

Anti-Roll Bar

Droop

1.2 (White)

0.5mm

5

1

& Shims

Silver +1mm

Silver +1mm

0.5mm

-3 Dot

-3 Dot

Outer Arm Mount Insert

Inner Arm Mount Insert

Outer Mount Shims

0.5mm
1 Dot

1 Dot

2

3

4

1

Camber Link Position

Outer Ball & Shims

Inner Ball & Shims

Silver +1mm

Silver +2mm

1A

Toe

+

0

Outer Ball

-

Notes:

2

Suspension Geometry

Shock Position

2

Silver +1mm

Silver +1mm

B

Steering Block Ball & Shims

Steering Rack Ball & Shims

Steering Block Position

N/A

N/A

N/A

Wheelbase

+0.5 deg

5mm

1mm

Hex Width & Shims

Wheelbase

Toe (Total)

-3 deg

5mm

1mm

N/A

Rear Hub Toe

0 deg

-2 deg

4 deg

Camber

Caster

-2 deg

N/A

Conditions: Rev.1

Front Rear

5.0mm

Alignment

Ride Height

5.2mm

Driver: Date:

Track: Event:

Team Setup

Body & Wing

1mm

2mm

+1 °

+3 DOT

Wheel Base Shims

Droop

Hex Width & Shims

­0

+

Camber

3

B

A

1

2

Rear

Notes: Notes: Notes: Notes:

Motor

Low

Mid-Low

Mid-High

Cam Position

Hex Width & Shims

Droop

+

0

-

Outer Ball

& Shims

High

View from left

side of car

17 32

Belt Tension

Number

Gearing

/

:: For more setups, visit RC10.com and click on “Setup Sheets”

161

2

1

Front

Camber

Toe

+

0

-

4

3

Wheelbase

Steering Block

A

B

Steering Rack

2

3

1

Setup Sheet

Notes:

Chassis:

Top Plate:

Chassis

Throttle Expo:

Battery Placement

Notes:

Notes:

Additive & Amount

Insert & Wheel

Turning Circle: E.S.C. Type:

Steering Expo: E.S.C. Settings:

Brake E.P. :

Software Version:

Notes:

Belt Tension Number

Tire Diameter

Tires

Type

Positive to the outside of vehicle.

Negative to the inside of vehicle.

Transmitter Speed Control

Cam Position

Setting

Type

-1 °

-1/2 °

-3 DOT

-2 DOT

Arm Mount Inserts

0 °

+1/2 °

1 DOT

+2 DOT

Notes:

Differentials

Rebound

Spring

Piston

Oil

Notes:

Shocks

Inner Mount Shims

Anti-Roll Bar

Droop

1

& Shims

Outer Arm Mount Insert

Inner Arm Mount Insert

Outer Mount Shims

2

3

4

Camber Link Position

Outer Ball & Shims

Inner Ball & Shims

Toe

+

0

Outer Ball

-

Notes:

Suspension Geometry

Steering Block Ball & Shims

Steering Rack Ball & Shims

Steering Block Position

Shock Position

N/A

Wheelbase

N/A

N/A

Wheelbase

N/A

Hex Width & Shims

Rear Hub Toe

Toe (Total)

Camber

Caster

N/A

Conditions: Rev.1

Front Rear

Alignment

Ride Height

Driver: Date:

Track: Event:

Body & Wing

1mm

2mm

+1 °

+3 DOT

Wheel Base Shims

Droop

Hex Width & Shims

­0

+

Camber

3

B

A

1

2

Rear

current products, new releases, setup help, tips, and racing info!

Check out the following web sites for all of our kits,

www.TeamAssociated.com. - www.RC10.com

call: [phone] - fax: [phone]

http://twitter/Team_Associated

http://bit.ly/AEonFacebook

http://www.TeamAssociated.com

Lake Forest, CA 92630 USA

26021 Commercentre Dr.

http://www.RC10.com

Associated Electrics, Inc.
