A&D Weighing AD-1687 Data Sheet

Page 1

277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313

MODEL

2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25 2012 / 1 / 25

AD-1687

17:20:47 17:21:33 17:28:24 17:28:27 17:28:30 17:28:32 17:28:34 17:28:37 17:28:38 17:28:40 17:28:42 17:28:43 17:28:44 17:28:45 17:28:46 17:28:47 17:28:48 17:28:49 17:28:50 17:28:51 17:28:52 17:28:53 17:28:54 17:28:55 17:28:56 17:28:57 17:28:58 17:28:59 17:29:00 17:29:01 17:29:02 17:29:03 17:29:04 17:29:05 17:29:07 17:29:08 17:29:10

S / N

25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25

1001

1001.1

1001.4

1001.3

1001.4

1001.3

1001.4

1001.3

1001.4

1001.3

1001.4

1001.3

1001.4

1001.3

1001.4

1001.3

1001.4

1001.3

1001.4

1001.3

0.154

0.156

0.151

0.152

0.151

0.152

0.151

0.152

0.151

0.152

0.151

0.152

0.151

0.152

0.151

0.152

1 2 1 1 1 1 2 1 1 0 1 1 1 1 2 2 1 1 1 1 1 1 2 1 1 1 1 1 1 1 2 1 1 0 1 1 0

44.8

44.7

44.8

44.7

44.8

44.7

44.8

44.7

44.8

44.7

44.8

T1200112 C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C

0 % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % % %

1.3 hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa

Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal Gal

ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST ST

g g g g g g g g g g g g g g g g g g g g g g g g g g g g g g g g g g g g g

Weighing Environment Logger

1687

Temperature Barometric Pressure

VibrationHumidity

Weighing Data

Temperature Barometric Pressure

VibrationHumidity

ISO

CERTIFIED

9000

All in One Device!

Weighing Data

http://www.aandd.jp

...Clearly a Better Value

Page 2

Who Else Wants to Manage Environmental and Weighing Data With Just One Device?

Temperature, humidity, barometric pressure, and mass values – Isn’t it troublesome to unify and process these data from different recording devices? The AD-1687 Weighing Environment Logger, which also detects vibration, is ideal for monitoring environmental conditions that influence the performance of precision analytical balances. A unique product that A&D ourselves long wished to have as a balance manufacturer!

Simult a neous and chronological recording of environmenta l and weighing data

When connected to an A&D balance, the AD-1687 saves mass values sent from the balance while simultaneously collecting temperature, humidity, barometric pressure, and vibration data from the setup environment, all with date and time of recording. You will no longer be bothered by complicated, error-prone data integration tasks.

USBRS-232C

Mass

(mg, etc.)

Temperature

(°C / °F)

AD-1687

Humidity

(%)

Date & Time (synchronous)

Barometric Pressure

(hPa)

Vibration

(Gal)

Instant data saving to a PC requiring no special software

The PC recognizes the AD-1687 as USB storage. The data is stored in CSV format and can be opened using software such as Microsoft Excel, allowing easy processing and graphing of results for analysis and documentation.

Real-time transmission mode

By linking a balance and a PC, the AD-1687 can transfer weighing data along with environmental data to the PC in real time without saving the data on the device itself.

Large memory capacity of 10,000 data sets

The AD-1687 stores up to 10,000 sets of environmental and weighing data with date and time. You can select either endless recording (overwrites the oldest data when memory is full) or one-time recording (stops recording when memory becomes full).

i Roughly 100 days’ worth of continuous recording at a 15-minute interval

Page 3

No battery required when connected to either a balance or a PC

The AD-1687 can receive power directly from a balance via RS-232C or from a PC via USB. Three types of RS-232C cables (9-pin D-Sub, 25-pin D-Sub, and 7-pin DIN) and a USB cable are provided as standard.

Power-saving function when operated on batteries

The AD-1687 is automatically turned off after a set period of inactivity. (Only the display is turned off while recording in interval mode.) The remaining battery level is displayed to avoid unexpected recording failure.

ii Settings are 30 sec, 1 min, 2 min, 5 min, 10 min, and OFF

Various display modes

Depending on your purpose or preference, you can set the AD-1687 to display either all data items or only two important ones (primary data mode), and display data either numerically or by trend graphs (trend graph mode).

Primary data mode

Only two data items (e.g. temperature and humidity) of your choosing are displayed for easier reading.

Trend graph mode

Results are graphed using automatic scaling so you can grasp chronological changes quickly and intuitively.

All items

(numeric)

Two items

(numeric)

All items

(trend graph)

Two items

(trend graph)

Interval time setting for environmental data recording

It is possible to set an interval time between 1 second to 60 minutes at which the AD-1687 measures and records the environmental data.

iii

iii For weighing data, use the interval output mode of the weighing instrument.

High portability and IP65 dust and waterproof construction

The AD-1687 is compact enough (127 × 90 × 36 mm with the protective cover) to be carried around. With the protective cover, it is IP65 dust and waterproof and suitable for use at various sites where the conditions are not as favorable as laboratories.

Industry’s first environment logger that detects vibration

Because the AD-1687 measures vibration, it is useful for managing not just weighing environments but also areas like production facilities where the amount of vibration becomes an issue.

Page 4

Specifications

Temperature

Relative humidity

Barometric pressure

Vibration

Data capacity

Interval time

Power supply

Battery life

Clock accuracy

Compatible operating systems

Operating environment

Dimensions

Weight

Resolution

0.1 °C

0.1 F

0.1% RH

0.1 hPa

1 Gal

Maximum 10,000 sets (including date and time)

1, 2, 5, 10, 15, 20, 30 seconds, 1, 2, 5, 10, 15, 20, 30, 60 minutes

Two LR6 (AA) batteries, RS-232C, or USB

Approx. 6 months (with measurement interval at 1 minute, alkaline batteries)

Maximum ±1 minute/month

Windows 2000 / XP / Vista / 7 / 8 / 10 (32 / 64 bit)

0 to 60 °C / 32 to 140 F, 85% RH or less (no condensation)

127 (W) × 90 (H) × 36 (D) mm (including the protective cover)

Approx. 280 g (including batteries and the protective cover)

Measurement range

0 to 60 °C

32 to 140 F

0 to 100%

500 to 1100 hPa

0 to 2000 Gal

Standard accessories

● Three RS-232C cables for weighing instruments (9-pin D-Sub, 25-pin D-Sub, and 7-pin DIN, 1 m)

● USB cable (1 m)

● Two LR6 (AA) batteries (for operation check)

● Protective cover

● Instruction manual

Accuracy

±0.5 °C (20 to 30 °C）

±0.9 F (68 to 86 F)

±3% (20 to 80%)

±4 hPa (0 to 50 °C)

±20 %, static acceleration

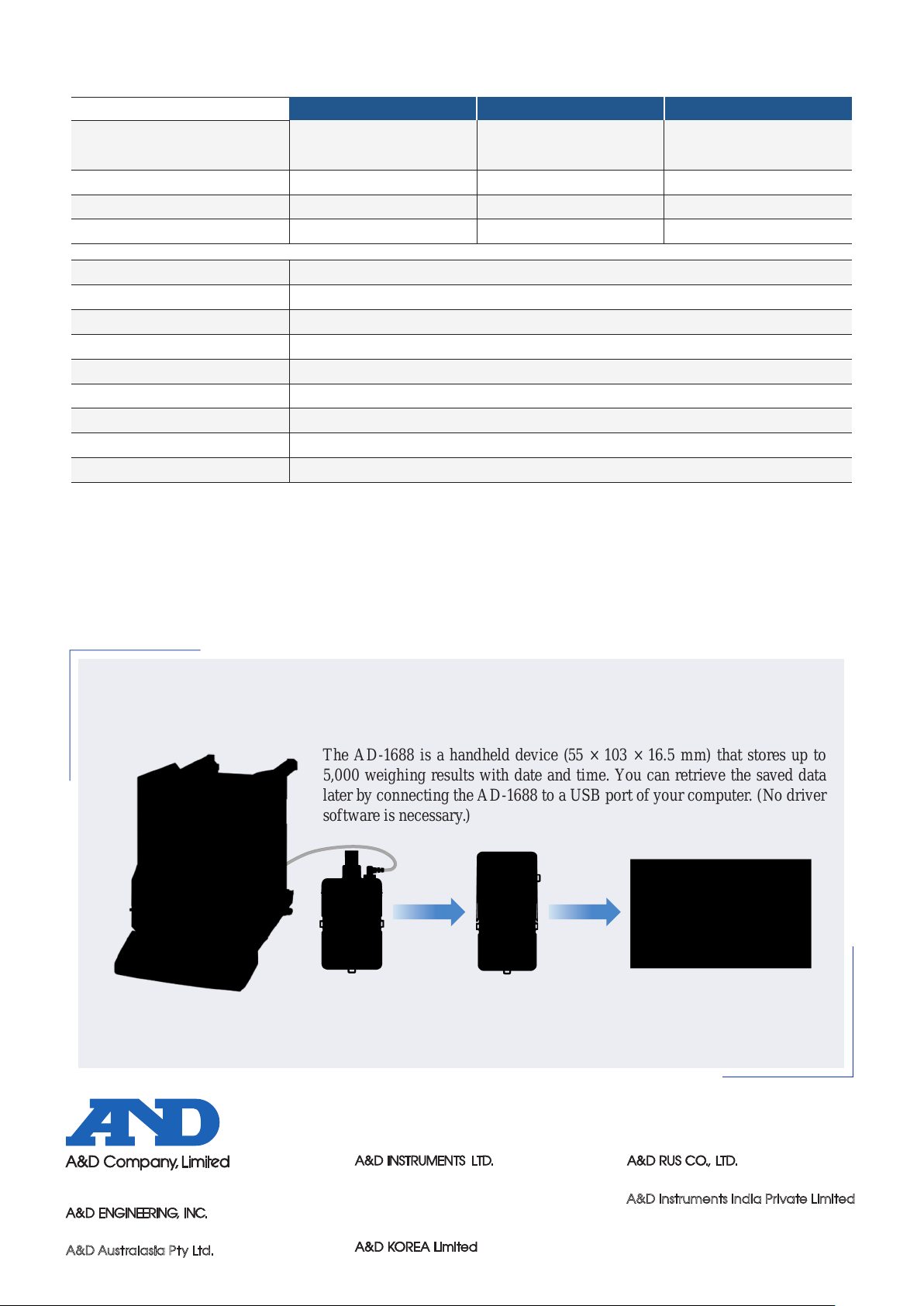

You only need to record weighing data? Then please consider the AD -1688 Weighing Data Logger.

The AD -1688 is a handheld device (55 × 103 × 16.5 mm) that st ores up to 5,000 weighing results w ith date and ti me. You can re trieve the saved data later by connecting the AD-1688 to a USB port of your computer. (No driver software is necessary.)

and Retrieve the Data!CarrySave

As with the A D-1687 weigh ing environment logger, the AD-1688 becomes es pecially handy where a PC or printer cannot be placed near the weighing instrument, such as clean rooms.
