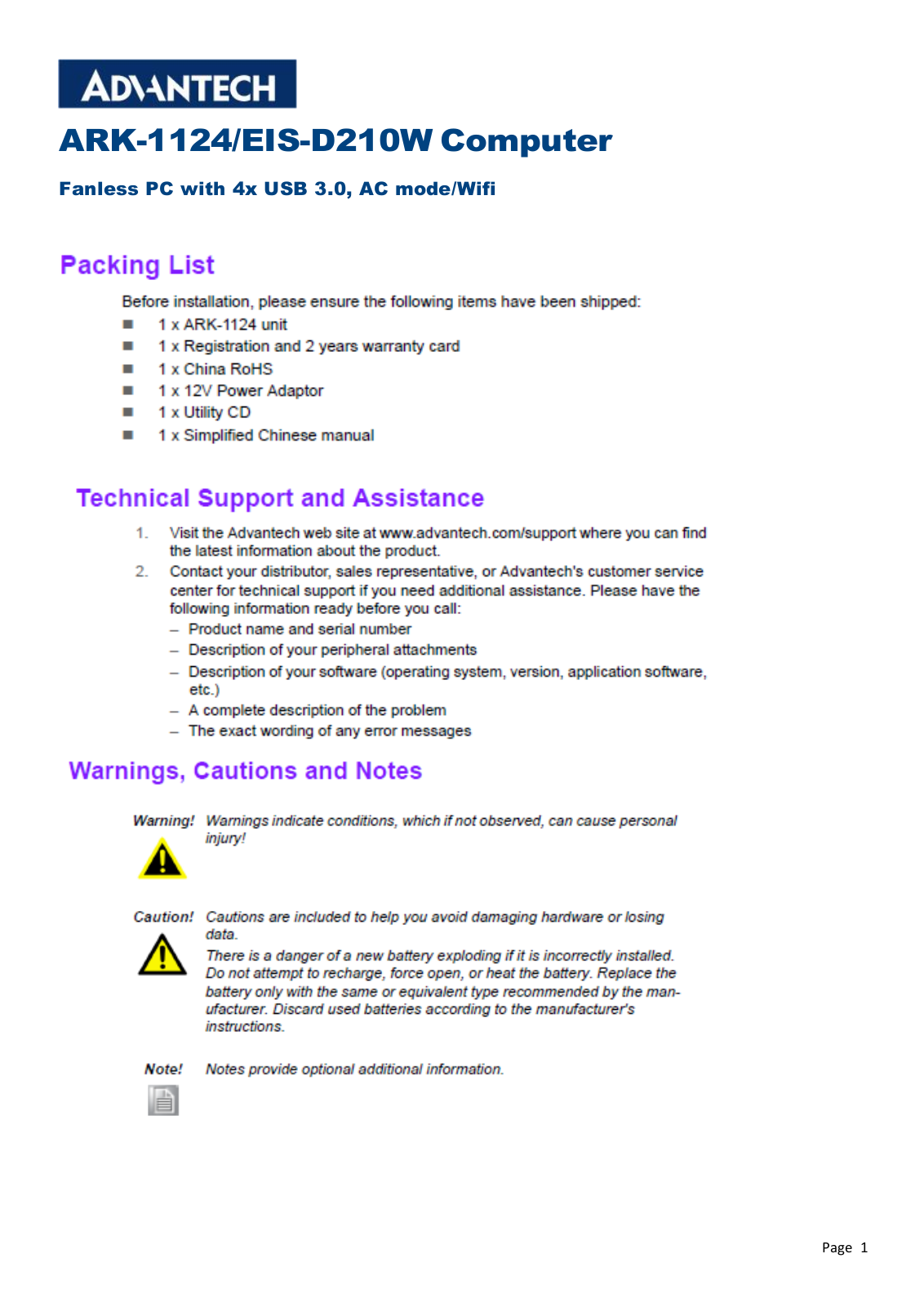

Advantech Co ARK1124 Users Manual

ARK-1124/EIS-D210W Computer

Fanless PC with 4x USB 3.0, AC mode/Wifi

Page 1

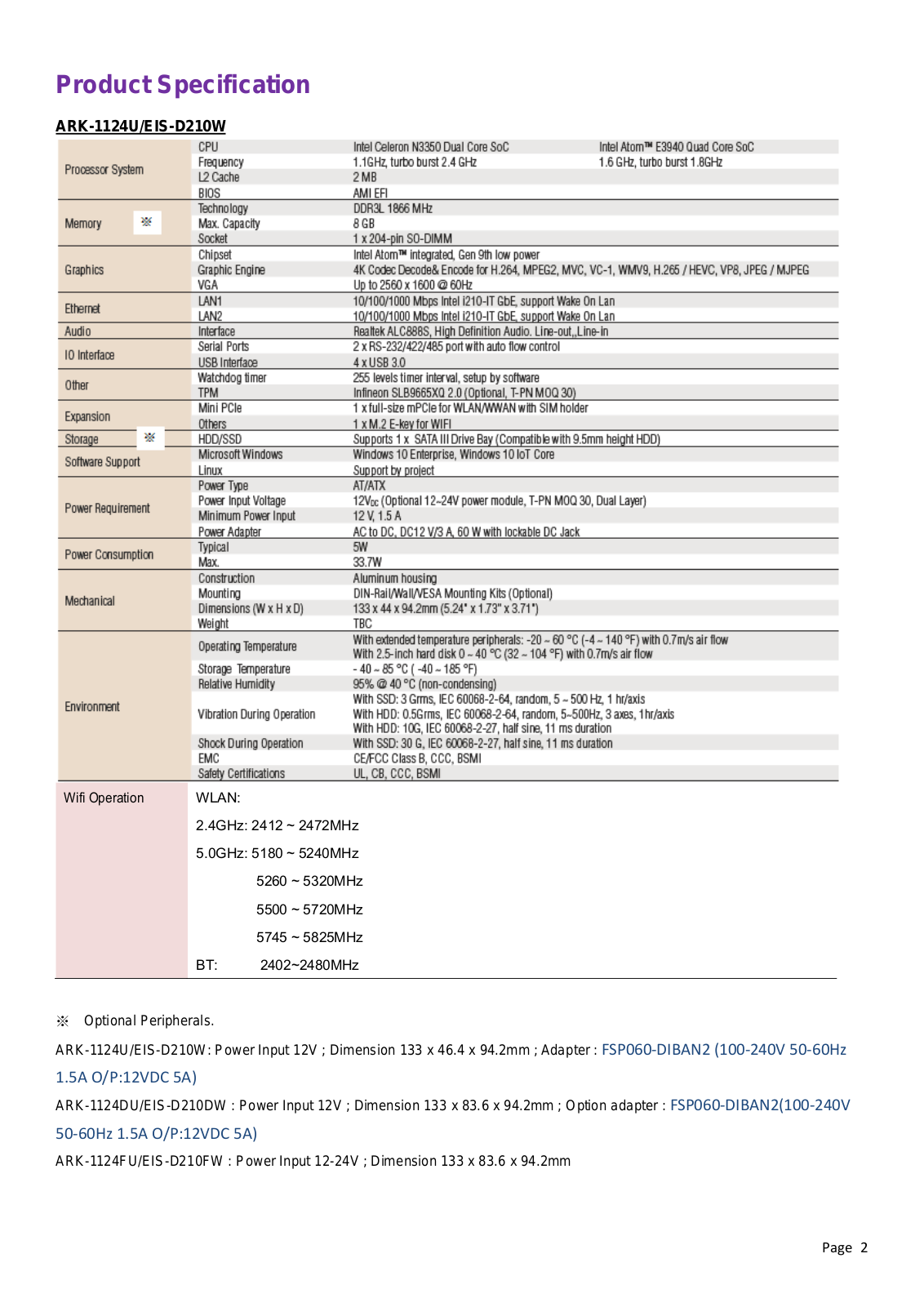

Product Specification

Wifi Operation

WLAN:

2.4GHz: 2412 ~ 2472MHz

5.0GHz: 5180 ~ 5240MHz

5260 ~ 5320MHz

5500 ~ 5720MHz

5745 ~ 5825MHz

BT: 2402~2480MHz

ARK-1124U/EIS-D210W

※ Optional Peripherals.
ARK-1124U/EIS-D210W: Power Input 12V ; Dimension 133 x 46.4 x 94.2mm ; Adapter : FSP060-DIBAN2 (100-240V 50-60Hz

1.5A O/P:12VDC 5A)

ARK-1124DU/EIS-D210DW : Power Input 12V ; Dimension 133 x 83.6 x 94.2mm ; Option adapter : FSP060-DIBAN2(100-240V

50-60Hz 1.5A O/P:12VDC 5A)

ARK-1124FU/EIS-D210FW : Power Input 12-24V ; Dimension 133 x 83.6 x 94.2mm

Page 2
