ADAM-6051 16-channel Digital I/O w/Counter Module

The ADAM-6051W is a high-density I/O module built-in a 10/100 based-T interface for seamless Ethernet connectivity.
It provides 12 digital input, 2 digital output, and 2 counter (10 KHz) channels with 5000V

the Digital Input channels support input latch function for important signal handling. Mean while, these DI channels
allows to be used as 1 KHz counter. Opposite to the intelligent DI functions, the Digital Output channels also support
pulse output function.

Isolating protection. All of

RMS

ADAM-6051W

Figure 1: ADAM-6051W 16-channel Digital I/O w/Counter Module

ADAM-6051W Specification

• Channel: 16

• I/O type: 12DI / 2DO / 2Counter

• Digital Input: Dry Contact:
Logic level 0: Close to GND
Logic level 1: Open
Wet Contact:
Logic level 0: +3 V

max

Logic level 1: +10 to 30 V

• Digital Output:Open Collector to 30 V, 200 mA max. load

• Optical Isolation: 5000V

RMS

• Counter:
Maximum Count: 4,294,967,285(32 bit)
Input frequency: 0.3 ~ 1000 Hz max. (frequency mode), 5000 Hz max. (counter mode)
Isolation voltage: 2500 V

RMS

Mode: Counter (Up/Down, Bi-direction), Frequency

• Communication: Wireless LAN IEEE802.11b

• Power Consumption: 2 W (Typical)

Application Wiring

Figure 2: ADAM-6051W Digital Input (Wet Contact) Wiring

Figure 3: ADAM-6051W Digital Input (Wet Contact) Wiring

Figure 4: ADAM-6051W Digital Output and Counter Wiring

System Architecture

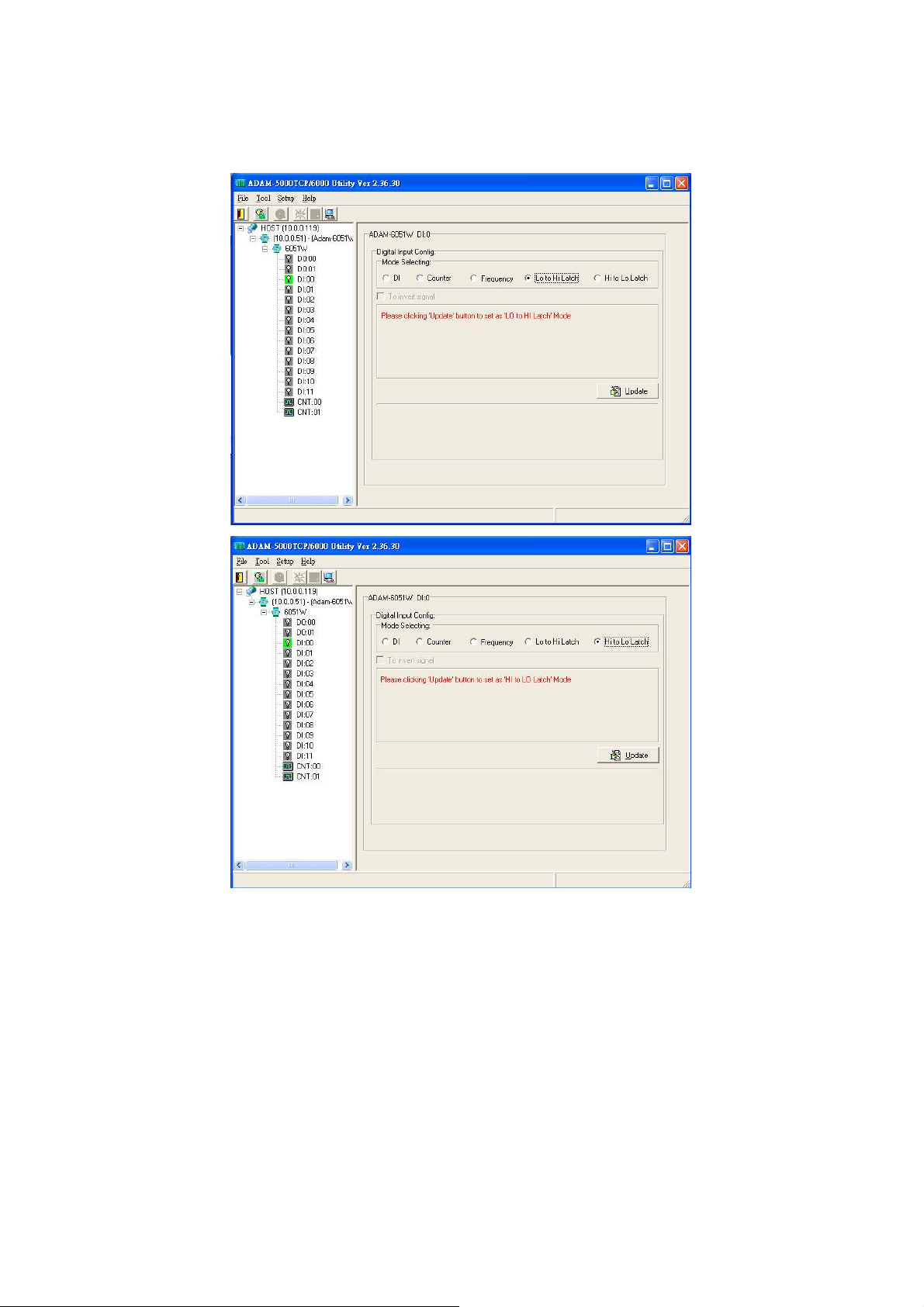

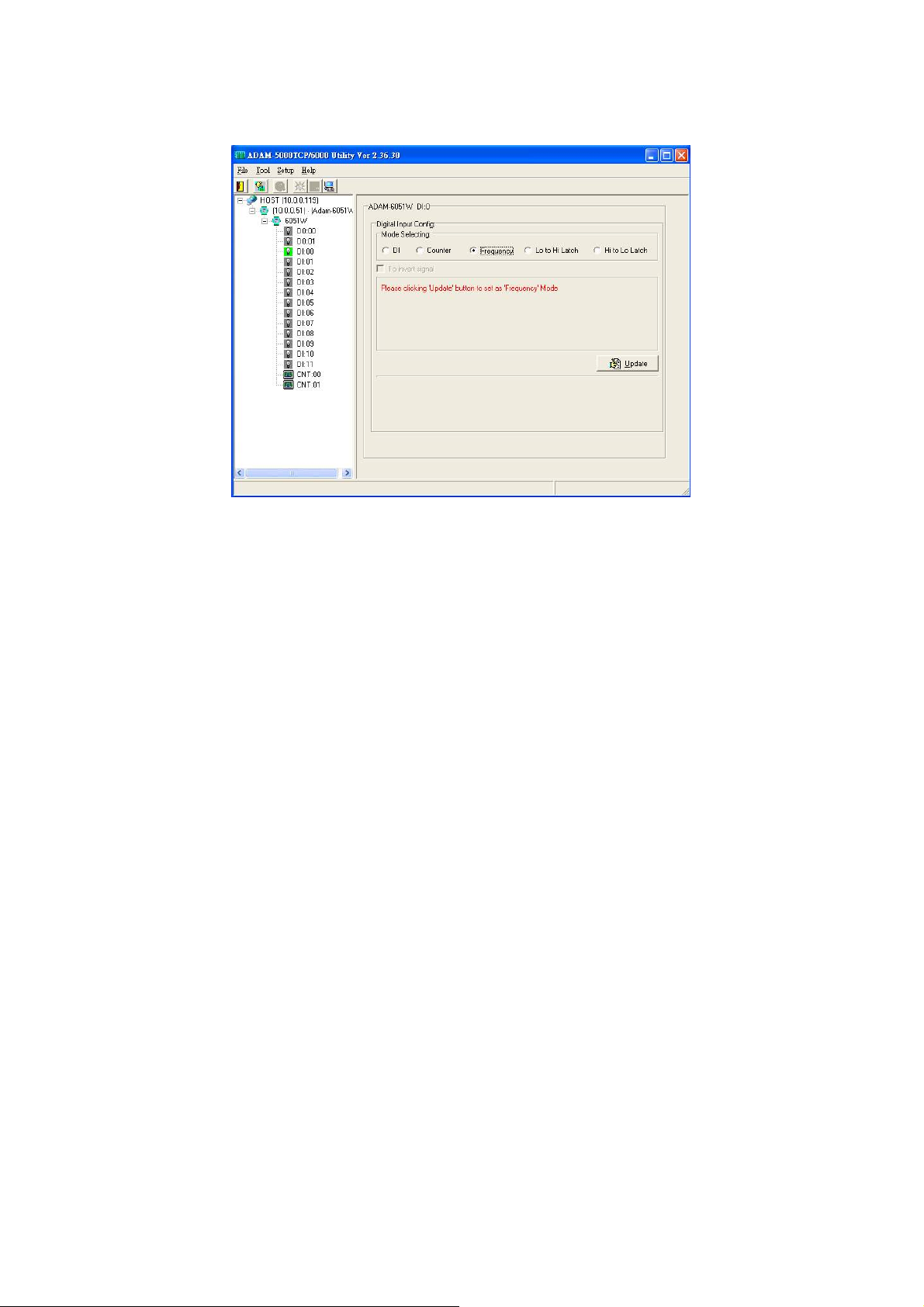

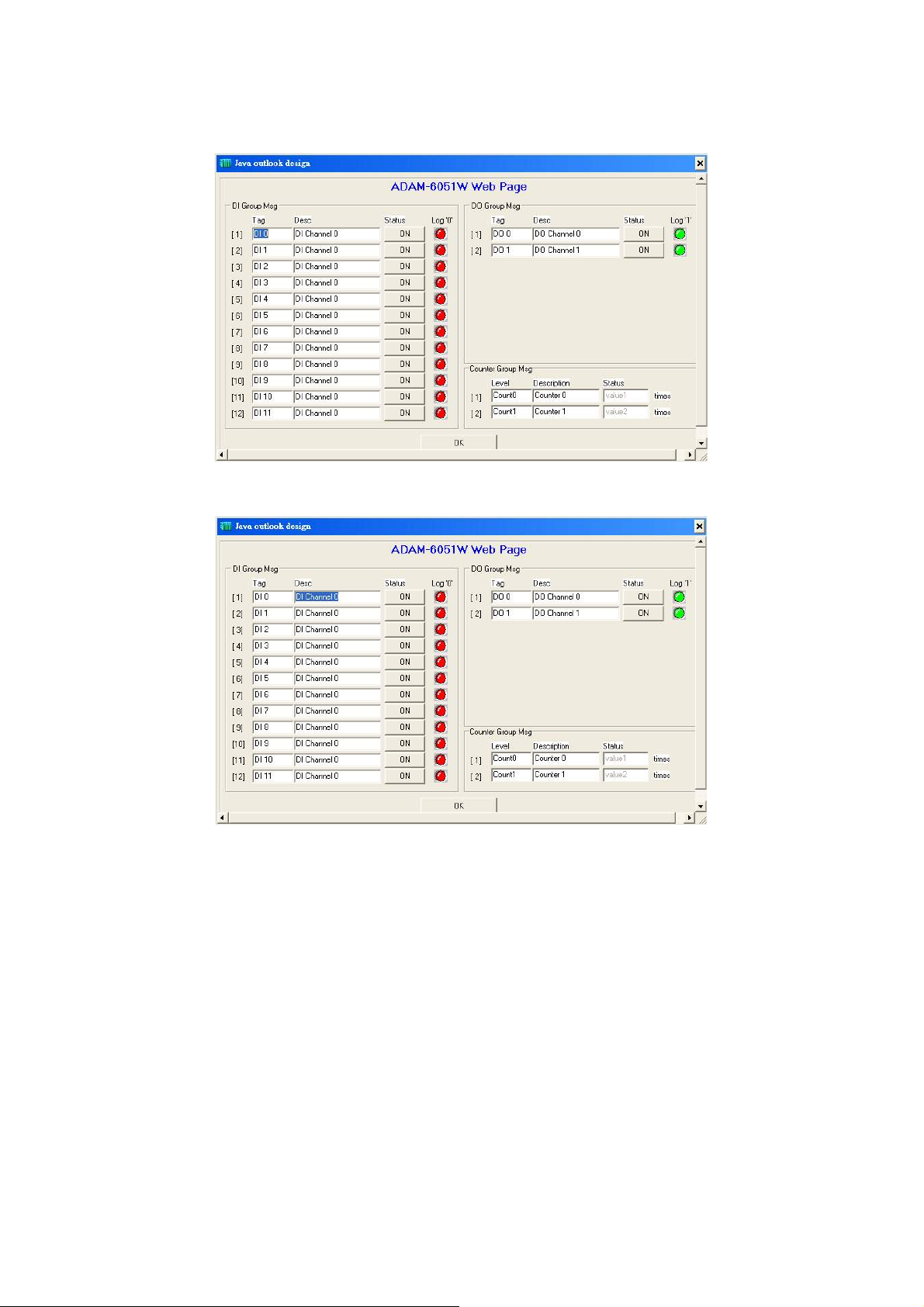

ADAM-6051W Configuration

Network Configuration
Step 1 : Please open the ADAM-5000TCP-6000 utility software. The utility software will automatically

scan the ADAM-6000 modules. Please wait for the A DAM-6051W being found by utility software.

Step 2 : Please go the “Network” page to change the IP address/Subnet Address/Default Gateway of
ADAM-6051W module to be compatible with user’s existing network and set the host idle time out value
(the ADAM-6000 module can only accept 8 connection from host station. Any host station doesn’t request
the communication with this ADAM-6000 module over the time out setting, the connection of this host
station will be released for the other stations).

press “Apply” to download the new IP address to ADAM-6051W module (the default password for the
changing configuration is “00000000”).

Step 3 : Re-configuring the IP address of the configuration PC to be the original setting (compatible with
user’s existing network) then re-start the utility software. The software will automatically search the
ADAM-6051W module again.
Step 4 : Go to the “Wireless” page to set the wireless LAN configuration.

Please set the wireless LAN mode to be “Infrastructure” or “Adhoc” based on exact system architecture.

Please assign the SSID for the specific wireless AP to be connected with ADAM-6000W modules. User
can place “ANY” key to let the ADAM-6000W modules to automatically search the existing wireless AP. Or
key in the specific SSID to assign the dedicated AP (strongly recommending to set up the dedicated SSID,
it can guarantee the communication of ADAM-6000W modules to be stable)

For assigning the dedicated wireless LAN AP, user can use the site survey function to check the existing
AP in connection environment. Please go to the “Site Survey” page.

Press “Scan” bottom to search the existing AP.

Selecting the AP in the searching result table.

Press “Apply” bottom to accept the AP to finish the set up action.

Please select the region for your area.

Setting the used channel, the channel number must be included in the channel segment of your region.

Please select the basic rate for the communication bandwid t h.

Press the “Apply” bottom to finish the set up work.
Step 5 : Configure the WEP security setting. Please go to the WEP page in “Wireless” of utility software.

If user want to use the WEP security function, please enable the WEP function in “User WEP” then select
the Key format and key in the WEP key for this requirement.
