Advantech Co ADAM 6050W User Manual

ADAM-6050W 18-channel Digital I/O Module

The ADAM-6050W is a high-density I/O module built-in a IEEE802.11b wireless LAN interface for seamless Ethernet
connectivity. It provides 12 digital input and 6 digital output channels with 5000V

Digital Input channels support input latch function for important signal handling. Mean while, these DI channels allows
to be used as 1 KHz counter. Opposite to the intelligent DI functions, the Digital Output channels also support pulse
output function.

Isolating protection. All of the

RMS

ADAM-6050W

Figure 1: ADAM-6050W 18-channel Digital I/O Module

ADAM-6050W Specification

Analog Input:

• Channel: 18

• I/O type: 12 DI & 6 DO

• Digital Input: Dry Contact:
Logic level 0: Close to GND
Logic level 1: Open
Wet Contact:
Logic level 0: +3 V

• Digital Output:Open Collector to 30 V, 200 mA max. load

• Communication: Wireless LAN IEEE802.11b

• Optical Isolation: 5000V

• Power Consumption: 2 W (Typical)

Logic level 1: +10 to 30 V

max

RMS

DC

Application Wiring

Figure 2: ADAM-6050W Digital Input (Wet Contact) Wiring

Figure 3: ADAM-6050W Digital Input (Dry Contact) Wiring

Figure 4: ADAM-6050W Digital Output Wiring

System Architecture

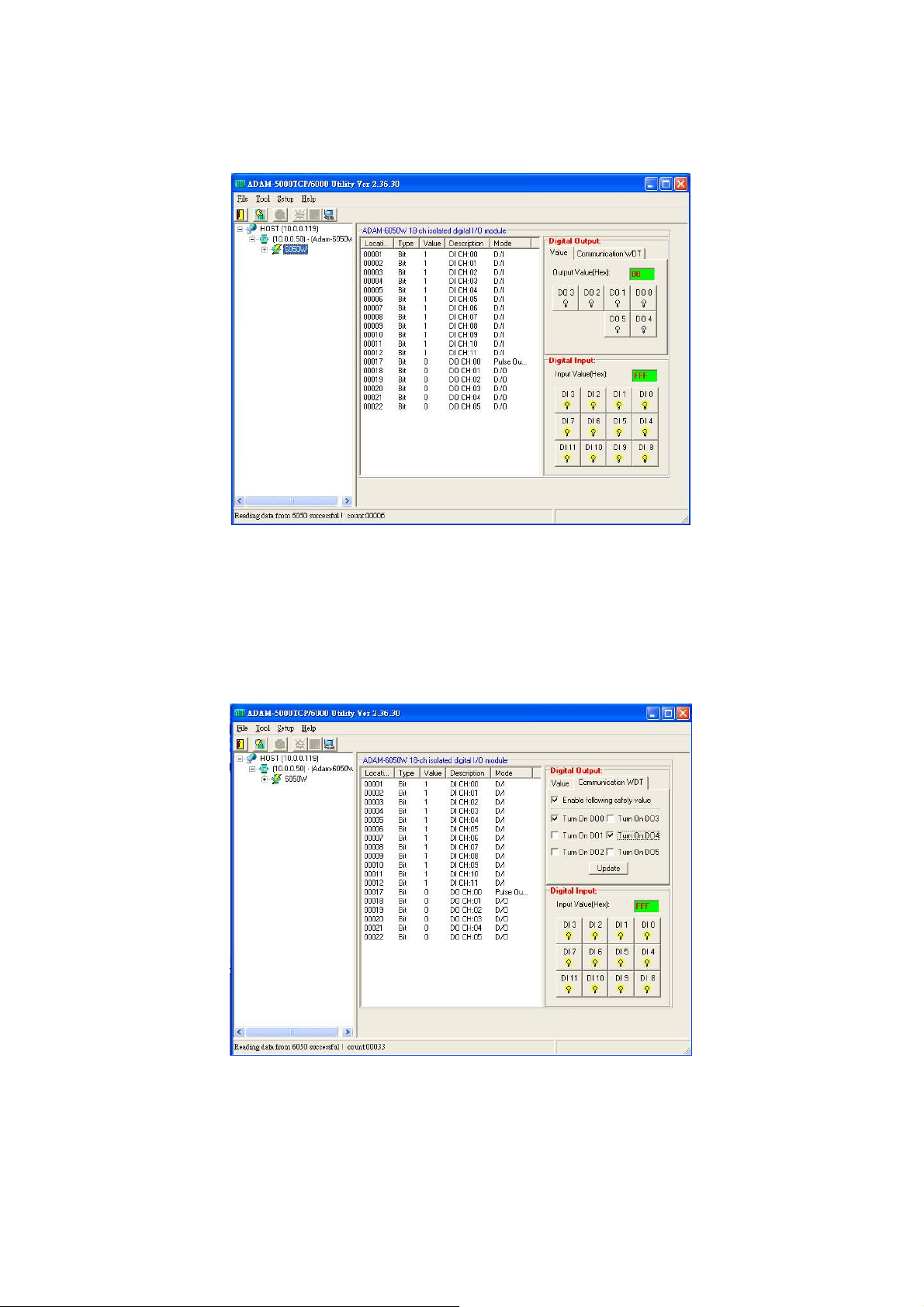

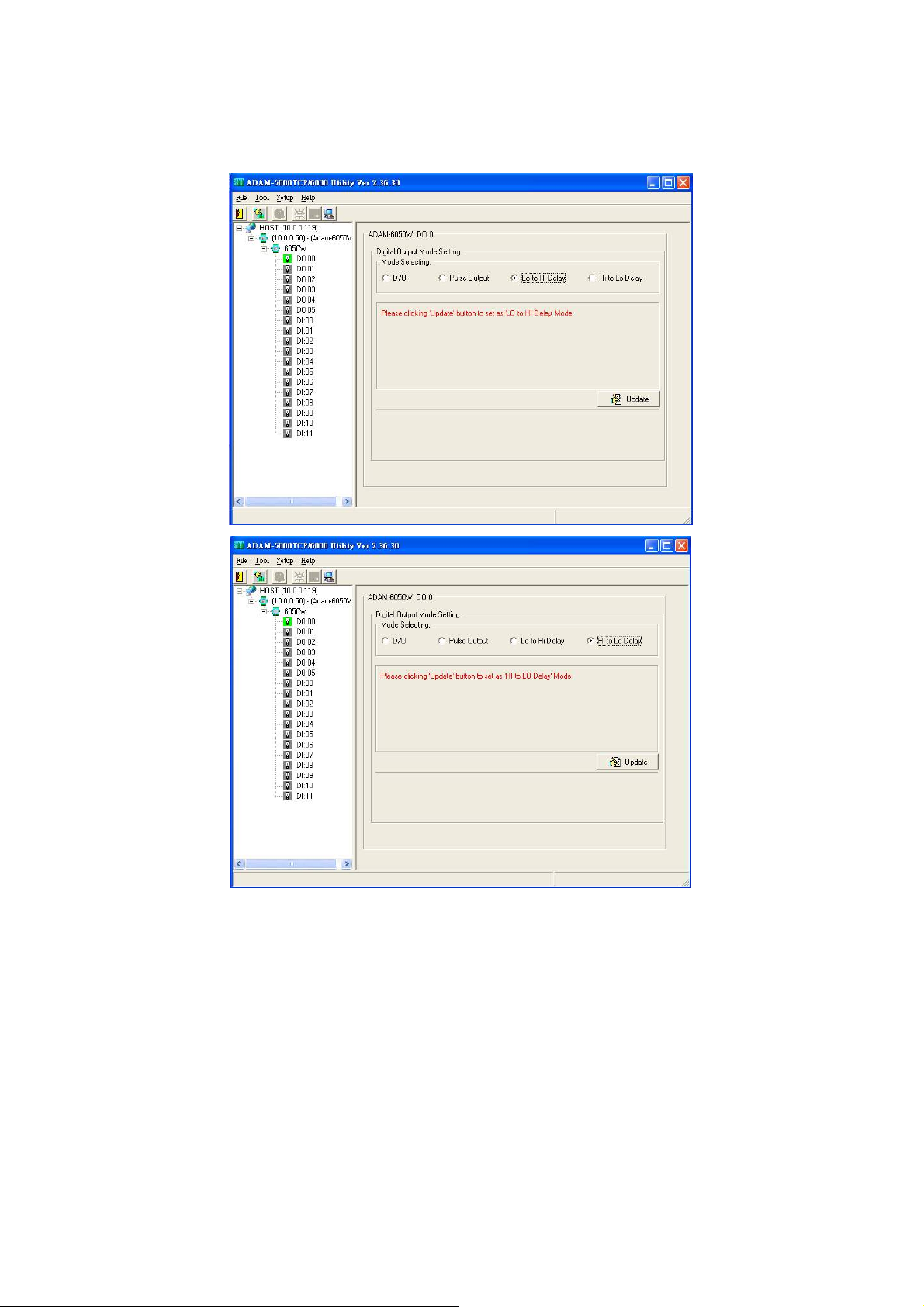

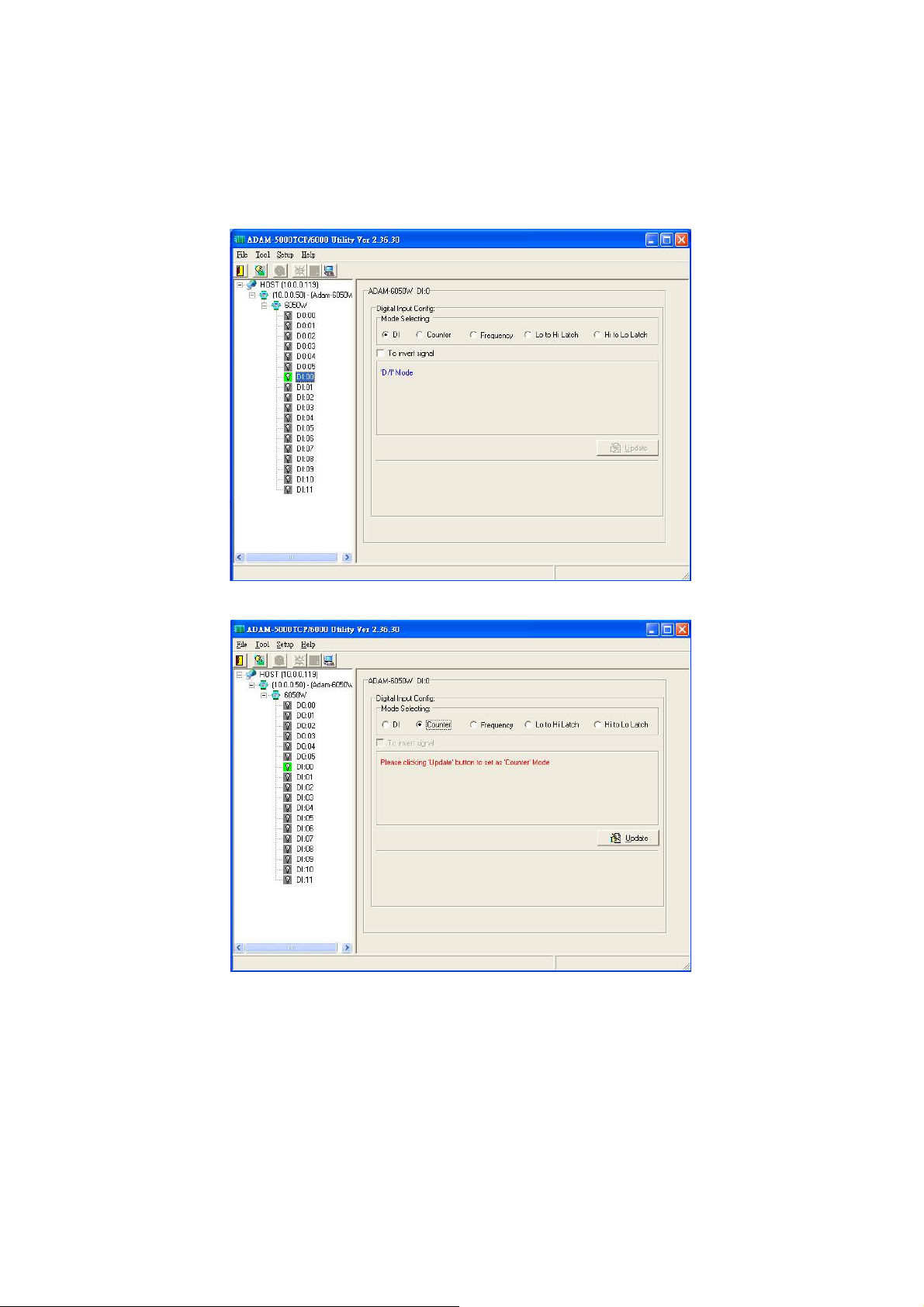

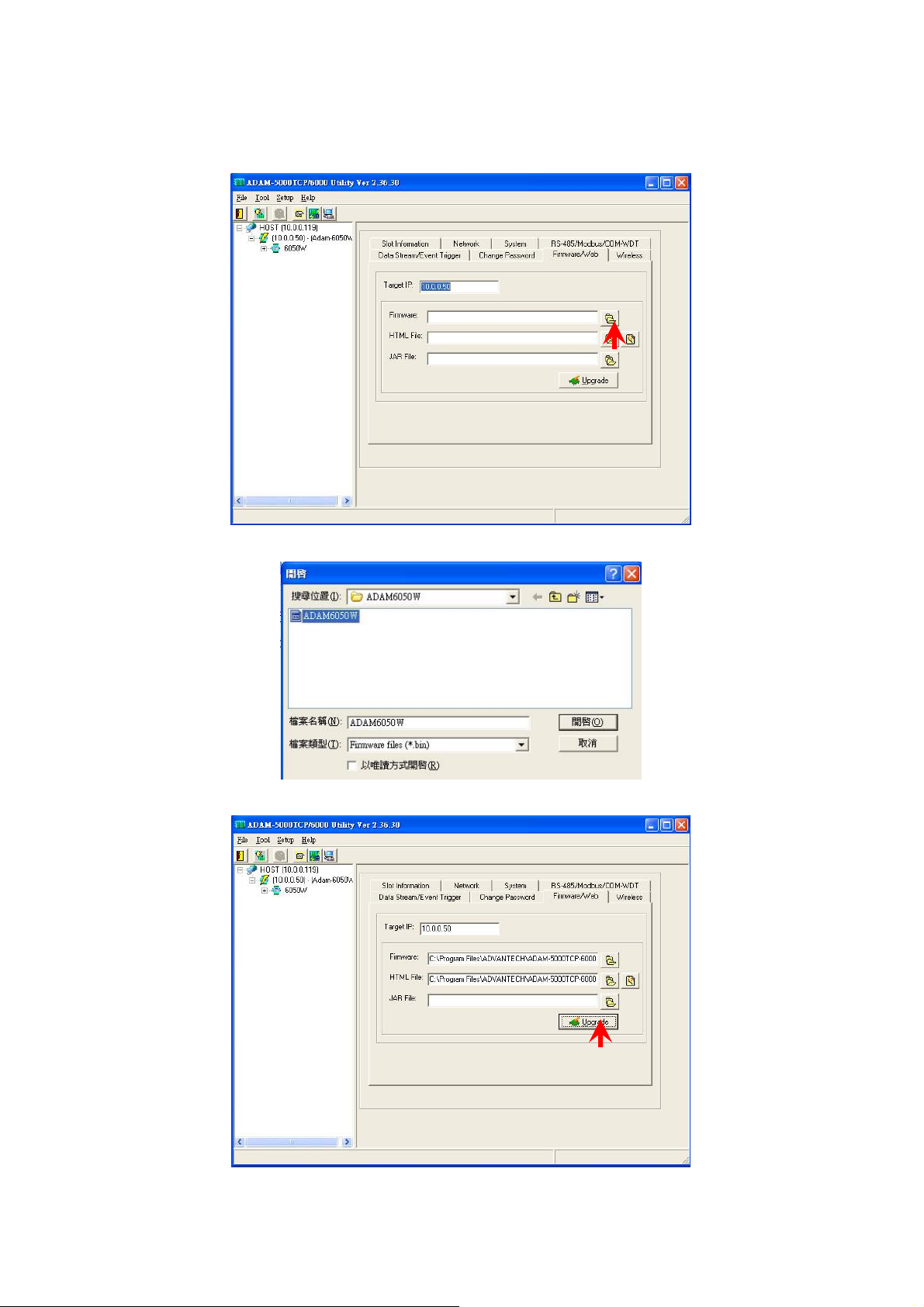

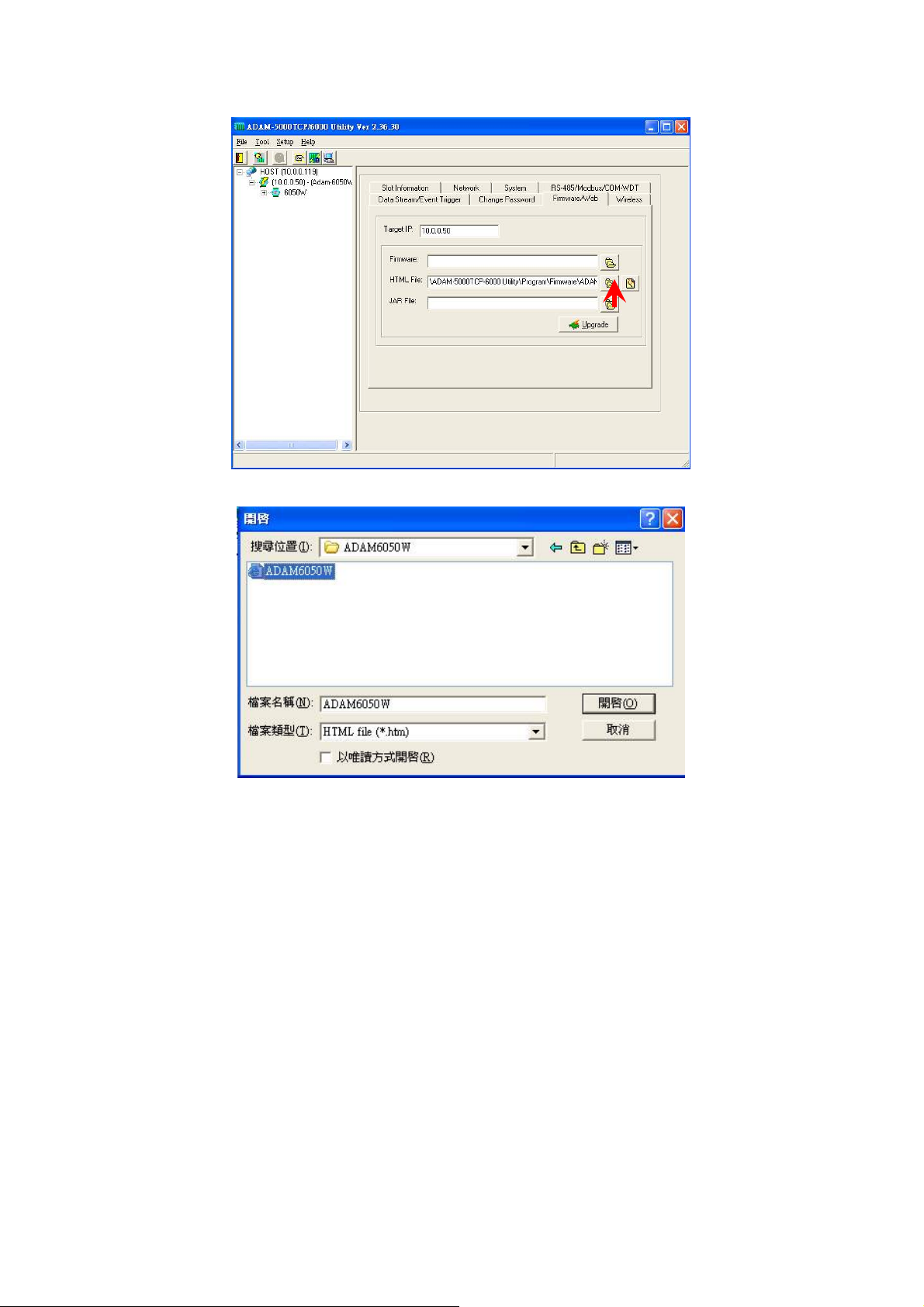

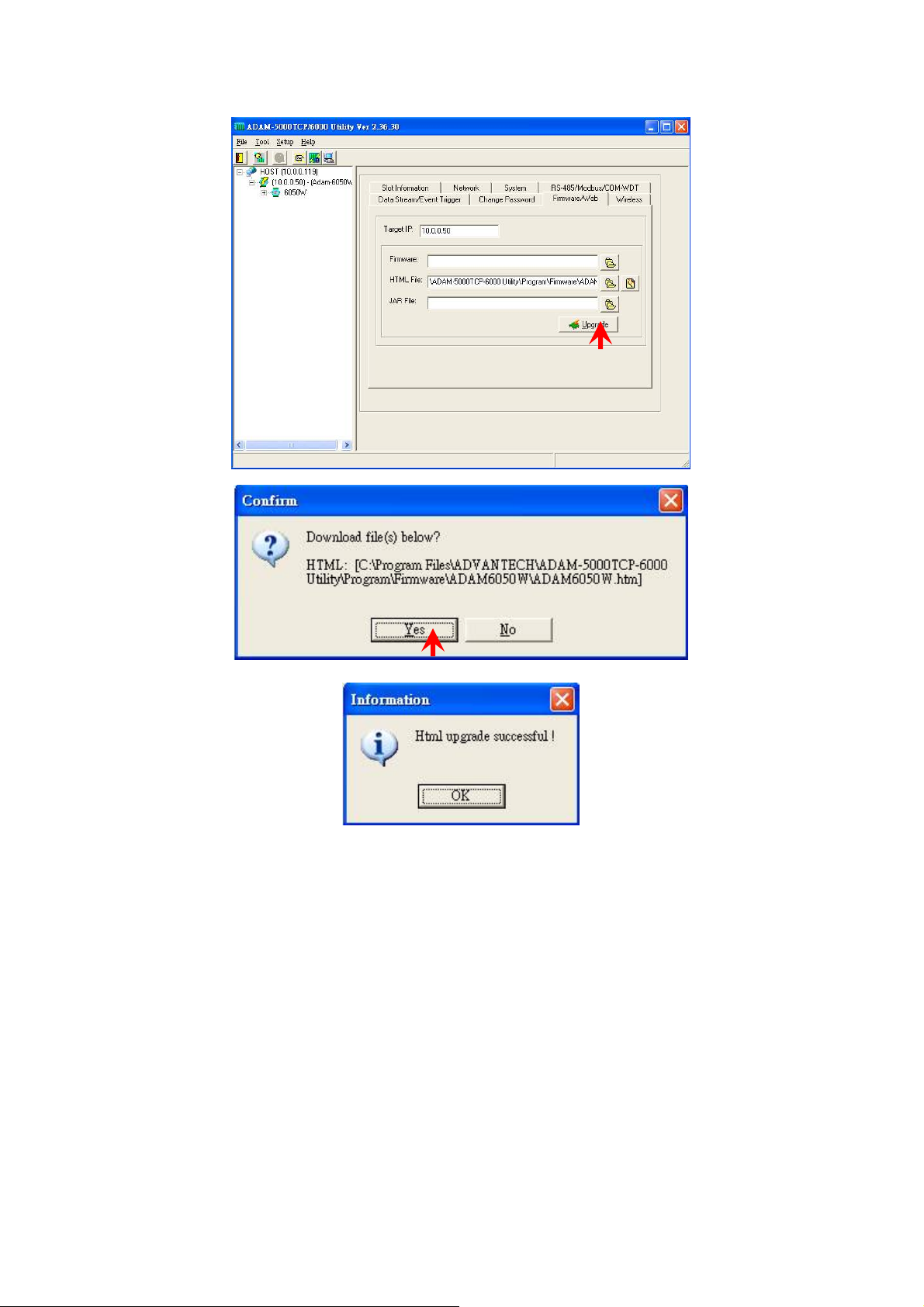

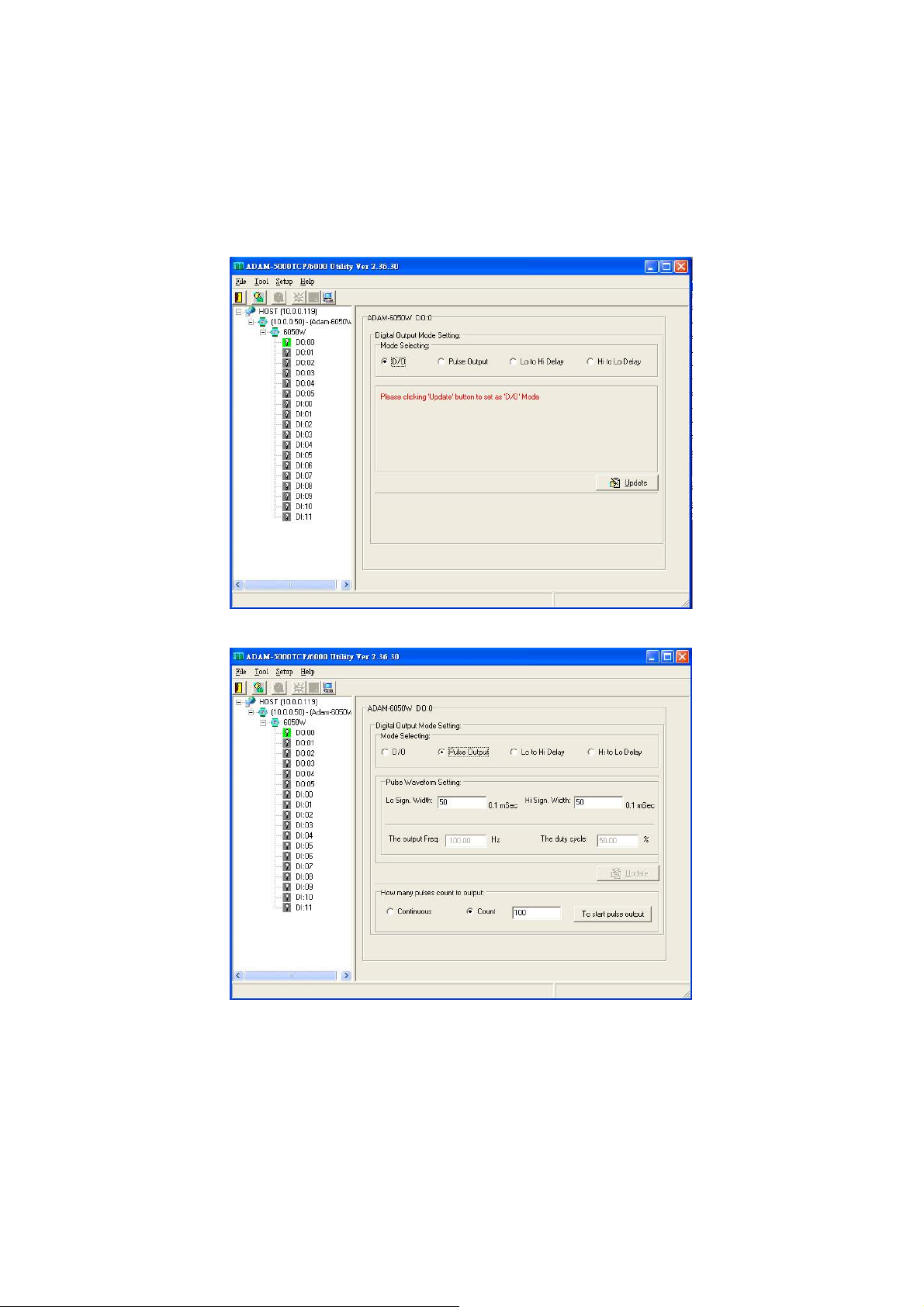

ADAM-6050W Configuration

Network Configuration
Step 1 : Please open the ADAM-5000TCP-6000 utility software. The utility software will automatically

scan the ADAM-6000 modules. Please wait for the A DAM-6050W being found by utility software.

Step 2 : Please go the “Network” page to change the IP address/Subnet Address/Default Gateway of
ADAM-6050W module to be compatible with user’s existing network and set the host idle time out value
(the ADAM-6000 module can only accept 8 connection from host station. Any host station doesn’t request
the communication with this ADAM-6000 module over the time out setting, the connection of this host
station will be released for the other stations).

press “Apply” to download the new IP address to ADAM-6050W module (the default password for the
changing configuration is “00000000”).

Step 3 : Re-configuring the IP address of the configuration PC to be the original setting (compatible with
user’s existing network) then re-start the utility software. The software will automatically search the
ADAM-6050W module again.
Step 4 : Go to the “Wireless” page to set the wireless LAN configuration.

Please set the wireless LAN mode to be “Infrastructure” or “Adhoc” based on exact system architecture.

Please assign the SSID for the specific wireless AP to be connected with ADAM-6000W modules. User
can place “ANY” key to let the ADAM-6000W modules to automatically search the existing wireless AP. Or
key in the specific SSID to assign the dedicated AP (strongly recommending to set up the dedicated SSID,
it can guarantee the communication of ADAM-6000W modules to be stable)

For assigning the dedicated wireless LAN AP, user can use the site survey function to check the existing
AP in connection environment. Please go to the “Site Survey” page.

Press “Scan” bottom to search the existing AP.

Selecting the AP in the searching result table.

Press “Apply” bottom to accept the AP to finish the set up action.

Please select the region for your area.

Setting the used channel, the channel number must be included in the channel segment of your region.

Please select the basic rate for the communication bandwid t h.
