User Manual
UNO-2483G
UNO-2473G
Intel® Core™ i7/i3/Celeron/Atom
Regular-Size Automation
Computer w/ 4/2 x GbE 3/1 x
mPCIe, HDMI/VGA
Copyright
Part No. 2003248342 Edition 3
Printed in Taiwan May 2018
The documentation and the software included with this product are copyrighted 2016
by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right
to make improvements in the products described in this manual at any time without
notice. No part of this manual may be reproduced, copied, translated or transmitted
in any form or by any means without the prior written permission of Advantech Co.,
Ltd. Information provided in this manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements of the rights of third parties, which may result from its use.
Acknowledgements
IBM, PC/AT, PS/2 and VGA are trademarks of International Business Machines Corporation.
Intel®, Core™ and Atom™ are the trademarks of Intel Corporation
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.
Support
For more information on this and other Advantech products, please visit our websites
at: http:/www.advantech.com
For technical support and service, please visit our support website at:
http:/support.advantech.com/
UNO-2483G/2473G User Manual ii
*UNO-2483G
UNO-2483G-474AE
UNO-2483G-434AE
UNO-2483G-4C3AE
UNO2483G4741401E-T UNO2483G4341401E-T
UNO2483G4741402E-T UNO2483G4341402E-T
UNO2483G4741403E-T UNO2483G4341403E-T
UNO2483G4741404E-T UNO2483G4341404E-T
UNO2483G4741405E-T UNO2483G4341405E-T
UNO2483G4C31401E-T UNO2483G4C31402E-T
UNO2483G4C31403E-T UNO2483G4C31404E-T
UNO2483G4C31405E-T UNO2483G4741501E-T
UNO2483G4741502E-T UNO2483G4741503E-T
UNO2483G4741504E-T UNO2483G4741505E-T
UNO2483G4341501E-T UNO2483G4341502E-T
UNO2483G4341503E-T UNO2483G4341504E-T
UNO2483G4341505E-T UNO2483G4C31501E-T
UNO2483G4C31502E-T UNO2483G4C31503E-T
UNO2483G4C31504E-T UNO2483G4C31505E-T
UNO2483G4741601E-T UNO2483G4741602E-T
UNO2483G4741603E-T UNO2483G4741604E-T
UNO2483G4741605E-T UNO2483G4341601E-T
UNO2483G4341602E-T UNO2483G4341603E-T
UNO2483G4341604E-T UNO2483G4341605E-T
UNO2483G4C31601E-T UNO2483G4C31602E-T
UNO2483G4C31603E-T UNO2483G4C31604E-T
UNO2483G4C31605E-T UNO2483G4741701E-T
UNO2483G4741702E-T UNO2483G4741703E-T
UNO2483G4741704E-T UNO2483G4741705E-T
UNO2483G4341701E-T UNO2483G4341702E-T
UNO2483G4341703E-T UNO2483G4341704E-T
UNO2483G4341705E-T UNO2483G4C31701E-T
UNO2483G4C31702E-T UNO2483G4C31703E-T
UNO2483G4C31704E-T UNO2483G4C31705E-T
UNO2483G4741801E-T UNO2483G4741802E-T
UNO2483G4741803E-T UNO2483G4741804E-T
UNO2483G4741805E-T UNO2483G4341801E-T
UNO2483G4341802E-T UNO2483G4341803E-T
UNO2483G4341804E-T UNO2483G4341805E-T
UNO2483G4C31801E-T UNO2483G4C31802E-T
UNO2483G4C31803E-T UNO2483G4C31804E-T
UNO2483G4C31805E-T UNO2483G4741901E-T
UNO2483G4741902E-T UNO2483G4741903E-T
UNO2483G4741904E-T UNO2483G4741905E-T
UNO2483G4341901E-T UNO2483G4341902E-T
iii UNO-2483G/2473G User Manual
UNO2483G4341903E-T UNO2483G4341904E-T
UNO2483G4341905E-T UNO2483G4C31901E-T
UNO2483G4C31902E-T UNO2483G4C31903E-T
UNO2483G4C31904E-T UNO2483G4C31905E-T
*UNO-2473G
UNO-2473G-E3AE
UNO-2473G-J3AE
UNO2473GE3A1601E-T UNO2473GE3A1602E-T
UNO2473GE3A1603E-T UNO2473GE3A1604E-T
UNO2473GE3A1605E-T UNO2473GJ3A1601E-T
UNO2473GJ3A1602E-T UNO2473GJ3A1603E-T
UNO2473GJ3A1604E-T UNO2473GJ3A1605E-T
UNO2473GE3A1701E-T UNO2473GE3A1702E-T
UNO2473GE3A1703E-T UNO2473GE3A1704E-T
UNO2473GE3A17015E-T UNO2473GJ3A1701E-T
UNO2473GJ3A1702E-T UNO2473GJ3A1703E-T
UNO2473GJ3A1704E-T UNO2473GJ3A1705E-T
UNO2473GE3A1801E-T UNO2473GE3A1802E-T
UNO2473GE3A1803E-T UNO2473GE3A1804E-T
UNO2473GE3A1805E-T UNO2473GJ3A1801E-T
UNO2473GJ3A1802E-T UNO2473GJ3A1803E-T
UNO2473GJ3A1804E-T UNO2473GJ3A1805E-T
UNO2473GE3A1901E-T UNO2473GE3A1902E-T
UNO2473GE3A1903E-T UNO2473GE3A1904E-T
UNO2473GE3A1905E-T UNO2473GJ3A1901E-T
UNO2473GJ3A1902E-T UNO2473GJ3A1903E-T
UNO2473GJ3A1904E-T UNO2473GJ3A1905E-T
UNO-2483G/2473G User Manual iv
Product Warranty (2 years)
Advantech warrants to you, the original purchaser, that each of its products will be
free from defects in materials and workmanship for two years from the date of purchase.
This warranty does not apply to any products which have been repaired or altered by
persons other than repair personnel authorized by Advantech, or which have been
subject to misuse, abuse, accident or improper installation. Advantech assumes no
liability under the terms of this warranty as a consequence of such events.
Because of Advantech’s high quality-control standards and rigorous testing, most of
our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For outof-warranty repairs, you will be billed according to the cost of replacement materials,
service time and freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example, CPU
speed, Advantech products used, other hardware and software used, etc.) Note
anything abnormal and list any onscreen messages you get when the problem
occurs.
2. Call your dealer and describe the problem. Please have your manual, product,
and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandize
authorization) number from your dealer. This allows us to process your return
more quickly.
4. Carefully pack the defective product, a fully-completed Repair and Replacement
Order Card and a photocopy proof of purchase date (such as your sales receipt)
in a shippable container. A product returned without proof of the purchase date
is not eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid
to your dealer.
Declaration of Conformity
CE
This product has passed the CE test for environmental specifications when shielded
cables are used for external wiring. We recommend the use of shielded cables. This
kind of cable is available from Advantech. Please contact your local supplier for
ordering information.
FCC Class A
Note: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
v UNO-2483G/2473G User Manual
警告使用者
這是甲類測試產品，在居住的環境中使用時，可能會造成射頻干擾，在這種情況下，
使用者會被要求採取某些適當的對策
Technical Support and Assistance
1. Visit the Advantech web site at www.advantech.com/support where you can find
the latest information about the product.
2. Contact your distributor, sales representative, or Advantech's customer service
center for technical support if you need additional assistance. Please have the
following information ready before you call:
– Product name and serial number
– Description of your peripheral attachments
– Description of your software (operating system, version, application software,
etc.)
– A complete description of the problem
– The exact wording of any error messages
Safety Precaution - Static Electricity
Follow these simple precautions to protect yourself from harm and the products from
damage.
To avoid electrical shock, always disconnect the power from your PC chassis
before you work on it. Don't touch any components on the CPU card or other
cards while the PC is on.
Disconnect power before making any configuration changes. The sudden rush
of power as you connect a jumper or install a card may damage sensitive electronic components.
UNO-2483G/2473G User Manual vi
Safety Instructions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp
cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equip-
ment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting
it fall may cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment
from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source
to avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be
opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service
personnel:
15. The power cord or plug is damaged.
16. Liquid has penetrated into the equipment.
17. The equipment has been exposed to moisture.
18. The equipment does not work well, or you cannot get it to work according to the
user's manual.
19. The equipment has been dropped and damaged.
20. The equipment has obvious signs of breakage.
21. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE
STORAGE TEMPERATURE MAY GO BELOW -20° C (-4° F) OR ABOVE 60° C
(140° F). THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT
SHOULD BE IN A CONTROLLED ENVIRONMENT.
22. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY
REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE
RECOMMENDED BY THE MANUFACTURER, DISCARD USED BATTERIES
ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS.
23. ATTENTION: Danger d'explosion si la batterie est mal REMPLACE. REM-
PLACER UNIQUEMENT PAR LE MEME TYPE OU EQUIVALENT RECOMMANDÉ PAR LE FABRICANT, jeter les piles usagées SELON LES
INSTRUCTIONS DU FABRICANT.
24. The sound pressure level at the operator's position according to IEC 704-1:1982
is no more than 70 dB (A).
DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech
disclaims all responsibility for the accuracy of any statements contained herein.
vii UNO-2483G/2473G User Manual
安全指示
1. 請仔細閱讀此安全操作說明。
2. 請妥善保存此用戶手冊供日後參考。
3. 用濕抹布清洗設備前，請確認拔除電源線。請勿使用液體或去污噴霧劑清洗設
4. 對於使用電源線的設備，設備周圍必須有容易接觸到的電源插座。
5. 請勿在潮濕環境中試用設備。
6. 請在安裝前確保設備放置在可靠的平面上，意外摔落可能會導致設備損壞。
7. 設備機殼的開孔適用於空氣對，從而防止設備過熱。請勿覆蓋開孔。
8. 當您連接設備到電源插座前，請確認電源插座的電壓符合要求。
9. 請將電源線佈置在人們不易絆倒的位置，請勿在電源線上覆蓋任何雜物。
10. 請注意設備上所有的警告標示。
11. 如果長時間不使用設備，請拔除與電源插座的連結，避免設備被超標的電壓波動
12. 請勿讓任何液體流入通風口，以免引起火灾或短路。
13. 請勿自行打開設備。為了確保您的安全，請透過經認證的工程師來打開設備。
14. 如遇下列情况，請由專業人員維修：
15. 請勿將設備放置在超出建議溫度範圍的環境，即不要低於 ‐20
16. 注意：若電池更換不正確，將有爆炸危險。因此，只可以使用製造商推薦的同一
17. 根據 IEC 704‐1:1982 規定，操作員所在位置音量不可高於 70 分貝。
18. 限制區域：請勿將設備安裝於限制區域使用。
19. 免責聲明：請安全訓示符合 IEC 704‐1 要求。研華公司對其內容之準確性不承
備。
損壞。
電源線或插頭損壞；
設備內部有液體流入；
設備曾暴露在過度潮濕環境中使用；
設備無法正常工作，或您無法透過用戶手冊來正常工作；
設備摔落或損壞；
設備有明顯外觀損；
°C （‐4°F）
或高於 60
種或者同等型號的電池進行替換。請按照製造商的指示處理舊電池。
擔任何法律責任。
°C （140°F），否則可能會造成設備損壞。
UNO-2483G/2473G User Manual viii
Contents
Chapter 1 Overview...............................................1
1.1 Introduction ............................................................................................... 2
1.2 Safety Precautions .................................................................................... 2
1.3 Accessories............................................................................................... 3
1.4 Optional Accessories ................................................................................ 3
1.5 Hardware Specifications ........................................................................... 3
Chapter 2 Hardware Functionality.......................5
2.1 Introduction ............................................................................................... 6
Figure 2.1 Front Panel of UNO-2483G ........................................ 6
Figure 2.2 Rear Panel of UNO-2483G/UNO-2473G-E3AE ........6
Figure 2.3 Front Panel of UNO-2473G-J3AE .............................. 6
Figure 2.4 Rear Panel of UNO-2473G-J3AE............................... 6
2.2 UNO-2483G/UNO-2473G Interface (COM1~COM4) ................................ 7
2.2.1 RS-232 Interface (COM 1 ~ 2)...................................................... 7
2.2.2 RS-422/485 detection ................................................................... 7
2.2.3 Automatic Data Flow Control Function for RS-485 ....................... 7
2.3 LAN: Ethernet Connector .......................................................................... 8
2.4 Power Connector ...................................................................................... 8
2.5 USB Connector ......................................................................................... 8
2.6 HDMI Display Connector........................................................................... 8
2.7 RTC Battery Specification ......................................................................... 9
Figure 2.5 RTC Battery Location ................................................. 9
2.8 Power Button/Power Management ........................................................... 9
2.9 Reset Button ............................................................................................. 9
2.10 HD Audio................................................................................................. 10
2.11 PCI Express Mini Card Socket................................................................ 10
Figure 2.6 UNO-2483G mPCIe Location ................................... 10
Figure 2.7 UNO-2473G-E3AE mPCIe Location......................... 11
Figure 2.8 UNO-2473G-J3AE mPCIe Location ......................... 11
Chapter 3 Initial Setup ........................................13
3.1 Inserting a mSATA .................................................................................. 14
3.2 Chassis Grounding.................................................................................. 14
Figure 3.1 Chassis Grounding Connection................................ 14
3.3 Connecting Power................................................................................... 14
3.4 Installing a Hard Disk .............................................................................. 15

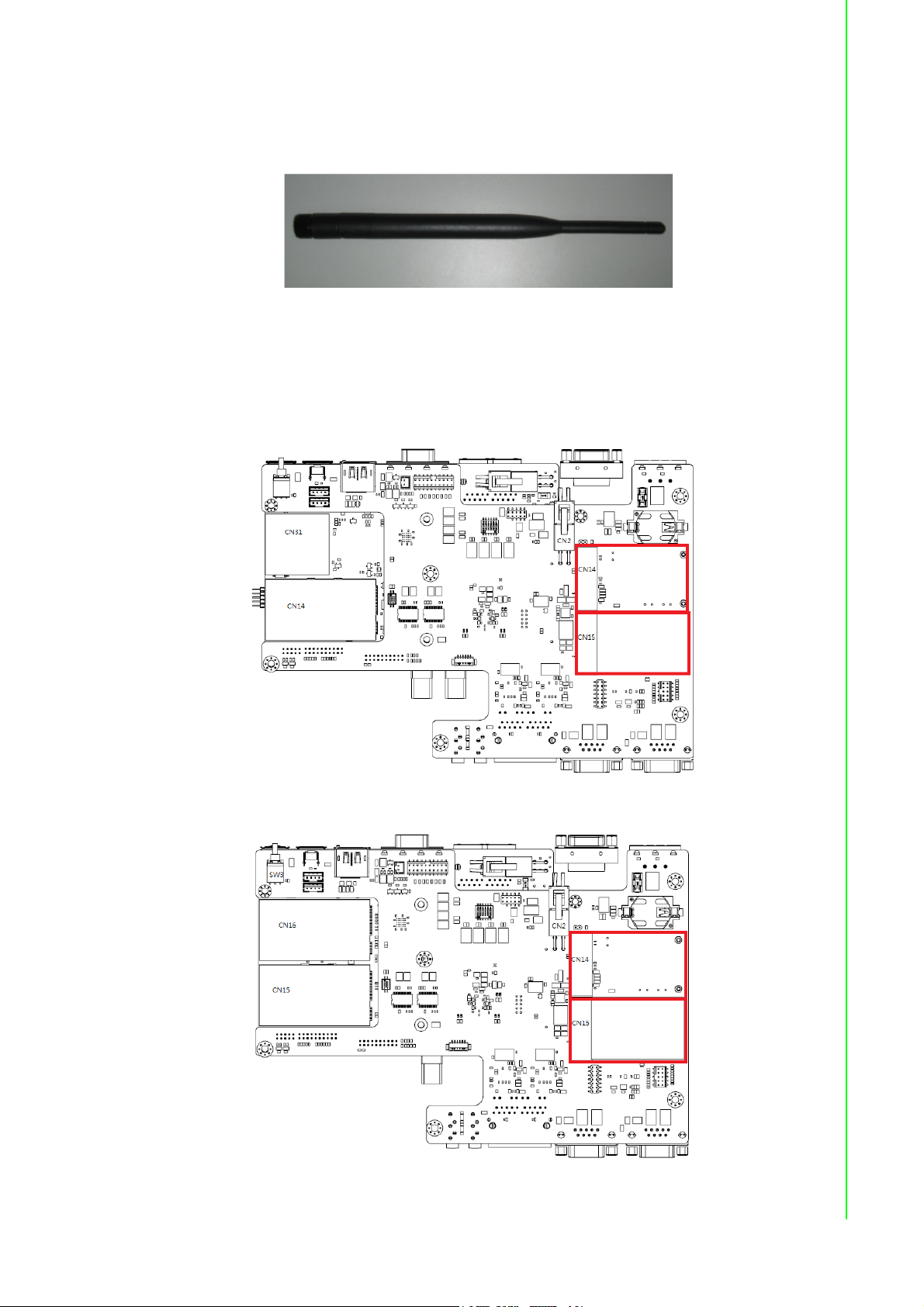

3.5 Installing a Wireless LAN Card and Antenna .......................................... 16
Figure 3.2 UNO-2483G.............................................................. 17
Figure 3.3 UNO-2473G.............................................................. 17
3.6 BIOS Setup ............................................................................................. 18
3.7 AMT Configuration .................................................................................. 18
3.8 Teaming Configuration............................................................................ 20
3.9 Enabling RAID in BIOS ........................................................................... 22
Appendix A System Settings and Pin Assignments
23
A.1 System I/O Address and Interrupt Assignment ....................................... 24
ix UNO-2483G/2473G User Manual
Table A.1: Interrupt Assignments .............................................. 24
A.2 Board Connectors and Jumpers ............................................................. 25
Figure A.1 UNO-2483G Connector & Jumper Locations (front) 25
Table A.2: Connectors and Jumpers ......................................... 25
Figure A.2 UNO-2473G Connector & Jumper Locations (front) 26
A.3 Connectors and Jumpers........................................................................ 26
Table A.3: Connectors and Jumpers ......................................... 26
A.4 RS-232 Standard Serial Port .................................................................. 27
Table A.4: RS-232 Serial Port Pin Assignments........................ 27
A.5 RS-422/485 Serial Port ........................................................................... 27
Table A.5: RS-422/485 Serial Port Pin Assignments................. 27
A.6 Power Connector (PWR) ........................................................................ 28
Table A.6: Power connector pin assignments ........................... 28
A.7 USB Connector ....................................................................................... 29
Table A.7: USB 2.0 Connector Pin Assignments....................... 29
Table A.8: USB 3.0 Connector Pin Assignments....................... 29
A.8 HDMI Display Connector ........................................................................ 30
Table A.9: HDMI Display Connector.......................................... 30
A.9 Turn On/Off Termination Resistors (120 ohm) for COM3/COM4 (SW1) 31
UNO-2483G/2473G User Manual x
Chapter 1
1 Overview
This chapter provides an overview
of UNO-2483G/UNO-2473G specifications.
Sections include:
Introduction
Safety Precautions
Accessories
Optional Accessories
Hardware Specifications
1.1 Introduction
The UNO-2483G/UNO-2473G is an embedded Application Ready Platform (ARP)
that can shorten your development time and offers a wide array of networking interfaces to fulfill the extensive needs of different projects. UNO-2483G/UNO-2473G
includes Intel’s latest Core i7/i3/Celeron/Atom technology and provide rich interfaces
including up to 4 serial ports, 4 x GbE LAN, 4 x USB ports and Audio. UNO-2483G/
UNO-2473G supports two display types, VGA and HDMI for various high resolution
requirements and also Advantech latest iDoor technology.
The UNO-2483G/UNO-2473G can operate in wide temperatures (from -20 to 60°C
for UNO-2483G/UNO-2473G). The UNO-2483G/UNO-2473G also uses Intel Core i7/
i3/Celeron/Atom CPUs with great computing power and built-in up to 8G DDR3 RAM
for heavy programs.
The UNO-2483G/UNO-2473G provides great expansion including up to 3 x MiniPCIe. With these expansions UNO-2483G/UNO-2473G has great expandability from
Wi-Fi, 3G, I/O expansion and industrial protocols with iDoor technology.
With multiple OS and driver support, such as Windows 7/8, WES7,easily in an application ready driver, and embedded Linux, users can integrate applications easily in
an application ready platform that can provide versatile functions to fulfill diverse
requirements.
1.2 Safety Precautions
The following sections tell how to make each connection. In most cases, you will simply need to connect a standard cable.
Warning! Always disconnect the power cord from your chassis whenever you are
working on it. Do not connect while the power is on. A sudden rush of
power can damage sensitive electronic components. Only experienced
electronics personnel should open the chassis.
Warning! Toujours à la terre pour éliminer toute charge d'électricité statique avant
toucher UNO-2483G/UNO-2473G. Appareils électroniques modernes
sont très sensibles à charges d'électricité statique. Utilisez un bracelet
antistatique à tout moment. Placez tous composants électroniques sur
une surface antistatique ou dans un statique-sac blindé.
Caution! Always ground yourself to remove any static electric charge before
touching UNO-2483G/UNO-2473G. Modern electronic devices are very
sensitive to static electric charges. Use a grounding wrist strap at all
times. Place all electronic components on a static-dissipative surface or
in a static-shielded bag.
Caution! Toujours débrancher le cordon d'alimentation de votre boîtier lorsque
vous êtes travailler. Ne branchez pas lorsque l'appareil est allumé. Un
afflux soudain de puissance peut endommager les composants électroniques sensibles. Seulement connu personnel de l'électronique
devraient ouvrir le châssis.
UNO-2483G/2473G User Manual 2
1.3 Accessories
Please refer below for the accessory list:
3-pin connector for power wiring (Advantech P/N: 1652003206)
HDD screws (Advantech P/N: 1930000687)
mPCIe screws (Advantech P/N: 1935020300)
2 PCS jumper (Advantech P/N: 1653302122)
Mounting Screws (Advantech P/N:1935040620)
Driver DVD
Warranty card
If anything is missing or damaged, contact your distributor or sales representative
immediately.
1.4 Optional Accessories
Din-rail Mounting Kit (Advantech P/N:UNO-2000G-DMKAE)
VESA Mounting Kit (Advantech P/N:UNO-2000G-VMKAE)
1.5 Hardware Specifications
Chapter 1 Overview
Operating Temperature:
– UNO-2483G: -20~60oC (-4~140oF) @ 5~85% RH with 0.7m/s airflow
– UNO-2473G-E3AE: -20~60oC (-4~140oF) @ 5~85% RH with 0.7m/s airflow
– UNO-2473G-J3AE: -10~60oC (14~140oF) @ 5~85% RH with 0.7m/s airflow
Power Input:
– UNO-2483G and UNO-2473G-E3AE: 24VDC+20%
– UNO-2473G-J3AE: 12VDC+/-20% and 24VDC+/-20%
Power Consumption:UNO-2483G: 28W (Typical), 72W (Max)
– UNO-2473G-E3AE: 28W (Typical), 48W (Max)
– UNO-2473G-J3AE: 10W (Typical), 14W(Max)
CPU:
– UNO-2483G-474AE: 4th Gen Intel® Core™ i7-4650U ULT 1.7 GHz Dual
Core, 4MB L2
– UNO-2483G-434AE: 4th Gen Intel® Core™ i3-4010U ULT 1.7 GHz Dual
Core, 3MB L2
– UNO-2483G-4C4AE: 4th Gen Intel® Celeron® 2980U ULT 1.6 GHz Dual
Core, 2MB L2
– UNO-2473G-E3AE: Intel® AtomTM E3845 1.91 GHz Quad Core, 2MB L2
– UNO-2473G-J3AE: Intel® Celeron® J1900 2.42 GHz Quad Core, 2MB L2
Memory:
– UNO-2483G-474AE/434AE: Built in 8G DDR3L 1600MHz RAM
– UNO-2483G-4C3AE: Built in 4G DDR3L 1600MHz RAM
– UNO-2473G-E3AE: Built in 4G DDR3L 1600MHz RAM
– UNO-2473G-J3AE: Built in 4G DDR3L 1333MHz RAM
Graphic Engine:
– UNO-2483G: Intel® HD Graphics 5000/4400
– UNO-2473G: Intel® HD Graphics Gen7 with 4EU
3 UNO-2483G/2473G User Manual
Ethernet:
– UNO-2483G:Intel® i210-IT GbE, 802.1Qac, IEEE1588/802.1AS, 802.3az
Intel® i218-LM GbE, Intel® AMT, IEEE1588/802.1AS, 802.3az
– UNO-2473G:Intel® i210-IT GbE, 802.1Qac, IEEE1588/802.1AS, 802.3az
Storage: CFast drive by iDoor Technology (Optional)
– UNO-2483G:One mSATA, Two drive bays for SATA 2.5" HDD/SSD
– UNO-2473G:One mSATA, One drive bays for SATA 2.5" HDD/SSD
Expansion:
– UNO-2483G: 2 x Full-size mPCIe slot, mPCIe 2.0
– UNO-2473G-E3AE: 3 x Full-size mPCIe slot, mPCIe 2.0
– UNO-2473G-J3AE: 1 x Full-size mPCIe slot, mPCIe 2.0
Display: 1 x VGA, supports 2560 x 1600 at 60Hz, 1 x HDMI, supports 1920 x
1080 at 60Hz. eDP is supported on a project basis
Applicable Models:
– UNO-2483G-4C3AEIntel® Celeron® 2980U ULT 1.6GHz, 4GB, 4 x LANs, 2
x mPCIe
– UNO-2483G-434AEIntel® Core™ i3-4010U ULT 1.7GHz, 8GB, 4 x LANs, 2 x
mPCIe
– UNO-2483G-474AEIntel® Core™ i7-4650U ULT 1.7GHz, 8GB, 4 x LANs, 2 x
mPCIe
– UNO-2473G-E3AEIntel® Atom™ E3845 1.91GHz, 4GB, 4 x LANs, 3 x
mPCIe
– UNO-2473G-J3AEIntel® Celeron® J1900 2.42GHz, 4GB, 2 x LANs, 1 x
mPCIe
–
UNO-2483G/2473G User Manual 4
Chapter 2
2 Hardware
Functionality
This chapter shows how to setup
the UNO-2483G/UNO-2473G’s
hardware functions, including
connecting peripherals, setting
switches and indicators.
Sections include:
Introduction
RS-232 Interface
RS-422/485 Interface
LAN / Ethernet Connector
Power Connector
Audio Connector
USB Connector
HDMI Display Connector
Reset Button
mPCIe Expansion Slot
2.1 Introduction
The following figures show the connectors on UNO-2483G/UNO-2473G. The following sections give you information about each peripheral.
Figure 2.1 Front Panel of UNO-2483G
Figure 2.2 Rear Panel of UNO-2483G/UNO-2473G-E3AE
Figure 2.3 Front Panel of UNO-2473G-J3AE
Figure 2.4 Rear Panel of UNO-2473G-J3AE
UNO-2483G/2473G User Manual 6
2.2 UNO-2483G/UNO-2473G Interface
(COM1~COM4)
UNO-2483G/UNO-2473G offers two standard RS-232 and two RS-422/485 (with
cable) serial communication inter-face ports: COM1 ~ COM4.
The IRQ and I/O address range of COM1 to COM4 are listed below:
COM1: 3F8h, IRQ4
COM2: 2F8h, IRQ3
COM3: 3E8h, IRQ10
COM4: 2E8h, IRQ5
The setting can be adjusted in the bios page, the driver will be installed automatically
during OS installation
2.2.1 RS-232 Interface (COM 1 ~ 2)
The UNO-2483G/UNO-2473G offers two RS-232 serial communication interface
ports: COM1 and COM2. Please refer to Appendix A.3 for their pin assignments.
2.2.2 RS-422/485 detection
In RS-422/485 mode, UNO-2483G/UNO-2473G automatically detects signals to
match RS-422 or RS-485 networks. (No jumper change required)
Chapter 2 Hardware Functionality
2.2.3 Automatic Data Flow Control Function for RS-485
In RS-485 mode, UNO-2483G/UNO-2473G automatically detects the direction of
incoming data and switches its transmission direction accordingly. So no handshaking signal (e.g. RTS signal) is necessary. This lets you conveniently build an RS-485
network with just two wires. More importantly, application software previously written
for half duplex RS-232 environments can be maintained without modification.
Note! Refer to Appendix A.4 for their pin assignments.
7 UNO-2483G/2473G User Manual
2.3 LAN: Ethernet Connector
UNO-2483G/2473G are equipped with four/two Gigabit LAN controllers.
For the UNO-2483G and UNO-2473G-E3AE:
The controller chip used is an Intel® i210-IT GbE Ethernet controller that is fully
compliant with 802.1Qac, IEEE1588/802.1AS, 802.3az
The controller chip used is an Intel® i218-LM GbE Ethernet controller that is
fully compliant with Intel® AMT, IEEE1588/802.1AS, 802.3az
For the UNO-2473G-J3AE
The controller chip used is an Intel® i210-IT GbE Ethernet controller that is fully
compliant with 802.1Qac, IEEE1588/802.1AS, 802.3az
The Ethernet port is a standard RJ-45 jack, and LED indicators are on the front
to show its Link (Green LED) and Active (Yellow LED) status.
Note! UNO-2483G with i218 LAN chip can support AMT9.0.
2.4 Power Connector
The UNO-2483G/UNO-2473G comes with a Phoenix connector that carries external
power input as below, and features reversed wiring protection. Therefore, it will not
cause any damage to the system by reversed wiring of ground line and power line.
Please refer to Appendix A.5.
UNO-2483G and UNO-2473G-E3AE: 24VDC+/-20%
UNO-2473G-J3AE: 12VDC+/-20% and 24VDC+/-20%(e.g +12V @1.16A)
2.5 USB Connector
The USB interface supports Plug and Play, which enables you to connect or disconnect a device whenever you want, without turning off the computer. The UNO-2483G/
UNO-2473G provides four connectors of USB interfaces, which gives complete Plug
& Play and hot swapping for up to 127 external devices. Two of the four connectors
on UNO-2483G and one of the four connector on UNO-2473G are USB 3.0 standard.
The USB interface complies with USB EHCI, Rev. 2.0 compliant. The USB interface
can be disabled in the system BIOS setup. Please refer to Appendix A.6 for its pin
assignments.
2.6 HDMI Display Connector
The UNO-2483G/UNO-2473G provides a HDMI controller for a high resolution interface. The UNO-2483G/UNO-2473G supports up to full HD resolution for two independent display. DisplayPort also available on a per-project basis.
UNO-2483G/2473G User Manual 8
2.7 RTC Battery Specification
The UNO-2483G/UNO-2473G has an RTC Battery to ensure the setting in BIOS and
system clock can be kept, even with power disconnected for a short time.
Type: BR2032 (Using CR2032 is NOT recommended)
Output Voltage: 3 V
Location: BH1, please refer to below figure
DC
Chapter 2 Hardware Functionality
Figure 2.5 RTC Battery Location
2.8 Power Button/Power Management
Press the "PWR" button to power on or power off the UNO-2483G/UNO-2473G (ATX
type). The UNO-2483G/UNO-2473G supports the ACPI (Advanced Configuration
and Power Interface). Besides power on/off, it support multiple suspend modes, such
as Power on Suspend (S1), Suspend to RAM (S3), Suspend to Disk (S4). In S3 and
S4 suspend mode, the power consumption can be less than 2W which meet criteria
of Energy Star.
Default Setting
UNO-2483G: ATX mode
UNO-2473G: AT mode
2.9 Reset Button
Press the "Reset" button to activate the hardware reset function.
9 UNO-2483G/2473G User Manual
2.10 HD Audio
The UNO-2483G/UNO-2473G is equipped with ALC888S which is a High Definition
Audio Codec. The UNO-2483G/UNO-2473G provides 2 phone jack connector for 5.1
channel output. Please configure the function through provided software utility.
2.11 PCI Express Mini Card Socket
The UNO-2483G supports three sockets (one is for mPCIe and mSATA option) for
full size mini PCIe card and one sockets for half-size mini PCIe card. The first interface (see below picture left side CN14 with SIM card slot) is the default defined for
mSATA storage but is able to switch to mPCIe signal by option.The second interface
(CN31) is the half size PCI Express mini card.The third and fourth (CN14/CN15 on
the right) interface is mainly targeted at supporting iDoor technology/modules for
diverse applications such as isolated COM port, Profibus, WLAN GPRS, 3G, mRAM
and iDoor Module. Users can install the card easily using the optional kit, please refer
to Chapter 3.5 for details.
Note! An additional SIM card slot is disabled. Please note you still require 3G
Mini-PCIe BUILT-IN SIM card slot module installed to be able to use 3G
functions.(Products manufactured after 2015/06 do not have a SIM slot
mounted on the system board)
Figure 2.6 UNO-2483G mPCIe Location
The UNO-2473G supports three sockets for full size PCI Express mini cards. The first
interface, CN16, is the default and defined ONLY for mSATA storage.The other three
interfaces are mainly targeted at supporting iDoor technology/modules for diverse
applications such as isolated COM port, Profibus, WLAN GPRS, 3G, mRAM and
iDoor Module. Users can install the card easily using the optional kit, please refer to
Chapter 3.5 for details.
UNO-2483G/2473G User Manual 10
Figure 2.7 UNO-2473G-E3AE mPCIe Location
The UNO-2473G-J3AE supports two sockets for full size PCI Express mini cards.
The first interface, CN16, is the default and defined ONLY for mSATA storage. The
other interface is mainly targeted at supporting iDoor technology/modules for diverse
applications such as isolated COM port, Profibus, WLAN GPRS, 3G, mRAM and
iDoor Module. Users can install the card easily using the optional kit, please refer to
Chapter 3.5 for details.
Chapter 2 Hardware Functionality
Figure 2.8 UNO-2473G-J3AE mPCIe Location
11 UNO-2483G/2473G User Manual
UNO-2483G/2473G User Manual 12
Chapter 3
3 Initial Setup
This chapter introduces how to
initialize the UNO-2483G/UNO2473G.
Sections include:
Inserting a mSATA
Chassis Grounding
Connecting Power
Connecting a Hard Disk
BIOS Setup and System
Assignments
3.1 Inserting a mSATA
1. Remove the power cord.
2. Unscrew the six screws in the bottom cover.
3. Plug a mSATA card with your OS and application program into mPCIe slot.
– UNO-2483G:CN14 with SIM card.
– UNO-2473G:CN16
4. Screw the two screws on board to fix mSATA.
5. Screw back the bottom cover.
3.2 Chassis Grounding
UNO-2483G/2473G provides good EMI protection and a stable grounding base.
There is an easy-to-connect chassis grounding point to use.
Figure 3.1 Chassis Grounding Connection
3.3 Connecting Power
This product is intended to be supplied by a Listed DC Power Source, rated 24Vdc,
2A minimum and Tma 60 degree C, if need further assistance, please contact Advantech for further information
UNO-2483G/2473G User Manual 14
3.4 Installing a Hard Disk
The procedure for installing a hard disk into the UNO-2483G/UNO-2473G is below.
Please follow these steps carefully. Please note the system is not compatible with
+12V HDD. Please use a HDD with lower power input.
1. Remove the power cord.
2. Unscrew the four screws from the bottom cover.
3. Screw HDD to the bottom cover.
4. Connect the SATA signal with power cable (already connected with M/B) to hard
disk. Then connect the other side of the cable to SATA hard disk.
Note! The UNO-2473G only has ONE HDD/SSD SATA slot.
Chapter 3 Initial Setup
5. Secure the bottom cover with four screws.
15 UNO-2483G/2473G User Manual
3.5 Installing a Wireless LAN Card and Antenna
Please contact Advantech to prepare the following optional kit:
Rear Panel for Antenna
The internal cable: 1750006043 (15cm)
Wireless Module (PCI Express mini card)
One of the suggested module is EWM-W151H01E which is a verified Wireless
IEEE 802.11b/g/n module
UNO-2483G/2473G User Manual 16
Antenna
Please select the necessary specification according to your application.
One of the suggested antenna is 1750002842.
Then follow the below steps for the installation:
1. Unscrew the bottom panel and open it.
2. Remove the hole(s) on the rear panel for antenna installation.
3. Install the internal cable 1750006043 (15cm) on the rear panel.
4. Plug the Wireless module with bracket kit (9656EWMG00E) onto the PCI
Express mini card socket.
Chapter 3 Initial Setup
Figure 3.2 UNO-2483G
Figure 3.3 UNO-2473G
17 UNO-2483G/2473G User Manual
5. Connect the internal cable with the module.
6. Secure the bottom panel.
7. Assemble the antenna on the SMA connector.
3.6 BIOS Setup
Press “F2” in the boot-up screen to enter the BIOS setup utility. Please follow the
instruction on the screen to do the necessary settings.
Please note that you can try to “Load Optimized Defaults” from the BIOS Setup manual if the UNO-2483G/UNO-2473G does not work properly.
3.7 AMT Configuration
Intel AMT
This item allows users to enable or disable Intel AMT BIOS extension.
BIOS Hotkey Pressed
This item allows users to enable or disable BIOS hotkey pressed.
MEBx Selection Screen
This item allows users to enable or disable MEBx selection screen.
Hide Un-configuration ME confirmation
This item allows users to hide un-configured ME without password confirmation
prompt.
MEBx Debug Message Output
This item allows users to enable or disable MEBx debug message.
Un-Configured ME
This item allows users to Un-configure ME without password.
UNO-2483G/2473G User Manual 18
Amt Wait Timer
Set timer to wait before sending ASF_GET_BOOT_OPTIONS.
Disable ME
This item allows users to enable or disable ME.
ASF
This item allows users to enable or disable ASF Configure Function.
Activate Remote Assistance Process
This item allows users to enable or disable PET event progress to receive PET
events or not.
USB Configure
This item allows users to enable or disable USB Configure Function.
PET Progress
This item allows to enable or disable PET event progress to receive PET events
or not.
AMT CIRA Timeout
OEM defined time out for MPS connection to be established.
Watchdog
This item allows users to enable or disable WatchDog Timer.
OS Timer
Sets OS Watchdog Timer.
BIOS Timer
Sets BIOS Watchdog timer.
Chapter 3 Initial Setup
TPM Support
This item allows users to enable or disable Trusted Platform Module function.
19 UNO-2483G/2473G User Manual
3.8 Teaming Configuration
1. Please install the OS and LAN driver first.
2. After entering the OS, please right click the mouse on Network adaptors to con-
figure the Network Connection properties in the device manager.
3. Set Teaming with other adapters in Teaming and then press New Team.
UNO-2483G/2473G User Manual 20
4. Select the adapters to include in this team then press Next.
5. Specify the name for the team then press Next.
Chapter 3 Initial Setup
6. Select a team mode. Here Adaptive Load Balancing is chosen.
21 UNO-2483G/2473G User Manual
7. Finally, the wizard has the settings needed to create the team, and you'll find out
the Network adapters will show as a team in the device manager.
3.9 Enabling RAID in BIOS
1. Press the DEL key after the Power-On-Self-Test (POST) memory test begins.
2. Select the Advanced menu, then the SATA Configuration menu.
3. Set the SATA Mode Select option to RAID.
4. Press the F10 key to save the BIOS settings and exit the BIOS Setup program.
Note! The UNO-2473G only has ONE HDD/SSD SATA slot.
UNO-2483G/2473G User Manual 22
Appendix A
A System Settings and
Pin Assignments
A.1 System I/O Address and Interrupt Assignment
Table A.1: Interrupt Assignments
Interrupt No. Interrupt Source
NMI Parity Error Detected
IRQ0 System timer
IRQ1 Standard 101/102-Key or Microsoft Natural PS/2Keyboard
IRQ2 Interrupt from controller 2 (cascade)
IRQ3 Communications Port (COM2)
IRQ4 Communications Port (COM1)
IRQ5 Communications Port (COM4)
IRQ6 Available
IRQ8 System CMOS/Real-time clock
IRQ9 Microsoft ACPI-Compliant System
IRQ10 Communications Port (COM3)
IRQ12 PS/2 Compatible Mouse
IRQ13 Numeric data processor
IRQ14 Reserved
IRQ15 Reserved
UNO-2483G/2473G User Manual 24
A.2 Board Connectors and Jumpers
There are several connectors and jumpers on the UNO-2483G/UNO-2473G board.
The following sections tell you how to configure the UNO-2483G/UNO-2473G hardware setting.
Figure A.1 shows the locations of the connectors and jumpers.
Appendix A System Settings and Pin Assignments
Figure A.1 UNO-2483G Connector & Jumper Locations (front)
Table A.2: Connectors and Jumpers
Label Function
CN14 CN15 PCI Express mini Card Socket
BH1 Battery for RTC
CN29 ON/OFF/RESET Switch
CN11 COM3, COM4
Figure A.2 shows the locations of UNO-2473G’s connectors and jumpers.
25 UNO-2483G/2473G User Manual
Figure A.2 UNO-2473G Connector & Jumper Locations (front)
A.3 Connectors and Jumpers
Table A.3: Connectors and Jumpers
Label Function
CN14 CN15 PCI Express Mini Card Socket
CN5 USB Pin Headers
BH1 Battery for RTC
CN29 ON/OFF/RESET Switch
CN11 COM3, COM4
SW1 Turn On/Off Termination Resistors for COM3/COM4
SW4 No Function
UNO-2483G/2473G User Manual 26
A.4 RS-232 Standard Serial Port
15
9
6
324
78
Table A.4: RS-232 Serial Port Pin Assignments
Pin Pin Name
1 DCD
2RxD
3TxD
4DTR
5GND
6DSR
7RTS
8CTS
9 RI
Appendix A System Settings and Pin Assignments
A.5 RS-422/485 Serial Port
Table A.5: RS-422/485 Serial Port Pin Assignments
Pin RS-422 RS-485
1 TX- Data2 TX+ Data+
3 RX+ NC
4 RX- NC
5 GND GND
6 NC NC
7 NC NC
8 NC NC
9 NC NC
27 UNO-2483G/2473G User Manual
A.6 Power Connector (PWR)
Table A.6: Power connector pin assignments
Pin
1 V+ (24VDC)
2 V3 Field Ground
UNO-2483G/2473G User Manual 28
A.7 USB Connector
Table A.7: USB 2.0 Connector Pin Assignments
Pin Signal Name Cable Color
1 VCC Red
2 DATA- White
3 DATA+ Green
4 GND Black
Appendix A System Settings and Pin Assignments
Table A.8: USB 3.0 Connector Pin Assignments
Pin Signal Name Description
1 VBUS Power
2D3D+
4 GND Ground for power return
5 StdA_SSRX6 StdA_SSRX+
7 GND_DRIAN Ground for signal return
8 StdA_SSTX9 StdA_SSTX+
USB2.0 differential pair
SuperSpeed receiver differential pair
SuperSpeed transmitter differential pair
29 UNO-2483G/2473G User Manual
A.8 HDMI Display Connector
Table A.9: HDMI Display Connector
Pin Signal Pin Signal
1 TMDS Data2+ 2 TMDS Data2 Shield
3 TMDS Data2- 4 TMDS Data1+
5 TMDS Data1 Shield 6 TMDS Data17 TMDS Data0+ 8 TMDS Data0 Shield
9 TMDS Data0- 10 TMDS Clock+
11 TMDS Clock Shield 12 TMDS Clock13 CEC 14 Reserved
15 SCL 16 SDA
17 DDC/CEC/HEC Ground 18 +5 V Power (max 50 mA)
19 Hot Plug Detect
UNO-2483G/2473G User Manual 30
A.9 Turn On/Off Termination Resistors (120 ohm) for
COM3/COM4 (SW1)
Enable Termination Resistors
COM3: Jumper (3-4) On
COM4: Jumper (5-6) On
Disable Termination Resistors
COM3: Jumper (3-4) Off
COM4: Jumper (5-6) Off
Appendix A System Settings and Pin Assignments
31 UNO-2483G/2473G User Manual
