Advantech UNO-1170, UNO-1170E User Manual

UNO-1170/1170E

Pentium M / Celeron M Fanless,
DIN-rail Mounted Embedded
Automation Computer with 2 x LAN,
3 x COM, 4 x USB, Audio & PC/104+

User Manual

Copyright Notice

The documentation and the software included with this product are copy­righted 2009 by Advantech Co., Ltd. All rights are reserved. Advantech
Co., Ltd. reserves the right to make improvements in the products
described in this manual at any time without notice. No part of this man­ual may be reproduced, copied, translated or transmitted in any form or
by any means without the prior written permission of Advantech Co., Ltd.
Information provided in this manual is intended to be accurate and reli­able. However, Advantech Co., Ltd. assumes no responsibility for its use,
nor for any infringements of the rights of third parties, which may result
from its use.

Acknowledgements

IBM, PC/AT, PS/2 and VGA are trademarks of International Business

Machines Corporation.

Intel® and Pentium® are trademarks of Intel Corporation.

Microsoft Windows and MS-DOS are registered trademarks of

Microsoft Corp.

C&T is a trademark of Chips and Technologies, Inc.

All other product names or trademarks are properties of their respective
owners.

Part No. 2003117000 1st Edition

Printed in Taiwan April 2009

UNO-1170 User Manual ii

Product Warranty (2 years)

Advantech warrants to you, the original purchaser, that each of its prod­ucts will be free from defects in materials and workmanship for two years
from the date of purchase.

This warranty does not apply to any products which have been repaired or
altered by persons other than repair personnel authorized by Advantech,
or which have been subject to misuse, abuse, accident or improper instal­lation. Advantech assumes no liability under the terms of this warranty as
a consequence of such events.

Because of Advantech’s high quality-control standards and rigorous test­ing, most of our customers never need to use our repair service. If an
Advantech product is defective, it will be repaired or replaced at no
charge during the warranty period. For out-of-warranty repairs, you will
be billed according to the cost of replacement materials, service time and
freight. Please consult your dealer for more details.

If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For
example, CPU speed, Advantech products used, other hardware
and software used, etc.) Note anything abnormal and list any
onscreen messages you get when the problem occurs.

2. Call your dealer and describe the problem. Please have your man­ual, product, and any helpful information readily available.

3. If your product is diagnosed as defective, obtain an RMA (return
merchandize authorization) number from your dealer. This allows
us to process your return more quickly.

4. Carefully pack the defective product, a fully-completed Repair and
Replacement Order Card and a photocopy proof of purchase date
(such as your sales receipt) in a shippable container. A product
returned without proof of the purchase date is not eligible for war­ranty service.

5. Write the RMA number visibly on the outside of the package and
ship it prepaid to your dealer.

iii

CE

This product has passed the CE test for environmental specifications
when shielded cables are used for external wiring.

FCC Class A

This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interfer­ence when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.

Technical Support and Assistance

Step 1. Visit the Advantech web site at www.advantech.com/support

where you can find the latest information about the product.

Step 2. Contact your distributor or Advantech's customer service center

if you need additional assistance. Have the following info ready:

- Product name and serial number

- Description of your software (OS, version, software, etc.)

- A complete description of the problem

- The exact wording of any error messages

Packing List

Before setting up the system, check that the items listed below are
included. If any item is not, please contact your dealer immediately.

• Software Supporting CD-ROM

• 6P-6P-6P 20cm PS/2 Mouse/Keyboard Y cable (P/N: 1700060202)

• Phoenix power connector (P/N: 1652003206)

• DIN-rail & wall mount accessories

• Key pro bracket

• SATA cable (UNO-1170E only)

• SATA power cable (UNO-1170E only)

• Spacer for PCI-104 expansion (UNO-1170E only)

UNO-1170 User Manual iv

Safety Instructions

1. Read these safety instructions carefully.

2. Keep this User's Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning.
Use a damp cloth. Do not use liquid or spray detergents for clean­ing.

4. For plug-in equipment, the power outlet socket must be located
near the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a reliable surface during installation. Drop­ping it or letting it fall may cause damage.

7. The openings on the enclosure are for air convection. Protect the
equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before con­necting the equipment to the power outlet.

9. Position the power cord so that people cannot step on it. Do not
place anything over the power cord.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the
power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or elec­trical shock.

13. Never open the equipment. For safety reasons, the equipment
should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked
by service personnel:

a. The power cord or plug is damaged.

b. Liquid has penetrated into the equipment.

c. The equipment has been exposed to moisture.

d. The equipment does not work well, or you cannot get it to work

according to the user's manual.

e. The equipment has been dropped and damaged.

f. The equipment has obvious signs of breakage.

15. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
WHERE THE STORAGE TEMPERATURE MAY GO BELOW

v

-10° C (14° F) OR ABOVE 60° C (140° F). THIS COULD DAM­AGE THE EQUIPMENT. THE EQUIPMENT SHOULD BE IN A
CONTROLLED ENVIRONMENT.

16. CAUTION: DANGER OF EXPLOSION IF BATTERY IS
INCORRECTLY REPLACED. REPLACE ONLY WITH THE
SAME OR EQUIVALENT TYPE RECOMMENDED BY THE
MANUFACTURER, DISCARD USED BATTERIES ACCORD­ING TO THE MANUFACTURER'S INSTRUCTIONS.

The sound pressure level at the operator's position according to IEC 704­1:1982 is no more than 70 dB (A).

DISCLAIMER: This set of instructions is given according to IEC 704-1.
Advantech disclaims all responsibility for the accuracy of any statements
contained herein.

Safety Precaution - Static Electricity

Follow these simple precautions to protect yourself from harm and the
products from damage.

1. To avoid electrical shock, always disconnect the power from your
PC chassis before you work on it. Don't touch any components on
the CPU card or other cards while the PC is on.

2. Disconnect power before making any configuration changes. The
sudden rush of power as you connect a jumper or install a card may
damage sensitive electronic components.

UNO-1170 User Manual vi

Contents

Chapter 1 UNO-1170 Overview ....................................... 2

1.1 Introduction ....................................................................... 2

1.2 Hardware Specifications ................................................... 2

1.3 Safety Precautions ............................................................. 3

1.4 UNO-1170 Series .............................................................. 4

1.5 Chassis Dimensions........................................................... 4

Chapter 2 Hardware Functionality ................................. 8

2.1 UNO-1170 Peripherals ...................................................... 8

2.2 COM1~COM2: RS-232 Interfaces ................................. 10

2.3 COM3: RS-232/422/485 Interfaces ................................ 10

2.4 LAN: Ethernet Connector ............................................... 13

2.5 Power Connector ............................................................. 13

2.6 LED Indicators ................................................................ 14

2.7 PS/2 Keyboard and Mouse Connector ............................ 14

2.8 Universal Serial Bus Connectors..................................... 14

2.9 VGA: VGA Display Connector ...................................... 14

2.10 RESET: Reset Button...................................................... 15

2.11 Audio ............................................................................... 15

2.13 LED and Buzzer for System Diagnosis........................... 15

2.14 PCI/104+ Connectors (UNO-1170E only) ...................... 17

Chapter 3 Initial Setup.................................................... 20

3.1 CompactFlash Card Installation ...................................... 20

3.2 USB Keypro and Keypro Bracket Installation ................ 22

3.3 Chassis Grounding .......................................................... 23

3.4 Power Connection ........................................................... 23

3.5 PC/104+ Card Installation (UNO-1170E)....................... 24

3.6 Hard Drive installation (UNO-1170E)............................ 27

3.7 BIOS Setup and System Assignments ............................ 29

Figure 1.1:UNO-1170 Chassis Dimensions ................... 4

Figure 1.2:UNO-1170E Chassis Dimensions ................ 5

Figure 2.1:UNO-1170 Front View ................................. 8

Figure 2.2:UNO-1170 Top View ................................... 8

Figure 2.3:UNO-1170E Front View .............................. 9

Figure 2.4:UNO-1157E Top View ................................ 9

2.3.1 TI 16C550 UARTs with 16-byte Standard .................. 10

2.3.2 Jumperless RS-422/485 ............................................... 10

2.3.3 Automatic Data Flow Control Function for RS-485 ... 10

2.3.4 RS-232/422/485 Selection ........................................... 11

Figure 2.5:RS-422/485 Jumper Settings ...................... 11

Figure 2.6:RS-232 Jumper Settings ............................. 11

2.3.5 Terminal Resistor Setup for RS-422/485 ..................... 12

Figure 2.7:RS-422/485 Jumper Settings ...................... 17

Figure 3.1:Chassis Grounding Connection .................. 23

vii Table of Contents

3.8 DIN-rail Mounting Setup ................................................ 29

3.9 Wallmounting Setup........................................................ 30

Appendix A System Settings and Pin Assignments ......... 32

A.2 Board Connectors and Jumpers....................................... 34

A.3 RS-232 Serial Port (COM1~COM2)............................... 37

A.4 RS-232/422/485 Serial Port (COM3).............................. 38

A.5 Ethernet RJ-45 Connector (LAN1~LAN2)..................... 38

A.6 Power Screw Terminal (CN8)......................................... 39

A.7 PS/2 Keyboard and Mouse Connector (CN10) ............... 39

A.8 USB Connector (CN13) .................................................. 40

A.9 VGA Display Connector (CN15) .................................... 40

A.10 SATA Data Connector (CN17) ....................................... 41

Figure A.1:Connector & Jumper Locations (Top) ....... 34

Figure A.2:Connector & Jumpers (UNO-1170E) ........ 36

Appendix B Programming the Watchdog Timer ............ 44

UNO-1170 User Manual viii

1

CHAPTER

UNO-1170 Overview

Sections include:

• Introduction

• Hardware Specifications

• Safety Precautions

• UNO-1170 Series

• Chassis Dimensions

Chapter 1 UNO-1170 Overview

1.1 Introduction

UNO-1170 is an DIN-rail mounted Embedded Automation Computer, which
provides several serial communication ports and Ethernet interfaces. UNO­1170 is designed with a compact size, small footprint, and help to saves space
with its front accessible and DIN-rail design. With rich OS and driver support,
such as Windows XP embedded, WinCE 6.0, and even embedded Linux. You
can integrate your applications easily with an application ready platform that
can provide a versatile function to fulfill diverse requirements.

1.2 Hardware Specifications

• CPU: Pentium M 1.4GHZ / Celeron M 1 GHZ

• Memory: 512MB/1GB on board

• Battery-backup RAM: 512 KB Battery-backup RAM

• VGA/Keyboard/Mouse: DB-15 VGA Connector, Mini-DIN connector for
PS/2 keyboard & mouse

• Serial Ports: 2 × RS-232 and 1 x RS-232/422/485 with DB-9 connectors.

Automatic RS-485 data flow control

• Serial Speeds: RS-232: 50~115.2 kbps, RS-422/485: 50~921.6 kbps

• LAN: Two 10/100 Base-T RJ-45 Ports

• USB interface: Four USB ports, USB EHCI, Rev. 2.0 compliant. (Including

3 external connectors and 1 internal connector for USB dongle)

• Audio: Mic in, Line in, Line out

• Storage: SSD: 1 x internal type I/II CompactFlash slot

HDD: one 2.5" SATA HDD bracket (Only for UNO-1170E)

• LEDs: Power (Power Standby: Orange, Power on : Green), 3 pairs of serial

flow indicators (Tx, Rx ), -IDE, Alarm for RAM Backup Battery

• PC/104+: PC/104+ slot, Supports +5V Power (Optional, UNO-1170E only)

• Mini PCI: 1x MiniPCI (UNO-1170E only)

• Shock Protection: IEC 68-2-27, CompactFlash: 50G @ Wall mount, half

sine, 11ms (Optional, for UNO-1170E: 20G @ wall mount, half sine, 11ms)

UNO-1170 User Manual 2

• Vibration Protection: IEC 68 2-64 (Random 1 Oct./min, 1hr/axis),

CompactFlash: 2Grms@ 5~500Hz, (Optional, UNO-1170E only)
HDD: 0.5 Grms @ 5~500Hz

• Power Supply Voltage: 10-36 VDC, reversed wiring protection

• Power Requirement: Min. 48 W (10 ~ 53 VDC) (e.g +24 V @ 2 A) (ATX)

• Power Consumption: 24W (Typical)

• Operating Temperature: -20~60° C (-4~149° F)

• Storage Temperature: -20~80° C (-4~176° F)

• Relative humidity: 95% @ 40°C

• Wei ght: 1.6KG (for UNO-1170) 2.0KG (for UNO-1170E)

• Chassis size (W × L × H): 85x155x140 mm (3.4"x 6.1"x 5.6") (UNO-1170)

110 x 155 x 140 mm (4.4" x 6.1" x 5.6") (UNO-1170E)

• Software options: WinXP Embedded, Win CE, Linux

• Certification: CE, FCC Class A, UL

1.3 Safety Precautions

The following sections tell how to make each connection. In most cases, you
will simply need to connect a standard cable. All of the connector pin assign­ments are shown in Appendix A.

Warning!! Always disconnect the power cord from your chassis when

you are working on it. Do not connect while the power is
on. A sudden rush of power can damage sensitive elec­tronic components. Only experienced electronics person­nel should open the chassis.

Caution!! Always ground yourself to remove any static electric

charge before touching UNO-1170. Modern electronic
devices are very sensitive to static electric charges. Use a
grounding wrist strap at all times. Place all electronic com­ponents on a static-dissipative surface or in a static­shielded bag.

3

1.4 UNO-1170 Series

There are four products in UNO-1170 series, as listed below:

UNO-1170-C11E

UNO-1170-P12E

UNO-1170E-C11E

UNO-1170E-P12E

UNO-1170 with Intel Celeron M 1.0GHz CPU
and 512MB RAM

UNO-1170 with Intel Pentium M 1.4GHz CPU
and 1GB RAM

UNO-1170 with Intel Celeron M 1.0GHz CPU,
512MB RAM, and PC/104+ expansion

UNO-1170 with Intel Pentium M 1.4GHz CPU,
1GB RAM and PC/104+ expansion

1.5 Chassis Dimensions

Figure 1.1: UNO-1170 Chassis Dimensions

UNO-1170 User Manual 4

Figure 1.2: UNO-1170E Chassis Dimensions

5

UNO-1170 User Manual 6

Hardware

Functionality

Sections include:

•UNO-1170 Peripherals

•COM1: RS-232 Interfaces

•COM2~3: RS-232/422/485 Interfaces

•LAN: Ethernet Connector

•Power Connector

•LED Indicators

•PS/2 Keyboard and Mouse Connector

•Universal Serial Bus Connectors

•VGA: VGA Display Connector

•RESET: Reset Button

•Audio

• PC/104+ Voltage Selection

2

CHAPTER

Chapter 2 Hardware Functionality

2.1 UNO-1170 Peripherals

The following figures show the connectors on UNO-1170. and UNO­1170E. Information in this chapter is applied to both UNO-1170 and
UNO-1170E. Therefore, in this chapter, we just mention UNO-1150 to
represent the series product. The following sections give you detailed
information about function of each peripheral.

Figure 2.1: UNO-1170 Front View

Figure 2.2: UNO-1170 Top View

UNO-1170 User Manual 8

Figure 2.3: UNO-1170E Front View

Figure 2.4: UNO-1157E Top View

9

2.2 COM1~COM2: RS-232 Interfaces

The UNO-1170 offers two standard RS-232 serial communication inter­face port on COM1 and COM2. Please refer to A.2 for pin assignments.

2.3 COM3: RS-232/422/485 Interfaces

The UNO-1170 offers two RS-232/422/485 serial communication inter­face ports, and they are COM2 and COM3. Both port can be configured
individually to either RS-232, RS422/485 by using on-board jumpers.
Please refer to A.3 for pin assignments and Table 2.1 lists the default set­ting of each port.

Table 2.1: COM3 Default Settings

COM Port Default Setting

COM3 RS-422/485

2.3.1 TI 16C550 UARTs with 16-byte Standard

Advantech UNO-1170 comes standard with TI 16C550 UARTs contain­ing 16 bytes FIFOs. These upgraded FIFOs greatly reduce CPU overhead
and are an ideal choice for heavy multitasking environments.

2.3.2 Jumperless RS-422/485

In RS-422/485 mode, UNO-1170 automatically sense signals to match
RS-422 or RS-485 network. No need to change jumpers.

2.3.3 Automatic Data Flow Control Function for RS-485

In RS-485 mode, UNO-1170 automatically senses the direction of incom­ing data and switches its transmission direction accordingly. Therefore no
handshaking signal (e.g. RTS signal) is necessary. This feature lets you
simply and quickly build an RS-485 network with just two wires. More
importantly, application software previously written for half duplex RS­232 environments can be maintained without need for modification.

UNO-1170 User Manual 10

2.3.4 RS-232/422/485 Selection

COM2 and COM3 support 9-wire RS-232, RS-422 or RS-485 interfaces,
and you can set corresponding jumpers to select serial ports as RS-232 or
RS-422/485 interfaces shown in Table 2.2. Please note to reset the system
to adapt this configuration change

The system detects RS-422 or RS-485 signals automatically in RS-422/
485 mode.

Table 2.2: Selecting RS-232/422/485 (COM2&3)

Serial Port Corresponding Jumper to Select RS-232/422/485

COM3 CN13

Jumper Setting for RS-422/485 Interface: (Default Setting)

Figure 2.5: RS-422/485 Jumper Settings

Jumper Setting for RS-232 Interfaces:

Figure 2.6: RS-232 Jumper Settings

11

2.3.5 Terminal Resistor Setup for RS-422/485

The onboard termination resistor (120 Ohm) for COM2/COM3 can be
used for long distance transmission or device matching. (Default Open.)
Each terminal resistor responds to different channels for RS-422/485.

Usually, these resistors are needed for both ends of the communication
wires and the value of the resistors should match the characteristic imped­ance of the wires used.

Table 2.3: Terminal Resistor Settings

COM port Switch No. Pin Setting Description

COM3 SW3 1 ON 120 Ohm between Data+/

Data- (RS-485)
Or 120 Ohm between Tx+/Tx­(RS-422)

OFF Open (Default)

2 ON 120 Ohm between Rx+/Rx-

(RS-422)

OFF Open (Default)

2.3.6 RS-485 Auto Flow & RS-422 Master/Slave Mode

You can set the “Auto Flow Control” mode of RS-485 or “Master/Slave”
mode of RS-422 by using the SW2 DIP switch for each RS-422/485 port.

In RS-485, if the switch is set to “Auto”, the driver automatically senses
the direction of the data flow and switches the direction of transmission.
No handshaking is necessary.

In RS-422, if DIP switch is set to “On,” the driver is always enabled, and
always in high or low status.

UNO-1170 User Manual 12

Table 2.4: Auto Flow & Slave/Master Selection

SW2 DIP Switch Setting COM Port Mode Selections

1

2

1

2

1

2

1

2

O

N

O
N

O
N

O
N

COM2

COM3

COM2

COM3

COM2

COM3

COM2

COM3

RS-422: Slave mode

RS-485: Auto flow control

RS-422: Slave mode

RS-485: Auto flow control

RS-422: Master mode

RS-485: N/A

RS-422: Slave mode

RS-485: Auto flow control

RS-422: Slave mode

RS-485: Auto flow control

RS-422: Master mode

RS-485: N/A

RS-422: Master mode

RS-485: N/A

RS-422: Master mode

RS-485: N/A

2.4 LAN: Ethernet Connector

The UNO-1170 is equipped with two Realtek RTL8100CL Ethernet LAN
controllers that are fully compliant with IEEE 802.3u 10/100Base-T
CSMA/CD standards. The Ethernet port provides a standard RJ-45 jack
onboard, and LED indicators on the front side to show its Link (Yellow
LED) and Active (Green LED) status. Please refer to A.4 for its pin
assignments.

2.5 Power Connector

The UNO-1170 comes with a Phoenix connector that carries 10~36 VDC
external power input, and has reversed wiring protection. Therefore, it
will not cause any damage to the system by reversed wiring of ground
line and power line. Please refer to A.5 for its pin assignments.

13

2.6 LED Indicators

• There are five kinds of LEDs on the UNO-1170 front panel

• PWR: system power status

• IDE: IDE bus status

• Txn, Rxn: Serial communication status of COM Port n

• DIAG: a programmable LED indicator to show a systems status

• BTR: Replace battery when this LED is active

2.7 PS/2 Keyboard and Mouse Connector

The UNO-1170 provides a PS/2 keyboard and PS/2 mouse connector. A
6-pin mini-DIN connector is located on the rear panel of the UNO-1170.
The UNO-1170 comes with an adapter to convert from the 6-pin mini­DIN connector to two 6-pin mini-DIN connectors for PS/2 keyboard and
mouse connections. Please refer to Appendix A.6 for pin assignments.

2.8 Universal Serial Bus Connectors

The USB connector is used for connecting any device that conforms to
the USB interface. Many recent digital devices conform to this standard.
The USB interface supports Plug & Play, which enables you to connect or
disconnect a device whenever you want without turning off the computer.

The UNO-1170 provides two connectors with USB interfaces, which
gives complete Plug & Play and hot swapping for up to 127 external
devices. The USB interface complies with USB specification version 1.1
compliant. OpenHCI, Rev. 1.0. The USB interface can be disabled in the
system BIOS setup. Please refer to Appendix A.7 for its pin assignments.

2.9 VGA: VGA Display Connector

The UNO-1170 provides a VGA controller (Intel 855/852 GME, supports
a single 1.5V accelerated graphics port interface) for a high resolution
VGA interface. It supports CRT Mode: 1920 x 1440 @ 32bpp (60Hz),
1600 x 1200 @ 32bpp (85Hz); and up to 64 MB shared memory.

UNO-1170 User Manual 14

2.10 RESET: Reset Button

UNO-1170 provides a reset button on the top of the device.

2.11 Audio

UNO-1170 supports audio function with:

- Line In

- Line Out

2.12 Battery Backup SRAM

UNO-1170 provides 512 KB of battery backed SRAM. This ensures that
you have a safe place to store critical data. You can now write software
applications without being concerned that system crashes will erase criti­cal data from the memory.

There is a BTRY LED in the front panel of the UNO-1170, please replace
the lithium battery with a new one if the BTRY LED is activated.

2.12.1 Lithium Battery Specifications

• Type: BR2032 (Using CR2032 is NOT recommended)

• Output voltage: 3 V

• Location: the backside of UNO-1170 board.

(BH1 is for real time clock, BH2 is for SRAM)

DC

2.13 LED and Buzzer for System Diagnosis

In a “headless application” (an application without a monitor display), it is
always

difficult to know the system status. Another PC may be needed to
monitor a headless device's status via RS-232 or
solve this problem, UNO-1170 offers
ure 2.13) and buzzer.
LED indicator flickering and buzzer alarm.

They can be programmed to show a systems status by

a programmable LED indicator (Fig-

15

Ethernet. In order to

Table 2.5: LED & Buzzer Control Register

210H R/W DIAG LED Register

211H R/W Buzzer Register

LEDS1 LEDS0 LEDEn

SPKS1 SPKS0 SPKEn

LEDEn: =0,

DIAG

=1,

DIAG LED

LED disable

enable

LEDS0 and LEDS1: LED flickering speed setting bit (refer to Table 2.6)

SPKEn: =0, Speaker disable

=1,

Speaker enable

SPKS0 & SPKS1: Buzzer alarming

setting bit (refer to Table 2.7)

Note: UNO-1170 provides built-in examples to show how to

configure DIAG LED and Buzzer. Refer to console
mode examples in C:\Program Files\Advan­tech\UNO\UNO_IsaDIO\Examples\Console.

(Please install DI/O driver from the UNO CD to use
these examples)

Table 2.6: Programmable LED Control Bit

LEDS1 LEDS0

Light on 0 0

Fast flicker 0 1

Normal flicker 1 0

Short flicker 1 1

Table 2.7: Programmable Buzzer Control Bit

SPKS1 SPKS0

Beep on 0 0

Short beep 0 1

Normal beep 1 0

Long beep 1 1

UNO-1170 User Manual 16

2.14 PCI/104+ Connectors (UNO-1170E only)

UNO-1170E supports up to two PCI/104+ cards. The cards will be
installed on connector noted "CN3-A" and "CN3-B". Please check your
PC/104+ card support voltage to adjust the jumper on CN4.

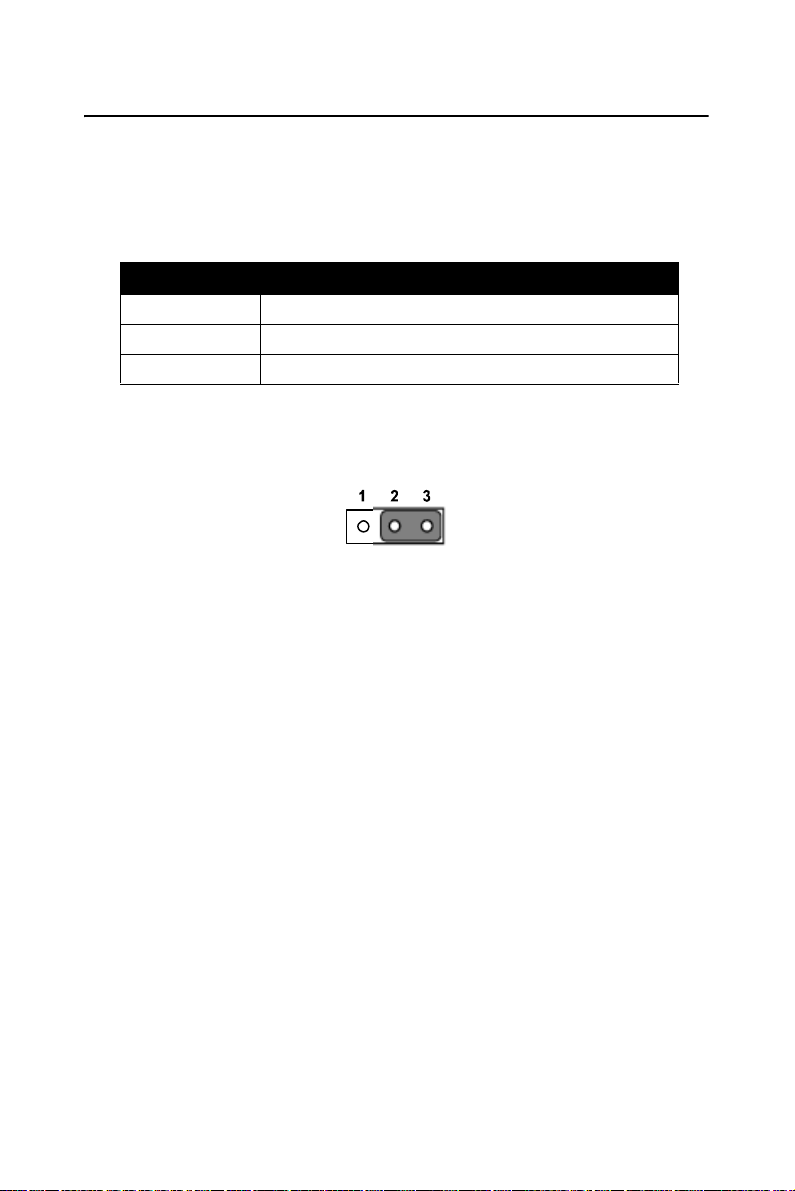

Table 2.8: PCI-104 Voltage Jumper Settings

Voltage Jumper close position setting

+5V 1-2

+3.3V 2-3

Jumper Setting for +3.3V example:

closed 2-3

Figure 2.7: RS-422/485 Jumper Settings

17

UNO-1170 User Manual 18

3

CHAPTER

Initial Setup

Sections include:

• CompactFlash Installation

• PCI-104 Card Installation (UNO-1170E)

• Hard Drive Installation (UNO-1170E)

• Chassis Grounding

• Power Connection

• BIOS Setup and System Assignments

Chapter 3 Initial Setup

3.1 CompactFlash Card Installation

The procedure for installing a CompactFlash card into the UNO-1170/
UNO-1170E is as follows, please follows these steps carefully. Although
the outside appearance of the UNO-1170E is different from the figures
shownbelow, the procedure is the same.

1. Remove the power.

2. Unscrew six screws from UNO-1170 indicated below.

UNO-1170 User Manual 20

3. Remove the rear cover.

4. Plug a CompactFlash card with user’s OS and application program

into a CompactFlash card slot on board.

5. Screw back the rear cover and the six screws.

21

3.2 USB Keypro and Keypro Bracket Installation

1. Keep the rear cover removed and have the USB keypro dongle

ready. (Note: Only the upper internal USB connector will work.
The lower is a dummy connector and won’t have any function)

2. Insert the USB keypro/dongle dongle into internal USB connector

and place the keypro bracket as shown in the picture. Then, screw
the keypro bracket.

UNO-1170 User Manual 22

3. Manually adjust the bracket to perfectly fit the USB keypro/dongle.

(Note: Due to the extremely compact space in the chassis, the length for
USB keypro has to be limited to 45mm)

3.3 Chassis Grounding

Please connect the chassis ground of UNO-1170 with "EARTH".

Figure 3.1: Chassis Grounding Connection

3.4 Power Connection

Connect the UNO-1170 to a 10 ~ 30 VDC power source. The power
source can either be from a power adapter or an in-house power source.

23

3.5 PC/104+ Card Installation (UNO-1170E)

The procedure for installing a PC/104+ card into the UNO-1170E is
shown as following step.

1. Remove the power.

2. Unscrew six screws from UNO-1170E indicated below.

UNO-1170 User Manual 24

3. Remove the rear cover.

4. Find 2 metal spacer from accessory bag, and screw tight on the

location indicated arrow in the below picture. (Note: There were
spacers soldered on the daughter board already). Normally you will
also get some hexagon spacer from your PCI-104 card packing.
Use and screw those spacers on the location indicated black shown
in below picture.

5. Please refer to section 2.12 for PCI-104 card voltage setting before

install the PCI-104 card.

25

6. Stack the PC/104+ card and related cables.

7. Screw the rear cover and the six screws. Now you are done with the

PC/104+ card installation.

Note:You can use two PC/104+ cards at the same time while

you don't use a hard drive. Using a hard drive will limit
the number of PC/104+ you used to one

UNO-1170 User Manual 26

3.6 Hard Drive installation (UNO-1170E)

The procedure for installing a hard drive into the UNO-1170E is shown as
following step.

1. Remove the power.

2. Unscrew six screws from UNO-1170E indicated below.

3. Remove the rear cover. Please refer to Section 3.1 & 3.2 for the

instruction to open the cover.

4. Take four screws from the rear cover to lose the hard drive bracket.

5. Connect the SATA cable and SATA power cable. Make sure the

cable will not lose. Use the screws in accessory to mount the hard
drive on the hard drive bracket.

27

6. Turn the hard drive bracket and align with the screw hole on the

rear cover. Use the four screws taken from step 4 and screw the
bracket and the rear cover tight.

7. Connect the other end of SATA cable on the board which the arrow

indicated in below picture.

8. Screw the rear cover and the six screws.

9. For user who tried to plug other SATA device, please note the

UNO-1150E SATA power connector doesn't support 12V power.

Note: There are switch setting about SATA hard drive below,

please refer to the section A.9 for detail. The hard drive
might not work correctly if the switch setting is incorrect

UNO-1170 User Manual 28

3.7 BIOS Setup and System Assignments

UNO-1170 uses the Advantech SOM-4481 and SOM-4486 CPU module.
For UNO-1170 BIOS setup and system assignments, you can refer to
SOM-4481 and SOM-4486 Chapter 4 “Award BIOS Setup” and Appen­dix A “System Assignments”. The SOM-4481 & SOM-4486's user’s
manual is in the “Manual” folder on the CD-ROM.

Please note that you can try to “LOAD BIOS DEFAULTS” from the
BIOS Setup manual if UNO-1170 does not work properly.

3.8 DIN-rail Mounting Setup

Please follow the below steps to mount the UNO-1170 on the DIN-Rail.

1. Screw the provided DIN-Rail Kit on the rear side of UNO-1170 as

the diagram shown below.

2. Hang the UNO-1170 to the DIN-Rail with angle of inclination

about 30 degree.

3. Let UNO-1170 down straight to slide over the Rail smoothly.

Note: To get the UNO-1170 down from the Rail, push the

device top to down then pull the bottom of the device to
let it off the Rail smoothly.

29

3.9 Wallmounting Setup

Please follow the below steps to mount the UNO-1170 on the wall.

1. Screw the provided Wall Mounting Kit on the rear side of UNO-

1170 as the diagram shown below.

2. Mount the device on the wall by the 2 pairs hooking hole provided

by the Wallmounting Kit.

UNO-1170 User Manual 30

A

APPENDIX

System Settings and
Pin Assignments

•Board Connectors and Jumpers

•RS-232 Serial Port (COM1~2)

•RS-232/422/485 Serial Port (COM3)

•Ethernet RJ-45 Connector

•Power Screw Terminal

•PS/2 Keyboard and Mouse Connector

•USB Connector

•VGA Display Connector

•CompactFlash Master/Slave Jumper Setting

•SATA DATA Connector

Appendix A System Settings and Pin

Assignments

A.1 System I/O Address & Interrupt Assignments

Table A.1: UNO-1170 System I/O Ports

Address Range Device

000-01F DMA controller (slave)

020-03F Interrupt controller 1, (master)

040-05F 8254 timer/counter

060-06F 8042 (keyboard controller)

070-07F Real-time clock, non-maskable interrupt (NMI)mask

080-09F DMA page register,

0A0-0BF Interrupt controller 2 (slave)

0C0-0DF DMA controller (master)

0F0 Clear math co-processor

0F1 Reset math co-processor

0F8-0FF Math co-processor

1D0 Vector address; for COM port share IRQ

1E0 Battery backup resource

11E Battery backup resource

1F0-1F8 1st fixed disk

200-207 Game I/O

278-27F Reserved

2F8-2FF Serial port 2

380-38F SDLC, bisynchronous 2

3A0-3AF Bisynchronous 1

3B0-3BF Monochrome display

3C0-3CF Reserved

3D0-3DF Color/graphics monitor adapter

3F0-3F7 Diskette controller

3E8-3EF Serial port 3

3F8-3FF Serial port 1

DC000-DFFFF Battery backup resource

UNO-1170 User Manual 32

Table A.2: UNO-1170 Interrupt Assignment

Interrupt No. Interrupt Source

NMI Parity error detected

IRQ 0 Interval timer

IRQ 1 Keyboard

IRQ 2 Interrupt from controller 2 (cascade)

IRQ 3 COM2

IRQ 4 COM1

IRQ 5 Available

IRQ 6 Diskette controller (FDC)

IRQ 7 Available

IRQ 8 Real-time clock

IRQ 10 COM3 (Independent IRQ)/COM3&COM4 Share IRQ

IRQ 11 Reserved for watchdog timer

IRQ 12 PS/2 mouse

IRQ 13 INT from co-processor

IRQ 14 Primary IDE

IRQ 15 Secondary IDE for CompactFlash

33

A.2 Board Connectors and Jumpers

There are connectors and jumpers on the UNO-1170 board. The follow­ing sections tell you how to configure the UNO-1170 hardware setting.
Figure A-1 and figure A-2 show the locations of UNO-1170 connectors
and jumpers.

Figure A.1: Connector & Jumper Locations (Top)

UNO-1170 User Manual 34

Table A.3: Connectors & Jumpers

BH1

BH2

CN1

CN3

CN4

CN5

CN6

CN7

CN8

CN10

CN11

CN13

CN14

CN15/CN16

CN17

CN18

Lithium battery for BIOS

Lithium battery for Backup SRAM

Power Screw Terminal

Clear COMS Jumper

USB connector

VGA DB15 display connector/ COM3 RS-232/422/485

PS/2 keyboard and mouse connector

Internal USB dongle connector

Internal CompactFlash card slot

COM1 RS-232 serial port / COM2 RS-232 serial port

Ethernet port 1 / Ethernet port 2

COM2 RS-232/422/485 selection

Audio line in / Audio line out

Board to Board connector, PC/104+

SATA connector (data)

SATA connector (power)

SW1

SW2

SW3

Reset switch

RS-485 auto-flow and RS-422 Master/Slave mode for

Terminal resister for COM3

35

Figure A.2: Connector & Jumpers (UNO-1170E)

Table A.4: Connectors & Jumpers (UNO-1170E)

CN3-B,CN3-C PC/104 card connector

CN3-A PCI-104 card connector

CN5 Mini PCI card connector

CN4 Jumper of PCI-104 card voltage selection

(+3.3V or +5V)

UNO-1170 User Manual 36

A.3 RS-232 Serial Port (COM1~COM2)

Table A.5: RS-232 Serial Port Pin Assignments

Pin Signal Name

1DCD

2RxD

3TxD

4DTR

5GND

6DSR

7RTS

8CTS

9RI

37

A.4 RS-232/422/485 Serial Port (COM3)

Table A.6: RS-232/422/485 Serial Ports

Pin RS-232 RS-422 RS-485

1DCD Tx- DATA­2RxD Tx+ DATA+
3 TxD Rx+ NC
4DTR Rx- NC
5 GND GND GND
6 DSR NC NC
7 RTS NC NC
8 CTS NC NC
9RI NC NC

A.5 Ethernet RJ-45 Connector (LAN1~LAN2)

Table A.7: Ethernet RJ-45 Connector Pin Assigns

Pin 10/100Base-T Signal Name

1XMT+
2XMT­3 RCV+
4NC
5NC
6 RCV­7NC
8NC

UNO-1170 User Manual 38

A.6 Power Screw Terminal (CN8)

3

Table A.8: Phoenix Power Connector Pin Assigns

Pin Signal Name

1 VIN ( 10 ~ 36 VDC )

2GND

3 Field Ground

A.7 PS/2 Keyboard and Mouse Connector (CN10)

Table A.9:

65

4

2

1

Table A.10: Keyboard & Mouse Connector Pin Assigns

Pin Signal Name

1 KB DATA

2MS DATA

3GND

4VCC

5 KB CLOCK

6MS CLOCK

39

A.8 USB Connector (CN13)

Table A.11: USB Connector Pin Assignments

Pin Signal Name Cable Color

1 VCC Red

2DATA- White

3DATA+ Green

5GND Black

A.9 VGA Display Connector (CN15)

Table A.12: VGA Adaptor Cable Pin Assignments

Pin Signal Name Pin Signal Name

1 RED 9 EDID Power

2 GREEN 10 GND

3BLUE 11 NC

4NC 12 NC

5 GND 13 H-SYNC

6 GND 14 V-SYNC

7GND 15 NC

8GND

Display Memory

With 64MB share memory, the VGA controller can drive CRT displays or
color panel displays with resolutions up to 1600 x 1200 at 85 Hz.

UNO-1170 User Manual 40

A.10 SATA Data Connector (CN17)

Table A.13: SATA DATA Connectors (CN17)

Pin Signal Name

1GND

2A+

3A-

4GND

5B-

6B+

7GND

41

UNO-1170 User Manual 42

Programming the
Watchdog Timer

Appendix

B

Appendix B Programming the Watchdog

Timer

Below are samples of code for controlling the Watchdog Timer function.

----------------------------------------------------------------------------------­Enter the extended function mode, interruptible double-write |

----------------------------------------------------------------------------------­MOV DX,2EH

MOV AL,87H OUT DX,AL OUT DX,AL

-----------------------------------------------------------------------------

Configured logical device 8, configuration register CRF6 |

-----------------------------------------------------------------------------

MOV DX,2EH

MOV AL,2BH OUT DX,AL MOV DX,2FH IN AL,DX

AND AL.OEFH;Setbit 4=0 Pin 89=WDTO OUT DX,AL

MOV DX,2EH

MOV AL,07H; point to Logical Device Number Reg. OUT DX,AL

MOV DX,2FH

MOV AL,08H; select logical device 8

OUT DX,AL; MOV DX,2EH

MOV AL,30H;Set watch dog activate or inactivate

OUT DX,AL MOV DX,2FH

MOV AL,01H; 01:activate 00:inactivate

OUT DX,AL; MOV DX,2EH

MOV AL,F5H; Setting counter unit is second

OUT DX,AL MOV DX,2FH MOV AL,00H OUT DX,AL; MOV
DX,2EH MOV AL,F6H OUT DX,AL MOV DX,2FH

MOV AL,05H; Set 5 seconds

OUT DX,AL

;------------------------------------------

; Exit extended function mode |

;------------------------------------------

MOV DX,2EH

MOV AL,AAH OUT DX,AL
