Advantech PCI-1710 User Manual

PCI-1710/1710HG
Multifunction DAS Card for
PCI Bus
User's manual
Copyright
This documentation and the software included with this product are copyrighted 1998 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. Howev er, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements of the rights of third parties which may result from its use.
Acknowledgments
PC-LabCard is a trademark of Advantech Co., Ltd. IBM and PC are trademarks of International Business Machines Corporation. MS-DOS and W indo ws are trademarks of Microsoft Corporation. Intel and Pentium are trademarks of Intel Corporation.
CE notification
The PCI-1710/1710HG, developed by AD VANTECH CO., L TD ., has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information.
On-line Technical Support
For technical support and service please visit our support website at
http:/support.advantech.com
Part No. 2003171010 2nd Edition
Printed in Taiwan Feburary 1999
Contents
Chapter 1: General Information ............................. 1
1. 1 Introduction ............................................................... 2
1.2 Features .................................................................... 3
1.3 Specifications............................................................. 4
1.4 Block Diagram........................................................... 8
Chapter 2: Installation.............................................. 9
2.1 Initial Inspection ....................................................... 10
2.2 Unpacking ............................................................... 10
2.3 Installation Instructions ............................................. 1 1
Chapter 3: Signal Connections..............................1 3
3. 1 Overview.................................................................15
3.2 I/O Connector ......................................................... 15
3.3 Analog Input Connections ........................................ 19
3.4 Analog Output Connections ..................................... 23
3.5 Trigger Source Connections ..................................... 25
3.6 Field Wiring Considerations...................................... 25
Chapter 4: Register Structure and Format ......... 2 7
4. 1 Overview................................................................. 28
4.2 I/O Port Address Map............................................. 28
4.3 Channel Number and A/D Data ............................... 33
4.4 Software A/D Trigger............................................... 33
4.5 A/D Channel Range Setting ...................................... 34
4.6 MUX Control .......................................................... 37
4.7 Control Register....................................................... 39
4.8 Status Register ......................................................... 40
4.9 Clear Interrupt and FIFO......................................... 41
4.10 D/A Channel 0 Output ............................................. 42
4.11 D/A Channel 1 Output ............................................. 42
4.12 D/A Reference Control ............................................ 43
4.13 Digital I/O Registers................................................. 44
4.14 Programmable Timer/Counter Registers.................... 44
Chapter 5: Calibration ............................................ 4 5
5.1 Introduction ............................................................. 46
5.2 VR Assignment ........................................................ 46
5.3 A/D Calibration ....................................................... 47
5.4 D/A Calibration ....................................................... 48
5.5 Self A/D Calibration................................................. 49
Appendix A: 82C54 Counter Chip Functions ...... 5 1
A.1 The Intel 82C54 ...................................................... 52
A.2 Counter Read/Write and Control Registers ............... 53
A.3 Counter Operating Modes ....................................... 56
A.4 Counter Operations ................................................. 58
1
CHAPTER
General Information
Chapter 1 General Information 1
1.1 Introduction
The PCI-1710/1710HG is a multifunction DAS card for the PCI bus. Advanced circuit design brings you higher quality and more func­tions, including the five most desired measurement and control functions: 12-bit A/D conversion, D/A conversion, digital input, digital output, and counter/timer.
PCI-bus Plug and Play
The PCI-1710/1710HG uses a PCI controller to interface the card with the PCI bus. The controller fully implements the PCI bus specifica­tion Rev 2.1. All bus relative configurations, such as base address and interrupt assignment, are automatically controlled by software. No jumper or DIP switch setting is required for user configuration.
Flexible Inputs Types and Ranges Setting
The PCI-1710/1710HG features an automatic channel/gain scanning circuit. The circuit, rather than your software, controls multiplexer switching during sampling. The on-board SRAM stores different gain values and configuration for each channel. This design lets you perform multi-channel high-speed sampling (up to 100 kHz) with different gains for each channel with free combination of single-ended and differential inputs.
On-board FIFO (First In First Out) Memory
The PCI-1710/1710HG has an on-board FIFO buffer which can store up to 4K A/D samples. The PCI-1710/1710HG generates an interrupt when the FIFO is half full. This feature provides continuous high­speed data transfer and more predictable performance on Windows systems.
2 PCI-1710 /1710HG User's Manual
On-board Programmable Counter
The PCI-1710/1710HG provides a programmable counter for generat­ing a pacer trigger for the A/D conversion. The counter chip is an 82C54 or equivalent, which includes three 16-bit counters on a 10 MHz clock. One counter is used as an event counter for counting events coming from the input channels. The other two are cascaded together to make a 32-bit timer for a pacer trigger.
1.2 Features
• 16 single-ended or 8 differential analog inputs, or a combination
• 12-bit A/D converter, with up to 100 kHz sampling rate
• Programmable gain for each input channel
• Automatic channel/gain scanning
• On-board 4K samples FIFO buffer
• Two 12-bit analog output channels
• 16 digital inputs and 16 digital outputs
• Programmable pacer/counter
Chapter 1 General Information 3
1.3 Specifications
Analog Input:
Channels: 16 single-ended or 8 differential (software programma-
ble)
Resolution: 12-bit
On-board FIFO: 4K samples
Conversion time: 8 µs
Input range: (V, software programmable)
PCI-1710 PCI-1710HG
Bipola r
Unipolar
±10, ± 5, ±2.5, ± 1.25, ±0.625
0 ~ 10, 0 ~ 5, 0 ~ 2.5, 0 ~ 1.25
±10, ± 5, ±1, ±0 .5, ±0.1, ±0.05, ±0.01, ±0.005
0 ~ 10, 0 ~ 1, 0 ~ 0.1, 0 ~ 0.01
Maximum Input Overvoltage: ±30 V
Common Mode Rejection Ratio (CMRR)
PCI-1710 PCI-1710HG
Gain CMRR Gain CMRR
0.5, 1 75dB 0.5, 1 75dB 2 80dB 10 90dB 4 84dB 100 106 dB 8 84dB 1000 106dB
4 PCI-1710 /1710HG User's Manual
Maximum data throughput: PCI-1710: 100 kHz PCI-1710HG: (variable, depending on PGIA settling time)
PCI-1710HG
Gain Speed
0.5, 1 100 kHz 5, 10 35 kHz
50, 100 7 kHz
500, 1000 770 Hz
Accuracy: (depending on gain)
PCI-1710 PCI-1710HG
Gain Accuracy Gain Accuracy Remark
0.5, 1
2
4
8
*S.E. = Single-ended D = Differential
0.01% of
FSR ±1 LSB
0.02% of
FSR ±1 LSB
0.02% of
FSR ±1 LSB
0.04% of
FSR ±1 LSB
0.5, 1
5, 10
50, 100
500, 1000
0.01% of
FSR ±1 LSB
0.02% of
FSR ±1 LSB
0.04% of
FSR ±1 LSB
0.08% of
FSR ±1 LSB
S.E./D*
S.E./D
D
D
Linearity error: ±1 LSB
Input impedance: 1 G
Trigger mode: Software, on-board programmable pacer or external
Chapter 1 General Information 5
Analog Output:
Channels: 2
Resolution: 12-bit
Relative accuracy: ±1/2 LSB
Gain error: ±1 LSB
Maximum update rate: 100 K samples/s
Slew rate: 10 V/µs
Output range: (software programmable)
With internal reference: 0 ~ +5 V, 0 ~ +10 V With external reference: 0 ~ +x V @ -x V (-10 x 10)
Digital Input:
Channels: 16
Input voltage:
Low: 0.4 V max. High: 2.4 V min.
Input load:
Low: -0.2 mA @ 0.4 V High: 20 µA @ 2.7 V
Digital Output:
Channels: 16
Output voltage:
Low: 0.4 V max. @ 8.0 mA (sink) High: 2.4 V min. @ -0.4 mA (source)
6 PCI-1710 /1710HG User's Manual
Programmable Timer/Counter
Counter chip: 82C54 or equivalent
Counters: 3 channels, 16 bits, 2 channels are permanently
configured as programmable pacers; 1 channel is free for user application
Input, gate: TTL/CMOS compatible
Time base: Channel 1:10 MHz Channel 2:Takes input from output of channel 1 Channel 0:Internal 1 MHz or external clock (10 MHz max.)
selected by software.
General:
I/O Connector: 68-pin SCSI-II female connector
Power consumption: +5 V @ 850 mA (Typical),
+5 V @ 1.0 A (Max.)
Dimensions: 175 mm x 107 mm (6.9” x 4.2”)
Operating temperature: 0 ~ +60 °C (32 ~ 140 °F) ( refer to IEC 68­2-1, 2 )
Storage temperature: -20 ~ +70 °C (-4 ~ 158 °F)
Operating humidity: 5 ~ 95%RH non-condensing ( refer to IEC 68­2-3 )
MTBF: over 64,770 hrs @ 25 °C, grounded, fixed environment
Chapter 1 General Information 7
1.4 Block Diagram
PCI Controller
PCIBus
A/D & D/A Status
Control Logic
4K Samples
FIFO
12-bit A/D Convertor
Channel Scan Logic
INT
IRQ Control
Logic
A/D Trigger
Logic
PGIA
Address Bus
Data Bus
10 MHz/10=
1 MHz
10 MHz
OSC
+
-
Address Decoder
16-bit Digital Output
16-bit Digital Input
12-bit D/A Output 0
12-bit D/A Output 1
COUNTER
COUNTER
COUNTER
Multiplexer
16 S/E 8 DIFF
CNT0_CLK
0
CNT0_OUT CNT0_GATE
1
2
PACER_OUT
EXT_TRG
AI0
AI1
or
Gain Control RAM
Figure 1-1: PCI-1710/PCI-1710HG block diagram
8 PCI-1710 /1710HG User's Manual
AI15
2
CHAPTER
Installation
Chapter 2 Installation 9

2.1 Initial Inspection

Before installing the PCI-1710/1710HG, check the card for visible damage. We have carefully inspected the card both mechanically and electrically before shipment. It should be free of marks and in perfect order upon receipt.
As you unpack the PCI-1710/1710HG, check it for signs of shipping damage (damaged box, scratches, dents, etc.). If it is damaged or fails to meet specifications, notify our service department or your local sales representative immediately. Also, call the carrier immediately and retain the shipping carton and packing materials for inspection by the carrier. We will then make arrangements to repair or replace the unit.

2.2 Unpacking

The PCI-1710/1710HG contains components that are sensitive and vulnerable to static electricity. Discharge an y static electricity on your body to ground by touching the back of the system unit (grounded metal) before you touch the board.
Remove the PCI-1710/1710HG card from its protective packaging by grasping the card's rear panel. Handle the card only by its edges to avoid static discharge which could damage its integrated circuits. Keep the antistatic package. Whenever you remove the card from the PC, protect the card by storing it in this package.
You should also avoid contact with materials that hold static electricity such as plastic, vinyl and styrofoam.
Check the product contents inside the packing. There should be one card, one CD-ROM, and this manual. Make sure nothing is missing.
10 PCI-1751/1710HG User's Manual

2.3 Installation Instructions

The PCI-1710/1710HG can be installed in any PCI slot in the computer. However, refer to the computer user's manual to avoid any mistakes and danger before you follow the installation procedure below:
1. Turn off your computer and any accessories connected to the computer.
Warning! TURN OFF your computer power supply whenever
you install or remove any card, or connect and disconnect cables.
2. Disconnect the power cord and any other cables from the back of the computer.
3. Remove the cover of the computer.
4. Select an empty 5 V PCI slot. Remove the screw that secures the expansion slot cover to the system unit. Save the screw to secure the interface card retaining bracket.
5. Carefully grasp the upper edge of the PCI-1710/1710HG. Align the hole in the retaining bracket with the hole on the expansion slot and align the gold striped edge connector with the expansion slot socket. Press the card into the socket gently but firmly. Make sure the card fits the slot tightly.
6. Secure the PCI-1710/1710HG by screwing the mounting bracket to the back panel of the computer.
7. Attach any accessories (68-pin cable, wiring terminal, etc.) to the card.
8. Replace the cover of your computer . Connect the cables you removed in step 2.
9. Turn the computer power on.
Chapter 2 Installation 11
12 PCI-1751/1710HG User's Manual
3
CHAPTER
Signal Connections
Chapter 3 Signal Connections 13
3.1 Overview
Correct signal connections are one of the most important factors in ensuring that your application system is sending and receiving data correctly. A good signal connection can avoid much unnecessary and costly damage to your valuable PC and other hardware devices. This chapter will provide some useful information about how to connect input and output signals to the PCI-1710/1710HG card via the I/O connector.
3.2 I/O Connector
The I/O connector for the PCI-1710/1710HG card has 68 pins that you can connect to 68-pin accessories with the PCL-10168 shielded cable.
Note! The PCL-10168 shielded cable is specially designed
for the PCI-1710/1710HG for reducing noise in the analog signal lines. Its wires are all twisted pairs, and the analog lines and digital lines are seperately shielded, providing minimal cross talk between signals and the best protection against EMI/EMC problems.
Pin Assignment
Figure 3-1 shows the pin assignments for the 68-pin I/O connector on the PCI-1710/1710HG card.
14 PCI-1710/1710HG User's Manual
AI0 AI2 AI4 AI6
AI8 AI10 AI12 AI14
AIGND
DA0_REF
DA0_OUT
AOGND
DI0
DI2
DI4
DI6
DI8
DI10 DI12 DI14
DGND
DO0 DO2 DO4 DO6
DO8 DO10 DO12 DO14
DGND
CNT0_CLK
CNT0_OUT
CNT0_GATE
+12V
68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35
34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10
9 8 7 6 5 4 3 2 1
AI1 AI3 AI5 AI7 AI9 AI11 AI13 AI15 AIGND DA1_REF DA1_OUT AOGND DI1 DI3 DI5 DI7 DI9 DI11 DI13 DI15 DGND DO1 DO3 DO5 DO7 DO9 DO11 DO13 DO15 DGND PACER_OUT TRG_GATE EXT_TRG +5V
Figure 3-1: I/O connector pin assignments for the PCI-1710/1710 HG card
Chapter 3 Signal Connections 15
I/O Connector Signal Descriptions
Signal
Name
AI<0…15> AIGND Input
AIGND - -
DA0_ REF AOGND Input
DA1_ REF AOGND Input
DA0 _OUT AOGND Output
DA1 _OUT AOGND Output
AOGND - -
Reference Direction Description

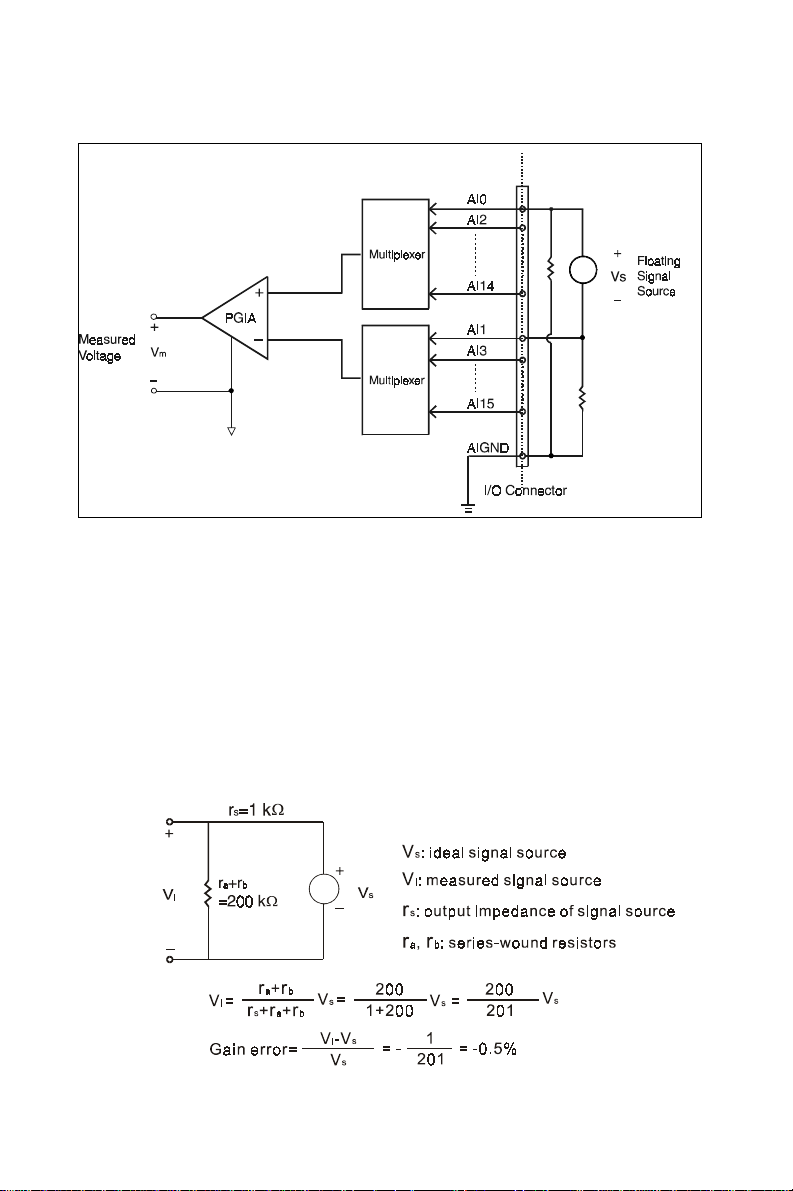

Analog Input Channels 0 through 15. Each
channel pair, AI<i, i+1> (i = 0, 2, 4...14), can be configured as either two single-ended inputs or one differential input.
Analog Input Ground
reference p o i nts for single-ended measurements and the bias current return point for differential measurement. The three ground references (AIGND, AOGND , a nd D GND ) a re connected together on the PCI-1710/1710HG card.
Analog Output Channel 0 External Reference. This is the external reference input
for the analog output channel 0 circuitry.
Analog Output Channel 1 External Referenc
for the analog output channel 1circuitry. Analog Output Channel 0. This pin supplies
the voltage output of analog output channel 0. Analog Output Channel 1. This pin supplies
the voltage output of analog output channel 1. Analog Output Ground. The analog output
voltages are referenced to these nodes. The three ground reference s (AIGND, AOGND, and DGND) are connected together on the P CI-
1710/1710HG card.
e. This is the external reference input
. These pins are the
16 PCI-1710/1710HG User's Manual
I/O Connector Signal Descriptions (part II)
Signal Name Reference Direction Description
DI<0..15> DGND Input
DO<0..15> DGND Output
DGND - -
CNT0_ CLK DGND Input
CNT0 _OUT DGND Output
CNT0 _GATE DGND Input
Digital Input signals Digital Output signals
Digital Ground. This pin supplies the
reference for the digital signals at the I/O connector a s we ll as the +5V three gro und references (AIGND, AOGND, and DGND) are connected together on the PCI-1710/1710HG card. Counter 0 Clock Input. This pin is the external clock input of counter 0. The clock input of counter 0 can be either external (up to 10 MHz) or internal (100 kHz), as set by software. Counter 0 Output. This pin is the output of counter 0. See Appendix A for more detailed information. Counter 0 Gate Input. This p in is the gate co nt r ol fo r co unter 0 . Se e Appendix A f or more detailed information.
DC
supply. The
Chapter 3 Signal Connections 17
I/O Connector Signal Descriptions (part III)
Signal
Name
PAC ER
_OUT
Reference Direction Description
DGND Output
TRG _ G AT E DGND Input
EXT _TRG DGND Input
+12V DGND Output
+5V DGND Output
Pacer Clock Output - This pin pulses once for each pacer clock when turned on. If A/D conversion is in the pacer trigger mode, users can use this signal as a synchronous signal for other applications. A low-to-hi gh edge triggers A/D conversion to start.
A/D Extern a l Trigger G a te - This pin is external trigger signal input gate control. When TRG _GATE is connected to +5 V, it will enable the external trigger signal to input. When TRG _GATE i s c onnected to DGND, i t will dis a ble the external trigger signal to input.
A/D Extern a l Trigger
- This pin is external trigger signal input for the A/D conversion. A low-to-high edge triggers A/D conversion to start.
+12 V
DC
Source - This pin is +12V po wer
supply.
+5 V
DC
- This pin is +5 V power
Source
supply.
18 PCI-1710/1710HG User's Manual

3.3 Analog Input Connections

The PCI-1710/1710HG card supports either 16 single-ended or 8 differential analog inputs. Input channel configuration is selected by software. Selection by software is more convenient than selection by a slide switch on the card. In the past, if you set one single-ended (or differential) input channel by switch, the other channels also would be single-ended (or differential). But on the PCI-1710/1710HG card, if you set one single-ended (or differential) input channel by software, the other channels will maintain their original configurations.
Single-ended Channel Connections
The single-ended input configuration has only one signal wire for each channel, and the measured voltage (Vm) is the voltage of the wire referred to the common ground.
A signal source without a local ground is also called a “floating source”. It is fairly simple to connect a single-ended channel to a floating signal source. In this mode, the PCI-1710/1710HG card provides a reference ground for external floating signal sources.
Figure 3-2 shows a single-ended channel connection between a floating signal source and an input channel on the PCI-1710/1710HG card.
Chapter 3 Signal Connections 19
ExternalInternal
Figure 3-2: Single-ended input channel connection
Differential Channel Connections
The differential input configuration has two signal wires for each channel, and the differential input responds only to voltage differenc­es between High and Low inputs. On the PCI-1710/1710HG card, when all channels are configured to differential input, up to 8 analog channels are available.
If one side of the signal source is connected to a local ground, the signal source is ground-referenced. The ground of the signal source and the ground of the PCI-1710/1710HG will not be at exactly the same voltage, as they are connected through the ground return of the equipment and building wiring. The difference between the ground voltages forms a common-mode voltage (Vcm).
To avoid the ground loop noise effect caused by common-mode voltages, you can connect the signal ground to the Low input. Figure 3-3 shows a differential channel connection between a ground­reference signal source and an input channel on the PCI-1710/1710HG
20 PCI-1710/1710HG User's Manual
card. W ith this connection, the PGIA rejects a common-mode voltage Vcm between the signal source and the PCI-1710/1710HG ground, shown as Vcm in Figure 3-3.
ExternalInternal
Figure 3-3: Differential input channel connection - ground reference signal source
If a floating signal source is connected to the differential input channel, the signal source may exceed the common-mode signal range of the PGIA, and the PGIA will be saturated with erroneous voltage­readings. You must therefore reference the signal source to the AIGND.
Figure 3-4 shows a differential channel connection between a floating signal source and an input channel on the PCI-1710/1710HG card. In this figure, each side of the floating signal source is connected through a resistor to the AIGND. This connection can reject the common-mode voltage between the signal source and the PCI-1710/ 1710HG card ground.
Chapter 3 Signal Connections 21
ExternalInternal
r
a
r
b
Figure 3-4: Differential input channel connection - floating signal source
However, this connection has the disadvantage of loading the source down with the series combination (sum) of the two resistors. For r and r
for example, if the input impedance rs is 1 k, and each of the
b,
a
two resistors is 100 k, then the resistors load down the signal source with 200 k (100 k + 100 k), resulting in a –0.5% gain error. The following gives a simplified representation of the circuit and calculat­ing process.
22 PCI-1710/1710HG User's Manual

3.4 Analog Output Connections

The PCI-1710/1710HG card provides two D/A output channels, DA0_OUT and D A1_OUT . Users ma y use the PCI-1710/1710HG internally provided precision –5V (-10V) reference to generate 0 to +5 V (+10 V) D/A output range. Users also may create D/A output range through external references, DA0_REF and D A1_REF . The maximum reference input range is +/-10 V. Connecting with an external reference of -7 V will generate 0 to +7 V DA output.
Figure 3-5 shows how to make analog output and external reference input connections on the PCI-1710/1710HG card.
-5V
-10V
DATA BUS
Internal
DA 0
DA 1
DA0_REF
DA0_OUT
Load
AOGND
Load
DA1_OUT
DA1_REF
I/O Connector
INT_REF
INT_REF

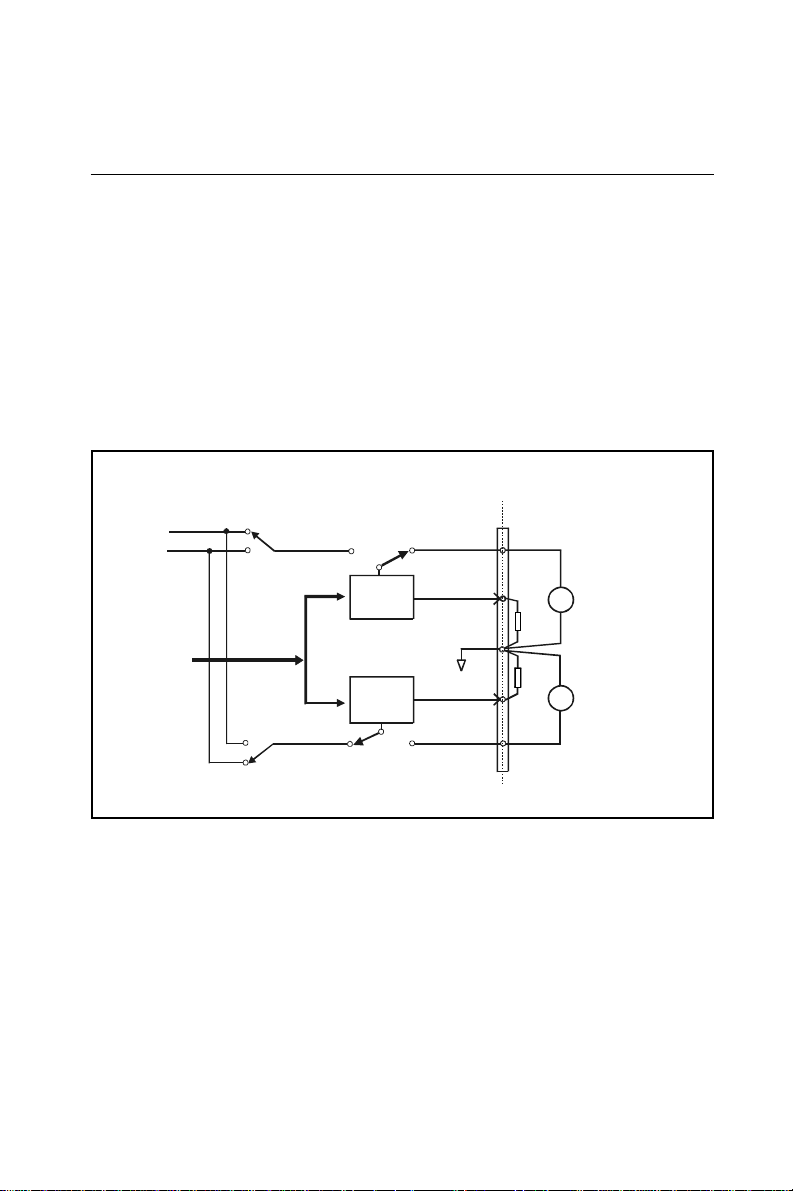

Figure 3-5: Analog output connections
External
+
External Reference for DA signal 0
_
+
External Reference for DA signal 1
_
Chapter 3 Signal Connections 23
3.5 Trigger Source Connections
Internal Pacer Trigger Connection
The PCI-1710/1710HG card includes one 82C54 compatible programma­ble timer/counter chip which provides three 16-bit counters connected to a 1 MHz clock, designated as Counter 0, Counter 1 and Counter 2. Counter 0 is an event counter for counting events coming from the input channels. Counter 1 and Counter 2 are cascaded to create a 32­bit timer for pacer triggering. A low-to-high edge from the Counter 2 output (P A CER_OUT) will trigger an A/D con version on the PCI-1710/ 1710HG card. At the same time, you can also use this signal as a synchronous signal for other applications.
External Trigger Source Connection
In addition to pacer triggering, the PCI-1710/1710HG card also allows external triggering for A/D conversions. When a +5 V source is connected to TRG_GATE, the external trigger function is enabled. A low-to-high edge coming from EXT_TRG will trigger an A/D conver­sion on the PCI-1710/1710HG card. When DGND is connected to TRG_GA TE, the external trigger function is disabled.
24 PCI-1710/1710HG User's Manual

3.6 Field Wiring Considerations

When you use the PCI-1710/1710HG card to acquire outside data, environmental noise can seriously affect the accuracy of your mea­surements if you don’t provide any protection. The following sugges­tions will be helpful when running signal wires between signal sources and the PCI-1710/1710HG card.
• Please make sure that you have carefully routed signal cables to the card. You must separate the cabling from noise sources. Try to keep video monitors far away from the analog signal cables, because these are a common noise source in a PCI data acquisition system.
• If you want to reduce common-mode noise, try to use differential analog input connections.
• If you do not want your signals to be affected when travelling through areas with high electromagnetic interference or large magnetic fields, try the following routing techniques: Use individually shielded, twisted-pair wires to connect analog input signals to the board, i.e. the signals connected to the High and Low inputs are twisted together and covered with a shield. Finally, connect the shield only to one point at the signal source ground.
• Make sure that your signal lines do not travel through conduits, because these may contain power lines. Also, keep your signals far from electric motors, breakers or welding equipment, as these can create magnetic fields.
• Keep a reasonable distance between high-voltage (or high-current) lines and signal cables connected to the PCI-1710/1710HG card if the cables run parallel, or route signal cables at right angles to high voltage/current cables.
• In addition to outside noise, the transmitted signals themselves can affect the card's performance. We suggest connecting signal sources to the card using the PCL-10168 shielded cable in order to avoid this kind of interference
Chapter 3 Signal Connections 25
26 PCI-1710/1710HG User's Manual
CHAPTER
4
Register Structure
and Format
Chapter 4 Register Structure and Format 27

4.1 Overview

The PCI-1710/1710HG is delivered with an easy-to-use 32-bit DLL driver for user pro gramming under the Windows 95/NT operating system. We advise users to program the PCI-1710/1710HG using the 32-bit DLL driver provided by Advantech to avoid the complexity of low-level programming by register.
The most important consideration in programming the PCI-1710/ 1710HG card at a register level is to understand the function of the card’s registers. The information in the following sections is provided only for users who would like to do their own low-level programming.

4.2 I/O Port Address Map

The PCI-1710/1710HG card requires 32 consecutive addresses in the PC’s I/O space. The address of each register is specified as an offset from the card’s base address. For example, BASE+0 is the card’s base address and BASE+7 is the base address plus seven bytes.
Table 4-1 shows the function of each register or driver and its address relative to the card’s base address.
28 PCI-1710/1710HG User's Manual
Table 4-1: PCI-1710/1710HG register format (Part 1)
Base
Address
+ de c i ma l
76543210
Read
Channel Number and A/D Data
1 0
CH3 CH2 CH1 CH0 AD11 AD10 AD9 AD8 AD7 AD6 AD5 AD 4 AD3 AD2 AD1 AD0
N/A
3 2
N/A
5 4
Status Register
7 IRQ F/F F/H F/E 6
CNT0 ONE/FH IRQEN GATE EXT PACER SW
N/A
9 8
N/A
11
10
N/A
13 12
Chapter 4 Register Structure and Format 29
Table 4-1: PCI-1710/1710HG register format (Part 2)
Base
Add ress
+ de c i mal
765432 10
Read
N/A
15 14
Digita l In put
17 DI15 DI14 DI13 DI12 DI11 DI10 DI9 DI8 16 DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0
Counter 0
25 24 D7 D6 D5 D4 D3 D2 D1 D0
Counter 1
27 26 D7 D6 D5 D4 D3 D2 D1 D0
Counter 2
29 28 D7 D6 D5 D4 D3 D2 D1 D0
N/A
31 30
30 PCI-1710/1710HG User's Manual
Table 4-1: PCI-1710/1710HG register format (Part 3)
Base
Address
+ de c i ma l
76543210
Write
Software A/D Trig g e r
1
0
A/D Channel Range Setting
3 2S/DB/UG2G1G0
MUX Con tr ol
5 Stop channel 4Start channel
Control Register
7 6
CNT0 ONE/FH IRQEN GATE EXT PACER SW
Clear In terrupt and F IF O
9 clear FIFO 8clear interrupt
D/A Output Channel 0
11 DA11 DA10 DA9 DA8
10 DA7 DA6 DA5 DA4 DA3 DA2 DA1 DA0
D/A Output Channel 1
13 DA11 DA10 DA9 D A8 12 DA7 DA6 DA5 DA4 DA3 DA2 DA1 DA0
Chapter 4 Register Structure and Format 31
Table 4-1: PCI-1710/1710HG register format (Part 4)
Base
Add ress
+ de c i ma l
76543210
Write
D/A Reference Control
15 14
DA1_I/E DA1_5/10 DA0_I/E DA0_5/10
Digital Ou tput
17 DO15 DO14 DO13 DO12 DO11 DO10 DO9 DO8 16 DO7 DO6 DO5 DO4 DO3 DO2 DO1 DO0
Counter 0
25 24 D7 D6 D5 D4 D3 D2 D1 D0
Counter 1
27 26 D7 D6 D5 D4 D3 D2 D1 D0
Counter 2
29 28 D7 D6 D5 D4 D3 D2 D1 D0
Counter Control
31 30 D7 D6 D5 D4 D3 D2 D1 D0
32 PCI-1710/1710HG User's Manual

4.3 Channel Number and A/D Data

BASE+0 and BASE+1
These two bytes, BASE+0 and BASE+1, hold the result of A/D conversion data. The 12 bits of data from the A/D conversion are stored in BASE+1 bit 3 to bit 0 and BASE+0 bit 7 to bit 0. BASE+1 bit 7 to bit 4 hold the source A/D channel number.
Table 4-2: Register for channel number and A/D data
Read Channel Number and A/D Data
Bit # 7 6 5 4 3 2 1 0 BASE+1 CH3 CH2 CH1 CH0 AD11 AD10 AD9 AD8 BASE+0 AD7 AD6 AD5 AD4 AD3 AD2 AD1 AD0
AD11 ~ AD0 Result of A/D Conversion AD0 is the least significant bit (LSB) of the A/D data, and AD11 is the
most significant bit (MSB).
CH3 ~ CH0 A/D Channel Number CH3 ~ CH0 hold the number of the A/D channel from which the data
is received. CH3 is the MSB and CH0 is the LSB.

4.4 Software A/D Trigger BASE+0

You can trigger an A/D conversion by software, the card’s on-board pacer or an external pulse. Bit 2 to bit 0 of register BASE+6 can select the trigger source (see page 39 and page 40 for the register layout of BASE+6 and programming information). If you select software triggering, a write to the register BASE+0 with any value will trigger an A/D conversion.
Chapter 4 Register Structure and Format 33

4.5 A/D Channel Range Setting

BASE+2
Each A/D channel has its own input range, controlled by a range code stored in the on-board RAM. If you want to change the range code for a given channel, select the channel as the start channel and the stop channel in the registers of BASE+4 and BASE+5 (described in the next section), and then write the range code to BASE+2 bit 0 to bit 2 and bit 4.
Table 4-3: Register for A/D channel range setting
Write A/D channel range setting
Bit # 7 6 5 4 3 2 1 0
BASE+2 S/D B/U G2 G1 G0
S/D Single-ended or Differential 0 means the channel is single-ended, and 1 means it is differential. B/U Bipolar or Unipolar 0 means the channel is bipolar, and 1 means it is unipolar. G2 to G0 Gain Code
34 PCI-1710/1710HG User's Manual
The following table lists the gain codes for the PCI-1710:
Table 4-4: Gain codes for the PCI-1710
PCI-1710
Gain Code
Gain Input Range(V) B/U
G2 G1 G0
1 -5 to +5 0000 2 -2.5 to +2.5 0 0 0 1 4 -1.25 to +1.25 0 0 1 0 8 -0.625 to +0.625 0 0 1 1
0.5 -10 to 10 0 1 0 0 N/A 0 1 0 1 N/A 0 1 1 0 N/A 0111
1 0 to 10 1000 20 to 51001 40 to 2.51010 8 0 to 1.25 1 0 1 1
N/A 1 1 0 0 N/A 1 1 0 1 N/A 1 1 1 0 N/A 1111
Chapter 4 Register Structure and Format 35
The following lists the gain codes for the PCI-1710HG:
Table 4-5: Gain codes for the PCI-1710HG
PCI-1710HG
Gain Cod e
Gain Input Range(V) B/U
G2 G1 G0
1 -5 to +5 0000
10 -0 .5 to +0 .5 0 0 0 1
100 -0.05 to +0.05 0 0 1 0
1000 -0.005 to +0.005 0 0 1 1
0.5 -10 to +10 0 1 0 0 5-1 to +10101
50 -0.1 to +0 .1 0 1 1 0
500 -0.01 to +0.01 0 1 1 1
10 to 101000
10 0 to 1 1 0 0 1
100 0 to 0.1 1 0 1 0
1000 0 to 0.01 1 0 1 1
N/A 1 1 0 0 N/A 1 1 0 1 N/A 1110 N/A 1111
36 PCI-1710/1710HG User's Manual
4.6 MUX ControlBASE+4 and BASE+5
Table 4.6: The register for multiplexer control

Write MUX Control

Bit # 7 6 5 4 3 2 1 0
BASE+5 CH3 CH2 CH1 CH0 BASE+4 CL3 CL2 CL1 CL0
CL3 ~ CL0 Start Scan Channel Number CH3 ~ CH0 Stop Scan Channel Number
BASE+4 bit 3 to bit 0, CL3 ~ CL0, act as a pointer when you program the A/D channel setting (see previous section). When you set the MUX start channel to an analog input channel, AIn ( n = 0, 1, 2…15 ), the gain code, B/U and S/D written to the register of BASE+2, is for channel n.
Caution! W e recommend you set the same start and stop
channel when writing to the register BASE+2. Otherwise, if the A/D trigger source is on, the multiplexer will continuously scan between channels and the range setting may be set to an une xpected channel. Make sure the A/D trigger source is turned off to avoid this kind of error.
The write-only registers of BASE +4 and BASE+5 control how the multiplexers (MUXs) scan. BASE+4 bit 3 to bit 0, CL3 ~ CL0, hold the start scan channel number, and BASE+5 bit 3 to bit 0, CH3 ~ CH0, hold the stop scan channel number. Writing to these two re gisters automatically initializes the scan range of the MUXs. Each A/D conversion trigger also sets the MUXs to the ne xt channel. With continuous triggering, the MUXs will scan from the start channel to
Chapter 4 Register Structure and Format 37
the stop channel and then repeat. The following examples show the scan sequences of the MUXs (all channels are set as single-ended).
Example 1 If the start scan input channel is AI3 and the stop scan input channel is AI7, then the scan sequence is AI3, AI4, AI5, AI6, AI7, AI3, AI4, AI5, AI6, AI7, AI3, AI4…
Example 2 If the start scan channel is AI13 and the stop scan channel is AI2, then the scan sequence is AI13, AI14, AI15, AI0, AI1, AI2, AI13, AI14, AI15, AI0, AI1, AI2, AI13, AI14…
The scan logic of the PCI-1710/1710HG card is powerful and easily understood. You can set the gain code, B/U and S/D, for each channel. The scan logic will be a little complex if you set the analog input channels in differential mode, however. In differential mode, signals are transmitted by a pair of channels, AI<i, i+1> ( i = 0, 2, 4…
14) . In each pair of differential channels, the even channel is the positive end and the odd one is the negative end.
For example, if channel 0 is set as differential, then channel 0 and channel 1 are combined into one channel and refer to the gain code and B/U of channel 0 (the channel 1 values are unavailable). By the same rule, if channel 2 is set as differential, then channel 2 and channel 3 are combined into one channel, and refer to the gain code and B/U of channel 2 (the channel 3 values are unavailable). The following examples show the scan sequences in dif ferential mode.
Example 3 Suppose that the start scan input channel is AI14 and the stop scan input channel is AI3. If AI14 is differential, AI0 and AI1 are single-ended, and AI2 is differential, then the scan sequence is AI14, AI0, AI1, AI2, AI14, AI0, AI1, AI2, AI14…..
Example 4 Suppose that the start scan channel is AI11 and the stop scan channel is AI15. If AI11 is single-ended, AI12 is
38 PCI-1710/1710HG User's Manual
differential, and AI14 is differential, then the scan sequence is AI11, AI12, AI14, AI11, AI12, AI14, AI11…
Warning! Only ev en channels can be set as diff erential. An
odd channel will become unavailable if its preceding channel is set as differential.
4.7 Control Register  BASE+6
The write-only register BASE+6 allows users to set an A/D trigger source and an interrupt source.
Table 4-7: Control register

Write Control Register

Bit # 7 6 5 4 3 2 1 0
BASE + 6 CNT0 ONE/FH IRQEN GATE EXT PACER SW
SW Software trigger enable bit Set 1 to enable software trigger, and set 0 to disable. PACER PACER trigger enable bit Set 1 to enable pacer trigger, and set 0 to disable. EXT External trigger enable bit Set 1 to enable external trigger, and set 0 to disable.
Note! Users cannot enable SW, PACER and EXT
concurrently.
Chapter 4 Register Structure and Format 39
GATE External trigger gate function enable bit Set 1 to enable external trigger gate function, and set 0 to disable. IRQEN Interrupt enable bit Set 1 to enable interrupt, and set 0 to disable. ONE/FH Interrupt source bit Set 0 to interrupt when an A/D conversion occurs, and set 1 to
interrupt when the FIFO is half full. CNT0 Counter 0 clock source select bit 0 means that the clock source of Counter 0 comes from the internal
clock (100 kHz), and 1 means that the clock source of Counter 0 comes from the external clock (maximum up to 10 MHz).
4.8 Status Register  BASE+6 and
BASE+7
The registers of BASE+6 and BASE+7 provide information for the A/ D configuration and operation.
Table 4-8: Status register

Read Status Register

Bit # 7 6 5 4 3 2 1 0 BASE+7 IRQ F/F F/H F/E BASE+6 CNT0 ONE/FH IRQEN GATE EXT PACER SW
The content of the status register of BASE+6 is the same as that of the control register .
F/E FIFO Empty flag This bit indicates whether the FIFO is empty. 1 means that the FIFO is
empty .
40 PCI-1710/1710HG User's Manual
F/H FIFO Half-full flag This bit indicates whether the FIFO is half-full. 1 means that the FIFO
is half-full. F/F FIFO Full flag This bit indicates whether the FIFO is full. 1 means that the FIFO is
full. IRQ Interrupt flag This bit indicates the interrupt status. 1 means that an interrupt has
occurred.
4.9 Clear Interrupt and FIFO  BASE+8
and BASE+9
Writing data to either of these two bytes clears the interrupt or the FIFO.
Table 4-9: Registers to clear interrupt and FIFO

Write Clear Interrupt and FIFO

Bit # 7 6 5 4 3 2 1 0 BASE+9 Clear FIFO BASE+8 Clear Interrupt
Chapter 4 Register Structure and Format 41
4.10 D/A Output Channel 0  BASE+10
and BASE+11
The write-only registers of BASE+10 and BASE+11 accept data for D/A Channel 0 output.
Table 4-10: Registers for D/A channel 0 data
Write D/A Output Channel
Bit # 7 6 5 4 3 2 1 0
BASE+11 DA11 DA10 DA9 DA8
BASE+10 DA7 DA6 DA5 DA4 DA3 DA2 DA1 DA0
DA11 ~ DA0 Digital to Analog data DA0 is the LSB and DA11 is the MSB of the D/A data.
4.11 D/A Output Channel 1  BASE+12
and BASE+13
The write-only registers of BASE+12 and BASE+13 accept data for the D/A channel 1 output.
Table 5-11: Registers for D/A channel 1 data
Write D/A Output Channel
Bit # 7 6 5 4 3 2 1 0 BASE+13 DA11 DA10 DA9 DA8 BASE+12 DA7 DA6 DA5 DA4 DA3 DA2 DA1 DA0
DA11 ~ DA0 Digital to Analog data DA0 is the LSB and DA11 is the MSB of the D/A data.
42 PCI-1710/1710HG User's Manual
4.12 D/A Reference Control 
BASE+14
The write-only register of BASE+14 allows users to set the D/A reference source.
Table 4-12: Registers for D/A reference control

Write D/A Reference Control

Bit # 7 6 5 4 3 2 1 0 BASE+14 DA1_I/E DA1_5/10 DA0_I/E DA0_5/10
DA0_5/10 The internal reference voltage for the D/A output channel 0
This bit controls the internal reference voltage for the D/A output channel 0. 0 means that the internal reference voltage is 5 V, and 1 means it is 10 V.
DA0_I/E Internal or external reference voltage for the D/A output channel 0
This bit indicates that the reference voltage for the D/A output channel 0 is internal or external. 0 means that the reference voltage comes from the internal source, and 1 means it comes from an external source.
DA1_5/10 The internal reference voltage for the D/A output channel 1
This bit controls the internal reference voltage for the D/A output channel 1. 0 means that the internal reference voltage is 5 V, and 1 means it is 10 V.
DA1_I/E Internal or external reference voltage for the D/A output channel 1
This bit indicates that the reference voltage for the D/A output channel 1 is internal or external. 0 means that the reference voltage comes from the internal source, and 1 means it comes from an external source.
Chapter 4 Register Structure and Format 43
4.13 Digital I/O Registers  BASE+16
and BASE+17
The PCI-1710/1710HG card offers 16 digital input channels and 16 digital output channels. These I/O channels use the input and output ports at addresses BASE+16 and BASE+17.
Table 4-13: Register for digital input
Read Digital Input
Bit # 7 6 5 4 3 2 1 0 BASE+17 DI15 DI14 DI13 DI12 DI11 DI10 DI9 DI8 BASE+16 DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0
Table 4-14: Register for digital output
Write Digita l Ou tp ut
Bit # 7 6 5 4 3 2 1 0 BASE+17 DO15 DO14 DO13 DO12 DO11 DO10 DO9 DO8 BASE+16 DO7 DO6 DO5 DO4 DO3 DO2 DO1 DO0
Note! The default configuration of the digital output chan-
nels is a logic 0. This avoids damaging external devices during system start-up or reset since the power on status is set to the default v alue.
4.14 Programmable Timer/Counter
Registers  BASE+24, BASE+26,
BASE+28 and BASE+30
The four registers of BASE+24, BASE+26, BASE+28 and BASE+30 are used for the 82C54 programmable timer/counter. Please refer to Appendix A data sheets for detailed application information.
Note! Users have to use a 16-bit (word) command to read/
write each register.
44 PCI-1710/1710HG User's Manual
5
CHAPTER
Calibration
Chapter 5 Calibration 45

5.1 Introduction

Regular calibration checks are important to maintain accuracy in data acquisition and control applications. We provide two calibration programs, ADCAL.EXE and DACAL.EXE, on the PCI-1710/1710HG software CD-ROM. ADCAL.EXE assists you in A/D calibration, and DACAL.EXE in D/A calibration.
The ADCAL.EXE and DACAL.EXE make calibrations easy. It leads you through the calibration and setup procedure with a variety of prompts and graphic displays, showing you all of the correct settings and adjustments. This appendix offers a brief guide to these calibration programs.
T o perform a satisfactory calibration, you need a 41/2-digit digital multimeter and a voltage calibrator or a stable, noise free D. C. voltage source.

5.2 VR Assignment

There are five variable resistors (VRs) on the PCL-1710/1710HG card. They help you to make accurate adjustments on all A/D and D/A channels. Please refer to the following figure for VR position.
VR4 VR3VR2VR 1VR5
P1

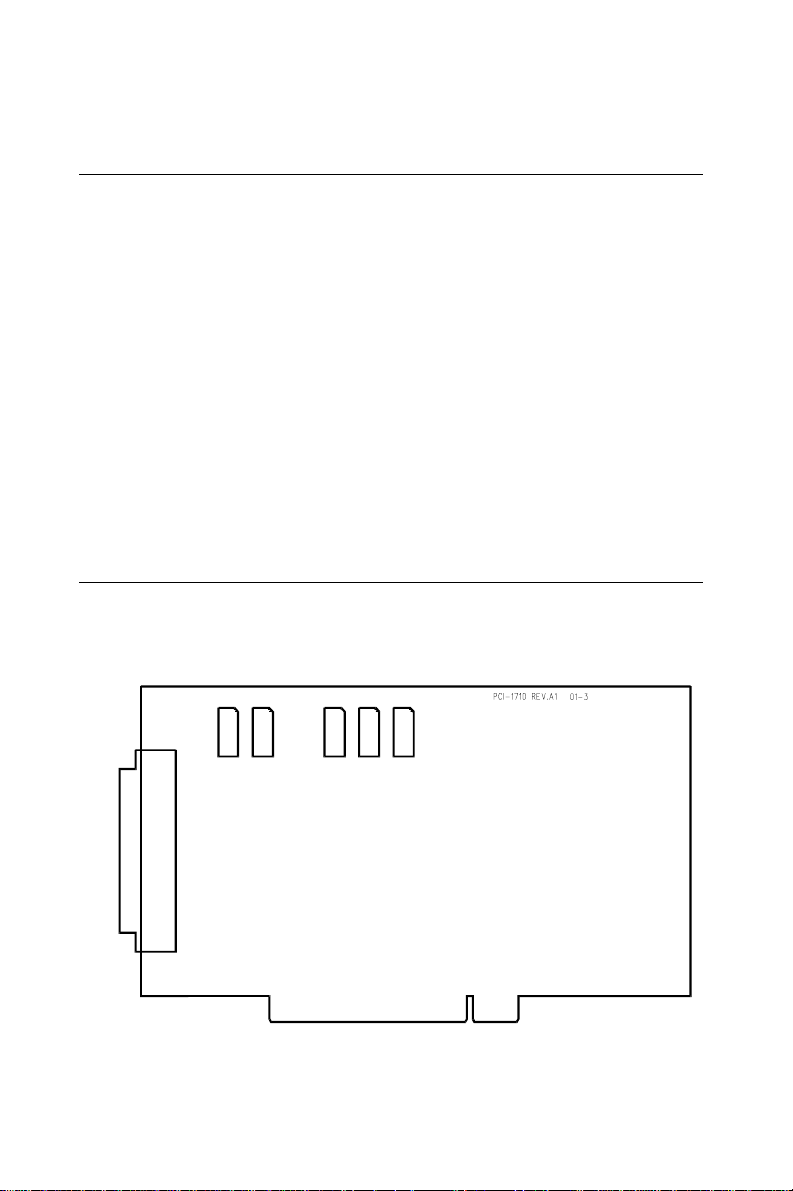

Figure 5-1: PCL-1710/1710HG VR assignment
46 PCI-1710/1710HG User's Manual
The following list shows the function of each VR:
VR Function
VR1 A/D unipolar offset VR2 A/D bipolar offset VR3 A/D full scale (gain) VR4 D/A channel 0 full scale VR5 D/A channel 1 full scale

5.3 A/D Calibration

Regular and accurate calibration procedures ensure the maximum possible accuracy. The ADCAL.EXE calibration program leads you through the whole A/D offset and gain adjustment procedure. The basic steps are outlined below:
1. Set analog input channel AI0 as single-ended, bipolar, range ±5 V,
and set AI1 as single-ended, unipolar, range 0 to 10 V.
2. Connect a DC voltage source with value equal to 0.5 LSB (-4.9959 V) to AI0.
3. Adjust VR2 until the output codes from the card's AI0 flickers between 0 and 1.
4. Connect a DC voltage source with a value of 4094.5 LSB (4.9953 V) to AI0.
5. Adjust VR3 until the output codes from the card's AI0 flickers between 4094 and 4095.
6. Repeat step 2 to step 5, adjusting VR2 and VR3.
7. Connect a DC voltage source with value equal to 0.5 LSB (1.22 mV) to AI1.
8. Adjust VR1 until the output codes from the card's AI1 flickers between 0 and 1.
Chapter 5 Calibration 47
A/D code Mapping Voltage
Hex. Dec. Bipolar ± 5V Unipolar 0 to 10V
000h 0 -4.9971V 0V
7FFh 2047 -0.0024V 4.9947V
800h 2048 0V 4.9971V
FFFh 4095 +4.9947V 9.9918V

5.4 D/A Calibration

In a way similar to the ADCAL.EXE program, the DACAL.EXE program leads you through the whole D/A calibration procedure.
You can either use the on-board -5 V (-10 V) internal reference voltage or use an external reference. If you use an external reference, connect a reference voltage within the range ±10 V to the reference input of the D/A output channel you want to calibrate. Adjust the full scale (gain) of D/A channel 0 and 1, with VR4 and VR5 respectively.
Note! Using a precision voltmeter to calibrate the D/A
outputs is recommended.
Set the D/A data register to 4095 and adjust VR3 until the D/A output voltage equals the reference voltage minus 1 LSB, but with the opposite sign. For example, if V V. If V
48 PCI-1710/1710HG User's Manual
is -10 V, V
ref
should be +9.9918 V.
out
is -5 V, then V
ref
should be +4.9959
out

5.5 Self A/D Calibration

Under many conditions, it is difficult to find a good enough DC voltage source for A/D calibration. There is a simple method to solve this problem. First, you should calibrate D/A channel 0, DA0_OUT, with internal reference -5 V, and D/A channel 1, DA1_OUT, with reference -10 V.
Then, run the ADCAL.EXE program to finish the self-A/D calibration procedure.
1. Set AI0 as differential, bipolar, range ±5 V and AI2 as differential, unipolar, range 0 to 10 V.
2. Connect DA0_OUT with codes equal to 4095 LSB (4.9959 V) to AI 0. Notice that the polarity of AI0 should be connected with reverse polarity (i.e. D/A + to A/D -, D/A - to A/D +).
3. Adjust VR2 until the output codes from the card's AI0 flicker between 0 and 1.
4. Connect DA0_OUT with codes equal to 4095 LSB (4.9959 V) to AI0.
5. Adjust VR3 until the output codes from the card's AI0 flickers between 4094 and 4095.
6. Repeat steps 2 through 5, adjusting VR2 and VR3.
7. Connect DA1_OUT with codes equal to 1 LSB (2.44 mV) to AI2.
8. Adjust VR1 until the output codes from the card's AI1 flicker between 0 and 1.
9. Finish ADCAL.EXE.
Chapter 5 Calibration 49
50 PCI-1710/1710HG User's Manual
A
APPENDIX
82C54 Counter Chip
Functions
Appendix A 8524 Counter Chip Functions 51

A.1 The Intel 82C54

The PCI-1710/1710HG uses one Intel 82C54 compatible programma­ble interval timer/counter chip. The popular 82C54 offers three independent 16-bit counters, counter 0, counter 1 and counter 2. Each counter has a clock input, control gate and an output. You can program each counter for maximum count values from 2 to 65535.
The 82C54 has a maximum input clock frequency of 1 MHz. The PCI-1710/1710HG provides 1 MHz input frequencies to the counter chip from an on-board crystal oscillator.
Counter 0
On the PCI-1710/1710HG, counter 0 can be a 16-bit timer or an event counter, selectable by users. When the clock source is set as an internal source, counter 0 is a 16-bit timer; when set as an external source, then counter 0 is an event counter and the clock source comes from CNT0_CLK. The counter is controlled by CNT0_GATE. When CNT0_GATE input is high, counter 0 will begin to count.
Counter 1 & 2
Counter 1 and counter 2 of the counter chip are cascaded to create a 32-bit timer for the pacer trigger. A low-to-high edge of counter 2 output (PACER_OUT) will trigger an A/D conversion. At the same time, you can use this signal as a synchronous signal for other applications.
52 PCI-1750 User's Manual
A.2 Counter Read/Write and
Control Registers
The 82C54 programmable interval timer uses four registers at addresses BASE + 24(Dec), BASE + 26(Dec), BASE + 28(Dec) and BASE + 30(Dec) for read, write and control of counter functions. Register functions appear below:
Register Function
BASE + 24(Dec) Counter 0 read/write BASE + 26(Dec) Counter 1 read/write BASE + 28(Dec) Counter 2 read/write BASE + 30(Dec) Counter control word
Since the 82C54 counter uses a 16-bit structure, each section of read/write data is split into a least significant byte (LSB) and most significant byte (MSB). To avoid errors it is important that you make read/write operations in pairs and keep track of the byte order.
The data format for the control register appears below:
BASE+30(Dec) 82C54 control, standard mode
Bit D7 D6 D5 D4 D3 D2 D1 D0 Value SC1 SC0 RW1 RW0 M2 M1 M0 BCD
Description:
SC1 & SC0 Select counter.
Counter SC1 S C0
000 101 210 Read-back command 1 1
Appendix A 8524 Counter Chip Functions 53
RW1 & RW0 Select read/write operation
Operation RW1 RW0
Counter latch 0 0 Read/write LSB 0 1 Read/write MSB 1 0 Read/write LSB first, 1 1
then MSB
M2, M1 & M0 Select operating mode
M2 M1 M0 Mode Description
0 0 0 0 Stop on terminal count 0 0 1 1 Programmable one shot X 1 0 2 Rate generator X 1 1 3 Square wave rate generator 1 0 0 4 Software triggered strobe 1 0 1 5 Hardware triggered strobe
BCD Select binary or BCD counting.
BCD Type
0 Binary counting 16-bits 1 Binary coded decimal (BCD) counting
If you set the module for binary counting, the count can be any number from 0 up to 65535. If you set it for BCD (Binary Coded Decimal) counting, the count can be any number from 0 to 9999.
If you set both SC1 and SC0 bits to 1, the counter control register is in read-back command mode. The control register data format then
54 PCI-1750 User's Manual
becomes:
BASE + 30(Dec) 82C54 control, read-back mode Bit D7 D6 D5 D4 D3 D2 D1 D0
Value 1 1 CNTSTAC2C1C0X
CNT = 0 Latch count of selected counter(s). STA = 0 Latch status of selected counter(s). C2, C1 & C0 Select counter for a read-back operation.
C2 = 1 select Counter 2 C1 = 1 select Counter 1 C0 = 1 select Counter 0
If you set both SC1 and SC0 to 1 and STA to 0, the register selected by C2 to C0 contains a byte which shows the status of the counter. The data format of the counter read/write register then becomes:
BASE+24/26/28(Dec) Status read-back mode
Bit D7 D6 D5 D4 D3 D2 D1 D0 Value OUT NC RW1 RW0 M2 M1 M0 BCD
OUT Current state of counter output NC Null count is 1 when the last count written to the counter
register has been loaded into the counting element
Appendix A 8524 Counter Chip Functions 55

A.3 Counter Operating Modes

MODE 0  Stop on Terminal Count
The output will initially be low after you set this mode of operation. After you load the count into the selected count register, the output will remain low and the counter will count. When the counter reaches the terminal count, its output will go high and remain high until you reload it with the mode or a new count value. The counter continues to decrement after it reaches the terminal count. Rewriting a counter register during counting has the following results:
1. Writing to the first byte stops the current counting.
2. Writing to the second byte starts the new count.
MODE 1  Programmable One-shot Pulse
The output is initially high. The output will go low on the count following the rising edge of the gate input. It will then go high on the terminal count. If you load a new count value while the output is low, the new value will not affect the duration of the one-shot pulse until the succeeding trigger. You can read the current count at any time without affecting the one-shot pulse. The one-shot is retriggerable, thus the output will remain low for the full count after any rising edge at the gate input.
MODE 2  Rate Generator
The output will be low for one period of the input clock. The period from one output pulse to the next equals the number of input counts in the counter register. If you reload the counter register between output pulses, the present period will not be affected, but the subsequent period will reflect the value.
56 PCI-1750 User's Manual
The gate input, when low, will force the output high. When the gate input goes high, the counter will start from the initial count. You can thus use the gate input to synchronize the counter.
With this mode the output will remain high until you load the count register. You can also synchronize the output by software.
MODE 3  Square Wave Generator
This mode is similar to Mode 2, except that the output will remain high until one half of the count has been completed (for even num­bers), and will go low for the other half of the count. This is accom­plished by decreasing the counter by two on the falling edge of each clock pulse. When the counter reaches the terminal count, the state of the output is changed, the counter is reloaded with the full count and the whole process is repeated.
If the count is odd and the output is high, the first clock pulse (after the count is loaded ) decrements the count by 1. Subsequent clock pulses decrement the count by 2. After time-out, the output goes low and the full count is reloaded. The first clock pulse (following the reload) decrements the counter by 3. Subsequent clock pulses decre­ment the count by two until time-out, then the whole process is repeated. In this way, if the count is odd, the output will be high for (N+1)/2 counts and low for (N-1)/2 counts.
MODE 4 Software-Triggered Strobe
After the mode is set, the output will be high. When the count is loaded, the counter will begin counting. On terminal count, the output will go low for one input clock period then go high again.
If you reload the count register during counting, the new count will be loaded on the next CLK pulse. The count will be inhibited while the GATE input is low.
MODE 5  Hardware-Triggered Strobe
The counter will start counting after the rising edge of the trigger input and will go low for one clock period when the terminal count is reached. The counter is retriggerable.
Appendix A 8524 Counter Chip Functions 57

A.4 Counter Operations

Read/Write Operation
Before you write the initial count to each counter, you must first specify the read/write operation type, operating mode and counter type in the control byte and write the control byte to the control register [BASE + 30(Dec)].
Since the control byte register and all three counter read/write registers have separate addresses and each control byte specifies the counter it applies to (by SC1 and SC0), no instructions on the operat­ing sequence are required. Any programming sequence following the 82C54 convention is acceptable.
There are three types of counter operation: Read/load LSB, read /load MSB and read /load LSB followed by MSB. It is important that you make your read/write operations in pairs and keep track of the byte order.
Counter Read-back Command
The 82C54 counter read-back command lets you check the count value, programmed mode and current states of the OUT pin and Null Count flag of the selected counter(s). You write this command to the control word register. Format is as shown at the beginning of this section.
The read-back command can latch multiple counter output latches. Simply set the CNT bit to 0 and select the desired counter(s). This single command is functionally equivalent to multiple counter latch commands, one for each counter latched.
The read-back command can also latch status information for selected counter(s) by setting STA bit = 0. The status must be latched to be read; the status of a counter is accessed by a read from that counter. The counter status format appears at the beginning of the chapter.
58 PCI-1750 User's Manual
Counter Latch Operation
Users often want to read the value of a counter without disturbing the count in progress. You do this by latching the count value for the specific counter then reading the value.
The 82C54 supports the counter latch operation in two ways. The first way is to set bits RW1 and RW0 to 0. This latches the count of the selected counter in a 16-bit hold register. The second way is to perform a latch operation under the read-back command. Set bits SC1 and SC0 to 1 and CNT = 0. The second method has the advantage of operating several counters at the same time. A subsequent read operation on the selected counter will retrieve the latched value.
Appendix A 8524 Counter Chip Functions 59
60 PCI-1750 User's Manual
Loading...
