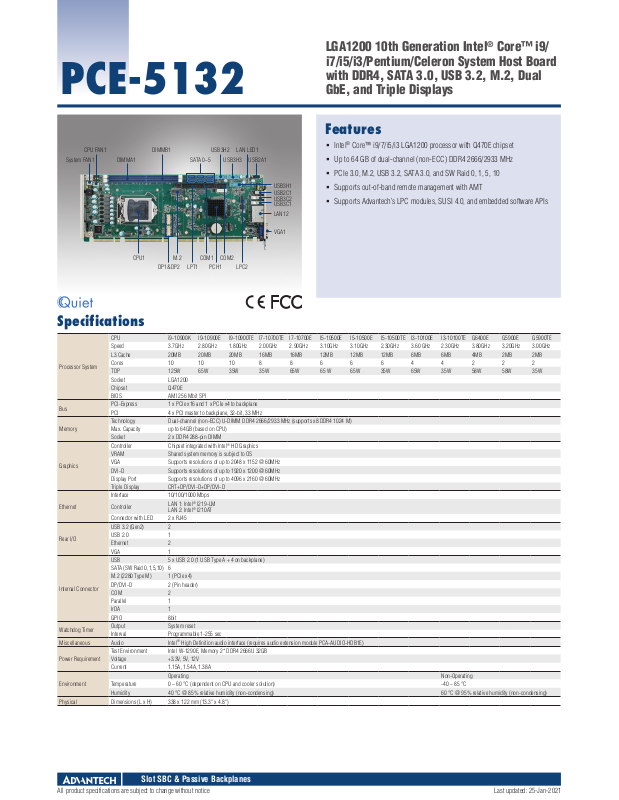

Advantech PCE-5132 Users guide

PCE-5132

System FAN1

DIMMA1 USB3H3 USB2A1

DIMMB1 USB3H2 LAN LED1CPU FAN1

SATA 0~5

USB3H1 USB2C1

USB3C2 USB3C1

LAN12

VGA1

LGA1200 10th Generation Intel® Core™ i9/ i7/i5/i3/Pentium/Celeron System Host Board with DDR4, SATA 3.0, USB 3.2, M.2, Dual GbE, and Triple Displays

Features

 Intel® Core™ i9/7/i5/i3 LGA1200 processor with Q470E chipset

 Up to 64 GB of dual-channel (non-ECC) DDR4 2666/2933 MHz

 PCIe 3.0, M.2, USB 3.2, SATA 3.0, and SW Raid 0, 1, 5, 10

 Supports out-of-band remote management with AMT

 Supports Advantech’s LPC modules, SUSI 4.0, and embedded software APIs

CPU1 M.2 COM1

LPT1

DP1&DP2 PCH1 LPC2

Specifications

CPU i9-10900K I9-10900E I9-10900TE I7-10700TE I7-10700E I5-10500E I5-10500E I5-10500TE I3-10100E I3-10100TE G6400E G5900E G5900TE Speed 3.7GHz 2.80GHz 1.80GHz 2.00GHz 2.90GHz 3.10GHz 3.10GHz 2.30GHz 3.60 GHz 2.30GHz 3.80GHz 3.20GHz 3.00GHz L3 Cache 20MB 20MB 20MB 16MB 16MB 12MB 12MB 12MB 6MB 6MB 4MB 2MB 2MB

Processor System

Bus

Memory

Graphics

Ethernet

Rear I/O

Internal Connector

Watchdog Timer

Miscellaneous Audio Intel

Power Requirement

Environment

Physical Dimensions (L x H) 338 x 122 mm (13.3" x 4.8")

Cores 10 10 10 8 8 6 6 6 4 4 2 2 2 TDP 125W 65W 35W 35W 65W 65 W 65W 35W 65W 35W 58W 58W 35W Socket LGA1200 Chipset Q470E BIOS AMI 256 Mbit SPI PCI-Express 1 x PCIe x16 and 1 x PCIe x4 to backplane PCI 4 x PCI master to backplane, 32-bit, 33 MHz Technology Dual-channel (non-ECC) U-DIMM DDR4 2666/2933 MHz (supports x8 DDR4 1024 M) Max. Capacity up to 64GB (based on CPU) Socket 2 x DDR4 288-pin DIMM Controller Chipset integrated with Intel VRAM Shared system memor y is subject to OS VGA Supports resolutions of up to 2048 x 1152 @ 60MHz DVI-D Supports resolutions of up to 1920 x 1200 @ 60MHz Display Port Supports resolutions of up to 4096 x 2160 @ 60MHz Triple Display CRT+DP/DVI-D+DP/DVI-D Interface 10/100/1000 Mbps

Controller

Connector with LED 2 x RJ45 USB 3.2 (Gen2) 2 USB 2.0 1 Ethernet 2 VGA 1 USB 5 x USB 2.0 (1 USB Type A + 4 on backplane) SATA (SW Raid 0,1,5,10) 6 M.2 (2280 Type M) 1 (PCIe x4) DP/DVI-D 2 (Pin header) COM 2 Parallel 1 IrDA 1 GPIO 8bit Output System reset Interval Programmable 1-255 sec

Test Environment Intel W-1290E, Memory 2* DDR4 2666U 32GB Voltage +3.3V, 5V, 12V Current 1.15A, 1.54A, 1.38A

Temperature 0 ~ 60 °C (dependent on CPU and cooler solution) -40 ~ 85 °C Humidity 40 °C @ 85% relative humidity (non-condensing) 60 °C @ 95% relative humidity (non-condensing)

I219-LM

LAN 1: Intel

LAN 2: Intel

I210AT

High Definition audio interface (requires audio extension module PCA-AUDIO-HDB1E)

Operating Non-Operating

COM2

HD Graphics

Slot SBC & Passive Backplanes

All product specifications are subject to change without notice Last updated: 25-Jan-2021

Block Diagram

DDI1

PCE-5132

VGA CONN.

USB 3.2 x 1 USB 2.0 x 1

USB3 Rear Panel

USB 3.2 x 1 USB 2.0 x 1

USB3 Rear Panel

VGA

PICMG 1.3 GF-C

USB2 Rear Panel

USB2 Int Type A

USB3 Pin Header

DP/DVI BtW

Converter

CHRONTEL CH7517A-BF

SATA 0~5 CONN

S/W RAID 0, 1, 5, 10

Pin Header

USB 2.0 x 4

USB 2.0 x 1

USB 3.2 x 2 USB 2.0 x 2

USB 3.2 Gen1 USB 3.2 Gen1

USB 3.2 Gen1

Port 2

USB 3.2 Gen2

Redriver

NB7NPQ7042

SPI BIOS (SKT)

DP+HDMI/DVI

DDI2

DP+HDMI/DVI

DDI3

DP+HDMI/DVI

eDP

600 MB/s

Gen 3.0

HD Audio

USB 2.0

Port 7,8,9,10

USB 2.0

Port 6

USB 2.0

Port 1

USB 3.2 Gen1

Port 7,8

USB 2.0

Port 13,14

USB 3.2 Gen1

Port 5,6

USB 2.0

Port 11,12

USB 3.2 Gen1

Port 3,4

USB 2.0

Port 3,4

USB 2.0

Port 5

Port 2

USB 3.2 Gen1

Port 1Port 1

USB 2.0

Port 2

SPI Bus

CPU

Comet Lake S

LGA1200

DMIx4

PCH

Comet Lake PCH-H

Q470E

Gen3

Channel A

Channel B

PCIe x16

Gen3.0

PCIEx1 Lane9

Gen 1.0

PCIEx1 Lane11

Gen 1.0

PCIe Lane 21~24

Gen 3.0

PCIex4 Lane5~8

Gen 2.0

PCIe x1 Lane10

Gen 1.0

PCIe x1 Lane12

Gen 1.0

LPC Bus

DDR4 288 PIN CHA

2666/2933 ECC/Non-ECC

DDR4 288 PIN CHA

2666/2933 ECC/Non-ECC

PICMG 1.3

Intel Jacksonville

i219LM/i219V GbE (PHY)

Intek Pearsonville

i210 GBE (NIC)

M.2 (M-Key 2280 type)

PCIE x4 Only

PICMG 1.3

EXPCIE1

PCIe Briage IT8896E/LX

LQFP 128P 16 x 16 mm

Super I/O NCT6776D

LQFP 128P 14 x 14 mm

LPC CONN.

Gold Finger_A&B

RJ45 CONN.

10/100/1G LAN1

RJ45 CONN.

10/100/1G

Gold Finger_A

BtB

33MHz

PCI

RS-232 x2

H/W Monitor

CASE OPEN

8 bit GPIO

PS2 KB, MS

FAN X2

PICMG 1.3

Gold Finger_D

WDT

LPT

Rear Panel

LAN2

Rear Panel

BOX Header

Int. BOX Header

Ordering Information

Part Number PCH Memory Backplane LAN VGA DP/DVI-D COM SATA III M.2 USB 2.0

PCE-5132G2-00A1 Q470E Non-ECC

Note: DP/DVI-D cable is optional

Packing List

Part Number Description Quantity

1700003194 Serial ATA HDD data cable x2 1701260305 COM + printer ports cable kit x1 2190000902 Warranty card x1 2041513200 Startup manual x1

I/O View

PCE-5132G2-00A1

PCE-5BXX PCE-7BXX

2 Yes 2* 2 6 1 6 6 2 Yes Yes

Optional Accessories

Part Number Description

1960049408N001 CPU cooler for 1U Chassis and 84W TDP 1960050255N001 CPU cooler for 2U Chassis and 95W TDP 1960052651N021 CPU cooler for 2U/4U Chassis and 80W TDP 1960067860N001 CPU cooler for 2U/4U chassis and 125W TDP PCA-AUDIO-HDB1E Audio module PCA-COM232-00A1E 4-port RS-232 LPC module PCA-COM485-00A1E 4-port RS-422/485 LPC module 1700002204 2-port USB2.0 cable w/BKT (27 cm) 1700020277-01 2-port USB 3.0 cable w/ BKT (30 cm) 1700031719-01 4-port USB 3.0 cable w/ BRK (30 cm) 1700021831-01 DP to DVI-D cable w/ BKT PCE-DP10-00A1E DP to DP cable w/ BKT PCA-TPM-00B1E TPM 2.0 Module PCE-SA01-00A1E Extension Stack Board 20706WX9HS0097 PCE-5132 win 10 embedded OS (high-end) 20706WX9VS0101 PCE-5132 win 10 embedded OS (value) 20706WX9ES0111 PCE-5132 win 10 embedded OS (entry)

* for PCE-7132/5132/5032, PCE-SA01-00A1E miniPCIe only support PCIex1 signal

Online Download

www.advantech.com/products

USB3.2 (Gen1)

USB3.2 (Gen2)

S/W Raid AMT
