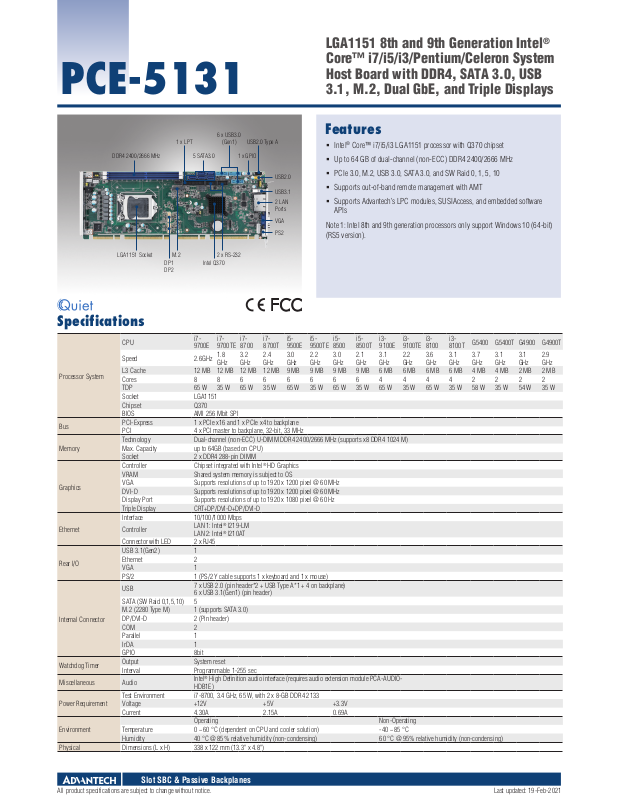

advantech PCE-5131 DATASHEET

PCE-5131

LGA1151 8th and 9th Generation Intel

Core™ i7/i5/i3/Pentium/Celeron System Host Board with DDR4, SATA 3.0, USB

3.1, M.2, Dual GbE, and Triple Displays

1 x LPT

DDR4 2400/2666 MHz 1 x GPIO5 SATA3.0

DP2

6 x USB3.0

(Gen1) USB2.0 Type A

2 x RS-232M.2LGA1151 Socket

Intel Q370DP1

Specifications

i7-

CPU

Speed 2.6GHz

Processor System

Bus

Memory

Graphics

Ethernet

Rear I/O

Internal Connector

Watchdog Timer

Miscellaneous Audio

Power Requirement

Environment

Physical Dimensions (L x H) 338 x 122 mm (13.3" x 4.8")

L3 Cache 12 MB 12 MB 12 MB 12 MB 9 MB 9 MB 9 MB 9 MB 6 MB 6 MB 6 MB 6 MB 4 MB 4 MB 2 MB 2 MB Cores 8 8 6 6 6 6 6 6 4 4 4 4 2 2 2 2 TDP 65 W 35 W 65 W 35 W 65 W 35 W 65 W 35 W 65 W 35 W 65 W 35 W 58 W 35 W 54 W 35 W Socket LGA1151 Chipset Q370 BIOS AMI 256 Mbit SPI PCI-Express 1 x PCIe x16 and 1 x PCIe x4 to backplane PCI 4 x PCI master to backplane, 32-bit, 33 MHz Technology Dual-channel (non-ECC) U-DIMM DDR4 2400/2666 MHz (supports x8 DDR4 1024 M) Max. Capacity up to 64GB (based on CPU) Socket 2 x DDR4 288-pin DIMM Controller Chipset integrated with Intel VRAM Shared system memory is subject to OS VGA Supports resolutions of up to 1920 x 1200 pixel @ 60 MHz DVI-D Supports resolutions of up to 1920 x 1200 pixel @ 60 MHz Display Port Supports resolutions of up to 1920 x 1080 pixel @ 60 Hz Triple Display CRT+DP/DVI-D+DP/DVI-D Interface 10/100/1000 Mbps

Controller

Connector with LED 2 x RJ45 USB 3.1(Gen2) 1 Ethernet 2 VGA 1 PS/2 1 (PS/2 Y cable supports 1 x keyboard and 1 x mouse)

USB

SATA (SW Raid 0,1,5,10) 5 M.2 (2280 Type M) 1 (supports SATA 3.0) DP/DVI-D 2 (Pin header) COM 2 Parallel 1 IrDA 1 GPIO 8bit Output System reset Interval Programmable 1-255 sec

Test Environment i7-8700, 3.4 GHz, 65 W, with 2 x 8-GB DDR4 2133 Voltage +12V +5V +3.3V Current 4.30A 2.15A 0.69A

Temperature 0 ~ 60 °C (dependent on CPU and cooler solution) -40 ~ 85 °C Humidity 40 °C @ 85% relative humidity (non-condensing) 60 °C @ 95% relative humidity (non-condensing)

9700E

LAN 1: Intel LAN 2: Intel

7 x USB 2.0 (pin header*2 + USB Type A*1 + 4 on backplane) 6 x USB 3.1(Gen1) (pin header)

High Definition audio interface (requires audio extension module PCA-AUDIO-

Intel HDB1E)

Operating Non-Operating

9700TE

1.8 GHz

I219-LM

I210AT

i78700

3.2 GHz

USB2.0

USB3.1

2 LAN Ports

VGA

PS2

i78700T

2.4 GHz

HD Graphics

i59500E

3.0 GHz

Features

 Intel® Core™ i7/i5/i3 LGA1151 processor with Q370 chipset

 Up to 64 GB of dual-channel (non-ECC) DDR4 2400/2666 MHz

 PCIe 3.0, M.2, USB 3.0, SATA 3.0, and SW Raid 0, 1, 5, 10

 Supports out-of-band remote management with AMT

 Supports Advantech’s LPC modules, SUSIAccess, and embedded software

APIs

Note 1: Intel 8th and 9th generation processors only support Windows 10 (64-bit) (RS5 version).

i5-

i3-

9500TE

2.2 GHz

8500

3.0 GHz

8500T

2.1 GHz

9100E

3.1 GHz

9100TE

2.2 GHz

8100

3.6 GHz

G5400 G5400T G4900 G4900T

8100T

3.1

3.7 GHz

3.1 GHz

GHz

3.1 GHz

2.9 GHz

Slot SBC & Passive Backplanes

All product specifications are subject to change without notice. Last updated: 19-Feb-2021

Block Diagram

PCE-5131

VGA CH7517A-BF

Display Port 1

(Pin Header)

Display Port 2

(Pin Header)

5 x SATA III

PCA-Audio Module

1 x Rear USB 3.1(Gen2)

6 x USB 3.1(Gen1)

(Pin Header)

1 x USB 2.0 Type A

2 x USB 2.0

(Pin Header)

4 x USB 2.0 to BP

M.2 2280 Type M

SPI ROM

DDI

600/MB s

HD Audio

USB3.1

Port 1

USB3.1

Port 3-8

USB2.0

Port 1

USB2.0

Port 5-6

USB2.0

Port 8-11

PCIex4

SATA3.0 USB 2.0

SPI BUS

Intel LGA 1151 Processor

DMI

Q370

PCH-H

Gen3

Channel A

Channel B

x16 PCIe*1

Gen3.0

x1 PCIe

Lane 2

x1 PCIe

Lane 7

x1 PCIe

Lane 1

x1 PCIe*4

Gen3.0

LPC BUS

LPC Modules

(Optional)

DDR4 2400/2666

Connector A & B

Intel I219LM GbE(PHY)

Intel I210AT GbE(NIC)

PCIe toPCI Bridge

PICMG1.3

Connector A

Super I/O

NCT 6776D

2 x RS-232

PS/2 KB/MS

H/W Monitor

4 PCI

33MHz

Watchdog Timer

PICMG1.3

Connector D

Case Open

Print Port

8 Bits GPIO

Ordering Information

USB

Part Number PCH Memory Backplane LAN VGA DP/DVI-D COM SATA III M.2

2.0

PCE-5131G2-00A1 Q370 Non-ECC PCE-5BXX 2 Yes 2* 2 5 1 7 6 1 Yes Yes

Note: DP/DVI-D cable is optional

Packing List

Part Number Description Quantity

1700003194 Serial ATA HDD data cable x2 1701260305 COM + printer ports cable kit x1 1700060202 Keyboard and mouse Y-cable x1 1700002204 2-port USB cable kit x1 2190000902 Warranty card x1 2001512910 Startup manual x1 2061512900 Utility CD x1

Optional Accessories

Part Number Description

1960049408N001 CPU cooler for 1U Chassis and 84W TDP 1960050255N001 CPU cooler for 2U Chassis and 95W TDP 1960052651N021 CPU cooler for 2U/4U Chassis and 80W TDP PCA-AUDIO-HDB1E Audio module PCA-COM232-00A1E 4-port RS-232 LPC module PCA-COM485-00A1E 4-port RS-422/485 LPC module 1700031719-01 4-port USB 3.0 cable w/ BKT (30cm) 1700020277-01 2-port USB 3.0 cable w/ BKT (30 cm) 1700021831-01 DP to DVI-D cable w/ BKT

I/O View

PCE-DP10-00A1E DP to DP cable w/ BKT PCA-TPM-00B1E TPM 2.0 Module

PCE-5131G2-00A1E

Online Download

www.advantech.com/products

3.1

USB 3.1 (Gen2)

S/W Raid AMT
