PCA-6773
ISA Intel ULV400,650/LV800, 933
Slot PC, CPU/VGA/LCD/LVDS/
LAN/CFC and PC/104
User’s Manual
Copyright
This document is copyrighted, © 2003. All rights are reserved. The original manufacturer reserves the right to make improvements to the products
described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of
the original manufacturer. Information provided in this manual is
intended to be accurate and reliable. However, the original manufacturer
assumes no responsibility for its use, nor for any infringements upon the
rights of third parties that may result from such use.
Acknowledgements
Award is a trademark of Award Software International, Inc.
VIA is a trademark of VIA Technologies, Inc.
IBM, PC/AT, PS/2 and VGA are trademarks of International Business
Machines Corporation.
Intel and Pentium are trademarks of Intel Corporation.
Microsoft Windows® is a registered trademark of Microsoft Corp.
RTL is a trademark of Realtek Semi-Conductor Co., Ltd.
ESS is a trademark of ESS Technology, Inc.
UMC is a trademark of United Microelectronics Corporation.
SMI is a trademark of Silicon Motion, Inc.
Creative is a trademark of Creative Technology LTD.
All other product names or trademarks are properties of their respective
owners.
For more information on this and other Advantech products, please visit
our websites at: http://www.advantech.com
http://www.advantech.com/epc
For technical support and service, please visit our support website at:
http://service.advantech.com.tw/eservice/
This manual is for the PCA-6773.
Part No.200K677310
2 nd Edition, Nov, 2004
PCA-6773 User’s Manual ii
Packing List
Before you begin installing your card, please make sure that the following
materials have been shipped:
• 1 PCA-6773 all-in one single board computer
• 1 startup manual
• 1 CD-ROM or disks for utility, drivers, and manual (in PDF format)
• 1 power cable p/n:1703080101
• 1 PS/2 KB/M cable p/n:1700060202
• 1 COM port cable p/n:1701140201
• 1 FDD cable p/n:1701340705
• 1 EIDE cable p/n:170140060A
• Mini Jumper p/n:1653302122
If any of these items are missing or damaged, contact your distributor or
sales representative immediately.
Optional Item:
1703100260 USB cable adapter(2.00mm)
iii
Model No. List Description
PCA-6773F-J0A1 ISA Celeron ULV400 Slot PC
VGA/LCD/LVDS/LAN/CFC/PC104
PCA-6773-MOA1 ISA Celeron ULV650 Slot PC
VGA/LCD/LVDS/LAN/CFC/PC104
PCA-6773-R0A1 ISA Intel LV933 Slot PC
VGA/LCD/LVDS/2LAN/CFC/PC104
Additional Information and Assistance
Visit the Advantech web site at www.advantech.com where you can find
the latest information about the product.
Step 1. Contact your distributor, sales representative, or Advantech's cus-
tomer service center for technical support if you need additional
assistance. Please have the following information ready before
you call:
• Product name and serial number
• Description of your peripheral attachments
• Description of your software (operating system, version, application
software, etc.)
• A complete description of the problem
• The exact wording of any error messages
PCA-6773 User’s Manual iv
FCC
This device complies with the requirements in
part 15 of the FCC rules: Operation is subject to
the following two conditions:
1.This device may not cause harmful interference, and
2. This device must accept any interference
received, including interference that may cause
undesired operation
This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment
is operated in a commercial environment. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this device in a residential
area is likely to cause harmful interference in
which case the user will be required to correct
the interference at his/her own expense. The
user is advised that any equipment changes or
modifications not expressly approved by the
party responsible for compliance would void the
compliance to FCC regulations and therefore,
the user's authority to operate the equipment.
Caution!
Achtung!
There is a danger of a new battery exploding if it
is incorrectly installed. Do not attempt to
recharge, force open, or heat the battery.
Replace the battery only with the same or equivalent type recommended by the manufacturer.
Discard used batteries according to the manufacturer’s instructions.
v
PCA-6773 User’s Manual vi
Contents
Chapter 1 General Information ........................................1
1.1 Introduction ....................................................................... 2
1.2 Features ............................................................................. 2
1.3 Specifications .................................................................... 3
1.4 Board layout: dimensions .................................................. 5
Chapter 2 Installation ........................................................7
2.1 Jumpers.............................................................................. 8
2.2 Connectors......................................................................... 8
2.3 Locating Connectors(component side)........................... 10
2.4 Locating Connectors(solder side).................................... 11
2.5 Setting Jumpers ............................................................... 12
2.6 Clear CMOS (JP1) .......................................................... 13
2.7 RS232/422/485 Select(J1) ............................................... 14
2.8 Watchdog timer configuration ........................................ 14
2.9 Installing DIMMs ............................................................ 15
2.10 ATX power control connector (CN24) ........................... 15
2.11 Printer port connector (CN5)........................................... 16
2.12 CompactFlash Card Connector ....................................... 16
2.13 Floppy drive connector (CN4) ........................................ 16
2.14 Primary IDE connector(CN3) ......................................... 17
2.15 VGA/LCD interface connections .................................... 18
2.16 USB connectors (CN9,CN25) ......................................... 19
2.17 Ethernet configuration..................................................... 20
2.18 Power connectors (CN19, FAN1) ................................... 20
2.19 HDD ,PWR LED Connector & WDT output(CN6) ....... 20
2.20 COM port connector (CN20,CN21)................................ 21
2.21 Keyboard and PS/2 mouse connector (CN26) ................ 21
2.22 External KB/Mouse Connector(CN23) ........................... 21
2.23 Audio AC97 interface(CN12) ......................................... 21
2.24 IR Connector(CN13) ....................................................... 21
Chapter 3 Software Configuration .................................23
3.1 Introduction ..................................................................... 24
3.2 VGA display firmware configuration ............................. 24
Figure 3.1:VGA setup screen........................................ 25
Chapter 4 PCI SVGA Setup ............................................27
4.1 Introduction ..................................................................... 28
4.1.1 Chipset .......................................................................... 28
4.1.2 Display memory............................................................ 28
vii
4.1.3 Display types................................................................. 28
4.2 Installation of the SVGA Driver ..................................... 29
4.2.1 Installation for Windows 95 ......................................... 29
4.2.2 Installation for Windows 98/Me ................................... 33
4.2.3 Installation for Windows NT ........................................ 38
4.2.4 Installation for Windows 2000 ..................................... 43
4.2.5 Installation for Windows XP ........................................ 48
4.3 Further Information ......................................................... 54
Chapter 5 PCI Bus Ethernet Interface...........................55
5.1 Introduction ..................................................................... 56
5.2 Installation of Ethernet driver ......................................... 56
5.2.1 Installation for MS-DOS and Windows 3.1.................. 56
5.2.2 Installation for Windows 98 ......................................... 56
5.2.3 Installation for Windows 2000 ..................................... 60
5.2.4 Installation for Windows NT ........................................ 65
5.3 Further information ......................................................... 71
Chapter 6 Award BIOS Setup.........................................73
6.1 System test and initialization........................................... 74
6.1.1 System configuration verification................................. 74
6.2 Award BIOS setup .......................................................... 75
6.2.1 Entering setup .............................................................. 75
Figure 6.1:BIOS setup program initial screen .............. 75
6.2.2 Standard CMOS Features setup.................................... 76
Figure 6.2:CMOS Features setup.................................. 76
6.2.3 Advanced BIOS Features setup .................................... 77

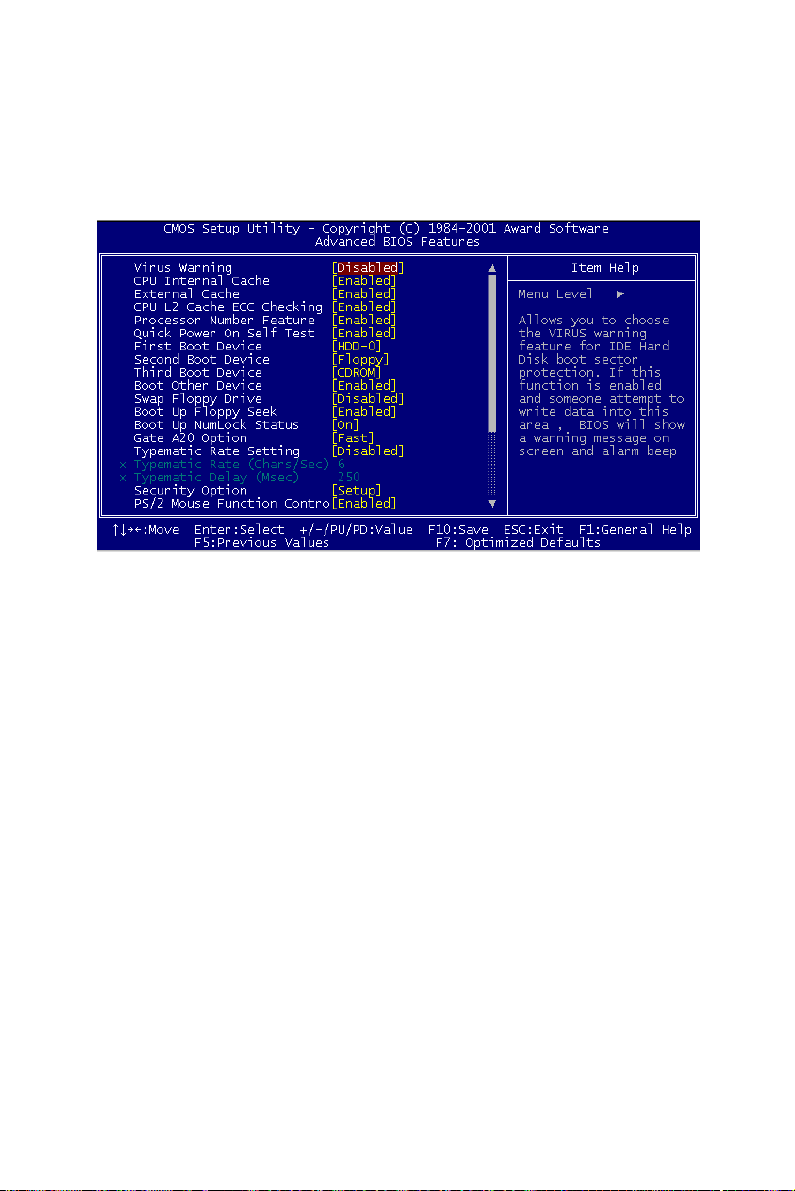

Figure 6.3:Advanced BIOS Features setup................... 77
6.2.4 Advanced Chipset Features setup ................................. 78
Figure 6.4:Advanced Chipset Features setup ............... 78
6.2.5 Integrated Peripherals ................................................... 79

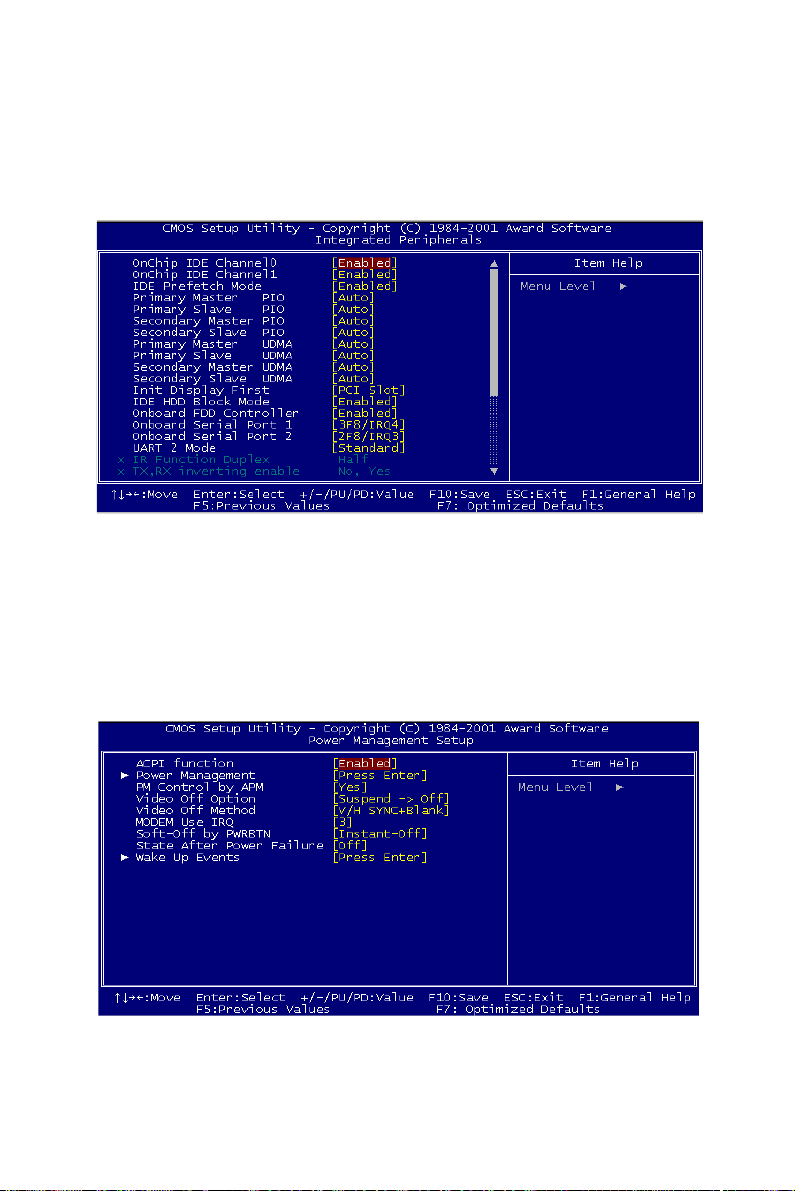

Figure 6.5:Integrated Peripherals.................................. 79
6.2.6 Power Management Setup ............................................ 79
Figure 6.6:Power Management Setup........................... 79
6.2.7 PnP/PCI Configurations................................................ 80

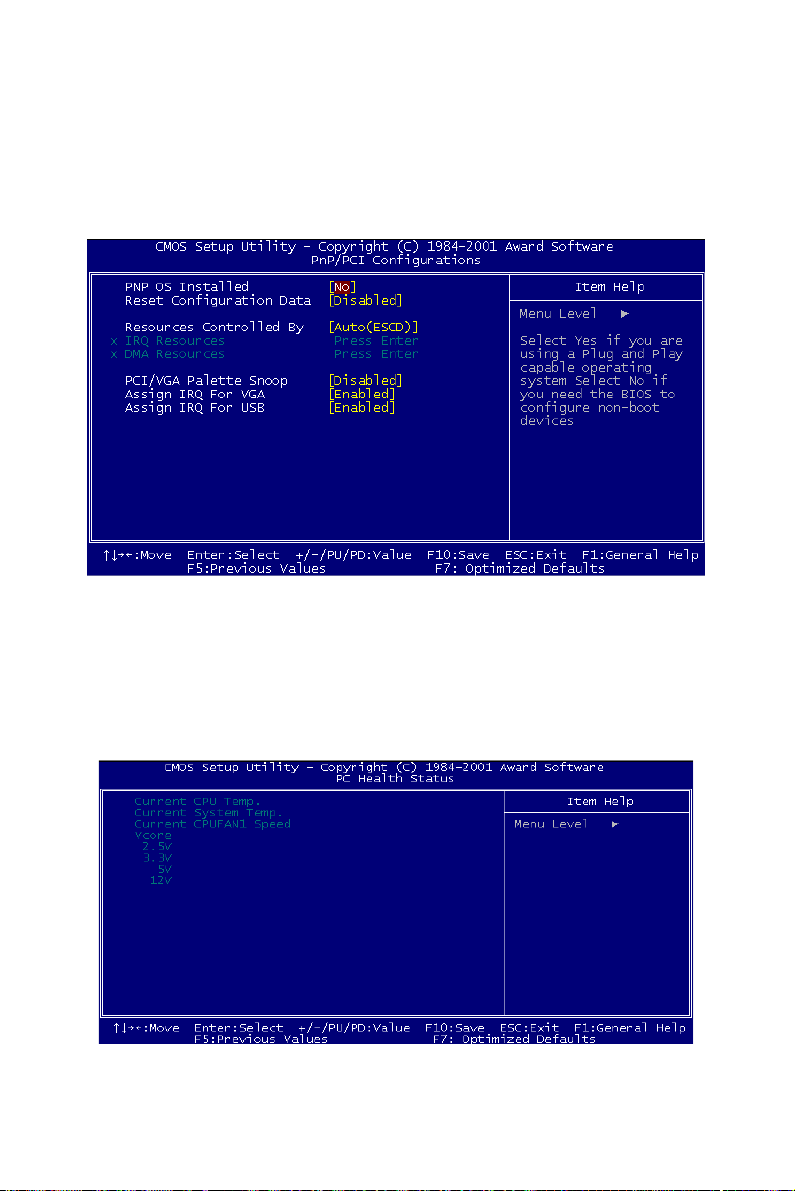

Figure 6.7:PnP/PCI Configurations .............................. 80
6.2.8 PC Health Status ........................................................... 80
Figure 6.8:PC Health Status.......................................... 80
6.2.9 Frequency/Voltage Control........................................... 81
Figure 6.9:Frequency/Voltage Control ......................... 81
6.2.10 Load Optimized Defaults.............................................. 82

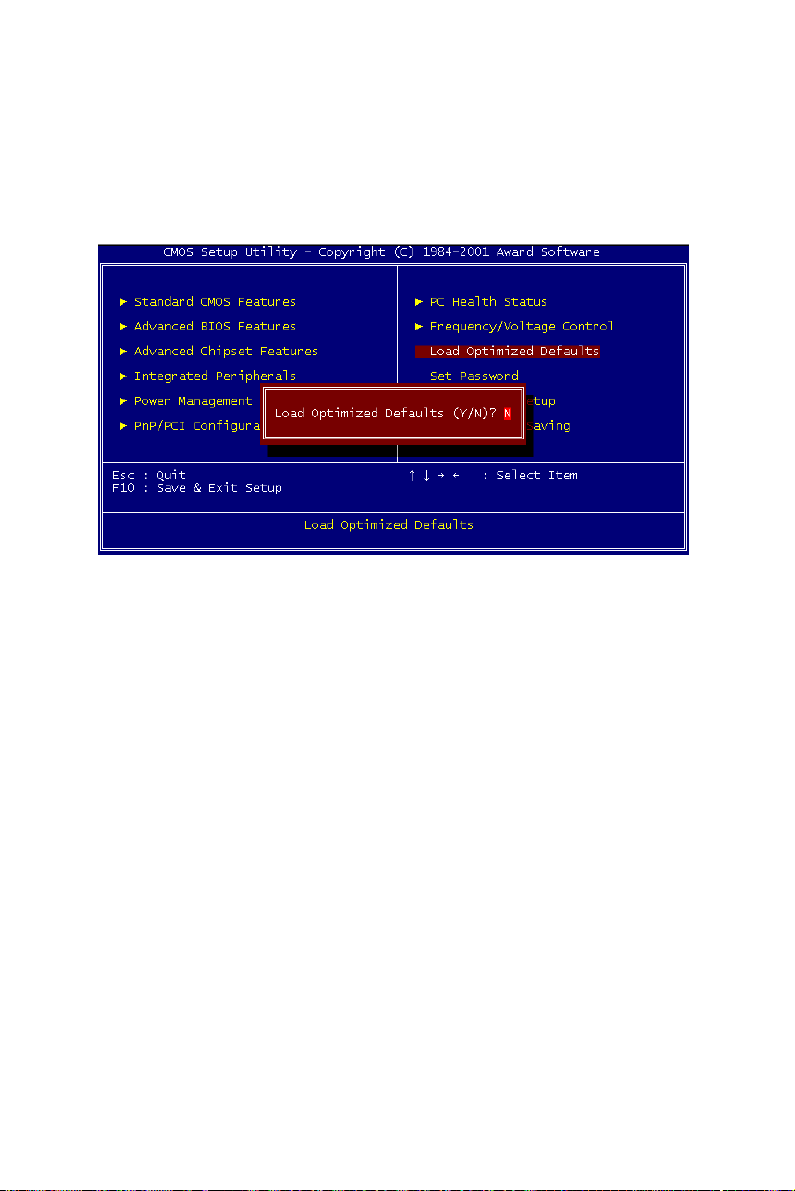

Figure 6.10:Load BIOS defaults screen........................ 82
6.2.11 Set Password ................................................................. 82
Figure 6.11:Set password.............................................. 83
6.2.12 Save & Exit Setup......................................................... 84
Figure 6.12:Save to CMOS and EXIT.......................... 84
PCA-6773 User’s Manual viii
6.2.13 Exit Without Saving...................................................... 85
Figure 6.13:Quit without saving ................................... 85
Appendix A Programming the Watchdog Timer .............87
A.1 Supported Input Timing Modes ...................................... 88
Appendix B Installing PC/104 Modules ............................91
B.1 Installing PC/104 Modules .............................................. 92
Appendix C Pin Assignments .............................................95
C.1 ATX suspend power connector (CN24) .......................... 96
C.2 Floppy connector (CN4).................................................. 97
C.3 Primary IDE Connector (CN3) ....................................... 98
C.4 CompactFlash connector(CN28)..................................... 99
C.5 LAN,RJ45 connector(CN18) ........................................ 100
C.6 USB1, 2 connector(CN25) ............................................ 100
C.7 USB 3, 4 connector(CN9) ............................................. 101
C.8 IR connector(CN13) ...................................................... 101
C.9 LCD INV power connector(CN8) ................................. 102
C.10 LCD Backlight connector(CN7) ................................... 102
C.11 DIO connector(CN15) ................................................... 103
C.12 HDD, PWR LED connector & WDT output( CN6) ..... 103
C.13 LVDS connector(CN10) ............................................... 104
C.14 LPT connector(CN5) ..................................................... 105
C.15 Extension Panel Connector (CN11) .............................. 106
C.16 COM 1, 2 Connector (CN21, CN20) ............................ 106
C.17 Audio I/F connector(CN12) .......................................... 107
C.18 D-SUB VGA connector(CN16) .................................... 107
C.19 Negative power input connector(CN22) ....................... 108
C.20 Keyboard and Mouse connector(CN26) ....................... 108
C.21 EXT_KB/Mouse connector(CN23)............................... 109
C.22 Main power connector (CN19) ..................................... 109
C.23 LCD connector(CN14) .................................................. 110
C.24 PWR_SW connector(CN1) ........................................... 111
C.25 Reset connector(CN2) ................................................... 111
C.26 CPU Fan connector (FAN1).......................................... 111
Appendix D System Assignments .....................................113
D.1 System I/O Ports............................................................ 114
Table D.1 System I/O ports .......................................114
D.2 1st MB memory map ..................................................... 115
Table D.2 1st MB memory map................................ 115
D.3 DMA channel assignments............................................ 115
Table D.3 DMA channel assignments ........................115
D.4 Interrupt assignments .................................................... 116
ix
Table D.4 Interrupt assignments................................. 116
PCA-6773 User’s Manual x
1
CHAPTER
General Information
This chapter gives background
information on the PCA-6773.
Sections include:
• Introduction
• Features
• Specifications
• Board layout and dimensions
1 Chapter 1 General Information
Chapter 1 General Information
1.1 Introduction
PCA-6773 is a new standard ISA bus Half-sized SBC. With an Onboard
Intel ULV Celeron 400/650 Fanless CPU or LV Pentium III800(optional)/
933MHz processor, along with a VIA VT8606/TwiserT + VT82C686B
system chipset. The PCA-6773 support SDRAM up to 512MB, with an
optional SODIMM then memory can support up to 1 GB.
Other on-board features include an EIDE, FDD, LPT, 4USBs, and 2 serial
ports(RS-232 and RS-232/422/485).Watchdog timer & IrDA suppport, as
well as a 10/100Mbps Ehernet is provided. The SSD solution supports
Type I/II CompactFlash cards.
This product uses a VIA TwisterT chip with Integrated Savage4 2D/3D/
Video Accelerator and supports 4X AGP VGA/LCD interface and up to
8/16/32 MB frame buffer using system memory. 9/12/18/24/36 bit TFT is
also supported. PCA-6773 supports AC97 audio with the addition of the
optional PCM-231A-00A1 audio module.
Its dimension is follow standard ISA slot PC, this make it can match with
all half-sized chasis and can operate in high vibration enviorment.
1.2 Features
• Intel ULV 400, 650/LV800(optional), 933 MHz CPU on-board
• On board PCI SVGA VGA/LCD display
• 4X AGP graphics for high performance applications
• Low power consumption, requires no CPU cooling
fan(ULV400,650)
• 10/100 Mbps Ethernet
• Supports boot from USB device
• Supports wake-on-LAN
• Supports Ring-up by Modem
• Supports LCD backlight turn-off function
• RS-485 Auto-flow
PCA-6773 User’s Manual 2
1.3 Specifications
1.3.1 Standard SBC Functions
• CPU: On board Intel ULV 400,650/LV800(optional), 933 MHz CPU
• System chipsets: VIA VT8606"TwisterT"+VT82C686B
• BIOS: Award 256 KB Flash memory
• System memory: SDRAM SODIMMx1, MAX:512MB(optional:
SODIMMx2, up to 1GB)
• 2nd cache memory: Celeron ULV 400, 650: 256K
P-III LV 800, 933: 512K
• SSD: Support CompactFlash, Card Type I/II
• Watchdog Timer: 1~62 Sec, System reset or IRQ11
• Expansion Interface: 1x16-bit ISA Slot, 1x PC/104 connector
• Battery: Lithium 3/V/196 mAH
• Serial ports: Two serial RS-232 ports
COM1: RS-232 COM2: RS-232/422/485
RS-485 suppports AUTO-flow
• USB: 4 USB ports, USB 1.1 compliant
1.3.2 VGA/LCD Interface
• Chipset: VIA VT8606"TwisterT" chip with integrated Savage4 2D/3D/
Video Accelerator
• Frame buffer: Supports 8/16/32MB frame buffer with system memory
• Interface: 4X AGP VGA/LCD interface, Support up to 36 bit TFT
• Display modes:
CRT Modes: 1280 x 1024@16bpp (60Hz),
1024 x 768@16bpp (85Hz);
800x600@16bpp(60Hz)
LCD/Simulaneous Modes:
1280 x1024@16bpp (60Hz).
1024 x 768@16bpp (60Hz))
1.3.3 Solid State disk
• Supports CompactFlash Type I/II disks
3 Chapter 1 General Information
1.3.4 PCI bus Ethernet interface
• Chipset: Intel 82551ER, 82551QM(optional),RealTek 8139C(optional)
• Connection: on-board RJ-45
•
BootROM:
build-in-system
• I/O address switchless setting
1.3.5 Mechanical and Environmental
• Dimensions (L x W): 185 x 122 mm(7.3” x 4.8”)
• Power supply voltage: +5 V±5%, +12V ±5%
• Power requirements:
Max:
5A @+5V, 201mA @+12V (with 128MB SDRAM, Intel ULV-400
MHz CPU)
Typical:
2.55 A @ +5V, 48 mA@ +12V(with 128MB SDRAM, Intel ULV-400
MHz CPU)
• Operating temperature: 0 ~ 60°C (32 ~ 140°F),operation
• Operating humidity: 0% ~ 90% Relative Humidity, Non condensing
PCA-6773 User’s Manual 4
1.4 Board layout: dimensions
Figure 1.1: Board layout: dimensions (component side)
5 Chapter 1 General Information
Figure 1.2: Board layout: dimensions (solder side)
PCA-6773 User’s Manual 6
2
CHAPTER
Installation
This chapter explains the setup procedures
of PCA-6773 hardware, including instructions on setting jumpers and connecting
peripherals, switches and indicators. Be
sure to read all safety precautions before
you begin the installation procedure.
7 Chapter 2 Installation
Chapter 2 Installation
2.1 Jumpers
The PCA-6773 has a number of jumpers that allow you to configure your
system to suit your application. The table below lists the functions of the
various jumpers.
Table 2.1: Jumpers
Label Function
JP1 CMOS clear
JP2 Watchdog timer output selection
J1 RS232/422/485 Select
2.2 Connectors
On-board connectors link the PCA-6773 to external devices such as hard
disk drives, a keyboard, or floppy drives. The table below lists the function of each of the board’s connectors.
Table 2.2: Connectors
Label Function
CN1 PWR_SW connector
CN2 Reset connector
CN3 Primary IDE connector
CN4 Floppy connector
CN5 LPT connector
CN6 HDD,PWR LED connector&WDT output
CN7 LCD backlight connector
CN8 LCD INV PWR connector
CN9 USB 3,4 connector
PCA-6773 User’s Manual 8
Table 2.2: Connectors
CN10 LVDS connector
CN11 LCD connector
CN12 Audio I/F connector
CN13 IR connector
CN14 LCD connector1
CN15 DIO connector
CN16 D-SUB VGA connector
CN17 PC/104
CN18 LAN connector
CN19 Main power connector
CN20 COM2
CN21 COM1
CN22 Negative power input connector(optional)
CN23 EXT_KB connector
CN24 ATX suspend power connector
CN25 USB 1,2 connector
CN26 Keyboard/Mouse connector
CN28 CF connector
9 Chapter 2 Installation
2.3 Locating Connectors(component side)
Figure 2.1: Jumper&Connector Locations
PCA-6773 User’s Manual 10
2.4 Locating Connectors(solder side)
Figure 2.2: Connectors (component side)
11 Chapter 2 Installation
2.5 Setting Jumpers
You may configure your card to match the needs of your application by
setting jumpers. A jumper is a metal bridge used to close an electric circuit. It consists of two metal pins and a small metal clip (often protected
by a plastic cover) that slides over the pins to connect them. To “close” a
jumper, you connect the pins with the clip. To “open” a jumper, you
remove the clip. Sometimes a jumper will have three pins, labeled 1, 2
and 3. In this case you would connect either pins 1 and 2, or 2 and 3.
open closed closed 2-3
The jumper settings are schematically depicted in this manual as follows:.
open closed closed 2-3
A pair of needle-nose pliers may be helpful when working with jumpers.
If you have any doubts about the best hardware configuration for your
application, contact your local distributor or sales representative before
you make any changes.
Generally, you simply need a standard cable to make most connections.
PCA-6773 User’s Manual 12
2.6 Clear CMOS (JP1)
Warning! To avoid damaging the computer, always turn
off the power supply before setting “Clear
CMOS.” Before turning on the power supply,
set the jumper back to “3.0 V Battery On.”
This jumper is used to erase CMOS data and reset system BIOS information.
The procedure for clearing CMOS is:
1. Turn off the system.
2. Short pin 2 and pin 3.
3. Return jumper to pins 1 and 2.
4. Turn on the system. The BIOS is now reset to its default setting
Table 2.3: CMOS clear (JP1)
*3.0 V normal clear CMOS
* default setting
13 Chapter 2 Installation
2.7 RS232/422/485 Select(J1)
Table 2.4: RS232/422/485 Select
PIN RS232 RS422 RS485
1-2 Closed Open Open
3-4 Open Closed Open
5-6 Open Open Closed
2.8 Watchdog timer configuration
An on-board watchdog timer reduces the chance of disruptions which
EMP (electro-magnetic pulse) interference can cause. This is an invaluable protective device for standalone or unmanned applications. Setup
involves one jumper and running the control software (refer to Appendix
A).
2.8.1 Watchdog timer action (JP2)
When the watchdog timer activates (CPU processing has come to a halt),
it can reset the system or generate an interrupt on IRQ11. This can be set
via setting JP2 as shown below:
Table 2.5: Watchdog timer action (JP2)
*System reset IRQ 11
* default setting
PCA-6773 User’s Manual 14
2.9 Installing DIMMs
The procedure for installing DIMMs is described below. Please follow
these steps carefully. The number of pins are different on either side of
the breaks, so the module can only fit in one way. DIMM modules have
different pin contacts on each side, and therefore have a higher pin density.
1. Make sure that the two handles of the DIMM socket are in the
“open” position. i.e. The handles remain leaning outward.
2. Slowly slide the DIMM module along the plastic guides on both
ends of the socket.
3. Press the DIMM module right down into the socket, until you hear
a click. This is when the two handles have automatically locked the
memory module into the correct position of the socket.
To remove the memory module, just push both handles outward, and the
module will be ejected from the socket.
2.10 ATX power control connector (CN24)
2.10.1 ATX suspend power connector(CN24)
The PCA-6773 can support an advanced soft power switch function, if an
ATX power supply is used. To enable the soft power switch function:
1. Get the specially designed ATX-to-EBX power cable
2. Connect the 3-pin plug of the cable to CN24 (ATX feature connector).
3. Connect the power on/off button to CN1. (A momentary type of
button should be used.)
Important Make sure that the ATX power supply can take
at least a 10 mA load on the 5 V standby lead
(5VSB). If not, you may have difficulty powering on your system.
15 Chapter 2 Installation
2.11 Printer port connector (CN5)
Normally, the parallel port is used to connect the card to a printer. The
PCA-6773 includes a multi-mode (ECP/EPP/SPP) parallel port accessed
via CN5 and a 26-pin flat-cable connector. You will need an adapter cable
if you use a traditional DB-25 connector. The adapter cable has a 26-pin
connector on one end, and a DB-25 connector on the other.
The parallel port is designated as LPT1, and can be disabled or changed to
LPT2 or LPT3 in the system BIOS setup.
The parallel port interrupt channel is designated to be IRQ7.
You can select ECP/EPP DMA channel via BIOS setup.
2.12 CompactFlash Card Connector
The PCA-6773 provides a 50-pin socket for CompactFlash card type I/II.
2.12.1 CompactFlash(CN28)
The CompactFlash card occupies a secondary IDE channel which can be
enabled/disabled via the BIOS settings.
2.13 Floppy drive connector (CN4)
You can attach up to two floppy drives to the PCA-6773’s on-board controller. You can use any combination of 5.25” (360 KB and 1.2 MB) and/
or 3.5” (720 KB, 1.44 MB, and 2.88 MB) drives.
A 34-pin daisy-chain drive connector cable is required for a dual-drive
system. On one end of the cable is a 34-pin flat-cable connector. On the
other end are two sets of floppy disk drive connectors. Each set consists
of a 34-pin flat-cable connector (usually used for 3.5” drives) and a
printed-circuit board connector (usually used for 5.25” drives).
2.13.1 Connecting the floppy drive
1. Plug the 34-pin flat-cable connector into CN4. Make sure that the
red wire corresponds to pin one on the connector.
2. Attach the appropriate connector on the other end of the cable to
the floppy drive(s). You can use only one connector in the set. The
set on the end (after the twist in the cable) connects to the A: drive.
The set in the middle connects to the B: drive.
PCA-6773 User’s Manual 16
3. If you are connecting a 5.25” floppy drive, line up the slot in the
printed circuit board with the blocked-off part of the cable connector.
If you are connecting a 3.5” floppy drive, you may have trouble determining which pin is number one. Look for a number printed on the circuit
board indicating pin number one. In addition, the connector on the floppy
drive may have a slot. When the slot is up, pin number one should be on
the right. Check the documentation that came with the drive for more
information.
If you desire, connect the B: drive to the connectors in the middle of the
cable as described above.
In case you need to make your own cable, you can find the pin assignments for the board’s connector in Appendix C.
2.14 Primary IDE connector(CN3)
The PCA-6773 provides an IDE channel to which you can attach up to
two Enhanced Integrated Device Electronics hard disk drives or CDROM
to the PCA-6773’s internal controller. The PCA-6773's IDE controller
uses a PCI interface. This advanced IDE controller supports faster data
transfer, PIO Mode 3 or Mode 4, UDMA 33/66/100 mode.
2.14.1 Connecting the hard drive
Connecting drives is done in a daisy-chain fashion. It requires one of two
cables (not included in this package), depending on the drive size. 1.8"
and 2.5" drives need a 1 x 44-pin to 2 x 44-pin flat-cable connector. 3.5"
drives use a 1 x 44-pin to 2 x 40-pin connector.
Wire number 1 on the cable is red or blue, and the other wires are gray.
1. Connect one end of the cable to CN3. Make sure that the red (or
blue) wire corresponds to pin 1 on the connector, which is labeled
on the board (on the right side).
2. Plug the other end of the cable into the Enhanced IDE hard drive,
with pin 1 on the cable corresponding to pin 1 on the hard drive.
(See your hard drive’s documentation for the location of the connector.)
If desired, connect a second drive as described above.
Unlike floppy drives, IDE hard drives can connect to either end of the
cable. If you install two drives, you will need to set one as the master and
one as the slave by using jumpers on the drives. If you install only one
drive, set it as the master.
17 Chapter 2 Installation
2.15 VGA/LCD interface connections
The PCA-6773’s display interface can drive conventional CRT displays
and is capable of driving a wide range of flat panel displays as well,
including passive LCD and active LCD displays. The board has two display connectors: one for standard CRT VGA monitors, and one for flat
panel displays.
2.15.1 CRT display connector (CN16)
CN16 is a standard 15-pin D-SUB connector commonly used for VGA.
Pin assignments for CRT display connector CN16 are detailed in Appendix C.
2.15.2 Flat panel display connector (CN14)
CN14 consists of a 40-pin connector which can support an 18-bit LCD
panel. It is Hirose’s product no. DF13A-40DP-1.25 V
The PCA-6773 provides a bias control signal on CN12 that can be used to
control the LCD bias voltage. It is recommended that the LCD bias voltage not be applied to the panel until the logic supply voltage (+5 V or
+3.3 V) and panel video signals are stable. Under normal operation, the
control signal (ENAVEE) is active high. When the PCA-6773’s power is
applied, the control signal is low until just after the relevant flat panel signals are present.
2.15.3 Extension flat panel connector(CN11)
CN11 consists of a 20-pin connector which is Hirose’s product no.DF1320DP-1.25V. The PCA-6773 supports a 36-bit LCD panel which must be
connected to both the CN14(40-pin) and CN11(20-pin). The pin assignments for both CN14 and CN11 can be found in Appendix C.
2.15.4 LVDS LCD panel connector(CN10)
The PCA-6773 uses the VIA “TwisterT” chip that supports 2 channel
LVDS LCD panel displays. Users can connect to LVDS LCD with CN10.
2.15.5 LCD inverter connector(CN8)
The LCD inverter is connected to CN8 via a 5-pin connector to provide
+12V power to the LCD display.
PCA-6773 User’s Manual 18
2.15.6 Panel type selection (S1)
S1 is an 8 segment DIP switch for DSTN/TFT panel type and resolution
functions.
Table 2.6: S1 Panel Type select
SW
1-1SW1-2SW1-3SW1-4 Panel Type & Resolution
ON ON ON ON TFT 640x480** 18bit (H. V. Freq)
ON ON ON OFF TFT 648x480 18bit (Synthetic)
ON ON OFF ON TFT 648x480** N/A
ON ON OFF OFF TFT 648x480** LVDS
ON OFF ON ON DSTN 648x480** 18bit
ON OFF ON OFF TFT 800x600** 18bit (H. V. Freq)
ON OFF OFF ON TFT 800x600 18bit (Synthetic)
ON OFF OFF OFF TFT 800x600** LVDS
OFF ON ON ON TFT 800x600** N/A
OFF ON ON OFF DSTN 800x600** 18bit
OFF ON OFF ON TFT 1024x768** 36bit (H. V. Freq)
OFF ON OFF OFF TFT 1024x768** 36bit (Synthetic)
OFF OFF ON ON TFT 1024x768** LVDS
OFF OFF ON OFF TFT 1024x768** N/A
OFF OFF OFF ON DSTN 1024x768** 18bit
OFF OFF OFF OFF DSTN 1024x768** 24bit
* Default setting
** will support in the future
2.16 USB connectors (CN9,CN25)
The PCA-6773 board provides up to four USB (Universal Serial Bus)
ports. This gives complete Plug and Play, and hot attach/detach for up to
127 external devices. The USB interfaces comply with USB specification
Rev. 1.1, and are fuse protected.
The USB interface is accessed through the 5 x 2-pin flat-cable connector,
CN25 (USB1, 2),CN9(USB3, 4). You will need an adapter cable if you
19 Chapter 2 Installation
use a standard USB connector. The adapter cable has a 5 x 2-pin connector on one end and a USB connector on the other.
The USB interfaces can be disabled in the system BIOS setup.
2.17 Ethernet configuration
The PCA-6773 is equipped with a high performance 32-bit PCI-bus
Ethernet interface which is fully compliant with IEEE 802.3U 10/
100Mbps CSMA/CD standards. It is supported by all major network
operating systems.
The PCA-6773 supports 3 10/100Mbps Ethernet connections with
onboard RJ-45 connectors(CN18).
2.17.1 100Base-T connector (CN18)
10/100Base-T connects to the PCA-6773 via an adapter cable to an 8-pin
polarized header (CN18).
2.17.2 Network boot
The Network Boot feature can be utilized by incorporating the Boot
ROM image files for the appropriate network operating system. The Boot
ROM BIOS files are included in the system BIOS, which is on the utility
CD disc.
2.18 Power connectors (CN19, FAN1)
2.18.1 Main power connector, +5 V, +12 V (CN19)
Supplies main power to the PCA-6773 (+5 V), and to devices that require
+12 V.
2.18.2 CPU Fan power supply connector (FAN1)
Provides power supply to CPU cooling fan. Only present when +5 V
power is supplied to the board.
2.19 HDD ,PWR LED Connector & WDT output(CN6)
Next, you may want to install external switches to monitor and control the
PCA-6773. These features are optional: install them only if you need
them. CN6 is an 2x3 pin header, 180 degree, male.It provides connections
for watchdog output and power & hard disk indicator.
PCA-6773 User’s Manual 20
2.20 COM port connector (CN20,CN21)
The PCA-6773 provides two serial ports (COM1: RS-232 and COM2:
RS232) in one COM port connector. It provides connections for serial
devices (a mouse, etc.) or a communication network. You can find the pin
assignments for the COM port connector in Appendix C.
2.21 Keyboard and PS/2 mouse connector (CN26)
The PCA-6773 board provides a keyboard connector that supports both a
keyboard and a PS/2 style mouse. In most cases, especially in embedded
applications, a keyboard is not used. If the keyboard is not present, the
standard PC/AT BIOS will report an error or fail during power-on selftest (POST) after a reset. The PCA-6773’s BIOS standard setup menu
allows you to select “All, But Keyboard” under the “Halt On” selection.
This allows no-keyboard operation in embedded system applications,
without the system halting under POST.
2.22 External KB/Mouse Connector(CN23)
In addition to the PS/2 mouse/keyboard connector on the PCA-6773’s
rear plate, there is an additional onboard external keyboard connector,
allowing for greater flexibility in system design.
2.23 Audio AC97 interface(CN12)
The Audio AC97 link is a 10 pin connector, the PCA-6773 can support
AC97 Audio with the addition of optional PCM-231A-00A1. Detailed
pin assignment refer to Appendix C.
2.24 IR Connector(CN13)
This connector supports the optional wireless infrared transmitting and
receiving module. This module mounts on the system case. You must
configure th setting through BIOS setup. Detailed pin definition you will
find in Appendix C.
21 Chapter 2 Installation
PCA-6773 User’s Manual 22
3
CHAPTER
Software Configuration
This chapter details the software configuration information. It shows you
how to configure the card to match
your application requirements. Award
System BIOS will be covered in
Chapter 4.
Sections include:
• Introduction
• VGA display software configuration
Chapter 3 Software Configuration
3.1 Introduction
The system BIOS and custom drivers are located in a
256 KB, 32-pin (JEDEC spec.) Flash ROM device, designated U10. A
single Flash chip holds the system BIOS, VGA BIOS, and network Boot
ROM image. The display can be configured via software. This method
minimizes the number of chips and eases configuration. You can change
the display BIOS simply by reprogramming the Flash chip.
3.2 VGA display firmware configuration
The board’s on-board VGA interface supports a wide range of popular
LCD, EL, gas plasma flat panel displays and traditional analog CRT monitors. The optimized shared memory architecture supports an 8/16/32 MB
frame buffer using system memory to provide resolutions of 1280 x 1024
@ 16 bpp, the interface can drive CRT displays with resolutions up to
1024 x 768 @ 16 bpp and 800 x 600 @ 16 bpp.
The VGA interface is configured completely via the software utility, so
you do not have to set any jumpers. Configure the VGA display as follows:
1. Apply power to the board with a color TFT display attached. This
is the default setting for this board. Ensure that the AWDFLASH.EXE and *.BIN files are located in the working drive.
NOTE: Ensure that you do not run AWDFLASH.EXE
while your system is operating in EMM386
mode.
PCA-6773 User’s Manual 24
2. At the prompt, type AWDFLASH.EXE and press <Enter>. The
VGA configuration program will then display the following:
Figure 3.1: VGA setup screen
3. At the prompt, enter the new BIN file which supports your display.
When you are sure that you have entered the file name correctly
press <Enter>.
4. The screen will ask ìDo you want to save BIOS?î. If you change
your mind or have made a mistake, press N to abort and end the
setup procedure. Press Y if you wish to save the existing configuration before changing it. Then type the name under which you want
to save the current configuration.
5. The prompt will then ask ìAre you sure to program?î. Press Y if
you want the new file to be written into the BIOS. Press N to exit
the program.
The new VGA configuration will then write to the ROM BIOS chip. This
configuration will remain the same until you run the AWDFLASH.EXE
program and change the settings.
25 Chapter 3
PCA-6773 User’s Manual 26
PCI SVGA Setup
Introduction
Installation of SVGA drivers
-for Windows 95/98/Me
-for Windows NT/2000/XP
Further information
CHAPTER
4
Chapter 4 PCI SVGA Setup
4.1 Introduction
The board has an onboard AGP flat panel/VGA interface. The specifications and features are described as follows:
4.1.1 Chipset
The board uses a VIA Twister 8606T chipset from VIA Technology Inc.
for its AGP/SVGA controller. It supports many popular LCD, and LVDS
LCD displays and conventional analog CRT monitors. The VIA8606T
VGA BIOS supports color TFT and DSTN LCD flat panel displays. In
addition, it also supports interlaced and non-interlaced analog monitors
(color and monochrome VGA) in high-resolution modes while
maintaining complete IBM VGA compatibility. Digital monitors
(i.e. MDA, CGA, and EGA) are NOT supported. Multiple frequency
(multisync) monitors are handled as if they were analog monitors.
4.1.2 Display memory
The Twister chip can support 8/16/32MB frame buffer shared with system memory; the VGA controller can drive CRT displays or color panel
displays with resolutions up to 1280 x 1024 at 16 M colors.
4.1.3 Display types
CRT and panel displays can be used simultaneously. The board can be set
in one of three configurations: on a CRT, on a flat panel display, or on
both simultaneously. The system is initially set to simultaneous display
mode. If you want to enable the CRT display only or the flat panel display
only, please contact VIA Technology Inc., or our sales representative for
detailed information.
PCA-6773 User’s Manual 28
4.2 Installation of the SVGA Driver
Complete the following steps to install the SVGA driver. Follow the procedures in the flow chart that apply to the operating system that you are
using within your board.
Notes: 1. The windows illustrations in this chapter are
intended as examples only. Please follow the
listed steps, and pay attention to the instructions which appear on your screen.
2. For convenience, the CD-ROM drive is designated as "D" throughout this chapter.
4.2.1 Installation for Windows 95
1

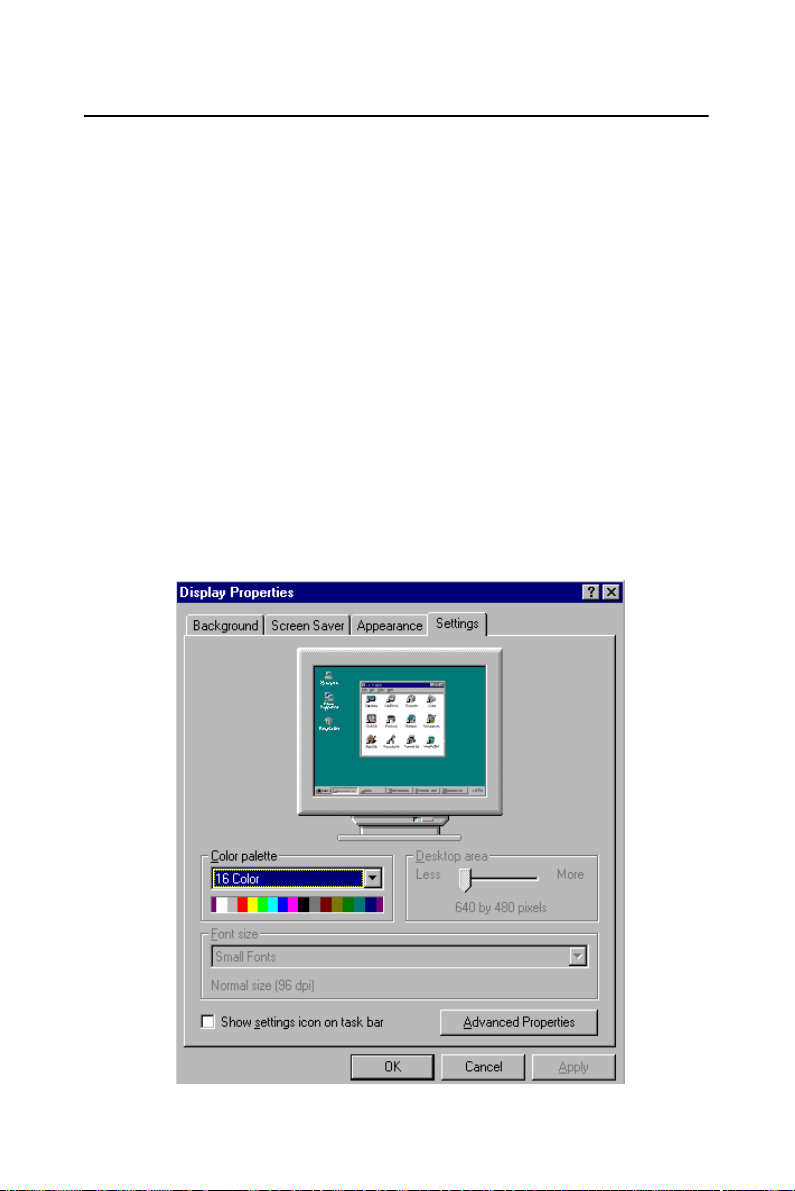

1. Select "Start", "Settings", "Control Panel", "Display", "Settings”,
and "Advanced Properties".
29 Chapter 4
2. Choose the "Adapter" tab, then press the "Change..." button.
3. Press the "Have Disk" button.
PCA-6773 User’s Manual 30
4. Type in the path:
D:\Biscuit\9577\VGA\Win9x_Me
9577
5. Select the highlighted item, and click the "OK" button.
31 Chapter 4

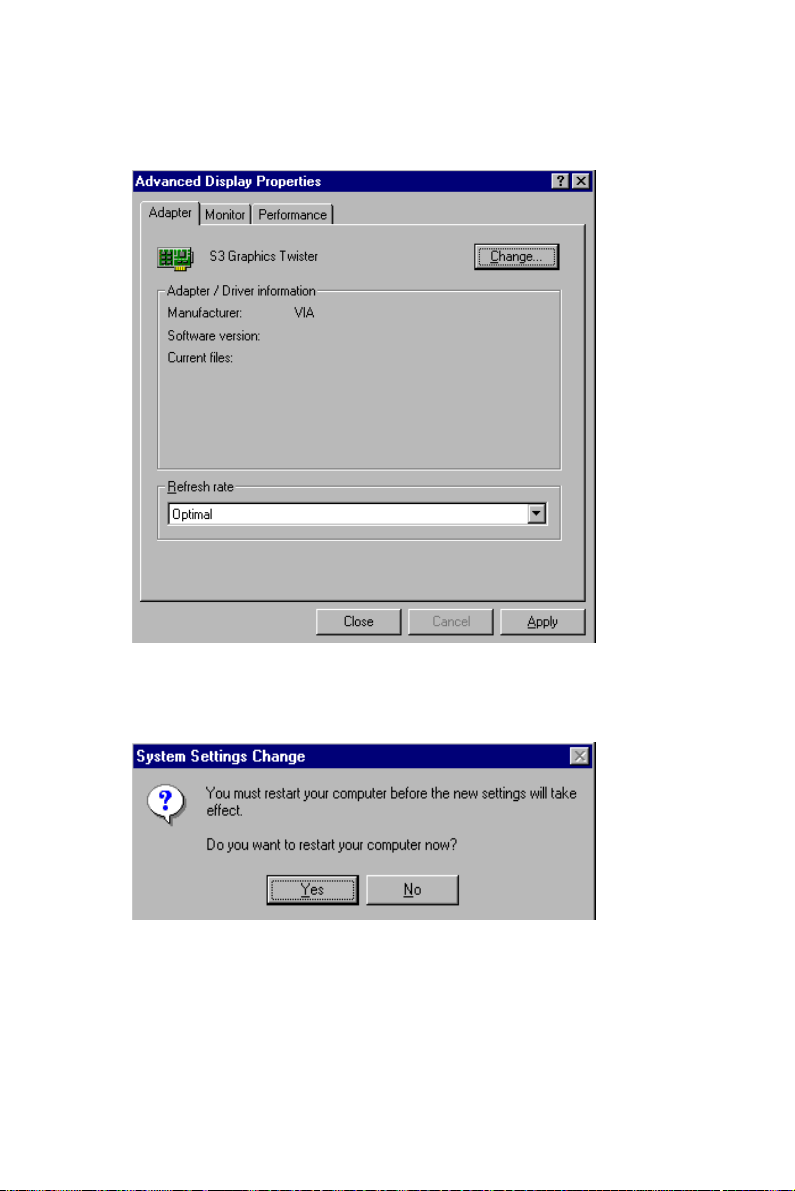

6. "S3 GraphicsTwister" appears under the adapter tab. Click the
"Apply" button, then the "OK" button.
7. Press “Yes” to reboot.
PCA-6773 User’s Manual 32
4.2.2 Installation for Windows 98/Me
1. Select "Start", "Settings", "Control Panel", "Display", and "Settings," then press the "Advanced..." button.
33 Chapter 4
2. Select “Adapter,” then “Change.”
PCA-6773 User’s Manual 34
3. Press “Next,” then “Display a list....”
4. Press the “Have disk...” button.
35 Chapter 4
5. Insert the CD into the CD-ROM drive. Type in the path
D:\Biscuit\9577\VGA\Win9x_Me
Then press “OK”
9577
6. Select the highlighted item, then click “OK.”
PCA-6773 User’s Manual 36
7. "S3 Graphics Twister"appears under the adapter tab. Click the
"Apply" button.
8. Press “Yes” to reboot.
37 Chapter 4
4.2.3 Installation for Windows NT
Note: Service Pack X (X = 3, 4, 5, 6,...) must be
installed first, before you install the Windows
NT VGA driver.
1. Select "Start", "Settings", "Control Panel" and double click the
"Display" icon.
PCA-6773 User’s Manual 38
2. Choose the "Settings" tab, and press the "Display Type" button.
39 Chapter 4
3. Press the "Change..." button.
PCA-6773 User’s Manual 40
4. Click the "Have Disk..." button.

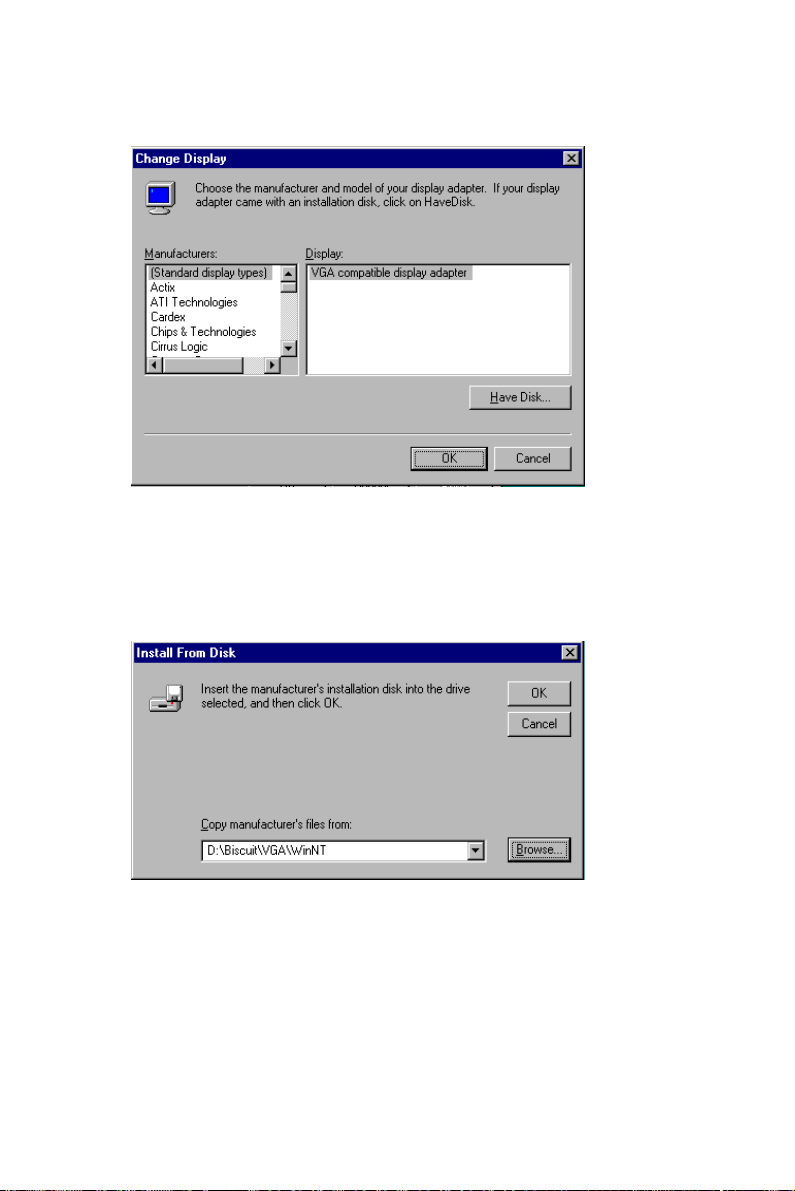

5. Type the path:
D:\Biscuit\VGA\WinNT
Press the "OK" button.
41 Chapter 4
6. Select the highlighted item, and click the "OK" button.
7. Press "Yes" to proceed.
8. Press "OK" to reboot.
PCA-6773 User’s Manual 42
4.2.4 Installation for Windows 2000
1. Select "System", "Settings", "Control Panel" and double click the
"system" icon.
43 Chapter 4
2. Choose the "Video Controller (VGA Compatible)” button.
PCA-6773 User’s Manual 44
3. Choose the "Drive" button, press “Update Driver...” button.
45 Chapter 4
4. Choose "Display a list of..." , then press “Next” button.
5. Choose “Display adapters”, press “Next” button.
PCA-6773 User’s Manual 46
6. Click the “Have Disk” button.
7. Type the path D:\Biscuit\9577\VGA\Win2000 press the “OK” button.
47 Chapter 4
8. Press “Finish" to reboot.
4.2.5 Installation for Windows XP
1. Select "System", "Settings", "Control Panel" and double click the
"system" icon.
PCA-6773 User’s Manual 48
2. Choose “Hardware” and “Device Manager”, press “OK” button.
49 Chapter 4
3. Choose “Video Controller (VGA Compatible), press “OK” button.
PCA-6773 User’s Manual 50
4. Choose "Driver”, “Update Driver”, press “OK” button.
5. Choose “Install from a list.....” , press “Next”.
51 Chapter 4
6. Choose “Don’t search. I will....”, press “Next” button.
7. Choose “Display adapters”, press “Next” button.
PCA-6773 User’s Manual 52
8. Type the path D:\Biscuit\9577\VGA\WinXP then press “OK” button.
9577
9. Choose “S3 Graphics Twister + S3 Hotkey” then press “Next” button.
53 Chapter 4
10. Press “Finish" to reboot.
4.3 Further Information
For further information about the AGP/VGA installation in your PCA6773, including driver updates, troubleshooting guides and FAQ lists,
visit the following web resources:
VIA website: www.via.com.tw
Advantech websites: www.advantech.com
www.advantech.com.tw
PCA-6773 User’s Manual 54
5
CHAPTER
PCI Bus Ethernet Interface
This chapter provides information on
Ethernet configuration.
• Introduction
• Installation of Ethernet drivers for
Windows 98/2000/NT
• Further information
Chapter 5 PCI Bus Ethernet Interface
5.1 Introduction
The board is equipped with a high performance 32-bit Ethernet chipset
which is fully compliant with 802.3u 100BASE-T \Fast Ethernet CSMA/
CD standards (F version) . It is supported by major network operating
systems. It is also both 100Base-T and 10Base-T compatible.
The Ethernet port provides a standard RJ-45 jack. The network boot feature can be utilized by incorporating the boot ROM image files for the
appropriate network operating system. The boot ROM BIOS files are
combined with system BIOS, which can be enabled/disabled in the BIOS
setup.
5.2 Installation of Ethernet driver
Before installing the Ethernet driver, note the procedures below. You
must know which operating system you are using in your board Series,
and then refer to the corresponding installation flow chart. Then just follow the steps described in the flow chart. You will quickly and successfully complete the installation, even if you are not familiar with
instructions for MS-DOS or Windows.
Note: The windows illustrations in this chapter are
examples only. Follow the steps and pay attention to the instructions which appear on your
screen.
5.2.1 Installation for MS-DOS and Windows 3.1
If you want to set up your Ethernet connection under the MS-DOS or
Windows 3.1 environment, you should first check your server system
model. For example, MS-NT, IBM-LAN server, and so on.
Then choose the correct driver to install in your biscuit PC.
The installation procedures for various servers can be found on the supplied CD-ROM, the correct path being:
D:\Biscuit\9577\LAN\82559er\wfw311
5.2.2 Installation for Windows 98/Me
PCA-6773 User’s Manual 56
1. a. Select "Start", "Settings". "Control Panel".
b. Double click "Network".
2. a. Click "Add" and prepare to install network functions.
57 Chapter 5
3. a. Select the "Adapter" item to add the Ethernet card.
4. a. Click "Have Disk" to install the driver.
5. a. Insert the CD into the D: drive
b. Fill in "D:\Biscuit\9577\LAN\”
c. Click "OK"
PCA-6773 User’s Manual 58

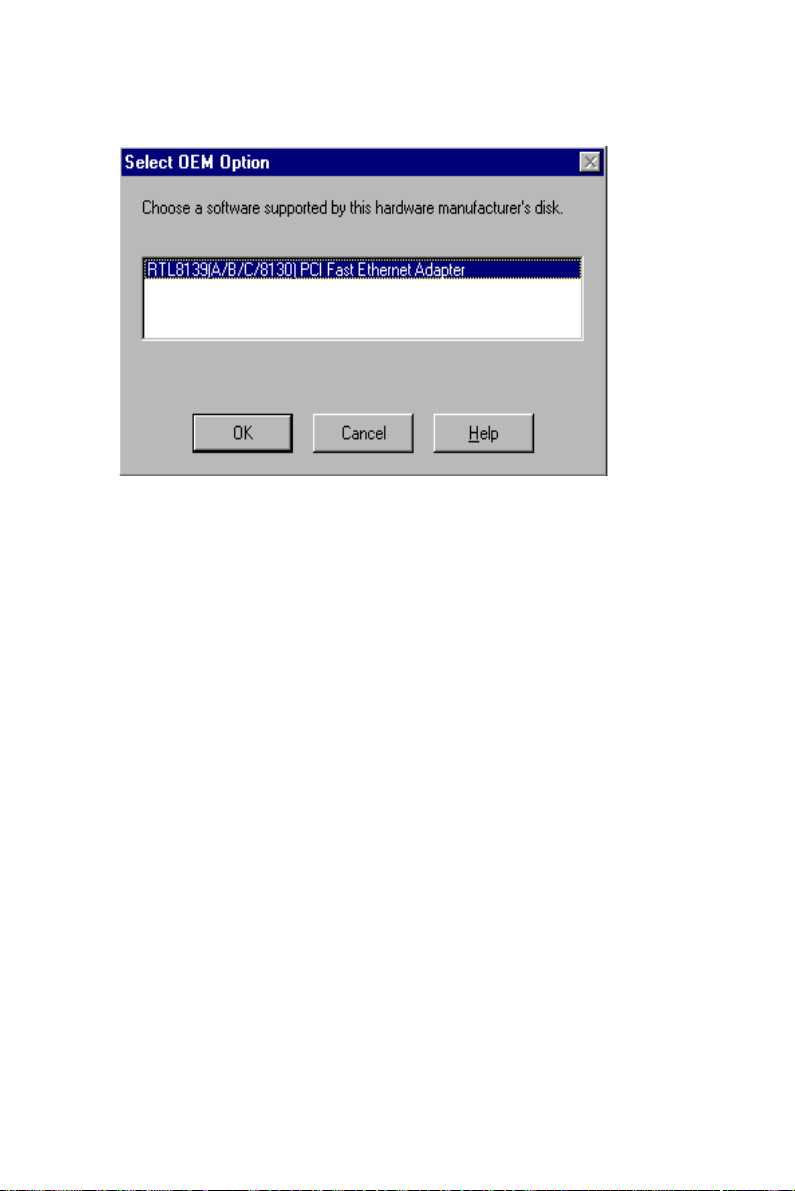

6. a. Choose the " Intel 8255x based PCI Ethernet Adapter (10/100)"
b. Click "OK".
7. a. Make sure the configurations of relative items are set correctly.
b. Click "OK" to reboot.
59 Chapter 5
5.2.3 Installation for Windows 2000
1. Open Device Manager,
PCA-6773 User’s Manual 60
2.
61 Chapter 5
3.
4.
PCA-6773 User’s Manual 62
5.
6.
63 Chapter 5
7.
8.
PCA-6773 User’s Manual 64
9.
5.2.4 Installation for Windows NT
1. a. Select "Start", "Settings", "Control Panel"
b. Double click "Network"
65 Chapter 5
2. a. Choose type of network.
b. Click "Next"
3. a. Click "Select from list..."
PCA-6773 User’s Manual 66
4. Click “Have Disk.”
5. a. Insert the Utility CD ROM
b. Fill in the correct path: D:\Biscuit\9577\LAN\82559er\winnt4
c. Click "OK".
67 Chapter 5
6. Check the highlighted item, and click “OK.”
PCA-6773 User’s Manual 68
7. Click “Next” to continue setup.
8. Choose the networking protocols, then click "Next"
69 Chapter 5
9. Select the correct Network Services then click "Next"
10. Click “Next” to continue setup.
PCA-6773 User’s Manual 70
11. Click “Next” to start the network.
5.3 Further information
Realtek website: www.realtek.com.tw
Intel website: www.intel.com
Advantech websites: www.advantech.com
www.advantech.com.tw
71 Chapter 5
PCA-6773 User’s Manual 72
Chapter 6 Ducks that Need Love!
6
Award BIOS Setup
This chapter describes how to set BIOS
configuration data.
CHAPTER
73
Chapter 6 Award BIOS Setup
6.1 System test and initialization
These routines test and initialize board hardware. If the routines encounter an error during the tests, you will either hear a few short beeps or see
an error message on the screen. There are two kinds of errors: fatal and
non-fatal. The system can usually continue the boot up sequence with
non-fatal errors. Non-fatal error messages usually appear on the screen
along with the following instructions:
press <F1> to RESUME
Write down the message and press the F1 key to continue the bootup
sequence.
6.1.1 System configuration verification
These routines check the current system configuration against the values
stored in the board’s CMOS memory. If they do not match, the program
outputs an error message. You will then need to run the BIOS setup program to set the configuration information in memory.
There are three situations in which you will need to change the CMOS
settings:
1. You are starting your system for the first time
2. You have changed the hardware attached to your system
3. The CMOS memory has lost power and the configuration information has been erased.
The PCA-6773 Series' CMOS memory has an integral lithium battery
backup. The battery backup should at least three years in normal service,
but when it finally runs down, you will need to replace the complete unit.
PCA-6773 User’s Manual 74
6.2 Award BIOS setup
Award’s BIOS ROM has a built-in Setup program that allows users to
modify the basic system configuration. This type of information is stored
in battery-backed CMOS RAM so that it retains the Setup information
when the power is turned off.
6.2.1 Entering setup
Power on the computer and press <Del> immediately. This will allow you
to enter Setup.
Figure 6.1: BIOS setup program initial screen
75
6.2.2 Standard CMOS Features setup
When you choose the Standard CMOS Features option from the Initial
Setup Screen menu, the screen shown below is displayed. This standard
Setup Menu allows users to configure system components such as date,
time, hard disk drive, floppy drive and display. Once a field is highlighted, on-line help information is displayed in the left bottom of the
Menu screen.
Figure 6.2: CMOS Features setup
PCA-6773 User’s Manual 76
6.2.3 Advanced BIOS Features setup
By choosing the Advanced BIOS Features Setup option from the Initial
Setup Screen menu, the screen below is displayed. This sample screen
contains the manufacturer’s default values for the PCA-6773 Series.
Figure 6.3: Advanced BIOS Features setup
77
6.2.4 Advanced Chipset Features setup
By choosing the Advanced Chipset Features option from the Initial Setup
Screen menu, the screen below is displayed. This sample screen contains
the manufacturer’s default values for the PCA-6773 Series.
Figure 6.4: Advanced Chipset Features setup
PCA-6773 User’s Manual 78
6.2.5 Integrated Peripherals
Choosing the Integrated Peripherals option from the Initial Setup Screen
menu should produce the screen below. Here we see the manufacturer’s
default values for the PCA-6773 Series.
Figure 6.5: Integrated Peripherals
6.2.6 Power Management Setup
By choosing the Power Management Setup option from the Initial Setup
Screen menu, the screen below is displayed. This sample screen contains
the manufacturer’s default values for the PCA-6773 Series.
Figure 6.6: Power Management Setup
79
6.2.7 PnP/PCI Configurations
By choosing the PnP/PCI Configurations option from the Initial Setup
Screen menu, the screen below is displayed. This sample screen contains
the manufacturer’s default values for the PCA-6773 Series.
Figure 6.7: PnP/PCI Configurations
6.2.8 PC Health Status
The PC Health Status option displays information such as CPU and motherboard temperatures, fan speeds, and core voltage.
Figure 6.8: PC Health Status
PCA-6773 User’s Manual 80
6.2.9 Frequency/Voltage Control
By choosing the Frequency/Voltage Control option from the Initial Setup
Screen menu, the screen below is displayed. This sample screen contains
the manufacturer’s default values for the PCA-6773
Figure 6.9: Frequency/Voltage Control
Caution Incorrect settings in Frequency/Voltage Control
may damage the system CPU, video adapter,
or other hardware.
81
6.2.10 Load Optimized Defaults
Load Optimized Defaults loads the default system values directly from
ROM. If the stored record created by the Setup program should ever
become corrupted (and therefore unusable), these defaults will load automatically when you turn the PCA-6773 Series system on.
Figure 6.10: Load BIOS defaults screen
6.2.11 Set Password
Note To enable this feature, you should first go to the
Advanced BIOS Features menu, choose the
Security Option, and select either Setup or
System, depending on which aspect you want
password protected. Setup requires a password only to enter Setup. System requires the
password either to enter Setup or to boot the
system.
A password may be at most 8 characters long.
To Establish Password
1. Choose the Set Password option from the CMOS Setup Utility
main menu and press <Enter>.
2. When you see “Enter Password,” enter the desired password and
press <Enter>.
PCA-6773 User’s Manual 82
3. At the “Confirm Password” prompt, retype the desired password,
then press <Enter>.
4. Select Save to CMOS and EXIT, type <Y>, then <Enter>.
Figure 6.11: Set password
To Change Password
1. Choose the Set Password option from the CMOS Setup Utility
main menu and press <Enter>.
2. When you see “Enter Password,” enter the existing password and
press <Enter>.
3. You will see “Confirm Password.” Type it again, and press
<Enter>.
4. Select Set Password again, and at the “Enter Password” prompt,
enter the new password and press <Enter>.
5. At the “Confirm Password” prompt, retype the new password, and
press <Enter>.
6. Select Save to CMOS and EXIT, type <Y>, then <Enter>.
To Disable Password
1. Choose the Set Password option from the CMOS Setup Utility
main menu and press <Enter>.
2. When you see “Enter Password,” enter the existing password and
press <Enter>.
83
3. You will see “Confirm Password.” Type it again, and press
<Enter>.
4. Select Set Password again, and at the “Enter Password” prompt,
don’t enter anything; just press <Enter>.
5. At the “Confirm Password” prompt, again don’t type in anything;
just press <Enter>.
6. Select Save to CMOS and EXIT, type <Y>, then <Enter>.
6.2.12 Save & Exit Setup
Figure 6.12: Save to CMOS and EXIT
If you select this option and press <Y> then <Enter>, the values entered
in the setup utilities will be recorded in the chipset’s CMOS memory. The
microprocessor will check this every time you turn your system on and
use the settings to configure the system. This record is required for the
system to operate.
PCA-6773 User’s Manual 84
6.2.13 Exit Without Saving
Figure 6.13: Quit without saving
Selecting this option and pressing <Enter> lets you exit the Setup program without recording any new values or changing old ones.
85
PCA-6773 User’s Manual 86
Appendix
Programming the
Watchdog Timer
The board is equipped with a watchdog
timer that resets the CPU or generates
an interrupt if processing comes to a
standstill for any reason. This feature
ensures system reliability in industrial
standalone or unmanned environments.
A
Appendix A Programming the Watchdog
Timer
A.1 Supported Input Timing Modes
In order to program the watchdog timer, you must write a program which
writes I/O port address 443 (hex). The output data is a value of time interval. The value range is from 01 (hex) to 3E (hex), and the related time
interval is 1 sec. to 62 sec.
Data Time Interval
01 1 sec.
02 2 sec.
03 3 sec.
04 4 sec.
.
.
.
3E 62 sec.
After data entry, your program must refresh the watchdog timer by
rewriting the I/O port 443 (hex) while simultaneously setting it.
When you want to disable the watchdog timer, your program
should read I/O port 443 (hex).
PCA-6773 User’s Manual 88
The following example shows how you might program the watchdog
timer in BASIC:
10 REM Watchdog timer example program
20 OUT &H443, data REM Start and restart the
30 GOSUB 1000 REM Your application task #1
40 OUT &H443, data REM Reset the timer
50 GOSUB 2000 REM Your application task #2
60 OUT &H443, data REM Reset the timer
70 X=INP (&H443) REM Disable the watchdog timer
80 END
1000 REM Subroutine #1, your application task
1070 RETURN
2000 REM Subroutine #2, your application task
2090 RETURN
watchdog
.
.
.
.
.
.
89 Appendix A
PCA-6773 User’s Manual 90
Loading...
