Advantech PCA-6772 series User Manual

PCA-6772

ISA VIA Half-sized CPU card with CPU, VGA/LCD, and 3 Ethernet

Users Manual

No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of the original manufacturer. Information provided in this manual is intended to be accurate and reliable. However, the original manufacturer assumes no responsibility for its use, nor for any infringements upon the rights of third parties that may result from such use.

Acknowledgements

Award is a trademark of Award Software International, Inc. VIA is a trademark of VIA Technologies, Inc. IBM, PC/AT, PS/2 and VGA are trademarks of International Business Machines Corporation. Intel and Pentium are trademarks of Intel Corporation. Microsoft Windows® is a registered trademark of Microsoft Corp. RTL is a trademark of Realtek Semi-Conductor Co., Ltd. ESS is a trademark of ESS Technology, Inc. UMC is a trademark of United Microelectronics Corporation. SMI is a trademark of Silicon Motion, Inc. Creative is a trademark of Creative Technology LTD. All other product names or trademarks are properties of their respective owners.

For more information on this and other Advantech products, please visit our websites at: http://www.advantech.com

http://www.advantech.com/epc

For technical support and service, please visit our support website at:

http://support.advantech.com

This manual is for the PCA-6772.

Part No. 2006677211

2nd Edition, Printed in Taiwan May, 2004

PCA-6772 User’s Manual ii

Packing List

Before you begin installing your card, please make sure that the following materials have been shipped:

• 1 PCA-6772 all-in-one single board computer

• 1 startup manual

• CD-ROM or disks for utility, drivers, and manual (in PDF format)

• 1 power cable p/n: 1703080101

• 1 PS/2 KB/M cable p/n: 1700060202

• 1 COM port cable p/n:1700100250

• 1 Printer cable p/n:1700260250

• 1 VGA cable p/n:1701160101

• 1 FDD cable p/n:1701340603

• 1 EIDE cable p/n:1701400452

If any of these items are missing or damaged, contact your distributor or sales representative immediately.

Model No. List Description

PCA-6772F-J3A2 ISA 3LAN Eden400 SlotPC DIMM/VGA/

LCD/8139/CFC A2

PCA-6772F-J1A2 ISA 1LAN Eden400 SlotPC DIMM/VGA/

LCD/8139/CFC A2

PCA-6772F-M3A2 ISA 3LAN Eden667 SlotPC DIMM/VGA/

LCD/8139/CFC

PCA-6772F-M1A2 ISA 1LAN Eden667 SlotPC DIMM/VGA/

LCD/8139/CFC

iii

Additional Information and Assistance

1. Visit the Advantech web site at www.advantech.com where you can find the latest information about the product.

2. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call:

• Product name and serial number

• Description of your peripheral attachments

• Description of your software (operating system, version, application software, etc.)

• A complete description of the problem

• The exact wording of any error messages

PCA-6772 User’s Manual iv

Table of Contents

Contents

Chapter 1 General Information ........................................1

1.1 Introduction ....................................................................... 2

1.2 Features ............................................................................. 3

1.3 Specifications .................................................................... 3

1.3.1 Standard SBC Functions ................................................. 3

1.3.2 VGA/LCD Interface ....................................................... 4

1.3.3 Solid State disk ............................................................... 4

1.3.4 PCI bus Ethernet interface .............................................. 4

1.3.5 Mechanical and Environmental ...................................... 4

1.4 Board layout: dimensions.................................................. 5

Chapter 2 Installation ........................................................7

2.1 Jumpers.............................................................................. 8

2.2 Connectors......................................................................... 9

2.3 Locating jumpers............................................................. 10

2.4 Locating Connectors ....................................................... 11

2.5 Setting Jumpers ............................................................... 12

2.6 Clear CMOS (JP1) .......................................................... 13

2.7 LAN Vcc select (JP2)...................................................... 14

2.8 Watchdog timer configuration ........................................ 14

2.8.1 Watchdog timer action (JP3) ........................................ 15

2.9 Installing DIMMs............................................................ 15

2.10 ATX power control connector (CN1,CN15)................... 16

2.10.1 ATX feature (CN1) and soft power (CN15) ................. 16

2.11 Printer port connector (CN2)........................................... 17

2.12 Floppy drive connector (CN3) ........................................ 17

2.12.1 Connecting the floppy drive ......................................... 17

2.13 Primary IDE connector(CN4) ......................................... 18

2.13.1 Connecting the hard drive............................................. 18

2.14 VGA/LCD interface connections ................................... 18

2.14.1 CRT display connector (CN5) ...................................... 19

2.14.2 Flat panel display connector (CN12)............................ 19

2.14.3 Panel type selection (S1)............................................... 20

2.15 USB connectors (CN6).................................................... 20

2.16 Ethernet configuration..................................................... 21

2.16.1 100Base-T connector (CN7)......................................... 21

2.16.2 Network boot ................................................................ 21

2.17 Power connectors (CN8, FAN1) ..................................... 21

2.17.1 Main power connector, +5 V, +12 V (CN8)................ 21

2.17.2 CPU Fan power supply connector (FAN1)................... 21

2.18 Power & HDD LED, Reset (CN9, CN19) ..................... 21

2.18.1 Power & HDD LED (CN9) .......................................... 22

2.18.2 Reset switch (CN19) ..................................................... 22

2.19 COM port connector (CN13,CN16)................................ 22

2.20 Keyboard and PS/2 mouse connector (CN20) ................ 22

2.21 Audio AC97 interface (CN18) ........................................ 22

2.21.1 Audio connector (CN18) .............................................. 22

Chapter 3 Software Configuration .................................23

3.1 Introduction ..................................................................... 24

3.2 Connections to Two Standard LCDs............................... 25

3.2.1 Connections to (640 x 480 TFT color LCD) ............... 25

3.2.2 Connections to (800 x 600 TFT color LCD) ............... 27

3.3 Ethernet software configuration...................................... 28

Chapter 4 Award BIOS Setup.........................................29

4.1 System test and initialization........................................... 30

4.1.1 System configuration verification................................. 30

4.2 Award BIOS setup .......................................................... 31

4.2.1 Entering setup .............................................................. 31

4.2.2 Standard CMOS Features setup .................................... 32

4.2.3 Advanced BIOS Features setup .................................... 33

4.2.4 Advanced Chipset Features setup ................................. 34

4.2.5 Integrated Peripherals ................................................... 35

4.2.6 Power Management Setup ............................................ 35

4.2.7 PnP/PCI Configurations................................................ 36

4.2.8 PC Health Status ........................................................... 36

4.2.9 Frequency/Voltage Control........................................... 37

4.2.10 Load Optimized Defaults.............................................. 38

4.2.11 Set Password ................................................................. 38

4.2.12 Save & Exit Setup......................................................... 39

4.2.13 Exit Without Saving...................................................... 40

Chapter 5 PCI SVGA Setup ............................................41

5.1 Introduction ..................................................................... 42

5.1.1 Chipset .......................................................................... 42

5.1.2 Display memory............................................................ 42

5.1.3 Display types................................................................. 42

5.1.4 Dual/Simultaneous Display .......................................... 43

5.2 Installation of the SVGA Driver ..................................... 44

5.2.1 Installation for Windows 2000 ..................................... 45

5.2.2 Installation for Windows NT ........................................ 50

5.2.3 Installation for Windows XP ........................................ 55

5.3 Further Information......................................................... 61

Table of Contents

Chapter 6 Audio Setup.....................................................63

6.1 Introduction ..................................................................... 64

6.2 DOS utilities.................................................................... 64

6.2.1 VIA Sound Blaster Pro compatible set up program ..... 64

6.2.2 VIA Sound Blaster Installation ..................................... 65

6.3 Driver installation............................................................ 65

6.3.1 Before you begin........................................................... 65

6.3.2 Windows 95/98 drivers................................................. 66

6.3.3 Windows NT drivers..................................................... 73

6.3.4 Windows 2000 Drivers ................................................. 76

Chapter 7 PCI Bus Ethernet Interface...........................81

7.1 Introduction ..................................................................... 82

7.2 Installation of Ethernet driver ......................................... 82

7.2.1 Installation for MS-DOS and Windows 3.1.................. 82

7.2.2 Installation for Windows 98 ......................................... 83

7.2.3 Installation for Windows 2000 ..................................... 86

7.2.4 Installation for Windows NT ........................................ 91

7.3 Further information ......................................................... 97

Appendix A Programming theWatchdog Timer ..............99

A.1 Supported Input Timing Modes .................................... 100

Appendix B Filler ..............................................................103

Appendix C Pin Assignments ...........................................105

C.1 Suspend 5V and ATX PS_ON (CN1) ........................... 106

C.2 Parallel Port Connector (CN2) ...................................... 107

C.3 Floppy Disk Drive Connector (CN3)............................ 108

C.4 IDE Hard Drive Connector (CN4) ................................ 109

C.5 CRT Display Connector (CN5)..................................... 110

C.6 USB Connector (CN6) .................................................. 110

C.7 LAN1, LAN2, LAN3, RJ45 connector (CN7) .............. 111

C.8 Main Power Connector (CN8) ...................................... 112

C.9 Power & HDD LED Connector(CN9) .......................... 112

C.10 Flat Panel Connector (CN12)........................................ 113

C.11 COM Connector (CN13, CN16) ................................... 114

C.12 LCD Inverter Backlight Connector (CN14).................. 115

C.13 ATX soft power switch connector (CN15) ................... 115

C.14 Panel back-light VR connector (CN17) ........................ 115

C.15 Audio Connector (CN18) .............................................. 116

C.16 Reset Button Connector (CN19) ................................... 116

C.17 Keyboard and PS/2 Mouse Connector (CN20) ............. 117

C.18 CPU Fan Power Connector (FAN 1)............................. 117

vii

Appendix D System Assignments.....................................119

D.1 System I/O Ports............................................................ 120

D.2 1st MB memory map..................................................... 121

D.3 DMA channel assignments............................................ 121

D.4 Interrupt assignments .................................................... 122

Appendix E Optional Extras for the PCA-6772 .............123

E.1 ATX Power Control Cable............................................ 124

E.2 Optional Audio module................................................. 124

viii

CHAPTER

General Information

This chapter gives background information on the PCA-6772.

Sections include:

• Introduction

• Features

• Specifications

• Board layout and dimensions

1 Chapter 1 General Information

Chapter 1 Introduction

1.1 Introduction

Advantech's new PCA-6772 is a new half-sized CPU card with onboard VIA low power CPU, Eden400, Eden667 or LP800. The VIA Eden processor uses advanced 0.13µ CMOS technology with 128KB L1 cache memory and 64KB L2 cache memory on die. This board with Eden400 CPU can operate without a fan at temperatures up to 60° C (140° F) and typically consumes under 14 Watts while supporting numerous peripherals. This SBC includes a 4X AGP controller, a PCI Ethernet interface, and 24-bit TTL interface. Its design is based on the half-sized CPU card and supports ISA bus expansion. Other on-board features include an FDD, LPT, 2 USBs, and 2 serial ports. The SSD solution supports CompactFlash. cards. With the optional PCM-231A-00A1, PCA-6772 can support AC97 Audio.

This product uses a VIA VT8606"TwisterT" chip with Integrated Savage4 2D/3D/Video Accelerator and supports 4X AGP VGA/LCD interface and up to 32 MB frame buffer using system memory. The PCA6772 supports 3 10/100Mbps Ethernet connections with onboard RJ-45 connectors and is effective for use as a firewall, VPN, or gateway device.

PCA-6772 User’s Manual 2

1.2 Features

• Embedded low power VIA Eden667MHz or Eden 400 MHz proces-

sor, optional LP800MHz.

• ISA bus half-sized CPU card

• Fanless operation at 60

• All 3 onboard RJ-45 connectors support 10/100Base-T Ethernet

( PCA-6772F-M3A2, PCA-6772F-J3A2)

• 4X AGP graphics for high performance applications

• FSB 133MHz (Eden667, LP800), FSB 100MHz (Eden400)

C. (PCA-6772F-J3A2, PCA-6772F-J1A2)

1.3 Specifications

1.3.1 Standard SBC Functions

• CPU: Embedded VIA low power Ezra/Eden processor Eden-400 (PCA-6772F-J3A2, PCA-6772F-J1A2) Eden-667 (PCA-6772F-M3A2, PCA-6772F-M1A2)

• System chipsets: VIA VT8606"TwisterT"+VT82C686B

• BIOS: Award 256 KB Flash memory

• System memory: One DIMM socket accepts 64 MB up to 512 MB

SDRAM

• 2nd cache memory: 64KB on the Ezra/Eden processor

• Enhanced IDE interface: One channel supports up to two EIDE

devices. BIOS auto-detect, PIO Mode 3 or Mode 4, up to UDMA66/ 100 mode.

• FDD interface: Supports up to two FDDs

• Serial ports: Two serial RS-232 ports

• Parallel port: Parallel port supports SPP/EPP/ECP mode

• Keyboard/mouse connector: Supports standard PC/AT keyboard and a

PS/2 mouse

3 Chapter 1 General Information

• Power management: Supports power saving modes including Normal/

Standby/Suspend modes. APM 1.2 compliant

• Watchdog timer: 62 level timer intervals

• USB: Two universal serial bus ports

1.3.2 VGA/LCD Interface

• Chipset: VIA VT8606"TwisterT" chip with integrated Savage4 2D/3D/

Video Accelerator

• Frame buffer: Supports 8/16/32MB frame buffer with system memory

• Interface: 4X AGP VGA/LCD interface, Support for 9, 12, 15, 18 bit

TFT

• Display modes:

CRT Modes: 1280 x 1024@16bpp (60Hz),

1024 x 768@16bpp (85Hz); LCD/Simultaneous Modes: 800 x 600@18bpp (60Hz). 640 x 480@18bpp (60Hz))

1.3.3 Solid State disk

• Supports CompactFlash Type I/II disks

1.3.4 PCI bus Ethernet interface

• Chipset: REALTEK RTL8139C plus Ethernet controller

• Ethernet interface: IEEE 802.3U compatible 10/100Base-T interface.

Includes software drivers and boot ROM

•

Wake-on-LAN:

Supports wake-on-LAN function

1.3.5 Mechanical and Environmental

• Dimensions (L x W): 185 x 122 mm(7.28” x 4.80”)

• Power supply voltage: +5 V, +12V ±5%

• Power requirements:

Max:

4.5 A @ +5 V, 0.5 A @+12 V

Typical:

3.3 A @ 5 V, (with 256 MB DRAM, Ezra 800 MHz CPU)

2.78 A @ 5 V, (with 256 MB DRAM, Eden 400 MHz CPU)

• Operating temperature: 0 ~ 60°C (32 ~ 140°F)

• Operating humidity: 0% ~ 90% Relative Humidity, Non condensing

• Weight: 0.27 kg (weight of total package)

PCA-6772 User’s Manual 4

1.4 Board layout: dimensions

Figure 1.1: Board layout: dimensions (component side)

5 Chapter 1 General Information

Figure 1.2: Board layout: dimensions (solder side)

PCA-6772 User’s Manual 6

CHAPTER

Installation

This chapter explains the setup procedures of PCA-6772 hardware, including instructions on setting jumpers and connecting peripherals, switches and indicators. Be sure to read all safety precautions before you begin the installation procedure.

7 Chapter 2 Installation

Chapter 2 Installation

2.1 Jumpers

The PCA-6772 has a number of jumpers that allow you to configure your system to suit your application. The table below lists the functions of the various jumpers.

Table 2.1: Jumpers

Label Function

JP1 CMOS clear

JP2 LAN Vcc select

JP3 Watch-Dog output select

S1 Panel type select

PCA-6772 User’s Manual 8

2.2 Connectors

On-board connectors link the PCA-6772 to external devices such as hard disk drives, a keyboard, or floppy drives. The table below lists the function of each of the board’s connectors.

Table 2.2: Connectors

Label Function

CN1 ATX power control connector

CN2 Printer port connector

CN3 FDD connector

CN4 Primary IDE connector

CN5 CRT display connector

CN6 USB connectors

CN7 LAN1, LAN2, LAN3 RJ45 connector

CN8 Main power connector

CN9 Power and HDD LED connector

CN12 Flat panel display connector

CN13 COM port connector

CN14 Panel back-light power connector

CN15 ATX soft power switch connector

CN16 COM port connector

CN17 Panel back-light VR connector

CN19 Reset switch connector

CN20 Keyboard and PS/2 mouse connector

Fan1 CPU fan power connector

9 Chapter 2 Installation

2.3 Locating jumpers

Figure 2.1: Jumper locations

PCA-6772 User’s Manual 10

2.4 Locating Connectors

Figure 2.2: Connectors (component side)

11 Chapter 2 Installation

2.5 Setting Jumpers

You may configure your card to match the needs of your application by setting jumpers. A jumper is a metal bridge used to close an electric circuit. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To “close” a jumper, you connect the pins with the clip. To “open” a jumper, you remove the clip. Sometimes a jumper will have three pins, labeled 1, 2 and 3. In this case you would connect either pins 1 and 2, or 2 and 3.

open closed closed 2-3

The jumper settings are schematically depicted in this manual as follows:.

open closed closed 2-3

A pair of needle-nose pliers may be helpful when working with jumpers.

If you have any doubts about the best hardware configuration for your application, contact your local distributor or sales representative before you make any changes.

Generally, you simply need a standard cable to make most connections.

PCA-6772 User’s Manual 12

2.6 Clear CMOS (JP1)

Warning! To avoid damaging the computer, always turn

off the power supply before setting “Clear CMOS.” Before turning on the power supply, set the jumper back to “3.0 V Battery On.”

This jumper is used to erase CMOS data and reset system BIOS information.

The procedure for clearing CMOS is:

1. Turn off the system.

2. Short pin 2 and pin 3.

3. Return jumper to pins 1 and 2.

4. Turn on the system. The BIOS is now reset to its default setting

Table 2.3: CMOS clear (JP1)

*3.0 V normal clear CMOS

* default setting

13 Chapter 2 Installation

2.7 LAN Vcc select (JP2)

Table 2.4: LAN Vcc select (JP2)

Normal power* WOL power

* default setting

Note: PCA-6772 supports Wake-on-LAN. For Wake-on LAN, JP2 has to be set to the WOL power position

2.8 Watchdog timer configuration

An on-board watchdog timer reduces the chance of disruptions which EMP (electro-magnetic pulse) interference can cause. This is an invaluable protective device for standalone or unmanned applications. Setup involves one jumper and running the control software (refer to Appendix A).

PCA-6772 User’s Manual 14

2.8.1 Watchdog timer action (JP3)

When the watchdog timer activates (CPU processing has come to a halt), it can reset the system or generate an interrupt on IRQ11. This can be set via setting JP3 as shown below:

Table 2.5: Watchdog timer action (JP3)

*System reset IRQ 11

* default setting

2.9 Installing DIMMs

The procedure for installing DIMMs is described below. Please follow these steps carefully. The number of pins are different on either side of the breaks, so the module can only fit in one way. DIMM modules have different pin contacts on each side, and therefore have a higher pin density.

1. Make sure that the two handles of the DIMM socket are in the

“open” position. i.e. The handles remain leaning outward.

2. Slowly slide the DIMM module along the plastic guides on both

ends of the socket.

3. Press the DIMM module right down into the socket, until you hear

a click. This is when the two handles have automatically locked the memory module into the correct position of the socket.

To remove the memory module, just push both handles outward, and the module will be ejected from the socket.

15 Chapter 2 Installation

2.10 ATX power control connector (CN1,CN15)

2.10.1 ATX feature connector (CN1) and soft power

switch connector (CN15)

The PCA-6772 can support an advanced soft power switch function, if an ATX power supply is used. To enable the soft power switch function:

1. Get the specially designed ATX-to-EBX power cable

(PCA-6772 optional item, part no. 1703200100)

2. Connect the 3-pin plug of the cable to CN1 (ATX feature connec-

tor).

3. Connect the power on/off button to CN15. (A momentary type of

button should be used.)

Important Make sure that the ATX power supply can take

at least a 10 mA load on the 5 V standby lead (5VSB). If not, you may have difficulty powering on your system.

to CN1 ATX

features connector

to main power connector CN8

20-pin

female connector

Figure 2.3: Wiring for ATX soft power switch function

PCA-6772 User’s Manual 16

ATX

power supply

2.11 Printer port connector (CN2)

Normally, the parallel port is used to connect the card to a printer. The PCA-6772 includes a multi-mode (ECP/EPP/SPP) parallel port accessed via CN2 and a 26-pin flat-cable connector. You will need an adapter cable if you use a traditional DB-25 connector. The adapter cable has a 26-pin connector on one end, and a DB-25 connector on the other.

The parallel port is designated as LPT1, and can be disabled or changed to LPT2 or LPT3 in the system BIOS setup.

The parallel port interrupt channel is designated to be IRQ7.

You can select ECP/EPP DMA channel via BIOS setup.

2.12 Floppy drive connector (CN3)

You can attach up to two floppy drives to the PCA-6772’s on-board controller. You can use any combination of 5.25” (360 KB and 1.2 MB) and/ or 3.5” (720 KB, 1.44 MB, and 2.88 MB) drives.

A 34-pin daisy-chain drive connector cable is required for a dual-drive system. On one end of the cable is a 34-pin flat-cable connector. On the other end are two sets of floppy disk drive connectors. Each set consists of a 34-pin flat-cable connector (usually used for 3.5” drives) and a printed-circuit board connector (usually used for 5.25” drives).

2.12.1 Connecting the floppy drive

1. Plug the 34-pin flat-cable connector into CN3. Make sure that the

red wire corresponds to pin one on the connector.

2. Attach the appropriate connector on the other end of the cable to

the floppy drive(s). You can use only one connector in the set. The set on the end (after the twist in the cable) connects to the A: drive. The set in the middle connects to the B: drive.

3. If you are connecting a 5.25” floppy drive, line up the slot in the

printed circuit board with the blocked-off part of the cable connec-

tor. If you are connecting a 3.5” floppy drive, you may have trouble determining which pin is number one. Look for a number printed on the circuit board indicating pin number one. In addition, the connector on the floppy drive may have a slot. When the slot is up, pin number one should be on the right. Check the documentation that came with the drive for more information.

17 Chapter 2 Installation

If you desire, connect the B: drive to the connectors in the middle of the cable as described above.

In case you need to make your own cable, you can find the pin assignments for the board’s connector in Appendix C.

2.13 Primary IDE connector(CN4)

The PCA-6772 provides an IDE channel to which you can attach up to two Enhanced Integrated Device Electronics hard disk drives or CDROM to the PCA-6772’s internal controller. The PCA-6772's IDE controller uses a PCI interface. This advanced IDE controller supports faster data transfer, PIO Mode 3 or Mode 4, UDMA 33/66/100 mode.

2.13.1 Connecting the hard drive

Connecting drives is done in a daisy-chain fashion. It requires one of two cables (not included in this package), depending on the drive size. 1.8" and 2.5" drives need a 1 x 44-pin to 2 x 44-pin flat-cable connector. 3.5" drives use a 1 x 44-pin to 2 x 40-pin connector.

Wire number 1 on the cable is red or blue, and the other wires are gray.

1. Connect one end of the cable to CN4. Make sure that the red (or

blue) wire corresponds to pin 1 on the connector, which is labeled

on the board (on the right side).

2. Plug the other end of the cable into the Enhanced IDE hard drive,

with pin 1 on the cable corresponding to pin 1 on the hard drive.

(See your hard drive’s documentation for the location of the con-

nector.) If desired, connect a second drive as described above.

Unlike floppy drives, IDE hard drives can connect to either end of the cable. If you install two drives, you will need to set one as the master and one as the slave by using jumpers on the drives. If you install only one drive, set it as the master.

2.14 VGA/LCD interface connections

The PCA-6772’s display interface can drive conventional CRT displays and is capable of driving a wide range of flat panel displays as well, including passive LCD and active LCD displays. The board has two display connectors: one for standard CRT VGA monitors, and one for flat panel displays.

PCA-6772 User’s Manual 18

2.14.1 CRT display connector (CN5)

CN5 is a 16-pin, dual-inline header used for conventional CRT displays. A simple one-to-one adapter can be used to match CN5 to a standard 15pin D-SUB connector commonly used for VGA.

Pin assignments for CRT display connector CN5 are detailed in Appendix C.

2.14.2 Flat panel display connector (CN12)

CN12 consists of a 40-pin connector which can support an 18-bit LCD panel. It is Hirose’s product no. DF13A-40DP-1.25 V

The PCA-6772 provides a bias control signal on CN12 that can be used to control the LCD bias voltage. It is recommended that the LCD bias voltage not be applied to the panel until the logic supply voltage (+5 V or +3.3 V) and panel video signals are stable. Under normal operation, the control signal (ENAVEE) is active high. When the PCA-6772’s power is applied, the control signal is low until just after the relevant flat panel signals are present. CN12 can connect up to 18 bit TFT LCD.

19 Chapter 2 Installation

2.14.3 Panel type selection (S1)

S1 is an 8 segment DIP switch for DSTN/TFT panel type and resolution functions.

Table 2.6: S1 Panel Type select

SW 1-1SW1-2SW1-3SW1-4 Panel Type & Resolution

ON ON ON ON TFT 640x480** 18bit (H. V. Freq)

ON ON ON OFF TFT 640x480 18bit (Synthetic)

ON ON OFF ON TFT 640x480** N/A

ON ON OFF OFF TFT 640x480** LVDS

ON OFF ON ON DSTN 640x480** 18bit

ON OFF ON OFF TFT 800x600** 18bit (H. V. Freq)

ON OFF OFF ON TFT 800x600 18bit (Synthetic)

ON OFF OFF OFF TFT 800x600** LVDS

OFF ON ON ON TFT 800x600** N/A

OFF ON ON OFF DSTN 800x600** 18bit

OFF ON OFF ON TFT 1024x768** 36bit (H. V. Freq)

OFF ON OFF OFF TFT 1024x768** 36bit (Synthetic)

OFF OFF ON ON TFT 1024x768** LVDS

OFF OFF ON OFF TFT 1024x768** N/A

OFF OFF OFF ON DSTN 1024x768** 18bit

OFF OFF OFF OFF DSTN 1024x768** 24bit

* Default setting

** will support in the future

2.15 USB connectors (CN6)

The PCA-6772 board provides up to two USB (Universal Serial Bus) ports. This gives complete Plug and Play, and hot attach/detach for up to 127 external devices. The USB interfaces comply with USB specification Rev. 1.1, and are fuse protected.

The USB interface is accessed through the 5 x 2-pin flat-cable connector, CN6 (USB1, 2). You will need an adapter cable if you use a standard

PCA-6772 User’s Manual 20

USB connector. The adapter cable has a 5 x 2-pin connector on one end and a USB connector on the other.

The USB interfaces can be disabled in the system BIOS setup.

2.16 Ethernet configuration

The PCA-6772 is equipped with a high performance 32-bit PCI-bus Ethernet interface which is fully compliant with IEEE 802.3U 10/ 100Mbps CSMA/CD standards. It is supported by all major network operating systems.

The PCA-6772 supports 3 10/100Mbps Ethernet connections with onboard RJ-45 connectors(CN7) and is effective for use as a firewall, VPN, or gateway device.

The medium type can be configured via the RSET8139.EXE program included on the utility disk. (See Chapter 3 for detailed information.)

2.16.1 100Base-T connector (CN7)

10/100Base-T connects to the PCA-6772 via an adapter cable to an 8-pin polarized header (CN7).

2.16.2 Network boot

The Network Boot feature can be utilized by incorporating the Boot ROM image files for the appropriate network operating system. The Boot ROM BIOS files are included in the system BIOS, which is on the utility CD disc.

2.17 Power connectors (CN8, FAN1)

2.17.1 Main power connector, +5 V, +12 V (CN8)

Supplies main power to the PCA-6772 (+5 V), and to devices that require +12 V.

2.17.2 CPU Fan power supply connector (FAN1)

Provides power supply to CPU cooling fan. Only present when +5 V and +12 V power is supplied to the board.

2.18 Power & HDD LED, Reset Button Connector (CN9, CN19)

Next, you may want to install external switches to monitor and control the PCA-6772. These features are optional: install them only if you need

21 Chapter 2 Installation

them. The front panel connector (CN9) is an 6-pin male, dual in-line header. It provides connections for a speaker, hard disk access indicator, watchdog output, and an input switch for resetting the card.

2.18.1 Power & HDD LED (CN9)

The HDD LED indicator for hard disk access is an active low signal (24 mA sink rate). Power supply activity LED indicator.

2.18.2 Reset switch (CN19)

If you install a reset switch, it should be an open single pole switch. Momentarily pressing the switch will activate a reset. The switch should be rated for 10 mA, 5 V.

2.19 COM port connector (CN13,CN16)

The PCA-6772 provides two serial ports (COM1: RS-232 and COM2: RS232) in one COM port connector. It provides connections for serial devices (a mouse, etc.) or a communication network. You can find the pin assignments for the COM port connector in Appendix C.

2.20 Keyboard and PS/2 mouse connector (CN20)

The PCA-6772 board provides a keyboard connector that supports both a keyboard and a PS/2 style mouse. In most cases, especially in embedded applications, a keyboard is not used. If the keyboard is not present, the standard PC/AT BIOS will report an error or fail during power-on selftest (POST) after a reset. The PCA-6772’s BIOS standard setup menu allows you to select “All, But Keyboard” under the “Halt On” selection. This allows no-keyboard operation in embedded system applications, without the system halting under POST.

2.21 Audio AC97 interface (CN18)

2.21.1 Audio connector (CN18)

The Audio AC97 link is a 10 pin connector; the PCA-6772 can support AC97 Audio with the addition of optional PCM-231A-00A1.

PCA-6772 User’s Manual 22

CHAPTER

Software Configuration

This chapter details the software configuration information. It shows you how to configure the card to match your application requirements. The AWARD System BIOS is covered in Chapter 4.

Sections include:

• Introduction

• Connections for standard LCDs

• Ethernet interface configuration.

23 Chapter 3 Software Configuration

Chapter 3 Software Configuration

3.1 Introduction

The PCA-6772 system BIOS and custom drivers are located in a 256 Kbyte, Flash ROM device, designated U18. A single Flash chip holds the system BIOS, VGA BIOS and network Boot ROM image. The display can be configured via CMOS settings. This method minimizes the number of chips and difficulty of configuration. To set different types of LCD panels, please choose “panel type” from the “integrated peripherals” menu in CMOS setup.

PCA-6772 User’s Manual 24

3.2 Connections to Two Standard LCDs

The following tables illustrate typical LCD connection pinouts for the PCA-6772.

3.2.1 Connections to Toshiba LTM10C209A

(640 x 480 TFT color LCD)

Table 3.1: Connections to Toshiba LTM10C209A

LTM10C209A PCA-6772 CN12

Pin Name Pin Name

1 GND 3 GND

2 CLK 35 SHFCLK

3GND 34GND

4R0 27P18

5R1 28P19

6R2 29P20

7GND 33GND

8R3 30P21

9R4 31P22

10 R5 32 P23

11 GND 34 G ND

12 G0 19 P10

13 G1 20 P11

14 G2 21 P12

15 GND 8 GND

16 G3 22 P13

17 G4 23 P14

18 G5 24 P15

19 GND 8 GND

20 ENAB 37 M/DE

21 GND 4 GND

22 B0 11 P2

23 B1 12 P3

24 B2 13 P4

25 GND 4 GND

26 B3 14 P5

27 B4 15 P6

25 Chapter 3 Software Configuration

Table 3.1: Connections to Toshiba LTM10C209A

28 B5 16 P7

29 GND 3 GND

30 VDD 1 +5 V

31 VDD 2 +5 V

PCA-6772 User’s Manual 26

3.2.2 Connections to Toshiba LTM12C275A

(800 x 600 TFT color LCD)

Table 3.2: Connections to Toshiba LTM12C275A

LTM12C275A PCA-6772 CN12

Pin Name Pin Name

1 GND 3 GND

2 NCLK 35 SHFCLK

3NC -NC

4NC -NC

5 GND 4 GND

6R0 27P18

7R1 28P19

8R2 29P20

9R3 30P21

10 R4 31 P22

11 R5 32 P2 3

12 GND 8 GND

13 G0 19 P10

14 G1 20 P11

15 G2 21 P12

16 G3 22 P13

17 G4 23 P14

18 G5 24 P15

19 GND 33 GND

20 B0 11 P2

21 B1 12 P3

22 B2 13 P4

23 B3 14 P5

24 B4 15 P6

25 B5 16 P7

26 ENAB 37 M/DE

27 GND 34 GND

28 VCC 5 +5 V

29 VCC 6 +5 V

30 GND 39 GND

27 Chapter 3 Software Configuration

3.3 Ethernet software configuration

The PCA-6772’s on-board Ethernet interface supports all major network operating systems. To configure the medium type, to view the current configuration, or to run diagnostics, do the following:

1. Power the PCA-6772 on. Make sure that the RSET8139.EXE file is

located in the working drive.

2. At the prompt, type RSET8139.EXE and press <Enter>. The Ether-

net configuration program will then be displayed.

3. This simple screen shows all the available options for the Ethernet

interface. Just highlight the option you wish to change by using the

Up and Down keys. To change a selected item, press <Enter>, and

a screen will appear with the available options. Highlight your

option and press <Enter>. Each highlighted option has a helpful

message guide displayed at the bottom of the screen for additional

information.

4. After you have made your selections and are sure this is the config-

uration you want, press ESC. A prompt will appear asking if you

want to save the configuration. Press Y if you want to save. The Ethernet Setup Menu also offers three very useful diagnostic functions. These are:

1. Run EEPROM Test.

2. Run Diagnostics on Board.

3. Run Diagnostics on Network. Each option has its own display screen that shows the format and result of

any diagnostic tests undertaken.

Note For Ethernet installation, please see Chapter 7

PCA-6772 User’s Manual 28

Chapter 4 Ducks that Need Love!

CHAPTER

Award BIOS Setup

This chapter describes how to set BIOS

configuration data.

29 Chapter 4 Award BIOS Setup

Chapter 4 Award BIOS Setup

4.1 System test and initialization

These routines test and initialize board hardware. If the routines encounter an error during the tests, you will either hear a few short beeps or see an error message on the screen. There are two kinds of errors: fatal and non-fatal. The system can usually continue the boot up sequence with non-fatal errors. Non-fatal error messages usually appear on the screen along with the following instructions:

press <F1> to RESUME

Write down the message and press the F1 key to continue the bootup sequence.

4.1.1 System configuration verification

These routines check the current system configuration against the values stored in the board’s CMOS memory. If they do not match, the program outputs an error message. You will then need to run the BIOS setup program to set the configuration information in memory.

There are three situations in which you will need to change the CMOS settings:

1. You are starting your system for the first time

2. You have changed the hardware attached to your system

3. The CMOS memory has lost power and the configuration informa-

tion has been erased. The PCA-6772 Series' CMOS memory has an integral lithium battery backup. The battery backup should last ten years in normal service, but when it finally runs down, you will need to replace the complete unit.

PCA-6772 User’s Manual 30

4.2 Award BIOS setup

Award’s BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it retains the Setup information when the power is turned off.

4.2.1 Entering setup

Power on the computer and press <Del> immediately. This will allow you to enter Setup.

Figure 4.1: BIOS setup program initial screen

31 Chapter 4 Award BIOS Setup

4.2.2 Standard CMOS Features setup

When you choose the Standard CMOS Features option from the Initial Setup Screen menu, the screen shown below is displayed. This standard Setup Menu allows users to configure system components such as date, time, hard disk drive, floppy drive and display. Once a field is highlighted, on-line help information is displayed in the left bottom of the Menu screen.

Figure 4.2: CMOS Features setup

PCA-6772 User’s Manual 32

4.2.3 Advanced BIOS Features setup

By choosing the Advanced BIOS Features Setup option from the Initial Setup Screen menu, the screen below is displayed. This sample screen contains the manufacturer’s default values for the PCA-6772 Series.

Figure 4.3: Advanced BIOS Features setup

33 Chapter 4 Award BIOS Setup

4.2.4 Advanced Chipset Features setup

By choosing the Advanced Chipset Features option from the Initial Setup Screen menu, the screen below is displayed. This sample screen contains the manufacturer’s default values for the PCA-6772 Series.

Figure 4.4: Advanced Chipset Features setup

PCA-6772 User’s Manual 34

4.2.5 Integrated Peripherals

Choosing the Integrated Peripherals option from the Initial Setup Screen menu should produce the screen below. Here we see the manufacturer’s default values for the PCA-6772 Series.

Figure 4.5: Integrated Peripherals

4.2.6 Power Management Setup

By choosing the Power Management Setup option from the Initial Setup Screen menu, the screen below is displayed. This sample screen contains the manufacturer’s default values for the PCA-6772 Series.

Figure 4.6: Power Management Setup

35 Chapter 4 Award BIOS Setup

4.2.7 PnP/PCI Configurations

By choosing the PnP/PCI Configurations option from the Initial Setup Screen menu, the screen below is displayed. This sample screen contains the manufacturer’s default values for the PCA-6772 Series.

Figure 4.7: PnP/PCI Configurations

4.2.8 PC Health Status

The PC Health Status option displays information such as CPU and motherboard temperatures, fan speeds, and core voltage.

Figure 4.8: PC Health Status

PCA-6772 User’s Manual 36

4.2.9 Frequency/Voltage Control

By choosing the Frequency/Voltage Control option from the Initial Setup Screen menu, the screen below is displayed. This sample screen contains the manufacturer’s default values for the PCA-6772

Figure 4.9: Frequency/Voltage Control

Caution Incorrect settings in Frequency/Voltage Control

may damage the system CPU, video adapter, or other hardware.

37 Chapter 4 Award BIOS Setup

4.2.10 Load Optimized Defaults

Load Optimized Defaults loads the default system values directly from ROM. If the stored record created by the Setup program should ever become corrupted (and therefore unusable), these defaults will load automatically when you turn the PCA-6772 Series system on.

Figure 4.10: Load BIOS defaults screen

4.2.11 Set Password

Note To enable this feature, you should first go to the

Advanced BIOS Features menu, choose the Security Option, and select either Setup or System, depending on which aspect you want password protected. Setup requires a password only to enter Setup. System requires the password either to enter Setup or to boot the system.

A password may be at most 8 characters long.

To Establish Password

1. Choose the Set Password option from the CMOS Setup Utility

main menu and press <Enter>.

2. When you see “Enter Password,” enter the desired password and

press <Enter>.

PCA-6772 User’s Manual 38

3. At the “Confirm Password” prompt, retype the desired password,

then press <Enter>.

4. Select Save to CMOS and EXIT, type <Y>, then <Enter>.

To Change Password

1. Choose the Set Password option from the CMOS Setup Utility

main menu and press <Enter>.

2. When you see “Enter Password,” enter the existing password and

press <Enter>.

3. You will see “Confirm Password.” Type it again, and press

<Enter>.

4. Select Set Password again, and at the “Enter Password” prompt,

enter the new password and press <Enter>.

5. At the “Confirm Password” prompt, retype the new password, and

press <Enter>.

6. Select Save to CMOS and EXIT, type <Y>, then <Enter>.

To Disable Password

1. Choose the Set Password option from the CMOS Setup Utility

main menu and press <Enter>.

2. When you see “Enter Password,” enter the existing password and

press <Enter>.

3. You will see “Confirm Password.” Type it again, and press

<Enter>.

4. Select Set Password again, and at the “Enter Password” prompt,

don’t enter anything; just press <Enter>.

5. At the “Confirm Password” prompt, again don’t type in anything;

just press <Enter>.

6. Select Save to CMOS and EXIT, type <Y>, then <Enter>.

4.2.12 Save & Exit Setup

If you select this option and press <Y> then <Enter>, the values entered in the setup utilities will be recorded in the chipset’s CMOS memory. The microprocessor will check this every time you turn your system on and use the settings to configure the system. This record is required for the system to operate.

39 Chapter 4 Award BIOS Setup

4.2.13 Exit Without Saving

Selecting this option and pressing <Enter> lets you exit the Setup program without recording any new values or changing old ones.

PCA-6772 User’s Manual 40

PCI SVGA Setup

• Introduction

• Installation of SVGA drivers

-for Windows 95/98/Me

-for Windows NT/2000/XP

• Further information

CHAPTER

41 Chapter 5 PCI SVGA Setup

Chapter 5 PCI SVGA Setup

5.1 Introduction

The PCA-6772 has an onboard AGP flat panel/VGA interface. The specifications and features are described as follows:

5.1.1 Chipset

The PCA-6772 uses a VIA Twister 8606T chipset from VIA Technology Inc. for its AGP/SVGA controller. It supports many popular LCD, and LVDS LCD displays and conventional analog CRT monitors. The VIA8606T VGA BIOS supports color TFT and LCD flat panel displays. In addition, it also supports interlaced and non-interlaced analog monitors (color and monochrome VGA) in high-resolution modes while

maintaining complete IBM VGA compatibility. Digital monitors

(i.e. MDA, CGA, and EGA) are NOT supported. Multiple frequency

(multisync) monitors are handled as if they were analog monitors.

5.1.2 Display memory

The Twister chip can support 8/16/32MB frame buffer shared with system memory; the VGA controller can drive CRT displays or color panel displays with resolutions up to 1280 x 1024 at 16 M colors.

5.1.3 Display types

CRT and panel displays can be used simultaneously. The PCA-6772 can be set in one of three configurations: on a CRT, on a flat panel display, or on both simultaneously. The system is initially set to simultaneous display mode. If you want to enable the CRT display only or the flat panel display only, please contact VIA Technology Inc., or our sales representative for detailed information.

PCA-6772 User’s Manual 42

5.1.4 Dual/Simultaneous Display

The PCA-6772 uses a VIA Twister VT8606T LCD controller that is capable of providing simultaneous dual view display of the same content on a flat panel and CRT.

To set up dual view (simultaneous mode) under Windows 9x, Windows ME, Windows NT/2000/XP, follow these steps:

Step 1. Open the Control panel, and select “Display”, “Settings”.

Step 2. Select " CRT+LCD " or " CRT+TV " for dual view

Step 3. Click “OK”.

Figure 5.1: Selecting Display Settings

43 Chapter 5 PCI SVGA Setup

5.2 Installation of the SVGA Driver

Complete the following steps to install the SVGA driver. Follow the procedures in the flow chart that apply to the operating system that you are using within your PCA-6772.

Notes: 1. The windows illustrations in this chapter are

intended as examples only. Please follow the listed steps, and pay attention to the instructions which appear on your screen.

2. For convenience, the CD-ROM drive is designated as "E" throughout this chapter.

PCA-6772 User’s Manual 44

5.2.1 Installation for Windows 2000

Step 1. Select “Start” > “Settings” > “Control Panel” > “System” >

“Hardware” > “Device Manager.” Right click “Video Controller (VGA Compatible),” and choose “Properties.”

45 Chapter 5 PCI SVGA Setup

Step 2. Choose the “Driver” tab; press “Update Driver...” button.

PCA-6772 User’s Manual 46

Step 3. Choose “Display a list of...,” then press “Next” button.

Step 4. Choose “Display adapters;” press “Next” button.

47 Chapter 5 PCI SVGA Setup

Step 5. Click the “Have Disk” button.

Step 6. Type the path to the Win2000 VGA drivers on your driver CD,

and press the “OK” button.

E:\SlotPC\6772\VGA Driver

PCA-6772 User’s Manual 48

Step 7. Press “Finish” to reboot.

49 Chapter 5 PCI SVGA Setup

5.2.2 Installation for Windows NT

Note: Service Pack X (X = 3, 4, 5, 6,...) must be

installed first, before you install the Windows NT VGA driver.

Step 1. Select "Start", "Settings", "Control Panel" and double click the

"Display" icon.

PCA-6772 User’s Manual 50

Step 2. Choose the "Settings" tab, and press the "Display Type" button.

51 Chapter 5 PCI SVGA Setup

Step 3. Press the "Change..." button.

PCA-6772 User’s Manual 52

Step 4. Click the "Have Disk..." button.

Step 5. Type the path to the WinNT VGA drivers on your installation

CD, and press the “OK” button.

E:\SlotPC\VGA\9xME\ROTATION

53 Chapter 5 PCI SVGA Setup

Step 6. Press “Finish” to complete the driver installation.

PCA-6772 User’s Manual 54

5.2.3 Installation for Windows XP

Step 1. Select “Start,” “Settings,””System,” “Control Panel” and double

click the “system” icon. Choose “Hardware” and “Device Manager;” press “OK” button. Right click “Video Controller (VGA Compatible,” and select “Properties.”

55 Chapter 5 PCI SVGA Setup

Step 2. Click “Update Driver.”

PCA-6772 User’s Manual 56

Step 3. The Hardware Update Wizard should start. Click the “Install

from a list....” radio button; mash “Next.”

57 Chapter 5 PCI SVGA Setup

Step 4. Select “Don’t search. I will choose....” Depress “Next.”

PCA-6772 User’s Manual 58

Step 5. Select “Display adapters,” then press “Next.”

Step 6. Establish the path to the XP VGA drivers, then press “OK.”

59 Chapter 5 PCI SVGA Setup

Step 7. Select “S3 Graphics Twister + S3 Hotkey,” and click “Next.”

PCA-6772 User’s Manual 60

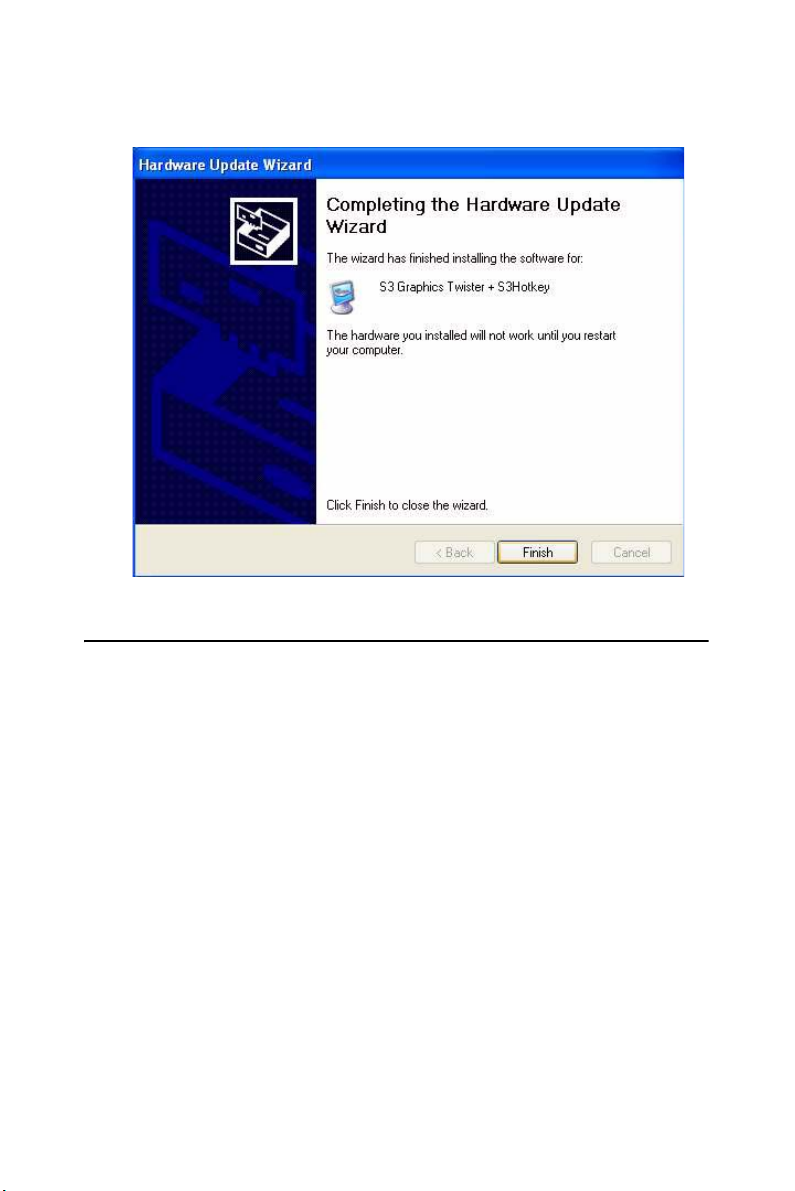

Step 8. Press “Finish” to reboot.

5.3 Further Information

For further information about the AGP/VGA installation in your PCA6772, including driver updates, troubleshooting guides and FAQ lists, visit the following web resources:

VIA website: www.via.com.tw

Advantech websites: www.advantech.com

www.advantech.com.tw

61 Chapter 5 PCI SVGA Setup

PCA-6772 User’s Manual 62

CHAPTER

Audio Setup

The PCA-6772 is equipped with an audio interface that records and plays back CD-quality audio. This chapter provides instructions for installing the software drivers included on the audio driver diskettes.

63 Chapter 6 Audio Setup

Chapter 6 Audio Setup

6.1 Introduction

The PCA-6772's on-board audio interface provides high-quality stereo sound and FM music synthesis (ESFM) by using the VIA VT82C686 audio controller from VIA. The audio interface can record, compress, and play back voice, sound, and music with built-in mixer control.

The PCA-6772 on board audio interface also supports the Plug and Play (PnP) standard and provides PnP configuration for the audio, FM, and MPU-104 logical devices. It is compatible with Sound Blaster™; Sound Blaster Pro™ version 3.01, voice and music functions. The ESFM synthesizer is register compatible with the OPL3 and has extended capabilities.

6.2 DOS utilities

6.2.1 VIA Sound Blaster Pro compatible set up program

Please “Enable” the Sound Blaster setting in the BIOS before playing Sound Blaster compatible DOS games. To enable the settings in the BIOS:

INTEGRATED PERIPHERALS -> Onboard Legacy Audio

-> Sound Blaster (Disable -> Enable)

Chipset Feature Setup ->On Chip Sound (Disable-> Enable)

The Sound Blaster Pro compatible sound chip is integrated into the VIA PCI audio device in order to have Sound Blaster compatible DOS games running on the system.

If you want to play Sound Blaster compatible DOS games under the real mode MS-DOS or the “Restart in MS-DOS” from Win9x, then you should run this setup program to enable OPL3 MIDI music. Otherwise, the sound effects will be heard, but not the music. If you want to play legacy games in a Windows DOS Box, then you don't need to install this program.

PCA-6772 User’s Manual 64

6.2.2 VIA Sound Blaster Installation

Follow these steps to enable the Sound Blaster Pro compatible functions.

Step 1. Enable the Sound Blaster first on the BIOS setting of the

"Onboard Legacy Audio" and "On-Chip Sound".

Step 2. Run the "Install.exe". A:> INSTALL

Step 3. The program will copy the relative files into the directory which

you assign. Next, the program will insert the following new line into the AUTOEXEC.BAT and copy the original AUTOEXEC.BAT to AUTOEXEC.VIA.

C: \VIAUDIO\VIAUDIO.COM

Step 4. Reboot the system when the installation is complete.

Step 5. Uninstall by deleting the new line from the AUTOEXEC.BAT.

6.3 Driver installation

6.3.1 Before you begin

Please read the instructions in this chapter carefully before you attempt installation. The audio drivers for the PCA-6772 board are located on the audio driver CD. Run the supplied SETUP program to install the drivers; don’t copy the files manually.

Note: The files on the software installation diskette

are compressed. Do not attempt to install the drivers by copying the files manually. You must use the supplied SETUP program to install the drivers.

65 Chapter 6 Audio Setup

6.3.2 Windows 95/98 drivers

Step 1. Click "Start" and select "Settings". Click "Control Panel" and

double-click "Add New Hardware".

Step 2. In the Add New Hardware Wizard window, click "Next".

PCA-6772 User’s Manual 66

Step 3. In the following Add New Hardware Wizard window, click

"Next" for Windows to search for Plug and Play devices.

Step 4. In the following Add New Hardware Wizard window, select “No,

the device isn't in the list.”and click “Next”.

67 Chapter 6 Audio Setup

Step 5. In the following Add New Hardware Wizard window, select "No,

I want to select..." and click "Next".

Step 6. In the following Add New Hardware Wizard window, select

"Sound, video and game controllers" and click "Next".

PCA-6772 User’s Manual 68

Step 7. In the following Add New Hardware Wizard window, click

"Have Disk...".

Step 8. In the Install From Disk window, click "Browse".

69 Chapter 6 Audio Setup

Step 9. In the Open window, select

“E:\SlotPC\6772\Audio\98se_Me_2k_xp\WIN95_98.

Step 10. In the Install From Disk window, click" OK".

PCA-6772 User’s Manual 70

Step 11. In the Select Device window, select "VIA PCI Audio Controller

(WDM)" and click "OK".

Step 12. In the Add New Hardware Wizard window, click "Next".

71 Chapter 6 Audio Setup

Step 13. The Copying Files... window will appear.

Step 14. In the Add New Hardware Wizard window, click "Finish". Then

reboot the system.

PCA-6772 User’s Manual 72

6.3.3 Windows NT drivers

Step 1. Click "Start" and select "Settings". Click "Control Panel" and

double-click "Multimedia".

Step 2. In the Multimedia Properties window, select the "Devices" tab.

Then select the "Audio Devices" item, and click "Add...".

73 Chapter 6 Audio Setup

Step 3. In the Add window, select the “Unlisted...” item and click “OK”.

Step 4. When the Install Driver window appears, insert the utility disc

into the CD-ROM drive. Type: E:\SlotPC\6772\Audio\WinNT\ Then click “OK”.

E:\SlotPC\6772\Audio\WinNT\

PCA-6772 User’s Manual 74

Step 5. In the Add Unlisted or Updated Driver window, select the "VIA

PCI Audio controller" item. Then click "OK".

Step 6. In the System Setting Change window, click “Restart Now”.

75 Chapter 6 Audio Setup

6.3.4 Windows 2000 Drivers

Step 1. Select “System”, “Setting”, “Control Panel” and double click

“system” icon.

Step 2. Choose “Multimedia Audio Controller” button.

PCA-6772 User’s Manual 76

Step 3. Choose “Driver button, press “Update Driver” button.

Step 4. Choose “Sound, video and game controllers”, press “Next”

77 Chapter 6 Audio Setup

Step 5. Click the “Have Disk...” button

Step 6. Type the path E:\SlotPC\6772\Audio\98se_Me_2k_xp\Win2000

press the “OK” button.

E:\SlotPC\6772\Audio\98se_Me_2k_xp\

Step 7. Click “Have Disk” button

PCA-6772 User’s Manual 78

Step 8. Press “Next” button

Step 9. Press “Finish” to reboot

79 Chapter 6 Audio Setup

PCA-6772 User’s Manual 80

CHAPTER

PCI Bus Ethernet Interface

This chapter provides information on Ethernet configuration.

• Introduction

• Installation of Ethernet drivers for Windows 2000/NT

• Further information

81 Chapter 7 PCI Bus Ethernet Interface

Chapter 7 PCI Bus Ethernet Interface

7.1 Introduction

The PCA-6772 is equipped with a high performance 32-bit Ethernet chipset which is fully compliant with IEEE 802.3 100 Mbps CSMA/CD standards. It is supported by major network operating systems. It is also both 100Base-T and 10Base-T compatible. The medium type can be configured via the RSET8139.exe program included on the utility disk.

The Ethernet port provides three standard RJ-45 jacks via an optional wiring kit. The network boot feature can be utilized by incorporating the boot ROM image files for the appropriate network operating system. The boot ROM BIOS files are combined with system BIOS, which can be enabled/disabled in the BIOS setup.

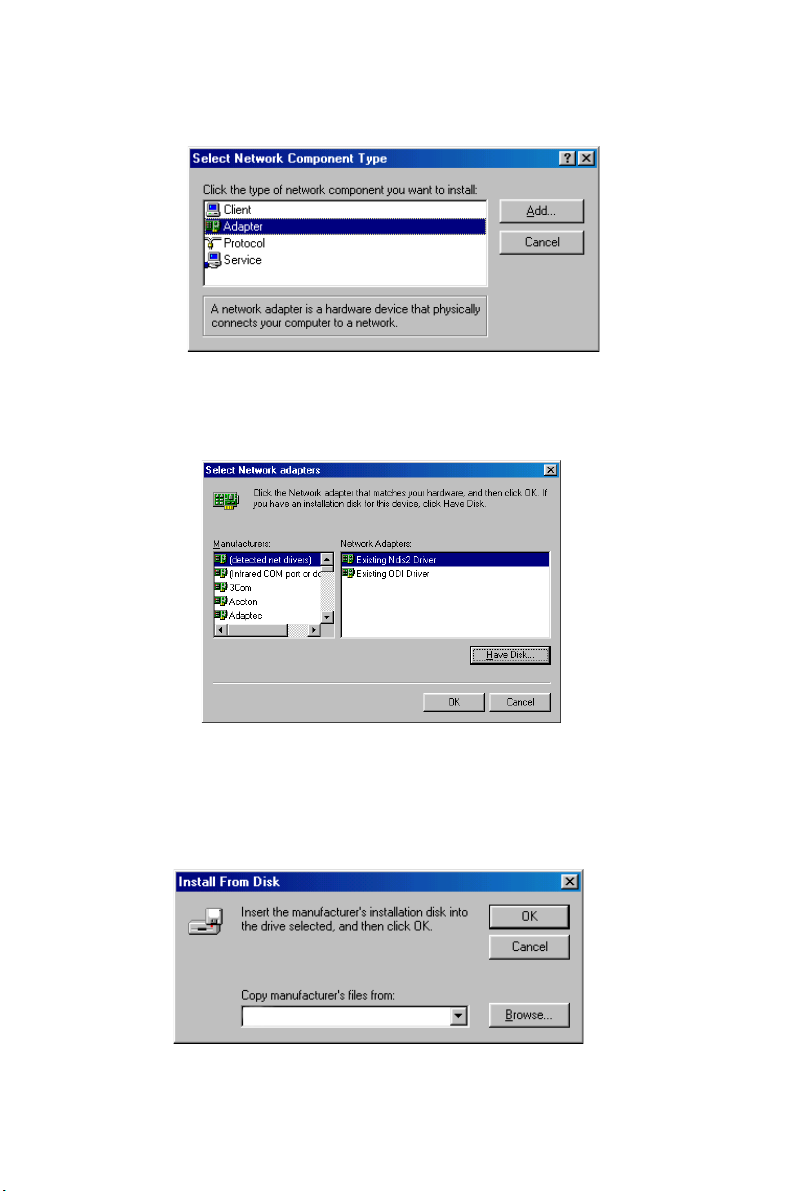

7.2 Installation of Ethernet driver

Before installing the Ethernet driver, note the procedures below. You must know which operating system you are using in your PCA-6772 Series, and then refer to the corresponding installation flow chart. Then just follow the steps described in the flow chart. You will quickly and successfully complete the installation, even if you are not familiar with instructions for MS-DOS or Windows.

Note: The windows illustrations in this chapter are

examples only. Follow the steps and pay attention to the instructions which appear on your screen.

7.2.1 Installation for MS-DOS and Windows 3.1

If you want to set up your Ethernet connection under the MS-DOS or Windows 3.1 environment, you should first check your server system model. For example, MS-NT, IBM-LAN server, and so on.

Then choose the correct driver to install in your SlotPC.

The installation procedures for various servers can be found on the supplied CD-ROM, the correct path being:

E:\SlotPC\6772\LAN\8139C\wfw311

PCA-6772 User’s Manual 82
