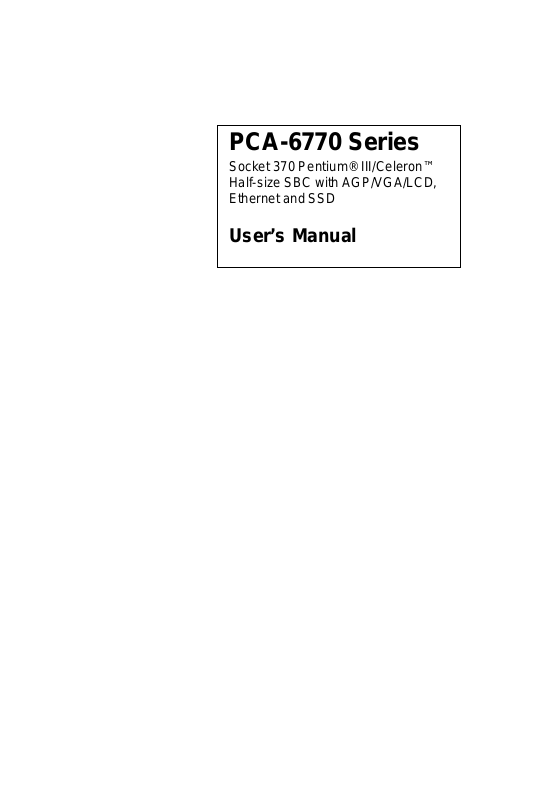

PCA-6770 Series
Socket 370 Pentium® III/Celeron™
Half-size SBC with AGP/VGA/LCD,
Ethernet and SSD
User’s Manual
Copyright Notice
This document is copyrighted, 1999. All rights are reserved. The
original manufacturer reserves the right to make improvements to the
products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, nor for any
infringements upon the rights of third parties which may result from
its use.
Acknowledgements
Award is a trademark of Award Software International, Inc.
IBM, PC/AT, PS/2 and VGA are trademarks of International Business
Machines Corporation.
Intel and Pentium are trademarks of Intel Corporation.
Microsoft Windows® is a registered trademark of Microsoft Corp.
UMC is a trademark of United Microelectronics Corporation.
All other product names or trademarks are properties of their
respective owners.
For more information on this and other Advantech products please
visit our website at: http://www.advantech.com
http://www.advantech.com/epc
For technical support and service for please visit our support website
at: http://support.advantech.com
This manual is for the PCA-6770 Series Rev. A1 & B1
Part No. 2006677002 3rd Edition
Printed in Taiwan Oct 2001
PCA-6770 User's Manual
Packing List
Before installing your board, ensure that the following materials have
been received:
• 1 PCA-6770 all-in-one single board computer
• 1 hard disk drive (IDE) interface cable (44-pin) p/n: 1701440350
• 1 floppy disk drive interface cable (34-pin)
p/n: 1701340600
• 1 parallel port cable (26-pin) p/n: 1700260250
• 1 COM port cable (9-pin) p/n: 1700100250
• 1 6-pin mini-DZN keyboard & PS/2 mouse adaptor
p/n: 1700060201
• 1 ATX/AT power cable p/n: 1700000450
• 1 CPU cooling fan p/n: 1759200310
• 1 startup manual
• CD-ROM or disks for utility, drivers, and manual (in PDF format)
• Warranty certificate
Note 1: For detailed contents of the PCA-6770, please refer to the enclosed
CD-ROM or disk (in PDF format).
If any of these items are missing or damaged, contact your distributor
or sales representative immediately.
Optional Devices
• IrdA adapter (part#: 9689000042)
• 1 USB cable (part #1700100170)
Preface and Table of Contents
Contents
Chapter 1 General Information ....................................1
1.1 Introduction ........................................................................... 2
1.2 Specifications ......................................................................... 3
1.3 Features .................................................................................. 5
1.4 Board Layout: Dimensions................................................... 6
Chapter 2 Installation....................................................7
2.1 Safety Precautions................................................................. 8
2.2 Jumpers .................................................................................. 9
2.3 Connectors ........................................................................... 1 0
2.4 Locating Connectors ........................................................... 11
2.4.1 Component Side ....................................................... 11
2.4.2 Solder Side................................................................ 12
2.5 Locating Jumpers................................................................ 13
2.5.1 Component Side ....................................................... 1 3
2.6 Setting Jumpers................................................................... 14
2.7 CMOS clear (JP1) ............................................................... 15
2.8 Watchdog timer (JP2)......................................................... 16
2.9 COM2 settings for RS-232/422/485 (JP5) ........................ 17
2.10 Power type select (JP3)....................................................... 17
2.11 LCD Panel select (SW1) ..................................................... 18
2.12 LCD Panel select (SW1) ..................................................... 19
2.13 Installation caution ............................................................. 20
2.14 Enhanced IDE connector (CN1) ........................................ 21
2.15 Parallel Port connector (CN2) ........................................... 22
2.16 ATX Power connector (CN3)............................................. 22
2.17 AT Power connector (CN4)................................................ 23
2.18 LCD invertor connector (CN5).......................................... 23
2.19 Floppy drive connector (CN6) ........................................... 2 4
2.20 Reset switch (CN7) .............................................................. 24
2.21 IR connector (CN8)............................................................. 24
2.22 Keyboard lock (CN9) .......................................................... 2 5
2.23 Hard disk drive LED (CN10)............................................. 25
2.24 ATX power button (CN11)................................................. 25
PCA-6770 User's Manual
2.25 External speaker (CN12).................................................... 25
2.26 USB connector (CN13) ....................................................... 26
2.27 Flat panel display connector (CN14)................................. 26
2.28 Ext. flat panel display connector (CN15).......................... 26
2.29 VGA display connector (CN16) ......................................... 27
2.30 Ethernet configuration (CN18).......................................... 27
2.31 CPU fan power supply connector (CN19) ........................ 28
2.32 RS-232 connection (COM1- CN22) ................................... 28
2.33 RS-232/422/485 connection (COM2- (CN21 RS-232; CN20:
RS-422/485)
2.34 External keyboard (CN25) ................................................. 29
2.35 Keyboard & PS/2 Mouse connector (CN26) .................... 30
2.36 CompactFlash Disk (CN27) ............................................... 30
2.37 Installing System memory (SODIMMs) .......................... 30
2.37.1 Installing SODIMMs ................................................ 30
2.36 CPU installation and upgrading ........................................ 32
Chapter 3 Award BIOS Setup..................................... 33
3.1 AWARD BIOS Setup .......................................................... 34
3.1.1 Entering setup ........................................................... 34
3.1.2 Standard CMOS setup .............................................. 35
3.1.3 BIOS features setup.................................................. 36
3.1.4 CHIPSET features setup........................................... 40
3.1.5 Power management setup......................................... 4 1
3.1.6 PnP PCI configuration setup .................................... 42
3.1.7 Load BIOS defaults ................................................. 42
3.1.8 Load setup defaults.................................................. 4 2
3.1.9 Integrated Peripherals............................................... 43
3.1.10 Password setting ....................................................... 43
3.1.11 IDE HDD auto detection .......................................... 44
3.1.12 Save & exit setup...................................................... 44
3.1.13 Exit without saving................................................... 44
Chapter 4 AGP SVGA Setup.......................................45
4.1 Introduction ......................................................................... 46
4.2 Installation of SVGA driver............................................... 47
4.2.1 Installation for Windows 3.1.................................... 48
4.2.2 Installation for Windows 95/98................................ 50
Preface and Table of Contents
4.2.3 Installation for Windows NT.................................... 53
4.3 Further Information ........................................................... 55
Chapter 5 PCI Bus Ethernet Interface ....................... 57
5.1 Introduction ......................................................................... 58
5.2 Installation of Ethernet Driver .......................................... 58
5.2.1 Installation for MS-DOS & Windows 3.1................ 58
5.2.2 Installation for Windows 95/98................................ 59
5.2.3 Installation for Windows NT.................................... 61
5.3 Further Information ........................................................... 57
Appendix A Programming the Watchdog Timer .........65
A.1 Programming the Watchdog Timer.................................. 66
Appendix B Installing PC/104 Modules ........................69
B.1 Installing PC/104 modules.................................................. 70
Appendix C Pin Assignments........................................73
C.1 IDE Hard drive Connector (CN1)..................................... 74
C.2 Parallel Port Connector (CN2) .......................................... 75
C.3 ATX power Connector (CN3) ............................................ 76
C.4 AT power Connector (CN4) ............................................... 76
C.5 LCD power inverter (CN5) ............................................... 77
C.6 Floppy drive connector (CN6) ........................................... 77
C.7 Reset switch connector (CN7)........................................... 78
C.8 IR Connector (CN8)............................................................ 78
C.9 Keyboard lock Connector (CN9)....................................... 78
C.10 IDE LED Connector (CN10).............................................. 79
C.11 ATX power switch (CN11) ................................................. 79
C.12 External speaker connector (CN12)................................. 79
C.13 USB1/USB2 connector (CN13) .......................................... 80
C.14 Flat panel display Connector (CN14) ............................... 81
C.15 Ext. flat panel display Connector (CN15) ........................ 82
C.16 CRT display Connector (CN16) ........................................ 82
C.19 CPU Fan power Connector (CN19) .................................. 83
PCA-6770 User's Manual
C.20 COM2 RS-422/485 Serial Port (CN20)............................ 83
C.21 COM2 RS-232 Serial Port (CN21) .................................... 84
C.22 COM1 RS-232 Serial Port (CN22) ................................... 84
C.25 External keyboard connector (CN25)............................... 85
C.26 Keyboard and mouse connector (CN26) .......................... 85
C.27 CompactFlash Card connector (CN27) ............................ 86
Appendix D System Assignments ................................ 87
D.1 System I/O Ports.................................................................. 88
D.2 DMA Channel Assignments ............................................... 89
D.3 Interrupt Assignments ........................................................ 89
D.4 1st MB Memory Map.......................................................... 90
Tables
Table 2-1: Jumpers .......................................................................................... 9
Table 2-2: Connectors ................................................................................... 10
Table 2-3: RTC power and CMOS clear (JP1) ................................................ 15
Table 2-4: Watchdog timer system reset (JP2).............................................. 16
Table 2-5: COM2 settings for RS-232/422/485 (JP5) ....................................17
Table 2-6: Power type select (JP3) ............................................................... 17
Table 2-9: LCD Panel select (SW1) ................................................................ 18
Table 2-3: RTC power and CMOS clear (JP1) ................................................ 15
Table B-1: PC/104 connectors (CN12) ........................................................... 72
Table D-1: System I/O ports ........................................................................... 88
Table D-2: DMA channel assignments ........................................................... 89
Table D-3: Interrupt Assignments .................................................................. 89
Table D-4: 1st memory map ........................................................................... 90
Preface and Table of Contents
Figures
Figure 1-1: PCA-6770 board layout Dimensions .............................................. 6
Figure 2-1: Locating Connectors (component side) ..................................... 11
Figure 2-2: Locating Connectors (Solder side) ............................................. 12
Figure 2-3: Locating Jumpers .......................................................................13
Figure 2-4: ATX Adaptor cable ...................................................................... 23
Figure 3-1: Award Bios setup ........................................................................34
Figure 3-2: Standard CMOS setup ................................................................ 35

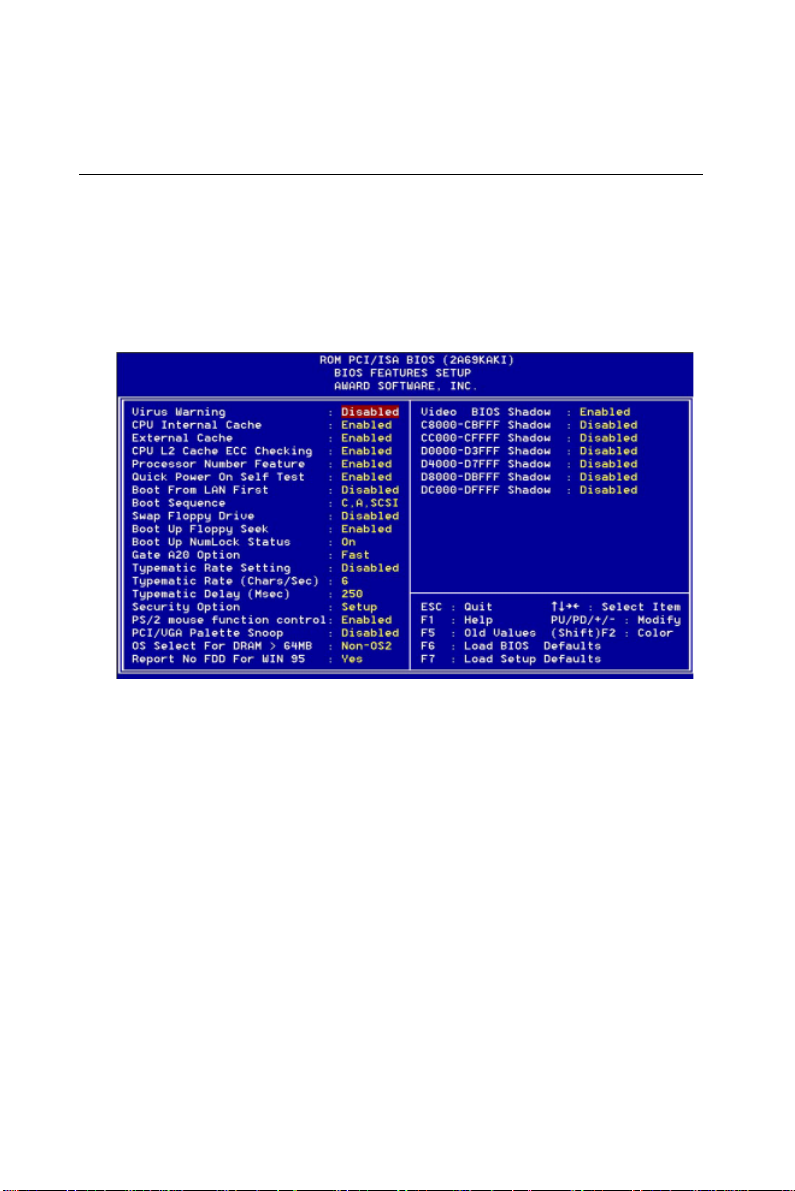

Figure 3-3: Bios features setup ..................................................................... 36
Figure 3-4: Chipset features setup ................................................................ 40
Figure 3-5: Power management setup screen .............................................. 41
Figure 3-6: PCI configuration screen ............................................................ 42
Figure 3-7: Integrated peripherals ................................................................. 43
Figure 3-8: Exiting ......................................................................................... 44
Figure B-1: PC/104 module mounting diagram ............................................ 65
Figure B-2: PC/104 module dimensions (mm) (±0.1) .................................. 65
PCA-6770 User's Manual
CHAPTER
1
General Information
This chapter gives background information
on the PCA-6770.
Sections include:
• Introduction
• Features
• Specifications
• Board layout and dimensions
1.1 Introduction
The PCA-6770 all-in-one industrial grade PCI-bus CPU card uses
Intel’s highly acclaimed Celeron® processor or Pentium® III
processor, together with the Intel 440BX PCI chipset.
The CPU provides 256 KB for Pentium III or 128 KB on-CPU L2
cache for Celeron, eliminating the need for external SRAM chips.
It has one PCI EIDE interface for up to two devices and a floppy
disk drive interface for up to two devices. Other features include
two RS-232 serial ports (16C550 UARTs with 16-byte FIFO or
compatible), one enhanced parallel port (supports SPP/EPP/ECP)
and one USB (Universal Serial Bus) port. The PCI enhanced IDE
controller supports Ultra DMA/33 and PIO Mode 4 operation.
This provides data transfer rates of over 33 MB/sec. System Bios
supports boot-up from an IDE CD-ROM, SCSI CD-ROM and LS-
120.
A backup of CMOS data is stored in the Flash memory, which
protects data even after a battery failure. Also included is a 62level Watchdog timer which resets the CPU or generates an
interrupt if a program cannot be executed normally. This enables
reliable operation in unattended environments.
The PCA-6770 offers several impressive industrial features such
as VGA AGP controller, two SODIMM slots for a total of 256 MB
RAM memory and a 10/100Base-T networking controller. In
addition, the PCA-6770 series supports a solid state disk (SSD)
using a CompactFlash™ disk that is not as vulnerable to the
hazards of an industrial computing environment. These features
make it an ideal choice for applications that require both high
performance and full functionality.
2 PCA-6770 User's Manual
1.2 Specifications
CPU: Socket 370 for Intel® Pentium III processors up to 650
MHz or higher in the future (Rev. B1 only) and Celeron™
processors up to 500 MHz
• BIOS: 2/4 Mbit Flash BIOS, supports Plug & Play, APM 1.2
Support Ethernet Boot ROM
Support boot from CD-ROM
Support boot from LS-120 ZIP™ Drive
Optional Customer icon
• Chipset: Intel® 440BX AGP set, FSB 66/100 MHz
• 2nd level cache: 256 KB on Pentium III and 128 KB on
Celeron™ Processor
• System memory: Two SODIMM sockets, support 8 MB to 256
MB, accepts 8/16/32/64/128 MB Synchronous DRAM
• PCI IDE interface: One Enhanced IDE interface, supports 2
IDE devices PIO mode 3,4 with bus mastering up to 14 MB/sec.
Ultra DMA model up to 33 MB/sec.
• Floppy disk drive interface: Supports up to two FDDs (360
KB/1.2 MB/720 KB/1.44 MB/2.88 MB)
• Parallel port: One parallel port, supports EPP/ECP
• IR port: One 115 kbps IrDA compliant serial infrared
• Serial ports: 2 serial ports
COM1: RS-232, COM2: RS-232/422/485
• Watchdog timer: 62 levels timer interval, setup by software,
jumperless selection, generates system reset or IRQ11
AGP SVGA/Flat Panel Interface
• Chipset: C&T 69000, 64-bit graphics engine
• Flat panel performance: 36-bit direct interface to mono, STN,
Chapter 1 General Information 3
DSTN & TFT panels. Advanced power management. Supports
3.3 V or 5 V Flat panel display.
AGP SVGA/Flat Panel Interface cont.
• Interface: 1 x AGP, Accelerator graphics ports 1.0 compliant
• Display mode:
Flat panel:up to 800 x 600 @ 24 bpp
1024 x 768 @ 16 bpp
1280 x 1024 @ 8 bpp
CRT display:up to 800 x 600 @ 24 bpp
1080 x 768 @ 16 bpp
1280 x 1024 @ 8 bpp
• Display memory:
2 MB of SDRAM on C&T69000
Ethernet Interface
• RealTek™ RTL 8139 chip
PCI Ethernet controller, IEEE 802.3 protocol compatible
Supports 10/100 Mbps base-T
Power Management
• Supports Advanced Power Management
Solid State Disk
• Supports ATA CompactFlash™ disk (IDE interface)
Keyboard/Mouse connector
• 6-pin Mini-Din header connector for keyboard and PS/2 mouse
On-board Security
• CPU over temperature
4 PCA-6770 User's Manual
Mechanic and Environmental Specifications
• Standard mode power consumption
4.73 A @ 5 V with Celeron™ 466, 128 MB SO DIMM
• Operating temperature:
0 ~ 60° C (32 ~ 140° F)
• Size: 185 mm x 122 mm
• Weight: 0.26 kg
1.3 Features
• Supports Socket 370 for Intel® Pentium III/Celeron™
processor
• AGP 3D VGA/LCD and supports 36 bit XGA TFT LCD Panel
• USB interface compliant with USB rev. 1.0
• SIR support
• System overheat temperature control
• 62-levels Watchdog timer, jumperless on-line setup supported
• Supports wake-up on LAN, Modem
• Supports turn off LCD back light function
• Supports PCI interface compliant with PCI rev. 2.1
• Supports four PCI Bus masters
Chapter 1 General Information 5
1.4 Board layout: Dimensions

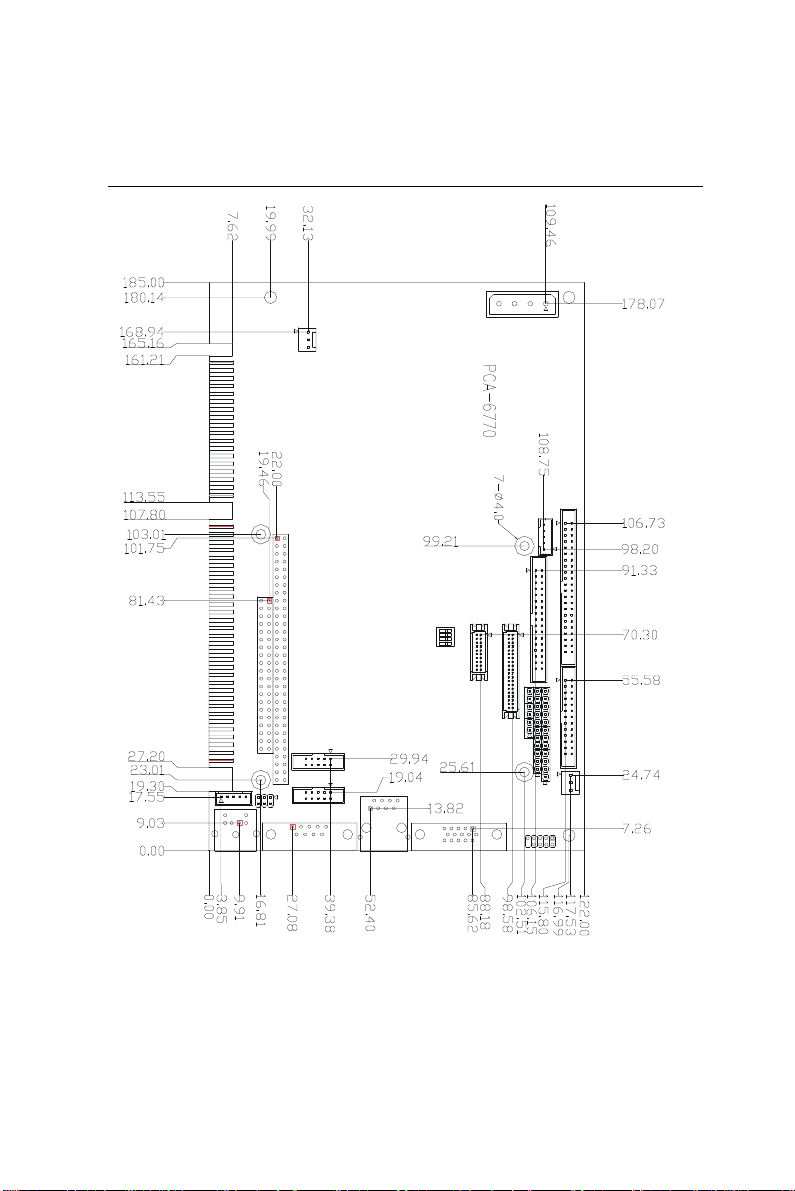

Figure 1-1: PCA-6770 (dimensions)
6 PCA-6770 User's Manual
CHAPTER
2
Installation
This chapter tells how to set up the
PCA-6770 hardware. It includes
instructions on setting jumpers, and
connecting peripherals, switches and
indicators. Be sure to read all the safety
precautions before you begin the
installation procedure.
2.1 Safety Precautions
Follow these simple precautions to protect yourself from harm and
your PC from damage.
1. To avoid electric shock, always disconnect the power from your
PC chassis before you work on it. Don't touch any components on
the CPU card or other cards while the PC is on.
2. Disconnect power before making any configuration changes. The
sudden rush of power as you connect a jumper or install a card
may damage sensitive electronic components.
3. Always ground yourself to remove any static charge before you touch
your CPU card. Be particularly careful not to touch the chip
connectors. Modern integrated electronic devices, especially CPUs
and memory chips, are extremely sensitive to static electric discharges
and fields. Keep the card in its antistatic packaging when it is not
installed in the PC, and place it on a static dissipative mat when you are
working with it. Wear a grounding wrist strap for continuous
protection.
2.2 Jumpers
The PCA-6770 has a number of jumpers that allow you to
configure your system to suit your application. The table below
lists the function of each of the board’s jumpers.
Table 2-1: Jumpers
LabelLabel
Label
LabelLabel
JP1 CMOS clear
JP2 Watchdog timer action
JP3 Power type select
JP5 COM2 RS-232/422/485 setting
SW1 Panel type select
FunctionFunction
Function
FunctionFunction
Chapter 2 Installation 9
2.3 Connectors
On-board connectors link the PCA-6770 to external devices such
as hard disk drives, a keyboard, or floppy drives. The table below
lists the function of each of the board’s connectors.
Table 2-2: Connectors
Label Function
CN1 IDE hard drive connector
CN2 Parallel port connector
CN3 ATX feature connector
CN4 Main power connector
CN5 LCD inverter power
CN6 Floppy drive connector
CN7 Reset connector
CN8 IR connector
CN9 Keyboard Lock connector
CN10 External IDE LED
CN11 ATX power switch button
CN12 Speaker connector
CN13 USB channel 1, 2 connector
CN14 Flat panel connector
CN15 Ext. flat panel display connector
CN16 CRT display connector
CN18 Ethernet 100/10Base-T connector
CN19 Fan power connector
CN20 COM2, 422/485 connector
CN21 COM2, 232 connector
CN22 COM1, 232 connector
CN25 EXT keyboard connector
CN26 Keyboard and PS/2 mouse connector
CN27 CFC connector
10 PCA-6770 User's Manual
2.4 Locating connectors
2.4.1 Component side
Figure 2-1: Locating connectors (component side)
Chapter 2 Installation 11
2.4 Locating Connectors
2.4.2 Solder side
Figure 2-2: Locating connectors (solder side)
12 PCA-6770 User's Manual
2.5 Locating Jumpers
2.5.1 Component side

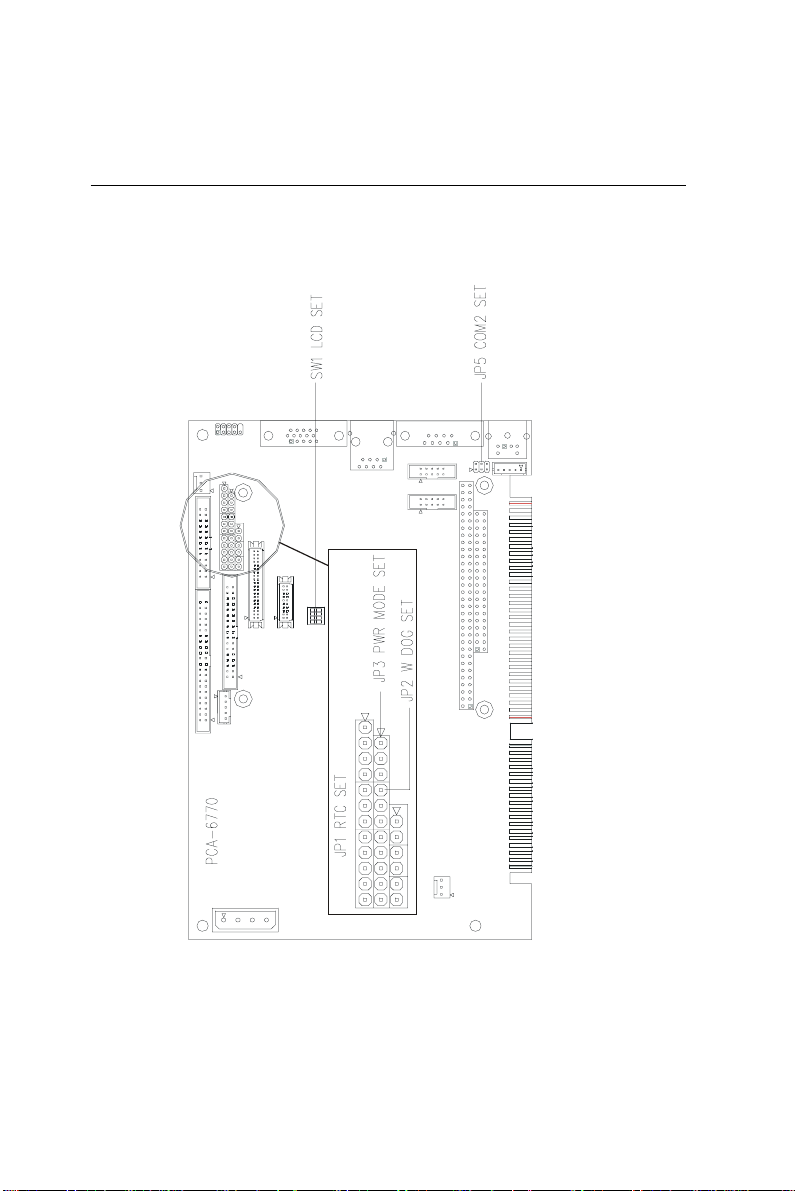

Figure 2-3: Locating Jumpers
Chapter 2 Installation 13
2.6 Setting jumpers
You configure your card to match the needs of your application by
setting jumpers. A jumper is the simplest kind of electric switch. It
consists of two metal pins and a small metal clip (often protected
by a plastic cover) that slides over the pins to connect them. To
“close” a jumper, connect the pins with the clip. To “open” a
jumper, remove the clip. Sometimes a jumper will have three pins,
labeled 1, 2, and 3. In this case, you would connect either pins 1
and 2 or 2 and 3.
1
3
2
Open
Closed Closed 2-3
The jumper settings are schematically depicted in this manual as
follows:
1
Open Closed Closed 2-3
A pair of needle-nose pliers may be helpful when working with
jumpers. Setting switches is slightly different but more simple.
Simply slide the desired switch to the on or off position. In the
example below, the 6 element switch would be. 1:off, 2:on, 3:off,
4:off, 5:off, 6:off.
On
Off
123456
If you have any doubts about the best hardware configuration for
your application, contact your local distributor or sales rep
14 PCA-6770 User's Manual
2.7 CMOS clear function (JP1)
Warning: To avoid damaging the computer , alw ays turn off
the power supply bef ore setting "Clear CMOS".
Set the jumper back to normal before turning on
the power supply.
Table 2-3: RTC power and CMOS clear (JP1)
*Normal CMOS data clear
JP1
* default setting
Chapter 2 Installation 15
2.8 Watchdog timer config. (JP2)
An on-board watchdog timer reduces the chance of disruptions which
EMP (electro-magnetic pulse) interference can cause. This is an
invaluable protective device for standalone or unmanned
applications. Setup involves two jumpers and running the control
software. (Refer to Appendix A.)
When the watchdog timer is enabled and the CPU shuts down, the
watchdog timer will automatically either reset the system or
generate an interrupt on IRQ 11, depending on the setting of
jumper JP2, as shown below:
Table 2-4: Watchdog timer system reset select (JP2)
*System Reset IRQ 11 interrupt
JP2
* default setting
16 PCA-6770 User's Manual
1
1
2.9 COM2 settings for RS-232/422/485 (JP5)
Table 2-5: COM2 settings for RS-232/422/485 (JP3)
*RS-232 RS-422 RS-485
12
34
56
JP3
12
34
56
* default setting
2.10 Power type select (JP3)
Table 2-6: Power type select (JP3)
ATX Power *AT Power
1
JP4
12
34
56
1
* default setting
Chapter 2 Installation 17
2.11 LCD Panel select (JP4)
Table 2-9: Panel Type Select (SW1)
Display TYPE Setting (SW1)
1024 x 768 Dual scan STN
1280 x 1024 TFT color
640 x 480 Dual scan STN
800 x 600 36 bits Dual scan STN
640 x 480 Sharp TFT color
640 x 480 18-bit TFT color
1024 x 768 TFT color
On
Off
1234
On
Off
1234
On
Off
1234
On
Off
1234
On
Off
1234
On
Off
1234
On
Off
1234
800 x 600 TFT color
18 PCA-6770 User's Manual
On
Off
1234
2.12 LCD Panel select (JP4)
Table 2-9: Panel Type Select (SW1)
Display TYPE Setting (SW1)
800 x 600 TFT color
800 x 600 TFT color
800 x 600 Dual scan STN color
800 x 600 Dual scan STN color
1024 x 768 TFT color
1280 x 1024 Dual scan STN
1024 x 600 Dual scan STN
On
Off
1234
On
Off
1234
On
Off
1234
On
Off
1234
On
Off
1234
On
Off
1234
On
Off
1234
1024 x 600 TFT color
On
Off
1234
Chapter 2 Installation 19
2.13 Installation Caution
The following sections tell how to make each connection. In most
cases, you will simply need to connect a standard cable. All of the
connector pin assignments are shown in Appendix C.
Warning! Always completely disconnect the power cord
from your chassis whenev er y ou are working on
it. Do not make connections while the po wer is
on. Sensitive electronic components can be
damaged by a sudden rush of power. Only
experienced electronics personnel should open
the PC chassis.
Caution! Alw a ys ground y ourself to remo ve an y static
charge before touching the CPU card. Modern
electronic devices are v ery sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surf ace or in a static-shielded
bag when they are not in the chassis.
20 PCA-6770 User's Manual
2.14 Enhanced IDE Connector (CN1)
You can attach two IDE (Integrated Device Electronics) drives to
the PCA-6770’s internal controller. The PCA-6770 CPU card has
an EIDE connector, CN1.
Wire number 1 on the cable is red or blue, and the other wires are
gray. Connect one end to connector CN1 on the CPU card. Make
sure that the red (or blue) wire corresponds to pin 1 on the
connector (on the right side). See Chapter 1 for help in finding the
connector.
Unlike floppy drives, IDE hard drives can connect in either
position on the cable. If you install two drives, you will need to set
one as the master and one as the slave. You do this by setting the
jumpers on the drives. If you use just one drive, you should set it
as the master. See the documentation that came with your drive for
more information.
Connect the first hard drive to the other end of the cable. Wire 1
on the cable should also connect to pin 1 on the hard drive
connector, which is labeled on the drive circuit board. Check the
documentation that came with the drive for more information.
Connect the second drive, as described above, on CN1.
Chapter 2 Installation 21
2.15 Parallel Port Connector (CN2)
The parallel port is normally used to connect the CPU card to a
printer. The PCA-6770 includes an on-board parallel port,
accessed through a 26-pin flat-cable connector, CN2. The card
comes with an adapter cable which lets you use a traditional DB25 connector. The cable has a 26-pin connector on one end and a
DB-25 connector on the other, mounted on a retaining bracket.
The bracket installs at the end of an empty slot in your chassis,
giving you access to the connector.
The parallel port is designated as LPT1, and can be disabled or
changed to LPT2 or LPT3 in the system BIOS setup.
To install the bracket, find an empty slot in your chassis. Unscrew
the plate that covers the end of the slot. Screw in the bracket in
place of the plate. Next, attach the flat-cable connector to CN2 on
the CPU card. Wire 1 of the cable is red or blue, and the other
wires are gray. Make sure that wire 1 corresponds to pin 1 of CN2.
Pin 1 is on the right side of CN2.
2.16 ATX Power Connector (CN3)
When the PCA-6770 is used as a stand alone card, both the 4-pin
main power connector (CN4) and the ATX feature connector
(CN3) must be connected to the power supply. If the PCA-6770 is
used with a passive backplane, the main power connector (CN4)
should not be connected as the card will be powered from the
backplane.
The ATX adapter cable (provided) is used to connect the PCA6770 to the ATX power supply. The ATX adapter cable has
different connectors at both ends. On one end is the ATX 20-pin
(female type) which connects to the (male) ATX power supply
source. The other end has a 3-pin connector (female type) which
connects to the ATX feature connector (CN3) on the board itself.
This end also has the 6-pin main power connector (P8) and a 6pin connector (P9) which is used when the board is mounted on a
passive backplane.
22 PCA-6770 User's Manual
ATX power supply
(P8) 6-pin in
backplane
(P9) 6-pin in
backplane
To ATX feature
P9 P8 P9
•
P8
•
•
•
20-pin female connector
Figure 2-4: ATX Adaptor cable
2.17 AT Power Connector (CN4)
If you prefer not to acquire power through PCA-6770’s backplane
via the gold H-connectors, CN4 also provides power input
connectors for +5 V and +12 V. (see Appendix C)
2.18 LCD Inverter Connector (CN5)
•
The LCD inverter is connectoed to CN5 via a 5-pin connector to
provide +12 V power to the LCD display. The pin assignments for
CN5 can be found in Appendix C.
Chapter 2 Installation 23
2.19 Floppy Drive Connector (CN6)
You can attach up to two floppy disk drives to the PCA-6770’s onboard controller. You can use any combination of 5.25" (360 KB/
1.2 MB) and/or 3.5" (720 KB/1.44/2.88 MB) drives.
The card comes with a 34-pin daisy-chain drive connector cable.
On one end of the cable is a 34-pin flat-cable connector. On the
other end are two sets of floppy disk drive connectors. Each set
consists of a 34-pin flat-cable connector (usually used for 3.5"
drives) and a printed-circuit-board connector (usually used for
5.25" drives). You can use only one connector in each set. The set
on the end (after the twist in the cable) connects to the A: floppy.
The set in the middle connects to the B: floppy.
2.20 Reset switch (CN7)
If you install a reset switch, it should be a single pole switch rated
at 10 mA, 5 V. Momentarily pressing the switch will activate a
reset.
For reset switch pin assignments, please see Appendix C.
2.21 IR Connector (CN8)
This connector supports the optional wireless infrared transmitting
and receiving module. This module mounts on the system case.
You must configure the setting through BIOS setup.
24 PCA-6770 User's Manual
2.22 Keyboard Lock (CN9)
Connecting CN9 enables the keyboard locking function from the
front panel of your chassis.
2.23 Hard disk drive LED (CN10)
You can connect an LED to connector CN10 to indicate when the
HDD is active. Marks on the circuit board indicate LED polarity.
2.24 ATX power button (CN11)
The PCA-6770 provides an ATX power input connector. When
connected with the ATX power switch, the ATX power switch
connector (CN11) enables power On/Off from the chassis.
2.25 External Speaker (CN12)
Connect external speakers to CN12. To activate the on-board
buzzer, set the connector so that Pins 3 and 4 are closed.
Chapter 2 Installation 25
2.26 USB Connector (CN13)
The PCA-6770 board provides two USB (Universal Serial Bus)
interfaces, which give complete plug and play and also hot
attach/detach for up to 127 external devices. The USB interfaces
comply with USB specification rev. 1.0 and are fuse protected.
The USB interfaces are accessed through a 10-pin flat-cable
connector, CN13. The adapter cable has a 10-pin connector on
one end and a USB connector on the bracket.
The USB interfaces can be disabled in the system BIOS setup.
2.27 Flat panel Display Connector (CN14)
CN14 is a 40-pin connector which can support a 24-bit TFT LCD.
It is Hirose’s product no. DF13A-40DP-1.25V.
The PCA-6770 provides a bias control signal on CN14 that can be
used to control the LCD bias voltage. It is recommended that the
LCD bias voltage not be applied to the panel until the logic supply
voltage (+5 V or +3.3 V) and panel video signals are stable. Under
normal operation, the control signal (ENAVEE) is active high.
When the PCA-6770’s power is applied, the control signal is low
until just after the relevant flat panel signals are present.
2.28 Ext.flat panel Display Connector
(CN15)
CN15 consists of a 20-pin header, which is Hirose’s product no.
DF13A-20DP-1.25V. The PCA-6770 supports a 36-bit LCD panel
with connections to both CN14 and CN15. For details of pin
assignments, refer to Appendix C.
26 PCA-6770 User's Manual
2.29 VGA Display Connector (CN16)
The PCA-6770 provides a VGA controller for a high resolution
VGA interface. The PCA-6770 CN12 is a DB-15 connector for
VGA monitor input. Pin assignments for the CRT display are
detailed in Appendix C.
2.30 Ethernet Configuration (CN18)
The PCA-6770 is equipped with a high performance 32-bit PCIbus Fast Ethernet interface which is fully compliant with IEEE
802.3u 10/100Base-T specifications. It is supported by all major
network operating systems.
The medium type can be configured via the RSET8139.EXE
program included on the utility disk. (See Chapter 5 for detailed
information.)
RJ-45A connector (CN14)
10/100Base-T connects to the PCA-6770 via an adapter cable to
the RJ-45 standard jack.
Network boot
The network boot feature is built into the BIOS. It can be enabled
or disabled in the chipset setup of the CMOS configuration. Refer
to "BIOS Setting" in Chapter 3 for more information.
Chapter 2 Installation 27
2.31 CPU Fan Power Supply Connector (CN19)
The CN19 provides power supply to the optional CPU cooling
fan. This connector is only available when +5 V and +12 V power
is supplied to the board.
Warning! Before making the connection, make sure the
voltage is absolutely correct and matched with
the correct connector .
2.32 RS-232 connection (COM1-CN22)
Different devices implement the RS-232 standard in different
ways. If you are having problems with a serial device, be sure to
check the pin assignments for the connector.
28 PCA-6770 User's Manual
2.33 RS-232/422/485 connection
(COM2-CN21: RS-232; CN20: RS-422/485)
COM2 is an RS-232/422/485 serial port. The specific port type is
determined by jumper settings (JP5), as detailed in Chapter 1.
The IRQ and address range for both ports are fixed. However, if
you wish to disable the port or change these parameters later, you
can do this in the system BIOS setup. The table below shows the
settings for the PCA-6770 board's ports:
Table 2-10: PCA-6770 serial port default settings
Port Address Interrupt Default
COM1 3F8, 3E8 IRQ4 3F8
COM2 2F8, 2E8 IRQ3 2F8
2.34 External Keyboard (CN25)
In addition to the PS/2 mouse/keyboard connector, an additional
external keyboard connector is provided.
For external keyboard pin assignments, please see Appendix C.
Chapter 2 Installation 29
2.35 Keyboard & PS/2 Mouse Connector (CN26)
The PCA-6770 board provides a keyboard connector. A 6-pin
mini-DIN connector (CN26) on the card mounting bracket
supports single-board computer applications. The card comes with
an adapter to convert from the 6-pin mini-DIN connector to a
standard DIN connector and to a PS/2 mouse connector.
2.36 CompactFlash Disk (CN27)
The PCA-6770 is equipped with a CompactFlash™ disk socket on
the solder side that supports the IDE interface for CompactFlash
cards. The on-board CompactFlash socket is designed to prevent
incorrect installation. Be sure that the system power is off when
installing and removing CompactFlash™ cards.
The CompactFlash card is defaulted as the E drive on your PC
system.
2.37 Installing System Memory (SODIMMs)
You can install anywhere from 8 to 256 MB of SDRAM into your
PCA-6770 series card. The card provides two 144-pin SODIMM
sockets. Each socket accepts 8, 16, 32, 64 or 128 MB 3.3 V power
level SODIMMs. If only one SODIMM module is installed, it may
be installed in either SODIMM socket on the solder side of the
PCA-6770 series card.
Note: PCA-6770 card only supports SDRAM SODIMM
modules. EDO SODIMM is not supported.
2.37.1 Installing SODIMMs
Note 1:The modules can only fit into a socket one wa y. Their
gold pins must point down into the SODIMM sock et.
Please refer to the diagram f or dimensions .
30 PCA-6770 User's Manual
The procedure for installing SODIMMs appears below. Please
follow these steps carefully.
1. Ensure that all power supplies to the system are switched Off.
2. Install the SODIMM card. Install the SODIMM so that its gold
pins point down into the SODIMM socket.
3. Slip the SODIMM into the socket at a 45 degree angle and
carefully fit the bottom of the card against the connectors.
4. Gently push the SODIMM into a perpendicular position until
the clips on the ends of the SODIMM sockets snap into place.
5. Check to ensure that the SODIMM is correctly seated and all
connector contacts touch. The SODIMM should not move around
in its socket.
Figure 2-5: Standard SODIMM Dimensions
Note 2: Only use Standard F orm SODIMM memory modules
(As shown in the dimensions above). Standardized
dimensions ensure a proper fit. Chec k with y our
Memory supplier about the SODIMM modules you will
use.
Chapter 2 Installation 31
2.38 CPU installation and upgrading
1. If you are upgrading the CPU, remove the old CPU from the
socket. If it is difficult to remove, you may find chip lubricant
(designed for pin-grid-array devices, PGAs) and a chip puller
helpful. Both are available at electronics hobby supply stores.
2. Plug the new CPU into the empty socket. Follow the
instructions that came with the CPU or math coprocessor. If
you have no instructions, do the following: Lubricate the CPU
pins with lubricant made for PGA devices. This will make the
new CPU slide in much more easily, and reduce the chance of
damaging it. Next, carefully align the CPU so that it is parallel
to the socket and the notch on the corner of the CPU
corresponds with the notch on the inside of the socket. Gently
slide the CPU in. There will probably be a gap between the
CPU and the connector when it is fully seated - do not push too
hard!
32 PCA-6770 User's Manual
3
CHAPTER
Award BIOS Setup
This chapter describes how to set the
card’s BIOS configuration data.
3.1 AWARD BIOS Setup
Figure 3-1: Setup program initial screen
Award’s BIOS ROM has a built-in Setup program that allows users to
modify the basic system configuration. This type of information is
stored in battery-backed RAM so that it retains the Setup information
when the power is turned off.
3.1.1 Entering setup
Turning on the computer and pressing <DEL> immediately will allow
you to enter Setup.
34 PCA-6770 User's Manual
3.1.2 Standard CMOS setup
Choose the “STANDARD CMOS SETUP” option from the INITIAL
SETUP SCREEN Menu, and the screen below is displayed. This
standard Setup Menu allows users to configure system components
such as date, time, hard disk drive, floppy drive, display, and memory.
Figure 3-2: CMOS setup screen
Chapter 3 Award BIOS Setup 35
3.1.3 BIOS features setup
The “BIOS FEATURES SETUP” screen appears when choosing the
BIOS FEATURES SETUP item from the CMOS SETUP UTILITY
Menu. It allows the user to configure the PCA-6770 according to his
particular requirements.
Below are some major items that are provided in the BIOS FEATURES SETUP screen:
Figure 3-3: BIOS features setup screen
Virus Warning
During and after the system boots up, any attempt to write to the boot
sector or partition table of the hard disk drive will halt the system. In
this case, a warning message will be displayed. You can run the antivirus program to locate the problem.
If Virus Warning is Disabled, no warning message will appear if
anything attempts to access the boot sector or hard disk partition.
CPU Internal Cache/External Cache
Depending on the CPU/chipset design, these options can speed up
memory access when enabled.
36 PCA-6770 User's Manual
Quick Power On Self Test
This option speeds up the Power-On Self Test (POST) conducted as
soon as the computer is turned on. When enabled, BIOS shortens or
skips some of the items during the test. When disabled, normal POST
procedures assumes.
Boot Sequence
This function determines the sequence in which the computer will
search the drives for the disk operating system (i.e. DOS). The default
value is “C, A”.
A,C System will first search the FDD, then the HDD.
C,A System will first search the HDD, then the FDD.
C only System will only search the HDD.
• •
• •
• •
Boot Up Floppy Seek
During POST, BIOS will determine if the floppy disk drive installed is
40 or 80 tracks. 360 KB type is 40 tracks while 720 KB, 1.2 MB, and
1.44 MB are all 80 tracks.
Enabled BIOS searches the floppy drive to determine if it is 40 or 80
tracks. Note that BIOS cannot differentiate 720 KB, 1.2 MB,
and 1.44 MB type drives as they are all 80 tracks.
Disabled BIOS will not search for the floppy drive type by track
number. Note that there will not be any warning message if
the drive installed is 360 KB.
Boot Up NumLock Status
The default is “On”.
On Keypad boots up to number keys.
Off Keypad boots up to arrow keys.
Chapter 3 Award BIOS Setup 37
Boot Up System Speed
High Sets the speed to high
Low Sets the speed to low
IDE HDD Block Mode
Enabled Enable IDE HDD Block Mode. BIOS will detect the block size
of the HDD and send a block command automatically.
Disabled Disable IDE HDD Block Mode
Gate A20 option
Normal The A20 signal is controlled by the keyboard controller or
chipset hardware
Fast Default: Fast. The A20 signal is controlled by Port 92 or
chipset specific method.
Typematic Rate Setting
The typematic rate determines the characters per second accepted by
the computer. Typematic Rate setting enables or disables the typematic rate.
Typematic Rate (Char/Sec)
BIOS accepts the following input values (character/second) for
Typematic Rate: 6, 8, 10, 12, 15, 20, 24, 30.
Typematic Delay (msec)
When holding down a key, the Typematic Delay is the time interval
between the appearance of the first and second characters. The input
values (msec) for this category are: 250, 500, 750, 1000.
Security Option
This setting determines whether the system will boot if the password
is denied, while limiting access to Setup.
38 PCA-6770 User's Manual
System The system will not boot, and access to Setup will be
denied if the correct password is not entered at the prompt.
Setup The system will boot, but access to Setup will be
denied if the correct password is not entered at the prompt.
Note: To disable security, select PASSWORD SETTING in the main
menu. At this point, you will be asked to enter a password. Simply hit
the <ENTER> key to disable security. When security is disabled, the
system will boot, and you can enter Setup freely.
OS Select for DRAM>64 MB
This setting is under OS/2 system.
Video BIOS Shadow
This determines whether video BIOS will be copied to RAM, which is
optional according to the chipset design. When enabled, Video
Shadow increases the video speed.
C8000 - CFFFF Shadow/DC000-DFFFF Shadow
These determine whether optional ROM will be copied to RAM in
blocks of 16 KB.
Enabled Optional shadow is enabled
Disabled Optional shadow is disabled
Chapter 3 Award BIOS Setup 39
3.1.4 CHIPSET features setup
By choosing the “CHIPSET FEATURES SETUP” option from the
INITIAL SETUP SCREEN Menu, the screen below is displayed. This
sample screen contains the manufacturer’s default values for the PCA-
6770.
Figure 3-4: CHIPSET features setup screen
40 PCA-6770 User's Manual
3.1.5 Power management setup
The power management setup controls the CPU cards’ “green”
features. The following screen shows the manufacturer’s default.
Figure 3-5: Power management setup screen
Power Management
This option allows you to determine if the values in power management are disabled, user-defined, or predefined.
HDD Power Management
You can choose to turn the HDD off after a one of the time interval
listed, or when the system is in Suspend mode. If in a power saving
mode, any access to the HDD will wake it up.
Note: HDD will not power down if the Power Management
option is disabled.
IRQ Activity
IRQ can be set independently. Activity on any enabled IRQ will wake
up the system.
Chapter 3 Award BIOS Setup 41
3.1.6 PnP PCI configuration setup
Figure 3-6: PCI configuration screen
3.1.7 Load BIOS defaults
“LOAD BIOS DEFAULTS” indicates the most appropriate values for
the system parameters for minimum performance. These default
values are loaded automatically if the stored record created by the
Setup program becomes corrupted (and therefore unusable).
3.1.8 Load setup defaults
“LOAD SETUP DEFAULTS” loads the values required by the
system for maximum performance.
42 PCA-6770 User's Manual
3.1.9 Integrated Peripherals
Figure 3-7: Integrated peripherals
Note: If you enable the IDE HDD block mode, the en-
hanced IDE driver will be enabled.
3.1.10 Password setting
To change, confirm, or disable the password, choose the “PASSWORD SETTING” option form the Setup main menu and press
[Enter]. The password can be at most 8 characters long.
Remember, to enable this feature. You must first select the Security
Option in the BIOS FEATURES SETUP to be either “Setup” or
“System.” Pressing [Enter] again without typing any characters can
disable the password setting function.
Chapter 3 Award BIOS Setup 43
3.1.11 IDE HDD auto detection
“IDE HDD AUTO DETECTION” automatically self-detect for the
correct hard disk type.
3.1.12 Save & exit setup
If you select this and press the [Enter] key, the values entered in the
setup utilities will be recorded in the CMOS memory of the chipset.
The microprocessor will check this every time you turn your system
on and compare this to what it finds as it checks the system. This
record is required for the system to operate.
Figure 3-8: Exiting
3.1.13 Exit without saving
Selecting this option and pressing the [Enter] key lets you exit the
Setup program without recording any new values or changing old
ones.
44 PCA-6770 User's Manual
AGP SVGA Setup
• Introduction
• Installation of SVGA Driver
- Installation for WINDOWS 3.1
- Installation for WINDOWS 95
- Installation for WINDOWS NT
• Further Information
4
CHAPTER
Chapter 4 PCI SVGA Setup 45
4.1 Introduction
The PCA-6770 has an on-board AGP flat panel/VGA interface. The
specifications and features are described as follows:
Chipset
The PCA-6770 uses a C&T69000 chipset for its AGP/SVGA controller. It supports many popular LCD, EL, and gas plasma flat panel
displays and conventional analog CRT monitors. The 69000 VGA
BIOS supports monochrome LCD, EL, color TFT and STN LCD flat
panel displays. In addition, it also supports interlaced and noninterlaced analog monitors (color and monochrome VGA) in highresolution modes while maintaining complete IBM VGA compatibility. Digital monitors (i.e. MDA, CGA, and EGA) are NOT supported.
Multiple frequency (multisync) monitors are handled as if they were
analog monitors.
Display memory
With on-die 2 MB display memory, the VGA controller can drive
CRT displays or color panel displays with resolutions up to 1024 x
768 at 64 K colors.
Display types
CRT and panel displays can be used simultaneously. The PCA-6770
can be set in one of three configurations: on a CRT, on a flat panel
display, or on both simultaneously. The system is initially set to
simultaneous display mode. The utility CD ROM includes three
*.COM files in the subdirectory
D:\slotpc\6770\Utility.100\ which can be used to
configure the display. In order to use these configuration programs,
type the file name and path at the DOS prompt.
CT.COM: Enables CRT display only
FP.COM: Enables panel display only
SM.COM: Enables both displays simultaneously
46 PCA-6770 User's Manual
4.2 Installation of SVGA driver
Complete the following steps to install the SVGA driver. Follow the
procedures in the flow chart that apply to the operating system that you
you are using within your PCA-6770.
Important: 1. The following windows illustrations are examples only.
You must follow the flow chart instructions and pay
attention to the instructions which then appear on your
screen.
Note 1: <Enter> means pressing the “Enter” key on the
keyboard.
Chapter 4 PCI SVGA Setup 47
4.2.1 Installation for Windows 3.1
a. Insert the disc
into the CD-ROM
drive.
1.
2.
3.
b. Select "File" in
Program Manager.
c. Click "Run" and
type: "D:\slotpc\6770\
VGA.100\69000\WIN31\
Setup.exe"
a. Choose the
language you want
to use during
installation.
a. Select the
highlighted item.
b. Press "ENTER".
A
a. Press "ENTER" to
4.
48 PCA-6770 User's Manual
install all
resolutions.
Chapter 4 PCI SVGA Setup 49
4.2.2 Installation for Windows 95/98
a. Select "Start" ,
"Settings",
"Control Panel" ,
1.
2.
"Display",
"Settings".
b. Press "Advanced
Properties".
a. Choose the
"Adapter" label.
b. Press the
"Change..."
button.
3.
4.
50 PCA-6770 User's Manual
a. Press the "Have
Disk" button.
a. Insert the disc
into the CD-ROM
drive.
b. Type
"D:\slotpc\6770\
VGA.100\69000\
Win95\".
c. Press "OK".
D:\VGA\Win95\
A

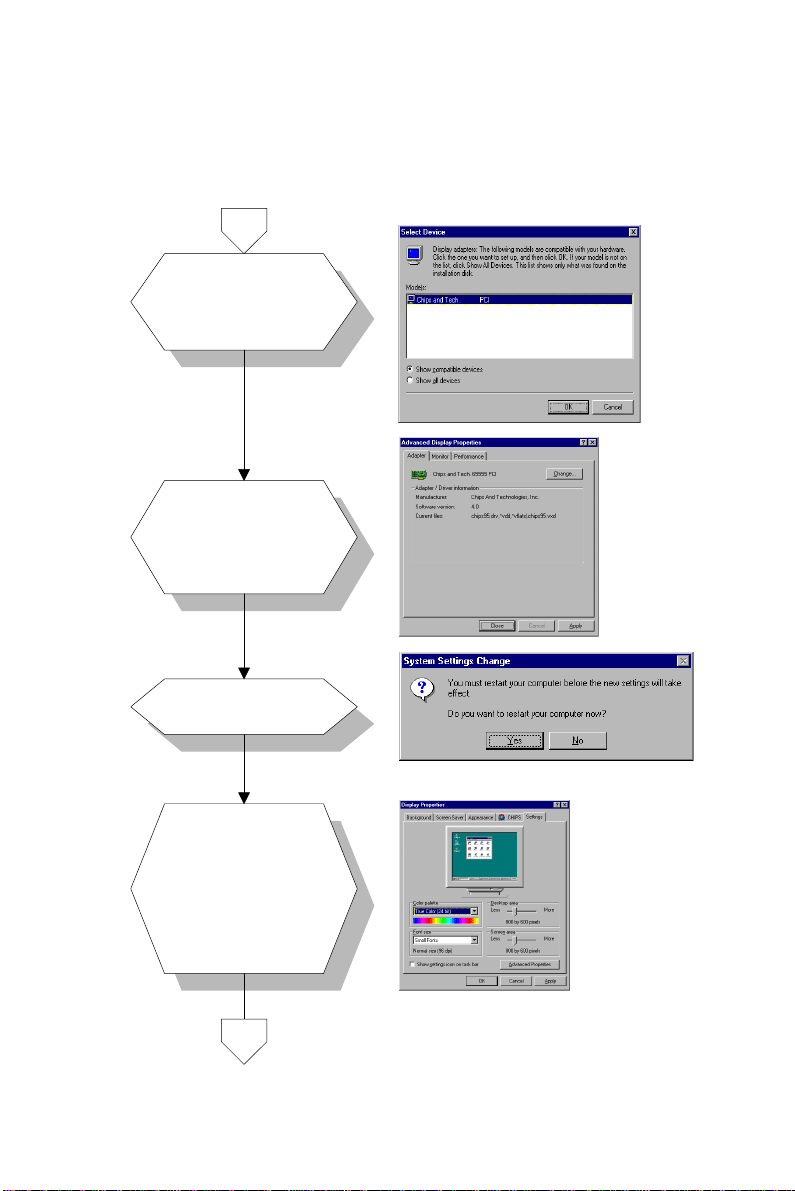

5.
6.
a. Select the
highlighted item.
b. Click the "OK"
button.
a. C&T69000
appears in the
adapter label.
b. Click the "Apply"
button.
69000
7.
8.
a. Press "Yes" to
reboot.
a. Repeat Step 1 on
the previous page
of this manual.
The "CHIPS"
label appears in
"Display".
b. Adjust resolution
and color.
Chapter 4 PCI SVGA Setup 51
9.
10.
11.
a. Click the "CHIPS"
label.
b. Adjust the refresh
rate and display
type.
c. Press "OK" to
exit.
a. Press "Yes" to
set the monitor
type.
a. Select
"Standard",
"Super VGA 800
x 600", or "XGA".
b. Press the "OK"
button.
[7]
12.
a. Choose "Restart"
to reboot.
END
Note: In step 4 for Windows 98 Installation, the path is:
D:\slotpc\6770\VGA.100\69000\WIN98
52 PCA-6770 User's Manual
4.2.3 Installation for Windows NT
a. Select "Start", "Settings",
1.
2.
"Control Panel".
b. Double click the "Display"
icon.
a. Choose the "Settings" label.
b. Press the "Display Type"
button.
3.
4.
a. Press the "Change..." button.
a. Click the "Have Disk..."
button.
Chapter 4 PCI SVGA Setup 53
5.
6.
Insert the utility disk into the
a. Insert the disc into the
Floppy disk drive.
CD-ROM drive.
Type:"D:\slotpc\6770\VGA.100\
b. Type "D:\VGA\NT40\" in
6900\WINNT\" in the blank
the blank.
c. Press the "OK" button.
a. Select the highlighted
item.
b. Press the "OK" button.
D:\VGA\NT40\
7.
8.
a. Press "Yes" to proceed.
a. Press "OK" to reboot.
54 PCA-6770 User's Manual
a. Repeat Step 1 in this
manual, to select the
"Settings" label.
9.
b. Adjust resolution and color.
c. Click "Test" to see the
result.
d. Click "OK" to save the
setting.
END
4.3 Further Information
For further information about the AGP/SVGA installation in your PCA6770 series, including driver updates, troubleshooting guides and FAQ
lists, visit the following web resources:
C&T web site: www.chips.com
Advantech web sites: www.advantech.com
support.advantech.com.tw
Chapter 4 PCI SVGA Setup
55
56 PCA-6770 Series User's Manual
CHAPTER
5
PCI Bus Ethernet
Interface
This chapter provides information on
Ethernet configuration.
• Introduction
• Installation of Ethernet driver for
- MS-DOS
- Windows 3.1
- Windows 95
- Windows 98
- Windows NT
• Further information
5.1 Introduction
The PCA-6770 is equipped with a high-performance 32-bit
Ethernet chipset which is fully compliant with IEEE 802.3 100
Mbps CSMA/CD standards. It is supported by major network
operating systems. It is also both 100Base-T and 10Base-T
compatible. The medium type can be configured via the
RSET8139.exe program included on the utility disk.
The Ethernet port provides a standard RJ-45 jack. The network
boot feature can be utilized by incorporating the boot ROM image
files for the appropriate network operating system. The boot ROM
BIOS files are combined with system BIOS, which can be
enabled/disabled in the BIOS setup.
5.2 Installation of Ethernet driver
Before installing the Ethernet driver, note the procedures below.
You must know which operating system you are using in your
PCA-6770, and then refer to the corresponding installation flow
chart. Then just follow the steps described in the flow chart. You
will quickly and successfully complete the installation, even if you
are not familiar with instructions for MS-DOS or WINDOWS.
Note: The windows illustrations in this chapter are
examples only. You must follow the flow chart
instructions and pay attention to the instructions
which then appear on your screen.
5.2.1 Installation for MS-DOS and Windows 3.1
If you want to set up your Ethernet connection under the MS-DOS
or Windows 3.1 environment, you should first check your server
system model. For example, MS-NT, IBM-LAN server, and so on.
Then choose the correct driver to install in your panel PC.
The installation procedures for various servers can be found on
CD-ROM. The file path begins as:
D:\SlotPC\6770\Lan.100\8139B\WZN31
58 PCA-6770 User's Manual

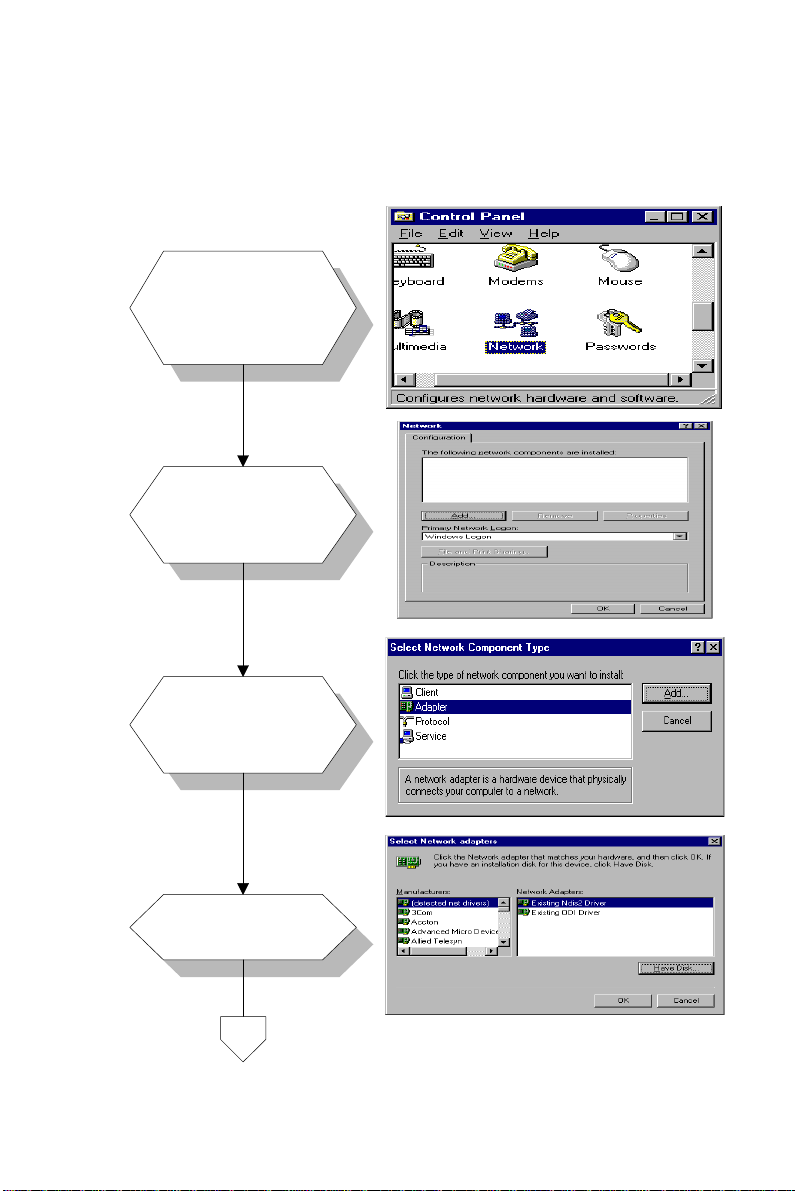

5.2.2 Installation for Windows 95/98
a. Select "Start",
"Settings",
1.
2.
3.
"Control Panel".
b. Double click
"Network".
a. Click "Add" and
prepare to install
network functions.
a. Select the
"Adapter" item to
add the Ethernet
card.
4.
a. Click "Have Disk"
to install the driver.
Chapter 5 PCI Bus Ethernet Interface 59
5.
6.
7.
Insert the disc
a.
Insert the CD into
a.
labeled "RTL8139A
the D: drive.
Driver #2" into drive
Fill in:
b.
A:.
"D:\slotpc\6770\
Lan.100\8139A\
b. Fill in the correct
Win95".
path.
c. Click "OK".
a. Choose the
"Realtek" item.
b. Click "OK".
a. Make sure the
configurations of
relative items are
set correctly.
b. Click "OK" to
reboot.
D:\slotpc\6770\Lan.100\8139A\Win95
END
Note: The correct file path for Windo ws 98 is:
D:\slotpc\6770\LAN.100\Win98
60 PCA-6770 User's Manual
5.2.3 Installation for Windows NT
a. Select "Start",
"Settings",
1.
2.
"Control Panel".
b. Double click
"Network".
a. Choose the
"Adapters" label.
b. Click the "Add"
button.
3.
4.
a. Press "Have
Disk".
a. Type "D:".
b. Press "OK".
D:
Chapter 5 PCI Bus Ethernet Interface 61
5.
6.
7.
a.
Insert the CD into
a. Insert the disc into
the D: drive.
the CD-ROM drive.
Fill in: "D:\slotpc\
b.
b. Fill in the correct
6770\Lan.100\
path.
8139B\Winnt".
c. Press the "OK"
c. Press the "OK"
button.
button.
a. Choose the
"Realtek" item.
b. Press the "OK"
button.
a. Make sure the
configurations of
relative items are
set correctly.
b. Press the "OK"
button to reboot.
D:\slotpc\6770\Lan.100\8139A\Winnt
D:\Lan\
END
Note: filepath 8139A or 8139B depends on Chip
62 PCA-6770 User's Manual
5.3 Further information
Realtek website: www.realtek.com
Advantech websites: www.advantech.com
www.advantech.com.tw
Chapter 5 PCI Bus Ethernet Interface 63
64 PCA-6770 User's Manual
APPENDIX
A
Programming
the Watchdog
Timer
The PCA-6770 is equipped with a
watchdog timer that resets the
CPU or generates an interrupt if
processing comes to a standstill for
any reason. This feature ensures
system reliability in industrial
standalone or unmanned
environments.
A.1 Programming the Watchdog Timer
To program the watchdog timer, you must write a program which
writes I/O port address 443 (hex). The output data is a value of time
interval. The value range is from 01 (hex) to 3E (hex), and the related
time interval is 1 sec. to 62 sec.
Data Time Interval
01 1 sec.
02 2 sec.
03 3 sec.
04 4 sec.
••
••
••
3E 62 sec.
66 PCA-6770 User's Manual
After data entry, your program must refresh the watchdog timer by
rewriting the I/O port 443 (hex) while simultaneously setting it. When
you want to disable the watchdog timer, your program should read I/O
port 443 (hex).
The following example shows how you might program the watchdog
timer in BASIC:
10 REM Watchdog timer example program
20 OUT &H443, data REM Start and restart the watchdog
30 GOSUB 1000 REM Your application task #1,
40 OUT &H443, data REM Reset the timer
50 GOSUB 2000 REM Your application task #2,
60 OUT &H443, data REM Reset the timer
70 X=INP (&H443) REM, Disable the watchdog timer
80 END
1000 REM Subroutine #1, your application task
••
••
••
1070 RETURN
2000 REM Subroutine #2, your application task
••
••
••
2090 RETURN
Appendix A Programming the Watchdog Timer 67
68 PCA-6770 User's Manual
B
APPENDIX
Installing PC/104
Modules
This appendix gives instructions for
installing PC/104 modules.
B.1 Installing PC/104 modules
The PCA-6770 PC/104 connectors give you the flexibility to attach
PC/104 modules.
Installing these modules on the PCA-6770 is quick and simple. The
following steps show how to mount the PC/104 modules:
1. Remove the PCA-6770 from your system paying particular
attention to the safety instructions already mentioned above.
2. Make any jumper or link changes required to the CPU card now.
Once the PC/104 module is mounted you may have difficulty in
accessing these.
3. Normal PC/104 modules have male connectors and mount directly
onto the main card. (Refer to the diagram on the following page.)
4. Mount the PC/104 module onto the CPU card by pressing the
module firmly but carefully onto the mounting connectors.
5. Secure the PC/104 module onto the CPU card using the four
mounting spacers and screws.
70 PCA-6770 Series User's Manual
Figure B-1: PC/104 module mounting diagram
95.9
90.8
5.1
8.9
φ
6.4
φ
3.2
0
5.1
0
82.5
85.1
90.8
5.1
90.2
Figure B-2: PC/104 module dimensions (mm) (±0.1)
Appendix B Installing PC/104 Modules 71
Table B-1: PCA-6770 PC/104 connectors (CN12)
Pin Signal (CN12) Signal (CN13)
Number Row A Row B Row C Row D
0 —— 0 V 0 V
1 IOCHCHK* 0 V SBHE* MEMCS16*
2 SD7 RESETDRV LA23 IOCS16*
3 SD6 +5 V LA22 IRQ10
4 SD5 IRQ9 LA21 IRQ11
5 SD4 -5 V LA20 IRQ12
6 SD3 DRQ2 LA19 IRQ15
7 SD2 -12 V LA18 IRQ14
8 SD1 ENDXFR* LA17 DACK0*
9 SD0 +12 V MEMR* DRQ0
10 IOCHRDY N/C MEMW* DACK5*
11 AEN SMEMW* SD8 DRQ5
12 SA19 SMEMR* SD9 DACK6*
13 SA18 IOW* SD10 DRQ6
14 SA17 IOR* SD11 DACK7*
15 SA16 DACK3* SD12 DRQ7
16 SA15 DRQ3 SD13 +5 V
17 SA14 DACK1* SD14 MASTER*
18 SA13 DRQ1 SD15 0 V
19 SA12 REFRESH* KEY 0 V
20 SA11 SYSCLK ——
21 SA10 IRQ7 ——
22 SA9 IRQ6 ——
23 SA8 IRQ5 ——
24 SA7 IRQ4 ——
25 SA6 IRQ3 ——
26 SA5 DACK2* ——
27 SA4 TC ——
28 SA3 BALE ——
29 SA2 +5 V ——
30 SA1 OSC ——
31 SA0 0 V ——
32 0 V 0 V ——
*active low
72 PCA-6770 Series User's Manual
C
APPENDIX
Pin Assignments
This appendix contains information of a detailed or
specialized nature. It includes:
• CRT display connector
• LCD display/inverter connector
• RS-232/422/485 serial port connector
• Keyboard and mouse connector
• External keyboard connector
• Main power connectors (AT/ATX)
• IDE connector
• RS-232 serial port connector
• Ethernet RJ-45 connector
• Floppy connector
• Parallel connector
• IR connector
• HDD LED connector
• CompactFlash card connector
Appendix C Pin Assignments 73
C.1 IDE Hard Drive Connector (CN1)
2 4 6 44
1 3 5 43
Table C-8: IDE hard drive connector
Pin Signal Pin Signal
1 IDE RESET* 2 GND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 SIGNAL GND 20 N/C
21 N/C 22 GND
23 IO WRITE 24 GND
25 IO READ 26 GND
27 IO CHANNEL READY 2 8 N/C
29 HDACKO* 30 GND
31 IRQ14 32 IOCS16
33 ADDR 1 34 N/C
35 ADDR 0 36 ADDR 2
37 HARD DISK SELECT 0* 38 HARD DISK SELECT 1*
39 IDE ACTIVE* 40 GND
41 5 V 42 5 V
43 GND 44 NC
* low active
74 PCA-6770 Series Appendix C
C.2 Parallel Port Connector (CN2)
2 4 6 26
1 3 5 25
Table C-2: Parallel port connector
Pin Signal
1 *STROBE
2 *AUTOFD
3D0
4 ERR
5D1
6 *INIT
7D2
8 *SLCTINI
9D3
10 GND
11 D4
12 GND
13 D5
14 GND
15 D6
16 GND
17 D7
18 GND
19 *ACK
20 GND
21 BUSY
22 GND
23 PE
24 GND
25 SLCT
26 GND
* low active
Appendix C Pin Assignments 75
C.3 ATX Power Connector (CN3)
321
Table C-10: ATX power connector
Pin Signal
1 5 V SB
2 N/C
3 PS_ON
C.4 AT Power Connector (CN4)
4
3
2
1
Table C-23: AT power connector
Pin Signal
1 +12 V
2 GND
3 GND
4 +5 V
76 PCA-6770 Series Appendix C
C.5 LCD Power Inverter (CN5)
54321
Table C-22: LCD power inverter
Pin Signal
1 +12 V
2 GND
3 ENABKL
4 VBR
5+ 5 V
C.6 Floppy Drive Connector (CN6)
2 4 .... 34
1 3 .... 33
Table C-9: Floppy drive connector
Pin Signal Pin Signal
1 GND 2 DENSITY SELECT*
3 GND 4 N/C
5 GND 6 DS1*
7 GND 8 INDEX*
9 GND 10 MOTOR 0*
11 GND 12 DRIVE SELECT 1*
13 GND 14 DRIVE SELECT 0*
15 GND 16 MOTOR 1*
17 GND 18 DIRECTION*
19 GND 20 STEP*
21 GND 22 WRITE DATA*
23 GND 24 WRITE GATE*
25 GND 26 TRACK 0*
27 GND 28 WRITE PROTECT*
29 GND 30 READ DATA*
31 GND 32 HEAD SELECT*
33 GND 34 DISK CHANGE*
* low active
Appendix C Pin Assignments 77
C.7 Reset Switch Connector (CN7)
21
Table C-11: Reset switch connector
Pin Signal
1 MR_RESET
2 GND
C.8 IR Connector (CN8)
54321
Table C-4: IR connector
Pin Signal
1 +5 V
2 N/C
3 IR_RX
4 GND
5 IR_TX
C.9 Keyboard Lock Connector (CN9)
54321
Table C-6: Keyboard lock connector
Pin Signal
1 +5 V
2 N/C
3 GND
4 KBLOCK
5 GND
78 PCA-6770 Series Appendix C
C.10 IDE LED Connector (CN10)
21
Table C-3: HDD LED connector
Pin Signal
1 IDE LED 2 IDE LED +
C.11 ATX Power Switch (CN11)
21
Table C-5:ATX power switch
Pin Signal
1 Standby 5 V
2 Power ON
C.12 External Speaker Connector (CN12)
4 3 2 1
Table C-7: External speaker connector
Pin Signal
1+ 5 V
2 N/C
3 Internal speaker
4 External speaker
Appendix C Pin Assignments 79
C.13 USB1/USB2 Connector (CN13)
1
9
Table C-1: USB1/USB2 connector
USB1 USB2
1 +5 V 2 +5 V
3 UV- 4 UV5 UV+ 6 UV+
7 GND 8 GND
9 Chassis GND 10 N/C
2
10
80 PCA-6770 Series Appendix C
C.14 Flat panel display Connector (CN14)
40 .... 4 2
39 .... 3 1
Table C-5: 24-bit LCD display connector
Pin Signal Pin Signal
1 VDDSAFE5 2 VDDSAFE5
3 GND 4 GND
5 VDDSAFE3 6 VDDSAFE3
7 Vcon 8 GND
9P0 10P1
11 P2 12 P3
13 P4 14 P5
15 P6 16 P7
17 P8 18 P9
19 P10 20 P11
21 P12 22 P13
23 P14 24 P15
25 P16 26 P17
27 P18 28 P19
29 P20 30 P21
31 P22 32 P23
33 GND 3 4 GND
35 SHIFT CLOCK 36 FILM
37 M 38 LP
39 DOTCLK 40 ENAVEE
Note: The model number of the CN18 socket is
DF13A-40DP-1.25V (Hirose Electric Co., Ltd.)
Appendix C Pin Assignments 81
C.15 Ext flat panel display connector (CN15)
20 .... 4 2
19 .... 3 1
Table C-19: 36-bit LCD display connector
Pin Signal Pin Signal
1GND 2 GND
3 P24 4 P25
5 P26 6 P27
7 P28 8 P29
9 P30 10 P31
11 P32 12 P33
13 P34 14 P35
15 GND 16 GND
17 N/C 18 N/C
19 N/C 20 N/C
Note: The model number of the CN19 socket is
DF13A-20DP-1.25V (Hirose Electric Co., Ltd.)
C.16 CRT Display Connector (CN16)
5
10 6
15
Table C-12: CRT display connector
Pin Signal Pin Signal
1 RED 9 Vcc
2 GREEN 10 GND
3 BLUE 11 N/C
4 N/C 12 DDC-DAT
5 GND 13 H-SYNC
6 GND 14 V-SYNC
7 GND 15 DDC-CLK
8GND
1
11
C.19 CPU Fan Power Connector (CN19)
321
Table C-13: CPU fan power connector
Pin Signal
1NC
2 +12 V
3 GND
C.20 COM2 RS-422/485 Serial Port (CN20)
1
9
Table C-16: COM2 RS-232/422/485 serial port
Pin RS-422 port RS-485 port
1 TXD- DATA2 N/C N/C
3 TXD+ DATA+
4 N/C N/C
5 RXD+ N/C
6 N/C N/C
7 RXD- N/C
8 N/C N/C
9 GND GND
10 N/C N/C
2
10
C.21 COM2 RS-232 Serial Port (CN21)
1
9
Table C-17: COM2 RS-232 serial port
2
10
Pin RS-232 port Pin RS-232 port
1 DCD 6 CTS
2 DSR 7 DTR
3 RxD 8 RI
4 RTS 9 GND
5 TxD 10 N/C
C.22 COM1 RS-232 Serial Port (CN22)
5
4
3
2
1
9
8
7
6
Table C-15: COM1 RS-232 serial port
Pin Signal
1 DCD
2 RXD
3 TXD
4DTR
5 GND
6 DSR
7 RTS
8 CTS
9RI
84 PCA-6770 Series Appendix C
C.25 External Keyboard Connector (CN25)
5
4
3
2
1
Table C-21: External keyboard connector
Pin Signal
1 CLK
2 DATA
3NC
4 GND
5+ 5 V
C.26 Keyboard and Mouse Connnector (CN26)
6
4
Table C-20: Keyboard and mouse connector
Pin Signal
1 KB DATA
2 MS DATA
3 GND
4 +5 V
5 KB CLOCK
6 MS CLOCK
5
3
12
Appendix C Pin Assignments 85
C.27 CompactFlash Card Connector (CN27)
Table C-24: CompactFlash card connector
Pin Signal Pin Signal
1 GND 2 D03
3 D04 4 D05
5 D06 6 D07
7 *CS0 8 A10
9 *ATA SEL 10 A09
11 A08
2
12 A07
13 +5 V 14 A06
15 A05
17 A03
2
2
16 A04
18 A02
19 A01 20 A00
21 D00 22 D01
23 D02 24 *IOCS16
25 *CD2 26 *CD1
27 D11
29 D13
31 D15
1
1
1
28 D12
30 D14
32 *CS1
33 *VS1 34 * IORD
35 *IOWR 36 * WE
37 INTRQ 38 +5 V
39 *CSEL 40 * VS2
41 *RESER 42 IORDY
43 *INPACK 44 * REG
45 *DASP 46 * PDIAG
47 D08
1
48 D09
49 D10 50 GND
* low active
2
2
2
2
2
1
1
1
3
3
1
86 PCA-6770 Series Appendix C
D
APPENDIX
System
Assignments
This appendix contains information of a
detailed or specialized nature. It includes:
• System I/O ports
• DMA channel assignments
• Interrupt assignments
• 1st MB memory map
D.1 System I/O Ports
Table D-1: System I/O ports
Addr. range (Hex) Device
000-01F DMA controller
020-021 Interrupt controller 1, master
022-023 Chipset address
040-05F 8254 timer
060-06F 8042 (keyboard controller)
070-07F Real-time clock, non-maskable interrupt (NMI)
mask
080-09F DMA page register
0A0-0BF Interrupt controller 2
0C0-0DF DMA controller
0F0 Clear math co-processor
0F1 Reset math co-processor
0F8-0FF Math co-processor
1F0-1F8 Fixed disk
200-207 Game I/O
278-27F Parallel printer port 2 (LPT 3)
2F8-2FF Serial port 2
300-31F Prototype card
360-36F Reserved
378-37F Parallel printer port 1 (LPT 2)
380-38F SDLC, bisynchronous 2
3A0-3AF Bisynchronous 1
3B0-3BF Monochrome display and printer adapter (LPT1)
3C0-3CF Reserved
3D0-3DF Color/graphics monitor adapter
3F0-3F7 Diskette controller
3F8-3FF Serial port 1
* PNP audio I/O map range from 220 ~ 250H (16 bytes)
MPU-401 select from 300 ~ 330H (2 bytes)
88 PCI-6771 User's Manual
D.2 DMA Channel Assignments
Table D-2: DMA channel assignments
Channel Function
0 Available
1 Available
2 Floppy disk (8-bit transfer)
3 Available
4 Cascade for DMA controller 1
5 Available
6 Available
7 Available
* Audio DMA select 0, 1 or 3
D.3 Interrupt Assignments
Table D-3: Interrupt assignments
Interrupt# Interrupt source
IRQ 0 Interval timer
IRQ 1 Keyboard
IRQ 2 Interrupt from controller 2 (cascade)
IRQ 8 Real-time clock
IRQ 9 Cascaded to INT 0A (IRQ 2)
IRQ 10 Available
IRQ 11 Watchdog Timer
IRQ 12 PS/2 mouse (non-releasable)
IRQ 13 INT from co-processor
IRQ 14 Fixed disk controller (primary)
IRQ 15 Fixed disk controller (secondary)
IRQ 3 Serial communication port 2
IRQ 4 Serial communication port 1
IRQ 5 Parallel port 2
IRQ 6 Diskette controller (FDC)
IRQ 7 Parallel port 1 (print port)
* PNP audio IRQ select: 5, 7, 9 or 10
* Ethernet function is auto-sensing
Appendix D System Assignments 89
D.4 1st MB Memory Map
Table D-4:1st MB memory map
Addr. range (Hex) Device
F000h - FFFFh System ROM
C800h - EFFFh Expansion ROM
C000h - C7FFh System ROM
B800h - BFFFh CGA/EGA/VGA text
B000h - B7FFh Unused
A000h - AFFFh EGA/VGA graphics
0000h - 9FFFh Base memory
90 PCI-6771 User's Manual
