PCA-6551VE

Single Board Computer

User′′s Manual

All brand names are registered trademarks of their respective owners.

Copyright 2000
All rights reserved
Edition 1 February, 2000
The information in this document is subject to change without prior notice in order to

improve reliability, design and function. The information in this document does not
represent commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special , incidental, or
consequential damages arising out of the use of the PCA-6551VE, nor for any in­fringements upon the rights of third parties which may result from such use.

This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.

Trademarks

PCA-6551VE is a registered trademark of Advantech Co., Ltd.
IBM PC is a registered trademark of International Business Machines Corporation.
Intel and Pentium are registered trademarks of Intel Corporation. Award is a registered

trademark of Award Software, Inc.
Other product names mentioned herein are used for identification purposes only and

may be trademarks and/or registered trademarks of their respective companies.

Table of Contents

How to Use This Guide

Chapter 1 Introduction

1.1 Specifications.............................................................................…1-2

1.2 Packing List……………………………………………………… 1-5

Chapter 2 Jumpers and Connectors

2.1 Jumpers........................................................................................2-1

2.2 Connectors....................................................................................2-5

Chapter 3 System Memory and CPU Installation

3.1 System Memory........................................................................… 3-1

3.2 Cache Memory .........................................................................… 3-3

3.3 Changing the CPU......................................................................… 3-3

3.4 Installing a CPU Fan ...…….………………………………… 3-4

Chapter 4 Award BIOS Setup

4.1 Entering Setup...............................................................................4-1

4.2 Control Keys ............................................................................. 4-2

4.3 Getting Help ............................................................................. 4-3

4.4 The Main Menu ............................................................................. 4-4

4.5 Standard CMOS Setup .............................................…................. 4-7

4.6 BIOS Features Setup. ...............................................................…4-11

4.7 Chipset Features Setup.................................................................4-16

4.8 Power Management Setup...........................................................4-21

4.9 PNP/PCI Configuration.............................................................4-26

4.10 Integrated Peripherals…………………………………………4-28

4.11 Supervisor/User Password Setting…………………………. 4-31

4.12 IDE HDD Auto Detection .......................................................... 4-32

4.13 Power-On Boot.....................................................................….4-35

4.14 BIOS Reference - POST Messages........................................…4-36

4.15 BIOS Reference - POST Codes ……………........................…4-41

4.16 BIOS Default Drive Table……………………………………. 4-47

Chapter 5 VGA Driver Installation Procedures

5.1 Windows 95/98 Drivers Setup Procedure…………………….…5-1

5.2 Windows NT Drivers Setup Procedure …………………….…5-10

Chapter 6 LAN Driver Installation Procedures

6.1 Windows 95/98 Drivers Setup Procedure…………………….…6-1

6.2 Windows NT Drivers Setup Procedure…………………….…6-10

Appendix A Watchdog Timer

Appendix B Memory Mapping

How to use this manual

This manual is written to help you use the PCA-6551VE. It describes how to make
various settings on the Pentium® CPU board to meet your requirements. A brief
summary of the manual follows:

Chapter 1 “Introduction” gives an overview of the product‘s specifications. It also
tells you what is included in the product package.

Chapter 2 “Jumpers and Connectors” describes the definitions and positions of
jumpers and connectors that you may easily configure and set up according to your
particular requirements.

Chapter 3 “System Expansion” describes how to change or expand the CPU board by
changing the system memory, cache memory, and/or CPU. These changes will yield
more power from the CPU board.

Chapter 4 “Award BIOS Setup” describes how to use the advanced PCI/Green BIOS to
control almost every feature of the PCA-6551V E, including the watchdog timer.

Chapter 5 “VGA Driver Installation Procedures” gives instructions for installing and
operating the software drivers on the utility disk included in your package.

Chapter 6 “LAN Driver Installation Procedures” provides detailed information on
Ethernet configuration, and shows how to change the configuration to match your
application requirements.

Appendix A “Watchdog Timer” describes how to set up the watchdog timer (WDT),
and gives an example of programming the WDT.

Appendix B “Memory Mapping” describes usage of the 1st MB memory.

PCA-6551VE User's Guide

Chapter 1

Introduction

Welcome to the PCA-6551VE Socket 370 single board computer. It is a half-size FC­PGA Pentium®-based single board computer with VGA and Ethernet.

The PCA-6551VE boosts embedded applications to new heights, especially where
size is a paramount concern. At the same time, it also effectively eliminates the
constraints in performance which exist in most traditional embedded architectures.

The PCA-6551VE has the evergreen Intel 440 BX PCI set built-in. The 440 BX can
support 66 MHz as well as 100 MHz front side bus. All the original Socket 370 based
designs for the Celeron™ CPU running 66 MHz FSB now require major revamping to
reliably run with the advanced Pentium III based Coppermine, even though the
Coppermine uses the same socket. The Pentium® III with FC-PGA package is Intel’s
first high performance CPU which reverts to the socket approach. This makes high
performance in half-size computing possible, and the PCA-6551VE is already the
performance leader.

There are two 168-pin DIMMs reserved on the PCA-6551VE. The total memory
support is 512 MB, which is the largest in its kind. The VGA has an onboard AGP
interface, and the C&T 69000 controller is used. Since the onchip video memory can
be 2 or 4 MB, the graphics/video performance is high enough for most industrial
applications. The Realtek 10/100Base -T Ethernet controller is also onboard. It
operates via a PCI interface, which guarantees high-speed communication. These
onboard devices with high-speed interfaces (either via AGP or PCI) are important
because they must match the power of the Pentium® III.

The PCA-6551VE also has Advantech’s standard SBC features built-in. These
include ISAMAX to support numerous ISA cards typically required for CTI
applications. This makes the PCA-6551VE one of the best and most powerful engines
for a variety of CTI environments. The high-precision RTC with battery is reserved to
guarantee precise timing and scheduling. A socket for DOC® is also reserved for a
solid state disk up to 144 MB. However, due to height constraints, it only supports
up to a 24 MB DOC. Other features such as 2S1P, IDEx1 up to mode 4 performance,
and an FDD connector are also included. We are proud of our PCA-6551VE, which
underscores our contribution to the IPC market. The PCA-6551VE will play a crucial
role in being an IPC master which can react quickly as rapid advances in technologies
occur. The Coppermine based CPU is so sophisticated that it is continuing to
challenge the skills of SBC designers. In future, Advantech will release more and
more products based on this technology.

Introduction 1-1

PCA-6551VE User's Guide

1.1 Specifications

• System architecture

Intel® Socket 370 Celeron™/Coppermine CPU architecture, CPU up to 700+ MHz
66/100 MHz bus supported
CE, FCC Class A certified
Equipped with VGA, 100Base-TX
PCI V2.1 compliant
PICMG 1.0 compliant
Half-size SBC with ISA gold fingers

• CPU support

Intel® Socket 370 CPU (PGA socket)
Intel® Celeron™/Coppermine for Socket 370 up to 700 MHz with 66/100 MHz external bus

• Cache memory

128/256 KB Level 2 cache (Pipeline Burst SRAM) on-die

• Main memory

Supports SDRAM only
Up to 512 MB (max.)
168-pin DIMM socket x 2
ECC support (single bit error correction / multiple bit error reporting)

• BIOS

Award System BIOS supported
2 Mbit Flash ROM
C&T VGA BIOS

• Chipset

Intel® 82440BX PCI set
2nd generation PII chipset with MMX support
PCI V2.1 concurrent PCI
Optimized SDRAM support

Introduction 1-2

PCA-6551VE User's Guide

• VGA

C&T 69000 VGA controller (mini VGA package)
2 MB SDRAM embedded or 4 MB SDRAM
CRT and flat panel displays supported
AGP interface

* C&T 69000 controller

Max. resolution Color Refresh rate
800 x 600 True color 85 Hz
1024 x 768 True color 85 Hz
1280 x 1024 True color 85 Hz

Dual displays supported, MPEG I/II playback supported
Drivers support: Windows 95/98, Windows NT 4.0

• LAN

RTL-8139B Ethernet controller
10Base-T / 100Base-TX supported, full Duplex
Complies with PCI V2.1

Driver support:
Dos/Windows, NetWare, Windows 95/98, Windows NT 4.0, SCO Open Server 5.0
RJ-45 x 1

• Onboard I/O

Winbond 83977-TF Super I/O onboard
SIO x 2, with 2 x 16C550 UARTs, 10-pin connector x 1
PIO x 1, bidirectional, EPP/ECP supported, 26-pin x 1
Floppy disk controller: 5.25” 360 KB / 1.2 MB;

3.5” 720 KB / 1.2 MB / 1.44 MB / 2.88 MB supported, 34-pin x 1
One PCI IDE hard disk interface: Supports up to two enhanced IDE devices up to
PIO mode 4 and DMA Master mode 2. Also supports Ultra DMA 33
On-chip keyboard, mouse controller
Onboard 5-pin header for keyboard x 1
Onboard buzzer x 1
Onboard USB with 6-pin header x1
Onboard 2-pin header for reset switch, 4-pin for speaker, 5-pin for keylock power
daughterboard

Introduction 1-3

PCA-6551VE User's Guide

• I/O connectors

VGA port
LAN RJ-45 connector (change to PS/2 mouse port if LAN is not required)
COM1 DB-9 connector
PS/2 keyboard connector
(PS/2 connector is for both mouse and keyboard if LAN connector is required)

• Onboard RTC

High precision clock/calendar with battery backup

• Onboard solid state disk socket

Socket reserved for M-Systems’ DiskOnChip® (DOC)
Memory size up to 144 MB single chip
Drivers support DOS, Windows, Win 95/98 and NT

• ISA MAX

Built-in ISA MAX to support more ISA add-on cards (up to 20)

• Watchdog Timer

1, 2, 4, 8, 16, 32, 64 second time-out intervals

• Dimensions (W x D)

185 x 122 mm

• Power requirements

+5 V @ 14 A (max)
+12 V @ 200 mA (max)

• Environment

Operating temperature: 0 ~ 60° C
Storage temperature: -20 ~ 80° C
Relative humidity: 10 ~ 90% (non-condensing)

• Certification

CE approved
FCC Class A

Introduction 1-4

PCA-6551VE User's Guide

1.2 Packing List

In addition to this manual, the PCA-6551VE package includes:

• PCA-6551VE single board computer x 1

• Printer and SIO cable x 1

• FDC cable x 1

• IDE cable x 1

• C&T 69000 VGA driver utility disk x 1

• RTL 8139B LAN driver utility disk x 3

• Y -cable for keyboard and mouse

• CPU cooler × 1

If any of these items are missing or damaged, please contact your vendor.

Introduction 1-5

PCA-6551VE User's Guide

Chapter 2

Jumpers and Connectors

This chapter provides definitions of jumpers and connectors, and shows their
locations.

2.1 Jumpers

Jumpers on the CPU board are used to select options for certain features. To
select any option, follow the instructions. You will either cover over a jumper cap
(short) or remove it from the jumper pins (open). See Figures 2 -1 and 2-2 for
jumper positions.

Figure 2-1: Jumper positions

Jumpers and Connectors

2-1

PCA-6551VE User's Guide

Jumper Settings Tables (*: default setup)

CMOS clear procedure

1. Shut down the computer.
Enable jumper SW2.4.

2.

Turn on the power button, and then immediately turn it off.

3.

Disable jumper SW2.4.

4.

CMOS Clear Enabled

1 2 3 4 5 6 7 8

SW2.4

OFF

OFF

Host Frequency *66 MHz 100 MHz

1 2 3 4

SW1.4

OFF

Important: The user must change to 100 MHz host frequency via the CMOS/Chipset
Features setup. Refer to Section 4.16 in Chapter 4.

*Disabled

1 2 3 4 5 6 7 8

1 2 3 4

OFF

Jumpers and Connectors

2-2

PCA-6551VE User's Guide

DiskOnChip

M -System

Address

SW2.1 ON
SW2.2 ON
SW2.3 ON

M -System

Address

SW2.1 ON
SW2.2 ON
SW2.3 OFF

M -System

Address

SW2.1 ON
SW2.2 OFF
SW2.3 ON

M -System

Address

SW2.1 ON
SW2.2 OFF
SW2.3 OFF

M -System

Address

SW2.1 OFF
SW2.2 X
SW2.3 X

®

C0000

1 2 3 4 5 6 7 8

OFF

C8000

1 2 3 4 5 6 7 8

OFF

D0000

1 2 3 4 5 6 7 8

OFF

*D8000

1 2 3 4 5 6 7 8

OFF

Disabled

1 2 3 4 5 6 7 8

OFF

Jumpers and Connectors

2-3

PCA-6551VE User's Guide

BIOS Refresh *Enable d

1 2 3 4 5 6 7 8

OFF

SW2.5

1 2 3 4 5 6 7 8

OFF

LAN Chip

*Enable d

Function

SW2.6 ON
SW2.7 OFF

LAN Chip

Disabled

Function

SW2.6 OFF
SW2.7 ON

Disabled

1 2 3 4 5 6 7 8

OFF

1 2 3 4 5 6 7 8

OFF

Jumpers and Connectors

2-4

PCA-6551VE User's Guide

2.2 Connectors

Connectors on the CPU board provide interfaces to other devices.

Connector Function Remark

J1 DIMM1 socket
J2 DIMM2 s ocket
J3 IDE connector
J4 LAN RJ-45 connector
J6 PS/2 keyboard/m ouse connector
J7 VGA connector
J8 COM1 connector
JP2 H/W reset
JP3 Keylock
JP5 IDE LED
CN1, CN2, CN3 Power module connector
CON3 Printer connector
CON4 COM 2 connector
CON5 Keyboard connector
CON6 Floppy connector
CON7 USB connector

Jumpers and Connectors

2-5

PCA-6551VE User's Guide

Pin definitions of connectors

• J3: IDE interface connector

Pin Description Pin Description

1 Reset# 2 Ground
3 Data 7 4 Data 8
5 Data 6 6 Data 9
7 Data 5 8 Data 10
9 Data 4 10 Data 11
11 Data 3 12 Data 12
13 Data 2 14 Data 13
15 Data 1 16 Data 14
17 Data 0 18 Data 15
19 Ground 20 N/C
21 DMA REQ 22 Ground
23 IOW# 24 Ground
25 IOR# 26 Ground
27 IOCHRDY 28 Pull Down
29 DMA ACK 30 Ground
31 Interrupt 32 N/C
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0# 38 HDC CS1#
39 HDD Active# 40 Ground

•

J4: LAN connector (RJ-45)

Pin Description

1 TXO+
2 TXO­3 RXI+
4 TERMPLANE
5 TERMPLANE
6 RXI­7 TERMPLANE
8 TERMPLANE

Jumpers and Connectors

2-6

PCA-6551VE User's Guide

•

J6: 6-pin mini-DIN keyboard connector (PS/2 type)

Pin Description

1 Keyboard Data
2 Mouse/Data
3 Ground
4 +5 V
5 Keyboard Clock
6 Mouse/Clock

•

J7: VGA connector

Pin Description

1 RED
2 Green
3 Blue
4 Pull up 1 K to 5 V
5 GND
6 GND
7 GND
8 GND
9 +5V
10 GND
11 Pull up 1 K to 5 V
12 Display data channel data
13 Horizontal Sync
14 Vertical Sync
15 Display Data Channel Clock

•

J8: Serial port connector (D-Sub 9-pin)

Pin Description

1 Data Carrier Detect (DCD)
2 Receive Data (RXD)
3 Transmit Data (TXD)
4 Data Terminal Ready (DTR)
5 Ground (GND)
6 Data Set Ready (DSR)
7 Request to Send (RTS)
8 Clear to Send (CTS)
9 Ring Indicator (RI)

Jumpers and Connectors

2-7

PCA-6551VE User's Guide

•

JP2: Reset switch

Pin Description

1 External Reset
2 Ground

• JP3: Keylock

Pin Description

1 +5 V
2 N/C
3 Ground
4 Keylock
5 Ground

•

CON3: Parallel port connector

Pin Description Pin Description

1 Strobe# 2 Data 0
3 Data 1 4 Data 2
5 Data 3 6 Data 4
7 Data 5 8 Data 6
9 Data 7 10 Acknowledge
11 Busy 12 Paper Empty
13 Printer Select 14 Auto Form Feed#
15 Error# 16 Initialize
17 Printer Select IN# 18 Ground
19 Ground 20 Ground
21 Ground 22 Ground
23 Ground 24 Ground
25 Ground

Jumpers and Connectors

2-8

PCA-6551VE User's Guide

•

CON4: Serial port connector (D-Sub 9-pin)

Pin Description

1 Data Carrier Detect (DCD)
2 Receive Data (RXD)
3 Transmit Data (TXD)
4 Data Terminal Ready (DTR)
5 Ground (GND)
6 Data Set Ready (DSR)
7 Request to Send (RTS)
8 Clear to Send (CTS)
9 Ring Indicator (RI)
10 GND

•

CON5: Keyboard connector

Pin Description

1 Keyboard Clock
2 Keyboard Data
3 N/C
4 Ground
5 +5 V

Jumpers and Connectors

2-9

PCA-6551VE User's Guide

•

CON6: FDC connector

Pin Description Pin Description

1 Ground 2 Density Select bit 0
3 Ground 4 N/C
5 N/C 6 Density Select bit 1
7 Ground 8 Index#
9 Ground 10 Mo tor Enable A#
11 Ground 12 Drive Select B#
13 Ground 14 Drive Select A#
15 Ground 16 Motor Enable B#
17 Ground 18 Direction#
19 Ground 20 Step#
21 Ground 22 Write Data#
23 Ground 24 Write Gate#
25 Ground 26 Track 0#
27 Ground 28 Write Protect#
29 N/C 30 Read Data#
31 Ground 32 Head Side Select#
33 Ground 34 Disk Change#

•

CON7: USB connector

Pin Description

1 VCC
2 SBD1­3 SBD1+
4 SBD0­5 SBD0+
6 Ground

Jumpers and Connectors

2-10

PCA-6551VE User's Guide

Chapter 3

System Memory and CPU Installation

This chapter explains how you can expand the capability of your CPU board by
changing system memory, cache memory, and/or the CPU.

3.1 System Memory

Your system DRAM is provided by 168-pin DIMMs (Dual Inline Memory
Modules) on the CPU board. The CPU board contains two memory banks
corresponding to connectors DIMM1 and DIMM2.

The table below shows possible DIMM configurations for the memory banks,
and the following figures help you correctly install the DIMM modules. See
Figure 3-2 for the location of the memory banks.

DIMM1 DIMM2 Total Memory

16 MB -- 16 MB
16 MB 16 MB 32 MB
32 MB -- 32 MB
32 MB 32 MB 64 MB
64 MB -- 64 MB

64 MB 64 MB 128 MB
128 MB -- 128 MB
128 MB 128 MB 256 MB
256 MB -- 256 MB
256 MB 256 MB 512 MB

System Memory and CPU Installation 3-1

PCA-6551VE User's Guide

The DIMMs use SDRAM memory. Note that if the 100 MHz CPU external clock
is turned on, the memory should be SDRAM only and PC/100 compliant.

System Memory and CPU Installation 3-2

PCA-6551VE User's Guide

3.2 Cache Memory

The PCA-6551VE does not support external cache memory.
The CPU has an on-die second level (L2) cache.

3.3 Changing the CPU

The PCA-6551VE uses a 321-pin PGA socket rather than a ZIF socket. Thus
some force is required to push the CPU into the socket or pull the CPU out from
the socket. Normally, some tools are required to pull the CPU out from the socket.
To push in a new CPU, place the CPU on the middle of the socket. Make sure
that the beveled corner of the CPU lines up with the beveled corner of the socket.
Then make sure that the pins of the CPU fit evenly over the socket openings.
Push the CPU in until all the pins fit snugly into the socket. Be sure to re ­configure the DIP switch settings for the correct clock and core/bus ratios. The
PCA-6551VE supports many kinds of CPUs. Refer to the DIP switch setting table
for the correct configuration.

Warning: The FC-PGA Pentium® III CPU is fragile. Install and remove it gently.

Using excessive force may result in breakage.

System Memory and CPU Installation 3-3

PCA-6551VE User's Guide

3.4 Installing a CPU Fan

1. Loosen the four screws on the fan to make the frame loose. Then peel off the thin
plastic coating on the rubber pad.

Figure 3-2: Peeling off the thin plastic coating of the CPU fan

System Memory and CPU Installation 3-4

PCA-6551VE User's Guide

2. Lift the frame to the same height as the rubber pad, and make sure that the bevel of
the CPU is positioned at the lower right-hand corner. Push the
Coppermine/Celeron™ forward into the frame. Note that rubber pad should not
obstruct the die on the Coppermine/Celeron.

Figure 3-3: Pushing the Coppermine/Celeron™ into the frame

System Memory and CPU Installation 3-5

PCA-6551VE User's Guide

3. Once the Coppermine/Celeron™ CPU is correctly attached to the fan, place the
assembly on the board, and plug in the fan power cord.

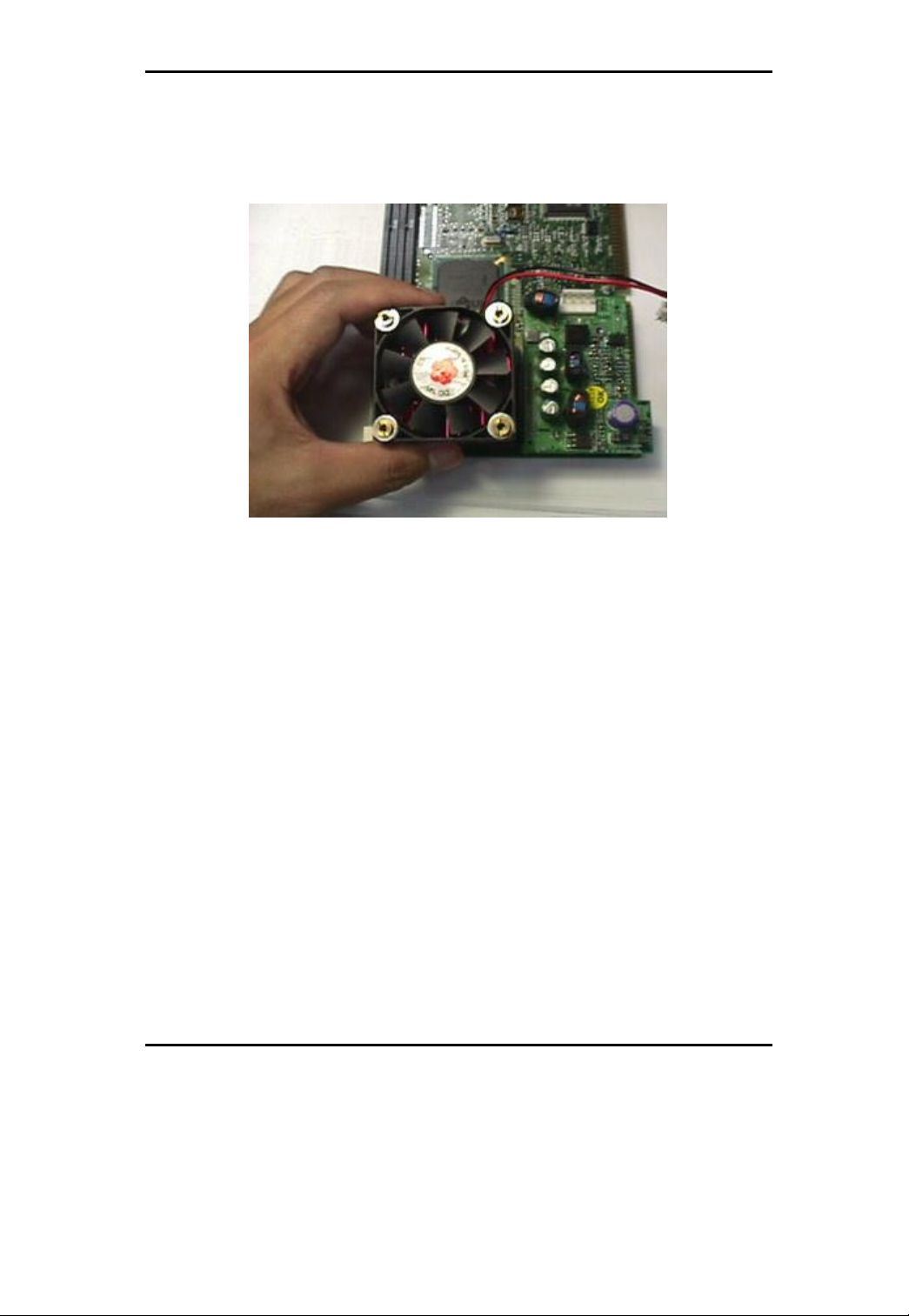

Figure 3-4: Placing the CPU/fan assembly on the board

System Memory and CPU Installation 3-6

PCA-6551VE User's Guide

4. To affix the assembly to the board, screw the four screws back firmly. Do not use
excessive force, which may distort or break the frame. Note that a Celeron™ CPU is
thicker than a Coppermine, so a Celeron will require less screwing back.

Figure 3-5: Affix ing the CPU/fan assembly to the board

System Memory and CPU Installation 3-7

PCA-6551VE User’s Guide

Chapter 4

A ward BIOS Setup

Award's BIOS ROM has a built-in Setup program that allows users to modify the basic
system configuration. This type of information is stored in battery -backed RAM
(CMOS RAM), so that it retains the setup information when the power is turned off.

4.1 Entering Setup

Power on the computer and press <Del> immediately. This will allow you to enter Setup.

Alternatively, power on the computer. When the message shown below appears briefly
at the bottom of the screen during the POST (Power On Self Test), press the <Del> key
or simultaneously press the <Ctrl>, <Alt>, and <Esc> keys.

TO ENTER SETUP BEFORE BOOT PRESS <CTRL-ALT-ESC> OR <DEL> KEY

If the message disappears before you respond and you still wish to enter Setup, restart
the system to try again. Turn the system OFF and then ON, or alternatively press the
"RESET" button on the system case. You may also restart by simultaneously pressing
the <Ctrl>, <Alt>, and <Delete> keys. If you do not press the k eys at the correct time
and the system does not boot, an error message will be displayed. You will again be
asked to:

PRESS <F1> TO CONTINUE, <CTRL-ALT-ESC> OR <DEL> TO ENTER SETUP

Award BIOS Setup 4-1

PCA-6551VE User’s Guide

4.2 Control Keys

Up arrow Move to previous item
Down arrow Move to next item
Left arrow Move to the item on the left
Right arrow Move to the item on the right
Esc key Main Menu -- Quit and do not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu

-- Exit current page and return to Main Menu
PgUp / “+” key Increase the numeric value or make changes
PgDn / “−“ key Decrease the numeric value or make changes
F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu
(Shift) F2 key Change color from total 16 colors. F2 to select color forward, (Shift) F2 to

select color backward
F3 key Reserved
F4 key Reserved
F5 key Restore the previous CMOS value from CMOS, only for Option Page Setup

Menu
F6 key Load the default CMOS value from BIOS default table, only for Option Page

Setup Menu
F7 key Load the Setup default, only for Option Page Setup Menu
F8 key Reserved
F9 key Reserved
F10 key Save all the CMOS changes, only for Main Menu

Award BIOS Setup 4-2

PCA-6551VE User’s Guide

4.3 Getting Help

Main Menu

The online description of the highlighted setup function is displayed at the bottom of
the screen.

Status Page Setup Menu / Option Page Setup Menu

Press F1 to pop up a small help window that describes the appropriate keys to use and
the possible selections for the highlighted item. To exit the Help Window, press <F1>
or <Esc>.

Award BIOS Setup 4-3

PCA-6551VE User’s Guide

4.4 The Main Menu

Once you enter Award BIOS CMOS Setup Utility, the Main Menu (Figure 1) will appear
on the screen. The Main Menu allows you to select from ten setup functions and two
exit choices. Use arrow keys to select among the items and press <Enter> to accept or
enter the sub-menu.

Figure 4-1: Main Menu

Standard CMOS setup

This setup page includes all the items in a standard compatible BIOS. See pages 4-7
through 4-10 for details.

BIOS features setup

This setup page incl udes all the items of Award’s special enhanced features. See pages
4-11 through 4-15 for details.

Award BIOS Setup 4-4

PCA-6551VE User’s Guide

Chipset features setup

This setup page includes all the items of chipset special features. See pages 4-16
through 4-20 for details.

Power management setup

This category determines the amount of power consumption for the system, after one
of the listed items is selected. The default value is Disabled. See page 4 -21 through 4-25
for details.

PNP/PCI configuration

This category specifies the assignments of all the IRQs and DMAs.
See pages 4-26 through 4-27 for details.

Load BIOS defaults

BIOS defaults indicates the most appropriate values of the system parameters which
the system needs for minimum performance. The OEM manufacturer may change the
defaults via MODBIN before the binary image is burned into the ROM.

Load setup defaults

Chipset defaults indicates the values required by the system for maximum performance.
The OEM manufacturer may change the defaults via MODBIN before the binary image
is burned into the ROM.

Integrated peripherals system environment

This item allows you to set up all the onboard I/O controllers such as IDE, SCSI, FDC,
and so on. See pages 4-28 through 4-30 for details.

Password setting

Change, set, or disable the password of the supervisor or user. This item allows you to
limit access to the system and Setup, or just to Setup. See page 4-31 for details.

Award BIOS Setup 4-5

PCA-6551VE User’s Guide

IDE HDD auto detection

This item automatically configures hard disk parameters. See pages 4 -32 through 4-34
for details.

Save & Exit Setup

Saves CMOS value changes to CMOS, and exit setup.

Exit without saving

Abandon all CMOS value changes, and exit setup.

Award BIOS Setup 4-6

PCA-6551VE User’s Guide

Base Memory:

Total Memory:

4.5 Standard CMOS Setup Menu

The items in Standard CMOS Setup Menu are divided into 10 categories. Each category
includes one or more setup items, or sometimes none. Use the arrow keys to highlight
the item and then use the <PgUp> or <PgDn> keys to select the value you want in each
item.

Figure 4-2: Standard CMOS setup menu (Support Enhanced IDE)

ROM PCI / ISA BIOS (PCA-6551VE)

STANDARD CMOS SETUP

AWARD SOFTWARE, INC.

Date (mm:dd:yy) : Mon, Dec 13 1999
Tim e (hh:mm:ss) : 16: 48: 33
Daylight Saving : Disabled

HARD DISKS CYLS. HEADS PRECOMP LANDZ ONE SECTORS
MODE
Drive C : Auto ( 0Mb) 0 0 0 0 0 Auto
Drive D : Auto ( 0Mb) 0 0 0 0 0 Auto

Drive A : 1.44M, 3.5in.
Drive B : None
Floppy 3 Mode Support : Disabled

640K
LCD&CRT : Both Extended Memory: 261120K
Halt On : All , But keyboard Other Memory: 384K

262144K

ESC : Quit ↑ ↓ → ← : Select Item PU / PD / + / - : Modify

F1 : Help (Shift) F2 : Change Color

Date

The date format is <day>, <date>, <month>, <year>. Press <F3> to show the calendar.

day The day of the week, from Sun to Sat, determined by the BIOS, is read only
date The date, from 1 to 31 (or the maximum allowed in the month), you can key in

details using the numerical/function keys
month The month, Jan through Dec
year The year, depend on the year of BIOS

Award BIOS Setup 4-7

PCA-6551VE User’s Guide

Time

The time format is <hour>, <minute>, <second>. It accepts both function key or
numerical key input. The time is calculated using the 24-hour military time clock.
For example, 1 p.m. is 13:00:00.

Primary master/primary slave

This item identifies the types of drives that have been installed in the computer.
There are 45 predefined types. Also, two user-definable types are for Enhanced
IDE BIOS. Types 1 through 45 are predefined. Type User is user-definable.

Press PgUp/<+> or PgDn/<−> to select a numbered hard disk type, or type the
number and press <Enter>. Note that the specifications of your drive must match
those in the drive table. The hard disk will not work properly if you enter improper
information for this category. If your hard disk drive type is not matched or listed,
you can use Type User to define your own drive type manually.

If you select Type User, you will be asked to enter related information shown
beneath. Enter the information directly from the keyboard and press <Enter>. This
information should be provided in the documentation fr om your hard disk vendor
or the system manufacturer.

If the controller of the HDD interface is ESDI, the selection will be “Type 1”.
If the controller of the HDD interface is SCSI, the selection will be “None”.
If the controller of the HD D interface is CD-ROM, the selection will be “None”.

CYLS. number of cylinders
HEADS number of heads
PRECOMP write precom
LANDZONE landing zone
SECTORS number of sectors
MODE HDD access mode

If a hard disk has not been installed, select NONE and press <Enter>.

Award BIOS Setup 4-8

PCA-6551VE User’s Guide

Drive A type/drive B type

This item identifies the types of floppy disk drive A: or drive B: that have been
installed in the computer.

None No floppy drive installed

360 K, 5.25 in 5.25 inch PC-type standard drive; 360 kilobyte capacity

1.2 M, 5.25 in 5.25 inch AT-type high-density drive; 1.2 megabyte

720 K, 3.5 in 3.5 inch double-sided drive; 720 kilobyte capacity

1.44 M, 3.5 in 3.5 inch double-sided drive; 1.44 megabyte capacity

2.88 M, 3.5 in 3.5 inch double-sided drive; 2.88 megabyte capacity

Video

This item selects the type of adapter used for the primary system monitor that must
match your video display card a nd monitor. Although secondary monitors are
supported, you do not have to select the secondary monitor type in Setup.

There are two ways to boot up the system:

1. When VGA is primary and monochrome is secondary, the selection of the
video type is “VGA Mode”.

2. When monochrome is primary and VGA is secondary, the selection of the
video type is “Monochrome Mode ”.

EGA/VGA Enhanced Graphics Adapter/Video Graphics Array. For EGA,

V GA, SEGA, or PGA monitor adapters
CGA 40 Color Graphics Adapter, power up in 40 column mode
CGA 80 Color Graphics Adapter, power up in 80 column mode
MONO Monochrome adapter, includes high resolution monochrome

adapters

capacity

Award BIOS Setup 4-9

PCA-6551VE User’s Guide

Error halt

This item determines whether the computer will stop if an error is detected during
power up.

No errors Whenever the BIOS detects a non-fatal error, the system will be

All errors The system boot will not be stopped for any error that may be

All, But Keyboard The system boot will not stop for a keyboard error, but it will stop for

All, But Diskette The system boot will not stop for a disk error, but it will stop for all other

All, But Disk/Key The system boot will not stop for a keyboard or disk error, but it will

stopped and you will be prompted

detected.

all other errors

errors

stop for all other errors

Memory

This item refers to display-only memory, which is determined by POST (Power On Self
Test) of the BIOS.

Base Memory

The POST of the BIOS will determine the amount of base (or conventional)
memory installed in the system. The value of the base memory is typically 512
K for systems with 512 K memory installed on the motherboard, or 640 K for
systems with 640 K or more memory installed on the motherboard.

Extended Memory

The BIOS determines how much extended memory is present during the
POST. This is the amount of memory located above 1 MB in the CPU's memory
address map.

Other Memory

This refers to the memory located in the 640 K to 1024 K address space. This
is, memory which can be used for different applications. DOS uses this area to
load device drivers, in order to keep as much base memory free for application
programs. The most common use for this area is Shadow RAM.

Total Memory

System total memory is the sum of basic memory, extended memory, and other

memory.

Award BIOS Setup 4-10

PCA-6551VE User’s Guide

4.6 BIOS Features Setup Menu

ROM PCI/ISA BIOS (PCA-6551VE)

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Virus Warning : Disabled Video BIOS Shadow : Enabled
CPU Internal Cache : Enabled C8000-CBFFF Shadow : Disabled
External Cache : Enabled CC000-CFFFF Shadow : Disabled
CPU L2 Cache ECC Checking : Enabled D0000-D3FFF Shadow : Disabled
D4000-D7FFF Shadow : Disabled
Quick Power on self test : Disabled D8000-DBFFF Shadow : Disabled
Boot Sequence : A,C,SCSI DC000-DFFFF Shadow : Disabled
Swap Floppy Drive : Disabled
Boot u p Floppy Seek : Disabled
Boot up Numlock Status : OFF
Gate A20 Option : Fast
Typematic Rate Setting : Enabled
Typematic Rate (Chars/Sec) : 30
Typematic Delay (Msec) : 250
Security Option : Setup ESC : Quit ↑↓←→: Select Item
PCI/VGA Palette Snoop : Disabled F1 : Help PU/PD/+/-: Modify
OS Select For DRAM 64MB : Non-OS2 F5 : Old Values (Shift) F2: Color
HDD S.M.A.R.T. capability : Disabled F6 : Load BIOS Defaults
F7 : Load Setup Defaults

Virus Warning

This category flashes on the screen. During and after system boot -up, any attempt
to write to the boot sector or partition table of the hard disk drive will halt the
system. The following error message will appear. In the meantime, you can run an
anti-virus program to locate the problem.

Enabled Automatically causes a warning message to appear when anything

Disabled No warning message appears when anything attempts to access the

ote: This function is available only for DOS and other OSs that do not trap INT13.

N

Award BIOS Setup 4-11

Type "Y" to accept write or "N" to abort write

attempts to access the boot sector or hard disk partition table during
system boot -up

boot sector or hard disk partition table during system boot -up

! WARNING !

Disk boot sector is to be modified

Award Software, Inc.

PCA-6551VE User’s Guide

CPU Internal Cache/External Cache

These two items speed up memory access. However, the setting depends on the
design of the CPU/chipset. The default value is Enabled. If your CPU has no
internal cache, then the item “CPU Internal Cache” will not appear.

Enabled Enable cache
Disabled Disable cache

Quick Power On Self Test

This category speeds up Power On Self Test (POST) after you power on the
computer. If set to Enabled, BIOS will shorten or skip some check items during
POST.

Enabled Enable quick POST
Disabled Normal POST

Boot Sequence

This category determines which drive the computer searches first to find the disk
operating system (i.e. DOS). The default value is A,C.

C,A System will first search for hard disk drive, then floppy disk drive
A,C System will first search for floppy disk drive, then hard disk drive

Note: This function is only available for IDE type systems.

For SCSI type systems, the computer always boots from drive A:.

Boot Up Floppy Seek

During POST, BIOS will determine if the floppy disk drive installed is 40 or 80
tracks. 360 K type floppy disks are 40 tracks, whereas 760 K, 1.2 M and 1.44 M disks
are all 80 tracks.

Enabled BIOS searches for floppy disk drive to determine if it is 40 or 80

tracks. Note that BIOS cannot differentiate between 720 K, 1.2 M
and 1.44 M drive types. This is bacause they are all 80 tracks

Disabled BIOS will not search for the type of floppy disk drive by track number.

Note that there will not be any warning message if the drive
installed is 360 K

Award BIOS Setup 4-12

PCA-6551VE User’s Guide

Boot Up NumLock Status

The default value is On.

On Keypad is number keys
Off Keypad is arrow keys

Typematic Rate Setting

This determines the typematic rate.

Enabled Enable typematic rate and typematic delay

programming

Disabled Disable typematic rate and typematic delay

programming. The system BIOS will use default
values for these 2 items. The default values are
controlled by the keyboard

Typematic Rate (Chars/Sec)

6 6 characters per second
8 8 characters per second
10 10 characters per second
12 12 characters per second
15 15 characters per second
20 20 characters per second
24 24 characters per second
30 30 characters per second

Typematic Delay (Msec)

When holding down a key, the time between display of successive characters.

250 250 msec
500 500 msec
750 750 msec
1000 1000 msec

Award BIOS Setup 4-13

PCA-6551VE User’s Guide

Security Option

This item allows you to limit access to the system and Setup, or just to Setup.

System The system will not boot and access to Setup will be denied if the

correct password is not entered at the prompt

Setup The system will boot, but access to Setup will be denied if the correct

password is not entered at the prompt

Note: To disable security, select PASSWORD SETTING in the Main Menu. You
will then be asked to enter a password. Do not type anything, and instead just
press <Enter>. This will disable security. Once the security has been disabled, the
system will boot and you will be able to enter Setup freely.

PCI/VGA Palette Snoop

This determines whether the MPEG ISA/VESA VGA cards can work with PCI/VGA
or not.

Enabled PCI/VGA can work with MPEG ISA/VESA VGA cards
Disabled PCI/VGA cannot work with MPEG ISA/VESA VGA cards

OS Select for DRAM > 64MB

This segment is specifically created for OS/2 when DRAM is larger than 64 MB. If
your operating system is OS/2 and DRAM used is larger the 64 MB, you must
select “OS2”. Otherwise, select “non-OS2”. The default selection is “non -OS2”.

Video BIOS Shadow

This determines whether video BIOS will be copied to RAM. This function is
optional, and depends on the chipset design. Video Shadow will increase video
speed.

Enabled Video shadow is enabled
Disabled Video shadow is disabled

Award BIOS Setup 4-14

PCA-6551VE User’s Guide

C8000 - CFFFF Shadow / D8000 - DFFFF Shadow

These items determine whether optional ROM will be copied to RAM at the rate of
16 or 32 KB per unit. The rate depends on the chipset used.

Enabled Optional shadow is enabled
Disabled Optional shadow is disabled

Notes:

1. For the C8000 -DFFFF ROM on PCI BIOS option, BIOS will automatically enable
the shadow RAM. The user does not have to select this item.

2. Secondary IDE channel control:
a) Enabled: Enable secondary IDE port, and BIOS will assign IRQ15 for this port.
b) Disabled: Disable secondary IDE port, and IRQ15 is available for other devices.
c) The item is optional only for PCI BIOS.

3. Some sound cards have an onboard CD -ROM controller which use the secondary
IDE port. In order to avoid PCI IDE conflict, you must select “disable” for the
secondary IDE channel control. The CD-ROM can then operate normally.

Award BIOS Setup 4-15

PCA-6551VE User’s Guide

4.7 Chipset Features Setup Menu

The features in this menu are related to the chipset on the CPU board, and are all already
optimized. Therefore, it is recommended that the default settings in the setup table not
be changed, unless the user is completely familiar with the relevant details of the
chipset’s features.

ROM PCI/ISA BIOS (PCA-6551VE)

CHIPSET FEATURES SETUP

AWARD SOFTWARE, INC.

Auto Configuration : Enabled Au to Detect DIMM/PCI Clk : Enabled
EDO DRAM Speed Selection : 60ns Spread Spectrum : Dis abled
EDO CASx# MA Wait State : 2 CPU Host Clock (CPU/PCI) : Default
EDO RASx# Wait State : 2
SDRAM Control by : Manual
SDRAM RAS-to-CAS Delay : 3
SDRAM RAS P recharge Time : 3
SDRAM CAS latency Time : 3
SDRAM Precharge Control : Disabled

DRAM Data Integrity Mode

System BIOS Cacheable : Enabled

Video BIOS Cacheable : Enabled

8 Bit I/O Recovery Time : 1
16 Bit I/O Recovery Tim e : 1
Memory Hole At 15M-16M : Disabled
Passive Release : Disabled
Delayed Transaction : Disabled
AGP Aperture Size (MB) : 64

This section describes features of the Intel® 440BX PCIset. If your system contains a
different chipset, the information in this section will bear little rese mblance to what you
actually see on your screen.

: Non-ECC

ESC : Quit ↑ ↓ → ←: Select Item
F1 : Help PU/PD/+/ - : Modify
F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

Award BIOS Setup 4-16

PCA-6551VE User’s Guide

ADVANCED OPTIONS. The parameters in this screen are for system designers,
service personnel, and technically expert users only. Do not reset these values unless
you understand the consequences of your changes.

NOTE: This chapter describes all fields offered by Award Software in this screen. Your
system board designer may omit or modify some fields.

Auto Configuration

Auto Configuration selects predetermined optimal values of chipset parameters. When
dis abled, chipset parameters revert to setup information stored in CMOS. Many fields in
this screen are not available when Auto Configuration is Enabled.

The options are: Enabled, Disabled.

EDO DRAM Speed Selection

DRAM timing is controlled by the DRAM Timing Registers. The timings programmed
into this register are dependent on the system design. Slower rates may be required in
certain system designs to support loose layouts or slower memory.

50 ns DRAM timing type
60 ns DRAM timing type

EDO CASx# MA Wait State

You can select the timing control type of EDO DRAM CAS MA (memory address bus).

The options are: 1, 2

EDO RASx# MA Wait State

You can select the timing control type of EDO DRAM RAS MA (memory address bus).

The options are: 1, 2

Award BIOS Setup 4-17

PCA-6551VE User’s Guide

SDRAM RAS-to-CAS Delay

You can select RAS -to-CAS delay time in HCLKs of 2/2 or 3/3. The system board
designer should set the values in this field, depending on the DRAM installed. Do not
change the values in this field unless you also change specifications of the installed
DRAM or the installed CPU.

The options are: 2, 3

SDRAM RAS Precharge Time

This defines the length of time Row Address Strobe is allowed to precharge.

The options are: 2, 3

SDRAM CAS latency Time

You can select CAS latency time in HCLKs of 2/2 or 3/3. The system board designer
should set the values in this field, depending on the DRAM installed. Do not change the
values in this field unless you also change specifications of the installed DRAM or the
installed CPU.

The options are: 2, 3

DRAM Data Integrity Mode

Select Parity or ECC (error-correcting code), according to the type of installed DRAM.

The options are: Non-ECC, ECC

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at F000h-FFFFFh, resulting
in better system performance. However, if any program writes to this memory area, a
system error may result.

Enabled BIOS access cached
Disabled BIOS access not cached

Award BIOS Setup 4-18

PCA-6551VE User’s Guide

Video BIOS Cacheable

Selecting Enabled allows caching of the video BIOS ROM at C0000h-F7FFFh, resulting
in better video performance. However, if any program writes to this memory area, a
system error may result.

Enabled Video BIOS access cached
Disabled Video BIOS access not cached

Video RAM Cacheable

Selecting Enabled allows caching of the video RAM, resulting in better system
performance. However, if any program writes to this memory area, a system error may
result.

8 Bit I/O Recovery Time

The recovery time is the length of time, measured in CPU clocks, which the system will
delay after completion of an input/output request. This delay takes place because the
CPU is operating so much faster than the input/output bus that the CPU must be
delayed to allow for the completion of the I/O. This item allows you to determine the
recovery time allowed for 8 bit I/O.

The options are: NA; 1, 2, 3, 4, 5, 6, 7, or 8 CPU clocks

16 Bit I/O Recovery Time

This item allows you to determine the recovery time allowed for 16 bit I/O.

The options are: NA; 1, 2, 3, or 4 CPU clocks

Memory Hole At 15M -16M

In order to improve performance, certain space in memory can be reserved for ISA cards.
This memory must be mapped into the memory space below 16 MB.

Enabled Memory hole supported
Disabled Memory hole not supported

Award BIOS Setup 4-19

PCA-6551VE User’s Guide

Passive Release

When Enabled, CPU to PCI bus accesses are allowed during passive release.
Otherwise, the arbiter only accepts another PCI master access to local DRAM.

The options are: Enabled, Disabled

Delayed Transaction

The chipset has an embedded 32-bit posted write buffer to support delay transaction
cycles. Select Enabled to support compliance with PCI specification version 2.1.

The options are: Enabled, Disabled

AGP Aperture Size (MB)

Select the size of the Accelerated Graphics Port (AGP) aperture. The aperture is a
portion of the PCI memory address range dedicated for graphics memory address
space. Host cycles that hit the aperture range are forwarded to the AGP without any
translation. See www.agpforum.org for AGP information.

The options are: 4, 8, 16, 3 2, 64, 128, 256

Auto Detect DIMM/PCI Clk

This item auto detects the clock generator. The unused pins of DIMM/PCI Clk are
disabled. The amplitudes of the radiated electromagnetic emissions are reduced.
The options are: Enabled, Disabled

Spread Spectrum Modulated

The clock generator generates a clock that is frequency modulated in order to increase
the bandwidth that is occupies. By increasing the bandwidth of the fundamental and its
harmonics, the amplitudes of the radiated electromagnetic emissions are reduced.
The options are: Enabled, Disabled

CPU Host Clock (CPU/PCI)

Depending on the CPU’s FSB, the options are: Default, 66/33 MHz, 75/37 MHz, 83/41
MHz, 100/50 MHz
The Default value is in fact 66 MHz.

Award BIOS Setup 4-20

PCA-6551VE User’s Guide

4.8 Power Management Setup

Power management setup will appear on your screen like this:

ROM PCI/ISA BIOS (PCA-6551VE)

POWER MANAGEMENT SETUP

AWARD SOFTWARE, INC.

ACPI function : Disabled ** Reload Global Timer Events **
Power Management : User Defined IRQ[3-7, 9-15], NMI : Disabled
PM Control by APM : Yes Primary IDE 0 : Disabled
Video Off Method : Blank Screen Primary IDE 1 : Disabled
Video Off After : Standby
Doze Mode : Disabled
Standby Mode : Disabled Floppy Disk : Disabled
Suspend Mode : Disabled Serial Port : Enabled
HDD Power Down : Disabled Parallel Port : Disabled

Throttle Duty Cycle

PCI/VGA Act-Monitor : Disabled
IRQ 8 Break Suspend : Disabled

Power Management

This category determines how much power consumption is appropriate for the system,
after the following items have been selected. The default value is Disabled.
Explanations of each of the following items and their options are detailed below.

: 62.5%

ESC : Quit ↑ ↓ → ← : Select Item
F1 : Help PU/PD/+/ - : Modify
F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

Award BIOS Setup 4-21

PCA-6551VE User’s Guide

In addition to (1), BIOS also turns off the

Item Options Descriptions

A. Power Management 1. Disabled Global Power Management will be disabled

2. User Defined Users can configure their own power
management

3. Min Saving Pre-defined timer values are used such that

B. Video Off Option

C. Video Off Method 1. Blank Screen The system BIOS only blanks off the screen

2. V/H SYN

3. DPMS

4. Max Saving Pre-defined timer values are used such that

1. Always On System BIOS will never turn off the screen

2. Suspend->Off Screen turns off when system is in

3. Susp,
stby->Off

4. All Modes ->Off Screen turns off when system is in DOZE,

C+Blank

Supported
Note: Green monitors detect the V/H SYNC

all timers are at their MAX values

all timers are at their MIN values

SUSPEND mode
Screen turns off when system is in
STANDBY or SUSPEND modes

STANDBY or SUSPEND modes

when disabling video

V -SYNC & H-SYNC signals from VGA
cards to monitor
This function is enabled only for the VGA
cards supporting DPMS

signals to turn off its electron gun

Award BIOS Setup 4-22

PCA-6551VE User’s Guide

D. Switch Function 1. Break The External Suspend Switch is “Break”

2. Wake The External Suspend Switch is “Wake”

3. 1 Min

Note: Normally, STANDBY mode puts the

E. Doze Speed (div by)
Stdby speed (div by)

F. Modem Use IRQ 3, 4, 5, 7, 9, 4, 10,

G. Standby Mode
(*) Remark 1

2. 10 Sec

Note: Normally, STANDBY mode puts the

2 Min
4 Min
6 Min
8 Min
10 Min
20 Min
30 Min
40 Min
1 Hour

1/8
2/8
3/8
4/8
5/8
6/8
7/8
8/8

11, NA

1. Disabled System will never enter STANDBY mode

1 Min
10 Min
30 Min
1 Hour
2 Hour
20 Min

Defines the continuous idle time before the
system enters DOZE mode

If any item defined in (J) is enabled and
active, the DOZE timer will be reloaded

system into low speed or 8 MHz, and the
screen may turn off, depending on item (E)
System full speed can be divided by the
optional integers. The bigger the number
the slower the speed under Doze or
standby mode

For external modems, 3 or 4 will be used
for card type modems. It depends on the
card’s definition. The default is 3

Defines the continuous idle time before the
system enters STANDBY mode.

If any item defined in (J) is enabled and
active, the STANDBY timer will be reloaded

system into low speed or 8 MHz. The
screen may be off, depending on item (E)

Award BIOS Setup 4-23

PCA-6551VE User’s Guide

H. Doze
(*) Remark 1

2. 1 Min

Note: Normally,STANDBY mode puts the

I. Suspend Mode
(*) Remark 1

2. 1 Min

Note: Normally, SUSPEND mode puts the

J. HDD Off 1. Disabled The HDD’s motor will not turn off
After:

1. Disabled System will never enter STANDBY mode

2 Min
4 Min
6 Min
8 Min
10 Min
20 Min
30 Min
40 Min
1 Hour

1. Disabled System will never enter SUSPEND mode

2 Min
4 Min
6 Min
8 Min
10 Min
20 Min
30 Min
40 Min
1 Hour

2. 10 Sec
1 Min
10 Min
30 Min
1 Hour
2 Hour
4 Hour

Defines the continuous idle time before the
system enters STANDBY mode.

If any item defined in (J) is enabled and
active, the STANDBY timer will be reloaded

system into low speed or 8 MHz. The
screen may be off, depending on item (E)

Defines the continuous idle time before the
system enters SUSPEND mode.

If any item defined in (J) is enabled and
active, the SUSPEND timer will be reloaded

system into low speed or 8 MHz. The clock
is stopped, and the screen may be off,
depending on item (E)

Defines the continuous HDD idle time
before the HDD enters power saving mode
(motor off)

Award BIOS Setup 4-24

PCA-6551VE User’s Guide

K. VGA Activity

IRQ3 (COM2)
IRQ4 (COM1)
IRQ5 (LPT 2)
IRQ6 (Floppy Disk)
IRQ7 (LPT 1)
IRQ8 (RTC Alarm)
IRQ9 (IRQ2 Redir)
IRQ10 (Reserved)
IRQ11 (Reserved)
IRQ12 (PS/2 Mouse)
IRQ13 (Coprocessor)
IRQ14 (Hard Disk)

IRQ15 (Reserved)
L. Power Bottom
Over Ride

Remarks

1. * ‘System Doze’, ‘System Standby’, and ‘System Suspend’
These items are marked with (*) in this manual. They will be loaded with predefined
values, provided that the item ‘Power Management’ is not configured to ‘User
Defined’

2. # Although the item ‘HDD Power Down’ is not controlled by the item ‘Power
Management’ in terms of timer value, the HDD(s) will not power down if global
power management is disabled!

1. Disabled

2. Enabled

1. Delay 4 Sec

2. Instant off

Award BIOS Setup 4-25

PCA-6551VE User’s Guide

4.9 PnP/PCI Configuration

This section describes configuring the PCI bus system. PCI, or Peripheral Component
Interconnection, is a system which allows I/O devices to operate at speeds nearing the
speed the CPU itself uses when communicating with its own special components. This
section covers some very technical items and it is strongly recommended that only
experienced users should make any changes to the default settings.

Award BIOS Setup 4-26

PCA-6551VE User’s Guide

PNP OS Installed

This item allows you to det ermine install PnP OS or not.

The options are: Yes, No

Resource Controlled by

Award Plug and Play BIOS has the capacity to automatically configure all the boot and
Plug and Play compatible devices. However, this capability means absolutely nothing
unless you are using a Plug and Play operating system such as Windows 95.

The options are: Auto, Manual (Default)

Reset Configuration Data

The system will attempt to update ESCD (Extend System Configuration Data). Thus
BIOS will store information for both PnP devices and non-PnP devices to CMOS.

The options are: Enabled, Disabled (Default)

IRQ/DMA Assigned To

This item allows you to determine the IRQ/DMA assigned to the ISA bus. It is not
available for any PCI slot (Legacy ISA), nor for PnP for both ISA and PCI.

The options are: Legacy ISA, PCI/ISA PnP

PCI IRQ Activated by

During boot-up, this sets the method by which the PCI bus recognizes that an IRQ
service is being requested by a device. Under all circumstances, you should retain the
default configuration unless advised otherwise by your system’s manufacturer.

The options are: Level (Default), Edge

Award BIOS Setup 4-27

PCA-6551VE User’s Guide

4.10 Integrated Peripherals

ROM PCI / ISA BIOS (PCA-6551VE)

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

IDE HDD Block Mode : Enabled
IDE Primary Master PIO : Auto
IDE Primary Slave PIO : Auto
IDE Secondary Master PIO : Auto
IDE Secondary Slave UDMA : Auto
On-Chip Primary PCI IDE : Enabled
USB Keyboard Support : Enabled

KBC input clock : 8 MHz
Onboard FDC Controller : Enabled
Onboard Serial Port 1 : 3F8/IRQ4
Onboard Serial Port 2 : 2F8/IRQ3
Onboard Parallel Port : 378/IRQ7
Parallel Port Mode : SPP

IDE HDD Block Mode

This allows your hard disk controller to use the fast block mode to transfer data to and
from your hard disk dr ive (HDD).

Enabled IDE controller uses block mode
Disabled (Default) IDE controller uses standard

mode

IDE Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for
each of the four IDE device s that the onboard IDE interface supports. Modes 0 through
4 provide progressively increased performance. In Auto mode, the system
automatically determines the best mode for each device.

Award BIOS Setup 4-28

ESC : Quit ↑ ↓ → ←: Select Item
F1 : Help PU/PD/+/ - : Modify
F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

PCA-6551VE User’s Guide

IDE Primary/Secondary Master/Slave UDMA

Ultra DMA/33 implementati on is possible only if your IDE hard drive supports it, and if
the operating environment includes a DMA driver (Windows 95 OSR2 or a third-party
IDE bus master driver). If your hard drive and your system software both support Ultra
DMA/33, select Auto to enable BIOS support.

The options are: Auto

(Default)

, Disabled

On-Chip Primary/Secondary PCI IDE

The integrated peripheral controller contains an IDE interface with support for two IDE
channels. Select Enabled

(Default)

to activate each channel separat ely.

Onboard PCI SCSI Chip

This item allows you to determine whether the onboard PCI SCSI chip is enabled

(Default)

or not.

USB Keyboard Support

Select Enabled if your system contains a Universal Serial Bus (USB) controller and you
have a USB keyboard.

The options are: Enabled, Disabled

(Default)

Onboard FDC Controller

Select Enabled if your system has a floppy disk controller (FDC) installed on the system
board and you wish to use it. If you install and-in FDC or the system has no floppy
drive, select Disabled.

The options are: Enabled

(Default)

, Disabled

Onboard Serial Port 1/Port 2

This item allows you to determine access of the onboard serial port 1 / port 2 controller
with which I/O address.

The options are: 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2F 8/IRQ3, Disabled, Auto

(Default)

Award BIOS Setup 4-29

PCA-6551VE User’s Guide

UART 2 Mode

This item allows you to determine the Infra Red (IR) function of the onboard I/O chip.

The options are: Standard

(Default)

, IrDA1.0, ASK-IR, IrDA1.1

Duplex Select

This item allows you to select the IR func tion when your selected UART 2 Mode is
IrDA1.0, ASK-IR, or IrDA1.1.

The options are: Half, Full

TxD, RxD Active

This item allows you to determine the activity of RxD and TxD.

The options are: “Hi, Hi”, “Lo, Lo”, “Lo, Hi”, “Hi, Lo”

Onboard Parallel Port

Select a logical LPT port name and matching address for the physical parallel
(printer) port.

The options are: 378H/IRQ7

(Default)

, 278H/IRQ5, 3BCH/IRQ7, Disabled

Parallel Port Mode

This item selects an operating mode for the onboard parallel port. Select Compatible or
Extended, unless you are certain both your hardware and software support EPP or ECP
modes.

The options are: SPP, ECP+EPP1.7, EPP1.7+SPP, EPP1.9+SPP, ECP, ECP+EPP1.9

(Default)

, Normal

ECP Mode Use DMA

This item selects a DMA channel for the port.

The options are: 3

(Default)

, 1

Award BIOS Setup 4-30

PCA-6551VE User’s Guide

4.11 Supervisor/User Password Setting

You can set either supervisor or user password, or both. The differences are:

•

supervisor password: Can enter, and change the options of the setup menus

•

user password: Can only enter, but do not have the right to change the options of
the setup menus

When you select this function, the following message will appear at the center of the screen
to assist you in creating a password.

ENTER PASSWORD:

Type in your password, up to eight characters in length, and press <Enter>. The password
typed in will automatically clear any previously entered password from CMOS memory. You
will be asked to confirm the password. Type the password again and press <Enter>. You
may also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to enter the password. A
message will confirm that the password has been disabled. Once the password is disabled,
the system will boot and you can enter Setup freely.

PASSWORD DISABLED.

When a password has been enabled, you will be prompted to enter it every time you try to
enter Setup. This prevents an unauthorized person from changing any part of your system
configuration.

Addition ally, when a password is enabled, you can also require the BIOS to request a
password every time your system is rebooted. This would prevent unauthorized use of your
computer.

You determine when the password is required within the BIOS Features Setup Men u and its
Security option (see Section 4). If the Security option is set to “System”, the password will
be required both at boot-up and at entry to Setup. If the Security option is set to “Setup”,
prompting only occurs when trying to enter Setup.

Award BIOS Setup 4-31

PCA-6551VE User’s Guide

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR

OPTION SIZE CYLS HEADS PRECOMP LANDZONE SECTORS

4.12 IDE HDD Auto Detection

Enhanced IDE features are included in all Award BIOSs. A brief description of this
feature follows:

1. Setup Changes

<I> Auto-detection

The BIOS setup will display all possible modes that may be supported by the HDD,
including NORMAL, LBA & LARGE.

If HDD does not support LBA modes, no ‘LBA’option will be shown.
Users can select a mode which is appropriate for them.

MODE
Primary Master :

MODE
1(Y) 516 1120 16 65535 1119 59
NORMAL

2 516 524 32 0 1119 63 LBA

<II> St andard CMOS Setup

Cyls Heads Precomp Landzone Sectors Mode
Primary Master: User (516 MB) 1120 16 65535 1119 59 Normal
Primary Slave: None (203 MB) 684 16 65535 685 38 -----­Secondary Master: None 0 0 0 0 0 0
Secondary Slave: None 0 0 0 0 0 0

When the HDD type is shown as ‘user’, the “MODE” option will be open for the
user to select his own HDD mode.

ROM/PCI/ISA BOPS (2XXXXXXX)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

Select Primary Master Option (N = Skip ) : N

Award BIOS Setup 4-32

PCA-6551VE User’s Guide

(2) HDD Modes

Award BIOS supports 3 HDD modes: NORMAL, LBA, LARGE

NORMAL mode

This is a generic access mode in which neither the BIOS nor the IDE controller will
make any transformations during accessing.

The maximum number of cylinders, head and sectors for NORMAL mode are
1024, 16 and 63 respectively

no. Cyclinders (1024)
x no. Heads ( 16)
x no. Sectors ( 63)
x no. per sector ( 512)
528 Megabytes

If the user sets his HDD to NORMAL mode, the maximum accessible HDD size will be
528 Megabytes, even though its physical size may be greater than that!

LBA (Logical Block Addressing) mode

This is a new HDD accessing method to overcome the 528 Megabyte bottleneck. The
number of cylinders, heads and sectors shown in setup may not be the number
physically contained in the HDD.

During HDD accessing, the IDE controller will transform the logical address described
by the sector, head and cylinder numbers into its own physical address inside the
HDD.

The maximum HDD size supported by LBA mode is 8.4 Gigabytes. This is obtained
according to the following formula:

no. Cyclinders ( 1024)
x no. Heads ( 255)
x no. Sectors ( 63)
x bytes per sector ( 512)

8.4 Gigabytes

Award BIOS Setup 4-33

PCA-6551VE User’s Guide

LARGE mode

This is an extended HDD access mode supported by Award Software.

Some IDE HDDs contain more than 1024 cylinders without LBA support (in
some cases, users do not want LBA). Award BIOS provides another
alternative to support these kinds of HDDs!

Example of LARGE mode:

CYLS. HEADS SECTOR MODE

1120 16 59 NORMAL
560 32 59 LARGE

BIOS “tricks” DOS (or other OSs) into thinking that the number of cylinders is less than
1024, by dividing that number by 2. At the same time, the number of heads is multiplied
by 2. A reverse transformation process will be made inside INT13h in order to access
the right HDD address!

Maximum HDD size:

no. Cyclinders ( 1024)
x no. Heads ( 32)
x no. Sectors ( 63)
x bytes per sector ( 512)
1 Gigabyte

(3) Remarks

To support LBA or LARGE modes of HDDs, there must be some softwareinvolved. All
such software is located in the Award HDD Service Routine (INT 13h). The computer
may fail to access an HDD with LBA (LARGE) mode selected if you are running under
a Operating System which has replaced the whole of INT 13h.

Award BIOS Setup 4-34

PCA-6551VE User’s Guide

4.13 Power-On Boot

After you have made all the changes to CMOS values, and the system cannot boot with
the CMOS values selected in Setup, restart the system by turning it OFF then ON.
Alternatively, you can press the "RESET" button on the system case. You may also
restart by simultaneously pressing the <Ctrl>, <Alt> and <Delete> keys. Upon
restarting the system, immediately press <Insert> to load the BIOS default CMOS
values for boot-up.

Award BIOS Setup 4-35

PCA-6551VE User’s Guide

4.14 BIOS Reference - POST Messages

During the Power On Self Test (POST), if the BIOS detects an error requiring you to fix
something, it will either sound a beep code or display a message.

If a message is displayed, it will be accompanied by:

PRESS F1 TO CONTINUE, CTRL -ALT-ESC OR DEL TO ENTER SETUP

POST Beep

Currently there is only one beep code in BIOS. This code indicates that a video
error has occurred and that the BIO S cannot initialize the video screen to display
any additional information. This beep code consists of a single long beep followed
by two short beeps.

Error Messages

One or more of the following messages may be displayed if the BIOS detects an
error during POST. This list includes messages for both the ISA and the EISA
BIOS.

CMOS BATTERY HAS FAILED

The CMOS battery is no longer functional. It should be replaced.

CMOS CHECKSUM ERROR

The checksum of CMOS is incorrect. This can indicate that CMOS has become
corrupt. This error may have been caused by a weak battery. Check the battery and
replace it if necessary.

DISK BOOT FAILURE, INSERT SYSTEM DISK AND PRESS ENTER

No boot device was found. This could mean that either a boot drive was not
detected or the drive does not contain proper system boot files. Insert a system
disk into Drive A: and press <Enter>. If you assumed the system would boot from
the hard drive, make sure the controller is inserted correctly and all cables are
properly attached. Also make sure that the disk is formatted as a boot device. Then
reboot the system.

Award BIOS Setup 4-36

PCA-6551VE User’s Guide

DISKETTE DRIVES OR TYPES MISMATCH ERROR - RUN SETUP

The type of diskette drive installed in the system is different from the CMOS
definition. Run Setup to reconfigure the drive ty pe correctly.

DISPLAY SWITCH IS SET INCORRECTLY

This pertains to the display switch on the motherboard, which can be set to either
monochrome or color. The error message indicates the switch is set to a different
setting than that indicated in Setup. Det ermine which setting is correct, and then
either turn off the system and change the jumper, or enter Setup and change the
VIDEO selection.

DISPLAY TYPE HAS CHANGED SINCE LAST BOOT

Since last powering off the system, the display adapter has been changed. You
must configure the system for the new display type.

EISA Configuration Checksum Error
PLEASE RUN EISA CONFIGURATION UTILITY

The EISA non-volatile RAM checksum is incorrect or cannot correctly read the
EISA slot. This can indicate either that the EISA non-volatile memory has become
corrupt ,or that the slot has been configured incorrectly. Also make sure that the
card is installed firmly in the slot.

EISA Configuration Is Not Complete
PLEASE RUN EISA CONFIGURATION UTILITY

The slot configuration information stored in the EISA non-volatile memory is
incomplete.

Note: When either of the above errors appears, the system will boot in ISA
mode. This allows you to run the EISA Configuration Utility.

ERROR ENCOUNTERED INITIALIZING HARD DRIVE

The hard drive cannot be initialized. Make sure that the adapter is installed
correctly, and that all cables are correctly and firmly attached. Also make sure that
the correct hard drive type is selected in Setup.

Award BIOS Setup 4-37

PCA-6551VE User’s Guide

ERROR INITIALIZING HARD DISK CONTROLLER

Cannot initialize controller. Make sure that the cord is correctly and firmly installed
in the bus. Be sure the correct hard drive type is selected in Setup. Also check to
see if any jumper needs to be set correctly on the hard drive.

FLOPPY DISK CNTRLR ERROR OR NO C NTRLR PRESENT

Cannot find or initialize the floppy drive controller. Make sure that the controller is
installed correctly and firmly. If there are no floppy drives installed, be sure the
Diskette Drive selection in Setup is set to NONE.

Invalid EISA Configuration
PLEASE RUN EISA CONFIGURATION UTILITY

The non-volatile memory containing EISA configuration information was
programmed incorrectly or has become corrupt. Re -run the EISA configuration
utility to correctly program the memory.

NOTE: When this error appears, the system will boot in ISA mode. This
allows you to run the EISA Configuration Utility.

KEYBOARD ERROR OR NO KEYBOARD PRESENT

Cannot initialize the keyboard. Make sure that the keyboard is attached correctly,
and that no keys are being pressed during boot-up. If you are purposely
configuring the system without a keyboard, set the error halt condition in Setup to
HALT ON ALL, BUT KEYBOARD. This will allow the BIOS to ignore the missing
keyboard and continue the boot-up.

Memory Address Error at ...

Indicates a memory address error at a specific location. You can use this location
along with the memory map for your system to find and replace the bad memory
chip(s).

Memory parity Error at ...

Indicates a memory parity error at a specific location. You can use this location
along with the memory map for your system to find and replace the bad memory
chip(s).

Award BIOS Setup 4-38

PCA-6551VE User’s Guide

MEMORY SIZE HAS CHANGED SINCE LAST BOOT

Memory has been added or removed since the last boot. In EISA mode, use
Configuration Utility to reconfigure the memory configuration. In ISA mode, enter
Setup and enter the new memory size in the memory fields.

Memory Verify Error at ...

Indicates an error verifying a value already written to memory. Use the location
along with your system's memory map to locate the bad chip(s).

OFFENDING ADDRESS NOT FOUND

This message is used in conjunction with the I/O CHANNEL CHECK and RAM
PARITY ERROR messages when the segment that has caused the problem cannot
be isolated.

OFFENDING SEGMENT

This message is used in conjunction with the I/O CHANNEL CHECK and RAM
PARITY ERROR messages when the segment that has caused the problem has
been isolated.

PRESS A KEY TO REBOOT

This will be displayed at the bottom of the screen when an error occurs that
requires you to reboot. Press any key, and the system will reboot.

PRESS F1 TO DISABLE NMI, F2 TO REBOOT

When BIOS detects a Non -maskable Interrupt condition during boot-up, this will
allow you to disable the NMI and continue to boot. Alternatively, you can reboot
the system with the NMI enabled.

RAM PARITY ERROR - CHECKING FOR SEGMENT ...

Indicates a parity error in Random Access Memory.

Award BIOS Setup 4-39

PCA-6551VE User’s Guide

Should Be Empty But EISA Board Found
PLEASE RUN EISA CONFIGURATION UTILITY

A valid board ID was found in a slot that was configured as having no board ID.

NOTE: When this error appears, the system will boot in ISA mode. This
allows you to run the EISA Configuration Utility.

Should Have EISA Board But Not Found
PLEASE RUN EISA CONFIGURATION UTILITY

The board installed is not responding to the ID request, or no board ID has been
found in the indicated slot.

NOTE: When this error appears, the system will boot in ISA mode. This
allows you to run the EISA Configuration Utility.

Slot Not Empty

Indicates that a slot designated as empty by the EISA Configuration Utility
actually contains a board.

NOTE: When this error appears, the system will boot in ISA mode. This
allows you to run the EISA Configuration Utility.

SYSTEM HALTED, (CTRL-ALT -DEL) TO REBOOT ...

Indicates the present boot attempt has been aborted, and the system must be
rebooted. Press and hold down the CTRL and ALT keys and press DEL.

Wrong Board In Slot
PLEASE RUN EISA CONFIGURATION UTILITY

The board ID does not match the ID stored in the EISA non -volatile memory.

NOTE: When this error appears, the system will boot in ISA mode. This
allows you to run the EISA Configuration Utility.

Award BIOS Setup 4-40

PCA-6551VE User’s Guide

4.15 BIOS Reference - POST Codes

Note:

EISA POST codes are typically output to port address 300h.

ISA POST codes are output to port address 80h.

POST

Description

(hex)

C0 1. Turn off OEM specific cache, shadow...

2. Initialize all the standard devices with default values. Standard devices
include:

DMA controller (8237)
Programmable Interrupt Controller (8259)
Programmable Interval Timer (8254)

RTC chip
C1 Auto-detection of onboard DRAM & cache
C3 1. Test system BIOS checksum

2. Test the first 256 K DRAM

3. Expand the compressed codes into temporary DRAM area, including the
compressed System BIOS & Option ROMs

C5 Copy the BIOS from ROM into E0000 -FFFFF shadow RAM, so that POST will

go faster
01-02 Reserved
03 Initialize EISA registers (EISA BIOS only)
04 Reserved
05 1. Keyboard controller self-test

2. Enable keyboard interface
06 Reserved
07 Verifies CMOS’s basic R/W functionality
BE Program defaults values into chipset, according to the MODBINable Chipset

Default Table

09 1. Program the configuration register of NS CPU according to the

MODBINable NS Register Table

2. OEM specific cache initialization (if needed)
0A 1. Initialize the first 32 interrupt vectors with corresponding interrupt handlers

Initialize INT no from 33 -120 with dummy(spurious) interrupt handler

2. Issue CPU ID instruction to identify CPU type

3. Early power management initialization (OEM specific)

Award BIOS Setup 4-41

PCA-6551VE User’s Guide

❁

This POST code is for boot block

POST

Description

(hex)

C0 1. Turn off OEM specific cache, shadow...

2. Initialize all the standard devices with default values. Standard devices
include:

DMA controller (8237)
Programmable Interrupt Controller (8259)
Programmable Interval Timer (8254)

RTC chip
C1 Auto-detection of onboard DRAM & cache
C3 Checking checksum of compressed code
C5 Copy the BIOS from ROM into E0000-FFFFF shadow RAM, so that POST

will go faster
01 Clear base memory 0 ~ 640 K
0C Initial interrupt vector 00 -1FH
0D Initial ISA VGA
41H Enable FDD and detect media type
FFH Boot from FDD

Award BIOS Setup 4-42

PCA-6551VE User’s Guide

❁

This table is for non -compressed versions only

01-02 Reserved
C0 Turn off OEM specific cache, shadow...
03 1. Initialize EISA registers (EISA BIOS only)

2. Initialize all the standard devices with default values. Standard devices
include:

DMA controller (8237)
Programmable Interrupt Controller (8259)
Programmable Interval Timer (8254)

RTC chip
04 Reserved
05 1. Keyboard controller self-test

2. Enable keyboard interface
06 Reserved
07 Verifies CMOS’s basic R/W functionality
BE Program defaults values into chipset according to the MODBINable Chipset

Default Table
C1 Auto-detection of onboard DRAM & cache
C5 Copy the BIOS from ROM into E0000-FFFFF shadow RAM, so that POST

will go faster
08 Test the first 256 K DRAM
09 1. Program the configuration register of Cyrix CPU according to the

MODBINable NS Register Table

2. OEM specific cache initialization (if needed)

0A 1. Initialize the first 32 interrupt vectors with corresponding Interrupt

handlers. Initialize INT numbers 33 ~ 120 with dummy(spurious)

interrupt handler

2. Issue CPU ID instruction to identify CPU type

3. Early power management initialization (OEM specific)

Award BIOS Setup 4-43

PCA-6551VE User’s Guide

❁

The following POST codes are for all compressed versions and all

non-compressed versions

POST

Description

(hex)

0B 1. Verify whether RTC time is valid or not

2. Detect bad battery

3. Read CMOS data into BIOS stack area

4. PnP initializations, including (PnP BIOS only):
Assign CSN to PnP ISA card
Create resource map from ESCD

5. Assign IO and memory for PCI devices (PCI BIOS only)

0C Initializa tion of the BIOS data area (40:00 − 40:FF)
0D 1. Program some of the chipset’s value according to Setup (Early Setup

Value Program)

2. Measure CPU speed for display, and determine system clock speed

3. Video initialization including monochrome, CGA, EGA/VGA. If no

display device found, the speaker will sound one single long beep
followed by two short beeps

0E 1. Initialize the APIC (multi-processor BIOS only)

2. Test video RAM (if monochrome display device found)

3. Show messages including:
Award logo, copyright string, BIOS date code & part no.
OEM specific sign on messages
Energy Star logo (green BIOS only)
CPU brand, type and speed

Test system BIOS checksum (non-compressed version only)
0F DMA channel 0 test
10 DMA channel 1 test
11 DMA page registers test
12-13 Reserved
14 Test 8254 Timer 0 Counter 2
15 Test 8259 interrupt mask bits for channel 1
16 Test 8259 interrupt mask bits for channel 2
17 Reserved
19 Test 8259 functionality
1A-1D Reserved
1E If EISA NVM checksum is good, execute EISA initialization (EISA BIOS

only)
1F-29 Reserved
30 Detect base memory and extended memory size
31 1. Test base memory from 256 K to 640 K

2. Test extended memory from 1 M to the top of memory

Award BIOS Setup 4-44

PCA-6551VE User’s Guide

32 1. Display Award Plug & Play BIOS Extension message (PnP BIOS

33-3B Reserved
3C Set flag to allow users to enter CMOS Setup Utility
3D 1. Initialize keyboard

only)

2. Program all onboard super I/O chips (if any), including COM ports, LPT

ports, and FDD port, al l according to setup values

2. Install PS/2 mouse

Award BIOS Setup 4-45

PCA-6551VE User’s Guide

POST (hex) Description

3E Try to turn on Level 2 cache

3E Try to turn on Level 2 cache

BF 1. Program the rest of the chipset’s value according to Setup.

41 Initialize floppy disk drive controller
42 Initialize hard drive controller
43 If it is a PnP BIOS, initialize serial and parallel ports
44 Reserved
45 Initialize math coprocessor
46-4D Reserved
4E If there is any error detected (such as video, kb, etc.), show all the error

4F 1. If password is needed, ask for password

50 Write all CMOS values currently in the BIOS stack area back into the

51 Reserved
52 1. Initialize all ISA ROMs

53 1. If it is NOT a PnP BIOS, initialize serial and parallel ports

60 Set up virus protection (boot sector protection) functionality according to

Note: Some chipsets may need to turn on the L2 cache in this stage. But
usually, the cache is turned on later in POST 61h

Note: Some chipsets may need to turn on the L2 cache in this stage. But
usually, the cache is turned on later in POST 61h

(Later Setup Value Program)

2. If auto-configuration is enabled, program the chipset with pre­ defined values in the MODBINable Auto-Table

messages on the screen and wait for user to press the <F1> key

2. Clear the Energy Star logo (green BIOS only)

CMOS

2. Later PCI initializations (PCI BIOS only)

- assign IRQ to PCI devices

- initialize all PCI ROMs

3. PnP Initializations (PnP BIOS only)

- assign IO, memory, IRQ and DMA to PnP ISA devices

- initialize all PnP ISA ROMs

4. Program shadow RAM according to setup settings

5. Program parity according to setup setting

6. Power management Initialization

- Enable/disable global PM

- APM interface initialization

2. Initialize time value in BIOS data area by translating the RTC time
value into a timer tick value

setup settings

Award BIOS Setup 4-46

PCA-6551VE User’s Guide

4.16 BIOS Default Drive Table

This is an up-to-date drive type table, as contained in Setup.

Type Size

(MB)

1 10 306 4 17 128 305 TEAC SD510,

2 20 615 4 17 300 615 Seagate ST225,

3 30 615 6 17 300 615
4 62 940 8 17 512 940
5 46 940 6 17 512 940
6 20 615 4 17 None 615 Seagate ST125,

7 30 462 8 17 256 511
8 30 733 5 17 None 733 Tandon TM 703
9 112 900 15 17 None 901
10 20 820 3 17 None 820
11 35 855 5 17 None 855
12 49 855 7 17 None 855
13 20 306 8 17 128 319 Disctron 526,

14 42 733 7 17 None 733
15 Reserved
16 20 612 4 17 0 663 Microscience

17 40 977 5 17 300 977
18 56 977 7 17 None 977
19 59 1024 7 17 512 1023
20 30 733 5 17 300 732
21 42 733 7 17 300 732
22 30 306 5 17 300 733 Seagate ST4038
23 10 977 4 17 0 336

Cylinders Heads Sectors Write

Precomp

Land
Zone

Example Model

MMI 112, 5412

ST4026

Tandon TM262

MMI M125

HH725,
Syquest 3250,
3425

Award BIOS Setup 4-47

PCA-6551VE User’s Guide

24 40 1024 5 17 None 976 Seagate

25 76 1224 9 17 None 1023 Seagate

26 71 1224 7 17 None 1223 Maxtor 2085
27 111 1224 11 17 None 1223 Maxtor 2140,

28 152 1024 15 17 None 1223 Maxtor 2190,

29 68 1024 8 17 None 1023 Maxtor 1085,

30 93 918 11 17 None 1023 Maxtor 1105

31 83 925 11 17 None 1023 Maxtor 1170
32 69 1024 9 17 None 926 CDC 9415
33 85 1024 10 17 None 1023
34 102 1024 12 17 None 1023
35 110 1024 13 17 None 1023
36 119 1024 14 17 None 1023
37 17 1024 2 17 None 1023
38 136 1024 16 17 None 1023
39 114 918 15 17 None 1023 Maxtor 1140,

40 40 820 6 17 None 820 Seagate ST251
41 42 1024 5 17 None 1023 Seagate 4053

42 65 1024 5 26 None 1023 Miniscribe

43 40 809 6 17 None 852 Miniscribe

44 61 809 6 26 None 852 Miniscribe

45 100 776 8 33 None 775 Conner

46 203 684 16 38 None 685 Conner

User

ST4051

ST4096

Priam S14

Priam S19

Micropolis
1325

1120, 4780

4380

Miniscribe
3053/6053

3053/6053 RLL

3650

3675 RLL

CP3104

CP3204

Award BIOS Setup 4-48

PCA-6551VE User's Guide

Chapter 5

VGA Driver Installation Procedures

5.1 Windows 95/98 Drivers Setup Procedure

1. In the Windows 95/98 screen, click ″Start″. Select ″Settings″, and then click on the
″Control Panel ″ icon.

Figure 5-1: Opening the Windows Control Panel

VGA Driver Installation Procedures 5-1

PCA-6551VE User's Guide

2. When installing Windows 95, an ″Add New Hardware Wizard″ window will appear.
Click on ″Next″.

Figure 5-2: Starting the Add New Hardware wizard

VGA Driver Installation Procedures 5-2

PCA-6551VE User's Guide

3. Windows will search for any new Plug and Play device on your system. Your screen
may go blank during this process. Click on ″Next ″.

Figure 5-3: Searching for new Plug and Play devices

VGA Driver Installation Procedures 5-3

PCA-6551VE User's Guide

4. If you choose ″Yes [Recommended]″ and press ″Next″, the Hardware Wizard will
help you find the new hardware. If the Hardware Wizard cannot find the new
hardware, or if you want to set up the VGA driver by yourself, then select ″No, I
want to select the hardware from a list ″ and press ″Next″.

Figure 5-4: Finding new hardware

VGA Driver Installation Procedures 5-4

PCA-6551VE User's Guide

5. In the ″Hardware types:″ list, select ″Display adapters″ and press ″Next″.

Figure 5-5: Choosing Display adapters from the Hardware types list

VGA Driver Installation Procedures 5-5

PCA-6551VE User's Guide

6. Select ″Have Disk…″ and press ″Next″.

Figure 5-6: Selecting Have Disk

7. Click on ″Browse…″.

Figure 5-7: Clicking on the Browse button

VGA Driver Installation Procedures 5-6

PCA-6551VE User's Guide

8. Select ″chips98.inf″ in the “Open” window, and click on “OK”.

Figure 5-8: Selecting ″chips98.inf″

9. Select ″Chips and Tech. 69000 PCI″ and click on ″OK″.

Figure 5-9: Selecting Chips and Tech. 69000 PCI

VGA Driver Installation Procedures 5-7

PCA-6551VE User's Guide

10. Click on ″Next ″ to start copying the driver.

Figure 5-10: Clicking on the Next button

VGA Driver Installation Procedures 5-8

PCA-6551VE User's Guide

11. Click on ″Finish″ to complete the setup procedure.

Figure 5-11: Clicking on Finish

VGA Driver Installation Procedures 5-9

PCA-6551VE User's Guide

5.2 Windows NT Drivers Setup Procedure

1. In the ″Control Panel″ screen, select the ″Display″ icon. In the “Display Properties”
window, select the “Settings” tab and click on ″Display Type″.

Figure 5-12: Click ing on Display Type in the Settings tab

VGA Driver Installation Procedures 5-10

PCA-6551VE User's Guide

2. Click on ″Change…″ in the Display Type window.

Figure 5-13: Clicking on the Change button

VGA Driver Installation Procedures 5-11

PCA-6551VE User's Guide

3. Click on ″Have Disk…″ in the Change Display window.

Figure 5-14: Clicking on the Have Disk button

VGA Driver Installation Procedures 5-12

PCA-6551VE User's Guide

4. Click on ″Browse…″ to look for the driver program.

Figure 5-15: Clicking on the Browse button

5. Select ″Chip Video Accelerator [65545/48/50/54/55 68554 69000]″, and click on ″OK″.

Figure 5-16: Selecting the Chip Video Accelerator item

VGA Driver Installation Procedures 5-13

PCA-6551VE User's Guide

6. When the driver has been successfully installed, click on ″OK″.

Figure 5-17: Clicking on the OK button

VGA Driver Installation Procedures 5-14

PCA-6551VE User's Guide

Chapter 6

LAN Driver Installation Procedures

6.1 Windows 95/98 Drivers Setup Procedure

1. In the Windows 95/98 screen, click on ″Start″. Select ″Settings″, and then click on
the ″Control Panel ″ icon.

Figure 6-1: Opening the Windows Control Panel

LAN Driver Installation Procedures 6-1

PCA-6551VE User's Guide

2. Select ″Next″ to start the Add New Hardware Wizard.

Figure 6-2: Clicking on the Next button

LAN Driver Installation Procedures 6-2

PCA-6551VE User's Guide

3. Click on ″Next ″.

Figure 6-3: Clicking on the Next button

LAN Driver Installation Procedures 6-3

PCA-6551VE User's Guide

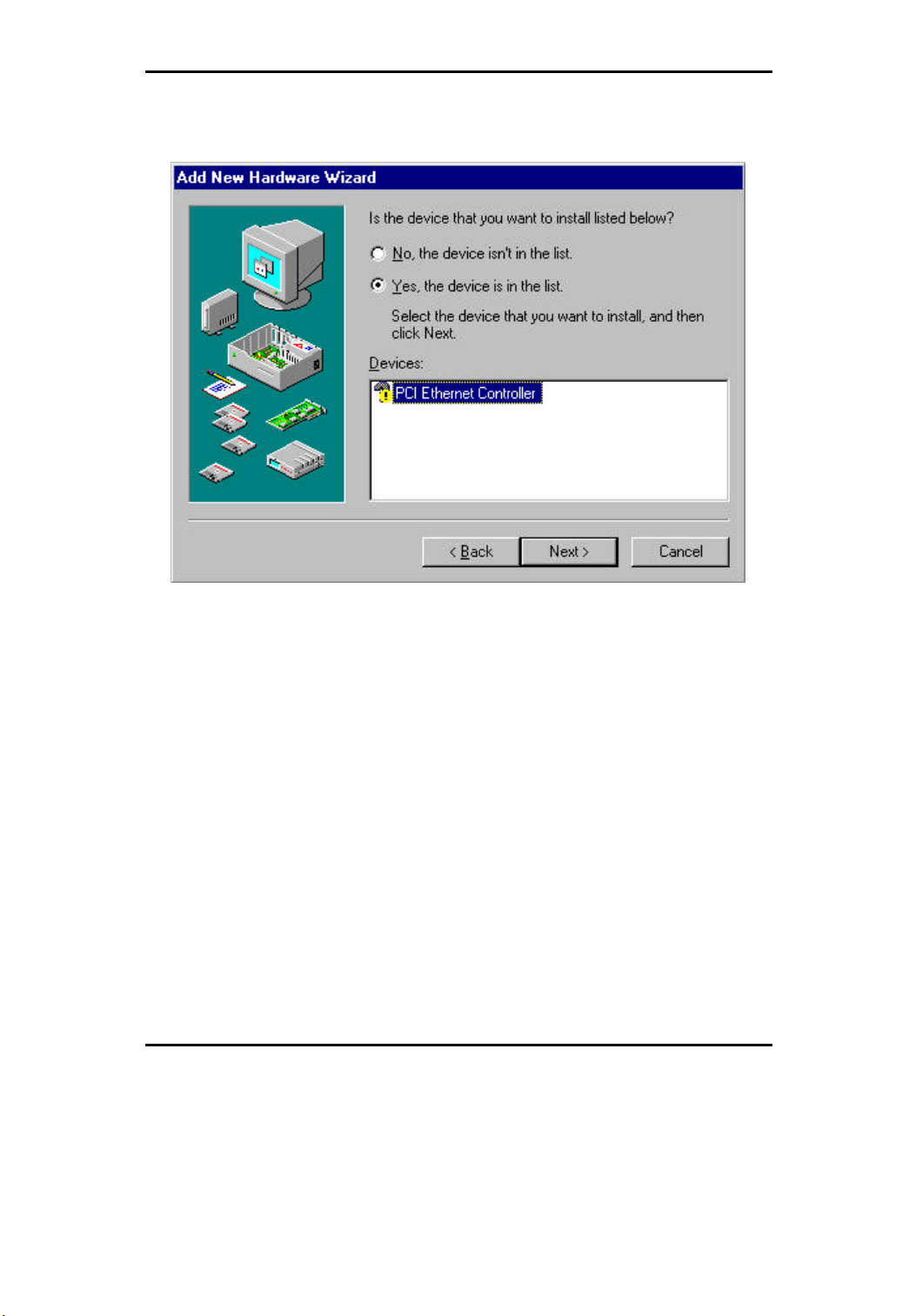

4. If the device is in the list, select ″PCI Ethernet Controller″ and press ″Next″.

Figure 6-4: Selecting the device from the list

LAN Driver Installation Procedures 6-4

PCA-6551VE User's Guide

4. Follow the instructions on the screen, and click on ″Have Disk…″.

Figure 6-5: Click ing on Have Disk

LAN Driver Installation Procedures 6-5

PCA-6551VE User's Guide

6. Click on ″Browse…″.

Figure 6-6: Clicking on the Browse button

7. Select the device driver ″netrts5.inf″, and click on ″OK″.

Figure 6-7: Selecting “netrts5.inf”

LAN Driver Installation Procedures 6-6

PCA-6551VE User's Guide

8. Click on ″OK″.

Figure 6-8: Clicking on the OK button

9. Select ″Realtek RTL8139[A/B/C/8130] PCI Fast Ethernet NIC″ and press ″OK″.

Figure 6-9: Selecting the network adapter model

LAN Driver Installation Procedures 6-7

PCA-6551VE User's Guide

10. Click on ″Next ″.

Figure 6-10: Clicking on the Next button

LAN Driver Installation Procedures 6-8

PCA-6551VE User's Guide

11. Click on ″Finish″ to complete the setup procedure.

Figure 6-11: Clicking on Finish

LAN Driver Installation Procedures 6-9

PCA-6551VE User's Guide

6.2 Windows NT Drivers Setup Procedure

1. In the ″Windows NT″ screen, click ″Start″ and select ″Settings″. Then click on the
″Control Panel ″ icon to select ″Network″.

Figure 6-12: Double-clicking on the Network icon in the Control Panel

LAN Driver Installation Procedures 6-10

PCA-6551VE User's Guide

2. In the “Network” window, select the “Adapters” tab. Click on ″Add…″ to add your
new driver.

Figure 6-13: Clicking on the Add button

LAN Driver Installation Procedures 6-11
