PCA-6277
Full-size dual socket 370
Intel® Pentium
®
III processorbased PCI/ISA-bus
CPU card
Copyright notice
This document is copyrighted, 2002, by Advantech Co., Ltd. All
rights are reserved. Advantech Co., Ltd. reserves the right to make
improvements to the products described in this manual at any time
without notice.
No part of this manual may be reproduced, copied, translated or
transmitted in any form or by any means without the prior written
permission of Advantech Co., Ltd. Information provided in this
manual is intended to be accurate and reliable. However, Advantech
Co., Ltd. assumes no responsibility for its use, nor for any infringements upon the rights of third parties which may result from its
use.
Acknowledgements
• AWARD is a trademark of AWARD Software, Inc.
• IBM and PC are trademarks of International Business Machines
Corporation.
• Intel® and Pentium® III are trademarks of Intel Corporation.
• MS-DOS is a trademark of Microsoft Corporation.
• SMC is a trademark of Standard Microsystems Corporation.
• WinBond is a trademark of Winbond Corporation.
• VIA is a registered trademark of VIA Technologies Inc.
• Adaptec is a registered trademark of Adaptec Inc.
All other product names or trademarks are the properties of their
respective owners.
Part No. 2006627702 2nd Edition
Printed in Taiwan October 2002
A Message to the Customer
Advantech customer services
Each and every Advantech product is built to the most exacting
specifications to ensure reliable performance in the harsh and
demanding conditions typical of industrial environments. Whether
your new Advantech equipment is destined for the laboratory or the
factory floor, you can be assured that your product will provide the
reliability and ease of operation for which the name Advantech has
come to be known.
Your satisfaction is our primary concern. Here is a guide to
Advantech’s customer services. To ensure you get the full benefit of
our services, please follow the instructions below carefully.
Technical support
We want you to get the maximum performance from your products.
So if you run into technical difficulties, we are here to help. For the
most frequently asked questions, you can easily find answers in your
product documentation. These answers are normally a lot more
detailed than the ones we can give over the phone.
So please consult this manual first. If you still cannot find the answer,
gather all the information or questions that apply to your problem,
and with the product close at hand, call your dealer. Our dealers are
well trained and ready to give you the support you need to get the
most from your Advantech products. In fact, most problems reported
are minor and are able to be easily solved over the phone.
In addition, free technical support is available from Advantech
engineers every business day. We are always ready to give advice on
application requirements or specific information on the installation
and operation of any of our products.
lauDlauD
elgniS
BM23BM23BM23
BM23
✕
✓✓ ✓✓
✓✓ ✓✓
✓✓ ✓✓
✓✓ ✓✓
✓✓ ✓✓
✓✓ ✓✓
44 44
✓✓ ✓✓
✓✓ ✓✓
✓✓ ✓✓
073tekcoSIII
elbatnosirapmocseireS7726-ACP
®
muitneP
:tespihcmetsyS A331orPollopAAIV
®
ledoM1A00-V7726-ACP1A00-EV7726-ACP1A00-2E7726-ACP1A00-F7726-ACP
:UPC letnIlauD
:SOIB SOIBhsalFP&PdrawA
)stekcosnip-861x4(BG2
:MARmetsyS.xaM
:evirDhgiHASI Am46otpu
:ehcaC2L )UPCno(BK652
srotcennocEDIE2
troPBSU
)LX4orP821egaRITA(
stroplellarap1,laires2
:AGV AGV/PGA
✕✕✕✓
)2987-CIAcetpadA(ISCS061artlU
)C9318ketlaeR:tespihc(
:NALlauD tenrehtET-esaB001/01
MARDSAGV
Product warranty
Advantech warrants to you, the original purchaser, that each of its
products will be free from defects in materials and workmanship for
two years from the date of purchase.
This warranty does not apply to any products which have been
repaired or altered by persons other than repair personnel authorized
by Advantech, or which have been subject to misuse, abuse, accident
or improper installation. Advantech assumes no liability under the
terms of this warranty as a consequence of such events.
If an Advantech product is defective, it will be repaired or replaced at
no charge during the warranty period. For out-of-warranty repairs,
you will be billed according to the cost of replacement materials,
service time and freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For
example, type of PC, CPU speed, Advantech products used, other
hardware and software used, etc.) Note anything abnormal and list
any on-screen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your
manual, product, and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return
material authorization) number from your dealer. This allows us
to process your return more quickly.
4. Carefully pack the defective product, a fully-completed Repair
and Replacement Order Card and a photocopy proof of purchase
date (such as your sales receipt) in a shippable container. A
product returned without proof of the purchase date is not eligible
for warranty service.
5. Write the RMA number visibly on the outside of the package and
ship it prepaid to your dealer.
Initial Inspection
Before you begin installing your card, please make sure that the
following materials have been shipped:
• 1 PCA-6277 dual socket 370 Pentium III® processor-based single
board computer
• 2 Pentium III® processor (optional), 2 cooling fan, P/N:
1759207200
• 1 PCA-6277 startup Manual
• 1 CD driver utility and manual (in PDF format)
• 4 SCSI driver disks (optional)
• 1 FDD cable, P/N: 1701340703
• 2 UDMA 66 HDD cables, P/N: 1701400452
• 1 printer (parallel port) cable & COM port cable kit, P/N:
1700060305
• 1 ATX-to-PS/2 power cable, P/N: 1700000450
• 1 ivory cable for PS/2 keyboard and PS/2 mouse, P/N:
1700060202
• 1 SCSI cable (optional), P/N 1701060000
• 1 USB cable (optional), P/N 1700100170
If any of these items are missing or damaged, contact your distributor
or sales representative immediately.
We have carefully inspected the PCA-6277 mechanically and
electrically before shipment. It should be free of marks and scratches
and in perfect working order upon receipt.
As you unpack the PCA-6277, check it for signs of shipping damage.
(For example, damaged box, scratches, dents, etc.) If it is damaged or
it fails to meet the specifications, notify our service department or
your local sales representative immediately. Also notify the carrier.
Retain the shipping carton and packing material for inspection by the
carrier. After inspection, we will make arrangements to repair or
replace the unit.
Contents
Chapter 1 Hardware Configuration ............................... 1
1.1 Introduction ............................................................................2
1.2 Features ....................................................................................3
1.3 Specifications ..........................................................................5
1.3.1 System .........................................................................5
1.3.2 Memory .......................................................................5
1.3.3 Input/Output ................................................................6
1.3.4 VGA interface ..............................................................6
1.3.5 SCSI interface.............................................................. 6
1.3.6 Ethernet LAN ..............................................................6
1.3.7 Industrial features ........................................................ 7
1.3.7 Mechanical and environmental specifications ..............7
1.4 Board Layout: Main Features................................................8
1.5 Jumpers and Connectors........................................................9
1.6 Board Layout: Jumper and Connector Locations.............12
1.7 Safety Precautions ................................................................ 15
1.8 Jumper Settings..................................................................... 16
1.8.1 How to set jumpers ...................................................16
1.8.2 CMOS clear (J1)........................................................ 17
1.8.3 Watchdog timer output (J2) .......................................17
1.9 System Memory .................................................................... 18
1.9.1 Sample calculation: DIMM memory capacity ............18
1.9.2 Supplementary information about DIMMs ................19
1.10 Memory Installation Procedures ....................................... 20
1.11 Cache Memory .................................................................... 20
1.12 CPU Installation ................................................................. 21
1.13 Dual Processor Systems......................................................22
Chapter 2 Connecting Peripherals .............................. 23
2.1 Introduction .......................................................................... 24

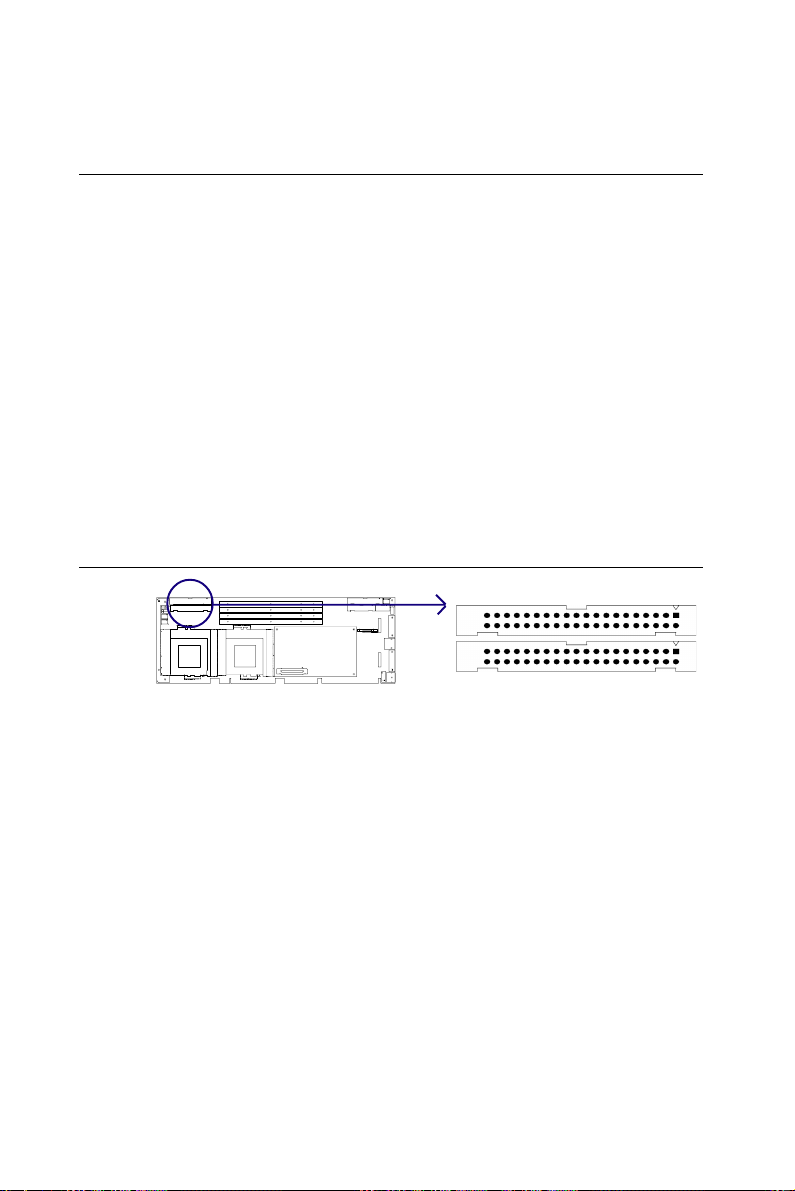

2.2 Primary (CN1) and Secondary (CN2) IDE Connectors .....24
2.3 Floppy Drive Connector (CN3) ...........................................25
2.4 Parallel Port (CN4) ............................................................... 26
2.5 USB Port (CN6) .................................................................... 27
2.6 USB Ports (CN31 and CN32) ...............................................28
2.7 VGA Connector (CN7) ......................................................... 28
2.8 10/100Base-T Ethernet Connectors (CN8 and CN34) ........29
2.9 Serial Ports (CN9: COM1; CN10: COM2).......................... 29

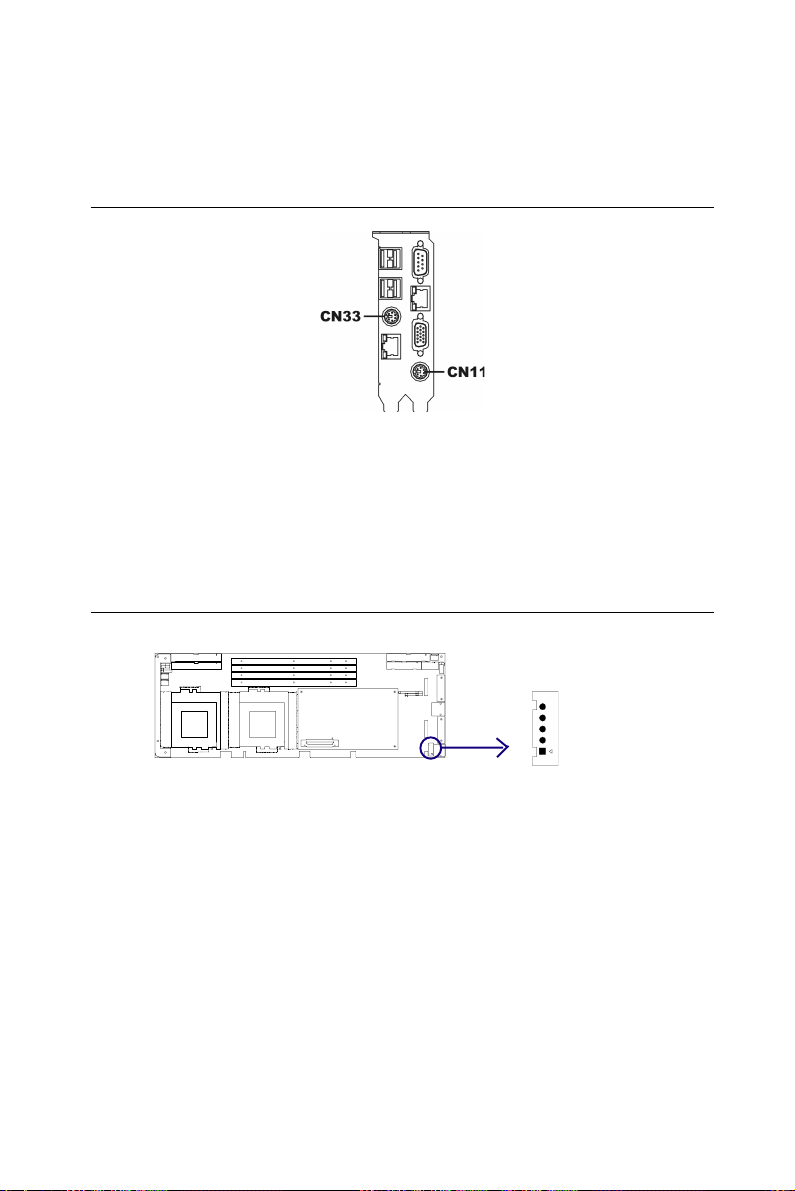

2.10 PS/2 Keyboard and Mouse Connectors (CN11 and CN33)
31
2.11 External Keyboard Connector (CN12).............................. 31
2.12 Infrared (IR) Connector (CN13)........................................ 32
2.13CPU_A Fan Connector (CN14) .......................................... 32
2.14 CPU_B Fan Connector (CN15).......................................... 32
2.15 Front Panel Connectors (CN16, CN17, CN18, CN19,
CN21 and CN22) .........................................................................33
2.15.1 Keyboard lock and power LED (CN16) ..................33
2.15.2 External speaker (CN17) .........................................33
2.15.3 Reset (CN18) ...........................................................34
2.15.4 HDD LED (CN19) ..................................................34
2.16 ATX Power Control Connectors (CN20 and CN21) ........35
2.16.1 ATX feature connector (CN20) and soft power switch
connector (CN21) ............................................................... 35
2.16.2 Controlling the soft power switch ............................ 36
2.17 SM Bus Connector (CN23) ................................................ 36

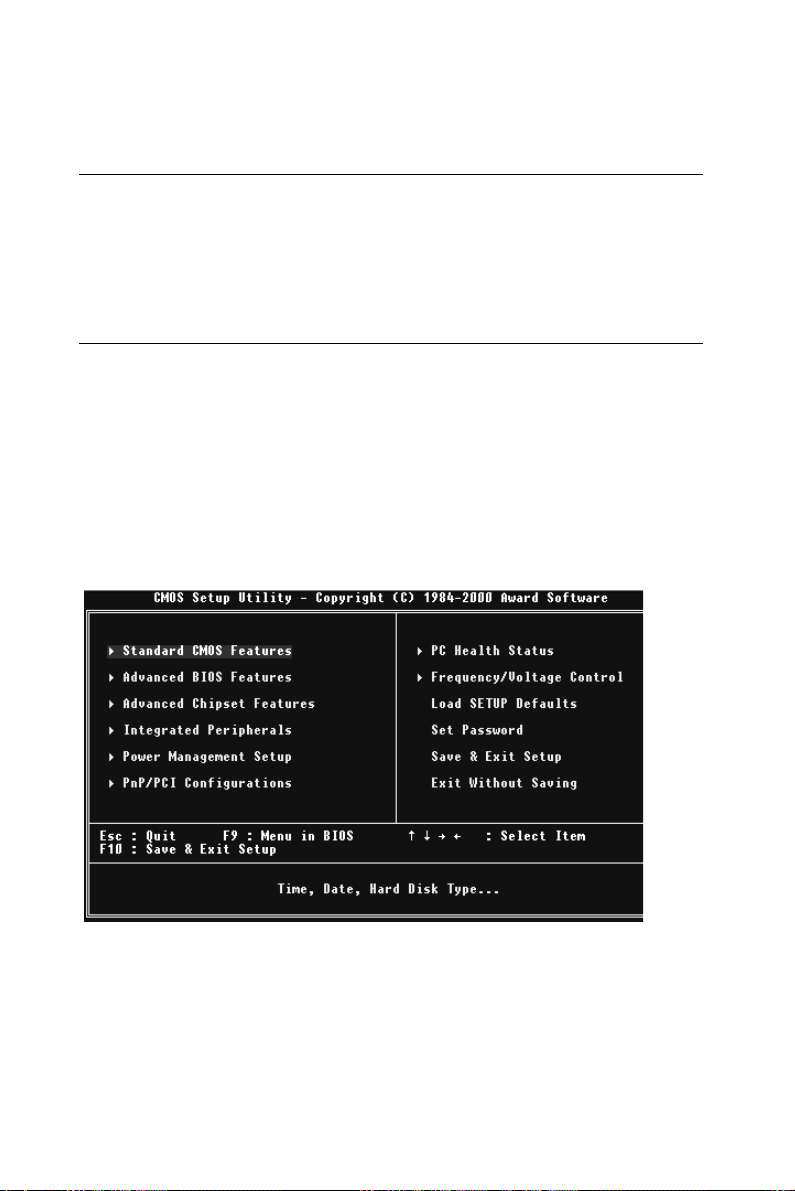

Chapter 3 Award BIOS Setup ...................................... 37
3.1 Introduction .......................................................................... 38
3.2 Entering Setup .......................................................................38
3.3 Standard CMOS Setup .........................................................39
3.3.1 CMOS RAM backup .................................................39

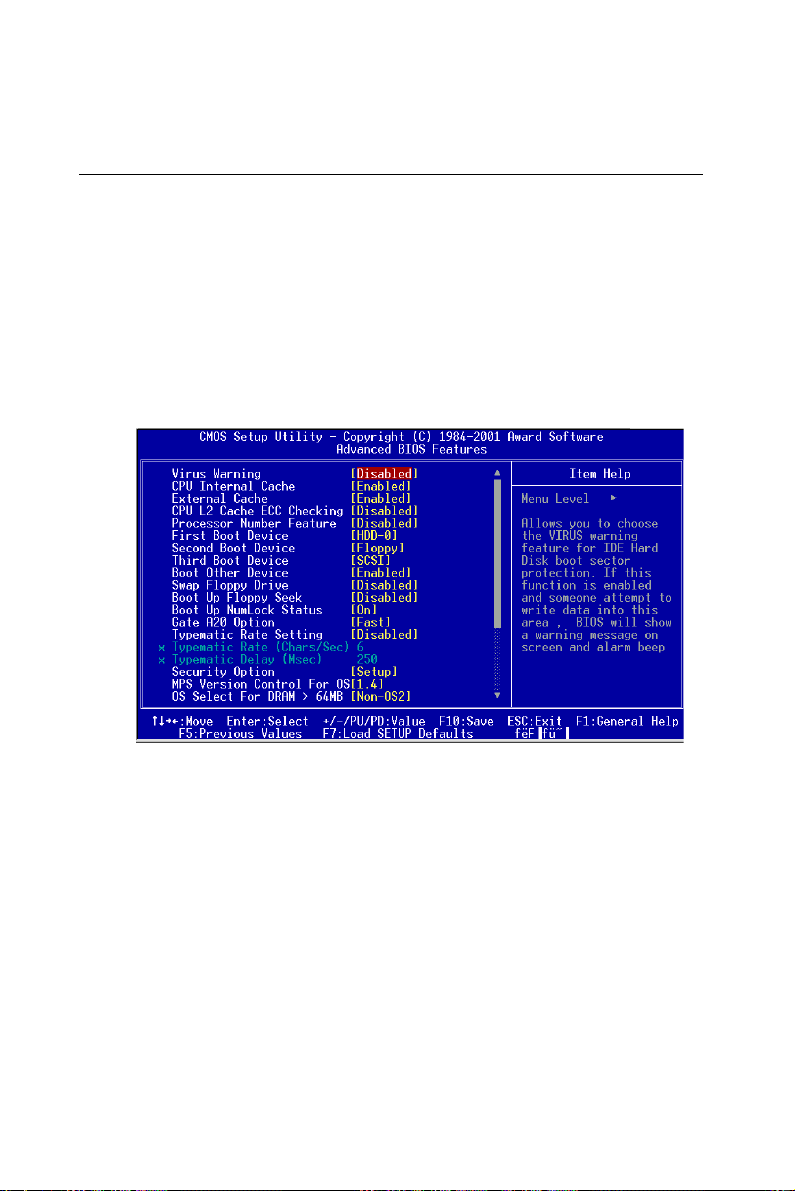

3.4 Advanced BIOS Features ..................................................... 40
3.4.1 Virus Warning ............................................................40
3.4.2 CPU Internal Cache / External Cache........................ 40
3.4.3 CPU L2 Cache ECC Checking ..................................41
3.4.4 First/Second/Third/Other Boot Device ...................... 41
3.4.5 Swap Floppy Drive ....................................................41
3.4.6 Boot UP Floppy Seek ................................................41
3.4.7 Boot Up NumLock Status ......................................... 41
3.4.8 Gate A20 Option........................................................ 41
3.4.9 Typematic Rate Setting ..............................................41
3.4.10 Typematic Rate (Chars/Sec) ....................................42
3.4.11 Typematic Delay (msec) .......................................... 42
3.4.12 Security Option ........................................................42
3.4.13 MPS Version Control For OS [1.1]..........................42
3.4.14 OS Select for DRAM > 64MB ................................ 42
3.4.15 Video BIOS Shadow ................................................42
3.4.16 EPA Logo Show ......................................................43
3.5 Advanced Chipset Features ..................................................43
3.5.1 DRAM Clock .............................................................44
3.5.2 SDRAM Cycle Length ...............................................44
3.5.3 Bank Interleave.......................................................... 44
3.5.4 Memory Hole ............................................................45
3.5.5 P2C/P2P Concurrency ..............................................45
3.5.6 System BIOS Cacheable............................................ 45
3.5.7 AGP Aperture Size .................................................... 45
3.5.8 AGP-4X Mode .......................................................... 45
3.5.9 AGP Driving Control ................................................. 46
3.5.10 AGP Fast Write ....................................................... 46
3.5.11 Onboard USB .......................................................... 46
3.5.12 USB Keyboard Support ...........................................46
3.5.13 USB Mouse Support................................................ 46
3.5.14 CPU to PCI Write Buffer ........................................46
3.5.15 PCI Dynamic Bursting .............................................47
3.5.16 PCI Master 0 WS Write........................................... 47
3.5.17 PCI Delay Transaction ........................................... 47
3.5.18 PCI#2 Access #1 Retry .......................................... 47
3.5.19 AGP Master 1 WS Write .........................................47
3.5.20 AGP Master 1 WS Read .........................................48
3.5.21 Memory Parity/ ECC Check.................................... 48
3.6 Integrated Peripherals .......................................................... 48
3.6.1 On-Chip Primary/Secondary PCI IDE ......................48
3.6.2 IDE Primary Master/Slave PIO/UDMA Mode, IDE
Secondary Master/Slave PIO/UDMA Mode (Auto) ........... 49
3.6.3 Init Display First ........................................................ 49
3.6.4 IDE HDD Block Mode ..............................................49
3.6.5 Onboard FDD Controller ........................................... 50
3.6.6 Onboard Serial Port 1 (3F8H/IRQ4).......................... 50
3.6.7 Onboard Serial Port 2 (2F8H/IRQ3).......................... 50
3.6.8 UART 2 Mode Select ................................................ 50
3.6.9 Onboard Parallel Port (378H/IRQ7) ..........................51
3.6.10 Onboard Parallel Port Mode (ECP + EPP) ............. 51
3.6.11 ECP Mode Use DMA ..............................................51
3.6.12 EPP Mode Select..................................................... 51

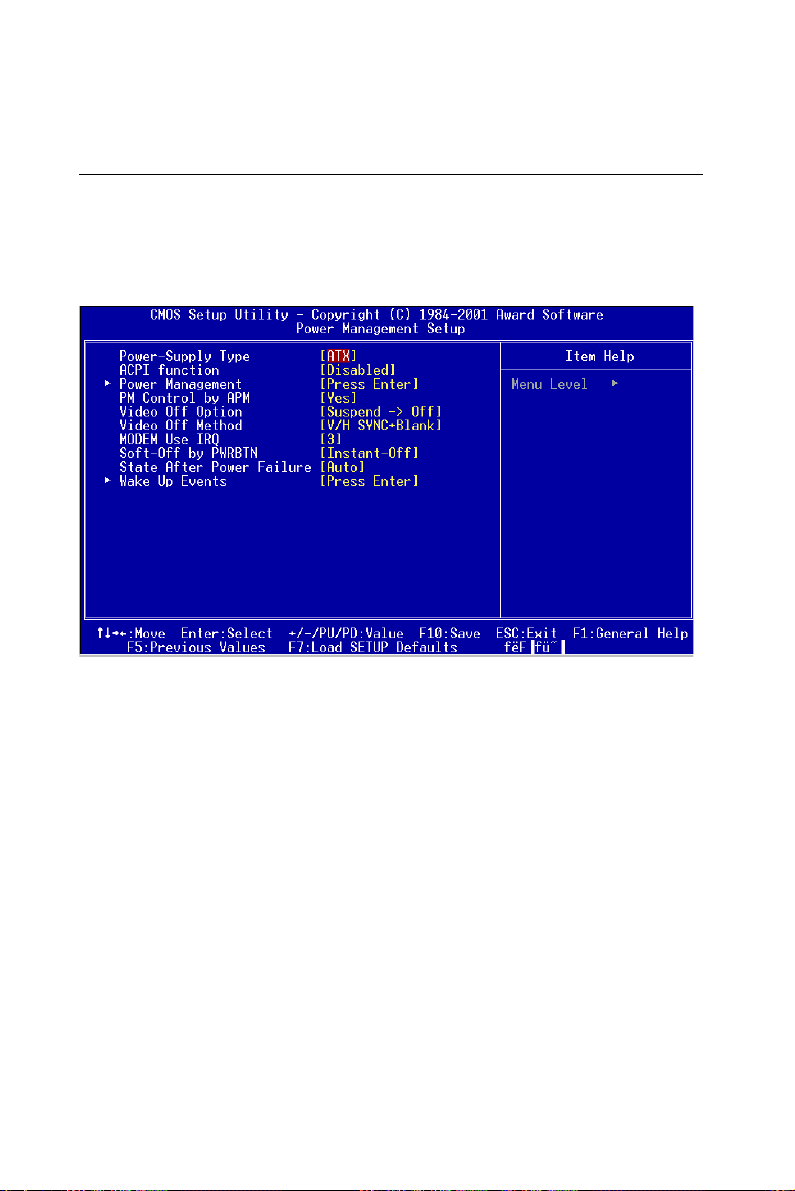

3.7 Power Management Setup.................................................... 52
3.7.1 Power Supply Type ...................................................52
3.7.2 ACPI function............................................................ 52
3.7.3 Power Management ...................................................53
3.7.4 PM Control by APM .................................................53
3.7.5 Video Off Option ....................................................... 54
3.7.6 Video Off Method......................................................54
3.7.7 MODEM Use IRQ .................................................... 54
3.7.8 Soft-Off by PWRBTN ..............................................54
3.7.9 State After Power Failure .......................................... 55
3.7.10 Wake Up Events ......................................................55
3.8 Wake Up Event......................................................................56
3.8.4 Power On by LAN .................................................... 56
3.8.5 Power On by Modem ................................................57
3.8.6 Power On by Alarm................................................... 57

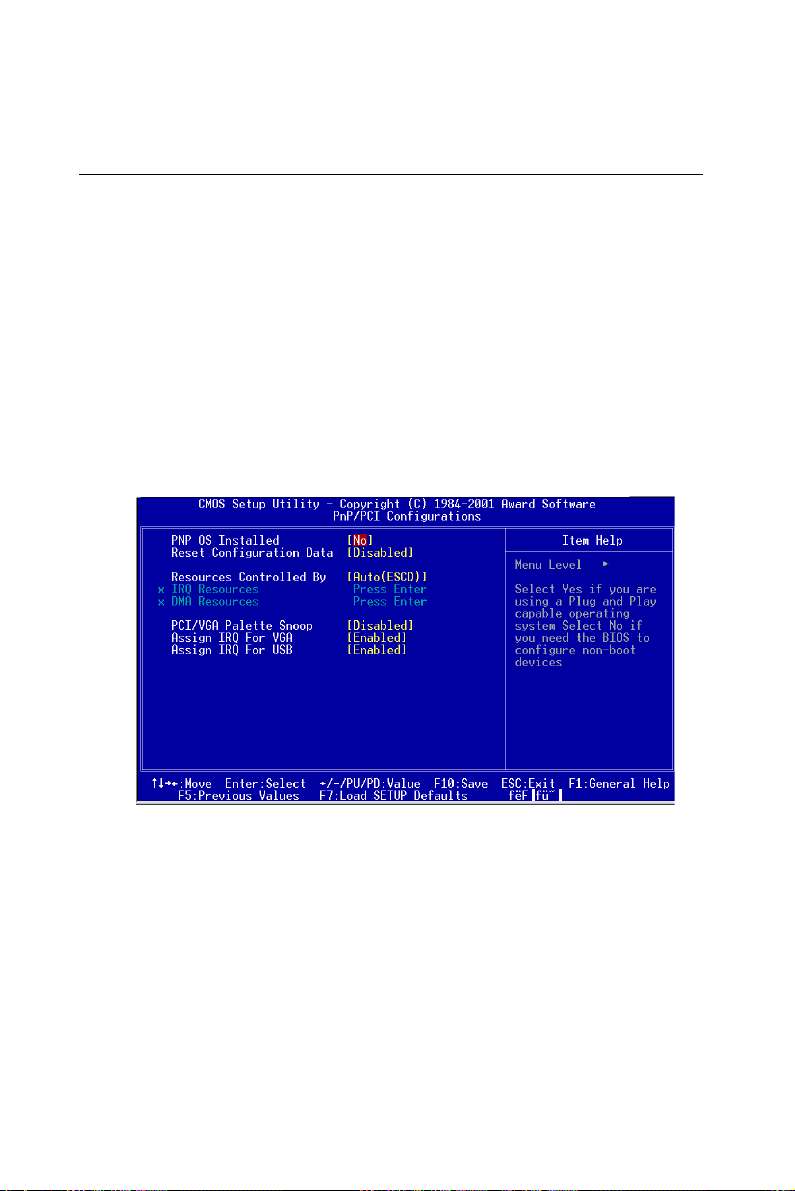

3.9 PnP/PCI Configurations ...................................................... 58
3.9.1 PnP OS Installed ....................................................... 58
3.9.2 Reset Configuration Data ...........................................58
3.9.3 Resources controlled: .................................................58
3.9.4 PCI/VGA Palette Snoop ............................................ 59
3.9.5 Assign IRQ for VGA.................................................. 59
3.9.6 Assign IRQ for US13.................................................59
3.10 PC Health Status................................................................. 59
3.10.1 Current CPU1 Temperature ....................................59
3.10.2 Current CPU 2 Temperature ................................... 59
3.10.3 Current CPUFAN1 Speed .......................................60
3.10.4 Current CPUFAN2 Speed .......................................60
3.10.5 CPU_1 VCORE....................................................... 60
3.10.6 CPU_2 VCORE....................................................... 60
3.10.7 +3.3V/+5V/+12V ..................................................... 60
3.11 Load Setup Defaults ...........................................................61
3.12 Password Setting ................................................................. 61
3.13 Save & Exit Setup ...............................................................62
3.14 Exit Without Saving............................................................ 62
Chapter 4 AGP SGA Setup........................................... 63
4.1 Before You Begin ..................................................................64
4.2 Features ..................................................................................64
4.3 VGA Installation................................................................... 65
4.4 AGP Installation ...................................................................66
Chapter 5 LAN Configuration ...................................... 69
5.1 Introduction .......................................................................... 70
5.2 Features ..................................................................................70
5.3 Driver Installation................................................................. 71

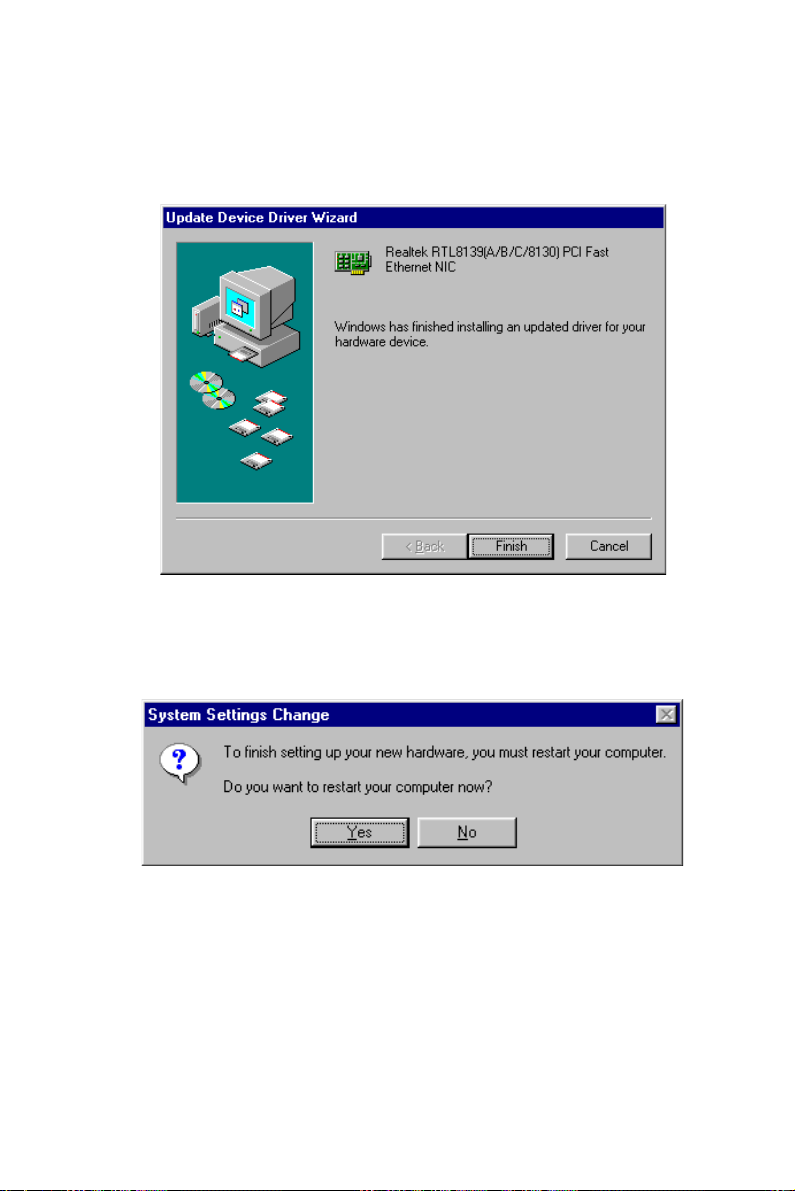

5.4 Windows 9X Drivers Setup Procedure ................................ 72

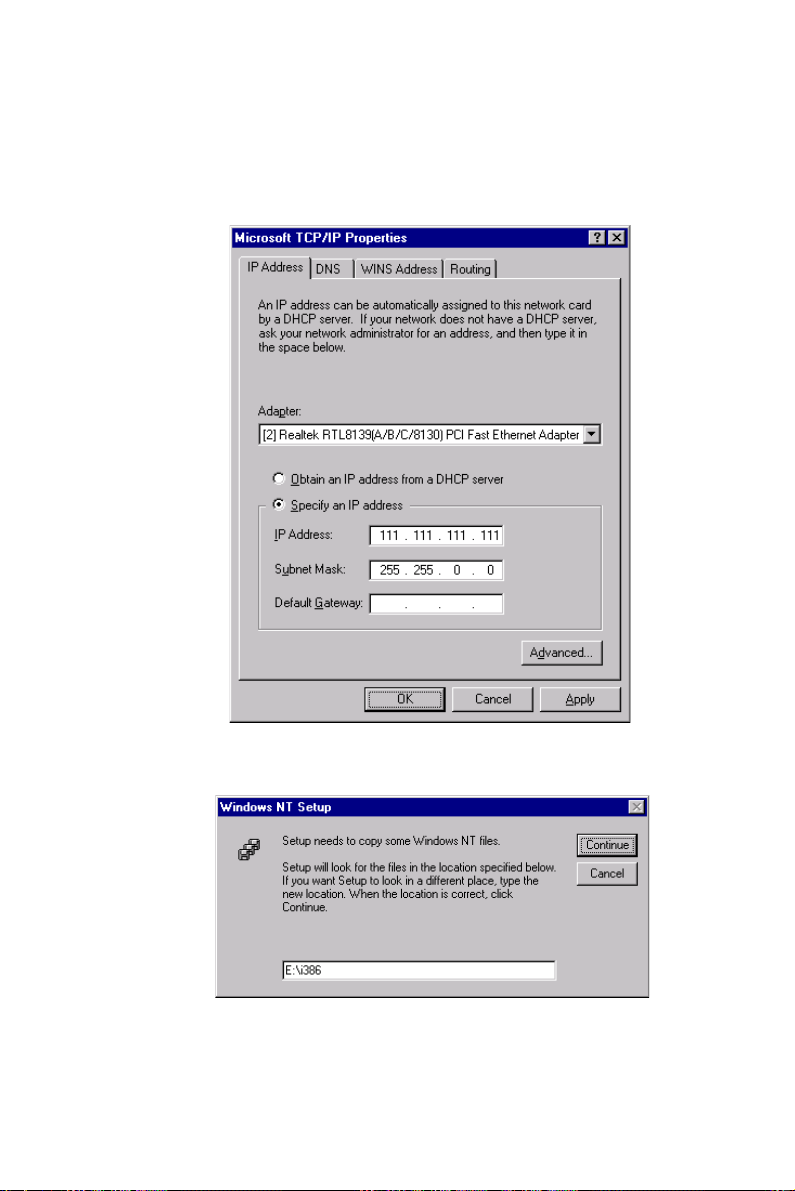

5.5 Windows NT Drivers Setup Procedure ................................79
5.6 Windows 2000 Drivers Setup Procedure ............................. 86
Chapter 6 Onboard Security Setup ............................. 93
6.1 Introduction .......................................................................... 94
6.2 Installation ............................................................................ 94
6.3 Windows 9x Drivers Setup Procedure ................................. 95
Chapter 7 SCSI Setup and Configurations ................. 99
7.1 Introduction ........................................................................ 100
7.2 Understanding SCSI ...........................................................100
7.3 SCSI IDs ..............................................................................101
7.4 Terminating the SCSI Bus ..................................................102
7.5 Configuring the SCSI interface with SCSISelect.............. 103
7.6 Starting SCSISelect.............................................................104
7.7 Using SCSISelect Settings ..................................................105
7.8 Using SCSI Disk Utilities.................................................... 109
7.9 Installation under Windows NT/Windows 2000 ............... 110
7.10 Windows 9X Driver setup procedure ............................... 111
7.11 Windows 2000 Driver Setup Procedure ...........................120
7.12 Windows NT Driver Setup Procedure .............................131
Chapter 8 IDE Driver Setup ........................................ 139
8.1 Installation ..........................................................................140
Appendix A Programming the Watchdog Timer ....... 145
A.1 Programming the Watchdog Timer .................................. 146
Appendix B Pin Assignments .................................... 149
B.1 IDE Hard Drive Connector (CN1, CN2) ..........................150
B.2 Floppy Drive Connector (CN3) .........................................151
B.3 Parallel Port Connector (CN4) .........................................152
B.4 USB Connector (CN6) ....................................................... 153
B.5 VGA Connector (CN7) ...................................................... 153
B.6 Ethernet 10/100Base-T RJ-45 Connector ....... (CN8, CN34)
154
B.7 COM1/COM2 RS-232 Serial Port (CN9, CN10) ............. 154
B.8 Keyboard and Mouse Connnector (CN11) ......................155
B.9 External Keyboard Connector (CN12) .............................155
B.10 IR Connector (CN13)....................................................... 156
B.11 CPU_A Fan Power Connector (CN14) ........................... 156
B.12 CPU_B Fan Power Connector (CN15) ........................... 157
B.13 Power LED and Keylock Connector (CN16) .................157
B.14 External Speaker Connector (CN17) ..............................158
B.15 Reset Connector (CN18) .................................................. 158
B.16 HDD LED Connector (CN19) .........................................159
B.17 ATX Feature Connector (CN20)...................................... 159
B.18 Extension I/O Board Connector (CN27) ........................160
B.19 ATX Soft Power Switch (CN21) ...................................... 160
B.20 Extension I/O Board Connector (CN28) ........................161
B.21 SM Bus Connector (CN29).............................................. 162
B.22 PS/2 Mouse Connector (CN33) ....................................... 162
B.23 System I/O Ports .............................................................. 163
B.24 DMA Channel Assignments ............................................ 164
B.25 Interrupt Assignments .....................................................164
B.26 1st MB Memory Map....................................................... 165
B.27 PCI Bus Map ....................................................................165
Figures
Figure 1-1: Board layout: main features .......................................................................... 8

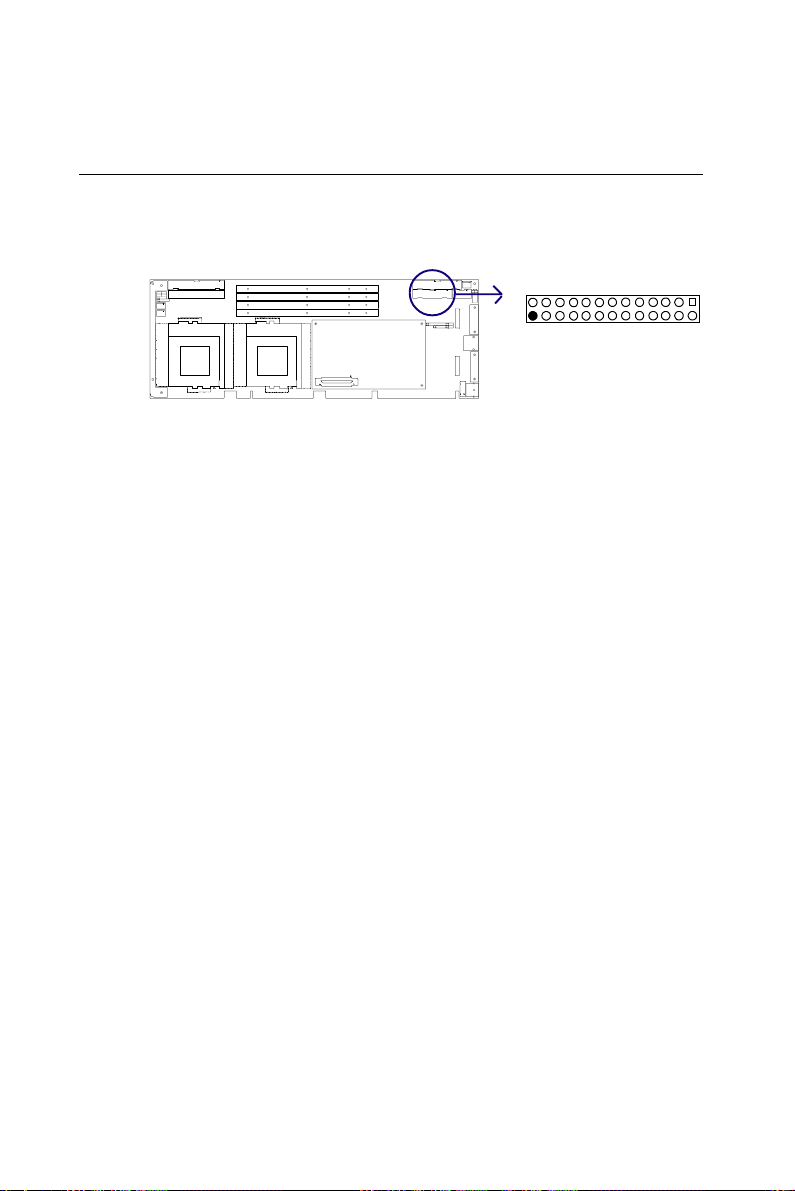

Figure 1-2: Board layout: jumper and connecter locations ............................................. 12
Figure 1-3: SCSI daughter board layout ........................................................................ 13
Figure 1-4: Extension I/O daughter board .....................................................................14
Tables
Table 1-1: Jumpers ............................................................................................................ 9
Table 1-2: Connectors ...................................................................................................... 10
Table 1-3: CMOS clear (J1) ............................................................................................. 17
Table 1-4: Watchdog timer output (J2) ............................................................................. 17
Table 1-5: DIMM module allocation table ......................................................................... 18
Table 1-6: DIMM memory capacity sample calculation ................................................... 18
Table 2-1: Serial port connections (COM1, COM2) .......................................................... 30
Table 2-2: PS/2 or ATX power supply LED status ............................................................ 33
Table B-1: IDE hard drive connector (CN1, CN2) ............................................................ 150
Table B-2: Floppy drive connector (CN3) ........................................................................ 151
Table B-3: Parallel port connector (CN4) ........................................................................ 152
Table B-4: USB1/USB2 connector (CN6) ....................................................................... 153
Table B-5: VGA connector (CN7) ................................................................................... 153
Table B-6: Ethernet 10/100Base-T RJ-45 connector (CN8, CN34) ................................. 154
Table B-7: COM1/COM2 RS-232 serial port (CN9, CN10) ............................................. 154
Table B-8: Keyboard and mouse connector (CN11) ....................................................... 155
Table B-9: External keyboard connector (CN12) ............................................................ 155
Table B-10: IR connector (CN13) ................................................................................... 156
Table B-11: CPU fan power connector (CN14) ............................................................... 156
Table B-12: CPU fan power connector (CN15) ............................................................... 157
Table B-13: Power LED and keylock connector (CN16) ................................................. 157
Table B-14: External speaker (CN17) ............................................................................ 158
Table B-15: Reset connector (CN18) ............................................................................. 158
Table B-16: HDD LED connector (CN19) ....................................................................... 159
Table B-17: ATX feature connector (CN20) ..................................................................... 159
Table B-19: Extension I/O board connector (CN27) ....................................................... 160
Table B-18: ATX soft power switch (CN21) ..................................................................... 160
Table B-20: Extension I/O board connector (CN28) ....................................................... 161
Table B-21: SM bus connector (CN29) .......................................................................... 162
Table B-22: PS/2 mouse connector (CN33) ................................................................... 162
Table B-23: System I/O ports ........................................................................................ 163
Table B-24: DMA channel assignments ......................................................................... 164
Table B-25: Interrupt assignments ................................................................................. 164
Table B-26: 1st MB memory map .................................................................................. 165
Table B-27: PCI bus map ................................................................................................. 16
CHAPTER
1
Hardware Configuration
This chapter provides background
information on the PCA-6277. It will show
you how to configure the card to match
your application and prepare it for
installation into your PC..
Sections include:
• Introduction
• Features
• Specifications
• Board Layout
• Jumpers and Connectors
• Safety Precautions
• Jumper Settings
• System Memory
• Memory Installation Procedures
• Cache Memory
• CPU Installation
1.1 Introduction
The PCA-6277 Series all-in-one industrial grade dual CPU card uses
Intel's highly acclaimed Pentium® III processor, together with the VIA
Apollo Pro133A chipset. The card works with standard ISA or
PCI/ISA-bus passive backplanes.
The CPU provides 256 KB on-CPU L2 cache, eliminating the need
for external SRAM chips. It has two PCI EIDE interfaces (for up to
four devices) and a floppy disk drive interface (for up to two devices).
Other features include two RS-232 serial ports (16C550 UARTs with
16-byte FIFO or compatible), one enhanced parallel port (supports
EPP/ECP) and four USB (Universal Serial Bus) ports. The PCI enhanced IDE controller supports Ultra DMA 33/66/100 and PIO Mode 4
operation. This provides data transfer rates of up to 33/66/100 MB/sec.
System BIOS supports boot-up from an IDE CD-ROM, SCSI CD-ROM,
LS-120, IDE HDD, SCSI HDD, ZIP-100, LAN, and FDD.
A backup of CMOS data is stored in the Flash memory, which protects
data even after a battery failure. Also included is a 63-level watchdog
timer, which resets the CPU or generates an interrupt if a program
cannot be executed normally. This enables reliable operation in
unattended environments.
The PCA-6277 Series offers several impressive industrial features such
as a VGA (AGP) controller, an ultra 160 SCSI controller, dual 10/100
Base-T networking controller, four DIMM slots for a total of 2 GB
RAM memory, and an ISA High Drive. All these make it an ideal
choice for applications that require both high performance and full
functionality.
Note: Some of the features mentioned above are not
available with all models. For more information about
the specifications of a particular model, see Section
1.3 Specifications.
2 PCA-6277 User's Manual
1.2 Features
1. Fan status monitoring and alarm: To prevent system overheating
and damage, the CPU fan can be monitored for speed and failure.
The fan is set for its normal RPM range and alarm thresholds.
2. Temperature monitoring and alarm: To prevent system overheat-
ing and damage, the CPU card supports processor thermal sensing
and auto-protection.
3. Voltage monitoring and alarm: System voltage levels are moni-
tored to ensure stable current flows to critical components. Voltage
specifications will become even more critical for processors of the
future. Thus monitoring will become ever more necessary to ensure
proper system configuration and management.
4. ATX soft power switch: Through the BIOS, the power button can
be defined as the "Standby" (aka "Suspend" or "Sleep") button or
as the "Soft-Off" button (see Section 3.6.6 Soft-off by PWR-BTN).
Regardless of the setting, pushing the power button for more than
4 seconds will enter the Soft-Off mode.
5. Power-on by modem (requires modem): This allows a computer
to be turned on remotely through an internal or external modem.
Users can thus access information on their computers from
anywhere in the world.
6. Power-on by LAN: This allows you to remotely power up your
system through your network by sending a wake-up frame or
signal. With this feature, you can remotely upload/ download data
to/from systems during off-peak hours.
7. Message LED: Chassis LEDs now act as information providers.
The way a particular LED illuminates indicates the stage the
computer is in. A single glimpse provides useful information to the
user.
Chapter 1 Hardware Configuration
3
8. Jumper free mode: When enabled, this allows processor settings
and easy overclocking of frequency and Vcore voltages all through
the BIOS setup. Easy-to-use DIP switches instead of jumpers are
included in case you want to manually adjust the processor's
external frequency.
9. CMOS RAM backup: When BIOS CMOS setup has been complet-
ed, data in the CMOS RAM is automatically backed up to the Flash
ROM. This is particularly useful in industrial environments which
may cause soft errors. Upon such an error occurring, BIOS will
check the data, and automatically restore the original data for
booting.
10. More:
• Power On by Alarm: Powers up your computer at a certain
time
• Virus warning: During and after system boot-up, any attempt
to write to the boot sector or partition table of the hard disk
drive will halt the system. In this case, a warning message will
be displayed. You can then run your anti-virus program to
locate the problem
4 PCA-6277 User's Manual
1.3 Specifications
1.3.1 System
• CPU:Dual Intel Pentium® III processor, up to 1GHz, FSB 100/133
MHz
• BIOS: Award Flash BIOS, 2 Mb
• System Chipset: VIA Apollo Pro133A (VT82C694X + VT82C686B)
• Green function: Supports power management operation via BIOS.
Activated by keyboard or mouse activity
• PCI enhanced IDE hard disk drive interface: Supports up to four
IDE large hard disk drives or other enhanced IDE devices. Supports
PIO mode 4 (16.67 MB/s data transfer rate) and Ultra DMA 33/66/100
(33/66/100 MB/s data transfer rate). BIOS enabled/disabled
• Floppy disk drive interface: Supports up to two floppy disk drives,
5¼" (360 KB and 1.2 MB) and/or 3" (720 KB and 1.44 MB.) BIOS
enabled/disabled
1.3.2 Memory
• RAM: Up to 2GB in four available 168-pin DIMM sockets.
Supports PC100/ PC133-compliant SDRAMs
• ECC (parity DRAM only): Modules can detect multi-bit memory
errors. Correction of 1-bit memory errors
Chapter 1 Hardware Configuration
5
1.3.3 Input/Output
• Bus interface: PCI/ISA bus, PICMG compliant
• Enhanced parallel port: Configurable to LPT1, LPT2, LPT3, or
disabled. Standard DB-25 female connector provided. Supports
EPP/ECP
• Serial ports: Two RS-232 ports with 16C550 UARTs (or
compatible) with 16-byte FIFO buffer. Supports speeds up to 115.2
Kbps. Ports can be individually configured to COM1, COM2 or
disabled
• Keyboard and PS/2 mouse connector: Two 6-pin mini-DIN
connector is located on the mounting bracket for easy connection to
a keyboard or PS/2 mouse. An onboard keyboard pin header
connector is also available
• ISA driver current: 64 mA (High Drive)
1.3.4 VGA interface
• Supports AGP 4X, 133 MHz
• Controller: ATI RAGE 128 PRO™ 4XL
• Display memory: 32 MB VRAM
1.3.5 SCSI interface
• SCSI: Supports ultra 160 SCSI up to 160 MB/sec.
• Chipset: Adaptec AIC-7892
1.3.6 Ethernet LAN
• Supports dual 10/100Base-T Ethernet networking
• Chipset: Realtek 8139C
6 PCA-6277 User's Manual
1.3.7 Industrial features
• Watchdog timer: Can generate a system reset or IRQ11. The
watchdog timer is programmable, with each unit equal to one
second (63 levels). The program uses I/O port hex 443h to control
the watchdog timer
1.3.8 Mechanical and environmental specifications
• Operating temperature: 0 ~ 60° C (depends on CPU)
• Storage temperature: -20~70 ° C (-4~158° F)
• Humidity: 20 ~ 95% non-condensing
• Power supply voltage: +5 V, ±12 V
• Power consumption: Typical: +5V @ 11.8A, -5V@0.1A
+12V @ 0.5A, -12V @ 0.1A
(Dual Pentium III 1 GHz, 384 MB SDRAM)
• Board size: 338 x 122 mm (13.3" x 4.8")
• Board weight: 0.5 kg (1.2 lb)
Chapter 1 Hardware Configuration
7
1.4 Board Layout: Main Features

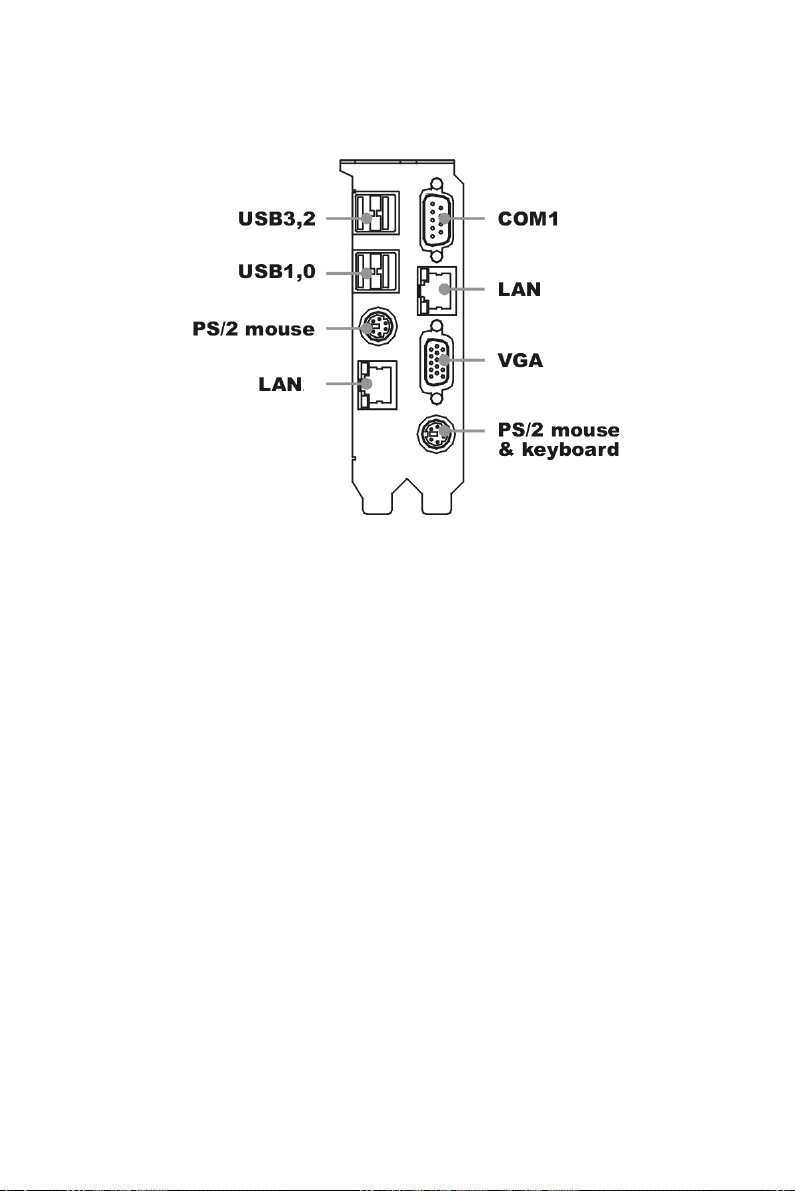

USB (1.0)
USB (3.2)
USB Port
PS/2 Connector
Mouse
LAN connector (2)
COM 2
Parallel port
FDD connector
VIA VT 820686B Controller
50 Pin SCSI Connector
Four DIMM sockets up
to 2 GB SDRAM
PS/2 mouse and
keyboard connector
Realtek 8139C chipset
68 Pin SCSI Connector
Adaptec AIC-7892
EIDE
connectors
Figure 1-1: Board layout: main features
8 PCA-6277 User's Manual
III CPU up to 1 GHz
®
Socket370 Pentium
1.5 Jumpers and Connectors
Connectors on the PCA-6277 board link it to external devices such as
hard disk drives and a keyboard. In addition, the board has a number
of jumpers used to configure your system for your application.
The tables below list the function of each of the board jumpers and
connectors. Later sections in this chapter give instructions on setting
jumpers. Chapter 2 gives instructions for connecting external devices
to your card.
Table 1-1: Jumpers
Label Function
J1 CMOS clear
J2 Watchdog timer output
Chapter 1 Hardware Configuration
9
Table 1-2: Connectors
Label Function
CN1 Primary IDE connector
CN2 Secodary IDE connector
CN3 Floppy driver connector
CN4 Parallel port
CN6 USB port
CN7 VGA connector
CN8 10/100Base-T Ethernet connector 2
CN9 Serial port: COM1
CN10 Serial port: COM2
CN11 PS/2 keyboard and mouse connector
CN12 External keyboard connector
CN13 Infrared (IR) connector
CN14 CPU_A FAN connector
CN15 CPU_B FAN Connector
CN16 Power LED and keyboard lock
CN17 External speaker
CN18 Reset connector
CN19 HDD LED connector
CN20 ATX feature connector
CN21 ATX soft power switch
CN27 Extension I/O board connector
CN28 Extension I/O board connector
CN29 SM BUS Connector
CN30 SCSI Daughter board
10 PCA-6277 User's Manual
Extension I/O board
Daughter board
CN31 USB port 0, 1
CN32 USB port 2, 3
CN33 PS/2 mouse connector
CN34 10/100Base-T Ethernet connector 1
SCSI Daughter board
CN50 68 pin U160 SCSI connector
CN51 Ultra Wide SCSI Connector
CN52 Ultra Wide SCSI Connector
Chapter 1 Hardware Configuration
11
1.6 Board Layout: Jumper and Connector
Locations
CN8
CN6
CN9
CN27
CN7
CN3
CN29
CN20
CN4
CN1
CN18
CN21
CN10
CN2
J10
DIMM3
DIMM1
DIMM2
CN16
J1
DIMM4
J2
CN13
CN28
CN11
CN12
CN30
CPU2
CPU1
CN17
CN14
CN15
CN19
Figure 1-2: Board layout: jumper and connecter location
50 Pin for Ultra Wide SCSI
68 Pin for Ultra Wide SCSI
Adaptec
AIC-7892
CN52
CN51
68 pin for Ultra 160/ Ultra 2 SCSI
CN50
Figure 1-3: SCSI daughter board layout
Chapter 1 Hardware Configuration
13
2
1
Figure 1-4: Extension I/O daughter board
14 PCA-6277 User's Manual
1.7 Safety Precautions
Warning! Always completely disconnect the power cord from
your chassis whenever you work with the hardware.
Do not make connections while the power is on.
Sensitive electronic components can be damaged
by sudden power surges. Only experienced
electronics personnel should open the PC chassis.
Caution! Always ground yourself to remove any static
charge before touching the CPU card. Modern
electronic devices are very sensitive to static
electric charges. As a safety precaution, use a
grounding wrist strap at all times. Place all electronic components in a static-dissipative surface or
static-shielded bag when they are not in the chassis.
Chapter 1 Hardware Configuration
15
1.8 Jumper Settings
This section provides instructions on how to configure your card by
setting jumpers. It also includes the card's default settings and your
options for each jumper.
1.8.1 How to set jumpers
You configure your card to match the needs of your application by
setting jumpers. A jumper is a metal bridge that closes an electrical
circuit. It consists of two metal pins and a small metal clip (often
protected by a plastic cover) that slides over the pins to connect
them. To “close” (or turn ON) a jumper, you connect the pins with
the clip. To “open” (or turn OFF) a jumper, you remove the clip.
Sometimes a jumper consists of a set of three pins, labeled 1, 2, and
3. In this case you connect either pins 1 and 2, or 2 and 3.
A pair of needle-nose pliers may be useful when setting jumpers.
16 PCA-6277 User's Manual
1.8.2 CMOS clear (J1)
1
The PCA-6277 CPU card contains a jumper that can erase CMOS
data and reset the system BIOS information. Normally this jumper
should be set with pins 1-2 closed. If you want to reset the CMOS
data, set J1 to 2-3 closed for just a few seconds, and then move the
jumper back to 1-2 closed. This procedure will reset the CMOS to its
default setting.
Table 1-3: CMOS clear (J1)
Function Jumper setting
1
1
* Keep CMOS data 1-2 closed
1
Clear CMOS data 2-3 closed
* default setting
1.8.3 Watchdog timer output (J2)
The PCA-6277 contains a watchdog timer that will reset the CPU or
send a signal to IRQ11 in the event the CPU stops processing. This
feature means the PCA-6277 will recover from a software failure or
an EMI problem. The J2 jumper settings control the outcome of what
the computer will do in the event the watchdog timer is tripped.
Table 1-4: Watchdog timer output (J2)
Function Jumper setting
1
IRQ11 1-2 closed
1
* Reset 2-3 closed
* default setting
Chapter 1 Hardware Configuration
17
1.9 System Memory
The top-left edge of the PCA-6277 contains four sockets for 168-pin
dual inline memory modules (DIMMs). All three sockets use 3.3 V
unbuffered synchronous DRAMs (SDRAM). DIMMs are available in
capacities of 16, 32, 64, 128, 256 or 512 MB. The sockets can be
filled in any combination with DIMMs of any size, giving your PCA6277 single board computer between 16 MB and 2 GB of memory.
Use the following table to calculate the total DRAM memory within
your computer:
Table 1-5: DIMM module allocation table
Socket number 168-pin DIMM memory
1 (16, 32, 64, 128, 256 or 512 MB) x 1
2 (16, 32, 64, 128, 256 or 512 MB) x 1
3 (16, 32, 64, 128, 256 or 512 MB) x 1
4 (16, 32, 64, 128, 256 or 512 MB) x 1
1.9.1 Sample calculation: DIMM memory capacity
Suppose you install a 128 MB DIMM into your PCA-6277's socket 1
and a 32 MB DIMM into sockets 2 and 3 and 4. Your total system
memory is 224 MB, calculated as follows:
Table 1-6: DIMM memory capacity sample calculation
Socket number 168-pin DIMM memory Total memory
1 128 MB x 1 128 MB
2 32 MB x 1 32 MB
3 32 MB x 1 32 MB
4 32 MB x 1 32 MB
Total memory 224 MB
18 PCA-6277 User's Manual
1.9.2 Supplementary information about DIMMs
Your PCA-6277 can accept SDRAM memory chips (with or without
parity). Also note:
• If the PCA-6277 operates at 133/100 MHz, only use PC-133/ PC-
100 compliant DIMMs. Most systems will not even boot if noncompliant modules are used. This is due to strict timing issues
involved at this speed.
• SDRAM chips are usually thinner and have higher pin density than
EDO chips.
• Modules with 9 chips/side support ECC; modules with 8 chips/side
do not support ECC.
• Single-sided modules are typically 16, 32, 64 or 128 MB; double-
sided modules are usually 32, 64, 128, or 256 MB.
• PCA-6277 does not support register memory
Chapter 1 Hardware Configuration
19
1.10 Memory Installation Procedures
To install DIMMs, first make sure the two handles of the DIMM
socket are in the "open" position. i.e. The handles lean outward.
Slowly slide the DIMM module along the plastic guides on both ends
of the socket. Then press the DIMM module right down into the
socket, until you hear a click. This is when the two handles have
automatically locked the memory module into the correct position of
the DIMM socket. To remove the memory module, just push both
handles outward, and the memory module will be ejected by the
mechanism in the socket.
1.11 Cache Memory
Since the second level (L2) cache has been embedded into the Intel
Pentium® III processor, you do not have to take care of either SRAM
chips or SRAM modules. The built-in second level cache in the
Pentium® III processor yields much higher performance than the
external cache memories. The cache size in the Intel® Pentium® III
processor is 256 KB.
®
20 PCA-6277 User's Manual
1.12 CPU Installation
The PCA-6277 provides a dual socket 370 for an Intel® Pentium® III
processor. The CPU on the board must have a fan or heat sink
attached, to prevent overheating.
Warning: Without a fan or heat sink, the CPU will overheat
and cause damage to both the CPU and the motherboard.
To install a CPU, first turn off your system and remove its cover.
Locate the processor socket 370.
1. Make sure the socket 370 lever is in the upright position. To raise
the lever, pull it out to the side a little and raise it as far as it will
go.
2. Place the CPU in the empty socket. Follow the instructions that
came with the CPU. If you have no instructions, complete the
following procedure. Carefully align the CPU so it is parallel to
the socket and the notches on the corners of the CPU correspond
with the notches on the inside of the socket. Gently slide the
CPU in. It should insert easily. If it does not insert easily, pull the
lever up a little bit more.
3. Press the lever down. The plate will slide forward. You will feel
some resistance as the pressure starts to secure the CPU in the
socket. This is normal and will not damage the CPU.
When the CPU is installed, the lever should snap into place at the
side of the socket.
Note: To remove a CPU, pull the lever out to the side a
little and raise it as far as it will go. Lift out the
CPU.
Chapter 1 Hardware Configuration
21
1.13 Dual Processor Systems
The dual processor function of the PCA-6277 is a special design for
Socket 370 CPUs. The PCA-6277 supports Intel® SMP (Symmetric
Multiple Processor) specifications. It is equipped with two PGA 370
sockets with which you can install two Socket 370 processors. Of
course, if desired, only one Socket 370 processor need be installed.
A single Socket 370 processor can be installed in PGA 370 socket
CPU-1 (default setting).
To install two Socket 370 processors, we strongly recommend you
uses the same speed CPUs. Otherwise, your system may not operate
properly.
For best performance, you should use an OS (operating system) that
supports multi-processors. The following OS can support
multi-processor functions: Microsoft Windows NT (3.5x, 4.x and
5.x), Windows 2000® server, Windows® Advanced server, SCO UNIX,
FreeBSD 3.0 or later, and Linux. This list is not necessarily exhaustive. Check with your OS vendor for more information.
You can also use Microsoft Windows 3.1, 95 or 98. However, these
do not support SMP specifications. Therefore, using two processors
will yield the same result as using a single processor.
Note: The PCA-6277 cannot manage the SMP function by
itself. Therefore, if you use an incorrect CPU or OS
which causes the SMP function to fail, you are
likely to suffer damage to your hardware and/or
software. Advantech cannot take any responsibility
for damage in such circumstances.
22 PCA-6277 User's Manual
CHAPTER
2
Connecting Peripherals
This chapter tells how to connect
peripherals, switches, and indicators to
the PCA-6277 board.
2.1 Introduction
You can access most of the connectors from the top of the board
while it is installed in the chassis. If you have a number of cards
installed or have a packed chasis, you may need to partially remove
the card to make all the connections.
Note: If your chassis has only one empty expansion slot
to accommodate the CPU card, you can replace the
standard dual-slot bracket with the single-slot
bracket included in your PCA-6277 package, in
which case you will have to access the connectors
(CN31~34) on the extension I/O board from inside
the chassis.
2.2 Primary (CN1) and Secondary (CN2) IDE
Connectors
CN1
CN2
You can attach up to four IDE (Integrated Drive Electronics) drives to
the PCA-6277’s built-in controller. The primary (CN1) and secondary
(CN2) connectors can each accommodate two drives.
Wire number 1 on the cable is red or blue and the other wires are gray.
Connect one end to connector CN1 or CN2 on the CPU card. Make
sure that the red/blue wire corresponds to pin 1 on the connector (in
the upper right hand corner). See Chapter 1 for help finding the
connector.
Unlike floppy drives, IDE hard drives can connect in either position on
the cable. If you install two drives to a single connector, you will need
to set one as the master and the other as the slave. You do this by
setting the jumpers on the drives. If you use just one drive per
connector, you should set each drive as the master. See the documentation that came with your drive for more information.
Connect the first hard drive to the other end of the cable. Wire 1 on
the cable should also connect to pin 1 on the hard drive connector,
which is labeled on the drive circuit board. Check the documentation
that came with the drive for more information.
Connect the second hard drive to the remaining connector (CN2 or
CN1), in the same way as described above.
Note: The PCA-6277 supports the Ultra ATA/100 interface
and requires special IDE cables as well as a
software driver to enable this function.
2.3 Floppy Drive Connector (CN3)
33
31
3
1
32
434
2
CN3
You can attach up to two floppy disk drives to the PCA-6277's
onboard controller. You can use 3.5" (720 KB and 1.44 MB) drives.
The card comes with a 34-pin daisy-chain drive connector cable. On
one end of the cable is a 34-pin flat-cable connector. On the other
end are two sets of 34-pin flat-cable connector (usually used for 3.5"
drives). The set on the end (after the twist in the cable) connects to
the A: floppy drive. The set in the middle connects to the B: floppy
drive.
2.4 Parallel Port (CN4)
Note: Only the PCA-6168S/6168F models contain a SCSI
connector.
13 2
12 1
25
CN4
1526
The parallel port is normally used to connect the CPU card to a
printer. The PCA-6277 includes an onboard parallel port, accessed
through a 26-pin flat-cable connector, CN4. The card comes with an
adapter cable which lets you use a traditional DB-25 connector. The
cable has a 26-pin connector on one end and a DB-25 connector on
the other, mounted on a retaining bracket. The bracket installs at the
end of an empty slot in your chassis, giving you access to the
connector.
To install the bracket, find an empty slot in your chassis. Unscrew the
plate that covers the end of the slot. Screw in the bracket in place of
the plate. Next, attach the flat-cable connector to CN4 on the CPU
card. Wire 1 of the cable is red or blue, and the other wires are gray.
Make sure that wire 1 corresponds to pin 1 of CN4. Pin 1 is on the
upper right side of CN4.
14
26
PCA-6277 User's Manual
2.5 USB Port (CN6)
Pin 1
The USB interface is accessed through a 10-pin flat-cable connector,
CN6. The adapter cable has a 10-pin connector on one end and a USB
connector on the bracket.
The USB interface can be disabled in the system BIOS setup.
CN6
Chapter 2 Connecting Peripherals
27
2.6 USB Ports (CN31 and CN32)
The PCA-6277 provides four ports of USB (Universal Serial Bus)
interface, which gives complete Plug & Play and hot swapping for up
to 127 external devices.The USB interface complies with USB
Specification Rev. 1.0 and is fuse-protected.
The USB interface can be disabled in the system BIOS setup.
2.7 VGA Connector (CN7)
The PCA-6277 includes an AGP SVGA interface that can drive
conventional CRT displays. CN7 is a standard 15-pin D-SUB connector commonly used for VGA. Pin assignments for CRT connector
CN7 are detailed in Appendix B.
28
PCA-6277 User's Manual
2.8 10/100Base-T Ethernet Connectors (CN8
and CN34)
2
1
The PCA-6277 is equipped with one or two high-performance 32-bit
PCI-bus Ethernet interfaces, which are fully compliant with IEEE
802.3/u 10/100 Mbps CSMA/CD standards. They are supported by all
major network operating systems and are 100% Novell NE-2000
compatible. The RJ-45 jacks on the rear plate provide convenient
10/100Base-T RJ-45 operation.
2.9 Serial Ports (CN9: COM1; CN10: COM2)
CN10
Chapter 2 Connecting Peripherals
29
The PCA-6277 offers two serial ports, CN9 as COM1 and CN10 as
COM2. These ports can connect to serial devices, such as a mouse or
a printer, or to a communications network.
Table 2-1: Serial port connections (COM1, COM2)
Connector Ports Address Interrupt
CN9 COM1 3F8*, 3E8 IRQ4
CN10 COM2 2F8*, 2E8 IRQ3
* default settings
The IRQ and address ranges for both ports are fixed. However, if you
want to disable the port or change these parameters later, you can do
this in the system BIOS setup.
Different devices implement the RS-232 standard in different ways.
If you are having problems with a serial device, be sure to check the
pin assignments for the connector.
30
PCA-6277 User's Manual
2.10 PS/2 Keyboard and Mouse Connectors
(CN11 and CN33)
Two 6-pin mini-DIN connectors (CN11 and CN33) on the card
mounting bracket provide connection to a PS/2 keyboard and a PS/2
mouse, respectively. CN11 can also be connected to an adapter cable
(P/N: 1700060202, available from Advantech) for connecting to
both a PS/2 keyboard and a PS/2 mouse.
2.11 External Keyboard Connector (CN12)
CN12
In addition to the PS/2 mouse/keyboard connector on the
PCA-6277's ear plate, there is also an extra onboard external keyboard connector. This gives system integrators greater flexibility in
designing their systems.
Chapter 2 Connecting Peripherals
31
2.12 Infrared (IR) Connector (CN13)
CN13
This connector supports the optional wireless infrared transmitting
and receiving module. This module mounts on the system case. You
must configure the setting through the BIOS setup (see Chapter 3).
2.13 CPU_A Fan Connector (CN14)
CN14
This connector supports cooling fans of 2A or less.
2.14 CPU_B Fan Connector (CN15)
This connector supports cooling fans of 2 A or Less
32
PCA-6277 User's Manual
CN15
2.15 Front Panel Connectors (CN16, CN17,
CN18, CN19, CN21 and CN22)
There are several external switches to monitor and control the
PCA-6277.
CN21
CN29
CN19
CN17
2.15.1 Keyboard lock and power LED (CN16)
CN16 is a 5-pin connector for the keyboard lock and power on LED.
Refer to Appendix B for detailed information on the pin assignments.
If a PS/2 or ATX power supply is used, the system's power LED
status will be as indicated below:
Table 2-2: PS/2 or ATX power supply LED status
Power mode LED (PS/2 power) LED (ATX power)
System On On On
System Suspend Fast flashes Fast flashes
System Off Off Slow flashes
2.15.2 External speaker (CN17)
CN17 is a 4-pin connector for an extenal speaker. If there is no
external speaker, the PCA-6277 provides an onboard buzzer as an
alternative. To enable the buzzer, set pins 3-4 as closed.
CN18
CN16
Chapter 2 Connecting Peripherals
33
2.15.3 Reset (CN18)
Many computer cases offer the convenience of a reset button.
Connect the wire from the reset button.
1
2.15.4 HDD LED (CN19)
You can connect an LED to connector CN19 to indicate when the
HDD is active.
1
34
PCA-6277 User's Manual
2.16 ATX Power Control Connectors (CN20
and CN21)
CN20
2.16.1 ATX feature connector (CN20) and soft power switch
connector (CN21)
The PCA-6277 can support an advanced soft power switch function if
an ATX power supply is used. To enable the soft power switch
function:
1. Take the specially designed ATX-to-PS/2 power cable out of the
PCA-6277's accessory bag.
2. Connect the 3-pin plug of the cable to CN20 (ATX feature
connector).
3. Connect the power on/off button to CN21. (A momentary type of
button should be used.)
Note: If you will not be using an ATX power connector,
make sure that pins 2-3 of CN20 are closed.
Warnings: 1. Make sure that you unplug your power supply
when adding or removing expansion cards or other
system components. Failure to do so may cause
severe damage to both your CPU card and expansion cards.
2. ATX power supplies may power on if certain
motherboard components or connections are
touched by metallic objects.
Chapter 2 Connecting Peripherals
35
Important: Make sure that the ATX power supply can take at
least a 720 mA load on the 5 V standby lead
(5VSB). If not, you may have difficulty powering on
your system and/or supporting the "Wake-on-LAN"
function.
2.16.2 Controlling the soft power switch
Users can also identify the current power mode through the system's
power LED (see Section 2.13.1).
2.17 SM Bus Connector (CN23)
This connector can be used for external devices which need to be
connected to the SM bus (system management bus).
36
PCA-6277 User's Manual
CHAPTER
3
Award BIOS Setup
This chapter describes how to set the
card’s BIOS configuration data.
3.1 Introduction
Award’s BIOS ROM has a built-in setup program that allows users to
modify the basic system configuration. This type of information is
stored in battery-backed memory (CMOS RAM) so that it retains the
setup information when the power is turned off.
3.2 Entering Setup
Turn on the computer and check for the “patch code”. If there is a
number assigned to the patch code, it means that the BIOS supports
your CPU.
If there is no number assigned to the patch code, please contact
Advantech’s applications engineer to obtain an up-to-date patch code
file. This will ensure that your CPU’s system status is valid.
After ensuring that you have a number assigned to the patch code,
press <Del> to allow you to enter the setup.
Figure 3-1: Award BIOS Setup initial screen
38
PCA-6277 User’ s Manual
3.3 Standard CMOS Setup
Choose the “Standard CMOS Features” option from the “Initial Setup
Screen” menu, and the screen below will be displayed. This menu
allows users to configure system components such as date, time, hard
disk drive, floppy drive, display, and memory.
Figure 3-2: Standard CMOS features screen
3.3.1 CMOS RAM backup
The CMOS RAM is powered by an onboard button cell battery.
When BIOS CMOS Setup has been completed, CMOS RAM data is
automatically backed up to Flash ROM. If conditions in a harsh
industrial enviroment cause a soft error, BIOS will recheck the data and
automatically restore the original data for booting.
Note: If you intend to update CMOS RAM data, you have
to click on “DEL” within two seconds of the “CMOS
checksum error....” display screen message appear-
ing. Then enter the “Setup” screen to modify the data.
If the “CMOS checksum error....” message appears
again and again, please check to see if you need to
replace the battery in your system.
Chapter 3 Award BIOS Setup
39
3.4 Advanced BIOS Features
The “Advanced BIOS Features” screen appears when choosing the
“Advanced BIOS Features” item from the “Initial Setup Screen”
menu. It allows the user to configure the PCA-6277 according to his
particular requirements.
Below are some major items that are provided in the Advanced BIOS
Features screen.
A quick booting function is provided for your convenience. Simply
enable the Quick Booting item to save yourself valuable time.
Figure 3-3: Advanced BIOS features screen (1)
3.4.1 Virus Warning
If enabled, a warning message and alarm beep activates if someone
attempts to write here. The commands are “Enabled” or “Disabled.”
3.4.2 CPU Internal Cache / External Cache
Enabling this feature speeds up memory access. The commands are
“Enabled” or “Disabled.”
40
PCA-6277 User’ s Manual
3.4.3 CPU L2 Cache ECC Checking
Enabling allows CPU L2 cache checking. The commands are “Enabled”
or “Disabled.”
3.4.4 First/Second/Third/Other Boot Device
The BIOS tries to load the OS with the devices in the sequence
selected.
Choices are: Floppy, LS/ZIP, HDD, SCSI, CDROM, LAN, Disabled.
3.4.5 Swap Floppy Drive
Logical name assignments of floppy drives can be swapped if there is
more than one floppy drive. The commands are “Enabled” or “Disabled.”
3.4.6 Boot UP Floppy Seek
Selection of the command “Disabled” will speed the boot up. Selection
of “Enabled” searches disk drives during boot up.
3.4.7 Boot Up NumLock Status
This feature selects the “power on” state for NumLock. The commands are “Enabled” or “Disabled.”
3.4.8 Gate A20 Option
Normal The A20 signal is controlled by the keyboard
controller.
Fast (Default) The A20 signal is controlled by the chipset.
3.4.9 Typematic Rate Setting
The typematic rate is the rate key strokes repeat as determined by the
keyboard controller. The commands are “Enabled” or “Disabled.”
Enabling allows the typematic rate and delay to be selected.
Chapter 3 Award BIOS Setup
41
3.4.10 Typematic Rate (Chars/Sec)
BIOS accepts the following input values (characters/second) for
typematic rate: 6, 8, 10, 12, 15, 20, 24, 30.
3.4.11 Typematic Delay (msec)
Typematic delay is the time interval between the appearance of two
consecutive characters, when holding down a key. The input values
for this category are: 250, 500, 750, 1000 (msec).
3.4.12 Security Option
This setting determines whether the system will boot up if the
password is denied. Access to Setup is, however, always limited.
System The system will not boot, and access to Setup will be
denied if the correct password is not entered at the prompt.
Setup The system will boot, but access to Setup will be denied if
the correct password is not entered at the prompt.
Note: To disable security, select “ PASSWORD SETTING”
in the main menu. At this point, you will be asked to
enter a password. Simply press <Enter> to disable
security. When security is disabled, the system will
boot, and you can enter Setup freely.
3.4.13 MPS Version Control For OS [1.1]
3.4.14 OS Select for DRAM > 64MB
This setting allows selecting an OS with greater than 64MB of RAM.
Commands are “Non-OS2” or “OS2.”
3.4.15 Video BIOS Shadow
Enable copies video BIOS to sharow RAM for performnace improving.
Choices are Enable, Disable.
42
PCA-6277 User’ s Manual
Figure 3-4: Advanced BIOS features screen (2)
3.4.16 EPA Logo Show
Energy Star Log from Environmental Protection Agency. Choices are:
Enable, Disable.
3.5 Advanced Chipset Features
By choosing the “Advanced Cipset Features” option from the “Initial
Setup Screen” menu, the screen below will be displayed. This sample
screen contains the manufacturer’ s default values for the PCA-6277, as
shown in Figure 3-5:
Note: DRAM default timings have been carefully chosen
and should ONLY be changed if data is being lost.
Please first contact technical support.
Chapter 3 Award BIOS Setup
43
Figure 3-5: Advanced chipset features screen (1)
3.5.1 DRAM Clock
This item allows you to control the DRAM speed. The Choice: Host
Clock, CLK-33M.
3.5.2 SDRAM Cycle Length
When synchronous DRAM is installed, the number of clock cycles of
CAS latency depends on the DRAM timing. Do not reset this field
from the default value specified by the system designer. The Choice:
2, 3.
3.5.3 Bank Interleave
This item allows you to select the value in this field, depending on
whether the board has paged DRAMs or EDO (extended data output)
44
PCA-6277 User’ s Manual
DRAMs. The Choice: EDO 50ns, EDO 60ns,Slow, Medium, Fast,
Turbo.
3.5.4 Memory Hole
In order to improve performance, certain space in memory is reserved
for ISA cards. This memory must be mapped into the memory space
below 16MB. The Choice: 15M-16M, Disabled.
3.5.5 P2C/P2P Concurrency
This item allows you to enable/disable the PCI to CPU, CPU to PCI
concurrency. The Choice: Enabled, Disabled
3.5.6 System BIOS Cacheable
Selecting Enabled allows caching of the system BIOS ROM at F0000hFFFFFh, resulting in better system performance. However, if any
program writes to this memory area, a system error may result. The
choice: Enabled, Disabled.
3.5.7 AGP Aperture Size
Select the size of Accelerated Graphics Port (AGP) aperture. The
aperture is a portion of the PCI memory address range dedicated for
graphics memory address space. Host cycles that hit the aperture
range are forwarded to the AGP without any translation. The Choice:
4M, 8M, 16M, 32M, 65M, 128M, 256M.
3.5.8 AGP-4X Mode
This item allows you to enable / disable the AGP-4X Mode. The
Choice: Enabled, Disabled.
Chapter 3 Award BIOS Setup
45
3.5.9 AGP Driving Control
This item allows you to adjust the AGP driving force. Choose Manual
to key in a AGP Driving Value in the next selection. This field is
recommended to set in Auto for avoiding any error in your system.
The Choice: Auto, Manual.
3.5.10 AGP Fast Write
This item allows you to adjust the AGP driving force. The Choice:
Min=0000~ Max=00FF.
3.5.11 Onboard USB
This should be enabled if your system has a USB installed on the
system board and you want to use it. Even when so equipped, if you
add a higher performance controller, you will need to disable this
feature. The choice: Enabled, Disabled.
3.5.12 USB Keyboard Support
Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have a USB keyboard. The choice: Enabled,
Disabled.
3.5.13 USB Mouse Support
Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have a USB mouse. The choice: Enabled, Disabled.
3.5.14 CPU to PCI Write Buffer
When this field is Enabled, writes from the CPU to the PCI bus are
46
PCA-6277 User’ s Manual
buffered, to compensate for the speed differences between the CPU
and the PCI bus. When Disabled, the writes are not buffered and the
CPU must wait until the write is complete before starting another write
cycle. The choice: Enabled, Disabled..
3.5.15 PCI Dynamic Bursting
When Enabled, every write transaction goes to the write buffer.
Burstable transactions then burst on the PCI bus and nonburstable
transactions don’t. The choice: Enabled, Disabled
3.5.16 PCI Master 0 WS Write
When Enabled, writes to the PCI bus are executed with zero wait
states. The choice: Enabled, Disabled
3.5.17 PCI Delay Transaction
The chipset has an embedded 32-bit posted write buffer to support
delay transactions cycles. Select Enabled to support compliance with
PCI specification version 2.1. The choice: Enabled, Disabled
3.5.18 PCI#2 Access #1 Retry
When disabled, PCI#2 will not be disconnected until access finishes
(difault). When enabled, PCI#2 will be disconnected if max retries are
attempted without success. The choice: Enabled, Disabled
3.5.19 AGP Master 1 WS Write
When Enabled, writes to the AGP(Accelerated Graphics Port) are
executed with one wait states. The choice: Enabled, Disabled
Chapter 3 Award BIOS Setup
47
3.5.20 AGP Master 1 WS Read
When Enabled, read to the AGP (Accelerated Graphics Port) are
executed with one wait states. The choice: Enabled, Disabled
3.5.21 Memory Parity/ ECC Check
Enabled add a parity check to the boot-up memory test. Select
Enabled when only system DRAM contains parity. The Choice:
Enable, Disable.
Figure 3-6: Advanced Chipset Feature (2)
3.6 Integrated Peripherals
3.6.1 On-Chip Primary/Secondary PCI IDE
If you enable IDE HDD Block Mode, the enhanced IDE driver will be
enabled. Leave IDE HDD Block Mode on the default setting.
48
PCA-6277 User’ s Manual
3.6.2 IDE Primary Master/Slave PIO/UDMA Mode,
IDE Secondary Master/Slave PIO/UDMA Mode (Auto)
Each channel (Primary and Secondary) has both a master and a slave,
making four IDE devices possible. Because each IDE device may have
a different Mode timing (0, 1, 2, 3, 4), it is necessary for these to be
independent. The default setting “Auto” will allow autodetection to
ensure optimal performance.
Figure 3-7: Integrated peripherals (1)
3.6.3 Init Display First
This item allows you to choose which one to activate first, PCI Slot or
AGP. The choices: PCI Slot, AGP.
3.6.4 IDE HDD Block Mode
You can enable the Primary IDE channel and/or the Secondary IDE
channel. Any channel not enabled is disabled. This field is for systems
with only SCSI drives.
Chapter 3 Award BIOS Setup
49
3.6.5 Onboard FDD Controller
When enabled, this field allows you to connect your floppy disk
drives to the onboard floppy disk drive connector instead of a
separate controller card. If you want to use a different controller card
to connect the floppy disk drives, set this field to Disabled.
3.6.6 Onboard Serial Port 1 (3F8H/IRQ4)
The settings are Auto 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, and
Disabled for the on-board serial connector.
3.6.7 Onboard Serial Port 2 (2F8H/IRQ3)
The settings are Auto 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, and
Disabled for the on-board serial connector.
3.6.8 UART 2 Mode Select
This item allows you to select UART mode. The choices: HPSIR,
ASKIR, Standard.
50
PCA-6277 User’ s Manual
Figure 3-8: Integrated peripherals (2)
3.6.9 Onboard Parallel Port (378H/IRQ7)
This field sets the address of the on-board parallel port connector. You
can select either 3BC/IRQ7, 378/IRQ7, 278/IRQ5 or Disabled. If you
install an I/O card with a parallel port, make sure there is no conflict in
the address assignments. The CPU card can support up to three
parallel ports, as long as there are no conflicts for each port.
3.6.10 Onboard Parallel Port Mode (ECP + EPP)
This field allows you to set the operation mode of the parallel port.
The setting “Normal” allows normal speed operation, but in one
direction only. “EPP” allows bidirectional parallel port operation at
maximum speed. “ECP” allows the parallel port to operate in bidirectional mode and at a speed faster than the maximum data transfer rate.
“ECP + EPP” allows normal speed operation in a two-way mode.
3.6.11 ECP Mode Use DMA
This selection is available only if you select “ECP” or “ECP + EPP” in
the Parallel Port Mode field. In ECP Mode Use DMA, you can select
DMA channel 1, DMA channel 3, or Disable. Leave this field on the
default setting.
3.6.12 EPP Mode Select
This field allows you to select EPP port type 1.7 or 1.9. The choices:
EPP1.7, 1.9.
Chapter 3 Award BIOS Setup
51
3.7 Power Management Setup
The power management setup controls the CPU card’s “green”
features to save power. The following screen shows the manufacturer’ s defaults:
Figure 3-9: Power managememnt setup screen
3.7.1 Power Supply Type
The Choice: AT, ATX
3.7.2 ACPI function
This item allows you to enable/disable the Advanced Configuration
and Power Management (ACPI). The choice: Enabled, Disabled.
52
PCA-6277 User’ s Manual
3.7.3 Power Management
This category allows you to select the type (or degree) of power
saving and is directly related to the following modes:
1. HDD Power Down
2. Doze Mode
3. Suspend Mode
There are four selections for Power Management, three of which have
fixed mode settings.
)tluafed(elbasiDsedomruofllaselbasiD.tnemeganamrewopoN
gnivaSrewoP.niM ,.rh1=edoMybdnatS.rh1=edoMezoD.tnemeganamrewopmuminiM
gnivaSrewoP.xaM .S'UPCLSROFELBALIAVAYLNOÑtnemeganamrewopmumixaM
denifeDresU ehtfohcae,delbasidtonnehW.yllaudividniedomhcaetesotuoyswollA
.nim1=nwoDrewoPDDHdna
.elbasiddna.nim51ot.nim1morf
.nim51=nwoDrewoPDDHdna,.rh1=edoMdnepsuS
3.7.4 PM Control by APM
When enabled, an Advanced Power Management device will be
activated to enhance the Max. Power Saving mode and stop the CPU
internal clock. If Advance Power Management (APM) is installed on
your system, selecting Yes gives better power savings. If the Max.
Power Saving is not enabled, this will be preset to No.
,.nim1=edoMdnepsuS,.nim1=edoMybdnatS,.nim1=edoMezoD
segnarhcihwnwoDrewoPDDHroftpecxe.rh1ot.nim1morferasegnar
Chapter 3 Award BIOS Setup
53
3.7.5 Video Off Option
When enabled, this feature allows the VGA adapter to operate in a
power saving mode.
nOsyawlAsedomgnivasrewopgnirudnoniamerlliwrotinoM
ffO>---NdnepsuS .edomdnepsuSehtsretnesmetsysehtnehwdeknalbrotinoM
ffO>---NybtS,psuS .sedomybdnatSrodnepsuSrehtiesretnemetsysehtnehwdeknalbrotinoM
ffO>ÑsedoMllA .edomgnivasrewopynasretnemetsysehtnehwdeknalbrotinoM
3.7.6 Video Off Method
This determines the manner in which the monitor is blanked.
knalB+CNYSH/V latnozirohdnalacitrevehtffonrutotmetsysehtesuaclliwnoitcelessihT
.reffuboedivehtotsknalbetirwdnastropnoitazinorhcnys
neercSknalB.reffuboedivehtotsknalbsetirwylnonoitposihT
SMPD tnemeganaMrewoPyalpsiDehtstroppusrotinomruoyfinoitposihttceleS
.seulavtnemeganamrewopoediv
3.7.7 MODEM Use IRQ
This determines the IRQ in which the MODEM can use.The choices: 3,
4, 5, 7, 9, 10, 11, NA.
3.7.8 Soft-Off by PWRBTN
If you choose “Instant-Off”, then pushing the ATX soft power switch
button once will switch the system to “system off” power mode. You
can choose “Delay 4 sec.” If you do so, then pushing the button for
more than 4 seconds will turn off the system, whereas pushing the
button momentarily (for less than 4 seconds) will switch the system to
“suspend” mode.
tcelesotsdradnatSscinortcelEoediVehtfodradnats)SMPD(gnilangiS
54
PCA-6277 User’ s Manual
3.7.9 State After Power Failure
This field lets you to determine the state that your computer returns
after a power failure. If sets to Off, the PC will not boot after a power
failure. If sets to On, the PC will restart after a power failure. If sets to
Auto, the PC will go back to the previous state before a power failure
occurred. For instance, if the PC is power-on when power system fails,
the PC will restart when power system is working again. If the PC is
power-ff when power system fails, the PC will not boot when power
system is working again. The Choice: Off, On, Auto.
3.7.10 Wake Up Events
Please see Section 3.8
Chapter 3 Award BIOS Setup
55
3.8 Wake Up Event
Figure 3-10: PC health status screen
3.8.1 VGA
When Enabled, you can set the VGA awakens the system.
3.8.2 LPT & COM
When On of LPT & COM, any activity from one of the listed system
peripheral devices or IRQs wakes up the system.
3.8.3 HDD & FDD
When On of HDD & FDD, any activity from one of the listed system
peripheral devices wakes up the system.
3.8.4 Power On by LAN
This shows you to wake up the system via LAN from the remote host.
The Choice: Enable, Disable.
56
PCA-6277 User’ s Manual
3.8.5 Power On by Modem
When enabled, an input signal on the serial Ring Indicator (RI) line (in
other words, an incoming call on the modem) awakens the system from
a soft off state. The Choice: Enable, Disable.
3.8.6 Power On by Alarm
When enabled, you can set the date and time at which the RTC (realtime clock) alarm awakens the system from Suspend mode. The
Choice: Enable, Disable.
Chapter 3 Award BIOS Setup
57
3.9 PnP/PCI Configurations
3.9.1 PnP OS Installed
This features allows you to install the PnP OS. The commands are
“yes” or “no.”
3.9.2 Reset Configuration Data
Note: This is left “Disabled.” Select “Enabled” to reset
Extended System Configuration Data (ECSD) if you
have installed a new add-on and your OS won’t boot
and you need to reconfigure.
Figure 3-11: PnP/PCI configurations screen
3.9.3 Resources controlled:
The commands here are “Auto” or “manual.” Choosing “manual”
requires you to choose resources from each following sub-menu.
“Auto” automatically configures all of the boot and Plug and Play
devices but you must be using Windows 95 or above.
58
PCA-6277 User’ s Manual
3.9.4 PCI/VGA Palette Snoop
This is left at “Disabled” and “Enable..”
3.9.5 Assign IRQ for VGA
3.9.6 Assign IRQ for US13
3.10 PC Health Status
Figure 3-12: PC health status screen
3.10.1 Current CPU1 Temperature
This shows you the current CPU1 temperature.
3.10.2 Current CPU 2 Temperature
This shows you the current CPU2 temperature.
Chapter 3 Award BIOS Setup
59
3.10.3 Current CPUFAN1 Speed
This shows you the current CPUFAN1 speed.
3.10.4 Current CPUFAN2 Speed
This shows you the current CPUFAN2 speed.
3.10.5 CPU_1 VCORE
This shows CPU1 core voltage.
3.10.6 CPU_2 VCORE
This shows CPU2 core voltage.
3.10.7 +3.3V/+5V/+12V
This shows you the voltage of +3.3V/ + 5V/ +12V
60
PCA-6277 User’ s Manual
3.11 Load Setup Defaults
“LOAD SETUP DEFAULTS” loads the values required by the system
for maximum performance.
3.12 Password Setting
To change the password:
1. Choose the “Set Password” option from the “Initial Setup Screen”
menu and press <Enter>.
The screen will display the following message:
Enter Password:
Press <Enter>.
2. If the CMOS is good or if this option has been used to change the
default password, the user is asked for the password stored in the
CMOS. The screen will display the following message:
Confirm Password:
Enter the current password and press <Enter>.
3. After pressing <Enter> (ROM password) or the current password
(user-defined), you can change the password stored in the CMOS.
The password must be no longer than eight (8) characters.
Remember, to enable the password setting feature, you must first
select either “Setup” or “System” from the “Advanced BIOS Features” menu.
Chapter 3 Award BIOS Setup
61
3.13 Save & Exit Setup
If you select this and press <Enter>, the values entered in the setup
utilities will be recorded in the CMOS memory of the chipset. The
microprocessor will check this every time you turn your system on
and compare this to what it finds as it checks the system. This record
is required for the system to operate.
3.14 Exit Without Saving
Selecting this option and pressing <Enter> lets you exit the setup
program without recording any new values or changing old ones.
CHAPTER
4
AGP SVGA Setup
The PCA-6277 features an onboard PCI
AGP/VGA interface. This chapter provides
instructions for installing and operating
the software drivers on the display driver
CD included in your package.
4.1 Before You Begin
To facilitate the installation of the enhanced display device drivers and
utility software, you should read the instructions in this chapter
carefully before you attempt installation. The enhanced display
drivers for the PCA-6277 board are located on the software installation
CD. You must install the drivers and utility software by using the
supplied SETUP program for DOS drivers.
Note: The files on the software installation CD are com-
pressed. Do not attempt to install the drivers by
copying the files manually. You must use the supplied
SETUP program to install the drivers.
Before you begin, it is important to note that most display drivers
need to have the relevant software application already installed in the
system prior to installing the enhanced display drivers. In addition,
many of the installation procedures assume that you are familiar with
both the relevant software applications and operating system commands. Review the relevant operating system commands and the
pertinent sections of your application software’s user’s manual before
performing the installation.
4.2 Features
• Built-in ATI RAGE 128 PRO™ 4XL multimedia accelerator
• Supports AGP 4X mode with sideband addressing and AGP texturing
• PC 98 compliant
• Superior 3D performance achieved through a floating print setup
engine rated at 1.5 million triangles/sec
• Integrated 250 MHz DAC allows 85 Hz refresh at 1600 x 1200
resolution
• Complete local language support
• Power management for full VESA DPMS and EPA Energy Star
compliance
64
PCA-6277 User's Manual
• User-friendly installation for Windows 95 and Windows NT
• AGP 1.0 interface
• Supports SDRAm and SGRAM at up to 125 MHz memory clock
providing bandwidth up to 2 GB/S across a 128-bit interface.
• Integrates superior video features. These include filtered sealing of
720 pixel DVD content, and MPEG-2 motion compensation for
software DVD
4.3 VGA Installation

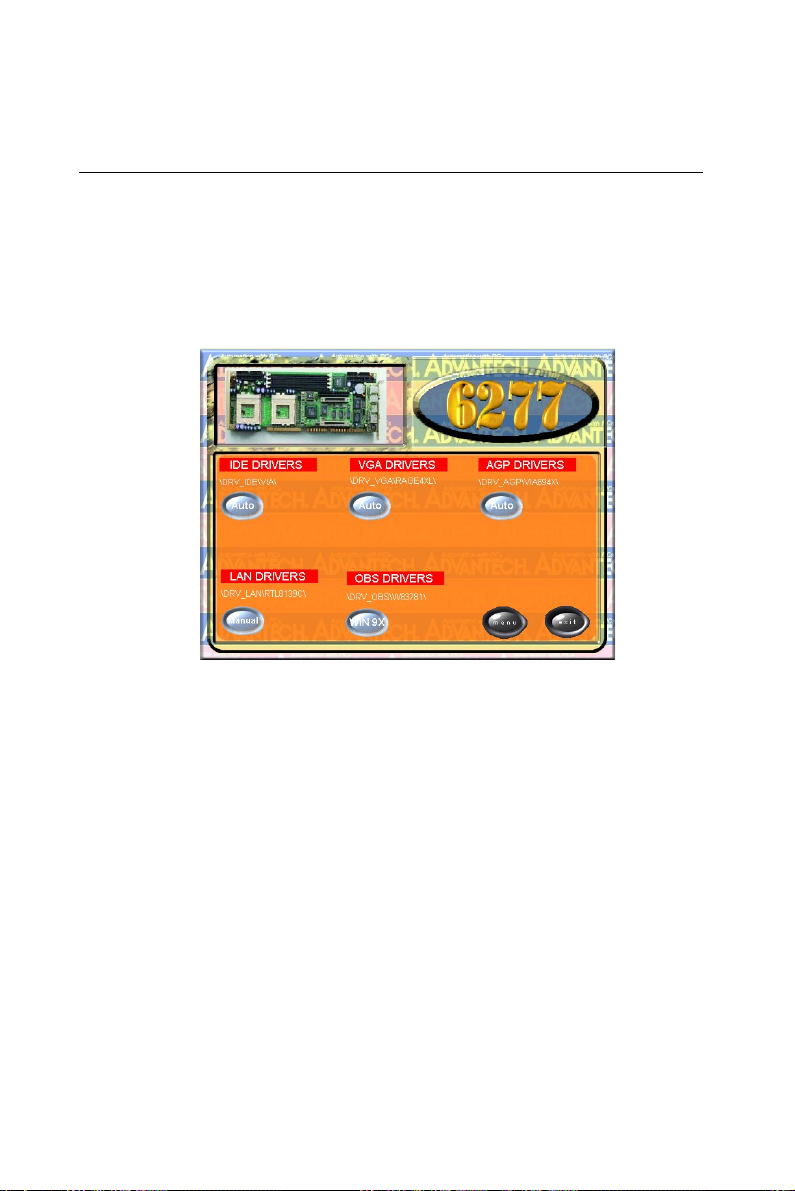

First, insert CD drive. Then follow the Icons for your PCA Series model
number.
Click on the right driver for the auto-installation.
If you are using Win98 or Win2000, please install AGP4x driver first.
Chapter 4 PCI SVGA Setup
65
4.4 AGP Installation
First, insert CD drive. Then follow the Icons for your PCA Series model
number.
Click on AGP Drivers "Auto" for Auto-installation.
66
PCA-6277 User's Manual

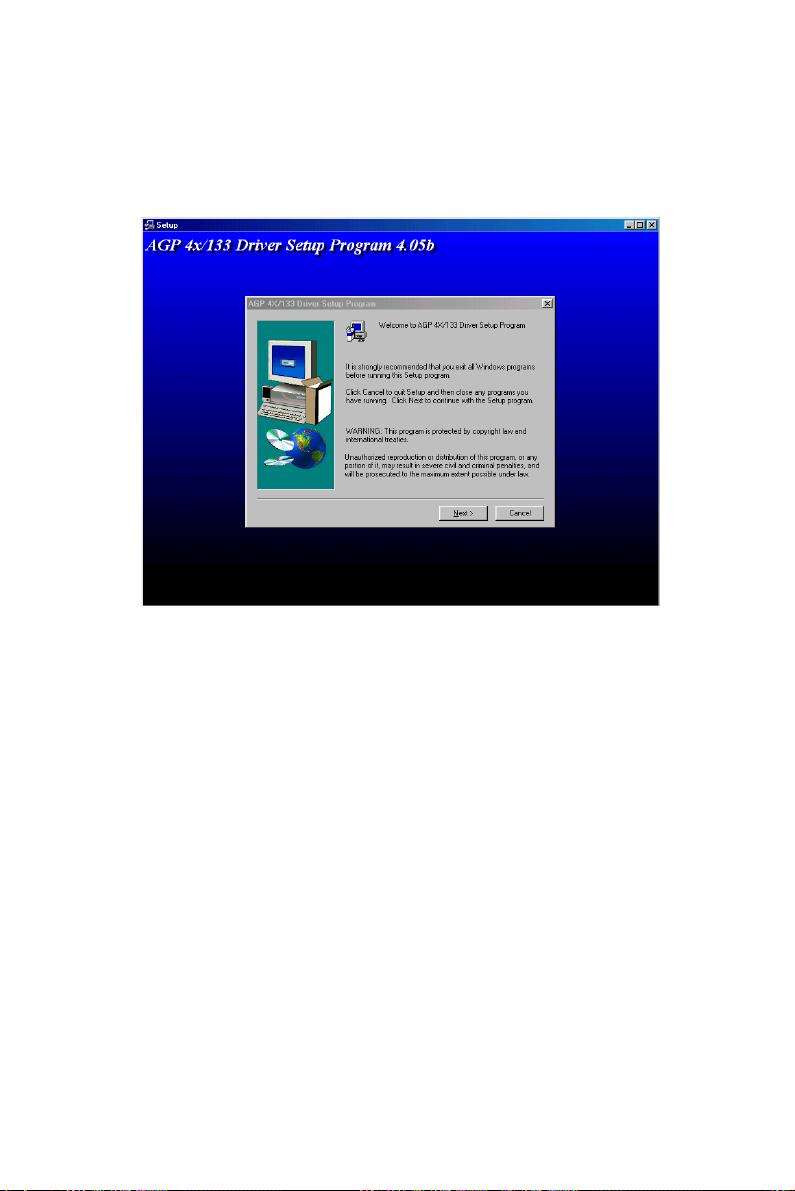

1. In the Setup, click on "next."
Chapter 4 PCI SVGA Setup
67
2.In the Installation Information, choose turbo mode or standard.
Then click on "Next."
3. The installaion is complete click on "Yes" to restart the system.
68
PCA-6277 User's Manual
CHAPTER
5
LAN Configuration
The PCA-6277 features an onboard LAN
interface. This chapter gives detailed
information on Ethernet configuration. It
shows you how to configure the card to
match your application requirements.
5.1 Introduction
The PCA-6277 features an optional 32-bit 10/100 Mbps Ethernet
network interface. This interface supports bus mastering architecture
and auto-negotiation features. Therefore standard twisted-pair cabling
with RJ-45 connectors for both 10 Mbps and 100 Mbps connections
can be used. Extensive driver support for commonly-used network
systems is also provided.
5.2 Features
• Realtek RTL8139C Ethernet LAN controller
(fully integrated 10Base-T/100Base-TX)
• Supports Wake-on-LAN remote control function
• Supports up to128 K bytes Boot ROM
• PCI Bus Master complies with PCI Rev. 2.2
• MAC & PHY (10/100 Mbps) interfaces
• Complies to IEEE 802.3X 10Base-T and IEEE 802.3u 100Base-T
interfaces
• 3.3 V power supply with 5 V tolerant I/Os
• Dual RJ-45 connector give auto-detection of 10 Mbps or 100 Mbps
network data transfer rates and connected cable types
• Supports CardBus. The CIS can be stored in 93C56 or expansion
ROM
• Enhancements on ACPI, PCI power management
• Compliant to PC99 standard
70
PCA-6277 User's Manual
5.3 Driver Installation
The PCA-6277's onboard Ethernet interface supports all major
network operating systems.
The BIOS automatically detects the LAN while booting, and assigns
an IRQ level and I/O address. No jumpers or switches are required for
user configuration.
Note: Operating system vendors may post driver updates
on their websites. Please visit the websites of OS
vendors to download updated drivers.
Chapter 5 LAN Configuration
71
5.4 Windows 9X Drivers Setup
Procedure
Note 1: If you are using Windows 98SE, your
system will find the LAN device "PCI
Ethernet Controller". You must first
remove this device from your system,
and then restart your computer. Then
you will be ready to install the correct driver by following the procedure
below.
Note 2: The CD-ROM drive is designated as "E"
throughout this section.

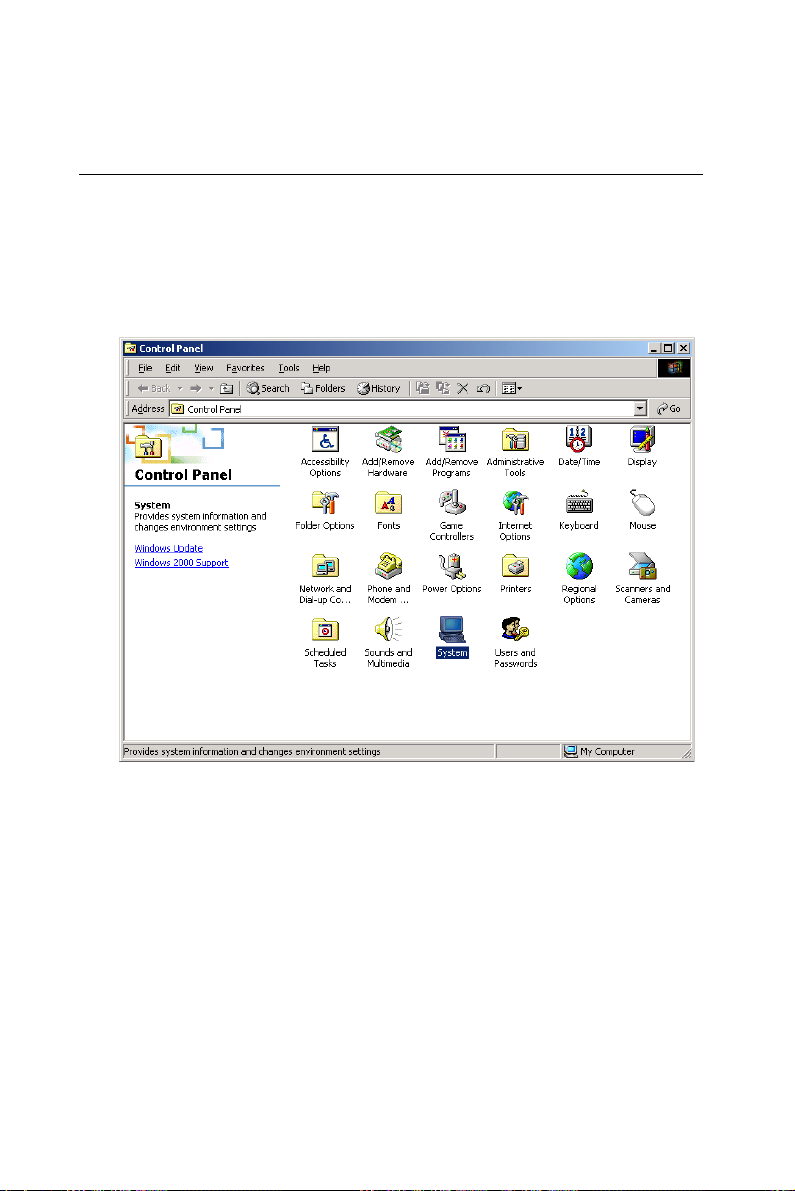

1. In the "Windows" screen, click on "Start" and select "Settings".
Then click on the "Control Panel" icon to select "System".
72
PCA-6277 User's Manual
2. In the "System Properties" window, select the "Device Manager"
tab. Select "View devices by type", and navigate to:
Computer\Other devices\PCI Ethernet Controller. Highlight "PCI
Ethernet Controller" and click on "Properties".
Chapter 5 LAN Configuration
73
3. In the "PCI Ethernet Controller Properties" window, select the
"Driver" tab. Then click on "Update Driver...".

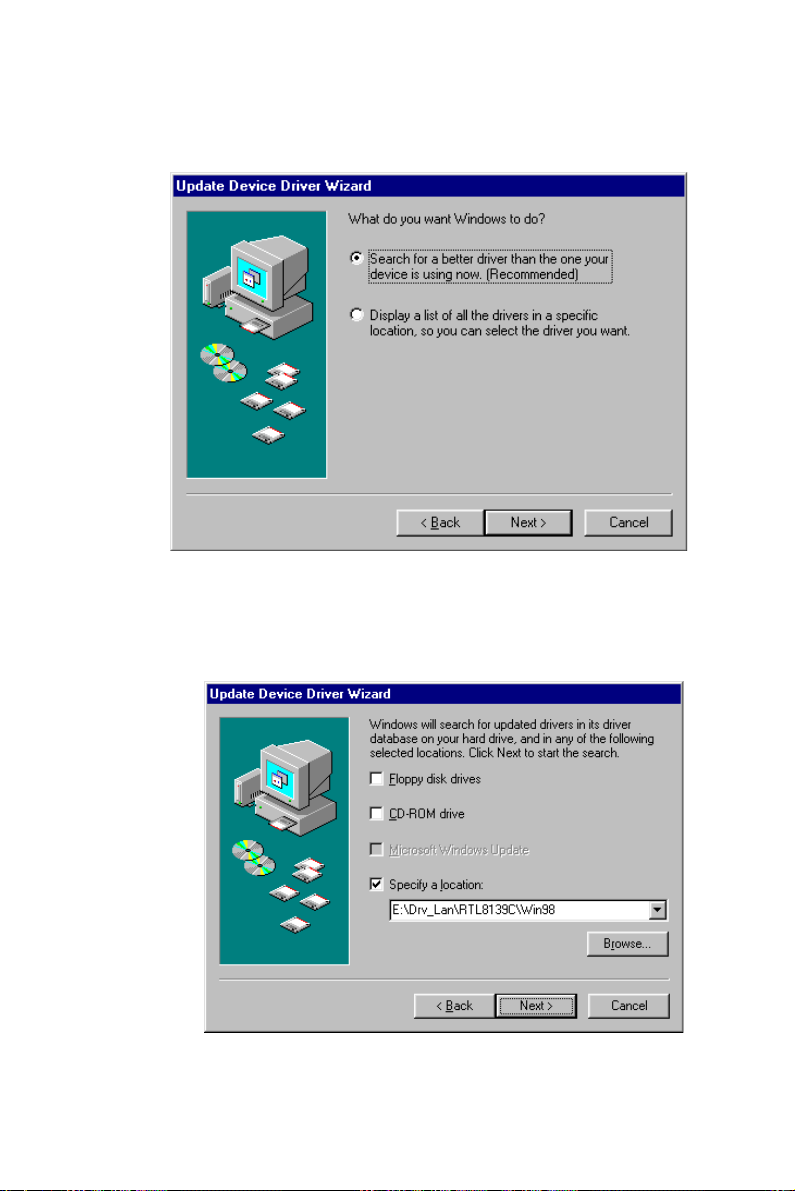

4. In the "Update Device Driver Wizard" window, click on "Next".
74
PCA-6277 User's Manual
5. Click "Next".
6. In the following "Update Device Driver Wizard" window, select
"Specify a location:". Type in: "E:\Drv_Lan\RTL8139C\WIN98".
Then click on "Next".
Chapter 5 LAN Configuration
75
7. In the following "Update Device Driver Wizard" window, click
on "Next".
8. In the "Copying Files..." window, the correct file path should be:
E:\PCA6277\LAN\WIN98. When you have the correct location,
click on "OK".
76
PCA-6277 User's Manual
9. When the "Insert Disk" window appears, insert the utility CD into
the CD-ROM drive. Then click on "OK".
Chapter 5 LAN Configuration
77
10. When the "Update Device Driver Wizard" window shows, click
on finish.
11. In the "System Settings change" window, select click on "Yes".
78
PCA-6277 User's Manual
5.5 Windows NT Drivers Setup Procedure
Note: The CD-ROM drive is designated as "E" throughout
this section.
1. In the "Windows NT" screen, click on "Start" and select "Settings". Then click on the "Control Panel" icon to select "Network".
2. In the "Network" window, select the "Adapters" tab. Then click
on "Add...".
Chapter 5 LAN Configuration
79
3. In the "Select Network Adapter" window, click on "Have Disk...".
4. When the "Insert Disk" window appears, insert the utility CD into
the CD-ROM drive. The correct file path is:
E:\Drv_Lan\RTL8139C\WINNT4. When you have the correct file
path, click on "OK".
80
PCA-6277 User's Manual
5. In the "Select OEM Option" window, click on "OK".
6. In the "Network Setup Wizard", click on "Next".
Chapter 5 LAN Configuration
81

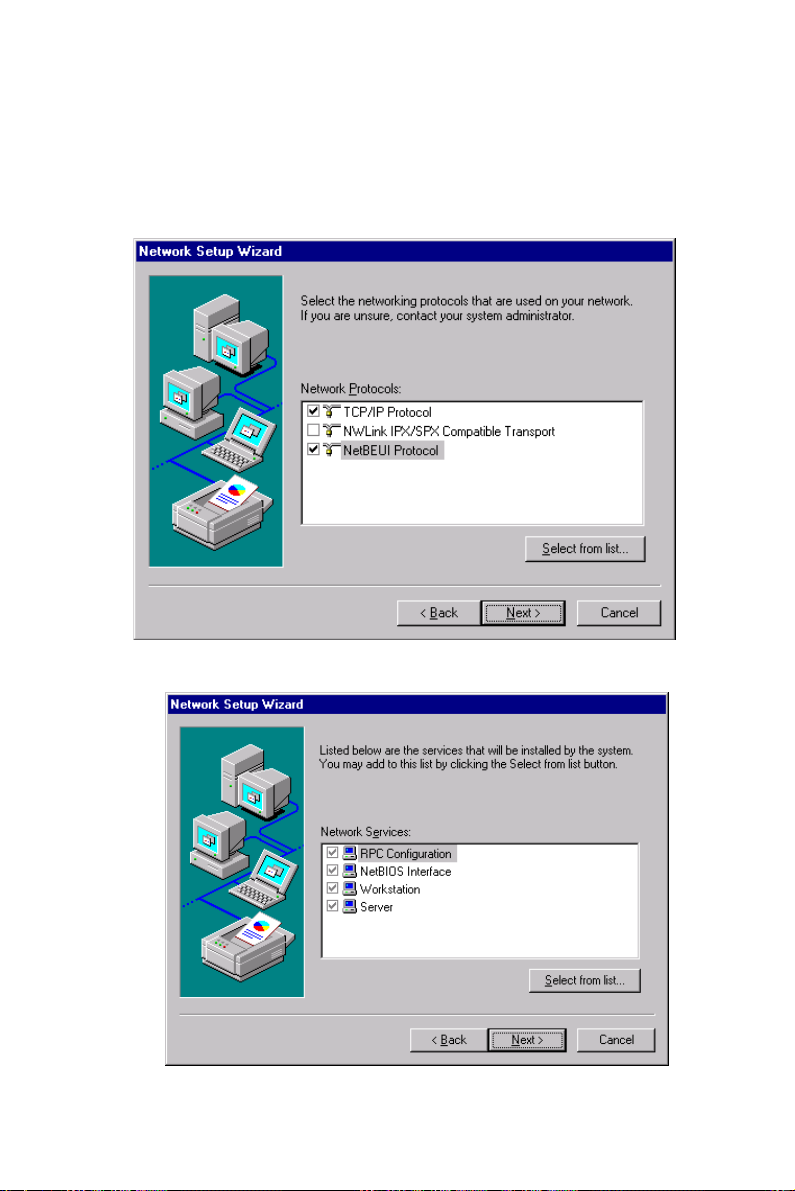

7. In the "Network Setup Wizard", choose "TCI/IP
Protocol" and "NETBEUI Protocol." Then, click on
"Next."
8. In the "Network Setup Wizard", click on "Next."
82
PCA-6277 User's Manual
9. In the "Networ Setup Wizard", click on "Next."
10. In the "Windows NT Setup" click on "Continue"
Chapter 5 LAN Configuration
83
12. In the "Duplex mod", click "OK"
13. In the "Network" window, select the "Adapters" tab. Under
"Network Adapters:", highlight "Realtek RTL8139CA/B/C(8130).
PCI Fast Ethernet Ad.". Then click on "Close".
84
PCA-6277 User's Manual
14. In the "Microsoft TCP/IP Properties" window, select the "IP
Address" tab. Then select "Specify an IP address". Type in the IP
Address and Subnet Mask details. Then click on "OK".
15. In the "Network Settings Change" window, click on "Yes".
Chapter 5 LAN Configuration
85
5.6 Windows 2000 Drivers Setup Procedure
Note: The CD-ROM drive is designed as "E" throughout
this section.
1. In the "Windows 2000" screen, click on " Start" and select "
settings". Then click on the " Control Panel" icon to select
"system".
86
PCA-6277 User's Manual
